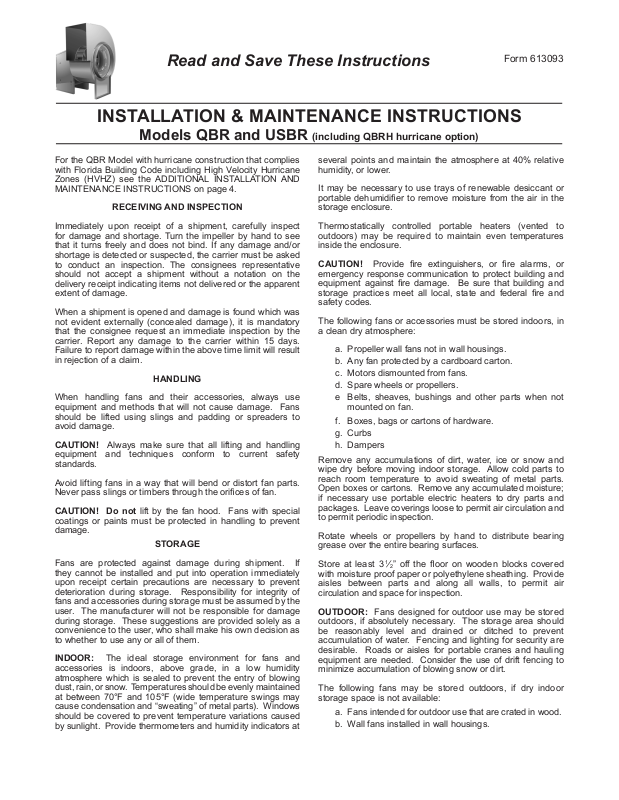

Acme Engineering QBR Installation Manual

Read and Save These Instructions

Form 613093

INSTALLATION & MAINTENANCE INSTRUCTIONS

Models QBR and USBR (including QBRH hurricane option)

For the QBR Model with hurricane construction that complies with Florida Building Code including High Velocity Hurricane Zones (HVHZ) see the ADDITIONAL INSTALLATION AND MAINTENANCE INSTRUCTIONS on page 4.

RECEIVING AND INSPECTION

Immediately upon receipt of a shipment, carefully inspect for damage and shortage. Turn the impeller by hand to see that it turns freely and does not bind. If any damage and/or shortage is detected or suspected, the carrier must be asked to conduct an inspection. The consignees representative should not accept a shipment without a notation on the delivery receipt indicating items not delivered or the apparent extent of damage.

When a shipment is opened and damage is found which was not evident externally (concealed damage), it is mandatory that the consignee request an immediate inspection by the carrier. Report any damage to the carrier within 15 days. Failure to report damage within the above time limit will result in rejection of a claim.

HANDLING

When handling fans and their accessories, always use equipment and methods that will not cause damage. Fans should be lifted using slings and padding or spreaders to avoid damage.

CAUTION! Always make sure that all lifting and handling equipment and techniques conform to current safety standards.

Avoid lifting fans in a way that will bend or distort fan parts.

Never pass slings or timbers through the orices of fan.

CAUTION! Do not lift by the fan hood. Fans with special coatings or paints must be protected in handling to prevent damage.

STORAGE

several points and maintain the atmosphere at 40% relative humidity, or lower.

It may be necessary to use trays of renewable desiccant or

portable dehumidier to remove moisture from the air in the

storage enclosure.

Thermostatically controlled portable heaters (vented to outdoors) may be required to maintain even temperatures inside the enclosure.

CAUTION! Provide re extinguishers, or re alarms, or

emergency response communication to protect building and

equipment against re damage. Be sure that building and storage practices meet all local, state and federal re and

safety codes.

The following fans or accessories must be stored indoors, in a clean dry atmosphere:

a. Propeller wall fans not in wall housings. b. Any fan protected by a cardboard carton. c. Motors dismounted from fans. d. Spare wheels or propellers. e Belts, sheaves, bushings and other parts when not

mounted on fan.

f. Boxes, bags or cartons of hardware. g. Curbs h. Dampers

Remove any accumulations of dirt, water, ice or snow and wipe dry before moving indoor storage. Allow cold parts to reach room temperature to avoid sweating of metal parts. Open boxes or cartons. Remove any accumulated moisture; if necessary use portable electric heaters to dry parts and packages. Leave coverings loose to permit air circulation and to permit periodic inspection.

Rotate wheels or propellers by hand to distribute bearing grease over the entire bearing surfaces.

Fans are protected against damage during shipment. If they cannot be installed and put into operation immediately upon receipt certain precautions are necessary to prevent deterioration during storage. Responsibility for integrity of fans and accessories during storage must be assumed by the user. The manufacturer will not be responsible for damage during storage. These suggestions are provided solely as a convenience to the user, who shall make his own decision as to whether to use any or all of them.

INDOOR: The ideal storage environment for fans and accessories is indoors, above grade, in a low humidity atmosphere which is sealed to prevent the entry of blowing dust, rain, or snow. Temperatures should be evenly maintained at between 70°F and 105°F (wide temperature swings may cause condensation and “sweating” of metal parts). Windows should be covered to prevent temperature variations caused by sunlight. Provide thermometers and humidity indicators at

Store at least 3 1⁄2” off the oor on wooden blocks covered with moisture proof paper or polyethylene sheathing. Provide aisles between parts and along all walls, to permit air circulation and space for inspection.

OUTDOOR: Fans designed for outdoor use may be stored outdoors, if absolutely necessary. The storage area should be reasonably level and drained or ditched to prevent accumulation of water. Fencing and lighting for security are desirable. Roads or aisles for portable cranes and hauling equipment are needed. Consider the use of drift fencing to minimize accumulation of blowing snow or dirt.

The following fans may be stored outdoors, if dry indoor storage space is not available:

a. Fans intended for outdoor use that are crated in wood. b. Wall fans installed in wall housings.

All fans must be supported on wooden blocks or timbers above water or normal snow levels. Provide enough blocking to prevent settling into soft ground. Fans should be set in place using the directional arrow markings on the crate as a guide.

Locate pieces far enough apart to permit air circulation, sunlight, and space for periodic inspection. Place all parts on their supports so that rain water will run off, or to minimize water accumulation. Do not cover parts with plastic lm or tarps-these cause condensation of moisture from the air passing through heating and cooling cycles.

Fan wheels and propellers should be blocked to prevent spinning caused by strong winds.

INSPECTION AND MAINTENANCE

DURING STORAGE

Inspect fans and accessories at least once per month, while in storage. Log results of inspection and maintenance performed. A typical log entry should include the following:

a. Date b. Inspectors Name c. Name of Fan d. Location e. Condition of Paint or Coating f. Is moisture present? g. Is dirt accumulated? h. Corrective steps taken?

If moisture or dirt accumulations are found on parts, the source should be located and eliminated. Fans should be

rotated at each inspection by hand ten to fteen revolutions to

redistribute the motor and bearing lubricant.

If paint deterioration begins, consideration should be given to touch-up or repainting. Fans with special coatings may require special techniques for touch-up or repair.

Machined parts coated with rust preventive should be restored to good condition promptly if signs of rust occur. The most critical items are pulleys, shafts and bearing locking collars.

At the rst sign of rusting on any of the above parts, remove

the original rust preventive coating with petroleum solvent and clean lint-free cloths. Polish any remaining rust from surfaces

with crocus cloth or ne emery paper and oil. Do not destroy

the continuity of the surfaces. Wipe clean with lint-free cloths and recoat surfaces evenly and thoroughly with Tectly 506 (Ashland Oil Company) or equal. For hard to reach internal surfaces or for occasional use, consider using Tectly 511M Rust Preventive or WD40 or equal.

REMOVING FROM STORAGE

As fans are removed from storage to be installed in their nal

location, they should be protected and maintained in similar fashion, until the fan equipment goes into operation.

INSTALLATION

1. CAUTION! This unit has rotating parts and safety precautions should be exercised during installation, operation and maintenance.

2. WARNING! Do not use in hazardous environments where fans electrical system could provide ignition to

combustible or ammable materials, unless the unit is specically built for hazardous environments.

3. WARNING! If gases, other than clean air, are to be exhausted using the fan, then the user bears the responsibility of determining that the fan is appropriate and safe for the application.

4. The fan should be mounted on a solid foundation equipped with anchoring devices (such as anchor bolts). Level the fan on the foundation, shimming where necessary. Anchor the fan securely to the foundation. If vibration isolators are used, these should be installed between the fan and the foundation. When mounted on suspended platforms adequate cross bracing will be required.

5. Check pulley alignment and belt tension. Belt should

deect 1/2” to 3/4” (13mm to 19mm) when depressed by

hand midpoint between pulleys.

6. CAUTION! Before proceeding, make sure electrical service to fan is locked in “OFF” position.

7. All wiring should be in accordance with local ordinances and the National Electric Code.

8. WARNING! Check voltage at the fan to see if it corresponds with the motor nameplate. High or low voltage can seriously damage the motor. Extra care should be taken when wiring two speed motors since improper connections will damage motor and void motor warranty.

9. Apply power momentarily and compare the rotation of the impeller with directional arrow on fan. In the case of three phase motors, the direction can be reversed by interchanging any two of the three motor leads. In the case of single phase motors, the reversing instructions appear on the wiring diagram in the motor wiring compartment.

10. WARNING! Operation in the wrong direction will deliver air but will overload the motor and could seriously damage the motor.

11. OUTDOORS When installed outdoors, units should be provided with Weather Covers available as an optional accessory from the Company. Outlet dampers attached to the fan discharge should be normally closed when the fan is not running.

12. CAUTION! Inlet guards (available from the company as optional equipment) must be installed whenever the fan is installed without ducts attached to the fan inlet.

13. CAUTION! Guards must be installed when fan is within reach of personnel or within eight (8) feet (2.5m) of working level or when deemed advisable for safety.

14. IMPELLER - INLET VENTURI ADJUSTMENT

Adjustment can be achieved through the use of the slotted

holes provided in the fan construction.

For vertical movement, adjust the bearing base support

up or down on the side plates of the motor and drive compartment. After any adjustment, the bearing base should be checked to assure its being level.

For horizontal movement the lower half of the duplex split

pillow bearing housing is slotted for sideways adjustment. By loosening either set of these bolts, the impeller can be moved to provide running clearance between it and the inlet venturi. Be sure to re-tighten all bolts after proper clearances are obtained.

MAINTENANCE

1. Under normal usage, no spare parts are recommended for one year of operation. Recommended spare parts are shown on page 5.

2. CAUTION! Before proceeding, make sure the electrical service to the fan is locked in “OFF” position.

WINDMILLING: Even when the power supply is locked

out, fans may cause injury or damage if the impeller is subject “windmilling” which is the turning of the impeller and drive components due to a draft in the system. To guard against this hazard, the impeller should be secured to physically restrict rotational movement.

3. REGULAR MAINTENANCE Determined by the condition of the air passing through the fans, regularly scheduled inspection of all fan parts establishes a good maintenance routine. When the air is clean, maintenance can be as infrequent as once a year. When air is contaminated, maintenance may be required as often as once a month. Regular maintenance should include inspection and cleaning of all fan parts.

4. Check belt tension after rst 48 hours of operation and

thereafter annually. Belt should depress its width when

pressed rmly inward at midway point between the pulleys.

Too much tension will damage bearings. Belt should be tight enough to prevent slippage. When replacing worn belt, replace motor pulley if “shoulder” is worn in groove. For 2 belt drives, be sure to replace both belts with a matched set. Do not adjust belts too tightly as this will cause undue wear on the bearings of both fan and motor. Motor pulleys should be inspected regularly and replaced if they show evidence of excessive wear or “grooving”.

WARNING! Do not operate at speeds higher than that

cataloged for this equipment. Do not replace motor pulley with a larger diameter pulley. Do not replace the fan pulley with one smaller in diameter. The pulley ratios are set so that the motor will not be overloaded.

5. Impeller shaft bearings on units with duplex split pillow block housing are prelubricated and do not require relubrication. Units with pillow block bearings have

grease ttings and, under normal operation will need no

relubrication for 3 to 5 years. If relubrication is required, use a grease conforming to NLGI No. 2. CAUTION! Lubricating bearings with a high pressure gun can blow

bearing seals and overll the bearing with grease. This

condition can result in excessive churning and over heating. For normal operating conditions it is standard

practice to ll only 30% of the bearing void with grease.

Do not over lubricate.

NOTE: If locking collar type bearing is used, collar must

rst be positioned against inner race on bearing nearest

impeller and turned in direction of impeller rotation with drift pin and hammer until it locks. Locking collars must be on inboard (facing) sides of the bearings. Secure bearing to shaft with set screw. Lock and secure other bearing to shaft in same manner.

NOTE: If pillow block type bearings are used, slide

bearings onto the shaft to desired location and bolt bearing block securely to support base. Slide shaft back and forth in secured bearing (do not drive with hammer) and rotate to make certain it turns freely. Check correct position of

impeller with inlet orice. Then secure bearings to shaft

by tightening set screws.

6. Motor bearings are prelubricated. Consult information printed on the motor for lubrication instructions.

SET SCREW TIGHTENING SCHEDULE

1. Before initial operation of the fan, tighten set screws according to the procedure outlined below.

2. After 500 operating hours or three months, whichever

comes rst, tighten set screws to the full recommended

torque.

3. At least once a year, tighten set screws to the full recommended torque.

PROCEDURE FOR TIGHTENING SET SCREWS IN

BEARINGS AND HUBS

One Set Screw Application

Using a torque wrench, tighten the set screw to the torque recommended in Table 1.

Two Set Screw Application

1. Using a torque wrench, tighten one set screw to half of the torque recommended in Table 1.

2. Tighten the second set screw to the full recommended torque.

3. Tighten the rst set screw to the full recommended torque.

Table 1. Recommended Tightening Torque

for Set Screws

Set Screw Diameter Torque (in-lbs)

#10 35

1/4 80

5/16 126

3/8 240

7/16 384

1/2 744

9/16 1080

5/8 1500 3/4 2580 7/8 3600

1 5400

VARIABLE FREQUENCY DRIVES AND MOTORS

There are occasions when a Variable Frequency Drive (VFD) will cause poor motor performance and possible damage. To avoid these problems, the Company recommends the following:

1. Select compatible motor and VFD inverter; if possible, the motor and the inverter should be from the same manufacturer or at least the inverter selected should be recommended by the motor manufacturer.

2. A motor shaft grounding system should be used to prevent motor bearing damage from eddy currents.

NOTE: The Company will not honor motor warranty

claims if the customer fails to follow these recommendations.

ADDITIONAL INSTALLATION AND MAINTENANCE INSTRUCTIONS

for the QBR Model with hurricane construction that complies with Florida Building Code

including High Velocity Hurricane Zones (HVHZ)

This product has been issued by Miami-Dade County, Florida an NOA No. 11-1117.04 with expiration date of February 21,

2018. The full document can be found on Miami-Dade County, Florida website www.miamidade.gov/building. This product is marked on its label by a statement “Miami-Dade County Product Control Approved”.

This product shall be available for inspection at the job site at

the request of the Building Ofcial.

#14 x 2

Wood Screws

" x 2

" Lag Bolts

through plywood and into 4 x framing with a

5/8" plywood

roof decking

Elevation View

Wood Deck Installation

4 x Southern Yellow Pine framing minimum

#14 Self-drilling Screws through roof deck, full penetration of threads through truss or steel support structure

Elevation View

Metal Building Installation

minimum 1 embedment.

This product may be installed on a wooden, metal or concrete deck following the requirements shown in Figure 1. It is the installers responsibility to follow the installation instructions including a check that all fasteners in the outer shell of the product have been checked and tightened.

Hilti Kwik Bolt 3 expansion anchors

" x 4" )

(

into concrete with a minimum

" embedment

Minimum 20 gage

Roof Deck

Steel Roof Truss

1 8

" steel

Minimum 12 gage

Support Structure by others Minimum

Minimum Concrete

Strength 2000PSI

Elevation View

oncrete Deck Installation

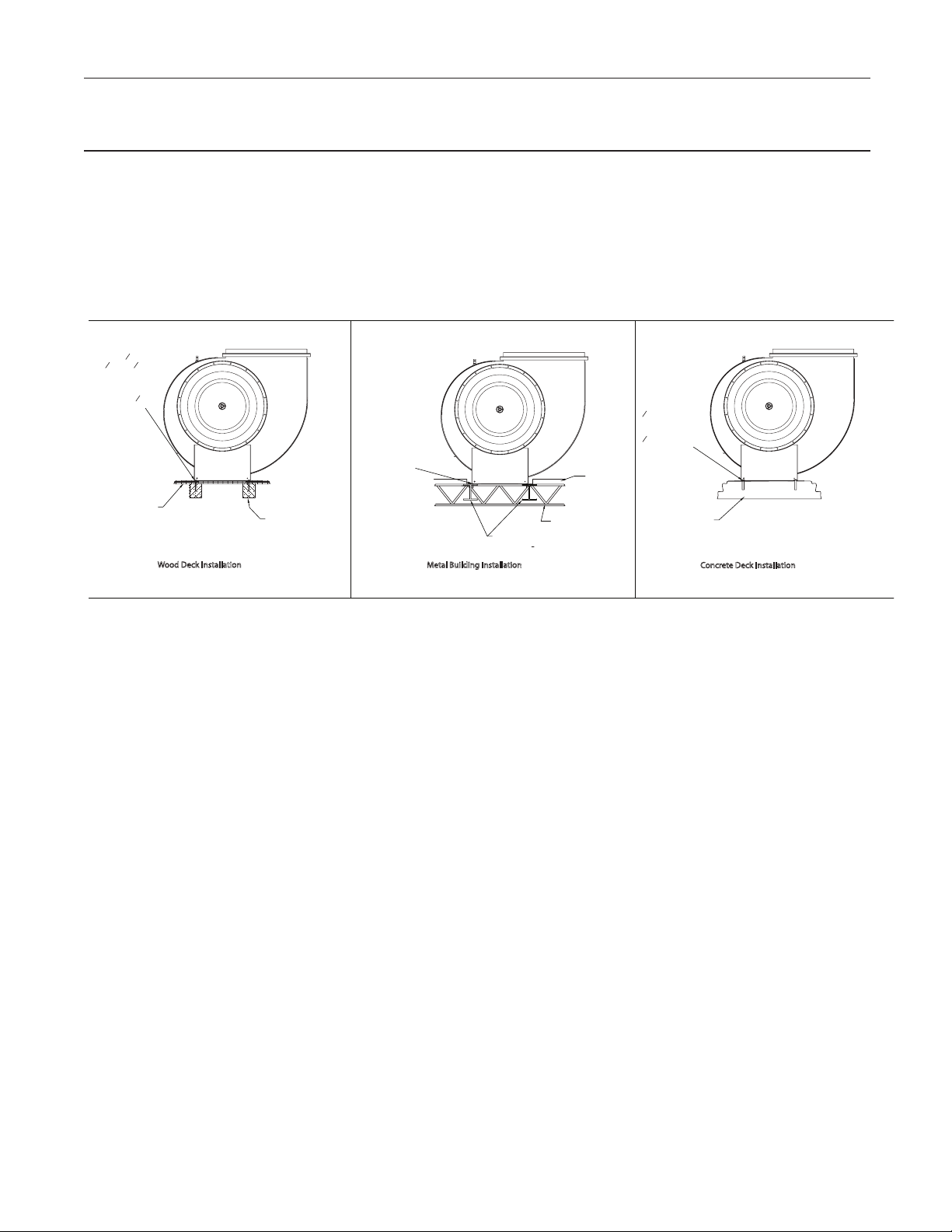

Figure 1 - Installation of the QBR model with hurricane construction that complies with Florida Building Code

including High Velocity Hurricane Zones (HVHZ) on a wooden, metal or concrete deck

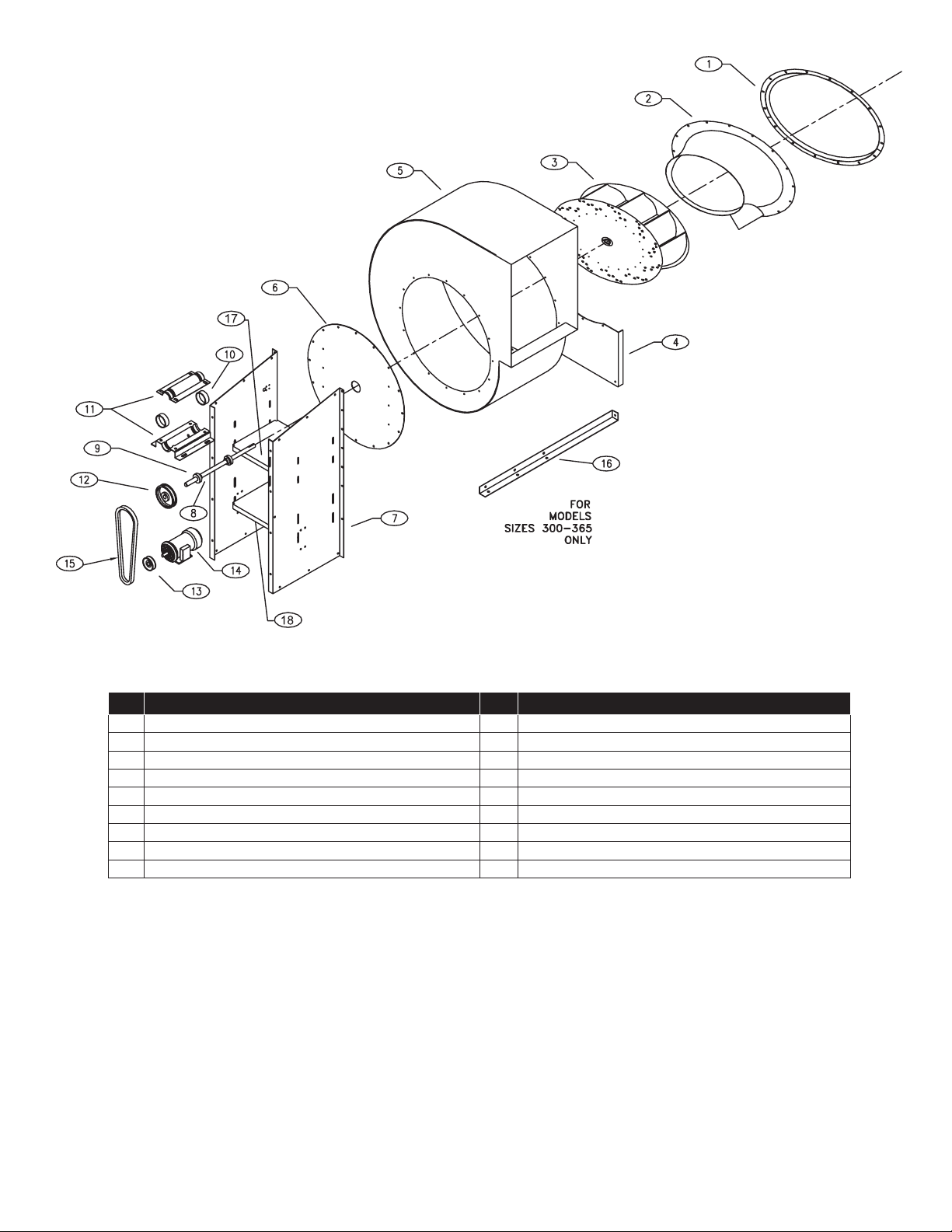

No. Description No. Description

1 Inlet Collar 10 Neoprene Rings 2 Inlet Cone 11 Duplex Bearing Housing-Upper and Lower Half 3 Impeller* 12 Fan Sheave* 4 Inlet Side Support 13 Motor Sheave* 5 Housing 14 Motor* 6 Mounting Plate 15 Belt* 7 Compartment Side Right/Left 16 Base Support Angle 8 Shaft* 17 Bearing Base* 9 Bearings* 18 Motor Base*

*Recommended Spare Parts

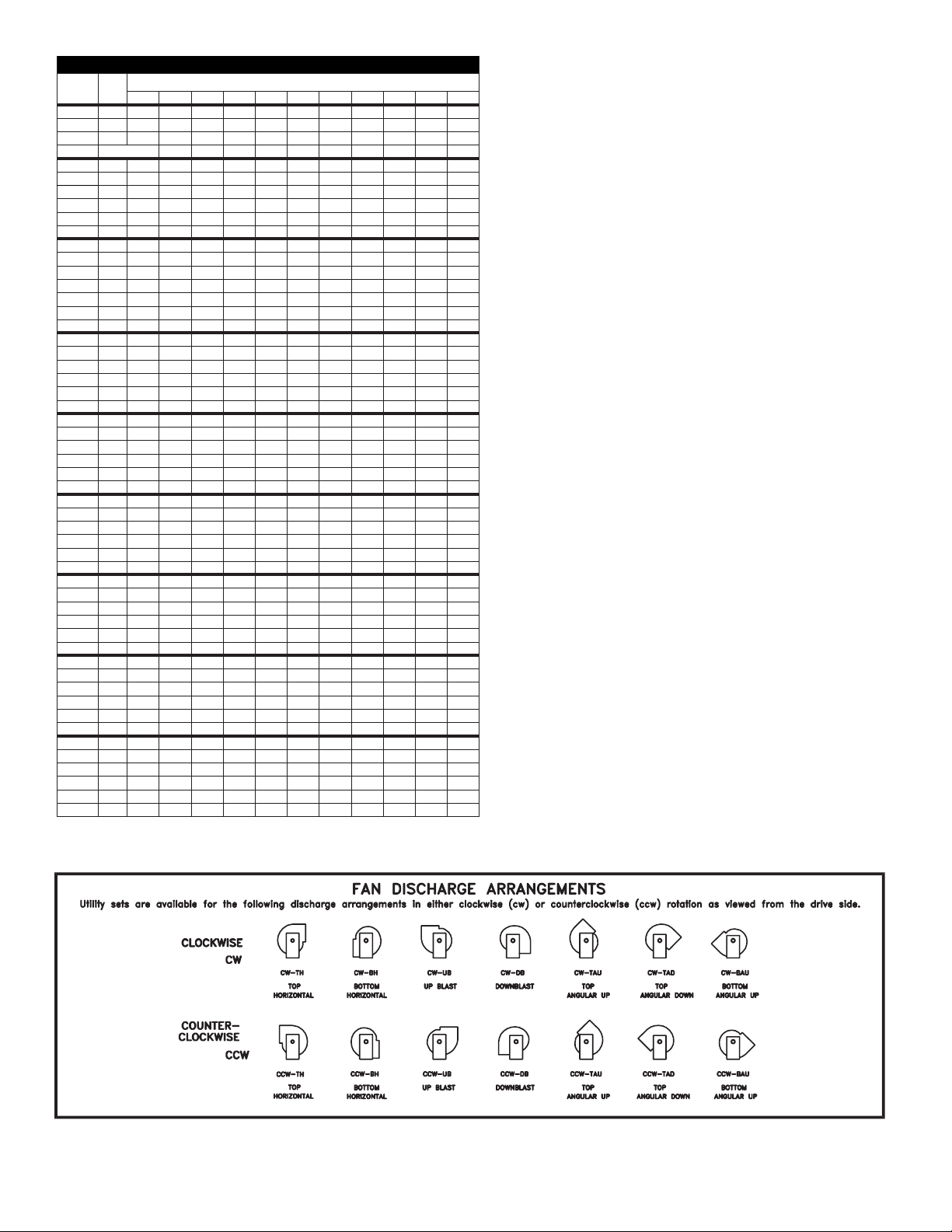

RPM SELECTION TABLE

MODEL

SIZE

100E11⁄42085 2013 1941 1869 1797 1725 1653 1581 1509 1438 1365 100E21⁄42465 2382 2300 2218 2136 2054 1971 1889 1807 1725 1645 100F1⁄32850 2775 2700 2625 2550 2475 2400 2325 2250 2175 2100 100G1⁄23165 3091 3019 2947 2875 2803 2731 2659 2588 2516 2445

137F1⁄31440 1390 1342 1294 1246 1198 1150 1102 1054 1006 960 137G1⁄21630 1581 1533 1485 1438 1390 1342 1294 1246 1198 1150 137H3⁄41865 1818 1771 1724 1677 1630 1583 1536 1489 1442 1395 137J 1 2095 2051 2004 1958 1911 1864 1818 1771 1725 1678 1630 137K 1 1⁄22370 2318 2264 2210 2156 2102 2048 1995 1941 1887 1835 137L 2 2610 2561 2513 2464 2416 2367 2319 2270 2222 2173 2125

161F1⁄31080 1042 1006 970 934 898 862 826 791 755 720 161G1⁄21215 1182 1150 111 8 1086 1054 1022 990 958 926 895 161H3⁄41430 1394 1358 1321 1285 1248 1211 1174 1138 1101 1065 161J 1 1550 1504 1460 1415 1371 1327 1283 1238 1194 1150 1105 161K 1 1⁄21770 1725 1680 1634 1589 1543 1498 1453 1407 1362 1315 161L 2 1990 1946 1902 1858 1813 1769 1725 1681 1636 1592 1550 161M 3 2260 2223 2185 2147 2108 2070 2031 1993 1955 1917 1878

200G1⁄2880 848 820 792 763 735 707 679 650 622 595 200H3⁄41010 976 944 911 879 846 814 781 749 716 685 200J 1 1105 1064 1028 991 954 918 881 844 807 771 735 200K 1 1⁄21270 1237 1204 1172 1139 1107 1074 1041 1009 976 945 200L 2 1385 1355 1325 1294 1263 1232 1201 1171 1140 1109 1080 200M 3 1585 1549 1514 1479 1443 1408 1373 1338 1302 1267 1230

245H3⁄4705 681 658 635 613 590 567 545 522 499 475 245J 1 780 762 742 722 702 682 662 642 622 602 580 245K 1 1⁄2885 862 840 817 794 772 749 726 704 681 660 245L 2 960 937 916 894 873 852 831 809 788 767 745 245M 3 1120 1099 1080 1061 1043 1024 1005 986 967 948 929 245N 5 1330 1301 1271 1241 1211 1180 1150 1120 1089 1059 1030

270H3⁄4600 581 564 547 529 512 495 478 461 444 425 270J 1 660 639 618 596 575 554 532 511 490 469 445 270K 1 1⁄2745 724 703 681 660 639 618 596 575 554 530 270L 2 840 813 789 764 739 715 690 665 641 616 590 270M 3 960 937 916 894 873 851 831 809 788 767 745 270N 5 1120 1100 1078 1057 1035 1013 992 970 949 927 905

300J 1 555 541 527 513 499 485 470 456 442 428 415 300K 1 1⁄2640 627 613 599 584 570 556 542 527 513 500 300L 2 700 684 668 653 637 622 606 591 575 559 545 300M 3 790 767 745 724 703 681 660 639 618 596 575 300N 5 960 939 920 901 882 863 843 824 805 786 765 300P 7 1⁄21101 1081 1060 1039 1018 998 977 956 935 914 895

330J 1 460 448 435 421 408 395 382 368 356 342 330 330K 1 1⁄2545 528 513 497 482 466 451 435 420 404 390 330L 2 595 579 566 553 540 527 514 500 487 474 460 330M 3 665 649 632 615 598 581 564 547 529 512 495 330N 5 810 790 769 748 727 707 686 665 644 623 605 330P 7 1⁄2925 910 894 878 863 847 831 815 800 784 770

365K 1 1⁄2460 448 435 421 408 395 382 369 356 342 320 365L 2 515 500 487 474 461 448 435 421 408 395 380 365M 3 595 579 566 553 540 527 514 500 487 474 460 365N 5 700 684 668 653 637 622 606 591 575 559 545 365P 7 1⁄2795 777 761 746 730 715 699 684 668 653 635 365R 10 870 854 837 820 803 786 769 751 734 717 700

FAN RPM VS NUMBER OF TURNS FROM FULL CLOSED

0 ½ 1 1 ½ 2 2 ½ 3 3 ½ 4 4 ½ 5

CHANGING DISCHARGE

1. Read instructions thoroughly and plan all moves before starting.

2. Remove the inlet collar, inlet cone and inlet side support by removing the bolts around the inlet collar.

3. Remove access door by removing (8) 1/4” x 3/4” bolts.

4. Turn the fan on its side such that the inlet is down.

5. Remove the nuts that attach the mounting plate to the housing.

6. For sizes 270-365 ONLY:

(a) For Bottom Horizontal, Bottom Angular Upblast, and

Upblast rotations the mounting plate should be bolted in the top set of holes in the drive supports and a long inlet side support is needed.

(b) For Top Horizontal, Top Angular Down, Downblast and

Top Angular Upblast rotations the mounting plate should be bolted in the bottom set of holes in the drive supports and a short inlet side support is needed.

7. Rotate the mounting plate to obtain the desired outlet position.

8. Attach the mounting plate to the housing with the nuts that were removed from these studs.

9. Return fan to the upright position.

10. Re-assemble inlet cone, inlet collar and inlet side support to the housing using the same nuts that were removed from these studs.

11. Turn the wheel by hand to check for any binding.

12. If any adjustment is needed, refer to # 9 under Installation.

13. Replace the access door using the same bolts that were removed from these holes.

NOTE: Outlet ange interferes with fan base on downblast

discharge arrangements.

This page intentionally left blank

ACCEPTANCE All orders and sales are subject to written approval and acceptance by an executive offi cer of the Company at Muskogee, Oklahoma, and are not binding on the Company until so approved.

DELIVERY All shipping and delivery dates are esti mated only. No delays in delivery will subject the Company to any costs, damages or fees for late deliv ery. Delivery of the products herein specified shall be made F.O.B. point of shipment, unless otherwise stated. The Company shall not be liable for delay due to causes beyond its reasonable control, such as Acts of God, acts of the purchaser, acts of civil or military authorities, priorities, fires, strikes, floods, epidemics, war, riots, delays in transportation, car shortages, and inability, due to reasons beyond its reasonable control, to obtain necessary labor, material, or manufacturing facilities. In the event of such a delay, the date of deliv ery shall be extended for a period equal to the time lost by reason of the delay.

TERMS OF PAYMENT If, in the judgment of the Com pany, the financial condition of the purchaser at any time does not justify continuation of manufacture or shipment on the terms of payment specified, the Com pany may require full or partial payment in advance.

Pro rata payments shall become due as shipments are made. Each shipment or delivery shall constitute a separate sale, and the default of any shipment or deliv ery shall constitute a separate sale, and the default of any shipment or delivery shall not vitiate the contract as to other shipments or deliveries.

SALES AND SIMILAR TAXES The Company’s prices do not include sales, use, excise, or similar taxes. Consequently, in addition to the price specified herein, the amount of any present or future sales, use, excise, or other similar tax applicable to the sale of the product herein shall be paid by the Purchaser, or in lieu thereof

TERMS AND CONDITIONS OF SALE

the Purchaser shall provide the Company with a tax exemption certificate acceptable to the taxing authori

ties.

CANCELLATION Any contract resulting from the Pur chaser’s order may be canceled by the Purchaser only

by negotiations and upon payments of reasonable can

cellation charges which will take into account expenses

already incurred and commitments made by the Com

pany.

DESIGN CHANGES The Company reserves the right to make changes in design, improvements and addi tions in and to its products any time without imposing any liability or obligations to itself to apply or install the same in any product manufactured by it.

TITLE The title and right of possession of the products

sold herein shall remain with the Company and such products shall remain personal property until all payments herein (including deferred payments whether evidenced by notes or otherwise) shall have been

made in full in cash and the Purchaser agrees to do all

acts necessary to perfect and maintain such right and title in the Company.

PRICE ADJUSTMENTS Prices are subject to change upon notice by the Company. Prices on existing or ders are subject to surcharges in the event of cost in creases of metals and transportation. All complete

component accessory material manufactured by others and furnished with the Company’s products such as motors, drives, vibration equipment, controls or other completely assembled component structures, are sub ject to adjustment to the price at time of shipment re gardless of the date of original order entry.

SAFETY ACCESSORIES The Company manufactures products designed to serve multiple applications and offers a wide range of safety equipment, including guards and other devices, as may be required to meet

customer specifications. Without exception, the Com

pany recommends that all orders include applicable

safety devices. Products ordered without applicable safety devices is clearly the responsibility of the Pur

chaser. Further, the Purchaser warrants that it has de

termined and acquired any and all safety devices re

quired for products sold by the Company. Weather

covers and guards for motor and V-belt drives, cou

plings, shafts and bearings, along with inlet and outlet

screens, are optional accessories noted in the price list.

GOVERNING LAW The rights, obligations and reme

dies of Purchaser and the Company, the interpretation of these terms and conditions and the sale of products by the Company shall be governed by Oklahoma law, without regard to any principles of conflict of laws.

ARBITRATION Any dispute arising under or in con nection with these terms and conditions or the sale of products shall be settled by binding arbitration admin istered by the American Arbitration Association under its Commercial Arbitration Rules, and judgment on the award rendered by the arbitrator may be entered in any court having jurisdiction thereof. The dispute shall

be resolved by one neutral arbitrator who shall have no

affiliation with either Purchaser or the Company and shall be selected by the American Arbitration Associa tion office in Dallas, Texas. The arbitration proceed ings shall be held in Muskogee, Oklahoma.

APPLICABLE DOCUMENTS The agreement be

tween the Company and the Purchaser relating to the

products includes these terms and conditions of sale, any applicable installation and maintenance instruc tions provided by the Company and any terms appear ing on the Company’s quotation, sales order acknowl edgment and invoice.

WARNING The Company products are designed and manufactured to provide reliable performance but they are not guaranteed to be 100% free of defects. Even reliable prod ucts will experience occasional failures and this possibility should be recognized by the Purchaser and all End Users. If these products are used in a life support ventilation sys tem where failure could result in loss or injury, the Purchaser and all End Users should provide adequate back-up ventilation, supplementary natural ventilation or failure alarm system, or acknowledge willingness to accept the risk of such loss or injury.

WARNING DO NOT use in HAZARDOUS ENVIRONMENTS where fan’s electrical system could provide ignition to combustible or flammable materials unless unit is specifically built for hazardous environments. Comply with all local and national safety codes including the National Electrical Code (NEC) and National Fire Protection Act (NFPA).

CAUTION Guards must be installed when fan is within reach of personnel or within eight (8) feet (2.5 m) of working level or when deemed advisable for safety.

DISCLAIMER The Company has made a diligent effort to illustrate and describe the products accurately in all Company literature; however such illustrations and descriptions

are for the sole purpose of identification and do not express or imply any warranty.

LIMITED WARRANTY

WARRANTY AND DISCLAIMER: the Company ex-

tends this limited warranty to the original purchaser and warrants that products supplied by the Company, shall be free from original defects in workmanship and materials for two years from date of shipment (except for the warranty periods noted for products listed be low), provided same have been properly handled, stored, installed, serviced, maintained and operated. This warranty shall not apply to products which have been altered or repaired without the Company’s ex press authorization, or altered or repaired in any way so as, in the Company’s judgment, to affect its perfor mance or reliability, nor which have been improperly installed or subjected to misuse, negligence, or acci dent, or incorrectly used in combination with other sub stances. The Purchaser assumes all risks and liability for results of use of all products.

Evaporative cooling pads are warranted to be free of defects in materials and workmanship for a period of two years from date of shipment provided same have been properly handled, stored, installed, serviced, maintained and operated; and further, not subjected to excessive heat, corrosive agents or chemicals, or me chanical abuse that may cause tearing, crushing or un due deterioration, nor used on a system or in a manner other than that for which it was designed as explained in the product literature.

The following products are warranted to be free of de fects in materials and workmanship for the periods shown from date of shipment: the Company’s exclu sive duplex split pillow block bearings and shaft five years, belts one year, Polyethylene tubing 90 days, AIR40 Heater warranty one year, AIR40 Emitter war ranty three years and DDP fan lifetime warranty on its propeller, cone, and housing.

LIMITATION OF REMEDY AND DAMAGES: All claims under this warranty must be made in writing and delivered to P. O. Box 978, Muskogee, Oklahoma, 74402, within 15 days after discovery of the defect and prior to the expiration of two years from the date of shipment by the Company of the product claimed de fective, and Purchaser shall be barred from any remedy if Purchaser fails to make such claim within such period.

Within 30 days after receipt of a timely claim, the Com pany shall have the option either to inspect the product while in Purchaser's possession or to request Pur chaser to return the product to the Company at Pur

chaser's expense for inspection by the Company. The Company shall replace, or at its option repair, free of charge, any product it determines to be defective, and it shall ship the repaired or replacement product to Purchaser F.O.B. point of shipment; provided, how

ever, if circumstances are such as in the Company’s judgment to prohibit repair or replacement to remedy the warranted defects, the Purchaser's sole and exclu sive remedy shall be a refund to the Purchaser of any

part of the invoice price, paid to the Company, for the defective product or part.

The Company is not responsible for the cost of re

moval of the defective product or part, damages due to

removal, or any expenses incurred in shipping the product or part to or from the Company’s plant, or the installation of the repaired or replaced product or part.

The warranties set forth above do not apply to any components, accessories, parts or attachments manu factured by other manufacturers; such being subject to the manufacturer’s warranty, if any. To the extent not prohibited by the manufacturer’s warranty, the Com

pany shall pass through to Purchaser such manufac

turer’s warranty.

THE COMPANY’S WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING

WITHOUT LIMITATION THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PAR

TICULAR PURPOSE, WHICH ARE HEREBY EX

PRESSLY DISCLAIMED AND WAIVED. THIS WAR RANTY CONSTITUTES THE COMPANY’S SOLE

AND EXCLUSIVE WARRANTY FOR DEFECTIVE

GOODS AND PURCHASER’S SOLE AND EXCLU SIVE REMEDY FOR DEFECTIVE PRODUCTS.

No employee, agent, dealer, or other person is autho rized to give any warranties on behalf of the Company or to assume for the Company any other liability in connection with any of its products except in writing and signed by an officer of the Company.

REPLACEMENT PARTS If replacement parts are or dered, purchaser warrants that the original compo nents in which these replacement parts will be placed

are in satisfactory working condition, and when said re placement parts are installed, the resultant installation

will operate in a safe manner, at speeds and tempera

tures for which the original product was purchased.

TECHNICAL ADVICE AND RECOMMENDATIONS, DISCLAIMER: Notwithstanding any past practice or

dealings or any custom of the trade, sales shall not in clude the furnishing of technical advice or assistance

or system design. Any such assistance shall be at the Company’s sole option and may be subject to addi tional charge.

The Company assumes no obligation or liability on ac

count of any recommendations, opinions or advice as to the choice, installation or use of products. Any such recommendations, opinions or advice are given and

shall be accepted at Purchaser's and End User's risk

and shall not constitute any warranty or guarantee of such products or their performance.

LIMITATION OF LIABILITY The cumulative liability of the Company to the Purchaser and any other persons for all claims in any way relating to or arising out of the

products, including, but not limited to, any cause of ac

tion sounding in contract, tort, or strict liability, shall not exceed the total amount of the purchase price paid for

those products which are the subject of any such

claim. This limitation of liability is intended to apply

without regard to whether other provisions of this agreement have been breached or have proven inef fective even if the Company has been advised of the possibility of such claims or demands. In no event shall the Company be liable to the Purchaser or any other person for any loss of profits or any incidental,

special, exemplary, or consequential damages for any

claims or demands brought by the Purchaser or such

other persons.

INDEMNITY The Company’s maximum liability to Pur

chaser and to any end user is as set forth above. The Company makes no warranty to anyone for any prod ucts not manufactured by the Company and shall have

no liability for any use or installation of any products (whether manufactured by the Company or other man ufacturers) not specifically authorized by this sale. Purchaser acknowledges various warnings by the Company regarding the products and its installation

and use. If the Company incurs any claims, lawsuits,

settlements, or expenses (including attorney fees) for any loss, injury, death or property damage including,

but not limited to, claims arising out of the Purchaser’s or any end user’s installation or use of the products,

the Purchaser shall indemnify and hold the Company harmless.

April 2013 613093

Acme Engineering QBR Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
