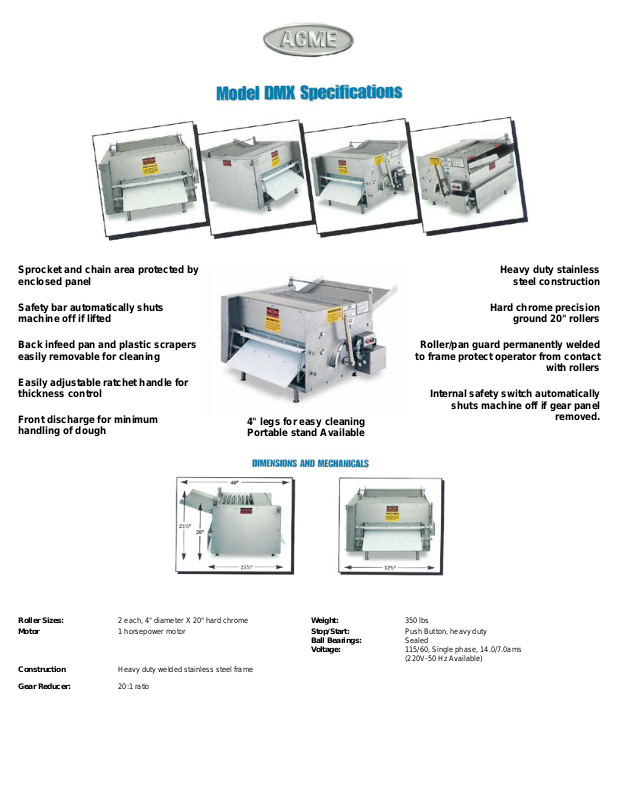

Acme Engineering DMX User Manual

g

y

g

Sprocket and chain area protected by
enclosed panel

Safety bar automatically shuts
machine off if lifted

Back infeed pan and plastic scrapers
easily removable for cleaning

Easily adjustable ratchet handle for
thickness control

Front discharge for minimum
handling of dough

4" legs for easy cleaning
Portable stand Available

Heavy duty stainless

steel construction

Hard chrome precision

ground 20" rollers

Roller/pan

uard permanently welded

to frame protect operator from contact

with rollers

Internal safet

shuts machine off if

switch automatically

ear panel
removed.

Roller Sizes:
Motor

Construction
Gear Reducer:

2 each, 4" diameter X 20" hard chrome
1 horsepower motor

Heavy duty welded stainless steel frame
20:1 ratio

Weight:

Stop/Start:
Ball Bearings:

Voltage:

350 lbs

Push Button, heavy duty
Sealed
115/60, Single phase, 14.0/7.0ams
(220V-50 Hz Available)
