Industry Leadership

Founded in 1938, Acme Engineering and Manufacturing Corporation is known worldwide as a leader in the manufacture of fans, blowers, and ventilation equipment. Acme’s growth over the past half century is a tribute to superior quality, customer loyalty, and dedicated employees and sales representatives.

Today, from its headquarters in Muskogee, Oklahoma, Acme serves customers worldwide with high quality air movement and control products.

Manufacturing

With approximately 350,000 square feet of manufacturing space, Acme produces one of the broadest lines of air moving equipment in the industry. State-of-the-art manufacturing equipment and a well trained, experienced workforce is the key to Acme’s timely delivery of quality air moving products.

Research and Testing

The Acme Research and Development Center operates both air and sound laboratories. The Center houses four wind tunnels with a data acquisition system, a reverberant sound room with the latest sound analyzer equipment, and a structural laboratory for stress and vibration analysis. Solid modeling, and finite element analysis support product research and development. The Center also houses a fully equipped prototype facility enabling Acme to develop and introduce new products to the market in the shortest time possible.

Sales & Service

A factory trained, knowledgeable sales organization addresses the needs of many diverse and distinct markets. Customers around the world are serviced by a complete system of sales representatives, equipment distributors and local dealers supported by nationwide distribution centers and backed by a staff of sales and marketing professionals.

Quality

A highly trained production staff sets the standard for dependable, quality air moving products. By using the latest computer techniques for research and design, and rigorous quality control standards Acme can offer

one of the best warranty programs in the industry. Our exclusive 2/5 year limited warranty provides our customers with confidence…Year After Year.

SYMBOL

UAL ITY

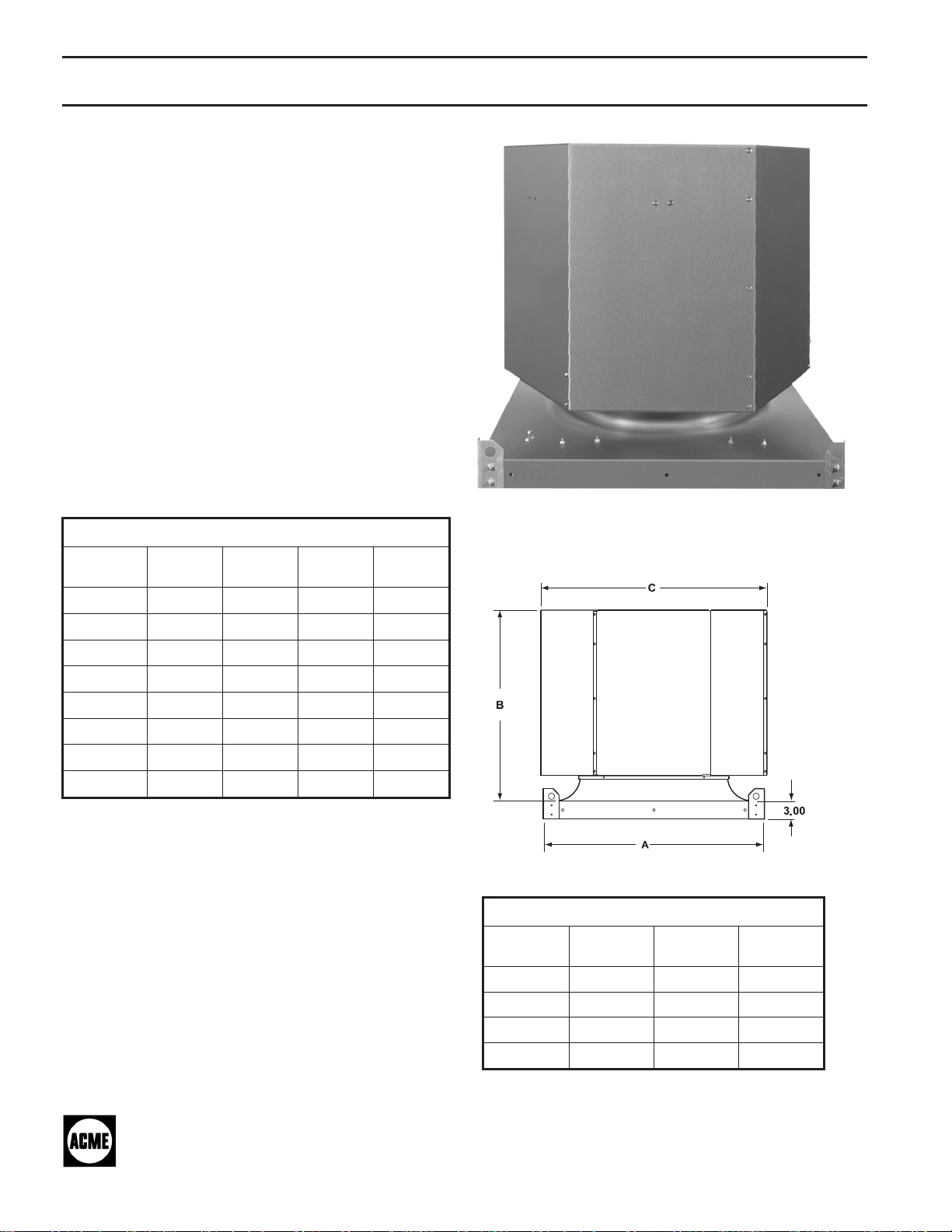

MODELS EV AND IV RELIEF/INTAKE VENTS

Model EV

For exhaust or gravity relief. Featuresa1to1ratio of hood perimeter opening to throat area. Maximum design velocity of 1200 fpm.

Model IV

For fresh air intake. Featuresa2to1ratio of hood perimeter opening to throat area. Design velocity at perimeter of 600 fpm to minimize moisture entrainment. Maximum design velocity of 1200 fpm.

Low silhouette design

Full 360° perimeter hood opening for greater air flow

performance

Generously sized throat and hood perimeter for low

resistance and efficient air flow

Wide hood design for protection from blowing rain and

snow

Hoods are precision formed for strength and weather resistance. Constructed of .050” aluminum

Hoods are reinforced and braced with heavy gauge structural members for increased strength and resistance to wind damage

Birdscreens are constructed of ½" x ½" galvanized welded wire mesh (Omitted when supplied with optional filters)

Curb caps are miter cut and continuous welded for extra strength and water tightness

Typical drawings are for dimensional purposes only and are correct within limits suitable for normal installation requirements. They do not necessarily show actual construction.

OPTIONAL ACCESSORIES

Hinged Hood - for easy access to backdraft dampers, filters and screens

Insulated Hood - reduces condensation drip rubberized anti-condensation undercoating or 1" fiberglass insulation

Filters - 1" or 2" thick aluminum mesh mounted for easy cleaning (add .13" to static pressure listed in the tables when using filters on IV ventilators)

Insect Screens - 18 ga. mesh aluminum screen attached to the full perimeter opening of the hood (add

.10" to static pressure for EV and .05" to static pressure

for IV when using insect screens)

Aluminum Bird Screens - .050" thick ½" x 1" diamond shape expanded aluminum attached to full perimeter of hood opening by spot welds or stainless steel fasteners

Galvanized Steel Construction

100 MPH construction

Custom Sizes - consult factory for details

Coatings - decorative and protective

Prefabricated Roof Curbs

Dampers

Exhaust Relief Type

Model AR-CAR - automatic counter balanced Model AR-ML - manual operated Model AR-MT - motorized

Air Intake Type

Model WAGC-ML - manual operated Model WAGC-MT - motorized

MODEL EV PERFORMANCE DATA

Throat

Size

AxB

12 x 12 20 x 20 18 18 7 667 1054 1490 23 16 x 28 24 x 36 26 38 7 1950 3083 4360 49 20 x 84 28 x 92 35 98 9 5818 9199 13010 180

12 x 14 20 x 22 18 20 7 772 1220 1726 25 16 x 30 24 x 38 26 40 7 2088 3302 4670 51 20 x 96 28 x 104 35 111 9 6440 10182 14400 213

12 x 16 20 x 24 18 22 7 881 1394 1971 28 16 x 36 24 x 44 26 46 7 2370 3748 5300 57 20 x 108 28 x 112 35 123 9 7413 11722 16577 240

12 x 18 20 x 36 19 25 7 993 1570 2221 31 16 x 40 24 x 48 26 50 7 2656 4200 5940 62 20x 120 28 x 128 36 136 9 8343 13191 18655 267

12 x 20 20 x 28 19 27 7 1059 1675 2368 33 16 x 42 24 x 50 26 52 7 2789 4410 6236 64

12 x 22 20 x 30 19 29 7 1185 1874 2650 36 16 x 48 24 x 56 27 59 7 3190 5045 7134 74 22 x 22 30 x 30 32 32 9 2223 3515 4970 51

12 x 24 20 x 32 20 32 7 1252 1980 2800 39 16 x 54 24 x 62 27 65 7 3354 5303 7500 90 22 x 24 30 x 32 32 34 9 2342 3702 5236 56

12 x 28 20 x 36 20 36 7 1462 2312 3270 42 16 x 60 24 x 68 27 71 7 3578 5657 8000 100 22 x 28 30 x 36 33 39 9 2679 4236 5990 65

12 x 30 20 x 38 20 38 7 1565 2475 3500 43 16 x 66 24 x 74 28 78 7 3763 5949 8413 110 22 x 30 30 x 38 33 41 9 2871 4540 6420 70

12 x 36 20 x 44 21 45 7 1775 2807 3970 48 16 x 72 24 x 80 28 84 7 4105 6490 9178 120 22 x 36 30 x 44 34 48 9 3260 5155 7290 74

12 x 40 20 x 48 21 48 7 1954 3090 4370 51 16 x 80 24 x 88 28 92 7 4387 6937 9810 133 22 x 40 30 x 48 34 52 9 3508 5547 7845 88

12 x 42 20 x 50 22 52 7 2048 3239 4580 53 16 x 84 24 x 92 28 96 7 4655 7361 10410 140 22 x 42 30 x 50 36 56 9 3757 5940 8400 95

12 x 48 20 x 56 21 57 7 2392 3782 5348 59 16 x 96 24 x 104 28 108 7 5152 8146 11520 160 22 x 48 30 x 56 35 61 9 4214 6663 9423 113

12 x 54 20 x 62 22 64 7 2567 4059 5741 67 16 x 108 24 x 116 29 121 7 5578 8820 12473 180 22 x 54 30 x 62 36 68 9 4521 7149 10110 135

12 x 60 20 x 68 22 70 7 2798 4423 6255 77 16 x 120 24 x 128 29 133 7 6261 9899 14000 199 22 x 60 30 x 68 37 75 9 4919 7778 11000 158

12 x 66 20 x 74 22 76 7 2998 4740 6704 85

12 x 72 20 x 80 22 82 7 3204 5066 7165 89 18 x 18 26 x 26 26 26 8 1543 2439 3450 38 22 x 72 30 x 80 37 87 9 5756 9100 12870 187

12 x 80 20 x 88 22 90 7 3437 5434 7685 93 18 x 20 26 x 28 27 29 8 1690 2672 3779 43 22 x 80 30 x 88 38 96 9 6176 9765 13810 208

12 x 84 20 x 92 22 94 7 3719 5879 8315 105 18 x 22 26 x 30 27 31 8 1856 2934 4149 45 22 x 84 30 x 92 38 100 9 6532 10327 14605 218

12 x 96 20 x 104 22 106 7 4119 6513 9210 120 18 x 24 26 x 32 27 33 8 1917 3031 4287 49 22 x 96 30 x 104 38 112 9 7084 11201 15840 249

12 x 108 20 x 116 22 120 7 4448 7033 9946 135 18 x 28 26 x 36 28 38 8 2191 3465 4900 53 22 x 108 30 x 116 39 125 9 8155 12894 18235 281

12 x 120 20 x 128 22 132 7 4896 7741 10947 150 18 x 30 26 x 38 28 40 8 2348 3712 5250 55 22 x 120 30 x 128 39 137 9 8975 14191 20070 311

14 x 14 22 x 22 20 20 7 919 1453 2055 26 18 x 40 26 x 48 29 51 8 2929 4632 6550 67 24 x 24 32 x 32 34 34 11 2456 3883 5491 61

14 x 16 22 x 24 20 22 7 1051 1662 2350 30 18 x 42 26 x 50 29 53 8 3077 4865 6880 70 24 x 28 32 x 36 35 39 11 2864 4528 6403 72

14 x 18 22 x 26 22 26 7 1181 1867 2640 32 18 x 48 26 x 56 30 60 8 3515 5558 7860 82 24 x 30 32 x 38 36 42 11 3070 4854 6864 77

14 x 20 22 x 28 22 28 7 1237 1955 2765 35 18 x 54 26 x 62 30 66 8 3852 6091 8614 98 24 x 36 32 x 44 37 49 11 3486 5512 7796 80

14 x 22 22 x 30 22 30 7 1386 2192 3100 38 18 x 60 26 x 68 30 72 8 4025 6364 9000 116 24 x 40 32 x 48 38 54 11 3904 6173 8730 99

14 x 24 22 x 32 22 32 7 1425 2253 3187 43 18 x 66 26 x 74 31 79 8 4232 6691 9463 130 24 x 42 32 x 50 38 56 11 4101 6484 9170 108

14 x 28 22 x 36 22 36 7 1671 2642 3736 46 18 x 72 26 x 80 31 85 8 4618 7301 10326 137 24 x 48 32 x 56 38 62 11 4687 7410 10480 128

14 x 30 22 x 38 23 39 7 1825 2885 4080 47 18 x 80 26 x 88 31 92 8 4955 7835 11081 152 24 x 54 32 x 62 39 69 11 5031 7955 11250 153

14 x 36 22 x 44 23 45 7 2075 3281 4640 52 18 x 84 26 x 924 31 97 8 5135 8119 11483 160 24 x 60 32 x 68 39 75 11 5367 8485 12000 179

14 x 40 22 x 48 23 49 7 2323 3673 5195 57 18 x 96 26 x 1046 32 110 8 5577 8818 12471 184 24 x 66 32 x 74 40 82 11 5756 9100 12870 197

14 x 42 22 x 50 24 52 7 2393 3783 5350 59 18 x 108 26 x 116 32 122 8 6400 10119 14310 211 24 x 72 32 x 80 40 88 11 6279 9928 14040 206

14 x 48 22 x 56 24 58 7 2789 4410 6236 67 18 x 120 26 x 128 33 135 8 6907 10921 15444 225 24 x 80 32 x 88 40 96 11 6878 10876 15381 224

14 x 54 22 x 62 24 64 7 3059 4836 6839 79

14 x 60 22 x 68 24 70 7 3264 5160 7298 87 20 x 20 28 x 28 29 29 9 1802 2850 4030 46 24 x 96 32 x 104 41 113 11 7887 12471 17636 262

14 x 66 22 x 74 24 77 7 3502 5536 7830 96 20 x 22 28 x 30 29 31 9 1981 3132 4430 48 24 x 108 32 x 116 42 126 11 8709 13770 19473 292

14 x 72 22 x 80 24 84 7 3738 5911 8359 105 20 x 24 28 x 32 30 34 9 2177 3443 4869 53 24 x 120 32 x 128 42 138 11 9791 15481 21894 326

14 x 80 22 x 88 25 92 7 4012 6344 8971 117 20 x 28 28 x 36 31 39 9 2536 4010 5672 59

14 x 84 22 x 92 25 95 7 4243 6709 9487 123 20 x 30 28 x 38 31 41 9 2661 4207 5950 62 28 x 28 36 x 36 40 40 13 3478 5499 7777 76

14 x 96 22 x 104 26 108 7 4805 7598 10745 140 20 x 36 28 x 44 31 47 9 2961 4681 6620 67 28 x 30 36 x 38 41 43 13 3654 5777 8170 81

14 x 108 22 x 116 26 120 7 5189 8205 11604 158 20 x 40 28 x 48 32 52 9 3256 5148 7280 78 28 x 36 36 x 44 41 49 13 4146 6555 9270 97

14 x 120 22 x 128 26 132 7 5712 9031 12772 175 20 x 42 28 x 50 32 54 9 3417 5402 7640 83 28 x 40 36 x 48 43 55 13 4651 7354 10400 108

16 x 16 24 x 24 23 23 7 1199 1895 2680 32 20 x 54 28 x 62 33 67 9 4277 6762 9563 116 28 x 48 36 x 56 43 63 13 5469 8648 12230 130

16 x 18 24 x 26 24 26 7 1342 2121 3000 36 20 x 60 28 x 68 33 73 9 4472 7071 10000 137 28 x 54 36 x 62 45 70 13 5867 9277 13120 146

16 x 20 24 x 28 24 28 7 1470 2324 3286 39 20 x 66 28 x 74 34 80 9 4893 7736 10941 146 28 x 60 36 x 68 44 76 13 6139 9707 13728 162

16 x 22 24 x 30 24 30 7 1616 2555 3613 42 20 x 72 28 x 80 34 86 9 5340 8444 11941 160 28 x 66 36 x 74 45 83 13 6582 10408 14719 178

Hood Size CFM @ IN. W.G.

Curb

Cap

C D E .050" .125" .250" C D E .050" .125" .250" C D E .050" .125" .250"

Throat

Unit

Size

Wt.

AxB

16 x 24 24 x 32 25 33 7 1668 2638 3730 46 20 x 80 28 x 88 34 94 9 5728 9057 12809 171

18 x 36 26 x 44 29 47 8 2614 4133 5844 61

20 x 48 28 x 56 33 61 9 3985 6300 8910 97 28 x 42 36 x 50 43 59 13 4785 7566 10700 113

Hood Size CFM @ IN. W.G.

Curb

Cap

Throat

Unit

Size

Wt.

AxB

22 x 66 30 x 74 37 81 9 5277 8344 11800 171

24 x 84 32 x 92 40 100 11 6981 11038 15610 233

Hood Size CFM @ IN. W.G.

Curb

Cap

Unit

Wt.

Exhaust/Relief Ventilators havea1to1ratio of hood perimeter opening to throat area. Maximum design air velocity is 1200 fpm.

MODEL EV PERFORMANCE DATA

Throat

Size

AxB

28 x 72 36 x 80 45 89 13 7476 11821 16718 194

28 x 80 36 x 88 46 98 13 7862 12431 17580 216 40 x 42 48 x 50 57 59 15 6974 11027 15595 164 54 x 54 62 x 62 77 77 19 11319 17897 25310 289

28 x 84 36 x 92 46 102 13 8490 13425 18985 227 40 x 48 48 x 56 59 67 15 7813 12353 17470 187 54 x 60 62 x 68 79 85 19 12075 19092 27000 315

28 x 96 36 x 104 47 115 13 9202 14549 20576 259 40 x 54 48 x 62 59 73 15 8385 13258 18750 211 54 x 66 62 x 74 79 91 19 12951 20478 28960 334

28 x 108 36 x 116 48 128 13 10160 16065 22719 292 40 x 60 48 x 68 60 80 15 8944 14142 20000 234 54 x 72 62 x 80 80 98 19 13853 21904 30977 344

28 x 120 36 x 128 48 140 13 11423 18062 25543 324 40 x 66 48 x 74 61 87 15 9593 15167 21450 257 54 x 80 62 x 88 81 107 19 14866 23505 33242 362

30 x 30 38 x 38 43 43 13 3893 6156 8706 94 40 x 80 48 x 88 63 103 15 11230 17755 25110 293 54 x 96 62 x 104 83 125 19 17388 27492 38880 428

30 x 36 38 x 44 44 50 13 4537 7174 10145 104 40 x 84 48 x 92 64 108 15 11411 18082 25515 309 54 x 108 62 x 116 85 139 19 19154 30285 42830 478

30 x 40 38 x 48 45 55 13 4884 7722 10920 118 40 x 96 48 x 108 64 120 15 12880 20365 28800 337 54 x 120 62 x 128 86 152 19 21131 33411 47250 535

30 x 42 38 x 50 45 57 13 5125 8103 11460 125 40 x 108 48 x 116 65 133 15 14515 22950 32456 375

30 x 48 38 x 56 46 64 13 5745 9083 12846 150 40 x 120 48 x 128 66 146 15 16319 25802 36490 428 60 x 60 68 x 68 86 86 21 13156 20801 29417 340

30 x 54 38 x 62 47 71 13 6166 9749 13787 177

30 x 60 38 x 68 48 78 13 6708 10607 15000 204 42 x 42 50 x 50 59 59 15 7178 11349 16050 179 60 x 72 68 x 80 88 100 21 15392 24337 34418 374

30 x 66 38 x 74 48 84 13 7196 11377 16090 223 42 x 48 50 x 56 61 67 15 8202 12968 18340 203 60 x 80 64 x 88 89 109 21 16847 26637 37670 394

30 x 72 38 x 80 49 91 13 7696 12169 17209 232 42 x 54 50 x 62 62 74 15 8806 13923 19690 231 60 x 84 68 x 92 90 114 21 17450 27591 39020 405

30 x 80 38 x 88 49 99 13 8258 13056 18464 251 42 x 60 50 x 68 64 82 15 9585 15155 21433 259 60 x 96 68 x 104 91 127 21 19320 30547 43200 485

30 x 84 38 x 92 50 104 13 8725 13796 19510 260 42 x 66 50 x 74 65 89 15 10071 15924 22520 278 60 x 108 68 x 116 93 141 21 20918 33074 46774 527

30 x 96 38 x 104 50 116 13 9859 15588 22045 290 42 x 72 50 x 80 65 95 15 10988 17374 24570 287 60 x 120 68 x 128 94 154 21 23023 36402 51480 691

30 x 108 38 x 116 51 129 13 10886 17212 24342 323 42 x 80 50 x 88 66 104 15 11793 18646 26370 305

30 x 120 38 x 128 52 142 13 12239 19352 27368 360 42 x 84 50 x 92 66 108 15 12470 19717 27883 315 66 x 66 74 x 74 94 94 21 15831 25032 35400 409

36 x 36 44 x 44 52 52 15 5558 8788 12427 114 42 x 108 50 x 116 68 134 15 14932 23610 33390 392 66 x 80 74 x 88 94 113 21 18168 28727 40625 496

36 x 40 44 x 48 53 57 15 5979 9454 13370 135 42 x 120 50 x 128 69 147 15 16435 25986 36750 438 66 x 84 74 x 92 97 115 21 19199 30356 42930 581

36 x 42 44 x 50 53 59 15 6276 9923 14034 146

36 x 48 44 x 56 54 66 15 7175 11345 16044 176 48 x 48 56 x 56 68 68 17 9192 14533 20553 228 66 x 108 74 x 116 97 147 21 23465 37102 52470 670

36 x 54 44 x 62 55 73 15 7549 11936 16880 203 48 x 54 56 x 62 70 76 17 10062 15910 22500 258 66 x 120 74 x 128 96 165 21 26359 41677 58941 744

36 x 60 44 x 68 56 80 15 8050 12728 18000 231 48 x 60 56 x 68 71 83 17 10733 16971 24000 286

36 x 66 44 x 74 56 86 15 8809 13929 19698 246 48 x 66 56 x 74 72 90 17 11511 18201 25740 305 72 x 72 80 x 80 96 110 21 19731 31198 44120 497

36 x 72 44 x 80 57 93 15 9613 15199 21494 253 48 x 72 56 x 80 73 97 17 12558 19856 28080 315 72 x 80 80 x 88 96 120 21 20631 32620 46132 552

36 x 80 44 x 88 58 102 15 10107 15981 22600 276 48 x 80 56 x 88 74 106 17 13475 21305 30130 338 72 x 84 80 x 92 96 126 21 20943 33114 46830 580

36 x 84 44 x 92 58 106 15 10469 16553 23410 287 48 x 84 56 x 92 75 111 17 13962 22076 31220 349 72 x 96 80 x 104 96 143 21 22733 35945 50833 663

36 x 96 44 x 104 59 119 15 11367 17972 25417 314 48 x 96 56 x 104 75 123 17 15456 24438 34560 386 72 x 108 80 x 116 96 163 21 25599 40475 57240 746

36 x 108 44 x 116 60 132 15 13063 20655 29210 356 48 x 108 56 x 116 77 137 17 17418 27540 38947 432 72 x 120 80 x 128 96 180 21 28174 44548 63000 828

36 x 120 44 x 128 60 144 15 14378 22733 32150 397 48 x 120 56 x 128 78 150 17 19170 30311 42866 484

Hood Size CFM @ IN. W.G.

Curb

Cap

C D E .050" .125" .250" C D E .050" .125" .250" C D E .050" .125" .250"

Throat

Unit

Size

Wt.

AxB

40 x 72 48 x 80 62 94 15 10465 16546 23400 281 54 x 84 62 x 92 82 112 19 15706 24834 35120 371

42 x 96 50 x 104 67 121 15 13803 21824 30864 351 66 x 72 74 x 80 94 102 21 17267 27301 38610 446

Hood Size CFM @ IN. W.G.

Curb

Cap

40 54

Throat

Unit

Size

Wt.

AxB

60 x 66 68 x 74 87 93 21 14387 22748 32170 363

66 x 96 74 x 104 97 131 21 21252 33602 47520 595

Hood Size CFM @ IN. W.G.

Curb

Cap

Unit

Wt.

Exhaust/Relief Ventilators havea1to1ratio of hood perimeter opening to throat area. Maximum design air velocity is 1200 fpm.

MODEL IV PERFORMANCE DATA

Throat

Size

AxB

12 x 12 20 x 20 21 21 7 685 969 1307 27 16 x 28 24 x 36 32 44 9 2070 2927 4140 58 20 x 84 28 x 92 46 110 11 7838 11085 15677 222

12 x 14 20 x 22 22 24 7 801 1133 1602 29 16 x 30 24 x 38 32 46 9 2287 3235 4575 60 20 x 96 28 x 104 47 123 11 9171 12969 18341 253

12 x 16 20 x 24 22 26 7 912 1289 1824 33 16 x 36 24 x 44 33 53 9 2814 3980 5629 66 20 x 108 28 x 116 48 136 11 10034 14190 20068 285

12 x 18 20 x 26 23 29 7 1058 1496 2115 36 16 x 40 24 x 44 33 57 9 3046 4308 6093 72 20 x 120 28 x 128 49 149 11 11463 16211 22927 317

12 x 20 20 x 28 24 32 7 1177 1664 2354 39 16 x 42 24 x 50 33 60 9 3236 4576 6472 75

12 x 22 20 x 30 24 34 7 1254 1774 2509 42 16 x 48 24 x 56 35 67 9 3684 5210 7368 87 22 x 22 30 x 30 39 39 11 2303 3257 4606 60

12 x 24 20 x 32 25 37 7 1402 1983 2804 46 16 x 54 24 x 62 36 74 9 3945 5579 7890 102 22 x 24 30 x 32 40 42 11 2440 3451 4880 66

12 x 28 20 x 36 26 42 7 1634 2311 3268 49 16 x 60 24 x 68 36 80 9 4390 6208 8780 113 22 x 28 30 x 36 40 46 11 2978 4211 5956 77

12 x 30 20 x 36 26 44 7 1790 2531 3579 51 16 x 66 24 x 74 37 87 9 5065 7163 10130 125 22 x 30 30 x 38 42 50 11 3141 4442 6282 83

12 x 36 20 x 44 27 51 7 2124 3004 4248 55 16 x 72 24 x 80 38 94 9 5545 7841 11089 136 22 x 36 30 x 44 43 57 11 3640 5148 7280 94

12 x 40 20 x 48 28 56 7 2282 3227 4564 58 16 x 80 24 x 88 38 102 9 5976 8452 11953 149 22 x 40 30 x 48 44 62 11 4078 5768 8157 106

12 x 42 20 x 50 29 59 7 2435 3444 4870 62 16 x 84 24 x 92 39 107 9 6393 9041 12786 159 22 x 42 30 x 50 45 65 11 4220 5968 8440 112

12 x 48 20 x 56 28 64 7 2783 3935 5566 69 16 x 96 24 x 104 39 119 9 7336 10375 14673 181 22 x 48 30 x 56 46 72 11 4805 6795 9610 132

12 x 54 20 x 62 28 70 7 3120 4413 6240 79 16 x 108 24 x 116 40 132 10 8054 11390 16108 204 22 x 54 30 x 62 46 78 11 5275 7460 10549 158

12 x 60 20 x 68 29 77 7 3468 4904 6936 91 16 x 120 24 x 128 40 144 10 9171 12969 18341 227 22 x 60 30 x 68 47 85 11 6025 8521 12050 185

12 x 66 20 x 74 29 83 7 3811 5389 7621 99

12 x 72 20 x 80 30 90 7 4158 5881 8317 105 18 x 18 26 x 26 32 32 10 1539 2176 3078 45 22 x 72 30 x 80 49 99 11 7200 10182 14400 220

12 x 80 20 x 88 30 98 7 4601 6507 9202 119 18 x 20 26 x 28 33 35 10 1763 2493 3525 50 22 x 80 30 x 88 50 108 11 8000 11314 16000 245

12 x 84 20 x 92 31 103 7 4844 6850 9687 126 18 x 22 26 x 30 33 37 10 1882 2661 3763 53 22 x 84 30 x 92 50 112 11 8623 12195 17247 257

12 x 96 20 x 104 31 115 7 5523 7811 11047 144 18 x 24 26 x 32 34 40 10 2000 2828 4000 58 22 x 96 30 x 104 51 125 11 10067 14236 20133 293

12 x 108 20 x 116 31 127 8 6399 9050 12799 162 18 x 28 26 x 36 35 45 10 2330 3295 4660 63 22 x 108 30 x 116 52 138 11 11004 15561 22007 330

12 x 120 20 x 128 32 140 8 6931 9801 13861 180 18 x 30 26 x 38 36 48 10 2567 3630 5133 65 22 x 120 30 x 128 53 151 11 12607 17829 25214 367

14 x 14 22 x 22 25 25 8 933 1319 1866 31 18 x 40 26 x 48 38 60 10 3426 4845 6852 79 24 x 24 32 x 32 42 42 11 2650 3748 5300 72

14 x 16 22 x 24 25 27 8 1095 1549 2191 35 18 x 42 26 x 50 38 62 10 3637 5143 7273 82 24 x 28 32 x 36 43 47 11 3262 4614 6525 85

14 x 18 22 x 26 26 30 8 1196 1692 2393 38 18 x 48 26 x 56 39 69 10 3950 5586 7900 96 24 x 30 32 x 38 44 50 11 3457 4890 6915 91

14 x 20 22 x 28 27 33 8 1333 1886 2667 41 18 x 54 26 x 62 40 76 10 4440 6279 8880 115 24 x 36 32 x 44 46 58 11 3945 5579 7890 106

14 x 22 22 x 30 28 36 8 1508 2132 3015 45 18 x 60 26 x 68 40 82 10 4811 6804 9622 136 24 x 40 32 x 48 47 63 11 4335 6131 8670 120

14 x 24 22 x 32 28 38 8 1550 2192 3100 50 18 x 66 26 x 74 41 89 10 5718 8087 11437 153 24 x 42 32 x 50 48 66 11 4600 6505 9200 127

14 x 28 22 x 36 29 43 8 1897 2683 3795 53 18 x 72 26 x 80 41 95 10 6074 8590 12148 161 24 x 48 32 x 56 49 73 11 5275 7460 10550 151

14 x 30 22 x 38 29 45 8 1998 2825 3995 55 18 x 80 26 x 88 42 104 10 6720 9504 13440 179 24 x 54 32 x 62 50 80 11 5915 8365 11830 180

14 x 36 22 x 44 30 52 8 2129 3011 4259 60 18 x 84 26 x 92 43 109 10 7084 10019 14169 188 24 x 60 32 x 68 52 88 11 6580 9306 13160 210

14 x 40 22 x 48 30 56 8 2667 3772 5334 65 18 x 96 26 x 104 43 121 10 8003 11317 16005 217 24 x 66 32 x 74 52 94 11 7205 10189 14410 231

14 x 42 22 x 50 30 59 8 2830 4003 5660 68 18 x 108 26 x 116 44 134 11 9250 13081 18499 248 24 x 72 32 x 80 52 100 11 7855 11109 15710 242

14 x 48 22 x 56 31 66 8 3330 4709 6660 78 18 x 120 26 x 128 45 147 11 10277 14534 20555 270 24 x 80 32 x 88 53 109 11 8700 12304 17400 263

14 x 54 22 x 62 32 72 8 3637 5143 7273 89

14 x 60 22 x 68 33 79 8 4032 5702 8064 99 20 x 20 28 x 28 35 35 11 1952 2761 3905 54 24 x 96 32 x 104 55 127 11 10400 14708 20800 308

14 x 66 22 x 74 33 85 8 4427 6261 8854 109 20 x 22 28 x 30 36 38 11 2092 2959 4185 57 24 x 108 32 x 116 56 140 11 11750 16617 23500 344

14 x 72 22 x 80 34 92 8 4849 6857 9698 119 20 x 24 28 x 32 37 41 11 2220 3140 4440 62 24 x 120 32 x 128 57 154 11 13440 19007 26881 384

14 x 80 22 x 88 34 100 8 5227 7393 10455 132 20 x 28 28 x 36 37 45 11 2730 3861 5460 70

14 x 84 22 x 92 35 105 8 5597 7916 11194 139 20 x 30 28 x 38 38 48 11 2857 4040 5713 74 28 x 28 36 x 36 51 51 13 3789 5359 7579 98

14 x 96 22 x 104 35 117 8 6393 9041 12786 159 20 x 36 28 x 44 40 56 11 3484 4927 6968 83 28 x 30 36 x 38 51 53 13 4058 5739 8117 105

14 x 108 22 x 116 36 130 9 7221 10211 14441 179 20 x 40 28 x 48 40 60 11 3704 5238 7408 92 28 x 36 36 x 44 52 60 13 4600 6505 9200 116

14 x 120 22 x 128 36 142 9 8249 11666 16498 198 20 x 42 28 x 50 41 63 11 3835 5424 7670 97 28 x 40 36 x 48 53 65 13 5055 7149 10110 131

16 x 16 24 x 24 28 28 9 1217 1722 2435 38 20 x 54 28 x 62 43 77 11 4930 6972 9860 137 28 x 48 36 x 56 54 74 13 6065 8577 12130 164

16 x 18 24 x 36 28 30 9 1370 1938 2741 42 20 x 60 28 x 68 44 84 11 5348 7563 10696 161 28 x 54 36 x 62 56 82 13 6900 9758 13800 192

16 x 20 24 x 28 29 33 9 1567 2217 3135 46 20 x 66 28 x 74 45 91 11 6025 8521 12050 174 28 x 60 36 x 68 57 89 13 7650 10819 15300 227

16 x 22 24 x 30 30 36 9 1725 2439 3449 49 20 x 72 28 x 80 45 97 11 6720 9504 13440 190 28 x 66 36 x 74 58 96 13 8198 11593 16395 251

Hood Size CFM @ IN. W.G.

Curb

Cap

C D E .05" .10" .20" C D E .05" .10" .20" C D E .05" .10" .20"

Throat

Unit

Size

Wt.

AxB

16 x 24 24 x 32 31 39 9 1790 2531 3580 54 20 x 80 28 x 88 46 106 11 7669 10845 15337 211

18 x 36 26 x 44 37 55 10 3104 4390 6209 72

20 x 48 28 x 56 42 70 11 4260 6024 8520 114 28 x 42 36 x 50 53 67 13 5370 7594 10740 138

Hood Size CFM @ IN. W.G.

Curb CAP

Throat

Unit

Size

Wt.

AxB

22 x 66 30 x 74 48 92 11 6446 9116 12892 202

24 x 84 32 x 92 54 114 11 8949 12656 17898 274

Hood Size CFM @ IN. W.G.

Curb

Cap

Unit

Wt.

Fresh Air Intake Ventilators havea2to1ratio of hood perimeter opening to throat area. Maximum design velocity through the hood opening is only 600 fpm to reduce entrainment of rain or snow in incoming air. The maximum throat design velocity is 1200 fpm.

MODEL IV PERFORMANCE DATA

Throat

Size

AxB

28 x 72 36 x 80 59 103 13 9135 12919 18270 266

28 x 80 36 x 88 60 112 13 9630 13619 19260 284 40 x 40 48 x 48 70 70 17 7051 9971 14102 184 54 x 54 62 x 62 95 95 23 11865 16779 23729 340

28 x 84 36 x 92 61 117 13 10655 15068 21310 297 40 x 42 48 x 50 71 73 17 7640 10805 15280 193 54 x 60 62 x 68 97 103 23 13197 18664 26395 370

28 x 96 36 x 104 63 131 13 12150 17183 24300 331 40 x 48 48 x 56 73 81 17 8267 11691 16533 220 54 x 66 62 x 74 98 110 23 14391 20352 28783 394

28 x 108 36 x 116 64 144 13 13650 19304 27300 370 40 x 54 48 x 62 74 88 17 9588 13560 19176 249 54 x 72 62 x 80 98 121 23 15697 22199 31394 405

28 x 120 36 x 128 65 157 13 16049 22696 32097 418 40 x 60 48 x 68 76 96 17 10407 14718 20814 276 54 x 80 62 x 88 98 133 23 17397 24603 34793 426

30 x 30 38 x 38 53 53 13 4207 5949 8413 110 40 x 72 48 x 80 79 111 17 12687 17942 25373 331 54 x 96 62 x 104 98 160 23 21737 30740 43473 504

30 x 36 38 x 44 55 61 13 4792 6776 9583 122 40 x 80 48 x 88 81 121 17 13773 19478 27546 354 54 x 108 62 x 116 98 179 23 23456 33172 46913 562

30 x 40 38 x 48 55 65 13 5455 7715 10910 139 40 x 84 48 x 92 83 127 17 14459 20448 28919 361 54 x 120 62 x 128 111 177 23 25858 36569 51716 629

30 x 42 38 x 50 57 69 13 5616 7943 11233 147 40 x 96 48 x 104 83 139 17 16524 23368 33047 384

30 x 48 38 x 56 57 76 13 6343 8971 12687 176 40 x 108 48 x 116 85 153 17 18593 26294 37185 440 60 x 60 68 x 68 95 115 25 14534 20555 29069 400

30 x 54 38 x 62 60 84 13 7350 10394 14700 208 40 x 120 48 x 128 87 167 17 21585 30526 43170 500 60 x 66 68 x 74 96 124 25 16001 22629 32003 427

30 x 60 38 x 68 61 91 13 8175 11561 16350 240

30 x 66 38 x 74 62 98 13 8788 12428 17576 262 42 x 42 50 x 50 74 74 18 7832 11076 15663 210 60 x 80 68 x 88 111 131 25 19306 27303 38612 460

30 x 72 38 x 80 63 105 13 9840 13916 19680 273 42 x 48 50 x 56 76 82 18 8229 11637 16457 239 60 x 84 68 x 92 113 137 25 20268 28663 40535 470

30 x 80 38 x 88 64 114 13 10613 15009 21226 295 42 x 54 50 x 62 78 90 18 9835 13909 19670 282 60 x 96 68 x 104 115 151 25 23166 32761 46331 570

30 x 84 38 x 92 65 119 13 11420 16150 22840 306 42 x 60 50 x 68 80 98 18 10965 15507 21930 305 60 x 108 68 x 116 118 166 25 25961 36714 51921 620

30 x 96 38 x 104 66 132 13 13050 18455 26100 341 42 x 66 50 x 74 82 106 18 12023 17003 24046 327 60 x 120 68 x 128 118 184 25 28175 39846 56351 695

30 x 108 38 x 116 67 145 13 14550 20577 29100 380 42 x 72 50 x 80 83 113 18 13209 18680 26418 338

30 x 120 38 x 128 69 159 13 16570 23433 33139 424 42 x 80 50 x 88 84 122 18 13844 19578 27687 360 66 x 66 74 x 74 98 134 25 17468 24704 34936 444

36 x 36 44 x 44 63 63 15 5425 7672 10850 134 42 x 96 50 x 104 87 141 18 16972 24001 33943 413 66 x 80 74 x 88 117 135 25 21234 30029 42467 592

36 x 40 44 x 48 64 68 15 6392 9040 12784 159 42 x 108 50 x 116 89 155 18 19451 27507 38901 461 66 x 84 74 x 92 117 142 25 22298 31534 44596 622

36 x 42 44 x 50 66 72 15 6900 9758 13800 172 42 x 120 50 x 128 91 169 18 21605 30555 43211 515 66 x 96 74 x 104 117 162 25 25482 36037 50964 710

36 x 48 44 x 56 67 79 15 7437 10518 14874 206

36 x 54 44 x 62 69 87 15 8750 12374 17500 239 48 x 48 56 x 56 84 84 20 9192 14533 20553 268 66 x 120 74 x 128 130 184 25 30872 43660 61745 888

36 x 60 44 x 68 70 94 15 9875 13965 19750 272 48 x 54 56 x 62 87 93 20 10062 15910 22500 304

36 x 66 44 x 74 71 101 15 10805 15281 21610 294 48 x 60 56 x 68 88 100 20 10733 16971 24000 337 72 x 72 80 x 80 117 137 25 20370 28807 40739 590

36 x 72 44 x 80 72 108 15 11750 16617 23500 305 48 x 66 56 x 74 89 107 20 11511 18201 25740 360 72 x 80 80 x 88 128 136 28 22716 32125 45432 656

36 x 80 44 x 88 74 117 15 12443 17597 24885 327 48 x 72 56 x 80 92 116 20 12558 19856 28080 371 72 x 84 80 x 92 130 142 29 24324 34399 48648 689

36 x 84 44 x 92 75 123 15 12775 18067 25551 338 48 x 80 56 x 88 94 126 20 13475 21305 30130 393 72 x 96 80 x 104 133 157 29 27259 38550 54518 787

36 x 96 44 x 104 77 137 15 14874 21035 29748 376 48 x 84 56 x 92 95 131 20 13962 22076 31220 404 72 x 108 80 x 116 136 172 29 30311 42866 60622 885

36 x 108 44 x 116 78 150 15 16690 23604 33381 418 48 x 96 56 x 104 96 144 20 15456 24438 34560 454 72 x 120 80 x 128 139 187 29 33679 47629 67358 984

36 x 120 44 x 128 79 165 15 19400 27436 38800 467 48 x 108 56 x 116 95 165 20 17418 27540 38947 508

Hood Size CFM @ IN. W.G.

Curb

Cap

C D E .05" .10" .20" C D E .05" .10" .20" C D E .05" .10" .20"

Throat

Unit

Size

Wt.

AxB

40 x 66 48 x 74 77 103 17 11451 16194 22902 304 54 x 84 62 x 92 98 140 23 18833 26633 37665 437

42 x 84 50 x 92 84 126 18 14537 20559 29075 371 66 x 72 74 x 80 117 123 25 18681 26419 37363 533

48 x 120 56 x 128 97 178 20 19170 30311 42866 569

Hood Size CFM @ IN. W.G.

Curb

Cap

40 54

Throat

Unit

Size

Wt.

AxB

60 x 72 68 x 80 109 121 25 17397 24603 34793 440

66 x 108 74 x 116 127 169 25 27890 39443 55781 799

Hood Size CFM @ IN. W.G.

Curb

Cap

Unit

Wt.

When an application specifies a CFM capacity for a listed size ventilator that is different from that shown for that ventilator in the tables, the new static pressure (P

readily determined by applying the equation P

The CFM specified air flow and P

and P1are shown in the tables. CFM2is the

is the corresponding static pressure to

) for the specified CFM is



CFM



2=P1

CFM



Example: Determine the static pressure of an intake unit with a 30” x 30” throat, flowing 7,000 CFM. The data table yields the following:



= .20, CFM1= 8413.

 

Thus, P

= .20

7000

 



8413



= .20(.8321)





= .14” w.g.

be determined.

MODELS LEV AND LIV LOUVERED RELIEF/INTAKE VENTS

Model LEV

For exhaust or gravity relief. Capacities up to 103,000 cfm.

Model LIV

For fresh air intake. Design velocity at perimeter of 600 fpm to minimize moisture entrainment. Capacities up to 103,000 cfm.

Aerodynamically designed with generous air flow

areas for efficient performance

Birdscreens are constructed of ½" x ½" galvanized welded wire mesh (Omitted when supplied with optional filters)

Removable hoods are reinforced and braced for extra rigidity and resistance to wind damage. Cross broke for extra strength. Constructed of .050 aluminum

Louvers are precision miter cut and welded for maximum strength. Constructed of .081” extruded aluminum

Louvered on all four sides for full 360º perimeter opening

Multiple tiers for high air flow capacities

Outstanding weather protection*

Vertical snow and storm baffle on base to guard against

storm driven rain and snow

Extruded louvers have double water and snow baffles for

added weather protection

*Louvered ventilators are reasonably weather tight. However, they

are not recommended for use where airborne water droplets from

storms or high winds may damage the interior of the building.

Curb caps are miter cut and continuous welded for maximum strength and water tightness. Constructed of .080" aluminum

OPTIONAL ACCESSORIES

Hinged Hood - for easy access to filters and screens

Insulated Hood - reduces condensation drip rubberized anti-condensation undercoating or 1” fiberglass insulation

Filters - 1” thick permanent aluminum mesh mounted for easy cleaning (add .15” to static pressure listed in the tables when using filters on LIV ventilators)

Insect Screens - 18 ga. mesh aluminum screen attached to the inside perimeter of the louvered opening (add .08” to static pressure for LEV and .03” to static pressure for LIV listed in the tables when using insect screens)

Typical drawings are for dimensional purposes only and are correct within limits suitable for normal installation requirements. They do not necessarily show actual construction.

Aluminum Bird Screens - .050” thick ½” x 1” expanded aluminum located on inside perimeter of louvered openings

Custom Sizes - consult factory for details

Coatings - decorative and protective

Prefabricated Roof Curbs

Dampers

Exhaust Relief Type

Model AR-CAR - automatic counter balanced Model AR-ML - manual operated Model AR-MT - motorized

Air Intake Type

Model WAGC-ML - manual operated Model WAGC-MT - motorized

MODELS LEV/LIV PERFORMANCE DATA

Throat

Size

AxB

12 x 12 1199 1225 1238 1245 12 x 14 1382 1419 1438 1448 12 x 16 1562 1611 1636 1649 12 x 18 1737 1800 1832 1850 1861 12 x 20 1909 1987 2026 2049 2063 12 x 24 2244 2354 2411 2444 2464 12 x 30 2729 2892 2979 3029 3061 3082 12 x 36 3197 3418 3538 3608 3652 3682 12 x 42 3653 3935 4089 4181 4240 4279 12 x 48 4101 4444 4635 4750 4823 4873 14 x 14 1590 1642 1668 1682 1691 1697 14 x 16 1791 1860 1895 1915 1927 1935 14 x 18 1987 2075 2120 2146 2162 2172 14 x 20 2178 2286 2342 2375 2395 2408 2417 14 x 24 2548 2700 2781 2828 2857 2877 2890 14 x 30 3078 3303 3425 3497 3543 3573 3595 14 x 36 3587 3888 4055 4156 4220 4264 4294 4316 14 x 42 4080 4459 4675 4807 4891 4949 4989 5019 14 x 48 4561 5021 5287 5451 5557 5629 5681 5718 16 x 16 2012 2104 2151 2178 2194 2205 2213 2219 16 x 18 2227 2343 2403 2438 2460 2474 2484 2491 16 x 20 2435 2577 2652 2696 2723 2741 2754 2763 16 x 24 2835 3034 3141 3205 3245 3272 3290 3304 3314 16 x 30 3404 3694 3856 3953 4016 4058 4087 4109 4125 16 x 36 3945 4331 4552 4687 4775 4835 4877 4908 4931 16 x 42 4950 5234 5410 5525 5604 5660 5701 5732 5756 16 x 48 5556 5905 6123 6268 6367 6438 6490 6530 6560 18 x 18 2458 2604 2682 2727 2755 2774 2787 2797 2804 2809 18 x 20 2681 2860 2956 3013 3048 3072 3089 3101 3110 3117 18 x 24 3107 3356 3493 3575 3627 3662 3687 3705 3718 3729 3737 18 x 30 3709 4067 4273 4398 4480 4535 4574 4603 4624 4641 4654 18 x 36 4277 4750 5029 5203 5317 5395 5451 5492 5523 5546 5565 18 x 42 5410 5767 5992 6142 6245 6319 6374 6415 6447 6472 6492 18 x 48 6055 6490 6770 6957 7087 7181 7250 7302 7343 7375 7401 18 x 54 7202 7537 7763 7922 8036 8121 8185 8236 8275 8307 20 x 20 2917 3135 3254 3325 3370 3400 3421 3436 3448 3457 3464 3469 20 x 24 3367 3667 3836 3938 4004 4049 4080 4103 4120 4133 4144 4152 20 x 30 3996 4425 4677 4834 4936 5006 5055 5092 5119 5140 5157 5170 5181 20 x 36 5148 5488 5704 5847 5946 6017 6069 6108 6139 6163 6182 6198 20 x 42 5844 6276 6555 6743 6873 6967 7037 7090 7131 7163 7189 7210 7228 20 x 48 6521 7046 7391 7625 7789 7908 7996 8064 8116 8158 8191 8219 8241 20 x 54 7802 8214 8496 8696 8841 8950 9032 9097 9148 9190 9223 9251 24 x 24 4263 4501 4649 4745 4811 4857 4892 4917 4937 4953 4965 4976 4984 24 x 30 5101 5452 5676 5825 5928 6002 6057 6098 6130 6155 6176 6192 6206 24 x 36 5891 6359 6666 6874 7019 7125 7203 7263 7309 7346 7376 7400 7420 7436 24 x 42 7234 7627 7898 8090 8230 8335 8415 8477 8527 8567 8600 8627 8649 24 x 48 8082 8565 8902 9143 9320 9453 9555 9635 9699 9751 9793 9827 9857 9881 24 x 54 8911 9485 9890 10182 10398 10561 10687 10785 10864 10928 10980 11023 11060 11090 24 x 60 9725 10390 10864 11209 11465 11659 11810 11928 12023 12099 12162 12215 12258 12296 30 x 30 6036 6543 6878 7107 7269 7386 7474 7540 7592 7633 7667 7694 7716 7735 7751 30 x 36 6901 7568 8023 8339 8566 8733 8859 8955 9031 9091 9139 9179 9212 9239 9262 30 x 42 8544 9121 9531 9829 10050 10217 10347 10448 10530 10596 10650 10695 10732 10764 10791 30 x 48 9484 10184 10690 11062 11340 11553 11718 11849 11953 12038 12108 12166 12215 12257 12292 30 x 54 10394 11219 11823 12271 12610 12870 13073 13234 13364 13469 13556 13629 13690 13741 13786 30 x 60 12232 12934 13461 13861 14171 14413 14607 14763 14890 14995 15083 15157 15219 15273 15319 30 x 66 13226 14028 14634 15098 15458 15742 15968 16152 16302 16426 16529 16617 16691 16755 16810 30 x 72 15108 15794 16322 16734 17060 17321 17532 17706 17850 17970 18072 18158 18232 18296 36 x 36 7824 8688 9297 9732 10049 10286 10466 10605 10715 10802 10874 10932 10981 11021 11056 11085 11111 36 x 42 9743 10508 11066 11480 11792 12031 12218 12367 12486 12583 12663 12729 12785 12833 12873 12908 36 x 48 10749 11670 12353 12867 13259 13563 13801 13991 14145 14270 14374 14460 14533 14595 14648 14694 36 x 54 11719 12793 13604 14220 14695 15065 15358 15592 15782 15938 16067 16175 16266 16344 16411 16468 36 x 60 13887 14824 15544 16104 16543 16892 17173 17401 17589 17746 17877 17987 18082 18163 18233 36 x 66 14957 16020 16845 17490 18000 18407 18736 19005 19227 19411 19566 19698 19810 19906 19990 36 x 72 17195 18125 18858 19440 19906 20285 20595 20851 21065 21245 21398 21529 21641 21739 36 x 80 18738 19808 20657 21336 21884 22330 22697 23001 23256 23470 23653 23809 23944 24061 36 x 84 20639 21547 22275 22864 23345 23741 24069 24345 24577 24775 24945 25091 25218

10.5414.0517.5621.0724.5828.0931.51035.01138.51242.01345.51449.01552.51656.01759.51863.01966.52070.0

Number of Tiers and Height in Inches (E)

CFM @

0.15” w.g.

Selections to right of bold line are for LIV intake vents (perimeter velocity 600 fpm or less).

For LEV/LIV weights use the Unit Weight Calculation as follows: (A + B) x Weight Factor = Unit Weight Example: (36 + 42) x 1.98 = 154 lbs.

Tiers Factor

3 1.50 4 1.54 5 1.60 6 1.66 7 1.76 8 1.82

WEIGHT FACTOR

Tiers Factor

9 1.90 10 2.00 11 2.10 12 2.24 13 2.40 14 2.50

Tiers Factor

15 2.62 16 2.76 17 2.88 18 3.02 19 3.14 20 3.26

MODELS LEV/LIV PERFORMANCE DATA

Throat

Size

AxB

42 x 42 11812 12523 13059 13470 13788 14039 14239 14401 14533 14643 14734 14811 14877 14933 14981 42 x 48 13919 14581 15094 15496 15815 16072 16280 14651 16593 16713 16813 16899 16973 17036 42 x 54 15266 16056 16675 17164 17555 17871 18129 18342 18519 18668 18794 18902 18995 19075 42 x 60 18219 18797 19263 19641 19951 20208 20422 20603 20756 20888 21001 21099 42 x 66 19732 20402 20943 21385 21750 22052 22306 22520 22702 22858 22993 23110 42 x 72 21220 21981 22601 23109 23529 23879 24173 24422 24634 24816 24973 25110 42 x 80 24056 24781 25378 25874 26289 26639 26936 27189 27408 27596 27761 42 x 84 25081 25859 26502 27037 27485 27863 28185 28460 28696 28902 29080 42x96 29839 30492 31041 31507 31904 32245 32540 32795 33018 48 x 48 14363 15408 16221 16860 17366 17771 18099 18367 18589 18773 18929 19060 19173 19270 19353 48 x 54 16836 17801 18568 19182 19677 20081 20413 20688 20918 21113 21278 21420 21542 21647 48 x 60 18216 19333 20230 20953 21541 22023 22422 22754 23032 23268 23470 23642 23791 23921 48 x 66 20826 21852 22686 23369 23932 24399 24790 25119 25399 25638 25844 26021 26176 48 x 72 23441 24387 25166 25812 26350 26801 27183 27508 27786 28026 28234 28415 48 x 80 25518 26614 27523 28280 28914 29449 29903 30290 30623 30910 31160 31378 48 x 84 27712 28686 29499 30182 30760 31250 31670 32030 32342 32614 32851 48 x 96 30957 32127 33111 33943 34649 35252 35770 36217 36605 36943 37240

48 x 108 36664 37646 38485 39203 39823 40359 40825 41233 41590

54 x 54 16913 18334 19474 20391 21133 21736 22232 22642 22984 23272 23515 23723 23901 24055 24189 54 x 60 19776 21088 22156 23027 23742 24333 24824 25236 25584 25880 26133 26351 26539 26703 54 x 66 22655 23872 24874 25702 26390 26966 27451 27862 28212 28512 28771 28996 29193 54 x 72 25548 26681 27623 28411 290723 29632 30108 30514 30864 31167 31430 31660 54 x 80 27732 29039 30134 31056 31834 32496 33060 33545 33963 34326 34642 34920 54 x 84 30199 31371 32360 33198 33911 34521 35045 35499 35892 36236 36537

54x96 35020 36212 37229 38100 38848 39495 40057 40546 40974 41351 54 x 108 39990 41187 42218 43108 43881 44553 45141 45657 46112 54 x 120 43709 45088 46280 47314 48214 49000 49689 50296 50831 54 x 144 54279 55603 56762 57780 58676 59468 60170

60 x 60 19442 21270 22774 24012 25032 25877 26580 27169 27664 28085 28444 28752 29018 29249 29450

60 x 66 22712 24405 25811 26981 27957 28774 29462 30045 30541 30965 31331 31648 31924 32165

60 x 72 25990 27563 28882 29989 30922 31711 32383 32957 33450 33876 34245 34568 34851

60 x 80 29839 31354 32637 33725 34652 35445 36125 36712 37221 37664 38052 38392

60 x 84 30955 32568 33938 35105 36101 36955 37689 38324 38875 39356 39777 40148

60 x 96 36136 37768 39169 40374 41413 42313 43095 43776 44373 44898 45361 60 x 108 41507 43142 44556 45784 46851 47783 48599 49316 49948 50507 60 x 120 47044 48669 50085 51322 52405 53357 54197 54938 55597 60 x 144 54693 56736 58529 60108 61499 62728 63817 64784 65646

66 x 66 26091 27684 29021 30145 31093 31896 32580 33164 33677 34101 34479 34808 35097

66 x 72 29502 31005 32278 33358 34277 35064 35740 36323 36828 37268 37654 37992

66 x 80 33578 35048 36305 37382 38308 39108 39801 40405 40932 41395 41803

66 x 84 34839 36406 37751 38908 39905 40768 41517 42171 42743 43245 43689

66x96 40395 42003 43398 44608 45663 46584 47390 48100 48726 49280 66 x 108 46148 47779 49205 50453 51548 52512 53363 54117 54786 66 x 120 50209 52077 53718 55161 56432 57555 58550 59434 60221 66 x 144 58147 60484 62553 64387 66014 67459 68747 69897 70925

72 x 72 29405 31380 33064 34501 35729 36781 37685 38465 39140 39728 40242 40692 41089

72 x 80 35728 37382 38806 40035 41098 42020 42822 43523 44138 44679 45157

72 x 84 37029 38792 40314 41632 42774 43768 44635 45393 46060 46648 47168

72x96 42920 44734 46318 47701 48912 49975 50910 51736 52467 53117 72 x 108 46927 49030 50877 52501 53932 55193 56309 57298 58177 58960 72 x 120 50843 53229 55338 57203 58853 60314 61612 62767 63796 64716 72 x 144 58476 61418 64043 66384 68471 70334 71999 73490 74826 76027

84 x 84 41219 43362 45236 46875 48310 49570 50677 51653 52516 53281 53962

84x96 49946 51903 53631 55158 56510 57708 58775 59725 60573 84 x 108 54497 56767 58785 60580 62177 63602 64875 66013 67035 84 x 120 61504 63809 65870 67714 69365 70846 72176 73374 84 x 144 70701 73569 76155 78487 80592 82492 84210 85765

10.5414.0517.5621.0724.5828.0931.51035.01138.51242.01345.51449.01552.51656.01759.51863.01966.52070.0

CFM @

0.15” w.g.

Number of Tiers and Height in Inches (E)

Selections to right of bold line are for LIV intake vents (perimeter velocity 600 fpm or less).

MODELS LEV/LIV PERFORMANCE DATA

Throat

Size

AxB

12 x 12 692 707 715 719 12 x 14 798 820 830 836 12 x 16 902 930 944 952 12 x 18 1003 1039 1058 1068 1074 12 x 20 1102 1147 1170 1183 1191 12 x 24 1296 1359 1392 1411 1423 12 x 30 1575 1670 1720 1749 1767 1779 12 x 36 1846 1974 2042 2083 2109 2126 12 x 42 2109 2272 2361 2414 2448 2470 12 x 48 2367 2566 2676 2742 2785 2813 14 x 14 918 948 963 971 977 980 14 x 16 1034 1074 1094 1106 1113 1117 14 x 18 1147 1198 1224 1239 1248 1254 14 x 20 1257 1320 1352 1371 1383 1390 1396 14 x 24 1471 1559 1606 1633 1650 1661 1669 14 x 30 1777 1907 1977 2019 2045 2063 2075 14 x 36 2071 2245 2341 2399 2437 2462 2479 2492 14 x 42 2355 2575 2699 2775 2824 2857 2880 2898 14 x 48 2633 2899 3053 3147 3208 3250 3280 3301 16 x 16 1162 1215 1242 1257 1267 1273 1278 1281 16 x 18 1286 1353 1387 1408 1420 1428 1434 1438 16 x 20 1406 1488 1531 1556 1572 1583 1590 1595 16 x 24 1637 1752 1814 1850 1873 1889 1900 1908 1913 16 x 30 1965 2133 2226 2282 2318 2343 2360 2372 2382 16 x 36 2278 2500 2628 2706 2757 2791 2816 2833 2847 16 x 42 2858 3022 3123 3190 3235 3268 3292 3309 3323 16 x 48 3208 3409 3535 3619 3676 3717 3747 3770 3788 18 x 18 1419 1504 1548 1574 1591 1602 1609 1615 1619 1622 18 x 20 1548 1651 1707 1739 1760 1774 1783 1790 1795 1799 18 x 24 1794 1937 2017 2064 2094 2114 2129 2139 2147 2153 2157 18 x 30 2141 2348 2467 2539 2586 2618 2641 2657 2670 2679 2687 18 x 36 2469 2742 2904 3004 3070 3115 3147 3171 3188 3202 3213 18 x 42 3124 3329 3460 3546 3606 3648 3680 3704 3722 3737 3748 18 x 48 3496 3747 3908 4017 4092 4146 4186 4216 4240 4258 4273 18 x 54 4158 4351 4482 4574 4640 4689 4726 4755 4778 4796 20 x 20 1684 1810 1879 1920 1946 1963 1975 1984 1991 1996 2000 2003 20 x 24 1944 2117 2215 2274 2312 2338 2356 2369 2379 2386 2392 2397 20 x 30 2307 2555 2700 2791 2850 2890 2919 2940 2956 2968 2977 2985 2991 20 x 36 2972 3169 3293 3376 3433 3474 3504 3527 3544 3558 3569 3579 20 x 42 3374 3624 3785 3893 3968 4022 4063 4093 4117 4136 4151 4163 4173 20 x 48 3765 4068 4267 4402 4497 4566 4617 4656 4686 4710 4729 4745 4758 20 x 54 4504 4742 4905 5021 5104 5167 5215 5252 5282 5306 5325 5341 24 x 24 2461 2599 2684 2739 2777 2804 2824 2839 2851 2860 2867 2873 2878 24 x 30 2945 3148 3277 3363 3422 3465 3497 3521 3539 3554 3566 3575 3583 24 x 36 3401 3672 3849 3969 4053 4114 4159 4193 4220 4241 4258 4272 4284 4293 24 x 42 4176 4404 4560 4671 4752 4812 4858 4894 4923 4946 4965 4981 4994 24 x 48 4666 4945 5140 5279 5381 5458 5517 5563 5600 5629 5654 5674 5691 5705 24 x 54 5145 5476 5710 5878 6003 6097 6170 6227 6272 6309 6339 6364 6385 6403 24 x 60 5615 5999 6272 6471 6619 6731 6818 6887 6941 6986 7022 7052 7077 7099 30 x 30 3485 3778 3971 4103 4197 4264 4315 4353 4383 4407 4426 4442 4455 4466 4475 30 x 36 3985 4370 4632 4815 4946 5042 5115 5170 5214 5248 5276 5299 5318 5334 5348 30 x 42 4933 5266 5503 5675 5802 5899 5974 6032 6079 6117 6149 6175 6196 6215 6230 30 x 48 5475 5880 6172 6387 6547 6670 6765 6841 6901 6950 6991 7024 7053 7076 7097 30 x 54 6001 6477 6826 7085 7280 7430 7548 7641 7716 7776 7827 7869 7904 7934 7959 30 x 60 7062 7468 7772 8003 8181 8322 8433 8523 8597 8657 8708 8751 8787 8818 8845 30 x 66 7636 8099 8449 8717 8925 9089 9219 9325 9412 9483 9543 9594 9637 9674 9705 30 x 72 8722 9119 9423 9661 9849 10000 10122 10222 10305 10375 10434 10484 10526 10563 36 x 36 4517 5016 5367 5619 5802 5939 6042 6123 6186 6237 6278 6312 6340 6363 6383 6400 6415 36 x 42 5625 6067 6389 6628 6808 6946 7054 7140 7209 7265 7311 7349 7382 7409 7432 7453 36 x 48 6206 6737 7132 7429 7655 7830 7968 8078 8166 8239 8299 8348 8391 8426 8457 8483 36 x 54 6766 7386 7854 8210 8484 8698 8867 9002 9112 9202 9276 9339 9391 9436 9475 9508 36 x 60 8018 8559 8975 9297 9551 9753 9915 10047 10155 10245 10321 10385 10440 10486 10527 36 x 66 8635 9249 9725 10098 10392 10628 10817 10973 11101 11207 11297 11372 11437 11493 11541 36 x 72 9928 10465 10887 11233 11493 11712 11891 12039 12162 12266 12354 12430 12495 12551 36 x 80 10818 11436 11926 12318 12635 12892 13104 13280 13427 13551 13656 13746 13824 13892 36 x 84 11916 12440 12861 13201 13478 13707 13896 14055 14190 14304 14402 14486 14560

10.5414.0517.5621.0724.5828.0931.51035.01138.51242.01345.51449.01552.51656.01759.51863.01966.52070.0

Number of Tiers and Height in Inches (E)

CFM @

0.05” w.g.

Selections to right of bold line are for LIV intake vents (perimeter velocity 600 fpm or less).

For LEV/LIV weights use the Unit Weight Calculation as follows: (A + B) x Weight Factor = Unit Weight Example: (36 + 42) x 1.98 = 154 lbs.

Tiers Factor

3 1.50 4 1.54 5 1.60 6 1.66 7 1.76 8 1.82

WEIGHT FACTOR

Tiers Factor

9 1.90 10 2.00 11 2.10 12 2.24 13 2.40 14 2.50

Tiers Factor

15 2.62 16 2.76 17 2.88 18 3.02 19 3.14 20 3.26

MODELS LEV/LIV PERFORMANCE DATA

Throat

Size

AxB

42 x 42 6820 7230 7540 7777 7961 8105 8221 8314 8391 8454 8507 8551 8589 8622 8650 42 x 48 8036 8419 8715 8947 9131 9279 9399 9498 9580 9649 9707 9757 9799 9836 42 x 54 8814 9270 9627 9910 10135 10318 10467 10590 10692 10778 10851 10913 10967 11013 42 x 60 10519 10853 11121 11340 11519 11667 11791 11895 11984 12060 12125 12181 42 x 66 11392 11779 12092 12347 12557 12732 12878 13002 13107 13197 13275 13343 42 x 72 12251 12691 13049 13342 13584 13786 13956 14100 14222 14327 14418 14497 42 x 80 13889 14307 14652 14938 15178 15380 15551 15698 15824 15933 16028 42 x 84 14481 14930 15301 15610 15868 16087 16272 16431 16568 16686 16789 42x96 17227 17604 17922 18191 18420 18617 18787 18934 19063 48 x 48 8293 8896 9365 9734 10026 10260 10450 10604 10732 10839 10929 11005 11069 11125 11174 48 x 54 9720 10278 10720 11075 11361 11594 11785 11944 12077 12189 12285 12367 12437 12498 48 x 60 10517 11162 11680 12097 12437 12715 12945 13137 13298 13434 13550 13650 13736 13811 48 x 66 12024 12616 13098 13492 13817 14087 14313 14503 14664 14802 14921 15023 15113 48 x 72 13534 14080 14530 14902 15213 15474 15694 15882 16042 16181 16301 16405 48 x 80 14733 15366 15890 16327 16693 17002 17264 17488 17680 17846 17990 18116 48 x 84 16000 16562 17031 17426 17759 18042 18285 18493 18673 18830 18966 48 x 96 17873 18548 19116 19597 20005 20353 20652 20910 21134 21329 21500

48 x 108 21168 21735 22219 22634 22992 23301 23570 23806 24012

54 x 54 9765 10585 11243 11773 12201 12550 12836 13072 13270 13436 13576 13696 13799 13888 13966 54 x 60 11417 12175 12792 13295 13707 14049 14332 14570 14771 14942 15088 15213 15322 15417 54 x 66 13080 13782 14361 14839 15237 15569 15849 16086 16288 16461 16611 16741 16855 54 x 72 14750 15404 15948 16403 16785 17108 17383 17617 17819 17994 18146 18279 54 x 80 16011 16766 17398 17930 18380 18761 19087 19367 19609 19818 20001 20161 54 x 84 17436 18112 18683 19167 19578 19931 20233 20495 20723 20921 21095

54x96 20219 20907 21494 21997 22429 22803 23127 23409 23656 23874 54 x 108 23088 23779 24374 24889 25334 25723 26062 26360 26623 54 x 120 25235 26032 26720 27317 27836 28290 28688 29038 29347 54 x 144 31338 32103 32772 33359 33876 34334 34739

60 x 60 11225 12280 13149 13863 14452 14940 15346 15686 15972 16215 16422 16600 16753 16887 17003

60 x 66 13113 14090 14902 15577 16141 16613 17010 17346 17633 17878 18089 18272 18431 18570

60 x 72 15005 15914 16675 17314 17853 18309 18696 19028 19312 19558 19772 19958 20121

60 x 80 17227 18102 18843 19471 20006 20464 20857 21196 21490 21745 21969 22166

60 x 84 17872 18803 19594 20268 20843 21336 21760 22126 22445 22722 22965 23179

60 x 96 20863 21805 22614 23310 23910 24429 24881 25274 25619 25922 26189 60 x 108 23964 24908 25725 26433 27050 27588 28059 28472 28837 29160 60 x 120 27161 28099 28916 29631 30256 30806 31290 31719 32099 60 x 144 31577 32756 33792 34703 35506 36216 36845 37403 37901

66 x 66 15064 15983 16755 17404 17952 18415 18810 19147 19438 19688 19906 20096 20263

66 x 72 17033 17901 18635 19259 19790 20244 20634 20971 21263 21517 21739 21935

66 x 80 19387 20235 20960 21582 22117 22579 22979 23328 23632 23899 24135

66 x 84 20114 21019 21796 22463 23039 23537 23970 24347 24677 24968 25224

66x96 23322 24251 25056 25755 26363 26895 27361 27771 28132 28452 66 x 108 26643 27585 28409 29129 29762 30318 30809 31244 31630 66 x 120 28988 30067 31014 31847 32581 33230 33804 34314 34768 66 x 144 33571 34921 36115 37174 38113 38948 39691 40355 40949

72 x 72 16977 18117 19090 19919 20628 21235 21757 22208 22598 22937 23234 23494 23723

72 x 80 20627 21582 22405 23114 23728 24260 24723 25128 25483 25795 26072

72 x 84 21379 22396 23275 24036 24696 25269 25770 26208 26593 26932 27232

72x96 24780 25827 26741 27540 28239 28853 29393 29870 30292 30667 72 x 108 27093 28307 29374 30312 31137 31866 32510 33081 33588 34040 72 x 120 29354 30732 31950 33026 33979 34823 35572 36238 36833 37364 72 x 144 33761 35460 36975 38327 39532 40607 41569 42429 43201 43894

84 x 84 23798 25035 26117 27063 27892 28619 29258 29822 30320 30762 31155

84x96 28836 29966 30964 31845 32626 33318 33934 34482 34972 84 x 108 31464 32774 33939 34976 35898 36721 37455 38113 38702 84 x 120 35509 36840 38030 39094 40048 40903 41671 42362 84 x 144 40819 42475 43968 45315 46530 47627 48619 49516

10.5414.0517.5621.0724.5828.0931.51035.01138.51242.01345.51449.01552.51656.01759.51863.01966.52070.0

CFM @

0.05” w.g.

Number of Tiers and Height in Inches (E)

Selections to right of bold line are for LIV intake vents (perimeter velocity 600 fpm or less).

When an application specifies a CFM capacity for a listed size ventilator that is different from that shown for that ventilator in the tables, the new static pressure (P specified CFM is readily determined by applying the equation





2=P1



The CFM specified air flow and P



CFM



CFM



and P1are shown in the tables. CFM2is the

is the corresponding static pressure

) for the

Example: Determine the static pressure of a unit with 48” x 48” throat, 10 tiers (35”) height, and flowing 13,000 CFM. The above data table yields the following:

= .05, CFM1= 10,026.

Thus, P

= .05



13000





10026

, ,



= .05 (1.30)





+ .08” w.g.

to be determined.

MODEL LQV RELIEF/INTAKE VENT

Model LQV

Curb mounted for exhaust or gravity relief.

Hood, orifice and curbcap constructed of heavy gauge

aluminum

Removable hood

OPTIONAL ACCESSORIES

Prefabricated Roof Curbs

Dampers

Coatings

Large streamlined orifice permits efficient, less turbulent

airflow

Birdscreen constructed of heavy gauge galvanized steel

wire mesh

Can be converted to power roof ventilator by adding fan

unit except for sizes 42" and 48"

PERFORMANCE DATA

Vent

Model

LQV10 360 515 630 725 810 LQV12 480 675 830 955 1070 LQV14 630 890 1090 1260 1410 LQV16 830 1175 1440 1665 1860 LQV18 1095 1555 1900 2195 2455 LQV21 1450 2050 2510 2900 3240 LQV24 1910 2705 3315 3825 4280 LQV30 2955 4180 5120 5910 6610 LQV36 4300 6080 7450 8600 9620 LQV42 5860 8250 10200 11750 13150 LQV48 7710 10770 13350 15350 17300

.05" .10" .15" .20" .25"

CFM vs. Static Pressure

DIMENSIONS

Vent

Model

LQV10 22.00 6.61 18.63 2.36 10.50 .60 14 C20.5 LQV12 24.00 6.74 21.00 2.49 12.13 .80 18 C22.5 LQV14 26.00 8.10 24.00 3.35 14.00 1.07 20 C24.5 LQV16 28.00 9.83 27.63 4.58 16.00 1.40 25 C26.5 LQV18 31.00 10.76 31.60 5.01 18.50 1.84 35 C29.5 LQV21 34.00 12.09 36.72 5.47 21.13 2.43 71 C32.5 LQV24 38.00 13.70 41.38 5.20 24.38 3.24 100 C36.5 LQV30 46.00 15.89 52.13 6.89 30.50 5.07 159 C44.5 LQV36 52.50 18.67 61.19 9.67 36.50 7.27 203 C51.0 LQV42 54.00 25.50 82.12 13.14 42.00 9.70 300 C52.5 LQV48 60.00 29.00 82.12 16.72 48.00 12.60 337 C58.5

Dimensions shown are in inches. Weights shown in pounds. Typical drawings are for dimensional purposes only and are correct within limits suitable for normal installation requirements. They do not necessarily show actual construction.

ABCE

Throat

Dia.

Area

Sq. Ft.

Ship

Wt.

Curb

Model

Model VC

For use on flat or sloped roofs.

All aluminum construction

½” mesh galvanized bird screen

MODEL VC RELIEF VENT

Vent

Model

VC8 20 9.38 5.38 8 14.00 10

VC10 22 9.38 5.38 10 18.50 12

VC14 26 9.88 5.38 14 24.00 18

DIMENSIONS

ABCD E

Ship

Wt.

MODEL UBGEC UPBLAST VENT

Model UBGEC

Curb mounted for exhaust or gravity relief.

Windband is constructed of heavy gauge

galvanized steel with a die formed flange for

extra strength; channel cross tie member

provides lateral rigidity; removable panels for

easy access to dampers

Butterfly Dampers are constructed of heavy

gauge aluminum; stainless steel hinge pins and

nylon bearings provide quiet, low friction

operation; water trough under damper hinge

provides drainage for rain, melting snow and ice

Curb Base is constructed of heavy gauge

galvanized steel base with deep drawn orifice;

lifting eyes for ease of handing

DIMENSIONS

Vent

Model

UBGEC24 36.00 31.40 37.18 C34.5

UBGEC30 42.00 38.08 43.14 C40.5

UBGEC36 48.00 39.37 49.12 C46.5

UBGEC42 54.00 38.49 56.11 C52.5

UBGEC48 60.00 45.72 62.21 C58.5

UBGEC54 66.00 52.96 69.31 C64.5

UBGEC60 72.00 58.09 79.15 C70.5

UBGEC72 90.00 63.25 95.68 C88.5

Dimensions shown are in inches. Typical drawings are for dimensional purposes only and are correct within limits suitable for normal installation requirements. They do not necessarily show actual construction.

ABC

Curb

Model

OPTIONAL ACCESSORIES

Prefabricated Curbs

Coatings

Magnetic Damper Latches

MINIMUM CFM FOR DAMPER OPENING

Vent

Model

UBGEC24 3760 UBGEC48 15050

UBGEC30 5920 UBGEC54 19040

UBGEC36 8480 UBGEC60 23600

UBGEC42 11520 UBGEC72 33929

CFM

Vent

Model

CFM

MODEL BEX, BFL AND BC BRICK VENTS

Models BEX and BFL

All extruded aluminum construction

Minimum .125” thickness

Overlapping blades

Clear Anodized finish standard

Extruded blades with storm drip

Mesh aluminum insect screen

Model BFL

Model BEX

Bottom Ribs

Model BC

· Aluminum Construction

· Minimum .125” thick

Mill finish

Insect Screen

Water Stop

Blade with Storm Drip

Overlap Wall Flange

Top Ribs

Bottom Drip

Top Drip

DIMENSIONS

Vent

Model

BEX825 BFL825 8.125 2.375

BEX847 BFL847 8.125 4.750

BEX808 BFL808 8.125 7.750

BEX123 BFL123 12.000 2.375

BEX125 BFL125 12.000 4.750

BEX128 BFL128 12.000 7.750

BEX1212 BFL1212 12.000 11.750

BEX157 BFL157 15.625 7.750

BEX1516 BFL1516 15.625 15.750

BEX162 BFL162 16.500 2.375

BEX164 BFL164 16.500 4.750

BEX168 BFL168 16.500 7.750

BEX1616 BFL1616 16.500 15.750

BEX242 BFL242 24.000 2.375

BEX244 BFL244 24.000 4.750

BEX248 BFL248 24.000 7.750

BEX3208 BFL3208 32.000 7.750

· Overlapping blades

· One-piece molded unit

Mesh aluminum insect screen

Vent

Model

Width Height

Screen

OPTIONAL ACCESSORIES

Opposed blade damper

Exterior operated damper

Straight duct

Duct and Inside Register

Coatings

Bronze Anodized Aluminum

Lengths up to 8’

Water Stop

DIMENSIONS

Vent

Model

BC825

BC847 8 4.938 BC162 16.5 2.375

BC808 8 7.875 BC1604 16.0 4.000

BC123 12 2.750 BC164 16.0 4.938

BC124 12 3.083 BC166 16.0 6.000

BC125 12 5.000 BC168 16.0 7.750

Width Height

8 2.250 BC128 12.0 7.750

Vent

Model

Width Height

EXHAUSTERS

CEILING AND CABINET

EXHAUSTERS

IN-LINE CENTRIFUGAL

FANS

IN-LINE AXIAL FANSCENTRIFUGAL

PROPELLER

ROOF FANS

ROOF VENTS

WALL FANS

PLENUM FANS

UTILITY BLOWERS

BACKWARD

INCLINED/AIRFOIL

CENTRIFUGAL FANS

SUPPLY AIR FANSPROPELLER

CENTRIFUGAL

INDUSTRIAL

EXHAUSTERS

LIMITED WARRANTY Acme Engineering and Man ufacturing Corporation extends this limited warranty to the original purchaser and warrants that products described herein shall be free from original defects in workmanship and materials for two years from date of shipment (except for Acme’s exclusiveduplex split pillow block bearings and shaft 5 years from ship ment, belts one year from shipment, and polyethyl ene tubingat 90days from shipping), provided same have been properly handled, stored, installed, ser viced, maintained and operated. Refer to Form MS149 for complete limited warranty terms and con ditions. This form is available to anyone at www.acmefan.com. The Company's warranty is in lieu of all other warranties, express or implied, arising by law or otherwise, including without limitation the implied warrantiesof merchantability andfitness for a particular purpose, which are hereby expressly dis claimed claimed and waived.

ACME ENGINEERING &

MANUFACTURING CORP.

P.O. Box 978, Muskogee, Oklahoma 74402

Telephone: 918-682-7791 Fax: 918-682-0134

www.acmefan.com e-mail: acmefan@acmefan.com

Acme products are designed and manufactured to provide reliable performance but they are not guar anteed to be 100% free of defects. Even reliable products will experience occasional failures and this possibility should be recognized by the Purchaser and EndUser.If these productsare used in a lifesup port ventilation system where failure could result in

loss or injury, the Purchaser and End User should

provide adequate back-up ventilation, supplemen

tary natural ventilation or failure alarm system, or ac

knowledge willingness to accept the risk of such loss

or injury.

WARNING DO NOT use in HAZARDOUS ENVI

RONMENTS where fan’s electrical system could provide ignition to combustible or flammable materi als unless unitis specifically built for hazardous envi ronments. Comply with all local and national safety

codes including the National Electrical Code (NEC) and National Fire Protection Act (NFPA). Guards

Member Air Movement and Control Association International, Inc.

must be installed when fan is within reach of person

nel or withinseven (7) feet (2.134 m) of working level or when deemed advisable for safety.

DISCLAIMER The Company has made a diligent ef fort to illustrate and describe the products in this liter

ature accurately; however, such illustrations and

descriptions are for the sole purpose of identification, and do not express orimply a warranty that the prod

ucts aremerchantable, or fitfor a particularpurpose.

INDEMNITY Purchaser acknowledges various warnings by the Company regarding the products

and its installation and use. If the Company incurs any claims, lawsuits, settlements, or expenses (in

cluding attorney fees) for any loss, injury, death or

property damage including, but not limited to, claims arising out of the Purchaser’s or any end user’s in stallation or use of the products, the Purchaser shall indemnify and hold the Company harmless.

July 2004 Form C18H

Acme Engineering BC124 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
