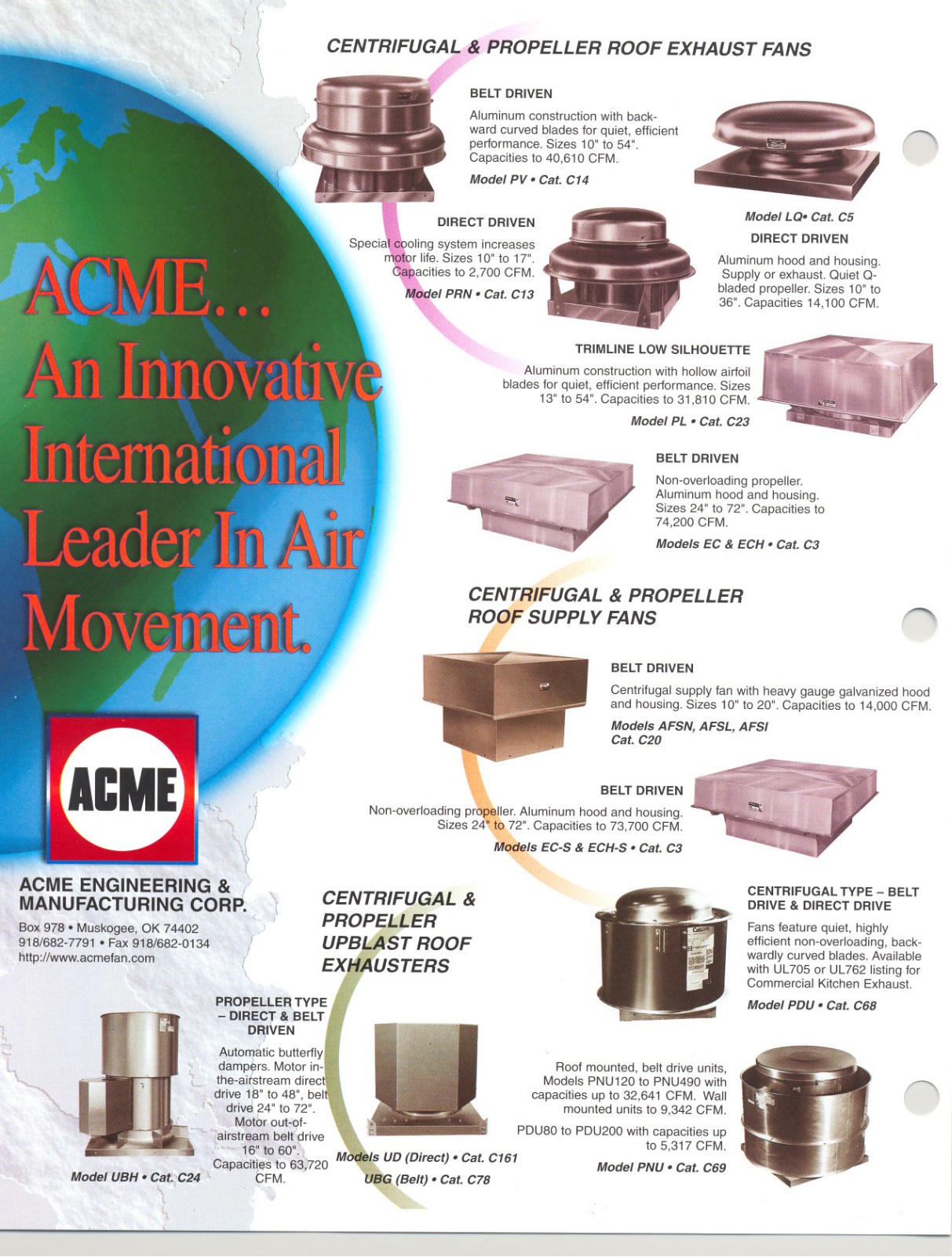

CENTRIFUGAl:- & PROPELLER ROOF EXHAUST FANS
/
BELT DRIVEN
Aluminum construction with back- ward curved blades for quiet, efficient
performance. Sizes 10" to 54". Capacities to 40,610 CFM.
Model PV. Cat. C14
DIRECT DRIVEN
TRIMLINE LOW SILHOUETTE
Aluminum construction with hollow airfoil
blades for quiet, efficient performance. Sizes
13" to 54". Capacities to 31,810 CFM.
Model PL · Cat. C23
BELT DRIVEN
Non-overloading propeller. Aluminum hood and housing. Sizes 24" to 72". Capacities to
74,200 CFM.
Models EC &ECH ·Cat. C3
CENTRIFUGAL & PROPELLER
ROOF SUPPLY FANS
BELTDRIVEN
Centrifugal supply fan with heavy gauge galvanized hood and housing. Sizes 10" to 20". Capacities to 14,000 CFM.
Models AFSN, AFSL, AFSI
Cat. C20
Model La. Cat. C5
DIRECT DRIVEN
Aluminum hood and housing.
Supply or exhaust. Quiet Q-
bladed propeller. Sizes 10"to
36". Capacities 14,100 CFM.
ACME ENGINEERING & /
MANUFACTURING CORP;
Box 978. Muskogee, OK 74402
918/682-7791 .Fax 918/682-0134
http://www.acmefan.com
PROPELLEF\ TYPE
- DIRECT&:BELT
Auto
damp rs. Motor in-
the-ai stream direc
drive 1 "to 48", bel
driv 24" to 72".
Motor out-of-
airstream belt(
C
apacltu~s
Model UBH.Cat.C24 QFM.
I
)
, ,
"
"1{
/
(
t
\
< i
)
f
I
(
\
D~1\tEN
~tiC butterfly
~
16" to 60".
" .
to6. 0
Non-overloading propeller.Aluminum hood and housing.
CENTRIFUGAL& PROPELLER
UPSjlAST ROOF EXHAUSTERS
riVe
M,
3 2
~
(s UD(Direct). Cat. C161
"flG {Belt} . Cat. C78
BELT DRIVEN
Sizes 24" to 72". Capacities to 73,700 CFM.
Models EC-S & ECH-S ·Cat. C3
Roof mounted, belt drive units,
Models PNU120 to PNU490 with
capacities up to 32,641 CFM. Wall
mounted units to 9,342 CFM.
PDU80 to PDU200 with capacities up
to 5,317 CFM.
Model PNU.Cat.C69
CENTRIFUGAL TYPE
DRIVE & DIRECT DRIVE
- BELT
Fans feature quiet, highly
efficient non-overloading, back- wardly curved blades. Available with UL705 or UL762 listing for Commercial Kitchen Exhaust.
Model PDU · Cat. C68

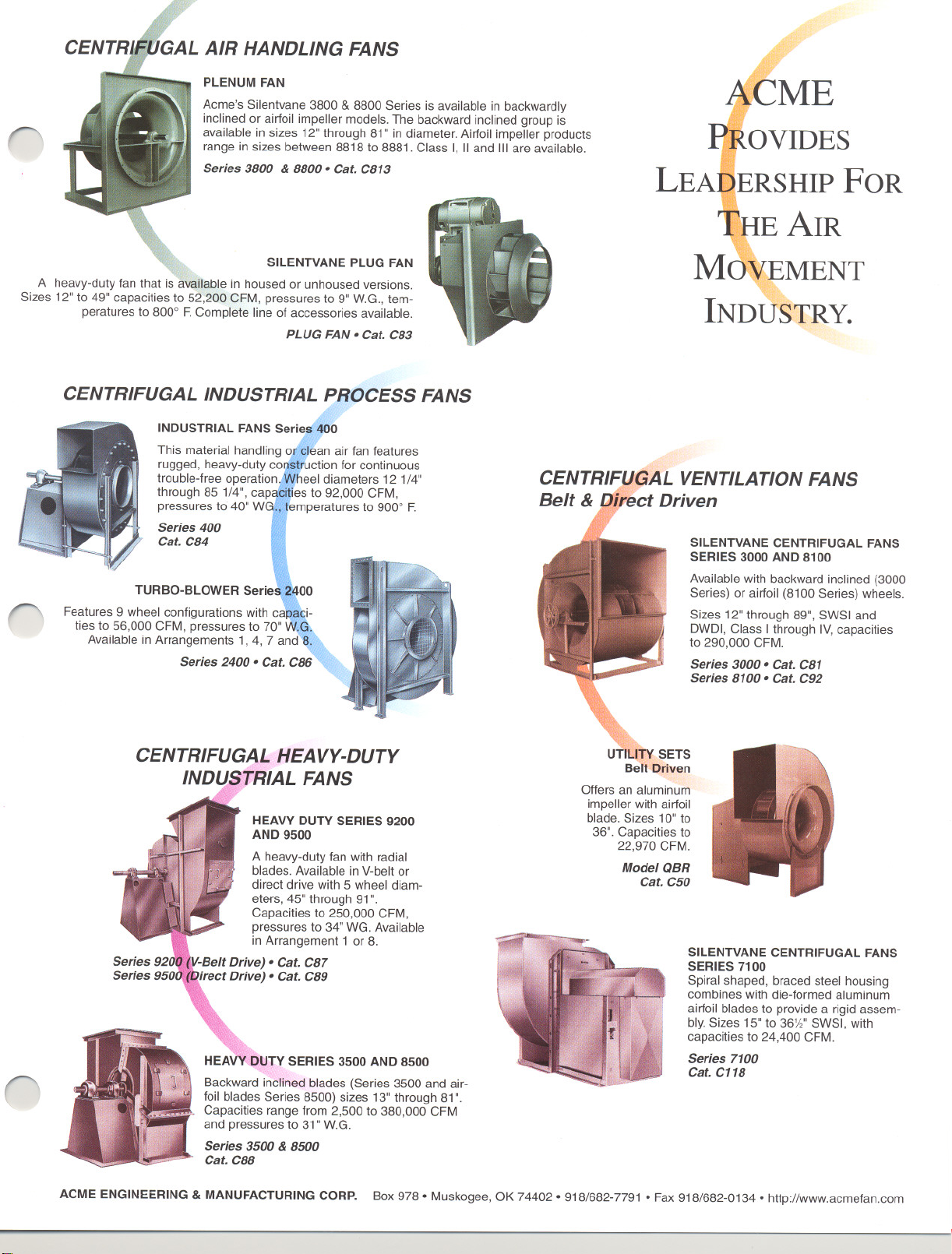

PLENUM FAN Acme's Silentvane 3800 & 8800 Series is available in backwardly
inclined or airfoil impeller models.The backward inclined group is available in sizes 12" through 81" in diameter. Airfoil impeller products
range in sizes between 8818 to 8881. Class I, II and III are available. Series 3800 & 8800. Cat. C813
SILENTVANE PLUG FAN
A heavy-duty fan that is available in housed or unhoused versions.
Sizes 12"to 49" capacities to 52,200 CFM, pressures to 9" W.G., tem-
peratures to 8000 F.Complete line of accessories available.
PLUG FAN · Cat. C83
CENTRIFUGAL INDUSTRIAL PROCESS FANS
INDUSTRIAL FANS Series 400
ACME
IjROVIDES
LEAQERSHIP FOR
, .
T'HE AIR
.
MOVEMENT
INDUSTRY.
This material handling ~'clean air fan features rugged, heavy-duty co
trouble-free operation heel diameters 12 1/4" through 85 1/4", ca
pressures to 40" W ,{emperatures to 9000F.
Series 400 Cat.C84
TURBO-BLOWER serie\ZfOO
Features 9 wheel configurations with cap-aci-
ties to 56,000 CFM, pressures to 70" W/3.
Available in Arrangements 1, 4, 7 and 8~
Series 2400 . Cat. C86
truction for continuous
~
Cites to 92,000 CFM,
1
(
~
CENTRWUGALHEAV~DUTY
INDUSTRIAL FANS
HEAVY DUTY SERIES 9200 AND 9500
A heavy-duty fan with radial blades. Available in V-belt or
direct drive with 5 wheel diam- eters, 45" through 91".
Capacities to 250,000 CFM, pressures to 34" WG. Available in Arrangement 1 or 8.
-Belt Drive). Cat.C87
'irectDrive)· Cat.C89
HEAVY DUTY SERIES 3500 AND 8500
Backward inclined blades (Series 3500 and air- foil blades Series 8500) sizes 13" through 81". Capacities range from 2,500 to 380,000 CFM and pressures to 31" W.G.
Series 3500 & 8500
Cat.C88
CENTRIFUGAL VENTILATION FANS
Belt &liirect Driven
SILENTVANE CENTRIFUGAL FANS SERIES 3000 AND 8100
Availablewith backward inclined (3000
Series) or airfoil (8100 Series) wheels. Sizes 12" through 89", SWSI and
DWDI, Class I through IV,capacities
to 290,000 CFM.
Series 3000 .Cat. C81
Series 8100. Cat. C92
UTILITY SETS
Belt Driven
Offers an aluminum
impeller with airfoil blade. Sizes 10" to
36". Capacities to
22,970 CFM.
Model OBR
Cat. C50
SILENTVANE CENTRIFUGAL FANS
SERIES 7100 Spiral shaped, braced steel housing
combines with die-formed aluminum airfoil blades to provide a rigid assem-
bly.Sizes 15" to 36'/," SWSI, with capacities to 24,400 CFM.
Series 7100
Cat. C118
ACME ENGINEERING & MANUFACTURING CORP. Box 978. Muskogee, OK 74402.918/682-7791 . Fax 918/682-0134. http://www.acmefan.com

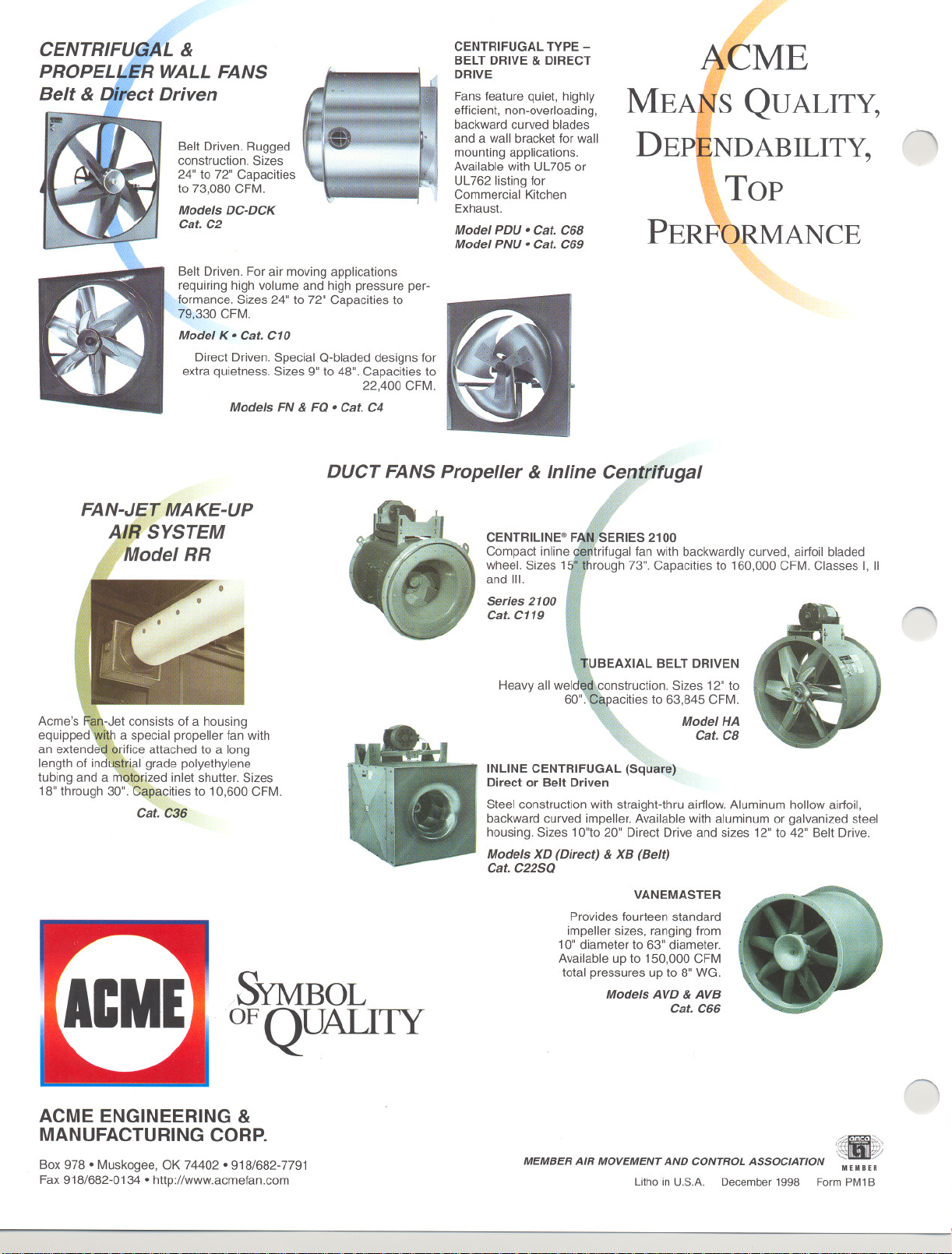

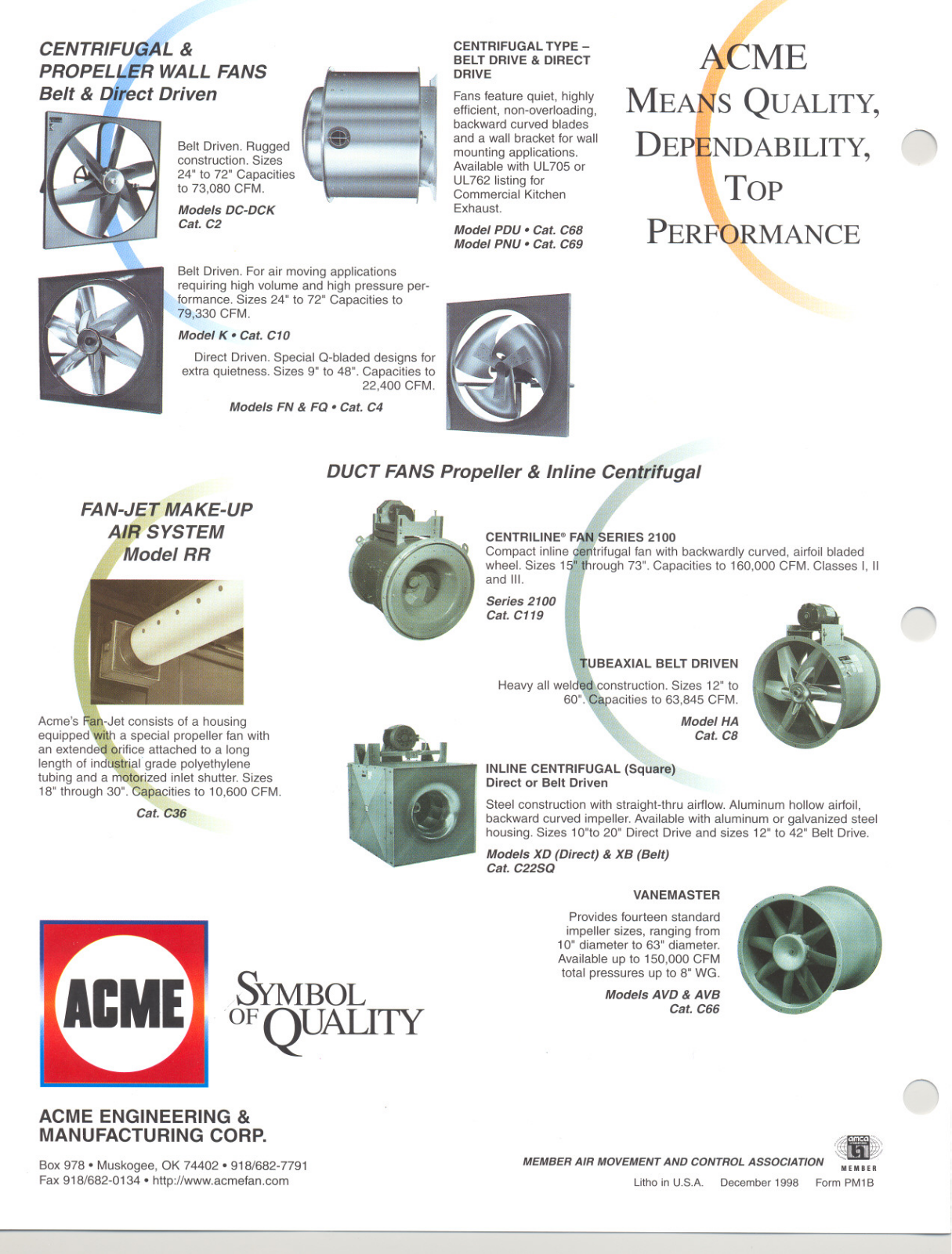

CENTRIFUGAL &
PROPEL,!hR WALL FANS Belt &mliect Driven
Belt Driven. Rugged construction. Sizes
24" to 72" Capacities to 73,080 CFM.
Models DC-DCK Cat. C2
Belt Driven. For air moving applications requiring high volume and high pressure per- formance. Sizes 24" to 72" Capacities to 79,330 CFM.
Model K · Cat. C10
Direct Driven. Special Q-bladed designs for
extra quietness. Sizes 9" to 48". Capacities to
Models FN & FQ · Cat. C4
CENTRIFUGAL TYPE - BELT DRIVE & DIRECT DRIVE
Fans feature quiet, highly
22,400 CFM.
efficient, non-overloading, backward curved blades
and a wall bracket for wall mounting applications.
Available with UL705 or UL762 listing for
Commercial Kitchen Exhaust.
Model PDU .Cat. C68
Model PNU · Cat. C69
MEAjNS QUALITY,
DEP~NDABILITY,"
PERFORMANCE
DUCT FANS Propeller & Inline Centrifugal
ACME
I
Top
FAN-JET MAKE-UP
AIR SYSTEM
Model RR
Acme's ~~-Jet consists of a housing equipped"it~ a special propeller fan with
an extendeq orifice attached to a long length of indL~trjal grade polyethylene tubing and a motorized inlet shutter. Sizes
18" through 30". Capacities to 10,600 CFM.
Cat. C36
SYMBOL
CENTRILlNE..
Compact
wheel. Sizes 1 . through 73". Capacities to 160,000 CFM. Classes I, II and III.
Series 2100
Cat. C119
INLINE CENTRIFUGAL (Square)
Direct or Belt Driven
Steel construction with straight-thru airflow. Aluminum hollow airfoil, backward curved impeller. Available with aluminum or galvanized steel housing. Sizes 10"to 20" Direct Drive and sizes 12" to 42" Belt Drive.
Models XD (Direct) &XB (Belt)
Cat. C22SQ
4ERIES 2100
inline e9trifugal fan with backwardly curved, airfoil bladed
~
~onstruction. Sizes 12" to
\pacities to 63,845 CFM.
Model HA
Cat. C8
VANEMASTER
Provides fourteen standard
impeller sizes, ranging from
10" diameter to 63" diameter. Available up to 150,000 CFM
total pressures up to 8" WG.
Models AVD & AVB
Cat. C66
OF QUALITY
ACME ENGINEERING & MANUFACTURING CORP.
Box 978' Muskogee, OK 74402' 918/682-7791
Fax 918/682-0134 .http://www.acmefan.com
MEMBER AIR MOVEMENT AND CONTROL ASSOCIATION
Litho in U.S.A. December 1998 Form PM1B
~
