ICT TRANSFORMERS

Industrial Control Transformers provide a low and safe control voltage for the operation of many electromagnetic devices

Page 2

INDUSTRIAL CONTROL TRANSFORMERS

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

TB SERIES

Industrial control transformers are used to reduce supply voltages to 240V or lower for the operation of electromagnetic devices such as contactors, solenoids, relays, and timers. They are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits.

Acme Industrial Control Transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.

Voltage regulation of Acme Industrial Control Transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.

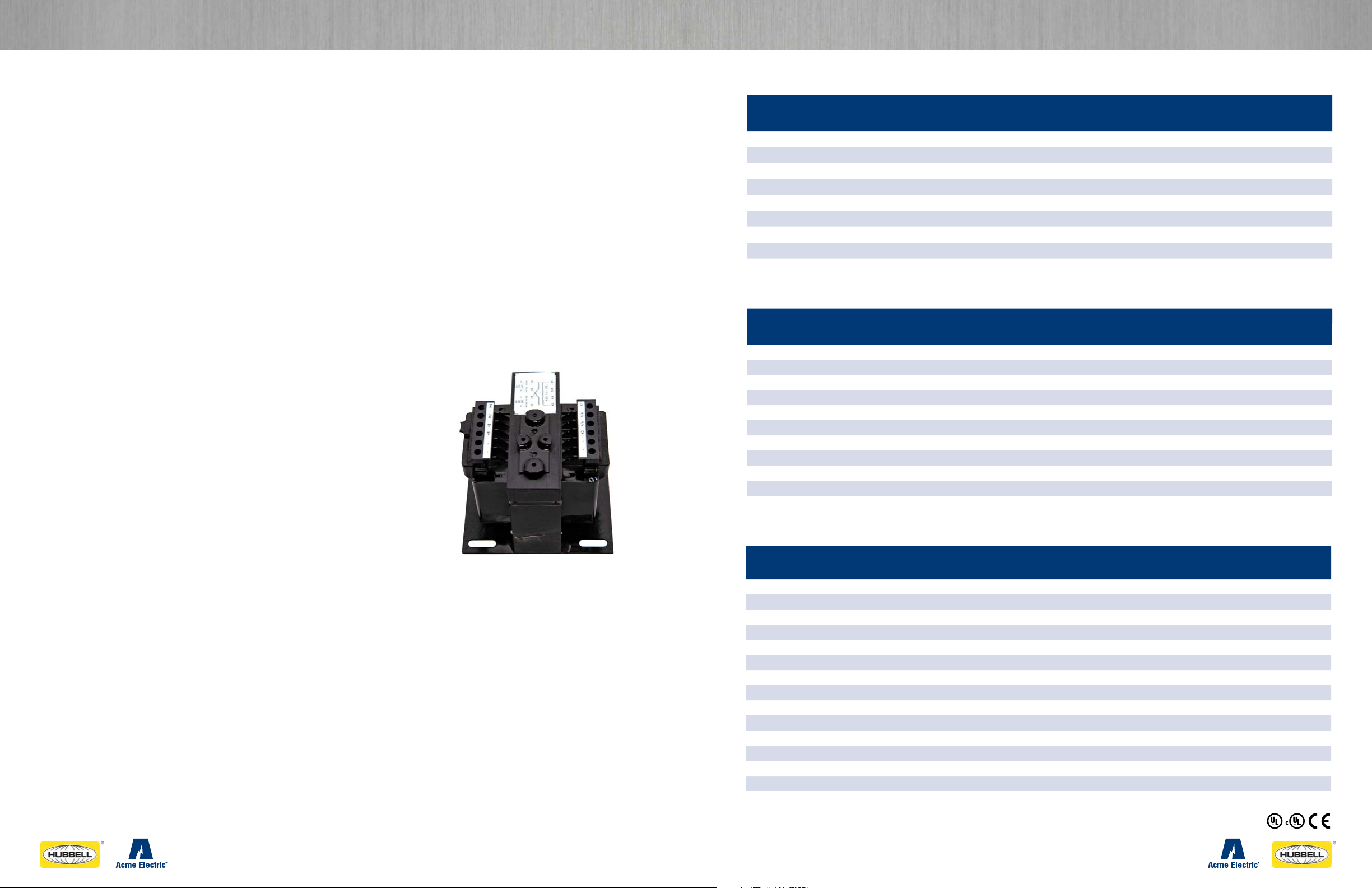

TB SERIES INDUSTRIAL CONTROL TRANSFORMER

Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.

Voltage regulation of Acme’s TB Series transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.

Features

50 –5000 VA, 50/60 Hz.

Encapsulated design protects core & coil assembly from potentially damaging contaminants

Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency

Integrally molded terminal blocks with isolation barriers to prevent arc over

Fuse blocks kits available and easily adaptable

Secondary Fuse Clips included, where applicable

Series-parallel connecting links save wiring and labor costs

Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors

Copper windings on all groups

Heavy gauge steel mounting plate adapts to various mounting dimensions

Voltage regulation exceeds NEMA requirements

UL, and cUL Listed

Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards

Twenty year limited warranty

Applications

Motor Starters

Contactors

Solenoids

Timer Circuits

Relays

Control Panels

Robotics

TB SERIES

Group A

120 X 240 PRIMARY VOLTS — 12/24 SECONDARY VOLTS — 1Ø 50/60 Hz

Rating

50 TB50N001 3.32 3.00 2.79 2.00 2.50 .20X.41 2.6 1

75 TB75N001 3.82 3.00 2.79 2.50 2.50 .20X.41 3.5 1

100 TB100N001 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 1

150 TB150N001 4.27 3.75 3.42 2.88 3.13 .20X.41 6.7 1

250 TB250N001 4.55 4.50 4.04 2.88 3.75 .20X.41 10.0 1

350 TB350N001 5.28 4.50 4.04 3.75 3.75 .20X.41 13.6 1

500 TB500N001 5.75 5.25 4.66 4.25 4.38 .31X1.1 19.2 1

750 TB750N001 7.00 5.25 4.66 5.38 4.38 .31X1.1 28.1 1

Catalog Number

A B C D E F

Group B

200, 208/220, 230, 240/440, 460, 480 PRIMARY VOLTS -23, 24, 25/110, 115, 120 SECONDARY VOLTS - 1Ø 50/60 HZ

Rating

50 TB50N004F0 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 4

75 TB75N004F0 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 4

100 TB100N004F0 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 4

150 TB150N004F0 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 4

200 TB200N004F0 4.47 4.50 4.04 2.88 3.75 .20X.41 10.0 4

250 TB250N004F0 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 4

300 TB300N004F0 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 4

350 TB350N004F0 5.17 5.25 4.66 4.25 4.38 .31x1.1 19.2 4

500 TB500N004F0 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 4

750 TB750N004F0 7.23 7.00 5.65 4.00 6.13 .31x1.1 30.0 4

1000 TB1000N004F0 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 4

Catalog Number

A B C D E F

Group C

208, 230, 460 PRIMARY VOLTS -115 SECONDARY VOLTS - 1Ø 50/60 HZ

Rating

50 TB50N005F0 3.23 3.00 2.79 2.00 2.50 .20X.41 2.6 5

75 TB75N005F0 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 5

100 TB100N005F0 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 5

150 TB150N005F0 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 5

200 TB200N005F0 3.96 4.50 4.04 2.88 3.75 .20X.41 8.5 5

250 TB250N005F0 4.47 4.50 4.04 3.25 3.75 .20X.41 10.0 5

300 TB300N005F0 4.47 4.50 4.04 3.25 3 .75 .20X.41 11.3 5

350 TB350N005F0 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 5

500 TB500N005F0 5 .17 5.25 4.66 4.75 4.38 .31x1.1 19.2 5

750 TB750N005F0 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 5

1000 TB1000N005F0 6.21 7.00 5.65 4.00 6.13 .31x1.1 29.8 5

1500 TB1500N005F0 7.23 7.00 5.65 4.50 6.13 .31x1.1 30.0 5

2000 TB2000N005F0 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 5

3000 TB3000N005 7.50 9.00 7.62 4.25 6.50 .44x1.0 53.0 5

5000 TB5000N005 9.00 9.00 7.62 7.25 7.50 .44x1.0 89.0 5

Catalog Number

A B C D E F

Dimensions (inches)

Weight

(lb)

Weight

(lb)

Weight

(lb)

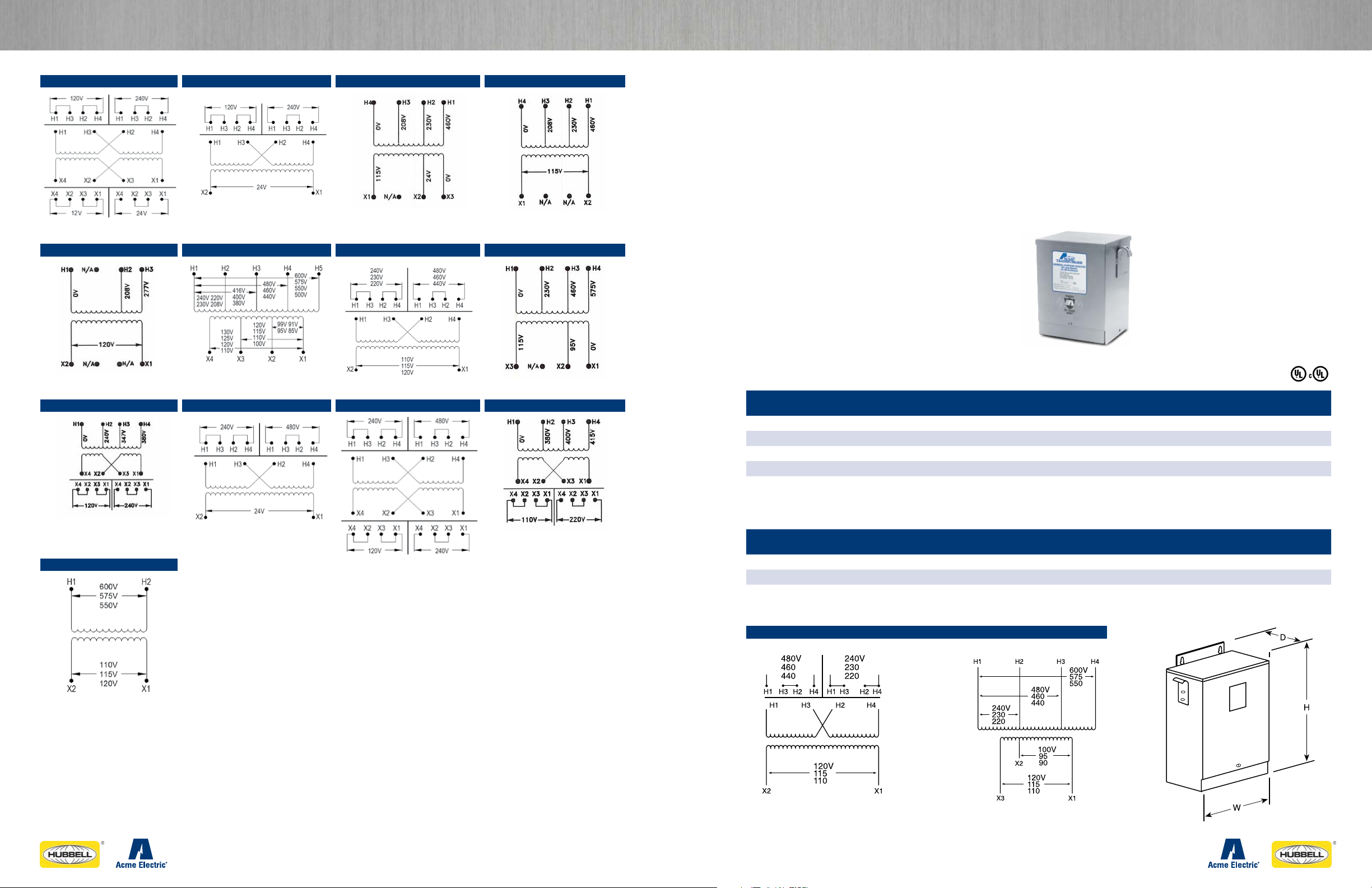

Wiring

Diag.

Wiring

Diag.

Wiring

Diag.

2 3

Page 3

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

Group D

208, 277 PRIMARY VOLTS — 120 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 TB50N006F0 3.23 3.00 2.79 2.00 2.50 .20X.41 2.6 6

75 TB75N006F0 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 6

100 TB100N006F0 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 6

150 TB150N006F0 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 6

250 TB250N006F0 4.47 4.50 4.04 2.88 3.75 .20X.41 10.0 6

350 TB350N006F0 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 6

500 TB500N006F0 5.17 5.25 4.66 4.25 4.38 .31x1.1 19.2 6

750 TB750N006F0 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 6

Catalog Number

A B C D E F

Weight

(lb)

Group E

208/500, 220/380/440/550, 230/400/460/575, 240/416/480/600 PRIMARY VOLTS 85/100/110, 91/110/120, 95/115/125, 99/120/130 Secondary Volts - 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 TB50N007 4.44 3.00 3.45 2.38 2.81 .20X.41 4.2 7

100 TB100N007 4.90 3.75 4.01 2.88 3.13 .20X.41 6.7 7

150 TB150N007 4.58 4.50 4.64 2.88 3.75 .20X.41 10.0 7

250 TB250N007 5.08 4.50 4.64 3.75 3.75 .20X.41 13.6 7

350 TB350N007 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 7

500 TB500N007 7.75 5.25 4.67 6.13 4.38 .31x1.1 28.1 7

750 TB750N007 6.21 6.38 5.65 4.00 6.13 .31x1.1 29.8 7

1000 TB1000N007 7.62 7.00 5.65 4.50 6.13 .31x1.1 30.0 7

1500 TB1500N007 8.37 7.00 5.43 5.13 6.13 .31x1.1 38.0 7

2000 TB2000N007 7.82 9.00 7.62 4.25 6.50 .44x1.0 53.0 7

3000 TB3000N007 9.06 9.00 7.62 7.25 7.50 .44x1.0 89.0 7

Catalog Number

A B C D E F

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Group F

220,230,240X440,460,480 PRIMARY VOLTS -110,115,120 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

50 TB50N008FO 3.32 3.00 2.79 2.00 2.50 .20X.41 2.6 8

75 TB75N008FO 3.82 3.00 2.79 2.50 2.50 .20X.41 3.5 8

100 TB100N008FO 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 8

150 TB150N008FO 4.27 3.75 3.42 2.88 3.13 .20X.41 6.7 8

200 TB200N008FO 4.05 4.50 4.04 2.50 3.75 .20X.41 8.5 8

250 TB250N008FO 4.55 4.50 4.04 2.88 3.75 .20X.41 10.0 8

300 TB300N008FO 4.55 4.50 4.04 3.25 3.75 .20X.41 11.3 8

350 TB350N008FO 5.28 4.50 4.04 3.75 3.75 .20X.41 13.6 8

500 TB500N008FO 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 8

750 TB750N008FO 7.00 5.25 4.66 5.38 4.38 .31x1.1 28.1 8

1000 TB1000N008FO 6.61 7.00 5.65 4.00 6.13 .31x1.1 29.8 8

1500 TB1500N008FO 7.62 7.00 5.65 4.50 6.13 .31x1.1 30.0 8

2000 TB2000N008FO 8.37 7.00 5.43 5.13 6.13 .31x1.1 38.0 8

3000 TB3000N008FO 7.82 9.00 7.62 4.25 6.50 .44x1.0 53.0 8

5000 TB5000N008FO 9.06 9.00 7.62 7.25 7.50 .44x1.0 89.0 8

Catalog Number

A B C D E F

Weight

(lb

Group G

230, 460, 575 PRIMARY VOLTS - 95, 115 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

50 TB50N011F0 3.32 3.00 2.79 2.00 2.50 .20X.41 2.6 11

75 TB70N011F0 3.82 3.00 2.79 2.50 2.50 .20X.41 3.5 11

100 TB100N011F0 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 11

150 TB150N011F0 4.27 3.75 3.42 2.88 3.13 .20X.41 6.7 11

250 TB250N011F0 4.55 4.50 4.04 2.88 3.75 .20X.41 10.0 11

350 TB350N011F0 5.28 4.50 4.04 3.75 3.75 .20X.41 13.6 11

500 TB500N011F0 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 11

750 TB750N011F0 7.00 5.25 4.66 5.38 4.38 .31x1.1 28.1 11

1000 TB1000N011F0 6.21 7.00 5.65 4.00 6.13 .31x1.1 29.8 11

1500 TB1500N011F0 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 11

2000 TB2000N011F0 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 11

3000 TB3000N011 9.00 9.00 7.62 7.25 7.50 .44x1.0 89.0 11

5000 TB5000N011 10.00 9.00 8.73 8.25 7.50 .44x1.0 101.0 11

Catalog Number

A B C D E F

Weight

(lb

Wiring

Diag.

Wiring

Diag.

4 5

Page 4

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

Group H

240, 347, 380 PRIMARY VOLTS - 120X240 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

1000 TB1000N012 6.23 7.00 5.65 4.00 6.13 .31x1.1 29.8 12

1500 TB1500N012 7.23 7.00 5.65 4.50 6.13 .31x1.1 30.0 12

2000 TB2000N012 7.98 7.00 5.65 5.13 6.13 .31x1.1 38.0 12

3000 TB3000N012 7.82 9.00 7.62 4.25 6.50 .44x1.0 53.0 12

5000 TB5000N012 8.81 9.00 7.62 7.25 7.50 .44x1.0 89.0 12

Catalog Number

A B C D E F

Weight

(lb)

Group I

240 X 480 PRIMARY VOLTS — 24 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 TB50N013F0 3.32 3.00 2.79 2.00 2.50 .20X.41 2.6 13

75 TB75N013F0 3.82 3.00 2.79 2.50 2.50 .20X.41 3.5 13

100 TB100N013F0 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 13

150 TB150N013F0 4.27 3.75 3.42 2.88 3.13 .20X.41 6.7 13

250 TB250N013F0 4.55 4.50 4.04 2.88 3.75 .20X.41 10.0 13

350 TB350N013F0 5.28 4.50 4.04 3.75 3.75 .20X.41 13.6 13

500 TB500N013F0 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 13

750 TB750N013 7.00 5.25 4.66 5.38 4.38 .31x1.1 28.1 13

Catalog Number

A B C D E F

Weight

(lb)

Group J

240 X 480 PRIMARY VOLTS — 120 X 240 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 T B5 0N014 3.41 3.00 2.79 2.00 2.50 .20X.41 2.6 14

75 TB75N014 3.91 3.00 2.79 2.50 2.50 .20X.41 3.5 14

100 TB100 N014 3.86 3.38 3.10 2.38 2.81 .20X.41 4.2 14

150 TB150N014 4.36 3.75 3.41 2.88 3.13 .20X.41 6.7 14

200 TB200N014 4 .14 4.50 4.04 2.50 3 .75 .20X.41 8.5 14

250 TB250N014 4.64 4.50 4.04 2.88 3.75 .20X.41 10.0 14

300 TB300N014 4.64 4.50 4.04 3.25 3.75 .20X.41 11.3 14

350 TB350N014 5.37 4.50 4.04 3.75 3.75 .20X.41 13.6 14

500 TB50 0N 014 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 14

750 TB750N014 6.74 5.25 4.66 5.38 4.38 .31x1.1 28.1 14

1000 TB1000N014 7.01 7.00 5.65 5.38 4.38 .31x1.1 29.8 14

1500 TB1500N014 8.00 7.00 5.65 4.50 6.13 .31x1.1 30.0 14

2000 TB2000N014 8.76 7.00 5.65 5.13 6.13 .31x1.1 38.0 14

3000 TB3000N014 8.14 9.00 7.62 4.25 6.50 .44x1.0 53.0 14

5000 TB5000N014 9.14 9.00 7.62 7.25 7.50 .44x1.0 89.0 14

Catalog Number

A B C D E F

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Wiring

Diag.

Group K

380/400/415 PRIMARY VOLTS -110 X 220 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

50 TB50 N016 3.32 3.00 2.79 2.00 2.50 . 20 X. 41 2.6 16

75 TB75N016 3.82 3.00 2.79 2.50 2.50 .2 0X .41 3.5 16

100 TB10 0N 016 3.78 3.38 3 .11 2.38 2.81 .2 0X .41 4.2 16

150 TB150N 016 4.27 3.75 3.42 2.88 3.13 . 20 X. 41 6.7 16

200 TB200N016 4.05 4.50 4.04 2.50 3.75 .20X.41 8.5 16

250 TB250N016 4.55 4.50 4.04 2.88 3.75 .20X.41 10.0 16

300 TB300N016 4.55 4.50 4.04 3.25 3.75 . 20X.41 11.3 16

350 TB3 50N016 5.28 4.50 4.04 3.75 3.75 . 20X. 41 13.6 16

500 TB500N016 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 16

750 TB 750 N016 7.00 5.25 4.66 5.38 4.38 . 31x1.1 28.1 16

Catalog Number

A B C D E F

Weight

(lb)

Group L

550/575/600 PRIMARY VOLTS -110/115/120 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

50 TB50 N0 17F0 3.23 3.00 2.79 2.00 2.50 . 20X.41 2.6 17

75 TB75 N017F 0 3.73 3.00 2.79 2.50 2.50 .20 X. 41 3.5 17

100 T B10 0N 017 F0 3.69 3.38 3 .11 2.38 2.81 . 20X.41 4.2 17

150 T B15 0N 017 F0 4.17 3.75 3.42 2.88 3 .13 . 20 X. 41 6.7 17

250 TB250N017F0 4.47 4.50 4.04 2.88 3.75 .20 X. 41 10.0 17

350 TB3 50 N017F 0 5.19 4.50 4.04 3.75 3 .75 .20 X. 41 13.6 17

500 TB5 00 N 017F 0 5.17 5.25 4.66 4.25 4.38 .31x 1.1 19.2 17

750 TB7 50 N 017F 0 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 17

1000 TB1000N017F0 6.23 7. 0 0 5.65 4.00 6 .13 . 31x1.1 29.8 17

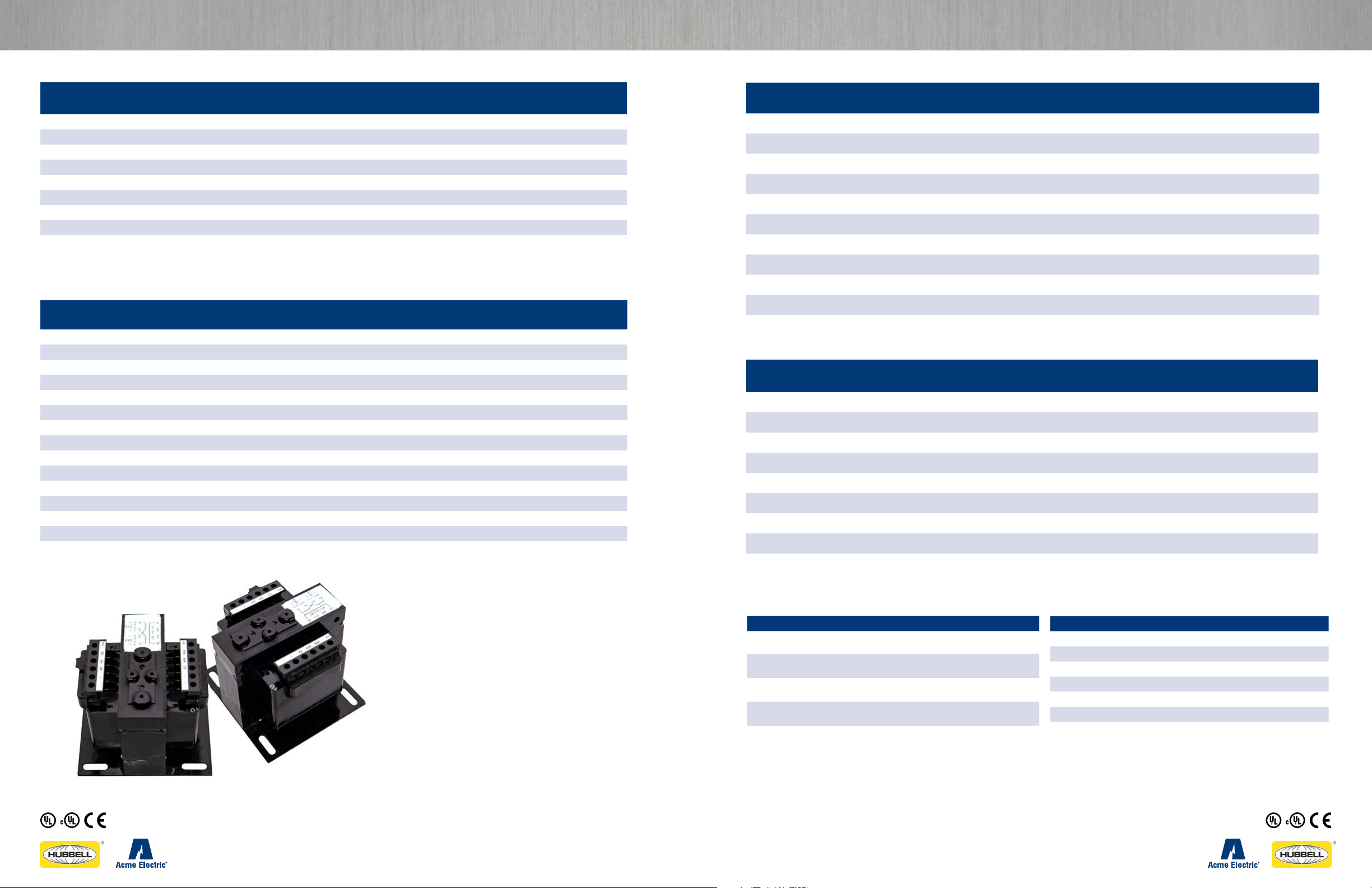

INTEGRALLY MOUNTED FUSE BLOCKS

Add Suffix to Catalog Number Discription

Consult Technical Service for available models

Catalog Number

A B C D E F

FUSE KITS & ACCESSORIES

Catalog Number Description

Single Pole Secondary Fuse Block (Midget Fuse)

Factory Installed 2 Pole Primary Fuse Block (Class CC Fuses)

Factory Installed 3 Pole Primary & Secondary Fuse Block

Factory Installed Primary Fuse Block & Secondary Fuse Clips

PL112807 Secondary Fuse Clip

PL112808 Single Pole Secondary Fuse Block

PL112809 Dual Pole Primary Fuse Block

PL112810 Dual Pole Pri and Sec Fuse Blocks

PL112811 Dual Pole Pri Block with Sec. Fuse Clip

PL112812 Primary Fuse Cover with Puller

PL112814 Sec Fuse Cover - For Sec Fuse Clip

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

6 7

Page 5

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

CE SERIES INDUSTRIAL CONTROL TRANSFORMERS FOR GLOBAL APPLICATIONS

The Acme Electric CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications. Acme’s CE Series Encapsulated Industrial Control Transformers carry the CE mark, indicating it complies with the requirements established by the International Electro technical Commission (IEC) for use of control circuit transformers in the countries of the European Union. Regulations that apply to control transformers include Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility (EMC) Directive 2004/108/EC

Cooler. Cleaner. More Compact.

The CE Series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation. In addition, the CE Series industrial control transformers seal the transformer’s windings and internal terminations within an encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Furthermore, Acme’s compact design helps minimize the mounting footprint, providing more flexibility in applications where space is at a premium.

Features

50 -5000 VA, 50/60 Hz

Encapsulated design protects core & coil assembly from potentially damaging contaminants

Integrally molded terminal blocks with isolation barriers to prevent arc over

Terminal blocks allow full access for ring terminals for easy installation and solid termination

Heavy gauge steel mounting feet

UL and cUL Listed

Twenty-year limited Warranty

CE SERIES

Group M

120 X 240 PRIMARY VOLTS -24 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)

Rating

50 CE50N002 3.32 3.00 2 .79 2.00 2.50 . 20 X. 41

75 CE75N 002 3 .82 3.00 2.79 2.50 2.50 . 20X .41

100 CE100N002 3 .78 3.38 3 .11 2.38 2.81 . 20 X. 41

150 C E150 N0 02 4. 27 3 .75 3.42 2.88 3 .13 .2 0X .41

250 CE250N0 02 4.55 4.50 4.04 2.88 3 .75 . 2 0X .41

350 CE350N0 02 5. 28 4.50 4.04 3 .75 3 .75 .20 X. 41

500 CE500N002 5.75 5.25 4.6 6 4.25 4.3 8 .31 X1.1

750 CE 750N0 02 7. 0 0 5.25 4.66 5.38 4.3 8 .31 X1.1

1000 CE1000N002 6.61 7. 0 0 5.65 4.0 0 6 .13 . 31x1.1

Group N

200, 208/220, 230, 240/440, 460, 480 PRIMARY VOLTS -23, 24, 25/110, 115, 120 SECONDARY VOLTS - 1Ø 50/60 HZ

Rating

50 CE50N004 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 4

75 CE75N004 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 4

100 CE100N004 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 4

150 CE150N004 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 4

200 CE200N004 4.47 4.50 4.04 2.88 3.75 .20X.41 10.0 4

250 CE250N004 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 4

300 CE300N004 5 .19 4.50 4.04 3.75 3.75 .20X.41 13.6 4

350 CE350N004 5.17 5.25 4.66 4.25 4.38 .31x1.1 19.2 4

500 CE500N004 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 4

750 CE750N004 7. 2 3 7.00 5.65 4.00 6.13 .31x1.1 30.0 4

1000 CE1000N004 7. 9 8 7.00 5.43 5.13 6.13 .31x1.1 38.0 4

Catalog

Number

Catalog

Number

A B C D E F

Dimensions (inches)

A B C D E F

Weight

(lb)

2.6

3.5

4.2

6.7

10.0

13.6

19.2

28 .1

29.8

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Group O

208,230,460 PRIMARY VOLTS -115 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)(cm)

Rating

50 CE50N005 3.23 3.00 2.79 2.00 2.50 .20X.41 2.6 5

75 CE75N005 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 5

100 CE100N005 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 5

150 CE150N005 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 5

200 CE200N005 3.96 4.50 4.04 2.88 3.75 .20X.41 8.5 5

250 CE250N005 4.47 4.50 4.04 3.25 3.75 .20X.41 10.0 5

300 CE300N005 4.47 4.50 4.04 3.25 3.75 .20X.41 11.3 5

350 CE350N005 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 5

500 CE500N005 5.17 5.25 4.66 4.75 4.38 .31x1.1 19.2 5

750 CE750N005 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 5

1000 CE1000N005 6.21 7.00 5.65 4.00 6.13 .31x1.1 29.8 5

1500 CE1500N005 7.23 7.00 5.65 4.50 6.13 .31x1.1 30.0 5

2000 CE2000N005 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 5

3000 CE3000N005 7.50 9.00 7.62 4.25 6.50 .44x1.0 53.0 5

5000 CE5000N005 9.00 9.00 7.62 7.25 7.50 .44x1.0 89.0 5

Catalog

Number

A B C D E F

Weight

(lb)

Wiring

Diag.

8 9

Page 6

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

Group P

208, 277 PRIMARY VOLTS — 120 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 CE50N006 3.23 3.00 2.79 2.00 2.50 .20X.41 2.6 6

75 CE75N006 3.73 3.00 2.79 2.50 2.50 .20X.41 3.5 6

100 CE100N006 3.69 3.38 3.11 2.38 2.81 .20X.41 4.2 6

150 CE150N006 4.17 3.75 3.42 2.88 3.13 .20X.41 6.7 6

250 CE250N006 4.47 4.50 4.04 2.88 3.75 .20X.41 10.0 6

350 CE350N006 5.19 4.50 4.04 3.75 3.75 .20X.41 13.6 6

500 CE500N006 5.17 5.25 4.66 4.25 4.38 .31x1.1 19.2 6

750 CE750N006 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 6

Catalog Number

A B C D E F

Weight

(lb)

Group Q

208/500, 220/380/440/550, 230/400/460/575, 240/416/480/600 PRIMARY VOLTS 85/100/110,91/110/120,95/115/125,99/120/130 SECONDARY VOLTS - 1Ø 50/60 HZ

Dimensions (inches)(cm)

Rating

250 CE250N007 5.08 4.50 4.64 3.75 3.75 .20X .41 13.6 7

350 CE350N007 6.42 5.25 4.66 5.38 4.38 .31x1.1 28.1 7

500 CE500N007 7.75 5.25 4.67 6.13 4.38 .31x1.1 28.1 7

750 CE750N007 6.21 6.38 5.65 4.00 6.13 .31x1.1 29.8 7

1000 CE1000N007 7.6 2 7.00 5.65 4.50 6.13 . 31x1.1 30 7

1500 CE1500N007 8.37 7.00 5.43 5.13 6.13 .31x1.1 38 7

2000 CE2000N007 7.82 9.00 7.62 4.25 6.50 . 44x1.0 53 7

3000 CE3000N007 9.0 6 9.00 7.62 7.25 7.50 .44x1.0 89 7

Catalog Number

A B C D E F

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Group R

220, 230, 240 X 440, 460, 480 PRIMARY VOLTS — 110, 115, 120 SECONDARY VOLTS — 1Ø 50/60 Hz

Rating

350 CE350N008 5.28 4.50 4.04 3.75 3.75 . 20X.41 13.6 8

500 CE500N008 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 8

750 CE750N008 7.0 0 5.25 4.66 5.38 4.38 . 31x1.1 28.1 8

1000 CE1000N008 6.61 7.00 5.65 4.00 6.13 .31x1.1 29.8 8

1500 CE1500N008 7.62 7.00 5.65 4.50 6 .13 .31x1.1 30.0 8

2000 CE2000N008 8.37 7.00 5.43 5.13 6.13 .31x1.1 38.0 8

3000 CE3000N008 7. 8 2 9.00 7.62 4.25 6.50 .4 4x1.0 53.0 8

5000 CE5000N008 9.06 9.00 7.62 7.25 7.50 .44x1.0 89.0 8

Catalog

Number

A B C D E F

Dimensions (inches)(cm)

Weight

(lb)

Group S

230, 460, 575 PRIMARY VOLTS — 95, 115 SECONDARY VOLTS — 1Ø 50/60 Hz

Rating

1000 CE1000N011 6.21 7.00 5.65 4.00 6.13 .31x1.1 29.8 11

1500 CE1500N011 7.98 7.00 5.43 5.13 6.13 .31x1.1 38.0 11

2000 CE2000N011 7.9 8 7.00 5.43 5.13 6 .13 .4 4x1.0 38.0 11

3000 CE3000N011 9.00 9.00 7.62 7.25 7.50 .44x1.0 89.0 11

Catalog

Number

A B C D E F

Dimensions (inches)

Weight

(lb)

Group T

240, 347, 380 PRIMARY VOLTS — 120 X 240 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

1000 CE1000N012 6.23 7.00 5.65 4.00 6 .13 .31x 1.1 29.8 12

1500 CE1500N012 7.23 7.00 5.65 4.50 6.13 .31x1.1 30.0 12

2000 CE2000N012 7.9 8 7.00 5.65 5.13 6.1 3 .31x1.1 38.0 12

3000 CE3000N012 7.82 9.00 7.62 4.25 6.50 . 44x1.0 53.0 12

5000 CE5000N012 8.81 9.00 7.62 7.25 7. 5 0 .4 4x1. 0 89.0 12

Catalog

Number

A B C D E F

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Wiring

Diag.

10 11

Page 7

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

Group U

240 X 480 PRIMARY VOLTS — 24 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 CE50N013 3.32 3.00 2.79 2.00 2.50 .2 0X .41 2.6 13

75 CE75N013 3.82 3.00 2.79 2.50 2.50 .2 0X .41 3.5 13

100 C E100 N013 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 13

150 CE150N013 4.27 3.75 3.42 2.88 3.13 .2 0X .41 6.7 13

250 C E250N 013 4.55 4.50 4.04 2.88 3.75 .2 0X .41 10.0 13

350 CE350N013 5.28 4.50 4.04 3.75 3.75 .2 0X .41 13.6 13

500 CE50 0N 013 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 13

750 CE750N013 7.00 5.25 4.66 5.38 4.38 .31x1.1 28.1 13

1000 CE1000N013 6.61 7.00 5.65 4.00 6 .13 .31x1.1 29.8 13

Catalog Number

A B C D E F

Weight

(lb)

Group V

240 X 480 PRIMARY VOLTS — 120 X 240 SECONDARY VOLTS — 1Ø 50/60 Hz

Rating

50 CE 50 N014 3.41 3.00 2.79 2.00 2.50 . 20X. 41 2.6 14

75 C E75N 014 3.91 3.00 2.79 2.50 2.50 .20X.41 3.5 14

100 C E10 0N 014 3.86 3.38 3.10 2.38 2.81 .20X.41 4.2 14

150 CE15 0N 014 4.36 3.75 3.41 2.88 3.13 .2 0X .41 6.7 14

200 C E2 00 N014 4.14 4.50 4.04 2.50 3.75 .20X .41 8.5 14

250 C E2 50 N014 4.64 4.50 4.04 2.88 3.75 .2 0X .41 10.0 14

300 CE300N014 4.64 4.50 4.04 3.25 3.75 .2 0X .41 11.3 14

350 C E3 50 N0 14 5.37 4.50 4.04 3.75 3.75 . 20 X. 41 13.6 14

500 C E5 00 N014 5 .75 5.25 4.66 4.25 4.38 . 31x1.1 19.2 14

750 CE750N014 6 .74 5.25 4.66 5.38 4.38 . 31x1.1 28.1 14

1000 CE1000N014 7.0 1 7.00 5.65 5.38 4.38 .31x1.1 29.8 14

1500 CE1500 N014 8.00 7.00 5.65 4.50 6 .13 .31x1.1 30.0 14

2000 CE2000N014 8.76 7.00 5.65 5.13 6.1 3 .31x1.1 38.0 14

3000 CE3000N014 8 .14 9.00 7.62 4.25 6.50 .44x 1.0 53.0 14

5000 CE5000N014 9.14 9.00 7.62 7.25 7. 5 0 .44x 1.0 89.0 14

Catalog Number

A B C D E F

Dimensions (inches)

Weight

(lb)

Wiring

Diag.

Wiring

Diag.

Group W

380/400/415 PRIMARY VOLTS — 110 X 220 SECONDARY VOLTS — 1Ø 50/60 Hz

Rating

50 CE50N 016 3.32 3.00 2.79 2.00 2.50 .20X.41 2.6 16

75 CE75N016 3.82 3.00 2.79 2.50 2.50 .20X.41 3.5 16

100 C E100 N016 3.78 3.38 3.11 2.38 2.81 .20X.41 4.2 16

150 CE150N016 4.27 3.75 3.42 2.88 3.13 .20X.41 6.7 16

200 CE20 0N 016 4.05 4.50 4.04 2.50 3.75 .20X.41 8.5 16

250 CE250N016 4.55 4.50 4.04 2.88 3.75 .20X.41 10 16

300 CE300N016 4.55 4.50 4.04 3.25 3.75 .20X.41 11.3 16

350 CE350N016 5.28 4.50 4.04 3.75 3.75 .20X.41 13.6 16

500 CE50 0N016 5.75 5.25 4.66 4.25 4.38 .31x1.1 19.2 16

750 CE750N016 7.00 5.25 4.66 5.38 4.38

Catalog

Number

A B C D E F

Dimensions (inches)

.31x1.1

Weight

(lb)

28.1

Group X

550/575/600 PRIMARY VOLTS — 110/115/120 SECONDARY VOLTS — 1Ø 50/60 Hz

Dimensions (inches)

Rating

50 CE50N017 3.23 3.00 2.79 2.00 2.50

75 CE75N017 3.73 3.00 2.79 2.50 2.50

100 CE100N017 3.69 3.38 3.11 2.38 2.81

150 CE150N017 4.17 3.75 3.42 2.88 3.13

250 CE250N017 4.47 4.50 4.04 2.88 3.75

350 CE350N017 5.19 4.50 4.04 3.75 3.75

500 CE500N017 5.17 5.25 4.66 4.25 4.38

750 CE750N017 6.42 5.25 4.66 5.38 4.38

1000 CE1000N017 6.23 7.00 5.65 4.00 6.13

Catalog Number

A B C D E F

.2 0X .41

.31x 1.1

Weight

(lb)

2.6 17

3.5 17

4.2 17

6.7 17

10.0 17

13.6 17

19.2 17

28.1 17

29.8 17

Wiring

Diag.

Wiring

Diag.

INTEGRALLY MOUNTED FUSE BLOCKS

Add Suffix to Catalog Number Discription

Consult Technical Service for available models

Single Pole Secondary Fuse Block (Midget Fuse)

Factory Installed 2 Pole Primary Fuse Block (Class CC Fuses)

Factory Installed 3 Pole Primary & Secondary Fuse Block

Factory Installed Primary Fuse Block & Secondary Fuse Clips

FUSE KITS & ACCESSORIES

Catalog Number Description

PL112807 Secondary Fuse Clip

PL112808 Single Pole Secondary Fuse Block

PL112809 Dual Pole Primary Fuse Block

PL112810 Dual Pole Pri and Sec Fuse Blocks

PL112811 Dual Pole Pri Block with Sec. Fuse Clip

PL112812 Primary Fuse Cover with Puller

PL112814 Sec Fuse Cover - For Sec Fuse Clip

12 13

Page 8

ACME ICT TRANSFORMERSACME ICT TRANSFORMERS

TB/CE SERIES WIRING DIAGRAMS

1 2 4

6 7 8 11

INDUSTRIAL CONTROL TRANSFORMERS FOR HARSH ENVIRONMENTS

Designed for control panels where internal installation of Control Transformers is prohibited

Some specifications require installation of large control transformers, usually 1000 to 5000 VA outside the control cabinet. This means the transformer must be in a sheet metal enclosure instead of the usual open core and coil construction method.

Acme meets this need by providing all of the power, protection, regulation and performance of our standard industrial control transformers in one UL -3R enclosure. These transformers are wound with copper magnet wire, deliver full nameplate capacity, and provide the high regulation required in control applications.

Voltage combinations available are: 240 X 480V Primary, 120V Secondary and 240/480/600V Primary, 120/100V Secondary. Ratings available are 1000, 2000, 3000 and 5000 VA. All units are UL, cUL listed, and covered by Acme’s exclusive 10-year limited warranty.

Features

Fully encapsulated and enclosed

55°C temperature rise, 155°C insulation

Copper windings

1000, 2000, 3000, 5000 and 10000 VA sizes

Voltage regulation exceeds NEMA requirements

UL and UL-3R listed

10-year limited warranty

240 X 480 PRIMARY VOLTS — 120 SECONDARY VOLTS

— 1Ø,

50/60 Hz

12 13 14 16

Rating

1000 T181217 8.33 13.10 (33.3) 10.31 (26.2) 7.13 (18.1) 55 (24.9) B

2000 T181219 16.67 14.77 (37.5) 10.31 (26.2) 7.13 (18.1) 80 (36.3) B

3000 T181220 25.00 14.77 (37.5) 10.31 (26.2) 7.13 (18.1) 100 (45.4) B

5000 T181221 41.67 13.85 (35.2) 13.25 (33.7) 10.19 (25.9) 140 (63.5) B

10000 T181223 83.3 16.47 (41.8) 13.88 (35.3) 12.94 (32.9) 308 (139.7) B

240/480/600 PRIMARY VOLTS — 120/100 SECONDARY VOLTS

Rating

2000 T153929 16.67 14.77 (37.5) 10.31 (26.2) 7.13 (18.1) 80 (36.3) C

3000 T153930 25.00 13.85 (35.2) 13.25 (33.7) 10.19(25.9) 130 (59.0) C

5000 T153931 41.67 13.85 (35.2) 13.25 (33.7) 10.19 (25.9) 140 (63.5) C

Catalog Number

Output

Amps

Output

Amps

Height

(inches)(cm)

— 1Ø,

Height

(Inches)(Cm.)

(inches)(cm)

50/60 Hz

(Inches)(Cm.)

Width

Depth

(inches)(cm)

Depth

(Inches)(Cm.)

Weight

(lbs.)(kg)

Weight

(Lbs.)(Kg.)

HARSH ENVIRONMENT WIRING DIAGRAMS

B C

Wiring

Diagram

Wiring

Diagram

14 15

Page 9

ACME ICT TRANSFORMERS

COMMERCIAL CONSTRUCTION

A Division of Hubbell Incorporated (Delaware)

ACME ELECTRIC

ACM_BRO_027_ICT-REV 3

04/2020
