Drive Isolation Transformers and AC Line Reactors
5

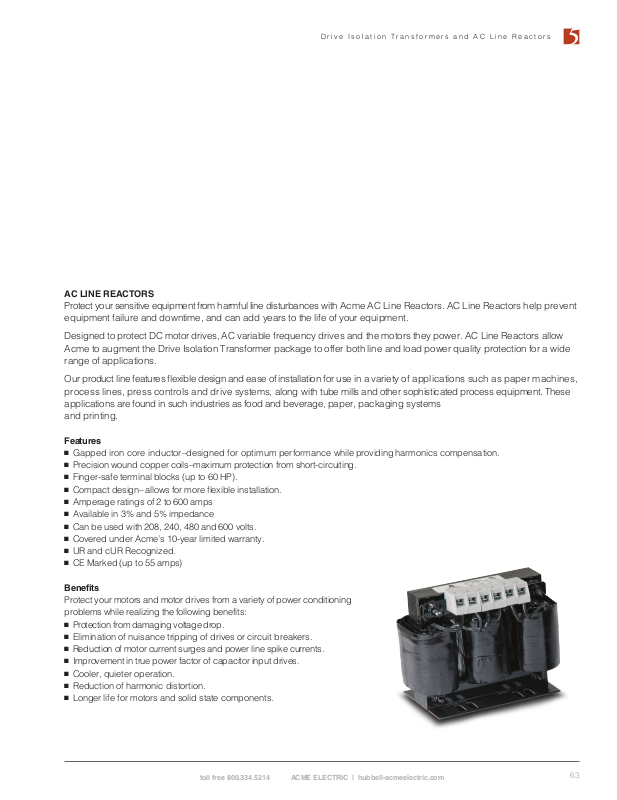

AC LINE REACTORS
Protect your sensitive equipment from harmful line disturbances with Acme AC Line Reactors. AC Line Reactors help prevent
equipment failure and downtime, and can add years to the life of your equipment.
Designed to protect DC motor drives, AC variable frequency drives and the motors they power. AC Line Reactors allow
Acme to augment the Drive Isolation Transformer package to offer both line and load power quality protection for a wide
range of applications.
Our product line features flexible design and ease of installation for use in a variety of applications such as paper machines,
process lines, press controls and drive systems, along with tube mills and other sophisticated process equipment. These
applications are found in such industries as food and beverage, paper, packaging systems
and printing.
Features
n
Gapped iron core inductor–designed for optimum performance while providing harmonics compensation.
n
Precision wound copper coils–maximum protection from short-circuiting.
n
Finger-safe terminal blocks (up to 60 HP).
n
Compact design– allows for more flexible installation.
n
Amperage ratings of 2 to 600 amps
n
Available in 3% and 5% impedance
n
Can be used with 208, 240, 480 and 600 volts.
n
Covered under Acme’s 10-year limited warranty.
n
UR and cUR Recognized.
n
CE Marked (up to 55 amps)
Benefits
Protect your motors and motor drives from a variety of power conditioning
problems while realizing the following benefits:
n
Protection from damaging voltage drop.
n
Elimination of nuisance tripping of drives or circuit breakers.
n
Reduction of motor current surges and power line spike currents.
n
Improvement in true power factor of capacitor input drives.
n
Cooler, quieter operation.
n
Reduction of harmonic distortion.
n
Longer life for motors and solid state components.
toll free 800.334.5214 ACME ELECTRIC | hubbell-acmeelectric.com
63
Drive Isolation Transformers and AC Line Reactors
5
AC Line Reactors Dimensional Drawings
1-60 HP; 2-80 Amp
APPLYING AC LINE REACTORS
Acme’s three-phase AC Line Reactors can be used as an input filter for adjustable speed DC drives and as input or output
filters for AC pulse width modulated variable frequency drives. They are bi-directional protective filtering devices and can be
applied in a variety of configurations.
Input to Inverter/Drive
AC Line Reactors protect your sensitive equipment from noise generated by the
drive or inverter. They protect the controller from power surges, spikes and
harmonic distortion.
75-500 HP; 110-600 Amp
Output of Inverter/Drive (AC Drive only)
Motors run cooler and quieter with an AC Line Reactor placed between the
inverter and motor. This application also reduces dv/dt and protects the
controller from short circuits and surges.
Multiple Controllers on a Single Power Line
Each drive or inverter on a single power line requires its own AC Line Reactor in
order to provide adequate surge protection, prevent crosstalk and reduce harmonic distortion.
Multiple Motors Controlled by a Single Drive (AC Drive only)
Multiple motors controlled by a single drive require only one AC Line
Reactor between the controller and motors.
64
toll free 800.334.5214 ACME ELECTRIC | hubbell-acmeelectric.com
Selection Charts Drive Isolation Transformers and AC Line Reactors
480 VOLTS, 3% Z, 60 Hz (600 VOLTS, 2.4% Z; 240 VOLTS, 6% Z)
Motor* Dimensions Mounting Dimensions
Catalog
Number
ALRB002TBC ① 1 2.1 2 11027 3.875 (9.8) 4.25 (10.8) 3.125 (7.90) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
ALRB003TBC
ALRB004TBC
ALRB006TBC
ALRB008TBC
ALRB012TBC
ALRB016TBC
ALRB025TBC
ALRB027TBC
ALRB035TBC
ALRB045TBC
ALRB055TBC
ALRB080TBC 60 77 80 276 7.00 (17.8) 9.00 (22.9) 4.75 (12.1) 3.60 (9.1) 3.60 (9.1) 23 (10.4)
ALRB110CBC 75 96 110 200 7.00 (17.8) 9.00 (22.9) 5.50 (14.0) 3.60 (9.1) 3.60 (9.1) 27 (12.2)
ALRB130CBC 100 124 130 170 7.00 (17.8) 9.00 (22.9) 6.50 (16.5) 3.50 (8.9) 3.60 (9.1) 34 (15.4)
ALRB160CBC 125 156 160 138 7.00 (17.8) 9.00 (22.9) 6.50 (16.5) 4.20 (10.7) 3.60 (9.1) 36 (16.3)
ALRB200CBC 150 180 200 110 7.00 (17.8) 9.00 (22.9) 8.00 (20.3) 4.20 (10.7) 3.60 (9.1) 55 (24.9)
ALRB250CBC 200 240 250 88 8.50 (21.6) 10.80 (27.4) 8.00 (20.3) 5.70 (14.5) 4.60 (11.7) 74 (33.6)
ALRB300CBC 250 302 300 74 8.50 (21.6) 10.80 (27.4) 8.00 (20.3) 5.20 (13.2) 4.60 (11.7) 85 (38.6)
ALRB360CBC 300 361 360 61 8.50 (21.6) 10.80 (27.4) 8.00 (20.3) 6.20 (15.2) 4.60 (11.7) 105 (47.6)
ALRB420CBC 350 414 420 53 8.50 (21.6) 10.80 (27.4) 8.50 (21.6) 6.20 (15.2) 4.60 (11.7) 113 (51.3)
ALRB480CBC 400 477 480 46 8.50 (21.6) 10.80 (27.4) 8.50 (21.6) 6.70 (17.0) 4.60 (11.7) 119 (54.0)
* Motor HP and Amp rated at 480 volts.
①
CE Marked
Hp Amp
① 1.5 3 3 7351 3.875 (9.8) 4.25 (10.8) 3.125 (7.90) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
① 2 3.4 4 5513 3.875 (9.8) 4.25 (10.8) 3.125 (7.90) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
① 3 4.8 6 3676 3.875 (9.8) 4.25 (10.8) 3.125 (7.90) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
① 5 7.6 8 2757 4.75 (12.1) 6.50 (16.5) 3.75 (9.50) 2.10 (5.3) 2.00 (5.1) 5 (2.3)
① 7.5 11 12 1838 4.75 (12.1) 6.50 (16.5) 3.75 (9.50) 2.10 (5.3) 2.00 (5.1) 6 (2.7)
① 10 14 16 1378 4.75 (12.1) 6.50 (16.5) 3.75 (9.50) 2.30 (5.8) 2.00 (5.1) 6 (2.7)
① 15 21 25 882 4.75 (12.1) 6.50 (16.5) 4.00 (10.2) 2.60 (6.6) 2.50 (6.4) 9 (4.1)
① 20 27 27 817 4.75 (12.1) 6.50 (16.5) 4.00 (10.2) 2.60 (6.6) 2.50 (6.4) 9 (4.1)
① 25 34 35 630 4.75 (12.1) 6.50 (16.5) 4.50 (11.4) 3.20 (8.1) 2.50 (6.4) 13 (5.9)
① 30 40 45 490 4.75 (12.1) 6.50 (16.5) 4.50 (11.4) 3.20 (8.1) 3.00 (7.6) 14 (6.4)
① 40 52 55 401 7.00 (17.8) 9.00 (22.9) 4.50 (11.4) 3.50 (8.9) 3.60 (9.1) 22 (10.0)
Reactor
Amp
uH
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
A (Depth) B (Width)
Weight
(Lbs.)(Kg.)
5
toll free 800.334.5214 ACME ELECTRIC | hubbell-acmeelectric.com
65
Drive Isolation Transformers and AC Line Reactors Selection Charts
5
480 VOLTS, 5% Z, 60 Hz (600 VOLTS, 4% Z; 240 VOLTS, 10% Z)
Motor* Dimensions Mounting Dimensions
Catalog
Number
ALRC002TBC ① 1 2.1 2 18378 3.875 (9.8) 4.25 (10.8) 3.125 (7.9) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
ALRC003TBC
ALRC004TBC
ALRC006TBC
ALRC008TBC
ALRC012TBC
ALRC016TBC
ALRC025TBC
ALRC027TBC
ALRC035TBC
ALRC045TBC
ALRC055TBC
ALRC080TBC 60 77 80 459 7.00 (17.8) 9.00 (22.9) 5.75 (14.6) 4.60 (11.7) 3.60 (9.1) 34 (15.4)
ALRC110CBC 75 96 110 334 7.00 (17.8) 9.00 (22.9) 6.50 (16.5) 4.20 (10.7) 3.60 (9.1) 56 (25.4)
ALRC130CBC 100 124 130 283 7.00 (17.8) 9.00 (22.9) 6.50 (16.5) 4.20 (10.7) 3.60 (9.1) 56 (25.4)
ALRC160CBC 125 156 160 230 7.00 (17.8) 9.00 (22.9) 8.00 (20.3) 4.20 (10.7) 3.60 (9.1) 70 (31.8)
ALRC200CBC 150 180 200 184 8.50 (21.6) 10.80 (27.4) 8.25 (21.0) 5.90 (15.0) 3.60 (9.1) 76 (34.5)
ALRC250CBC 200 240 250 147 8.50 (21.6) 10.80 (27.4) 8.25 (21.0) 6.20 (15.7) 4.60 (11.7) 89 (40.4)
ALRC300CBC 250 302 300 123 10.93 (27.8) 16.50 (41.9) 8.13 (20.7) 6.20 (15.7) 4.60 (11.7) 106 (48.1)
ALRC360CBC 300 361 360 102 10.93 (27.8) 16.50 (41.9) 9.50 (24.1) 8.20 (20.8) 4.60 (11.7) 124 (56.2)
ALRC420CBC 350 414 420 88 10.93 (27.8) 16.50 (41.9) 9.50 (24.1) 8.20 (20.8) 4.60 (11.7) 124 (56.2)
ALRC480CBC 400 477 480 77 10.93 (27.8) 16.50 (41.9) 10.13 (25.7) 8.20 (20.8) 4.60 (11.7) 129 (58.5)
ALRC600CBC 500 590 600 61 10.93 (27.8) 16.50 (41.9) 10.13 (25.7) 8.20 (20.8) 7.20 (18.3) 190 (86.2)
* Motor HP and Amp rated at 480 volts.
①
CE Marked
Hp Amp
① 1.5 3 3 12252 3.875 (9.8) 4.25 (10.8) 3.125 (7.9) 2.00 (5.1) 1.44 (3.7) 3 (1.4)
① 2 3.4 4 9189 3.875 (9.8) 4.25 (10.8) 3.125 (7.9) 2.10 (5.3) 1.44 (3.7) 4 (1.8)
① 3 4.8 6 6126 4.75 (12.1) 6.50 (16.5) 3.75 (9.5) 2.10 (5.3) 2.00 (5.1) 5 (2.3)
① 5 7.6 8 4594 4.75 (12.1) 6.50 (16.5) 3.75 (9.5) 2.10 (5.3) 2.00 (5.1) 6 (2.7)
① 7.5 11 12 3063 4.75 (12.1) 6.50 (16.5) 3.75 (9.5) 2.20 (5.6) 2.00 (5.1) 7 (3.2)
① 10 14 16 2297 4.75 (12.1) 6.50 (16.5) 4.00 (10.2) 2.60 (6.6) 2.00 (5.1) 9 (4.1)
① 15 21 25 1470 4.75 (12.1) 6.50 (16.5) 4.50 (11.4) 3.00 (7.6) 2.00 (5.1) 13 (5.9)
① 20 27 27 1361 4.75 (12.1) 6.50 (16.5) 4.50 (11.4) 2.80 (7.1) 3.00 (7.6) 13 (5.9)
① 25 34 35 1050 7.00 (17.8) 9.00 (22.9) 4.75 (12.1) 3.60 (9.1) 3.00 (7.6) 23 (10.4)
① 30 40 45 817 7.00 (17.8) 9.00 (22.9) 4.75 (12.1) 3.60 (9.1) 3.00 (7.6) 23 (10.4)
① 40 52 55 668 7.00 (17.8) 9.00 (22.9) 4.75 (12.1) 3.60 (9.1) 3.00 (7.6) 24 (10.9)
Reactor
Amp
uH
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
A (Depth) B (Width)
Weight
(Lbs.)(Kg.)
66
toll free 800.334.5214 ACME ELECTRIC | hubbell-acmeelectric.com
