A Fusion of the Art and Science of Light
LITE TOWER PR OD UC T D ETA I LS:
date: November 2, 2008

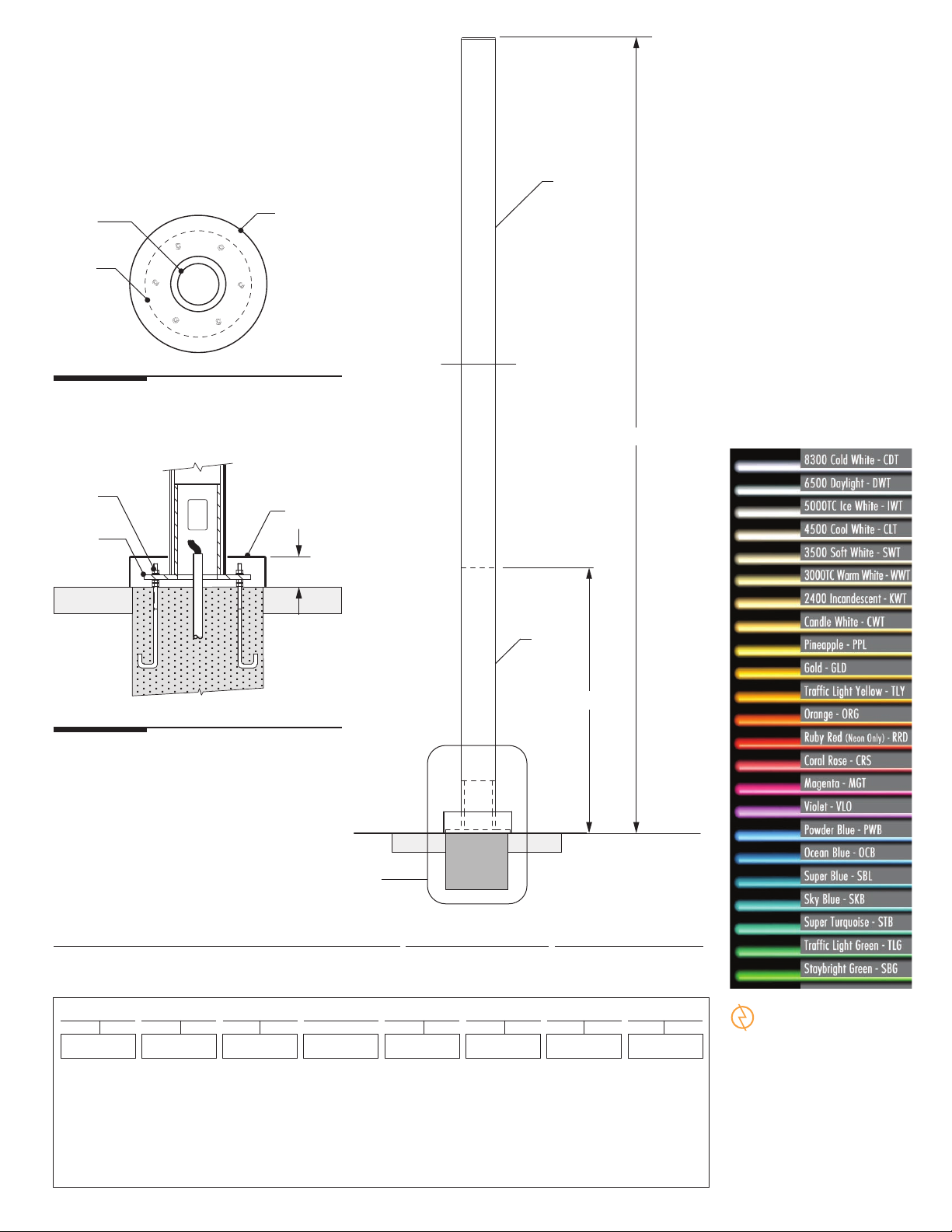

sheet description: Elevation and base details
file: LTdetails.pdf
6 1/2”
Diameter
Mounting
Plate
12” Diameter
6 1/2”
Diameter
Frosted Acrylic
Tube
TFA or
SMM
A
Section
Mounting
Flange
Mounting
Plate
B
Base Mounting
Base Cover
4”
A
L I T E T O W E R S
Interior
Steel Base
Structure
TFA or
BSC
12’
4’
DETAILS
© 2008 Architectural Cathode Lighting, Inc.
Project Name
S P E C I F I C A T I O N C O D E :
_ _ _ _ _ _ _
Product
Lite Tower
LT 01-standard
LT 02-with options
(2)
(1) For multiple selections of lamp colors, reference the lamp number followed by the color code. See web site Color Chart.
(2) Standard: TFA -Translucent Frosted Acrylic DR on Upper and Base Materials. Non Standard: SMM -Stainless Mini Mesh and BSC -Brushed Stainless Clad.
(3) Special order available in 277V, contact ACL for more information.
Lamp Qty Color Code Dim-ableUpper Material Base Material PrimaryEnvironment
1L - (1 lamp)
2L - (2 lamps)
3L - (3 lamps)
Note: For a variation (custom) of this product contact ACL to request a variation number and information.
DR - Dry
DP - Damp
WT - Wet
#1L + Code
#2L + Code
#3L + Code
B
QtyDate
TFA
(1)
SMM
(2)
TFA
BSC
(2)
S 01 - 120V 3A
S 02 - 120V 6A
S 03 - 120V 8A
277V (3)
DI - Dim
ND - Non Dim
ACL INC.
Architectural Cathode Lighting, Incorporated
c a t h o d e l i g h t i n g . c o m
5 3 0 1 P a c i f i c B o u l e v a r d
Hu nt in gt on Pa rk C al if or ni a 90 25 5 US A
Te le ph on e 3 23 .5 81 .8 80 0
Fa x 3 23. 581 .7 97 1
i n f o @ c a t h o d e l i g h t i n g . c o m
