8
7
6
5
4
3
ECN REV. DESCRIPTION DATE DRAW CHECK APPROVED
A Initial Release
2
REVISIONS
2011/03/09
1
XY XY XY
SPECIFICATION
D
INPUT POWER:
D
+24VDC nominal, range: 18 to 30VDC 1.0A DC Total Max.
~24VAC nominal, range: 15 to 24VAC 50/60HZ 1.0A AC Total Max.
(AC must not be grounded)
FUSE:
F1 on Display Board: Polyswitch 1.6A
F2 on Display Board: Polyswitch 50mA
Polyswitch device resets after the fault is cleared and power to the
circuit is removed
SENSOR:
INFRARED REFRIGERANT
C
OUTPUT SIGNAL:
C
RS-485 with OPTIMUX PROTOCOL AND MODBUS PROTOCOL
AVAILABLE CONTROLLER: M-CONTROLLER or Q4 CONTROLLER
4-20mA Analog Output
3X SPDT RELAYS: 1.0A MAX. @30VDC (RESISTIVE LOAD)
0.3A MAX. @125VAC (RESISTIVE LOAD)
ENCLOSURE:
IP 66 & NEMA 4, 4X, 12 & 13
COVER SCREWS SHOULD BE TORQUED TO 2.5 lbs-in (30 cN-m)
OPERATING TEMPERATURE:
-45 C TO 65 C
B
AMBIENT HUMIDITY:
B
5% TO 95% RH (NON- CONDENSING)
STORAGE TEMPERATURE:
-45 C TO 70 C
SIZE:
200mm X 120mm X 90mm
WEIGHT:
LESS THAN 1.5lbs ( 0.680 kg)
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/32
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Quatrosense Environmental Ltd. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
Quatrosense Environmental Ltd. IS
PROHIBITED.
678
5
NEXT ASSY USED ON
APPLICATION
4
ANGULAR:
MACH .5 degrees BEND
TWO PLACE DECIMAL .02
THREE PLACE DECIMAL .010
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DO NOT SCALE DRAWING
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
3
NAME
XY
XY
XY
2011/03/09
2011/03/09
2011/03/09
DATE
TITLE:
SIZEBDWG. NO.
SCALE: 1:2
2
Quatrosense Environmental Ltd
QIRF
INSTALLATION DRAWING
85050-302-000
WEIGHT:
SHEET 1 OF 5
1
A
REV
A
8
7
6
Power and RS-485 Connection:
5
4
ZONE REV. DESCRIPTION DATE APPROVED
- - See Sheet1 - -
3
2
REVISIONS
1
D
C
B
D
C
B
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
A
NOTE:
GROUND THE SHIELD IN CONTROLLER SIDE1.
GROUND ON ONE END ONLY2.
678
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
5
NEXT ASSY USED ON
APPLICATION
4
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DO NOT SCALE DRAWING
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
3
XY
XY
XY
2011/03/09
2011/03/09
2011/03/09
DATENAME
Quatrosense Environmental Ltd
TITLE:
QIRF
INSTALLATION DRAWING
SIZEBDWG. NO.
85050-302-000
SCALE: 1:2
2
A
REV
A
SHEET 2 OF 5
1
8
7
6
5
4
ZONE REV. DESCRIPTION DATE APPROVED
- - See Sheet1 - -
3
2
REVISIONS
1
D
C
D
C
Sensor Location:
Several factors should be considered when selecting locations to install
sensors. The following general suggestions should be considered to assure
the detection of the target gas. Select the most suitable location for each
sensor.
1. Air Currents: If there are fans, winds, or others sources of air movement,
B
Terminator Enable/Disable?
The terminator on each end of the RS485 loop is designed to
match the electrical impedance characteristic of the twisted pair
loop, and will prevent signal echoes from corrupting the data on
the line. The terminator should be enabled on BOTH ends of the
RS485 loop. Short and medium length modbus/485 loops can
operate without the terminating resistor. Longer runs may require
the terminating resistors. But adding terminator dramatically
increases power consumption.
Twisted Pair?
RS-485 is designed to be a balanced system. The signal on one
A
wire is ideally the exact opposite of the signal on the second
wire. In other words, if one wire is transmitting a high, the other
wire will be transmitting a low, and vice versa. Although RS-485
can be successfully transmitted using multiple types of media, it
should be used with wiring commonly called "twisted pair."
678
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
5
NEXT ASSY USED ON
APPLICATION
4
gases may tend to rise to collect in certain areas of a facility. The local air
currents should be assessed to aid in selecting the sensor location. In outdoor
situations considerations such as prevailing winds should be accounted for.
Air convection can often be more important in determining gas concentrated
areas than factors of Vapor Density.
2. Vapor Density: R11, R22, R123 and R134a are heavier than air. Detecting
location should be 9 - 18 inch (0.23m to 0.46m) above the floor.
3. Gas Emission Sources: As a rule, at least one sensor should be located in
close proximity to each point where a leak is likely to occur. This is particularly
important when a liquid having a low volatility is monitored.
4. Environmental Factors: Designed to rugged outdoor use consider the
following in selecting locations. Install sensors where they will be protected
from wind, dust, snow, water, vibration and shock.
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DO NOT SCALE DRAWING
3
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
NAME
XY
XY
XY
DATE
2011/03/09
2011/03/09
2011/03/09
2
Quatrosense Environmental Ltd
TITLE:
QIRF
INSTALLATION DRAWING
SIZEBDWG. NO.
85050-302-000
SCALE: 1:2
SHEET 3 OF 5
1
B
A
REV
A
8
4-20mA Output:
D
7
6
5
4
ZONE REV. DESCRIPTION DATE APPROVED
- - See Sheet1 - -
3
2
REVISIONS
1
D
QIRF provides one channel 4-20 milliamp analog
output or 2-10VDC analog output . The maximum
output impedance is 600 ohms for 4-20mA output.
The maximum current is 10 mA for 2-10VDC output.
C
C
Test point SIG+ and SIG- are used to measure the
current online when the IR-FREON-D is working in
the field.
Jump J5 2-3 : 2-10VDC Output•
Jump J5 1-2 : 4-20mA Output (Default)•
B
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
678
5
NEXT ASSY USED ON
APPLICATION
4
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DO NOT SCALE DRAWING
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
3
NAME
XY
XY
XY
DATE
2011/03/09
2011/03/09
2011/03/09
2
Quatrosense Environmental Ltd
TITLE:
QIRF
INSTALLATION DRAWING
SIZEBDWG. NO.
85050-302-000
SCALE: 1:2
SHEET 4 OF 5
1
B
A
REV
A
8
7
6
D
5
4
ZONE REV. DESCRIPTION DATE APPROVED
- - See Sheet1 - -
3
2
REVISIONS

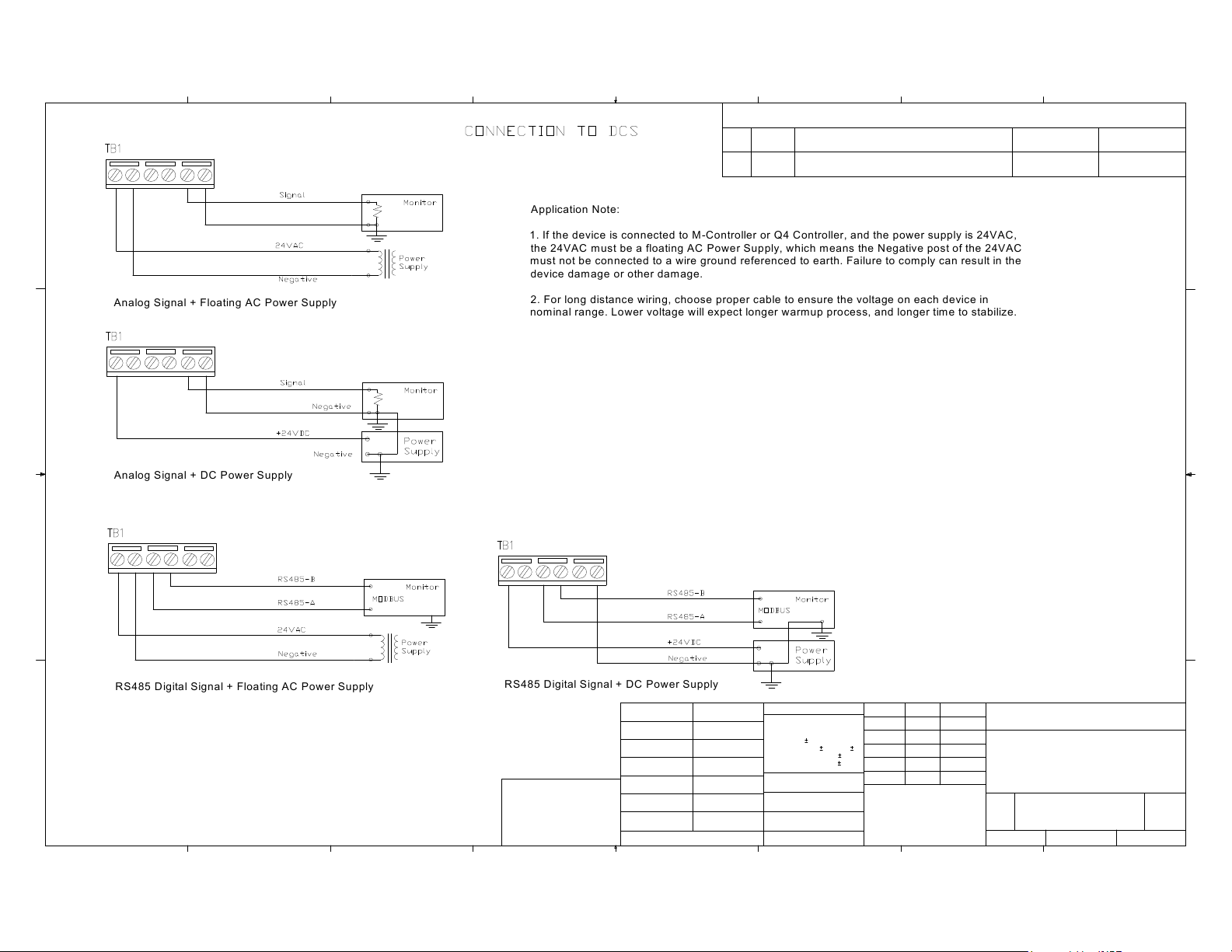

Application Note:
1. If the device is connected to M-Controller or Q4 Controller, and the power supply is 24VAC
the 24VAC must be a floating AC Power Supply, which means the Negative post of the 24VA
1
D
,
C
must not be connected to a wire ground referenced to earth. Failure to comply can result in the
Analog Signal + Floating AC Power Suppl
device damage or other damage
y
2. For long distance wiring, choose proper cable to ensure the voltage on each device i
nominal range. Lower voltage will expect longer warmup process, and longer time to stabilize.
.
n
C
C
Analog Signal + DC Power Supply
B
RS485 Digital Signal + Floating AC Power Supply
RS485 Digital Signal + DC Power Suppl
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
678
5
NEXT ASSY USED ON
APPLICATION
4
y
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DO NOT SCALE DRAWING
3
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
NAME
XY
XY
XY
XY
2011/03/11
2011/03/11
2011/03/11
2011/03/11
DATE
Quatrosense Environmental Ltd
TITLE:
INSTALLATION DRAWING
QIRF
SIZEBDWG. NO.
85050-302-000
SCALE: 1:2
2
SHEET 5 OF 5
1
B
A
REV
A
