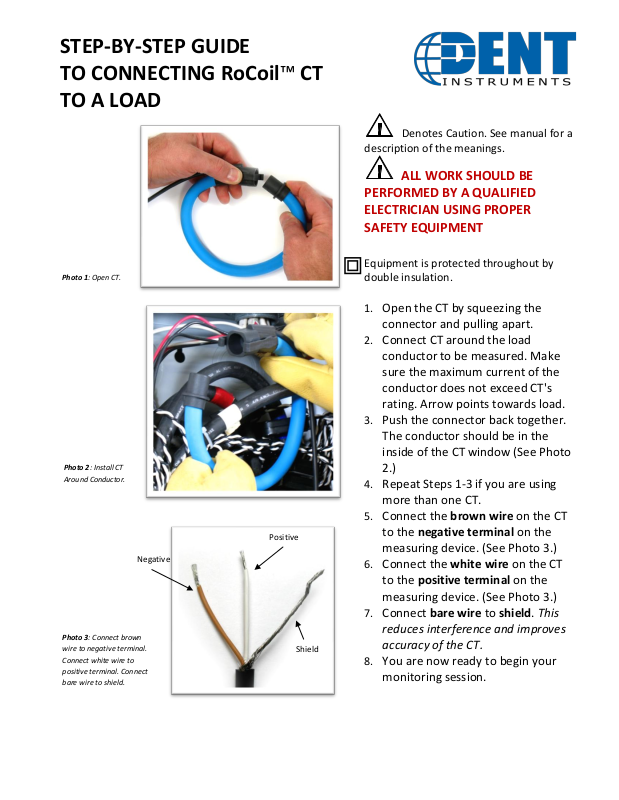

STEP-BY-STEP GUIDE
TO CONNECTING RoCoil™ CT
TO A LOAD

Denotes Caution. See manual for a

description of the meanings.

ALL WORK SHOULD BE

PERFORMED BY A QUALIFIED
ELECTRICIAN USING PROPER
SAFETY EQUIPMENT

Equipment is protected throughout by
double insulation.

1. Open the CT by squeezing the

connector and pulling apart.

2. Connect CT around the load

conductor to be measured. Make
sure the maximum current of the
conductor does not exceed CT's
rating. Arrow points towards load.

3. Push the connector back together.

The conductor should be in the
inside of the CT window (See Photo

2.)

4. Repeat Steps 1-3 if you are using

more than one CT.

5. Connect the brown wire on the CT

to the negative terminal on the
measuring device. (See Photo 3.)

6. Connect the white wire on the CT

to the positive terminal on the
measuring device. (See Photo 3.)

7. Connect bare wire to shield. This

reduces interference and improves
accuracy of the CT.

8. You are now ready to begin your

monitoring session.

Photo 1: Open CT.

Photo 2: Install CT

Around Conductor.

Photo 3: Connect brown

wire to negative terminal.

Connect white wire to

positive terminal. Connect

bare wire to shield.

Shield

Positive

Negative
