Acer X183HL, X193HQL Schematic

Product Service Manual – X193HQL

Service Manual for acer: X193HQL

P/N: 9J.0NA15.81A

Applicable for All Regions

Version: 001

Date:2009/9/3

Notice:

- For RO to input specific “Legal Requirement” in specific NS regarding to responsibility and liability
statements.

First Edition (Auguest, 2009)
© Copyright Acer Corporation 2009. All Right Reserved.

- 1 -

Content Index

Abbreviations & Acronyms ............................................................................. 3

1. About This Manual ....................................................................................... 3

1.1. Trademark ........................................................................................................ 3

2. Introduction ................................................................................................. 4

2.1. RoHS (2002/95/EC) Requirements ................................................................. 4

2.2. Safety Notice ................................................................................................... 4

2.3 .Compliance Statement .................................................................................... 5

2.4. General Descriptions ...................................................................................... 5

3. Product Overview ........................................................................................ 5

3.1. Introduction ..................................................................................................... 5

3.2. Operational Specification ............................................................................... 7

3.3. Operational & Functional Specification ...................................................... 13

3.4. LCD Characteristics ...................................................................................... 16

3.5. User Controls ................................................................................................ 18

3.6. Mechanical Characteristics .......................................................................... 19

3.7. Pallet & Shipment .......................................................................................... 21

3.8. Certification ................................................................................................... 22

3.9 Packing ........................................................................................................... 24

4. Disassembly /Assembly ............................................................................ 25

4.1. Exploded View .............................................................................................. 25

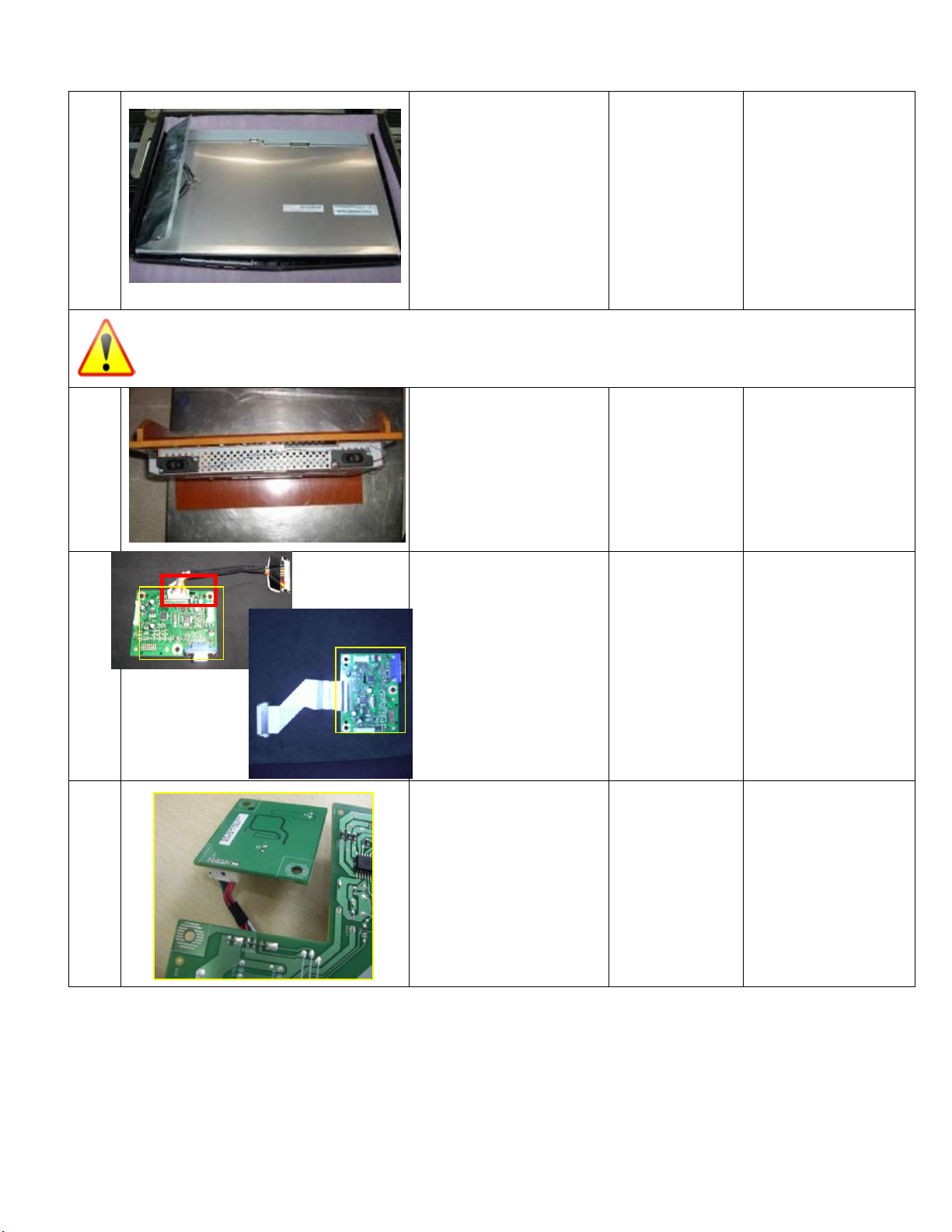

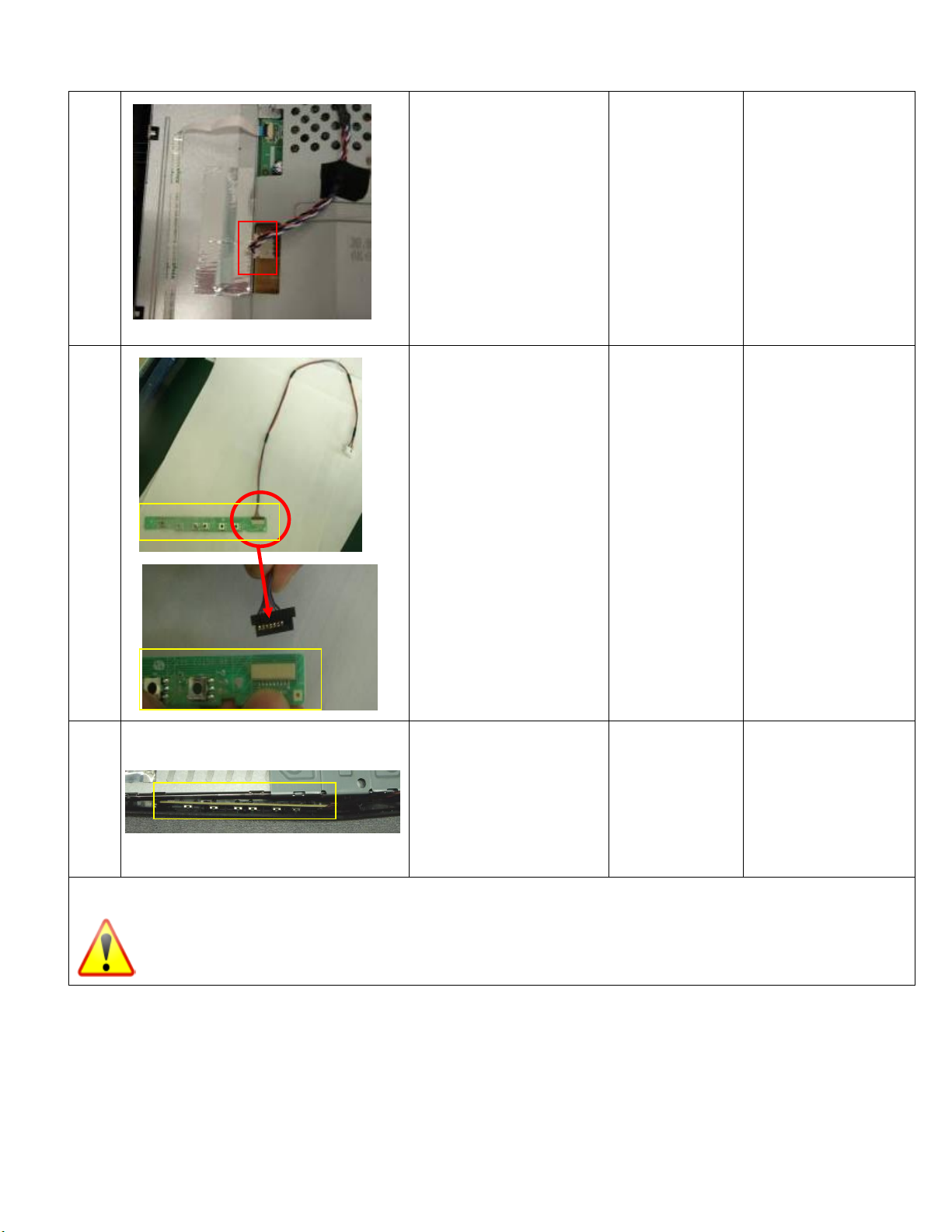

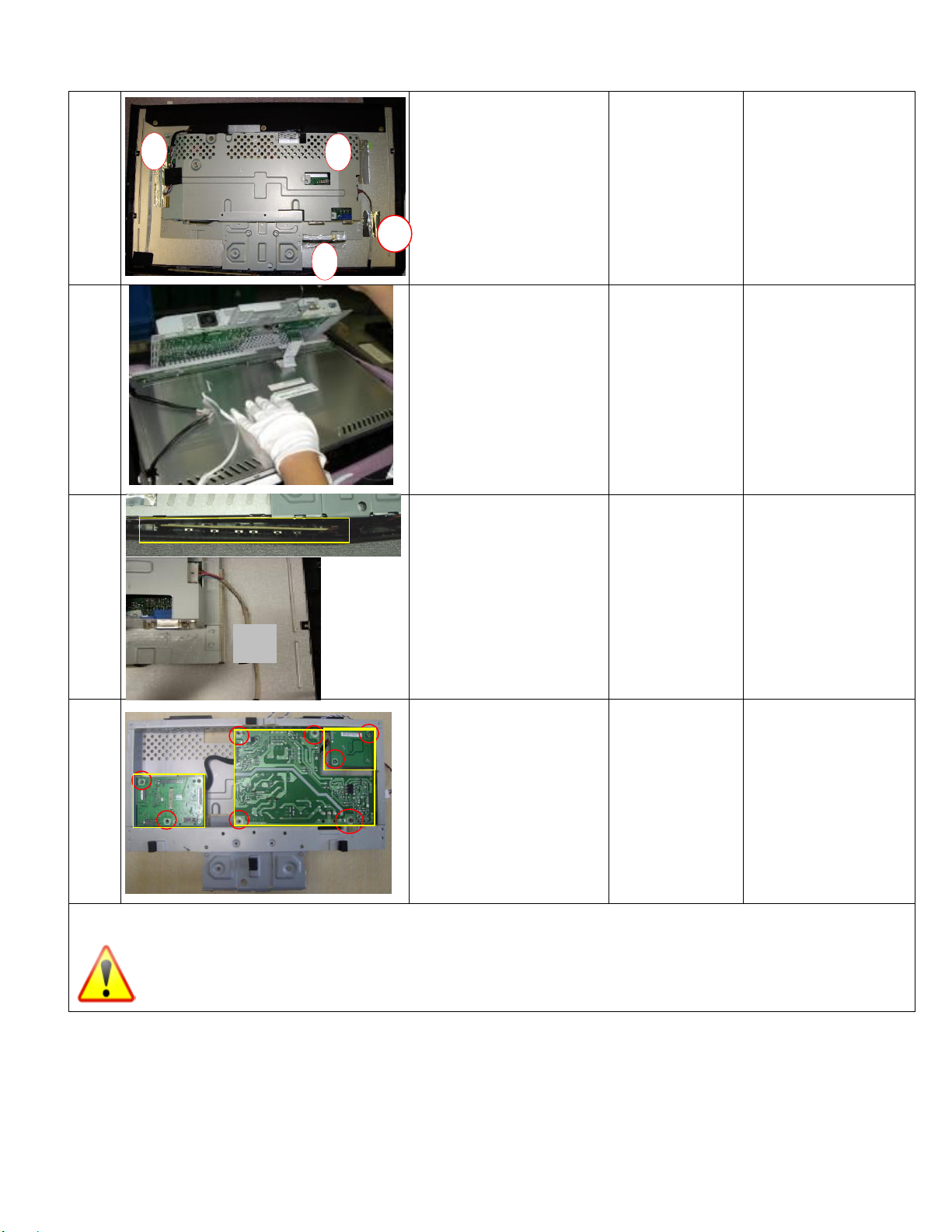

4.2. Disassembly /Assembly ............................................................................... 27

5. Level 1 Cosmetic / Appearance / Alignment Service .............................. 38

5.1 Alignment procedure (for function adjustment) .......................................... 38

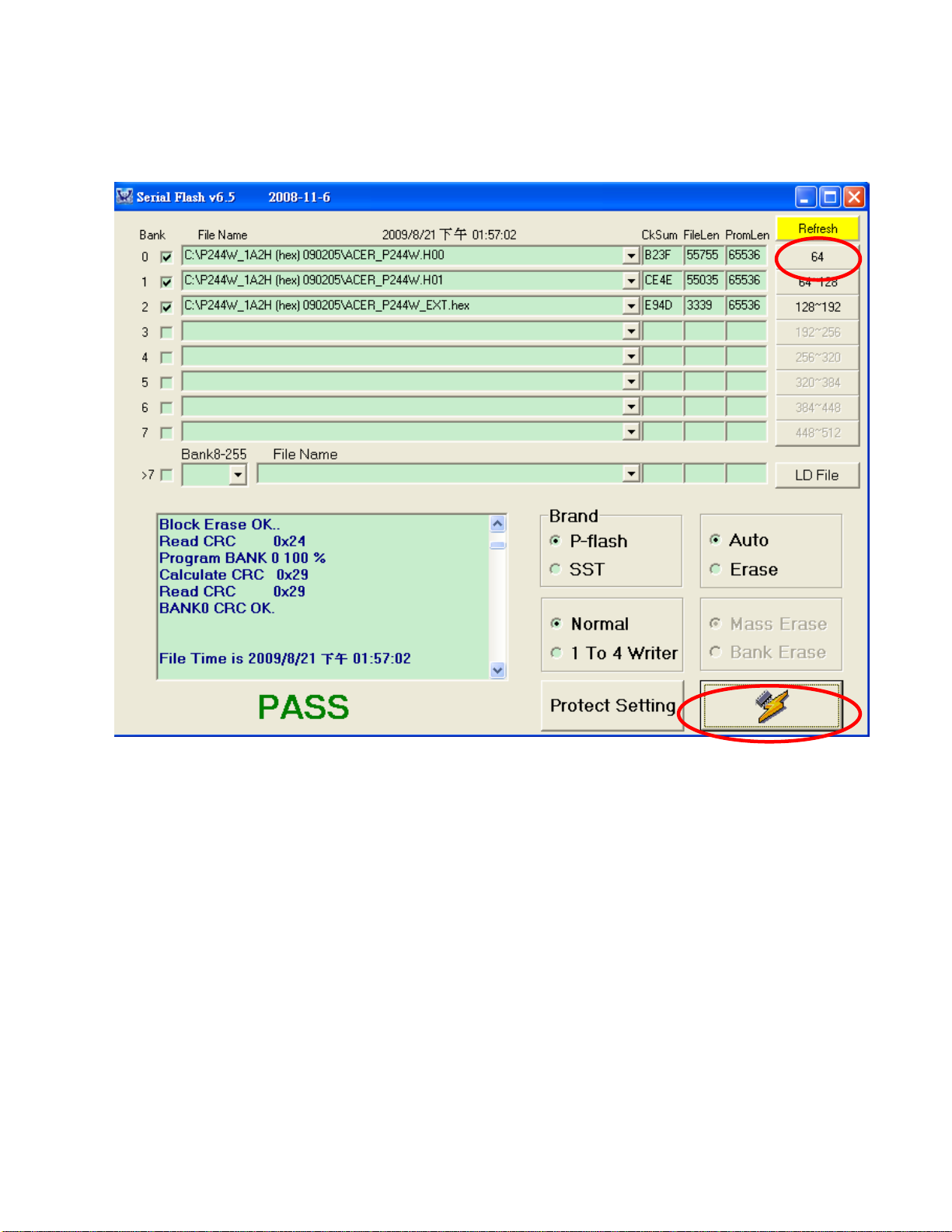

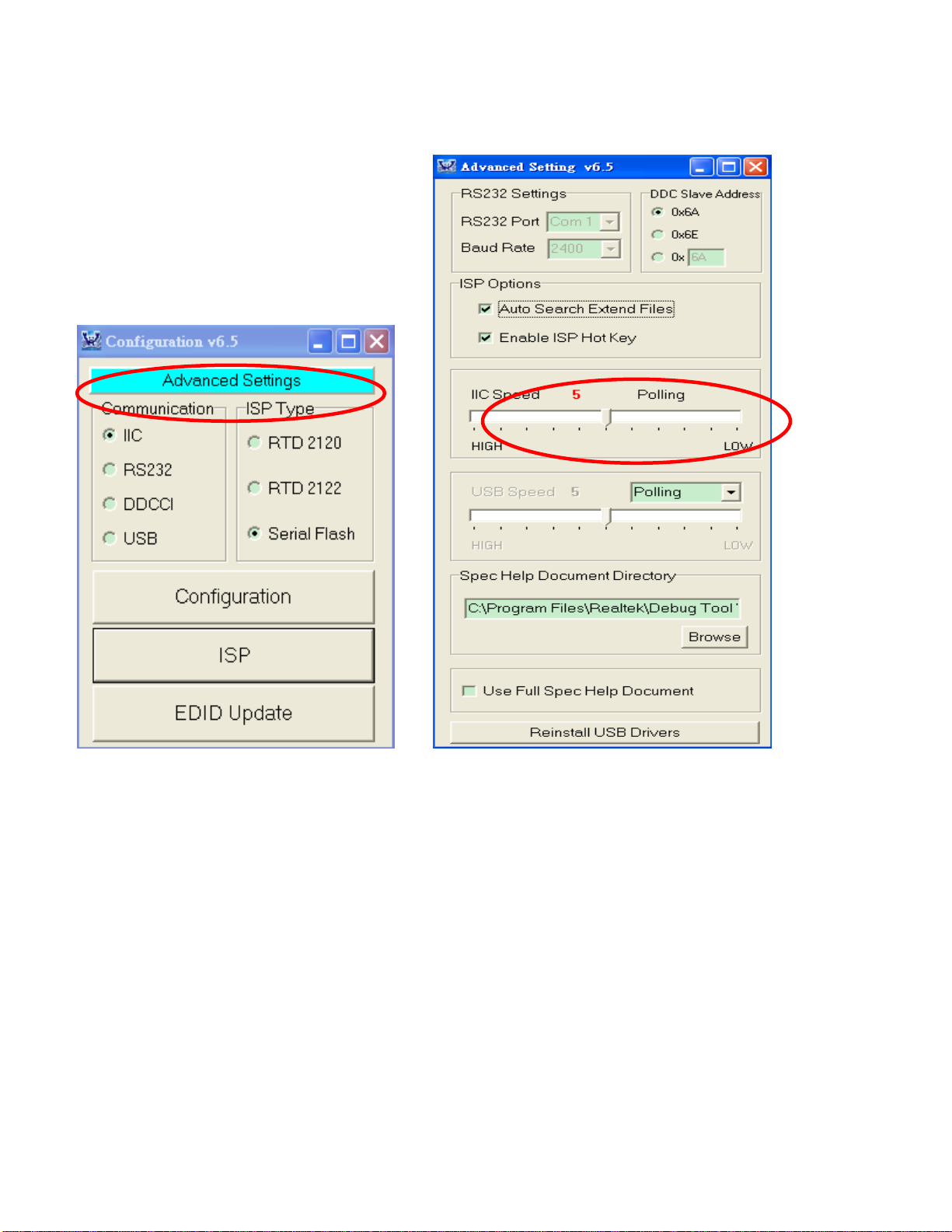

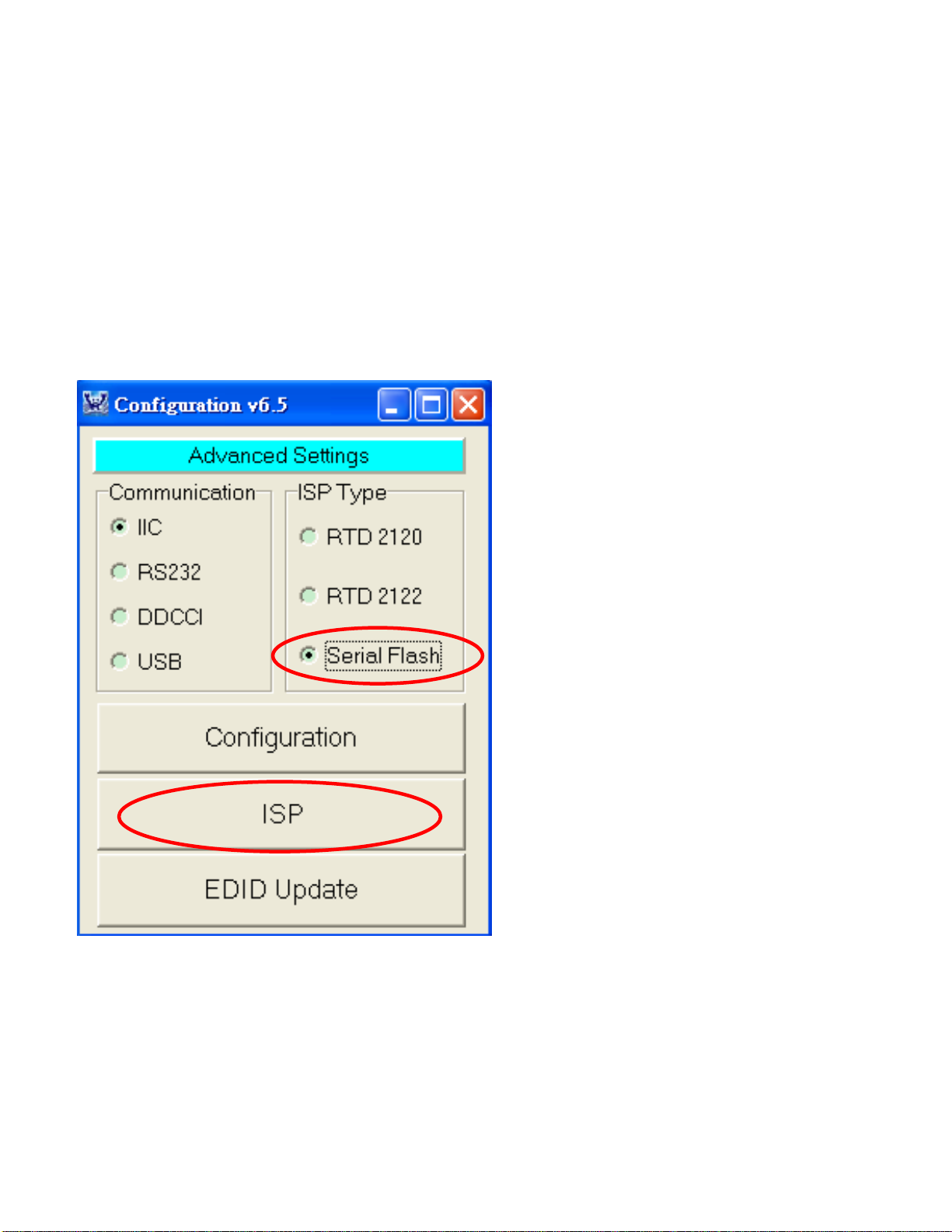

5.2 Software / Firmware Upgrade Process ......................................................... 41

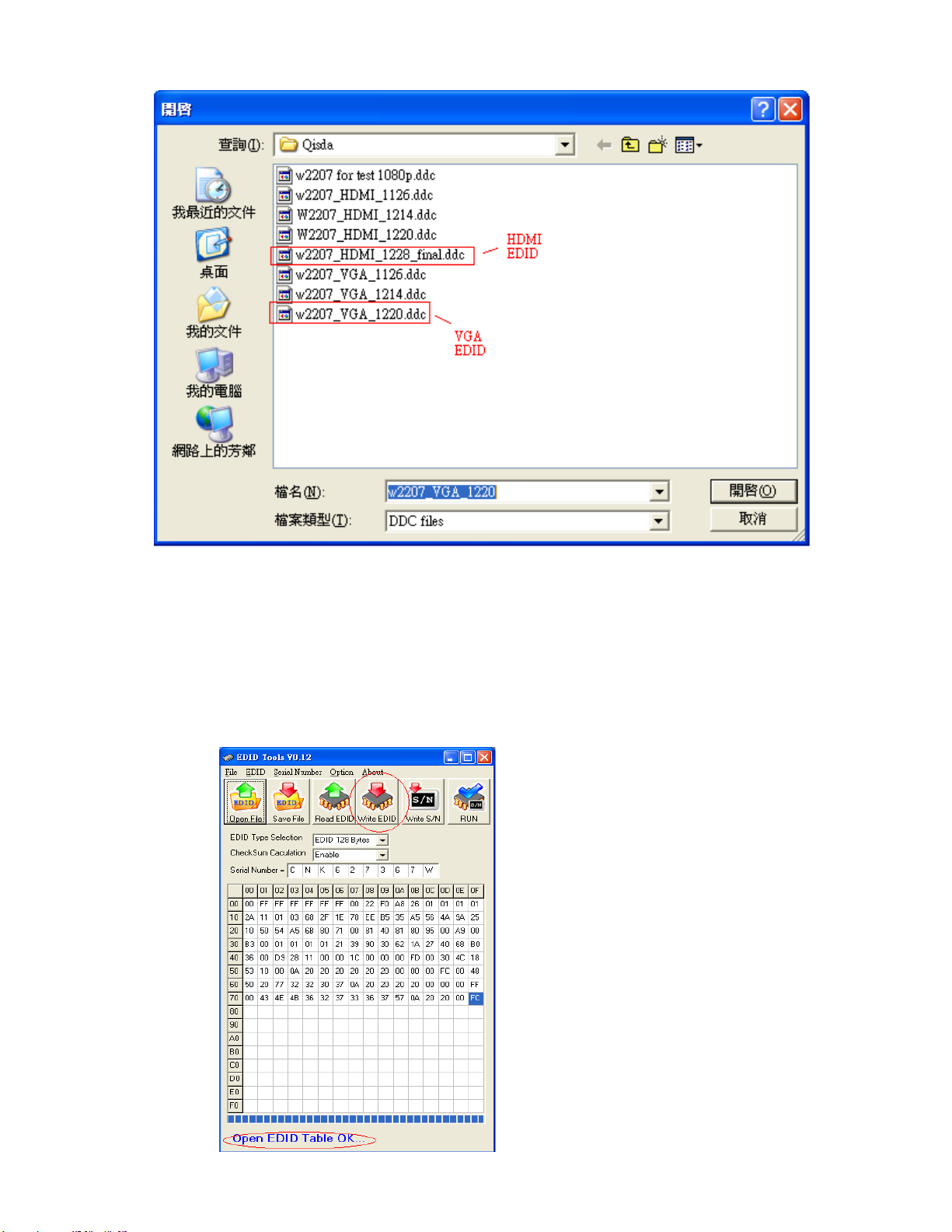

5.3 EDID Upgrade Procedure .............................................................................. 46

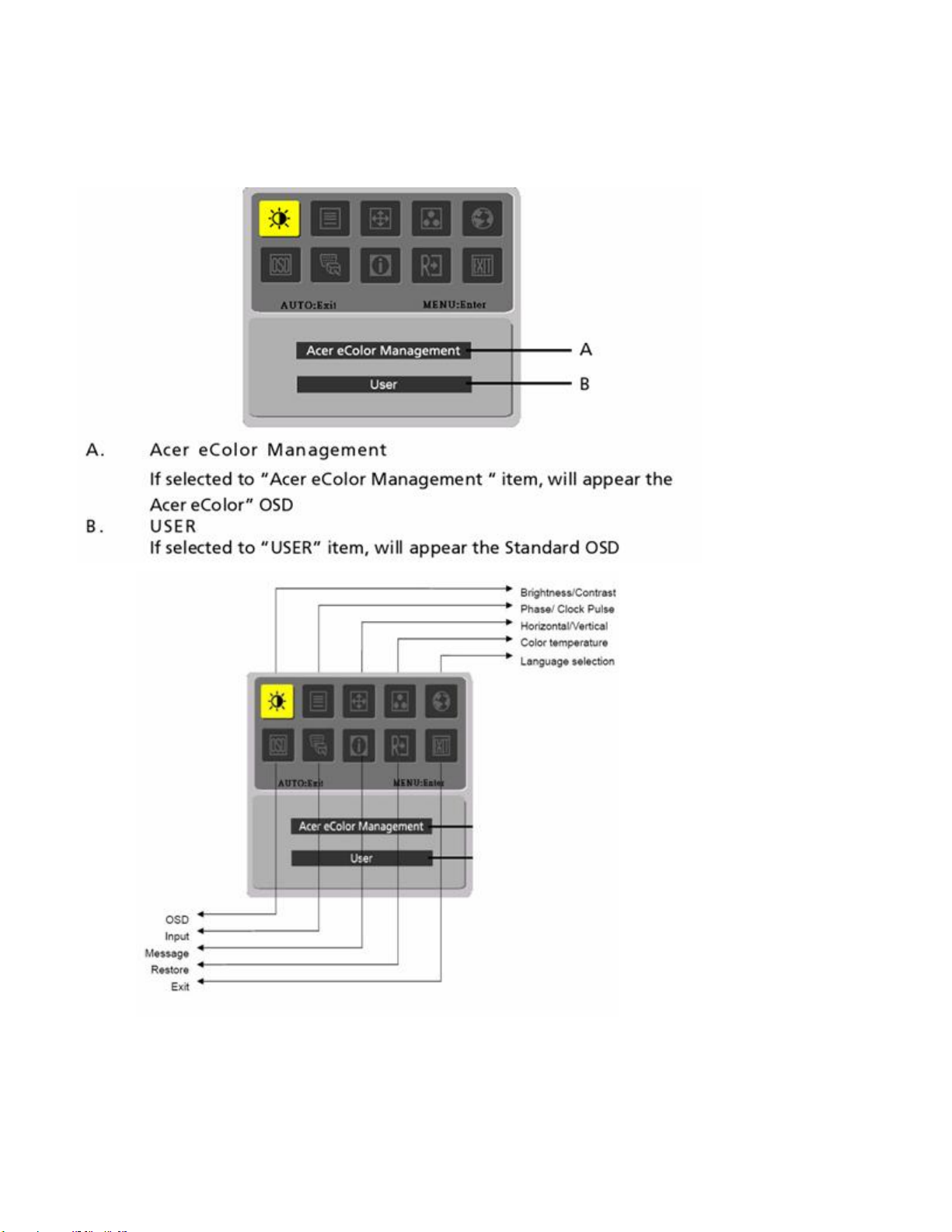

5.4 OSD Operation Guide .................................................................................... 51

6. Level 2 Circuit Board and Standard Parts Replacement ......................... 55

6.1. Trouble Shooting Guide ................................................................................ 55

6.2 Circuit Operation Theory ............................................................................... 61

6.3 Spare Parts List .......................................................................................... 65

Appendix 1 – Screw List / Torque ................................................................. 69

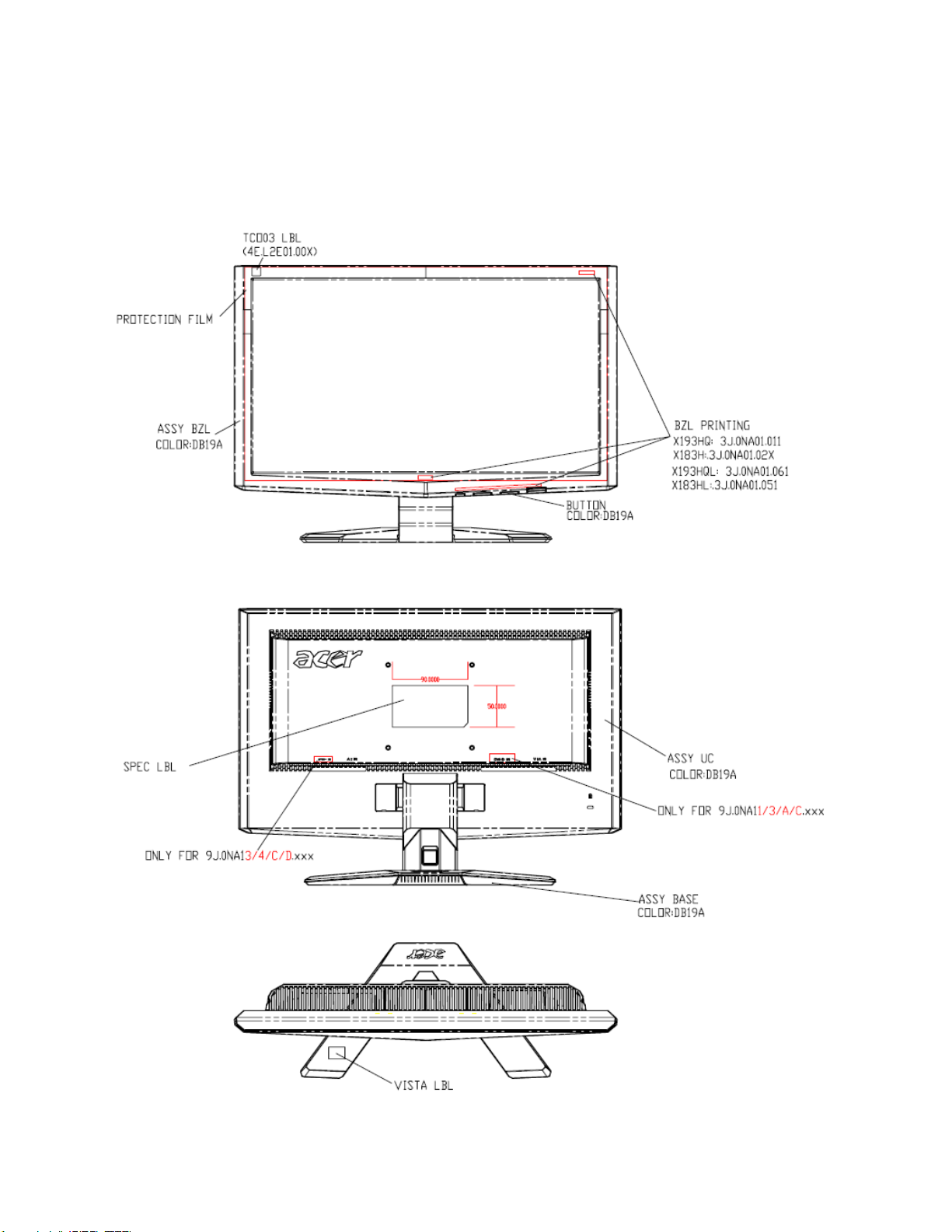

Appendix 2 – Physical Dimension Front View and Side view .................... 70

Appendix 3 – LED Driver ............................................................................... 71

Appendix 4 –Power Board ............................................................................ 72

Appendix 5 –Interface Board ........................................................................ 73

- 2 -

Abbreviations & Acronyms

1. About This Manual

This manual contains information about maintenance and service of acer products.
Use this manual to perform diagnostics tests, troubleshoot problems, and align the
acer product.

1.1. Trademark

The following terms are trademarks of Acer Inc. :
Acer

Importance

Only trained service personnel who are familiar with this Acer Product
shall perform service or maintenance to it. Before performing any
maintenance or service, the engineer MUST read the “Safety Note”.

- 3 -

2. Introduction

This section contains general service information, please read through carefully. It should be
stored for easy access place for quick reference.

2.1. RoHS (2002/95/EC) Requirements

– Applied to all countries require RoHS.

The RoHS (Restriction of Hazardous Substance in Electrical and Electronic Equipment Directive)
is a legal requirement by EU (European Union) for the global electronics industry which sold in EU
and some counties also require this requirement. Any electrical and electronics products
launched in the market after June 2006 should meet this RoHS requirements. Products launched
in the market before June 2006 are not required to compliant with RoHS parts. If the original
parts are not RoHS complaints, the replacement parts can be non ROHS complaints, but if the
original parts are RoHS compliant, the replacement parts MUST be RoHS complaints.
If the product service or maintenance require replacing any parts, please confirming the RoHS
requirement before replace them.

2.2. Safety Notice

1. Make sure your working environment is dry and clean, and meets all government safety
requirements.

2. Ensure that other persons are safe while you are servicing the product.
DO NOT perform any action that may cause a hazard to the customer or make the product
unsafe.

3. Use proper safety devices to ensure your personal safety.

4. Always use approved tools and test equipment for servicing.

5. Never assume the product’s power is disconnected from the mains power supply. Check that
it is disconnected before opening the product’s cabinet.

6. Modules containing electrical components are sensitive to electrostatic discharge (ESD).
Follow ESD safety procedures while handling these parts.

7. Some products contain more than one battery. Do not disassemble any battery, or expose it to
high temperatures such as throwing into fire, or it may explode.

8. Refer to government requirements for battery recycling or disposal.

- 4 -

2.3 .Compliance Statement

Feature items

Specifications

Remark

Panel supplier & module name

AUO M185XW01 V7

TN, Normally white

Screen diagonal

470.1 mm(18.51”)

409.8 mm(H) x230.4
mm(V)

Display Format

1366(H) x 768 (V)

Panel Display information

Pixel Pitch

0.3(H) x 0.3(V) (TYP.)

per one triad

Viewing Angle (@ Contrast Ratio >= 10)

R/L:170 degrees (typ)

U/D: 160 degrees (typ)

Analog interface with Scaling supported

Yes

With 15-pin D-sub

Caution: This Optical Storage Product contains a Laser device. Refer to the product specifications
and your local Laser Safety Compliance Requirements.

2.4. General Descriptions

This Service Manual contains general information. There are 3 levels of service:

Level 1: Cosmetic / Appearance / Alignment Service
Level 2: Circuit Board or Standard Parts Replacement
Level 3: Component Repair to Circuit Boards

3. Product Overview

3.1. Introduction

X193HQ is defined as our new 18.5W model in ACER X series which will be the ACER project in

Qisda. X193HQ is defined as 18.5”W LCD Monitor supports 1366(H) x 768(V) resolution with

DPMS (Display Power Management System) and ACER eColor function. There are triple input
types, D-sub, DVI. X193HQ adopts AUO panel M185XW01 V7. X193HQ has included 1W+1W
speaker. X193HQ also support ACM 8000000:1.(Theoretical value)

The features summary is shown as below,

*All panel spec. in Q201 definition depends on the variance of panel source.
*All spec. of monitor need to warm up at least 1hr.

* To test the “Contrast Ratio” and “Luminance” functions, the color status must be “User preset”

mode.

* 1. “Contrast Ratio”: Set “brightness” at 100, and “contrast” at 50.
* 2. “Luminance”: Set “brightness” at 100, and “contrast” at 100.

- 5 -

connector

HDMI interface with Scaling supported

No

For 1A1D model

Max resolution mode supported

1366 (H) x 768 (V)@60Hz

Number of Display Colors supported

16.7 Millions

Contrast Ratio

1000:1 (typ.),600:1(min)

Test Condition: Set Contrast
at 50, Brightness at 100,
Color at User preset

Luminance

AUO M185XW01 V7

250 cd/m2 (typ.), 200 cd/m2

(min)

Test Condition: Set Contrast
at 50, Brightness at 100,
Color at User preset

AC power input

Yes

90-264 Volts, 47-63 Hz.

DC power input (with AC power adapter)

No

DPMS supported

Yes

<2W

LED indicator for power status showed

Yes

Blue/Amber

OSD for control & information supported

Yes

Multi-language supported for OSD

Yes

EMEA
Non-EMEA

Buttons control supported

Yes

6 buttons including 1
monitor power on/off

control button.

Flywheel control supported

No

Scaling function supported

Yes

Auto adjustment function supported

Yes

“Auto-Key” function

DDC function supported (EDID ver. 1.3)

Yes

DDC2B

DDC-CI support version 1.1 or later

Yes

DDC-CI

Audio speakers supported

Yes

Audio Jack (input connector) supported

Yes

Line-in connector

Earphone Jack (Output connector)
supported

No

Microphone function supported

No

Mechanical Tilt base design

Yes

From -5 to +23 degree

VESA wall mounting design

Yes

Mechanical Rotate design

No

- 6 -

Mechanical Lift base design

No

Kensington compatible lock design

Yes

3.2. Operational Specification

Item

Condition

Spec

OK

N.A

Remark

Input Voltage range

Universal input full range

90~264VAC /47~63Hz



Input Current range

90 ~ 264VAC

< 1.2 Arms



Power Consumption

Normal “On” operation

< 31W



LED: Blue

DPMS

DPMS “Sleep” state

< 2 W 

LED: Amber

DPMS

DPMS “Off” state

< 1 W 

LED: OFF

Inrush Current

110 VAC
220 VAC

< 30 A (peak)
< 60 A (peak)



Cold-start

Earth Leakage Current

264 VAC/50Hz

< 3.5 mA



Hi-Pot

1. 1500VAC, 1 sec

2. Ground test: 30A,
1sec

Without damage
< 0.1 ohm



(on-line test)
(in-lab test)

Power Line Transient

IEC1000-4-4

1KV 

IEC1000-4-5 (Surge)

Common: 2KV,
Differential: 1KV



Power cord

Color: Black
Length: 1800 +/- 50 mm



3.2.1 Power supply

- 7 -

Item

Condition

Spec

OK

N.A

Remark

Signal Cable

15-pin D-Sub

Color: Black
Length: 1800 +/- 30 mm



24-pin DVI-D

Color: Black
Length: 1800 +/- 50 mm



Pin assignment

15-pin D-sub connector

See Note-1



For 15-pin D-sub

24-pin DVI-D connector

See Note-2



For 24-pin DVI-D

19-pin HDMI connector

See Note-3



For 19-pin HDMI

Analog input

Signal type

Separate analog R/G/B



For 15-pin D-sub

Level

700 mV (peak to peak)



Impedance

75 Ohms +/- 1.5 Ohms



Sync input

Signal type

Separate H/V-sync
(Positive/Negative)



For 15-pin D-sub

Level

Logic High: 2.4V ~ 5.5V
Logic Low: 0V ~ 0.5V

(TTL level)



Refer to VESA VSIS
Standard V1R1

Impedance

Minimum 2.2KΩ(pull

down)



10KΩ for application

Sync Pulse Width (SPW)

0.7μs < H-SPW
1H < V-SPW



Digital input

Level

600mV for each
differential line



Impedance

50 Ohm TDR Scan
needed for DVI cable and
interface board



Pin

Signal Assignment

Pin

Signal Assignment

1

Red video

9

PC5V (+5 volt power)

2

Green video

10

Sync Ground

3

Blue video

11

Ground

3.2.2 Signal interface

Note-1: The pin assignment of 15-pin D-sub connector is as below,

- 8 -

4

Ground

12

SDA

5

Ground(Cable Detected)

13

H-Sync (or H+V)

6

Red Ground

14

V-sync

7

Green Ground

15

SCL

8

Blue Ground

- 9 -

Note-2: The pin assignment of 24-pin DVI-D connector is as below,

Pin

Signal Assignment

Pin

Signal Assignment

1

TMDS RX2-

13

Floating

2

TMDS RX2+

14

+5V Power

3

TMDS Ground

15

Ground(Cable Detect)

4

Floating

16

Hot Plug Detect

5

Floating

17

TMDS RX0-

6

DDC Clock

18

TMDS RX0+

7

DDC Data

19

TMDS Ground

8

Floating

20

Floating

9

TMDS RX1-

21

Floating

10

TMDS RX1+

22

TMDS Ground

11

TMDS Ground

23

TMDS Clock+

12

Floating

24

TMDS Clock-

Item

Condition

Spec

OK

N.A

Remark

Max. support Pixel rate

135 MHz



Both for analog and
digital inputs

Max. Resolution

1366 x 768



Both for analog and
digital inputs

Rise time + Fall time

< 5 ms

(50% of minimum pixel

clock period)



1366 x 768 @ 60Hz

(max. support timing)

Settling Time after
overshoot /undershoot

< 5% final full-scale value



Refer to VESA VSIS

Standard V1R1

Overshoot/Undershoot

< 12% of step function

voltage level over the full

voltage range



Refer to VESA VSIS

Standard V1R1

3.2.3 Video performance

- 10 -

Item

Condition

Spec

OK

N.A

Remark

Horizontal

31-80KHz



Vertical

55-76 Hz



Item

Condition

Spec

OK

N.A

Remark

DDC channel type

DDC2B



EDID

Version 1.3



Refer to S/W spec.

document to see the

detailed EDID data

definition.

DDC-CI

Version 1.1 or Later



Refer to S/W spec

3.2.4 Scan range

3.2.5 Plug & Play DDC2B DDC-CI Support

- 11 -

Mode

Resolution

(active dot)

Resolution

(total dot)

Horizontal

Frequency (KHz)

Vertical

Frequency (Hz)

Nominal Pixel

Clock (MHz)

640x480@60Hz

800 x 525

31.469

59.941

25.175

640x480@72Hz

832 x 520

37.861

72.809

31.500

640x480@75Hz

840 x 500

37.500

75.000

31.500

MAC

640x480@66.66Hz

864x525

35

66.66

30.24

VESA

720x400@70Hz

900x449

31.469

70.087

28.322

SVGA

800x600@56Hz

1024 x 625

35.156

56.250

36.000

800x600@60Hz

1056 x 628

37.879

60.317

40.000

800x600@72Hz

1040 x 666

48.077

72.188

50.000

800x600@75Hz

1056x625

46.875

75.000

49.500

MAC

832x624@74.55Hz

1152x667

49.722

74.55

57.28

XGA

1024x768@60Hz

1344x806

48.363

60.004

65.000

1024x768@70Hz

1328x806

56.476

70.069

75.000

1024x768@75Hz

1312x800

60.023

75.029

78.750

MAC

1152x870@75Hz

1456x915

68.681

75.062

100.000

VESA

1152x864@75Hz

1600x900

67.5

75

108

1280x960@60Hz

1800x1000

60

60

108

SXGA

1280x1024@60Hz

1688x1066

63.981

60.020

108.000

1280x1024@75Hz

1688x1066

79.976

75.025

135.000

VESA

1280x720@60Hz

1650x750

44.955

59.940

74.176

WXGA
1280x800@60Hz

1680x831

49.702

59.810

83.500

1366x768@60Hz

1792x798

47.712

59.790

85.500

3.2.6 Support Timings

Note:

1. Show “Input Not Supported” warning message. When Vertical Frequency is over 76Hz or

2. If Hf /Vf is set in the range of 31KHz~80KHz and 55Hz ~76Hz, and Pixel Clock is set in the

- 12 -

under 55Hz, but Pixel Clock is between 25.175MHz and 135MHz, the monitor can show

image, and the same time has “Input Not Supported” warning message. If Pixel Clock is over

the range of 25.175MHz ~ 135MHz, the display is Black and show warning message.

range of 25.175MHz~135MHz, but is not the above Resolution, then it will display the nearest
mode.

Item

Condition

Spec

OK

N.A Remark

Resolution

Any input resolution modes

which are under 1366x768

1366x768



Contrast ratio

600(min),1000(typ.)



Test Condition: Set
Contrast at 50,
Brightness at 100,
Color at User preset.

Brightness

At R/G/B saturated

condition

250 cd/m2 (typ.),200 cd/m2

(min)



Test Condition: Set
Contrast at 50,
Brightness at 100,
Color at User preset.

Response time

Rising + Falling time

On/off:5 ms (typ.),8ms(max)



Test Equipment:

Westar TRD 100 or

equal level

equipment ;

Viewing angle

At Contrast ratio = 10

R/L: 170 degrees (typ.)

150 degrees (min)



At Contrast ratio = 10

U/D:160 degrees (typ.)

140 degrees(min)



CIE coordinate of White

(0.313, 0.329) +/- (0.03,

0.03)



Display colors

16.7 Millions colors



6 bit+Hi-FRC

Item

Condition

Spec

OK

N.A Remark

Brightness adjustable
range

At default contrast level
(saturate point) & Full­white color pattern

(Max. brightness value –

Min. brightness value)

≧ 100 cd/㎡



3.3. Operational & Functional Specification

3.3.1 Video performance

*All spec. of monitor need to warm up at least 1hr.

AUO M185XW01 V7

3.3.2 Brightness Adjustable Range

- 13 -

3.3.3 Acoustical Noise

Item

Condition

Spec

OK

N.A Remark

Acoustical Noise

At 30 cm distance

≦ 22 dB/A



Refer to Q326

Item

Condition

Spec

OK

N.A Remark

Temperature

Operating

0 ~ +40 ℃



Non-operating

-20 ~ +60 ℃



Humidity

Operating

10 ~ 90%



Non-condensing

Non-operating

10 ~ 90%



Non-condensing

Altitude

Operating

0~3048m (10,000ft)



Without packing

Non-operating

0~12,192m (40,000ft)



With packing

Item

Condition

Spec

OK

N.A Remark

(1) Vibration

Package, Non-Operating

Test Specification:

1. Frequency Hertz 5 ~
250 HZ , PSD Level

0.0054 (G2/Hz)

2. Grms = 1.146

3. Sweep Time : 30
minutes per Axis

4. Axes : X,Y,Z



(2) Unpackaged Vibration

Unpackaged, Non-

Operating

Test Spectrum:
20 Hz 0.0185(g2/Hz)
200Hz 0.0185(g2/Hz)
Duration : 5 Minutes
Axis : 3 axis ( Horizontal
and Vertical axis ,Z axis)

(3) Drop

Package, Non-Operating

76 cm Height (MP stage)
(1 corner, 3 edges, 6 faces)



3.3.4 Environment

3.3.5 Transportation

- 14 -

(4) Shock

Wooden package, Non-

Operating

1. Amplitude : Half sine­wave 50G

2. Duration : 10 ms

3. Test Times : 1

4.Test Sides : All 6 Sides



Item

Condition

Spec

OK

N.A Remark

Electrostatic Discharge

IEC801-2 standard

Contact: 8KV

Air: 15KV



Item

Condition

Spec

OK

N.A Remark

TCO03

Electric

Band 1 < 10 V/m
Band 2 < 1 V/m



Magnetic

Band 1 < 200nT
Band 2 < 25nT



EMI

FCC part 15J class B

After Mass production
under 1dBuv for constant
measure. Besides DNSF
and VCCI class-2 are
optional.



EN55022 class B

Item

Condition

Spec

OK

N.A Remark

MTBF Prediction

Bellcore Relex 7.6

25℃>50000 hrs, 40℃>

25000 hrs



Excluding
CCFL

CCFL Life time

At 25±2℃, under 7.0mA

40,000 Hours (min)



See Note-4

3.3.6 Electrostatic Discharge Requirements

3.3.7 EMC

3.3.8 Reliability

Note-4: CCFL lifetime is determined as the time at which brightness of lamp is 50%. The typical

lifetime of CCFL is on the condition at 7.0mA lamp current.

- 15 -

Item

Condition

Spec

OK

N.A

Remark

Preamp + Power amp

(1)Output power

1 Wrms/CH @ 1KHz



(2)THD (@ 1W)

<1%



(3)S/N ratio >40dB



Speaker Driver

(1)Nominal impedance

8 ohm



(2)Rated input power

1.5 W/CH



(3)Frequency response

500~20KHz SPL-10dB



(4)Output sound pressure

level

77 ± 3 dB (1.0 W 0.5M)



(5)Dimension of box

63x25x13mm2



Audio Control

(1)Volume range

0 ~100 levels



(2)Mute On/Off



Item

Condition

Spec

OK

N.A Remark

LCD Panel Supplier

AUO



Panel type of Supplier

M185XW01 V7



Screen Diagonal

470.1 mm(18.5”W)



Display area

Unit=mm

409.8(H) x 230.4(V)



Physical Size

Unit=mm

430.4(H) x254.6(V) x 9.9(D)



Weight

Unit=gram

1330(Typ.)



Technology TN type



Pixel pitch

Unit=um

0.3(H) x 0.3(W)



Per one triad

Pixel arrangement

R/G/B vertical stripe



Display mode

Normally White



Support color

16.7Millions colors



6 bit + HiFRC

3.3.9 Audio performance

3.4. LCD Characteristics

3.4.1 The Physical definition & Technology summary of LCD panel

- 16 -

Item

Unit

Conditions

Min.

Typ.

Max.

Remark

Viewing Angle

[degree]
[degree]

Horizontal (Right)
CR = 10 (Left)

75
75

85
85 - -

[degree]
[degree]

Vertical
(Up)
CR = 10 (Down)

70
70

80
80 - -

Contrast ratio

Normal Direction

600

1000

Response Time

[msec]

Rising Time

-

3.6

5.7

[msec]

Falling Time

-

1.4

2.3

[msec]

Rising + Falling

- 5 8

Color / Chromaticity
Coordinates (CIE)

Red x

0.603

0.633

0.663

Red y

0.316

0.346

0.376

Green x

0.294

0.324

0.354

Green y

0.582

0.612

0.642

Blue x

0.118

0.148

0.178

Blue y

0.036

0.066

0.196

Color Coordinates (CIE)
White

White x

0.283

0.313

0.343

White y

0.283

0.373

0.359

Luminance Uniformity

[%]

9 points
measurement

65

70

White Luminance @ CCFL

7.0mA (center)

[cd/m2]

200

250

-

Crosstalk (in 75Hz)

[%]

1.5

3.4.2 Optical characteristics of LCD panel

AUO M185XW01 V7

- 17 -

Item

Condition

Spec

OK

N.A

Remark

Power button



Auto button(Exit button)



Right/Inc. button



Left/Dec. button



Menu button



Mode button



Input Select button



E-Key button



Mute button



Item

Condition

Spec

OK

N.A

Remark

Auto Adjust

Auto-Geometry



Brightness



Contrast



Horizontal Position



Vertical Position



Pixel Clock



Phase



Color

Cool(9300K)
Warm(6500K)
User: Separate R/G/B
adjustment



OSD Position

OSD Horizontal position
OSD Vertical position



OSD Time

From 10 sec to 120 sec



OSD Lock



3.5. User Controls

3.5.1 User’s hardware control definition

3.5.2 OSD control function definition

- 18 -

Language

EMEA/Non-EMEA
languages for Asia/Europe
Version



Recall

Recall All



Mode

ACER Empower Mode



Input Select

D-sub
DVI

HDMI



Wide Mode

Full
Aspect



Sharpness



Display Information

For input timing



Volume



Mute



Hot key for Auto

 Hot key for Contrast



Hot key for Volume



Hot key for Input Select



Hot key for Mode



The detailed firmware functions’ specification, please refer to Q212 S/W spec. document.

Item

Condition

Spec

OK

N.A

Remark

Bezel opening

411.7*232.3 mm



Monitor without Stand

W x H x D mm

456.41*280.56*68.46mm



Monitor with Stand

W x H x D mm

456.41*334.54*163.72mm



Carton Box (outside)

L x W x H mm

504*126*394mm



Tilt and Swivel range

Tilt: -5 ~ +15 degree
Swivel: 0 degree



3.6. Mechanical Characteristics

3.6.1 Dimension

- 19 -

Item

Condition

Spec

OK

N.A

Remark

Monitor (Net)

3.56Kg



Monitor with packing

(Gross)

4.22Kg



Item

Condition

Spec

OK

N.A

Remark

Flammability

>ABS<,94-HB



Heat deflection To

ABS

65 ℃



UV stability

ABS

Delta E < 8.0



Resin

1.BEZEL/BASE/CLMN:

：

ABS



Texture

Uc:AT-IM-D02;
Bezel: AT-IM-D01



Color

BEZEL : DB27A;
UC: DB27A



Item

Condition

Spec

OK

N.A

Remark

Color

Kraft



Material

B Flute



Compression strength

200KGF



Burst Strength

16 KGF/cm2



Stacked quantity

4 Layers Vertical +2
layers H



3.6.2 Weight

3.6.3 Plastic

3.6.4 Carton

- 20 -

3.7. Pallet & Shipment

Stowing Type

ontainer

Quantity of products
(sets)
(Every container)

Quantity of Products
(sets)
(Every Pallet)

Quantity of pallet
(sets)
(Every Container)

With pallet

20'

940

Pallet A: 94

Pallet A: 10

Pallet B:

Pallet B:

40'

2068

Pallet A: 94

Pallet A: 22

Pallet B:

Pallet B:

Without pallet

20'

X X

X X

40'

X X X X

Net Weight (Kg)

Gross Weight (Kg)

Dimension w/o Base

W*H*D (mm)

Dimension w/ Base
W*H*D (mm)

3.56Kg

4.22Kg

456.41*280.56*68.46mm

456.41*334.54*163.72mm

Net Weight (Kg)

Gross Weight (Kg)

Dimension w/o Base

W*H*D (mm)

Dimension w/ Base
W*H*D (mm)

3.56Kg

4.22Kg

456.41*280.56*68.46mm

456.41*334.54*163.72mm

Carton Interior Dimension (mm)
L*W*H

Carton External Dimension (mm)
L*W*H

496*117*379mm

504*126*394mm

3.7.1 Container Specification

3.7.2 Carton Specification

3.7.2.1 Product:

3.7.2.2Package:

- 21 -

Item

Condition

Spec

OK

N.A

Remark

Environment

Green design

API Doc. 715-C49



ISO14000
Requirement

Blue Angel

German Standard



E-2000

Switzerland



EPA

USA Standard



TCO’99



TCO’03



MPR2



Green Mark



PC-Monitor

Microsoft Windows

PC98/99



DPMS

VESA



DDC 2B

Version 1.3



USB

External



Safety

UL (USA)

UL60950 3rd edition



CSA (Canada)

CAN/CSA-C22.2 No.
60950



Nordic / D.N.S.F

EN60950



FIMKO

EN60950



CE Mark

73/23/EEC



CB

IEC60950



CB

EN60950



TUV/GS

EN60950 /
EK1-ITB 2000:2003



CCC (China)

CB4943



GOST

EN60950



TUV type-approved

 SASO

IEC60950



EMC

CE Mark

89/336/EEC



FCC (USA)

FCC Part 15 B



EN55022

Class B



3.8. Certification

- 22 -

CISPR 22

Class B



VCCI (Japan)

VCCI Class B



BSMI (Taiwan)

CNS 13438



C-Tick (Australia)

AS/ NZS CISPR22



X- Ray Requirement

DHHS (21 CFR)

USA X- Ray Standard



DNHW



PTB

German X- Ray
standard



Ergonomics

TUV / Ergo



ISO 13406-2

 prEN50279



- 23 -

3.9 Packing

- 24 -

4. Disassembly /Assembly

4.1. Exploded View

Please see the next page.

- 25 -

- 26 -

Component Item

CCPN-Version Description

Quantity Per

1

6K.0NA01.041

ASSY BZL DB19A X193HQL

2

5F.LUHAP.XXX

LCDM18.5W M185XW01-V7 P AUO

1

3

5K.0NA05.001

FFC WIRE 10P D0.5 LED X193HQ

1

4-1

6K.0NA53.001

ASSY SHD-LED DUAL+AUD X193HQ

1

4-2

5E.0NA33.001

PCBA DRIVER BD AU MI X193HQ

1

4-3

5E.0NA02.XXX

PCBA SPS BD AUDIO MI X193HQ

1

4-4

5E.0NA01.M92

INF BD DUAL

1

4-5

8F.00273.6R0

SCRW TAP PH W/FL M3*6L C-ZN

7

4-6

8F.VZ524.6R0

SCRW TAP FLAT+EXT M3*6L C-ZN

1

4-7

2C.409C0.091

SPK*2 8OHM1.5W145/390FG-BQ102M

1

4-8

8F.00518.100

SCRW TAP W/FL M3*10L(S3.8)ZN

4

4-9

4K.0K102.001

MYLAR 94V0 BLK 35*(10/7)*0.5

1

4-10

8F.205B4.019

#SCRW MACH STEEL HEX #4-40 NI

4

4-11

4G.0BJ05.001

TAPE AL 70*30*0.08T G2400W

3

4-12

4G.0GN03.001

TAPE AL 40*30*0.08T

1

4-13

5K.0NJ01.001

WIRE LVDS 30/20P 1571 G900HD

1

4-14

5K.0NA01.001

WIRE 7/9P CTRL BD X193HQ

1

4-15

3H.04121.001

#TAPE 15*50MM KAPTON AMBER

50

4-16

3H.04054.071

TAPE ADHESIVE 35*25 BLK 7651F

2

4-17

4B.L2H12.012

CVR AC-SOCKET ABS V0 2007FPB

1

4-18

5E.0GT03.001

PCBA CTRL BD MI P22XW

1

5

6K.0NA49.001

ASSY RC-LED DUAL+AUD X193HQ

1

6

8F.WA314.8R0

SCRW TAP CAP M3*1.34P*8L B-ZN

1

7

6K.0NA10.001

ASSY CLMN X193HQ

1

8

8F.5A456.8R0

SCRW MACH FLAT M4*8L C-ZN NYLO

4

9-1

4B.0GT05.012

CVR HINGE L ABS DB19A P22XW

1

9-2

4B.0GT06.012

CVR HINGE R ABS DB19A P22XW

1

10

6K.0K436.001

ASSY BASE DUAL X193W 0.8T

1

11

4K.0NA01.001

FILM EPE 430*253 X193HQ ACER

1

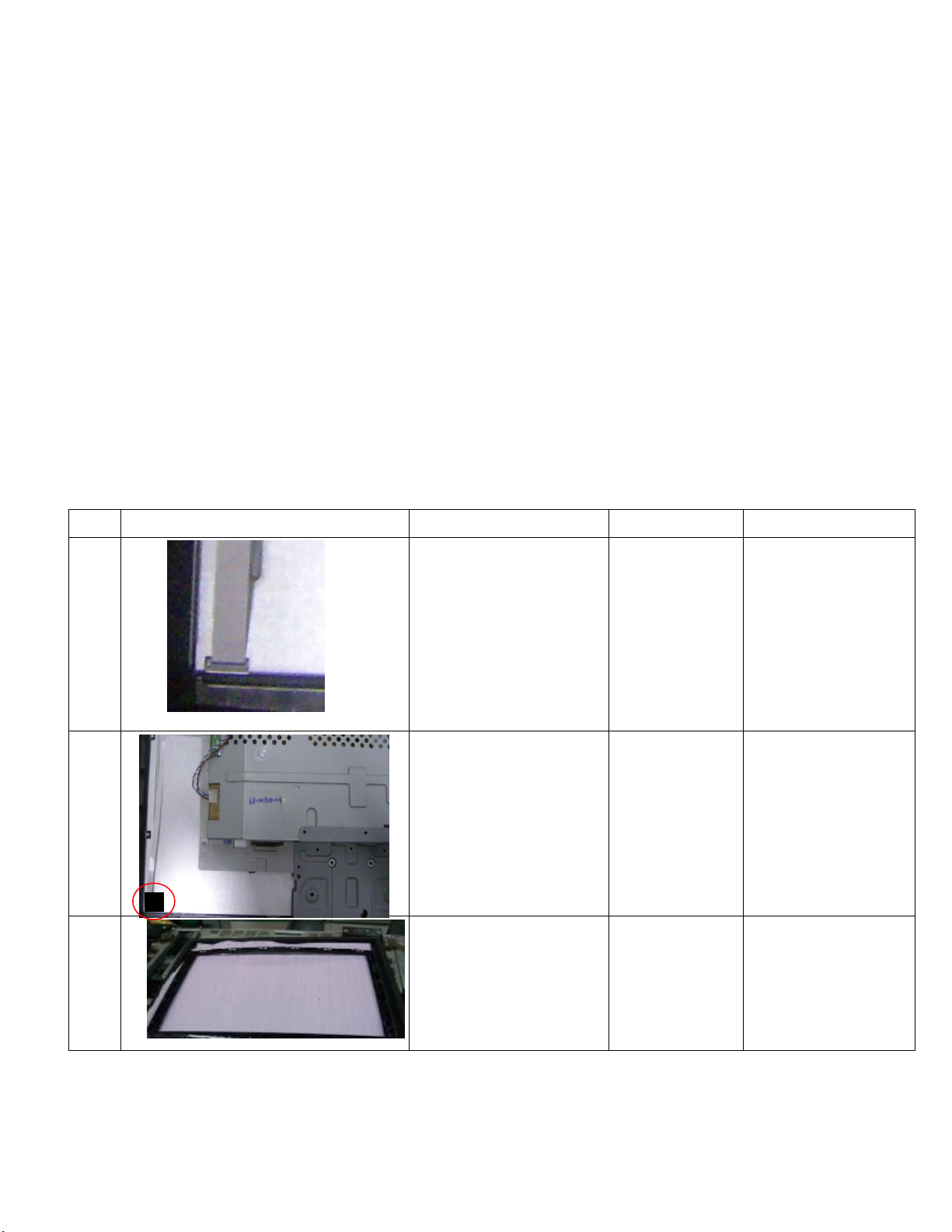

item


Operation

Tool

Notes

1

Assemble the FFC wire to
Panel

The tape must cover
the connect of the
wire

2

Stick one adhesive tape to
cover the connect of the
Panel

3

Check and put CLM-F on
the cushion carefully,

4.2. Disassembly /Assembly

Assembly SOP about X193HQL

Preparation before assemble

1. Clean the room for work

2. Identify the area for material

3. Prepare the implement, equipments, materials as bellow:

1) Press-fixture

2) Working table

3) Screw-driver

4) Knife*1

5) Glove

6) Cleaning cloth

7) ESD protection

- 27 -

4

Assemble the panel on
CLM-F.

Go to with Left.

NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above
image shows. Please detach the Circuit boards and follow local regulations for disposal.

5

Assemble the SPK to the
main-SHD, the correct
position reference on the
picture, then the lock 4
screws to fasten it.

Screw-driver

6

Assemble the LVDS to the
I/F, the correct position
reference on the picture

Without the gap within

7

Assemble the wire
between Driver BD and
the Power BD

- 28 -

8

Assemble the PCBA to
the SHD

NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above
image shows. Please detach the Circuit boards and follow local regulations for disposal.

9

Lock one grounded
screws on the SPS board
with order.

Screw-driver

10

Lock screws *8 to the
PCBA

Screw-driver

11 Scan for fooling

PC

Card go with panel.

IF BD

SPS BD

Driver BD

- 29 -

12

Fasten the LVDS to panel
and fix the Main-BKT to
CLM-F

The BKT must fixed
into the clip of the BZL

NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above
image shows. Please detach the Circuit boards and follow local regulations for disposal.

13

Stick three Al foils on the
right and under between
pane land Main-BTK

14

Assemble the FFC to the
Driver BD and fix the FFC
to the Panel

The FFC not the over
the edge of the Panel
and be straight

15

Lock screws of side on
Main-Chassis with
2/4,based on DVI.

Attention the order by
one to four.

3

4

1

2

1 2 3

- 30 -

16

Assemble the Speak wire
to the Power BD

17

Insect the Control BD wire
to the Control BD

Keep all wires in.

18

Insert the Control BD into
the BZL

Keep the mark in.

NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above
image shows. Please detach the Circuit boards and follow local regulations for disposal.

- 31 -

19

Stick two taps to fix the
speaker wire

The tap must not stick
to the part of the IF

20

Fix the cable of the C/B
into the BZL

21

Insert the C/B cable to the
connect of the I/F BD, and
stick one Al-tape to fix the
C/B to the Panel

22 Assemble the Rear Cover.

- 32 -

23

Check and put CLM-F-abs
on working table the
carefully.

24

Lock 6 screws inside the
hinge

Screw-driver

25 Lock 4 screws to RC.

(FABF-DSSDA1­***）

60-80mm
＃2

9±1kg.cm

26 Cover the CLM of L and R

- 33 -

Disassembly SOP about X193HQL

item


Operation

Tool

Notes

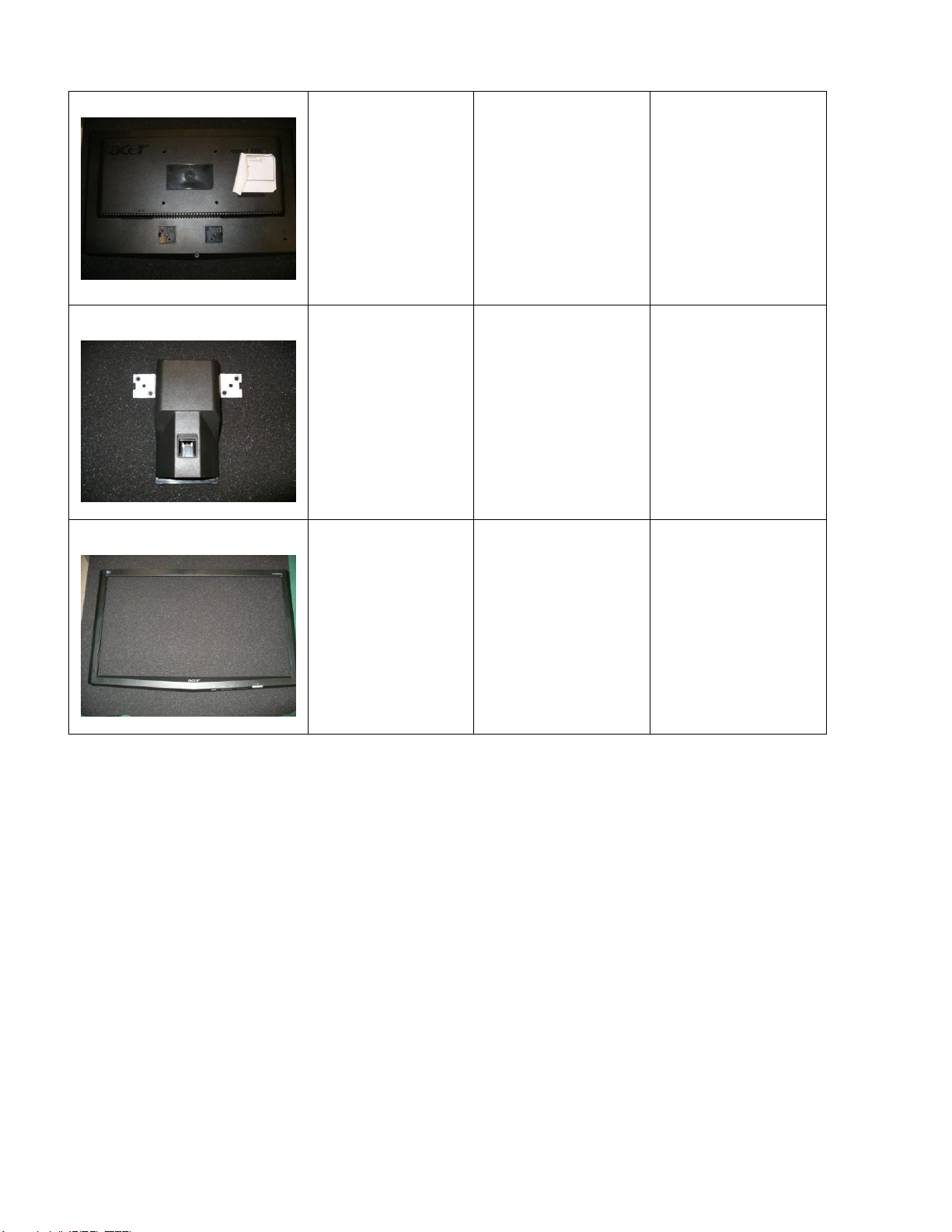

1

Disassemble the stand
 4 screws

Screw-driver

Kick the board first.

2

disassembly the bezel

from the monitor, notice

the disassembly order :

1.Left (1) parts of bezel

2.Top (2) parts of bezel

3.Bottom (3) parts of
bezel

4. Right (4) parts of bezel
Don’t draw the BZL

When disassembly

the bezel ,notice don’t

bend the C/B .man
must wear glove
The purpose is loose
the BZL

Preparation before disassemble

1. Clean the room for disassemble

2. Identify the area for monitor

3. Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for
material flow; according to the actual condition plan the disassemble layout

4. Prepare the implement, equipments, materials as bellow:

1) Press-fixture

2) working table

3) Screw-driver

4) knife*1

5) glove

6) cleaning cloth

7) ESD protection

- 34 -

3

Turn over the
monitor ,dismantle the
Rear cover from the
monitor

4 Tear out the acetic tape

5

Unlock the wires.
6

Disassembled the SHD
shielding : 5 screw

Screw-driver

3 4 1

2

- 35 -

7

Tear down four pieces of
Al foil

8 Unlock the LVDS wires.

9

Disassembled the C/B
wire and the C/B

10

Disassembled the PCBA
shielding : 9 screws

Screw-driver

NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above
image shows. Please detach the Circuit boards and follow local regulations for disposal.

1 2 3

4

- 36 -

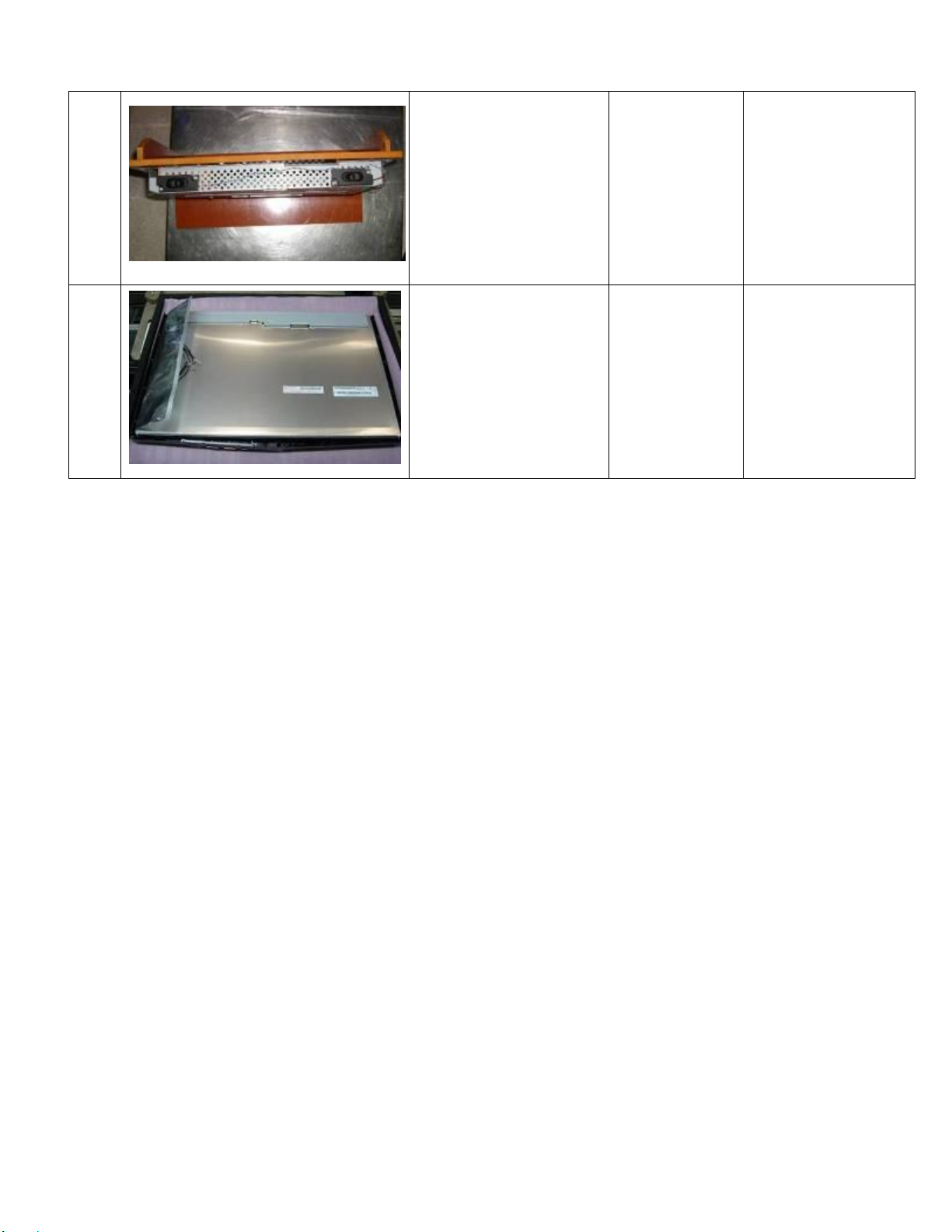

11

Disassembled the SPK

shielding : 4 screws

Screw-driver

12

Get off the panel from the
bezel

- 37 -

Items

Description

Remark

1

Timing adjustment

Preset timing

2

White balance adjustment

1. Burn In: On

2. User Mode

3. SXGA 1024
1280X1024@75Hz

Pattern 42(5-Mosaic)

3

Color temperature adjustment

Cool (9300K)
Warm(6500K)
User

4

Writing EDID file

Analog and Digital

5. Level 1 Cosmetic / Appearance / Alignment Service

5.1 Alignment procedure (for function adjustment)

A list of necessary alignments for the LCD monitor:

5.1.1 Preparation:

1. Setup input timing to any preset mods or patterns.

2. Enter factory mode (press “e-Key” then press “power” button to turn on monitor).

3. Move Black cursor into “BURN IN MODE” tag and select “ON” to enable burn-in mode.

4. Power off the monitor, remove the input source and then power on again.

5. Setup unit and keep it warm up for at least 30 minutes.

5.1.2 Timing adjustment: (Analog only, it is not required for DVI-D input source)

1. Enter factory mode (press “e-Key” then press “power” button to turn on monitor).

2. Select timing mode from table 1 and input full screen display pattern to monitor.

3. Press “Auto-Key” to run “AUTO adjustment” function for geometry adjustment.

4. Clear user area in EEPROM.

5. Check if the position, phase and clock of the image are ok or acceptable to make sure function
and performance are ok.

6. Turn off the monitor power.

- 38 -

7. Turn on the monitor power again to check if monitor’s image settings are ok and with following

Mode

Resolution

(active dot)

Resolution

(total dot)

Horizontal

Frequency

(KHz)

Vertical

Frequency

(Hz)

Nominal Pixel

Clock (MHz)

640x480@60Hz

800 x 525

31.469

59.941

25.175

640x480@72Hz

832 x 520

37.861

72.809

31.500

640x480@75Hz

840 x 500

37.500

75.000

31.500

MAC

640x480@66.66Hz

864x525

35

66.66

30.24

VESA

720x400@70Hz

900x449

31.469

70.087

28.322

SVGA

800x600@56Hz

1024 x 625

35.156

56.250

36.000

800x600@60Hz

1056 x 628

37.879

60.317

40.000

800x600@75Hz

1056x625

46.875

75.000

49.500

MAC

832x624@74.55Hz

1152x667

49.722

74.55

57.28

XGA

1024x768@60Hz

1344x806

48.363

60.004

65.000

1024x768@70Hz

1328x806

56.476

70.069

75.000

1024x768@75Hz

1312x800

60.023

75.029

78.750

MAC

1152x870@75Hz

1568x909

68.700

75.000

84.520

VESA

1152x864@75Hz

1600x900

67.5

75

108

1280x960@60Hz

1800x1000

60

60

108

SXGA

1280x1024@60Hz

1688x1066

63.981

60.020

108.000

1280x1024@75Hz

1688x1066

79.976

75.025

135.000

VESA

1280x720@60Hz

1650x750

44.955

59.940

74.176

1280x768@60Hz

1664x798

47.776

59.870

79.500

1280x768@75Hz

1696x805

60.289

74.893

102.250

WXGA

1280x800@60Hz

1680x831

49.702

59.81

83.5

1366x768@60Hz

1792x798

47.712

59.79

85.5

settings.

CONTRAST = 50
BRIGHTNESS = 85
COLOR = Warm (default setting)

Figure-1: Preset Timing modes list

- 39 -

5.1.3 Auto color balance adjustment:

Color temperature
(Cool set on OSD)

X+-

0.283+(-) 0.03

Y+-

0.297+(-) 0.03

Color temperature
(Warm set on OSD)

X+-

0.313+(-) 0.03

Y+-

0.329+(-) 0.03

(Analog only, it is not required for DVI-D input source)

1. Setup input timing SXGA (1280x1024@75), pattern 42(5-Mosaic pattern with white color
frame) with Analog signals from Chroma video pattern generator.

2. Enter factory mode (press “e-Key” then press “power” button to turn on monitor).

3. Move black cursor into “BURN IN MODE” tag and select “ON” to enable burn-in mode, then
left OSD menu.

4. Change Color Temperature to User mode.

5. Press “ Left Key ” button to do white balance for auto color balance adjustment (will get
optimal gain / offset (clamp) values).

5.1.4 Color adjustment:

1. Setup input timing to any preset modes, pattern 41(full white color pattern) with Analog

signals from Chroma video pattern generator.

2. Enter factory mode (press “e-Key” then press “power” button to turn on monitor).

3. Confirm auto color balance adjustment had already been done.

4. Measure each color temperature (Cool&Warm) by Minolta CA-110 (or equivalent equipment).

5. Two methods can be used to adjust RED, GREEN, BLUE value of each color temperature,

Cool&Warm to meet following spec requirement, the 1st method is by using external PC and
IIC alignment protocol to do automatic adjustment, and the 2nd method is by manually and
must be in factory mode.

6. Turns off the monitor power.

- 40 -

5.2 Software / Firmware Upgrade Process

Connect to target monitor

VGA signal input from 15pin D-sub
cable of PC or NB.

Connect ISP board and PC
with printer port cable

Check the Jumpers on the
ISP Circuit Board (make sure
J5, J6, J7, J8 are set at ping
1,2 )

5.2.1 Hardware prepared:

Hardware Requirement:

1. ISP board x 1

2. DSUB VGA cables x 2

3. Printer cable (with one male connector and another female connector) x 1.

4. PC or Notebook with parallel (printer) port x1.

- 41 -

5.2.2 Firmware Upgrade Procedure

Step 1:

Un-zip Port95nt and install into your computer.

Step 2:

Un-zip ISP application tool (RTDTool)

Step 3:

Select IIC and Serial Flash type, then Press ISP button to execute firmware program

application.

- 42 -

Step 4:

Press “64” button to load *.H00* file from your computer.

Step 5:

Select “Erase” option and execute lightning button first, and then select “Auto” option
and execute lightning button to start upgrade firmware to the monitor.

- 43 -

Note: you can change program speed bar to meet your equipment speed if program
firmware fail.

- 44 -

ENTER and RIGHT to Burn In Off

5.2.3 Turn Off Burn In

IF the monitor without signal input has Burn In pattern. As the following figure

Press “MENU” and “>” key at the same time to exit Burn in mode(factory mode),and soft

power key off/on restart the monitor.

- 45 -

5.3 EDID Upgrade Procedure
Step 1:

Run the program “Q-EDID-V012.exe”, when the UI popped up

- 46 -

Note: If “VGA” choose 128bytes, and “HDMI” choose 256bytes

Step 2:

Click “Open File” and select “VGA” or “HDMI” EDID file

- 47 -

Step 3:

If load file is successful, it shows “Open EDID Table OK..”.
And then, Click “Write EDID” button to update EDID

v

- 48 -

Step 4:

If write EDID is successful, it shows”Write EDID OK …”
And then, Click “Read EDID” button to check if successful or not.

- 49 -

Step 5:

If read EDID is successful, it shows”Read EDID OK …”

- 50 -

5.4 OSD Operation Guide

OSD Function Requirements

- 51 -

- 52 -

- 53 -

Remark: Acer logo must be appeared while “power on” or “suspend”

- 54 -

6. Level 2 Circuit Board and Standard Parts Replacement

6.1. Trouble Shooting Guide

1. No Display or display is unstable:

Interface Board:

2. Check Control Board

- 55 -

- 56 -

3. Check Scalar

A r e a l l t h e p ow er a n d

g ro u nd p i n s a t t h e c o rre ct

v o l t a g e le v el?

A r e t h e c o rre ct R GB an d

H s yn c si g na l fe d to

S c a l a r ?

S c a la r f a il e d

to o u tp u t d a t a

Y E S

Y E S

NO

NO

C ap ac i to rs o f C ry s ta l

h a v e d a m ag e d

C h e ck t h e re m ain i n g

circ u its

M ea s u re t h e s ig n a l p a i r s

o n L VD S d a t a o u tp u t a n d

clo ck f r o m S c alar

Is t h e c o rre ct S in u s o id a l

w a ve a p p ea r e d on C ry s ta l

Y E S

A r e t h e p i x el o ut p u t

co r r e c t ?

A r e t h e s i g n als p re s e n ted

o n D Su b c o nn e cto r?

S c a la r f a il e d

P o w er o r t h e g ro u n d p i n s

h a s b a d c o n ta cts

D S U B C on n e c to r o r

P C fa i lu re

B ad w irin g b e tw ee n

D S U B a n d S ca l a r

NO

NO

Y E S

Y E S

NO

- 57 -

4. Check LCD Module

L C D m o d u le f a il

T o d isp la y

im a g e

W hite

S c re e n

N o

P ic t u r e

NO

NO

YES

B a d

C o n n e ct io n

o r

c o n n e cto r ,

L V D S

c a b le

NO

L C M fa ile d

B a d

C o n n e ct io n

o r

c o n n e cto r ,

L V D S

c a b le

B a d

C o n n e ct io n

o r

c o n n e cto r ,

YES

YES

YES

NO

O K ?

YES

NO

L C D m o d u le f a il

T o d isp la y

im a g e

C on ne ct io n
b e tw ee n L VD S
c a b le a nd L C M

c o n n ec to r O K ?

W hite

S c re e n

N o

P ic t u r e

L ig h t B a r c o nn ec to r O K ?

NO

NO

YES

C on ne ct io n

b e tw ee n L VD S

c a b le a nd L V D S

c o n n ec to r O K?

B a d

C o n n e ct io n

o r

c o n n e cto r ,

L V D S

c a b le

NO

B a d

C o n n e ct io n

o r

c o n n e cto r ,

L V D S

c a b le

B a d

C o n n e ct io n

o r

c o n n e cto r ,

YES

YES

YES

NO

L i g h t B a r F F C

D riv e r b oa r d

fa ile d

YES

NO

Is U 7 5 V? C h e c k U 7

- 58 -

5. Power Board no work troubleshooting:

No Backlight

LED-12V ok? No

Check

D705/D706

OK?

No

Yes

Replace D705/D706No

Check F601,

IC601 OK?

Yes

Replace F601,

IC601

No

Reaplce IC601

Yes

+5V & 3.3Vok?

Yes

Check CN701 pin2

(BL-ON) is Hi?

Yes

Check CN701 pin1

(BRT-ADJ) exist?

Yes

Check I/F BD

Yes

Replace IC851 No

Yes

Replace Q851,

D851, L851

No

Check Panel

Yes

No

No

Check

D701/D702

OK?

Replace D701/D702

No

Check Q851, D851,

L851 OK?

Check IC851

OK?

- 59 -

6. Audio Function

Was Audio Input

plugged?

Yes

Return Power

Function Step.

No Yes

Was Audio VDD

existed?

Audio do not work

No

Check VOL_ON

Yes

Check VOL_ADJ

Plug Audio input.

No

Check MCU send

VOL_ON control

signal or not.

No

Adjust volume

control switch to

normal.

Yes

Was CN551

plugged?

NoPlug CN551

Yes

Was Speaker

plugged?

NoPlug Speaker.

Yes

Replace IC551.

- 60 -

6.2 Circuit Operation Theory

I. Introduction:

X193HQL is a 18.5 inch Wide and 24bits color TFT LCD monitor, which can

support the resolution up to 1366 x 768. It has VGA input and compliant with VESA
specification to offer a smart power management. The monitor has DDC/CI function to
make the monitor communicate with PC by Acer ADM DDC/CI software, and also it
has ACM function to let the monitor contrast ratio up to ?:1. It also offers OSD Menu
for users to control the adjustable items and get some information about this monitor.

II. Block diagram

X193HQL consists of a main body and a stand (base). The main body contains a AUO/

LGD/SEC TFT LCD module with LED Backlight, a power board (includes AC/DC、
DC/DC、 inverter and panel power source), a control board and an interface board.
The block diagram is shown as below.

Fig. Block diagram for X193HQL LCD monitor

- 61 -

III. Circuit operation theory:

A.) THE MAIN BODY:

A-1.) Interface board block diagram:

(a) Circuit operations:

The scaling IC has OSD and auto detecting input timing functions. OSD offers
adjustable functions to the end-users. Auto detecting timing function can detect change
modes. It outputs the digital R-G-B data, pixel clock and control signal to TCON of the LCD
module. A MCU, build in scaling IC (Realtek2525LH), is responsible for the system
processing. There are two external storing units, one is 24C16 to store the OSD function
data and user preset timings.

(b) IC introduction:

1.) Realtek2525LH SCALER IC:
Realtek2525LH series products are all-in-one LCD monitor controller with analog (RGB),
DVI and video inputs, supporting UXGA/ WXSGA+WXGA+/SXGA,and integrate Realtek
high performance ADC,scaling engine,LVDS Tx,and so on.Moreover,all products are pin

- 62 -

compatible in QFN 48-pin package to save cost and make the design easier. The RTD

EMI Filter

Rectifier and

filter

Isolation

power

transformer

Rectifier and

filter

DC output

circuit

PWM contrller

Switching

element

LED Dri

circuitt

Feedback

Isolation

also includes an ITU656 video format input port with color space converter that makes it
an attractive solution for low cost MFM and TV applications. The output section contains
a 24-bit TTL output interface and a channel LVDS transmitter for direct interfacing of
commercially available LVDS LCD panel modules. In addition, RTD2525LH embedded

16.5KSRAM dynamically stores OSD command and fonts, compatible advanced color
control features.

2.) EEPROM:
We use 24C16 EEPROM to store monitor user data and user preset timings. There are
16 user timing modes are automatically saved in it. Each timing mode is allocated with

22 bytes of memory space for information such as Sync frequencies, polarities… etc.

PC can access the EEPROM data indirectly through the SDA and SCL channels of DVI
and D-sub (IIC communication). The digital and analog DDC data are stored in two
24C02s EEPROM.

A-2.) Power board diagram:

Fig.1

- 63 -

#1 EMI Filter

This circuit (fig. 2) is designed to inhibit electrical and magnetic interference for meeting FCC,
VDE, VCCI standard requirements.

Fig. 2

- 64 -

6.3 Spare Parts List


CATEGORY

DESCRIPTION

ACER PART NO.

LCD

LCDM18.5W

M185XW01-V7 Z AUO

LK.18005.020

Board

BOARD

PCBA IF BD DUAL AU

MI X193HQ

55.LJT0Q.001

BOARD

PCBA SPS BD

NONAUDIO MI

X193HQ

55.LJT0Q.002

BOARD

PCBA DRIVER BD AU

MI X193HQ

55.LJT0Q.003

- 65 -

BOARD

PCBA CTRL BD MI

P22XW

55.LBJ0Q.004

Cable

CABLE

CORD H05VV-F

10A250V EUR 1.8M

27.LBJ0Q.001

CABLE

WIRE 6/7 P2.5 #24

X193HQ

50.LJT0Q.002

CABLE

WIRE 10/11 P2.5#24

X193HQ

50.LJT0Q.001

CABLE

FFC WIRE 10P D0.5

LED X193HQ

50.LJT0Q.003

- 66 -

CABLE

WIRE 7/9P CTRL BD

X193HQ

50.LEK0Q.001

CABLE

WIRE LVDS 30/20P

1571 G900HD

50.LEK0Q.002

CABLE

CABLE SIGNAL/C
H+V OD_5.5 1.8M

50.LBJ0Q.002

Assembly

CASE/COVER/BRA

CKET ASSEMBLY

ASSY BASE W/P

DUAL X193W 0.8T

60.LDW0Q.009

- 67 -

CASE/COVER/BRA

CKET ASSEMBLY

ASSY RC-LED DUAL

X193HQ

60.LJT0Q.002

CASE/COVER/BRA

CKET ASSEMBLY

ASSY CLMN X193HQ

60.LEK0Q.004

CASE/COVER/BRA

CKET ASSEMBLY

ASSY BZL DB19A

X193HQL

60.LJT0Q.001

- 68 -

ITEM

P/N

DESCRIPTION

Color

Mounting

Material

TORQUE

(KG-CM)

HOLE

SIZE
(MM)

Screw

Head

1

8F.205B4.019

SCRW MACH HEX #4-

40*0.3" N

Ni

Metal;

D-SUB;DVI

Connector

5.0±0.6

#4-40

X

2

8F.00518.100

SCRW TAP W/FL
M3*10L(S3.8) ZN

NI

Metal

None tread：8～10

Have tread:6～8

Aluminum:4~5

2.68±0.0
3

#2

3

8F.1A556.8R0

SCRW MACH PH M4*8L

NI NYL

NI

Metal

11.0±1.0

M4*0.7

#2

4

8F.5A356.8R0

SCRW MACH FH M4*8L B-

ZN NYL

B-Zn

Metal

9.0±1.0

M4*0.7

#2

5

8F.5A422.2R4

SCRW MACH FLAT-P

M2*2.4L ZN

Zn

Plastic

1.0±0.1

1.7±0.05

#1

6

8F.00273.6R0

SCRW TAP PH F/10WSH

M3*6L C-ZN

C-Zn

Metal

None tread：8～10

Have tread: 6～8

Aluminum: 4~5

2.68±0.0
3

#2

7

8F.VZ524.6R0

SCRW TAP FLAT+EXT

M3*6L C-ZN

C-Zn

Metal

None tread：8～10

Have tread:6～8

Aluminum:4~5

2.68±0.0
3

#2

8

8F.5A356.120

SCRW MACH FH M4*12L

B-ZN NYL

B-Zn

Metal

11.0±1.0

M4*0.7

#2

9

8F.5A456.8R0

SCRW MACH FLAT M4*8L

C-ZN NYLO

C-Zn

Metal

11.0±1.0

M4*0.7

#2

10

8F.WA314.8R0

SCRW TAP CAP

M3*1.34P*8L B-ZN

B-Zn

Plastic

5.0±1.0

2.35±0.0

5

#2

ITEM

P/N

DESCRIPTION

MOUNTING

MATERIAL

TORQUE

(KG-CM)

HOLE SIZE

(MM)

Screw

Head

*SCREW Q’TYPE AND POSITION
REFERRED TO C328.
*NOTES:

1. (A) STANDARD SCREW TORQUE
SPEC.

2. (B) SPECIAL SCREW TORQUE
SPEC.

3. T: TAPPING SCREW.

4. M: MACHING SCREW.

D-SUB Connector
SCREW TORQUE SPEC.

SCREW TORQUE: 1.2±0.3
(KG-CM)

DVI Connector
SCREW TORQUE SPEC.

SCREW TORQUE :

1.2±0.3(KG-CM)

SCREW D-SUB

SCREW DVI

Appendix 1 – Screw List / Torque

(A)STANDARD SCREW TORQUE SPEC.

(B) SPECIAL SCREW TORQUE SPEC.

- 69 -

Appendix 2 – Physical Dimension Front View and Side view
Fig. 1 Appearance Description

- 70 -

Appendix 3 – LED Driver

- 71 -

Appendix 4 –Power Board

- 72 -

Appendix 5 –Interface Board

Please see next page

- 73 -

5

EDID _VCC

D D

C8

0.1 U Z

SDA_A

SCL_A

C C

+3.3V PC5V

DN6

BAV70LT1G

A1

A2

J

U1

1

2

3

4

A0

VCC

A1

WP

A2

SCL

GND

SDA

AT2 4C02N-10SU-1.8

8

7

6

5

ES D so l uti on

Q9

R305

2N3904S

10K J

R5
2K J

C16
47 P J

EDID _VCC

R67
10K

E C

PC5V

D1

R6
2K J

R12

R11

UDZS 6.2B

D2

UDZS 6.2B

A K

D3

A K

150

200 J

200 J

A K

UDZS 6.2B

R68
10K

A_D etect

TZMC6V2

D13

UDZS 6.2B

A K

UDZS 6.2B

R18
100 J

D12

A K

D4

A K

12K

C17

47P J

R69

B

47K

R100 0 J

TP41

TP42

TP43

4

TP44

R19
2K J

R17
100 J

D5

UDZS 6.2B

A K

3

+3.3V

K

K

K

DN2

DN4

J

J

BAV99

BAV99

A

A

R1

TP59

TP38
TP60
TP39
TP61

75 J

T65

J1

G1G2

6
1

11

7
2

12

8

TP40

3

13

14

15

TP58

9

TP62

4

TP63

10
5

D-sub 15

R17,R 18 change to 200 ohm(Improved ESD)

R170 0 J

R180 0 J

R20
2K J

22P J

A_D etect

TP64

C21

C20

22 P J

BAV99

A

R2
75 J

C2

C1

0.1 U K

R3
75 J

R1+

G1+

B1+

0.1 U K

C4

0.1 U K

all 1 00

C7

C5

C6

4.7P C

4.7 P C

4.7 P C

R4

L1

Z60

L2

Z60

L3

Z60

R9

R10

R13

R14

R15

+3.3V

giac hin 25 25L (07 20)

DN3

J

VS1

HS1

100 J

100 J

100 J

100 J

100 J

100 J

2

C9 0.0 47U 16V

C11 0.0 47U 16V

C12 0.0 47U 16V

C13 0.0 47U 16V

C14 0.0 47U 16V

C15 0.0 47U 16V

RED1-

RED1+

GRE EN1-

GRE EN1+

BLUE1-

BLUE1+

WP_ DVI

SCL_D

SDA _D

DVIP C5V

12K

R7

4.7K J

C18
47 P J

A1

DN5

R8

4.7K J

C19
47P J

BAV70LT1G

J

R306

10K J

1

A2

8

7

6

5

+3.3V

U2

A0

VCC

A1

WP

A2

SCL

GND

SDA

AT24C02N-1 0SU-1.8

C10

0.1 U Z

1

2

3

4

C22

150

J2

RX2-

1

1

9

9

17

17

2

2

10

10

B B

A A

18

18

3

3

11

11

19

19

4

4

12

12

20

20

5

5

13

13

21

21

6

6

14

14

22

22

7

7

15

15

23

23

8

8

16

16

24

24

G1

G1

G2

G2

2K220090 24

TP66
TP67
TP68

TP69

TP57

TP54

TP56
TP55

UDZS 6.2B

D8

A K

RX1­RX0­RX2+
RX1+
RX0+

DVI- I_SCL

A K

D6

UDZS 6.2B

D7

TZMC6V2

TP45
TP46
TP47
TP48
TP49
TP50

TP51
TP52

DVI- I_SDA

TP53

RXC+

RXC-

HDCP _CTRL

A K

R21

130 J

R22

130 J

R23

4.7K J

Hot- Plu g

R303

10K J

Chun gHa o H DCP (12 27)

D_D etect

SCL_D
SDA_D
DVIP C5V

B

Q7
2N3904S

E C

C300

0.1U

Cab le_Detect _D

A K

R304

D9

TZMC6V2

47 J

D_D etect

A_D etect

R16

1K J

WP_ DVI

D10

UDZS 6.2B

A K

D11

UDZS 6.2B

A K

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

RXC-

RXC+

Chun gHa o E SD (013 1)

5

4

3

0.1 U Z

J

K

DN7

BAV99

C23

K

A

DN8

0.1 U Z

J

BAV99

C24

K

A

DN9

0.1 U Z

J

BAV99

C25

K

A

DN1 0

0.1 U Z

J

BAV99

C26

K

A

DN12

0.1 U Z

J

BAV99

C27

K

A

DN1 3

0.1 U Z

J

BAV99

C29

K

A

0.1 U Z

J

A

Qisda Corporation

Project Code

Title

Size Document Number Rev.

<S i z e >

Date: Sheet of

2

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

giac hin 25 25L (07 19)

DN14

BAV99

C30

giac hin 25 25L (07 19)

K

DN15

0.1 U Z

J

BAV99

A

9J. 0NA12.001

I/F Boar d:Input

PCB P/N

4H. 0NA01.A03

Fr i d a y , De c e m b e r 19 , 2 0 0 8

Prepared By

Cha rm ing W ang

R110 10

RX0M

R111 10

RX0P

R112 10

RX1M

R113 10

RX1P

R114 10

RX2M

R115 10

RX2P

R116 10

RXCM

R117 10

RXCP

Model Name

X193HQ

PCB Rev.

A 0 3

Rev iewed By A pproved By

Cha rle Jin

1

OE M/ODM Model Name

OEM

<D o c >

1 5

0

5

4

3

RX2M

2

RXO0-

M512_XOUT

TMDS _VDD

RX2P

RTD_ SCLK

SCL_ D

RTD_ SD3/S DI

SDA_ D

RXO0+

R1 .8DVCC

1

D D

U12

C88
1U K

1

IN

RM2101B0DA

3

OUT

GND

TAB

2

4

+3. 3V

BJT 3906 c hange t o BJT2907
(Ic =200mA ==> 600 mA )-giach in 2525L (0720)

C C

B B

RXEC+

RXEC-

P GND

+3.3V TM DS_VDD

gi ac h in 2 5 25L (07 19)

Z220

L5

Clo se to S calar

C38

0.1 U K

C39

0.1 U K

R1 .8DVCC

12

+

C45

47U 25V

gi ac h in 2 5 25L (07 19)

12

+

C46
47U 25V

gi ac h in 2 5 25L (08 24)

C35

0.1 U K

C3 6

0.1 U K

C37

0.1 U K

gi ac h in mo d if i ed f or 2525 L ( 071 9)

TM DS_VDD

RX1P

RX1M

RX0P

RX0M

RXCP

RXCM

BLUE 1-

BLUE1+

VS1

HS1

R25
1K J

RX1P

RX1N

RX0N

RXCP

R XCN

RT D_V

RT D_H

DG ND

RTD_B-

RTD_B+

U8

10

11

12

RX2N

RX2P

48

G1

RTD_ DDCSD ABJT_B

CRYS TAR_O UT

TMDS _VDD

46

45

44

XIN

V0/RX2N

VCLK/RX2P47TMDS_VDD

Copper GND

1

V1/R EXT

2

V2/R X1P

3

4

5

6

7

8

9

V3/R X1N

V4/R X0P

V5/R X0N

V6/R XCP

V7/R XCN

AVS

AHS

DDCSCL/PWM0/TCON7

RTD2545LH-LF

ADC _GND

B-

B+

G-13G+14R-15R+16ADC_VDD17BJT_B18VCCK19PGND20TXE3+21TXE3-22TXE2+23TXE2-

RTD_ R-

RTD_G+

RTD_G-

GREE N1-

R 1.8DVC C

RTD_ R+

1K J

RED1 -

RED1+

R1 .8DVC C

GREE N1+

R91

RXO0-

RXO0+

DG ND

R 1.8DVC C

RTD_ SCLK

RTD_ SD3/S DI

43

42

41

40

39

38

37

SCL

SDA

VCCK

PGND

TXO0-

TXO0+

RXO1-

36

TXO 1-

35

TXO 1+

34

TXO 2-

DDCSDA/PWM1/IRQ/TCON9

TXO 2+

TXO C-

TXO C+

TXO 3-

TXO 3+

TXE 0-

TXE 0+

TXE 1-

TXE 1+

33

32

31

30

29

28

27

26

25

RXO1+

RXO2-

RXO2+RX0P

RXOC-

RXOC+

RXO3-

RXO3+

RXE0-

RXE0+

RXE1-

RXE1+

RXO1-

RXO1+

RXO2-

RXO2+

RXOC-

RXOC+

RXO3-

RXO3+

RXE0-

RXE0+

RXE1-

RXE1+

24

RXE2+

RXE3+

DG ND

R 1.8DVC C

R1 .8DVC C

RXE2-

RXE3-

RXE2-

RXE3-

RXE2+

RXE3+

gi ac h in 2 5 25L (07 19)

RXOC+

RXOC-

Qisda Corporation

A A

5

4

3

2

Pro ject Code

9J. 0NA12.001

Title

I/F Board: Scalar

Size D oc ument Number Rev.

PCB P/N

<S i z e >

F r i d a y , De c e m b e r 1 9 , 2 0 0 8

D at e: Sheet

Ch a rm i ng W a ng

4H. 0NA01.A03

M ode l Name

X193HQ

PCB Rev.

A 0 3

Re view ed By A p p ro ved ByPre p ared By

Cha rle Jin

O E M /O D M M odel Name

<D o c >

1 5

1

OEM

0

of

A

J5

1

1

2

2

3

3

4

4

5

5

6

6

7

2K61 185110

7

8

8

9

9

10

10

4 4

3 3

2 2

TP70

C47

0.1 U K

C48

0.1 U K

TP32
TP33

TP34
TP35
TP36

TP37

LED_ ORG

LED_ GRN

B

L8

Z30

Z220

L9

LED_ ORG

LED_ GRN

C49

0.1 U K

12

22U 25V

R42

1K J
R44

10K J

C5 0

C51

+5V

R4 7

C E

0.1 U K

2N3906S
Q4

B

C5 2

+3. 3V

0

0.1 U K

R46
0

2N39 06S
Q5

C E

+

C84

0.1 U K

B

C

BRT _ADJ
BL_ON

VOL_O N
VOL_ ADJ

+5V

+3. 3V

Ac er C tr l_ BD LED(Bl ue):

 

R4 7 R4 6

R43

R45

150

47

C53

0. 1U Z

SCL_ TOUCH
SDA_T OUCH

C54

0. 1U Z

R77

4.7K J

R78

4.7K J

R81 0 J
R82 0 J

AD C_KEY1

AD C_KEY2

AD C_KEY3

D

R84

0

R105 2K J

R106 2K J

R107 2K J

+5V

G2

7
6
5
4
3
2

TP71

1

G1

C72

470P J

TP77

J4

2KK2 087007

C73
470P J

R79 0 J

POWE R_KEY

Sc ar 25 2 5L (200 703 06)

TP26
TP27
TP28
TP29
TP30
TP31

C74

ZD 7

ZD 8

ZD 6

470P J

A K

A K

UDZS 6.2B

UDZS 6.2B

UDZS 6.2B

E

R80 0 J

A K

+3. 3V

2K62 095107

7
6
5
4
3
2
1

J6

R83

4.7K J

EMI Soluti on(Q7C5 ) : C72 ~ C74

gi ac h in 2 5 25L (07 19)

R46, R47, R48, R49, R50, R51
ZD9, ZD10, ZD11, ZD12, ZD13, ZD14
C55,C56,C57,C58,C59,C60
J4

1 1

Open for ADC key

A

B

C

D

Qisda Corporation

Pro ject Code

9J. 0NA12.001

Title

I/F Board: Power & Con trol Connector

Size D oc ument Number Rev.

PCB P/N

<S i z e >

F r i d a y , De c e m b e r 1 9 , 2 0 0 8

D at e: Sheet

Ch ar m in g W ang

4H. 0NA01.A03

M ode l Name

X193HQ

PCB Rev.

A 0 3

Re view ed By A p p ro ved ByPre p ared By

Cha rle Jin

O E M /O D M M odel Name

<D o c >

1 5

E

OEM

of

0

change RN1-RN5 to R200-R215 0724

A

B

+3.3V

C

D

E

C6 5

R207

R209

4 4

VOL_O N

AD C_KEY3

AD C_KEY2

AD C_KEY1

PW _SW

3 3

Cabl e_Det ect_D

RT D_SCLK

PANEL _ON

RT D_SD3/ SDI

HDCP _CTRL

2 2

gi ac h in 2 5 25L (07 19)

gi ac h in 2 5 25L (07 19)

+3. 3V

C63

0.1 U

1 1

NV RAM

U4

1

A0

VCC

2

A1

WP

3

A2

SCL

4

GND

SDA

AT24 C16N- 10SI-1.8

R53

8

4.7K J

7

6

5

A

Ch un g Ha o H DCP (12 27)

R54

4.7K J

WP_C 04

SCL

SD A

KEY_ EXIT

KEY_ LEFT

I-K EY

BL_ON

R200

4.7K J

B

R56

4.7K J

Sc ar 2 5 25 L (20 070 309)

gi ac h in 2 5 25L (07 19)

gi ac h in 2 5 25L (07 19)

R203

R202

R201

R213

4.7K J

4.7K J

4.7K J

4.7K J

+3.3V

R208

4.7 K J

4.7 K J

4.7 K J

24

25

P6.4

P6.5

26

P6.6 /CLKO1

27

P6.7

28

VSYNC

29

NC

30

NC

31

NC

32

NC

33

P1.7

34

P1.6

35

P1.5

36

P1.4

P1.337P1.238P1.139P1.0/ET240VCC

R210

4.7K J

23

19

P6.0/AD020P6.1/AD121P6.2/AD222P6.3/AD3

NC42NC

41

R204

R205

R300

4.7K J

4.7K J

Ch un g Ha o H DCP (12 27)

4.7K J

+3.3V

gi ac h in 2 5 25L (08 24)

C6 2

0.1 U K

+3.3V

R302

4.7K J

C

10P J

R57

Y1

24MHZ

17

NC18NC

VSS

HSDA 1/TXD/P3 .1

HSCL 1/RXD/P3 .0

DA0/P5.044DA1/P5.145DA2/P5.246DA3/P5.347DA4/P5.4

43

gi ac h in 2 5 25L (08 24)

R2 8

4.7K J

R33

4.7K J

C64
10P J

6.8K

U10

13

14X215X116

RT D2122L

12

P7.7

P3.5 /T1

11

P3.4 /T0

P7.6/CLKO2

10

P3.3 /INT1

9

P3.2 /INT0

8

7

NC

6

NC

5

4

RST

3

DA7 /P5.7

2

DA6 /P5.6

1

DA5 /P5.5

48

R301

4.7K J

C101

nc 1U K

gi ac h in 2 5 25L (07 19)

BRT _ADJ

gi ac h in 2 5 25L (07 19)

C40

1U K

+3. 3V

R55

4.7K J

WP_C 04

+3.3V

VOL_ ADJ

+5V +3. 3V

R215

4.7 K J

R30 0 J

D

M512_XOUT

SCL

SD A

SD A_A

SCL_ A

RESE T_MCU

SD A_D

R214

4.7 K J

SCL_ D

R31 0 J

LED_ GRN

LED_ ORG

KEY_ RIGHT

KEY_ MENU

R212

R211

Ac er C tr l_ BD LED(Bl ue):

4.7 K J

4.7 K J

R3 0 R3 1

Qisda Corporation

Pro ject Code

9J. 0NA12.001

Title

I/F Board: MCU

Size D oc ument Number Rev.

PCB P/N

<S i z e >

F r i d a y , De c e m b e r 1 9 , 2 0 0 8

D at e: Sheet

Ch a rm i ng W a ng

+3. 3V

Mus t use 10UF

12

+

C61
10U 25C

gi ac h in 2 5 25L (07 19)

R101
10K J

 

M ode l Name

4H. 0NA01.A03

PCB Rev.

Re view ed By A p p ro ved ByPre p ared By

Cha rle Jin

X193HQ

A 0 3

E

O E M /O D M M odel Name

OEM

<D o c >

of

1 5

0

5

4

3

2

1

+5V

R58
100K J

D D

R59

PANEL _ON

20K

12

+

C68
22U 25V

B

R60
10K J

Q6
2N3904S

E C

+5V

co st d own 22uF

C C

G

C69

0.1 U K

D

U7
AO3401L

S

co st d own 22uF

12

+

C66
22U 25V

LCD_ 5V_POW ER

C67

0.1 U K

R222
150 J

150 oh m and 1206 size

U9 s pe c.
Vd s= - 30 V , Vg s=+/ -12 V
Id =- 3 .5 A w h en am bi en t t emp. =70 deg re

G( 1)

S( 2)

D( 3)

Screw Holes

1

5

4

3

2

H1

HOLE -V8

B B

A A

9

8

7

6

GN D

Opt ical Points

OP1

OP2

5

5

4

3

2

H2

HOLE -V8

OP3

1

9

8

7

6

5

4

3

2

H3

HOLE -V8

1

9

8

7

6

GN DGN D

LCD_ 5V_POW ER

PWM out(Fun c resrv ed ) : R61 open

LG: R62.R63 Open

R61 NC_0

R62 NC_0
R63 NC_0

Pan el Pin Def.

1- 3.NC

4. GND

5. RXIN0-

6. RXIN0+

7. GND

8. RXIN1-

9. RXIN1+

10. GND

11. RXIN2-

12. RXIN2+

13. GND

P27_ GND

P26_ GND

P25_ GND

P27_ GND

RXE3+
RXE3­RXEC+
RXEC­RXE2+
RXE2-

RXE1+
RXE1-

RXE0+
RXE0­RXO3+
RXO3­RXOC+
RXOC-

RXO2+
RXO2­RXO1+
RXO1­RXO0+
RXO0-

P26_ GND

P25_ GND

TP1

TP2
TP3
TP4

TP5
TP6

TP9
TP10

TP11
TP12

TP13
TP14
TP15
TP16
TP17
TP18

TP19
TP20
TP21
TP22
TP23
TP24

14. RXCLKIN-

15. RXCLKIN+

G1

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

G2

J10

G1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
G2

2KK2 085030

16. GND

17. RXIN3-

18. RXIN3+

19. GND
20- 22.NC
23- 25.GND
26- 30.VCC

4

3

Ad d wi re ha rn es s co nn ec to r fo r improv ing EMI issue. 0328

LCD_ 5V_POW ER

J11

1 2
3 4

RXE3- RXEC+
RXEC­RXE2­RXE1+

RXE0­RXO3­RXOC­RXO2+
RXO1+
RXO0+

P26_ GND

2

5 6
7 8

9 10
11 1 2
13 1 4
15 1 6
17 1 8
19 2 0
21

22

23

24

25

26

27

28

29

30

2K61 209215

Qisda Corporation

Pro ject Code

9J. 0NA12.001

Title

I/F Board: Panel Output

Size D oc ument Number Rev.

PCB P/N

<S i z e >

D at e: Sheet

4H. 0NA01.A03

F r i d a y , De c e m b e r 1 9 , 2 0 0 8

Ch ar m in g W ang

P27_ GND
P25_ GND

M ode l Name

X193HQ

PCB Rev.

A 0 3

Re view ed By A p p ro ved ByPre p ared By

Cha rle Jin

RXE3+

RXE2+

RXE1­RXE0+
RXO3+
RXOC+

RXO2­RXO1­RXO0-

O E M /O D M M odel Name

<D o c >

1 5

1

OEM

0

of
