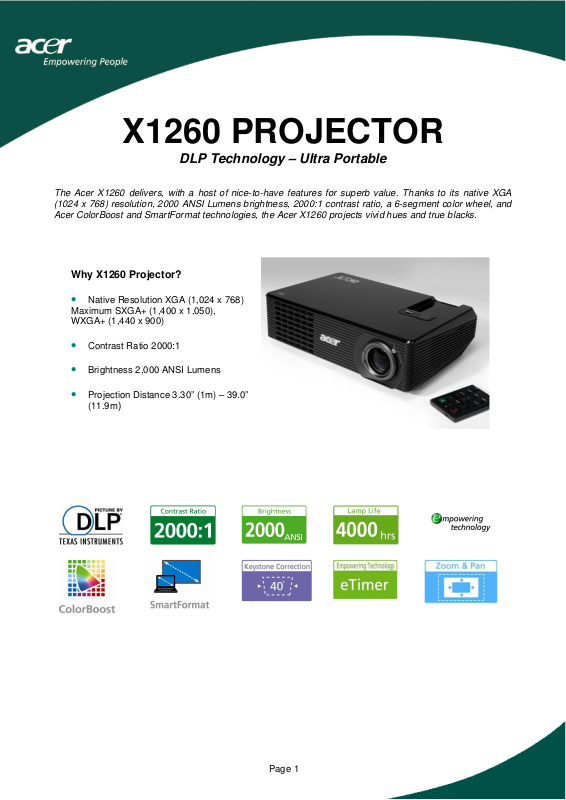

Acer X1260 Product Sheet

X1260 PROJECTOR

DLP Technology – Ultra Portable

The Acer X1260 delivers, with a host of nice-to-have features for superb value. Thanks to its native XGA (1024 x 768) resolution, 2000 ANSI Lumens brightness, 2000:1 contrast ratio, a 6-segment color wheel, and Acer ColorBoost and SmartFormat technologies, the Acer X1260 projects vivid hues and true blacks.

Why X1260 Projector?

•

Native Resolution XGA (1,024 x 768) Maximum SXGA+ (1,400 x 1,050), WXGA+ (1,440 x 900)

•

Contrast Ratio 2000:1

•

Brightness 2,000 ANSI Lumens

•

Projection Distance 3.30” (1m) – 39.0”

(11.9m

)

Page 1

Technical Specifications

Model Name

Resolution

Computer Compatibility

Video Compatibility

Aspect Ratio Contrast Ratio Displayable Colours Brightness

Projection Lens

Projection Screen Size Projection Distance Throw Ratio Horizontal Scan Rate Vertical Scan Rate Lamp Type / Life Keystone Correction Projection Mode

Audio

IR Remote Control

Digital Zoom

Power Supply

Power Consumption

Operating Temperature

Noise Level

Input Interface

Output Interface

Control Interface

Weight and Dimensions

Compliance

Standard Warranty

Product specifications are subject to change without prior notice. Acer & the Acer logo are registered trademarks of Acer Inc., and Acer America Corp. All other products, brand names, or company names are trademarks & registered trademarks of their respective companies. Acer shall not be liable for technical, editorial or pictorial errors, inaccuracies or omissions contained herein; nor for any consequential damage resulting from the furnishing, performance, or use of this material. * Maximum hours. Actual hours depend on usage and configuration. ** Contact Acer for warranty details.

Specifications vary depending on model.

X1260 Native XGA (1,024 x 768)

Maximum SXGA+ (1,400 x 1,050), WXGA+ (1,440 x 900) IBM PC and Compatibles, Apple Macintosh, iMac, and VESA Standards, WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480) NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i), EDTV (480p, 576p), SDTV (480i, 576i)

4:3 (Native), 16:9 2000:1

16.7 Million Colours 2,000 ANSI Lumens

F = 2.41 ~ 2.55, f = 21.79mm ~ 23.99mm 1:1.1 Manual Zoom and Manual Focus

23" (58cm) ~ 300" (762cm)

3.3' (1.0m) ~ 39.0' (11.9m) 50"@2m (1.95 ~ 2.15:1) 31 ~ 80k Hz 50 ~ 85 Hz Osram 160 W user replaceable P-VIP lamp/ 4,000 Hours +/-40 Degrees (Vertical ) Front, Rear, Front-Ceiling, Rear-Ceiling One Internal Speaker with 2 watts Output IR remote control 2x AC input 100~240V auto-switching power supply 255 Watts (Operation), <8 Watts (Standby) 5°C ~ 35°C / 41°F ~ 95°F 33 dBA

Analog RGB/Component Video (D-sub) x 1, Composite Video (RCA) x 1, S-Video (Mini DIN) x1, PC Audio (Stereo mini jack) x 1

Analog RGB (D-sub) x 1 USB (Type B) x 1

RS232 (Mini DIN) x 1

2.3kg 267 x 187 x 80 mm (10.5" x 7.4" x 3.1")

C-Tick (AS/NZS 60950) 2 year return to base

Page 2
