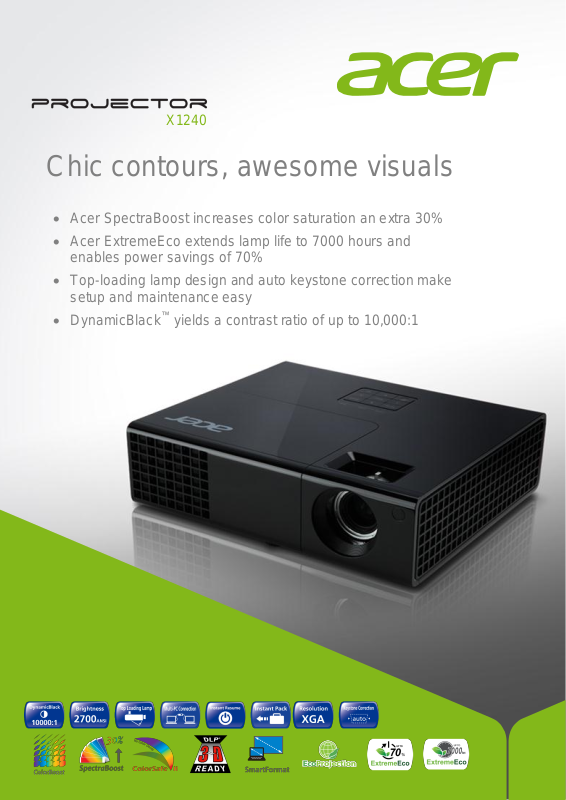

Acer X1240 Product Sheet

 Acer SpectraBoost increases color saturation an extra 30%



Chic contours, awesome visuals

X1240

Acer ExtremeEco extends lamp life to 7000 hours and

enables power savings of 70% Top-loading lamp design and auto keystone correction make

setup and maintenance easy DynamicBlack™ yields a contrast ratio of up to 10,000:1

Feature Highlights

Model name

Acer X1240

Projection system

0.55" DarkChip™ 3 DMD

Resolution

Native XGA (1024 x 768) Maximum UXGA (1600 x 1200), 1080p (1920 x 1080)

Aspect ratio

4:3 (Native), 16:9

Contrast ratio

10,000:1

Brightness

2700 ANSI lumens (standard), 2160 ANSI lumens (ECO)

Lamp life

5000 hours (standard), 6000 hours (ECO), 7000 hours (ExtremeEco)

Projection lens

F = 2.57 — 2.65, f = 21.00 — 23.10 mm 1:1.1 manual zoom and manual focus

Keystone correction

+/-40 degrees (vertical), manual & auto

Noise level

30 dBA (standard); 26 dBA (ECO)

Input interface

Two analog RGB / component video (D-Sub), composite video (RCA), S-video (mini DIN), PC audio (stereo mini jack)

Output interface

Analog RGB (D-Sub), PC audio (stereo mini jack)

Network interface

N/A

Control interface

USB (Mini-B), RS232 (D-Sub)

Dimensions

264 x 220 x 78 mm (10.4" x 8.7" x 1.3")

Weight

2.0 kg (4.4 lbs.)

Acer ColorBoost

Acer ColorSafe ll

ownership and translate to big savings.

Acer SpectraBoost

Acer EcoProjection

About Acer

Olympic Games. More information is at www.acer-group.com.

Product Specifications

Lively display

 Acer ColorBoost  Acer SpectraBoost  Acer ColorSafe II  2700 ANSI brightness XGA resolution  DynamicBlack™ 10,000:1 contrast ratio  DLP® 3D Ready

Installation flexibility

 Acer Top-Loading Lamp design  Acer Auto Keystone Correction  Multi-PC Connection  Auto ceiling-mount correction

Empowering usability

 Acer ePower Management  Acer SmartFormat technology  Instant Resume  Instant Pack  Multi-color compensation  Dust protection  High Altitude mode  Closed captioning  Built-in speaker

Eco-friendly functionality

 Acer EcoProjection technology  ExtremeEco mode  Acer ePower Management  Automatic safety shutdown  Longer lamp life: up to 7000 hours in

ExtremeEco mode

Acer ColorBoost is an advanced technology that refines waveform to improve color performance based on lamp spectrum and color wheel properties. ColorBoost (1) improves natural color temperature to achieve optical color balance, and (2) enhances color brightness according to content by working with Acer eView Management, which provides scenario modes with a color-specific refined waveform.

A wider color gamut is achieved via patented colorwheel coating technology that boosts color saturation an extra 30%.

Since its founding in 1976, Acer has broken barriers between people and technology, enabling users to explore, create and grow. Acer ranks No. 2 for notebook PCs globally (Gartner data 2011). The Acer Group employs 8,000 people across the globe, and revenues for 2011 reached US$15.7 billion. Acer's channel business model is instrumental to the company's success, while its multi-brand approach integrates Acer, Gateway, and Packard Bell brands in worldwide markets. Acer designs environmentally friendly products and, with its vendors, has established a green supply chain. Acer is proud to be a Worldwide Partner of the Olympic Movement. That includes supporting the Vancouver 2010 Olympic Winter Games and London 2012

Acer projectors featuring ColorSafe are virtually immune to color decay, such as the yellow or green tint on images displayed by some projectors that have been used for extended periods of time. Acer projectors take advantage of DLP® technology to guarantee picture integrity despite prolonged use. Extended lifespan and consistent image quality lower total cost of

Acer EcoProjection is a complete environment-friendly power management solution that reduces standby power consumption by up to 90%, from 5 W to 0.5 W. Also featured in the Acer EcoProjection suite is Acer ePower Management for customized power-saving configurations.
