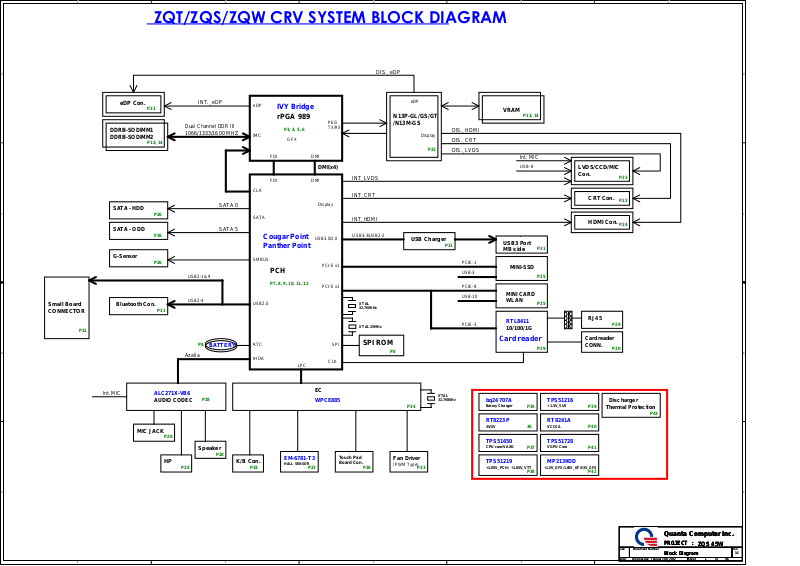

ZQT/ZQS/ZQW CRV SYSTEM BLOCK DIAGRAM
D D
eDP Con.
DDRIII-SODIMM1
DDRIII-SODIMM2
P23
P13, 14
INT._eDP
Dual Channel DDR III
1066/1333/1600 MHZ
eDP
IMC
IVY Bridge
rPGA 989
P3, 4, 5, 6
GFX
FDI
DMI
PEG
TX/RX
DMI(x4)
FDI
CLK
C C
SATA - HDD
SATA - ODD
P26
P26
SATA 0
SATA
SATA 5
Cougar Point
DMI
Display
USB3.0/2.0
Panther Point
G-Sensor
Small Board
CONNECTOR
P31
B B
Bluetooth Con.
P26
P31
USB2-1& 9
USB2-4
Azalia
P8
BATTERY
SMBUS
USB2.0
RTC
IHDA
PCH
P7, 8, 9, 10, 11, 12
LPC
PCI-E x1
PCI-E x1
SPI
CLK
DIS._eDP
INT_LVDS
INT_CRT
INT_HDMI
USB3-3/USB2-2
X'TAL
32.768KHz
X'TAL 25MHz
SPI ROM
eDP
N13P-GL/GS/GT
/N13M-GS
Display
USB Charger
P8
P23
DIS._HDMI
DIS._CRT
DIS._LVDS
P31
PCIE-1
USB-3
PCIE-8
USB-10
PCIE-3
VRAM
P13, 14
Int. MIC
USB-8
USB3 Port
MB side
MINI-SSD
MINI CARD
WLAN
RTL8411
10/100/1G
Cardreader
P31
P25
P25
P29
LVDS/CCD/MIC
Con.
CRT Con.
HDMI Con.
RJ45
Cardreader
CONN.
P23
P23
P24
P29
P30
Int. MIC
A A
5
ALC271X-VB6
AUDIO CODEC
MIC JACK
P28
HP
P28
P28
Speaker
P28
4
K/B Con.
P33
EM-6781-T3
HALL SENSOR
EC
WPCE885
P23
Touch Pad
Board Con.
P26
X'TAL
P34
Fan Driver
(PWM Type)
3
32.768KHz
P33
bq24707A
Batery Charger
RT8223P
3V/5V
TPS51650
CPU core/VAXG
TPS51219
+1.05V_PCH / +1.05V_VTT
2
TPS51216
+1.5V_SUS
P35
RT8241A
VCCSA
36
TPS51728
VGPU Core
P37
MP2139DD
+1.5V_GFX/1.05V_GFX/3V_GFX
P38
Discharger
P39
Thermal Protection
P40
P41
P42
P43
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
Block Diagram
Block Diagram
Block Diagram
1
ZQS 45W
ZQS 45W
ZQS 45W
1 46Wednesday, February 08, 2012
1 46Wednesday, February 08, 2012
1 46Wednesday, February 08, 2012
3C
3C
3C
Page 2
1
2

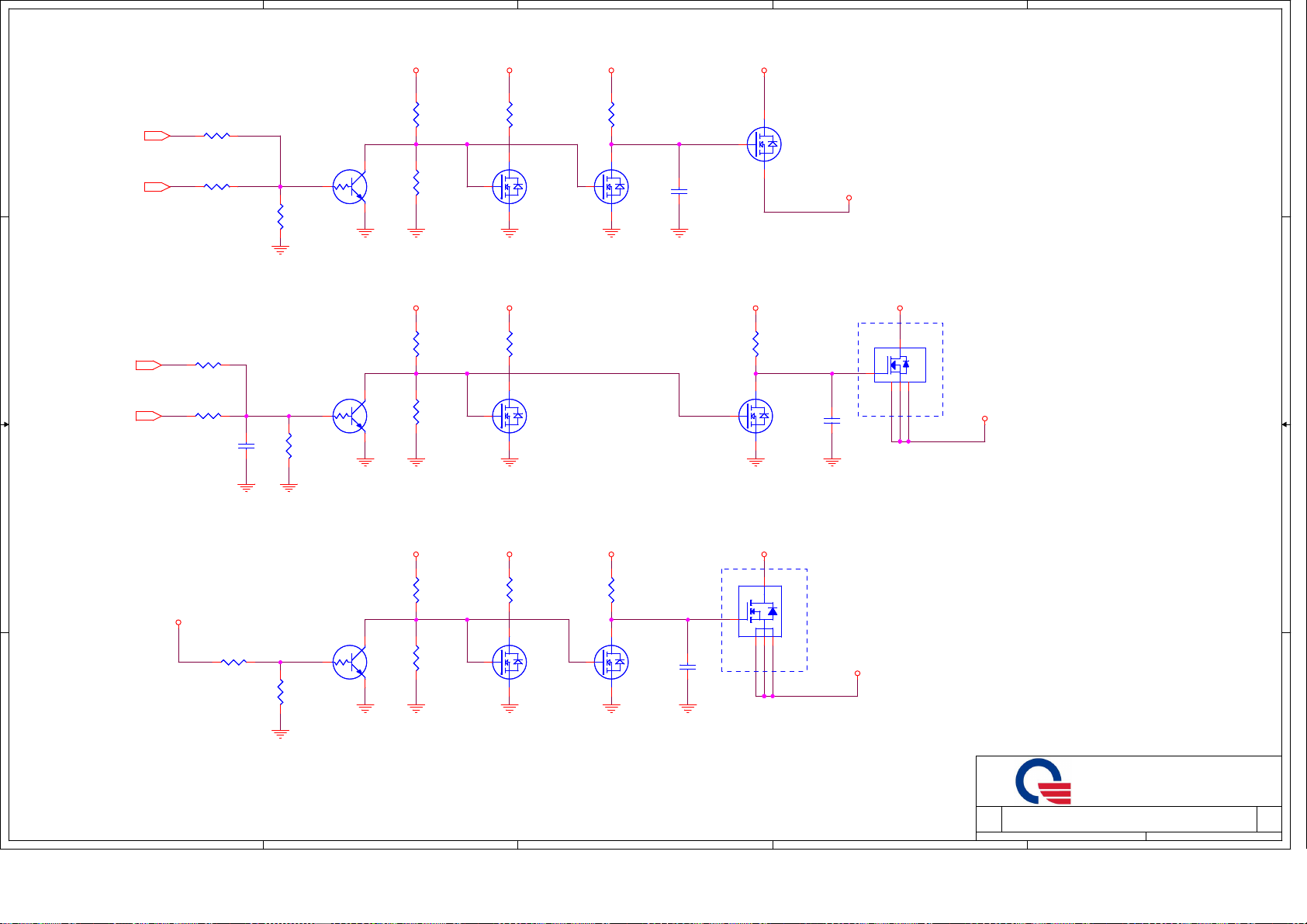

VGA power up sequence
3
4
5
6
7
8
EC
A A
+3V
dGPU_RWR_EN
VIN
dGPU_VRON
MOSFET
PWM
+3V_GFX
+VGACORE
VGA_PG
+1.5VSUS
+1.5V_GFXMOSFET
+1.05V
MOSFET
+1.05V_GFX
DGPU_PWROK
VGA_VID
VGA_PG
B B
+1.8V
+1.8V_GFXMOSFET
Power States
POWER PLANE
VIN
+3V_RTC
+3VPCU
+5VPCU
+15V
+3V_S5
C C
D D
+5V_S5
+5V
+1.5VSUS
+0.75V_DDR_VTT
+VGFX_AXG S0VRONInternal GPU POWER
+1.8V
+1.5V
+1.05V
+VCCSA HWPG_VTT+0.9V
+VCC_CORE
LCDVCC
VOLTAGE
+10V~+19V
+3V~+3.3V
+3.3V
+5V
+15V
+3.3V
+5V
+5V
+3.3V
+1.5V
+0.75V
variation
+1.8V
+1.5V
+1.05V
variation
+3.3V
DESCRIPTION
RTC POWER
EC POWER
CHARGE POWER
CHARGE PUMP POWER
LAN/BT/CIR POWER
USB POWER
HDD/ODD/Codec/TP/CRT/HDMI POWER
PCH/GPU/Peripheral component POWER+3V
CPU/SODIMM CORE POWER
SODIMM Termination POWER
CPU/PCH/Braidwood POWER
MINI CARD/NEW CARD POWER
PCH CORE POWER/IVY/SNB bridge VCCIO MAINON
CPU CORE POWER
LCD POWER
CONTROL
SIGNAL
ALWAYSMAIN POWER
ALWAYS
ALWAYS
ALWAYS
S5_ON
S5_ON
MAINON
MAINON
SUSON
MAINON
MAINON
MAINON
VRON
LVDS_VDDEN
MAINON S0
ACTIVE IN
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYSALWAYS
S0-S5
S0-S5
S0
S0
S0-S3
S0
S0
S0
S0
S0CPU POWER
S0
S0
Thermal Follow Chart
CPU
CORE PWR
H_ORICHOT#
H/W Throttling
NTC
Thermal
Protection
CPU
PCH
SM-Bus
EC
PM_THRMTRIP#
SML1ALERT#
CPUFAN#
WIRE-AND
SYS_SHDN#
3V/5 V
SYS PWR
FANFAN Driver
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
PWR Status & GPU PWR CRL & THRM
PWR Status & GPU PWR CRL & THRM
PWR Status & GPU PWR CRL & THRM
Date: Sheet of
Date: Sheet of
1
2
3
4
5
6
Date: Sheet of
7
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
2 46Wednesday, February 08, 2012
2 46Wednesday, February 08, 2012
2 46Wednesday, February 08, 2012
8
3C
3C
3C
Page 3
5
4
3
2
1
03
For Sandy Bridge processor only implementation:
PROC_SELECT can be left NC.

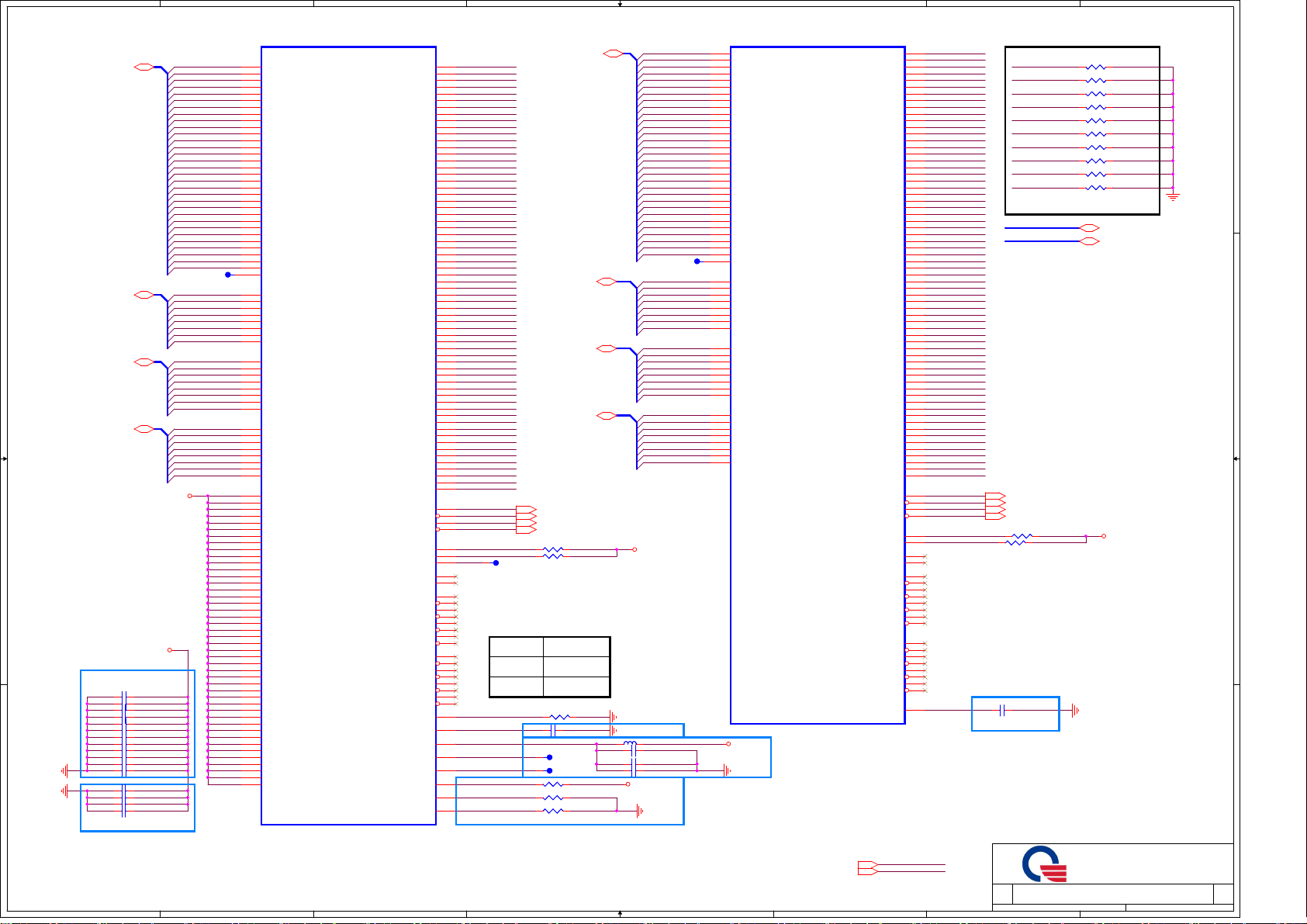

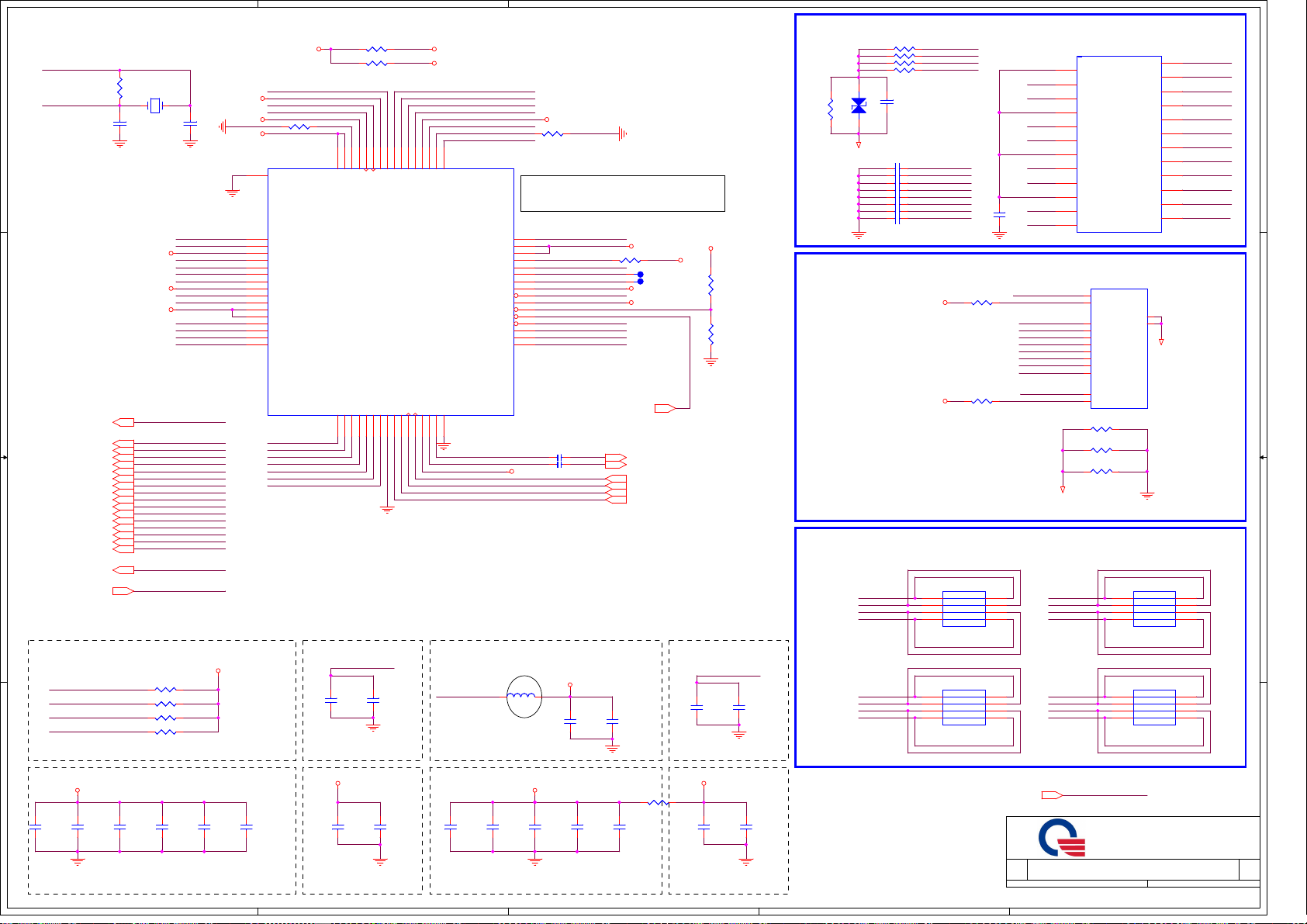

IVY Bridge Processor (DMI,PEG,FDI)
DMI_TXN07
DMI_TXN17
D D
DMI_TXN27
DMI_TXN37
DMI_TXP07
DMI_TXP17
DMI_TXP27
DMI_TXP37
DMI_RXN07
DMI_RXN17
DMI_RXN27
DMI_RXN37
DMI_RXP07
DMI_RXP17
DMI_RXP27
DMI_RXP37
FDI_TXN07
FDI_TXN17
FDI_TXN27
FDI_TXN37
FDI_TXN47
FDI_TXN57
FDI_TXN67
FDI_TXN77
FDI_TXP07
FDI_TXP17
FDI_TXP27
FDI_TXP37
FDI_TXP47
FDI_TXP57
C C
FDI_TXP67
FDI_TXP77
FDI_FSYNC07
FDI_FSYNC17
FDI_INT7
FDI_LSYNC07
FDI_LSYNC17
eDP_COMP
INT_eDP_HPD_Q23
EDP-AUX+23
EDP-AUX-23
EDP-ML0+23
EDP-ML0-23
B B
TP107TP107
TP104TP104
TP109TP109
TP106TP106
TP105TP105
TP108TP108
HPD disable
This signal can be left as no
connect if entire eDP interface
is disabled.
U15A
U15A
B27
DMI_RX#[0]
B25
DMI_RX#[1]
A25
DMI_RX#[2]
B24
DMI_RX#[3]
B28
DMI_RX[0]
B26
DMI_RX[1]
A24
DMI_RX[2]
B23
DMI_RX[3]
G21
DMI_TX#[0]
E22
DMI_TX#[1]
F21
DMI_TX#[2]
D21
DMI_TX#[3]
G22
DMI_TX[0]
D22
DMI_TX[1]
F20
DMI_TX[2]
C21
DMI_TX[3]
A21
FDI0_TX#[0]
H19
FDI0_TX#[1]
E19
FDI0_TX#[2]
F18
FDI0_TX#[3]
B21
FDI1_TX#[0]
C20
FDI1_TX#[1]
D18
FDI1_TX#[2]
E17
FDI1_TX#[3]
A22
FDI0_TX[0]
G19
FDI0_TX[1]
E20
FDI0_TX[2]
G18
FDI0_TX[3]
B20
FDI1_TX[0]
C19
FDI1_TX[1]
D19
FDI1_TX[2]
F17
FDI1_TX[3]
J18
FDI0_FSYNC
J17
FDI1_FSYNC
H20
FDI_INT
J19
FDI0_LSYNC
H17
FDI1_LSYNC
A18
eDP_COMPIO
A17
eDP_ICOMPO
B16
eDP_HPD
C15
eDP_AUX
D15
eDP_AUX#
C17
eDP_TX[0]
F16
eDP_TX[1]
C16
eDP_TX[2]
G15
eDP_TX[3]
C18
eDP_TX#[0]
E16
eDP_TX#[1]
D16
eDP_TX#[2]
F15
eDP_TX#[3]
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
PEG_COMP
J22
PEG_ICOMPI
J21
PEG_ICOMPO
H22
PEG_RCOMPO
K33
PEG_RX#[0]
M35
PEG_RX#[1]
L34
PEG_RX#[2]
J35
PEG_RX#[3]
J32
PEG_RX#[4]
H34
PEG_RX#[5]
H31
PEG_RX#[6]
DMI
DMI
Intel(R) FDI
Intel(R) FDI
PCI EXPRESS* - GRAPHICS
PCI EXPRESS* - GRAPHICS
eDP
eDP
G33
PEG_RX#[7]
G30
PEG_RX#[8]
F35
PEG_RX#[9]
E34
PEG_RX#[10]
E32
PEG_RX#[11]
D33
PEG_RX#[12]
D31
PEG_RX#[13]
B33
PEG_RX#[14]
C32
PEG_RX#[15]
J33
PEG_RX[0 ]
L35
PEG_RX[1 ]
K34
PEG_RX[2 ]
H35
PEG_RX[3 ]
H32
PEG_RX[4 ]
G34
PEG_RX[5 ]
G31
PEG_RX[6 ]
F33
PEG_RX[7 ]
F30
PEG_RX[8 ]
E35
PEG_RX[9 ]
E33
PEG_RX[1 0]
F32
PEG_RX[1 1]
D34
PEG_RX[1 2]
E31
PEG_RX[1 3]
C33
PEG_RX[1 4]
B32
PEG_RX[1 5]
M29
PEG_TX#[0 ]
M32
PEG_TX#[1 ]
M31
PEG_TX#[2 ]
L32
PEG_TX#[3 ]
L29
PEG_TX#[4 ]
K31
PEG_TX#[5 ]
K28
PEG_TX#[6 ]
J30
PEG_TX#[7 ]
J28
PEG_TX#[8 ]
H29
PEG_TX#[9 ]
G27
PEG_TX#[1 0]
E29
PEG_TX#[1 1]
F27
PEG_TX#[1 2]
D28
PEG_TX#[1 3]
F26
PEG_TX#[1 4]
E25
PEG_TX#[1 5]
M28
PEG_TX[0]
M33
PEG_TX[1]
M30
PEG_TX[2]
L31
PEG_TX[3]
L28
PEG_TX[4]
K30
PEG_TX[5]
K27
PEG_TX[6]
J29
PEG_TX[7]
J27
PEG_TX[8]
H28
PEG_TX[9]
G28
PEG_TX[10 ]
E28
PEG_TX[11 ]
F28
PEG_TX[12 ]
D27
PEG_TX[13 ]
E26
PEG_TX[14 ]
D25
PEG_TX[15 ]
DG 1.0 :
The recommended AC cap value is changed to 220nF for compatibility with
PCIe Gen3 on future platforms.
For Gen2 only designs, it is acceptable to continue to use the 100nF capacitor.
PEG_COMP connect to PIN H22&J22 W:4mils/S:15mils/L: 500mils.
PEG_COMP connect to PIN J21 W:12mils/S:15mils/L: 500mils.
PEG_RX#0 16
PEG_RX#1 16
PEG_RX#2 16
PEG_RX#3 16
PEG_RX#4 16
PEG_RX#5 16
PEG_RX#6 16
PEG_RX#7 16
PEG_RX#8 16
PEG_RX#9 16
PEG_RX#10 16
PEG_RX#11 16
PEG_RX#12 16
PEG_RX#13 16
PEG_RX#14 16
PEG_RX#15 16
PEG_RX0 16
PEG_RX1 16
PEG_RX2 16
PEG_RX3 16
PEG_RX4 16
PEG_RX5 16
PEG_RX6 16
PEG_RX7 16
PEG_RX8 16
PEG_RX9 16
PEG_RX10 16
PEG_RX11 16
PEG_RX12 16
PEG_RX13 16
PEG_RX14 16
PEG_RX15 16
R_PEG_TX#0
R_PEG_TX#1
R_PEG_TX#2
R_PEG_TX#3
R_PEG_TX#4
R_PEG_TX#5
R_PEG_TX#6
R_PEG_TX#7
R_PEG_TX#8
R_PEG_TX#9
R_PEG_TX#10
R_PEG_TX#11
R_PEG_TX#12
R_PEG_TX#13
R_PEG_TX#14
R_PEG_TX#15
R_PEG_TX0
R_PEG_TX1
R_PEG_TX2
R_PEG_TX3
R_PEG_TX4
R_PEG_TX5
R_PEG_TX6
R_PEG_TX7
R_PEG_TX8
R_PEG_TX9
R_PEG_TX10
R_PEG_TX11
R_PEG_TX12
R_PEG_TX13
R_PEG_TX14
R_PEG_TX15
N13P-GS--->Gen2
For IVY/Sandy processor compatibility:
Needs a pull-up resistor to PCH VccDFTERM rail (1.8V) through a 2.2 K±5% pull-up resistor.
Connect to the DF_TVS of PCH though a 1K±5% series resistor.
H_SNB_IVB#8
EC_PECI34
H_PROCHOT#
PM_THRMTRIP#10
PM_SYNC7
H_PWRGOOD10
PM_DRAM_PWRGD_R15
R103 75_4R103 75_4
CPU_PLTRST#
DIS.VGA-->EV@ + EOP@
Optimize-->IOP@ + EOP@
UMA-->IV@ + IOP@
Special-->SP@
PEG_TX#0 16
PEG_TX#1 16
PEG_TX#2 16
PEG_TX#3 16
PEG_TX#4 16
PEG_TX#5 16
PEG_TX#6 16
PEG_TX#7 16
PEG_TX#8 16
PEG_TX#9 16
PEG_TX#10 16
PEG_TX#11 16
PEG_TX#12 16
PEG_TX#13 16
PEG_TX#14 16
PEG_TX#15 16
PEG_TX0 16
PEG_TX1 16
PEG_TX2 16
PEG_TX3 16
PEG_TX4 16
PEG_TX5 16
PEG_TX6 16
PEG_TX7 16
PEG_TX8 16
PEG_TX9 16
PEG_TX10 16
PEG_TX11 16
PEG_TX12 16
PEG_TX13 16
PEG_TX14 16
PEG_TX15 16
H_PROCHOT#34,37
Intel recommended UNCOREPWRGOOD
routing on one layer
apply C5205 for nosie
+1.05V
PCI_PLTRST#9
IVY Bridge Processor (CLK,MISC,JTAG)
U15B
U15B
SKTOCC#
TP16TP16
TP_CATERR#
TP15TP15
H_PROCHOT#_R
PM_THRMTRIP#
PM_SYNC_R
H_PWRGOOD_R
R107 10K_4R107 10K_4
U4
U4
1
VCC5NC
2
IN
GND3OUT
74LVC1G07GW
74LVC1G07GW
PROC_SELECT#
CPU_PLTRST#_R
R106
R106
*750/F_4
*750/F_4
CPU_PLTRST#
4
C26
PROC_SEL ECT#
AN34
SKTOCC#
AL33
CATERR#
AN33
PECI
AL32
PROCHOT#
AN32
THERMTRIP#
AM34
PM_SYNC
AP33
UNCOREPW RGOOD
V8
SM_DRAMPW ROK
AR33
RESET#
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
+3V
C156
C156
0.1u/10V_4
0.1u/10V_4
MISCTHERMALPWR MANAGEMENT
MISCTHERMALPWR MANAGEMENT
CRB 1.0 : change to +3V(S0)
CLOCKS
CLOCKS
DDR3
MISC
DDR3
MISC
JTAG & BPM
JTAG & BPM
R398 *SHORT_4R398 *SHORT_4
R101 56_4R101 56_4
R81 *SHORT_4R81 *SHORT_4
C155 0.1u/10V_4C155 0.1u/10V_4
R102 *SHORT_4R102 *SHORT_4
R105 43_4R105 43_4
R104 *1.5K/F_4R104 *1.5K/F_4
BCLK
BCLK#
DPLL_REF_CLK
DPLL_REF_CLK#
SM_DRAMRST#
SM_RCOMP[0 ]
SM_RCOMP[1 ]
SM_RCOMP[2 ]
PRDY#
PREQ#
TRST#
DBR#
BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]
BPM#[4]
BPM#[5]
BPM#[6]
BPM#[7]
iGPU wo eDP and dGPU
Connect DPLL_REF_SSCLK on Processor to GND through 1K ± 5% resistor.
Connect DPLL_REF_SSCLK# on Processor to VCCP through 1K ± 5% resistor
CLK_CPU_BCLKP_R
A28
CLK_CPU_BCLKN_R
A27
CLK_DPLL_SSCLKP_R
A16
CLK_DPLL_SSCLKN_R
A15
CPU_DRAMRST#
R8
SM_RCOMP_0
AK1
SM_RCOMP_1
A5
SM_RCOMP_2
A4
CRB 1.0 : SM_RCOMP[2..0] W:20mils, S:15mils, L 500mils
XDP_PRDY#
AP29
XDP_PREQ#
AP27
XDP_TCLK
AR26
TCK
PCH_JTAG_TMS
AR27
TMS
XDP_TRST#
AP30
PCH_JTAG_TDI
AR28
TDI
PCH_JTAG_TDO
AP26
TDO
AL35
XDP_BPM0
AT28
XDP_BPM1
AR29
XDP_BPM2
AR30
XDP_BPM3
AT30
XDP_BPM4
AP32
XDP_BPM5
AR31
XDP_BPM6
AT31
XDP_BPM7
AR32
Rb
R414 EV@1K_4R414 EV@1K_4
Rc
R410 EV@1K_4R410 EV@1K_4
R460 140/F_4R460 140/F_4
R437 25.5./F_4R437 25.5./F_4
R438 200/F_4R438 200/F_4
4
3
2
1
R401 0_4P2RR401 0_4P2R
Ra
4
3
2
1
R412 IOP@0_4P2RR412 IOP@0_4P2R
CPU_DRAMRST# 15
TP25TP25
TP27TP27
TP29TP29
TP28TP28
TP20TP20
TP26TP26
XDP_DBRST# 7
TP102TP102
TP101TP101
TP97TP97
TP99TP99
For XDP
TP19TP19
TP22TP22
TP96TP96
TP95TP95
+1.05V
CLK_CPU_BCLKP 9
CLK_CPU_BCLKN 9
CLK_DPLL_SSCLKP 9
CLK_DPLL_SSCLKN 9
EV UMA/OPT.
Ra
NA1K0 ohm
Rb
1K
Rc
NA
NA
FDI Disabling (Discrete Only)
Reserve FDI Disabling (Discrete Only), add
C29
R665,R666,R667,R668,R669. 1/13
1/13 add
FDI_INT
R665 EV@0_4R665 EV@0_4
R668 EV@0_4R668 EV@0_4
R667
R667
EV@1K/F_4
EV@1K/F_4
R669 EV@0_4R669 EV@0_4
R666
R666
EV@1K/F_4
EV@1K/F_4
A A
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
FDI_FSYNC can gang
all these 4
signals together
and tie them with
only one 1K
resistor to GND
(DG V0.5 Ch2.2.9).
5
DP & PEG Compensation
+1.05V
Routed within 25 mils
R411 24.9/F_4R411 24.9/F_4
eDP_COMPIO and ICOMPO signals should
be shorted near balls and routed with
typical impedance <25 mohms
eDP_COMP
+1.05V
Routed within 500 mils
R409 24.9/F_4R409 24.9/F_4
PEG_ICOMPI and RCOMPO signals should
be routed within 500 mils
typical impedance = 43 mohms
PEG_ICOMPO signals should
be routed within 500 mils
typical impedance = 14.5 mohms
4
PEG_COMP
Processor pull-up(CPU)
H_PROCHOT#
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_JTAG_TDI
XDP_PREQ#
XDP_TCLK
XDP_TRST#
R98 62_4R98 62_4
R118 51_4R118 51_4
R119 51_4R119 51_4
R115 51_4R115 51_4
R114 *51_4R114 *51_4
R121 51_4R121 51_4
R111 51_4R111 51_4
+1.05V
3
PM_THRMTRIP#
2
1 3
IMVP_PWRGD7,37
+1.05V
3
Q8
FDV301NQ8FDV301N
1
R93
R93
1K_4
1K_4
2
Q7
MMBT3904Q7MMBT3904
2
SYS_SHDN# 19,36,43
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
+1.05V5,7,8,9,11,23,34,37,38,42,43,46
+3V7,8,9,10,11,13,14,16,20,23,24,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
IVY Bridge 1/4
IVY Bridge 1/4
IVY Bridge 1/4
1
ZQS 45W
ZQS 45W
ZQS 45W
3 46
3 46
3 46
3C
3C
3C
Page 4
5
4
3
2
1
IVY Bridge Processor (DDR3)
U15C
U15C
M_A_DQ[63:0]13
D D
C C
B B
M_A_BS#013
M_A_BS#113
M_A_BS#213
M_A_CAS#13
M_A_RAS#13
M_A_WE#13
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
G10
N10
M10
AG6
AG5
AK6
AK5
AH5
AH6
AK8
AK9
AH8
AH9
AL9
AL8
AP11
AN11
AL12
AM12
AM11
AL11
AP12
AN12
AJ14
AH14
AL15
AK15
AL14
AK14
AJ15
AH15
AE10
AF10
AE8
AD9
AF9
F10
AJ5
AJ6
AJ8
AJ9
C5
D5
D3
D2
D6
C6
C2
C3
F8
G9
F9
F7
G8
G7
K4
K5
K1
K2
M8
N8
N7
M9
N9
M7
V6
J1
J5
J4
J2
SA_DQ[0]
SA_DQ[1]
SA_DQ[2]
SA_DQ[3]
SA_DQ[4]
SA_DQ[5]
SA_DQ[6]
SA_DQ[7]
SA_DQ[8]
SA_DQ[9]
SA_DQ[10]
SA_DQ[11]
SA_DQ[12]
SA_DQ[13]
SA_DQ[14]
SA_DQ[15]
SA_DQ[16]
SA_DQ[17]
SA_DQ[18]
SA_DQ[19]
SA_DQ[20]
SA_DQ[21]
SA_DQ[22]
SA_DQ[23]
SA_DQ[24]
SA_DQ[25]
SA_DQ[26]
SA_DQ[27]
SA_DQ[28]
SA_DQ[29]
SA_DQ[30]
SA_DQ[31]
SA_DQ[32]
SA_DQ[33]
SA_DQ[34]
SA_DQ[35]
SA_DQ[36]
SA_DQ[37]
SA_DQ[38]
SA_DQ[39]
SA_DQ[40]
SA_DQ[41]
SA_DQ[42]
SA_DQ[43]
SA_DQ[44]
SA_DQ[45]
SA_DQ[46]
SA_DQ[47]
SA_DQ[48]
SA_DQ[49]
SA_DQ[50]
SA_DQ[51]
SA_DQ[52]
SA_DQ[53]
SA_DQ[54]
SA_DQ[55]
SA_DQ[56]
SA_DQ[57]
SA_DQ[58]
SA_DQ[59]
SA_DQ[60]
SA_DQ[61]
SA_DQ[62]
SA_DQ[63]
SA_BS[0]
SA_BS[1]
SA_BS[2]
SA_CAS#
SA_RAS#
SA_WE#
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
SA_CLK[0]
SA_CLK#[0]
SA_CKE[0]
SA_CLK[1]
SA_CLK#[1]
SA_CKE[1]
SA_CLK[2]
SA_CLK#[2]
SA_CKE[2]
SA_CLK[3]
SA_CLK#[3]
SA_CKE[3]
SA_CS#[0]
SA_CS#[1]
SA_CS#[2]
SA_CS#[3]
SA_ODT[0]
SA_ODT[1]
SA_ODT[2]
SA_ODT[3]
SA_DQS#[0]
SA_DQS#[1]
SA_DQS#[2]
SA_DQS#[3]
SA_DQS#[4]
SA_DQS#[5]
SA_DQS#[6]
SA_DQS#[7]
SA_DQS[0]
SA_DQS[1]
SA_DQS[2]
SA_DQS[3]
SA_DQS[4]
SA_DQS[5]
SA_DQS[6]
SA_DQS[7]
SA_MA[0]
SA_MA[1]
SA_MA[2]
SA_MA[3]
SA_MA[4]
SA_MA[5]
SA_MA[6]
SA_MA[7]
SA_MA[8]
SA_MA[9]
SA_MA[10]
SA_MA[11]
SA_MA[12]
SA_MA[13]
SA_MA[14]
SA_MA[15]
AB6
AA6
V9
AA5
AB5
V10
AB4
AA4
W9
AB3
AA3
W10
AK3
AL3
AG1
AH1
AH3
AG3
AG2
AH2
C4
G6
J3
M6
AL6
AM8
AR12
AM15
D4
F6
K3
N6
AL5
AM9
AR11
AM14
AD10
W1
W2
W7
V3
V2
W3
W6
V1
W5
AD8
V4
W4
AF8
V5
V7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
M_A_CLK0 13
M_A_CLK0# 13
M_A_CKE0 13
M_A_CLK1 13
M_A_CLK1# 13
M_A_CKE1 13
M_A_CS#0 13
M_A_CS#1 13
M_A_ODT0 13
M_A_ODT1 13
M_A_DQS#[7:0] 13
M_A_DQS[7:0] 13
M_A_A[15:0] 13
M_B_DQ[63:0]14
M_B_BS#014
M_B_BS#114
M_B_BS#214
M_B_CAS#14
M_B_RAS#14
M_B_WE#14
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
D10
K10
AM5
AM6
AR3
AP3
AN3
AN2
AN1
AP2
AP5
AN9
AT5
AT6
AP6
AN8
AR6
AR5
AR9
AJ11
AT8
AT9
AH11
AR8
AJ12
AH12
AT11
AN14
AR14
AT14
AT12
AN15
AR15
AT15
AA9
AA7
AA10
AB8
AB9
C9
C8
D9
D8
G4
G1
G5
G2
J10
M5
N4
N2
N1
M4
N5
M2
M1
R6
A7
A9
A8
F4
F1
F5
F2
J7
J8
K9
J9
K8
K7
U15D
U15D
SB_DQ[0]
SB_DQ[1]
SB_DQ[2]
SB_DQ[3]
SB_DQ[4]
SB_DQ[5]
SB_DQ[6]
SB_DQ[7]
SB_DQ[8]
SB_DQ[9]
SB_DQ[10]
SB_DQ[11]
SB_DQ[12]
SB_DQ[13]
SB_DQ[14]
SB_DQ[15]
SB_DQ[16]
SB_DQ[17]
SB_DQ[18]
SB_DQ[19]
SB_DQ[20]
SB_DQ[21]
SB_DQ[22]
SB_DQ[23]
SB_DQ[24]
SB_DQ[25]
SB_DQ[26]
SB_DQ[27]
SB_DQ[28]
SB_DQ[29]
SB_DQ[30]
SB_DQ[31]
SB_DQ[32]
SB_DQ[33]
SB_DQ[34]
SB_DQ[35]
SB_DQ[36]
SB_DQ[37]
SB_DQ[38]
SB_DQ[39]
SB_DQ[40]
SB_DQ[41]
SB_DQ[42]
SB_DQ[43]
SB_DQ[44]
SB_DQ[45]
SB_DQ[46]
SB_DQ[47]
SB_DQ[48]
SB_DQ[49]
SB_DQ[50]
SB_DQ[51]
SB_DQ[52]
SB_DQ[53]
SB_DQ[54]
SB_DQ[55]
SB_DQ[56]
SB_DQ[57]
SB_DQ[58]
SB_DQ[59]
SB_DQ[60]
SB_DQ[61]
SB_DQ[62]
SB_DQ[63]
SB_BS[0]
SB_BS[1]
SB_BS[2]
SB_CAS#
SB_RAS#
SB_WE#
AE2
SB_CLK[0]
AD2
SB_CLK#[0]
R9
SB_CKE[0]
AE1
SB_CLK[1]
AD1
SB_CLK#[1]
R10
SB_CKE[1]
AB2
SB_CLK[2]
AA2
SB_CLK#[2]
T9
SB_CKE[2]
AA1
SB_CLK[3]
AB1
SB_CLK#[3]
T10
SB_CKE[3]
AD3
SB_CS#[0]
AE3
SB_CS#[1]
AD6
SB_CS#[2]
AE6
SB_CS#[3]
AE4
SB_ODT[0]
AD4
SB_ODT[1]
AD5
SB_ODT[2]
AE5
SB_ODT[3]
M_B_DQS#0
D7
SB_DQS#[0]
SB_DQS#[1]
SB_DQS#[2]
SB_DQS#[3]
SB_DQS#[4]
SB_DQS#[5]
SB_DQS#[6]
SB_DQS#[7]
SB_DQS[0]
SB_DQS[1]
SB_DQS[2]
SB_DQS[3]
SB_DQS[4]
SB_DQS[5]
SB_DQS[6]
DDR SYSTEM MEMORY B
DDR SYSTEM MEMORY B
SB_DQS[7]
SB_MA[0]
SB_MA[1]
SB_MA[2]
SB_MA[3]
SB_MA[4]
SB_MA[5]
SB_MA[6]
SB_MA[7]
SB_MA[8]
SB_MA[9]
SB_MA[10]
SB_MA[11]
SB_MA[12]
SB_MA[13]
SB_MA[14]
SB_MA[15]
F3
K6
N3
AN5
AP9
AK12
AP15
C7
G3
J6
M3
AN6
AP8
AK11
AP14
AA8
T7
R7
T6
T2
T4
T3
R2
T5
R3
AB7
R1
T1
AB10
R5
R4
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
M_B_CLK0 14
M_B_CLK0# 14
M_B_CKE0 14
M_B_CLK1 14
M_B_CLK1# 14
M_B_CKE1 14
M_B_CS#0 14
M_B_CS#1 14
M_B_ODT0 14
M_B_ODT1 14
04
M_B_DQS#[7:0] 14
M_B_DQS[7:0] 14
M_B_A[15:0] 14
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
A A
5
4
3
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
IVY Bridge 2/4
IVY Bridge 2/4
IVY Bridge 2/4
ZQS 45W
ZQS 45W
ZQS 45W
1
4 46
4 46
4 46
3C
3C
3C
Page 5
+
+
C510
C510
22u/6.3V_8
22u/6.3V_8
C178
C178
*22u/6.3V_8
*22u/6.3V_8
C176
C176
10u/6.3V_8
10u/6.3V_8
C498
C498
10u/6.3V_8
10u/6.3V_8
C146
C146
*10u/6.3V_8
*10u/6.3V_8
5
C179
C179
*22u/6.3V_8
*22u/6.3V_8
C504
C504
22u/6.3V_8
22u/6.3V_8
C181
C181
10u/6.3V_8
10u/6.3V_8
C499
C499
10u/6.3V_8
10u/6.3V_8
10uF (Reserved)
C194
C194
*10u/6.3V_8
*10u/6.3V_8
C457
C457
+
+
*470u/2V_7343
*470u/2V_7343
IVY Processor (POWER)
U15F
U15F
AG35
VCC1
AG34
VCC2
AG33
VCC3
AG32
VCC4
AG31
VCC5
AG30
VCC6
AG29
VCC7
AG28
VCC8
AG27
VCC9
AG26
VCC10
AF35
VCC11
AF34
VCC12
AF33
VCC13
AF32
VCC14
AF31
VCC15
AF30
VCC16
AF29
VCC17
AF28
VCC18
AF27
VCC19
AF26
VCC20
AD35
VCC21
AD34
VCC22
AD33
VCC23
AD32
VCC24
AD31
VCC25
AD30
VCC26
AD29
VCC27
AD28
VCC28
AD27
VCC29
AD26
VCC30
AC35
VCC31
AC34
VCC32
AC33
VCC33
AC32
VCC34
AC31
VCC35
AC30
VCC36
AC29
VCC37
AC28
VCC38
AC27
VCC39
AC26
VCC40
AA35
VCC41
AA34
VCC42
AA33
VCC43
AA32
VCC44
AA31
VCC45
AA30
VCC46
AA29
VCC47
AA28
VCC48
AA27
VCC49
AA26
VCC50
Y35
VCC51
Y34
VCC52
Y33
VCC53
Y32
VCC54
Y31
VCC55
Y30
VCC56
Y29
VCC57
Y28
VCC58
Y27
VCC59
Y26
VCC60
V35
VCC61
V34
VCC62
V33
VCC63
V32
VCC64
V31
VCC65
V30
VCC66
V29
VCC67
V28
VCC68
V27
VCC69
V26
VCC70
U35
VCC71
U34
VCC72
U33
VCC73
U32
VCC74
U31
VCC75
U30
VCC76
U29
VCC77
U28
VCC78
U27
VCC79
U26
VCC80
R35
VCC81
R34
VCC82
R33
VCC83
R32
VCC84
R31
VCC85
R30
VCC86
R29
VCC87
R28
VCC88
R27
VCC89
R26
VCC90
P35
VCC91
P34
VCC92
P33
VCC93
P32
VCC94
P31
VCC95
P30
VCC96
P29
VCC97
P28
VCC98
P27
VCC99
P26
VCC100
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
C164
C164
22u/6.3V_8
22u/6.3V_8
C180
C180
22u/6.3V_8
22u/6.3V_8
C511
C511
10u/6.3V_8
10u/6.3V_8
C500
C500
10u/6.3V_8
10u/6.3V_8
C454
C454
+
+
*470u/2V_7343
*470u/2V_7343
+VCC_CORE
C168
C168
22u/6.3V_8
22u/6.3V_8
C505
C505
22u/6.3V_8
22u/6.3V_8
C517
C517
10u/6.3V_8
10u/6.3V_8
C177
C177
10u/6.3V_8
10u/6.3V_8
C196
C196
*10u/6.3V_8
*10u/6.3V_8

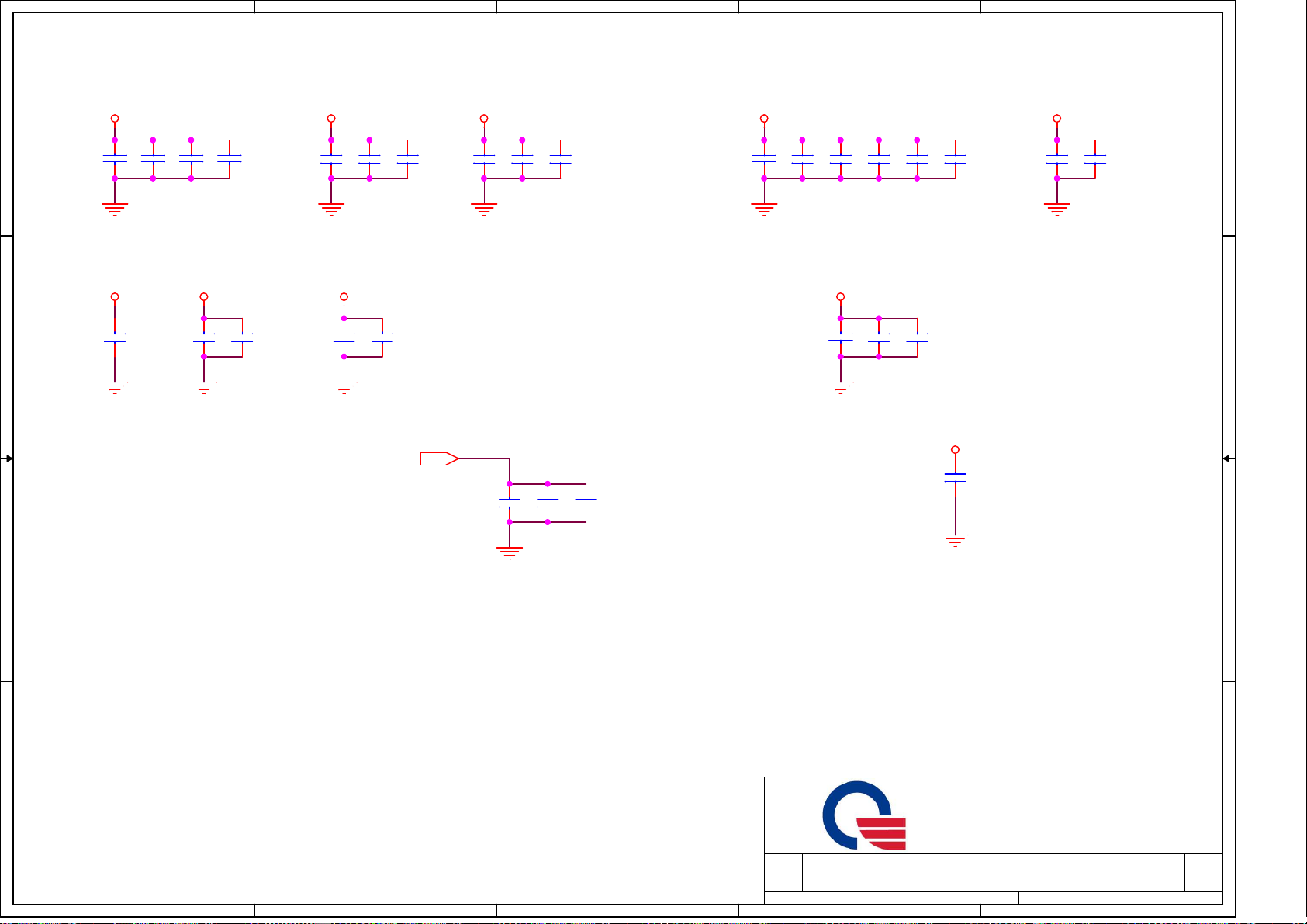

POWER
POWER
CORE SUPPLY
CORE SUPPLY
+1.05V3,7,8,9,11,23,34,37,38,42,43,46
+VCC_CORE37,45,46
+1.8V8,11,43,46
+VCC_GFX37,45
+1.5V_CPU15
+VDDR_REF_CPU15
+VCCSA40
CPU Core Power
IVY 45W:TDC 52A
IVY SPEC
D D
22uF_8 x8 Socket TOP cavity
22uF_8 x10 Socket BOT cavity
22uF_8 x8 Socket TOP edge
470uF_7343 x4
total : 10uF x 10 , RSVD x 1
total : 22uF x 16 , RSVD x 3
tatal : 470u x 4, RSVD x2
SNB : Spec
470uF/4mohm x 4
22uF x 16
10uF x 10
C172
C172
22u/6.3V_8
22u/6.3V_8
C188
C188
C C
22u/6.3V_8
22u/6.3V_8
B B
A A
C513
C513
22u/6.3V_8
22u/6.3V_8
C189
C189
*22u/6.3V_8
*22u/6.3V_8
C167
C167
22u/6.3V_8
22u/6.3V_8
C175
C175
+
+
330u/2V_7343
330u/2V_7343
Cose down
330uF x2
22uF x 4
10uF x 20
reserved x 5
C515
C515
22u/6.3V_8
22u/6.3V_8
C506
C506
22u/6.3V_8
22u/6.3V_8
C514
C514
10u/6.3V_8
10u/6.3V_8
C195
C195
*10u/6.3V_8
*10u/6.3V_8
C197
C197
22u/6.3V_8
22u/6.3V_8
C174
C174
330u/2V_7343
330u/2V_7343
4
AH13
VCCIO1
AH10
VCCIO2
AG10
VCCIO3
AC10
VCCIO4
Y10
VCCIO5
U10
VCCIO6
P10
VCCIO7
L10
VCCIO8
J14
VCCIO9
J13
VCCIO10
J12
VCCIO11
J11
VCCIO12
H14
VCCIO13
H12
VCCIO14
H11
VCCIO15
G14
VCCIO16
G13
VCCIO17
G12
VCCIO18
F14
VCCIO19
F13
VCCIO20
F12
VCCIO21
F11
VCCIO22
E14
VCCIO23
E12
VCCIO24
E11
VCCIO25
D14
VCCIO26
D13
VCCIO27
D12
VCCIO28
D11
VCCIO29
C14
VCCIO30
VCCIO31
VCCIO32
VCCIO33
VCCIO34
VCCIO35
VCCIO36
VCCIO37
VCCIO38
VCCIO39
VCCIO40
VIDALERT#
VIDSCLK
VIDSOUT
VCC_SENSE
VSS_SENSE
VCCIO_SENSE
C13
C12
C11
B14
B12
A14
A13
A12
A11
J23
AJ29
AJ30
AJ28
AJ35
AJ34
B10
A10
PEG AND DDR
PEG AND DDR
VSS_SENSE_VCCIO
SENSE LINES SVID
SENSE LINES SVID
CPU VTT
IVY 45W:8.5A
SNB : Spec
330uF/6mohm x 2
22uF x 12
+1.05V
22uF x 7 (Non-stuff)
C526
C526
22u/6.3V_8
22u/6.3V_8
C528
C528
22u/6.3V_8
22u/6.3V_8
C205
C205
*22u/6.3V_8
*22u/6.3V_8
+1.05V_VTT_40
H_CPU_SVIDALRT#
H_CPU_SVIDCLK
H_CPU_SVIDDAT
R367 *SHORT_4R367 *SHORT_4
R368 *SHORT_4R368 *SHORT_4
VTT_VCCP_SENSE
VTT_VSSP_SENSE
Trace Route to Power IC area.
Cose down
330uF x1
22uF x 2
10uF x 10
reserved x 4
+
+
+
+
R407 *SHORT_4R407 *SHORT_4
C204
C204
C539
C539
330u/2V_7343
330u/2V_7343
330u/2V_7343
330u/2V_7343
C191
C191
C190
C190
C529
22u/6.3V_8
22u/6.3V_8
C527
C527
22u/6.3V_8
22u/6.3V_8
C536
C536
*22u/6.3V_8
*22u/6.3V_8
IVY SPEC
2uF_8 x7 Socket TOP cavity
2
22uF_8 x5 Socket BOT cavity
22uF_8 x2 Socket TOP cavity (no stuff)
22uF_8 x5 Socket BOT cavity (no stuff)
330uF_7343 x2
C529
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
C209
C209
C522
C522
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
C535
C535
C521
C521
*22u/6.3V_8
*22u/6.3V_8
*22u/6.3V_8
*22u/6.3V_8
+1.05V
DIS.VGA-->EV@ + EOP@
Optimus-->IOP@ + EOP@
UMA-->IV@ + IOP@
Ssecial-->SP@
CPU VCCPL
IVY 45W:1.5A
Spec
330uF/7mohm x 1
10uF x 1
1uF x 2
IVY SPEC
3
30uF x1, 10uF_8 x1, 1uF_4 x2
Socket BOT edge.
R360 100/F_4R360 100/F_4
R361 100/F_4R361 100/F_4
R421 10/F_4R421 10/F_4
R425 10/F_4R425 10/F_4
+VCC_CORE
VCC_SENSE 37
VSS_SENSE 37
VTT_VCCP_SENSE 38
VTT_VSSP_SENSE 38
3
CPU VGT
IVY 45W:TDC 38A
Spec
470uF/4mohm x 2
22uF x 12
+VCC_GFX
C206
C206
C530
C530
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
22u/6.3V_8
C532
C532
C525
C525
22u/6.3V_8
22u/6.3V_8 C217
22u/6.3V_8
22u/6.3V_8
C523
C523
C520
C520
*22u/6.3V_8
*22u/6.3V_8
*22u/6.3V_8
*22u/6.3V_8
R470 *SHORT_8R470 *SHORT_8
+1.8V
R471 *SHORT_8R471 *SHORT_8
Real
10uF x 1
1uF x 2
Layout note: need routing
together and ALERT need
between CLK and DATA
H_CPU_SVIDCLK
+
+
C503
C503
IOP@330u/2V_7343
IOP@330u/2V_7343
C187
C187
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C183
C183
*IOP@22u/6.3V_8
*IOP@22u/6.3V_8
C184
C184
*IOP@22u/6.3V_8
*IOP@22u/6.3V_8
C507
C507
IOP@22u/6.3V_8
IOP@22u/6.3V_8
Cose down
330uF x1
22uF x 4
10uF x 10
Place PU resistor close to CPU
+1.05V
+1.05V
H_CPU_SVIDDAT
Place PU resistor close to CPU
IVY SPEC
22uF_8 x2 Socket TOP cavity
22uF_8 x2 Socket BOT cavity
22uF_8 x4 Socket TOP edge
22uF_8 x4 Socket BOT edge
470uF_7343 x2
+
+
C235
C235
IOP@330u/2V_7343
IOP@330u/2V_7343
C208
C208
C216
C216
IOP@22u/6.3V_8
IOP@22u/6.3V_8
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C217
C186
C186
IOP@22u/6.3V_8
IOP@22u/6.3V_8
*IOP@22u/6.3V_8
*IOP@22u/6.3V_8
C185
C185
C201
C201
IOP@22u/6.3V_8
IOP@22u/6.3V_8
*IOP@22u/6.3V_8
*IOP@22u/6.3V_8
C516
C516
C501
C501
IOP@22u/6.3V_8
IOP@22u/6.3V_8
IOP@22u/6.3V_8
IOP@22u/6.3V_8
Ra
R129 EV@0/J_4R129 EV@0/J_4
DIS. VGANAUMA/ Optimus
Ra 0 ohm
CPU_VCCPLL
C555
C555
C551
C551
1u/6.3V_4
1u/6.3V_4
10u/6.3V_8
10u/6.3V_8
R354 *SHORT_4R354 *SHORT_4
R365
R365
130/F_4
130/F_4
R353 *SHORT_4R353 *SHORT_4
+1.05V
AT24
AT23
AT21
+
+
C550
C550
*330u/2V_7343
*330u/2V_7343
AT20
AT18
AT17
AR24
AR23
AR21
AR20
AR18
AR17
AP24
AP23
AP21
AP20
AP18
AP17
AN24
AN23
AN21
AN20
AN18
AN17
AM24
AM23
AM21
AM20
AM18
AM17
AL24
AL23
AL21
AL20
AL18
AL17
AK24
AK23
AK21
AK20
AK18
AK17
AH24
AH23
AH21
AH20
AH18
AH17
+
+
C534
C534
*IOP@330u/2V_7343
*IOP@330u/2V_7343
C207
C207
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C193
C193
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C200
C200
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C512
C512
IOP@22u/6.3V_8
IOP@22u/6.3V_8
C556
C556
1u/6.3V_4
1u/6.3V_4
SVID CLK
Remove PU resistor 54.9/F,
stuff at IMVP7 page
SVID DATA
Remove PU resistor 130/F,
stuff at IMVP7 page
SVID ALERT
2
1
IVY Bridge Processor (GRAPHIC POWER)
POWER
U15G
U15G
VAXG1
VAXG2
VAXG3
VAXG4
VAXG5
VAXG6
VAXG7
VAXG8
VAXG9
VAXG10
VAXG11
VAXG12
VAXG13
VAXG14
VAXG15
VAXG16
VAXG17
VAXG18
VAXG19
VAXG20
VAXG21
VAXG22
VAXG23
VAXG24
VAXG25
VAXG26
VAXG27
VAXG28
VAXG29
VAXG30
VAXG31
VAXG32
VAXG33
VAXG34
VAXG35
VAXG36
VAXG37
VAXG38
VAXG39
VAXG40
VAXG41
VAXG42
AJ24
VAXG43
AJ23
VAXG44
AJ21
VAXG45
AJ20
VAXG46
AJ18
VAXG47
AJ17
VAXG48
VAXG49
VAXG50
VAXG51
VAXG52
VAXG53
VAXG54
B6
VCCPLL1
A6
VCCPLL2
A2
VCCPLL3
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
VR_SVID_CLK 37
VR_SVID_DATA 37
POWER
VAXG_SE NSE
VSSAXG_ SENSE
SENSE
LINES
SENSE
LINES
SA_DIMM_V REFDQ
VREFMISC
VREFMISC
SB_DIMM_V REFDQ
GRAPHICS
GRAPHICS
DDR3 -1.5V RAILS
DDR3 -1.5V RAILS
SA RAIL
SA RAIL
VCCSA_SE NSE
VCCSA_VID[0]
VCCSA_VID[1]
1.8V RAIL
1.8V RAIL
VCCIO_SEL
IVY SPEC
30uF x1, 10uF_8 x1 Socket BOT edge,
3
10uF_8 x2 Socket BOT cavity.
CPU SA
IVY 45W: 6A
Spec
330uF/7mohm x 1
10uF x 3
R369 100/F_4R369 100/F_4
AK35
AK34
R370 100/F_4R370 100/F_4
10 mil
+VDDR_REF_CPU
AL1
SM_VREF
Rb4
B4
D1
Rd1
IVY SPEC
30uF x1, 10uF_8 x6 Socket BOT edge.
3
AF7
VDDQ1
AF4
VDDQ2
AF1
VDDQ3
AC7
VDDQ4
AC4
VDDQ5
AC1
VDDQ6
Y7
VDDQ7
Y4
VDDQ8
Y1
VDDQ9
U7
VDDQ10
U4
VDDQ11
U1
VDDQ12
P7
VDDQ13
P4
VDDQ14
P1
VDDQ15
M27
VCCSA1
M26
VCCSA2
L26
VCCSA3
J26
VCCSA4
J25
VCCSA5
J24
VCCSA6
H26
VCCSA7
H25
VCCSA8
H23
C22
C24
VCCIO_SEL_NC
A19
Voltage selection for VCCIO:
this pin must be pulled high
on the motherboard
On CRB
H_SNB_IVB#_PWRCTRL = low, 1.0V
H_SNB_IVB#_PWRCTRL = high/NC, 1.05V
Real
10uF x 3
C546
C546
10u/6.3V_8
10u/6.3V_8
C245
C245
10u/6.3V_8
10u/6.3V_8
C182
C182
10u/6.3V_8
10u/6.3V_8
+VCC_GFX
+VDDR_REF_CPU
R466 *1K_4R466 *1K_4
R469 *1K_4R469 *1K_4
C547
C547
10u/6.3V_8
10u/6.3V_8
C240
C240
*10u/6.3V_8
*10u/6.3V_8
C169
C169
10u/6.3V_8
10u/6.3V_8
VCCSA_SENSE 40
VCCSA_VID0 40
VCCSA_VID1 40
TP103TP103
CPU MCH
IVY 45W: 5A
Spec
330uF/6mohm x 1
10uF x 6
Real
10uF x 8
C544
C544
10u/6.3V_8
10u/6.3V_8
C230
C230
*10u/6.3V_8
*10u/6.3V_8
C502
C502
10u/6.3V_8
10u/6.3V_8
VCC_AXG_SENSE 37
VSS_AXG_SENSE 37
For M3 solution
need Rb4, Rd1
W/O M3 then NC
ball B4 and D1
SMDDR_VREF_DQ0_M3 13
SMDDR_VREF_DQ1_M3 14
+1.5V_CPU
C543
C543
10u/6.3V_8
10u/6.3V_8
C558
C558
+
+
330u/2V_7343
330u/2V_7343
+
+
C445
C445
330u/2V_7343
330u/2V_7343
05
C234
C234
10u/6.3V_8
10u/6.3V_8
+VCCSA
R366
R366
75_4
H_CPU_SVIDALRT#
5
4
3
R359 43_4R359 43_4
75_4
R355 *SHORT_4R355 *SHORT_4
VR_SVID_ALERT# 37
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
IVY Bridge 3/4
IVY Bridge 3/4
IVY Bridge 3/4
1
ZQS 45W
ZQS 45W
ZQS 45W
5 46
5 46
5 46
3C
3C
3C
Page 6
5
4
3
2
1
IVY Bridge Processor (GND)
U15H
U15H
AT35
VSS1
AT32
VSS2
AT29
VSS3
AT27
VSS4
AT25
VSS5
AT22
VSS6
AT19
VSS7
AT16
VSS8
AT13
VSS9
D D
C C
B B
AT10
AR25
AR22
AR19
AR16
AR13
AR10
AP34
AP31
AP28
AP25
AP22
AP19
AP16
AP13
AP10
AN30
AN27
AN25
AN22
AN19
AN16
AN13
AN10
AM29
AM25
AM22
AM19
AM16
AM13
AM10
AM7
AM4
AM3
AM2
AM1
AL34
AL31
AL28
AL25
AL22
AL19
AL16
AL13
AL10
AK33
AK30
AK27
AK25
AK22
AK19
AK16
AK13
AK10
AJ25
AT7
AT4
AT3
AR7
AR4
AR2
AP7
AP4
AP1
AN7
AN4
AL7
AL4
AL2
AK7
AK4
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS
VSS
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
AJ22
AJ19
AJ16
AJ13
AJ10
AJ7
AJ4
AJ3
AJ2
AJ1
AH35
AH34
AH32
AH30
AH29
AH28
AH25
AH22
AH19
AH16
AH7
AH4
AG9
AG8
AG4
AF6
AF5
AF3
AF2
AE35
AE34
AE33
AE32
AE31
AE30
AE29
AE28
AE27
AE26
AE9
AD7
AC9
AC8
AC6
AC5
AC3
AC2
AB35
AB34
AB33
AB32
AB31
AB30
AB29
AB28
AB27
AB26
Y9
Y8
Y6
Y5
Y3
Y2
W35
W34
W33
W32
W31
W30
W29
W28
W27
W26
U9
U8
U6
U5
U3
U2
T35
T34
T33
T32
T31
T30
T29
T28
T27
T26
N35
N34
N33
N32
N31
N30
N29
N28
N27
N26
M34
K35
K32
K29
K26
H33
H30
H27
H24
H21
H18
H15
H13
H10
G35
G32
G29
G26
G23
G20
G17
G11
F34
F31
F29
U15I
U15I
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168
VSS169
VSS170
P9
VSS171
P8
VSS172
P6
VSS173
P5
VSS174
P3
VSS175
P2
VSS176
VSS177
VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
L33
VSS188
L30
VSS189
L27
VSS190
L9
VSS191
L8
VSS192
L6
VSS193
L5
VSS194
L4
VSS195
L3
VSS196
L2
VSS197
L1
VSS198
VSS199
VSS200
VSS201
VSS202
J34
VSS203
J31
VSS204
VSS205
VSS206
VSS207
VSS208
VSS209
VSS210
VSS211
VSS212
VSS213
H9
VSS214
H8
VSS215
H7
VSS216
H6
VSS217
H5
VSS218
H4
VSS219
H3
VSS220
H2
VSS221
H1
VSS222
VSS223
VSS224
VSS225
VSS226
VSS227
VSS228
VSS229
VSS230
VSS231
VSS232
VSS233
VSS
VSS
VSS234
VSS235
VSS236
VSS237
VSS238
VSS239
VSS240
VSS241
VSS242
VSS243
VSS244
VSS245
VSS246
VSS247
VSS248
VSS249
VSS250
VSS251
VSS252
VSS253
VSS254
VSS255
VSS256
VSS257
VSS258
VSS259
VSS260
VSS261
VSS262
VSS263
VSS264
VSS265
VSS266
VSS267
VSS268
VSS269
VSS270
VSS271
VSS272
VSS273
VSS274
VSS275
VSS276
VSS277
VSS278
VSS279
VSS280
VSS281
VSS282
VSS283
VSS284
VSS285
F22
F19
E30
E27
E24
E21
E18
E15
E13
E10
E9
E8
E7
E6
E5
E4
E3
E2
E1
D35
D32
D29
D26
D20
D17
C34
C31
C28
C27
C25
C23
C10
C1
B22
B19
B17
B15
B13
B11
B9
B8
B7
B5
B3
B2
A35
A32
A29
A26
A23
A20
A3
IVY Bridge Processor (RESERVED, CFG)
U15E
U15E
VCC_DIE_SENSE
RSVD28
RSVD29
RSVD30
RSVD31
RSVD32
RSVD33
RSVD34
RSVD35
RSVD37
RSVD38
RSVD39
RSVD40
RSVD41
RSVD42
RSVD43
RSVD44
RSVD45
RSVD46
RSVD47
RSVD48
RSVD49
RSVD50
RSVD51
RSVD52
BCLK_ITP
BCLK_ITP#
RSVD56
RSVD57
RSVD58
KEY
AH27
AH26
L7
AG7
AE7
AK2
W8
AT26
AM33
AJ27
T8
J16
H16
G16
AR35
AT34
AT33
AP35
AR34
B34
A33
A34
B35
C35
AJ32
AK32
AN35
AM35
AT2
AT1
AR1
B1
VSS_DIE_SENSE
Rs
TP21TP21
TP18TP18
TP23TP23
TP98TP98
TP11TP11
XDP_CFG0
CFG1
CFG2
CFG3
CFG4CFG4
CFG5
CFG6
CFG7CFG7
AK28
CFG[0]
AK29
CFG[1]
AL26
CFG[2]
AL27
CFG[3]
AK26
CFG[4]
AL29
CFG[5]
AL30
CFG[6]
AM31
CFG[7]
AM32
CFG[8]
AM30
CFG[9]
AM28
CFG[10]
AM26
CFG[11]
AN28
CFG[12]
AN31
CFG[13]
AN26
CFG[14]
AM27
CFG[15]
AK31
CFG[16]
AN29
CFG[17]
AJ31
VAXG_VAL_SENSE
AH31
VSSAXG_VAL_SENSE
AJ33
VCC_VAL_SENSE
AH33
VSS_VAL_SENSE
AJ26
RSVD5
F25
RSVD8
F24
RSVD9
F23
RSVD10
D24
RSVD11
G25
RSVD12
G24
RSVD13
E23
RSVD14
D23
RSVD15
C30
RSVD16
A31
RSVD17
B30
RSVD18
B29
RSVD19
D30
RSVD20
B31
RSVD21
A30
RSVD22
C29
RSVD23
J20
RSVD24
B18
RSVD25
J15
RSVD27
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
CFG
CFG
RESERVED
RESERVED
VCC_DIE_SENSE
VSS_DIE_SENSE
R112
R112
*0_4
*0_4
TP100TP100
TP12TP12
TP14TP14
TP13TP13
TP17TP17
TP24TP24
For Sandy For IVY
Rs
06
Stuff NC
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
Processor Strapping
The CFG signals have a default value of '1' if not terminated on the board.
1 0
A A
CFG2
(PEG Static Lane Reversal)
CFG4
(DP Presence Strap)
CFG7
(PEG Defer Training)
Normal Operation
Disable; No physical DP attached to eDP
PEG train immediately following
xxRESETB de assertion
5
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
Lane Reversed
Enable; An ext DP device is connected to eDP
PEG wait for BIOS training
4
CFG2
CFG4
CFG7
R120 1K/F_4R120 1K/F_4
R113 1K/F_4R113 1K/F_4
R109 *1K/F_4R109 *1K/F_4
3
eDP_EN# 23
CFG5
CFG6
R110 *1K/F_4R110 *1K/F_4
R108 *1K/F_4R108 *1K/F_4
CFG[6:5] (PCIE Port Bifurcation Straps)
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
2
Wednesday, February 08, 2012
PROJECT :
IVY Bridge 4/4
IVY Bridge 4/4
IVY Bridge 4/4
1
ZQS 45W
ZQS 45W
ZQS 45W
6 46
6 46
6 46
3C
3C
3C
Page 7
5
+1.05V3,5,8,9,11,23,34,37,38,42,43,46
+3V
+3V_S58,9,10,11,15,16,29,31,33,36,37,38,43,44
DPWROK_EC34
DMI_RXN03
+1.05V
SUS_PWR_ACK
R559
R559
R282 *0_4R282 *0_4
*SHORT_4
*SHORT_4
EC_PWROK_R
DMI_RXN13
DMI_RXN23
DMI_RXN33
DMI_RXP03
DMI_RXP13
DMI_RXP23
DMI_RXP33
DMI_TXN03
DMI_TXN13
DMI_TXN23
DMI_TXN33
DMI_TXP03
DMI_TXP13
DMI_TXP23
DMI_TXP33
R495 49.9/F_4R495 49.9/F_4
R499 750/F_4R499 750/F_4
R257 *0_4R257 *0_4
C607 *1u/10V_4C607 *1u/10V_4
*SHORT_4
*SHORT_4
SBA
R609 NSBA@0_4R609 NSBA@0_4
XDP_DBRST#
C698
C698
*0.1u/10V_4
*0.1u/10V_4
D D
C C
XDP_DBRST#3
SYS_PWROK
R294
R294
C15 Add 0Ω R609 to net EC_PWROK_R. 12/29
PM_DRAM_PWRGD15
PCH_RSMRST#34
DNBSWON#34
B B
EC_PWROK_R34,44
DPWROK_EC
DMI_COMP
SUSACK#_R
SYS_PWROK_R
EC_PWROK_RPWROK_EC
PM_DRAM_PWRGD
PCH_RSMRST#
SUS_PWR_ACK
AC_PRESENT
PM_BATLOW#
PM_RI#
CPT/PPT (DMI,FDI,PM)
U21C
U21C
BC24
DMI0RXN
BE20
DMI1RXN
BG18
DMI2RXN
BG20
DMI3RXN
BE24
DMI0RXP
BC20
DMI1RXP
BJ18
DMI2RXP
BJ20
DMI3RXP
AW24
DMI0TXN
AW20
DMI1TXN
BB18
DMI2TXN
AV18
DMI3TXN
AY24
DMI0TXP
AY20
DMI1TXP
AY18
DMI2TXP
AU18
DMI3TXP
BJ24
DMI_ZCOMP
BG25
DMI_IRCOMP
BH21
DMI2RBIAS
C12
SUSACK#
K3
SYS_RESET#
P12
SYS_PWROK
L22
PWROK
L10
APWROK
B13
DRAMPWROK
C21
RSMRST#
K16
SUSWARN#/SUSPWRDNACK/GPIO30
E20
PWRBTN#
H20
ACPRESENT / GPIO31
E10
BATLOW# / GPIO72
A10
RI#
PANTHER POINT
PANTHER POINT
DMI
FDI
DMI
FDI
+3V
CLKRUN# / GPIO32
+3V_S5
SUS_STAT# / GPIO61
+3V_S5
+3V_S5
SLP_S5# / GPIO63
System Power Management
System Power Management
DSW
+3V_S5
+3V_S5
SLP_LAN# / GPIO29
FDI_RXN0
FDI_RXN1
FDI_RXN2
FDI_RXN3
FDI_RXN4
FDI_RXN5
FDI_RXN6
FDI_RXN7
FDI_RXP0
FDI_RXP1
FDI_RXP2
FDI_RXP3
FDI_RXP4
FDI_RXP5
FDI_RXP6
FDI_RXP7
FDI_INT
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
DSWVRMEN
DPWROK
WAKE#
SUSCLK / GPIO62
SLP_S4#
+3V_S5
SLP_S3#
SLP_A#
SLP_SUS#
PMSYNCH
4
Pin K47 --->LVDS Enable
--->2.2K pull-up 3.3V
BJ14
AY14
BE14
BH13
BC12
BJ12
BG10
BG9
BG14
BB14
BF14
BG13
BE12
BG12
BJ10
BH9
AW16
AV12
BC10
AV14
BB10
A18
E22
B9
N3
G8
N14
D10
H4
F4
G10
G16
AP14
K14
PCIE_WAKE#
CLKRUN#
SUS_STAT#
PCH_SUSCLK
PCH_SLP_S5#
SLP_A#
SLP_SUS#
SLP_LAN#
TP127T P127
TP128T P128
TP130T P130
R2200_4 R2200_4
R646*0_4 R646*0_4
PCH_RSMRST#
DPWROK_EC
Disable ---> No connect
FDI_TXN0 3
FDI_TXN1 3
FDI_TXN2 3
FDI_TXN3 3
FDI_TXN4 3
FDI_TXN5 3
FDI_TXN6 3
FDI_TXN7 3
FDI_TXP0 3
FDI_TXP1 3
FDI_TXP2 3
FDI_TXP3 3
FDI_TXP4 3
FDI_TXP5 3
FDI_TXP6 3
FDI_TXP7 3
FDI_INT 3
FDI_FSYNC0 3
FDI_FSYNC1 3
FDI_LSYNC0 3
FDI_LSYNC1 3
DSWVREN 8
Change R220 from shortpad to 0Ω, reserve 0Ω R646 connect to DPWROK_EC. 01/05C22
PCIE_WAKE# 29
CLKRUN# 34
TP129T P129
SUSC# 34
SUSB# 34
SLP_A# 34
PM_SYNC 3
3
INT_LVDS_BLON23
INT_LVDS_DIGON23
INT_LVDS_BRIGHT23
INT_LVDS_EDIDCLK23
INT_LVDS_EDIDDATA23
+3V
INT_TXLCLKOUT-23
INT_TXLCLKOUT+23
INT_TXLOUT0-23
INT_TXLOUT1-23
INT_TXLOUT2-23
INT_TXLOUT0+23
INT_TXLOUT1+23
INT_TXLOUT2+23
INT_CRT_BLU23
INT_CRT_GRN23
INT_CRT_RED23
INT_CRT_DDCCLK23
INT_CRT_DDCDAT23
INT_HSYNC23
INT_VSYNC23
The required series-resistors are:
‧‧‧‧
Direct Connect - 33 Ω
‧‧‧‧
Docking Topology - 20 Ω
R place close to PCH
R451 IOP@150/F_4R451 IOP@150/F_4
R452 IOP@150/F_4R452 IOP@150/F_4
R453 IOP@150/F_4R453 IOP@150/F_4
R445 IOP@33_4R445 IOP@33_4
R446 IOP@33_4R446 IOP@33_4
INT_CRT_BLU
INT_CRT_GRN
INT_CRT_RED
R176 2.2K_4R176 2.2K_4
R168 2.2K_4R168 2.2K_4
R190 2.37K/F_4R190 2.37K/F_4
TP126T P126
INT_CRT_BLU
INT_CRT_GRN
INT_CRT_RED
INT_CRT_HSYNC_R
INT_CRT_VSYNC_R
DAC_IREF
R179
R179
IOP@1K/F_4
IOP@1K/F_4
2
CPT/PPT (LVDS,DDI)
U21D
U21D
J47
AF37
AF36
AE48
AE47
AK39
AK40
AN48
AM47
AK47
AJ48
AN47
AM49
AK49
AJ47
AF40
AF39
AH45
AH47
AF49
AF45
AH43
AH49
AF47
AF43
M45
P45
T40
K47
T45
P39
N48
P49
T49
T39
M40
M47
M49
T43
T42
L_BKLTEN
L_VDD_EN
L_BKLTCTL
L_DDC_CLK
L_DDC_DATA
L_CTRL_CLK
L_CTRL_DATA
LVD_IBG
LVD_VBG
LVD_VREFH
LVD_VREFL
LVDSA_CLK#
LVDSA_CLK
LVDSA_DATA#0
LVDSA_DATA#1
LVDSA_DATA#2
LVDSA_DATA#3
LVDSA_DATA0
LVDSA_DATA1
LVDSA_DATA2
LVDSA_DATA3
LVDSB_CLK#
LVDSB_CLK
LVDSB_DATA#0
LVDSB_DATA#1
LVDSB_DATA#2
LVDSB_DATA#3
LVDSB_DATA0
LVDSB_DATA1
LVDSB_DATA2
LVDSB_DATA3
CRT_BLUE
CRT_GREEN
CRT_RED
CRT_DDC_CLK
CRT_DDC_DATA
CRT_HSYNC
CRT_VSYNC
DAC_IREF
CRT_IRTN
PANTHER POINT
PANTHER POINT
SDVO_TVCLKINN
SDVO_TVCLKINP
SDVO_STALLN
SDVO_STALLP
SDVO_INTN
SDVO_INTP
SDVO_CTRLCLK
SDVO_CTRLDATA
DDPB_AUXN
DDPB_AUXP
DDPB_HPD
LVDS
LVDS
DDPC_CTRLCLK
DDPC_CTRLDATA
DDPC_AUXN
DDPC_AUXP
DDPC_HPD
Digital Display Interface
Digital Display Interface
DDPD_CTRLCLK
DDPD_CTRLDATA
DDPD_AUXN
DDPD_AUXP
CRT
CRT
DDPD_HPD
DDPB_0N
DDPB_0P
DDPB_1N
DDPB_1P
DDPB_2N
DDPB_2P
DDPB_3N
DDPB_3P
DDPC_0N
DDPC_0P
DDPC_1N
DDPC_1P
DDPC_2N
DDPC_2P
DDPC_3N
DDPC_3P
DDPD_0N
DDPD_0P
DDPD_1N
DDPD_1P
DDPD_2N
DDPD_2P
DDPD_3N
DDPD_3P
AP43
AP45
AM42
AM40
AP39
AP40
P38
M39
AT49
AT47
AT40
AV42
AV40
AV45
AV46
AU48
AU47
AV47
AV49
P46
P42
AP47
AP49
AT38
AY47
AY49
AY43
AY45
BA47
BA48
BB47
BB49
M43
M36
AT45
AT43
BH41
BB43
BB45
BF44
BE44
BF42
BE42
BJ42
BG42
Pin M39 ---> Enable
--->2.2K pull-up 3.3V
DDPC_HPD_PU
DDPC_HPD_PU
DDPD_HPD_PU
Follow PDG DP disable guide
DDPD_HPD_PU
1
07
HDMI_DDCCLK_SW 24
HDMI_DDCDATA_SW 24
HDMI_HP 24
INT_HDMITX2N 24
INT_HDMITX2P 24
INT_HDMITX1N 24
INT_HDMITX1P 24
INT_HDMITX0N 24
INT_HDMITX0P 24
INT_HDMICLK- 24
INT_HDMICLK+ 24
Pin P42 ---> Enable
--->2.2K pull-up 3.3V
+3V
R153 *2.2K_4R153 *2.2K_4
R158 *2.2K_4R158 *2.2K_4
Pin M36 ---> Enable
--->2.2K pull-up 3.3V
INT. HDMI
Reserve 0.1u capacitor C698 to EC_PWROK_R. 01/17C35
PCH Pull-high/low(CLG)
+3V
CLKRUN#
R535 8.2K_4R535 8.2K_4
XDP_DBRST#
R543 4.99K/F_4R543 4.99K/F_4
A A
PCH_RSMRST#
SYS_PWROK
R533 *1K_4R533 *1K_4
R221 10K_4R221 10K_4
R558 *10K_4R558 *10K_4
PM_RI#
PM_BATLOW#
PCIE_WAKE#
SLP_LAN#
SUS_PWR_ACK
AC_PRESENT
PM_DRAM_PWRGD
R552 10K_4R552 10K_4
R286 8.2K_4R286 8.2K_4
R530 10K_4R530 10K_4
R260 *10K_4R260 *10K_4
R251 10K_4R251 10K_4
R219 10K_4R219 10K_4
R507 200/F_4R507 200/F_4
+3V_S5
System PWR_OK(CLG)
to PCH Pin12, XDP and EE debug
SYS_PWROK15
SYS_PWROK
U24
U24
4
TC7SH08FU
TC7SH08FU
wo S3 leakage, remove R
5
4
IMVP_PWRGD PU +3V
PWROK_EC PD
+3V_S5
so AND gate output dont need PD again
C651
C651
*0.1u/10V_4
*0.1u/10V_4
2
PWROK_EC
1
3 5
R572
R572
100K_4
100K_4
3
IMVP_PWRGD 3,37
PWROK_EC 34
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
2
Wednesday, February 08, 2012
PROJECT :
Panther Point 1/6
Panther Point 1/6
Panther Point 1/6
ZQS 45W
ZQS 45W
ZQS 45W
7 46
7 46
1
7 46
3C
3C
3C
Page 8
5
RTC Circuitry(RTC)
20mils
R568 *SHORT_6R568 *SHORT_6
+3VPCU
20MIL
20MIL
D D
R573
R573
1K_4
1K_4
CN12
CN12
1
2
RTC_CON.
RTC_CON.
+3V_RTC_1
HDA Bus(CLG)
PCH JTAG Debug (CLG)
C C
PCH Dual SPI (CLG)
+3V_M
+3V_M SBA function.
PCH_SPI_CS0#
PCH_SPI_CLK
PCH_SPI_SI
PCH_SPI_SO
B B
SPI_CS0#_UR_ME34
R159 3.3K_4R159 3.3K_4
PCH_SPI_CS1#
PCH_SPI_CLK
PCH_SPI_SI
PCH_SPI_SO
R156 3.3K_4R156 3.3K_4
+3V_PCH_ME
+3V_PCH_ME
A A
+3V_RTC
D20
D20
R564 20K_4R564 20K_4
BAT54C
BAT54C
30mils
R566 20K_4R566 20K_4
C630
C630
1u/6.3V_4
1u/6.3V_4
PCH_AZ_CODEC_BITCLK27
PCH_AZ_CODEC_SYNC27
PCH_AZ_CODEC_RST#27
PCH_AZ_CODEC_SDOUT27
R531
R531
51_4
51_4
+3V_S5
C623
C623
1u/6.3V_4
1u/6.3V_4
C624
C624
1u/6.3V_4
1u/6.3V_4
CN13
DFWF02MS118
R485 33_4R485 33_4
R185 33_4R185 33_4
R195 33_4R195 33_4
R199 33_4R199 33_4
R295
R295
210/F_4
210/F_4
R269
R269
100/F_4
100/F_4
12
J1
J1
*SHORT_PAD
*SHORT_PAD
12
J2
J2
*SHORT_PAD
*SHORT_PAD
R283
R283
210/F_4
210/F_4
PCH_JTAG_TMS_R
PCH_JTAG_TDI_R
PCH_JTAG_TCK
R270
R270
100/F_4
100/F_4
RTC_RST#
SRTC_RST#
ACZ_BITCLK_R
ACZ_SYNC_CODEC
ACZ_RST#_R
ACZ_SDOUT_R
(Default for WIN8)
W25Q64BVSSIG / AKE3EFP0N00----->8MB
W25Q32BVSSIG / AKE391P0N00----->4MB
W25Q16BVSSIG / AKE38FP0N01----->2MB
R144 NSBA@0_6R144 NSBA@0_6
R625 SBA@0_6R625 SBA@0_6
U20
U20
1
R626 33_4R626 33_4
R627 33_4R627 33_4
R628 33_4R628 33_4
C242
C242
*22p/50V_4
*22p/50V_4
R629 33_4R629 33_4
R630 33_4R630 33_4
R631 33_4R631 33_4
C243
C243
*22p/50V_4
*22p/50V_4
+3VPCU
C11 Change R641 from reserve to mount per EC request. 12/27
5
CE#
6
SCK
5
SI
2
SO
3
WP#
ROM-2M
ROM-2M
U19
U19
1
CE#
6
SCK
5
SI
2
SO
3
WP#
SP@ROM-4M
SP@ROM-4M
R641
R641
4.7K_4
4.7K_4
+3VPCU11,23,25,26,31,33,34,35,36,43,44,46
+5V11,23,24,26,27,33,36,43,46
+3V_S57,9,10,11,15,16,29,31,33,36,37,38,43,44
+1.05V3,5,7,9,11,23,34,37,38,42,43,46
+3V
+1.8V5,11,43,46
8
VDD
R149 3.3K_4R149 3.3K_4
7
HOLD#
4
VSS
8
VDD
R150 3.3K_4R150 3.3K_4
7
HOLD#
4
VSS
R146 *0_4R146 *0_4
R147 0_4R147 0_4
+3V_PCH_ME+3V_S5
+3V_PCH_ME
+3V_PCH_ME
PCH_SPI_CS0#
PCH_SPI_CS1#
battery
AHL03003022
AHL03003024
C222
C222
0.1u/10V_4
0.1u/10V_4
C223
C223
0.1u/10V_4
0.1u/10V_4
4
3
PCH2(CLG)
C591 18p/50V_4C591 18p/50V_4
C590 18p/50V_4C590 18p/50V_4
Add MOSFET to separate CODEC SYNC signal
+5V
ACZ_SYNC_CODEC
CRB 1.0
R184
R184
1M_4
1M_4
2
1
Q13
Q13
2N7002K
2N7002K
PCH_SPI_CLK34
PCH_SPI_SI34
PCH_SPI_SO34
32.768KHZY332.768KHZ
+3V_RTC
3
PCH_AZ_CODEC_SDIN027
+3VPCU
23
Y3
4 1
R214 1M_4R214 1M_4
R537 *10K_4R537 *10K_4
R502
R502
10M_4
10M_4
SPKR27
TP37TP37
TP112TP112
TP39TP39
TP121TP121
PCH Strap Table
Pin Name
Strap description
No reboot mode setting PWROKSPKR
GNT3# / GPIO55 Top-Block Swap Override
INTVRMEN Integrated 1.05V VRM enable ALWAYS Should be always pull-up
GNT1# / GPIO51
GPIO19
Boot BIOS Selection 1 [bit-1]
Boot BIOS Selection 0 [bit-0]
HDA_SDO Flash Descriptor Security RSMRST
DF_TVS
GPIO28
DMI/FDI Termination voltage
On-die PLL Voltage Regulator RSMRST#
HDA_SYNC On-Die PLL VR Voltage Select RSMRST
GPIO15
DSWVREN DSW
NV_ALE
4
Intel ME Crypto Transport Layer
Security (TLS) cipher suite
internal PD
DEEP S4/S5 well
On Die DSW VR Enable
Intel Anti-Theft HDD protection
Only for Interposer
Sampled
Configuration
0 = Default (weak pull-down 20K)
1 = Setting to No-Reboot mode
PWROK
0 = "top-block swap" mode
1 = Default (weak pull-up 20K)
PWROK
PWROK
0 = effect (default)(weak pull-down 20K)
1 = overridden
PWROK
0 = Set to Vss (weak pull-down 20K)
1 = Set to Vcc
0 = Disable
1 = Enable (weak pull-up 20K)
0 = Support by 1.8V (weak pull-down)
1 = Support by 1.5V
RSMRST
0 = Disable (Default)
1 = Enable
High = Enable (Default)
Low = Disable
PWROK 0 = Disable (Internal pull-down 20kohm)
3
CPT/PPT (HDA,JTAG,SATA)
RTC_X1
RTC_X2
RTC_RST#
SRTC_RST#
SM_INTRUDER#
PCH_INVRMEN
ACZ_BITCLK_R
ACZ_SYNC_R
SPKR
ACZ_RST#_R
ACZ_SDOUT_R
PCH_GPIO33
PCH_GPIO13
PCH_JTAG_TCK
PCH_JTAG_TMS_R
PCH_JTAG_TDI_R
PCH_JTAG_TDO_R
PCH_SPI_CLK
PCH_SPI_CS0#
PCH_SPI_CS1#
PCH_SPI_SI
PCH_SPI_SO
GNT0#GNT1#
11
00
U21A
U21A
A20
RTCX1
C20
RTCX2
D20
RTCRST#
G22
SRTCRST#
K22
INTRUDER#
C17
INTVRMEN
N34
HDA_BCLK
L34
HDA_SYNC
T10
SPKR
K34
HDA_RST#
E34
HDA_SDIN0
G34
HDA_SDIN1
C34
HDA_SDIN2
A34
HDA_SDIN3
A36
HDA_SDO
C36
HDA_DOCK_EN# / GPIO33
N32
HDA_DOCK_RST# / GPIO13
J3
JTAG_TCK
H7
JTAG_TMS
K5
JTAG_TDI
H1
JTAG_TDO
T3
SPI_CLK
Y14
SPI_CS0#
T1
SPI_CS1#
V4
SPI_MOSI
U3
SPI_MISO
PANTHER POINT
PANTHER POINT
Boot Location
SPI
*
LPC
RTCIHDA
RTCIHDA
JTAG
JTAG
SPI
SPI
+3V_RTC
+3V
+3V
+3V_S5
+3V
+3V
+3V_RTC
ME_WR34
+3V_S5
+1.8V
2
FWH0 / LAD0
FWH1 / LAD1
FWH2 / LAD2
FWH3 / LAD3
LPC
LPC
FWH4 / LFRAME#
LDRQ0#
LDRQ1# / GPIO23
SERIRQ
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA1RXN
SATA 6G
SATA 6G
SATA1RXP
SATA1TXN
SATA1TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA3RXN
SATA3RXP
SATA3TXN
SATA3TXP
SATA4RXN
SATA4RXP
SATA4TXN
SATA
SATA
SATA4TXP
SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP
SATAICOMPO
SATAICOMPI
SATA3RCOMPO
SATA3COMPI
SATA3RBIAS
SATALED#
SATA0GP / GPIO21
SATA1GP / GPIO19
R279 *1K_4R279 *1K_4
+3V
R458 *1K_4R458 *1K_4
R500 330K_4R500 330K_4
R456 *1K_4R456 *1K_4
R536 *1K_4R536 *1K_4
R256 2.2K_4R256 2.2K_4
R255 1K_4R255 1K_4
R292 *1K_4R292 *1K_4
+3V_S5
R542 1K_4R542 1K_4
R503 330K_4R503 330K_4
R504 *330K_4R504 *330K_4
R248 *1K_4R248 *1K_4
2
C38
A38
B37
C37
D36
PCH_DRQ#0
E36
PCH_DRQ#1
K36
V5
R265 8.2K_4R265 8.2K_4
AM3
AM1
AP7
AP5
AM10
AM8
AP11
AP10
AD7
AD5
AH5
AH4
AB8
AB10
AF3
AF1
Y7
Y5
Second HDD
AD3
AD1
Y3
Y1
AB3
AB1
Y11
SATA_COMP
Y10
SATA3_COMP
AB12
AB13
SATA3_RBIAS
AH1
SATA_ACT#
P3
SATA0GP
V14
BBS_BIT0
P1
SPKR
PCH_INVRMEN
R481 *SHORT_4R481 *SHORT_4
+1.8V
R166 1K_4R166 1K_4
TP32TP32
TP110TP110
R232 37.4/F_4R232 37.4/F_4
R229 49.9/F_4R229 49.9/F_4
R529 750/F_4R529 750/F_4
R547 10K_4R547 10K_4
R277 10K_4R277 10K_4
PCI_GNT3# 9
BBS_BIT1 9
BBS_BIT0
ACZ_SDOUT_R
DF_TVS 10
H_SNB_IVB# 3
PLL_ODVR_EN 10
ACZ_SYNC_R
PCH_GPIO15 10
DSWVREN 7
NV_ALE 9
1
LPC_LAD0 25,34
LPC_LAD1 25,34
LPC_LAD2 25,34
LPC_LAD3 25,34
LPC_LFRAME# 25,34
IRQ_SERIRQ 34
+3V
SATA_RXN0_C 26
SATA_RXP0_C 26
SATA_TXN0 26
SATA_TXP0 26
SATA_RXN_SSD 25
SATA_RXP_SSD 25
SATA_TXN_SSD 25
SATA_TXP_SSD 25
DG recommended that AC coupling capacitors should be
close to the connector (<100 mils) for optimal signal quality.
TP120TP120
TP119TP119
TP56TP56
SATA_RXN5_C 26
SATA_RXP5_C 26
SATA_TXN5 26
SATA_TXP5 26
+1.05V
+3V
SATA_ACT# 33
+3V
SATA0GP/GPIO21
SATA4GP/GPIO16
SATA5GP/GPIO49
If these pins are unused use 8.2k
to 10k pull-up to +Vcc3_3 or 8.2k
to 10k pull-down to ground
SATA HDD
SSD
SATA ODD
Used as GPIO only. at chklist 1.2
Default weak pull-up on GNT0/1#
[Need external pull-down for LPC BIOS]
ME_WR default EC setting folating
for future CPU, Sandy Bridge NC
DF_TVS needs to be pulled up to VccDFTERM power rail
through 2.2 kOhm ±5% - R8361 change to 0 or not??
Needs to be pulled High for Huron River platform.
chklist 1.2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
Panther Point 2/6
Panther Point 2/6
Panther Point 2/6
ZQS 45W
ZQS 45W
ZQS 45W
1
08
8 46
8 46
8 46
3C
3C
3C
Page 9
5
+3V
+3V_S57,8,10,11,15,16,29,31,33,36,37,38,43,44
+1.05V3,5,7,8,11,23,34,37,38,42,43,46
CPT/PPT (PCI,USB,NVRAM)
U21E
U21E
BG26
TP1
BJ26
TP2
BH25
TP3
BJ16
TP4
BG16
TP5
AH38
TP6
D D
TX AC cap place at connector side, AC cap to
connector < 400 mils
USB3.0
C C
CLK_LPC_DEBUG25
CLK_PCI_77534
B B
PLTRST#(CLG)
PCI_PLTRST#
A A
TP44TP44
USB30_RX3-31
TP50TP50
USB30_RX3+31
TP48TP48 TP133TP133
USB30_TX3-31
TP49TP49
USB30_TX3+31
BBS_BIT18
BOARD_ID210
PCI_GNT3#8
G_SENSOR_INT#_PCH26
dGPU_PWR_EN42
DGPU_HOLD_RST#16
PCI_PLTRST#3
CLK_PCI_FB CLK_PCI_FB_C
R447 22_4R447 22_4
R178 22_4R178 22_4
R177 22_4R177 22_4
Change U22 PLTRST# power source from +3V_S5 to +3V. 01/17C30
+3V
2
1
U22
U22
3 5
TC7SH08FU
TC7SH08FU
TP41TP41
TP117TP117
TP42TP42
TP116TP116
TP46TP46
TP43TP43
TP47TP47
TP45TP45
TP54TP54
TP30TP30
4
PCI_PIRQA#
PCI_PIRQB#
PCI_PIRQC#
PCI_PIRQD#
dGPU_EDIDSEL#
dGPU_SELECT#
REQ#3
G_SENSOR_INT#_PCH
dGPU_PWR_EN
DGPU_HOLD_RST#
EXTTS_SNI_DRV1_PCH
CLK_LPC_DEBUG_C
CLK_PCI_775_C
C622
C622
0.1u/10V_4
0.1u/10V_4
5
USB30_RX1USB30_RX2USB30_RX3USB30_RX4USB30_RX1+
USB30_RX2+
USB30_RX3+
USB30_RX4+
USB30_TX1USB30_TX2USB30_TX3USB30_TX4USB30_TX1+
USB30_TX2+
USB30_TX3+
USB30_TX4+
PCI_PME#
PCI_PLTRST#
R551
R551
100K_4
100K_4
AH37
TP7
AK43
TP8
AK45
TP9
C18
TP10
N30
TP11
H3
TP12
AH12
TP13
AM4
TP14
AM5
TP15
Y13
TP16
K24
TP17
L24
TP18
AB46
TP19
AB45
TP20
B21
TP21
M20
TP22
AY16
TP23
BG46
TP24
BE28
TP25
BC30
TP26
BE32
TP27
BJ32
TP28
BC28
TP29
BE30
TP30
BF32
TP31
BG32
TP32
AV26
TP33
BB26
TP34
AU28
TP35
AY30
TP36
AU26
TP37
AY26
TP38
AV28
TP39
AW30
TP40
K40
PIRQA#
K38
PIRQB#
H38
PIRQC#
G38
PIRQD#
C46
REQ1# / GPIO50
C44
REQ2# / GPIO52
E40
REQ3# / GPIO54
D47
GNT1# / GPIO51
E42
GNT2# / GPIO53
F46
GNT3# / GPIO55
G42
PIRQE# / GPIO2
G40
PIRQF# / GPIO3
C42
PIRQG# / GPIO4
D44
PIRQH# / GPIO5
K10
PME#
C6
PLTRST#
H49
CLKOUT_PCI0
H43
CLKOUT_PCI1
J48
CLKOUT_PCI2
K42
CLKOUT_PCI3
H40
CLKOUT_PCI4
PANTHER POINT
PANTHER POINT
PLTRST# 16,25,29,34
USB30_RX1N
USB30_RX2N
USB30_RX3N
USB30_RX4N
USB30_RX1P
USB30_RX2P
USB30_RX3P
USB30_RX4P
USB30_TX1N
USB30_TX2N
USB30_TX3N
USB30_TX4N
USB30_TX1P
USB30_TX2P
USB30_TX3P
USB30_TX4P
RSVD
RSVD
PCI
PCI
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14
RSVD15
RSVD16
RSVD17
RSVD18
RSVD19
RSVD20
RSVD21
RSVD22
RSVD23
RSVD24
RSVD25
RSVD26
RSVD27
RSVD28
RSVD29
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N
USBP9P
USBP10N
USBP10P
USB
USB
USBP11N
USBP11P
USBP12N
USBP12P
USBP13N
USBP13P
USBRBIAS#
USBRBIAS
OC0# / GPIO59
OC1# / GPIO40
OC2# / GPIO41
OC3# / GPIO42
OC4# / GPIO43
OC5# / GPIO9
OC6# / GPIO10
OC7# / GPIO14
PCI/USBOC# Pull-up(CLG)
+3V
R479 *1K_4R479 *1K_4
R480 EOP@100K_4R480 EOP@100K_4
+3V
R155 SP_OPT@10K_4R155 SP_OPT@10K_4
R161
R161
+3V
R560 10K_4R560 10K_4
R548 *10K_ 4R548 *10K_4
AY7
AV7
AU3
BG4
AT10
BC8
AU2
AT4
AT3
AT1
AY3
AT5
AV3
AV1
BB1
BA3
BB5
BB3
BB7
BE8
BD4
BF6
AV5
AV10
AT8
AY5
BA2
AT12
BF3
C24
A24
C25
B25
C26
A26
K28
H28
E28
D28
C28
A28
C29
B29
N28
M28
L30
K30
G30
E30
C30
A30
L32
K32
G32
E32
C32
A32
C33
B33
USB_OC0#
A14
USB_OC1#
K20
USB_OC2#
B17
USB_OC3#
C16
USB_OC4#
L16
USB_OC5#
A16
USB_OC6#
D14
USB_OC7#
C14
USB_OC4#
USB_OC1#
USB_OC2#
USB_OC3#
SP_DIS_UMA@10K_4
SP_DIS_UMA@10K_4
4
NV_ALE 8
Port1 and port9 can be used on debug mode
USBP0-
TP131TP131
USBP0+
USBP3USBP3+
USBP5USBP5+
USBP11USBP11+
USBP12USBP12+
USBP13USBP13+
USB_BIAS
+3V_S5
Reserve for USB I/O function
USBP1- 31
USBP1+ 31
USBP2- 31
USBP2+ 31
USBP3- 25
USBP3+ 25
USBP4- 31
USBP4+ 31
TP137TP137
TP138TP138
Reserve for SIM card
USB port6/7 may not be available on all PCH sku
(HM55 support 12port only)
USBP8- 23
USBP8+ 23
USBP9- 31
USBP9+ 31
USBP10- 25
USBP10+ 25
T25T25
T26T26
Reserve for card reader
TP145TP145
TP147TP147
Reserve for Touch pad
TP149TP149
TP150TP150
Reserve for FP
R482 22.6/F_4R482 22.6/F_4
R505
R505
10
1
9
2
8
3
7 4
56
10K_10P8R
10K_10P8R
dGPU_PW_CTRL# 10
SKU_ID1
SKU_ID0 10
4
3
LAN
Wireless
USB/B-USB1-1/USB debug
MB USB
Mini-SSD
BLUETOOTH
Camera
USB/B-USB1-2
MINI-CARD WLAN(MPC)
XHCI for USBP0-3
EHCI1
EHCI2
Wireless
USB_OC1# 31
USB_OC4# 31
PCI_PIRQA#
PCI_PIRQB#
PCI_PIRQC#
G_SENSOR_INT#_PCH
REQ#3
dGPU_PWR_EN
dGPU_PW_CTRL#
(GPIO68)
CTL : dGPU_VRON
100
0
PCI_PIRQD#
SKU_ID1
(GPIO64)
011
+3V
USB_OC6#
USB_OC0#
USB_OC7#
USB_OC5#
UMA Only
dGPU Only
Switchable
(Mux)
Optimize
(Muxless)
dGPU_PW_CTRL#
1 = GPU power is control by H/W (pure Discrete SKU)
0 = GPU power is control by PCH GPIO (Discrete, SG or Optimiz e)
--->(Default)
R541 10K_4R541 10K_4
R467
R467
10
9
8
7 4
10K_10P8R
10K_10P8R
SKU_ID0
(GPIO16)
0
1
LAN
R171 8.2K_4R171 8.2K_4
R192 8.2K_4R192 8.2K_4
R165 8.2K_4R165 8.2K_4
R172 8.2K_4R172 8.2K_4
DGPU_HOLD_RST#
1
EXTTS_SNI_DRV1_PCH
2
dGPU_EDIDSEL#
3
dGPU_SELECT#
56
VGA H/W
Setup
Signal
Menu
UMA
Hidden
GPU
Hidden
UMA+GPU
dGPU/SG
UMA
UMA/SG
3
CLK_PCH_SRC5#25
CLK_PCH_SRC525
PCIE_CLKREQ5#25
CLK_PCIE_LAN_REQ#29
UMA boot
GPU boot
UMA boot
UMA boot
PCIE_RX3-29
PCIE_RX3+29
PCIE_TX3-29
PCIE_TX3+29
PCIE_RX8-25
PCIE_RX8+25
PCIE_TX8-25
PCIE_TX8+25
CLK_PCIE_LOM#29
CLK_PCIE_LOM29
For XDP
+3V
+3V
TP132TP132
TP134TP134
TP115TP115
TP114TP114
TP40TP40
TP36TP36
C565 0.1u/10V_4C565 0.1u/10V_4
C567 0.1u/10V_4C567 0.1u/10V_4
TP34TP34
TP38TP38
TP111TP111
TP113TP113
TP33TP33
TP35TP35
TP31TP31
C256 0.1u/10V_4C256 0.1u/10V_4
C261 0.1u/10V_4C261 0.1u/10V_4
TP135TP135
TP136TP136
TP139TP139
TP140TP140
TP141TP141
TP142TP142
TP146TP146
TP148TP148
R162 *SHORT_4R162 *SHORT_4
R157 *SHORT_4R157 *SHORT_4
R175 *SHORT_4R175 *SHORT_4
R167 *SHORT_4R167 *SHORT_4
TP151TP151
TP152TP152
TP154TP154
TP155TP155
+3V_S5
+3V
+3V_S5
CLK_PEGA_REQ#
CLK_BUF_BCLKN
CLK_BUF_BCLKP
CLK_BUF_PCIE_3GPLLN
CLK_BUF_PCIE_3GPLLP
CLK_BUF_DREFCLKN
CLK_BUF_DREFCLKP
CLK_BUF_DREFSSCLKN
CLK_BUF_DREFSSCLKP
CLK_PCH_14M
CLOCK TERMINATION for FCIM
PER1PER1+
PET1PET1+
PCIE_TXN3_C
PCIE_TXP3_C
PET4+
PET5+
PER6-
PER6+
PET6PET6+
PET7+
PCIE_TXN8_C
PCIE_TXP8_C
PCIE_CLK_USB30_REQ#
PCIE_CLKREQ1#
PCIE_CLK_REQ2#
PCIE_CLKREQ3#
PCIE_CLKREQ4#
PCIE_CLKREQ5#
CLK_PCIE_LOM#_R
CLK_PCIE_LOM_R
CLK_PCIE_LAN_REQ#
CLK_PCH_SRC6P
CLK_PCIE_REQ6#
CLK_PCH_SRC7P
CLK_PCIE_REQ7#
CLK_ITPN
CLK_ITPP
R556 10K_4R556 10K_4
R528 10K_4R528 10K_4
R262 10K_4R262 10K_4
R259 10K_4R259 10K_4
R284 10K_4R284 10K_4
R258 10K_4R258 10K_4
R273 10K_4R273 10K_4
R534 10K_4R534 10K_4
R249 10K_4R249 10K_4
R275
R275
PCIE_CLK_USB30_REQ#
PCIE_CLKREQ3#
PCIE_CLKREQ4#
PCIE_CLKREQ5#
CLK_PCIE_LAN_REQ#
CLK_PCIE_REQ6#
CLK_PCIE_REQ7#
PCIE_CLKREQ1#
PCIE_CLK_REQ2#
*10K_4
*10K_4
CLK_PEGA_REQ#
Pill-up in N13P side
R632 *10K_4R632 *10K_4
R490 10K_4R490 10K_4
R488 10K_4R488 10K_4
R225 10K_4R225 10K_4
R227 10K_4R227 10K_4
R206 10K_4R206 10K_4
R210 10K_4R210 10K_4
R238 10K_4R238 10K_4
R154 10K_4R154 10K_4
2
CPT/PPT (PCI-E,SMBUS,CLK)
U21B
U21B
BG34
PERN1
BJ34
PERP1
AV32
PETN1
AU32
PETP1
BE34
PERN2
BF34
PERP2
BB32
PETN2
AY32
PETP2
BG36
PERN3
BJ36
PERP3
AV34
PETN3
AU34
PETP3
BF36
PERN4
BE36
PERP4
AY34
PETN4
BB34
PETP4
BG37
PERN5
BH37
PERP5
AY36
PETN5
BB36
PETP5
BJ38
PERN6
BG38
PERP6
AU36
PETN6
AV36
PETP6
BG40
PERN7
BJ40
PERP7
AY40
PETN7
BB40
PETP7
BE38
PERN8
BC38
PERP8
AW38
PETN8
AY38
PETP8
Y40
CLKOUT_PCIE0N
Y39
CLKOUT_PCIE0P
J2
PCIECLKRQ0# / GPIO73
AB49
CLKOUT_PCIE1N
AB47
CLKOUT_PCIE1P
M1
PCIECLKRQ1# / GPIO18
AA48
CLKOUT_PCIE2N
AA47
CLKOUT_PCIE2P
V10
PCIECLKRQ2# / GPIO20
Y37
CLKOUT_PCIE3N
Y36
CLKOUT_PCIE3P
A8
PCIECLKRQ3# / GPIO25
Y43
CLKOUT_PCIE4N
Y45
CLKOUT_PCIE4P
L12
PCIECLKRQ4# / GPIO26
V45
CLKOUT_PCIE5N
V46
CLKOUT_PCIE5P
L14
PCIECLKRQ5# / GPIO44
AB42
CLKOUT_PEG_B_N
AB40
CLKOUT_PEG_B_P
E6
PEG_B_CLKRQ# / GPIO56
V40
CLKOUT_PCIE6N
V42
CLKOUT_PCIE6P
T13
PCIECLKRQ6# / GPIO45
V38
CLKOUT_PCIE7N
V37
CLKOUT_PCIE7P
K12
PCIECLKRQ7# / GPIO46
AK14
CLKOUT_ITPXDP_N
AK13
CLKOUT_ITPXDP_P
PANTHER POINT
PANTHER POINT
+3V_S5
+3V_S5
SMBUSController
SMBUSController
+3V_S5
SML1ALERT# / PCHHOT# / GPIO74
+3V_S5
+3V_S5
PCI-E*
PCI-E*
+3V_S5
+3V_S5
CLOCKS
CLOCKS
+3V
+3V
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V
+3V
+3V_S5
+3V
+3V
SMBALERT# / GPIO11
SML0ALERT# / GPIO60
SML1CLK / GPIO58
SML1DATA / GPIO75
Link
Link
PEG_A_CLKRQ# / GPIO47
CLKOUT_PEG_A_N
CLKOUT_PEG_A_P
CLKIN_PCILOOPBACK
CLKOUTFLEX0 / GPIO64
CLKOUTFLEX1 / GPIO65
CLKOUTFLEX2 / GPIO66
CLKOUTFLEX3 / GPIO67
FLEX CLOCKS
FLEX CLOCKS
SMBus(EC)CLK_REQ/Strap Pin(CLG)
R513 1K_4R513 1K_ 4
R274 10K_4R274 10K_4
R298 2.2K_4R298 2.2K_4
R297 2.2K_4R297 2.2K_4R242 10K_4R242 10K_4
R539 2.2K_4R539 2.2K_4
R250 2.2K_4R250 2.2K_4
R508 10K_4R508 10K_4
3
3
2ND_MBCLK34
2ND_MBDATA34
+3V_S5
2
SMBCLK
SMBDATA
SML0CLK
SML0DATA
CL_CLK1
CL_DATA1
CL_RST1#
CLKOUT_DMI_N
CLKOUT_DMI_P
CLKOUT_DP_N
CLKOUT_DP_P
CLKIN_DMI_N
CLKIN_DMI_P
CLKIN_GND1_N
CLKIN_GND1_P
CLKIN_DOT_96N
CLKIN_DOT_96P
CLKIN_SATA_N
CLKIN_SATA_P
REFCLK14IN
XTAL25_IN
XTAL25_OUT
XCLK_RCOMP
+3V_S5
2
1
Q15
Q15
2N7002K
2N7002K
+3V_S5
2
1
Q14
Q14
2N7002K
2N7002K
DRAMRST_CNTRL_PCH
SMBALERT#
SMB_PCH_CLK
SMB_PCH_DAT
SMB_ME0_CLK
SMB_ME0_DAT
SML1ALERT#_R
E12
H14
C9
A12
C8
G12
C13
E14
M16
M7
T11
P10
M10
AB37
AB38
AV22
AU22
AM12
AM13
BF18
BE18
BJ30
BG30
G24
E24
AK7
AK5
K45
H45
V47
V49
Y47
K43
F47
H47
K49
R244
R244
2.2K_4
2.2K_4
SMB_ME1_CLK
R240
R240
2.2K_4
2.2K_4
SMB_ME1_DAT
1
SMBALERT#
SMB_PCH_CLK
SMB_PCH_DAT
DRAMRST_CNTRL_PCH
SMB_ME0_CLK
SMB_ME0_DAT
SML1ALERT#_R
SMB_ME1_CLK
SMB_ME1_DAT
CL_CLK1
CL_DATA1
CL_RST1#
CLK_PEGA_REQ#
CLK_BUF_PCIE_3GPLLN
CLK_BUF_PCIE_3GPLLP
CLK_BUF_BCLKN
CLK_BUF_BCLKP
CLK_BUF_DREFCLKN
CLK_BUF_DREFCLKP
CLK_BUF_DREFSSCLKN
CLK_BUF_DREFSSCLKP
CLK_PCH_14M
CLK_PCI_FB
XTAL25_IN
XTAL25_OUT
XCLK_RCOMP
SKU_ID1
48M_CLK_CR
SMBus(PCH)
TP51TP51
TP118TP118
C25
SMB_PCH_CLK 25
SMB_PCH_DAT 25
DRAMRST_CNTRL_PCH 13,14,15
For LAN
R512 *0_4R512 *0_4
SML1ALERT# 10,33
For EC
TP57TP57
TP58TP58
TP52TP52
CLK_PEGA_REQ# 16
CLK_PCIE_VGA# 16
CLK_PCIE_VGA 16
CLK_CPU_BCLKN 3
CLK_CPU_BCLKP 3
CLK_DPLL_SSCLKN 3
CLK_DPLL_SSCLKP 3
R454
R454
1M_4
1M_4
R450 90.9/F_4R450 90.9/F_4
SMB_PCH_DAT
SMB_PCH_CLK
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
+1.05V
Zero_ODD_ID 10
BOARD_ID4 10,33
TP156TP156
+3V
S5 S0
2
3
1
Q16
Q16
2N7002K
2N7002K
+3V
2
3
1
Q17
Q17
2N7002K
2N7002K
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
Panther Point 3/6
Panther Point 3/6
Panther Point 3/6
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Wednesday, February 08, 2012
1
21
R580
R580
4.7K_4
4.7K_4
R579
R579
4.7K_4
4.7K_4
ZQS 45W
ZQS 45W
ZQS 45W
C553 27p/50V_4C5 53 27p/50V_4
C552 27p/50V_4C5 52 27p/50V_4
09
Y2
25MHzY225MHz
CLK_SDATA 13,14,26,33
CLK_SCLK 13,1 4,26,33
9 46
9 46
9 46
3C
3C
3C
Page 10
5
4
3
2
1
+3V
+3V_S57,8,9,11,15,16,29,31,33,36,37,38,43,44
S_GPIO
SIO_EXT_SMI#34
D D
C28 Change PCH_GPIO27 to WK_GPIO27. 01/12 C14 Change R234 from mount to reserve. 12/27
C C
B B
SATA2GP : strap for reserved at chklist 1.2
SATA3GP : strap for reserved at chklist 1.2
NOTE: The internal pull-down is disabled after PLTRST# deasserts.
NOTE: This signal should not be pulled high when strap is sampled.
A A
R268 100K_4R268 100K_4
FDI TERMINATION
VOLTAGE OVERRIDE
SIO_EXT_SCI#34
PCH_GPIO158
SKU_ID09
DGPU_PW ROK20
WK_GPIO2734
PLL_ODVR_EN8
dGPU_VRON41,42
SML1ALERT#9,33
FDI_OVRVLTG DMI_OVRVLTG G_Sensor_ID#
LOW - Tx, Rx terminated
to same voltage
5
TP55TP55
R281 *1K_4R281 *1K_4
SIO_EXT_SMI#
USB_Charger_ID
SIO_EXT_SCI#
G_Sensor_ID#
PCH_GPIO24
WK_GPIO27
PLL_ODVR_EN
STP_PCI#
DMI_OVRVLTG
FDI_OVRVLTG
MFG_MODE
BOARD_ID0
TEST_SET_UP
R561 *SHORT_4R561 *SHORT_4
SV_DET_NC
DMI TERMINATION
VOLTAGE OVERRIDE
CPT/PPT (GPIO,VSS_NCTF,RSVD)
U21F
U21F
R266 100_4R266 100_4
CRIT_TEMP_REP#
T7
BMBUSY# / GPIO0
A42
TACH1 / GPIO1
H36
TACH2 / GPIO6
E38
TACH3 / GPIO7
C10
GPIO8
C4
LAN_PHY_PWR_CTRL / GPIO12
G2
GPIO15
U2
SATA4GP / GPIO16
D40
TACH0 / GPIO17
T5
SCLOCK / GPIO22
E8
GPIO24 / MEM_LED
E16
GPIO27
P8
GPIO28
K1
STP_PCI# / GPIO34
K4
GPIO35
V8
SATA2GP / GPIO36
M5
SATA3GP / GPIO37
N2
SLOAD / GPIO38
M3
SDATAOUT0 / GPIO39
V13
SDATAOUT1 / GPIO48
V3
SATA5GP / GPIO49
D6
GPIO57
A4
VSS_NCTF_1
A44
VSS_NCTF_2
A45
VSS_NCTF_3
A46
VSS_NCTF_4
A5
VSS_NCTF_5
A6
VSS_NCTF_6
B3
VSS_NCTF_7
B47
VSS_NCTF_8
BD1
VSS_NCTF_9
BD49
VSS_NCTF_10
BE1
VSS_NCTF_11
BE49
VSS_NCTF_12
BF1
VSS_NCTF_13
BF49
VSS_NCTF_14
PANTHER POINT
PANTHER POINT
R267 *200K/F_4R267 *200K/F_4
Low = Tx, Rx terminated to
same voltage (DC Coupling Mode)
(DEFAULT)
4
+3V_S5
+3V_S5
DSW
+3V_S5
+3V
+3V_S5
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V_S5
+3V
+3V
+3V
GPIO
GPIO
+3V_S5
+3V
+3V
+3V
+3V
+3V
+3V
+3V
NCTF
NCTF
+3V+3V +3V
TACH4 / GPIO68
TACH5 / GPIO69
TACH6 / GPIO70
TACH7 / GPIO71
PROCPWRGD
THRMTRIP#
CPU/MISC
CPU/MISC
VSS_NCTF_15
VSS_NCTF_16
VSS_NCTF_17
VSS_NCTF_18
VSS_NCTF_19
VSS_NCTF_20
VSS_NCTF_21
VSS_NCTF_22
VSS_NCTF_23
VSS_NCTF_24
VSS_NCTF_25
VSS_NCTF_26
VSS_NCTF_27
VSS_NCTF_28
VSS_NCTF_29
VSS_NCTF_30
VSS_NCTF_31
VSS_NCTF_32
C40
B41
C41
A40
P4
A20GATE
AU16
PECI
P5
RCIN#
AY11
AY10
T14
INIT3_3V#
AY1
DF_TVS
AH8
TS_VSS1
AK11
TS_VSS2
AH10
TS_VSS3
AK10
TS_VSS4
P37
NC_1
BG2
BG48
BH3
BH47
BJ4
BJ44
BJ45
BJ46
BJ5
BJ6
C2
C48
D1
D49
E1
E49
F1
F49
Change BIO_REC to G_Sensor_ID# 10/21
Change MB ID for G-sensor
PCH GPIO22
Pull high=no G-Sensor
Pull low=have G-Sensor
G Sensor ID
BOARD_ID3
R475 10K_4R475 10K_4
SIO_A20GATE
PCH_PECI
SIO_RCIN#
PCH_THRMTRIP#
R290 NGS@10K_4R290 NGS@10K_4
R264 GS@1K_4R264 GS@1K_4
R243 390_4R243 390_4 R280 10K_4R280 10K_4
High = Disable (Default)
Low = Enable
3
TP53TP53
+3V
dGPU_PW _CTRL# 9
CABLE_ID 23
SIO_A20GATE 34
SIO_RCIN# 34
H_PWRGOOD 3
PM_THRMTRIP# 3
DF_TVS 8
USB_Charger_ID
USB Charger------->High
None Charger------->Low
+3V
R160 CH@10K_4R160 CH@10K_4
R174 NCH@10K_4R174 NCH@10K_4
SV_SET_UP
High = Strong (Default)
TEST_SET_UP
SGPIO
S_GPIO
R291 1K_4R291 1K_4
R278 *1K_4R278 *1K_4
MFG-TEST
MFG_MODE
R545 10K_4R545 10K_4
R546 *1K_4R546 *1K_4
2
GPIO Pull-up/Pull-down(CLG)
PCH_GPIO24
PLL_ODVR_EN
SIO_EXT_SMI#
SIO_EXT_SCI#
STP_PCI#
SIO_A20GATE
SIO_RCIN#
CRIT_TEMP_REP#
WK_GPIO27
GPIO27 : If not used then use 8.2-kΩ to 10-kΩ pull-down to GND.
Zero ODD ID
Zero ODD------->High
+3V
USB_Charger_ID
None Zero ODD------->Low
R501 ZP@10K_4R501 ZP@10K_4
R623 NZP@10K_4R623 NZP@10K_4
Reserve for future
+3V
R289 10K_4R289 10K_4 R448 *10K_4R448 *10K_4
R276 *1K_4R276 *1K_4
R544 *10K_4R544 *10K_4
R477 *10K_4R477 *10K_4
BOARD_ID2
8 Layer ------->High *
+3V
+3V
+3V
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
6 Layer ------->Low
R163 10K_4R163 10K_4
R170 *SP_6L@10K_4R170 *SP_6L@10K_4
Panther Point 4/6
Panther Point 4/6
Panther Point 4/6
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Wednesday, February 08, 2012
BOARD_ID0
BOARD_ID3BOARD_ID3
BOARD_ID3
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
10
R271 *10K_4R271 *10K_4
R293 10K_4R293 10K_4
R472 10K_4R472 10K_4
R173 10K_4R173 10K_4
R532 *10K_4R532 *10K_4
R287 10K_4R287 10K_4
R549 10K_4R549 10K_4
R234 *10K_4R234 *10K_4
Zero_ODD_ID 9
R557 *10K_4R557 *10K_4
R476 10K_4R476 10K_4
R440 10K_4R440 10K_4
BOARD_ID4 9,33
BOARD_ID3 33
BOARD_ID2 9
ZQS 45W
ZQS 45W
ZQS 45W
of
10 46
10 46
10 46
+3V_S5
+3V
+3V
3C
3C
3C
Page 11
5
4
3
2
1
PCH5(CLG)
??mA(??mils)
+5V_S5
+3V_S5
+5V
+3V
+3V_S5
+3V
+1.05V
+1.05V
11
CPT/PPT (POWER)
POWER
POWER
U21G
+1.05V +1.05V_PCH_VCC
R261 0.00 2/F_1206R261 0.002/F_1206
D D
C C
B B
A A
R5285 near PCH ball for VCCP GND sense
+1.05V +1.05V_VCCAPLL_EXP
+1.05V +1.05V_VCCIO
+1.05V
R215 *SHORT_6R215 *SHORT_6
L37 *1uH/25mA_6L37 *1uH/25mA_6
R516 0.00 2/F_1206R516 0.002/F_1206
+1.5V
+1.05V_PCH_VCCDPLL_EXP+1.05V
R272 0_6R272 0_6
R263 *0_6R263 *0_6
+1.05V
+VCCAFDI_VRM
VccCORE =1.3 A(60mils)
C279
C279
1u/6.3V_4
1u/6.3V_4
C588
C588
*10u/6.3V_6
*10u/6.3V_6
VccIO =2.925 A(140mils)
C313
C313
C299
C299
1u/6.3V_4
1u/6.3V_4
1u/6.3V_4
1u/6.3V_4
C298
C298
1u/6.3V_4
1u/6.3V_4
R493 *SHORT_8R493 *SHORT_8
+VCCAFDI_VRM
R236 *0 _8R236 *0_8
R231 *SHORT_8R231 *SHORT_8
+1.1V_VCC_DMI
VCCVRM: 1.8V (Destop)
1.5V (Mobile)
+3V_S57,8,9,10,15,16,29,31,33,36,37,38 ,43,44
+5V_S527,31,36,37,38,39,40,41,45,46
+1.5VSUS13,14,15,39 ,42,46
+5V8,23,24,26,27,33,36,43,46
+3V
+1.5V25,39,43
+1.05V3,5,7,8,9,23,34,37,38,42,43,46
+1.8V5,8,43,46
+3V_RTC8
C280
C280
1u/6.3V_4
1u/6.3V_4
+3V_VCC_EXP+3V
C273
C273
1u/6.3V_4
1u/6.3V_4
C303
C303
1u/6.3V_4
1u/6.3V_4
C309
C309
10u/6.3V_6
10u/6.3V_6
C579
C579
0.1u/10V_4
0.1u/10V_4
+VCCAFDI_VRM
+1.05V_VCCAPLL_FDI
+1.05V_VCCDPLL_FDI
C269
C269
10u/6.3V_6
10u/6.3V_6
AA23
AC23
AD21
AD23
AF21
AF23
AG21
AG23
AG24
AG26
AG27
AG29
AJ23
AJ26
AJ27
AJ29
AJ31
AN19
BJ22
AN16
AN17
AN21
AN26
AN27
AP21
AP23
AP24
AP26
AT24
AN33
AN34
BH29
AP16
BG6
AP17
AU20
U21G
VCCCORE[1]
VCCCORE[2]
VCCCORE[3]
VCCCORE[4]
VCCCORE[5]
VCCCORE[6]
VCCCORE[7]
VCCCORE[8]
VCCCORE[9]
VCCCORE[10]
VCCCORE[11]
VCCCORE[12]
VCCCORE[13]
VCCCORE[14]
VCCCORE[15]
VCCCORE[16]
VCCCORE[17]
VCCIO[28]
VCCAPLLEXP
VCCIO[15]
VCCIO[16]
VCCIO[17]
VCCIO[18]
VCCIO[19]
VCCIO[20]
VCCIO[21]
VCCIO[22]
VCCIO[23]
VCCIO[24]
VCCIO[25]
VCCIO[26]
VCC3_3[3]
VCCVRM[2]
VccAFDIPLL
VCCIO[27]
VCCDMI[2]
PANTHER POINT
PANTHER POINT
CRTLVDS
CRTLVDS
VCC CORE
VCC CORE
DMI
DMI
VCCIO
VCCIO
DFT / SPI HVCMOS
DFT / SPI HVCMOS
FDI
FDI
VCCADAC
VSSADAC
VCCALVDS
VSSALVDS
VCCTX_LVDS[1]
VCCTX_LVDS[2]
VCCTX_LVDS[3]
VCCTX_LVDS[4]
VCC3_3[6]
VCC3_3[7]
VCCVRM[3]
VCCDMI[1]
VCCCLKDMI
VCCDFTERM[1]
VCCDFTERM[2]
VCCDFTERM[3]
VCCDFTERM[4]
VCCSPI
U48
U47
AK36
AK37
AM37
AM38
AP36
AP37
V33
V34
AT16
AT20
AB36
AG16
AG17
AJ16
AJ17
V1
VccADAC =1mA(8mils)
C231
C231
22u/6.3V_8
22u/6.3V_8
VccALVDS=1mA(8mils)
When Dis sku, LVDS power can short to GND
VccTX_LVDS=60mA(10mils)
C265
C265
[email protected]/25V_4
[email protected]/25V_4
R200 *SHORT_6R200 *SHORT_6
C268
C268
0.1u/10V_4
0.1u/10V_4
+VCCAFDI_VRM
C545
C545
C246
C246
*10u/6.3V_6
*10u/6.3V_6
1u/6.3V_4
1u/6.3V_4
R253 *SHORT_8R253 *SHORT_8
C329
C329
0.1u/10V_4
0.1u/10V_4
VCCSPI = 20mA(8mils)
+3V_VCCME_SPI
R296 NSBA@0_6R296 NSBA@0_6
R642 *SBA@0_6R64 2 *SBA@0_6
C342
C342
1u/6.3V_4
1u/6.3V_4
+VCCA_DAC_1_2
C248
C248
C247
C247
0.01u/25V_4
0.01u/25V_4
0.1u/10V_4
0.1u/10V_4
+VCCALVDS +3V
C549
C549
C264
C264
IOP@22u/6.3V_8
IOP@22u/6.3V_8
[email protected]/25V_4
[email protected]/25V_4
+3V+3V_VCC_GIO
VCCDMI = 42mA(10mils)
+1.1V_VCC_DMI
+VCCAFDI_VRM
VCCCLKDMI = 20mA(8mils)
+VCC_DMI_CCI +1.05V+1.1V_VCC_DMI_CCI
L33
L33
*10uH/100mA_8
*10uH/100mA_8
+1.8V+VCCP_NAND
VCCPNAND = 190 mA(15mils)
+3V_S5
Reserve +3V_S5 to VCCSPI for EC 795
+3V_M
+3V_M for SBA function.
L16
L16
BKP1608HS181-T/180ohm/1.5A_6
BKP1608HS181-T/180ohm/1.5A_6
C236
C236
10u/6.3V_6
10u/6.3V_6
R203 IOP@0_4R20 3 IOP@0_4
R201 EV@0_4R201 EV@0_4
L34
L34
[email protected]/250mA_8
[email protected]/250mA_8
R439 EV@0_4R439 EV@0_4
R224 *SHORT_4R224 *SHORT_4
C304
C304
1u/6.3V_4
1u/6.3V_4
R435 *1/F_4R435 *1/F_4
R434 0_4R434 0_4
+3V
Change R230 from shortpad to 0Ω, add 0Ω R636 connect to +3VPCU. 01/05C20
+1.8V+VCC_TX_LVDS
+1.05V
L38 *10uH/100mA_8L38 *10uH/100mA_8
VCCME(+1.05V) = ??A(??mils)
+1.05V
+1.05V
VCCRTC<1mA(8mils)
+1.05V_M
R633 *SBA@0_ 8R633 *SBA@0_8
+1.05V_M for SBA function.
+1.05V
+1.05V
+1.05V_M
+1.05V_M for SBA function.
+1.05V
1mA(8mils)
+3V_RTC
+3V
R151 1/F_4R15 1 1/F_4
+3VPCU
+3V_S5
+VCCAPLL_CPY_PCH
+1.05V_VCCEPW
R563 *SHORT_6R563 *SHORT_6
R164 *SHORT_6R164 *SHORT_6
R436 *SHORT_6R436 *SHORT_6
R217 *NSBA@0_6R217 *NSBA@0_6
R634
R634
*SBA@0_6
*SBA@0_6
R510 *SHORT_4R510 *SHORT_4
L15 10uH/100mA_8L15 10uH/100mA_8
R449 *0 _8R449 *0_8
+1.05V
R636 *0_4R636 *0_4
VCCDSW3_3= 3mA
R230 0_4R230 0_4
C305
C305
0.1u/10V_4
0.1u/10V_4
R441 *SHORT_6R441 *SHORT_6
+1.05V
C589
C589
*10u/6.3V_6
*10u/6.3V_6
VccASW =1.01 A(60mils)
C275
C275
C271
C271
1u/6.3V_4
1u/6.3V_4
1u/6.3V_4
1u/6.3V_4
C626
C626
22u/6.3V_8
22u/6.3V_8
C628
C628
1u/6.3V_4
1u/6.3V_4
C259
C259
1u/6.3V_4
1u/6.3V_4
C542
C542
1u/6.3V_4
1u/6.3V_4
C296
C296
*1u/6.3V_4
*1u/6.3V_4
C598
C598
4.7u/6.3V_6
4.7u/6.3V_6
C300
C300
1u/6.3V_4
1u/6.3V_4
C312 0.1u/10V_4C312 0.1u/10V_4
65mA(10mils)
8mA(8mils)
VCCDIFFCLKN= 55mA(10mils)
VCCSSC= 95mA(10mils)
C311 0.1u/10V_4C311 0.1u/10V_4
C597
C597
0.1u/10V_4
0.1u/10V_4
C314
C314
0.1u/10V_4
0.1u/10V_4
C241
C241
10u/6.3V_6
10u/6.3V_6
C270
C270
1u/6.3V_4
1u/6.3V_4
C282
C282
22u/6.3V_8
22u/6.3V_8
+VCCAFDI_VRM
C600
C600
0.1u/10V_4
0.1u/10V_4
C315
C315
0.1u/10V_4
0.1u/10V_4
C325
C325
*0.1u/10V_4
*0.1u/10V_4
C278
C278
*1u/6.3V_4
*1u/6.3V_4
+V1.05M_VCCSUS
+VTT_VCCPCPU
+3V_SUS_CLKF33
C244
C244
1u/10V_4
1u/10V_4
CPT/PPT (POWER)
+VCCACLK
AD49
+VCCPDSW
PCH_VCCDSW
+3V_SUS_CLKF33
BH23
+VCCDPLL_CPY
AL29
+VCCSUS1
AL24
AA19
AA21
AA24
AA26
AA27
AA29
AA31
AC26
AC27
AC29
AC31
AD29
AD31
+VCCRTCEXT
+VCCAFDI_VRM
+1.05V_VCCA_A_DPL
+1.05V_VCCA_B_DPL
+VCCDIFFCLK
+VCCDIFFCLKN
+V1.05V_SSCVCC
+VCCSST
BD47
BF47
AF17
AF33
AF34
AG34
AG33
T16
V12
T38
W21
W23
W24
W26
W29
W31
W33
N16
Y49
V16
T17
V19
BJ8
A22
U21J
U21J
VCCACLK
VCCDSW3_3
DCPSUSBYP
VCC3_3[5]
VCCAPLLDMI2
VCCIO[14]
DCPSUS[3]
VCCASW[1]
VCCASW[2]
VCCASW[3]
VCCASW[4]
VCCASW[5]
VCCASW[6]
VCCASW[7]
VCCASW[8]
VCCASW[9]
VCCASW[10]
VCCASW[11]
VCCASW[12]
VCCASW[13]
VCCASW[14]
VCCASW[15]
VCCASW[16]
VCCASW[17]
VCCASW[18]
VCCASW[19]
VCCASW[20]
DCPRTC
VCCVRM[4]
VCCADPLLA
VCCADPLLB
VCCIO[7]
VCCDIFFCLKN[1]
VCCDIFFCLKN[2]
VCCDIFFCLKN[3]
VCCSSC
DCPSST
DCPSUS[1]
DCPSUS[2]
V_PROC_IO
VCCRTC
PANTHER POINT
PANTHER POINT
+1.05V
POWER
POWER
VCCSUS3_3[10]
Clock and Miscellaneous
Clock and Miscellaneous
PCI/GPIO/LPCMISC
PCI/GPIO/LPCMISC
SATA USB
SATA USB
CPURTC
CPURTC
HDA
HDA
L36 10uH/100mA_8L36 10uH/100mA_8
L35 10uH/100mA_8L35 10uH/100mA_8
Change C562, C564 from 220U to 100U for cost down. 02/08C38
VCCIO[29]
VCCIO[30]
VCCIO[31]
VCCIO[32]
VCCIO[33]
VCCSUS3_3[7]
VCCSUS3_3[8]
VCCSUS3_3[9]
VCCSUS3_3[6]
VCCIO[34]
V5REF_SUS
DCPSUS[4]
VCCSUS3_3[1]
V5REF
VCCSUS3_3[2]
VCCSUS3_3[3]
VCCSUS3_3[4]
VCCSUS3_3[5]
VCC3_3[1]
VCC3_3[8]
VCC3_3[4]
VCC3_3[2]
VCCIO[5]
VCCIO[12]
VCCIO[13]
VCCIO[6]
VCCAPLLSATA
VCCVRM[1]
VCCIO[2]
VCCIO[3]
VCCIO[4]
VCCASW[22]
VCCASW[23]
VCCASW[21]
VCCSUSHDA
N26
P26
P28
T27
T29
+3V_VCCPUSB
T23
T24
V23
V24
+3V_VCCAUBG
P24
+VCCAUPLL
T26
+5V_PCH_VCC5REFSUS
M26
+VCCA_USBSUS
AN23
+3V_VCCPSUS
AN24
+5V_PCH_VCC5REF
P34
N20
N22
+3V_VCCPSUS
P20
P22
AA16
+3V_VCCPCORE
W16
T34
C239
C239
0.1u/10V_4
0.1u/10V_4
AJ2
AF13
+V1.05S_SATA3
AH13
AH14
AF14
+V1.1LAN_VCCAPLL
AK1
VCCVRM= 114mA(15mils)
+VCCAFDI_VRM
AF11
AC16
AC17
AD17
VCCME = 1.01A(60mils)
T21
V21
T19
+V3.3A_1.5A_HDA_IO
P32
C559
C559
*1u/6.3V_4
*1u/6.3V_4
12
C564
C564
100U/6.3V_3528
100U/6.3V_3528
12
C562
C562
100U/6.3V_3528
100U/6.3V_3528
R223 *SHORT_6R223 *SHORT_6
C294
C294
*1u/6.3V_4
*1u/6.3V_4
+3V
R222 *SHORT_6R222 *SHORT_6
C310
C310
1u/6.3V_4
1u/6.3V_4
C560
C560
0.1u/10V_4
0.1u/10V_4
+1.05V_VCCA_A_DPL
C566
C566
1u/6.3V_4
1u/6.3V_4
+1.05V_VCCA_B_DPL
C554
C554
1u/6.3V_4
1u/6.3V_4
R211 *SHORT_8R211 *SHORT_8
C274
C274
1u/6.3V_4
1u/6.3V_4
R228 *SHORT_6R228 *SHORT_6
C308
C308
0.1u/10V_4
0.1u/10V_4
R216 *SHORT_6R216 *SHORT_6
C281
C281
0.1u/10V_4
0.1u/10V_4
C272
C272
0.1u/10V_4
0.1u/10V_4
C266
C266
1u/6.3V_4
1u/6.3V_4
C297
C297
1u/10V_4
1u/10V_4
C341
C341
0.1u/10V_4
0.1u/10V_4
C330
C330
0.1u/10V_4
0.1u/10V_4
C323
C323
1u/10V_4
1u/10V_4
C606
C606
*10u/6.3V_6
*10u/6.3V_6
R463 *0_4R463 *0_4
R462 0_4R462 0_ 4
+1.05V+1.05V_VCCUSBCORE
VCCSUS3_3 = 119mA(15mils)
+3V_S5
+1.05V
VCC5REFSUS=1mA
R233 10 /F_4R233 10/F_4
D3 RB500V-40D3 RB500V- 40
V5REF= 1mA
R141 10 /F_4R141 10/F_4
D2 RB500V-40D2 RB500V- 40
R235 *SHORT_6R235 *SHORT_6
VCCSUS3_3 = 119mA(15mils)
R285 *SHORT_6R285 *SHORT_6
VCCPCORE = 28mA(10mils)
+3V
R254 *SHORT_8R254 *SHORT_8
L39
L39
*10uH/100mA_8
*10uH/100mA_8
+1.05V
+1.05V_VCCEPW
+1.5VSUS
VCCSUSHDA= 10mA(8mils)
+3V_S5
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
ZQS 45W
PROJECT :
ZQS 45W
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Panther Point 5/6
Panther Point 5/6
Panther Point 5/6
Wednesday, February 08, 2012
Date: Sheet o f
Wednesday, February 08, 2012
Date: Sheet o f
Wednesday, February 08, 2012
5
4
3
2
Date: Sheet
1
ZQS 45W
11 46
11 46
11 46
3C
3C
3C
of
Page 12
5
4
3
2
1
PCH6(CLG)
12
U21I
U21I
AY4
VSS[159]
IBEX PEAK-M (GND)
D D
U21H
U21H
H5
VSS[0]
AA17
VSS[1]
AA2
VSS[2]
AA3
VSS[3]
AA33
VSS[4]
AA34
VSS[5]
AB11
VSS[6]
AB14
VSS[7]
AB39
VSS[8]
AB4
VSS[9]
AB43
VSS[10]
AB5
VSS[11]
AB7
VSS[12]
AC19
VSS[13]
AC2
VSS[14]
AC21
VSS[15]
AC24
VSS[16]
AC33
VSS[17]
AC34
VSS[18]
AC48
C C
B B
A A
5
AD10
AD11
AD12
AD13
AD19
AD24
AD26
AD27
AD33
AD34
AD36
AD37
AD38
AD39
AD4
AD40
AD42
AD43
AD45
AD46
AD8
AE2
AE3
AF10
AF12
AD14
AD16
AF16
AF19
AF24
AF26
AF27
AF29
AF31
AF38
AF4
AF42
AF46
AF5
AF7
AF8
AG19
AG2
AG31
AG48
AH11
AH3
AH36
AH39
AH40
AH42
AH46
AH7
AJ19
AJ21
AJ24
AJ33
AJ34
AK12
AK3
VSS[19]
VSS[20]
VSS[21]
VSS[22]
VSS[23]
VSS[24]
VSS[25]
VSS[26]
VSS[27]
VSS[28]
VSS[29]
VSS[30]
VSS[31]
VSS[32]
VSS[33]
VSS[34]
VSS[35]
VSS[36]
VSS[37]
VSS[38]
VSS[39]
VSS[40]
VSS[41]
VSS[42]
VSS[43]
VSS[44]
VSS[45]
VSS[46]
VSS[47]
VSS[48]
VSS[49]
VSS[50]
VSS[51]
VSS[52]
VSS[53]
VSS[54]
VSS[55]
VSS[56]
VSS[57]
VSS[58]
VSS[59]
VSS[60]
VSS[61]
VSS[62]
VSS[63]
VSS[64]
VSS[65]
VSS[66]
VSS[67]
VSS[68]
VSS[69]
VSS[70]
VSS[71]
VSS[72]
VSS[73]
VSS[74]
VSS[75]
VSS[76]
VSS[77]
VSS[78]
VSS[79]
PANTHER POINT
PANTHER POINT
VSS[80]
VSS[81]
VSS[82]
VSS[83]
VSS[84]
VSS[85]
VSS[86]
VSS[87]
VSS[88]
VSS[89]
VSS[90]
VSS[91]
VSS[92]
VSS[93]
VSS[94]
VSS[95]
VSS[96]
VSS[97]
VSS[98]
VSS[99]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
AK38
AK4
AK42
AK46
AK8
AL16
AL17
AL19
AL2
AL21
AL23
AL26
AL27
AL31
AL33
AL34
AL48
AM11
AM14
AM36
AM39
AM43
AM45
AM46
AM7
AN2
AN29
AN3
AN31
AP12
AP19
AP28
AP30
AP32
AP38
AP4
AP42
AP46
AP8
AR2
AR48
AT11
AT13
AT18
AT22
AT26
AT28
AT30
AT32
AT34
AT39
AT42
AT46
AT7
AU24
AU30
AV16
AV20
AV24
AV30
AV38
AV4
AV43
AV8
AW14
AW18
AW2
AW22
AW26
AW28
AW32
AW34
AW36
AW40
AW48
AV11
AY12
AY22
AY28
4
AY42
AY46
AY8
B11
B15
B19
B23
B27
B31
B35
B39
BB12
BB16
BB20
BB22
BB24
BB28
BB30
BB38
BB4
BB46
BC14
BC18
BC2
BC22
BC26
BC32
BC34
BC36
BC40
BC42
BC48
BD46
BD5
BE22
BE26
BE40
BF10
BF12
BF16
BF20
BF22
BF24
BF26
BF28
BD3
BF30
BF38
BF40
BF8
BG17
BG21
BG33
BG44
BG8
BH11
BH15
BH17
BH19
H10
BH27
BH31
BH33
BH35
BH39
BH43
BH7
D12
D16
D18
D22
D24
D26
D30
D32
D34
D38
D42
E18
E26
G18
G20
G26
G28
G36
G48
H12
H18
H22
H24
H26
H30
H32
H34
B7
F45
D3
D8
F3
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]
VSS[199]
VSS[200]
VSS[201]
VSS[202]
VSS[203]
VSS[204]
VSS[205]
VSS[206]
VSS[207]
VSS[208]
VSS[209]
VSS[210]
VSS[211]
VSS[212]
VSS[213]
VSS[214]
VSS[215]
VSS[216]
VSS[217]
VSS[218]
VSS[219]
VSS[220]
VSS[221]
VSS[222]
VSS[223]
VSS[224]
VSS[225]
VSS[226]
VSS[227]
VSS[228]
VSS[229]
VSS[230]
VSS[231]
VSS[232]
VSS[233]
VSS[234]
VSS[235]
VSS[236]
VSS[237]
VSS[238]
VSS[239]
VSS[240]
VSS[241]
VSS[242]
VSS[243]
VSS[244]
VSS[245]
VSS[246]
VSS[247]
VSS[248]
VSS[249]
VSS[250]
VSS[251]
VSS[252]
VSS[253]
VSS[254]
VSS[255]
VSS[256]
VSS[257]
VSS[258]
PANTHER POINT
PANTHER POINT
3
VSS[259]
VSS[260]
VSS[261]
VSS[262]
VSS[263]
VSS[264]
VSS[265]
VSS[266]
VSS[267]
VSS[268]
VSS[269]
VSS[270]
VSS[271]
VSS[272]
VSS[273]
VSS[274]
VSS[275]
VSS[276]
VSS[277]
VSS[278]
VSS[279]
VSS[280]
VSS[281]
VSS[282]
VSS[283]
VSS[284]
VSS[285]
VSS[286]
VSS[287]
VSS[288]
VSS[289]
VSS[290]
VSS[291]
VSS[292]
VSS[293]
VSS[294]
VSS[295]
VSS[296]
VSS[297]
VSS[298]
VSS[299]
VSS[300]
VSS[301]
VSS[302]
VSS[303]
VSS[304]
VSS[305]
VSS[306]
VSS[307]
VSS[308]
VSS[309]
VSS[310]
VSS[311]
VSS[312]
VSS[313]
VSS[314]
VSS[315]
VSS[316]
VSS[317]
VSS[318]
VSS[319]
VSS[320]
VSS[321]
VSS[322]
VSS[323]
VSS[324]
VSS[325]
VSS[328]
VSS[329]
VSS[330]
VSS[331]
VSS[333]
VSS[334]
VSS[335]
VSS[337]
VSS[338]
VSS[340]
VSS[342]
VSS[343]
VSS[344]
VSS[345]
VSS[346]
VSS[347]
VSS[348]
VSS[349]
VSS[350]
VSS[351]
VSS[352]
H46
K18
K26
K39
K46
K7
L18
L2
L20
L26
L28
L36
L48
M12
P16
M18
M22
M24
M30
M32
M34
M38
M4
M42
M46
M8
N18
P30
N47
P11
P18
T33
P40
P43
P47
P7
R2
R48
T12
T31
T37
T4
W34
T46
T47
T8
V11
V17
V26
V27
V29
V31
V36
V39
V43
V7
W17
W19
W2
W27
W48
Y12
Y38
Y4
Y42
Y46
Y8
BG29
N24
AJ3
AD47
B43
BE10
BG41
G14
H16
T36
BG22
BG24
C22
AP13
M14
AP3
AP1
BE16
BC16
BG28
BJ28
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
2
Wednesday, February 08, 2012
PROJECT :
Panther Point 6/6
Panther Point 6/6
Panther Point 6/6
ZQS 45W
ZQS 45W
ZQS 45W
12 46
12 46
12 46
1
3C
3C
3C
Page 13
5
M_A_A[15:0]4
D D
M_A_BS#04
M_A_BS#14
M_A_BS#24
M_A_CS#04
M_A_CS#14
M_A_CLK04
M_A_CLK0#4
M_A_CLK14
M_A_CLK1#4
M_A_CKE04
M_A_CKE14
M_A_CAS#4
M_A_RAS#4
R208 10K_4R208 10K_4
R207 10K_4R207 10K_4
C C
B B
M_A_WE#4
CLK_SCLK9,14,26,33
CLK_SDATA9,14,26,33
M_A_ODT04
M_A_ODT14
M_A_DQS[7:0]4
M_A_DQS#[7:0]4
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
DIMM0_SA0
DIMM0_SA1
CLK_SCLK
CLK_SDATA
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
107
119
109
108
114
121
101
103
102
104
115
110
113
197
201
202
200
116
120
136
153
170
187
137
154
171
188
135
152
169
186
98
97
96
95
92
91
90
86
89
85
84
83
80
78
79
73
74
11
28
46
63
12
29
47
64
10
27
45
62
JDIM1A
JDIM1A
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC#
A13
A14
A15
BA0
BA1
BA2
S0#
S1#
CK0
CK0#
CK1
CK1#
CKE0
CKE1
CAS#
RAS#
WE#
SA0
SA1
SCL
SDA
ODT0
ODT1
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
4
M_A_DQ4
M_A_DQ0
M_A_DQ2
M_A_DQ3
M_A_DQ1
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ12
M_A_DQ13
M_A_DQ11
M_A_DQ10
M_A_DQ8
M_A_DQ9
M_A_DQ14
M_A_DQ15
M_A_DQ17
M_A_DQ20
M_A_DQ18
M_A_DQ19
M_A_DQ16
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ28
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ29
M_A_DQ31
M_A_DQ30
M_A_DQ36
M_A_DQ33
M_A_DQ34
M_A_DQ39
M_A_DQ32
M_A_DQ37
M_A_DQ38
M_A_DQ35
M_A_DQ45
M_A_DQ44
M_A_DQ40
M_A_DQ42
M_A_DQ47
M_A_DQ41
M_A_DQ46
M_A_DQ43
M_A_DQ53
M_A_DQ52
M_A_DQ50
M_A_DQ55
M_A_DQ49
M_A_DQ48
M_A_DQ54
M_A_DQ51
M_A_DQ56
M_A_DQ57
M_A_DQ62
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ63
M_A_DQ58
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
5
DQ0
7
DQ1
15
DQ2
17
DQ3
4
DQ4
6
DQ5
16
DQ6
18
DQ7
21
DQ8
23
DQ9
33
DQ10
35
DQ11
22
DQ12
24
DQ13
34
DQ14
36
DQ15
39
DQ16
41
DQ17
51
DQ18
53
DQ19
40
DQ20
42
DQ21
50
DQ22
52
DQ23
57
DQ24
59
DQ25
67
DQ26
69
DQ27
56
DQ28
58
DQ29
68
DQ30
70
DQ31
129
DQ32
131
DQ33
141
DQ34
143
DQ35
130
DQ36
132
DQ37
140
DQ38
142
DQ39
147
DQ40
149
DQ41
157
DQ42
159
DQ43
146
DQ44
148
DQ45
158
DQ46
(204P)
(204P)
160
DQ47
163
DQ48
165
DQ49
175
DQ50
177
DQ51
164
DQ52
166
DQ53
174
DQ54
176
DQ55
181
DQ56
183
DQ57
191
DQ58
193
DQ59
180
DQ60
182
DQ61
192
DQ62
194
DQ63
3
M_A_DQ[63:0] 4
M3 solution
SMDDR_VREF_DQ0_M35
+SMDDR_VREF
+SMDDR_VREF_DIMM
change to 1K/F_4
R188 *0_6R188 *0_6
R204 *10K_4R204 *10K_4
+3V
DDR3_DRAMRST#14,15
R226 *M3@0_6R226 *M3@0_6
+1.5VSUS
R213
R213
1K/F_4
1K/F_4
R218
R218
1K/F_4
1K/F_4
+1.5VSUS
2.48A
+3V
PM_EXTTS#0
+SMDDR_VREF_DQ0
+SMDDR_VREF_DIMM
C307
C307
470p/50V_4
470p/50V_4
2
+SMDDR_VREF_DIMM 14
JDIM1B
JDIM1B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDR3-DIMM1_H=9.2_Reverse
DDR3-DIMM1_H=9.2_Reverse
+1.5VSUS
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
(204P)
(204P)
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VTT1
VTT2
GND
GND
44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196
203
204
205
206
1
+0.75V_DDR_VTT
R198
DDR3-DIMM1_H=9.2_Reverse
DDR3-DIMM1_H=9.2_Reverse
M1 solution
Place these Caps near So-Dimm0.
+1.5VSUS
C251
C253
C253
0.1u/16V_4
0.1u/16V_4
C258
C258
1u/6.3V_4
1u/6.3V_4
C251
0.1u/16V_4
0.1u/16V_4
C250
C250
0.1u/16V_4
0.1u/16V_4
C289
C289
0.1u/16V_4
0.1u/16V_4
C263
C263
1u/6.3V_4
1u/6.3V_4
C287
C287
0.1u/16V_4
0.1u/16V_4
C276
C276
1u/6.3V_4
1u/6.3V_4
+
+
C285
C288
C288
10u/6.3V_6
10u/6.3V_6
C283
C283
0.1u/16V_4
0.1u/16V_4
C285
10u/6.3V_6
10u/6.3V_6
+0.75V_DDR_VTT
C290
C249
C249
10u/6.3V_6
10u/6.3V_6
C277
C277
2.2u/6.3V_6
2.2u/6.3V_6
C290
10u/6.3V_6
10u/6.3V_6
5
C252
C252
10u/6.3V_6
10u/6.3V_6
C254
C254
10u/6.3V_6
10u/6.3V_6
A A
+3V
C302
C302
C345
C345
*330u/2V_7343
*330u/2V_7343
0.1u/16V_4
0.1u/16V_4
C284
C284
1u/6.3V_4
1u/6.3V_4
4
+SMDDR_VREF_DIMM
C293
C293
2.2u/6.3V_6
2.2u/6.3V_6
C577
C577
4.7u/6.3V_6
4.7u/6.3V_6
+SMDDR_VREF_DQ0
C295
C295
0.1u/16V_4
0.1u/16V_4
C580
C580
4.7u/6.3V_6
4.7u/6.3V_6
2.2u/6.3V_6
2.2u/6.3V_6
C583
C583
4.7u/6.3V_6
4.7u/6.3V_6
C301
C301
3
+SMDDR_VREF
SMDDR_VREF_DQ0_M3
REV:B Add
DRAMRST_CNTRL_PCH9,14,15
+1.5VSUS11,14,15,39,42,46
+3V3,7,8,9,10,11,14,16,20,23,24,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
+0.75V_DDR_VTT14,39,43
+SMDDR_VREF14,15,39
1
Mount Q12 at SBA sku. 01/17C34
R193 *0_6R193 *0_6
3
Q12
Q12
2
SBA@AP2302GN
SBA@AP2302GN
2
R198
1K/F_4
1K/F_4
change to 1K/F_4
+SMDDR_VREF_DQ0
C286
C286
470p/50V_4
470p/50V_4
R209
R209
1K/F_4
1K/F_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
DDRIII SO-DIMM-0
DDRIII SO-DIMM-0
DDRIII SO-DIMM-0
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
13 46Wednesday, February 08, 2012
13 46Wednesday, February 08, 2012
13 46Wednesday, February 08, 2012
3C
3C
3C
Page 14
5
4
3
2
1
M_B_A[15:0]4
D D
M_B_BS#04
M_B_BS#14
M_B_BS#24
M_B_CS#04
M_B_CS#14
M_B_CLK04
M_B_CLK0#4
M_B_CLK14
M_B_CLK1#4
M_B_CKE04
M_B_CKE14
M_B_CAS#4
M_B_RAS#4
CLK_SCLK9,13,26,33
CLK_SDATA9,13,26,33
M_B_ODT04
M_B_ODT14
M_B_DQS[7:0]4
M_B_DQS#[7:0]4
C320
C320
10u/6.3V_6
10u/6.3V_6
+0.75V_DDR_VTT
M_B_WE#4
C317
C317
10u/6.3V_6
10u/6.3V_6
C321
C321
0.1u/16V_4
0.1u/16V_4
R538 10K_4R538 10K_4
R540 10K_4R540 10K_4
+3V
C C
B B
+1.5VSUS
C336
C336
10u/6.3V_6
10u/6.3V_6
+3V
Place these Caps near So-Dimm1.
C337
C337
10u/6.3V_6
10u/6.3V_6
C318
C318
10u/6.3V_6
10u/6.3V_6
C338
C338
10u/6.3V_6
10u/6.3V_6
C319
C319
0.1u/16V_4
0.1u/16V_4
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
DIMM1_SA0
DIMM1_SA1
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
C333
C333
0.1u/16V_4
0.1u/16V_4
C332
C332
0.1u/16V_4
0.1u/16V_4
C334
C334
0.1u/16V_4
0.1u/16V_4
JDIM2A
JDIM2A
98
A0
97
A1
96
A2
95
A3
92
A4
91
A5
90
A6
86
A7
89
A8
85
A9
107
A10/AP
84
A11
83
A12/BC#
119
A13
80
A14
78
A15
109
BA0
108
BA1
79
BA2
114
S0#
121
S1#
101
CK0
103
CK0#
102
CK1
104
CK1#
73
CKE0
74
CKE1
115
CAS#
110
RAS#
113
WE#
197
SA0
201
SA1
202
SCL
200
SDA
116
ODT0
120
ODT1
11
DM0
28
DM1
46
DM2
63
DM3
136
DM4
153
DM5
170
DM6
187
DM7
PC2100 DDR3 SDRAM SO-DIMM
12
29
47
64
137
154
171
188
10
27
45
62
135
152
169
186
DDR3-DIMM1_H=5.2_Reverse
DDR3-DIMM1_H=5.2_Reverse
+
+
C349
C349
330u/2V_7343
330u/2V_7343
PC2100 DDR3 SDRAM SO-DIMM
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
+SMDDR_VREF_DIMM
C257
C257
0.1u/16V_4
0.1u/16V_4
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
(204P)
(204P)
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
2.2u/6.3V_6
2.2u/6.3V_6
5
DQ0
7
DQ1
15
DQ2
17
DQ3
4
DQ4
6
DQ5
16
DQ6
18
DQ7
21
DQ8
23
DQ9
33
35
22
24
34
36
39
41
51
53
40
42
50
52
57
59
67
69
56
58
68
70
129
131
141
143
130
132
140
142
147
149
157
159
146
148
158
160
163
165
175
177
164
166
174
176
181
183
191
193
180
182
192
194
+SMDDR_VREF_DQ1
C292
C292
0.1u/16V_4
0.1u/16V_4
C322
C322
M_B_DQ5
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ0
M_B_DQ4
M_B_DQ6
M_B_DQ7
M_B_DQ13
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ8
M_B_DQ14
M_B_DQ15
M_B_DQ20
M_B_DQ17
M_B_DQ23
M_B_DQ18
M_B_DQ16
M_B_DQ21
M_B_DQ19
M_B_DQ22
M_B_DQ28
M_B_DQ24
M_B_DQ31
M_B_DQ27
M_B_DQ29
M_B_DQ25
M_B_DQ30
M_B_DQ26
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ46
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ47
M_B_DQ42
M_B_DQ49
M_B_DQ53
M_B_DQ55
M_B_DQ54
M_B_DQ52
M_B_DQ48
M_B_DQ51
M_B_DQ50
M_B_DQ60
M_B_DQ56
M_B_DQ59
M_B_DQ58
M_B_DQ61
M_B_DQ57
M_B_DQ62
M_B_DQ63
C316
C316
2.2u/6.3V_6
2.2u/6.3V_6
M_B_DQ[63:0] 4
M3 solution
SMDDR_VREF_DQ1_M35
R554 *10K_4R554 *10K_4
+3V
DDR3_DRAMRST#13,15
R189 *M3@0_6R189 *M3@0_6
+SMDDR_VREF_DIMM
2.48A
+SMDDR_VREF_DQ1
SMDDR_VREF_DQ1_M3
DRAMRST_CNTRL_PCH9,13,15
+1.5VSUS
+3V
PM_EXTTS#1
+SMDDR_VREF
REV:B Add
JDIM2B
JDIM2B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDR3-DIMM1_H=5.2_Reverse
DDR3-DIMM1_H=5.2_Reverse
M1 solution
R187 *0_6R187 *0_6
change to 1K/F_4
Q11
Q11
2
*AP2302GN
*AP2302GN
3
1
(204P)
(204P)
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
+1.5VSUS
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VTT1
VTT2
GND
GND
R181
R181
1K/F_4
1K/F_4
R239
R239
1K/F_4
1K/F_4
44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196
203
204
205
206
+SMDDR_VREF_DQ1
C326
C326
470p/50V_4
470p/50V_4
+0.75V_DDR_VTT
C611
C586
A A
C614
C614
2.2u/6.3V_6
2.2u/6.3V_6
C608
C608
0.1u/16V_4
0.1u/16V_4
5
C586
1u/6.3V_4
1u/6.3V_4
C587
C587
1u/6.3V_4
1u/6.3V_4
C611
1u/6.3V_4
1u/6.3V_4
C612
C612
1u/6.3V_4
1u/6.3V_4
4.7u/6.3V_6
4.7u/6.3V_6
4
C574
C574
C570
C570
4.7u/6.3V_6
4.7u/6.3V_6
C610
C610
4.7u/6.3V_6
4.7u/6.3V_6
+SMDDR_VREF_DIMM13
3
+1.5VSUS11,13,15,39,42,46
+3V3,7,8,9,10,11,13,16,20,23,24,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
+0.75V_DDR_VTT13,39,43
+SMDDR_VREF13,15,39
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
DDRIII SO-DIMM-1
DDRIII SO-DIMM-1
DDRIII SO-DIMM-1
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
14 46Wednesday, February 08, 2012
14 46Wednesday, February 08, 2012
14 46Wednesday, February 08, 2012
3C
3C
3C
Page 15
1
CPU XDP Connector(CPU)
A A
2
3
4
5
6
7
8
s3 leakage circuit
+1.5VSUS
R424
R424
1K/F_4
1K/F_4
R420 1K/F_4R420 1K/F_4
DRAMRST_CNTRL_PCH9,13,14
+3V_S5
Q34 2N7002KQ34 2N7002K
3
2
C541
C541
0.047u/16V_4
0.047u/16V_4
1
R433
R433
4.99K/F_4
4.99K/F_4
CPU_DRAMRST# 3DDR3_DRAMRST#13,14
+1.5VSUS
R429
R429
*1K/F_4
*1K/F_4
R431
R431
*1K/F_4
*1K/F_4
+1.5V_CPU
R416
R416
200/F_4
200/F_4
R418 130/F_4R418 130/F_4
R417 *39_4R417 *39_4
+VDDR_REF_CPU
+1.5V_CPU
3
Q32 *2N7002KQ32 *2N7002K
2
MAINON_ON_G
+VDDR_REF_CPU 5
+1.5V_CPU 5
+1.5VSUS 11,13,14,39,42,46
+SMDDR_VREF 13,14,39
PM_DRAM_PWRGD_R 3
1
C524
C524
0.1u/10V_4
0.1u/10V_4
U17
U17
Q33
Q33
2N7002K
2N7002K
2
4
C548
C548
470p/50V_4
470p/50V_4
MAINON_ON_G
2
1
+VDDR_REF_CPU+SMDDR_VREF
1
+1.5V_CPU
+1.5V_CPU
1
2
36
+1.5V_CPU+1.5VSUS
2
74AHC1G09
74AHC1G09
3 5
R432
R432
100K_4
100K_4
R444
R444
220_8
220_8
3
1
4
Q35
Q35
DMN601K-7
DMN601K-7
PM_DRAM_PWRGD_Q
SYS_PWROK7
PM_DRAM_PWRGD7
B B
R430 *0_8R430 *0_8
3
MAIND36,39,43
C C
4.5A
MAINON_ON_G43
D D
MAIND
R465 *0_8R465 *0_8
R464 *0_8R464 *0_8
Q37 AO4496Q37 AO4496
8
7
5
MAIND
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
1
2
3
4
5
6
Date: Sheet of
7
XDP
XDP
XDP
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
15 46Wednesday, February 08, 2012
15 46Wednesday, February 08, 2012
15 46Wednesday, February 08, 2012
8
3C
3C
3C

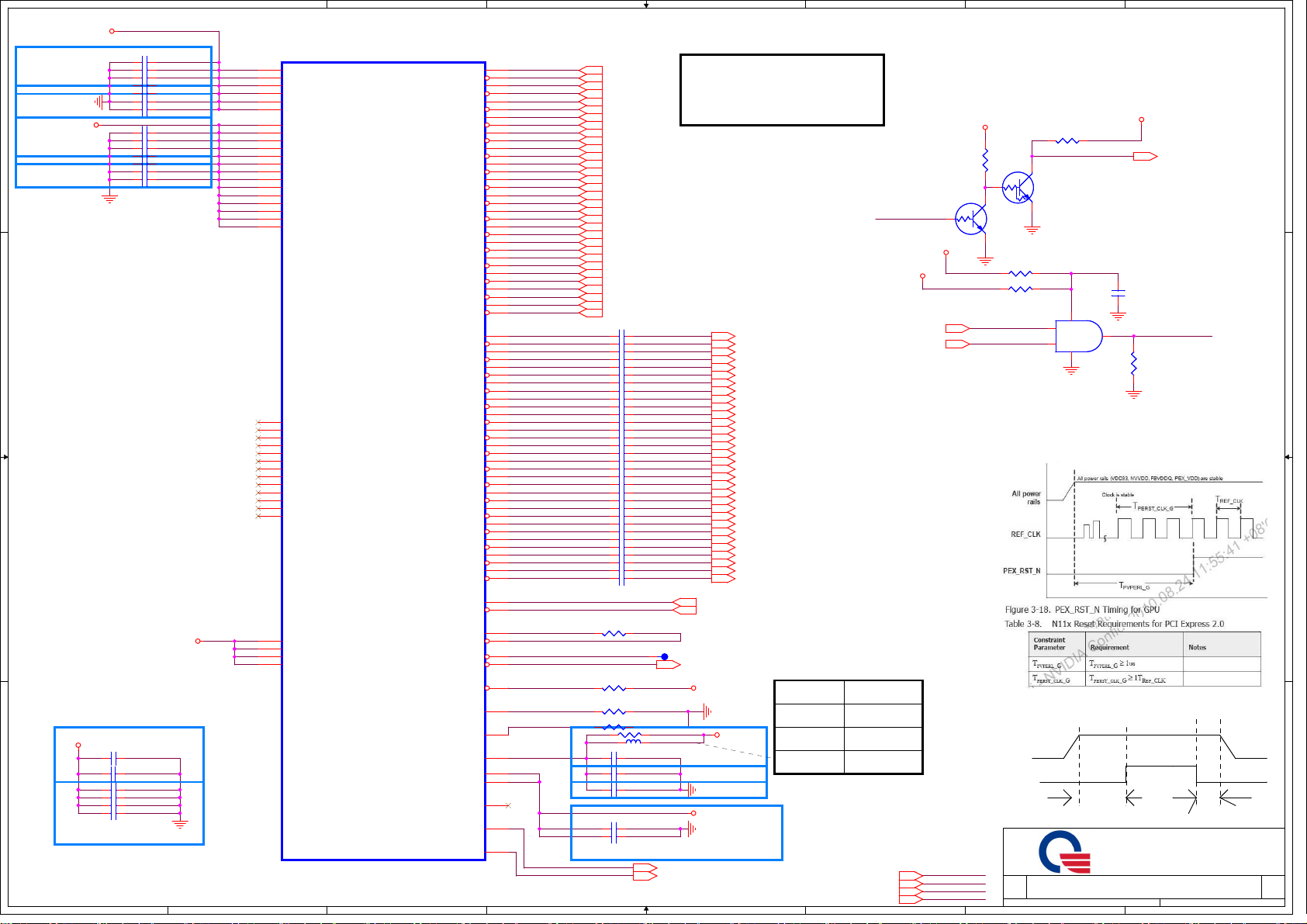

Page 16
1
+1.05V_GFX
1000mA
2
3
4
5
6
7
8
To be placed no further from the GPU
than bewteen the PS and GPU
PLACE UNDER BGA
PLACE NEAR BALLS
A A
+1.05V_GFX
To be placed no further from the GPU
than bewteen the PS and GPU
PLACE UNDER BGA
PLACE NEAR BALLS
C44 EOP@22u/6.3V_8C44 EOP@22u/6.3V_8
C401 EOP@22u/6.3V_8C401 EOP@22u/6.3V_8
C403 EOP@10u/6.3V_6C403 EOP@10u/6.3V_6
C402 EOP@10u/6.3V_6C402 EOP@10u/6.3V_6
C115 [email protected]/6.3V_6C115 [email protected]/6.3V_6
C91 EOP@1u/6.3V_4C91 EOP@1u/6.3V_4
C108 EOP@1u/6.3V_4C108 EOP@1u/6.3V_4
C407 EOP@22u/6.3V_8C407 EOP@22u/6.3V_8
C406 EOP@22u/6.3V_8C406 EOP@22u/6.3V_8
C409 EOP@10u/6.3V_6C409 EOP@10u/6.3V_6
C408 EOP@10u/6.3V_6C408 EOP@10u/6.3V_6
C102 [email protected]/6.3V_6C102 [email protected]/6.3V_6
C84 EOP@1u/6.3V_4C84 EOP@1u/6.3V_4
C75 EOP@1u/6.3V_4C75 EOP@1u/6.3V_4
2500mA
B B
C C
+3V_GFX
+3V_GFX
PLACE CLOSE TO BGA
C132 [email protected]/6.3V_6C132 [email protected]/6.3V_6
C133 EOP@1u/16V_6C133 EOP@1u/16V_6
C139 [email protected]/10V_4C139 [email protected]/10V_4
D D
C140 [email protected]/10V_4C140 [email protected]/10V_4
C143 [email protected]/10V_4C143 [email protected]/10V_4
C135 [email protected]/10V_4C135 [email protected]/10V_4
PLACE CLOSE TO GPU BALLS
1
2
AG19
AG21
AG22
AG24
AH21
AH25
AG13
AG15
AG16
AG18
AG25
AH15
AH18
AH26
AH27
AJ27
AK27
AL27
AM28
AN28
AC6
AJ28
AL11
C15
D19
D20
D23
D26
H31
AJ4
AJ5
V32
T8
J8
K8
L8
M8
U14A
U14A
PEX_IOVDD_1
PEX_IOVDD_2
PEX_IOVDD_3
PEX_IOVDD_4
PEX_IOVDD_5
PEX_IOVDD_6
PEX_IOVDDQ_1
PEX_IOVDDQ_2
PEX_IOVDDQ_3
PEX_IOVDDQ_4
PEX_IOVDDQ_5
PEX_IOVDDQ_6
PEX_IOVDDQ_7
PEX_IOVDDQ_8
PEX_IOVDDQ_9
PEX_IOVDDQ_10
PEX_IOVDDQ_11
PEX_IOVDDQ_12
PEX_IOVDDQ_13
PEX_IOVDDQ_14
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
VDD33_1
VDD33_2
VDD33_3
VDD33_4
EOP@N13x
EOP@N13x
N13P
[PEG Interface]
[PEG Interface]
3
PEX_RX0
PEX_RX0_N
PEX_RX1
PEX_RX1_N
PEX_RX2
PEX_RX2_N
PEX_RX3
PEX_RX3_N
PEX_RX4
PEX_RX4_N
PEX_RX5
PEX_RX5_N
PEX_RX6
PEX_RX6_N
PEX_RX7
PEX_RX7_N
PEX_RX8
PEX_RX8_N
PEX_RX9
PEX_RX9_N
PEX_RX10
PEX_RX10_N
PEX_RX11
PEX_RX11_N
PEX_RX12
PEX_RX12_N
PEX_RX13
PEX_RX13_N
PEX_RX14
PEX_RX14_N
PEX_RX15
PEX_RX15_N
PEX_TX0
PEX_TX0_N
PEX_TX1
PEX_TX1_N
PEX_TX2
PEX_TX2_N
PEX_TX3
PEX_TX3_N
PEX_TX4
PEX_TX4_N
PEX_TX5
PEX_TX5_N
PEX_TX6
PEX_TX6_N
PEX_TX7
PEX_TX7_N
PEX_TX8
PEX_TX8_N
PEX_TX9
PEX_TX9_N
PEX_TX10
PEX_TX10_N
PEX_TX11
PEX_TX11_N
PEX_TX12
PEX_TX12_N
PEX_TX13
PEX_TX13_N
PEX_TX14
PEX_TX14_N
PEX_TX15
PEX_TX15_N
PEX_REFCLK
PEX_REFCLK_N
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT_N
PEX_WAKE_N
PEX_RST_N
PEX_CLKREQ_N
PEX_TERMP
TESTMODE
PEX_PLLVDD
PEX_PLL_HVDD
PEX_SVDD_3V3
VDD_SENSE
GND_SENSE
AN12
AM12
AN14
AM14
AP14
AP15
AN15
AM15
AN17
AM17
AP17
AP18
AN18
AM18
AN20
AM20
AP20
AP21
AN21
AM21
AN23
AM23
AP23
AP24
AN24
AM24
AN26
AM26
AP26
AP27
AN27
AM27
R_PEG_RX15
AK14
R_PEG_RX#15
AJ14
R_PEG_RX14
AH14
R_PEG_RX#14
AG14
R_PEG_RX13
AK15
R_PEG_RX#13
AJ15
R_PEG_RX12
AL16
R_PEG_RX#12
AK16
R_PEG_RX11
AK17
R_PEG_RX#11
AJ17
R_PEG_RX10
AH17
R_PEG_RX#10
AG17
R_PEG_RX9
AK18
R_PEG_RX#9
AJ18
R_PEG_RX8
AL19
R_PEG_RX#8
AK19
R_PEG_RX7
AK20
R_PEG_RX#7
AJ20
R_PEG_RX6
AH20
R_PEG_RX#6
AG20
R_PEG_RX5
AK21
R_PEG_RX#5
AJ21
R_PEG_RX4
AL22
R_PEG_RX#4
AK22
R_PEG_RX3
AK23
R_PEG_RX#3
AJ23
R_PEG_RX2
AH23
R_PEG_RX#2
AG23
R_PEG_RX1
AK24
R_PEG_RX#1
AJ24
R_PEG_RX0
AL25
R_PEG_RX#0
AK25
CLK_PCIE_VGACLK_PCIE_VGA
AL13
CLK_PCIE_VGA#
AK13
PEX_TSTCLK
AJ26
PEX_TSTCLK#
AK26
AJ11
PEGX_RST#
AJ12
PEX_CLKREQ#
AK12
PEX_TERMP
AP29
TESTMODE
AK11
150mA
PEX_PLLVDD
AG26
210mA
AH12
AG12
P8
NC
L4
L5
PEG_TX15 3
PEG_TX#15 3
PEG_TX14 3
PEG_TX#14 3
PEG_TX13 3
PEG_TX#13 3
PEG_TX12 3
PEG_TX#12 3
PEG_TX11 3
PEG_TX#11 3
PEG_TX10 3
PEG_TX#10 3
PEG_TX9 3
PEG_TX#9 3
PEG_TX8 3
PEG_TX#8 3
PEG_TX7 3
PEG_TX#7 3
PEG_TX6 3
PEG_TX#6 3
PEG_TX5 3
PEG_TX#5 3
PEG_TX4 3
PEG_TX#4 3
PEG_TX3 3
PEG_TX#3 3
PEG_TX2 3
PEG_TX#2 3
PEG_TX1 3
PEG_TX#1 3
PEG_TX0 3
PEG_TX#0 3
C130 [email protected]/10V_4C130 [email protected]/10V_4
C141 [email protected]/10V_4C141 [email protected]/10V_4
C142 [email protected]/10V_4C142 [email protected]/10V_4
C145 [email protected]/10V_4C145 [email protected]/10V_4
C125 [email protected]/10V_4C125 [email protected]/10V_4
C129 [email protected]/10V_4C129 [email protected]/10V_4
C118 [email protected]/10V_4C118 [email protected]/10V_4
C121 [email protected]/10V_4C121 [email protected]/10V_4
C110 [email protected]/10V_4C110 [email protected]/10V_4
C116 [email protected]/10V_4C116 [email protected]/10V_4
C105 [email protected]/10V_4C105 [email protected]/10V_4
C109 [email protected]/10V_4C109 [email protected]/10V_4
C96 [email protected]/10V_4C96 [email protected]/10V_4
C103 [email protected]/10V_4C103 [email protected]/10V_4
C95 [email protected]/10V_4C95 [email protected]/10V_4
C92 [email protected]/10V_4C92 [email protected]/10V_4
C90 [email protected]/10V_4C90 [email protected]/10V_4
C87 [email protected]/10V_4C87 [email protected]/10V_4
C86 [email protected]/10V_4C86 [email protected]/10V_4
C82 [email protected]/10V_4C82 [email protected]/10V_4
C78 [email protected]/10V_4C78 [email protected]/10V_4
C74 [email protected]/10V_4C74 [email protected]/10V_4
C72 [email protected]/10V_4C72 [email protected]/10V_4
C68 [email protected]/10V_4C68 [email protected]/10V_4
C65 [email protected]/10V_4C65 [email protected]/10V_4
C62 [email protected]/10V_4C62 [email protected]/10V_4
C55 [email protected]/10V_4C55 [email protected]/10V_4
C52 [email protected]/10V_4C52 [email protected]/10V_4
C61 [email protected]/10V_4C61 [email protected]/10V_4
C60 [email protected]/10V_4C60 [email protected]/10V_4
C59 [email protected]/10V_4C59 [email protected]/10V_4
C58 [email protected]/10V_4C58 [email protected]/10V_4
R42 *EOP@200_4R42 *EOP@200_4
R380 EOP@10K/F_4R380 EOP@10K/F_4
EOP@10K/F_4
EOP@10K/F_4
R358
R358
R41 EOP_GS@0_6R41 EOP_GS@0_6
L5 *EOP_GL@160808-120L5 *EOP_GL@160808-120
C48 [email protected]/6.3V_6C48 [email protected]/6.3V_6
C63 EOP@1u/6.3V_4C63 EOP@1u/6.3V_4
C69 [email protected]/10V_4C69 [email protected]/10V_4
C126 [email protected]/10V_4C126 [email protected]/10V_4
C482 [email protected]/6.3V_6C482 [email protected]/6.3V_6
12~16 mils width
4
DIS.VGA-->EV@ + EOP@
Optimize-->IOP@ + EOP@
UMA-->IV@ + IOP@
Special-->SP@
PEG_RX15 3
PEG_RX#15 3
PEG_RX14 3
PEG_RX#14 3
PEG_RX13 3
PEG_RX#13 3
PEG_RX12 3
PEG_RX#12 3
PEG_RX11 3
PEG_RX#11 3
PEG_RX10 3
PEG_RX#10 3
PEG_RX9 3
PEG_RX#9 3
PEG_RX8 3
PEG_RX#8 3
PEG_RX7 3
PEG_RX#7 3
CLK_PCIE_VGA 9
CLK_PCIE_VGA# 9
TP6TP6
PEGX_RST# 19
+3V_GFX
PLACE NEAR BGA
CLOSE TO CAPS
PLACE UNDER BGA
PLACE NEAR BALLS
+3V_GFX
PLACE NEAR BGA
GPUVCC_SENSE 41
GPUVSS_SENSE 41
PEG_RX6 3
PEG_RX#6 3
PEG_RX5 3
PEG_RX#5 3
PEG_RX4 3
PEG_RX#4 3
PEG_RX3 3
PEG_RX#3 3
PEG_RX2 3
PEG_RX#2 3
PEG_RX1 3
PEG_RX#1 3
PEG_RX0 3
PEG_RX#0 3
+1.05V_GFX
5
FOR DIS & Optimus
N13M-GS N13P- GL
N13P-GS
Stuff--> R
Reserve -->L
DGPU_HOLD_RST#9
N13P- PES
Reserve--> R
Stuff--> L
+1.05V_GFX17,18,20,42
+3V_GFX18,19,20,41,42
+3V_S57,8,9,10,11,15,29,31,33,36,37,38,43,44
+3V3,7,8,9,10,11,13,14,20,23,24,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
PEX_CLKREQ#
+3V_GFX
PLTRST#9,25,29,34
6
R396
R396
EOP@10K/F_4
EOP@10K/F_4
2
+3V
+3V_GFX
2
Q26
Q26
EOP@PDTC143TT
EOP@PDTC143TT
1 3
R85 *SHORT_4R85 *SHORT_4
R80 *0_4R80 *0_4
R400 EOP@10K/F_4R400 EOP@10K/F_4
Q28
Q28
EOP@DTC144EUA
EOP@DTC144EUA
1 3
2
1
3 5
U3
U3
EOP@MC74VHC1G08DFT2G
EOP@MC74VHC1G08DFT2G
+3V_S5
4
CLK_PEGA_REQ# 9
C149
C149
[email protected]/10V_4
[email protected]/10V_4
PEGX_RST#
R71
R71
EOP@100K_4
EOP@100K_4
PEX_RST timing
I/O 3.3V
PEX_RST
Trise >= 1uS Tfail <=500nS
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
PROJECT :
DGPU 1/5 (PEG)
DGPU 1/5 (PEG)
DGPU 1/5 (PEG)
ZQS 45W
ZQS 45W
ZQS 45W
3C
3C
3C
16 46Wednesday, February 08, 2012
16 46Wednesday, February 08, 2012
16 46Wednesday, February 08, 2012
8
Page 17
1
+1.5V_GFX
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
VMA_DM0
VMA_DM1
VMA_DM2
VMA_DM3
VMA_DM4
VMA_DM5
VMA_DM6
VMA_DM7
VMA_WDQS0
VMA_WDQS1
VMA_WDQS2
VMA_WDQS3
VMA_WDQS4
VMA_WDQS5
VMA_WDQS6
VMA_WDQS7
VMA_RDQS0
VMA_RDQS1
VMA_RDQS2
VMA_RDQS3
VMA_RDQS4
VMA_RDQS5
VMA_RDQS6
VMA_RDQS7
FBA_CMD[30:0]21
A A
VMA_DM[7:0]21
B B
C C
D D
VMA_WDQS[7:0]21
VMA_RDQS[7:0]21
+1.5V_GFX
PLACE CLOSE TO GPU BALLS
C399 [email protected]/6.3V_6C399 [email protected]/6.3V_6
C398 [email protected]/6.3V_6C398 [email protected]/6.3V_6
C40 EOP@1u/16V_6C40 EOP@1u/16V_6
1 2
C39 EOP@1u/16V_6C39 EOP@1u/16V_6
1 2
C80 [email protected]/10V_4C80 [email protected]/10V_4
C431 [email protected]/10V_4C431 [email protected]/10V_4
C439 [email protected]/10V_4C439 [email protected]/10V_4
C120 [email protected]/10V_4C120 [email protected]/10V_4
C66 [email protected]/10V_4C66 [email protected]/10V_4
C383 [email protected]/10V_4C383 [email protected]/10V_4
C385 [email protected]/10V_4C385 [email protected]/10V_4
C64 [email protected]/10V_4C64 [email protected]/10V_4
C38 EOP@10u/6.3V_8C38 EOP@10u/6.3V_8
C36 EOP@10u/6.3V_8C36 EOP@10u/6.3V_8
C35 EOP@10u/6.3V_8C35 EOP@10u/6.3V_8
C396 EOP@10u/6.3V_8C396 EOP@10u/6.3V_8
PLACE CLOSE TO BGA
TP158TP158
2
U14B
U14B
U30
FBA_CMD0 (FBA_CMD25)
T31
FBA_CMD1 (FBA_CMD23)
U29
FBA_CMD2
R34
FBA_CMD3 (FBA_CMD0)
R33
FBA_CMD4 (FBA_CMD10)
U32
FBA_CMD5 (FBA_CMD26)
U33
FBA_CMD6 (FBA_CMD14)
U28
FBA_CMD7
V28
FBA_CMD8 (FBA_CMD1)
V29
FBA_CMD9 (FBA_CMD22)
V30
FBA_CMD10 (FBA_CMD20)
U34
FBA_CMD11 (FBA_CMD24)
U31
FBA_CMD12 (FBA_CMD18)
V34
FBA_CMD13 (FBA_CMD9)
V33
FBA_CMD14 (FBA_CMD29)
Y32
FBA_CMD15 (FBA_CMD8)
AA31
FBA_CMD16 (FBA_CMD27)
AA29
FBA_CMD17 (FBA_CMD15)
AA28
FBA_CMD18 (FBA_CMD11)
AC34
FBA_CMD19 (FBA_CMD16)
AC33
FBA_CMD20 (FBA_CMD28)
AA32
FBA_CMD21 (FBA_CMD3)
AA33
FBA_CMD22 (FBA_CMD17)
Y28
FBA_CMD23 (FBA_CMD5)
Y29
FBA_CMD24 (FBA_CMD4)
W31
FBA_CMD25 (FBA_CMD21)
Y30
FBA_CMD26 (FBA_CMD6)
AA34
FBA_CMD27 (FBA_CMD13)
Y31
FBA_CMD28 (FBA_CMD19)
Y34
FBA_CMD29 (FBA_CMD12)
Y33
FBA_CMD30
V31
FBA_CMD31 (NC)
P30
FBA_DQM0
F31
FBA_DQM1
F34
FBA_DQM2
M32
FBA_DQM3
AD31
FBA_DQM4
AL29
FBA_DQM5
AM32
FBA_DQM6
AF34
FBA_DQM7
M31
FBA_DQS_WP0
G31
FBA_DQS_WP1
E33
FBA_DQS_WP2
M33
FBA_DQS_WP3
AE31
FBA_DQS_WP4
AK30
FBA_DQS_WP5
AN33
FBA_DQS_WP6
AF33
FBA_DQS_WP7
M30
FBA_DQS_RN0
H30
FBA_DQS_RN1
E34
FBA_DQS_RN2
M34
FBA_DQS_RN3
AF30
FBA_DQS_RN4
AK31
FBA_DQS_RN5
AM34
FBA_DQS_RN6
AF32
FBA_DQS_RN7
AA27
FBVDDQ_1
AA30
FBVDDQ_2
AB27
FBVDDQ_3
AB33
FBVDDQ_4
AC27
FBVDDQ_5
AD27
FBVDDQ_6
AE27
FBVDDQ_7
AF27
FBVDDQ_8
AG27
FBVDDQ_9
B13
FBVDDQ_10
B16
FBVDDQ_11
B19
FBVDDQ_12
E13
FBVDDQ_13
E16
FBVDDQ_14
E19
FBVDDQ_15
H10
FBVDDQ_16
H11
FBVDDQ_17
H12
FBVDDQ_18
H13
FBVDDQ_19
H14
FBVDDQ_20
H15
FBVDDQ_21
H16
FBVDDQ_22
H18
FBVDDQ_23
H19
FBVDDQ_24
H20
FBVDDQ_25
H21
FBVDDQ_26
H22
FBVDDQ_27
H23
FBVDDQ_28
H24
FBVDDQ_29
H8
FBVDDQ_30
H9
FBVDDQ_31
L27
FBVDDQ_32
M27
FBVDDQ_33
N27
FBVDDQ_34
P27
FBVDDQ_35
R27
FBVDDQ_36
T27
FBVDDQ_37
T30
FBVDDQ_38
T33
FBVDDQ_39
V27
FBVDDQ_40
W27
FBVDDQ_41
W30
FBVDDQ_42
W33
FBVDDQ_43
Y27
FBVDDQ_44
EOP@N13x
EOP@N13x
3
[MEMORY I/F A]
[MEMORY I/F A]
FBA_CLK0_N
FBA_CLK1_N
(FBA_DEBUG) FBA_DEBUG0
(NC) FBA_DEBUG1
FBA_CMD_RFU0
FBA_CMD_RFU1
FBA_WCK01
FBA_WCK01_N
FBA_WCK23
FBA_WCK23_N
FBA_WCK45
FBA_WCK45_N
FBA_WCK67
FBA_WCK67_N
FBA_WCKB01
FBA_WCKB01_N
FBA_WCKB23
FBA_WCKB23_N
FBA_WCKB45
FBA_WCKB45_N
FBA_WCKB67
FBA_WCKB67_N
FB_DLL_AVDD
FBA_PLL_AVDD
FBVDDQ_SENSE
FB_GND_SENSE
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CALTERM_GND
FBA_D00
FBA_D01
FBA_D02
FBA_D03
FBA_D04
FBA_D05
FBA_D06
FBA_D07
FBA_D08
FBA_D09
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_CLK0
FBA_CLK1
FB_VREF
FB_CLAMP
L28
M29
L29
M28
N31
P29
R29
P28
J28
H29
J29
H28
G29
E31
E32
F30
C34
D32
B33
C33
F33
F32
H33
H32
P34
P32
P31
P33
L31
L34
L32
L33
AG28
AF29
AG29
AF28
AD30
AD29
AC29
AD28
AJ29
AK29
AJ30
AK28
AM29
AM31
AN29
AM30
AN31
AN32
AP30
AP32
AM33
AL31
AK33
AK32
AD34
AD32
AC30
AD33
AF31
AG34
AG32
AG33
R30
R31
AB31
AC31
15mils width
R28
AC28
H26
R32
AC32
K31
L30
H34
J34
AG30
AG31
AJ34
AK34
J30
J31
J32
J33
AH31
AJ31
AJ32
AJ33
PS_FB_CLAMP
E1
+FB_PLLAVDD
K27
+FB_PLLAVDD
U27
FBVDDQ_SENSE_NC
F1
FB_GND_SENSE_NC
F2
FB_CAL_PD_VDDQ
J27
FB_CAL_PU_GND
H27
FB_CAL_TERM_GND
H25
VMA_DQ0
VMA_DQ3
VMA_DQ2
VMA_DQ1
VMA_DQ4
VMA_DQ6
VMA_DQ5
VMA_DQ7
VMA_DQ8
VMA_DQ10
VMA_DQ9
VMA_DQ11
VMA_DQ12
VMA_DQ14
VMA_DQ13
VMA_DQ15
VMA_DQ16
VMA_DQ17
VMA_DQ18
VMA_DQ19
VMA_DQ20
VMA_DQ21
VMA_DQ22
VMA_DQ23
VMA_DQ24
VMA_DQ25
VMA_DQ26
VMA_DQ27
VMA_DQ28
VMA_DQ29
VMA_DQ30
VMA_DQ31
VMA_DQ32
VMA_DQ33
VMA_DQ34
VMA_DQ35
VMA_DQ36
VMA_DQ37
VMA_DQ38
VMA_DQ39
VMA_DQ40
VMA_DQ41
VMA_DQ42
VMA_DQ43
VMA_DQ44
VMA_DQ45
VMA_DQ46
VMA_DQ47
VMA_DQ48
VMA_DQ49
VMA_DQ50
VMA_DQ51
VMA_DQ52
VMA_DQ53
VMA_DQ54
VMA_DQ55
VMA_DQ56
VMA_DQ57
VMA_DQ58
VMA_DQ59
VMA_DQ60
VMA_DQ61
VMA_DQ62
VMA_DQ63
VMA_CLK0
VMA_CLK0#
VMA_CLK1
VMA_CLK1#
FBA_DEBUG
FBA_DEBUG1
R48 [email protected]/F_4R48 [email protected]/F_4
R46 [email protected]/F_4R46 [email protected]/F_4
TP159TP159
N13P-GS N13P- PES/ GL
Stuff Ra Reserve Ra
PLACE CLOSE TO GPU BALLS
4
FBC_CMD[30:0]22
VMC_DM[7:0]22
VMC_WDQS[7:0]22
VMC_RDQS[7:0]22
VMA_CLK0 21
VMA_CLK0# 21
VMA_CLK1 21
VMA_CLK1# 21
N13P- GLN13M-GS
Ra
TP160TP160
TP161TP161
R49 [email protected]/F_4R49 [email protected]/F_4
R50 [email protected]/F_4R50 [email protected]/F_4
R52 [email protected]/F_4R52 [email protected]/F_4
5
FBC_CMD0
FBC_CMD1
FBC_CMD2
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8
FBC_CMD9
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
FBC_CMD22
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
FBC_CMD29
FBC_CMD30
TP157TP157
VMC_DM0
VMC_DM1
VMC_DM2
VMC_DM3
VMC_DM4
VMC_DM5
VMC_DM6
VMC_DM7
VMC_WDQS0
VMC_WDQS1
VMC_WDQS2
VMC_WDQS3
VMC_WDQS4
VMC_WDQS5
VMC_WDQS6
VMC_WDQS7
VMC_RDQS0
VMC_RDQS1
VMC_RDQS2
VMC_RDQS3
VMC_RDQS4
VMC_RDQS5
VMC_RDQS6
VMC_RDQS7
+1.5V_GFX
PLACE CLOSE TO BALL
L4 EOP@PBY160808T-30Y-N_6L4 EOP@PBY160808T-30Y-N_6
C45 EOP@22u/6.3V_8C45 EOP@22u/6.3V_8
C70 [email protected]/10V_4C70 [email protected]/10V_4
C71 [email protected]/10V_4C71 [email protected]/10V_4
+1.5V_GFX
U14C
U14C
D13
FBB_CMD0 (FBC_CMD25)
E14
FBB_CMD1 (FBC_CMD23)
F14
FBC_CMD2
A12
FBB_CMD3 (FBC_CMD0)
B12
FBB_CMD4 (FBC_CMD10)
C14
FBB_CMD5 (FBC_CMD26)
B14
FBB_CMD6 (FBC_CMD14)
G15
FBC_CMD7
F15
FBB_CMD8 (FBC_CMD1)
E15
FBB_CMD9 (FBC_CMD22)
D15
FBB_CMD10 (FBC_CMD20)
A14
FBB_CMD11 (FBC_CMD24)
D14
FBB_CMD12 (FBC_CMD18)
A15
FBB_CMD13 (FBC_CMD9)
B15
FBB_CMD14 (FBC_CMD29)
C17
FBB_CMD15 (FBC_CMD8)
D18
FBB_CMD16 (FBC_CMD27)
E18
FBB_CMD17 (FBC_CMD15)
F18
FBB_CMD18 (FBC_CMD11)
A20
FBB_CMD19 (FBC_CMD16)
B20
FBB_CMD20 (FBC_CMD28)
C18
FBB_CMD21 (FBC_CMD3)
B18
FBB_CMD22 (FBC_CMD17)
G18
FBB_CMD23 (FBC_CMD5)
G17
FBB_CMD24(FBC_CMD4)
F17
FBB_CMD25 (FBC_CMD21)
D16
FBB_CMD26 (FBC_CMD6)
A18
FBB_CMD27 (FBC_CMD13)
D17
FBB_CMD28 (FBC_CMD19)
A17
FBB_CMD29 (FBC_CMD12)
B17
FBC_CMD30
E17
FBC_CMD31 (NC)
E11
FBC_DQM0
E3
FBC_DQM1
A3
FBC_DQM2
C9
FBC_DQM3
F23
FBC_DQM4
F27
FBC_DQM5
C30
FBC_DQM6
A24
FBC_DQM7
D10
FBC_DQS_WP0
D5
FBC_DQS_WP1
C3
FBC_DQS_WP2
B9
FBC_DQS_WP3
E23
FBC_DQS_WP4
E28
FBC_DQS_WP5
B30
FBC_DQS_WP6
A23
FBC_DQS_WP7
D9
FBC_DQS_RN0
E4
FBC_DQS_RN1
B2
FBC_DQS_RN2
A9
FBC_DQS_RN3
D22
FBC_DQS_RN4
D28
FBC_DQS_RN5
A30
FBC_DQS_RN6
B23
FBC_DQS_RN7
+1.05V_GFX
PLACE CLOSE TO BGA
MEMORY I/F C
MEMORY I/F C
(FBC_DEBUG) FBB_DEBUG0
6
FBC_D00
FBC_D01
FBC_D02
FBC_D03
FBC_D04
FBC_D05
FBC_D06
FBC_D07
FBC_D08
FBC_D09
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
FBC_D32
FBC_D33
FBC_D34
FBC_D35
FBC_D36
FBC_D37
FBC_D38
FBC_D39
FBC_D40
FBC_D41
FBC_D42
FBC_D43
FBC_D44
FBC_D45
FBC_D46
FBC_D47
FBC_D48
FBC_D49
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_D56
FBC_D57
FBC_D58
FBC_D59
FBC_D60
FBC_D61
FBC_D62
FBC_D63
FBC_CLK0
FBC_CLK0_N
FBC_CLK1
FBC_CLK1_N
(NC) FBB_DEBUG1
FBB_CMD_RFU0
FBB_CMD_RFU1
FBB_WCK01
FBB_WCK01_N
FBB_WCK23
FBB_WCK23_N
FBB_WCK45
FBB_WCK45_N
FBB_WCK67
FBB_WCK67_N
FBB_WCKB01
FBB_WCKB01_N
FBB_WCKB23
FBB_WCKB23_N
FBB_WCKB45
FBB_WCKB45_N
FBB_WCKB67
FBB_WCKB67_N
FBB_PLL_AVDD
G9
E9
G8
F9
F11
G11
F12
G12
G6
F5
E6
F6
F4
G4
E2
F3
C2
D4
D3
C1
B3
C4
B5
C5
A11
C11
D11
B11
D8
A8
C8
B8
F24
G23
E24
G24
D21
E21
G21
F21
G27
D27
G26
E27
E29
F29
E30
D30
A32
C31
C32
B32
D29
A29
C29
B29
B21
C23
A21
C21
B24
C24
B26
C26
D12
E12
E20
F20
G14
G20
C12
C20
F8
E8
A5
A6
D24
D25
B27
C27
D6
D7
C6
B6
F26
E26
A26
A27
H17
EOP@N13x
EOP@N13x
VMC_DQ0
VMC_DQ1
VMC_DQ2
VMC_DQ3
VMC_DQ4
VMC_DQ5
VMC_DQ6
VMC_DQ7
VMC_DQ8
VMC_DQ9
VMC_DQ10
VMC_DQ11
VMC_DQ12
VMC_DQ13
VMC_DQ14
VMC_DQ15
VMC_DQ16
VMC_DQ17
VMC_DQ18
VMC_DQ19
VMC_DQ20
VMC_DQ21
VMC_DQ22
VMC_DQ23
VMC_DQ24
VMC_DQ25
VMC_DQ26
VMC_DQ27
VMC_DQ28
VMC_DQ29
VMC_DQ30
VMC_DQ31
VMC_DQ34
VMC_DQ37
VMC_DQ32
VMC_DQ38
VMC_DQ36
VMC_DQ33
VMC_DQ35
VMC_DQ39
VMC_DQ40
VMC_DQ41
VMC_DQ47
VMC_DQ46
VMC_DQ44
VMC_DQ45
VMC_DQ43
VMC_DQ42
VMC_DQ50
VMC_DQ49
VMC_DQ51
VMC_DQ48
VMC_DQ52
VMC_DQ53
VMC_DQ54
VMC_DQ55
VMC_DQ56
VMC_DQ57
VMC_DQ58
VMC_DQ59
VMC_DQ60
VMC_DQ61
VMC_DQ62
VMC_DQ63
VMC_CLK0
VMC_CLK0#
VMC_CLK1
VMC_CLK1#
FBC_DEBUG
FBC_DEBUG1
+FB_PLLAVDD
7
FBA_CMD2
FBA_CMD3
FBA_CMD5
FBA_CMD18
FBA_CMD19
FBC_CMD2
FBC_CMD3
FBC_CMD5
FBC_CMD18
FBC_CMD19
For Fermi
VMA_DQ[63:0]
VMC_DQ[63:0]
VMC_CLK0 22
VMC_CLK0# 22
VMC_CLK1 22
VMC_CLK1# 22
R57 [email protected]/F_4R57 [email protected]/F_4
R54 [email protected]/F_4R54 [email protected]/F_4
C100 [email protected]/10V_4C100 [email protected]/10V_4
PLACE CLOSE TO BALL
8
R32 EOP@10K/F_4R32 EOP@10K/F_4
R330 EOP@10K/F_4R330 EOP@10K/F_4
R39 EOP@10K/F_4R39 EOP@10K/F_4
R25 EOP@10K/F_4R25 EOP@10K/F_4
R335 EOP@10K/F_4R335 EOP@10K/F_4
R58 EOP@10K/F_4R58 EOP@10K/F_4
R344 EOP@10K/F_4R344 EOP@10K/F_4
R55 EOP@10K/F_4R55 EOP@10K/F_4
R341 EOP@10K/F_4R341 EOP@10K/F_4
R44 EOP@10K/F_4R44 EOP@10K/F_4
VMA_DQ[63:0] 21
VMC_DQ[63:0] 22
+1.5V_GFX
Quanta Computer Inc.
Quanta Computer Inc.
+1.5V_GFX20,21,22,42,46
+1.05V_GFX16,18,20,42
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
1
2
3
4
5
6
Date: Sheet of
7
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
DGPU 2/5 (Memory)
DGPU 2/5 (Memory)
DGPU 2/5 (Memory)
ZQS 45W
ZQS 45W
ZQS 45W
17 46Wednesday, February 08, 2012
17 46Wednesday, February 08, 2012
17 46Wednesday, February 08, 2012
8
3C
3C
3C

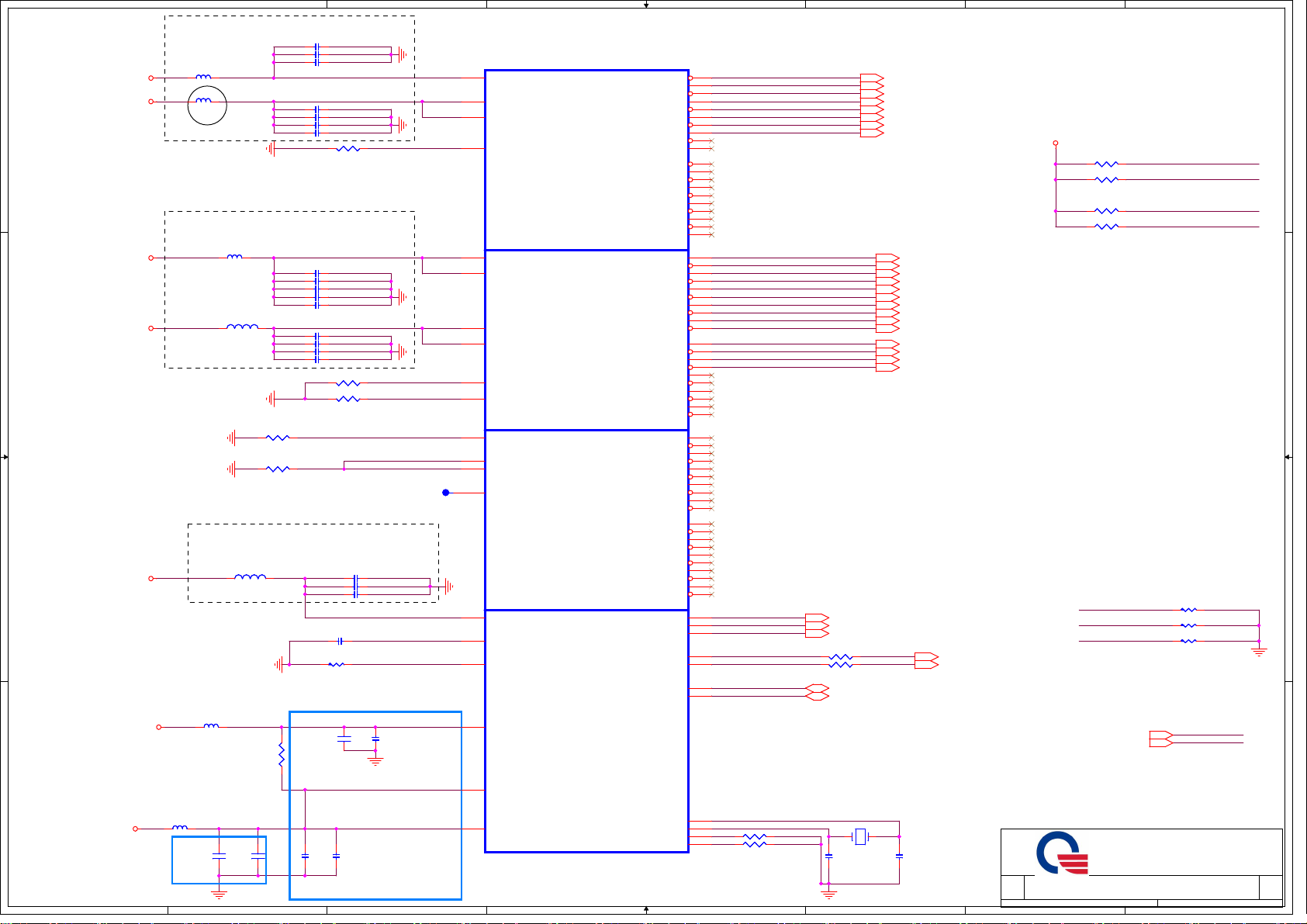

Page 18
1
Optimize remove L & C
Pull down 10K (P/N:CS31002FB26)
+1.05V_GFX
+3V_GFX
A A
+3V_GFX
L27 EV@160808-120L27 EV@160808-120
L28 EV@160808-0180PL28 EV@160808-0180P
N13P-GS DIS IFPAB_IOVDD filter component from bead to 4.3ohm resistor.
Optimize remove L & C
Pull down 10K (P/N:CS31002FB26)
(1.05V +/- 3% )
+1.05V_GFX
B B
C C
+3V_GFX
2
C470 SP@1u/6.3V_4C470 SP@1u/6.3V_4
C467 [email protected]/10V_4C467 [email protected]/10V_4
C477 [email protected]/6.3V_6C477 [email protected]/6.3V_6
IFPAB_PLLVDD
IFPAB_IOVDD
C474 [email protected]/10V_4C474 [email protected]/10V_4
C471 [email protected]/10V_4C471 [email protected]/10V_4
C468 EV@1u/6.3V_4C468 EV@1u/6.3V_4
C480 [email protected]/6.3V_6C480 [email protected]/6.3V_6
R62 *EV@1K/F_4R62 *EV@1K/F_4
EV@SBK160808T-301Y-N_6
EV@SBK160808T-301Y-N_6
L30
L30
EV@BLM18PG221SN1D
EV@BLM18PG221SN1D
L29
L29
R61 EOP@10K/F_4R61 EOP@10K/F_4
R60 EOP@10K/F_4R60 EOP@10K/F_4
Optimize remove L & C
Pull down 10K (P/N:CS31002FB26)
EV@BLM18PG221SN1D
EV@BLM18PG221SN1D
L26
L26
+IFPCD_PLLVDD
C479 [email protected]/10V_4C479 [email protected]/10V_4
C472 EV@1u/6.3V_4C472 EV@1u/6.3V_4
C475 [email protected]/10V_4C475 [email protected]/10V_4
C469 [email protected]/10V_4C469 [email protected]/10V_4
C483 [email protected]/6.3V_6C483 [email protected]/6.3V_6
+IFPCD_IOVDD
C476 [email protected]/10V_4C476 [email protected]/10V_4
C473 [email protected]/10V_4C473 [email protected]/10V_4
C466 EV@1u/6.3V_4C466 EV@1u/6.3V_4
C481 [email protected]/6.3V_6C481 [email protected]/6.3V_6
R67 EV@1K/F_4R67 EV@1K/F_4
R362 EV@1K/F_4R362 EV@1K/F_4
C464 SP@1u/6.3V_4C464 SP@1u/6.3V_4
C465 [email protected]/6.3V_6C465 [email protected]/6.3V_6
C127 *[email protected]/10V_4C127 *[email protected]/10V_4
+DACA_VDD
C459 [email protected]/10V_4C459 [email protected]/10V_4
R363 EV@124/F_4R363 EV@124/F_4
IFPEF_PLLVDD
IFPEF_IOVDD
3
50 mA
320 mA
IFPAB_RSET
110 mA
285 mA
IFPC_RSET
IFPD_RSET
220 mA
TP162TP162
120 mA
DACA_VREF
DACA_RSET
AH8
AG8
AG9
AF7
AG7
AF6
AG6
AF8
AN2
AB8
AC7
AC8
AD6
AG10
AP9
AP8
AJ8
U14D
U14D
IFPAB_PLLVDD
IFPA_IOVDD
IFPB_IOVDD
IFPAB_RSET
IFPC_PLLVDD
IFPD_PLLVDD
IFPC_IOVDD
IFPD_IOVDD
IFPC_RSET
IFPD_RSET
IFPEF_PLLVDD
IFPE_IOVDD
IFPF_IOVDD
IFPEF_RSET
DACA_VDD
DACA_VREF
DACA_RSET
4
[IFPA/B_LVDS]
[IFPA/B_LVDS]
[IFPC/D_TMDS]
[IFPC/D_TMDS]
[IFPE/F_DP]
[IFPE/F_DP]
[DACA/B_CRT]
[DACA/B_CRT]
IFPA_TXC_N
IFPA_TXC
IFPA_TXD0_N
IFPA_TXD0
IFPA_TXD1_N
IFPA_TXD1
IFPA_TXD2_N
IFPA_TXD2
IFPA_TXD3_N
IFPA_TXD3
IFPB_TXC_N
IFPB_TXC
IFPB_TXD4_N
IFPB_TXD4
IFPB_TXD5_N
IFPB_TXD5
IFPB_TXD6_N
IFPB_TXD6
IFPB_TXD7_N
IFPB_TXD7
IFPC_AUX_I2CW_SCL
IFPC_AUX_I2CW_SDA_N
IFPD_AUX_I2CX_SDA_N
IFPE_AUX_I2CY_SDA_N
IFPF_AUX_I2CZ_SDA_N
IFPC_L0
IFPC_L0_N
IFPC_L1
IFPC_L1_N
IFPC_L2
IFPC_L2_N
IFPC_L3
IFPC_L3_N
IFPD_AUX_I2CX_SCL
IFPD_L0
IFPD_L0_N
IFPD_L1
IFPD_L1_N
IFPD_L2
IFPD_L2_N
IFPD_L3
IFPD_L3_N
IFPE_AUX_I2CY_SCL
IFPE_L0
IFPE_L0_N
IFPE_L1
IFPE_L1_N
IFPE_L2
IFPE_L2_N
IFPE_L3
IFPE_L3_N
IFPF_AUX_I2CZ_SCL
IFPF_L0
IFPF_L0_N
IFPF_L1
IFPF_L1_N
IFPF_L2
IFPF_L2_N
IFPF_L3
IFPF_L3_N
DACA_RED
DACA_GREEN
DACA_BLUE
DACA_HSYNC
DACA_VSYNC
I2CA_SCL
I2CA_SDA
AN6
AM6
AN3
AP3
AM5
AN5
AK6
AL6
AH6
AJ6
AH9
AJ9
AP5
AP6
AL7
AM7
AM8
AN8
AL8
AK8
AG3
AG2
AK1
AJ1
AJ3
AJ2
AH3
AH4
AG5
AG4
AK3
AK2
AM1
AM2
AM3
AM4
AL3
AL4
AK4
AK5
AB3
AB4
AD2
AD3
AD1
AC1
AC2
AC3
AC4
AC5
AF3
AF2
AE3
AE4
AF4
AF5
AD4
AD5
AG1
AF1
AK9
AL10
AL9
AM9
AN9
R4
R5
5
EV_HDMI_DDCCK_C
EV_HDMI_DDCDAT_C
EV_CRT_RED
EV_CRT_GRN
EV_CRT_BLU
EV_HSYNC_R
EV_VSYNC_R
EV_CRTDCLK
EV_CRTDDAT
EV_CRT_RED 23
EV_CRT_GRN 23
EV_CRT_BLU 23
R89 EV@33_4R89 EV@33_4
R84 EV@33_4R84 EV@33_4
EV_CRTDCLK 23
EV_CRTDDAT 23
6
EV_TXLCLK- 23
EV_TXLCLK+ 23
EV_TXLOUT0- 23
EV_TXLOUT0+ 23
EV_TXLOUT1- 23
EV_TXLOUT1+ 23
EV_TXLOUT2- 23
EV_TXLOUT2+ 23
EV_HDMI_DDCCK_C 24
EV_HDMI_DDCDAT_C 24
EV_HDMITX2P 24
EV_HDMITX2N 24
EV_HDMITX1P 24
EV_HDMITX1N 24
EV_HDMITX0P 24
EV_HDMITX0N 24
EV_HDMICLK+ 24
EV_HDMICLK- 24
EV_EDP-AUX+ 23
EV_EDP-AUX- 23
EV_EDP-ML0+ 23
EV_EDP-ML0- 23
HSYNC_COM 23
VSYNC_COM 23
7
+3V_GFX
EV_CRT_RED
EV_CRT_GRN
EV_CRT_BLU
8
EV_CRTDCLK
EV_CRTDDAT
EV_HDMI_DDCCK_C
EV_HDMI_DDCDAT_C
R79 EV@150/F_4R79 EV@150/F_4
R70 EV@150/F_4R70 EV@150/F_4
R75 EV@150/F_4R75 EV@150/F_4
+1.05V_GFX
D D
L32 EOP@160808-30YL32 EOP@160808-30Y
R395
R395
*EOP@0_4
*EOP@0_4
C488
C488
EOP@22u/6.3V_8
EOP@22u/6.3V_8
PLACE CLOSE TO GPU
+1.05V_GFX
L31 EOP@160808-0180PL31 EOP@160808-0180P
C147
C147
C484
C484
[email protected]/6.3V_6
[email protected]/6.3V_6
EOP@22u/6.3V_8
EOP@22u/6.3V_8
C136
C136
[email protected]/10V_4
[email protected]/10V_4
[email protected]/10V_4
[email protected]/10V_4
C137
C137
PLACE CLOSE TO BALLS
1
2
NV_PLLVDD
C138
C138
[email protected]/10V_4
[email protected]/10V_4
SP_PLLVDD
VID_PLLVDD
3
AD8
AE8
AD7
PLLVDD
SP_PLLVDD
VID_PLLVDD
EOP@N13x
EOP@N13x
[XTAL IN]
[XTAL IN]
4
XTAL_IN
XTAL_OUT
XTAL_OUTBUFF
XTAL_SSIN
CLK_27M_VGA_2
H3
XTALOUT
H2
R379 EOP@10K/F_4R379 EOP@10K/F_4
J4
R386 EOP@10K/F_4R386 EOP@10K/F_4
H1
5
Y1
Y1
2 1
EOP@27MHZ
EOP@27MHZ
C152
C152
EOP@18P/50V_4
EOP@18P/50V_4
6
C151
C151
EOP@18P/50V_4
EOP@18P/50V_4
+1.05V_GFX16,17,20,42
+3V_GFX16,19,20,41,42
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
DGPU 3/5 (Display)
DGPU 3/5 (Display)
DGPU 3/5 (Display)
7
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
18 46Wednesday, February 08, 2012
18 46Wednesday, February 08, 2012
18 46Wednesday, February 08, 2012
8
3C
3C
3C

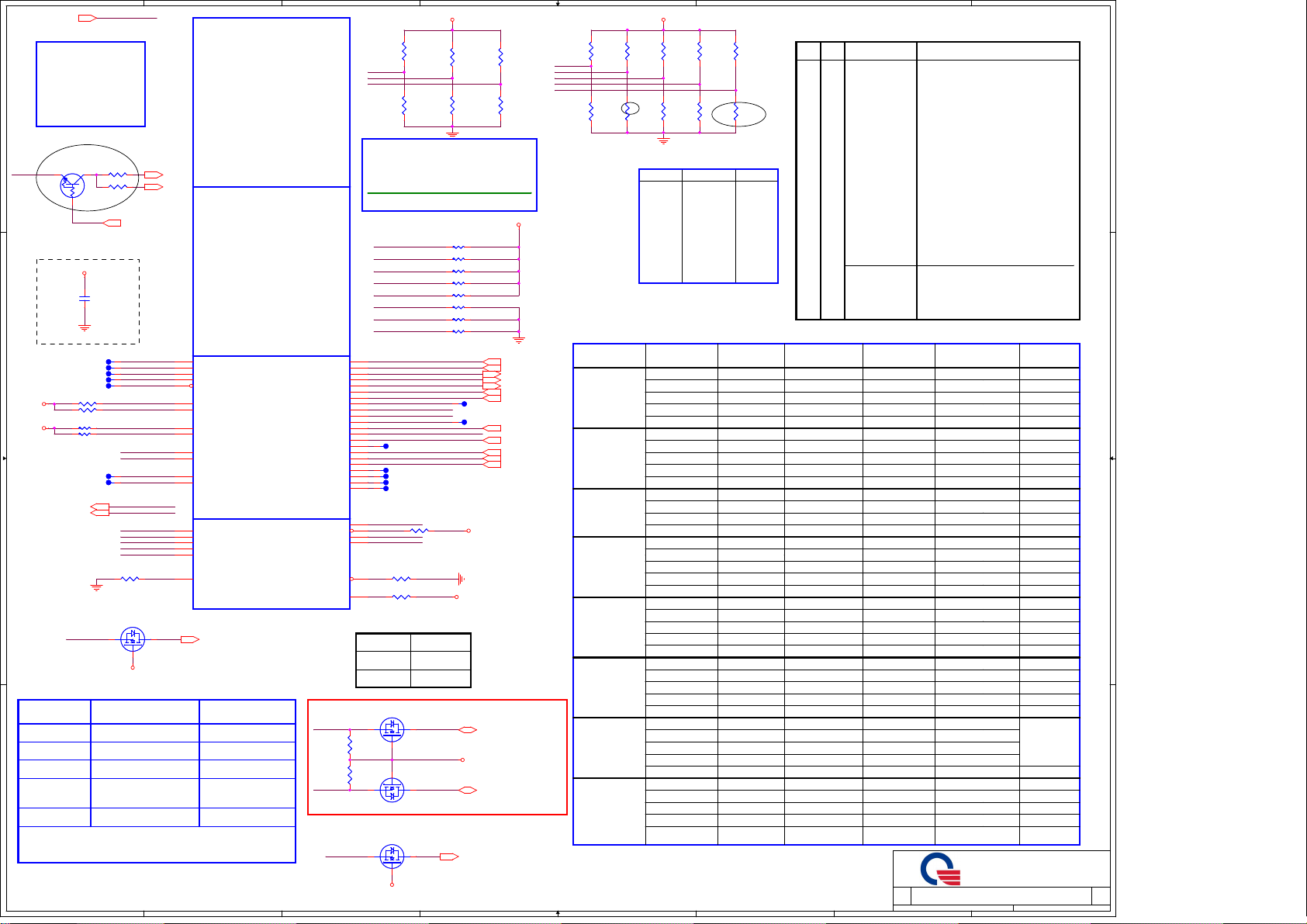

Page 19
1
+3V_GFX16,18,20,41,42
Resistor P/N
4.99K---> CS24992FB26
10K ---> CS31002FB26
15K ---> CS31502FB24
20K ---> CS32002FB29
34.8K---> CS33482FB22
A A
B B
C C
45.3K ---> CS34532FB18
dGPU_ACDC#
Change Q47 from 2N7002 to DTC144EUA, change
C12
Q47.2 from +3V_GFX to PEGX_RST#, connect
GPU_TRPI# to Q47, add 0Ω R142,R237. 12/27
1 3
2
+3V_GFX
R142 0_4R142 0_4
R237 0_4R237 0_4
C707
C707
0.1u/10V_4
0.1u/10V_4
Q47
Q47
EOP@DTC144EUA
EOP@DTC144EUA
CRT flicker
TP5TP5
TP62TP62
TP63TP63
TP60TP60
TP61TP61
+3V_GFX
DGPU_EDIDCLK23
DGPU_EDIDDATA23
VGA_OVT#
TP10TP10
+3V_GFX
SYS_SHDN# 3,36,43
GPU_TRIP# 34
PEGX_RST# 16
JTAG_TCK
JTAG_TMS
JTAG_TDIJTAG_TDI
JTAG_TDO
JTAG_TRST#
N13P_SCL
N13P_SDA
DGPU_EDIDCLK
DGPU_EDIDDATA
GFx_SCL
GFx_SDA
THERM+
THERM-
DGPU_EDIDCLK
DGPU_EDIDDATA
STRAP0
STRAP1
STRAP2
STRAP3
STRAP4
+3V_GFX
2
3
Q24
Q24
EOP@2N7002
EOP@2N7002
1
N13M-GS Straping table
Pin Name Strap Mapping Value
ROM_SCLK
ROM_SI
ROM_SO
STRAP[3..0] RAM_CFG[3..0]
D D
STRAP[4] PCIE_MAX_SPEED
Remark :
0 -> 10K PD
1 -> 10K PU
SMB_ALT_ADDR
SUB_VENDOR
VGA_DEVICE
1
U14E
U14E
AM10
JTAG_TCK
AP11
JTAG_TMS
AM11
JTAG_TDI
AP12
JTAG_TDO
AN11
JTAG_TRST_N
R7
I2CB_SCL
R6
I2CB_SDA
R2
I2CC_SCL
R3
I2CC_SDA
T4
I2CS_SCL
T3
I2CS_SDA
K4
THERMDN
K3
THERMDP
J2
STRAP0
J7
STRAP1
J6
STRAP2
J5
STRAP3
J3
STRAP4
J1
MULTISTRAP_REF_GND
EOP@N13x
EOP@N13x
dGPU_OVT# 34
2
[MIOA]
[MIOA]
[MIOB]
[MIOB]
[MISC_GPIO/I2C/JTAG/THER]
[MISC_GPIO/I2C/JTAG/THER]
[MISC2_ROM]
[MISC2_ROM]
0
0
0
0010(Hynix 64Mx16)
0110(Hynix 128Mx16)
0
2
3
R96
R96
*[email protected]/F_4
*[email protected]/F_4
ROM_SI
ROM_SO
R92
R92
ROM_SI
1G Hynix 64Mx16 -->15K PD
1G Micron 64Mx16 -->20K PD
2G Hynix 128Mx16 -->34.8K PD (B-Die)
2G Hynix 128Mx16 -->30.1K PD (D-Die)
2G Micron 128Mx16 -->45.3K PD
dGPU_ACDC#
JTAG_TMS
JTAG_TDI
VGA_OVT#
ALERT
JTAG_TCK
JTAG_TRST#
DGPU_DPST_PWM
Add GPU_TRIP# to EC GPIO47, connect to NV GPIO08. 12/23C03
P6
GPIO0
M3
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
ROM_SCLK
ROM_CS_N
ROM_SI
ROM_SO
BUFRST_N
L6
P5
P7
L7
M7
N8
M1
M2
L1
M5
N3
M4
N4
P2
R8
M6
R1
P3
P4
P1
H4
H6
H5
H7
L2
L3
CEC
DGPU_DPST_PWM
dGPU_ACDC#
ALERT
VGA_OVT#
TP7TP7
TP68TP68
TP64TP64TP9TP9
TP8TP8
TP67TP67
ROM_SCLK
R97 EOP@10K_4R97 EOP@10K_4
ROM_SI
ROM_SO
R381 *EOP@10K_4R381 *EOP@10K_4
R373 EOP_GL@10K_4R373 EOP_GL@10K_4
N13P-GS
Reserve R373
GFx SMBus Isolation
GFx_SCL
1
Q4
R76
R76
[email protected]_4
R77
R77
[email protected]_4
GFx_SDA
11/8 change for GPU temp detect
ALERT
3
Q4
EOP@2N7002
EOP@2N7002
2
2
Q6
Q6
EOP@2N7002
EOP@2N7002
1
1
Q21
Q21
EOP@2N7002
EOP@2N7002
2
+3V_GFX
R64
R64
R66
R66
TP65TP65
TP66TP66
4
R387
R387
R388
R388
EOP_STRAP@15K/F_4
EOP_STRAP@15K/F_4
+3V_GFX
GPU_VID4 41
GPU_VID3 41
DGPU_DPST_PWM 23
DGPU_DISP_ON 23
DGPU_LVDS_BLON 23
GPU_VID1 41
GPU_VID2 41
GPU_VID0 41
GPU_VID5 41
EV_HDMI_HPD 24
GPU_DPRSLPVR 41
EV_eDP_HPD 23
R389
R389
STRAP0
*[email protected]/F_4
*[email protected]/F_4
STRAP1
STRAP2
STRAP3ROM_SCLK
STRAP4
R390
R390
[email protected]/F_4
R73 change from 34.8 KΩ to pull down
4.99KΩ for N13P-GS & GT STRAP1. 01/17
QCI P/N QCI STN B/S P/N
Hynix 64x16 900/1G P/N: AKD5LZWTW02 / AKD5LZWTW05
Hynix 128X16 900/2G P/N: AKD5MGWTW00 / AKD5MGWTW03
Micron 64X16 900/1G P/N: AKD5EGSTL00 / X
N13M-GS STRAP 0-3 Define by RVL 128M*16 Hynix DDR3-> 0X6. 11/08
Strap Name
ROM_SO
ROM_SCLK
+3V_GFX +3V_GFX
EOP_STRAP@10K/F_4
EOP_STRAP@10K/F_4
EOP_STRAP@10K/F_4
EOP_STRAP@10K/F_4
(Default: Hynix 2G)
R374 EOP@10K/F_4R374 EOP@10K/F_4
R352 *EOP@10K/F_4R352 *EOP@10K/F_4
R357 *EOP@10K/F_4R357 *EOP@10K/F_4
R372 EOP@10K/F_4R372 EOP@10K/F_4
R383 EOP@10K/F_4R383 EOP@10K/F_4
R59 *EOP@10K/F_4R59 *EOP@10K/F_4
R349 EOP@10K/F_4R349 EOP@10K/F_4
R87 *EOP@2K/F_4R87 *EOP@2K/F_4
ROM_SI
+3V_GFX
STRAP0
+3V_GFX
STRAP1
N13P- GLN13M-GS
N13P- PES
Stuff R373
3
3
3
GPUT_CLK 34
+3V_GFX
GPUT_DATA 34
dGPU_ALT# 34
**
4
STRAP2
STRAP3
STRAP4
5
R94
R94
EOP_STRAP@20K/F_4
EOP_STRAP@20K/F_4
*[email protected]/F_4
*[email protected]/F_4
R82
R82
R90
R90
*EOP_STRAP@15K/F_4
*EOP_STRAP@15K/F_4
EOP_STRAP@15K/F_4
EOP_STRAP@15K/F_4
R73
R73
C33
R382 change from 30.1 KΩ to pull down
45.3KΩ for N13P-GS & GT strap4. 01/04
Logical Strap Bit Mapping
PU-VDD PD
4.99K
10.0K
15.0K
20.0K
24.9K
30.1K
34.8K
45.3K
GPU Sku
N13P-GL
N13P-GS ES
N13P-GT ES
N13M-GS ES
N13P-GL
N13P-GS ES
N13P-GT ES
N13M-GS ES
Hynix
Samsung
N13M-GS ES
N13P-GL
N13P-GS ES
N13P-GT ES
N13M-GS ES
N13P-GL
N13P-GS ES
N13P-GT ES
N13M-GS ES
N13P-GL
N13P-GS ES2
N13P-GT ES
N13M-GS ES
N13P-GL
N13P-GS ES
N13P-GT ES
N13M-GS ES
N13P-GL
N13P-GS QS
N13P-GT QS
N13M-GS ES
5
6
R95
R95
R392
R392
*EOP_STRAP@10K/F_4
*EOP_STRAP@10K/F_4
R91
R91
R382
R382
C19
1000 0000
1001 0001
1011 0011
1100
1101
1110 0110
1111
00101010
0100
0101
0111
Logical
Strapping Bit3 BOMStrapping Bit1
GPIO ASSIGNMENTS
GPIO
I/O
GPU_VID4
O
0
GPU_VID3
O
1
LCD_BL_PWM
O
2
LCD_VCC
3
O
LCD_BLEN
4
O
GPU_VID1
O
GPU_VID2
6
O
3D VISION
7
O
OVERT
8
I/O
ALERT
I/O
9
10
11
12
13
145I
15
16
17
18
19
20/21
Strapping Bit2
MEM VREF_CLT
O
GPU_VID0
O
PWR_LEVEL
I
GPU_VID5
O
HPD_AB
HPD_C
I
MEM VDD
O
HPD_D
I
HPD_E
I
HPD_F
I
RESERVE
XCLK_417/FB[1] FB_0_BAR_SIZE/FB[0] VGA_DEVICESMB_ALT_ADDR
0 0 0
1
1
0
0
1
1
0
X
X
0
0
1
SUB_VENDOR
0
0
0
0
X
X
USER[3] USER[2] USER[0]USER[1]
1
1
1
1
0
0
0
0
PCI_DEVID[3] PCI_DEVID[1] PCI_DEVID[0]PCI_DEVID[2]
1
1
1
1
0
0
0
0
RESERVED
0
0
0
0
6
1
1
1
1
3GIO_PADCFG[2] 3GIO_PADCFG[1] 3GIO_PADCFG[0]3GIO_PADCFG[3]
1
0
0 0
1
0
0
0
0 0
SOR2_EXPOSED SOR1_EXPOSED SOR0_EXPOSEDSOR3_EXPOSED
0
0
0
0
PCI SPEED CHANGE GEN3
0
1
1
0
7
PIN
LogicalLogical Logical
PCI_DEVID[5]PCI_DEVIDE[4]
RAMCFG[1]RAMCFG[3] RAMCFG[2] RAMCFG[0]
PCI_MAX SPEED DP_PLL_VDD33
USAGE
GPU CORE_VDD VID4
GPU CORE_VDD VID3
LCD BACKLIGHT PWM
PANEL POWER ENABLE
PANEL BACKLIGHT ENABLE
GPU CORE_VDD VID1
GPU CORE_VDD VID2
3D VISION LEFT/RIGHT VISION
ACTIVE LOW THERMAL OVER TEMP
ACTIVE LOW THERMAL ALERT
MEMMORY VREF CONTROL
GPU CORE_VDD VID0
Power Detect ,HIGH=AC, LOW=DC
GPU CORE_VDD VID5
HOT PLUG DETECT FOR IFPAB
HOT PLUG DETECT FOR IFPC
MEMMORY VDD CONTROL
HOT PLUG DETECT FOR IFPD
HOT PLUG DETECT FOR IFPE
HOT PLUG DETECT FOR IFPF
Strapping Bit0
0
0
0
1
0
0
0
X
X
1
1
1
1
1
0
1
0
1
1
0
0
0
0
0 1
1
1
0
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
1
1
1
1
PEX_PLL_EN_TERM
0
0
0
0
X
X
1
1
1
1
1
0
0
0
1
1
1
1
0
0
0
0
1
1
1
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
DGPU 4/5 (MIO/GPIO)
DGPU 4/5 (MIO/GPIO)
DGPU 4/5 (MIO/GPIO)
8
Pull down 10K
Pull up 10K
Pull up 10K
Pull down 10K
Pull down 15K
Pull up 4.99K
Pull up 4.99K
Pull down 10K
Pull down 10K
Pull up 45.3K
Pull up 45.3K
Pull up 45.3K
Pull down 10K
Pull down 45.3K
Pull down 4.99K
Pull down 4.99K
Pull up 10K
Pull up 10K
Pull down 15K
Pull up 20K
Pull up 10K
Optimus
Pull down 4.99K
Discrete
Pull down 15K
Pull down 10K
Pull down 10K
Pull down 45.3K
Pull down 45.3K
Pull down 10K
ZQS 45W
ZQS 45W
ZQS 45W
19 46Wednesday, February 08, 2012
19 46Wednesday, February 08, 2012
19 46Wednesday, February 08, 2012
8
3C
3C
3C

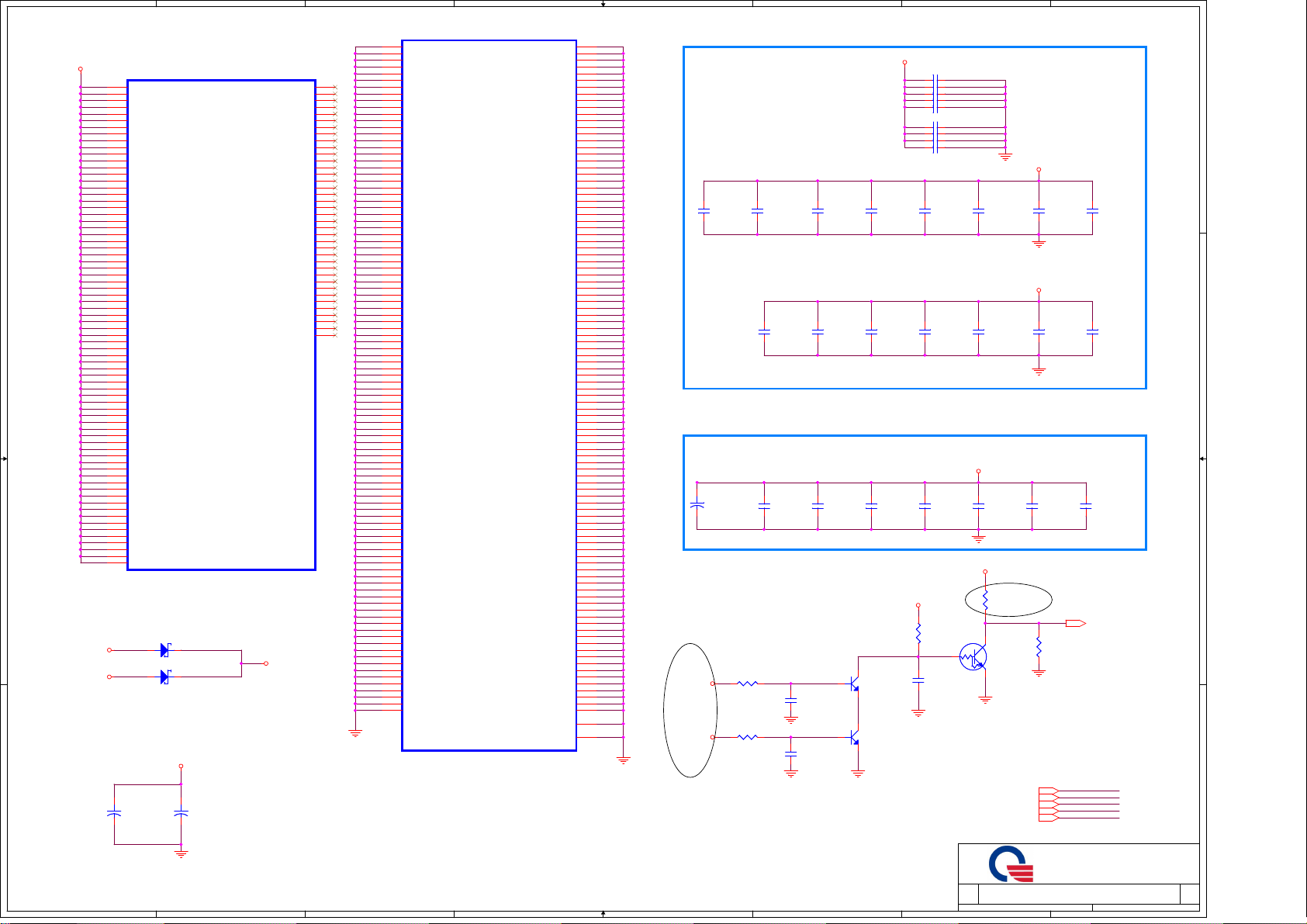

Page 20
1
50 A
+VGACORE
A A
B B
C C
AA12
AA14
AA16
AA19
AA21
AA23
AB13
AB15
AB17
AB18
AB20
AB22
AC12
AC14
AC16
AC19
AC21
AC23
M12
M14
M16
M19
M21
M23
N13
N15
N17
N18
N20
N22
R13
R15
R17
R18
R20
R22
U13
U15
U17
U18
U20
U22
W12
W14
W16
W19
W21
W23
P12
P14
P16
P19
P21
P23
T12
T14
T16
T19
T21
T23
V13
V15
V17
V18
V20
V22
Y13
Y15
Y18
Y17
Y20
Y22
U14F
U14F
VDD_001
VDD_002
VDD_003
VDD_004
VDD_005
VDD_006
VDD_007
VDD_008
VDD_009
VDD_010
VDD_011
VDD_012
VDD_013
VDD_014
VDD_015
VDD_016
VDD_017
VDD_018
VDD_019
VDD_020
VDD_021
VDD_022
VDD_023
VDD_024
VDD_025
VDD_026
VDD_027
VDD_028
VDD_029
VDD_030
VDD_031
VDD_032
VDD_033
VDD_034
VDD_035
VDD_036
VDD_037
VDD_038
VDD_039
VDD_040
VDD_041
VDD_042
VDD_043
VDD_044
VDD_045
VDD_046
VDD_047
VDD_048
VDD_049
VDD_050
VDD_051
VDD_052
VDD_053
VDD_054
VDD_055
VDD_056
VDD_057
VDD_058
VDD_059
VDD_060
VDD_061
VDD_062
VDD_063
VDD_064
VDD_065
VDD_066
VDD_067
VDD_068
VDD_069
VDD_070
VDD_071
VDD_072
EOP@N13x
EOP@N13x
for meet Power down sequence for +3V_GFX
+VGACORE
+1.5V_GFX
D9 EOP@RB500V-40D9 EOP@RB500V-40
D10 EOP@RB500V-40D10 EOP@RB500V-40
+VGACORE
[GPU VDD]
[GPU VDD]
2
U1
XVDD_001
U2
XVDD_002
U3
XVDD_003
U4
XVDD_004
U5
XVDD_005
U6
XVDD_006
U7
XVDD_007
U8
XVDD_008
V1
XVDD_009
V2
XVDD_010
V3
XVDD_011
V4
XVDD_012
V5
XVDD_013
V6
XVDD_014
V7
XVDD_015
V8
XVDD_016
W2
XVDD_017
W3
XVDD_018
W4
XVDD_019
W5
XVDD_020
W7
XVDD_021
W8
XVDD_022
Y1
XVDD_023
Y2
XVDD_024
Y3
XVDD_025
Y4
XVDD_026
Y5
XVDD_027
Y6
XVDD_028
Y7
XVDD_029
Y8
XVDD_030
AA1
XVDD_031
AA2
XVDD_032
AA3
XVDD_033
AA4
XVDD_034
AA5
XVDD_035
AA6
XVDD_036
AA7
XVDD_037
AA8
XVDD_038
+3V_GFX
3
AA17
AA18
AA20
AA22
AB12
AB14
AB16
AB19
AB21
AB23
AB28
AB30
AB32
AC13
AC15
AC17
AC18
AA13
AC20
AC22
AE28
AE30
AE32
AE33
AH10
AA15
AH13
AH16
AH19
AH22
AH24
AH28
AH29
AH30
AH32
AH33
AK10
AL12
AL14
AL15
AL17
AL18
AL20
AL21
AL23
AL24
AL26
AL28
AL30
AL32
AL33
AM13
AM16
AM19
AM22
AM25
AN10
AN13
AN16
AN19
AN22
AN25
AN30
AN34
AP33
AB2
A33
AB5
AB7
AE2
AE5
AE7
AH2
AH5
AH7
AJ7
AK7
AL2
AL5
AN1
AN4
AN7
AP2
B10
B22
B25
B28
B31
B34
C10
C13
C19
C22
C25
C28
A2
B1
B4
B7
C7
U14G
U14G
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
EOP@N13x
EOP@N13x
[GPU GND]
[GPU GND]
4
GND_OPT_1
GND_OPT_2
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169
GND_170
GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
D2
D31
D33
E10
E22
E25
E5
E7
F28
F7
G10
G13
G16
G19
G2
G22
G25
G28
G3
G30
G32
G33
G5
G7
K2
K28
K30
K32
K33
K5
K7
M13
M15
M17
M18
M20
M22
N12
N14
N16
N19
N2
N21
N23
N28
N30
N32
N33
N5
N7
P13
P15
P17
P18
P20
P22
R12
R14
R16
R19
R21
R23
T13
T15
T17
T18
T2
T20
T22
AG11
T28
T32
T5
T7
U12
U14
U16
U19
U21
U23
V12
V14
V16
V19
V21
V23
W13
W15
W17
W18
W20
W22
W28
Y12
Y14
Y16
Y19
Y21
Y23
AH11
C16
W32
5
6
PLACE UNDER GPU
C98
C89
C89
[email protected]/6.3V_6
[email protected]/6.3V_6
C81
C81
[email protected]/6.3V_6
[email protected]/6.3V_6
C79
C79
[email protected]/6.3V_6
[email protected]/6.3V_6
C98
[email protected]/6.3V_6
[email protected]/6.3V_6
C77
C77
[email protected]/6.3V_6
[email protected]/6.3V_6
PLACE NEAR GPU
C94
C94
+
+
EOP@330u/2.5V_3528
EOP@330u/2.5V_3528
Change DGPU_POK4 from +1.05V_GFX to +1.5V_GFX, DGPU_POK2
C31
from +1.5V_GFX to +1.05V_GFX for possibly floating issue.
01/17
R371
R371
+1.5V_GFX
R364
R364
+1.05V_GFX
C492
C492
[email protected]/25V_8
[email protected]/25V_8
C491
C491
[email protected]/25V_8
[email protected]/25V_8
DGPU_POK4
C463
C463
*EOP@1000P/50V_4
*EOP@1000P/50V_4
DGPU_POK2
C461
C461
*EOP@1000P/50V_4
*EOP@1000P/50V_4
DGPU_PGOK-1
2
Q23
Q23
EOP@MMBT3904-7-F
EOP@MMBT3904-7-F
1 3
2
1 3
+VGACORE
C85 EOP@1u/6.3V_4C85 EOP@1u/6.3V_4
C97 [email protected]/10V_4C97 [email protected]/10V_4
C117 [email protected]/10V_4C117 [email protected]/10V_4
C111 [email protected]/10V_4C111 [email protected]/10V_4
C128 [email protected]/10V_4C128 [email protected]/10V_4
C163 [email protected]/10V_4C163 [email protected]/10V_4
C170 [email protected]/10V_4C170 [email protected]/10V_4
C166 [email protected]/10V_4C166 [email protected]/10V_4
C162 [email protected]/10V_4C162 [email protected]/10V_4
C76
C76
[email protected]/6.3V_6
[email protected]/6.3V_6
C93
C93
[email protected]/6.3V_6
[email protected]/6.3V_6
C489
C489
[email protected]/25V_8
[email protected]/25V_8
+3V
Q22
Q22
EOP@MMBT3904-7-F
EOP@MMBT3904-7-F
C123
C123
[email protected]/6.3V_6
[email protected]/6.3V_6
C99
C99
[email protected]/6.3V_6
[email protected]/6.3V_6
+VGACORE
C490
C490
[email protected]/25V_8
[email protected]/25V_8
R384
R384
[email protected]_4
2
C478
C478
EOP@1000P/50V_4
EOP@1000P/50V_4
7
C104
C104
[email protected]/6.3V_6
[email protected]/6.3V_6
C106
C106
[email protected]/6.3V_6
[email protected]/6.3V_6
C519
C519
[email protected]/25V_8
[email protected]/25V_8
+3V_GFX
R393
R393
[email protected]_4
Q25
Q25
1 3
EOP@DTC144EUA
EOP@DTC144EUA
+VGACORE
C122
C122
[email protected]/6.3V_6
[email protected]/6.3V_6
+VGACORE
C112
C112
[email protected]/6.3V_6
[email protected]/6.3V_6
C487
C487
EOP@22u/6.3V_8
EOP@22u/6.3V_8
Change R393 from reserve to mount. 12/27C13
R394
R394
EOP@100K/F_4
EOP@100K/F_4
8
C114
C114
[email protected]/6.3V_6
[email protected]/6.3V_6
C124
C124
[email protected]/6.3V_6
[email protected]/6.3V_6
C485
C485
EOP@47u/6.3V_8
EOP@47u/6.3V_8
DGPU_PWROK 10
+VGACORE41
D D
+
+
C508
C508
EOP@330u/2V_7343
EOP@330u/2V_7343
+
+
C497
C497
EOP@330u/2V_7343
EOP@330u/2V_7343
Power request
LSR
1
2
3
4
5
6
+1.05V_GFX16,17,18,42
+1.5V_GFX17,21,22,42,46
+3V_GFX16,18,19,41,42
+3V3,7,8,9,10,11,13,14,16,23,24,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
PROJECT :
DGPU 5/5 (Power/Ground)
DGPU 5/5 (Power/Ground)
DGPU 5/5 (Power/Ground)
ZQS 45W
ZQS 45W
ZQS 45W
20 46Wednesday, February 08, 2012
20 46Wednesday, February 08, 2012
20 46Wednesday, February 08, 2012
8
3C
3C
3C
Page 21

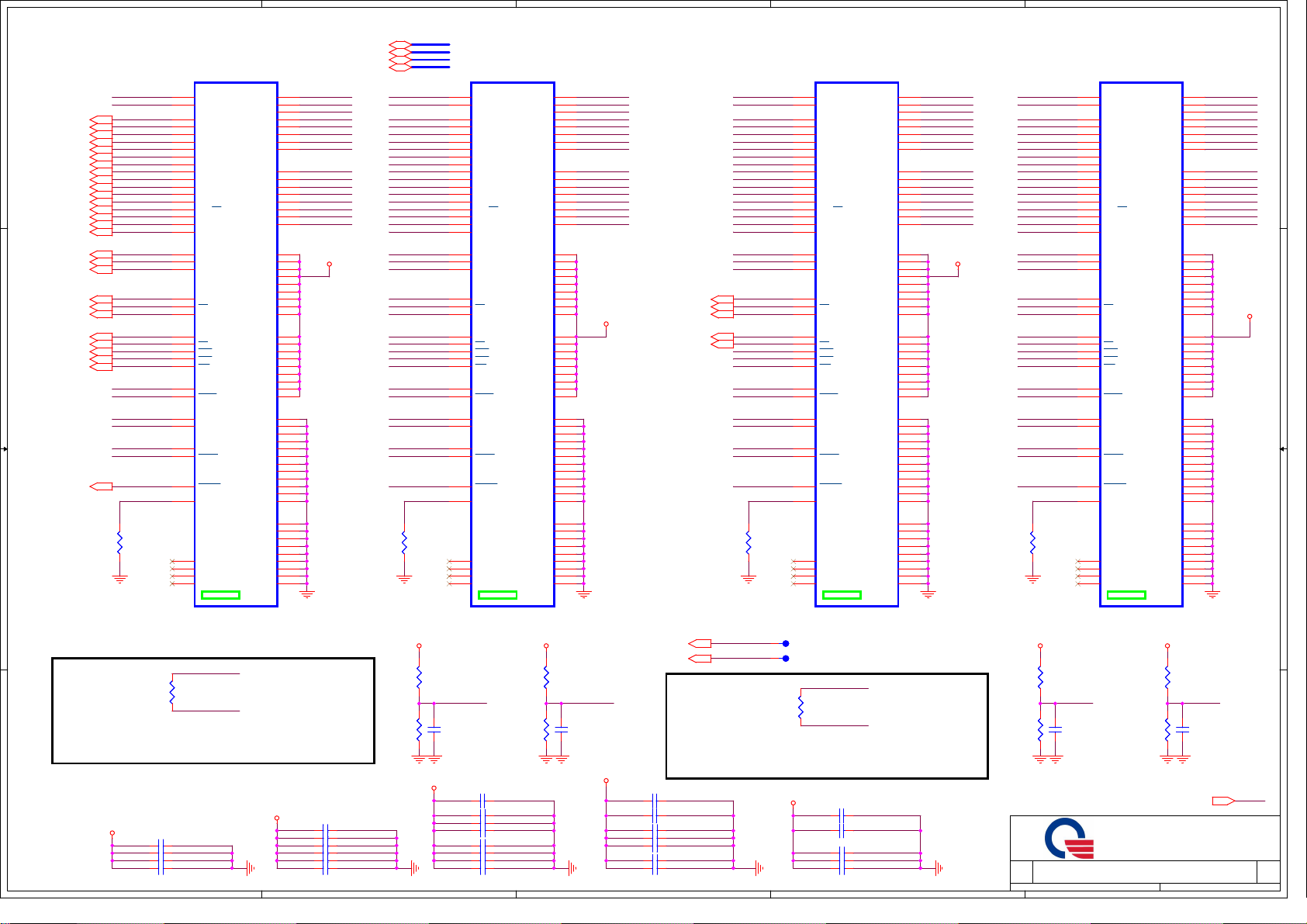

5
VMA_DQ[63..0]17
VMA_WDQS[7..0]17
VRAM2
VREFC_VMA1
VREFD_VMA1
FBA_CMD917
D D
FBA_CMD1117
FBA_CMD817
FBA_CMD2517
FBA_CMD1017
FBA_CMD2417
FBA_CMD2217
FBA_CMD717
FBA_CMD2117
FBA_CMD617
FBA_CMD2917
FBA_CMD2317
FBA_CMD2817
FBA_CMD2017
FBA_CMD417
FBA_CMD1417
FBA_CMD1217
FBA_CMD2717
FBA_CMD2617
VMA_CLK017
VMA_CLK0#17
FBA_CMD317
FBA_CMD217
C C
FBA_CMD017
FBA_CMD3017
FBA_CMD1517
FBA_CMD1317
FBA_CMD517
Should be 240
Ohms +-1%
B B
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK0
VMA_CLK0#
FBA_CMD3
FBA_CMD2
FBA_CMD0
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS1
VMA_RDQS1
VMA_DM1
VMA_DM0
VMA_WDQS0
VMA_RDQS0
FBA_CMD5
VMA_ZQ1
R29
R29
EOP@243/F_4
EOP@243/F_4
VRAM2
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
VMA_DQ12
VMA_DQ10
VMA_DQ15
VMA_DQ9
VMA_DQ14
VMA_DQ11
VMA_DQ13
VMA_DQ8
VMA_DQ5
VMA_DQ3
VMA_DQ6
VMA_DQ0
VMA_DQ4
VMA_DQ2
VMA_DQ7
VMA_DQ1
+1.5V_GFX
VMA_RDQS[7..0]17
VMA_DM[7..0]17
Should be 240
Ohms +-1%
4
3
CHANNEL A: 256MB/512MB DDR3
VRAM5
VREFC_VMA1
VREFD_VMA1
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK0
VMA_CLK0#
FBA_CMD3
FBA_CMD2
FBA_CMD0
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS3
VMA_RDQS3
VMA_DM3
VMA_DM2
VMA_WDQS2
VMA_RDQS2
FBA_CMD5
VMA_ZQ2 VMA_ZQ3
R329
R329
EOP@243/F_4
EOP@243/F_4
VRAM5
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
VMA_DQ25
E3
VMA_DQ26
F7
VMA_DQ31
F2
VMA_DQ29
F8
VMA_DQ24
H3
VMA_DQ28
H8
VMA_DQ27
G2
VMA_DQ30
H7
VMA_DQ19
D7
VMA_DQ22
C3
VMA_DQ17
C8
VMA_DQ23
C2
VMA_DQ16
A7
VMA_DQ21
A2
VMA_DQ18
B8
VMA_DQ20
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
+1.5V_GFX
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
VMA_CLK117
VMA_CLK1#17
FBA_CMD1917
FBA_CMD1817
FBA_CMD1617
Should be 240
Ohms +-1%
VREFC_VMA3
VREFD_VMA3
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK1
VMA_CLK1#
FBA_CMD19
FBA_CMD18
FBA_CMD16
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS5
VMA_RDQS5
VMA_DM5
VMA_DM4
VMA_WDQS4
VMA_RDQS4
FBA_CMD5
R26
R26
EOP@243/F_4
EOP@243/F_4
VRAM1
VRAM1
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
2
VRAM6
VRAM6
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
Should be 240
Ohms +-1%
VREFC_VMA3
VREFD_VMA3
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK1
VMA_CLK1#
FBA_CMD19
FBA_CMD18
FBA_CMD16
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS7
VMA_RDQS7
VMA_DM7
VMA_DM6
VMA_WDQS6
VMA_RDQS6
FBA_CMD5
VMA_ZQ4
R338
R338
EOP@243/F_4
EOP@243/F_4
VMA_DQ41
E3
VMA_DQ44
F7
VMA_DQ42
F2
VMA_DQ45
F8
VMA_DQ47
H3
VMA_DQ46
H8
VMA_DQ40
G2
VMA_DQ43
H7
VMA_DQ34
D7
VMA_DQ39
C3
VMA_DQ32
C8
VMA_DQ38
C2
VMA_DQ33
A7
VMA_DQ37
A2
VMA_DQ35
B8
VMA_DQ36
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.5V_GFX
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
1
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
VMA_DQ58
E3
VMA_DQ59
F7
VMA_DQ60
F2
VMA_DQ61
F8
VMA_DQ63
H3
VMA_DQ57
H8
VMA_DQ62
G2
VMA_DQ56
H7
VMA_DQ54
D7
VMA_DQ51
C3
VMA_DQ55
C8
VMA_DQ48
C2
VMA_DQ52
A7
VMA_DQ50
A2
VMA_DQ53
B8
VMA_DQ49
A3
B2
D9
G7
K2
K8
N1
N9
R1
+1.5V_GFX
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.5V_GFX
For sDDR3
Fermi : DDR3 Change to 160 ohm
1 : CS11602FB00 ,RES CHIP 160 1/16W +-1%(0402)
2 : CS11622FB07 ,RES CHIP 162 1/16W +-1%(0402)
A A
+1.5V_GFX
C387 EOP@1u/10V_4C387 EOP@1u/10V_4
C23 EOP@1u/10V_4C23 EOP@1u/10V_4
C384 EOP@1u/10V_4C384 EOP@1u/10V_4
C25 EOP@1u/10V_4C25 EOP@1u/10V_4
5
VMA_CLK0
R336
R336
160/F_4
160/F_4
VMA_CLK0#
+1.5V_GFX
C393 EOP@10u/6.3V_8C393 EOP@10u/6.3V_8
C21 EOP@1u/10V_4C21 EOP@1u/10V_4
C388 EOP@1u/10V_4C388 EOP@1u/10V_4
C41 EOP@1u/10V_4C41 EOP@1u/10V_4
C27 EOP@1u/10V_4C27 EOP@1u/10V_4
C395 EOP@1u/10V_4C395 EOP@1u/10V_4
R331
R331
4
R332
R332
[email protected]/F_4
VREFC_VMA1 VREFD_VMA1 VREFC_VMA3 VREFD_VMA3
C381
C381
[email protected]/10V_4
[email protected]/10V_4
+1.5V_GFX
C427 EOP@10u/6.3V_8C427 EOP@10u/6.3V_8
C20 EOP@1u/10V_4C20 EOP@1u/10V_4
C389 EOP@1u/10V_4C389 EOP@1u/10V_4
C429 EOP@1u/10V_4C429 EOP@1u/10V_4
C42 EOP@1u/10V_4C42 EOP@1u/10V_4
C43 EOP@1u/10V_4C43 EOP@1u/10V_4
C19 EOP@1u/10V_4C19 EOP@1u/10V_4
C400 EOP@1u/10V_4C400 EOP@1u/10V_4
R31
R31
R30
R30
[email protected]/F_4
C26
C26
[email protected]/10V_4
[email protected]/10V_4
+1.5V_GFX
FBA_CMD1717
FBA_CMD117
C392 EOP@10u/6.3V_8C392 EOP@10u/6.3V_8
C397 EOP@10u/6.3V_8C397 EOP@10u/6.3V_8
C391 [email protected]/10V_4C391 [email protected]/10V_4
C390 [email protected]/10V_4C390 [email protected]/10V_4
C394 [email protected]/10V_4C394 [email protected]/10V_4
C24 [email protected]/10V_4C24 [email protected]/10V_4
C379 [email protected]/10V_4C379 [email protected]/10V_4
3
FBA_CMD17
FBA_CMD1
For sDDR3
Fermi : DDR3 Change to 160 ohm
1 : CS11602FB00 ,RES CHIP 160 1/16W +-1%(0402)
2 : CS11622FB07 ,RES CHIP 162 1/16W +-1%(0402)
TP1TP1
TP2TP2
VMA_CLK1
R337
R337
160/F_4
160/F_4
VMA_CLK1#
+1.5V_GFX
C17 EOP@10u/6.3V_8C17 EOP@10u/6.3V_8
C83 EOP@10u/6.3V_8C83 EOP@10u/6.3V_8
C382 [email protected]/10V_4C382 [email protected]/10V_4
C380 [email protected]/10V_4C380 [email protected]/10V_4
C88 [email protected]/10V_4C88 [email protected]/10V_4
Samsung 900MHz 1G AKD5LGHT500
2
+1.5V_GFX+1.5V_GFX
R28
R28
[email protected]/F_4
C22
C22
R27
R27
[email protected]/10V_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
[email protected]/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
DGPU Memory 1/2 (DDR3)
DGPU Memory 1/2 (DDR3)
DGPU Memory 1/2 (DDR3)
+1.5V_GFX
R334
R334
1
R333
R333
[email protected]/F_4
C386
C386
[email protected]/10V_4
[email protected]/10V_4
+1.5V_GFX17,20,22,42,46
ZQS 45W
ZQS 45W
ZQS 45W
21 46Wednesday, February 08, 2012
21 46Wednesday, February 08, 2012
21 46Wednesday, February 08, 2012
3C
3C
3C

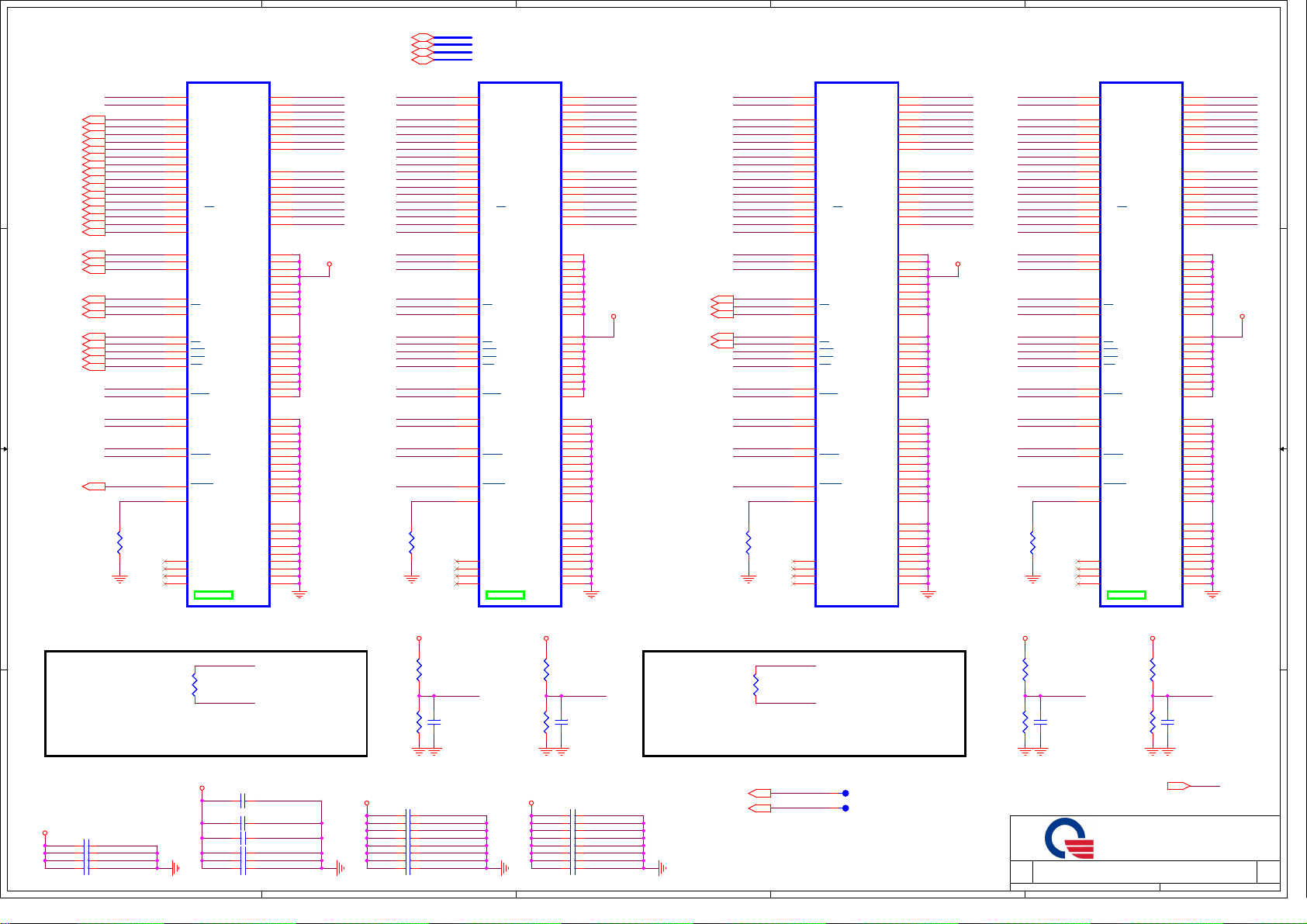

Page 22
5
VRAM8
VREFC_VMC1
VREFD_VMC1
FBC_CMD917
D D
FBC_CMD1117
FBC_CMD817
FBC_CMD2517
FBC_CMD1017
FBC_CMD2417
FBC_CMD2217
FBC_CMD717
FBC_CMD2117
FBC_CMD617
FBC_CMD2917
FBC_CMD2317
FBC_CMD2817
FBC_CMD2017
FBC_CMD417
FBC_CMD1417
FBC_CMD1217
FBC_CMD2717
FBC_CMD2617
VMC_CLK017
VMC_CLK0#17
FBC_CMD317
FBC_CMD217
C C
FBC_CMD017
FBC_CMD3017
FBC_CMD1517
FBC_CMD1317
FBC_CMD517
Should be 240
Ohms +-1%
B B
FBC_CMD9
FBC_CMD11
FBC_CMD8
FBC_CMD25
FBC_CMD10
FBC_CMD24
FBC_CMD22
FBC_CMD7
FBC_CMD21
FBC_CMD6
FBC_CMD29
FBC_CMD23
FBC_CMD28
FBC_CMD20
FBC_CMD4
FBC_CMD14
FBC_CMD12
FBC_CMD27
FBC_CMD26
VMC_CLK0
VMC_CLK0#
FBC_CMD3
FBC_CMD2
FBC_CMD0
FBC_CMD30
FBC_CMD15
FBC_CMD13
VMC_WDQS0
VMC_RDQS0
VMC_DM0
VMC_DM2
VMC_WDQS2
VMC_RDQS2
FBC_CMD5
VMC_ZQ1 VMC_ZQ2
R347
R347
EOP@243/F_4
EOP@243/F_4
VRAM8
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
VMC_DQ4
E3
VMC_DQ2
F7
VMC_DQ5
F2
VMC_DQ0
F8
VMC_DQ7
H3
VMC_DQ1
H8
VMC_DQ6
G2
VMC_DQ3
H7
VMC_DQ19
D7
VMC_DQ20
C3
VMC_DQ18
C8
VMC_DQ23
C2
VMC_DQ16
A7
VMC_DQ22
A2
VMC_DQ17
B8
VMC_DQ21
A3
B2
+1.5V_GFX
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
Should be 240
Ohms +-1%
4
VMC_DQ[63..0]17
VMC_DM[7..0]17
VMC_WDQS[7..0]17
VMC_RDQS[7..0]17
VREFC_VMC1
VREFD_VMC1
FBC_CMD9
FBC_CMD11
FBC_CMD8
FBC_CMD25
FBC_CMD10
FBC_CMD24
FBC_CMD22
FBC_CMD7
FBC_CMD21
FBC_CMD6
FBC_CMD29
FBC_CMD23
FBC_CMD28
FBC_CMD20
FBC_CMD4
FBC_CMD14
FBC_CMD12
FBC_CMD27
FBC_CMD26
VMC_CLK0
VMC_CLK0#
FBC_CMD3
FBC_CMD2
FBC_CMD0
FBC_CMD30
FBC_CMD15
FBC_CMD13
VMC_WDQS1
VMC_RDQS1
VMC_DM1
VMC_DM3
VMC_WDQS3
VMC_RDQS3
FBC_CMD5
R56
R56
EOP@243/F_4
EOP@243/F_4
CHANNEL B: 256MB/512MB DDR3
VRAM4
VRAM4
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
+1.5V_GFX
VMC_DQ13
E3
VMC_DQ9
F7
VMC_DQ12
F2
VMC_DQ11
F8
VMC_DQ15
H3
VMC_DQ8
H8
VMC_DQ14
G2
VMC_DQ10
H7
VMC_DQ27
D7
VMC_DQ29
C3
VMC_DQ26
C8
VMC_DQ28
C2
VMC_DQ24
A7
VMC_DQ30
A2
VMC_DQ25
B8
VMC_DQ31
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.5V_GFX
3
VRAM3
VRAM3
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
VMC_CLK117
VMC_CLK1#17
FBC_CMD1917
FBC_CMD1817
FBC_CMD1617
Should be 240
Ohms +-1%
VREFC_VMC3
VREFD_VMC3
FBC_CMD9
FBC_CMD11
FBC_CMD8
FBC_CMD25
FBC_CMD10
FBC_CMD24
FBC_CMD22
FBC_CMD7
FBC_CMD21
FBC_CMD6
FBC_CMD29
FBC_CMD23
FBC_CMD28
FBC_CMD20
FBC_CMD4
FBC_CMD14
FBC_CMD12
FBC_CMD27
FBC_CMD26
VMC_CLK1
VMC_CLK1#
FBC_CMD19
FBC_CMD18
FBC_CMD16
FBC_CMD30
FBC_CMD15
FBC_CMD13
VMC_WDQS5
VMC_RDQS5
VMC_DM5
VMC_DM6
VMC_WDQS6
VMC_RDQS6
FBC_CMD5
VMC_ZQ3 VMC_ZQ4
R45
R45
EOP@243/F_4
EOP@243/F_4
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
2
VRAM7
VMC_DQ41
E3
VMC_DQ44
F7
VMC_DQ46
F2
VMC_DQ43
F8
VMC_DQ47
H3
VMC_DQ45
H8
VMC_DQ40
G2
VMC_DQ42
H7
VMC_DQ48
D7
VMC_DQ52
C3
VMC_DQ49
C8
VMC_DQ54
C2
VMC_DQ50
A7
VMC_DQ55
A2
VMC_DQ51
B8
VMC_DQ53
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.5V_GFX
Should be 240
Ohms +-1%
VREFC_VMC3
VREFD_VMC3
FBC_CMD9
FBC_CMD11
FBC_CMD8
FBC_CMD25
FBC_CMD10
FBC_CMD24
FBC_CMD22
FBC_CMD7
FBC_CMD21
FBC_CMD6
FBC_CMD29
FBC_CMD23
FBC_CMD28
FBC_CMD20
FBC_CMD4
FBC_CMD14
FBC_CMD12
FBC_CMD27
FBC_CMD26
VMC_CLK1
VMC_CLK1#
FBC_CMD19
FBC_CMD18
FBC_CMD16
FBC_CMD30
FBC_CMD15
FBC_CMD13
VMC_WDQS4
VMC_RDQS4
VMC_DM4
VMC_DM7
VMC_WDQS7
VMC_RDQS7
FBC_CMD5
+1.5V_GFX
R53
R53
EOP@243/F_4
EOP@243/F_4
VRAM7
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
SP_VRAM@VRAM _DDR3
SP_VRAM@VRAM _DDR3
96-BALL
96-BALL
SDRAM DDR3
SDRAM DDR3
+1.5V_GFX+1.5V_GFX
1
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
VMC_DQ34
E3
VMC_DQ36
F7
VMC_DQ32
F2
VMC_DQ39
F8
VMC_DQ37
H3
VMC_DQ35
H8
VMC_DQ38
G2
VMC_DQ33
H7
VMC_DQ59
D7
VMC_DQ61
C3
VMC_DQ58
C8
VMC_DQ63
C2
VMC_DQ57
A7
VMC_DQ62
A2
VMC_DQ56
B8
VMC_DQ60
A3
B2
D9
G7
K2
K8
N1
N9
R1
+1.5V_GFX
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
R68
R72
R72
+1.5V_GFX
C51 EOP@1u/10V_4C51 EOP@1u/10V_4
C49 EOP@1u/10V_4C49 EOP@1u/10V_4
C47 EOP@1u/10V_4C47 EOP@1u/10V_4
C29 EOP@1u/10V_4C29 EOP@1u/10V_4
C131 EOP@1u/10V_4C131 EOP@1u/10V_4
C404 EOP@1u/10V_4C404 EOP@1u/10V_4
C462 EOP@1u/10V_4C462 EOP@1u/10V_4
C46 EOP@1u/10V_4C46 EOP@1u/10V_4C28 [email protected]/10V_4C28 [email protected]/10V_4
R68
[email protected]/F_4
C148
C148
[email protected]/10V_4
[email protected]/10V_4
Fermi : DDR3 Change to 160 ohm
1 : CS11602FB00 ,RES CHIP 160 1/16W +-1%(0402)
2 : CS11622FB07 ,RES CHIP 162 1/16W +-1%(0402)
FBC_CMD1717
FBC_CMD117
3
R345
For sDDR3 For sDDR3
Fermi : DDR3 Change to 160 ohm
1 : CS11602FB00 ,RES CHIP 160 1/16W +-1%(0402)
2 : CS11622FB07 ,RES CHIP 162 1/16W +-1%(0402)
A A
+1.5V_GFX
C153 EOP@1u/10V_4C153 EOP@1u/10V_4
C144 EOP@1u/10V_4C144 EOP@1u/10V_4
C101 EOP@1u/10V_4C101 EOP@1u/10V_4
C18 EOP@1u/10V_4C18 EOP@1u/10V_4
5
R350
R350
160/F_4
160/F_4
VMC_CLK0#
+1.5V_GFX
C113 EOP@10u/6.3V_8C113 EOP@10u/6.3V_8
C443 EOP@10u/6.3V_8C443 EOP@10u/6.3V_8
C456 EOP@1u/10V_4C456 EOP@1u/10V_4 C460 [email protected]/10V_4C460 [email protected]/10V_4
C54 EOP@1u/10V_4C54 EOP@1u/10V_4
C437 EOP@1u/10V_4C437 EOP@1u/10V_4
C410 EOP@1u/10V_4C410 EOP@1u/10V_4
+1.5V_GFX
R345
[email protected]/F_4
VREFC_VMC1 VREFD_VMC1
R346
R346
C378 [email protected]/10V_4C378 [email protected]/10V_4
C458 [email protected]/10V_4C458 [email protected]/10V_4
C150 [email protected]/10V_4C150 [email protected]/10V_4
C434 [email protected]/10V_4C434 [email protected]/10V_4
C417 [email protected]/10V_4C417 [email protected]/10V_4
C405 [email protected]/10V_4C405 [email protected]/10V_4
4
C453
[email protected]/10V_4
[email protected]/10V_4
VMC_CLK1VMC_CLK0
R340
R340
160/F_4
160/F_4
VMC_CLK1#
FBC_CMD17
FBC_CMD1
TP3TP3
TP4TP4
Samsung 900MHz 1G AKD5LGHT500
2
R47
R47
[email protected]/F_4
VREFC_VMC3 VREFD_VMC3
C73
R51
R51
C73
[email protected]/10V_4
[email protected]/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
DGPU Memory 2/2 (DDR3)
DGPU Memory 2/2 (DDR3)
DGPU Memory 2/2 (DDR3)
R343
R343
+1.5V_GFX17,20,21,42,46
1
R342
R342
[email protected]/F_4
C423
C423
[email protected]/10V_4
[email protected]/10V_4C453
ZQS 45W
ZQS 45W
ZQS 45W
22 46Wednesday, February 08, 2012
22 46Wednesday, February 08, 2012
22 46Wednesday, February 08, 2012
3C
3C
3C
Page 23
1
CRT
A A
DIS.VGA-->EV@ + EOP@
Optimize-->IOP@ + EOP@
UMA-->IV@ + IOP@
Special-->SP@
EV_CRT_RED18
EV_CRT_GRN18
EV_CRT_BLU1 8
VSYNC_COM18
HSYNC_COM18
EV_CRTDDAT18
EV_CRTDCLK18
2
From EXT VGA
R78 EV@0_4R78 EV@0_4
R69 EV@0_4R69 EV@0_4
R74 EV@0_4R74 EV@0_4
R130 EV@0_4R130 EV@0_4
R131 EV@0_4R131 EV@0_4
CRT_RED_COM
CRT_GRN_COM
CRT_BLU_COM
VSYNC_COM
HSYNC_COM
CRT_DDCDAT_COM
CRT_DDCCLK_COM
3
From PCH
INT_CRT_RED7
INT_CRT_GRN7
INT_CRT_BLU7
INT_VSYNC7
INT_HSYNC7
INT_CRT_DDCDAT7
INT_CRT_DDCCLK7
+3V
+3V
R356 IOP@0_4R356 IOP@0_4
R348 IOP@0_4R348 IOP@0_4
R351 IOP@0_4R351 IOP@0_4 L10 BLM18BA7 50SN1D/0.3A/75ohm_6L10 BLM18BA7 50SN1D/0.3A/75ohm_6
R83 IOP@0_4R83 IOP@0_4
R88 IOP@0_4R88 IOP@0_4
R137 IOP@0_4R137 IOP@0_4
R138 IOP@0_4R138 IOP@0_4
C218
C218
0.1u/10V_4
0.1u/10V_4
C537 0.22u/25V_6C537 0.22u/25V_6
C228
C228
0.1u/10V_4
0.1u/10V_4
4
CRT_RED_COM CRT_11
CRTVDD5
CRT_BYP
CRT_R1
CRT_G1
CRT_B1
CRT_BLU_COM
VSYNC_COM
HSYNC_COM
CRT_DDCDAT_COM
CRT_DDCCLK_COM
U18
U18
1
VCC_SYNC
7
VCC_DDC
8
BYP
2
VCC_VIDEO
3
VIDEO_1
4
VIDEO_2
5
VIDEO_3
6
GND
CM2009-02QR
CM2009-02QR
SYNC_OUT2
SYNC_OUT1
SYNC_IN2
SYNC_IN1
DDC_IN1
DDC_IN2
DDC_OUT1
DDC_OUT2
16
14
15
13
10
11
9
12
R148
R148
150/F_4
150/F_4
CRT_VSYNC2
CRT_HSYNC2
R143
R143
150/F_4
150/F_4
VSYNC_COM
HSYNC_COM
CRT_DDCCLK_COM
CRT_DDCDAT_COM
DDCCLK_1
DDCDAT_1
5
+5V
R140
R140
C233
C233
150/F_4
150/F_4
10p/50V_4
10p/50V_4
R428 *SHORT_4R428 *SHORT_4
R427 *SHORT_4R427 *SHORT_4
F1
F1
SMD1206P110TFT/1.1A_1206
SMD1206P110TFT/1.1A_1206
C226
C226
10p/50V_4
10p/50V_4
CRTVSYNC
CRTHSYNC
D11 SSM22LLPTD11 SSM22LLPT
12
L14 BLM18BA7 50SN1D/0.3A/75ohm_6L14 BLM18BA7 50SN1D/0.3A/75ohm_6
L12 BLM18BA7 50SN1D/0.3A/75ohm_6L12 BLM18BA7 50SN1D/0.3A/75ohm_6
C215
C215
10p/50V_4
10p/50V_4
CRTVDD5
+3V
R426
R426
R419
R419
2.7K_4
2.7K_4
2.7K_4
6
C214
C214
10p/50V_4
10p/50V_4
C531 0.1u/10V_4C531 0.1u/10V_4
CRTVDD5
CRT_R1
CRT_G1
CRT_B1 CRTHSYNC
C225
C225
C232
C232
10p/50V_4
10p/50V_4
10p/50V_4
10p/50V_4
C533 0.1u/10V_4C533 0.1u/10V_4
C203 10p/50V_4C203 10p/5 0V_4
C210 10p/50V_4C210 10p/5 0V_4
C192 *10p/50V_4C192 *10p/50 V_4
C213 *10p/50V_4C213 *10p/50 V_4
CRTVDD5
CRTVSYNC
CRTHSYNC
DDCCLK_1
DDCDAT_1
7
1617
6
7
2
8
3
9
4
10
5
8
CN13
CN13
CRT
CRT
111
12
13
14
15
DDCDAT_1CRT_GRN_COM
CRTVSYNC
DDCCLK_1
TP163TP163
LVDS & eDP
INT_LVDS_EDIDCLK7
INT_LVDS_EDIDDATA7
Enable/Disable LVDS
B B
Pull Up--->Enable
NC-->Disable
+3V
INT_eDP_HPD_Q3
EV_eDP_HPD19
EDP-ML0+3
EDP-ML0-3
EDP-AUX+3
EDP-AUX-3
C C
EV_EDP-ML0+18
EV_EDP-ML0-18
EV_EDP-AUX+18
EV_EDP-AUX-18
D D
INT_LVDS_EDIDCLK
INT_LVDS_EDIDDATA LVDS_BRIGHT
INT_TXLCLKOUT+7
INT_TXLCLKOUT-7
INT_TXLOUT0+7
INT_TXLOUT0-7
INT_TXLOUT1+7
INT_TXLOUT1-7
INT_TXLOUT2+7
R443 [email protected]_4R443 [email protected]_4
R442
R442
Q20
Q20
IOP@2N7002E
IOP@2N7002E
R320 EV@0_4R320 EV@0_4
From PCH
241
RP9 IOP@0_4P2RRP9 IOP@0_4P2 R
241
RP11 IOP@0_4P2RRP11 IOP@0_4P2R
From EXT VGA
RP10 EV@0_4P2RRP10 EV@0_4P2R
241
RP12 EV@0_4P2RRP12 EV@0_4P2R
241
COM_EDP-AUX+
COM_EDP-AUX-
R14
R14
R20
R20
EV@100K_4
EV@100K_4
EV@100K_4
EV@100K_4
1
From PCH From EXT VGA
RP22 IOP@0_4P2RRP22 IOP@0_4P2R
RP1 IOP@0_4P2RRP1 IOP@0_4P2R
RP5 IOP@0_4P2RRP5 IOP@0_4P2R
RP3 IOP@0_4P2RRP3 IOP@0_4P2R
RP7 IOP@0_4P2RRP7 IOP@0_4P2R
INT_LVDS_EDIDDATA
INT_LVDS_EDIDCLK
R325
R325
3
2
1
3
3
3
3
3
241
3
241
3
241
3
241
3
241
+1.05V
IOP@1K_4
IOP@1K_4
R324 SP@0_4R324 SP@0_4
IV & Optimize-->0 ohm
EV-->10K ohm
R321
R321
100K_4
100K_4
COM_EDP-ML0+
COM_EDP-ML0-
COM_EDP-AUX+
COM_EDP-AUX-
COM_EDP-ML0+
COM_EDP-ML0-
COM_EDP-AUX+
COM_EDP-AUX-
+3V
R21
R21
EV@100K_4
EV@100K_4
R22
R22
*EV@100K_4
*EV@100K_4
2
R15
R15
*EV@100K_4
*EV@100K_4
EDP-AUX+_R
EDP-AUX-_R
R16
R16
EV@100K_4
EV@100K_4
LVDS_EDIDCLK_CON
LVDS_EDIDDATA_CON
TXLCLKOUT+_CON
TXLCLKOUT-_CON
TXLOUT0+_CON
TXLOUT0-_CON
TXLOUT1+_CON
TXLOUT1-_CON
TXLOUT2+_CON
TXLOUT2-_CON
eDP-HPD
C4 0.1u /10V_4C4 0.1u/10V_4
C7 0.1u /10V_4C7 0.1u/10V_4
C12 0.1u/10V_ 4C12 0.1u/10V_4
C15 0.1u/10V_ 4C15 0.1u/10V_4
RP21 EV@0_4P2RRP21 EV@0_4P2R
241
RP2 EV@0_4P2RRP2 EV@0_4P2R
241
RP6 EV@0_4P2RRP6 EV@0_4P2R
241
RP4 EV@0_4P2RRP4 EV@0_4P2R
241
RP8 EV@0_4P2RRP8 EV@0_4P2R
241
EDP-ML0+_R EDP-ML0+_CON
EDP-ML0-_R
EDP-AUX+_R
EDP-ML0+_R
EDP-ML0-_R
EDP-AUX+_R
EDP-AUX-_R
C16
C16
*1u/6.3V_4
*1u/6.3V_4
LCDVCC
C5
+3V
*1u/6.3V_4C5*1u/6.3V_4
CCD +3V-current budget 0.2A
+3V
3
3
3
3
3
3
C14
C14
C8
R327 10K_4R327 10K_4
R326 *10K_4R326 *10K_4
DGPU_EDIDCLK 1 9
DGPU_EDIDDATA 19
EV_TXLCLK+ 18
EV_TXLCLK- 18
EV_TXLOUT0+ 18
EV_TXLOUT0- 18
EV_TXLOUT1+ 18
EV_TXLOUT1- 18
EV_TXLOUT2+ 18
EV_TXLOUT2- 18
R8 0 _4R8 0_ 4
L1
L1
1
2
1
2
3
443
*DLW21HN900SQ2L/330mA/90ohm
*DLW21HN900SQ2L/330mA/90ohm
R12 0_4R12 0_4
R17 0_4R17 0_4
L2
L2
1
2
1
2
3
443
*DLW21HN900SQ2L/330mA/90ohm
*DLW21HN900SQ2L/330mA/90ohm
R19 0_4R19 0_4
eDP-HPD
LVDS_BRIGHT
*1u/6.3V_4C8*1u/6.3V_4
BL_ON
CABLE_ID10
*1u/6.3V_4
*1u/6.3V_4
CCD-USB
MIC2_INTL127
CABLE_ID
DTC144EUA
DTC144EUA
EDP-ML0-_CON
EDP-AUX+_CON
EDP-AUX-_CONEDP-AUX-_R
R643
R643
10K_4
10K_4
2
Q46
Q46
TXLCLKOUT+_CON
TXLCLKOUT-_CON
TXLOUT0+_CON
TXLOUT0-_CON
TXLOUT1+_CON
TXLOUT1-_CON
TXLOUT2+_CON
TXLOUT2-_CON
R11
R11
+3V
CABLE_ID
CCD_PWR
USBP8-_R
USBP8+_R
+3V
1 3
4
DGPU_DPST_PWM19
INT_LVDS_BRIGHT7
C10
C10
0.1u/10V_4
0.1u/10V_4
LVDS_EDIDDATA_CON
LVDS_EDIDCLK_CON
2N7002K
2N7002K
CONTRAST34
USBP8+9INT_TXLOUT2-7
USBP8-9
C13
C13
1000p/50V_4
1000p/50V_4
R23
R23
*SHORT_8
*SHORT_8
0.8A
EDP-ML0+_CON
EDP-ML0-_CON
EDP-AUX+_CON
EDP-AUX-_CON
BLM15AG121SS1/0.5A/120ohm_ 4
BLM15AG121SS1/0.5A/120ohm_ 4
ADOGND
3
R644
R644
2
*0_4
Q45
Q45
*0_4
1
R86 *0_4R86 *0_4
R126 EV@0_4R126 EV@0_4
R152 IOP@0_4R152 IOP@0_4
R33 0_4R33 0_4
*RFCMF1632100M3T/200mA/90o hm
*RFCMF1632100M3T/200mA/90o hm
3
443
1
2
1
2
L3
L3
R34 0_4R34 0_4
VIN+3V
C32
C32
C30
C30
4.7u/25V_8
4.7u/25V_8
1000p/50V_4
1000p/50V_4
VIN
R24
R24
*SHORT_8
*SHORT_8
INVCC0
CN1
CN1
G_5
G_6
40
39
38
37
36
35
34
33
32
G_4
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
G_1
9
8
7
6
5
4
3
2
1
G_0
GS12401-1011-40 P-R-NH
GS12401-1011-40 P-R-NH
eDP_EN# 6
5
LCD Power
INT_LVDS_DIGON7
USBP8+_R
USBP8-_R
DGPU_DISP_ON19
Lid Switch (Hall sensor)
0923
Backlight Control
INT_LVDS_BLON7
DGPU_LVDS_BLON19
+3V
C34
C34
1u/6.3V_4
1u/6.3V_4
R35 IOP@0_4R35 IOP@0_4
R36 EV@0_4R36 EV@0_4
+3VPCU
EM-6781-T3: AL006781000
APX9132H AI-TRG: AL009132001
AH9249NTR-G1: AL009249000
R13 IOP@0_4R13 IOP@0_4
R10 EV@0_4R10 EV@0_4
6
6
4
3
R37
R37
100K_4
100K_4
R328 0_6R328 0_6
U1
IN
IN
ON/OFF
G5243AT11UU1G5243AT11U
0.1u/10V_4C375 0.1u/10V_4C375
R18
R18
100K_4
100K_4
+3V3,7,8,9,10,11,13,14,16,20,24,25,26 ,27,29,33,34,36,37,38,39,40,41,4 2,43,45,46
+5V8,11,24,26,27,33,36,43,46
+3VPCU8,11,25,26,31,33,34,35,36,43,44,46
+1.05V3,5,7,8,9,11,34,37,38,42,43,46
VIN35,36,37,38,39 ,41,42,43,44,45,46
OUT
GND
GND
C10 Change R328 from 47Ω to 0Ω. 12/27
1
3
+3V
R7
10K_4R710K_4
BL#
2
3
Q3
2N7002KQ32N7002K
2
Q1
2N7002KQ12N7002K
1
1
C11
C11
C31
R38
R38
10K_4
10K_4
C31
*0.1u/10V_4
*0.1u/10V_4
*2.2u/10V_8
*2.2u/10V_8
LID591#
21
D8
*VPORT_6D8*VPORT_6
+3VPCU
R40
R40
*100K_4
*100K_4
D1
BAS316D1BAS316
2 1
BL_ON
2
Q2
DTC144EUAQ2DTC144EUA
1 3
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
CRT/LVDS/CAMERA/LID
CRT/LVDS/CAMERA/LID
CRT/LVDS/CAMERA/LID
2
5
2
HE1
HE1
APX9132H AI
APX9132H AI
3
1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet o f
Date: Sheet o f
Date: Sheet o f
7
LCDVCC
C9
C6
0.1u/10V_4C90.1u/10V_4
0.01u/25V_4C60.01u/25V_4
LID591#
LID591#,EC intrnal PU
LID591# 34
EC_FPBACK# 34
ZQS 45W
ZQS 45W
ZQS 45W
23 46Wednesday, February 08, 2012
23 46Wednesday, February 08, 2012
23 46Wednesday, February 08, 2012
8
C33
C33
22u/6.3V_8
22u/6.3V_8
3C
3C
3C
Page 24
5
4
3
2
1
HDMI
From PCH
INT_HDMITX2N7
INT_HDMITX2P7
INT_HDMITX1N7
INT_HDMITX1P7
INT_HDMITX0N7
D D
INT_HDMITX0P7
INT_HDMICLK+7
INT_HDMICLK-7
2
1
4
RP13 IOP@0_4P2RRP13 IOP@0_4P2R
RP15 IOP@0_4P2RRP15 IOP@0_4P2R
RP17 IOP@0_4P2RRP17 IOP@0_4P2R
RP19 IOP@0_4P2RRP19 IOP@0_4P2R
3
2
1
4
3
4
3
2
1
2
1
4
3
HDMITX2N_CAP
HDMITX2P_CAP
HDMITX1N_CAP
HDMITX1P_CAP
HDMITX0N_CAP
HDMITX0P_CAP
HDMICLK+_CAP
HDMICLK-_CAP
DIS.VGA-->EV@ + EOP@
Optimize-->IOP@ + EOP@
UMA-->IV@ + IOP@
Special-->SP@
C581 0.1u/10V_4C581 0.1u/10V_4
C584 0.1u/10V_4C584 0.1u/10V_4
C571 0.1u/10V_4C571 0.1u/10V_4
C573 0.1u/10V_4C573 0.1u/10V_4
C575 0.1u/10V_4C575 0.1u/10V_4
C578 0.1u/10V_4C578 0.1u/10V_4
C569 0.1u/10V_4C569 0.1u/10V_4
C568 0.1u/10V_4C568 0.1u/10V_4
+5V
+3V
INT_HDMITX2N_C
INT_HDMITX2P_C
INT_HDMITX1N_C
INT_HDMITX1P_C
INT_HDMITX0N_C
INT_HDMITX0P_C
INT_HDMICLK+_C
INT_HDMICLK-_C
EV@499/F_4
P/N: CS14992FB24
UMA/Optimize-->590 Ohm
P/N: CS15902FB00
R498 *0_4R498 *0_4
R624 0_4R624 0_4
R497
R497
EOP@100K/F_4
EOP@100K/F_4
HDMI connector
CN14
CN14
20
INT_HDMITX2P_C
INT_HDMITX2N_C
INT_HDMITX1P_C
INT_HDMITX1N_C
INT_HDMITX0P_C
INT_HDMITX0N_C
HDMI_5V
R186 *SHORT_4R186 *SHORT_4
R182
R182
100K_4
100K_4
INT_HDMICLK+_C
INT_HDMICLK-_C
HDMI_DDCCLK_MB
HDMI_DDCDATA_MB
HP_DET_CN
R489
R483
R483
SP@510_4
SP@510_4
3
Q41
Q41
2
2N7002E
2N7002E
1
R492
R492
R486
R486
SP@510_4
SP@510_4
SP@510_4
SP@510_4
Discrete stuff 499 Ohm
UMA/Optimize-->510 Ohm
C02
R489
R487
SP@510_4
SP@510_4
R487
SP@510_4
SP@510_4
R491
R491
SP@510_4
SP@510_4
Change R483,R486,R492,R491,R498,R487,R496,R494
from 590Ω to 510Ω, and mount HDMI
R194,R205,R202,R212 120Ω at optimus sku for EMI.
12/21
R496
R496
SP@510_4
SP@510_4
R494
R494
SP@510_4
SP@510_4
+5V
F2
F2
SMD1206P110TFT/1.1A_1206
SMD1206P110TFT/1.1A_1206
12
C557
C557
470p/50V_4
470p/50V_4
HDMI_5V_R
D13
D13
SSM22LLPT
SSM22LLPT
HDMI_MB_HP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SHELL1
D2+
D2 Shield
D2D1+
D1 Shield
D1D0+
D0 Shield
D0CK+
CK Shield
CKCE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
SHELL2
HDMI CONN
HDMI CONN
21
From EXT VGA
RP14 EV@0_4P2RRP14 EV@0_4P2R
4
EV_HDMITX2N18
EV_HDMITX2P18
C C
EV_HDMITX1N18
EV_HDMITX1P18
EV_HDMITX0N18
EV_HDMITX0P18
EV_HDMICLK-18
EV_HDMICLK+18
RP16 EV@0_4P2RRP16 EV@0_4P2R
RP18 EV@0_4P2RRP18 EV@0_4P2R
RP20 EV@0_4P2RRP20 EV@0_4P2R
3
2
1
4
3
2
1
2
1
4
3
2
1
4
3
I2C
B B
From EXT VGA
EV_HDMI_DDCCK_C18
EV_HDMI_DDCDAT_C18
R404 EV@0_4R404 EV@0_4
R405 EV@0_4R405 EV@0_4
From PCH
HDMI_DDCCLK_SW7
HDMI_DDCDATA_SW7
HDMITX2N_CAP
HDMITX2P_CAP
HDMITX1N_CAP
HDMITX1P_CAP
HDMITX0N_CAP
HDMITX0P_CAP
HDMICLK-_CAP
HDMICLK+_CAP
HDMI_DDCCLK_COM
HDMI_DDCDATA_COM
R455 IOP@0_4R455 IOP@0_4
R457 IOP@0_4R457 IOP@0_4
HDMI_DDCCLK_COM
+3V
+3V
R468
R468
[email protected]_4
1
R473
R473
[email protected]_4
1
Q9
2N7002EQ92N7002E
+3V
2
R196
R196
10K_4
10K_4
3
Q10
Q10
2N7002E
2N7002E
1
EMI
INT_HDMITX2P_C
R212 120/F_4R212 120/F_4
INT_HDMITX1P_C
R202 120/F_4R202 120/F_4
INT_HDMITX0P_C
R205 120/F_4R205 120/F_4
INT_HDMICLK+_C
R194 120/F_4R194 120/F_4
R197 IOP@0_4R197 IOP@0_4
R484 EV@0_4R484 EV@0_4
INT_HDMITX2N_C
INT_HDMITX1N_C
INT_HDMITX0N_C
INT_HDMICLK-_C
HDMI_HP 7
EV_HDMI_HPD 19
HDMI-detect
+3V
R180
R180
10K_4
10K_4
HDMI_HPD_EC#34
R191 *10K_4R191 *10K_4
+5V
HDMI_MB_HP
R459
R459
*SHORT_4
*SHORT_4
3
R478
R478
*SHORT_4
*SHORT_4
3
+5V
+5V
21
21
D14
D14
RB501V-40
RB501V-40
R461
R461
2.2K_4
2.2K_4
D15
D15
RB501V-40
RB501V-40
R474
R474
2.2K_4
2.2K_4
HDMI_DDCCLK_MB
HDMI_DDCDATA_MBHDMI_DDCDATA_COM
+3V
Q38
Q38
2
BSN20
BSN20
+3V
Q39
Q39
2
BSN20
BSN20
3
2
1
A A
+3V3,7,8,9,10,11,13,14,16,20,23,25,26,27,29,33,34,36,37,38,39,40,41,42,43,45,46
+5V8,11,23,26,27,33,36,43,46
5
4
3
2
C02
Change R483,R486,R492,R491,R498,R487,R496,R494
from 590Ω to 510Ω, and mount HDMI
R194,R205,R202,R212 120Ω at optimus sku for EMI.
12/21
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
HDMI (PS8101)
HDMI (PS8101)
HDMI (PS8101)
1
ZQS 45W
ZQS 45W
ZQS 45W
24 46Wednesday, February 08, 2012
24 46Wednesday, February 08, 2012
24 46Wednesday, February 08, 2012
3C
3C
3C
Page 25
1
MINI-CARD WLAN(MPC)
+3.3V: 1000mA
+3.3Vaux:330mA
+1.5V:500mA
A A
PCIE_CLKREQ5#9
Add Q49 connect PCIE_CLKREQ5# to CN20.7. 01/12C27
B B
BT_POWERON#31,34
Q50
Q50
DTC144EUA
DTC144EUA
1 3
Debug
CLK_LPC_DEBUG9
CLK_PCH_SRC59
CLK_PCH_SRC5#9
+WL_VDD
WAKE_WLAN34
Change PCH_GPIO27 to WAKE_WLAN, connect to Q42 & EC GPIO96, Q42 change from reserve to mount. 12/23C06
Mount R314, R315. 01/12C26
PCIE_TX8+9
PCIE_TX8-9
PCIE_RX8+9
PCIE_RX8-9
2
2
2
C37 Add Q50 connect to BT_POWERON# for WLAN ON/OFF function,
+3V+WL_VDD
R671
R671
R672
10K_4
10K_4
R314 0_4R314 0_4
R315 0_4R315 0_4
+WL_VDD
PCIE_CLKREQ5#_R
PCIE_WAKE#_R
R672
*10K_4
*10K_4
R637 *SHORT_4R637 *SHORT_4
CL_RST1#_WLAN
CL_CLK1_WLAN
CLK_PCH_WIFI
CLK_PCH_WIFI#
2
BT_PWRON
TP125TP125
PLTRST# CL_DATA1_WLAN
R305 *SHORT_4R305 *SHORT_4
R306 *SHORT_4R306 *SHORT_4
13
DTC144EUA
DTC144EUA
Q49
Q49
Q42
Q42
DTC144EUA
DTC144EUA
13
3
Check LED signal. (active high or low)
pull up BT_PWRON by 10KΩ R671 to +WL_VDD, reserve 10KΩ
R672 to +3V. 01/31
CN20
CN20
51
Reserved
49
Reserved
47
Reserved
45
Reserved
43
GND
41
+3.3Vaux
39
+3.3Vaux
37
GND
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
UIM_C4
17
UIM_C8
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
Reserved
3
Reserved
1
WAKE#
MINI-CARD1
MINI-CARD1
53
+3.3V
GND
+1.5V
LED_WPAN#
LED_WLAN#
LED_WWAN#
GND
USB_D+
USB_D-
GND
SMB_DATA
SMB_CLK
+1.5V
GND
+3.3Vaux
PERST#
W_DISABLE#
GND
UIM_VPP
UIM_RESET
UIM_CLK
UIM_DATA
UIM_PWR
+1.5V
GND
+3.3V
GND54GND
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
WLAN_OFF_R
WL_CLK_SDATA
WL_CLK_SCLK
A_LFRAME#_R
A_LAD3_R
A_LAD2_R
A_LAD1_R
A_LAD0_R
+WL_VDD
+1.5V_WLAN
+1.5V_WLAN
+WL_VDD
+1.5V_WLAN
+WL_VDD
4
C07
R670 0_4R670 0_4
Remove R308 reserved 10KΩ for LED_WLAN# pull high +3V. 01/31C36
R664 *0_4R664 *0_4
R663 *0_4R663 *0_4
C07
PLTRST#
R582 *SHORT_4R582 *SHORT_4
R581 *SHORT_4R581 *SHORT_4
R578 *SHORT_4R578 *SHORT_4
R577 *SHORT_4R577 *SHORT_4
R576 *SHORT_4R576 *SHORT_4
C07
5
C32 Add net WLAN_OFF to connect EC(GPIO66/G_PWM) to CN20.46
( LED_WPAN#) for IOAC feature, mount 0Ω R670. 01/18
WLAN_OFF 34
LED_WLAN# 33
USBP10+ 9
USBP10- 9
C25
SMB_PCH_DAT 9
Change CN20 pin 30 &28 from CLK_SDATA & CLK_SCLK to
C25
SMB_PCH_CLK & SMB_PCH_DAT, reserve 0Ω R663,R664. 1/12
SMB_PCH_CLK 9
PLTRST# 9,16,29,34
RF_EN 34
LPC_LFRAME# 8,34
LPC_LAD3 8,34
LPC_LAD2 8,34
LPC_LAD1 8,34
LPC_LAD0 8,34
Debug
Change mini pcie power source from +3V_S5 to +3VPCU. 01/12C24
+3VPCU
IOAC_LANPWR#34
Connect EC GPIO46 IOAC_LANPWR# to WLAN, R662, add C708, R661, Q48, reserve R316. 12/23C08
C708
C708
0.33u/10V_6
0.33u/10V_6
6
R662
R662
4.7K_4
4.7K_4
+3V
R316 *0_8R316 *0_8
Q48 AO3413Q48 AO3413
1
2
R661
R661
47K/F_4
47K/F_4
7
+WL_VDD
C366
C366
10u/6.3V_8
10u/6.3V_8
3
C07 Add R608 and reserve +1.5V to WLAN. 12/23
C655
C655
*1000p/50V_4
*1000p/50V_4
C659
C659
0.1u/10V_4
0.1u/10V_4
C658
C658
*0.1u/10V_4
*0.1u/10V_4
C657
C657
*0.1u/10V_4
*0.1u/10V_4
+1.5V_WLAN
C355
C355
*10u/6.3V_8
*10u/6.3V_8
+WL_VDD
R608 *0_6R608 *0_6
C654
C654
*0.1u/10V_4
*0.1u/10V_4
8
+1.5V
SSD-MINI module
C C
TP59TP59
SATA_TXP_SSD8
SATA_TXN_SSD8
SATA_RXN_SSD8
SATA_RXP_SSD8
D D
1
0.01u/16V_4C362 0.01u/16V_4C362
0.01u/16V_4C361 0.01u/16V_4C361
0.01u/16V_4C359 0.01u/16V_4C359
0.01u/16V_4C358 0.01u/16V_4C358
SATA_TXP_SSD_R
SATA_TXN_SSD_R
SATA_RXN_SSD_R
SATA_RXP_SSD_R
2
LED_OUT
+3V_SATA
C635
C635
0.1u/10V_4
0.1u/10V_4
51
49
47
45
43
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
MINI-CARD1
MINI-CARD1
CN7
CN7
Reserved
Reserved
Reserved
Reserved
GND
+3.3Vaux
+3.3Vaux
GND
GND
PETp0
PETn0
GND
GND
PERp0
PERn0
GND
UIM_C4
UIM_C8
GND
REFCLK+
REFCLKGND
CLKREQ#
Reserved
Reserved
WAKE#
C633
C633
0.1u/10V_4
0.1u/10V_4
53
3
LED_WPAN#
LED_WLAN#
LED_WWAN#
W_DISABLE#
R309 *SHORT_8R309 *SHORT_8
C360
C360
10u/10V_8
10u/10V_8
+3.3V
GND
+1.5V
GND
USB_D+
USB_D-
GND
SMB_DATA
SMB_CLK
+1.5V
GND
+3.3Vaux
PERST#
GND
UIM_VPP
UIM_RESET
UIM_CLK
UIM_DATA
UIM_PWR
+1.5V
GND
+3.3V
GND54GND
+3V
+3V_SATA
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
USBP3+ 9
USBP3- 9
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
4
5
6
Date: Sheet of
7
PROJECT :
MINI PCI-E / SSD
MINI PCI-E / SSD
MINI PCI-E / SSD
ZQS 45W
ZQS 45W
ZQS 45W
25 46Wednesday, February 08, 2012
25 46Wednesday, February 08, 2012
25 46Wednesday, February 08, 2012
8
3C
3C
3C
Page 26
1
2
3
4
MAIN SATA HDD(HDD)
+3V
CN15
CN15
1
1
1
2
A A
SATA HDD
SATA HDD
B B
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
SATA_TXP0_C
SATA_TXN0_C
SATA_RXN0
SATA_RXP0
+5V_HDD
R523 *SHORT_8R523 *SHORT_8
+5V
*100u/6.3V_3528
*100u/6.3V_3528
C572 0.01u/25V_4C572 0.01u/25V_4
C576 0.01u/25V_4C576 0.01u/25V_4
C582 0.01u/25V_4C582 0.01u/25V_4
C585 0.01u/25V_4C585 0.01u/25V_4
C593
C593
+
+
C599
C599
10u/6.3V_6
10u/6.3V_6
C603
C603
*0.1u/16V_4
*0.1u/16V_4
SATA_TXP0 8
SATA_TXN0 8
SATA_RXN0_C 8
SATA_RXP0_C 8
C596
C596
*0.1u/16V_4
*0.1u/16V_4
+5V_HDD
C601
C601
0.01u/25V_4
0.01u/25V_4
C602
C602
0.01u/25V_4
0.01u/25V_4
[email protected]/10V_4
[email protected]/10V_4
ODD (ODD) Zero Power (ODD)
CN11
C C
D D
CN11
GND14
GND1
RXP
RXN
GND2
TXN
TXP
GND3
DP
+5V
+5V
RSVD
GND
GND
GND15
C18534-11305-L
C18534-11305-L
14
1
2
3
4
5
6
7
8
9
10
11
12
13
15
SATA_TXP5_C
SATA_TXN5_C
SATA_RXN5
SATA_RXP5
SATA_DP
C211 0.01u/25V_4C211 0.01u/25V_4
C212 0.01u/25V_4C212 0.01u/25V_4
C202 0.01u/25V_4C202 0.01u/25V_4
C198 0.01u/25V_4C198 0.01u/25V_4
R122 *1K_4R122 *1K_4
C161
C161
0.01u/25V_4
0.01u/25V_4
EC_ODD_EJ 34
C160
C160
0.01u/25V_4
0.01u/25V_4
SATA_TXP5 8
SATA_TXN5 8
SATA_RXN5_C 8
SATA_RXP5_C 8
C494
C494
*0.1u/16V_4
*0.1u/16V_4
C495
C495
*0.1u/16V_4
*0.1u/16V_4
Zero Power Ra Reserve,
No Zero Power Ra stuff
+5V_ODD
Ra
R397 NZP@0_8R397 NZP@0_8
+
C496
C496
10u/6.3V_6
10u/6.3V_6
+
C486
C486
*100u/6.3V_3528
*100u/6.3V_3528
G Sensor
R302
R302
GS@0_8
GS@0_8
+VDD_3
+VDD_3
C348
C356
C356
C348
GS@10u/6.3V_8
GS@10u/6.3V_8
G-Sensor -->GS@
Zero Power -->ZP@
No Zero Power -->NZP@
+5V
EC_ODD_EN34
U8
U8
1
VDD_IO
8
CS
15
ADC2
14
VDD
13
ADC3
12
GND
5
GND
2
NC
GS@LIS3DHTR
GS@LIS3DHTR
R415
R415
*ZP@100K
*ZP@100K
SCL/SPC
SDA/SDI/SDO
INT2
INT1
ADC1
RES
SDO/SA0
R402
R402
ZP@100K
ZP@100K
2
NC
+3VPCU
3
1
4
6
9
11
16
10
R307 GS@0_4R307 GS@0_4
7
3
R399 ZP@100KR399 ZP@100K
+15V
ODD_POWER_R
Q29
Q29
ZP@DMN601K-7
ZP@DMN601K-7
TP164TP164
+5V
ZP@DMN601K-7
ZP@DMN601K-7
Q27
Q27
ZP@AO6402A
ZP@AO6402A
6
5
2
1
2
Q31
Q31
CLK_SCLK 9,13,14,33
CLK_SDATA 9,13,14,33
G_SENSOR_INT#_PCH 9
+5V_ODD
4
R403
R403
ZP@22_8
3
3
12
C493
C493
*[email protected]/50V_6
1
*[email protected]/50V_6
ZP@22_8
3
ODD_POWER_R
2
Q30
Q30
ZP@DMN601K-7
ZP@DMN601K-7
1
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
1
2
3
Date: Sheet of
PROJECT :
SATA-HDD/ODD/G Sensor
SATA-HDD/ODD/G Sensor
SATA-HDD/ODD/G Sensor
4
ZQS 45W
ZQS 45W
ZQS 45W
26 46Wednesday, February 08, 2012
26 46Wednesday, February 08, 2012
26 46Wednesday, February 08, 2012
3C
3C
3C
Page 27
5
4
3
2
1
Codec(ADO)
Mute(ADO)
reverse R441
ADOGND
MIC1-VREFO-L
MIC2-VREFO
R600 *0_4R600 *0_4
C683 10u/6.3 V_6C683 10u/6.3V_6
27
28
VREF
LDO-CAP
ACZ_SDIN0_R
MIC1-VREFO-L
C689
C689
2.2u/6.3V_6
2.2u/6.3V_6
25
26
AVSS1
AVDD1
24
LINE1-R
23
LINE1-L
22
MIC1-R
21
MIC1-L
20
MONO-OUT
19
JDREF
18
Sense-B
17
MIC2-R
16
MIC2-L
15
LINE2-R
14
LINE2-L
13
Sense A
ALC271X-VB6-GR
ALC271X-VB6-GR
12
DIGITAL
PCBEEP BEEP_1
R598 22_4R59 8 22_4
R620 *SHORT_4R620 *SHORT_4
R555 *SHORT_4R555 *SHORT_4
R288 *SHORT_4R288 *SHORT_4
R604 *SHORT_4R604 *SHORT_4
R299 *SHORT_4R299 *SHORT_4
C638 *1000p/5 0V_4C638 *1000p/50V _4
C702 *1000p/5 0V_4C702 *1000p/50V _4
ADOGND
Tied at one point only under
the codec or near the codec
MIC1-VREFO-L 28
MIC1-VREFO-R 28
ADOGND
Place next to pin 27
C686
C686
0.1u/10V _4
0.1u/10V _4
R612 2 0K/F_4R612 20K/F_4
MIC2_INT_L
SENSEA SENSEA_MIC
ANALOG
PCBEEP dont coupling any signals if possible
8/17 separate PCBEEP to Digital from Realtek suggestion
1.6Vrms
C687 1 u/16V_6C687 1u/16V_6
C688
C688
100p/50V_4
100p/50V_4
C682
C682
0.1u/10V _4
0.1u/10V _4
Place next to pin 9
C694 1u/16V_6C694 1u/16V_6
C693 1u/16V_6C693 1u/16V_6
R610 20K/F_4R610 20K/F_4
R611 39.2K/F_ 4R611 39.2K/F_4
R602
R602
4.7K_4
4.7K_4
C681
C681
10u/6.3V _6
10u/6.3V _6
ADOGND
R601 4 7K/F_4R601 47K/F_4
+3V
Place next to pin 25
TP165TP165
TP166TP166
MIC1-R 28
MIC1-L 28
MIC2_INT_R_C
MIC2_INT_L_ C
C684 *100p/5 0V_4C684 *100p/50 V_4
PCH_AZ_CO DEC_SDIN0 8
PCH_AZ_CO DEC_BITCLK 8
PCH_AZ_CO DEC_SDOUT 8
SENSEA_HP
R619 1K_4R619 1K_4
R618 1K_4R618 1K_4
ADOGND
cap place close to MIC-connector
3
+5VAADOGND
C691
C691
C692
C692
0.1u/10V _4
0.1u/10V _4
10u/6.3V _6
10u/6.3V _6
ADOGND
MIC
MIC2_INTL1MIC2_INT_R
D24 BAS316D24 BAS3 16
D25 BAS316D25 BAS3 16
SPKR 8
PCBEEP_EC 34
PCH_AZ_CO DEC_RST# 8
PCH_AZ_CO DEC_SYNC 8
INT MIC array
MIC2_INTL1
C680
C680
C376
C376
*22p/50V _4
*22p/50V _4
*22p/50V _4
*22p/50V _4
ADOGND ADOGND
C701 0.1u/10V_4C701 0.1u/10V_4
33
CPVEE
HP-OUT-R
R595 *0_4R595 *0_4
R596 0_4R596 0 _4
30
31
32
HP-OUT-L
MIC1-VREFO-L
MIC1-VREFO-R
C677 *22p/50V _4C677 *22p/50V_4
29
MIC2-VREFO
HP
D D
+5VA
ADOGND
C632
C632
10u/6.3V _6
10u/6.3V _6
C631
C631
10u/6.3V _6
10u/6.3V _6
R571 *SHORT_6R571 *SHORT_6
C640
C640
0.1u/10V _4
0.1u/10V _4
R570 *SHORT_6R570 *SHORT_6
C639
C639
0.1u/10V _4
0.1u/10V _4
+5V
C C
+5V
+5VPVDD1
C648
C648
10u/6.3V _6
10u/6.3V _6
+5VPVDD2
C647
C647
10u/6.3V _6
10u/6.3V _6
Place next to pin 46
B B
C652
C652
C653
C653
0.1u/10V _4
0.1u/10V _4
10u/6.3V _6
10u/6.3V _6
Place next to pin 38
Spilt by AGND
C650
C650
0.1u/10V _4
0.1u/10V _4
C649
C649
0.1u/10V _4
0.1u/10V _4
L_SPK+28
L_SPK-28
R_SPK-28
R_SPK+28
HP-L28
HP-R28
ADOGND
C675
C675
2.2u/6.3V_6
2.2u/6.3V_6
C672
C672
+
+
2.2u/6.3V_6
2.2u/6.3V_6
35
36
U26
U26
CBP
CBN
AVSS2
AVDD2
PVDD1
SPK-L+
SPK-L-
(Vista Premium Version)
PVSS1
PVSS2
SPK-RSPK-R+
PVDD2
SPDIFO2/E APD
SPDIFO
PGND
DVDD11GPIO0/DMIC-DATA2GPIO1/DMIC-CLK3PD#4SDATA-OUT5BIT-CLK6DVSS27SDATA-IN8DVDD-IO9SYNC10RESET#11PCBEEP
C670
C670
10u/6.3V _6
10u/6.3V _6
ANALOG
Spilt by DGND
R587 *SHORT_6R58 7 *SHORT_6
+3V
L_SPK+
L_SPK-
R_SPKR_SPK+
ADOGND
EAPD#
C671
C671
0.1u/10V _4
0.1u/10V _4
37
38
39
40
41
42
43
44
45
46
47
48
49
Place next to pin 1
0V : Power down Class D SPK amplifer
3.3V : Power up Class D SPK amplifer
PD#
+
+
34
Power (ADO)
A A
+5V
L41 UPB201209 T-310Y-N/6A/31ohm_8L41 UPB201209 T-310Y-N/6A/31ohm_8
5
ANALOG DIGITAL
+5VA
4
+3V
+5VA
R603
R603
R616
R616
*10K_4
*10K_4
10K_4
10K_4
MIC2_INT_R_C
MIC2_INT_L_ C
ADOGND ADOGND
vendor suggest reserved for layout issue with noise
MIC2_INTL1 23
R599
R599
2.2K_4
2.2K_4
1/7 by FAE's recommend
C696
C696
*1000p/5 0V_4
*1000p/5 0V_4
MIC2-VREFO
C697
C697
*1000p/5 0V_4
*1000p/5 0V_4
2
EAPD#PD#
D22*BAS3 16 D22*BA S316
AMP_MUTE#
D23BAS316 D23BAS316
PCH_AZ_CO DEC_RST#
D26B AS316 D26BAS316
+5V_S5
53
U25
U25
AMP_MUTE#34
EAPD#
1
2
4
TC7SH08FU
TC7SH08FU
SENSEA_MIC
SENSEA_HP
R569 *SHORT_4R569 *SHORT_4
ADOGND
ADOGND
C634
C634
*4.7u/10V_6
*4.7u/10V_6
+5VA
3
2
Q43
Q43
2N7002K
2N7002K
1
+5VA
R639
R639
3
47K/F_4
47K/F_4
HPOUT_JD
2
Q44
Q44
2N7002K
2N7002K
1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
HP_MUTE# 28
R638
R638
47K/F_4
47K/F_4
MIC1_JD
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
REALTEK ALC271X-VB6-GR
REALTEK ALC271X-VB6-GR
REALTEK ALC271X-VB6-GR
1
MIC1_JD 28
HPOUT_JD 28
ZQS 45W
ZQS 45W
ZQS 45W
3C
3C
27 46W ednesday, February 08, 2012
27 46W ednesday, February 08, 2012
27 46W ednesday, February 08, 2012
3C
Page 28
5
4
3
2
1
MIC
D D
C C
MIC1-L27
MIC1-R27
C347 4.7u/6.3V_6C347 4.7u/6.3V_6
C346 4.7u/6.3V_6C346 4.7u/6.3V_6
Max. 100mVrms input for Mic-IN
HP
HP_MUTE#27
HP-L27
B B
HP-R27
MIC1-VREFO-R27
MIC1-VREFO-L27
MIC1_L2
MIC1_R2
MIC1_JD27
MIC1_JD
HP_MUTE#
3
Q19
Q19
*FDV301N
*FDV301N
R648 0_4R648 0_4
HP_MUTE#
3
Q18
Q18
*FDV301N
*FDV301N
R649 0_4R649 0_4
R303 1K/F_4R303 1K/F_4
R301 1K/F_4R301 1K/F_4
12
ADOGND
2
2
D4
D4
*VPORT_6
*VPORT_6
1
1
HP-L-2
HP-R-2
R304
R304
4.7K/F_4
4.7K/F_4
R300
R300
4.7K/F_4
4.7K/F_4
MIC1_L3
MIC1_JD
HP-L-2
HP-R-2
L22
L22
BLM15AG121SS1/0.5A/120ohm_4
BLM15AG121SS1/0.5A/120ohm_4
L19
L19
BLM15AG121SS1/0.5A/120ohm_4
BLM15AG121SS1/0.5A/120ohm_4
C343
C343
470p/50V_4
470p/50V_4
ADOGND
R313 47/F_4R313 47/F_4
R310 47/F_4R310 47/F_4
HPL-1
R311
R311
*1K_4
*1K_4
Normal close Jack
CN18
CN18
ADOGND
1
2
6
3
5
4
LINE-IN-SP6
LINE-IN-SP6
MIC1_L
MIC1_RMIC1_R3
MIC1_JD
C350
C350
470p/50V_4
470p/50V_4
Change to Normal Close circuit 11/1
L24 BLM15AG121SS1/0.5A/120ohm_4L24 BLM15AG121SS1/0.5A/120ohm_4
L23 BLM15AG121SS1/0.5A/120ohm_4L23 BLM15AG121SS1/0.5A/120ohm_4
C365
R312
R312
*1K_4
*1K_4
C354
C354
2200p/50V_4
2200p/50V_4
C365
2200p/50V_4
2200p/50V_4
ADOGND
Internal Speaker
L_SPK+27
L_SPK-27
R_SPK-27
R_SPK+27
HPL_SYS
HPR_SYSHPR-1
HPOUT_JD27
HPOUT_JD
HPOUT_JD
12
D5
D5
*VPORT_6
*VPORT_6
ADOGND
R591 0_6R591 0_6
R590 0_6R590 0_6
R589 0_6R589 0_6
R588 0_6R588 0_6
1
2
6
3
5
4
ADOGND
C664
C664
*0.22u/25V_6
*0.22u/25V_6
CN21
CN21
LINE-IN-SP6
LINE-IN-SP6
C665
C665
*0.22u/25V_6
*0.22u/25V_6
L_SPK+_1
L_SPK-_1
R_SPK-_1
R_SPK+_1
C663
C663
*0.22u/25V_6
*0.22u/25V_6
C662
C662
*0.22u/25V_6
*0.22u/25V_6
CN17
CN17
1
2
3
4
50273-0047N-001
50273-0047N-001
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
PROJECT :
AUDIO JACK CONN
AUDIO JACK CONN
AUDIO JACK CONN
ZQS 45W
ZQS 45W
ZQS 45W
1
3C
3C
3C
28 46Wednesday, February 08, 2012
28 46Wednesday, February 08, 2012
28 46Wednesday, February 08, 2012
Page 29
5
4
3
2
1
LAN/Card reader
(1.5A) 60 mils
R567
R567
1M/F_4
1M/F_4
C629
C629
SP130
SP230
SP330
SP430
SP530
SP630
SP730
SP830
SP930
SP1030
SP1130
SP1230
SP1330
SP1430
SP1530
SP1630
X'tal 25MHz
Y4
2 1
C636
C636
25MHzY425MHz
27P/50_4
27P/50_4
MDI0+
MDI0-
VDD10
MDI1+
MDI1MDI2+
MDI2-
VDD10
MDI3+
MDI3-
VDD33
CARD_3V3
SP1
SP2
SP3
CARD_3V3
SP1
SP2
SP3
SP4
SP5
SP6
SP7
SP8
SP9
SP10
SP11
SP12
SP13
SP14
SP15
SP16
CLK_PCIE_LAN_REQ#
PCIE_WAKE#
R585 1.5K/F_4R585 1.5K/F_4
R584 *10K_4R584 *10K_4
R583 *10K_4R583 *10K_4
R575 10K_4R575 10K_4
VDD33
VDD10
VDD33
VDD33
LAN_XTALI
LAN_XTAL2
D D
C C
B B
27P/50_4
27P/50_4
CARD_3V330,46
CLK_PCIE_LAN_REQ#9
PCIE_WAKE#7
Power-on Strapping
SDA/SPIDI
PCIE_WAKE#
CLK_PCIE_LAN_REQ#
LED1/SPICLK/EESK
+3V_S5
LAN_XTALI
LAN_XTAL2
R562 2.49K/F_4R562 2.49K/F_4
U23
U23
65
GND
1
MDIP0
2
MDIN0
3
AVDD10
4
MDIP1
5
MDIN1
6
MIDP2
7
MDIN2
8
AVDD10
9
MDIP3
10
MDIN3
11
AVDD33
12
DVDD33
13
Card_3V3
14
SD_D7/xD_RDY
15
SD_D6/MS_INS#/xD_RE#
16
SD_D5/xD_CE#
SP4
SP5
SP6
SP7
SP8
SP9
SP10
Close to Chip
VDD33
A A
C616
C616
0.1u/10V_4
0.1u/10V_4
40 mils
C609
C609
0.1u/10V_4
0.1u/10V_4
C666
C666
0.1u/10V_4
0.1u/10V_4
C637
C637
0.1u/10V_4
0.1u/10V_4
C619
C619
0.1u/10V_4
0.1u/10V_4
C621
C621
0.1u/10V_4
0.1u/10V_4
R594 *SHORT_6R594 *SHORT_6
R597 *SHORT_6R597 *SHORT_6
58
57
63
62
61
59
64
RSET
AVDD33
AVDD33
AVDD10
AVDD33
CKXTAL260CKXTAL1
RTL8411
RTL8411
SD_CMD/MS_D6/xD_D321SD_D3/MS_D2/xD_D222SD_D2/xD_D723GND24HSIP25HSIN26REFCLK_P27REFCLK_N28EVDD1029HSOP30HSON
SD_D4/xD_WE#17SD_D1/MS_CLK/xD_D618SD_D0/MS_D7/xD_D519SD_CLK/MS_D3/xD_D4
20
20 mils
VDD33/18
C678
C678
C656
C656
*4.7u/6.3V_6
*4.7u/6.3V_6
0.1u/10V_4
0.1u/10V_4
Place close to pin 33
VDDREG
40 mils
C668
C668
C674
C674
4.7u/6.3V_6
4.7u/6.3V_6
0.1u/10V_4
0.1u/10V_4
55
54
52
53
XD_CD#
VDD33/18
MS_D0/xD_D156MS_D4/xD_D0
SD_CD#/MS_D5/xD_ALE
Place connect to Pin46/47Place Close to LAN chip, for VDD33 pins-- 11, 12, 39, 58, 63, 64
5
4
40 mils
VDD33
50 mils
VDDREG
SP15SP16
SP14
SP13
VDD33/18
LED0/SPICSB
GPO_NC
LED1/SPICLK/EESK
51
50
49
GPO
DVDD10
LED0/SPICSB
LED1/SPISCK
ENSWREG_H
LED3/SPIDO
SCL/LED_CR
SD_WP/MS_D1/xD_WP#
MS_BS/xD_CLE
GND
31
32
HSON_
HSOP_
REGOUT
(1.5A) 60 mils
REGOUT
VDDREG
VDDREG
SDA/SPIDI
DVDD10
LANWAKEB
DVDD33
ISOLATEB
PERSTB
CLKREQB
VDD33/18
Change L40 footprint from L2x1_6-1 to RC0805. 01/09C23
L40
L40
VDD10
R647 *10K_4R647 *10K_4
Power source mode:
Pin45 :Pull-up VDD33 for SWR mode
Pull-down for LDO mde
(1.5A) 70 mils
REGOUT
48
47
46
ENSWREG
45
44
43
42
41
40
39
38
37
36
35
34
33
C661 0.1u/10V_4C661 0.1u/10V_4
C660 0.1u/10V_4C660 0.1u/10V_4
EVDD10
2.2uH/1A
2.2uH/1A
VDD10
R586 *SHORT_4R586 *SHORT_4
SDA/SPIDI
LED3/SPIDO/EEDO_NC
SCL/LED_CR_NC
PCIE_WAKE#
ISOLATEB
CLK_PCIE_LAN_REQ#
SP12
SP11
VDD33/18
C669
C669
4.7u/6.3V_6
4.7u/6.3V_6
Place Close pins-- 48
C643
C643
0.1u/10V_4
0.1u/10V_4
VDD10
C627
C627
0.1u/10V_4
0.1u/10V_4
C617
C617
0.1u/10V_4
0.1u/10V_4
(1.5A) 60 mils
C667
C667
0.1u/10V_4
0.1u/10V_4
Place Close to LAN chip, for VDD33 pins-- 3, 8, 41, 52, 61
VDDREG
TP123TP123
TP124TP124
VDD10
VDD33
PLTRST#9,16,25,34
PCIE_RX3- 9
PCIE_RX3+ 9
CLK_PCIE_LOM# 9
CLK_PCIE_LOM 9
PCIE_TX3- 9
PCIE_TX3+ 9
C673
C673
0.1u/10V_4
0.1u/10V_4
R574
R574
C618
C618
0.1u/10V_4
0.1u/10V_4
3
+3V
VDD33
C642
C642
*4.7u/6.3V_6
*4.7u/6.3V_6
Place close to pin 53
EVDD10
*SHORT_6
*SHORT_6
C644
C644
1u/6.3V_4
1u/6.3V_4
Close to Pin29
R593
R593
1K_4
1K_4
R592
R592
15K/F_4
15K/F_4
20 mils
VDD33/18
30 mils
C641
C641
0.1u/10V_4
0.1u/10V_4
C645
C645
0.1u/10V_4
0.1u/10V_4
Transformer
R5
R5
SG@1M_8
SG@1M_8
SG@B88069X9231T203
SG@B88069X9231T203
D7
D7
1 2
GND_LAN
C373 *6.8P/50V_4C373 *6.8P/50V_4
C374 *6.8P/50V_4C374 *6.8P/50V_4
C371 *6.8P/50V_4C371 *6.8P/50V_4
C372 *6.8P/50V_4C372 *6.8P/50V_4
C369 *6.8P/50V_4C369 *6.8P/50V_4
C370 *6.8P/50V_4C370 *6.8P/50V_4
C367 *6.8P/50V_4C367 *6.8P/50V_4
C368 *6.8P/50V_4C368 *6.8P/50V_4
R319 75/F_8R319 75/F_8
R3 75/F_8R3 75/F_8
R4 75/F_8R4 75/F_8
R6 75/F_8R6 75/F_8
C3
C3
220p/3KV_1808
220p/3KV_1808
Reserver for EMI
RJ45
SURGE
SG@-------> Lan Surge
MDI1MDI1+
MDI0MDI0+
MDI3MDI3+
MDI2MDI2+
2
TXCT0
TXCT1
TXCT2
TXCT3
MDI3+
MDI3-
MDI2+
MDI2-
MDI1+
MDI1-
MDI0+
MDI0-
+3V_S5
+3V_S5
1
1
2
2
3
3
445
1
1
2
2
3
3
445
R318 220_8R318 220_8
R9 220_8R9 220_8
U11
U11
8
8
7
7
6
6
5
U13
U13
8
8
7
7
6
6
5
L25
L25
1
TCT0
MDI0+
2
TD0+
MDI0-
3
TD0-
4
TCT1
MDI1+
5
TD1+
MDI1-
6
TD1-
7
TCT2
MDI2+
8
TD2+
MDI2-
9
TD2-
10
TCT3
MDI3+
C2
C2
0.01u/25V_4
0.01u/25V_4
+3V_S57,8,9,10,11,15,16,31,33,36,37,38,43,44
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
11
MDI3-
12
LED0/SPICSB
ACT_LED_PWR
RJ45-TX0+
RJ45-TX0RJ45-TX1+
RJ45-TX2+
RJ45-TX2-
RJ45-TX1RJ45-TX3+
RJ45-TX3-
LED1/SPICLK/EESK
LNK_LED_PWR
GND_LAN
RJ45-TX1RJ45-TX1+
RJ45-TX0RJ45-TX0+
RJ45-TX3RJ45-TX3+
RJ45-TX2RJ45-TX2+
TD3+
TD3-
LFE9276C-R
LFE9276C-R
CN8
CN8
9
10
1
2
3
4
5
6
7
8
11
12
RJ45
RJ45
R323 *SHORT_6R323 *SHORT_6
R317 *SHORT_6R317 *SHORT_6
R322 *SHORT_6R322 *SHORT_6
LAN-RTL8411/CARD READER
LAN-RTL8411/CARD READER
LAN-RTL8411/CARD READER
MCT0
TX0+
MCT1
TX1+
MCT2
TX2+
MCT3
TX3+
YELLOW_N
YELLOW_P
GND2
0+
GND1
01+
2+
213+
3-
GREEN_N
GREEN_P
1
1
2
2
3
3
445
1
1
2
2
3
3
445
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
TX0-
TX1-
TX2-
TX3-
14
13
TXCT0
24
RJ45-TX0+
23
RJ45-TX0-
22
TXCT1
21
RJ45-TX1+
20
RJ45-TX1-
19
TXCT2
18
RJ45-TX2+
17
RJ45-TX2-
16
TXCT3
15
RJ45-TX3+
14
RJ45-TX3-
13
GND_LAN
U10
U10
8
8
7
7
6
6
5
U12
U12
8
8
7
7
6
6
5
ZQS 45W
ZQS 45W
ZQS 45W
29 46Wednesday, February 08, 2012
29 46Wednesday, February 08, 2012
29 46Wednesday, February 08, 2012
3C
3C
3C
Page 30
A
B
C
D
E
CARD READER CONNECTOR
Share Pin
SP1 SD_D7 xD_RDY
SP2
SD_D6
SP3
SD_D5
SP4
4 4
CARD_3V329,46
3 3
SP5
SP6
SP7
SP8
SP9
SP10
SP11
SP12
SP13
SP14
SP15
SP16
SP129
SP229
SP329
SP429
SP529
SP629
SP729
SP829
SP929
SP1029
SP1129
SP1229
SP1329
SP1429
SP1529
SP1629
SD_D4
SD_D1
SD_D0
SD_CLK
SD_CMD
SD_D3
SD_D2
SD_WP
SD_CD#
MS_INS# xD_RE#
MS_CLK
MS_D7
MS_D3
MS_D6
MS_D2
MS_BS
MS_D1
MS_D5
MS_D4
MS_D0
CARD_3V3
R524 *SHORT_4R524 *SHORT_4
R520 *SHORT_4R520 *SHORT_4
R519 *SHORT_4R519 *SHORT_4
R518 *SHORT_4R518 *SHORT_4
R526 *SHORT_4R526 *SHORT_4
R525 *SHORT_4R525 *SHORT_4
R511 *SHORT_4R511 *SHORT_4
R514 *SHORT_4R514 *SHORT_4
R515 *SHORT_4R515 *SHORT_4
R517 *SHORT_4R517 *SHORT_4
R521 *SHORT_4R521 *SHORT_4
R527 *SHORT_4R527 *SHORT_4
R553 *SHORT_4R553 *SHORT_4
R622 *SHORT_4R622 *SHORT_4
R522 *SHORT_4R522 *SHORT_4
R621 *SHORT_4R621 *SHORT_4
xD_CE#
xD_WE#
xD_D6
xD_D5
xD_D4
xD_D3
xD_D2
xD_D7
xD_CLE
xD_WP#
xD_ALE
xD_D0
xD_D1
xD_CD#
SP1=SD_D7=XD_RDY
SP2=SD_D6=MS_INS#=XD_RE#
SP3=SD_D5=XD_CE#
SP4=SD_D4=XD_WE#
SP5=SD_D1=MS_CLK=XD_D6
SP6=SD_D0=MS_D7=XD_D5
SP7=SD_CLK=MS_D3=xD_D4
SP8=SD_CMD=MS_D6=xD_D3
SP9=SD_D3=MS_D2=XD_D2
SP10=SD_D2=XD_D7
SP11=MS_BS=XD_CLE
SP12=SD_WP=MS_D1=XD_WP#
SP13=SD_CD#=MS_D5=XD_ALE
SP14=MS_D4=XD_D0
SP15=MS_D0=XD_D1
SP16=XD_CD#
CARD_3V3
SP13=SD_CD#=MS_D5=XD_ALE
SP12=SD_WP=MS_D1=XD_WP#
SP5=SD_D1=MS_CLK=XD_D6
SP6=SD_D0=MS_D7=XD_D5
SP7=SD_CLK=MS_D3=XD_D4
SP8=SD_CMD=MS_D6=XD_D3
SP9=SD_D3=MS_D2=XD_D2
SP10=SD_D2=XD_D7
SP1=SD_D7=XD_RDY
SP2=SD_D6=MS_INS#=XD_RE#
SP3=SD_D5=XD_CE#
SP4=SD_D4=XD_WE#
CARD_3V3
SP11=MS_BS=XD_CLE
SP12=SD_WP=MS_D1=XD_WP#
SP15=MS_D0=XD_D1
SP9=SD_D3=MS_D2=XD_D2
SP2=SD_D6=MS_INS#=XD_RE#
SP7=SD_CLK=MS_D3=XD_D4
SP5=SD_D1=MS_CLK=XD_D6
XD,MMC 4.2/SD,MS/MSP
7 IN1 CARD READER
CN5
CN5
13
SD-VCC
1
SD-CD-SW
2
SD-WP-SW
3
SD-DAT1
4
SD-DAT0
10
SD-CLK
19
SD-CMD
23
SD-DATA3
25
SD-DAT2
5
MMC-DATA7
8
MMC-DATA6
17
MMC-DATA5
21
MMC-DATA4
7
SD-GND1
15
SD-GND2
26
SD-WP-GND
27
SD-CD-GND
22
MS-VCC
9
MS-BS
11
MS-DATA1
12
MS-DATA0
14
MS-DATA2
16
MS-INS
18
MS-DATA3
20
MS-SCLK
6
MS-GND1
24
MS-GND2
CM7S-102
CM7S-102
1 : DFHS44FR014
2 : DFHS44FR018
XD-VCC
XD-CD
XD-R/B
XD-RE
XD-CE
XD-CLE
XD-ALE
XD-WE
XD-WP
XD-D0
XD-D1
XD-D2
XD-D3
XD-D4
XD-D5
XD-D6
XD-D7
XD-GND1
XD-GND2
45
28
29
30
31
32
33
34
35
37
38
39
40
41
42
43
44
36
46
CARD_3V3
SP16=XD_CD#
SP1=SD_D7=XD_RDY
SP2=SD_D6=MS_INS#=XD_RE#
SP3=SD_D5=XD_CE#
SP11=MS_BS=XD_CLE
SP13=SD_CD#=MS_D5=XD_ALE
SP4=SD_D4=XD_WE#
SP12=SD_WP=MS_D1=XD_WP#
SP14=MS_D4=XD_D0
SP15=MS_D0=XD_D1
SP9=SD_D3=MS_D2=XD_D2
SP8=SD_CMD=MS_D6=XD_D3
SP7=SD_CLK=MS_D3=XD_D4
SP6=SD_D0=MS_D7=XD_D5
SP5=SD_D1=MS_CLK=XD_D6
SP10=SD_D2=XD_D7
SP7=SD_CLK=MS_D3=xD_D4
SP5=SD_D1=MS_CLK=XD_D6
2 2
C605
C605
*4.7p/50V_4
*4.7p/50V_4
C604
C604
*4.7p/50V_4
*4.7p/50V_4
Vendor recommend for EMI
40 mils
CARD_3V3
C620
C620
4.7u/6.3V_6
4.7u/6.3V_6
Place close to connector
pin 14 or 23 or33
40 mils
CARD_3V3
C613
C703
C615
C615
0.1u/10V_4
0.1u/10V_4
1 1
Place close to connector
pin 13/22/45
A
B
C703
0.1u/10V_4
0.1u/10V_4
C
C613
0.1u/10V_4
0.1u/10V_4
Vendor recommend
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
CARD READER CONNECTOR
CARD READER CONNECTOR
CARD READER CONNECTOR
Date: Sheet of
Date: Sheet of
D
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
E
3C
3C
3C
30 46Wednesday, February 08, 2012
30 46Wednesday, February 08, 2012
30 46Wednesday, February 08, 2012
Page 31
5
USB3.0/2.0
D D
USB30_TX3+ USB30_TX3+_C
USB30_TX3-
C C
USB_OC1#9
USB_CH2-_R
USB_CH2+_R
[email protected]/10V_4
[email protected]/10V_4
C594
C594
C595
C595
[email protected]/10V_4
[email protected]/10V_4
+5VPCU
USB_BC_EN
C327 1u/6.3V_4C327 1u/6.3V_4
U5
U5
2
IN1
3
IN2
4
EN
1
GND
G547E1P81U
G547E1P81U
2
4
L18 0_4P2RL18 0_4P2R
USB3@0_4P2R
USB3@0_4P2R
USB30_TX3-_C USB30_TX3-_R
USB3@0_4P2R
USB3@0_4P2R
8
OUT3
7
OUT2
6
OUT1
5
OC#
100U/6.3V_3216
100U/6.3V_3216
Change USB power Cap C306,C352 from 100U_3528 to 100U_3216. 12/23C09
1
3
1
3
C306
C306
+
+
USBPWR1
1
3
2
4
2
4
C324
C324
1000p/50V_4
1000p/50V_4
USB30_RX3+_RUSB30_RX3+
USB30_RX3-_RUSB30_RX3-
RP24
RP24
USB30_TX3+_R
RP25
RP25
4
USBPWR1
USBP2-_R
USBP2+_R
USB30_RX3-_R
USB30_RX3+_R
USB30_TX3-_R
USB30_TX3+_R
USBP2-_R
USBP2+_R
USB30_RX3-_R
USB30_RX3+_R
USB30_TX3-_R
USB30_TX3+_R
USB 3.0 Connector
CN16
CN16
USB3.0 CONN
USB3.0 CONN
1
VBUS
VBUS
1
2
D-
D-
2
3
3
D+
D+
4
4
GND
GND
5
SSRX-
SSRX-
5
6
6
SSRX+
SSRX+
7
7
GND
GND
8
8
SSTX-
SSTX-
9
9
SSTX+
SSTX+
11111010131312
12
USB2.0 connector P/N:
DFHS04FR487
RV2 *EGA_4RV2 *EGA_4
1 2
RV3 *EGA_4RV3 *EGA_4
1 2
RV7 *EGA_4RV7 *EGA_4
1 2
RV6 *EGA_4RV6 *EGA_4
1 2
RV5 *EGA_4RV5 *EGA_4
1 2
RV4 *EGA_4RV4 *EGA_4
1 2
3
Blutooth
+3V_S5
C706
C706
0.33u/10V_6
0.33u/10V_6
BT_POWERON#25,34
USBP4+9
USB/B
USBON#34
USB_OC4#9
USBP1+9
USBP1-9
USBP9+9
USBP4-9
USBP9-9
R654
R654
4.7K_4
4.7K_4
C364
C364
1u/6.3V_4
1u/6.3V_4
+5V_S5
Q40 AO3413Q40 AO3413
2
U9
U9
2
4
1
G547E2P81U
G547E2P81U
2
4
2
4
3
IN1
IN23OUT2
EN#
GND
1
R653
R653
47K/F_4
47K/F_4
L21 0_4P2RL21 0_4P2R
L20 0_4P2RL20 0_4P2R
2
+
+
C262
C262
2.2u/6.3V_6
2.2u/6.3V_6
2
4
L17 0_4P2RL17 0_4P2R
OUT3
OUT1
OC#
1
3
1
3
8
7
6
5
+5V_S5_USBP0
C353
C353
470P/50V_4
470P/50V_4
Change USB power Cap C306,C352 from 100U_3528 to 100U_3216. 12/23C09
USBP1+_R
USBP1-_R
USBP9+_R
USBP9-_R
BT_POWER
C267
C267
1000p/50V_4
1000p/50V_4
1
3
C351
C351
.1u/10V_4
.1u/10V_4
100U/6.3V_3216
100U/6.3V_3216
+
+
C352
C352
1
BLUETOOTH CONNECTOR for BT3.0
CN4
CN4
5
5
4
1
2
3
4
5
6
7
8
9
10
11
12
4
3
3
2
2
7
1
1
6
CON5_BT_L
CON5_BT_L
13
13
14
14
7
6
USBP4+_R
USBP4-_R
TP167TP167
+5V_S5_USBP0
USBP1+_R
USBP1-_R
USBP9+_R
USBP9-_R
BT_LED
1
2
3
4
5
6
7
8
9
10
11
12
CN6
CN6
88511-120N
88511-120N
B B
USB Charger
USBP2-9
USBP2+9
USB30_RX3+9
USB30_RX3-9
USB30_TX3+9
USB30_TX3-9
A A
USBP2USBP2+
USB30_RX3+
USB30_RX3-
USB30_TX3+
USB30_TX3-
5
USB 3.0 Ra, Rb Stuff
Rb
4
CB SELCDP Funcion
0
1
1 1
BC_CEN
USB_CH2-_R
USB_CH2+_R
For BA
Ra
USB_CH2-_R
USB_CH2+_R
DCP autodetect with mouse/keyboard wakeup
X
S0 charging with SDP only
0
S0 charging with CDP or SDP only (depending on external device)
U7
U7
1
CEN
2
3
4
R252 CH@10K_4R252 CH@10K_4
R506 NCH@0_4R506 NCH@0_4
R509 NCH@0_4R509 NCH@0_4
CB1
TDM
DM
DP
TDP
SELCDP
VDD
Thermal Pad
CH@SLG55584A
CH@SLG55584A
3
8
7
6
5
9
R247 CH@0_4R247 CH@0_4
R246 *CH@0_4R246 *CH@0_4
USBP2USBP2+
+5VPCU
USBP2USBP2+
USB_CHARGE_ON 34
MAINON 34,38,39,42,43
2
CEN:SLG55584A----pull up
SLG55584----pull low
BC_CEN
USB_BC_ON34
R241 CH@47K_4R241 CH@47K_4
USB_BC_ON
USB_BC_ON
USB Charger -->CH@
None Charger--> NCH@
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
USB/ BT/CHARGER
USB/ BT/CHARGER
USB/ BT/CHARGER
Date: Sheet of
Date: Sheet of
Date: Sheet of
+3VPCU
2
1
U6
U6
3 5
CH@TC7SH08FU
CH@TC7SH08FU
USB_BC_ENUSB_BC_ON
R245
R245
NCH@0_4
NCH@0_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
4
ZQS 45W
ZQS 45W
ZQS 45W
31 46Wednesday, February 08, 2012
31 46Wednesday, February 08, 2012
31 46Wednesday, February 08, 2012
USB_BC_EN
3C
3C
3C
Page 32
Hole
5
4
3
2
1
HOLE14
HOLE7
HOLE7
*HG-C315D110P2
D D
C C
B B
MINI
CARD
NUT
HOLE10
HOLE10
H-C217D106PT
H-C217D106PT
1
*HG-C315D110P2
8
9
123
HOLE12
HOLE12
*HG-C315D110P2
*HG-C315D110P2
8
9
123
HOLE13
HOLE13
*HG-C315D110P2
*HG-C315D110P2
8
9
123
67
5
4
67
5
4
67
5
4
HOLE14
*HG-C315D110P2
*HG-C315D110P2
8
9
123
HOLE5
HOLE5
*h-c315i150d110p2
*h-c315i150d110p2
1
67
5
4
HOLE2
HOLE2
*HG-C315D110P2
*HG-C315D110P2
8
9
123
HOLE11
HOLE11
*ZQS-HOLE2
*ZQS-HOLE2
8
9
123
HOLE1
HOLE1
*H-C315D110P2
67
5
4
67
5
4
*H-C315D110P2
1
HOLE6
HOLE6
*HG-C315D110P2
*HG-C315D110P2
8
9
123
Change hole15, hole17 footprint to H-C256D161PT to h-c256d142pt. 12/30C18
67
5
4
GPU NUT FAN NUT
HOLE17
HOLE17
H-C256D161PT
H-C256D161PT
1
HOLE15
HOLE15
H-C256D161PT
H-C256D161PT
1
HOLE3
HOLE3
H-TC256BC315D161P2
H-TC256BC315D161P2
1
HOLE16
HOLE16
*H-C236D165P2
*H-C236D165P2
1
HOLE19
HOLE19
*H-C236D165P2
*H-C236D165P2
1
HOLE18
HOLE18
*H-C236D165P2
*H-C236D165P2
1
PCH NUT
HOLE22
HOLE22
H-C224D123P2
H-C224D123P2
1
HOLE20
HOLE20
H-C224D123P2
H-C224D123P2
1
MINI PCIE
HOLE21
HOLE21
H-C236D65PT
H-C236D65PT
1
HOLE9
HOLE9
*H-TC433BC315D110P2
*H-TC433BC315D110P2
1
HOLE8
HOLE8
*ZQS-HOLE1
*ZQS-HOLE1
1
HOLE4
HOLE4
*O-ZQS-1
*O-ZQS-1
1
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Hole
Hole
Hole
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
PROJECT :
1
ZQS 45W
ZQS 45W
ZQS 45W
32 46W ednesday, February 08, 2012
32 46W ednesday, February 08, 2012
32 46W ednesday, February 08, 2012
3C
3C
3C
Page 33
5
4
3
2
1
K/B
MY034
MY134
MY234
MY334
MY434
MY534
MY634
D D
+3VPCU
RP23 10K_10P8RRP23 10K_10P8R
10
MX4 MX2
C C
LED
B B
SATA_ACT#8
A A
LED_WLAN#25
5
PWRLED#34
SUSLED#34
BATLED0#34
BATLED1#34
Power
Power
PowerPower
Power Botton
Power Botton
Power BottonPower Botton
PWRLED#
Battery
Battery
BatteryBattery
HDD
HDD
HDDHDD
WLAN
WLAN
WLANWLAN
9
MX5
8
MX6
7 4
MX7
PWRLED#
R655 1M_4R655 1M_4
R1 110/F_4R1 110/F_4
R656 1M_4R656 1M_4
R657 1M_4R657 1M_4
R607 430_4R607 430_4
R606 261/F_4R606 261/F_4
R658 1M_4R658 1M_4
R605 330/F_4R605 330/F_4
R659 1M_4R659 1M_4
R615 523/F_4R615 523/F_4
R660 1M_4R660 1M_4
1
2
3
56
R613 430_4R613 430_4
R614 261/F_4R614 261/F_4
MY734
MY834
MY934
MY1034
MY1134
MY1234
MY1334
MY1434
MY1534
MY1634
MY1734
MX734
MX634
MX534
MX434
MX334
MX234
MX134
MX034
MX3
MX1
MX0
LED_AMBER/BLUE
LED_AMBER/BLUE
LED1
LED1
BEBL0089Z00
BEBL0089Z00
LTST-C190TBKT/BLUE
LTST-C190TBKT/BLUE
LED_AMBER/BLUE
LED_AMBER/BLUE
4
MY0
MY1
MY2
MY3
MY4
MY5
MY6
MY7
MY8
MY9
MY10
MY11
MY12
MY13
MY14
MY15
MY16
MY17
MX7
MX6
MX5
MX4
MX3
MX2
MX1
MX0
LED4
LED4
2 3
1
Blue
Blue
BlueBlue
21
LED5
LED5
2 3
1
HDD_LED
HDD_LED
Orange
Orange
OrangeOrange
WLAN_LED
WLAN_LED
LED2
LED2
LED3
LED3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
+3V_S5
+3V_S5
+3VPCU
+3V
31
+3V
31
CN2
CN2
KB CONN
KB CONN
27
28
CPU FAN
C56
C56
2.2u/6.3V_6
2.2u/6.3V_6
SML1ALERT#9,10
CPUFAN#_DAC34
1 2
FANPWR = 1.6*VSET
TOUCHPAD & Switch CONN.
+3V
+5V
R651 0_4R651 0_4 L9 *0_6L9 *0_6
R652 *0_4R652 *0_4
R127
R127
R125
R125
10K_4
10K_4
10K_4
10K_4
SWITCH_1.5
SWITCH_1.5
SWITCH_1.5
SWITCH_1.5
L7 0_6L7 0_6
L8 0_6L8 0_6
C159
C159
*0.01u/25V_4
*0.01u/25V_4
Model EA/EG/BA---->SW5,SW6
VA/VG--------->SW2,SW3
SW6
SW6
3
1 4
5
6
SW4
SW4
3
1 4
5
6
WL_SW#
12
RV1
RV1
BA@EGA-0402
BA@EGA-0402
TPCLK34
TPDATA34
RIGHT# LEFT#
For BA WLAN function
WL_SW#34
3
+5V
U2
U2
VIN2VO
GND
1
/FON
GND
GND
4
VSET
GND
G991P11U
G991P11U
+5V
C158
C158
*0.01u/25V_4
*0.01u/25V_4
2
2
SWITCH_1.5
SWITCH_1.5
LEFT#RIGHT#
C04 Change SW1,SW2 footprint & PN from DHP00DA1J01 to DHP00532W00. 12/23
SW1
SW1
3
1 4
6
2
3
5
6
7
8
+3V
TPCLK_R
TPDATA_R
SWITCH_1.5
SWITCH_1.5
SWITCH_1.5
SWITCH_1.5
2
5
FANSIG34
TH_FAN_POWER
TH_FAN_POWER
C53
C53
C57
C57
C50
C50
2.2u/6.3V_6
2.2u/6.3V_6
1 2
L6 0_6L6 0_6
BOARD_ID49,10
BOARD_ID310
CLK_SDATA9,13,14,26
CLK_SCLK9,13,14,26
SW5
SW5
3
1 4
6
SW3
SW3
3
1 4
6
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
KB/FAN/TP+FP/LED
KB/FAN/TP+FP/LED
KB/FAN/TP+FP/LED
Date: Sheet of
Date: Sheet of
Date: Sheet of
0.01u/25V_4
0.01u/25V_4
50mil
C157
C157
0.1u/10V_4
0.1u/10V_4
2
5
2
5
*0.01u/25V_4
*0.01u/25V_4
+TPVDD
R117 *0_4R117 *0_4
R116 *0_4R116 *0_4
+3V
R43
R43
10K_4
10K_4
CN9
CN9
1
2
3
FAN_CONN.
FAN_CONN.
53398-0310-3P-L
53398-0310-3P-L
DFHD03MR026
DFHD03MR026
By Model
TP/B
+TPVDD
TPDATA_R
TPCLK_R
RIGHT#
LEFT#
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
TP/B
1
2
3
4
5
6
7
8
9
10
11
12
CN3
CN3
ZQS 45W
ZQS 45W
ZQS 45W
33 46Wednesday, February 08, 2012
33 46Wednesday, February 08, 2012
33 46Wednesday, February 08, 2012
13
14
3C
3C
3C
Page 34
5
EC(KBC)
L11 PBY160808T-250Y-N/3A/25ohm_6L11 PBY160808T-250Y-N/3A/25ohm_6
30mil
+3VPCU
R134 2.2_6R134 2.2_6
1 2
D D
CLK_PCI_775
R145
R145
*22_4
*22_4
C224
C224
*10p/50V_4
*10p/50V_4
C C
B B
+3VPCU_EC
C220
C220
4.7u/6.3V_6
4.7u/6.3V_6
Reserve for writing ME ROM
VTT - the power supply for the PECI signal
PECI - the PECI 3.0 data bus, bidirectional signal.
0.03A(30mils)
C199
C199
C165
C165
*0.1u/16V_4
*0.1u/16V_4
0.1u/10V_4
0.1u/10V_4
LPC_LFRAME#8,25
LPC_LAD08,25
LPC_LAD18,25
LPC_LAD28,25
LPC_LAD38,25
CLK_PCI_7759
CLKRUN#7
SIO_A20GATE10
SIO_RCIN#10
SIO_EXT_SCI#10
EC_FPBACK#23
AMP_MUTE#27
PLTRST#9,16,25,29
RF_EN25
IRQ_SERIRQ8
SIO_EXT_SMI#10
+1.05V
EC_PECI3
C538
C538
0.1u/10V_4
0.1u/10V_4
MX033
MX133
MX233
MX333
MX433
MX533
MX633
MX733
MY033
MY133
MY233
MY333
MY433
MY533
MY633
MY733
MY833
MY933
MY1033
MY1133
MY1233
MY1333
MY1433
MY1533
MY1633
MY1733
MBCLK35
MBDATA35
2ND_MBCLK9
2ND_MBDATA9
GPUT_CLK19
GPUT_DATA19
TPCLK33
TPDATA33
ME_WR8
BT_POWERON#25,31
EC_ODD_EN26
R135 *SHORT_4R135 *SHORT_4
R132 43_4R132 43_4
PLTRST#
DG0.9 and chklist 0.9 apply one series 43ohm near EC side
pin14 +VCC_GFX
pin22 +3V_D for ATI
pin24 +1V for ATI
pin26 +1.8V_GPU for ATI
pin28 GPU_RST#
pin13 GFX_PWRGD
pin21 dGPU_VRON
pin23 +VGPU_CORE
pin25 +1.5V_GPU
pin27 dGPU_PWROK
E775AGND
C518
C518
*0.1u/16V_4
*0.1u/16V_4
MBCLK
MBDATA
2ND_MBCLK
2ND_MBDATA
GPUT_CLK
GPUT_DATA
+1.05V_VTT_EC
EC_PECR_R
C171
C171
0.1u/10V_4
0.1u/10V_4
4
+A3VPCU
C229
C229
C227
C227
0.1u/10V_4
0.1u/10V_4
10u/6.3V_6
10u/6.3V_6
19
46
76
88
102
115
U16
U16
VCC1
VCC2
VCC3
VCC4
VCC5
3
LFRAME
126
LAD0
127
LAD1
128
LAD2
1
LAD3
2
LCLK
8
GPIO11/CLKRUN
121
GPIO85/GA20
122
KBRST/GPIO86
29
ECSCI/GPIO54
6
GPIO24/LDRQ
124
GPIO10/LPCPD
7
LREST
123
GPIO67/PWUREQ
125
SERIRQ
9
GPIO65/SMI
54
KBSIN0
55
KBSIN1
56
KBSIN2
57
KBSIN3
58
KBSIN4
59
KBSIN5
60
KBSIN6
61
KBSIN7
53
KBSOUT0/JENK
52
KBSOUT1/TCK
51
KBSOUT2/TMS
50
KBSOUT3/TDI
49
KBSOUT4/JEN0
48
KBSOUT5/TDO
47
KBSOUT6/RDY
43
KBSOUT7
42
KBSOUT8
41
KBSOUT9/SDP_VIS
40
KBSOUT10/P80_CLK
39
KBSOUT11/P80_DAT
38
KBSOUT12/GPIO64
37
KBSOUT13/GPIO63
36
KBSOUT14/GPIO62
35
KBSOUT15/GPIO61/XOR_OUT
34
GPIO60/KBSOUT16
33
GPIO57/KBSOUT17
70
GPIO17/SCL1
69
GPIO22/SDA1
67
GPIO73/SCL2
68
GPIO74/SDA2
119
GPIO23/SCL3
120
GPIO31/SDA3
72
GPIO37/PSCLK1
71
GPIO35/PSDAT1
10
GPIO26/PSCLK2
11
GPIO27PSDAT2
77
GPIO00/32KCLKIN
12
VTT
13
PECI
WPCE885
WPCE885
L13 PBY160808T-250Y-N/3A/25ohm_6L13 PBY160808T-250Y-N/3A/25ohm_6
AVCC
GND1
GND2
5
18
E775AGND
A/D
A/D
D/A
D/A
LPC
LPC
GPIO
GPIO
KB
KB
TIMER
TIMER
SMB
SMB
IR
IR
PS/2
FIU
PS/2
FIU
GPIO55/CLKOUT/IOX_DIN_DIO
GND3
GND4
GND5
GND6
45
78
89
116
D12
D12
RB500V-40
RB500V-40
GPIO90/AD0
GPIO91/AD1
GPIO92/AD2
GPIO93/AD3
GPIO94/DA0
GPI95/DA1
GPI96/DA2
GPIO01/TB2
GPIO02
GPIO03
GPIO04
GPIO06/IOX_DOUT/RTS1
GPO82/IOX_LDSH/TEST
GPO84/IOX_SCLK/XORTR
GPIO20/TA2/IOX_DIN_DIO
GPIO87/CIRRXM/SIN_CR
GPO83/SOUT_CR/TRIST
AGND
103
GPIO05
GPIO07
GPIO16
GPIO30
GPIO36/CTS1
GPIO41
GPIO42/SCL3B/TCK
GPIO43/SDA3B/TMS
GPIO44/TDI
GPO47/SCL4
GPIO50/PSCLK3/TDO
GPIO51
GPIO52/PSDAT3/RDY
GPIO53/SDA4
GPIO70
GPIO71
GPIO72
GPIO75/SPI_SCK
GPO76/SHBM
GPIO77
GPIO81
GPIO97
GPIO56/TA1
GPIO14/TB1
GPIO15/A_PWM
GPIO21/B_PWM
GPIO13/C_PWM
GPIO32/D_PWM
GPIO45/E_PWM
GPIO40/F_PWM/RI1
GPIO66/G_PWM
GPIO33/H_PWM/SOUT1
GPIO34/SIN1/CIRRXL
GPIO46/CIRRXM/TRST
F_SDI/F_SDIO1
F_SDO/F_SDIO0
F_CS0
F_SCK
VCC_POR
VCORF
44
VCORF_uR
C173
C173
1u/6.3V_4
1u/6.3V_4
3
+3V
C237
C237
C238
C238
0.1u/10V_4
0.1u/10V_4
4.7u/6.3V_6
4.7u/6.3V_6
4
VDD
97
98
99
100
101
105
106
64
79
95
96
108
93
94
114
109
15
80
17
20
21
24
25
26
27
28
73
74
75
82
83
84
91
110
112
107
31
117
63
32
118
62
65
22
16
81
66
C32 Add net WLAN_OFF to connect EC(GPIO66/G_PWM) to CN20.46
113
14
23
111
86
87
90
92
30
85
104
VREF
C219 10u/6.3V_8C219 10u/6.3V_8
WAKE_WLAN
WAKE_SRC_2
ICM
DRAMRST_GATE
WK_GPIO27
SUSACK#
NBSWON#
WL_SW#
SUSWARN#
M_PON_R
SLP_A#_R
DPWROK
HWPG
dGPU_ALT#_R
GPU_TRIP#
S5_ON
GPU_PWR_ALERT#
3G_ON
Do_not_ use_it
SLPSUS#
CPUFAN#
SUSLED#
WLAN_OFF
( LED_WPAN#) for IOAC feature, reserve 0Ω. 01/18
IOAC_LANPWR#
PROCHOT_EC
ECDB_CLOCK
VCC_POR#
+A3VPCU
C221 0.01u/25V_4C221 0.01u/25V_4
TP169TP169
Change EC GPI96 from WAKE_WLAN to WK_GPIO27, connect to PCH_GPIO27. 01/12C28
TP171TP171
R640 SBA@0_4R640 SBA@0_4
R136 SBA@0_4R136 SBA@0_4
R128 *SHORT_4R128 *SHORT_4
TP177TP177
TP178TP178
TP179TP179
TP180TP180
TP183TP183
R133 47K/F_4R133 47K/F_4
R635*SBA@0_4 R635*SBA@0_4
C08 Connect EC GPIO46 IOAC_LANPWR# to WLAN, R662, add C708, R661, Q48. 12/23
Reserve 0Ω R645 connect to DPWROK, add new net DPWROK_EC. 01/05C21
DPWROK
Connect to Q42 & EC GPIO91, Q42 change from reserve
C06
ICME775AGND
to mount. 12/23
TEMP_MBAT 35
WAKE_WLAN 25
TP168TP168
ICM 35
CPUFAN#_DAC 33
WK_GPIO27 10
ACIN 35
WL_SW# 33
TP172TP172
LID591# 23
M_PON 44
SLP_A# 7
EC_PWROK_R 7,44
dGPU_OVT# 19
VRON 37
dGPU_ALT# 19
SUSB# 7
GPU_TRIP# 19
D/C# 35
S5_ON 36,43
HDMI_HPD_EC# 24
GPU_PWR_ALERT# 41
SUSC# 7
PWROK_EC 7
PCH_RSMRST# 7
MAINON 31,38,39,42,43
EC_ODD_EJ 26
DNBSWON# 7
USBON# 31
USB_CHARGE_ON 31
SUSON 39
FANSIG 33
CONTRAST 23
PCBEEP_EC 27
PWRLED# 33
BATLED0# 33
SUSLED# 33
WLAN_OFF 25
BATLED1# 33
USB_BC_ON 31
p75V_ON 39
IOAC_LANPWR# 25
PCH_SPI_SO 8
PCH_SPI_SI 8
SPI_CS0#_UR_ME 8
PCH_SPI_CLK 8
+3VPCU
R645*0_4 R645*0_4
C05
Change WL_SW# from EC GPIO91 to EC GPIO04. 12/23C05
Connect EC_PWROK_R to EC GPIO30,
reserve 0Ω R635 for SBA. 12/29
C17
C03 Add GPU_TRIP# to EC GPIO47, connect
to NV GPIO08. 12/23
C01 Add GPU_PWR_ALERT# to EC GPIO53,
connect to PU5.10. 12/21
SM BUS ARRANGEMENT TABLE
SM Bus 1
Battery
SM Bus 2
PCH
SM Bus 3
VGA
SM Bus 4
HDMI
2
DPWROK_EC 7
SBA
Power on button
+3VPCU
R2
10K_4R210K_4
NBSWON#
2 1
D6
*VPORT_6D6*VPORT_6
C1
0.1u/10V_4C10.1u/10V_4
C04 Change SW1,SW2 footprint & PN from DHP00DA1J01 to DHP00532W00. 12/23
SM BUS PU(KBC)
PROCHOT_EC
R139
R139
100K_4
100K_4
MBCLK
MBDATA
GPUT_CLK
GPUT_DATA
2ND_MBCLK
2ND_MBDATA
2
3
1
Q36
Q36
2N7002K
2N7002K
R124 10K_4R124 10K_4
R123 10K_4R123 10K_4
R183 10K_4R183 10K_4
R169 10K_4R169 10K_4
R408 10K_4R408 10K_4
R413 10K_4R413 10K_4
HWPG(KBC)
HWPG_VCCSA40
HWPG_1.8V43
HWPG_VTT38,40
HWPG_VDDR39
SYS_HWPG36
D16 BAS316D16 BAS316
D21 BAS316D21 BAS316
D17 *BAS316D17 *BAS316
D18 BAS316D18 BAS316
D19 BAS316D19 BAS316
1
SW2
SW2
3
1 4
SWITCH_1.5
SWITCH_1.5
+3VPCU
H_PROCHOT# 3,37
+3V
R565
R565
10K_4
10K_4
2
5
6
HWPG
Power sequence
A A
NBSWON# S5_ON
SUSB#
PWROK_EC
PLTRST#
5
TP193TP193
TP192TP192
TP195TP195
TP194TP194
TP197TP197
TP196TP196
PCH_RSMRST#DNBSWON#
SUSC#SUSON
MAINON
VRON
HWPG
TP186TP186
TP187TP187
TP189TP189
TP188TP188
TP191TP191
TP190TP190
+3VPCU
R406 10K_4R406 10K_4
S5_ON
M_PON
R650 SBA@10K_4R650 SBA@10K_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
4
3
2
Date: Sheet of
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
WPCE885 & FLASH
WPCE885 & FLASH
WPCE885 & FLASH
ZQS 45W
ZQS 45W
ZQS 45W
34 46Wednesday, February 08, 2012
34 46Wednesday, February 08, 2012
1
34 46Wednesday, February 08, 2012
3C
3C
3C
Page 35
5
PL1
PJ1
PJ1
POWER_JACK
POWER_JACK
D D
C C
1
2
3
4
PC6
PC6
0.1u/50V_6
0.1u/50V_6
PC5
PC5
2200p/50V_6
2200p/50V_6
ACIN34
VA
PL1
FBMA-11-201209-800A50T
FBMA-11-201209-800A50T
PL2
PL2
FBMA-11-201209-800A50T
FBMA-11-201209-800A50T
+3VPCU +3VPCU
PR191
PR191
100K_4
100K_4
3
2
PQ6
PQ6
2N7002K
2N7002K
1
PC10
PC10
0.1u/50V_6
0.1u/50V_6
PC13
6
5
4
PC12
PC12
*100p/50V_6
*100p/50V_6
MBDATA
+3VPCU
MBCLKTEMP_MBAT
PR12
PR12
100_4
100_4
PC13
PR9
PR9
100_4
100_4
PC11
PC11
*47p/50V_6
*47p/50V_6
PL4
PL4
FBMA-11-201209-800A50T
FBMA-11-201209-800A50T
PL3
PL3
FBMA-11-201209-800A50T
FBMA-11-201209-800A50T
TEMP_MBAT
PR14 1M_4PR14 1M_4
MBCLK 34
MBDATA 34
B B
PR13
PR13
short0402
short0402
1
2
MBAT+
PU1
PU1
IP4223-CZ6
IP4223-CZ6
CH1
VN
CH4
VP
*47p/50V_6
*47p/50V_6
PR11
PR11
100_4
100_4
PJ2
PJ2
1
10
2
3
4
5
6
7
89
C114F3-108A1-L_Batt_Conn
C114F3-108A1-L_Batt_Conn
A A
CH23CH3
Add ESD diode base on EC FAE suggestion
5
4
VA1
PC7
PC7
0.1u/50V_6
0.1u/50V_6
PD3
PD3
1N4148WS
1N4148WS
PD2
PD2
SBR1045SP5-13
SBR1045SP5-13
recommend 200mA at least.
VA2
PR187
PR187
PR186
PR186
*0_6
*0_6
short0603
short0603
PR190
PR190
100K_4
100K_4
+3VPCU
PR27
PR27
10K_4
10K_4
BAT-V
PR36
PR36
316K/F_4
316K/F_4
TEMP_MBAT 34
+3VPCU
PR35
PR35
100K/F_4
100K/F_4
4
1
2
PR184
PR184
20_1206
20_1206
MBDATA
MBCLK
PR188
PR188
*10K_4
*10K_4
PR32
PR32
10K/F_4
10K/F_4
PC24
PC24
0.01u/25V_4
0.01u/25V_4
VA2
3
2 1
PR33
PR33
short0402
short0402
PR34
PR34
short0402
short0402
24707_IFAULT#
24707_CMPOUT
24707_ILIM
PD1
PD1
SMAJ20A
SMAJ20A
PR31
PR31
63.4K/F_4
63.4K/F_4
24707_ACDET
24707_VCC
PC15
PC15
0.47u/25V_6
0.47u/25V_6
24707_CMPIN
PR25
PR25
*100K_4
*100K_4
ICM34
PC83
PC83
0.1u/50V_6
0.1u/50V_6
PC20
PC20
0.1u/50V_6
0.1u/50V_6
6
ACDET
20
VCC
5
ACOK#
8
SDA
9
SCL
11
IFAULT#
3
CMPOUT
10
ILIM
4
CMPIN
PC23
PC23
100P/50V_4
100P/50V_4
IOUT
7
12
PR179
PR179
220K_4
220K_4
PR183
PR183
220K_4
220K_4
PC19
PC19
0.1u/50V_6
0.1u/50V_6
2
ACP
PU2
PU2
BQ24707A
BQ24707A
GND
21
3
VA2
1
ACN
GND22GND24GND23GND
3
1
3
1 6
2
3
PQ4
PQ4
IMD2AT108
IMD2AT108
24707_ACP
24707_ACN
PC18
PC18
0.1u/50V_6
0.1u/50V_6
REGN
BTST
HIDRV
PHASE
LCDRV
PGND
SRP
SRN
25
PQ1
PQ1
AOL1413
AOL1413
5
4
16
24707_BST
17
18
19
15
14
13
12
52
4
24707_REGN
24707_DH
24707_LX
24707_DL
PR24
PR24
10_6
10_6
PR26
PR26
7.5_6
7.5_6
PR21
PR21
short0402
short0402
PR18
PR18
short0603
short0603
24707_SRP
24707_SRN
PC17
PC17
1u/16V_6
1u/16V_6
PD4
PD4
RB500V-40
RB500V-40
PC16
PC16
47n/50V_6
47n/50V_6
PC22
PC22
0.1u/25V_4
0.1u/25V_4
PR6
PR6
0.01/F_0612
0.01/F_0612
1 2
PC97
PC97
0.1u/25V_4
0.1u/25V_4
PC98
PC98
0.1u/25V_4
0.1u/25V_4
D/C# 34
4
4
2
PR22
PR22
short0402
short0402
PR23
PR23
short0402
short0402
3
3
2
52
1
52
1
VIN
24707_ACN
24707_ACP
PC84
PC84
2200p/50V_6
2200p/50V_6
PQ36
PQ36
MDV1528URH
MDV1528URH
PQ37
PQ37
MDV1528URH
MDV1528URH
PR8
PR8
*4.7_6
*4.7_6
PC8
PC8
*680p/50V_6
*680p/50V_6
PC1
PC1
0.1u/50V_6
0.1u/50V_6
PC85
PC85
4.7u/25V_8
4.7u/25V_8
PL6
PL6
6.8uH_7X7X3
6.8uH_7X7X3
24707_SRP
24707_SRN
PR185
PR185
short0402
short0402
PC81
PC81
*10u/25V_1206
*10u/25V_1206
PR180
PR180
0.01/F_0612
0.01/F_0612
1 2
PC2
PC2
2200p/50V_6
2200p/50V_6
PC9
PC9
*10u/25V_1206
*10u/25V_1206
For EMI
PR189
PR189
short0402
short0402
REGN MAX voltage 6.5V
V_ILIM=20*(VSRP-VSRN)=20*Ichg*Rsr
=0.793V for 3.965A current limit
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Charger(bq24707A)
Charger(bq24707A)
Charger(bq24707A)
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
VIN
PC94
PC94
2200p/50V_6
2200p/50V_6
1
PQ38
PQ38
AOL1413
AOL1413
1
3
PR20
PR20
33K/F_4
33K/F_4
2
PQ3
PQ3
2N7002K
2N7002K
PC3
PC3
*10u/25V_1206
*10u/25V_1206
10u/25V_1206
10u/25V_1206
1
4
PR19
PR19
10K_4
10K_4
3
1
PC4
PC4
*10u/25V_1206
*10u/25V_1206
BAT-V
PC93
PC93
ZQS 45W
ZQS 45W
ZQS 45W
35 46Wednesday, February 08, 2012
35 46Wednesday, February 08, 2012
35 46Wednesday, February 08, 2012
52
PC91
PC91
10u/25V_1206
10u/25V_1206
3C
3C
3C
Page 36
5
4
3
2
1
MAIND
MAIND 15,39,43
SYS_SHDN#
SYS_SHDN# 3,19,43
Ven=7.23V
SYS_HWPG34
D D
C C
B B
VIN
+5VPCU
12
+
+
100u/25V_6X5.8
100u/25V_6X5.8
+5VPCU 31
PC162
PC162
+5VPCU
5 Volt +/- 5%
TDC : 6.63A
PEAK : 8.5A
OCP : 9A
Width : 260mil
+
PC173
PC173
330u/6.3V_6X5.7
330u/6.3V_6X5.7
+
OCP:9A
L(ripple current)
=(9-5)*5/(2.2u*0.4M*9)
=2.525A
Iocp=9-(2.525/2)=7.74A
Vth=7.74A*14mOhm=0.10832mV
R(Ilim)=(108.32mV*10)/10uA
~107K
PR160
PR160
15.4K/F_4
15.4K/F_4
PC169
PC169
0.1u/50V_6
0.1u/50V_6
PR250
PR250
10K/F_4
10K/F_4
PC170
PC170
4.7u/25V_8
4.7u/25V_8
PL15
PL15
2.2uH_7X7X3
2.2uH_7X7X3
PR166
PR166
*4.7_6
*4.7_6
PC75
PC75
*680p/50V_6
*680p/50V_6
+15V
PC70
PC70
0.1u/50V_6
0.1u/50V_6
PR153
PR153
22_8
22_8
PC172
PC172
2200p/50V_6
2200p/50V_6
PQ57
PQ57
MDV1528URH
MDV1528URH
PQ58
PQ58
MDV1595SURH
MDV1595SURH
+15V_ALWP
52
3
1
52
3
1
2
PD6
PD6
DA3J101F0L
DA3J101F0L
1
2
PD7
PD7
DA3J101F0L
DA3J101F0L
1
PC71
PC71
0.1u/50V_6
0.1u/50V_6
*SHORT_4
*SHORT_4
4
4
3
3
PR165
PR165
PC74
PC74
0.1u/50V_6
0.1u/50V_6
PC65
PC65
0.1u/50V_6
0.1u/50V_6
+3VPCU
PR163
PR163
*100K/F_4
*100K/F_4
PC67
PC67
0.1u/50V_6
0.1u/50V_6
PR164
PR164
1/F_6
1/F_6
8223_EN
PR245
PR245
100K/F_4
100K/F_4
PR154
PR154
665K/F_4
665K/F_4
PR155
PR155
330K/F_4
330K/F_4
SYS_SHDN#
+3V_PG
5V_DH
5V_LX
5V_DL
+5VPCU_FB
PC72
PC72
0.1u/25V_4
0.1u/25V_4
1 2
PR151
PR151
short0603
short0603
VINVIN
13
EN
23
PGOOD
21
UGATE1
22
BOOT1
20
PHASE1
19
LGATE1
24
VOUT1
2
FB1
PR243
PR243
short0402
short0402
PC167
PC167
0.1u/10V_4
0.1u/10V_4
3V_DL
PR162
PR162
10/F_8
10/F_8
8223_VIN
16
VIN
ENC
18
PR251
PR251
107K/F_4
107K/F_4
VL 8223REF
8223_EN
PC69 4.7u/6.3V_6PC69 4.7u/6.3V_6
17
8
VREG5
VREG3
PU6
PU6
RT8223P
RT8223P
ENTRIP1
ENTRIP2
6
PR246
PR246
113K/F_4
113K/F_4
GND
25
1
Change 11/1
PC73 10u/6.3V_8PC73 10u/6.3V_8
SKIPSEL
TONSEL
UGATE2
PHASE2
LGATE2
15
3
REF
BOOT2
OUT2
FB2
GND
PC166
PC166
1u/6.3V_4
1u/6.3V_4
14
4
10
9
11
12
7
5
PR247
PR247
short0603
short0603
PR249
PR249
short0402
short0402
+3V_SKIP
+3V_TON
+3V_DH
PR152
PR152
1/F_6
1/F_6
+3V_LX
3V_DL
+3VPCU_FB
PR159
PR159
*0_4
*0_4
PR158
PR158
*0_4
*0_4
PC68
PC68
0.1u/50V_6
0.1u/50V_6
VL
PR157
PR157
short0402
short0402
4
4
PC163
PC163
2200p/50V_6
2200p/50V_6
52
3
1
PQ53
PQ53
MDV1528URH
MDV1528URH
PL14
PL14
2.2uH_7X7X3
2.2uH_7X7X3
52
3
1
PQ54
PQ54
MDV1595SURH
MDV1595SURH
PR148
PR148
*4.7_6
*4.7_6
PC66
PC66
*680p/50V_6
*680p/50V_6
OCP:9A
L(ripple current)
=(9-3.3)*3.3/(2.2u*0.5M*9)
~1.9A
Iocp=9-(1.9/2)=8.05A
Vth=8.05A*14mOhm=112.7mV
R(Ilim)=(112.7mV*10)/10uA
=112.7K
PC164
PC164
4.7u/25V_8
4.7u/25V_8
+3VPCU
3.3 Volt +/- 5%
TDC : 7.8A
PEAK : 8.5A
OCP : 9A
Width : 220mil
PR156
PR156
6.81K/F_4
6.81K/F_4
PR248
PR248
10K/F_4
10K/F_4
VIN
PC168
PC168
0.1u/50V_6
0.1u/50V_6
+3VPCU
+
+
330u/6.3V_6X5.7
330u/6.3V_6X5.7
PC165
PC165
+15VVIN
3
1
PR244
PR244
1M_6
1M_6
PQ56
PQ56
2N7002K
2N7002K
VIN
PC171
PC171
*2200p/50V_4
*2200p/50V_4
PR252
PR252
*1M_6
*1M_6
+5V_S5+3V_S5
PR161
PR150
PR150
1M_6
1M_6
A A
S5_ON34,43
2
PQ27
PQ27
DTC144EUA
DTC144EUA
PR149
1 3
PR149
1M_6
1M_6
PR242
PR242
22_8
22_8
3
2
PQ28
PQ28
2N7002K
2N7002K
1
PR161
22_8
22_8
3
2
2
PQ30
PQ30
2N7002K
2N7002K
1
+5VPCU
52
S5D MAIND MAIND S5D
4
PQ60
PQ60
3
1
MDV1528Q
MDV1528Q
+5V_S5
TDC : 2.63A
PEAK : 3.5A
Width : 120mil
5
4
+5VPCU
52
4
3
1
TDC : 3.45A
PEAK : 4.6A
Width : 140mil
3
PQ59
PQ59
MDV1528Q
MDV1528Q
+3VPCU
52
4
PQ29
PQ29
3
1
MDV1528Q
MDV1528Q
+5V
+3V +3V_S5
TDC : 3.2A
PEAK : 4.27A
Width : 140mil
+3VPCU
3
2
1
TDC : 1.28A
PEAK : 1.7A
Width : 60mil
2
PQ55
PQ55
AO3404
AO3404
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
SYSTEM 5V/3V (RT8223P)
SYSTEM 5V/3V (RT8223P)
SYSTEM 5V/3V (RT8223P)
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
1
ZQS 45W
ZQS 45W
ZQS 45W
36 46Wednesday, February 08, 2012
36 46Wednesday, February 08, 2012
36 46Wednesday, February 08, 2012
3C
3C
3C
Page 37
5
4
3
2
1
+VCC_CORE
PC134
PC134
*330p/50V_4
*330p/50V_4
PR95
PR95
*10_4
51650_VREF
51650_VREF
PR109
PR109
PR124
PR124
IOP@39K/F_4
IOP@39K/F_4
+VCC_GFX
PR77
PR77
*10_4
*10_4
PR75
PR75
*10_4
*10_4
IOP@100K/F_4_4250NTC
IOP@100K/F_4_4250NTC
*10_4
PR97
PR97
PC135
PC135
*10_4
*10_4
*0.01u/50V_4
*0.01u/50V_4
Close to the
CPU side.
PR110
PR110
41.2K/F_4
41.2K/F_4
PR125
PR125
24K/F_4
24K/F_4
PR201 *0_4PR201 *0_4
VR_SVID_CLK5
VR_SVID_ALERT#5
VR_SVID_DATA5
*330p/50V_4
*330p/50V_4
PC121
PC121
*0.01u/50V_4
*0.01u/50V_4
Close to the
CPU side.
PR197
PR197
Place NTC close to the
GFX_CORE Hot-Spot.
PC120
PC120
PR111
PR111
39.2K/F_4
39.2K/F_4
PR126
PR126
56.2K/F_4
56.2K/F_4
4
51650_COCP-R
51650_CF-IMAX
51650_GOCP-R
51650_SLEW
51650_GF-IMAX
51650_GSKIP#
51650_VRON
VR_SVID_CLK
VR_SVID_ALERT#
VR_SVID_DATA
PR198
PR198
15.8K/F_4
15.8K/F_4
PR285
PR285
EV@0_4
EV@0_4
51650_VREF
51650_VREF
PC129
PC129
1u/6.3V_4
1u/6.3V_4
2
COCP-R
3
CF-IMAX
13
GOCP-R
22
SLEW
24
GF-IMAX
33
GSKIP
15
V3R3
16
VR_ON
17
CPGOOD
23
GPGOOD
21
VR_HOT
18
VCLK
19
ALERT
20
VDIO
51650_GVFB
PR286
PR286
EV@0_4
EV@0_4
PC119
PC119
51650_VREF
PR207
PR207
15.8K/F_4
15.8K/F_4
PR99
PR99
100K/F_4_4250NTC
100K/F_4_4250NTC
Place NTC close to the
VCORE Hot-Spot.
51650_VREF
PC133 47p/50V_4PC133 47p/50V_4
51650_CVFB
51650_CGFB
51650_CCOMP
10
11
12
14
CVFB
VREF
CGFB
CCOMP
PU9
PU9
TPS51650RSLR
TPS51650RSLR
GGFB25GVFB26GCOMP27GCSN128GCSP129GCSP230GCSN231GTHERM
51650_GGFB
51650_GCSN1
51650_GCSP1
51650_GCOMP
PR78
PR78
IOP@47p/50V_4
IOP@47p/50V_4
51650_GSKIP#
51650_CPWM3
51650_CCSP3
51650_CCSN3
51650_GPWM2
51650_GCSP2
51650_GCSN2
PR98 8.25K/F_4PR98 8.25K/F_4
51650_CTHERM
51650_CCSP1
51650_CCSN1
51650_CCSN2
51650_CCSP2
51650_CCSP3
51650_CCSN3
8
9
CCSN3
32
51650_GCSP2
51650_GCSN2
51650_GTHERM
CCSP27CCSP3
51650_GPWM1
PC118
PC118
0.1u/10V_4
0.1u/10V_4
6
GPWM134GPWM235CPWM3
51650_GPWM2
1
4
CCSP1
CCSN15CCSN2
CTHERM
VBAT
V5
V5DRV
CDH1
CBST1
CSW1
CDL1
CDL2
CSW2
CBST2
CDH2
PGND
PAD49TPAD150TPAD251TPAD352TPAD453TPAD554TPAD655TPAD756TPAD857TPAD958TPAD1059TPAD1160TPAD1261TPAD1362TPAD1463TPAD1564TPAD16
36
65
51650_CPWM3
51650_GSKIP#
51650_GPWM1
37
48
43
47
46
45
44
41
40
39
38
42
PR211
PR211
short0603
short0603
51650_GSKIP# 45
51650_CPWM3 45
51650_CCSP3 45
51650_CCSN3 45
51650_GPWM2 45
51650_GCSP2 45
51650_GCSN2 45
VIN +5V_S5
PR196
PR196
10K/F_4
10K/F_4
PC136
PC136
0.1u/10V_4
0.1u/10V_4
51650_VBAT
51650_V5
51650_V5DRV
51650_CDH1
51650_CBST1
51650_CSW1
51650_CDL1
51650_CDL2
51650_CSW2
51650_CBST2
51650_CDH2
51650_GBST1
1
2
3
PR93
PR93
PC128
PC128
PR241
PR241
[email protected]/F_6
PC157
PC157
[email protected]/25V_6
[email protected]/25V_6
PU10
PU10
BST
DRVH
SKIP
SW
PWM
VDD
GND4DRVL
PAD
TPAD1
TPAD2
TPAD3
TPAD4
TPAD5
IOP@TPS51601DRBR
IOP@TPS51601DRBR
+3V
10_6
10_6
2.2u/6.3V_4
2.2u/6.3V_4
8
7
6
5
9
10
11
12
13
14
11/1 Add
+VCC_CORE 5,45,46
IV@ for Internal VGA(+VCC_GFX enable)
EV@ for External VGA(+VCC_GFX disable discrete only)
3
+VCC_GFX 5,45
PR271
PR271
EV@0_4
EV@0_4
Parallel
*0_4
*0_4
IOP@100K/F_4
IOP@100K/F_4
PR84
PR84
*499/F_4
*499/F_4
VR_SVID_ALERT#
VR_SVID_DATA
VR_SVID_CLK
PR94 short0402PR94 short0402
PR96 short0402PR96 short0402
PR107
PR107
IOP@110K/F_4
IOP@110K/F_4
PR122
PR122
IOP@24K/F_4
IOP@24K/F_4
PR86
PR86
PR202
PR202
1.91K/F_4
1.91K/F_4
1.91K/F_4
1.91K/F_4
PR108
PR108
*22.6K/F_4
*22.6K/F_4
20K/F_4
20K/F_4
PR123
PR123
+3V_S5+3V+1.05V
PR92
PR92
PC127
PC127
1u/6.3V_4
1u/6.3V_4
IOP@0_4
IOP@0_4
IOP@0_4
IOP@0_4
*100K/F_4
*100K/F_4
PR76
PR76
PR74
PR74
VCC_SENSE5
D D
C C
Check pull up resister to
1.05V for H_PROCHOT#
VRON34
IMVP_PWRGD3,7
H_PROCHOT#3,34
B B
VSS_SENSE5
PR106
PR106
PR121
PR121
PR88 short0402PR88 short0402
PC36
PC36
43p/50V_4
43p/50V_4
Parallel
VCC_AXG_SENSE5
VSS_AXG_SENSE5
+1.05V
Close to VR
PR205
PR205
PC35
A A
PC35
0.1u/10V_4
0.1u/10V_4
51650_VRON 51650_CTHERM51650_GTHERM
PR91
PR91
100K/F_4
100K/F_4
PR204
PR204
PR203
PR203
*75/F_4
*75/F_4
130/F_4
130/F_4
54.9/F_4
54.9/F_4
5
51650_CBST1
51650_CDH1
51650_CSW1
51650_CDL1
PR87
PR87
short0603
short0603
PC125
PC125
4.7u/6.3V_6
4.7u/6.3V_6
51650_CBST2
51650_CDH2
51650_CSW2
51650_CDL2
51650_GDH1
51650_GSW1
PR272
PR272
EV@0_4
EV@0_4
PR206
PR206
2.2/F_6
2.2/F_6
PC126
PC126
0.22u/25V_6
0.22u/25V_6
Close to the
VR side.
PR200
PR200
2.2/F_6
2.2/F_6
PC124
PC124
0.22u/25V_6
0.22u/25V_6
Close to the
VR side.
+5V_S5
PC156
PC156
IOP@1u/10V_4
IOP@1u/10V_4
51650_GDL1
Close to the
VR side.
51650_GCSN1
51650_CCSP1
51650_CCSN1
51650_CCSP2
51650_CCSN2
51650_GCSP1
VIN
12
2
PC42
PC42
D1D1D1
D1D1D1
0.1u/50V_6
0.1u/50V_6
G1
G1
1
S1/D2
S1/D2
G2
G2
8
G1
G1
1
S1/D2
S1/D2
G2
G2
8
G1
G1
1
S1/D2
S1/D2
G2
G2
8
2
9
FDMS3606S
FDMS3606S
S2S2S2
S2S2S2
567
PC145
PC145
*0.1u/25V_4
*0.1u/25V_4
PC146
PC146
*0.1u/25V_4
*0.1u/25V_4
VIN
2
D1D1D1
D1D1D1
9
FDMS3606S
FDMS3606S
S2S2S2
S2S2S2
567
PC148
PC148
*0.1u/25V_4
*0.1u/25V_4
PC147
PC147
*0.1u/25V_4
*0.1u/25V_4
VIN
2
D1D1D1
D1D1D1
9
FDMS3606S
FDMS3606S
S2S2S2
S2S2S2
567
PC116
PC116
*[email protected]/25V_4
*[email protected]/25V_4
PC117
PC117
*[email protected]/25V_4
*[email protected]/25V_4
51650_CSW1
PQ48
PQ48
PC137
PC137
PC113
PC113
0.1u/50V_6
0.1u/50V_6
51650_CSW2
PQ41
PQ41
PC138
PC138
+VCC_GT_VIN
PC159
PC159
[email protected]/50V_6
[email protected]/50V_6
51650_GSW1
PQ52
PQ52
PC122
PC122
Close with
AXG inductor
PC141
PC141
4.7u/25V_8
4.7u/25V_8
PR89
PR89
2.2_6
2.2_6
PC38
PC38
2200p/50V_6
2200p/50V_6
PR120
PR120
33n/25V_4
33n/25V_4
PR214
PR214
Close with
phase1 inductor
12
PC114
PC114
4.7u/25V_8
4.7u/25V_8
PR83
PR83
2.2_6
2.2_6
PC34
PC34
2200p/50V_6
2200p/50V_6
PR68
PR68
33n/25V_4
33n/25V_4
PR193
PR193
Close with
phase2 inductor
12
PC59
PC59
[email protected]/25V_8
[email protected]/25V_8
[email protected]_LDCR
[email protected]_LDCR
PR147
PR147
PC64
PC64
IOP@2200p/50V_6
IOP@2200p/50V_6
PR135
PR135
PR221
PR221
IOP@33n/25V_4
IOP@33n/25V_4
12
0.36uH_LDCR
0.36uH_LDCR
1 2
28.7K/F_4
28.7K/F_4
100K/F_4_4250NTC
100K/F_4_4250NTC
12
0.36uH_LDCR
0.36uH_LDCR
1 2
28.7K/F_4
28.7K/F_4
100K/F_4_4250NTC
100K/F_4_4250NTC
PC140
PC140
PL12
PL12
3
PR116 17.4K/F_4PR116 17.4K/F_4
PR101
PR101
160K/F_4
160K/F_4
PC115
PC115
PL11
PL11
3
PR70 17.4K/F_4PR70 17.4K/F_4
PR100
PR100
160K/F_4
160K/F_4
4.7u/25V_8
4.7u/25V_8
DCR=0.8mOhm
4
PC110
PC110
PR119 short0402PR119 short0402
4.7u/25V_8
4.7u/25V_8
DCR=0.8mOhm
4
PC142
PC142
PR69 short0402PR69 short0402
PC43
PC43
2200p/50V_4
2200p/50V_4
PC109
PC109
0.1u/10V_4
0.1u/10V_4
PC112
PC112
2200p/50V_4
2200p/50V_4
PC143
PC143
0.1u/10V_4
0.1u/10V_4
AXG
12
PC161
PC161
PC158
PC158
IOP@2200p/50V_4
IOP@2200p/50V_4
[email protected]/25V_8
[email protected]/25V_8
PL13
PL13
1 2
IOP@100K/F_4_4250NTC
IOP@100K/F_4_4250NTC
DCR=0.8mOhm
3
4
PC154
PC154
PC152
PC152
[email protected]/10V_4
[email protected]/10V_4
PR137 [email protected]/F_4PR137 [email protected]/F_4
PR136 IOP@0_4PR136 IOP@0_4
PR82
PR82
IOP@165K/F_4
IOP@165K/F_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
+VCC_CORE/+VGFX (TPS51650)
+VCC_CORE/+VGFX (TPS51650)
+VCC_CORE/+VGFX (TPS51650)
Date: Sheet of
Date: Sheet of
Date: Sheet of
12
+
+
PC149
PC149
100u/25V_6X5.8
100u/25V_6X5.8
11/21
+
+
PC111
PC111
10u/6.3V_8
10u/6.3V_8
330u/2V_7343
330u/2V_7343
+
+
+VCC_CORE
TDC : 54A
PEAK : 94A
PC139
PC139
10u/6.3V_8
10u/6.3V_8
12
PC160
PC160
IOP@10u/6.3V_8
IOP@10u/6.3V_8
OCP : 100A
330u/2V_7343
330u/2V_7343
Width : 4000mil
VCORE Load Line :
1.9mV/A
[email protected]/25V_8
[email protected]/25V_8
+VCC_GFX
+
+
PC155
PC155
+VCC_GFX
TDC : 38A
IOP@330u/2V_7343
IOP@330u/2V_7343
PEAK : 50A
OCP : 55A
Width : 1840mil
GFX_CORE Load Line :
-3.9mV/A for GT2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
12
+
+
+VCC_CORE
+VCC_CORE
VIN
ZQS 45W
ZQS 45W
ZQS 45W
VIN
PC151
PC151
100u/25V_6X5.8
100u/25V_6X5.8
37 46Wednesday, February 08, 2012
37 46Wednesday, February 08, 2012
37 46Wednesday, February 08, 2012
3C
3C
3C
Page 38
5
D D
+5V_S5+3V
4
3
PC92
PC92
2200p/50V_4
2200p/50V_4
2
PC95
PC95
4.7u/25V_8
4.7u/25V_8
PC96
PC96
4.7u/25V_8
4.7u/25V_8
1
VIN
+1.05V
1.05 Volt +/- 2%
PR15
PR15
10_6
PR177
PR177
100K_4
100K_4
HWPG_VTT34,40
MAINON31,34,39,42,43
C C
PR16
PR16
short0402
short0402
*0.1u/10V_4
*0.1u/10V_4
OCP=18A
L ripple current
=(19-1.05)*1.5/(0.68u*500k*19)
=2.918A
Vtrip=20-(2.918/2)*4.3mohm
=0.07972V
B B
Rlimit = 0.07972/10uA*8=63.78Kohm
10_6
16
51219_EN
51219_V5
51219_MODE
PC90
PC90
PR178
PC86
PC86
PR178
1u/6.3V_4
1u/6.3V_4 PR174
1K/F_4
1K/F_4
+3V_S5
PC80
PC80
0.1u/10V_4
0.1u/10V_4
PR1
PR1
short0402
short0402
51219_TRIP
PR182
PR182
64.9K/F_4
64.9K/F_4
14
15
VREF=2V
51219_REF
PGOOD
EN
9
V5
MODE
6
TRIP
PR4
PR4
*10K/F_4
*10K/F_4
PR2
PR2
*11K/F_4
*11K/F_4
22
PU8
PU8
TPS51219RTER
TPS51219RTER
VREF1REFIN
2
51219_GSNS
51219_REFIN
PC79 0.01u/25V_4PC79 0.01u/25V_4
51219_VSNS
VSNS4GSNS3COMP
5
PAD17PAD18PAD19PAD20PAD21PAD
DH
BST
SW
DL
PGND
GND
7
PC87
PC87
0.01u/16V_4
0.01u/16V_4
PC82 1n/50V_4PC82 1n/50V_4
PC88 1n/50V_4PC88 1n/50V_4
11
13
12
10
8
PR174
short0603
short0603
PR10
PR10
10_4
10_4
PR5
PR5
10_4
10_4
51219_DH
PR181
PR181
PC89
PC89
2_6
2_6
0.1u/25V_6
0.1u/25V_6
51219_SW
51219_DL
PQ40
PQ40
RJK03K5DPA
RJK03K5DPA
RDSon 3.9mOhm
RC filter is for improve
Jitter performance.
5
4
213
PQ39
PQ39
RJK03J6DPA
RJK03J6DPA
5
4
213
PL7
PL7
0.68uH_7X7X3
0.68uH_7X7X3
PR28
PR28
*4.7_6
*4.7_6
PC21
PC21
*680p/50V_6
*680p/50V_6
Close to output cap
PR7
PR7
*100_4
*100_4
PR3
PR3
short0402
short0402
PR175
PR175
short0402
PR176
PR176
*100_4
*100_4
short0402
PC103
PC103
0.1u/50V_6
0.1u/50V_6
+
+
PC102
PC102
560u/2.5V_6X5.7
560u/2.5V_6X5.7
TDC : 13.2A
PEAK : 17A
OCP : 20A
Width : 680mil
+1.05V
VTT_VCCP_SENSE 5
VTT_VSSP_SENSE 5
+1.05V 3,5,7,8,9,11,23,34,37,42,43,46
+3V_S5 7,8,9,10,11,15,16,29,31,33,36,37,43,44
VIN 23,35,36,37,39,41,42,43,44,45,46
+5V_S5 11,27,31,36,37,39,40,41,45,46
+3V 3,7,8,9,10,11,13,14,16,20,23,24,25,26,27,29,33,34,36,37,39,40,41,42,43,45,46
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
+1.05V (TPS51219)
+1.05V (TPS51219)
+1.05V (TPS51219)
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
38 46Wednesday, February 08, 2012
38 46Wednesday, February 08, 2012
38 46Wednesday, February 08, 2012
1
3C
3C
3C
Page 39
5
4
3
2
1
TDC : 0.75A
+0.75V_DDR_VTT
PEAK : 1A
Width : 40mil
PC174
PC174
10u/6.3V_8
PGOOD
S3
S5
MODE
TRIP
PAD
PR256
PR256
10K/F_4
10K/F_4
10u/6.3V_8
22
PAD
REF
6
21
PAD
8
51216_REFIN
D D
C C
HWPG_VDDR34
MAINON31,34,38,42,43
p75V_ON34
SUSON34
TDC : 0.38A
PEAK : 0.5A
Width : 20mil
PR259 *0_4PR259 *0_4
PR287 short0402PR287 short0402 PR262
PR261
PR261
short0402
short0402
PR255
PR255
200K/F_4
200K/F_4
PR257
PR257
60.4K/F_4
60.4K/F_4
PR253
PR253
100K/F_4
100K/F_4
+SMDDR_VREF
PC177
PC177
0.22u/10V_4
0.22u/10V_4
+3V
51216_S3
51216_S5
51216_MODE
51216_TRIP
20
17
16
19
18
26
VREF=1.8V
51216_REF
PC178
PC178
0.1u/10V_4
B B
PR260
PR260
*0_4
*0_4
51216_S551216_S3
0.1u/10V_4
PC175
PC175
10u/6.3V_8
10u/6.3V_8
4
5
VTTREF
VTTGND
PU11
PU11
TPS51216RUKR
TPS51216RUKR
VDDQSNS9REFIN
25
2
3
1
VTT
VTTSNS
PAD
PAD24PAD
7
23
VLDOIN
DRVH
VBST
DRVL
PGND
GND
V5IN
SW
12
14
15
13
11
10
PR258
PR258
short0603
short0603
+0.75V_DDR_VTT 13,14,43
Close to IC
PC176
PC176
10u/6.3V_8
10u/6.3V_8
51216_DRVH
PR262
2_6
51216_VBST
51216_SW
51216_DRVL
2_6
+5V_S5
PC181
PC181
0.1u/50V_6
0.1u/50V_6
Greater than or equal 40mil
PC180
PC180
1u/10V_4
1u/10V_4
5
4
213
5
4
213
RDSon=3.9mohm
PQ61
PQ61
RJK03J6DPA
RJK03J6DPA
PQ62
PQ62
RJK03K5DPA
RJK03K5DPA
PC189
PC189
2200p/50V_4
2200p/50V_4
0.68uH_7X7X3
0.68uH_7X7X3
PR270
PR270
*4.7_6
*4.7_6
PC195
PC195
*680p/50V_6
*680p/50V_6
PL16
PL16
PC187
PC187
4.7u/25V_8
4.7u/25V_8
PC188
PC188
4.7u/25V_8
4.7u/25V_8
PC183
PC183
0.1u/50V_6
0.1u/50V_6
Close to output cap
+
+
PC182
PC182
560u/2.5V_6X5.7
560u/2.5V_6X5.7
VIN
+1.5VSUS 11,13,14,15,42,46
+1.5VSUS
+1.5V_SUS
1.5 Volt +/- 5%
TDC : 14.67A
PEAK : 18A
OCP : 20A
Width : 600mil
+1.5VSUS
3
1
PQ35
PQ35
AO3404
AO3404
TDC : 0.38A
PEAK : 0.5A
Width : 20mil
+1.5V
PR254
PR254
51K/F_4
51K/F_4
PC179
PC179
0.01u/25V_4
0.01u/25V_4
+1.5V 11,25,43
+5V_S5 11,27,31,36,37,38,40,41,45,46
+SMDDR_VREF 13,14,15
MAIND15,36,43
2
OCP=20A
A A
L ripple current
=(19-1.5)*1.5/(0.68u*400k*19)
=5.079A
Vtrip=20-(5.079/2)*4.3mohm
=0.07508V
Rlimit=0.07508/10uA*8=60.063Kohm
5
S3 S5
S0
S3 (mainon off)
1
0
1
1
S4/S5
4
3
ON
ON ON
OFF
ON ON
OFF OFF0 0
VTTREF+1.5VSUS
OFF
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
DDR 1.5V(TPS51216)
DDR 1.5V(TPS51216)
DDR 1.5V(TPS51216)
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
3C
3C
3C
39 46Wednesday, February 08, 2012
39 46Wednesday, February 08, 2012
39 46Wednesday, February 08, 2012
Page 40
5
4
3
2
1
VID0 +VCCSA
0 0
D D
1
1 1
C C
HWPG_VCCSA34
HWPG_VTT34,38
B B
PR4003
PR4003
short0402
short0402
PC4009
PC4009
*0.1u/10V_4
*0.1u/10V_4
VID1
10
0 0.725V
default 0.9V
+3V
PR4002
PR4002
100K_4
100K_4
VCCSA_VID05
VCCSA_VID15
0.9V
0.8V
0.675V
PC4001
PC4001
2.2u/6.3V_6
2.2u/6.3V_6
PC4005
PC4005
1u/6.3V_4
1u/6.3V_4
PR4011
PR4011
1K_4
1K_4
PR4005
PR4005
1K_4
1K_4
+5V_S5
PR4001
PR4001
short0603
short0603
51461_FILT
51461_EN
+3V
+VCCSA
0.9 Volt +/- 2%
TDC : 4.2A
PC4004
12
11
10
9
8
7
PC4004
10u/10V_8
10u/10V_8
51461_BST
51461_SW
PC4006
PC4006
0.1u/50V_6
0.1u/50V_6
PL4001
PL4001
0.47uH_7X7X3
0.47uH_7X7X3
PEAK : 6A
Width : 240mil
PC4013 10u/6.3V_8PC4013 10u/6.3V_8
11/21 for layout issue
PC4015 10u/6.3V_8PC4015 10u/6.3V_8
PC4014 10u/6.3V_8PC4014 10u/6.3V_8
PC4016 10u/6.3V_8PC4016 10u/6.3V_8
PC4017 10u/6.3V_8PC4017 10u/6.3V_8
51461_VOUT
PC4018 10u/6.3V_8PC4018 10u/6.3V_8
+VCCSA
PC4008
PC4008
0.1u/50V_6
0.1u/50V_6
PR4004
PR4004
100_4
100_4
+VCCSA 5
PR4010
PR4010
short0402
short0402
VCCSA_SENSE 5
PC4002
PC4002
0.1u/10V_4
0.1u/10V_4
21
24
18
V5DRV
17
V5FILT
16
PGOOD
13
EN
14
VID0
15
VID1
25
AGND
MODE
6
51461_MODE
PR4008
PR4008
*0_4
*0_4
22
VIN
VIN23VIN
GND1VREF2COMP3SLEW4VOUT
TPS51461
TPS51461
PU4001
PU4001
51461_VREF
PGND
PR4009 4.99K/F_4PR4009 4.99K/F_4
20
PGND
51461_SLEW
PC4010
PC4010
0.01u/16V_4
0.01u/16V_4
19
PGND
5
PC4003
PC4003
10u/10V_8
10u/10V_8
BST
SW
SW
SW
SW
SW
PC4011
PC4011
0.22u/10V_4
PR4006 short0603PR4006 short0603
PR4007 short0603PR4007 short0603
A A
5
4
0.22u/10V_4
PC4012
PC4012
3.3n/50V_4
3.3n/50V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
VCCSA(TPS51461)
VCCSA(TPS51461)
VCCSA(TPS51461)
Date: Sheet of
Date: Sheet of
3
2
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
3C
3C
3C
40 46Wednesday, February 08, 2012
40 46Wednesday, February 08, 2012
40 46Wednesday, February 08, 2012
Page 41
5
+3V_GFX
PR212 EOP_VID0_H@10K/F_4PR212 EOP_VID0_H@10K/F_4
PR216 EOP_VID1_H@10K/F_4PR216 EOP_VID1_H@10K/F_4
PR220 EOP_VID2_H@10K/F_4PR220 EOP_VID2_H@10K/F_4
PR225 EOP_VID3_H@10K/F_4PR225 EOP_VID3_H@10K/F_4
D D
PR228 EOP_VID4_H@10K/F_4PR228 EOP_VID4_H@10K/F_4
PR130 EOP_VID5_H@10K/F_4PR130 EOP_VID5_H@10K/F_4
C C
Add GPU_PWR_ALERT# to EC
C01
GPIO53, connect to PU5.10.
12/21
B B
A A
GPU_DPRSLPVR19
default 1.1V
PR235 EOP_VID5_L@10K/F_4PR235 EOP_VID5_L@10K/F_4
PR231 EOP_VID4_L@10K/F_4PR231 EOP_VID4_L@10K/F_4
VGA_PG42
dGPU_VRON10,42
GPU_PWR_ALERT#34
51728_V5FILT
*EOP@0_4
*EOP@0_4
GPUVCC_SENSE16
GPUVSS_SENSE16
5
PR226 EOP_VID3_L@10K/F_4PR226 EOP_VID3_L@10K/F_4
PR229
PR229
H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5
PR222 EOP_VID2_L@10K/F_4PR222 EOP_VID2_L@10K/F_4
PR213 EOP_VID0_L@10K/F_4PR213 EOP_VID0_L@10K/F_4
PR218 EOP_VID1_L@10K/F_4PR218 EOP_VID1_L@10K/F_4
PR232 *EOP@100K/F_4PR232 *EOP@100K/F_4
PR224 EOP@100K/F_4PR224 EOP@100K/F_4
PR223 EOP@0_4PR223 EOP@0_4
GPU_VID019
GPU_VID119
GPU_VID219
GPU_VID319
GPU_VID419
GPU_VID519
+3V
PR114
PR114
*EOP@0_4
*EOP@0_4
N13P-GL QS sample, boot up voltage set to 0.95V. VID2,3,5
N13P-GS ES sample, boot up voltage set to 0.90V. VID4,5
N13M-GS ES sample, boot up voltage set to 0.90V. VID4,5
+3V
PR217 EOP@100K/F_4PR217 EOP@100K/F_4
PR128 *EOP@10K/F_4PR128 *EOP@10K/F_4
PR113 EOP@0_4PR113 EOP@0_4
PR117 EOP@0_4PR117 EOP@0_4
PR127 EOP@0_4PR127 EOP@0_4
PR131 EOP@0_4PR131 EOP@0_4
PR134 EOP@0_4PR134 EOP@0_4
PR115 EOP@0_4PR115 EOP@0_4
PC52 EOP@68p/50V_4PC52 EOP@68p/50V_4
PC51
PC51
EOP@1200p/50V_4
EOP@1200p/50V_4
PC56
PC56
[email protected]/10V_6
[email protected]/10V_6
PR227 *EOP@316K/F_4PR227 *EOP@316K/F_4
PR132
PR132
EOP@0_4
EOP@0_4
PR145
PR145
Place NTC close to the
GPU Hot-Spot.
+VGACORE
PR238
PR238
EOP@100_4
PR144
PR144
EOP@0_4
EOP@0_4
PR142
PR142
EOP@0_4
EOP@0_4
EOP@100_4
PR239
PR239
EOP@100_4
EOP@100_4
Close to the
GPU side.
PR146 EOP@56_4PR146 EOP@56_4
GPU_PWR_ALERT#
51728_DROOP
EOP@100K/F_4_3540NTC
EOP@100K/F_4_3540NTC
4
PR139 EOP@100K/F_4PR139 EOP@100K/F_4
51728_PCNT
51728_EN
H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5
PR140
PR140
[email protected]/F_4
51728_VREF
PR233
PR233
EOP@113K/F_4
EOP@113K/F_4
51728_SLEW
PR234
PR234
51728_VFB
51728_GFB
PC58
PC58
EOP@1n/50V_4
EOP@1n/50V_4
4
GPU SKU
N13P-GL
N13P/M-GS
33
PGD
34
PG
13
PCNT
12
SLP
35
EN
10
THAL
20
VID0
19
VID1
18
VID2
17
VID3
16
VID4
15
VID5
14
VID6
39
DROOP
40
VREF
37
SLEW
9
THRM
8
PC57
PC57
EOP@1n/50V_4
EOP@1n/50V_4
VID
0 0 0 00
+5V_S5
26
DRVH2
V5IN
VBST2
DRVL2
DRVH1
VBST1
DRVL1
PU5
PU5
EOP@TPS51728RHAR
EOP@TPS51728RHAR
GFB7VFB
TONSEL
TRIPSEL
OSRSEL
IMON
PwPd
11
41
51728_IMON
PR141
PR141
[email protected]/F_4
PGND
V5FILT
11
PC47
PC47
[email protected]/10V_6
[email protected]/10V_6
LL2
CSP2
CSN2
LL1
CSP1
CSN1
PU
GND2TPAD142TPAD243TPAD344TPAD445TPAD546TPAD647TPAD748TPAD849TPAD950TPAD1051TPAD1152TPAD1253TPAD1354TPAD1455TPAD1556TPAD16
57
PC54
PC54
EOP@3300p/50V_4
EOP@3300p/50V_4
111
51728_DRVH2
30
51728_VBST2
29
51728_LL2
28
51728_DRVL2
27
51728_CSP2
3
51728_CSN2
4
51728_DRVH1
21
51728_VBST1
22
51728_LL1
23
51728_DRVL1
24
51728_CSP1
6
51728_CSN1
5
25
51728_TONSEL
36
51728_TRIPSEL
31
51728_OSRSEL
32
1
51728_V5FILT51728_TONSEL
38
[email protected]/10V_6
[email protected]/10V_6
PC50
PC50
3
2
1
VDAC(V)
0123456
0.9500
0000
PR112
PR112
*EOP@0_4
*EOP@0_4
PR215 EOP@0_4PR215 EOP@0_4
51728_VBST2
51728_DRVH2
51728_LL2
51728_DRVL2
51728_VBST1
51728_DRVH1
51728_LL1
51728_DRVL1
0.9000
+3V
PR210
PR210
PR118
PR118
EOP@0_4
EOP@0_4
*EOP@0_4
*EOP@0_4
PR219 *EOP@0_4PR219 *EOP@0_4
PR240
PR240
EOP@0_8
EOP@0_8
3
PR103
PR103
[email protected]/F_6
PC45
PC45
[email protected]/25V_6
[email protected]/25V_6
PR208
PR208
*EOP@10K/F_4
*EOP@10K/F_4
5
4
213
Close to the
VR side.
PR104
PR104
[email protected]/F_6
PC46
PC46
[email protected]/25V_6
[email protected]/25V_6
PR209
PR209
*EOP@10K/F_4
*EOP@10K/F_4
5
4
213
Close to the
VR side.
PQ25
PQ25
*EOP@AON6780
*EOP@AON6780
PQ26
PQ26
*EOP@AON6780
*EOP@AON6780
5
4
213
5
4
213
51728_CSP2
PC60
PC60
*[email protected]/25V_4
*[email protected]/25V_4
51728_CSN2
PC61
PC61
*[email protected]/25V_4
*[email protected]/25V_4
5
4
213
5
4
213
PC63
PC63
*[email protected]/25V_4
*[email protected]/25V_4
PC62
PC62
*[email protected]/25V_4
*[email protected]/25V_4
PC41
PC41
PQ43
PQ43
EOP@AON6414AL
EOP@AON6414AL
PQ45
PQ45
EOP@AON6780
EOP@AON6780
PC55
PC55
[email protected]/25V_4
[email protected]/25V_4
PR195
PR195
EOP@100K/F_4_3540NTC
EOP@100K/F_4_3540NTC
PQ46
PQ46
EOP@AON6414AL
EOP@AON6414AL
PQ44
PQ44
EOP@AON6780
EOP@AON6780
51728_CSP1
51728_CSP1
PC53
PC53
[email protected]/25V_4
[email protected]/25V_4
51728_CSN1
PR199
PR199
EOP@100K/F_4_3540NTC
EOP@100K/F_4_3540NTC
2
[email protected]/50V_6
[email protected]/50V_6
PC44
PC44
[email protected]/50V_6
[email protected]/50V_6
PC130
PC130
PL10
PL10
[email protected]
1 2
3
PR85
PR85
PC37
PC37
EOP@2200p/50V_4
EOP@2200p/50V_4
PR73
PR73
PL9
1 2
3
PR90
PR90
PC40
PC40
EOP@2200p/50V_4
EOP@2200p/50V_4
PR81
PR81
12
+
+
PC150
PC150
EOP@100u/25V_6X5.8
PC131
PC131
EOP@2200p/50V_4
EOP@2200p/50V_4
PC123
PC123
EOP@10u/6.3V_8
EOP@10u/6.3V_8
EOP@100u/25V_6X5.8
+
+
PC104
PC104
EOP@330u/2V_7343
EOP@330u/2V_7343
+VGACORE
PC39
PC39
[email protected]/25V_8
[email protected]/25V_8
[email protected]/25V_8
[email protected]/25V_8
DCR=1.1mOhm
4
PC107
PC107
[email protected]/10V_4
PR79 [email protected]/F_4PR79 [email protected]/F_4
PR237
PR237
[email protected]/10V_4
PR71 EOP@0_4PR71 EOP@0_4
+VGPU_CORE (N13P-GS)
Countinue current:50A
EOP@200K/F_4
EOP@200K/F_4
Peak current:55A
OCP minimum 60A
Loadline=0mV/A
12
+
+
PC153
PC48
PC48
PC144
PC144
[email protected]/25V_8
[email protected]/25V_8
[email protected]/25V_8
[email protected]/25V_8
DCR=1.1mOhm
4
PC108
PC108
PR80 [email protected]/F_4PR80 [email protected]/F_4
PR72 EOP@0_4PR72 EOP@0_4
[email protected]/10V_4
[email protected]/10V_4
PR236
PR236
EOP@200K/F_4
EOP@200K/F_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
VGPU Core (TPS51728)
VGPU Core (TPS51728)
VGPU Core (TPS51728)
Date: Sheet of
Date: Sheet of
Date: Sheet of
PC132
PC132
PC106
PC106
EOP@10u/6.3V_8
EOP@10u/6.3V_8
PC153
EOP@100u/25V_6X5.8
EOP@100u/25V_6X5.8
EOP@2200p/50V_4
EOP@2200p/50V_4
+
+
PC105
PC105
EOP@330u/2V_7343
EOP@330u/2V_7343
+VGACORE 20
+VGACORE
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
VIN
VIN
ZQS 45W
ZQS 45W
ZQS 45W
41 46Wednesday, February 08, 2012
41 46Wednesday, February 08, 2012
41 46Wednesday, February 08, 2012
3C
3C
3C
Page 42
5
4
3
2
1
VIN
PR168
VIN
PR168
EOP@1M_4
EOP@1M_4
PR169
PR169
EOP@1M_4
EOP@1M_4
PR105
PR105
EOP@1M_4
EOP@1M_4
PR102
PR102
EOP@1M_4
EOP@1M_4
PR173
D D
MAINON31,34,38,39,43
dGPU_PWR_EN9
C C
VGA_PG41
dGPU_VRON10,41
PR173
*EOP@0_4
*EOP@0_4
PR171
PR171
EOP@0_4
EOP@0_4
PR133
PR133
EOP@0_4
EOP@0_4
PR138
PR138
*EOP@0_4
*EOP@0_4
PC49
PC49
EOP@1u/10V_4
EOP@1u/10V_4
2
PR172
PR172
EOP@100K_4
EOP@100K_4
2
PR129
PR129
EOP@100K_4
EOP@100K_4
PQ33
PQ33
1 3
EOP@PDTC143TT
EOP@PDTC143TT
PQ50
PQ50
1 3
EOP@PDTC143TT
EOP@PDTC143TT
PR167
PR167
EOP@22_8
EOP@22_8
3
2
PQ31
PQ31
EOP@2N7002K
EOP@2N7002K
1
+1.5V_GFX +15V
PR230
PR230
EOP@22_8
EOP@22_8
3
2
PQ49
PQ49
EOP@2N7002K
EOP@2N7002K
1
2
+15V+3V_GFX
PR170
PR170
EOP@1M_4
EOP@1M_4
3
EOP@2N7002K
EOP@2N7002K
1
PQ32
PQ32
dGPU_D
PC76
PC76
*EOP@2200p/50V_4
*EOP@2200p/50V_4
2
2
+3V
3
PQ34
PQ34
EOP@AO3404
EOP@AO3404
1
PR17
PR17
EOP@1M_4
EOP@1M_4
dGPU_D1
3
PQ2
PQ2
EOP@2N7002K
EOP@2N7002K
1
TDC : 1.04A
PEAK : 1.38A
Width : 50mil
+3V_GFX
+1.5VSUS
5
4
213
PC14
PC14
*EOP@2200p/50V_4
*EOP@2200p/50V_4
TDC : 5.67A
PEAK : 7.56A
Width : 240mil
PQ5
PQ5
EOP@RJK03K5DPA
EOP@RJK03K5DPA
+1.5V_GFX
B B
+1.5V_GFX
PR47
PR47
EOP@0_4
EOP@0_4
A A
5
2
PR48
PR48
EOP@100K_4
EOP@100K_4
VIN
PQ12
PQ12
1 3
EOP@PDTC143TT
EOP@PDTC143TT
4
PR46
PR46
EOP@1M_4
EOP@1M_4
PR49
PR49
EOP@1M_4
EOP@1M_4
+1.05V_GFX +15V
PR51
PR51
EOP@22_8
EOP@22_8
3
2
PQ10
PQ10
EOP@2N7002K
EOP@2N7002K
1
+1.05V
PR50
PR50
EOP@1M_4
EOP@1M_4
dGPU_D2
3
2
PQ11
PQ11
EOP@2N7002K
EOP@2N7002K
1
3
PC30
PC30
*EOP@2200p/50V_4
*EOP@2200p/50V_4
52
TDC : 3.5A
PEAK : 5A
4
3
PQ9
PQ9
1
EOP@MDV1528Q
EOP@MDV1528Q
Width : 120mil
+1.05V_GFX
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
GPU_PWR
GPU_PWR
GPU_PWR
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
3C
3C
3C
42 46Wednesday, February 08, 2012
42 46Wednesday, February 08, 2012
42 46Wednesday, February 08, 2012
Page 43
5
4
3
2
1
+3VPCU
+1.8V
+1.8V
1.8 Volt +/- 5%
TDC : 1.61A
PC77
PR267
PR267
10K/F_4
10K/F_4
PC193
PC193
1200p/50V_4
1200p/50V_4
VIN
PD5
PD5
DA2J10100L
DA2J10100L
PR55
PR55
1M_6
1M_6
PC77
0.1u/25V_4
0.1u/25V_4
2
PU7 TPS54318RTERPU7 TPS54318RTER
16
VIN
1
VIN
2
VIN
14
PWRGD
15
EN
7
COMP
8
RT/CLK
9
PC192
PC192
0.01u/25V_4
0.01u/25V_4
SS
22
PR266
PR266
121K/F_4
121K/F_4
1
PQ16
PQ16
AO3409
AO3409
PAD17PAD18PAD19PAD20PAD21PAD
BOOT
VSNS
GND
GND
AGND
10
PH
11
PH
PH
PR263
PR263
12
short0603
short0603
13
6
3
4
5
PC185
PC185
0.1u/50V_6
0.1u/50V_6
+1.8V_VSNS
V0=0.8*(R1+R2)/R2
PL5
PL5
1uH_7X7X3
1uH_7X7X3
PR268
PR268
R1
100K/F_4
100K/F_4
PR269
PR269
R2
78.7K/F_4
78.7K/F_4
PC186
PC186
0.1u/25V_4
0.1u/25V_4
PC190
PC190
10u/6.3V_8
10u/6.3V_8
PC191
PC191
10u/6.3V_8
10u/6.3V_8
+3V_S5
D D
HWPG_1.8V34
MAINON31,34,38,39,42
PR265
PR265
*100K/F_4
*100K/F_4
C C
PR264
PR264
*100K/F_4
*100K/F_4
PC78
PC78
10u/6.3V_8
10u/6.3V_8
PC184
PC184
1000p/50V_4
1000p/50V_4
PC194
PC194
*100p/50V_4
*100p/50V_4
Thermal protection
PEAK : 2A
Width : 60mil
1
PU4A
PU4A
BA10393F
BA10393F
PU4B
PU4B
BA10393F
BA10393F
PC32
PC32
0.1u/50V_6
0.1u/50V_6
7
3
PR52
PR52
short0603
short0603
4
PR57
PR57
200K_6
200K_6
PC31
PC31
0.1u/50V_6
0.1u/50V_6
VIN
SYS_SHDN# 3,19,36
3
2
PQ15
PQ15
2N7002K
2N7002K
1
MAINON
2
PR62
PR62
*100K/F_6
*100K/F_6
PQ24
PQ24
DTC144EUA
DTC144EUA
1 3
3
PR67
PR67
1M_4
1M_4
PR66
PR66
1M_4
1M_4
PR60
PR60
22_8
22_8
3
2
PQ19
PQ19
2N7002K
2N7002K
1
+0.75V_DDR_VTT13,14,39
PR59
PR59
22_8
22_8
3
2
PQ18
PQ18
2N7002K
2N7002K
1
PR64
PR64
*22_8
*22_8
3
2
PQ22
PQ22
*2N7002K
*2N7002K
1
PR58
PR58
22_8
22_8
PQ17
PQ17
3
2
*2N7002K
*2N7002K
1
3
2
2N7002K
2N7002K
1
2
+1.8V+1.5V+0.75V_DDR_VTT +1.05V
PR61
PR61
*22_8
*22_8
3
2
PQ20
PQ20
1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
+15V+5V+3V
PR65
PR63
PR63
*22_8
*22_8
PQ21
PQ21
*2N7002K
*2N7002K
+1.8V/Discharge/Thermal
+1.8V/Discharge/Thermal
+1.8V/Discharge/Thermal
PR65
1M_4
1M_4
MAINDMAINON_ON_G
3
2
1
PC33
PC33
*2200p/50V_4
*2200p/50V_4
PQ23
PQ23
2N7002K
2N7002K
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
ZQS 45W
ZQS 45W
ZQS 45W
MAIND 15,36,39MAINON_ON_G15
3C
3C
43 46Wednesday, February 08, 2012
43 46Wednesday, February 08, 2012
43 46Wednesday, February 08, 2012
3C
S5_ON
VLVL
PR53
PR53
200K/F_4
200K/F_4
2.469V
PR56
PR56
200K/F_4
200K/F_4
2
PQ13
PQ13
DTC144EUA
DTC144EUA
1 3
84
3
+
+
2
-
-
5
+
+
6
-
-
S5_ON34,36
B B
PR54
PR54
931/F_4
PR194
PR194
10K_6_NTC
10K_6_NTC
3
S5_ON
2
PQ14
PQ14
2N7002K
2N7002K
1
A A
931/F_4
For EC control thermal protection (output 3.3V)
5
Page 44
5
D D
EC_PWROK_R7,34
Connect EC_PWROK_R to PU12.14, reserve 0Ω R617, for SBA. 12/29C16
C C
4
SBA
R617 SBA@0_4R617 SBA@0_4
M_PON34
+3V_S5
PR278
PR278
SBA@100K/F_4
SBA@100K/F_4
1.05V_M_PG
PR273
PR273
SBA@0_4
SBA@0_4
PC199
PC199
SBA@1000p/50V_4
SBA@1000p/50V_4
*SBA@100P/50V_4
*SBA@100P/50V_4
PC202
PC202
+3VPCU
PC196
PC196
SBA@10u/6.3V_8
SBA@10u/6.3V_8
PR276
PC203
PC203
SBA@1200p/50V_4
SBA@1200p/50V_4
3
PC197
PC197
[email protected]/25V_6
[email protected]/25V_6
PR277
PR277
SBA@182K/F_4
SBA@182K/F_4
PU12 SBA@TPS54318RTERPU12 SBA@TPS54318RTER
16
VIN
1
VIN
2
VIN
14
PWRGD
15
EN
7
COMP
8
RT/CLK
9
SS
22
PC204
PC204
[email protected]/25V_4
[email protected]/25V_4
BOOT
VSNS
AGND
PAD17PAD18PAD19PAD20PAD21PAD
GND
GND
2
1
+1.05V_M
1.05Volt +/- 5%
TDC : 0.8A
10
PH
11
PH
12
PH
PR274 SBA@0_6PR274 SBA@0_6
13
6
3
4
5
PC198
PC198
[email protected]/50V_6
[email protected]/50V_6
PL17
PL17
SBA@1uH_5X5X3
SBA@1uH_5X5X3
1.05M_FB
PEAK : 1.1A
Width : 40mil
PR275
PR275
[email protected]/F_4
PR279
PR279
[email protected]/F_4
[email protected]/F_4PR276
R1
R2
+1.05V_M
PC201
PC201
[email protected]/10V_4
[email protected]/10V_4
PC200
PC200
SBA@10u/6.3V_8
SBA@10u/6.3V_8
V0=0.8*(R1+R2)/R2
11/7 modify
B B
+15V+3V_M
PR282
PR280
PR280
SBA@1M_4
SBA@1M_4
M_PON34
PR284
PR284
*SBA@100K_4
*SBA@100K_4
A A
5
2
12
PQ64
PQ64
SBA@DTC144EUA
SBA@DTC144EUA
PR283
PR283
SBA@1M_4
1 3
SBA@1M_4
4
PR281
PR281
SBA@22_8
SBA@22_8
3
2
PQ65
PQ65
SBA@2N7002K
SBA@2N7002K
1
PR282
SBA@1M_4
SBA@1M_4
SUSD
3
2
PQ66
PQ66
SBA@2N7002K
SBA@2N7002K
1
PC205
PC205
*[email protected]/50V_4
*[email protected]/50V_4
3
+3VPCUVIN
3
TDC : 0.09A
2
1
PQ63
PQ63
SBA@AO3404
SBA@AO3404
PEAK : 0.1A
Width : 10mil
+3V_M
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
+1.05V_M/+3V_M
+1.05V_M/+3V_M
+1.05V_M/+3V_M
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
3C
3C
3C
44 46Wednesday, February 08, 2012
44 46Wednesday, February 08, 2012
44 46Wednesday, February 08, 2012
Page 45
5
4
3
2
1
PR294
PR294
2.2/F_6
51650_CBST3
+5V_S5
D D
51650_CPWM337
C C
B B
A A
51650_GSKIP#37
51650_GPWM237
5
51650_CPWM3
51650_GSKIP#
51650_GPWM2
51650_CCSP337
51650_CCSN337
51650_GBST2
PU14
PU14
1
BST
2
SKIP
3
PWM
GND4DRVL
IOP@TPS51601DRBR
IOP@TPS51601DRBR
1
2
3
2.2/F_6
PC216
PC216
0.22u/25V_6
0.22u/25V_6
PU13
PU13
BST
DRVH
SKIP
SW
PWM
VDD
GND4DRVL
PAD
TPAD1
TPAD2
TPAD3
TPAD4
TPAD5
TPS51601DRBR
TPS51601DRBR
+3V
PR303
PR303
[email protected]/F_6
PC229
PC229
[email protected]/25V_6
[email protected]/25V_6
8
DRVH
7
SW
6
VDD
5
9
PAD
10
TPAD1
11
TPAD2
12
TPAD3
13
TPAD4
14
TPAD5
+3V
PR302
PR302
EV@0_4
EV@0_4
51650_GCSP237
51650_GCSN237
+VCC_CORE 5,37,46
+VCC_GFX 5,37
8
7
6
5
9
10
11
12
13
14
PR293
PR293
*0_4
*0_4
4
51650_CDH3
51650_CSW3
PR288
PR288
*0_4
*0_4
51650_GDH2
51650_GSW2
PC223
PC223
IOP@1u/10V_4
IOP@1u/10V_4
51650_GDL2
PR297
PR297
EV@0_4
EV@0_4
+5V_S5
PC211
PC211
IOP@1u/10V_4
IOP@1u/10V_4
51650_CDL3
51650_CCSP3
Close to the
VR side.
51650_CCSN3
+5V_S5
51650_GCSP2
Close to the
VR side.
51650_GCSN2
51650_GCSN2
G1
G1
1
S1/D2
S1/D2
G2
G2
8
2
G1
G1
1
S1/D2
S1/D2
G2
G2
8
VIN
2
D1D1D1
D1D1D1
9
PQ67
PQ67
FDMS3606S
FDMS3606S
S2S2S2
S2S2S2
567
PC217
PC217
*0.1u/25V_4
*0.1u/25V_4
PC207
PC207
*0.1u/25V_4
*0.1u/25V_4
VIN
+VCC_GT_VIN
PC220
PC220
D1D1D1
D1D1D1
[email protected]/50V_6
[email protected]/50V_6
51650_GSW2
9
PQ68
PQ68
FDMS3606S
FDMS3606S
S2S2S2
S2S2S2
567
PC222
PC222
*[email protected]/25V_4
*[email protected]/25V_4
PC228
PC228
*[email protected]/25V_4
*[email protected]/25V_4
PC100
PC100
0.1u/50V_6
0.1u/50V_6
51650_CSW3
PC206
PC206
12
PC226
PC226
IOP@33n/25V_4
IOP@33n/25V_4
12
PC209
4.7u/25V_8
4.7u/25V_8
0.36uH_LDCR
0.36uH_LDCR
1 2
PR290
PR290
2.2_6
2.2_6
PC99
PC99
2200p/50V_6
2200p/50V_6
PR292
PR292
28.7K/F_4
28.7K/F_4
33n/25V_4
33n/25V_4
PR289
PR289
100K/F_4_4250NTC
Close with
phase3 inductor
PC101
PC101
PR304
PR304
PC227
PC227
3
100K/F_4_4250NTC
12
PC224
PC224
[email protected]/25V_8
[email protected]/25V_8
PL19
PL19
[email protected]_LDCR
[email protected]_LDCR
1 2
3
PR299 [email protected]/F_4PR299 [email protected]/F_4
IOP@2200p/50V_6
IOP@2200p/50V_6
PR298
PR298
PR301
PR301
PR300
PR300
IOP@165K/F_4
IOP@165K/F_4
IOP@100K/F_4_4250NTC
IOP@100K/F_4_4250NTC PC209
12
PC215
PC215
4.7u/25V_8
4.7u/25V_8
PL18
PL18
3
4
PR192 17.4K/F_4PR192 17.4K/F_4
PR295
PR295
160K/F_4
160K/F_4
[email protected]/25V_8
[email protected]/25V_8
4
PR296 IOP@0_4PR296 IOP@0_4
PC214
PC214
2200p/50V_4
2200p/50V_4
DCR=0.8mOhm
PC212
PC212
0.1u/10V_4
0.1u/10V_4
PR291 short0402PR291 short0402
12
PC225
PC225
IOP@2200p/50V_4
IOP@2200p/50V_4
DCR=0.8mOhm
PC221
PC221
PC219
PC219
[email protected]/10V_4
[email protected]/10V_4
IOP@10u/6.3V_8
IOP@10u/6.3V_8
12
+
+
PC210
PC210
100u/25V_6X5.8
100u/25V_6X5.8
PC208
PC208
10u/6.3V_8
10u/6.3V_8
PC230
PC230
[email protected]/25V_8
[email protected]/25V_8
+
+
PC218
PC218
IOP@330u/2V_7343
IOP@330u/2V_7343
+
+
PC213
PC213
330u/2V_7343
330u/2V_7343
+VCC_GFX
2
+VCC_CORE
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
+VCC_CORE/+VGFX (TPS51650)
+VCC_CORE/+VGFX (TPS51650)
+VCC_CORE/+VGFX (TPS51650)
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
1
45 46Wednesday, February 08, 2012
45 46Wednesday, February 08, 2012
45 46Wednesday, February 08, 2012
3C
3C
3C
Page 46
5
4
3
2
1
C563
C563
*0.1u/50V_6
D D
C119
C119
*0.1u/50V_6
*0.1u/50V_6
C255
C C
C255
*0.1u/16V_4
*0.1u/16V_4
*0.1u/50V_6
C37
C37
*0.1u/50V_6
*0.1u/50V_6
C134
C134
*0.1u/50V_6
*0.1u/50V_6
+1.5V_GFX+1.5VSUS +1.8V +3VPCU
C509
C509
*0.1u/16V_4
*0.1u/16V_4
C540
C540
*0.1u/16V_4
*0.1u/16V_4
+1.05VVIN +3V +5V +5V_S5
C413
C413
*0.1u/16V_4
*0.1u/16V_4
C363
C363
*0.1u/16V_4
*0.1u/16V_4
C592
C592
*0.1u/16V_4
*0.1u/16V_4
C340
*0.1u/16V_4
*0.1u/16V_4
C260
C260
*0.1u/16V_4
*0.1u/16V_4
CARD_3V329,30
C339
C339
*0.1u/16V_4
*0.1u/16V_4C340
C705
C705
*0.1u/16V_4
*0.1u/16V_4
C344
C344
*0.1u/16V_4
*0.1u/16V_4
C335
C335
*0.1u/16V_4
*0.1u/16V_4
C676
C676
*0.1u/16V_4
*0.1u/16V_4
C690
C690
*0.1u/16V_4
*0.1u/16V_4
C561
C561
*0.1u/50V_6
*0.1u/50V_6
C291
C291
*0.1u/16V_4
*0.1u/16V_4
C357
C357
*0.1u/16V_4
*0.1u/16V_4
C377
C377
*0.1u/50V_6
*0.1u/50V_6
C679
C679
*0.1u/16V_4
*0.1u/16V_4
C625
*0.1u/16V_4
*0.1u/16V_4
C107
C107
*0.1u/16V_4
*0.1u/16V_4
C154
C154
*0.1u/16V_4
*0.1u/16V_4
+VCC_CORE
C695
C695
*0.1u/16V_4
*0.1u/16V_4
C685
C685
*0.1u/16V_4
*0.1u/16V_4
C704
C704
*0.1u/16V_4
*0.1u/16V_4C625
C646
C646
*0.1u/16V_4
*0.1u/16V_4
B B
A A
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
EMI
EMI
EMI
Date: Sheet of
Date: Sheet of
5
4
3
Date: Sheet of
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
ZQS 45W
ZQS 45W
ZQS 45W
46 46Wednesday, February 08, 2012
46 46Wednesday, February 08, 2012
46 46Wednesday, February 08, 2012
1
3C
3C
3C
Page 47
5
Model
ZQS MB
D D
C C
REV
C01 Add GPU_PWR_ALERT# to EC GPIO53, connect to PU5.10. 12/21
C
Change R483,R486,R492,R491,R498,R487,R496,R494 from 590 Ω to 510Ω, and mount HDMI R194,R205,R202,R212
C02
120Ω at optimus sku for EMI. 01/17
C03 Add GPU_TRIP# to EC GPIO47, connect to NV GPIO08. 12/23
Change SW1,SW2 footprint & PN from DHP00DA1J01 to DHP00532W00. 12/23C04
C05 Change WL_SW# from EC GPIO91 to EC GPIO04. 12/23
C06
Connect to Q42 & EC GPIO91, Q42 change from reserve to mount. 12/24
Add R608 and reserve +1.5V to WLAN. 12/23C07
Connect EC GPIO46 IOAC_LANPWR# to WLAN, R662, add C708, R661, Q48, reserve R316. 12/23C08
Change USB power Cap C306,C352 from 100U_3528 to 100U_3216. 12/23C09
Change R328 from 47Ω to 0Ω, for hall sensor ESD & shudown issue. 12/28C10
C11 Change R641 from reserve to mount per EC request. 12/27
C12 Change Q47 from 2N7002 to DTC144EUA, change Q47.2 from +3V_GFX to PEGX_RST#, connect GPU_TRPI# to
Q47, add 0Ω R142,R237. For GPU thermal detect. 12/27
C13 Change R393 from reserve to mount. dGPU_PWROK pull high. 12/27
C14 Change R234 from mount to reserve. WAKE_WLAN function on. 12/27
C15 Add 0Ω R609 to net EC_PWROK_R. SBA 12/29
C16 Connect EC_PWROK_R to PU12.14, reserve 0Ω R617. SBA 12/29
C17 Connect EC_PWROK_R to EC GPIO30, reserve 0Ω R635. SBA 12/29
Change hole15, hole17 footprint to H-C256D161PT to h-c256d142pt. 12/30C18
R382 change from 30.1 KΩ to pull down 45.3KΩ for N13P-GS & GT strap 4. 01/04C19
Change R230 from shortpad to 0Ω, add 0Ω R636 connect to +3VPCU. 01/05C20
C21
Reserve 0Ω R645 connect to DPWROK, add new net DPWROK_EC. 01/05
Change R220 from shortpad to 0Ω, reserve 0Ω R646 connect to DPWROK_EC. 01/05
C22
Change L40 footprint from L2x1_6-1 to RC0805. 01/09C23
Change mini pcie power source from +3V_S5 to +3VPCU. 01/12C24
C25
Change CN20 pin 30 &28 from CLK_SDATA & CLK_SCLK to SMB_PCH_CLK & SMB_PCH_DAT, reserve 0Ω R663,R664.
1/12
C26
Mount R314, R315 for mini card debug. 01/12
Add Q49 connect PCIE_CLKREQ5# to CN20.7. 01/12
C27
Change EC GPI96 from WAKE_WLAN to WK_GPIO27, connect to PCH_GPIO27. 01/12
C28
Reserve FDI Disabling (Discrete Only), add R665,R666,R667,R668,R669. 1/13C29
Change U22 PLTRST# power source from +3V_S5 to +3V. 01/17C30
Change DGPU_POK4 from +1.05V_GFX to +1.5V_GFX, DGPU_POK2 from +1.5V_GFX to +1.05V_GFX for possibly
C31
floating issue. 01/17
Add net WLAN_OFF to connect EC(GPIO66/G_PWM) to CN20.46 ( LED_WPAN#) for IOAC feature, mount 0Ω
C32
R670. 01/18
R73 change from 34.8 KΩ to pull down 4.99KΩ for N13P-GS & GT STRAP1. 01/17C33
Mount Q12 at SBA sku. 01/17C34
Reserve 0.1u capacitor C698 to EC_PWROK_R. 01/17C35
Remove R308 reserved 10KΩ for LED_WLAN# pull high +3V. 01/31C36
Add Q50 connect to BT_POWERON# for WLAN ON/OFF function, pull up BT_PWRON by 10KΩ R671 to +WL_VDD,
C37
reserve 10KΩ R672 to +3V. 01/31
Change C562, C564 from 220U to 100U for cost down. 02/08C38
4
3
2
1
CHANGE LIST
B B
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
ZQS 45W
PROJECT :
ZQS 45W
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Change list
Change list
Change list
Date: She et of
Date: She et of
Date: She et of
ZQS 45W
47 47Wednesday, F ebruary 08, 20 12
47 47Wednesday, F ebruary 08, 20 12
47 47Wednesday, F ebruary 08, 20 12
5
DOC NO.
3C
3C
3C
4
PART NUMBER:
3
APPROVED BY:PROJECT MODEL : ZQS
DRAWING BY: REVISON:
2
DATE:
2011/12/23
C
1
Loading...
