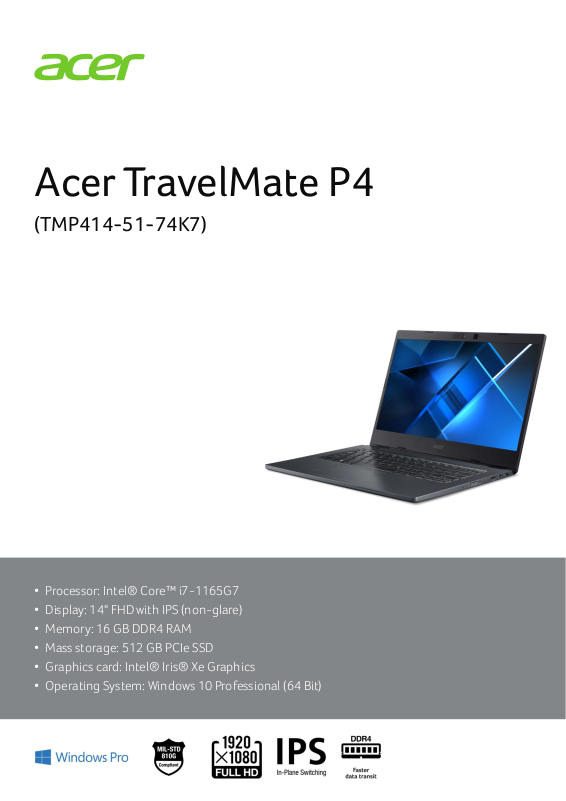

Acer TMP414-51-74K7 User Manual

Acer TravelMate P4

(TMP414-51-74K7)

• Processor: Intel® Core™ i7-1165G7

• Display: 14" FHD with IPS (non-glare)

• Memory: 16 GB DDR4 RAM

• Mass storage: 512 GB PCIe SSD

• Graphics card: Intel® Iris® Xe Graphics

• Operating System: Windows 10 Professional (64 Bit)

Acer TMP414-51-74K7 SPECIFICATIONS

Ordering Information

Series Acer T ravelMate P4
Model name TMP414-51-74K7
Part number NX. VPAEG.003
EAN 4710886238775
Short description 14" FHD with IPS (non-glare) / Intel®

Core™ i7-1165G7 / 16 GB DDR4 RAM /
512 GB PCIe SSD / Intel® Iris® Xe Graphics
/ Win 10 Pro (64 Bit) / Slate Blue

Operating System

Operating System Windows 10 Professional (64 Bit)

Housing

Housing / Color Slate Blue
Component door ­Dimensions 325 x 236 x 17.9 mm (W x D x H)
Weight 1.42 kg
Passively cooled (fanless) -

Display

Display size 14 inches (35.56 cm)
Display type Acer ComfyView™ Full HD IPS Display with

LED-Backlight (non-glare)
Display resolution in pixel 1920 x 1080
Aspect ratio 16:9

Processor and chipset

Processor Intel® Core™ i7-1165G7 Pr ocessor
Clock frequency 4.7 GHz
Cache 12 MB
Processing cor es / threads 4 / 8
Chipset Integrated SOC

Storage and drives

Memory 16 GB DDR4 RAM
Memory configuration 2x 8 GB DDR4 RAM
Maximum RAM 32 GB DDR4 (2x 16 GB DDR4)
Mass storage 512 GB M.2 PCIe Solid-State-Drive (SSD)
Optical drive -

Graphics card

Graphics card Intel® Iris® Xe Graphics

Connections

LAN 10/100/1000 LAN. Wake-on-LAN ready
Wireless LAN Intel® Dual Band Wireless-Gigabit-AX, Wi-

Fi 6 (802.11 ax/ac/ a/b/g/n)
Wireless W AN / SIM-Card - / ,
Wireless Gigabit ­Bluetooth Bluetooth® 5.1
NFC ­WoL (W ake on LAN) Y es

IO ports

HDMI 1x (HDCP)
VGA ­Displayport Yes (via USB T ype-C port)
Thunderbolt Thunderbolt™ 4 (via USB T ype-C port)
USB 3.1 1x T ype-C (Gen. 2), 2x T ype-A (1x supports

power-off USB charging)
USB 3.1 ­USB 3.0 ­USB 2.0 ­Ethernet (RJ-45) 1x
Cardreader MicroSD cardreader
Audio port 1x headphone/speaker jack
Docking port Y es (Acer USB- Type-C-Dock c ompatible)

Input

Keyboard Acer FineTip k eyboard (83-/84-/87-keys)
Keyboard layout German (QWER TZ)
Backlit keyboard Y es
T ouchpad Multi-Gesture T ouchpad (Microsoft

Precision T ouchpad Certification)

Acer TMP414-51-74K7 - NX. VPAEG.003 - 2020.10.28 - 15:52 Page 2 of 3
