Page 1
1
... English

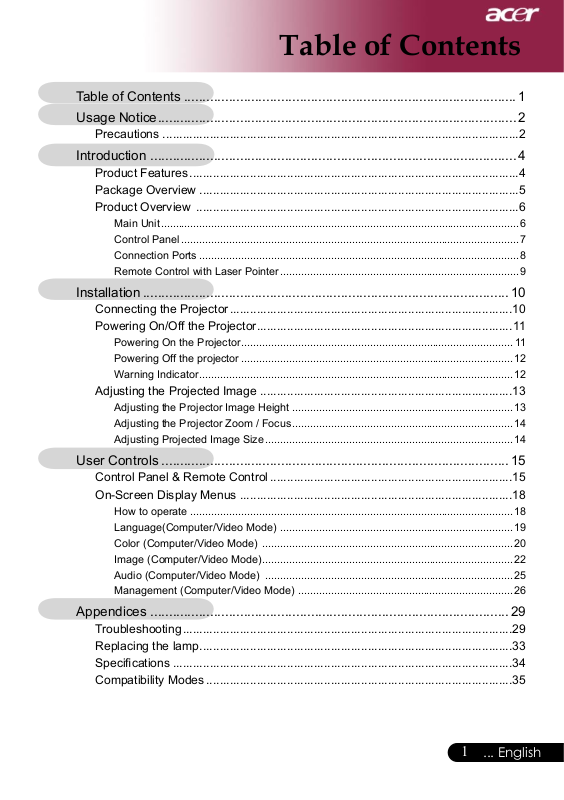

Table of Contents
Table of Contents .........................................................................................1
Usage Notice ................................................................................................ 2
Precautions ..........................................................................................................2
Introduction .................................................................................................. 4
Product Features ..................................................................................................4
Package Overview ...............................................................................................5
Product Overview ................................................................................................6
Main Unit ........................................................................................................................ 6
Control Panel .................................................................................................................7
Connection Ports ...........................................................................................................8
Remote Control with Laser Pointer ................................................................................9
Installation .................................................................................................. 10
Connecting the Projector ....................................................................................10
Powering On/Off the Projector ............................................................................11
Powering On the Projector ........................................................................................... 11
Powering Off the projector ...........................................................................................12
Warning Indicator ......................................................................................................... 12
Adjusting the Projected Image ...........................................................................13
Adjusting the Projector Image Height ..........................................................................13
Adjusting the Projector Zoom / Focus .......................................................................... 14
Adjusting Projected Image Size ...................................................................................14
User Controls .............................................................................................15
Control Panel & Remote Control ........................................................................15
On-Screen Display Menus .................................................................................18
How to operate ............................................................................................................18
Language(Computer/Video Mode) ..............................................................................19
Color (Computer/Video Mode) ....................................................................................20
Image (Computer/Video Mode) ....................................................................................22
Audio (Computer/Video Mode) ...................................................................................25
Management (Computer/Video Mode) ........................................................................26
Appendices ................................................................................................ 29
Troubleshooting ..................................................................................................29
Replacing the lamp .............................................................................................33
Specifications .....................................................................................................34
Compatibility Modes ...........................................................................................35
Page 2
2
English ...
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s guide to maximize the life of your unit.
Warning-
Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
Warning-
To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning-
Please do not open or disassemble the product as this
may cause electric shock.
Warning-
When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning-
This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning-
Reset the “Lamp Hour Reset” function from the On
Screen Display “Management” menu after replacing
the lamp module (refer to page 26)
Warning-
When switching the projector off, please ensure the
projector completes its cooling cycle before
disconnecting power.
Warning-
Turn on the projector first and then the signal
sources.
Warning-
Do not use lens cap when projector is in operation.
Warning-
When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp,
follow the procedures listed under “Replacing the
Lamp”.
Page 3
3
... English
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.
Usage Notice
Page 4
4
English ...
Introduction
Product Features
This product is an SVGA single chip 0.55” DLPTM projector.
Outstanding features include:
True SVGA, 800 x 600 addressable pixels
Single chip DLPTM technology
NTSC3.58/NTSC4.43/PAL/SECAM and HDTV
compatible (480i/p, 576i/p, 720p, 1080i)
High-tech DVI connection for digital signal with HDCP
function and supports 480p, 576p, 720p and 1080i
(Optional)
Full function remote control with laser pointer
User friendly multilingual on screen display menu
Advanced digital keystone correction and high
quality full screen image re-scaling
User friendly control panel
SXGA, XGA compression and VGA re-sizing
Mac compatible
Page 5
5
... English
Power Cord 1.8m
VGA Cable 1.8m
2 x Battery
Introduction
Composite Video Cable
2.0m
Projector with lens cap
Package Overview
This projector comes with all the items shown below.
Check to make sure your unit is complete. Contact your
dealer immediately if anything is missing.
Carrying Case
USB Cable 1.8m
User’s Guide
S-Video Cable 1.8m
Audio Cable Jack /Jack
1.8m
VGA to Component/
HDTV Adapter
Quick Start Card
Remote Control with
Laser Pointer
Page 6
6
English ...
Main Unit
Product Overview
1. Focus Ring
2. Zoom Ring
3. Zoom Lens
4. Elevator Button
5. Elevator Foot
6. Remote Control Receiver
7. Connection Ports
8. Power Socket
9. Control Panel
Introduction
4
5
6
7
9
8
2
3
6
2
1
The color of the projector
cover in this menu is for reference
only. The color of real product is
subject to change depending on
marketing announcement.
Page 7
7
... English
Control Panel
1. Lamp Indicator LED
2. Temp Indicator LED
3. Power/Standby and Indicator LED (Power LED)
4. Source
5. Resync
6. Four Directional Select Keys
7. Menu
Introduction
4
5
1
6
3
7
2
Page 8
8
English ...
Introduction
Connection Ports
1. DVI Input Connector (for Digital singal with HDCP function) (Optional)
2. PC Analog Signal/HDTV/Component Video Input Connector
3. Audio Input Connector
4. S-Video Input Connector
5. Monitor Loop-through Output Connector (VGA-Out)
6. USB Connector
7. Remote Control IR Receiver
8. Composite Video Input Connector
9. KensingtonTM Lock Port
10. 5V DC Output Jack (for attached dongle device) (for PD100 only)
1
9
6
2
3
4
5
8
7
PD100
10
Page 9
9
... English
1. Transmit Indicator Light
2. Power
3. Empowering Key
4. Menu
5. Four Directional Select Keys
6. Laser Button
7. Digital Zoom
8. Keystone +
9. Keystone -
10. Page Up
11. Page Down
Remote Control with Laser Pointer
Introduction
12. Resync
13. Hide
14. Source
15. Freeze
16. Laser Pointer
1
11
2
8
10
5
15
14
4
16
13
12
9
3
7
6
Page 10
10
English ...
1. ....................................................................................................................Power Cord
2. .....................................................................................................................VGA Cable
3. ............................................................................................... Composite Video Cable
4. ...................................................................................................................... USB Cable
5. ........................................................................VGA to Component/HDTV Adapter
6. ................................................................................................................S-Video Cable
7. .................................................................................................Audio Cable Jack/Jack
8. ................................................................................ DVI Cable (Optional Accessory)
9. .............................5V DC Output Jack for attached Dongle Device (PD100 only)
Connecting the Projector
To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 35.
Video Output
DVD Player, Settop Box,
HDTV receiver
Installation
4
2
1
3
6
7
DVI
RGB
USB
5
S-Video Output
8
PD100
9
Page 11
11
... English
Installation
Power/Standby
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
connected. The Power LED will flash
red
.
3. Turn on the lamp by pressing “Power/Standby” button on
the control panel.And the Power LED will turn
blue
.
4. Turn on your source (computer, notebook, video player
,etc.). The projector will detect your source automatically.
If the screen displays “No Signal”, please make sure the signal
cables are securely connected.
If you connect multiple sources at the same time, using the
“Source” button on the remote control or control panel to
switch.
Powering On/Off the Projector
Turn on the projector
first and then the signal
sources.
1
Page 12
12
English ...
Installation
Warning Indicator
When the “
LAMP
” indicator lights solid red, the projector will
automatically shut itself down. Please contact your local reseller
or service center.
When the “
TEMP
” indicator lights solid red for about 20 sec-
onds, it indicates the projector has been overheated. You will see
a message “Projector Overheated. Lamp will automatically turn
off soon.” on the on-screen display. The projector will automatically shut itself down.
Under normal conditions, the projector can be switched on again
after it has cooled down. If the problem persists, you should contact your local dealer or our service center.
When the “
TEMP
” indicator flashs red for about 30 seconds, you
will see a message “Fan fail. Lamp will automatically turn off
soon.” on the on-screen display. Please contact your local dealer
or our service center.
Powering Off the Projector
1. Press the “Power/Standby” button to turn off the projector lamp,
you will see a message “Please press power button again to complete the shutdown process. Warning: DO NOT unplug while the
projector fan is still running.” displayed on the projector’s screen.
Press the “Power/Standby” button again to confirm, otherwise
the message will disappear after 5 seconds.
2. The cooling fans continue to operate for about 60 seconds for
cooling cycle and the Power LED will be quick
red flash
. When
the Power LED becomes slow flashing, the projector has entered
standby mode. If you wish to turn the projector back on, you
must wait until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply press
“Power/Standby” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and the projector.
4. Do not turn on the projector immediately following a power off
procedure.
Page 13
13
... English
Adjusting the Projected Image
Adjusting the Projector Image Height
Elevator Foot
1
2
Elevator Button
The projector is equipped with an elevator foot for adjusting the image height.
To raise the image:
1. Press the elevator button
.
2. Raise the image to the desired height angle
, then release
the button to lock the elevator foot into position.
To lower the image:
1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator
foot into position.
Installation
Page 14
14
English ...
Max.
38.1"(96.8c m)
76.2"(193.6c m)
127.1"(322.7c m)
177.9"(451.8c m)
203.3"(516.3c m)
304.9"(774.5c m)
Min. 34.7"(88.1c m) 69.3"(176.1c m) 115.6" (293.5cm) 161.8" (410.9cm) 184.9"( 469.6c m) 277.3" (704.4cm)
Max.(Wx H)
30.5" x 22.9"
(77.4 x 58.1c m)
61.0" x 45.7"
(154.9 x 116.2cm)
101.7" x 76.3"
(258.2 x 193.6c m)
142.3" x 106.7"
(361.4 x 271.1c m)
162.6" x 122.0"
(413.0 x 309.8c m)
243.9" x 182.9"
(619.6 x 464.7c m)
Min.(Wx H)
27.8" x 20.8"
(70.5 x 52.9c m)
55.4" x 41.6"
(140.9 x 105.7c m)
92.5" x 69.4"
(234.8 x 176.1c m)
129.4" x 97.1"
(328.7 x 246.5c m)
147.9" x 110.9"
(375.7 x 281.8c m)
221.8" x 166.4"
(563.5 x 422.6c m)
4.9'(1.5m)
9.8'(3.0m)
16.4'(5.0m)
23.0'(7.0m)
26.3'(8.0m)
39.4'(12.0m)
Foctus Ring
Zoom Ring
Adjusting the Projector Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the image,
rotate the focus ring until the image is clear. The projector will focus
at distances from 4.9 to 39.4 feet (1.5 to 12.0 meters).
Adjusting Projection Image Size
69.3"
(176.1cm)
115.6"
(293.5cm)
161.8"
(410.9cm)
184.9"
(469.6cm)
277.3"
(704.4cm)
38.1"
(96.8cm)
76.2"
(193.6cm)
127.1"
(322.7cm)
177.9"
(451.8cm)
203.3"
(516.3cm)
304.9"
(774.5cm)
4.9'
39.4'
26.3'
23.0'
16.4'
9.8'
(1.5m)
(12.0m)
(8.0m)
(7.0m)
(5.0m)
(3.0m)
34.7"
(88.1cm)
Screen
(Diagonal)
Screen
Size
Distance
This graph is for user’s reference only.
Installation
Page 15
15
... English
User Controls
Remote ControlControl Panel
Control Panel & Remote Control
There are two ways for you to control the functions: Remote Control and Control Panel.
Using the Control Panel
Power
Refer to the “Power On/Off the Projector” section on pages
11-12.
Source
Press “Source” to choose RGB, Component-p, Component-i,
S-Video, Composite, DVI-D (Optional), Video and HDTV
sources.
Menu
Press “Menu” to launch the on screen display (OSD) menu. To exit
OSD, press “Menu” again.
Confirm your selection of items.
Four Directional Select Keys
Use to select items or make adjustments to
your selection.
Resync
Automatically synchronizes the projector to the input source.
Page 16
16
English ...
User Controls
Using the Remote Control
Power
Refer to the “Power On/Off the Projector” section on pages
11-12.
Empowering Key
Press “e” key to launch e mnu on screen display screen and use
to select items.
Acer eView Management
Press
to launch “Acer eView Management”
submenu.
“
Acer eView Management” is for display mode
selection. Please refer to On Screen Display
Menus section for more detail.
Acer eTimer Management
Press
to launch “Acer eTimer Management”
submenu.
“
Acer eTimer Management” provides the reminding function for presentation time control.
Please refer to On Screen Display Menus section
for more detial.
Acer eOpening Management
Press
to launch “Acer eOpening Manage-
ment” submenu.
“
Acer eOpening Management” allows user to
change the Startup screen their personalized
image. Please refer to On Screen Display section
for details.
Menu
Press “Menu” to launch the on screen display menu. To exit
OSD, press “Menu” again.
Four Directional Select Keys
Use to select items or make adjustments to
your selection.
Laser Button
Aim the remote at the viewing screen, press and hold this
button to activate the laser pointer.
Zoom
Digital Zoom in/out.
Page 17
17
... English
Keystone + / -
Adjusts image distortion caused by tilting the projector (±16
degrees).
Page Up
(Computer mode only)
Use this button to page up. This function is only available
when the projector is connected to a computer via an USB cable.
Page Down
(Computer mode only)
Use this button to page down. This function is only available
when the projector is connected to a computer via an USB cable.
Resync
Automatically synchronizes the projector to the input source.
Hide
Momentarily turns off the video. Press “Hide” to hide image,
press again to restore display of the image.
Source
Press “Source” to choose RGB, Component-p, Component-i,
S-Video, Composite Video , DVI-D (Optional)and HDTV
sources.
Freeze
Press “Freeze” to pause the screen image.
User Controls
Page 18
18
English ...
The Projector has multilingual On Screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1.
To open the OSD menu, press “Menu” on the Remote Control or
Control Panel.
2.
When OSD is displayed, use keys to select any item in the
main menu. After selecting the desired main menu item, press
to enter sub menu for feature setting.
3.
Use keys to select the desired item and adjust the
settings by key.
4.
Select the next item to be adjusted in the sub menu and adjust as
described above.
5.
Press “Menu” on the Remote Control or Control Panel, the screen
will return to the main menu.
6.
To exit OSD, press “Menu” on the Remote Control or Control Panel
again. The OSD menu will close and the projector will automatically
save the new settings.
On Screen Display Menus
User Controls
Main Menu
Sub Menu settings
Page 19
19
... English
Language
(Computer / Video
Mode)
Language
Choose the multilingual OSD menu . Use the or key to
select your prefered language.
Press “Menu” on the Remote Control or Control Panel to finalize
the selection.
User Controls
Page 20
20
English ...
User Controls
Color
(Computer / Video
Mode)
Display Mode
There are many factory presets optimized for various types of
images.
Bright : For brightness optimization.
PC : For computer or notebook.
Video : For playing video in a bright environment.
Theatre : For Home Theatre usage in a dark room.
sRGB : For true-color optimization.
User : Memorize user’s settings.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
Press the to decrease the contrast.
Press the to increase the contrast.
Color Temperature
Adjust the color temperature. At higher temperature, the screen
looks colder; at lower temperature, the screen looks warmer.
Page 21
21
... English
Color
(Computer / Video
Mode)
White Segment
Use the white Segment control to set the white peaking level of
DMD chip. 0 stands for minimal segment, and 10 stands for maxi-
mum segment. If you prefer a stronger image, adjust towards the
maximum setting. For a smooth and more natural image, adjust
towards the minimum setting.
Degamma
Effects the represent of dark scenery. With greater gamma value,
dark scenery will look brighter.
Saturation
Adjusts a video image from black and white to fully saturated
color.
Press the to decrease the amount of color in the image.
Press the to increase the amount of color in the image.
“Saturation” and
“Tint” functions are
not supported under
computer mode or DVI
mode.
User Controls
Tint
Adjusts the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
Color R
Adjusts the red color.
Color G
Adjusts the green color.
Color B
Adjusts the blue color.
Page 22
22
English ...
User Controls
Keystone
Adjust image distortion caused by tilting projection. (±16 degrees)
Aspect Ratio
Use this function to choose your desired aspect ratio.
Auto : Keep the image with original width-higth ratio and maxi
mize the image to fit native horizontal or vertical pixels.
4:3 : The input source will be scaled to fit the projection screen.
16:9 : The input source will be scaled to fit the width of the
screen.
480p : Provide the best display for a 480p 16:9 signal.
Source Lock
When source lock is turned off, the projector will search for other
signals if the current input signal is lost. When source lock is turned
on, it will “Lock” the current source channel before you press
“Source” button on remote control for next channel.
Projection
Front-Desktop
The factory default setting.
Rear-Desktop
When you select this function, the projector reverses the
image so you can project behind a translucent screen.
Front-Ceiling
When you select this function, the projector turns the im-
age upside down for ceiling-mounted projection.
(Computer / Video
Mode)
Page 23
23
... English
User Controls
Rear-Ceiling
When you select this function, the projector reverses
and turns the image upside down at same time. You can
project from behind a translucent screen with ceiling
mounted projection.
Menu Location
Choose the Menu location on the display screen.
Sharpness
Adjusts the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
H. Position (Horizontal Position)
Press the to move the image left.
Press the to move the image right.
V. Position (Vertical Position)
Press the to move the image down.
Press the to move the image up.
Frequency
“Frequency”changes the display data frequency to match the fre-
quency of your computer’s graphic card. If you experience a
vertical flickering bar, use this function to make an adjustment.
(Computer / Video
Mode)
“Sharpness” functions
is not supported under
DVI and Computer
mode.
“H. Position”, “V.
Position”, “Frequency”
and “ Tracking” functions are not supported
under DVI and Video
mode.
Page 24
24
English ...
(Computer / Video
Mode)
User Controls
Tracking
“Tracking” synchronizes the signal timing of the display with the
graphic card. If you experience an unstable or flickering image, use
this function to correct it.
Page 25
25
... English
Audio
(Computer / Video
Mode)
Volume
Press the to decrease the volume.
Press the to increase the volume.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Power On/Off Volume
Choose this function to adjust volume when power on/off.
Alarm Volume
Choose this function to adjust volume when there are errors of
the projector.
Timer Volume
Choose this function to adjust volume when timer function is
enable and time is up.
User Controls
Page 26
26
English ...
ECO Mode
Choose “On” to dim the projector lamp which will lower power
consumption, extend the lamp life and reduce noise. Choose ”Off”
to return normal mode.
Auto Shutdown(Minutes)
The projector will auto shutdown while there is no signal input
after the setting time.
Timer Start
Press the to start/stop timer.
Timer Period
Press the to adjust timer period.
Timer Display
Press the to choose timer display mode on the screen.
Timer Location
Choose the timer location on the screen.
Lamp Hour Elapse
Displays the lamp’s elapsed operating time (in hours).
Lamp Hour Reset
Press the button after choosing “Yes ”to turn the lamp hour
counter to 0 hours.
Management
(Computer / Video
Mode)
User Controls
Page 27
27
... English
Lamp Reminding
Choose this function to show or to hide warning message when the
changing lamp message is displayed. The message will show up 30
hours before end of life.
Start-up Screen
Use this function to slect your desired start-up screen. If you
change the setting from one to another, when you exit the OSD
menu, the new setting will take effect.
Acer : The default start-up screen of Acer projector.
User : The user customized start-up screen, which is down
loaded from PC to projector via the USB cable and
Acer
eOpening Management
utility (refer to the description of
below section).
Management
(Computer / Video
Mode)
User Controls
Page 28
28
English ...
Management (Computer
/ Video Mode)
Acer eOpening Management
is a PC utility
for user to change the default start-up screen of Acer
projector to their desired image. You can install
Acer
eOpening Management
from the bundled CD. Connect the projector to your PC with the bundled USB
cable then execute
Acer eOpening Management
utility to download your desired image from your PC to
projector. Before the download starts, the projector
must enter “Download Mode” first. Please follow
the instruction below to enter “Download Mode”.
1. If the projector was turned on, press power button twice to turn
off the projector.
2. Unplug the AC power cord from the projector.
3. Press and hold “Menu” and “ “ buttons simultaneously then
plug the AC power cord to the projector.
4. When Temp and Lamp LEDs are turned light, release both buttons, projector enters download mode.
5. Please make sure the USB cable has been connected to the projector from your PC.
Reset
Press the button after choosing “Yes” to return the display parameters on all menus to the factory default settings.
User Controls
Page 29
29
... English
Problem: No image appears on screen.
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “Hide” feature is not enabled.
Problem: Partial, scrolling or incorrectly displayed image.
Press the “Resync” button on the Remote Control.
If you use a PC:
If the resolution of your computer is higher than 800 x 600.
Follow the steps outlined below to reset the resolution.
For Windows 3.x:
1. In the Windows Program Manager, click the “Windows Setup”
icon in the Main group.
2. Verify that your display resolution setting is less than or equal
to 800 x 600.
For Windows 95, 98, 2000, XP:
1. Open “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Setting” tab.
3. In the “Desktop Area” you will find the resolution setting.
Verify that the resolution setting is less than or equal to 800 x
600 resolution.
If the projector is still not projecting the whole image, you will
also need to change the monitor display you are using. Refer to
the following steps.
4. Follow the above steps 1-2. Click on the “Advanced Properties”
button.
5. Select the “Change” button under the “Monitor” tab .
Troubleshooting
If you experience trouble with the projector, refer to
the following information. If the problem persists,
please contact your local reseller or service center.
Appendices
Page 30
30
English ...
6. Click on “Show all devices”. Then select “Standard monitor
types” under the “Manufacturers” box ; choose the resolution
mode you need under the “Models” box.
7. Verify that the resolution setting of the monitor display is less
than or equal to 800 x 600.
If you are using a Notebook PC:
1. You are required to implement the above steps of resolution
setting of the computer first.
2. Switch the Notebook PC display to the “external display only”
or “CRT only” mode.
If you experience difficulty in changing resolutions or your
monitor freezes, restart all the equipment and the projector.
Problem: The screen of the Notebook or PowerBook computer
is not displaying your presentation.
If you are using a Notebook PC:
Some Notebook PCs may deactivate their screens when a second
display device is in use. Refer to your computer’s documentation
for information on how to reactivate the monitor display.
If you are using an Apple PowerBook:
In Control Panels, open the PowerBook Display to select Video
Mirroring “On”.
Problem: Image is unstable or flickering
Use “Tracking” to correct it. Refer to page 24.
Change the monitor color setting from your computer.
Problem: Image has vertical flickering bar
Use “Frequency” to make an adjustment. Refer to page 23.
Check and reconfigure the display mode of your graphic card to
make it compatible with the product. Refer to page 28.
Problem: Image is out of focus
Adjusts the Focus Ring on the projector lens. Refer to page 14.
Make sure the projection screen is between the required distance
4.9 to 39.4 feet (1.5 to 12.0 meters) from the projector.
Appendices
Page 31
31
... English
Problem: The image is outstretched when displaying
16:9 DVD.
The projector automatically detects 16:9 DVD and adjusts the
aspect ratio by digitizing to full screen with 4:3 default setting.
If the image is still outstretched, you will also need to adjust the aspect
ratio by referring to the following:
Please select 4:3 aspect ratio type on your DVD player if you are
playing a 16:9 DVD.
If you can’t select 4:3 aspect ratio type on your DVD player, please
select 4:3 aspect ratio in the on screen menu.
Problem: Image is reversed.
Select “Image” from the OSD and adjust the projection
direction. See page 22.
Problem: Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace
the lamp, follow the procedures in the “Replacing the Lamp”. See
page 33.
Problem: LED lighting message
Message
Power LED
Temp LED Lamp LED
Red Blue
Standby State
(Input power cord)
Slow Flashing
Lamp lighting
Power on
Power off (Cooling) Quick Flashing
Error (Lamp fail)
Error (Thermal fail)
Error (Fan lock fail) Flashing
Error (Over Temp.)
Error
(Lamp Breakdown)
=>Light On =>Light Off
Appendices
Page 32
32
English ...
Problem: Message Reminders
“Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!” will be shown about 10 seconds
when lamp life is going to deplete.
“Projector Overheated. Lamp will automatically turn off soon.” will
be shown when the system temperature is over heat.
“Fan fail. Lamp will automatically turn off soon.” will be shown
when the fan is out of order.
Appendices
Page 33
33
... English
Replacing the lamp
The projector will detect the lamp life itself. It will show you
a warning message “Lamp is approaching the end of its useful
life in full power operation. Replacement Suggested!” When
you see this message, changing the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Warning:
Lamp
compartment is hot!
Allow it to cool down
before changing lamp!
Warning:
To reduce
the risk of personal
injury, do not drop the
lamp module or touch
the lamp bulb. The bulb
may shatter and cause
injury if it is dropped.
1
3
4
2
Lamp Changing Procedure:
1. Turn the power off the projector by pressing the Power
button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to remove the screw from the cover.
5. Push up and remove the cover.
6. Remove the 2 screws from the lamp module.
7. Pull out the lamp module.
To replace the lamp module, reverse the previous steps.
Appendices
Page 34
34
English ...
Specifications
The specs specified below are subject to change without notice. Regarding the final specs,
please refer to Acer accounced marketing specs.
- Composite video & S-Video capability
H. Frequency - 31.5kHz~100kHz horizontal scan
V. Frequency - 56Hz~85Hz vertical refresh
Power Supply - Universal AC input 100-240V ; Input Frequency
50/60Hz
I/O Connectors - Power: AC power input socket
- VGA Input:
One DVI connector for Digital signal with HDCP
(For PD100D only)
One 15-pin D-sub for VGA, component and HDTV
signal
- VGA Output: One 15-pin D-sub for VGA output
- Video Input:
One Composite video RCA input
One S-Video input
- One 5V DC output jack for attached dongle device
(For PD100 only)
- USB:One USB connector
- Audio Input: One phone jack for audio input
Weight - 4.85 lbs (2.2kg)
Dimensions (W x H x D) - 9.1x 9.4 x 4.8 inches (230 x 238 x 122.8 mm)
Environmental - Operating Temperature: 41~95oF (5~ 35oC)
Humidity: 80% maximum (Non-condensing)
- Storage Temperature: -4~140oF (-20~60oC)
Humidity: 80% maximum (Non-condensing)
Safety Regulation - FCC Class B, CE Class B, VCCI-II, UL, cUL,
TÜV-GS, C-tick, PSB, PSE, CB Report, CCC
Appendices
Light Valve - Single Chip DLPTM Technology by Texas Instruments
Lamp - 200W User Replaceable Lamp
Number of Pixels - 800 pixels(H) X 600 lines(V)
Displayable Color - 16.7M colors
Contrast Ratio - 2000:1 (Full On/Full Off)
Uniformity - 85%
Noise Level - 31dB(A)(standard mode / 27dB(A)(ECO mode)
Projection Lens - F/2.7~3.0 f=21.83~23.81mm with 1.1x Manual zoom
lens
Projection Screen Size (Diag.) - 34.7 to 304.9 inches (0.88 to 7.75 meters) Diagonal
Projection Distance - 4.9 to 39.4 feet (1.5 to12.0 meters)
Video Compatibility - NTSC 3.58/NTSC 4.43/PAL/SECAM and HDTV
compatible
Page 35
35
... English
Compatibility Modes
Mode Resolution
(ANALOG) (DIGITAL)
V.Frequency
(Hz)
H.Frequency
(kHz)
V.Frequency
(Hz)
H.Frequency
(kHz)
VESA VGA 640 x 350 70 31.5 70 31.5
VESA VGA 640 x 350 85 37.9 85 37.9
VESA VGA 640 x 400 85 37.9 85 37.9
VESA VGA 640 x 480 60 31.5 60 31.5
VESA VGA 640 x 480 72 37.9 72 37.9
VESA VGA 640 x 480 75 37.5 75 37.5
VESA VGA 640 x 480 85 43.3 85 43.3
VESA VGA 720 x 400 70 31.5 70 31.5
VESA VGA 720 x 400 85 37.9 85 37.9
VESA SVGA 800 x 600 56 35.2 56 35.2
VESA SVGA 800 x 600 60 37.9 60 37.9
VESA SVGA 800 x 600 72 48.1 72 48.1
VESA SVGA 800 x 600 75 46.9 75 46.9
VESA SVGA 800 x 600 85 53.7 85 53.7
VESA XGA 1024 x 768 60 48.4 60 48.4
VESA XGA 1024 x 768 70 56.5 70 56.5
VESA XGA 1024 x 768 75 60.0 75 60.0
VESA XGA 1024 x 768 85 68.7 85 68.7
VESA SXGA 1152 x 864 70 63.8 70 63.8
VESA SXGA 1152 x 864 75 67.5 75 67.5
VESA SXGA 1280 x 1024 60 63.98 60 63.98
MAC LC 13” 640 x 480 66.66 34.98 *** ***
MAC II 13” 640 x 480 66.68 35 *** ***
MAC 16” 832 x 624 74.55 49.725 *** ***
MAC 19” 1024 x 768 75 60.24 *** ***
MAC 1152 x 870 75.06 68.68 *** ***
MAC G4 640 x 480 60 31.35 *** ***
i MAC DV 1024 x 768 75 60 *** ***
i MAC DV 1152 x 870 75 68.49 *** ***
Appendices
Loading...
