Acer P1500 User Manual

Download

Acer Projector

X111/X1140/X1140A/X111P/X1240/
X1340W/P1340W/P1341W/
X1340WH/P1340WG/H6510BD/
P1500
Series User's Guide
Copyright © 2012. Acer Incorporated. All Rights Reserved.
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
TM
"HDMI registered trademarks of HDMI Licensing LLC."
, the HDMI logo and High-Definition Multimedia Interface are trademarks or

Information for Your Safety and Comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to the external power supply unit:
•
Install the power supply unit before connecting the power cord to the AC power outlet.
•
Unplug the power cord before removing the power supply unit from the projector.
•
If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.
iii
Warnings!
•
Do not use this product near water.
•
Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
•
Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
•
Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
iv
•
To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
•
Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices or lamp.
Using electrical power
•
This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
•
Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
•
If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
•
Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
•
This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
•
Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (14.76 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when:
•
the power cord or plug is damaged, cut or frayed
•
liquid was spilled into the product
•
the product was exposed to rain or water
•
the product has been dropped or the case has been damaged
•
the product exhibits a distinct change in performance, indicating a need for service
•
the product does not operate normally after following the operating instructions
Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.
v
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.
Additional safety information
•
Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.
•
Turn on the projector first and then signal sources.
•
Do not place the product in the following environments:
• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector are necessary.
• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.
• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the life span and darken the image.
• Locations near fire alarms.
• Locations with an ambient temperature above 40 ºC/104 ºF.
• Locations where the altitudes are higher than 10000 feet.
•
Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It
vi
might cause fire or electric shock. In this case, unplug immediately and contact your dealer.
•
Do not keep using this product to break or drop it. In this case contact your dealer for inspection.
•
Do not face the projector lens to the sun. It can lead to fire.
•
When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.
•
Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to stop before turning main power off.
•
Do not touch the air outlet grille and bottom plate which become hot.
•
Clean the air filter frequently. The temperature inside may rise and cause damage when the filter/ventilation slots are clogged with dirt or dust.
•
Do not look into the air outlet grille when projector is operating. It may hurt your eyes.
•
Always open the lens shutter or remove the lens cap when the projector is on.
•
Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.
•
The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.
•
Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.
•
Never replace the lamp assembly or any electronic components unless the projector is unplugged.
•
The product will detect the life of the lamp itself. Please be sure to change the lamp when warning messages display.
•
When changing the lamp, please allow the projector to cool down, and follow all changing instructions.
•
Reset the "Lamp Hour Reset" function from the Onscreen Display "Management" menu after replacing the lamp module.
•
Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.
•
Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.
•
This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.
vii
"Lamp(s) contain Mercury, Dispose Properly."
Caution for Listening
To protect your hearing, follow these instructions.
•
Increase the volume gradually until you can hear clearly and comfortably.
•
Do not increase the volume level after your ears have adjusted.
•
Do not listen to music at high volumes for extended periods.
•
Do not increase the volume to block out noisy surroundings.
•
Decrease the volume if you can't hear people speaking near you.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/ Sustainability/sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org
viii

First Thing First

Usage Notes

Do:
•
Turn off the product before cleaning.
•
Use a soft cloth moistened with mild detergent to clean the display housing.
•
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Don't:
•
Block the slots and openings on the projector provided for ventilation.
•
Use abrasive cleaners, waxes or solvents to clean the unit.
•
Use under the following conditions:
•
In extremely hot, cold or humid environments.
•
In areas susceptible to excessive dust and dirt.
•
Near any appliance that generates a strong magnetic field.
•
Place in direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.
Warning:
•
Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.
•
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
•
Please do not open or disassemble the product as this may cause electric shock.
•
When changing the lamp, please allow the projector to cool down, and follow all changing instructions.
•
This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
•
Reset the "Lamp Hour Reset" function from the Onscreen Display "Management" menu after replacing the lamp module.
•
When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.
•
Turn on the projector first and then the signal sources.
•
Do not use lens cap when projector is in operation.
•
When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".
Information for Your Safety and Comfort iii
First Thing First viii
Usage Notes viii
Precautions viii
Introduction 1
Product Features 1
Package Overview 2
Projector Overview 3
Projector Outlook 3
Control Panel 4

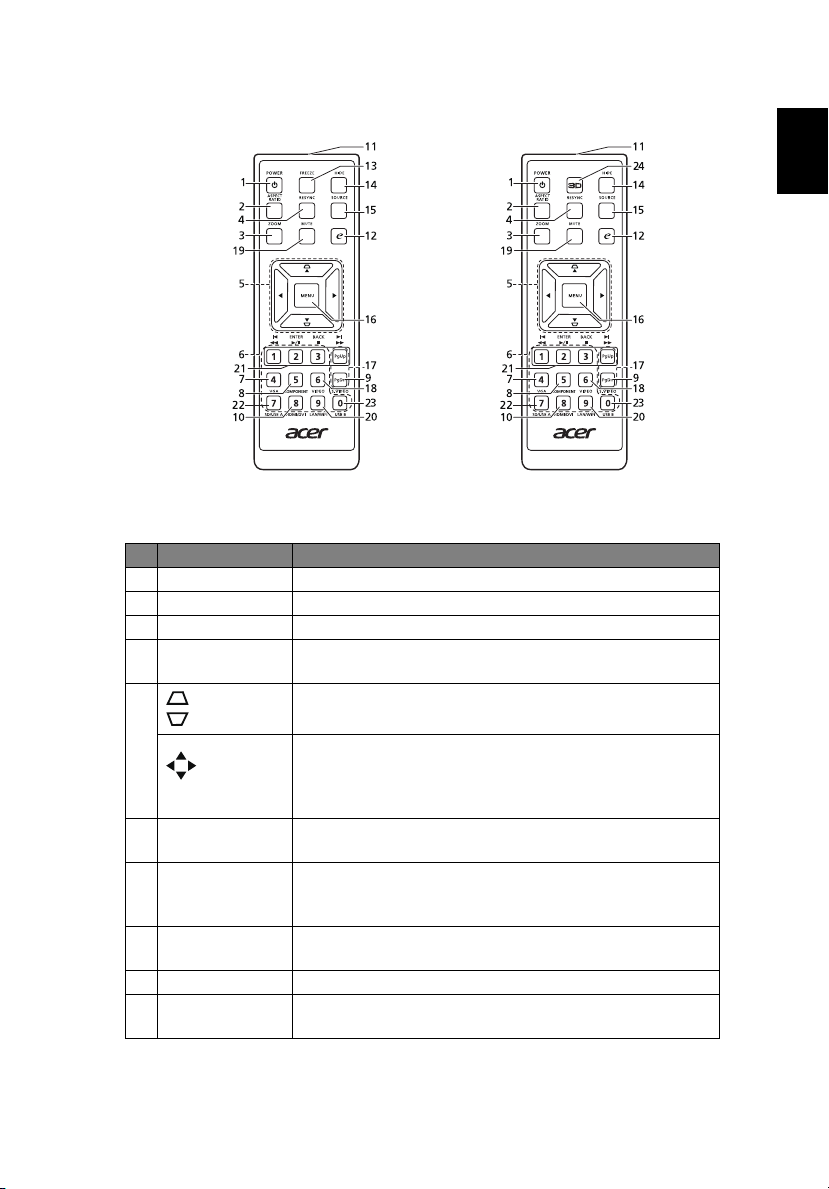

Remote Control Layout 5
Getting Started 7

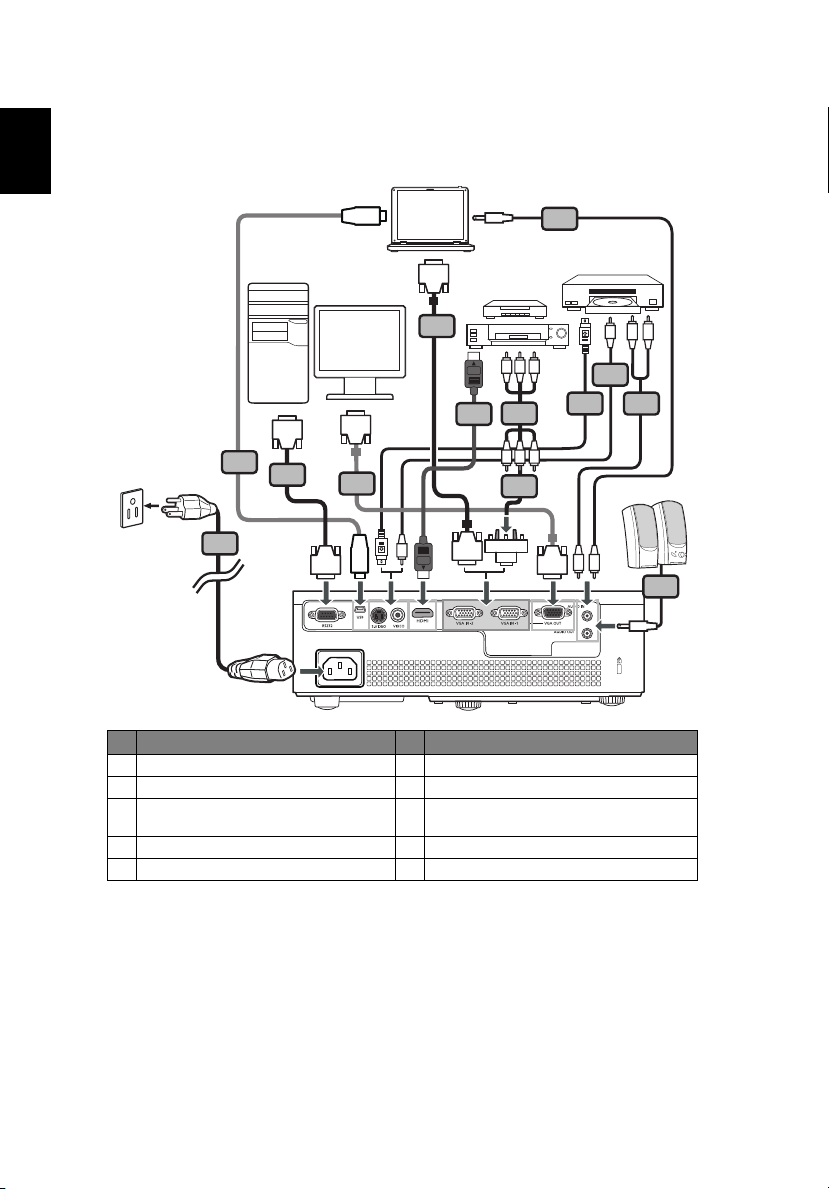

Connecting the Projector 7
Turning the Projector On/Off 10
Turning On the Projector 10
Turning Off the Projector 11
Adjusting the Projected Image 12
Adjusting the Height of the Projected Image 12
How to Optimize Image Size and Distance 13
How to Get a Preferred Image Size by Adjusting Distance and Zoom 16

Contents

User Controls 19
Installation Menu 19
Acer Empowering Technology 20
Onscreen Display (OSD) Menus 23
Color 24
Image 27
Setting 31
Management 35
Audio (X1140A/X111P/X1240/X1340W/P1340W/P1341W/ X1340WH/H6510BD/P1500) 36
3D 37
Language 39
Appendices 40
Troubleshooting 40
LED & Alarm Definition Listing 44
Replacing the Lamp 45
Ceiling Mount Installation 46
Specifications 49
Compatibility Modes 52
Regulations and safety notices 56
English

Introduction

Product Features
This product is a single-chip DLP® projector, including the following outstanding features:
•
DLP® technology
•
X111/X1140/X1140A/X111P: Native 800 x 600 SVGA resolution, Auto/4:3/ 16:9 aspect ratio supported X1240: Native 1024 x 768 XGA resolution, Auto/4:3/16:9 aspect ratio supported X1340W/P1340W/P1341W/X1340WH/P1340WG: Native 1280 x 800 WXGA resolution,Auto/Full/4:3 /16:9/L.Box aspect ratio supported H6510BD/P1500: Native 1920 x 1080 1080p resolution,Auto/Full/4:3/16:9/ L.Box aspect ratio supported
•
Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D supported (P1340W/P1341W/X1340WH/P1340WG and H6510BD/P1500) and Nvidia 3DTV Play Ready (H6510BD only)
•
Enriches 3D experience for 2D contents via 2D to 3D convert function (H6510BD only)
•
One-touch "3D" button on remote control allows quick and easy access to the 3D functions (H6510BD only)
•
Acer ColorBoost technology delivers vivid, life-like images
•
High brightness and contrast ratio
•
Versatile display modes enable optimum performance in any situation
•
NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported
•
Lower power consumption and economy (ECO) mode extends lamp life
•
Dynamic Black / ExtremeEco functions help decrease lamp power consumption and further extend lamp life.
-
Dynamic Black: If turned on, the projector dynamically adjusts the power consumption of the lamp according to the brightness of the image being projected. When projecting darker images the power consumption will be reduced and the contrast of the image will also be enhanced.
-
ExtremeEco: The projector will decrease the power consumption of the lamp by up to 70% when no input signal can be detected for 5 seconds.
•
Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement
•
Empowering Key reveals Acer Empowering Technology functions for easy adjustment of settings
•
Advanced keystone correction delivers optimum presentations
•
Multi-language Onscreen Display (OSD) menus
•
Manual focus/zoom projection lens
•
2X digital zoom and pan move function
•
Microsoft® Windows® 2000, XP, 7, Vista®, Macintosh OS compliant
1
2
English
Package Overview
This projector comes with all the items shown below. Check to make sure you have them all. Contact your dealer immediately if any thing is missing.
Projector Power cord VGA cable
Security card User’s guide (CD-ROM) Remote control
Quick start guide Battery x 2 Carrying case
Dust filter
(Optional)
(Optional)
English
Projector Overview
1
5
6
4
3
2
7
(X111/X1140)
(X1140A/X111P/ X1240/X1340W)
(P1340W/P1341W/ X1340WH)
(H6510BD)
(P1500)
(P1340WG)
Projector Outlook
Front/upper side
# Description # Description 1 Control panel 5 Zoom ring 2 Projection lens 6 Focus ring 3 Tilt adjusting wheel 7 Remote control receiver 4 Power key and Power indicator LED
Rear side
3
# Description # Description 1 Mini USB connector 7 HDMI connector 2 Monitor loop-through output connector 8 Power socket 3 Analog RGB signal/HDTV/component
video input connector
9 Tilt adjusting wheel
4 RS232 connector 10 Kensington™ lock port 5 S-Video input connector
Composite video input connector
6 Audio input connector
11 Component video input
connector
Audio output connector
4
English
Control Panel
1
7
2
3
8
4
9
5
6
10
3
# Function Description 1 LAMP Lamp Indicator LED. 2POWER indicator
LED
3 Keystone Adjusts image distortion caused by tilting projection
4 RESYNC Automatically synchronizes the projector to the input
5 MENU Launches the Onscreen Display (OSD) menu, returns to
6 Power key Refer to the "Turning the Projector On/Off" section. 7 TEMP Temp Indicator LED. 8 SOURCE Chooses RGB, component video, S-Video, composite
9 Four directional
selection keys
10 Empowering key Enables unique Acer functions: eView, eTimer, ePower
Refer to the "Turning the Projector On/Off" section.
(±40 degrees).
source.
the previous step for the OSD menu operation or exits the OSD menu.
video, HDMI or HDTV source. Selects items or makes adjustments to your selection
Management, e3D.
English
Remote Control Layout
X111/X1140/X1140A/X111P/
X1240/X1340W/P1340W/P1341W/
X1340WH/P1340WG/P1500
H6510BD
# Function Description 1 POWER Refer to the "Turning the Projector On/Off" section. 2 ASPECT RATIO To choose the desired aspect ratio. 3 ZOOM Zooms the projector display in or out. 4 RESYNC Automatically synchronizes the projector to the input
5
Keystone
Four directional selection keys
6 Keypad 0~9 Press "0~9" to input a password in the "Setting" >
7 VGA To change source to VGA. This connection supports
8 COMPONENT To change source to Component video. This connector
9 S-VIDEO To change source to S-Video. 10 HDMI™;
HDMI™/DVI
source. Adjusts image distortion caused by tilting projection
(±40 degrees).
Selects items or makes adjustments to your selection.
"Security" OSD.
analog RGB, YPbPr (480p/576p/720p/1080i/1080p), and YCbCr (480i/576i).
supports YPbPr.
To change source to HDMI™ (or DVI). (P1340W/P1341W/ X1340WH/P1340WG/H6510BD/P1500 only)
5
6
English
VZ.JDW00.001
(X1340W/P1340W/P1341W/ X1340WH)
(X111/X1140/X1140A/ X111P/X1240/P1500/P1340WG)
(H6510BD)
# Function Description
11 Infrared
transmitter
12 Empowering key Enables unique Acer functions: eView, eTimer, ePower
13 FREEZE To pause the screen image. 14 HIDE Press "HIDE" to hide screen image; press again to
15 SOURCE Chooses RGB, component video, S-Video, composite
16 MENU Launches the Onscreen Display (OSD) menu, returns to
17 PgUp/PgDn For computer mode only. Use this button to select the
18 VIDEO To change source to composite video. 19 MUTE To turn on/off the volume. 20 WIRELESS;
LAN/WiFi
21
Rewind Play/Pause Stop
Fast-forward 22 SD/USB A (No function) 23 USB B (No function) 24 3D Press to open the 3D menu for adjusting 3D settings.
Sends signals to the projector.
Management, e3D.
display the image.
video, HDMI or HDTV source.
the previous step for the OSD menu operation or exits the OSD menu.
next or previous page. This function is only available when connected to a computer via a USB cable.
(No function)
(No function)
English

Getting Started

RS232
RS232
RBG
RBG
HDTV adapter
D-Sub
D-Sub
7
8
D-Sub
D-Sub
2
5
6
4
2
USB
USB
1
R
W
9
3
Y
Y
5
5
R
W
DVD player, Set-top box,
HDTV receiver
VGA
RS232
Video/S-Video
Output
Display
Speakers
X111/X1140/X1140A/X111P/X1240/X1340W
Connecting the Projector
7
# Description # Description
8USB cable
1Power cord 6S-Video cable
2 VGA cable 7 RS232 cable
3 VGA to component video/HDTV
4 Composite video cable 9 3 RCA component cable
5 Audio cable
adapter
8
English
RBG
D-Sub
HDTV adapter
D-Sub
D-Sub
8
D-Sub
2
6
4
USB
1
R
W
9
Y
Y
5
5
USB
3
7
RS232
RS232
2
10
RBG
R
W
5
DVD player, Set-top box,
HDTV receiver
VGA
RS232
Video/S-Video
Output
Display
Speakers
P1340W/P1341W/X1340WH/P1340WG
# Description # Description
1Power cord 6S-Video cable
2 VGA cable 7 RS232 cable
3 VGA to component video/HDTV
adapter
4 Composite video cable 9 3 RCA component cable
5 Audio cable 10 HDMI cable
8USB cable
English
DVD player, Set-top box,
HDTV receiver
VGA
RS232
Video/S-Video
Output
Display
Speakers
H6510BD/P1500
9
# Description # Description
1 Power cord 7 RS232 cable
2 VGA cable 8 USB cable
4 Composite video cable 9 3 RCA component video cable
5 Audio cable 10 HDMI cable
6S-Video cable
Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.
10
English
1 & 2
Turning the Projector On/Off
Turning On the Projector
1 Ensure that the power cord and signal cable are securely connected.
The Power LED will light red.
2 Turn on the projector by pressing (POWER) on the control panel or
remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player, etc.). The
projector will detect your source automatically.
• If the screen displays "No Signal", please make sure the signal cables are securely connected.
• If you connect to multiple sources at the same time, use "SOURCE" on the control panel or remote control, or the direct source key on the remote control to switch between inputs.
English
Turning Off the Projector
1 To turn the projector off, press the power button. This message
appears:
"Please press power button again to complete the shutdown process"
Press the power button again.
2 The LED Power indicator will turn solid red to indicate standby mode.
3 It is now safe to unplug the power cord.
When Instant Resume is selected:
1 The LED Power indicator will turn RED and blink rapidly after the
projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly.
2 As long as the power cord remains plugged in, you can press the
power button to turn the projector immediately back on anytime during the 2-minute shutdown process.
3 Once the system has finished cooling, the LED Power indicator will
stop blinking and turn solid red to indicate standby mode.
4 It is now safe to unplug the power cord.
Warning indicators:
11
• "Projector Overheated. Lamp will automatically turn off soon." This onscreen message indicates that the projector has overheated. The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will turn solid red. Contact your local dealer or service center.
• "Fan failed. Lamp will automatically turn off soon." This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will blink. Contact your local dealer or service center.
Note: Whenever the projector automatically shuts down and
the
LED Temp indicator turns solid red, contact your local
reseller or service center
.
12
English
Tilt adjusting wheel
Tilt adjusting wheel
Adjusting the Projected Image
Adjusting the Height of the Projected Image
The projector is equipped with two elevator feet for adjusting the image height.
To raise the image:
1 Use the front Tilt adjusting wheel to raise the image to the desired
height and angle.
2 Use the rear Tilt adjusting wheel to fine-tune the display angle.
To lower the image:
1 Use the front Tilt adjusting wheel to lower the image to the desired
height angle.
2 Use the rear Tilt adjusting wheel to fine-tune the display angle.
2
1
13
English
3 m Desired distance
Height: 121 cm
Height: 133 cm From base to top of image
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
72"
79"
How to Optimize Image Size and Distance
Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.
•
X111/X1140/X1140A/X111P/X1240 If the projector is 3 m from the screen, good image quality is possible for image sizes between 72" and 79".
Note: Remind as below figure, the space of 133 cm height is required when the projector is located at 3 m distance.
Desired
Distance
(m)
< A >
Minimum Screen Size (Min zoom) Maximum Screen Size (Max zoom)
Diagonal
(inch)
< B >
W (cm) x H (cm)
From base to top of image
(cm)
< C >
Diagonal
(inch)
< B >
W (cm) x H (cm)
1 24 49 x 37 40 26 54 x 40 44
1.5 36 74 x 55 61 40 81 x 60 67 2 48 98 x 74 81 53 108 x 81 89
2.5 60 123 x 92 101 66 134 x 101 111 3 72 147 x 110 121 79 161 x 121 133
3.5 84 172 x 129 142 93 188 x 141 155 4 96 196 x 147 162 106 215 x 161 177
4.5 108 221 x 165 182 119 242 x 181 200 5 120 245 x 184 202 132 269 x 202 222 6 144 294 x 221 243 159 323 x 242 266 7 168 343 x 257 283 185 376 x 282 310 8 192 392 x 294 324 212 430 x 323 355 9 216 441 x 331 364 238 484 x 363 399
10 241 490 x 368 404 265 538 x 403 444 11 265 539 x 404 445 291 591 x 444 488 12 289 588 x 441 485 318 645 x 484 532
Zoom Ratio: 1.1 x
From base to top of image
(cm)
< C >
14
English
3 m Desired distance
Height: 114 cm
Height: 125 cm From base to top of image
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
84"
93"
•
X1340W/P1340W/P1341W/X1340WH/P1340WG If the projector is 3 m from the screen, good image quality is possible for image sizes between 84" and 93".
Note: Remind as below figure, the space of 125 cm height is required when the projector is located at 3 m distance.
Desired
Distance
(m)
< A >
Minimum Screen Size (Min zoom) Maximum Screen Size (Max zoom)
Diagonal
(inch)
< B >
W (cm) x H (cm)
From base to top of image
(cm)
< C >
Diagonal
(inch)
< B >
W (cm) x H (cm)
From base to top of image
1 28 61 x 38 38 31 67 x 42 42
1.5 42 91 x 57 57 46 100 x 63 63 2 56 121 x 76 76 62 133 x 83 83
2.5 70 152 x 95 95 77 167 x 104 104 3 84 182 x 114 114 93 200 x 125 125
3.5 98 212 x 133 133 108 233 x 146 146 4 113 242 x 152 152 124 267 x 167 167
4.5 127 273 x 170 170 139 300 x 188 188 5 141 303 x 189 189 155 333 x 208 208 6 169 364 x 227 227 186 400 x 250 250 7 197 424 x 265 265 217 467 x 292 292 8 225 485 x 303 303 248 533 x 333 333 9 253 545 x 341 341 279 600 x 375 375
10 281 606 x 379 379 310 667 x 417 417 11 310 667 x 417 417 340 733 x 458 458 12 338 727 x 455 455 371 800 x 500 500
Zoom Ratio: 1.1 x
(cm)
< C >
15
English
3 m Desired distance
Height: 118 cm
Height: 154 cm From base to top of image
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
91"
118"
•
H6510BD/P1500 If the projector is 3 m from the screen, good image quality is possible for image sizes between 91" and 118".
Note: Remind as below figure, the space of 154 cm height is required when the projector is located at 3 m distance.
Desired
Distance
(m)
< A >
Minimum Screen Size (Min zoom) Maximum Screen Size (Max zoom)
Diagonal
(inch)
< B >
W (cm) x H (cm)
From base to top of image
(cm)
< C >
Diagonal
(inch)
< B >
W (cm) x H (cm)
1 30 67 x 38 39 39 87 x 49 51
1.5 45 100 x 56 59 59 130 x 73 77 2 61 133 x 75 79 79 174 x 98 103
2.5 76 167 x 94 98 98 217 x 122 128 3 91 200 x 113 118 118 261 x 147 154
3.5 106 233 x 131 138 137 304 x 171 180 4 121 267 x 150 158 157 348 x 196 205
4.5 136 300 x 169 177 177 391 x 220 231 5 152 333 x 188 197 196 435 x 245 257 6 182 400 x 225 236 236 522 x 293 308 7 212 467 x 263 276 275 609 x 342 360 8 242 533 x 300 315 314 696 x 391 411 9 273 600 x 338 354 354 783 x 440 462
10 303 667 x 375 394 393 870 x 489 514 11 333 733 x 413 433 432 957 x 538 565 12 364 800 x 450 473 471 1043 x 587 616
Zoom Ratio: 1.3 x
From base to top of image
(cm)
< C >
16
English
Desired distance
Height: 117 cm From base to top of image
70" Desired image size
2.6 m
2.9 m
How to Get a Preferred Image Size by Adjusting Distance and Zoom
The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.
•
X111/X1140/X1140A/X111P/X1240 To obtain an image size of 70", set the projector at a distance between 2.6 m and 2.9 m from the screen and adjust the zoom level accordingly.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
< A >
W (cm) x H (cm)
Max zoom
< B >
Min zoom
< C >
30 61 x 46 1.2 50
40 81 x 61 1.5 1.7 67
50 102 x 76 1.9 2.1 84
60 122 x 91 2.3 2.5 101
70 142 x 107 2.6 2.9 117
80 163 x 122 3.0 3.3 134
90 183 x 137 3.4 3.7 151
100 203 x 152 3.8 4.2 168
120 244 x 183 4.5 5.0 201
150 305 x 229 5.7 6.2 251
180 366 x 274 6.8 7.5 302
200 406 x 305 7.6 8.3 335
250 508 x 381 9.4 10.4 419
300 610 x 457 11.3 503
Zoom Ratio: 1.1 x
From base to top of
image < D >
English
•
Desired distance
Height: 94 cm From base to top of image
70" Desired image size
2.3 m
2.5 m
X1340W/P1340W/P1341W/X1340WH/P1340WG To obtain an image size of 70" set the projector at a distance between 2.3 m and 2.5 m from the screen and adjust the zoom level accordingly.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
< A >
W (cm) x H (cm)
30 65 x 40 1.1 40
40 86 x 54 1.3 1.4 54
50 108 x 67 1.6 1.8 67
60 129 x 81 1.9 2.1 81
70 151 x 94 2.3 2.5 94
80 172 x 108 2.6 2.8 108
90 194 x 121 2.9 3.2 121
100 215 x 135 3.2 3.6 135
120 258 x 162 3.9 4.3 162
150 323 x 202 4.8 5.3 202
180 388 x 242 5.8 6.4 242
200 431 x 269 6.5 7.1 269
250 538 x 337 8.1 8.9 337
300 646 x 404 9.7 404
Zoom Ratio: 1.1 x
Max zoom
< B >
Min zoom
< C >
From base to top of
image < D >
17
18
English
Desired distance
Height: 92 cm From base to top of image
70" Desired image size
1.8 m
2.3 m
•
H6510BD/P1500 To obtain an image size of 70" set the projector at a distance between 1.8 m and 2.3 m from the screen and adjust the zoom level accordingly.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
< A >
W (cm) x H (cm)
30 66 x 37 1.0 39
40 89 x 50 1.0 1.3 52
50 111 x 62 1.3 1.6 65
60 133 x 75 1.5 2.0 78
70 155 x 87 1.8 2.3 92
80 177 x 100 2.0 2.6 105
90 199 x 112 2.3 3.0 118
100 221 x 125 2.5 3.3 131
120 266 x 149 3.1 4.0 157
150 332 x 187 3.8 4.9 196
180 398 x 224 4.6 5.9 235
200 443 x 249 5.1 6.6 262
250 553 x 311 6.4 8.2 327
300 664 x 374 7.6 392
Zoom Ratio: 1.3 x
Max zoom
< B >
Min zoom
< C >
From base to top of
image < D >
19
English
(X1140A/X1240/X1340W/ P1340W/P1341W/ X1340WH
/P1340WG)
(X111/X1140/X111P/H6510BD/P1500)

User Controls

Installation Menu
The Installation menu provides an Onscreen Display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal" is displayed on the screen.
1 Turn on the projector by pressing (POWER) on the control panel or
remote control.
2 Press "MENU" on the control panel or remote control to launch the
OSD for projector installation and maintenance.
3 The background pattern acts as a guide to adjusting the calibration
and alignment settings, such as screen size and distance, focus and more.
4 The Installation menu includes the following options:
• Projection method
• Keystone settings
• Language settings
• Reset to factory default functions
Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.
5 Press "MENU" anytime to exit the menu and return to the Acer
welcome screen.
20
English
X1340W/P1340W/ P1341W/X1340WH)
(H6510BD)
(X111/X1140/X1140A/ X111P/X1240)
(P1500
/P1340WG)
Acer Empowering Technology
Empowering Key
Acer eView Management
Acer Empowering Key provides four Acer unique functions: "Acer eView Management", "Acer eTimer Management", "Acer ePower Management" and "Acer e3D
Management". Press " " repeatedly to cycle through these functions.
Press " " to launch "Acer eView Management". "Acer eView Management" is for display mode selection. Please refer to the "Onscreen Display (OSD) Menus" section for more details.
21
English
(X111/X1140/X1140A/ X111P/X1240/P1340W/ P1341W/X1340WH/ H6510BD/P1500)
(
P1340WG)
Acer eTimer Management
Acer ePower Management
Press " " to launch "Acer eTimer Management". "Acer eTimer Management" provides the reminding function for presentation time control. Please refer to the "Onscreen Display (OSD) Menus" section for more details.
Press " " to launch "Acer ePower Management". "Acer ePower Management"provides you one shortcut to save the lamp and projector’s life. Please refer to the "Onscreen Display (OSD) Menus" section for more details.
22
English
(X111/X1140/X1140A/ X111P/X1240/X1340W/ P1340W/P1341W/ X1340WH/P1340WG/ P1500)
(H6510BD)
Acer e3D Management
Press " " to launch "Acer e3D Management". "Acer e3D Management" provides you one shortcut to adjust 3D settings. Please refer to the "Onscreen Display (OSD) Menus" section for more details.
English
Onscreen Display (OSD) Menus
Main menu
Submenu
Setting
The projector has multilingual Onscreen Display (OSD) menus that allow you to make image adjustments and change a variety of settings.
Using the OSD menus
•
To open the OSD menu, press "MENU" on the control panel or remote control.
•
When the OSD is displayed, use to select an item in the main menu.
After selecting the desired main menu item, press to enter a submenu for feature setting.
•
Use to select the desired item and adjust the settings by using
.
•
Select the next item to be adjusted in the submenu and adjust as described above.
•
Press "MENU" on the control panel or remote control, the screen will return to the main menu.
•
To exit the OSD menu, press "MENU" on the control panel or remote control again. It will close and the projector will automatically save the new settings.
23
24
English
(X111/X1140/P1340WG)
(X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/P1500)
(H6510BD)
Color
Display Mode
There are many factory presets optimized for various types of images.
•
Bright: For brightness optimization.
•
Presentation (X111/X1140/X1140A/X111P/X1240/ X1340W/P1340W/P1341W/X1340WH/P1340WG/P1500): For meeting presentation with higher brightness.
•
Standard: For common environment.
•
Movie (H6510BD): For brighter and general movie/ video/photo playing.
•
Dark Cinema (H6510BD): For dark movie content.
•
Video (X111/X1140/X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/P1340WG/P1500): For playing video in a bright environment.
•
Picture (X1340W/P1340W/P1341W/X1340WH): For graphic picture.
English
Wall Color
Brightness
Contrast
•
Game (X111/X1140/X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/H6510BD): For game content.
•
Education (X111/X1140/X1140A/X111P/X1240/ X1340W/P1340W/P1341W/X1340WH): For education environment.
•
Sport (H6510BD): For sport picture.
•
User: Memorize user’s settings.
Use this function to choose a proper color according to the wall. There are several choices, including White, Light Yellow, Light Blue, Pink and Dark Green. It will compensate for the color deviation due to the wall color to show the correct image tone.
Adjusts the brightness of the image.
•
Press to darken the image.
•
Press to lighten the image.
Controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
•
Press to decrease the contrast.
•
Press to increase the contrast.
Adjusts a video image from black and white to fully saturated colors.
25
Saturation
Tint
Color Temperature
Dynamic Black
•
Press to decrease the amount of color in the image.
•
Press to increase the amount of color in the image.
Adjusts the color balance of red and green.
•
Press to increase the amount of green in the image.
•
Press to increase the amount of red in the image.
Adjusts the color temperature. At higher color temperatures, the screen looks colder; at lower color temperatures, the screen looks warmer.
If turned on, the projector dynamically adjusts the power consumption of the lamp according to the brightness of the image being projected. When projecting darker images the power consumption will be reduced and the contrast of the image will also be enhanced.
26
English
Gamma
Advanced (H6510BD)
Effects the representation of dark scenery. With greater gamma value, dark scenery will look brighter.
•
Ind. Color Management: Adjusts the red, green, blue, cyan, yellow and magenta colors.
•
- Ind. Hue: Changes the hue of the color selected.
•
- Ind. Saturation: Adjusts a video image from black and white to fully saturated color.
•
- Ind. Gain: Adjusts the contrast levels.
•
Brilliant Color: Produces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images. This feature is "On" by default.
•
White Peaking: Increases the brightness of whites that are near 100%. (Video sources only)
•
Film Mode: Sets the image optimized to 24-frame True Film mode for more realistic cadence of film playback during motion sequences.
•
Noise Reduction: Adjusts the level of noise reduction that helps to eliminate unwanted noise in the picture.
•
Black Extension: Analyzes the current input image and calculates an offset value which is then added to the analog to digital converter black level value. This ensures optimum black level for each analog source.
Note: "Saturation", "Tint" and "Advanced" functions are not supported under computer mode.
English
(X1140A/X1240/X1340W)
(P1340W/P1341W/X1340WH)
(X111/X1140/X111P)
(H6510BD/P1500)
(P1340WG)
27
28
English
Projection (X111/X1140/ X111P/ H6510BD/ P1500)
Projection Mode (X1140A/ X1240/X1340W/ P1340W/ P1341W/ X1340WH/ P1340WG)
Projection Location (X1140A/X1240/ X1340W/ P1340W/ P1341W/ X1340WH/ P1340WG)
Aspect Ratio
•
•
•
•
•
•
•
•
•
Use this function to choose your desired aspect ratio.
•
•
•
•
•
Front-Desktop: The factory default setting.
Front-Ceiling: When you select this function, the projector inverts the image for ceiling-mounted projection.
Rear-Desktop: When you select this function, the projector reverses the image so that you can project behind a translucent screen.
Rear-Ceiling: When you select this function, the projector reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.
Front: The factory default setting.
Rear: Reverses the image so you can project from behind a translucent screen.
Auto: Automatically adjusts projection location of image.
Desktop
Ceiling: Turns the image upside down for ceiling­mounted projection.
Auto: Keeps the image with original width-height ratio and maximizes the image to fit native horizontal or vertical pixels.
Full (X1340W/P1340W/P1341W/X1340WH/P1340WG/ H6510BD/P1500): The image will be displayed making full use of the horizontal and vertical pixels.
4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.
16:9: The image will be scaled to fit the screen and displayed using a 16:9 ratio.
L.Box (X1340W/P1340W/P1341W/X1340WH/P1340WG/ H6510BD/P1500): Keeps the original signal aspect ratio and zooms in by 1.333 times.
29
English
Auto Keystone (X1140A/X1240/ X1340W/ P1340W/ P1341W/ X1340WH/ P1340WG)
Keystone (X111/ X1140/X111P/ H6510BD/ P1500)
Manual Keystone (X1140A/X1240/ X1340W/ P1340W/ P1341W/ X1340WH/ P1340WG)
Sharpness
H. Position (Horizontal Position)
V. Position (Vertical Position)
Frequency
Tracking
Automatically adjusts image distortion caused by tilting projection (±40 degrees).
Manually adjusts image distortion caused by tilting projection (±40 degrees).
This function is unavailable when Auto Keystone is set to "On".
Adjusts the sharpness of the image.
•
Press to decrease the sharpness.
•
Press to increase the sharpness.
•
Press to move the image left.
•
Press to move the image right.
•
Press to move the image down.
•
Press to move the image up.
Changes the projector’s refresh rate to match the frequency of your computer’s graphics card. If you experience a vertical flickering bar in the projected image, use this function to correct it.
Synchronizes the signal timing of the display with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
30
English
HDMI Color Range (P1340W/ P1341W/ X1340WH/ P1340WG/ H6510BD/ P1500)
HDMI Scan Info (P1340W/ P1341W/ X1340WH/ P1340WG/ H6510BD/ P1500)
Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under video mode.
Note: "Sharpness" function is not supported under computer mode.
Note: "HDMI Color Range" and "HDMI Scan Info" are only available when the input signal is HDMI.
Adjusts the color range of the HDMI image data to prevent color display error.
•
Auto: Automatically adjusts the color range by information from the player.
•
Limited Range: Processes the input image as limited color range data.
•
Full Range: Processes the input image as full color range data.
Adjusts the overscan ratio of the HDMI image on screen.
•
Auto: Automatically adjusts the overscan ratio by information from the player.
•
Underscan: Always no overscan on the HDMI image.
•
Overscan: Always keep overscan on the HDMI image.
English
Setting
(X1140A/X111P/X1240/X1340W)
(P1340W/P1341W/X1340WH/ H6510BD/P1500)
(X111/X1140)
(P1340WG)
31
Startup Screen (P1340W/ P1341W/ X1340WH/ P1340WG/ H6510BD/ P1500)
Use this function to select your desired startup screen. If you change the setting, it will take effect when you exit the OSD menu.
•
Acer: The default startup screen of your Acer projector.
•
User: Use the memorized picture from the "Screen Capture" function.
32
English
Screen Capture (P1340W/ P1341W/ X1340WH/ P1340WG/ H6510BD/ P1500)
Closed Caption
VGA OUT (Standby) (X1140A/X111P/ X1240/X1340W/ P1340W/ P1341W/ X1340WH/ P1340WG/ H6510BD/ P1500)
Reset
Use this function to customize the startup screen. To capture the image that you want to use as the startup screen, follow the instructions below. Notice Before proceeding with the following steps, make sure that the "Keystone" is set to the default value "0", and the "Aspect Ratio" is set to "4:3". For details, refer to the "Image" section.
•
Change the "Startup Screen" from the default setting "Acer" to "User".
•
Select "Screen Capture" to customize the startup screen.
•
A dialog box appears to confirm the action. Choose "Yes" to use the current image as your customized startup screen. Choose "No" to cancel the screen capture and exist the Onscreen Display (OSD).
•
A message appears stating that the screen capture is in progress.
•
When the screen capture is finished, the message disappears and the original display is shown.
Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4 (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S­Video input signal is selected and its system format is NTSC.
Selecting "On" enables the function. The projector can output a VGA signal when it is in standby mode and the VGA IN (or VGA IN 1) and VGA OUT sockets are correctly connected to the devices.
Enabling this function slightly increases the standby power consumption.
Press after choosing "Yes" to return the display
parameters on all menus to the factory default settings.
English
Security
P1340W/P1341W/ X1340WH/ P1340WG/ H6510BD/P1500
X111/X1140/ X1140A/X111P/ X1240/X1340W
This projector provides a useful security function for the administrator to manage the projector.
Press to change the "Security" setting. If the security
function is enabled, your must enter "Administrator Password" first before changing the security setting.
33
Security
The factory default of "Administrator Password" is "1234".
•
Select "On" to enable the security function. You have to enter password depending on the "Security Mode". Please refer to "User Password" section for details.
•
If "Off" is selected, you can switch on the projector without password.
Timeout (Min.) Once "Security" is set to "On", you can set timeout function.
•
Press to select timeout duration.
•
The range is from 10 to 990 minutes.
•
When time is up, the projector will request you to enter the password again.
•
The factory default setting of "Timeout (Min.)" is "Off".
•
Once the security function is enabled, the projector will request you to enter password when switching on the projector. Both "User Password" and "Administrator Password" can be accepted for this dialogue.
User Password
•
Press to set up or change "User Password".
•
Use the numerical keys on the remote control to set the password and press "MENU" to confirm.
•
To delete the digits, Press .
•
Enter the password again when you see "Confirm Password" displayed.
•
The password should be 4~8 digits in length.
•
If you select "Request password only after plugging power cord", you are requested to input the password every time the power cord is plugged.
•
If you select "Always request password while projector turns on", you are requested to input the password every time the projector is turned on.
34
English
Administrator Password You can enter "Administrator Password" when the "Enter Administrator Password" or "Enter Password" dialogue box displays.
•
Press to change "Administrator Password".
•
The factory default of "Administrator Password" is "1234".
If you forget your administrator password, do the following to retrieve the administrator password:
•
Enter the unique 6-digit "Universal Password" which is printed on the Security Card that came with your projector. This unique password will be accepted by the projector no matter what the administrator password is.
•
If the Security Card is lost, please contact your local Acer service center.
Lock User Startup Screen (P1340W/P1341W/X1340WH/ P1340WG/H6510BD/P1500) This function is set to "OFF" by default. If set to "ON", the startup screen is locked and cannot be changed by the "Startup Screen" and "Screen Capture" functions.
English
Management
(X111/X1140/P1340WG)
(X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/ H6510BD/P1500)
35
ECO Mode
High Altitude
Turn Off Mode
Auto Shutdown (Minutes)
Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).
Lamp Reminding
Lamp Hour Reset
Choose "On" to dim the projector lamp, which will also lower the power consumption, reduce noise, and extend the lamp life. Choose "Off" to return to the normal mode.
Choose "On" to turn on the High Altitude mode. When this function is turned on, the projector fans operate at full speed continuously to cool down the projector’s temperature.
•
Instant Off: Enables you to turn off the projector immediately without fan cooling process by pressing the power button twice.
•
Instant Resume: Enables you to restart the projector immediately within 2 minutes after turning it off.
The projector will automatically shut down while there is no signal input detected after the time you set.
Choose this function to show or hide warning message when the changing lamp message is displayed. The message will show up 30 hours before end of life.
Press after choosing "Yes" to reset the lamp hour
counter to 0 hours.
36
English
(X1140A/X111P/X1240/X1340W)
(P1340W/P1341W/X1340WH)
(H6510BD/P1500)
Audio (X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/H6510BD/P1500)
Volume
Mute
Power On/Off Volume (H6510BD/ P1500)
Alarm Volume (P1340W/P1341W/ X1340WH/ H6510BD/P1500)
•
Press to decrease the volume.
•
Press to increase the volume.
•
Choose "On" to turn mute on.
•
Choose "Off" to turn mute off.
Select this function to adjust the notification volume when turning the projector on/off.
Select this function to adjust the volume of any warning notifications.
English
3D
(X111/X1140/P1340WG)
(X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/P1500)
(H6510BD)
37
Selects "On" to enable the 3D function supported by DLP 3D technology.
3D
•
•
On: Select this item while using DLP 3D glasses, quad buffer (NVIDIA/ATI...) graphics card and HQFS format file or DVD with corresponding SW player.
Off: Turns off the 3D mode.
38
English
2D to 3D (H6510BD)
3D Format
3D Sync Invert
3D Warning Message
•
2D to 3D: Converts 2D contents to 3D. Note that DLP 3D glasses are required to obtain the best 3D effect.
•
Mode: Provides several preset 2D to 3D conversion modes for your selection. You can also select User and use the "Convergence" and "Depth" functions described below to setup your customized conversion mode.
•
Convergence: Changes the convergence effect that is used when converting 2D contents to 3D.
•
Depth: Adjusts the image depth of 3D objects.
"Depth" and "Convergence" are only available when "Mode" is set to "User".
If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.
If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).
Choose "On" to display the 3D warning message.
Note: Supported 3D signal timings:
Signal source type Supported timing
Video/S-Video/Component video
VGA/HDMI (PC mode) 640 x 480@50/60/100/120Hz
HDMI (for P1340W/P1341W/ X1340WH/P1340WG/H6510BD/ P1500)
HQFS 3D (480i@60Hz), 576i@50Hz
800 x 600@50/60/100/120Hz 1024 x 768@50/60/100/120Hz 1280 x 800@50/60/100/120Hz
HQFS 3D (480i@60Hz) , 576i@50Hz, Frame Packing (1080p@23.98/24Hz, 720p@50/60Hz) Side-by-Side Horizontal (1080i@50/60Hz, 1080p@50/60Hz) Top-and-Bottom (720p@50/60Hz, 1080p@23.97/24Hz, 1080p@50/60Hz)
English
It needs correct settings on graphics card 3D application program for correct
(X111/X1140/P1340WG)
(X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/ H6510BD/P1500)
3D display.
The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these players on the web page below.
- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx
- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef­3-D-Experience-4.0.2.html
Note: "3D Sync Invert" and "3D Format" are only available when "3D" is enabled and "2D to 3D" is disabled.
Note: "2D to 3D" is only available through HDMI port.
Language
39
Language
Sets a language for the OSD menus. Use to select your preferred language.
40
English

Appendices

Troubleshooting
If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.
Image Problems and Solutions
# Problem Solution
1 No image appears
onscreen
2 Partial, scrolling
or incorrectly displayed image (For PC (Windows 95/98/2000/XP/ Win7/Vista))
•
Make sure all the cables are correctly connected as described in the "Getting Started" section.
•
Ensure none of the connector pins are bent or broken.
•
Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" section.
•
Make sure the projector is switched on.
•
Press "RESYNC" on the control panel or remote control.
•
For an incorrectly displayed image:
•
Open "My Computer > Control Panel," and then double-click the "Display" icon.
•
Select the "Settings" tab.
•
Verify that your display resolution setting is lower than or equal to 1600 x 1200 or 1920 x
1080.
•
If the problem still appears, change the monitor display
you are using and follow the steps below:
Click the "Advanced Properties" button.
•
Verify that the resolution setting is lower than or equal to 1600 x 1200 or 1920 x 1080.
•
Click the "Change" button under the "Monitor" tab.
•
Click "Show all devices > Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.
•
Verify that the resolution setting of the monitor display is lower than or equal to 1600 x 1200 or 1920 x 1080.
41
English
3 Partial, scrolling
or incorrectly displayed image (For notebooks)
4 The screen of the
notebook computer is not displaying your presentation
5 Image is unstable
or flickering
6 Image has vertical
flickering bar
•
Press "RESYNC" on the control panel or remote control.
•
For an incorrectly displayed image:
•
Follow the steps for item 2 (above) to adjust the resolution of your computer.
•
Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]
•
If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
•
If you are using a Microsoft® Windows® based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.
•
If you are using an Apple® Mac® OS based notebook: In System Preferences, open Display and select Video Mirroring "On."
•
Use "Tracking" to correct it. Refer to the "Image" section for more information.
•
Change the display color setting on your computer.
•
Use "Frequency" to make an adjustment. Refer to the "Image" section for more information.
•
Check and reconfigure the display mode of your graphics card to make it compatible with the projector.
7 Image is out of
focus
8 Image is stretched
when displaying a "widescreen" DVD title
•
Adjust the focus ring on the projector lens.
•
Make sure the projection screen is within the required distance:
4.9 to 19.7 feet (1.5 to 6 meters) Refer to the "How to Get a Preferred Image Size by
Adjusting Distance and Zoom" section for more information.
When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:
•
If you play a 4:3 format DVD title, please change the format to 4:3 with the projector OSD.
•
If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.
42
English
9 Image is too small
or too large
10 Image has slanted
sides
11 Image is reversed
•
Adjust the zoom lever on the top of the projector.
•
Move the projector closer to or further from the screen.
•
Press "MENU" on the control panel or remote control. Go to "Image" > "Aspect Ratio" and try different settings.
•
If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
•
Press the Keystone correction keys on the control panel or remote control until the image becomes square.
•
Press "MENU" on the control panel or remote control to open the OSD menu. Go to "Image" > "Auto Keystone (X1140A/X1240/X1340W/P1340W/ P1341W/X1340WH/P1340WG)" or "Image" > "Keystone (X111/X1140/X111P/H6510BD/P1500)" to make adjustments.
•
Select "Image" > "Projection Mode (X1140A/X1240/ X1340W/P1340W/P1341W/X1340WH/P1340WG)", "Image" > "Projection Location (X1140A/X1240/ X1340W/P1340W/P1341W/X1340WH/P1340WG)" on the OSD and adjust the projection direction.
Problems with the Projector
# Condition Solution
1 The projector stops responding
to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.
2 Lamp burns out or makes a
popping sound
When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.
English
OSD Messages
Fan Fail.
Lamp will automatically turn off soon.
Projector Overheated.
Lamp will automatically turn off soon.
Lamp is approaching the end of its useful life in full power operation.
Replacement suggested!
# Condition Message Reminder
1 Message Fan Fail - the system fan is not working.
Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it is used. Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it.
Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.
43
44
English
LED & Alarm Definition Listing
LED Messages
Message Power LED LAMP LED TEMP LED
Red Blue Red Red
Standby (Power cord plugged in)
Power on -- V -- --
Lamp retry -- Quick
Turning off (Cooling state)
Turning off (Cooling completed)
Error (Thermal failure) -- V -- V
Error (Fan lock failure) -- V -- Quick
Error (Lamp breakdown) -- V V --
Error (Color wheel failure)
V-- -- --
flashing
Quick
flashing
V-- -- --
-- V Quick
-- -- --
-- --
flashing
flashing
--
45
English
1
2
2
5
8
Replacing the Lamp
Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.
The projector will detect the lamp life itself. It will show you a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooled down for at least 45 minutes before changing the lamp.
Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!
3
5
1
4
6
8
2
7
8
1
To remove the lamp:
Turn the projector off by pressing (POWER). Allow the projector at least 45 minutes to cool down. Disconnect the power cord.
1 Use a screwdriver to remove the screw from the cover. (Illustration #1)
2 Push up and remove the cover.
3 Remove the lamp protection film (Illustration #2).
4 Remove the screw that secures the lamp module (Illustration #3).
5 Disconnect the lamp connector from the projector. Lift the handle so that
it stands up. Pull out the lamp module by force (Illustration #4).
To replace the lamp module, use a new lamp and reverse the above steps (Illustrations # - # ).
Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.
46
English
20
mm
13
mm
8.4
mm
130 mm
49.9
mm
Short Rod
Screw Type A
50 mm length / 8 mm diameter -
Ceiling Mount Base
- Attach to ceiling
Long Rod
Extension Rod
Allen Key
- For tighten/loosen
Tightening Screw
Medium Rod
Large Cylinder Cap
Ceiling Mount Installation
If you wish to install the projector using a ceiling mount, please refer to the steps below:
1 Drill four holes into a solid, structurally sound part of the ceiling, and
secure the mount base.
Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.
2 Secure the ceiling rod using the appropriate type of cylinder screws.
English
3 Use the appropriate number of screws for the projector size to attach the
Smaller Washer
Large Washer
Projector Bracket Supports projector and allows for adjustments
Screw Type B
Spacer
- For heat dissipation
Screw Type A 50 mm length ­/8 mm diameter
Large Cylinder Cap
Allen Key
- For tighten/loosen
Tightening Screw
projector to the ceiling mount bracket.
Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution. Use two washers for extra support, if deemed necessary.
4 Attach the ceiling bracket to the ceiling rod.
47
48
English
Allen Key
Tightening Screw
Allen Key
Tightening Screw
110.05 mm
81.5 mm
55 mm
5 Adjust the angle and positioning as necessary.
30
Note: The appropriate type of screw and washer for each model is listed in the table below. 3 mm diameter screws are enclosed in the screw pack.
Models Screw Type B Washer Type
X111/X1140/X1140A/ X111P/X1240/X1340W/ P1340W/P1341W/ X1340WH/P1340WG/ H6510BD/P1500
Diameter (mm) Length (mm) Large Small
325VV
English
Specifications
The specifications below are subject to change without notice. For final specs, please refer to Acer's marketing documentation.
49
Projection system
Resolution
Computer compatibility Refer to the "Compatibility Modes" section for more
Video compatibility NTSC (3.58/4.43), PAL (M/N), PAL 60, SECAM, HDTV
Aspect ratio
Displayable colors 1.07 billion colors
Projection lens
Projection screen size (diagonal) with clear focus
Projection distance with clear focus
™
DLP
•
X111/X1140/X1140A/X111P: Native: SVGA (800 x 600) Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080)
•
X1240: Native: XGA (1024 x 768) Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080)
•
X1340W/P1340W/P1341W/X1340WH/P1340WG: Native: WXGA (1280 x 800) Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
•
H6510BD/P1500: Native: 1080p (1920 x 1080) Maximum: WUXGA (1920 x 1200) (supports reduce
blanking only)
information.
(720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
•
X111/X1140/X1140A/X111P/X1240: Auto, 4:3 (native), 16:9
•
X1340W/P1340W/P1341W/X1340WH/P1340WG/
H6510BD/P1500: Auto, 4:3, 16:9, Full, Letter Box
•
X111/X1140/X1140A/X111P/X1240/X1340W/
P1340W/P1341W/X1340WH/P1340WG: F = 2.56 - 2.8, f = 21.00 mm - 23.00 mm, 1:1.1 Manual Zoom and Manual Focus
•
H6510BD/P1500: F = 2.59 - 2.87, f = 16.88 mm - 21.88 mm, 1:1.3 Manual Zoom and Manual Focus
•
X111/X1140/X1140A/X111P/X1240: 38" (96 cm) - 196" (497 cm)
•
X1340W/P1340W/P1341W/X1340WH/P1340WG: 44" (111 cm) - 230" (584 cm)
•
H6510BD/P1500: 45" (115 cm) - 300" (762 cm)
4.9' (1.5 m) - 19.7' (6 m)
50
English
Throw ratio
Horizontal scan rate 31 - 99 KHz
Vertical refresh scan rate 23 - 120 Hz
Keystone correction +/-40 Degrees (Vertical), Manual & Auto
Digital zoom 2 X
Audio X1140A/X111P/X1240/X1340W/P1340W/P1341W/
Weight Approximate 2.0 kg (4.41 lbs.)
Dimensions (W x D x H) 264 x 220 x 78.4 mm (10.4" x 8.7" x 3.1")
Power supply Universal AC input 100 - 240 V, input frequency 50/60
Power consumption (typical)
Operating temperature 0ºC to 40ºC / 32ºF to 104ºF
I/O connectors X111/X1140:
•
X111/X1140/X1140A/X111P/X1240: 53"±3% @ 2 m (1.86 - 2.04 : 1)
•
X1340W/P1340W/P1341W/X1340WH/P1340WG: 63"±3% @ 2 m (1.5 - 1.65 : 1)
•
H6510BD/P1500: 78.3"±3% @ 2 m (1.15 - 1.5 : 1)
X1340WH/H6510BD/P1500: 2W x 1
Hz
•
X111/X1140/X1140A/X111P/X1240/X1340W/ P1340W/P1341W/X1340WH/P1340WG: 240 W
•
H6510BD/P1500: 270 W
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
X1140A/X111P/X1240/X1340W:
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 2
•
VGA output x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
•
3.5 mm audio jack input x 1
•
3.5 mm audio jack output x 1
P1340W/P1341W/X1340WH:
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 2
•
VGA output x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
•
3.5 mm audio jack input x 1
•
3.5 mm audio jack output x 1
•
HDMI v1.4 input x 1
English
Standard package contents
Accessory (optional)
P1340WG:
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 1
•
VGA output x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
•
HDMI v1.4 input x 1 H6510BD:
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
•
3.5 mm audio jack input x 1
•
3.5 mm audio jack output x 1
•
VGA output x 1
•
HDMI v1.4 input x 2
•
Component video input x 1
P1500:
•
Power socket x 1
•
USB x 1 (Type mini B)
•
VGA input x 1
•
Composite video x 1
•
S-Video x 1
•
RS232 x 1
•
3.5 mm audio jack input x 1
•
3.5 mm audio jack output x 1
•
VGA output x 1
•
HDMI v1.4 input x 1
•
AC power cord x 1
•
VGA cable x 1
•
Remote control x 1
•
Battery x 2 (for the remote control)
•
User's guide (CD-ROM) x 1
•
Quick start guide x 1
•
Security card x 1
•
Composite video cable x 1
•
Carrying case x 1
•
Dust filter x 1
51
* Design and specifications are subject to change without notice.
52
English
Compatibility Modes
1 VGA Analog - PC Signal
Mode Resolution V.Frequency [Hz]
60 31.47
72 37.86
VGA 640 x 480
SVGA 800 x 600
XGA 1024 x 768
1152 x 864
SXGA
1280 x 1024
QuadVGA
SXGA+ 1400 x 1050 60 65.32
UXGA 1600 x 1200 60 75.00
PowerBook G4
1280 x 960 60 60.00
1280 x 960 75 75.00
640 x 480 60 31.50
640 x 480 66.6 (67) 35.00
800 x 600 60 37.88
1024 x 768 60 48.36
1024 x 768 75 60.241
1152 x 870 75 68.681
75 37.50
85 43.27
120 61.91
56 35.20
60 37.88
72 48.08
75 46.88
85 53.67
120 77.43
60 48.36
70 56.48
75 60.02
85 68.68
120 98.96
70 63.85
75 67.50
85 77.10
60 63.98
72 76.97
75 79.98
85 91.15
H.Frequency
[KHz]
English
1280 x 768 60 47.78
1280 x 768 75 60.29
1280 x 768 85 68.63
1280 x 720 60 45.00
1280 x 800 60 49.70
1280 x 800 - RB 120 101.6
WXGA
1440 x 900 60 55.94
1680 x 1050 60 65.29
1366 x 768 60 47.71
1920 x 1080-RB 60 66.60
1920 x 1080-EIA 60 67.50
1024 x 600 60 37.50
1920 x 1200-RB 59.95 74.04
2 HDMI - PC Signal (For P1340W/P1341W/X1340WH/P1340WG/
H6510BD/P1500)
Mode Resolution V.Frequency [Hz]
VGA_60
VGA_72 72.809 37.861
VGA_75 75 37.5
VGA_85 85.008 43.269
VGA_120 119.518 61.91
SVGA_56
SVGA_60 60.317 37.879
SVGA_72 72.188 48.077
SVGA_75 75 46.875
SVGA_85 85.061 53.674
SVGA_120 119.854 77.425
XGA_60
XGA_70 70.069 56.476
XGA_75 75.029 60.023
XGA_120 119.804 98.958
SXGA_75
SXGA_85 84.99 77.094
SXGA_60
SXGA_72 72 76.97
SXGA_75 75.025 79.976
SXGA_85 85.024 91.146
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
59.94 31.469
56.25 35.156
60.004 48.363
75 67.5
60.02 63.981
H.Frequency
[KHz]
53
54
English
QuadVGA_75 1280 x 960 75 75
SXGA+_60 1400 x 1050 59.978 65.317
UXGA_60 1600 x 1200 60 75
Mac G4 640 x 480@60Hz 59.94 31.469
MAC13 640 x 480@67Hz 66.667 35
Mac G4 800 x 600@60Hz 60.317 37.879
Mac G4 1024 x 768@60Hz 60.004 48.363
MAC19 1024 x 768@75Hz 75.02 60.241
MAC21 1152 x 870@75Hz 75.061 68.681
WXGA_60
WXGA_75 74.893 60.289
WXGA_85 84.837 68.633
WXGA_60 1280 x 720 60 45
WXGA_60 1280 x 800 59.81 49.702
WXGA_120 1280 x 800 119.909 101.563
WXGA+_60 1440 x 900 59.887 55.935
1680x1050_60 1680 x 1050 59.954 65.29
acer_16:9 1366 x 768 59.79 47.712
1920 x 1080_RB 1920 x1080 60 66.587
1920 x 1080_EIA 1920 x1080 60 67.5
acer_timing 1024 x 600 60 37.5
1920 x 1200-RB 1920 x 1200 59.95 74.038
1280 x 768
59.87 47.776
3 HDMI - Video Signal (For P1340W/P1341W/X1340WH/P1340WG/
H6510BD/P1500)
Mode Resolution V.Frequency [Hz] H.Frequency [KHz]
480i
480p 720 x 480 60 31.47
576i
576p 720 x 576 50 31.25 720p 1280 x 720 60 45.00
720p 1280 x 720 50 37.50 1080i 1920 x 1080 60 33.75 1080i 1920 x 1080 50 28.13
1080p 1920 x 1080 60 67.50 1080p 1920 x 1080 50 56.26 1080p 1920 x 1080 24 27.00 1080p 1920 x 1080 23.98 26.97
720 x 480
(1440 x 480)
720 x 576
(1440 x 576)
60 15.73
50 15.63
English
4 YPbPr Signal
Mode Resolution V.Frequency [Hz] H.Frequency [KHz]
480i
480p
576i 576p 720p 720p
1080i
1080i 1080p 1080p 1080p 1080p
720 x 480 720 x 480 720 x 576
720 x 576 1280 x 720 1280 x 720
1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
59.94 15.73
59.94 31.47
50.00 15.63
50.00 31.25
60.00 45.00
50.00 37.50
60.00 33.75
50.00 28.13
60.00 67.5
50.00 56.26
24.00 27.00
23.98 26.97
5 Video, S-Video Signal
Mode V.Frequency [Hz] H.Frequency [KHz] fsc (MHz)
NTSC 15.73 60
PAL 15.63 50
SECAM 15.63 50
PAL-M 15.73 60
PAL-N 15.63 50
PAL-60 15.73 60
NTSC4.43 15.73 60
4.25 or 4.41
55
3.58
4.43
3.58
3.58
4.43
4.43
56
English

Regulations and safety notices

FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
57
English
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
Acer hereby, declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Compliant with Russian regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).
English
Canada — Low-power license-exempt radio communication devices (RSS-210)
a Common information
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
b Operation in 2.4 GHz band
To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.
58
English
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact a local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.
59
English
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
Acer Incorporated
New Taipei City 221, Taiwan
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan Contact Person: Mr. RU Jan, e-mail:ru_jan@acer.com.tw
And,
Acer Italy s.r.l
Via Lepetit, 40, 20020 Lainate (MI) Italy Tel: +39-02-939-921, Fax: +39-02 9399-2913 www.acer.it
Declare under our own responsibility that the product:
Product: Projector Trade Name: Acer Model Number: X111/X1140/D200/EV-S50/QSV1106/
To which this declaration refers conforms to the relevant standard or other standardizing documents:
•
EN 55022:2006/A1:2007 Class B; EN 55024:2010
•
EN 61000-3-2:2006+A1:2009+A2:2009 Class A; EN61000-3-3:2008
•
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
•
EN 50581:2012
We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, RoHS Directive 2011/65/ EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
X1140A/X111P/D200P/EV-S50T/QSV1107/ X1240/D210/EV-X50/QNX1108/X1340W/D220/EV-W50/QWX1109/ P1340W/P1341W/M320P/PE-W30/QWX1110/X1340WH/D220D/EV-W50H/ P1340WG/M320PF/PE-W30L/H6510BD/E141D/HE-803J/H1P1117/ P1500/M342/PE-833/Q1P1301 series
English
Year to begin affixing CE marking 2013.
RU Jan/Sr. Manager Date Regulation Center, Acer Inc.
Feb. 05, 2013 -
60
English
Product: DLP Projector
Model Number: QSV1106/QSV1107/QNX1108/
QWX1109/QWX1110/H1P1117/ Q1P1301 series
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
Suite 1500 San Jose, CA 95110 U. S. A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
Acer America Corporation
333 West San Carlos St.,
Suite 1500
San Jose, CA 95110
U. S. A.
Tel: 254-298-4000
Fax: 254-298-4147
www.acer.com
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
