Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
( V ) Preliminary Specification
( ) Final Specification
Module
Model Name
25.5” WUXGA Color TFT-LCD
M255UW02 V0
Customer Date
Approved by
Checked &
Approved by
-:/LQ
Prepared by
+DQQLH<HK
Date
2007/9/11
2007/9/11
Note: This Specification is subject to change without
notice.
document version 0.2 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Group /
AU Optronics corporation
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
Contents
1. Handling Precautions........................................................................................5
2. General Description ..........................................................................................6
2.1 Display Characteristics ...................................................................................................... 6
2.2 Optical Characteristics …………………………………………………………………………...6
3. Functional Block Diagram ..............................................................................12
4. Absolute Maximum Ratings............................................................................13
4.1 TFT LCD Module …………………….………………………………………………………… 11
4.2 Backlight Unit ………………………………………………………………………………… .. 11
4.3 Absolute Ratings of Environment ……………………………………………………………..11
5. Electrical characteristics ................................................................................13
5.1 TFT LCD Module ............................................................................................................. 14
5.1.1 Power Specification ………………………...……………………………………………..12

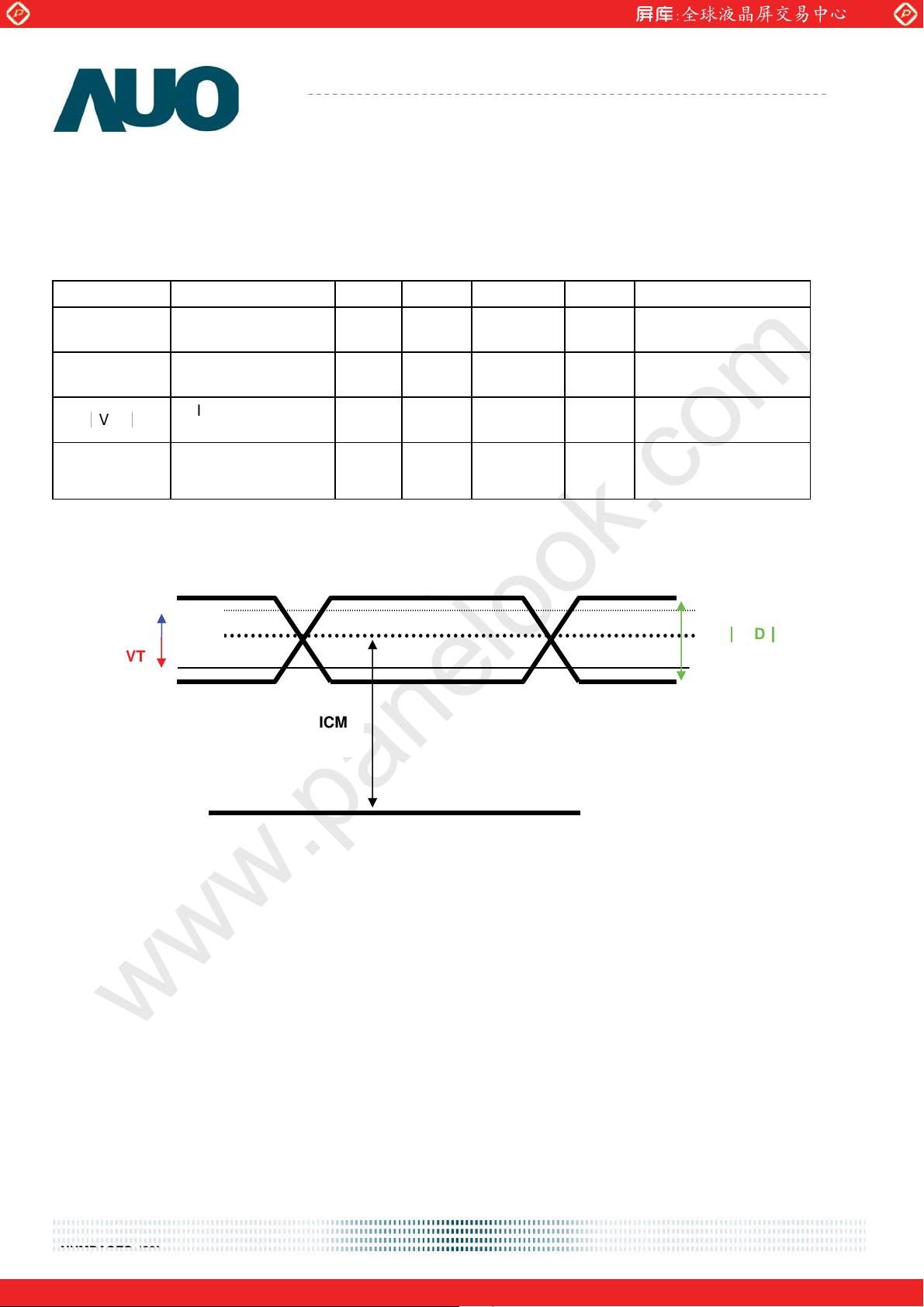

5.1.2 Signal Electrical Characteristic …………………………………………………………...13
5.2 Backlight Unit................................................................................................................... 14
5.3 Inverter Electrical Characteristic………………………………………………………………..15
6. Signal Characteristic.......................................................................................14
6.1 Pixel Format Image ......................................................................................................... 14
6.2 The Input Data Format .................................................................................................... 14
6.3 Signal Description ………………………………………………………………………………. 16
6.4 Interface Timing............................................................................................................... 14
6.4.1 Timing Characteristics …………………………………………………………………… 18

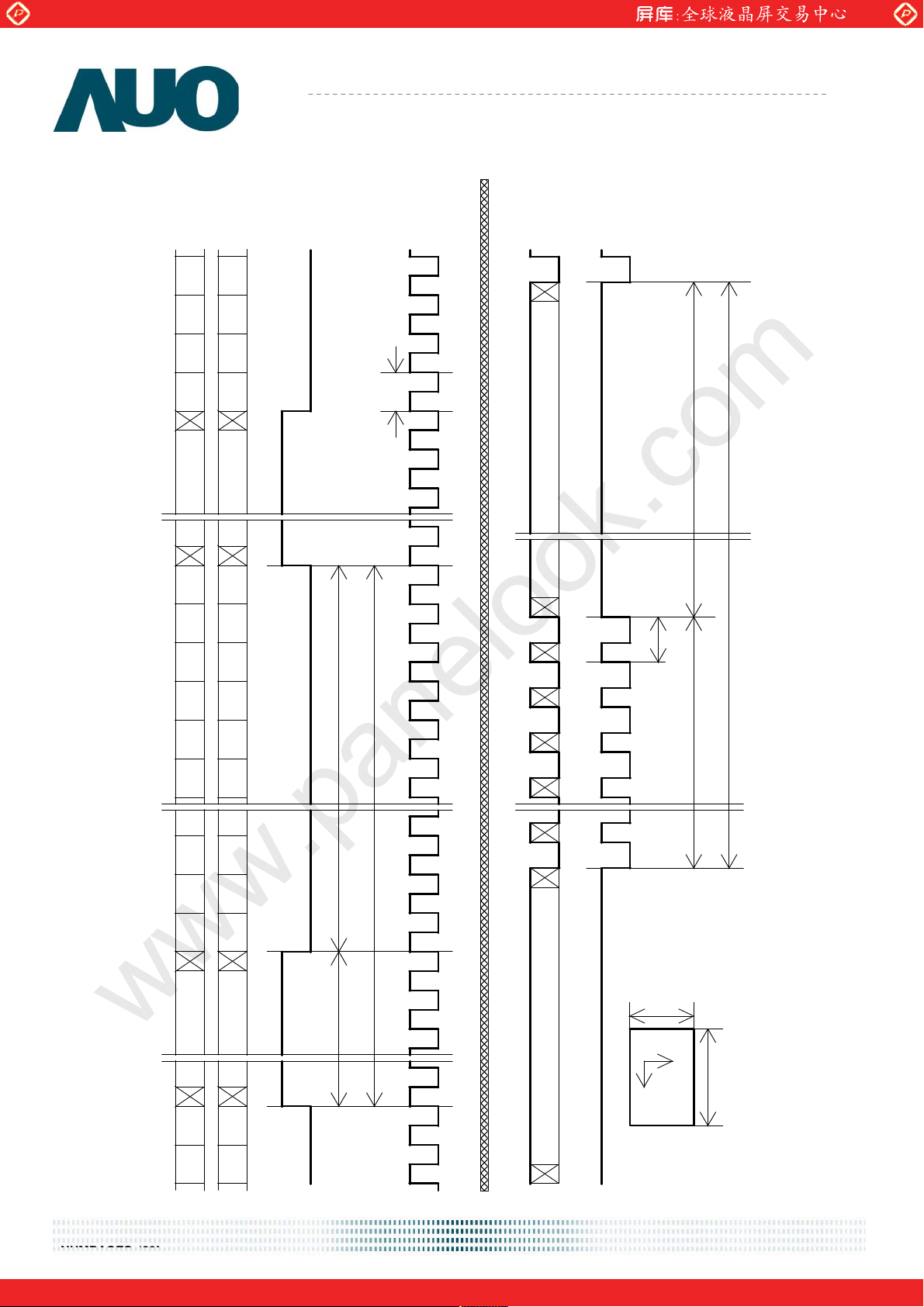

6.4.2 Timing Diagram …………………………………………………………………………... 19
6.5 Power ON/OFF Sequence............................................................................................... 14
7. Connector & Pin Assignment .........................................................................14
7.1 TFT LCD Module ............................................................................................................. 14
7.1.1 Connector………………………………………………………………………………….. 21
7.1.2 Pin Assignment …………………………………………………………………………… 21
7.2 Backlight Unit................................................................................................................... 14
7.2.1 Signal for Inverter…………………………………………………………………………..23
7.2.2 Signal for Lamp Connector………………………………………………………………. 24
8. Reliability Test .................................................................................................14
9. Shipping Label.................................................................................................14

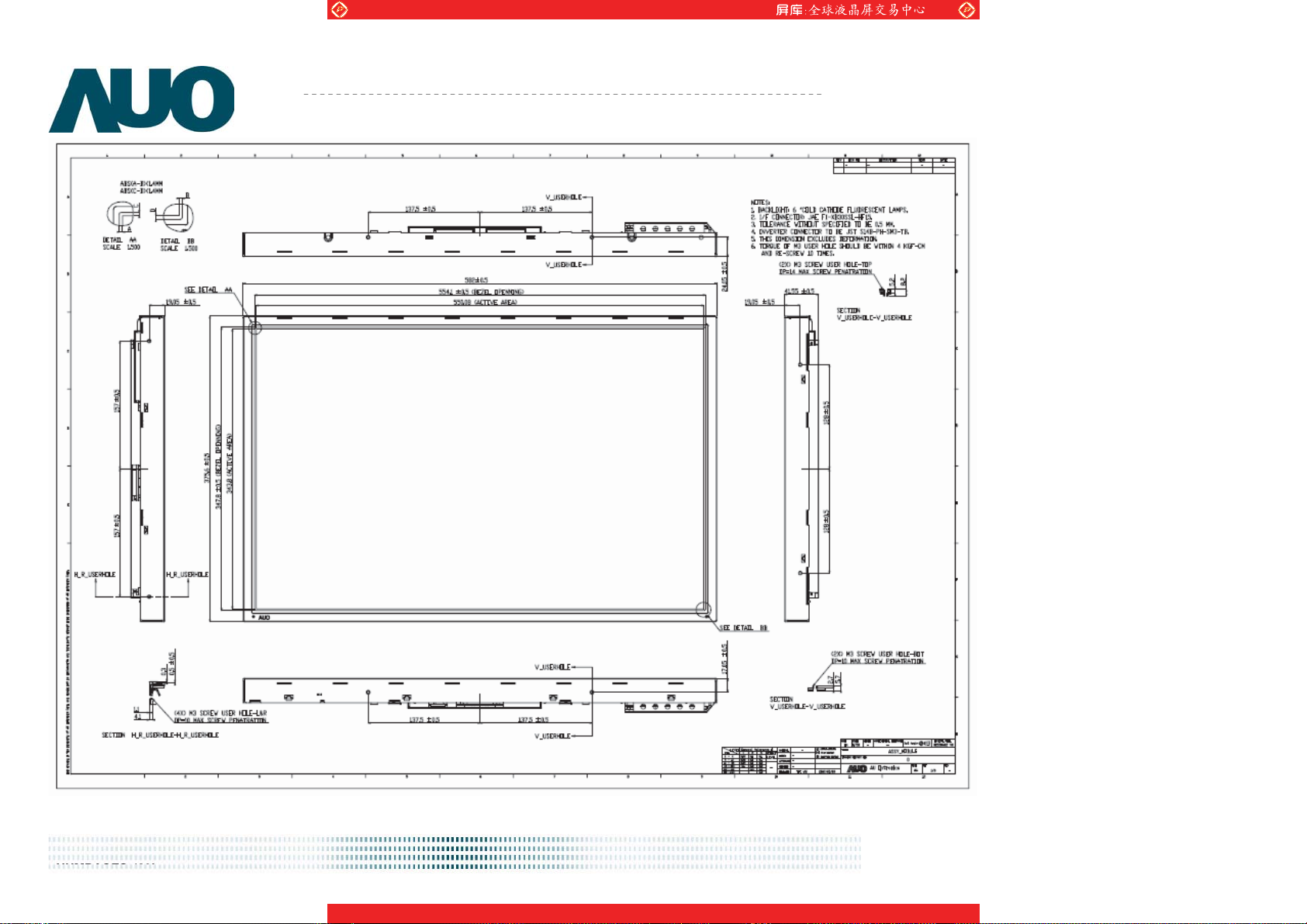

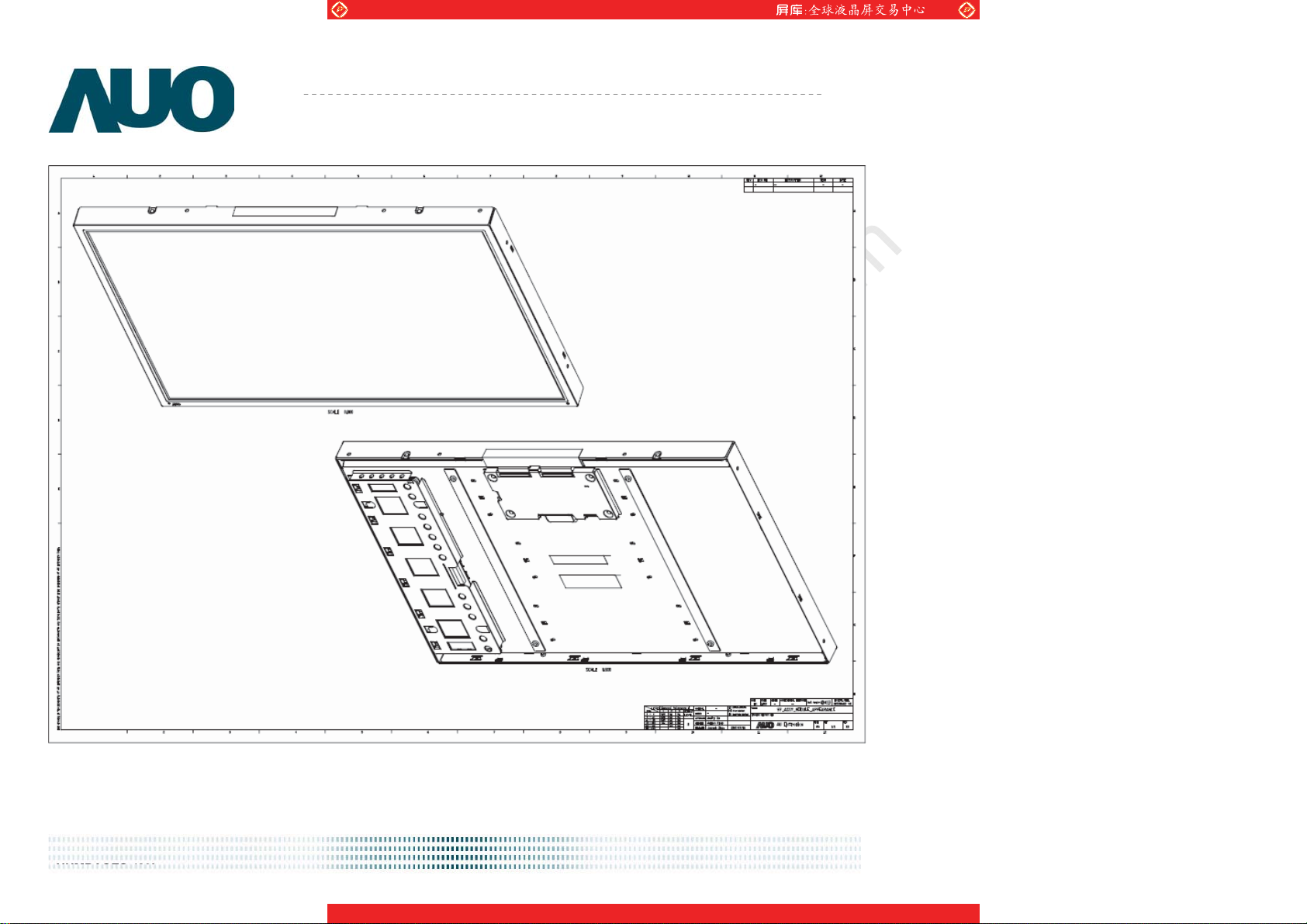

10. Mechanical Characteristics ..........................................................................14
document version 0.2 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
p
yp
p
yp
www.panelook.com
Version
and Date
0.1
2007/7/12
0.2
2007/9/11
6
6
6
Page Old description New Description Remark
First Edition for Customer
All
N/A SPD technology full name and Motion Picture
6
Power Consumption = 75W (Typ.
with Invertor)
Weight = 3450 grams (Max.)
Surface treatment = Hard-coating
(3H), Anit-Glare type
Viewing Angle Horizontal (Right)+
7
7
(Left) CR = 10: 150
ш
(Typ.)
160
N/A
Color / Chromaticity
Coordinates (CIE 1931) is TBD
7
11
12
N/A
N/A
N/A
14
IDD input current and PDD VDD
power are TBD.
14
16
17
17
N/A
I
input current and PB input power
DDB
are TBD.
V
ON/OFF
condition: Lamp ON =
High / Lamp OFF =
Low
17
N/A
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
All
Response Time 8ms (Typ.)
Power Consumption = 68W (Typ., SPD off) / 70W
Weight = 4200 grams (Typ.) Modified
Surface treatment = Hard-coating (2H), Glare type Modified
ш
(min.),
Backlight on/off control
Viewing Angle Horizontal (Right)+ (Left) CR = 10:
MPRT (SPD on) 8ms (Typ.); 15ms (Max.)
Define SPD measurement.
DC power input inverter +24V
IDD input current and PDD VDD power when SPD is
IDD in
CCFL Operation Current (ICFL) condition VBR=1.65V
I
V
M255UW02 V0
(Typ., SPD on)
160
ш
(min.), 170ш(Typ.)
Conditions Min. Typ. Max.
Red x 0.626 0.656 0.686
Red y 0.302 0.332 0.362
Green x 0.185 0.215 0.245
Green y 0.647 0.677 0.707
Blue x 0.117 0.147 0.177
Blue y 0.030 0.070 0.100
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
on.
ut current = 1.0 mA (Typ., SPD off)/1.4mA
(Max., SPD off), 1.4mA (T
SPD on); PDD VDD
off)/7.0W (Max., SPD off), 7.9W (T
(Max., SPD on)
input current =2.6A (Typ.)/3.0A (Max.); PB input
DDB
power = 62.4W (Typ.) /72.0W (Max.)
ON/OFF
Backlight on/off control condition:
Enable/Disable the inverter.
., SPD on)/1.8mA (Max.,
ower = 5.0W (Typ., SPD
., SPD on)/9.0W
Add
Modified
Modified
Add
Modified
Add
Add
Add
Modified
Add
Modified
Modified
Add
17
document version 0.2 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4. The life is determined as the time
4. The life is determined as the time at which
Modified
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
at which luminace of the lamp is
50% compared to that of initial
value at the typical lamp current
on condition of continuous
operating at 25±2C
5.
Electrical charecteristics are
determined after the unit has
been ‘ON’ and stable for
approximately 30min at 25±2C
Vertical Section Period = 1212 th
(min.), Blanking = 12 th (min.);
20
Horizontal Section Blanking = 80 tclk
(min.); Frame Rate Frequency
min/Max is TBD.
N/A
20
26
High Temperature Operation (HTO)
required condition: 50%RH
Vibration Test (Non-operation)
required condition: Wave: Half-sine,
26
Frequency: 10-200Hz.
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
luminace of the lamp is 50% compared to that of
initial value at the typical lamp current on condition
of continuous operating at 25±2
к/
5. Electrical charecteristics are determined after the
unit has been ‘ON’ and stable for approximately
30min at 25±2
к
.
.
Vertical Section Period = 1210 th (min.), Blanking = 10
th (min.) ; Horizontal Section Blanking = 90 tclk (min. );
Frame Rate Frequency = 47Hz (min.), 65Hz (Max.)
Modified
Note 1: Typical value refer to VESA STANDARD
Note 3: When panel is operated at SPD mode, the
Add
timing is recommended at typical value.
N/A
Delete
Vibration Test (Non-operation) required condition:
Wave: Sine, Frequency: 10-300Hz.
Modified
document version 0.2 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL
Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces
are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances or
regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be
supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied
exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or UL1950).
Do not connect the CCFL in Hazardous Voltage Circuit.
document version 0.2 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
2. General Description
This specification applies to the 25.5 inch-wide Color TFT-LCD Module M255UW02
The display supports the WUXGA (1920(H) x 1200(V)) screen format and 16.7M colors (RGB 6 bits + Hi-FRC data) and
using Simulated Pulsed Driving (SPD) technology with fast response time to reduce motion blur.
All input signals are 2 channel LVDS interface compatible.
This module contains an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm] 648.7 (25.5”)
Active Area [mm] 550.1 (H) x 343.8 (V)
Pixels H x V 1920 x 3 (RGB) x 1200
Pixel Pitch [mm] 0.287 x 0.287
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance [cd/m2]
Contrast Ratio 1000:1 (Typ),
Optical ResponseTime [msec] 5ms (Typ. on/off)
Moving Picture Response Time msec 8ms (Typ. SPD function on)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 4200 (Typ.)
Physical Size (H x V x D) [mm] 582.0 (W) x 375.6 (H) x 41.5 (D) (Typ.)
Electrical Interface Dual Channel LVDS
Support Colors 16.7M colors (6 bits + Hi-FRC)
Temperature Range
Operating
Storage (Shipping)
Surface Treatment Hard-coating (2H), Glare type
RoHS Compliance RoHS Compliance
[Watt] 68W (Typ., SPD off) / 70W (Typ., SPD on)
o
C]
[
o
C]
[
450 cd/m
0 to +50
-20 to +60
2 @ 6.0mA (Typ)
document version 0.2 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)+ (Left)
Viewing Angle [degree]
Vertical (Up) + (Down)
CR = 10
CR = 10
Luminance Uniformity [%] 9 Points 80 85 -
Rising - 3.4 5.7
Falling - 1.6 2.3
Optical Response Time [msec]
Rising + Falling - 5 8
MPRT (SPD on) 8 15
Red x 0.626 0.656 0.686
Red y 0.302 0.332 0.362
Green x 0.185 0.215 0.245
Color / Chromaticity
Green y 0.647 0.677 0.707
Coordinates
(CIE 1931)
Blue x 0.117 0.147 0.177
Blue y 0.030 0.070 0.100
160 170 -
150 160 -
Note 1
Note 2, 3
Note 4, 6
Note 8
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
White Luminance
(At CCFL= 6.0mA)
Contrast Ratio Normal Direction 600 1000 -
Cross Talk (At 60Hz) [%] - - 1.5
Flicker [dB] - - -20
2
] 300 450 -
[cd/m
Note 4
Note 4
Note 5
Note 7
Optical Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A, BM 7,
CS-1000 & EZContrast*)
ш
Aperture 1
with 100cm VD or 2шwith 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
*EZContrast is different meaurement tool with very close viewing distance.
document version 0.2 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle: measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal and 180°
vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° (ș)
horizontal left and right and 90° (ĭ) vertical, high (up) and low (down). The measurement direction is typically
perpendicular to the display surface with the screen rotated about its center to develop the desired measurement
viewing angle.
Њ
M255UW02 V0
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the minimum test
point luminance
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
document version 0.2 8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during
measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 30
minutes in a stable, windless and dark room.
ʳ
M255UW02 V0
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Ø
LCD Panel
Center of the screen
100 (%)
TFT-LCD Module
document version 0.2 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to “Full White”
(rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time is interval between the
10% and 90% of amplitudes. Please refer to the figure as below.
M255UW02 V0
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
Level DC
document version 0.2 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8: SPD Measurement is defined as below (measured by Otsuka MPRT-1000).
MPRT(Moving Picture Response Time) is the average value of BET measured from 72 combinations of different gray
levels.
We divide the measurement base on each 32 grey level. Because the brightness between L0 & L32 is so slight and it
will cause noise to influence the outcome, we set L42 instead of L32. We can get 72 combination data as the table
below.
M255UW02 V0
BET...BETBET
(seconds) MPRT
=
+++
7221
72
1
BEW BET
×=
×
BEW: Blur Edge W idth (LCD pixel). The width is defined to be used for the values 10%~90% of luminance.
Note: scrolling speed=8ppf (LCD pixel/frame rate) ; frame rate=60Hz
rate frame speed scrolling
document version 0.2 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
3. Functional Block Diagram
The following diagram shows the functional block of the 25.5 inches wide Color TFT-LCD Module:
LVDS 2CH
Input
DC/DC
Converterr
Connector
LVDS
Receiver
Process
Power
Signal
AUO ASIC
Timing
Controller
Gamma
Correction
Y-Driver IC
D1
X-Driver IC
TFT-LCD 1920(*3)*1200 pixels
(8 bits display)
I/F PCB Interface:
JAE FI-X30SSL-HF or compatible
Inverter Interface:
JST S14B-PH-SM3-TB or compatible
Mating Type:
I/F PCB Interface:
FI-X30H(Unlocked Type) or FI-X30HL(Locked Type)
Inverter Interface:
PHR-14
6 U-type CCFL
DC POWER
Inverter
+24 V
document version 0.2 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
4. Absolute Maximum Ratings
Absolutely maximum rating of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL 5.5 6.5 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 95 [%RH] Note 3
VIN 4.5 5.5 [Volt] Note 1,2
Operating Temperature TOP 0 +50 [oC] Note 3
Storage Temperature TST -20 +60 [oC] Note 3
Storage Humidity HST 5 95 [%RH] Note 3
к
Note 1: With in Ta= 25
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range
document version 0.2 13
Storage Range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VDD
IDD Input Current
PDD VDD Power
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt] ᇹ10%
- 1.0 1.4 [A]
- 1.4 1.8 [A]
- 5.0 7.0 [Watt]
- 7.0 9.0 [Watt]
VDD= 5.0V, All Black Pattern
At frame rate 60Hz, SPD off.
VDD= 5.0V, All Black Pattern
At frame rate 60Hz, SPD on.
VDD= 5.0V, All Black Pattern
At frame rate 60Hz, SPD off.
VDD= 5.0V, All Black Pattern
At frame rate 60Hz, SPD on.
IRush Inrush Current - - 3 [A]
Note
Note: Measurement conditions:
document version 0.2 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
֥
VID֥
VICM
Note: LVDS Signal Waveform
Differential Input
High Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
Common Mode
Voltage
- +50
-100 -50
100 - 600 [mV]
+1.0 +1.2 +1. 5 [V]
+100 [mV]
- [mV]
VICM = 1.2V, Note
VICM = 1.2V, Note
Note
VTH-VTL =200mV,
Note
VTH
VTL
VSS
VICM
ѨѨѨѨ
VID
ѨѨѨѨ
document version 0.2 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):к
CCFL Operation Current (ICFL) 5.5 6.0 6.5 [mA] rms
CCFL Frequency (FCFL) 40 60 80 [KHz]
CCFL Ignition Voltage(ViCFL, Ta= 0к)
CCFL Ignition Voltage(ViCFL, Ta= 25к)
CCFL Operation Voltage (VCFL) -
Parameter Min. Typ.
3600
2800
1943
(@ 6.0mA)
Max.
-
Unit Condition
Note 2; V
Note 3,4
[Volt] rms
[Volt] rms
[Volt] rms
Note 5
M255UW02 V0
=1.65V
BR
CCFL Power Consumption (PCFL) - 70 - [Watt]
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour]
Note 5
Note 6
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully. Sometimes,
interfering noise stripes appear on the screen, and substandard luminance or flicker at low power may
happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL, for
instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is recommended to keep
on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL discharge
frequency. So all the parameters of an inverter should be carefully designed so as not to produce too much
leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and TFT
LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL × 4 = PCFL)
Note 6: Definition of CCFL life Time (LTCFL): brightness becomes 50%. (The typical life time of CCFL is on the
condition at 7.0 mA lamp current).
document version 0.2 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
5.3 Inverter Electrical Characteristics
Symbol Parameter Min. Typ. Max. Unit Condition Notes
V
Input Voltage 22.0 24.0 26.0 [V]
DDB
I
Input Current - 2.6 3.0 [A] VBR=1.65V
DDB
PB Input Power - 62.4 72.0 [Watt] VBR=1.65V
VBR
V
ON/OFF
Brightness
Adjust
Backlight on/off
control
0 1.65 3.3 [V]
2 - 5 [V]
0 - 0.8 [V]
Enable the
inverter
Disable the
inverter
Note 1
Note 2
Note 2
Note 3
Analog DIM)
Note 1: The input voltage ripple is limited below 400mVp-p.
Note 2: The specified current and power consumption are under the typical supply input voltage, 24V.
V
Note 3: ICFL = 6mA when
=1.65V (brightness=100%).
BR
Note 4: The life is determined as the time at which luminace of the lamp is 50% compared to that of initial value at the
к
typical lamp current on condition of continuous operating at 25±2
/!!
Note 5: Electrical charecteristics are determined after the unit has been ‘ON’ and stable for approximately 30min at
25±2
к
.
document version 0.2 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
VW/LQH
5 * % 5 * %
5 * % 5 * %
M255UW02 V0
/LQH
5 * % 5 * %
6.2 The Input Data Format
5 * % 5 * %
Note 1:
R/G/B data 7: MSB, R/G/B data 0: LSB
O = “First Pixel Data”
E = “Second Pixel Data”
document version 0.2 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative
edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx)
transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test)
26 SPDEN L(0V): enable; H(3.3V) or floating: disable
27 VDD Power +5V
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
document version 0.2 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Note1: Start from left side
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
Note2: Input signals of odd and even clock shall be the same timing.
document version 0.2 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
SPD function OFF
Signal Item Symbol Min Typ Max Unit
Period
Vertical
Active Tdisp(v) 1200 1200 1200 Th
Section
Blanking Tblk(v) 10 12 - Th
Period Th 1050 1072 2048 Tclk
Horizontal
Active Tdisp(h) 960 960 960 Tclk
Section
Blanking Tblk(h) 90 112 - Tclk
Tv 1210 1212 2048 Th
Clock
Frame Rate
Frequency Freq
- - 85 MHz
Frequency Vsync 47 60 65 Hz
Note 1: Typical value refer to VESA STANDARD
Note 2: DE mode only.
Note 3: When panel is operated at SPD mode, the timing is recommended at typical value.
Period Tclk 11.76 - - ns
document version 0.2 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
6.4.2 Timing Diagram
2GG
5*%'DWD
(YHQ
0
0
0
3L[HO
0
3L[HO
0
3L[HO
0
3L[HO
0
,QYDOLG'DWD
,QYDOLG'DWD
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
5*%'DWD
'(
3L[HO
3L[HO
3L[HO
3L[HO
&/.
7FON
/LQH
5*%'DWD
'(
1
,QYDOLG'DWD
7EONY
3L[HO 3L[HO
0
0
0
,QYDOLG'DWD
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
3L[HO
0
3L[HO
3L[HO
0
3L[HO3L[HO
3L[HO
0
,QYDOLG'DWD
7GLVSK
7EONK
7K
/LQH/LQH
/LQH/LQH
/LQH
1
,QYDOLG'DWD
7Y
7K
7GLVSY
1/LQH
0SL[HO
<
;
3L[HO
3L[HO
0
3L[HO
3L[HO
document version 0.2 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
6.5 Power ON/OFF Sequence
Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when Vin is off.
90% 90%
90% 90%
90% 90%
10%
10%
Vin 10%
Vin 10%
Vin 10%
0V
0V
0V
Signal
Signal
Signal
0V
0V
0V
10%
T2 T5 T6 T7
T2 T5 T6 T7
T2 T5 T6 T7
T1
T1
T1
T4
T4
T3
T3
T3
T4
10%
10%
10%
Lamp
Lamp
Lamp
Parameter
T1
T2
T3
T4
T5
T6
T7
0V
0V
0V
Power Sequence Timing
Value
Min. Typ. Max.
0.5 - 10
0.5 40 50
300 - -
300 - -
0.5 16 50
0.5 - 60
1000 - -
Unit
[ms]
[ms]
[ms]
[ms]
[ms]
[ms]
[ms]
document version 0.2 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M255UW02 V0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of accommodating the
following signals and will be following components.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer LVDS: JAE or compatible
Type Part Number FI-X30SSL-HF
Mating Housing Part Number FI-X30H(Unlocked Type) or FI-X30HL(Locked Type)
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25 NC 26 SPDEN
27 VDD 28 VDD
29 VDD 30 VDD
document version 0.2 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of accommodating the
following signals and will be following components.
Connector Name / Designation Inverter Connector
Manufacturer JST or compatible
Type Part Number
Mating Type Part Number
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer CviLux
Type Part Number
Mating Type Part Number
S14B-PH-SM3-TB
PHR-14
CP042CP1ML0-LF
TBD
7.2.1 Signal for Inverter
No Signal name Feature
1 VDD +24V
2 VDD +24V
3 VDD +24V
4 VDD +24V
5 VDD +24V
6 GND GND
7 GND GND
8 GND GND
9 GND GND
10 GND GND
11 Analog DIM (VBR) Analog Dimming mode: (Max.=3.3V, min=0V, type=1.65V or open)
12 BL ON/OFF ON: 2.0V~5.0V(or open) OFF: 0V~0.8V
13 PWM DIM Internal PWM Dimming Control. (Max.=3.3V or open, min=0.2V)
14
NC N.C
document version 0.2 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2.2 Signal for Lamp connector
Connector Pin No. Input Color Function
CN1
CN2
CN3
CN4
CN5
CN6
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
M255UW02 V0
document version 0.2 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , к80%RH, 300hours
High Temperature Operation (HTO) Ta= 50 , 300hoursк
Low Temperature Operation (LTO) Ta= 0 , 300hoursк
High Temperature Storage (HTS) Ta= 60 , 300hoursк
Low Temperature Storage (LTS) Ta= -20 , 300hoursк
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Wave: Sine
Frequency: 10~300 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 11 ms
Direction:
X,ʳY,ʳ
Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20к/30min, 60к/30min, 100 cycles
Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF (330ȍ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
Note 2
Air Discharge: ± 15KV, 150pF(330ȍ) 1sec,
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid temperature change.
A cycle of rapid temperature change consists of varying the temperature from -20
к
to 60к, and back again.
Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient for at
least 4 hours before power on.
Note 2: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 0.2 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label
The shipping label format is shown as below.
M255UW02 V0
document version 0.2 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
M255UW02 V0
document version 0.2 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
document version 0.2 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M255UW02 V0
AU OPTRONICS CORPORATION
document version 0.2 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
