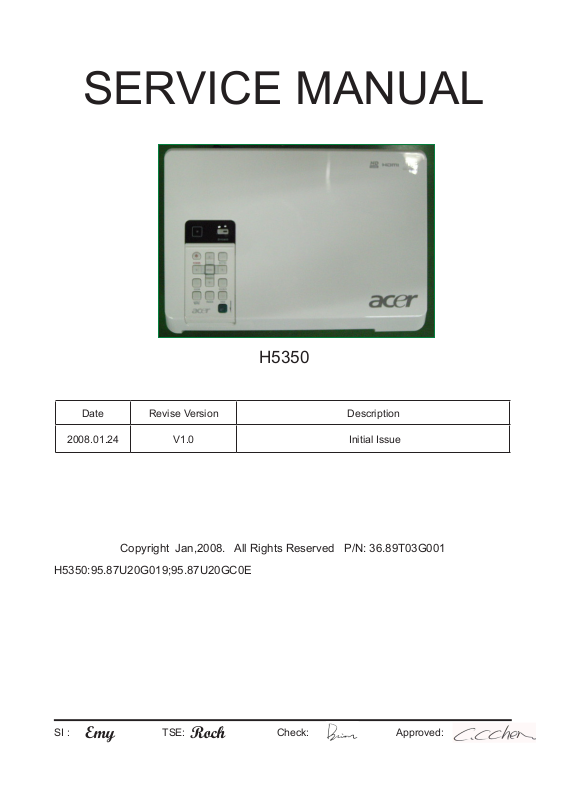

SERVICE MANUAL

H5350

Date Revise Version Description

2008.01.24 V1.0 Initial Issue

Copyright Jan,2008. All Rights Reserved P/N: 36.89T03G001

H5350:95.87U20G019;95.87U20GC0E

SI : TSE: Check: Approved:

Emy Roch

Preface

This manual is applied to H5350 projection system. The manual gives you a brief
description of basic technical information to help in service and maintain the product.

Your customers will appreciate the quick response time when you immediately identify
problems that occur with our products. We expect your customers will appreciate the
service that you offer them.

This manual is for technicians and people who have an electronic background. Please
send the product back to the distributor for repairing and do not attempt to do anything that
is complex or is not mentioned in the troubleshooting.

Notice:

The information found in this manual is subject to change without prior notice. Any
subsequent changes made to the data herein will be incorporated in future edition.

H5350 Service Manual

Copyright Jan.2008

All Rights Reserved

Manual Version 1.0

H5350

Condential

Table of Content

Chapter 1 Introduction

Highlight 1-1

Compatible Mode 1-3

Product Overview 1-7

Chapter 2 Disassembly Process

Equipment Needed & Product Overview 2-1

Disassemble Lamp Cover Module 2-2

Disassemble Lamp Module 2-2

Disassemble Top Cover Module 2-3

Disassemble Top Shielding 2-4

Disassemble Main Board Module & I/O Cover Module 2-4

Disassemble Front Cover Module 2-6

Disassemble Engine Module 2-7

Disassemble Color Wheel Module 2-8

Disassemble Zoom Ring & Focus Ring 2-9

Disassemble DMD Board and DMD Chip Module 2-10

Disassemble Fan Module 2-11

Disassemble Blower Module 2-12

Disassemble Speaker Module 2-13

Disassemble LVPS Module 2-14

Disassemble Interrupt Switch Module 2-15

Disassemble Lamp Driver Module 2-16

Disassemble Bottom Cover Module 2-18

Rod Adjustment 2-19

Re-write Lamp Usage Hour 2-20

H5350

Condential

Assemble Bottom Cover Module 2-21

Assemble Lamp Driver Module 2-22

Assemble Interrupt Switch Module 2-24

Assemble LVPS Module 2-25

Assemble Speaker Module 2-26

Assemble Blower Module 2-26

Assemble Fan Modul 2-27

Assemble DMD Board and DMD Chip 2-28

Assemble Zoom Ring&Focus Ring 2-29

Assemble Color Wheel Module 2-30

Assemble Engine Module 2-31

Assemble Front Cover Module 2-32

Assemble Main Board Module & I/O Cover Module 2-33

Assemble Top Shielding 2-34

Assemble Top Cover Module 2-35

Assemble Lamp Module 2-36

Assemble Lamp Cover Module 2-36

Chapter 3 Troubleshooting

LED Lighting Message 3-1

Main Procedure 3-2

Chapter 4 Function Test & Alignment Procedure

Test Equipment Needed 4-1

Service Mode 4-1

OSD Reset 4-1

Test Condition 4-2

Test Inspection Procedure 4-3

H5350

Condential

PC Mode 4-3

   Defectspecicationtable     4-7

Video Performance 4-7

Optical Performance Measure 4-9

Other 4-10

Chapter 5 Firmware Upgrade

Equipment Needed 5-1

DLP Composer Lite Setup Procedure 5-2

USB Driver Upgrade Procedure 5-4

Firmware Upgrade Procedure 5-5

Chapter 6 EDID Upgrade

EDID Introduction 6-1

Equipment Needed 6-2

Setup Procedure (VGA) 6-3

EDID Key-In Procedure 6-4

Setup Procedure (HDMI) 6-6

Appendix A Exploded Image I

Appendix B

   SerialNumberSystemDenition     XXI
   PCBACodeDenition      XXII

H5350

Condential

Chapter 1

Introduction

1-1 Highlight

No Item Description

1 Dimensions (WxHxD) - 267 mm X 187 mm X 80 mm

2 Weight - <5 lbs
3 Tilt Angle - 4 degree with elevator mechanism

- Universal AC 100 – 240 V ~ 50-60 Hz with PFC input

4 Power Supply

5 Keystone correction - +/ -40 degree (80 degree)

6 Cooling system

7 Brightness

8 Contrast

9 Uniformity

10 Throw ratio - 58”@2M(1.55 ~ 1.70 :1)
11 Audio - 2W*1

12 Projection lens

13 Lamp life - 3500 hours min, 50% survival rate
14 System controller - TI DDP2230

- 180W for Osram E20.6 Lamp @ normal operation

- Variant FAN speed control (Depends on temperature vari
ance)

- Advanced Air Flow

- Two fans with system acoustic noise level 35 dB(A) (typi
cal)

- Temperature control circuits with adaptive fan rotational
speeds

- Maximum touch temperature follow UL60950-1

-1700 ANSI Lumens (Typical; Full power mode)

-1450 ANSI Lumens (Minimum; Full power mode)

- 1500 : 1 Full White and Black (Minimum; Full power mode)

- 1800 : 1 Full White and Black (Typical; Full power mode)

- 65% Japan standard (Minimum; Full power mode)

- 80% Japan standard (Typical; Full power mode)

- F# 2.44~2.58, f = 21.83~23.81 mm, 1.10X Mechanical
Zoom Lens

H5350

Condential 1-1

No Item Description

- One HDMI input

- One D-sub VGA input

- One RCA Composite input

15 Terminal

16 Lamp housing

17 Input signal spec.

18 TI DMD

19

20 XGA / Compression

21 Number of active dots - 1280(H) x 720(V)

22 Color wheel

23 Lamp

24 Temperature

Video compatibility

- Three RCA Component input

- One S-Video input(4 pin Mini din)

- One audio input (2.5m phone jack)

- One USB port (Type B Female)

- Lamp Assembly could be changed by customer himself,
but should read the user manual for instruction in advance.

- Lamp Assembly should be provided by Coretronic and dis
tributed through authorized agencies.

- Hsync Frequency 31 ~ 100 kHz

- Vsync Frequency 56 ~ 85 Hz

- Video Signal RGB (PC)

● Analog RGB 0.7Vp-p, 75 ohm, Separate TTL H,V Sync

● Analog RGB 1Vp-p, 75 ohm, Sync. On Green signal

● Analog RGB 0.7Vp-p, 75 ohm, Composite TTL Sync.

- Video

● Composite video 1Vp-p,75 ohm

● S-video Luminance 0.714Vp-p, 75 ohm

● Chrominance 0.286Vp-p, 75 ohm

● Component Video 1Vp-p, 75 ohm

- TI DMD 0.62” 12° 2xLVDS Type-A 720p Digital Mirror
Device

- Standards :

● NTSC (3.58/4.43)

● PAL (B/D/G/H/I/M/N)

● SECAM (B/D/G/K/K1/L)

● HDTV - 480i,576i 480p, 576p, 720p, 1080i,1080p

- Compression :
by using “DDP2230” Chips can make image compression

- 6 segments (R90/Y35/G90/C35/W28/B82)

- 7200 rpm

- 180 – Watt OSRAM Lamp (user replaceable) for full power
mode

- Operating: 5°C -- 35°C

- Storage: -20°C -- 60°C

H5350

Condential

1-2

1-2 Compatible Mode

Computer Compatibility (Analog)

A. VGA Analog
(1) VGA Analog - PC Signal

Modes Resolution

640x480 60 31.5
640x480 72 37.9

VGA

SVGA

XGA

SXGA

QuadVGA

SXGA+ 1400x1050 60 63.98

UXGA 1600x1200 60 75
Power Mac G4 640x480 66.6(67) 34.93
Power Mac G4 800x600 60 37.9
Power Mac G4 1024x768 60 48.4
Power Mac G4 1152x870 75 68.68
Power Mac G4 1280x960 75 75
PowerBook G4 640x480 60 31.35
PowerBook G4 640x480 66.6(67) 34.93
PowerBook G4 800x600 60 37.9
PowerBook G4 1024x768 60 48.4

640x480 75 37.5
640x480 85 43.3
720x400 70 31.5
720x400 85 37.9
800x600 56 35.2
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7

832x624 75 49.725
1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60
1024x768 85 68.7
1152x864 70 63.8
1152x864 75 67.5
1152x864 85 77.1

1280x1024 60 63.98
1280x1024 72 76.97
1280x1024 75 79.98
1280x1024 85 91.1

1280x960 60 59.7
1280x960 75 75.23

V.Frequency

[Hz]

H.Frequency

[KHz]

H5350

Condential

1-3

Modes Resolution

PowerBook G4 1152x870 75 68.68
PowerBook G4 1280x960 75 75

i Mac DV(G3) 1024x768 75 60

(2) VGA Analog - Extended Wide timing

1280x768 60 48.36

WXGA

Native

1280x768 75 57.6
1280x768 85 68.63
1280x720 60 45
1280x800 60 49.702
1440x900 60 55.935

1680x1050 60 65.3

V.Frequency

[Hz]

H.Frequency

[KHz]

H5350

Condential

1-4

B. HDMI Digital
(1) HDMI – PC Signal

Modes Resolution

640x480 60 31.5
640x480 72 37.9

VGA

SVGA

XGA

SXGA

QuadVGA

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75
Power Mac G4 640x480 66.6(67) 34.9
Power Mac G4 800x600 60 37.9
Power Mac G4 1024x768 60 48.4
Power Mac G4 1152x870 75 68.7
Power Mac G4 1280x960 75 75
PowerBook G4 640x480 60 31.4

640x480 75 37.5
640x480 85 43.3
720x400 70 31.5
720x400 85 37.9
800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7

832x624 75 49.7
1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60
1024x768 85 68.7
1152x864 70 63.8
1152x864 75 67.5
1152x864 85 77.1

1280x1024 60 64
1280x1024 72 77
1280x1024 75 80
1280x1024 85 91.1

1280x960 60 60
1280x960 75 75.2

V.Frequency

[Hz]

H.Frequency

[KHz]

H5350

Condential

1-5

Modes Resolution

PowerBook G4 640x480 66.6(67) 34.9
PowerBook G4 800x600 60 37.9
PowerBook G4 1024x768 60 48.4
PowerBook G4 1152x870 75 68.7
PowerBook G4 1280x960 75 75

i Mac DV(G3) 1024x768 75 60

(2) HDMI – Extended Wide timing

1280x768 60 47.8

WXGA

(Native)

(3) HDMI – Video Signal
For TWN/USA SKU

480i (NTSC) 720x480(1440x480) 59.94(29.97) 15.7
480p (NTSC) 720x480 59.94 31.5
720p (NTSC) 1280x720 60 45

1080i (NTSC) 1920x1080 60(30) 33.7

1080p (NTSC) 1920x1080 60 67.4

For EMEA SKU

576i (PAL) 720x576(1440x576) 50(25) 15.6
576p (PAL) 720x576 50 31.3
720p (PAL) 1280x720 50 37.5

1080i (PAL) 1920x1080 50 28.1

1080p (PAL) 1920x1080 50 56.3

Graphic source

monitor range limits

1280x768 75 60.3
1280x768 85 68.6
1280x720 60 44.8
1280x800 60 49.6
1440x900 60 59.9

1680x1050 60 65.3

Horizontal scan rate: 31k-100kHz

Vertical scan rate: 56-85Hz

V.Frequency

[Hz]

H.Frequency [KHz]

H5350

Condential

1-6

Product Overview

Projector Outlook

Front /Upper side

Item Description Item Description

1 Zoom ring 5 Power button and Power Indicator LED
2 Focus ring 6 Remote control
3 Zoom lens 7 Remote control receiver
4 Lens cap

H5350

Condential

1-7

Rear side

Item Description Item Description

1 USB connector 6 Composite video input connector
2 HDMI connector 7 Audio input connector

Analog RGB/component input

3

connector
4 Component video input connector 9 KensingtonTM lock port
5 S-Video input connector

8 Power socket

H5350

Condential

1-8

Remote Control and Control Panel Layout

H5350

Condential

1-9

Item Icon Function Description

1

2

3 POWER Refer to the “Turning the Projector On/Off” section.

4 MENU

5

6 ZOOM Zooms the projector display in or out.
7 ASPECT RATIO To choose the desired aspect ratio (Auto/4:3/16:9/L.Box).
8 KeyPad 0~9 Press “0~9” to input a password in the “Security settings”.

9 KEYSTONE

10 RESYNC Automatically synchronizes the projector to the input source.

11 SOURCE

12 HIDE

13

14 FREEZE To pause the screen image.

Infrared
transmitter

Power/Power
LED

Four directional
select keys

Empowering
key

Sends signals to the projector.

Power button and Power Indicator LED.

• Press “MENU” to launch the Onscreen display (OSD)
menu, back to the previous step for the OSD menu
operation or exit the OSD menu.

• Conrm your selection of items.
Use up, down, left, right buttons to select items or make

adjustments to your selection.

Adjusts the image to compensate for distortion caused by
tilting the projector (± 40 degrees).

Press “SOURCE” to choose RGB, Component, S-Video,
Composite and HDTV sources.

Momentarily turns off the video. Press “HIDE” to hide the
image, press again to display the image.

Unique Acer functions: eView, eTimer Management.

Note:

H5350

Condential

1-10

Remote Control Placement

Please refer to the illustration to attach the remote control to the projector.

H5350

Condential

1-11

Connecting the Projector

Item Description Item Description

1 Power cord 6 HDMI cable
2 USB cable 7 RCA component cable for YPbPr
3 VGA cable 8 S-Video cable
4 Composite video cable 9 Audio cable Jack/RCA
5 Audio cable Jack/Jack

Note: To ensure the projector works well with your computer,please make sure the

timing of the display mode is compatible with the projector.

H5350

Condential

1-12

H5350

Condential

1-13

Bottom Cover Dimension

H5350

Condential

1-14

Chapter 2

Disassembly& Assembly Process

2-1 Equipment Needed & Product Overview

1. Screw Bit (+) :107

2. Hex Sleeves 5mm

3. Screw Bit (+) :102

4. Screw Bit (-) :102

5. Long Nose Nipper

6. Tweezers

7. H5350 unit

* Before you start: This process is protective level II. Operators should wear electrostatic chains.

* Note: If you need to replace the main board, you have to get into service mode and record the

lamp usage hour. please refer to section 2-20.

H5350

Condential

2-1

2-2 Disassemble Lamp

Cover Module

1. Unscrew 2 screws on Lamp Cover
Module

2. Disassemble Lamp Cover Module

Lamp Cover Module

2-3 Disassemble Lamp

Module

1. Unscrew 2 screws on Lamp Module

2. Disassemble Lamp Module

Lamp Module

H5350

Condential 2-2

2-4 Disassemble Top Cover

Module

1. Unscrew 2 screws on the unit base

2. Disassemble Top Cover Module(As the

picture show)

Note: - You should drop out

of three tenons rst, and then push

the Top Cover Module to back.

Top Cover Module

H5350

Condential 2-3

2-5 Disassemble Top

Shielding

1. Unscrew 7 screws on Top Shielding

2. Disassemble Top Shielding

Top Shielding

2-6 Disassemble Main Board

Module & I/O Cover
Module

1. Unscrew 2 hex screws

2. Tear a tape

3. Unscrew 1 screw and 6 connectors on

Main Board Module

H5350

Condential 2-4

4. Pull up the Main Board Module and then

unplug 1 connector(As green square)

5. Disassemble Main Board Module and I/O

Cover Module

6. Unscrew 3 screws to disassemble I/O

Cover Module from Main Board Module

I/O Cover Module

H5350

Main Board Module

Condential 2-5

2-7 Disassemble Front Cover

Module

1. Unscrew 1 screw(As yellow circle)

2. Press 1 tenon on each side and then pull

up the Front Cover Module

3. Disassemble Front Cover Module

Front Cover Module

H5350

Condential 2-6

2-8 Disassemble Engine

Module

1. Pull the higher-part of Mylar up(As the

red square)

2. Unscrew 4 screws on Engine Module

3. Disassemble Engine Module

Engine Module

H5350

Condential 2-7

2-9 Disassemble Color

Wheel Module

1. Unscrew 2 screws to disassemble Color

Wheel Module

2. Unscrew 1 screw to disassemble Photo

Sensor Board from Color Wheel Module

Color Wheel Module

Photo Sensor Board

H5350

Condential 2-8

2-10 Disassemble Zoom

Ring & Focus Ring

1. Unscrew 2 screws on Engine Module to

disassemble the Zoom Ring and Zoom

Ring Holder

2. Unscrew 3 screws to disassemble Focus

Ring

Zoom Ring Holder and Zoom Ring

Focus Ring

H5350

Condential 2-9

2-11 Disassemble DMD

Board and DMD Chip

1. Unscrew 4 screws on Engine Module to

disassemble Heat Sink

2. Unscrew 4 hex screws to disassemble

DMD Board and DMD Chip

Heat Sink

H5350

Condential 2-10

2-12 Disassemble Fan Module

1. Unscrew 4 screws

2. Take the Fan Cable out of the aperture

(As the red square)

H5350

Condential 2-11

3. Unscrew 4 screws to disassemble Fan

Module

4. Unscrew 1 screw to disassemble Thermal

Switch

2-13 Disassemble Blower

Module

1. Unscrew 3 screws to disassemble Blower

Module

2. Disassemble Rubber from the Blower

H5350

Condential 2-12

2-14 Disassemble Speaker

Module

1. Unscrew 1 screw and press 2 tenons to

disassemble Speaker Module

Note: - Use the tweezers to press the tenon.

2. Press the two tenons outward to

disassemble the Speaker from the

Speaker Holder

H5350

Condential 2-13

2-15 Disassemble LVPS

Module

1. Unscrew 1 ground screw(As red circle)

2. Unscrew 1 screw on LVPS Module(As

yellow circle) to disassemble LVPS BRKT

3. Unscrew 3 screws on LVPS Module(As

green circle)

4. Unplug 2 connectors to disassemble

LVPS Module

LVPS BRKT

LVPS Module

H5350

Condential 2-14

2-16 Disassemble Interrupt

Switch Module

1. Unscrew 1 screw and disassemble 1 Film

Tape to disassemble Interrupt Switch

Module

2. Tear off a Mylar

3. Press 2 tenons to disassemble Interrupt

Switch from Interrupt Switch Holder

Aperture

Dent

Film tape

Interrupt Switch Module

H5350

Condential 2-15

2-17 Disassemble Lamp

Driver Module

1. Unscrew 1 screw to disassemble Lamp

Driver Module

2. Unplug 1 connector(As red square) and

unscrew 2 screws (As green circle) to

disassemble Lamp Driver to Lamp Cable

3. Disassemble 1 Mylar(As green square)

Lamp Driver to Lamp Cable

H5350

Condential 2-16

4. Unplug 2 connectors to disassemble 2PIN

and 5PIN cable

5. Unscrew 4 screws to disassemble Lamp

Driver from Lamp Driver Holder

2 PIN&5 PIN Cable

Lamp Driver Module

H5350

Lamp Driver Holder

Condential 2-17

2-18 Disassemble Bottom

Cover Module

1. Unscrew 1 screw on Bottom Cover

Module

2. Tear 1 EMI tape

3. Disassemble the Bottom Cover Shielding

from Bottom Cover Module

4. Pull aside the iron sheet with Tweezers

to disassemble the ROD DUCT from

Bottom Cover Module

Note: - Due to the iron sheet is out of shape

easily,so we must turn it back before

assemble the ROD DUCT.

5. The disassembly is completed

Bottom Cover Module Shielding

Bottom Cover Module

ROD DUCT

H5350

Condential 2-18

2-19 Rod Adjustment

1. Environment adjustment

- The distance between the engine and the

screen is 2.25 M

- This process should be done at a dark

environment. (under 5 Lux)

2. Procedure adjustment

- Change the screen to “white screen.”

- Adjust the screws by using the rod on

the engine module to readjust the image.

(adjust until the yellowish or bluish parts

disappeared.)

3. Abnormal image inspection

- It should not have any abnormal color at

2

1

the rim of the image by estimating through

the eyes.

Note: - To avoid over adjust the rod.

- “Screw 1” should be adjusted rst, and

then adjust the “Screw2”.After the

adjustment, use the glue to x the

screws.

H5350

Condential 2-19

2-20 Re-write Lamp Usage

Hour

1. Get into service mode.

- press (power > left > left > menu) to get

into service mode.

- Click “RD Test” to get into the next step

2. Select “Lamp life” and use left or right key

to re-write the lamp hour back to previous

lamp usage hour.

3. Choose “Return to Service Menu” and

then exit the service mode

Note: left key = decrease lamp hour

right key =increase lamp hour

Check the lamp
usage hour

H5350

Re-write lamp
usage hour

Condential 2-20

2-21 Assemble Bottom

Cover Module

1. Assemble ROD DUCT on the Iron Sheet

2. Assemble the Bottom Cover Shielding on

Bottom Cover Module

3. Stick 1 EMI tape

4. Screw 1 screw on Bottom Cover Module

Bottom Cover shielding

H5350

Bottom Cover Module

Condential 2-21

2-22 Assemble Lamp Driver
Module

1. Screw 4 screws to assemble Lamp

Driver Module on Lamp Driver Holder

2. Plug 2 connectors to assemble 2PIN and

5PIN cable

Note: - The 2 PIN and 5 PIN cable must be pass

through a Dent.(As the yellow square)

3. Stick a Mylar

Lamp Driver Module

2 PIN&5 PIN Cable

Lamp Driver Holder

Lamp Driver to Lamp Cable

H5350

Condential 2-22

4. Plug 1 connector(As blue square)and

screw 2 screws to assemble Lamp Driver

to Lamp Cable

Note: - The lamp driver to lamp cable must be

passed through two Dents.(As the yellow

square)

5. Screw 1 screw on Lamp Driver Module

H5350

Condential 2-23

2-23 Assemble Interrupt

Switch Module

1. Fasten 2 tenons to assemble Interrupt

Switch on Interrupt Switch Holder

2. Stick a Mylar on Interrupt Switch Module

3. Screw 1 screw and stick 1 lm tape to

assemble Interrupt Switch Module

Note: - Interrupt Switch cable must be passed

through a dent and a aperture.And use

a lm tape to x the cable in the dent.

Interrupt Switch Module

Aperture

Dent

Film tape

H5350

Condential 2-24

2-24 Assemble LVPS Module

1. Plug 2 connectors (As yellow square)

and screw 3 screws (As green circle) to

assemble LVPS module

2. Screw 1 screw to assemble LVPS BRKT

(As yellow circle)

3. Screw 1 ground screw(As red circle)

LVPS BRKT

LVPS Module

H5350

Condential 2-25

2-25 Assemble Speaker

Module

1. Fasten 2 tenons to assemble the

speaker on the speaker holder

2. Fasten 2 tenons and screw 1 screw to

assemble Speaker Module

.

2-26 Assemble Blower

Module

1. Assemble the Rubber on the Blower

2. Screw 3 screws to assemble Blower

Module

H5350

Condential 2-26

2-27 Assemble Fan Module

1. Screw 1 screw to assemble

Thermal Switch(As green circle)

2. Screw 4 screws to assemble Fan Module

3. Screw 4 screws to assemble Fan Module

on the unit

Note: - The fan cable pass through from the

aperture.

H5350

Condential 2-27

2-28 Assemble DMD Board
and DMD Chip

1. Screw 4 hex screws to assemble all

components of DMD parts

2. Screw 4 screws on Engine Module to

assemble Heat Sink

H5350

Condential 2-28

2-29 Assemble Zoom

Ring&Focus Ring

1. Screw 3 screws to assemble Focus Ring

2. Screw 2 screws on Engine module to

assemble Zoom Ring and Zoom Ring

Holder

Zoom Ring Holder and Zoom Ring

H5350

Condential 2-29

2-30 Assemble Color Wheel

Module

1. Screw 1 screw to assemble Photo

Sensor on Color Wheel Module

2. Screw 2 screws to assemble Color

Wheel Module

H5350

Condential 2-30

2-31 Assemble Engine

Module

1. Push the higher-part of Mylar down(As the

red square) to assemble Engine Module

2. Screw 4 screws to assemble Color Wheel

Module

H5350

Condential 2-31

2-32 Assemble Front Cover

Module

1. Push down the Front Cover Module

2. Fasten 1 tenon on each side

3. Screw 1 screw(As yellow circle) to

assemble Front Cover Module

H5350

Condential 2-32

2-33 Assemble Main Board

Module & I/O Cover
Module

1. Screw 3 screws to assemble I/O

Cover Module on Main Board Module

2. Plug 1 connector(As green square)

3. Screw 1 screw and 6 connectors on

Main Board Module

4. Stick a tape

I/O Cover Module

Main Board Module

H5350

Condential 2-33

5. Screw 2 hex screws

2-34 Assemble Top Shielding

1. Screw 7 screws on the Top Shielding

H5350

Condential 2-34

2-35 Assemble Top Cover

Module

1. Fasten 3 tenons to assemble Top

Cover Module on the unit

Note: - You should press three tenons rst,

and then push the Top Cover Module

to back.

2. Screw 2 screws on the unit base

H5350

Condential 2-35

2-36 Assemble Lamp Module

1. Assemble Lamp Module

2. Screw 2 screws on Lamp Module

2-37 Assemble Lamp Cover

Module

1. Assemble Lamp Cover Module

2. Screw 2 screws on Lamp Cover Module

3. Assembly is completed

Lamp Cover Module

H5350

Condential 2-36

Chapter 3

Troubleshooting

3-1 LED Lighting Message

Power LED

Message

Red Blue

Input Power Plug Flash ON to OFF 100ms --

Standby V --

Power button ON -- V

Lamp retry -- Quick Flashing

Power off (Cooling

state)

Power button OFF:

Cooling completed;

Standby Mode

Error (Thermal Failure) Quick Flashing RED and Steady BLUE by returns

Error (Fan lock) Quick Flashing RED and Steady BLUE by returns

Error (Lamp break-

down)

Error (Color Wheel fail) Quick Flashing BLUE and Steady RED by returns

Quick Flashing --

V --

Quick Flashing BLUE and Steady RED by returns

H5350

Condential

3-1

3-2 Main Procedure

No Symptom

1 No Power

2 Auto Shut Down

Procedure

- Ensure the Power Cord and AC Power Outlet are securely
connected

- Check Lamp Cover and Interrupt Switch

- Ensure all connectors are securely connected and aren’t

broken

- Check Lamp Driver

- Check LVPS

- Check Main Board

- Check LED Status

a. Lamp LED Light

- Check Lamp

- Check Lamp Driver

- Check Main Board

b. Temp LED Light

- Check Thermal Switch

- Check Fan

c. Color Wheel

- Check Color Wheel

- Check Photo Sensor

H5350

Condential

3-2

No Symptom

Procedure

- Ensure the Signal Cable and Source work

(If you connect multiple sources at the same time, use the
“Source” button switch)

- Ensure all connectors are securely connected and aren’t

3 No Image

4

5 Machanical Noise

No Light On

broken

- Check Main Board

- Check DMD Board

- Check DMD Chip

- Check Engine Module

- Ensure all connectors are securely connected and aren’t
broken

- Check Lamp Module

- Check Lamp Driver

- Check LVPS

- Check Main Board

- Check Color Wheel

- Check Fan Module

- Check if the Main Board and the DMD Board are

assembled properly

6 Line Bar/Line Defect

7 Image Flicker

- Check Main Board

- Check DMD Board

- Check DMD Chip

- Do “Reset(All data)” of the OSD Menu

- Ensure that the signal cables and source are work as well

- Check Lamp Module

- Check Color Wheel

- Check DMD Board

- Check Main Board

H5350

Condential

3-3

No Symptom

8 Color Abnormal

9

10

Poor Uniformity/

Shadow

Dead Pixel/Dust

(Out of spec.)

Procedure

- Do “Reset(All data)” of the OSD Menu

- Adjust Color Wheel Index

- Check Main Board

- Check Color Wheel

- Ensure the projection screen without dirt

- Ensure the projection lens is clean

- Ensure the Brightness is within spec

- Check rod alignment

- Check Engine Module

- Ensure the projection screen without dirt

- Ensure the projection lens is clean

- Clean DMD Chip and Engine Module

- Check DMD Chip

11 Garbage Image

12 Remote Control

13 Function Abnormal

14

Audio Abnonrmal

- Check Engine Module

- Ensure that the signal cables and source work as well

- Check Main Board

- Check DMD Board

- Remote Control

a.Check Battery

b.Check Remote Controller

c.Check Main Board

- Do “Reset(All data)” of the OSD Menu

- Check Main Board

- Check DMD Board

- Ensure that the signal cables and source are work as well

- Check Speaker Module

- Check Main Board

H5350

Condential

3-4

No Symptom

Forgetting Password

15

(adminstrator
Password)

Procedure

- An unique Universal Password which is printed on the
Security Card. This unique password is a back door of
Administrator Password which will be accepted by projector
anytime no matter what the Administrator Password is.

- How to get the Universal Password?
(1) Click the “AcerSNID”

(2) Input SNID number.(SNID number is on the Security
Card)

(3) Click“Calculate”.Then the Universal Password will
appear.

H5350

Condential

3-5

Chapter 4

Function Test & Alignment Procedure

4-1 Test Equipment Needed

- IBM PC with XGA resolution and Wireless Network Card

- DVD player with Multi-system (NTSC/PAL/SECAM), equipped “Component”, “S-Video”

, “Composite” and "HDMI".

- HDTV Source (480P, 720P, 1080i)

- Minolta CL-100

- Quantum Data 802B or CHROMA2327 (Color Video Signal & Pattern Generator)

- After changing parts, check the information below.

4-2 Service Mode

1. Turn on the projector and input the signal

2. Do the following actions sequentially to enter service mode menu

(1) Press "Power→Left→Left→Menu".

(2) Service mode will be shown.

(3) After conrming the conguration, press "Exit" to exit.

4-3 OSD Reset

1. After nal QC step, we have to erase all saved change again and restore the OSD
default setting. The following actions will allow you to erase all end-users' settings and
restore the default setting:

(1) Please enter OSD menu.

(2) To execute "Reset" function.

H5350

Condential

4-1

4-4 Test Condition

- Circumstance brightness: Dark room less than 5.0 lux.

- Inspection distance: 1.8m~2.5m functional inspection.

- Screen size: 60 inches diagonal

- After repairing each

Symptom Run-in Time
Normal repair 2 hours
NFF 4 hours
Auto shut down 6 hours

H5350

, the unit should be run-in (refer to the table below)

- Enter Burn-In Mode

* Cycle setting is based on the defect symptoms. ie: If it is NFF, the run-in time is 4 hours. You have

to set the lamp on for 50 min. and lamp off for 10 min for 4 cycles.

Press power > left > left > Menu

Choose Burn-In Test > enter

Lamp On (Min) Press right key to adjust the time (50)

Lamp Off (Min) Press right key to adjust the time (10)

Set burn in cycle Press right key to adjust the cycle

After setting up the time, choose Burn-In mode and hit enter

Screen Defects (While replacing DMD Chip, DMD BD and MB)

< Figure: Zone A &B Denition >

H5350

Condential

4-2

4-5 Test Inspection Procedure

Charge parts/

Update

Version Update v v

Color Wheel Index v v

PC

Calibration

YPbPr

Calibration

Reset lamp hour v

OSD Reset v v

EDID v

Re-write Lamp

Hour Usage

M/B FW Color Wheel Lamp Module

v

4-6 PC MODE

1. Frequency and tracking boundry

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz

- Test Pattern: general-1 or master

- Check and see if the image sharpness is well-

performed.

- If not re-adjust by the following steps:

(1) Select "Frequency" function to adjust the

total pixel number of pixel clock in one line
period.

(2) Select "Tracking" function and use right or

left arrow key to adjust the value to minimize

H5350

General-1

Master

Condential

4-3

video icker.

- Adjust Resync or Frequency/Tracking/H. Posi-

tion/V. Position to the inner screen.

Inspection item - Eliminate visul wavy noise by Rsync, Frequency

or Tracking selction.

- Check if there is noise on the screen.

- Horizontal and vertical position of the vedio

should be adjustable to the screen frame.

Criteria - If there is noise on the screen, the product is

considered as faliure product.

- If there is noise on the screen, use auto or

manual “frequency” function or “tracking” func­tion to adjust the screen.

- The PC mode functionally sure be workable

include support format with frequency and auto
detected functional will be workable.

2. Light Leak

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz1280 x 720@60Hz

- Test Pattern: gray 30 patterns

- Check if the light leaks.

* Light leak on reective edge, eyecatcher, bond-

wires and exposed metal.

Inspection item - Light leak check.

- Bright blemish (dirty).

Criteria - The pattern cannot accept the color level of the

leakage is brighter than the gray 30 pattern.

- Ref. below table

Note: The defect criteria follows TI specication.

3. Blemish (Dark)

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz.1280 x 720@60Hz..

- Test Pattern: blue 60

Gray 30

H5350

Blue 60

Condential

4-4

Inspection item - Dark blemish check.(dirty)
Criteria - The bright blemish is unacceptable when it ap-

pears on blue 60 pattern.

- Ref. below table

Note: The defect criteria follows TI specication.

4. Dead Pixel (Bright pixel)

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz.1280 x 720@60Hz..

- Test Pattern: full black

Inspection item - Bright pixel check.
Note: Frame dimension under operative zone1

inch

Criteria - Bright pixel is unacceptable.

- Ref. below table

Note: The defect criteria follows TI specication.

Full black

5. Dead Pixel (Dark pixel)

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz.1280 x 720@60Hz..

- Test Pattern: full white

Inspection item - Dead pixels check.

- White pattern (IRE=100)

- Adjacent dark pixel.

Criteria - The number of the dead pixels should be less or

equal to 6 pixels.

- Adjacent pixel with each other is unacceptable.

- Ref. below table

Note: The defect criteria follows TI specication.

6. Focus test

Procedure - Test equipment: video generator.

- Test signal: analog 1280 x 720@60Hz1280 x 720@60Hz

Full white

H5350

Condential

4-5

- Test Pattern: full screen or MEME Sony

Inspection item - Focus check

Criteria - From screen 2.25 M
via visual to check the focus, look at the entire
screen, focus shall be clear, crisp, and sharp
over the entire surface of the display
pattern.(Blur word on one of the corner after
adjustment is acceptable. However, the word
should at least be recognizable.)

7. Color performance

Procedure - Test equipment: video generator.

- Test signal: HDMI 720p,1080i

- Test Pattern: Master, In focus II or SMPTE RP-

133

* Please refer to 4-2 to enter service mode.

Use 720P & 1080i signal, master pattern to do
HDTV test. Color cannot discolor to purple and
blue. If the test result is discoloration or icker­ing, please return the unit back to repair

centers.

Inspection item - Check if each color level is well-functioned.

- color saturations

Full screen

MEME Sony

Master

Criteria - Screen appears normal. It should not have any

abnormal condition, such as lines appear on the
screen and so on.

- Color appears normal.

- It is acceptable to have few lines ashing at the

center and on the edge of 1080i image. How­ever, rest of the image should appears stable.

- RGBW should all appear normal on the screen

and sort from R -G-B-W.

- Color levels should be sufcient and normal.

(the unidentied color levels on both left and
right sides should not over 8 color levels.)

- Grey level should not have abnormal color or

H5350

InFocus II

/ 64 gray RGBW

SMPTE RP-133

Condential

4-6

heavy lines.

- The PC mode functionally sure be workable

include support format with frequency and auto
detected functional will be workable

4-7 Defect specication table

Order Symptom Pattern Criteria

Black pattern

1 Bright pixel ( dots)

( IRE=O)

2 Dark pixel(dots) White pattern

3 Unstable pixel (dots) Any pattern

A+B=0

A+B=6

A+B=1

4

5 Dark blemish (Dirty) Blue 60 pattern

6 Bright blemish (Dirty) Gary 30 pattern

7 Bright dot on frame Black pattern 2

Adjacent dark pixel
(dots)

Any pattern

4-8 Video Performance

1. CVBS

Procedure - Test equipment: DVD player

- Test signal: CVBS

A+B=0

A+B=3

(diameter <1/2 inch)

A+B=3

(diameter <1/2 inch)

H5350

Motion video

Condential

4-7

Inspection item - Video performance test
Inspection Distance - 1.8M ~2.5M
Criteria - Check any abnormal color, line distortion or anyabnormal color, line distortion or any color, line distortion or any

noise on the screen.

- Check the sound from speakers.

2. S-Video

Procedure - Test equipment: DVD player

- Test signal: S-Video

Inspection item - Video performance test
Inspection Distance - 1.8M ~2.5M
Criteria - Check any abnormal color, line distortion or any

noise on the screen.

- Check the sound from speakers.

3. HDTV/ Component

Procedure - Test equipment: DVD player

- Test signal: Ycbcr/YPbPr

Inspection item - HDTV performance test
Inspection Distance - 1.8M ~2.5M
Criteria - Check any abnormal color, line distortion or anyabnormal color, line distortion or any color, line distortion or any

noise on the screen.

- Check the sound from speakers.

4. Audio Test

Procedure - Test equipment: DVD player

- Test signal: CVBS

Inspection item - Audio performance test
Inspection Distance - 1.8M ~2.5M
Criteria - Check the sound from speakers.

- Check “Volume” is normal

- Check “Mute” is normal

5. HDMI test

Procedure - Test Signal : 720p,1080i

H5350

Condential

4-8

- Test Pattern : Any Pattern

- Equipment: DVD Player with HDMI output

- Display type must be set to 16:9

Inspection item - HDMI Test
Criteria - Ensure if the image is well performed and the
color can not discolor.

4-9 Optical Performance Measure

Inspection Condition

- Environment luminance: 5 Lux

- Product must be warmed up for 3 minutes

- Distances from the screen: 2.25 M

- Screen Size: 60 inches diagonal

- Reset to default before measurement

1. Test equipment

Procedure - Enter service mode:Press "Power→Left→

Left→Menu".

- Select “RD test”

- Select “Spoke On”

2. Brightness

Procedure - Full white pattern

- Use CL100 to measure brightness values of

P1~P9.

- Follow the brightness formula to calculate

brightness values.
☼ Brightness Formula
Avg.(P1~ P9)x1.1m2
Criteria - 800 lumens

Full white pattern

H5350

Condential

4-9

3. Ful On/Full Off Contrast

Procedure - Full white pattern & full black pattern

- Use CL100 to measure brightness values of full

white pattern P5 & full black pattern B5 ( see im­age: full white)

- Follow Contrast formula to calculate contrast

values.
☼ Contrast Formula
P5/B5
note: P5=center of white image
B5=center of black image.
Criteria - 1500:1

4. Uniformity

Procedure - Full white pattern

- Use CL100 to measure brightness values of

P1~P9 (see image: full white).

- Follow the Uniformity formula to calculate
average values.

☼ Uniformity Formula
ANSI Uniformity = Avg. (P1, P3, P7, P9)

P5

Criteria - 65%

x 100%

Full black pattern

4-11 Others

1. Functional Inspection

Keypad button - All keypad buttons must operate

smoothly.

General - All OSD functions must be

checked for functionality. When
OSD menu is displayed, there

H5350

Condential

4-10

shall be no visible peaking, ringing, streaking, or smearing
artifacts on the screen.

Factory Default - The factory settings (with appropriate centering, size, ge-

ometry distortion, etc.) shall be displayed upon “Recall” is
selected from OSD

Display Size - All preset modes shall expand to full screen size using OSD

Horizontal and Vertical Size controls

Display Data Channel (DDC) - The purpose of the DDC test is to verify the DDC1/DDC2B

operation of the projector and to verify Plug & Play function.

Acoustic - High pitch sound from cooling fan and color wheel is unac-

ceptable.

2. Check points for exterior and print pattern

Check item Check point

Text & Pattern

Exterior

Buttons Stuck buttons are unacceptable

Focus ring Focus ring is functioning smoothly

Logo

Screw

Pedestal Well-functioned

Lamp Cover It should be locked in the correct place

Plastic Parts All plastic parts can not be brocken and damaged
Safety or warning

label

Connector

Missing letters & pattern or blurry prints are
unacceptable

Dirt, scrape, water ripples and uneven color are
unacceptable

Missing logo, missing prints and blurry prints are
unacceptable

All screw sure be xed and in right type

All safety and warning label should be visible,
including all contents

All interface connector should be complete and
workable

H5350

Condential

4-11

Chapter 5

Firmware Upgrade

5-1 Equipment Needed

Software : (DDP 2230- USB)

- DLP Composer

- Firmware

- Library V7.1 0330 (library le has to put in PC and set right path in 5-4 step 4)

Hardware :

- Projector

- Power cord (42.53506G002)

- USB Cable (42.87304G001)

- PC or Laptop

H5350

Condential 5-1

5-2 DLP Composer Lite Setup

Procedure

1. Choose "DLP Composer Lite V7.1 Setup"

Program.

2. Click "Next" button.

3. Read "License Agreement".

- Choose "I accept and agree to be bound

by all the terms and conditions of this

License Agreement".

4. Click "Next".

5. Click "Next".

3

H5350

4

Condential

5-2

6. Click "Next".

7. Click "Next".

8. Writing system registry values.

9. Click "Finish".

H5350

Condential

5-3

5-3 USB Driver Upgrade

Procedure

1. set up

- Plug in Power cord to projector.

- Link PC USB port and projector USB port

by USB Cable.

2. Execute Program

(1) "Found new hardware wiszard" will be

appearred on the screen.

(2) Select "Install the software automatically

(Recommended)".

(3) Then click "Next".

3. Finish

- Click "Finish" to end the installation.

(2)

(3)

H5350

Condential

5-4

5-4 Firmware Upgrade
Procedure

1. Set-up

- Hold on "Power" and plug in power cord

while holding on "Power".

- Once the Power LED light on Blue & Red

at the same time, plug in USB cable into

the projector and link to the USB port of a

PC.

Note: The system fan and the light will not

operated.

2. Execute the "DLP ComposeTM" le.

3. Click "edit" and "perferences".

4. Click “Library.”

- Click the “browse” button and navigate to

the directory where you put the library le

in.

H5350

Condential

5-5

5. Select "Edit\preferences\Communications"

- Choose "USB".

- Click "OK".

6. Choose "Flash Loader".

- Click "Browse" to search the rmware le.

7. Selete the item "skip Boot Loader Area"

(select 32KB).

- Click "Reset Bus" to erase the ash

memory.

8. If the rmware is ready, click "start

download" to process the rmware

upgrade.

- Click "Yes" to erase the ash memory.

H5350

Condential

5-6

9. When rmware upgrade process is

nished, the unit return to stand-by status.

The LED power lights on and appears Red.

- Unplug USB cable and power cord and

replug in power cable.

10. Restart the unit and enter the service

mode to check the rmware version.

(To enter service mode, please refer to

Chapter 4 Function Test and Alignment

Procedure.)

32

H5350

Condential

5-7

Chapter 6

EDID Upgrade

6-1 EDID Introduction

Extended Display Identication Data is a VESA standard data format that contains basic

information about a display device and its capabilities, including vendor information,

maximum image size, color characteristics, factory pre-set timings, frequency range limits,

and character strings for the monitor name and serial number.

The information is stored in the display and is used to communicate with the system

through a Display Data Channel (DDC), which sites between the display device and the

PC graphics adapter. The system uses this information for conguration purposes, so the

monitor and system can work together.

Note: If a display device has digital input ports, like DVI or HDMI, but without EDID in its

main board, the display device will show no image while the input source is digital signal.

H5350

Condential

6-1

6-2 Equipment Needed

Software

- EDID Program (Generic V0.51)

- EDID File (ACER_H5350 EDID-A04_USA.ini)

Hardware

- Projector

- Generic Fixture (80.00001.001) for EDID Key-in (Fixture: JP3 must be closed)

- Power cord for Projector (42.53506G002)

- RS-232 9 Pin Cable (pin to pin, F-M) (42.83C07G001)

- Monitor

- PC

- VGA cable (42.87305G102)

- DVI Cable (42.83N06G001)

- Power adapter (47.57803G001) and power cord (42.53506G002) for xture

- Adapter HDMI(M) to DVI-D(F) (42.82B13G001)

H5350

Condential

6-2

6-3 Setup Procedure
(VGA)

1. Connect all ports

(1) Connect P1 of Fixture with COM Port of

PC/Laptop by RS232 Cable.

(2) Connect P2 of Fixture with VGA port of

Power CNN

Projector by VGA Cable.

(3) Plug Power Adapter to Power CNN.

(4) Plug Power Cord to H5350 unit.

Note: Conrm JP3 is "Close" status.

P1

Power Port

P2

VGA

VGA Port

H5350

Condential

6-3

6-4 EDID Key-In Procedure

1. Execute EDID Program

1

(1) Click on "EDID" to execute EDID

program.

2. Process

(1) Check the COM port is "COM 2"

(Select the COM port which you are

using).

(2) Click the "Model" button.

(3) Choose the source le

"ACER_H5350 EDID-A04_USA.ini"

and then open it.

3. Process

(1) Key in the serial number into the

2

(2)

(1)

(3)

3

(1)

(3)

barcode blank space.

(2) In "Write Source Select" item,select

"Analog".

(3) Click "Program" button.

4. Process

(1) "Please change the cable to Analog"

will be shown on the screen.

(2) Please press "Ok" button.

(2)

4

H5350

Condential

6-4

5. Finish

(1) "OK" will be shown on the screen.

6. Read EDID information

(1) In the Read item,select "Analog" and

"Trans".

5

(2) Please press "Read" button.

7. Read EDID information

(1) EDID Informations will show the result.

6

7

H5350

Condential

6-5

6-5 Setup Procedure (HDMI)

1. Connect all ports

(1) Connect P1 of Fixture with COM Port of

PC/Laptop by RS232 Cable.

(2) Connect P2 of Fixture with P3 by DVI

Cable.

(3) Plug P4 to HDMI Port of the Projector.

(4) Plug Power Adapter to Power

CNN.

5) Plug Power Cord to H5350 unit.

(

Note: Conrm JP3 is "Close" status.

HMDI Port

Power Port

Power CNN

P2

P1

P4

P3

H5350

Condential

6-6

2. Process

(1) Check the COM port is "COM 2"

(Select the COM port which you are

using).

2

(2)

(2) Click the "Model" button.

(3) Choose the source le

"ACER_H5350 EDID-A04_USA.ini"

and then open it.

3. Process

(1) Key in the serial number into the

barcode blank space.

(2) In "Write Source Select" item,select

"Digital".

(3) Click "Program" button.

4. Process

(1)

(3)

3

(1)

(3)

(2)

(1) "Please change the cable to Digital"

will be shown on the screen.

(2) Please press "Ok" button.

4

H5350

Condential

6-7

5. Finish

(1) "OK" will be shown on the screen.

5

6. Read EDID information

(1) In the Read item,select "Digital" and

"Trans".

(2) Please press "Read" button.

7. Read EDID information

(1) EDID Informations will show the result.

(2)

6

(2)

(1)

7

H5350

Condential

6-8

Appendix A

ASSY FAN SHIELDING MODULE WHITE H5350

1

2

3

Item P/N Description Parts Supply

70.89T13GR01

1 85.1F123G260 SCREW PAN MECH E/SF M3*26 Ni NO
2 49.88T01G001 SUNON, KDE1207PKV1-A 70*70*20mm

3 43.88N01G001 THERMAL SWITCH WITH BRACKET

ASSY AXIAL FAN MODULE P5270(RMA)

NO

AXIAL FAN

(KLIXON YS11) 100 DEG. C

H5350

Condential

I

ASSY LAMP DRIVER MODULE H5350

3

4

6

5

1

2

H5350

Condential II

Item P/N Description Parts Supply

1 42.00422G001 W.A 5P 150mm LAMP DRIVER TO MB X1160
2 42.00443G001 CABLE W.A, 2P #20 160mm LVPS TO BALLAST
3 42.00436G001 CABLE W.A. 2P #22 100mm LAMP DRIVER TO

LAMP X1160

4 51.88T11G003 HOLDER LAMP DRIVER FOR H5350 NO
5 51.88T18G001 KAPTON 10*10 0.05t X1160 NO
6 51.89T04G001 MYLAR LAMP DRIVER H5350 NO
7 51.8AQ02G001 INTERLOCK SWITCH HOLDR FOR NEC NO

70.89T15GR01 ASSY LAMP DRIVER MODULE H5350(SERVICE)
8 75.88T02G001 ASSY OSRAM LAMP DRIVER O6 MIC 180W NO
9 75.88T05G001 ASSY INTERRUPT SWITCH MODULE XD1130

10 85.1A126G060 SCREW PAN MECH M3*6 NO
11 85.3A122G040 SCREW CAP MECH M2*4 NI NO

NO

H5350

Condential III

ASSY MAIN BD MODULE H5350

13

10

H5350

Condential IV

Item P/N Description Parts Supply

70.89T11GR01 PCBA MAIN BD MODULE FOR H5350(SERVICE)

1 41.82G03G001 EMI GASKET USB CONNECTOR EP719 NO

70.89T12GR01 ASSY I/O COVER MODULE H5350(SERVICE)

2 41.82K11G001 EMI GASKET W6*H1*L190mm NO

3 41.83F21G001 GASKET h?/W*5, H*1.5, L*15 NO
4 41.88T02G001 EMI GASKET L180*W4*H1 NO
5 41.89B01G001 EMI TAPE L*190/W*13 NO
6 51.88T04G011 IO COVER H5350 NO
7 51.88T17G001 MYLAR MB SHELDING X1160 NO
8 51.89T02G001 MB SHELDING MYLAR H5350 NO
9 51.89T05G001 M/B SHIELDING MYLAR FOR H5350 NO

10 51.89T06G001 M/B CNNT MYLAR H5350 NO

11 52.88T06G001 SPONGE CR4305 BACK MB SHELDING X1160 NO

12 61.89T01G001 MAIN-BD SHIELDING H5350 NO

13 80.89T01G001 PCBA MAIN BOARD FOR H5350 NO

H5350

Condential V

ASSY COLOR WHEEL MODULE H5350

Item P/N Description Parts Supply

70.89T09GR01 ASSY COLOR WHEEL MODULE H5350(SERVICE)

1 23.89T19G001 YO R90Y35G90C35W28B82 6 SEGMENT CW NO

2 51.82Y29G001 TAPE 3M J350 10*5mm FOR COLOR WHEEL NO

3 52.83615G001 COLOR WHEEL DISC RUBBER , EzPro755 NO
4 61.83628G001 COLOR WHEEL SHOULDER SCREW NICKEL M2*4.8 NO
5 61.88N10G001 COLOR WHEEL HOLDER SECC,X15 NO

6 80.87Y04G001 PCBA PHOTO SENSOR BOARD FOR PD7280

7 85.1A126G040 SCREW PAN MECH M2.6*4 Ni NO

H5350

Condential VI

ASSY HOUSING MODULE H5350

H5350

Condential VII

Item P/N Description Parts Supply

1 41.82B01G001 EMI GASKET W13*H10.5*L30mm NO
2 41.89B02G001 EMI TAPE W*20/L*70 NO

3 51.81540G001 TAPE 3M J350 17*60mm NO
4 51.81541G001 TAPE 3M J350 17*30mm NO

70.89T14GR01 ASSY BOTTOM COVER MODULE

H5350(SERVICE)
5 51.88T02G011 BOTTOM COVER H5350 NO
6 51.88T14G001 ROD DUCT X1160 NO

7 51.88T21G001 MYLAR K-LOCK 0.25t X1160 NO
8 51.89T02G001 MB SHELDING MYLAR H5350 NO
9 51.89T03G001 LVPS MYLAR H5350 NO

10 52.86801G011 RUBBER FOOT REAR GRAY H5350 NO

11 52.88T04G001 BOTTOM SHELDING AIR TIGHT X1160 NO

12 61.88T03G011 SHIELDING BOTTOM COVER FOR X1260 NO

13 70.89T06G001 ASSY ADJUST FOOT MODULE WHITE H5350 NO
14 85.1A123G060 SCREW PAN MECH M3*6 NI NO
15 86.00122G015 NUT HEX M2.0*0.4P L15 Ni NO

H5350

Condential VIII

BUY ASSY TOP COVER ADD PAINT H5350

H5350

Condential IX

Item P/N Description Parts Supply

70.89T16GR01 ASSY TOP COVER MODULE
H5350(SERVICE)

1 51.88T01G012 TOP COVER,PC-MN3600H,WHITE H5350 NO
2 51.88T07G001 LENS POWER X1160 NO

3 51.88T08G002 IR CAP,WHITE H5350 NO
4 51.88T16G011 TRACK REMOTE CONTROLLER,WHITE NO
5 51.88T16G031 TRACK REMOTE CONTROLLER-2,WHITE NO

6 85.1A526G060 Screw Pan M2.6x6 Ni NO

7 51.88T06G011 KEYPAD POWER H5350 NO

H5350

Condential X

ASSY ENGINE MODULE H5350

28

11

24

14

8

10

30

13

5

29

6

18

9

12

33

1

15

27

25

19

2

3

26

32

17

20717

H5350

Condential XI

Item P/N Description Parts Supply

1 11.009F0G007 CNNT F 203P FOR 720P LGA DMD SOCKET

70.89T10GR01 ASSY ENGINE MODULE H5350(SERVICE)

2 23.88N06G001 YO PLASTIC RELAY FOR X15 NO

3 23.88N20G001 YO CONDENSER1 FOR X15 NO
4 23.88N20G011 YO CONDENSER2 FOR X15 NO
5 23.89L01G001 PROJECTION LENS YM09W NO

6 41.82B01G001 EMI GASKET W13*H10.5*L30mm NO

7 41.85W05G001 EMI GASKET W8*H8*L45 NO
8 48.86N01G003 DMD 1280x720 PIXEL 0.62” 720P LVDS
9 51.00210G001 DMD SCREW WASHER A39 NO

10 51.89B01G001 HOLDER ZOOM RING X1260 NO

11 51.89B04G001 ZOOM RING X1260

12 51.89F02G001 DMD INSULATION PC A15 NO

13 51.89T01G001 FOCUS RING H5350
14 52.80J01G001 DMD ANTIDUST RUBBER 739 SILICONE RUBBER NO
15 52.87319G001 DMD THERMAL PAD 18*13*0.5t

16 61.80J10G001 DMD LIGHT MASK 739 SUS301 NO

17 61.82B36G011 SCREW M3*10.5*6 IHSPC NO
18 61.88611G001 DMD SCREW Ivy10X
19 61.88N12G001 ROD SPRING SUS301,X15 NO

20 61.89630G001 DP759 HEATSINK SPRING NO
21 61.89F01G001 DMD PLATE AL A39 NO
22 61.89F02G001 ROD COVER SUS304 0.25t 1/2H HD65 NO
23 61.89F04G011 DMD HEATSINK AL H5350 NO
24 70.89F04G001 PRE ASSY ENGINE BASE HD65 NO
25 70.89F05G001 ASSY ROD MODULE HD65 NO
26 70.89F15G001 ASSY ENGINE BOTTOM COVER HD65 NO
27 70.89T04G001 ASSY COLOR WHEEL MODULE H5350 NO
28 85.1A526G060 SCREW PAN MECH M2.6*6 Ni NYLOK NO
29 85.4A121G065 SCREW FLAT HEAD TAP M1.7*6.5 NO

30 87.FL000G003 WSHR FLAT 5.0*2.4*0.3 MYLAR NO
31 51.88N43G001 MYLAR FOR RELAY BOTTOM NO
32 51.88N41G001 MYLAR FOR MIRROR DEAMETER 3.5mm NO
33 80.89T02G001 PCBA DMD BOARD FOR H5350

H5350

Condential XII

ASSY BOTTOM HOUSING MODULE H5350

13

3

30

9

6

24

17

31

26

21

22

23

32

5

19

12

16

2

25

29

18

27

14

1

10

11

15

H5350

8

4

20

Condential XIII

Item P/N Description Parts Supply

1 41.83F21G001 GASKET h?/W*5, H*1.5, L*15 NO
2 41.85A01G001 EMI GASKET / 10*27*20 NO

3 41.88T01G001 EMI ? L85*W20 NO
4 49.89B01G001 SPEAKER 2W 80HM NEOSONICA DAB128 300mm
5 51.81540G001 TAPE 3M J350 17*60mm NO
6 51.88T19G001 MYLAR TOP SHELDING X1160 NO
7 51.88T20G001 MYLAR LENS X1160 NO
8 51.89B05G001 HOLDER SPEAKER X1260 NO

9 51.89T08G001 TOP SHIELDING MYLAR FOR H5350 NO
10 52.89B02G001 SPONGE ML32 SPEAKER X1260 NO
11 52.89B03G001 SPONGE SRS-48P SPEAKER X1260 NO

12 61.87340G001 STAND OFF M3*4L D8.0 2100MP NO

13 61.88T02G001 SHELDING TOP COVET X1160 NO
14 61.88T09G001 BRKT INLET X1160 NO
15 61.88T15G001 ACER LOGO FOR X1160

16 70.86L05G001 ASSY BLOWER FAN MODULE XD1250 NO

17 70.89T01G001 ASSY TWO FAN SHIELDING X1260 NO
18 23.89L01G001 PROJECTION LENS YM09W NO
19 70.89T03G001 ASSY MAIN BD MODULE H5350 NO

20 70.89T05G001 ASSY HOUSING MODULE H5350 NO
21 70.89T07G001 ASSY LAMP DRIVER MODULE H5350 NO
22 75.87J01G201 ASSY LVPS MATRITEK 200W EP752(2ndu)
23 75.89T01G001 ASSY FRONT COVER H5350
24 85.1A123G060 SCREW PAN MECH M3*6 NI NO
25 85.1A126G060 SCREW PAN MECH M2.6*6 Ni NO
26 85.1A326G060 SCREW PAN HEAD MECH M2.6*6 BLACK NO
27 85.1C123G060 SCREW PAN MECH W/T M3*6 NI NO
28 85.1C224G051 SCREW PAN MECH M4*5 COLOR W/TOOTH NO
29 85.3A113G050 STEP SCREW ψ3.5xH2.5 M3x5.0mm Ni NO

30 85.ZA123G040 SCREW WCH/W MECH M3*4 Ni GREEN NO
31 42.00455G002 W.A. 8P TO 16P 120mm MB TO LVPS H5350

32 49.86E02G001 SUNON, GB1245PKV1-8 45*20mm BLOWER

H5350

Condential XIV
