Page 1
Acer Projector
K520/H112/PH-X01 Series
User's Guide
Page 2
Copyright © 2012. Acer Incorporated.
All Rights Reserved.
Acer Projector K520/H112/PH-X01 Series User's Guide
Original Issue: 03/2012
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your projector. All correspondence concerning your unit should include the serial
number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,
without the prior written permission of Acer Incorporated.
Acer Projector K520/H112/PH-X01 Series
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product
names or trademarks are used herein for identification purposes only and belong to their respective
companies.
TM
"HDMI
, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC."
Page 3
Information for your safety and comfort
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:
• Install the power supply unit before connecting the power cord to the AC
power outlet.
• Unplug the power cord before removing the power supply unit from the
projector.
• If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
iii
Warnings!
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat register, or
in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
Page 4
iv
• To avoid damage of internal components and to prevent battery leakage,
do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment
which will probably cause unexpected short current or damage rotor
devices.
Using electrical power
• This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
• Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the AC adapter plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power outlet that is
not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected
noise produced by other nearby electrical devices that may interfere with
the performance of this product.
• Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, VDE
approved or its equivalent, 4.5 meters (15 feet) maximum length.
Page 5
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need
for service
• the product does not operate normally after following the operating
instructions
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding
or changing components. Consult your reseller for purchase options.
v
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Additional safety information
• Do not look into the projector's lens when the light is on. The bright may
hurt your eyes.
• Turn on the projector first and then signal sources
• Do not place the product in following environments:
• Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector is necessary.
• Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.
• Locations where excessive humidity, dust, or cigarette smoke may contaminate
optical components, shortening the life span and darkening the image.
• Locations near fire alarms.
• Locations with an ambient temperature above 40 ºC/104 ºF.
• Locations where the altitudes are higher than 10000 feet.
• Unplug immediately if there is something wrong with your projector. Do
not operate if smoke, strange noise or odor comes out of your projector. It
Page 6
vi
might cause fire or electric shock. In this case, unplug immediately and
contact your dealer.
• Do not keep using this product to break or drop it. In this case contact your
dealer for inspection.
• Do not face the projector lens to the sun. It can lead to fire.
• When switching the projector off, suggest to ensure the projector
completes its cooling cycle before disconnecting power.
• Do not frequently turn off the main power abruptly or unplug the
projector during operation. The best way is to wait for the fan to turn off
before turning main power off.
• Do not touch air outlet grille and bottom plate which becomes hot.
• Clean the air filter frequently if have. The temperature inside may rise and
cause damage when the filter/ventilation slots clogged with dirt or dust.
• Do not look into the air outlet grille when projector is operating. It may
hurt your eyes.
• Always open the lens shutter or remove the lens cap when the projector is
on.
• Do not block the projector lens with any object when the projector is
under operation as this could cause the object to become heated and
deformed or even cause a fire.
• Do not attempt to disassemble this projector. There are dangerous high
voltages inside which may hurt you. Refer servicing only to suitable
qualified professional service personnel.
• Do not stand the projector on end vertically. It may cause the projector to
fall over, causing injury or damage.
Caution for Listening
To protect your hearing, follow these instructions.
• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.
Page 7
vii
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit
http://www.acer-group.com/public/Sustainability/sustainability01.htm
Page 8
viii
First things first
Usage Notes
Do:
• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display
housing.
• Disconnect the power plug from AC outlet if the product is not being used
for a long period of time.
Don't:
• Block the slots and openings on the unit provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:
• In extremely hot, cold or humid environments.
• In areas susceptible to excessive dust and dirt.
• Near any appliance that generates a strong magnetic field.
• Place In direct sunlight.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user's guide to maximize the life of your unit.
Warning:
• Do not look into the projector's lens when the light is on. The bright may hurt your
eyes.
• To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
• Please do not open or disassemble the product as this may cause electric shock.
• When switching the projector off, please ensure the projector completes its cooling
cycle before disconnecting power.
• Turn on the projector first and then the signal sources.
• Do not use lens cap when projector is in operation.
Page 9
Information for your safety and comfort iii
First things first viii
Usage Notes viii
Precautions viii
Introduction 1
Product Features 1
Package Overview 2
Projector Overview 3
Projector Outlook 3
Control Panel 4
Remote Control Layout 5
Getting Started 7
Connecting the Projector 7
Turning the Projector On/Off 8
Turning on the Projector 8
Turning the projector off 9
Adjusting the Projected Image 10
Adjusting the Height of Projected Image 10
How to optimize image size and distance 11
How to get a preferred image size by adjusting
distance and zoom 13
Contents
User Controls 15
Installation menu 15

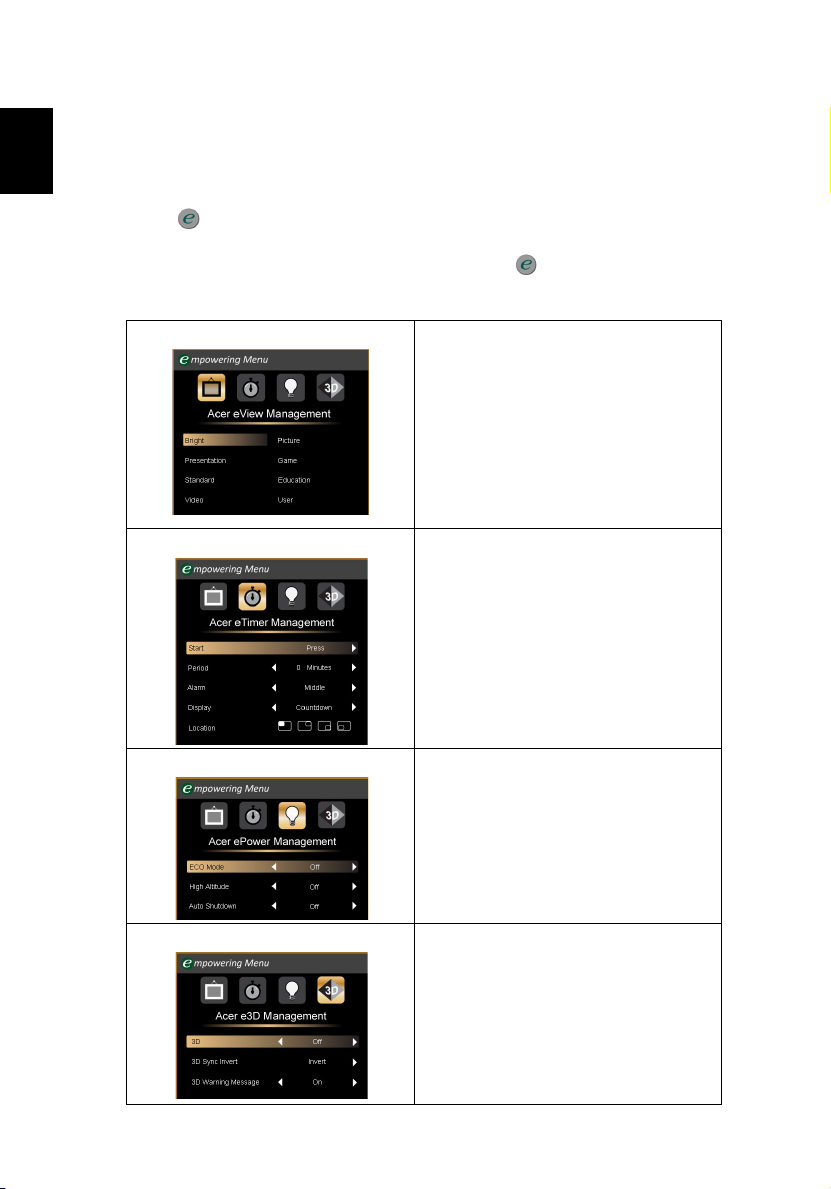

Acer Empowering Technology 16

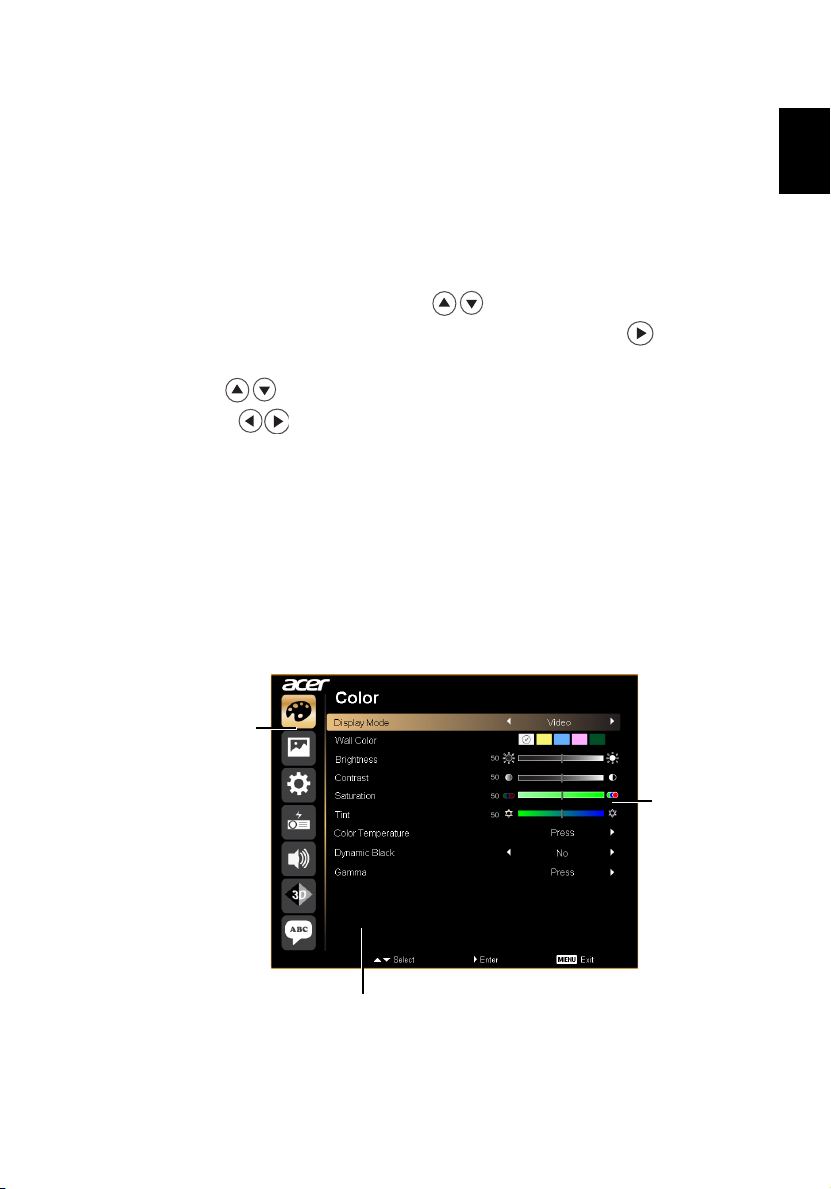

Onscreen Display (OSD) Menus 17
Color 18

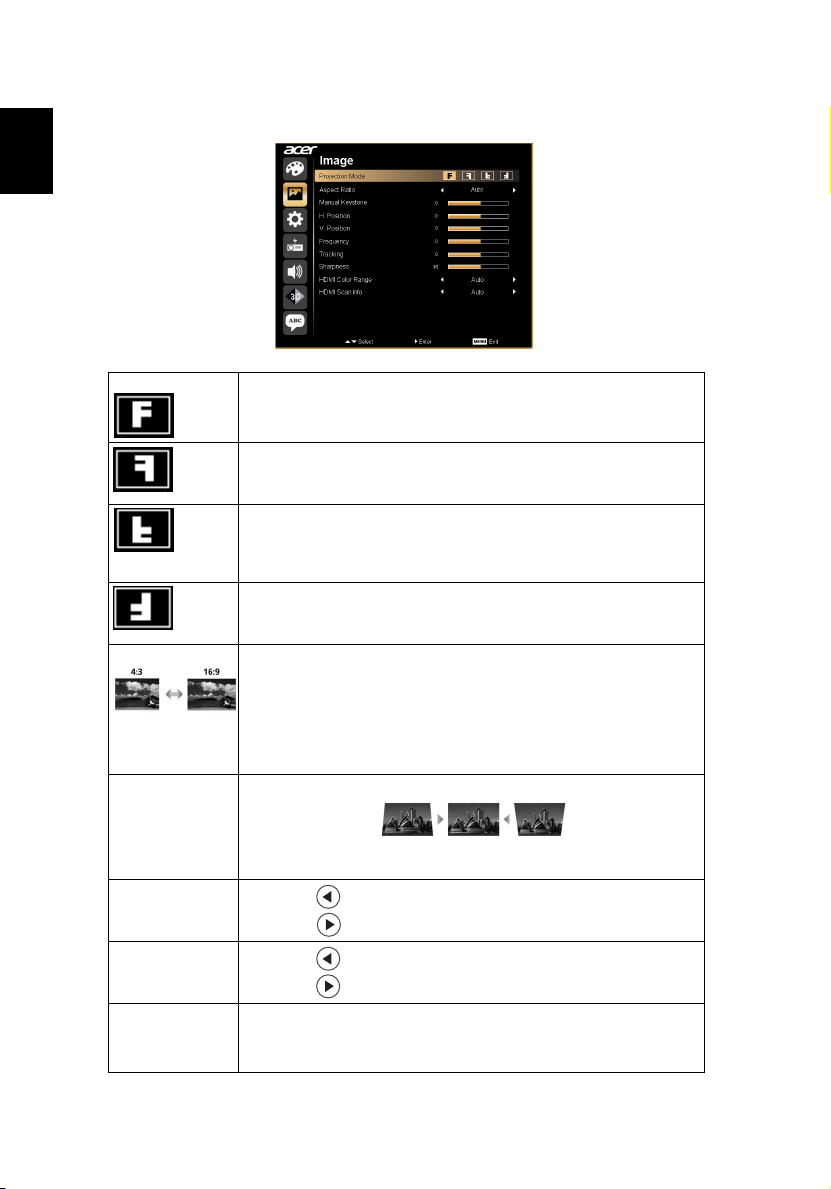

Image 20

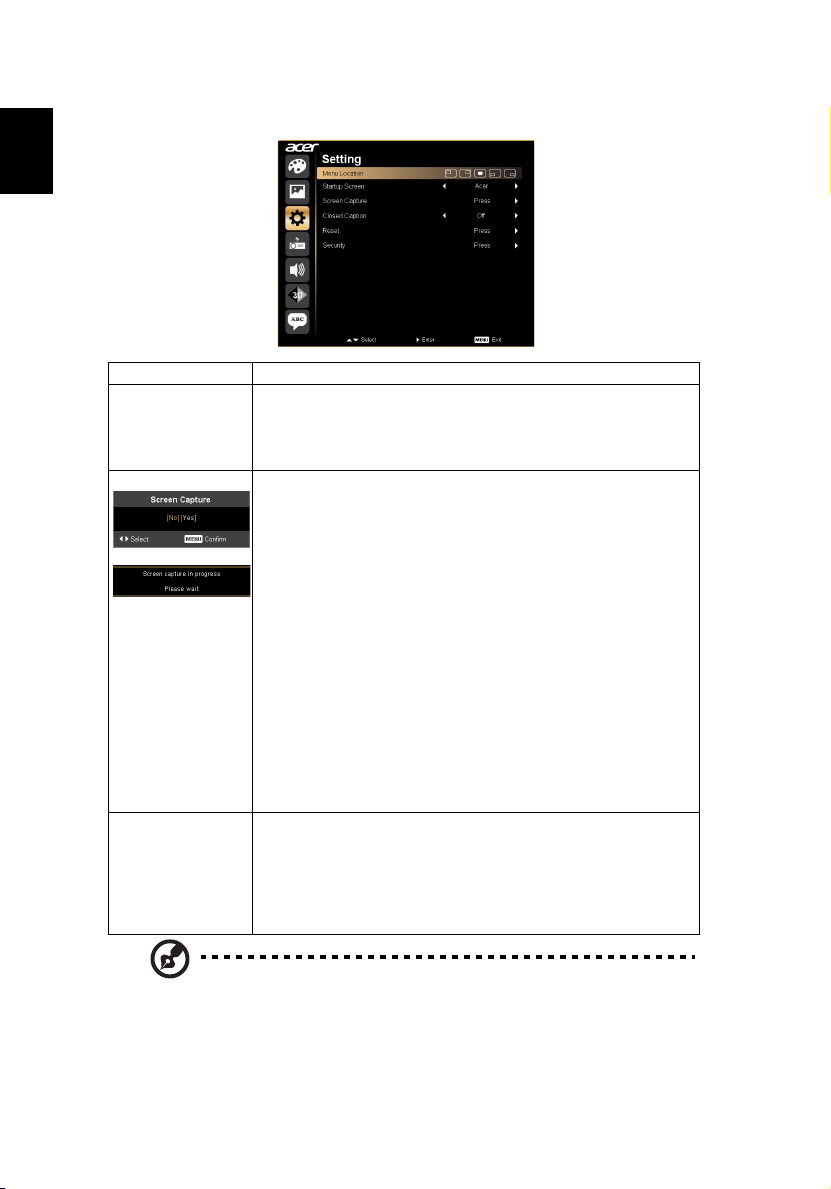

Setting 22
Management 25
Audio 25

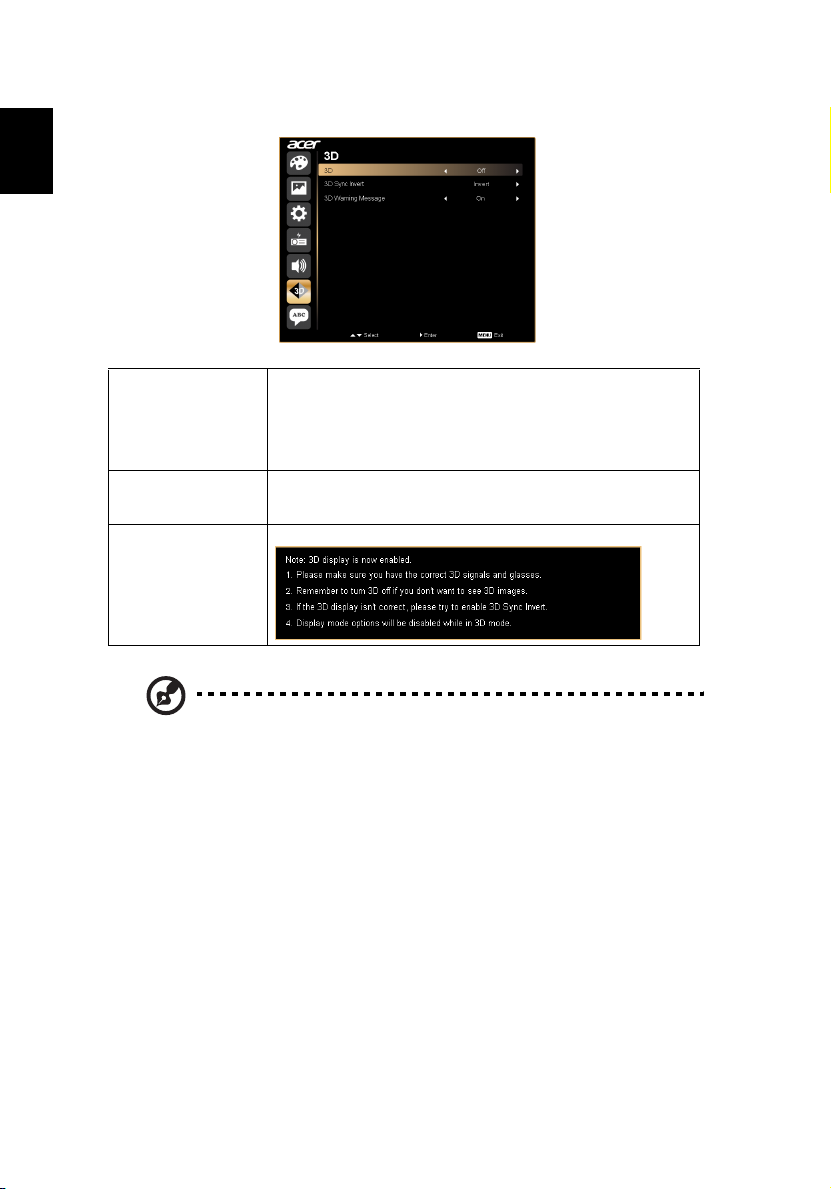

3D 26

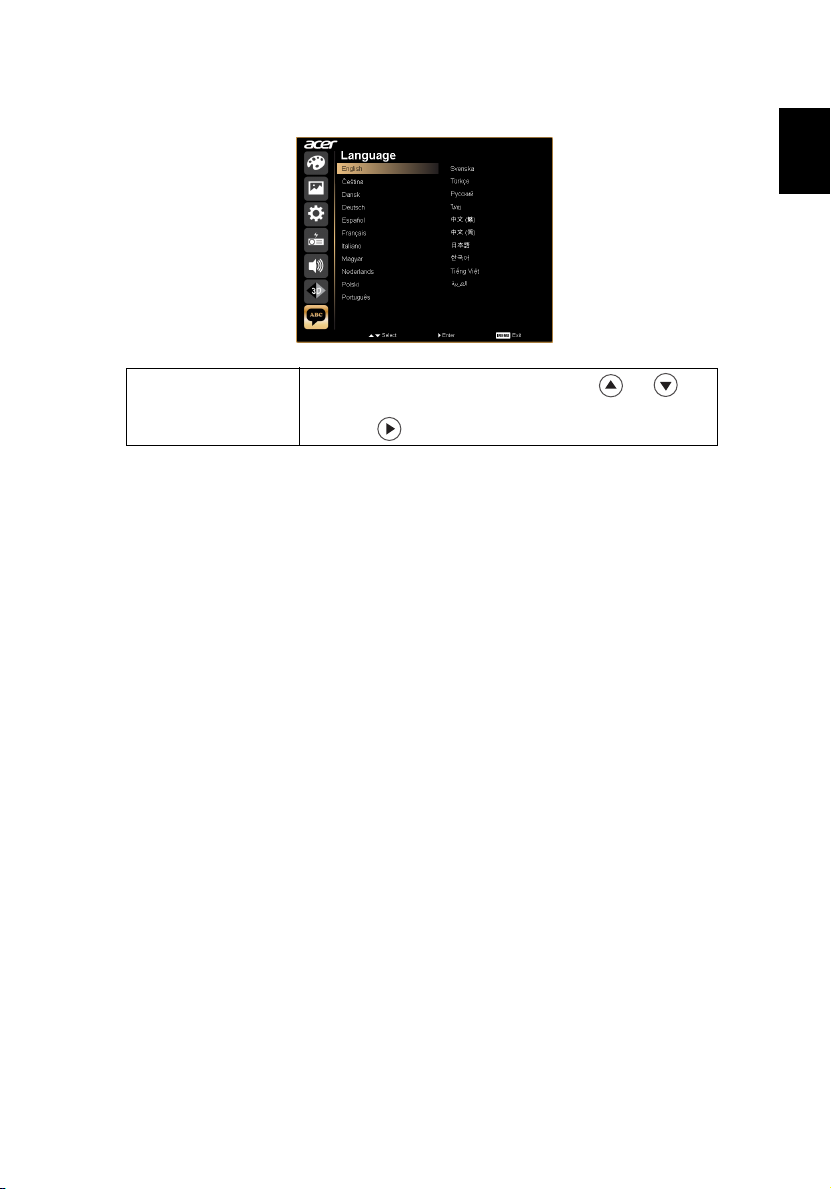

Language 27
Appendices 28
Page 10
Troubleshooting 28
LED & Alarm Definition Listing 32
Ceiling Mount Installation 33
Specifications 36
Compatibility modes 38
Regulations and safety notices 42
Page 11
1
Introduction
Product Features
This product is a single-chip DLP® projector. Outstanding features include:
• DLP
• 1024 x 768 XGA resolution
• Versatile display modes (Bright, Presentation, Standard,Video, Picture,
• NTSC/PAL/SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p)
• Compact size projector facilitates business purposes and home
• Acer EcoProjeciton Technology delivers Intelligent power management
• Empowering Key reveals Acer Empowering Technology utilities (Acer
• Equipped with HDMI
• Advanced digital keystone correction delivers optimum presentations
• Multi-language on screen display (OSD) menus
• Environmental light source and longer life by Laser/LED solution.
• Microsoft
®
technology
4:3/16:9 aspect ratio supported
Game, Education, User) enable optimum performance in any situation
supported
entertainment.
approach and physical efficiency improvement
eView, eTimer, e3D, ePower Management) for easy adjustment of settings
TM
connection supporting HDCP
®
Windows® 2000, XP, Vista® Windows® 7, Macintosh® OS
compliant
English
Page 12
English
2
Package Overview
This projector comes with all the items shown below. Check to make sure your
unit is complete. Contact your dealer immediately if any thing is missing.
Projector with lens cap Power cord Composite video cable
Quick start guide VGA cable Remote control
K520/H112/PH-X01
Series
P/N:MC.JES11.001
2 x Battery Carrying case User's Guide
Page 13
3
Projector Overview
Projector Outlook
Front / upper side
6
7
8
3
4
5
1
# Description # Description
1
Lens cap
2
Tilt adjusting wheels
3
Zoom Lens
4
Focus ring
Rear side
2
5
Zoom lever
6
Remote control receivers
7
Control panel
8
Power button
English
7654321
S-VIDEO
VGA IN
AUDIO IN
USB CtrlHDMI
AUDIO OUT
VIDEO
RS232
10 9 8
# Description # Description
1 RS232 connector 6 USB ctrl connector
2 Composite video input connector 7 Audio input connector
3 S-Video input connector 8 Audio output connector
PC analog signal/HDTV/component
4
video input connector
5 HDMI connector 10 Kensington™ lock port
9 Power socket
Page 14
4
Control Panel
English
9
3
2
4
8
5
10
7
6
1
# Icon Function Description
1 POWER Power button and Power Indicator LED.
See the contents in "Turning the Projector
On/Off" section.
2 LAMP Lamp Indicator LED
3 TEMP Temp Indicator LED
4 RESYNC Automatically synchronizes the projector
to the input source.
5 SOURCE Changes the active source.
6MENU
7 Empowering key
8 Remote control
receiver
9 Keystone Adjusts the image to compensate for
10 Four directional select
keys
• Press "MENU" to launch the Onscreen
Unique Acer functions: eView, eTimer, e3D
and ePower Management.
Receives signals from remote control.
distortion caused by tilting the projector (±
40 degrees).
Use the keys to select items or make
adjustments to your selection.
9
display (OSD) menu, back to the
previous step for the OSD menu
operation or exit the OSD menu.
Page 15
5
Remote Control Layout
1
2
4
7
9
11
13
15
16
17
19
21
23
25
27
29
31
English
Backlight LED
3
5
6
8
10
12
14
18
20
22
24
26
28
30
# Icon Function Description
1 Infrared
2 POWER Refer to the "Turning the Projector On/Off" section.
3 HIDE Momentarily turns off the video. Press "HIDE" to hide the
4
5 ASPECT RATIO To choose the desired aspect ratio (Auto/4:3/16:9)
6 SOURCE Press "SOURCE" to choose from RGB, Component, S-Video,
7 RESYNC Automatically synchronizes the projector to the input
8 ZOOM Zooms the projector display in or out.
9 Back No function.
transmitter
FREEZE To pause the screen image.
Sends signals to the projector.
image, press again to display the image.
Composite, HDTV and HDMI™ sources.
source.
Page 16
English
6
# Icon Function Description
10 Backlight
Press " " to trigger backlight mode
• Continue to light 3 sec then disappear if no action.
• Continue to light if action and keep 3 sec finally.
11
12 Four directional
13 KEYSTONE Adjusts the image to compensate for distortion caused by
14 MENU
Enter No function.
select keys
Use up, down, left, right buttons to select items or make
adjustments to your selection.
tilting the projector (± 40 degrees).
• Press "MENU" to launch the Onscreen display (OSD)
menu, back to the previous step for the OSD menu
operation or exit the OSD menu.
• Confirm your selection of items.
15 MOUSE Left/
16 Empowering key Unique Acer functions: eView, eTimer, e3D, ePower
17 VOLUME Increases/decreases the volume.
18 PAGE For computer mode only. Use this button to select the next
19 Prev No function.
20 Next No function.
21 Play/Pause No function.
22 Stop No function.
23 VGA Press "VGA" to change source to the VGA connector. This
24 S-VIDEO To change source to S-Video.
25 COMPONENT No function.
26 VIDEO To change source to COMPOSITE VIDEO.
27 SD/USB A No function.
28 USB B No function.
29 HDMI™/DVI Press "HDMI™/DVI" to change source to HDMI™.
30 LAN/WiFi No function.
31 KeyPad 0~9 Press "0~9" to input a password in the "Security".
Right Click
Left-/right-click buttons are on the left and right,
respectively; the center button works as a multidirectional
pointer stick. To enable this function, an USB cable must be
connected to projector from your PC.
Management.
or previous page. This function is only available when
connected to a computer via a USB cable.
connector supports analog RGB, YPbPr (480p/576p/720p/
1080i), YCbCr (480i/576i) and RGBsync.
Page 17
7
Getting Started
Connecting the Projector
S-Video Output
3
Y
VIDEO
RBG
4
S-VIDEO
HDTV adapter
RBG
9
Video Output
RS232
1
DVD player,
Set-top Box,
HDTV receiver
RS232
Y
2
RS232
D-Sub
VGA IN
English
VGA
D-Sub
USB
6
5
HDMI
8
10
HDMI
7
USB
AUDIO IN
USB CtrlHDMI
AUDIO OUT
11
Audio Output
W
R
# Description # Description
1 Power cord 7 Audio cable jack/jack
2 RS232 cable 8 VGA to component/HDTV adapter
3 Composite video cable 9 3 RCA component cable
4 S-Video cable 10 HDMI cable
5 VGA cable 11 Audio cable Jack/RCA
6 USB cable
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Page 18
8
Turning the Projector On/Off
English
Turning on the Projector
1 Remove the lens cap.(Illustration #1)
2 Ensure that the power cord and signal cable are securely connected. The
Power indicator LED will flash red.
3 Turn on the projector by pressing "Power" button on the control panel,
and the Power indicator LED will turn blue.(Illustration #2)
4 Turn on your source (computer, notebook, video player ,etc.). The
projector will detect your source automatically.
• If the screen displays "Lock" and "Source" icons, it means the
projector is locked onto a specific source type and there is no such
type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables
are securely connected.
• If you connect to multiple sources at the same time, use the "Source"
button on either control panel or the remote control or direct source
key on the remote control to switch between inputs.
2
Power button
1
Lens cap
Page 19
9
Turning the projector off
1 To turn the projector off, press the power button. This message appears:
"Please press the power button again to complete the shutdown process."
Press the power button again.
2 It is now safe to unplug the power cord.
Warning indicators:
• "Projector Overheated. Will automatically turn off soon."
This onscreen message indicates that the projector has overheated.
The projector will automatically shut down. Contact your local dealer
or service center.
• "Fan failed. Will automatically turn off soon."
This onscreen message indicates that the fan has failed. The projector
will automatically shut down. Contact your local dealer or service
center.
Note: Whenever the projector automatically shuts down, contact
your local reseller or service center.
English
Page 20
10
Adjusting the Projected Image
English

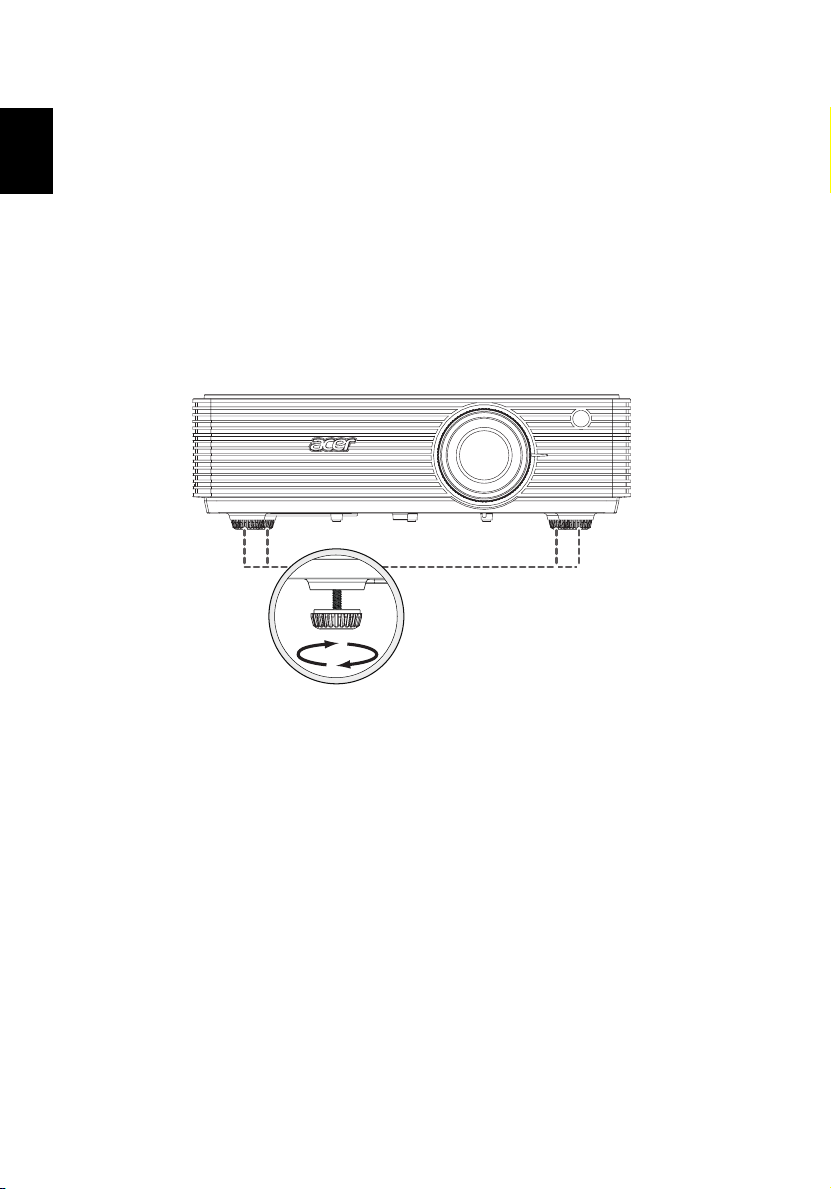

Adjusting the Height of Projected Image
The projector is equipped with tilt adjusting wheels for adjusting the height of
image.
To raise/lower the image:
Use Tilt adjusting wheels to fine-tune the display angle.
Tilt adjusting wheel
Page 21
11
Min screen size
57"
How to optimize image size and distance
Consult the table below to find the optimal image sizes achievable when the
projector is positioned at a desired distance from the screen. Example: If the
projector is 2.5 m from the screen, good image quality is possible for image sizes
between 57" and 63".
Note: Remind as below figure, the space of 111 cm height is
required when located at 2.5 m distance.
Max screen size
Min screen size
63"
B
57"
Height: 111 cm
Form base to
top of image
Height:
100cm
C
A
2.5 m
Desired Distance
English
Figure: Fixed distance with different zoom and screen size.
Page 22
12
English
Screen size
Desired
Distance
(m)
Diagonal
<A>
Zoom Ratio: 1.1x
(inch)
<B>
1 23 47 x 35 40 25 51 x 38 44
2 46 93 x 70 80 50 103 x 77 88
2.5 57 116 x 87 100 63 128 x 96 111
3 69 140 x 105 120 76 154 x 115 133
3.5 80 163 x 122 140 88 179 x 135 155
4 92 186 x 140 160 101 205 x 154 177
4.5 103 209 x 157 181 114 231 x 173 199
5 114 233 x 174 201 126 256 x 192 221
6 137 279 x 209 241 151 308 x 231 265
7 160 326 x 244 281 177 359 x 269 310
8 183 372 x 279 321 202 410 x 308 354
9 206 419 x 314 361 227 462 x 346 398
10 229 465 x 349 401 252 513 x 385 442
(Min zoom) (Max zoom)
W (cm) x H (cm)
Top
From base
to top of
image (cm)
<C>
Diagonal
(inch)
<B>
Screen size
W (cm) x H (cm)
Top
From base to
top of image
(cm)
<C>
Page 23
13
How to get a preferred image size by adjusting distance and zoom
A
60"
Desired
image size
D
Height
Form base to
top of image
2.4 m
2.6 m
C
B
Desired Distance
English
The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring. For example: to obtain an image size of 60" set
the projector at a distance 2.4 m and 2.6 m from the screen and adjust the zoom
level accordingly.
Page 24
14
English
Screen size Distance (m)
Diagonal
(inch)
<A>
Zoom Ratio: 1.1x
W (cm) x H (cm)
30 61 X 46 1.2 1.3 53
40 81 X 61 1.6 1.7 70
50 102 X 76 2.0 2.2 88
60 122 x 91 2.4 2.6 105
70 142 X 107 2.8 3.1 123
80 163 X 122 3.2 3.5 140
90 183 X 137 3.6 3.9 158
100 203 X 152 4.0 4.4 175
120 244 X 183 4.8 5.2 210
150 305 X 229 5.9 6.6 263
180 366 X 274 7.1 7.9 315
200 406 X 305 7.9 8.7 351
250 508 X 381 9.9 10.9 438
300 610 X 457 11.9 526
Max zoom
<B>
Min zoom
<C>
From base to top of
Top (cm)
<D>
Page 25
15
User Controls
Installation menu
The installation menu provides an onscreen display (OSD) for projector
installation and maintenance. Use the OSD only when the message "No signal
input" is displayed on the screen.
The menu options include settings and adjustments for screen size and distance,
focus, keystone correction and more .
1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the control pad to launch the OSD for
projector installation and maintenance.
3 The background pattern acts as a guide to adjusting the calibration and
alignment settings, such as screen size and distance, focus and more .
4 The Installation menu includes the following options:
English
•Projection Mode
•Manual Keystone settings
•Language settings
•Reset to factory default function
Use the up and down arrow keys to select an option, the left and right
arrow keys to adjust selected option settings, and the right arrow key to
enter a submenu for feature setting. The new settings will be saved
automatically upon exiting the menu.
5 Push the menu button anytime to exit the menu and return to the Acer
welcome screen.
Page 26
English
16
Acer Empowering Technology
Acer Empowering Key provide four Acer unique functions, they are "Acer
eView Management", "Acer eTimer Management", "Acer ePower
Management" and "Acer e3D Management respectively.
Press " " key to launch the Onscreen display main menu to modify its
function.
When the Empowering Menu is displayed, use the " " key to select the main
menu.
Acer eView Management
Acer eTimer Management
Acer ePower Management
"Acer eView Management" is for
display mode selection. Please refer to
Onscreen Display Menus section for
more detail.
"Acer eTimer Management" provides
the reminding function for
presentation time control. Please refer
to Onscreen Display Menus section for
more detail.
"Acer ePower Management" provides
user one shortcut to save the projector
life. Please refer to Onscreen Display
section for more detail.
Acer e3D Management
"Acer e3D Management" provides the
3D functions. Please refer to Onscreen
Display Menus section for more detail.
Page 27
17
Onscreen Display (OSD) Menus
The projector has multilingual OSD that allow you to make image adjustments
and change a variety of settings.
Using the OSD menus
• To open the OSD menu, press "MENU" on the remote control or control
panel.
• When the OSD is displayed, use the keys to select any item in the
main menu. After selecting the desired main menu item, press to enter
submenu for feature setting.
• Use the keys to select the desired item and adjust the settings by
using the keys.
• Select the next item to be adjusted in the submenu and adjust as described
above.
• Press "MENU" on the remote control or control panel, the screen will
return to the main menu.
• To exit OSD, press "MENU" on the remote control or control panel again.
The OSD menu will close and the projector will automatically save the new
settings.
English
Main menu
Setting
Sub menu
Page 28
English
18
Color
Display Mode
Wall color
Brightness
Contrast
Saturation
Tint
There are many factory presets optimized for various types of
images.
• Bright: For brightness optimization.
• Presentation: For meeting presentation.
• Standard: For common environment.
• Video: For playing video in a bright environment.
• Picture: For graphic picture.
• Game: For game content.
• Education: For education environment.
• User: Memorize user’s settings.
Use this function to choose a proper color according to the wall.
There are several choices, including white, light yellow, light blue,
pink, dark green. It will compensate the color deviation due to the
wall color to show the correct image tone.
Adjust the brightness of the image.
• Press to darken image.
• Press to lighten the image.
"Contrast" controls the difference between the lightest and
darkest parts of the picture. Adjusting the contrast changes the
amount of black and white in the image.
• Press to decrease the contrast.
• Press to increase the contrast.
Adjusts a video image from black and white to fully saturated
color.
• Press to decrease the amount of color in the image.
• Press to increase the amount of color in the image.
Adjusts the color balance of red and green.
• Press to increase the amount of green in the image.
• Press to increase the amount of red in the image.
Page 29
19
Dynamic Black
Color
Temperature
Gamma
Note: "Saturation" and "Tint" functions are not supported under computer
mode or HDMI mode.
Choose "On" to automatically optimize the display of dark movie
scenes enabling them to be shown in incredible detail.
Mode
Use this function to choose CT1 (6500K), CT2 (Native CT), CT3
(7500K), User mode.
R Gain
Adjusts the red gain for color temperature optimization.
G Gain
Adjusts the green gain for color temperature optimization.
B Gain
Adjusts the blue gain for color temperature optimization.
Gamma
Effects the representation of dark scenery. With greater gamma
value, dark scenery looks brighter.
English
Page 30
English
20
Projection Front-Desktop
• The factory default setting.
Rear-Desktop
• When you select this function, the projector reverses the image
so you can project from behind a translucent screen.
Rear-Ceiling
• When you select this function, the projector reverses and inverts
the image at same time. You can project from behind a
translucent screen with ceiling mounted projection.
Front-Ceiling
• When you select this function, the projector inverts the image
for ceiling-mounted projection.
Aspect Ratio Use this function to choose your desired aspect ratio.
Manual Keystone Adjust image distortion caused by tilting projection. (±40 degrees)
• Auto: Keep the image with original width-higth ratio and maxi
• 4:3: The image will be scaled to fit the screen and displayed
mize the image to fit native horizontal or vertical pixels.
• 16:9:
using a 4:3 ratio.
The image will be scaled to fit the width of the screen and
the height adjusted to display the image using a 16:10 ratio.
<Note> The Manual Keystone funcion is unavailable under Auto
Keystone setting to "On".
H. Position
(Horizontal
position)
V. Position
(Vertical position)
• Press to move the image left.
• Press to to move the image right.
• Press to move the image down.
• Press to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the
frequency of your computer’s graphics card. If you can see a vertical
flickering bar in the projected image, use this function to make the
necessary adjustments.
Page 31
21
Tracking Synchronizes the signal timing of the projector with the graphics card.
Sharpeness Adjusts the sharpness of the image.
If you experience an unstable or flickering image, use this function to
correct it.
• Press to decrease the sharpness.
• Press to increase the sharpness.
HDMI Color Range Adjust the color range of the HDMI image data to correct color display
error.
• Auto: Automatically adjust by information from player.
•
Limited Range: Prosess the input image as limited color range data.
• Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.
• Auto: Automatically adjust by information from player.
• Underscan: Always no overscan on HDMI image.
• Overscan: Always keep overscan on HDMI image.
Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions
are not supported under HDMI or Video mode.
Note: "Sharpness" functions is not supported under HDMI and Computer
mode.
Note: "HDMI Color Range" and "HDMI Scan Info" functions are only
supported under HDMI mode.
English
Page 32
English
22
Setting
Menu Location Choose the menu location on the display screen.
Startup Screen Use this function to select your desired startup screen. If you
Screen Capture Use this function to customize the startup screen. To capture the
Closed Caption
change the setting, the changes will take effect when you exit the
OSD menu.
• Acer: The default startup screen of your Acer projector.
• User: Use memorize picture from "Screen Capture" function.
image that you want to use as the startup screen, follow the
instructions below.
Notice:
Before proceeding with the following steps, make sure that the
"Keystone" is set to the default value 0 and the aspect ratio is set
to 4:3. For details, refer to the "Image" section.
• Change the "Startup Screen" from the default setting "Acer"
to "User".
• Press "Screen Capture" to customize the startup screen.
• A dialog box appears to confirm the action. Choose "Yes" to
use the current image as your customized startup screen. The
capture range is the red rectangular area. Choose "No" to
cancel the screen capture and exit the onscreen display (OSD).
• A message appears, stating that the screen capture is in
progress.
• When the screen capture is finished, the message disappears
and the original display is shown.
• The customized startup screen, as shown below, takes effect
when there is a new input signal or when you restart the
projector.
Selects a preferred closed captioning mode from CC1, CC2, CC3,
CC4, (CC1 displays captions in the primary language in your area).
Select "Off" to turn off the captioning feature. This function is only
available when a composite video or S-Video input signal is
selected and its system format is NTSC.
<Note> Set your screen aspect ratio to 4:3. This function is not
available when the aspect ratio is "16:9" or "Auto" .
Note: This screen capture function is limited by 4:3 aspect ratio only.
Note: For XGA models, to get best quality for you desired image, suggest
end-user set PC resolution to 1024 x 768 before you use this function.
Note: For WXGA models, to get best quality for you desired image,
suggest end-user set PC resolution to 1280 x 800 before you use this
function.
Page 33
23
Reset
Security Security
Press the button and choose "Yes" to return the parameters
on all menus to the factory default settings.

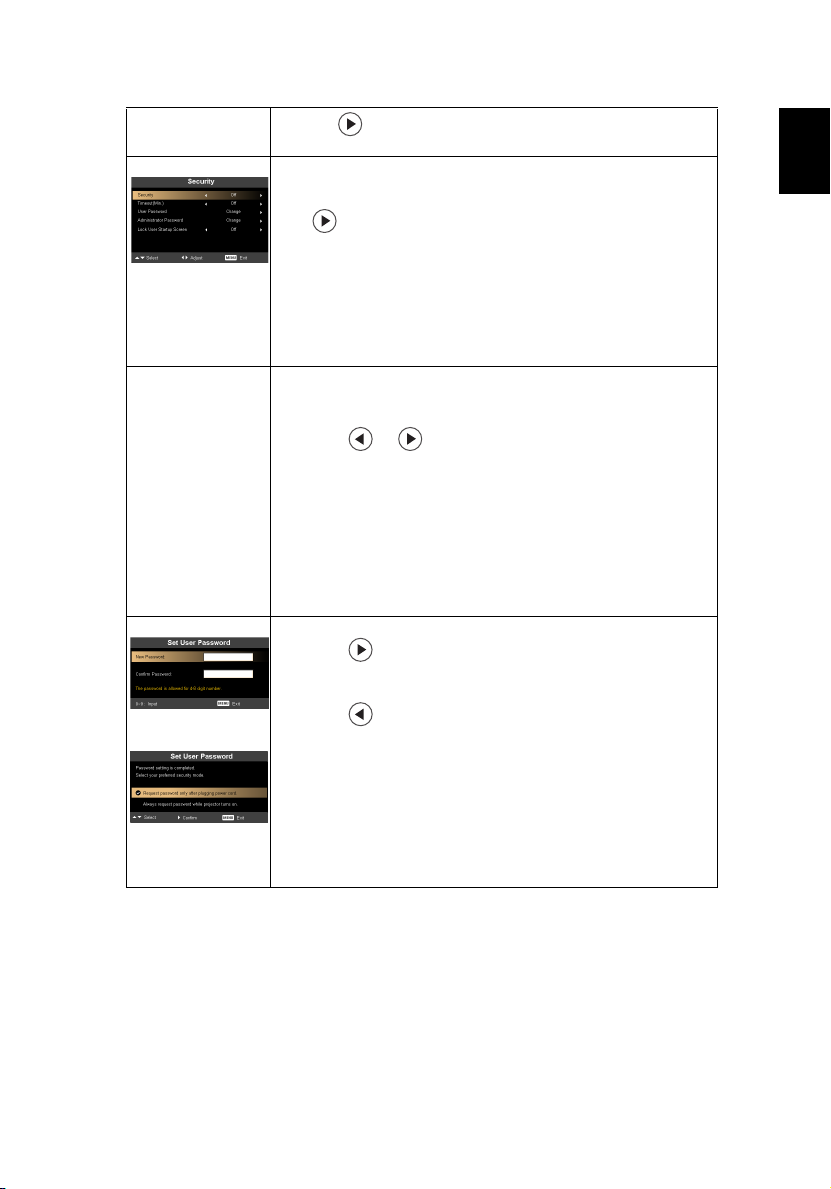

This projector provides a useful security function for the
administrator to manage usage of the projector .
Press to change the "Security" setting. If the security function
is enabled, your must enter the "Administrator Password" first
before changing the security settings.
• Select "On" to enable the security function. The user has to
• If "Off" is selected, then the user can turn on the projector
Timeout(Min.)
Once "Security" is activated to "On", the administrator can set
timeout function.
• Press or to select the timeout interval.
• The range is from 10 minute to 990 minutes.
• When the time is up, the projector will prompt the user to
• The factory default setting of "Timeout(Min.)" is "Off".
• Once the security function is enabled, the projector will
User password
• Press to setup or change the "User Password".
• Press number keys to set your password on the remote control
• Press to delete character.
• Enter the password when you see "Confirm Password"
• The password should be between 4 and 8 characters long.
• If you select "Request password only when plugging the
• If you select "Always request the password when turning the
enter a password to operate the projector. Please refer to the
"User Password" section for details.
without password.
enter the password again.
request user to enter password when switch on the projector .
Both "User Password" and "Administrator Password" can be
accepted for this dialogue.
and press "MENU" to confirm.
displayed.
power cord in.", the projector will prompt the user to enter
the password every time the power cord is plugged.
projector on.", the user has to enter the password every time
when the projector is turned on.
English
Page 34
English
24
Administrator Password
The "Administrator Password" can be used in both the "Enter
Administrator Password" and "Enter Password" dialog boxes.
• Press to change the "Administrator Password".
• The factory default of "Administrator Password" is "1234".
If you forgot your administrator password, do the following to
retrieve the administrator password:
• An unique 6-digit "Universal Password" which is printed on
the Security Card (please check accessory in the box). This
unique password is the number which will be accepted by
projector anytime no matter what the Administrator
Password is.
• If losing this security card and number, please contact with an
Acer service center.
Lock User Startup Screen
• Default Lock User Startup Screen is "OFF". If lock user startup
screen is "ON", users cannot change startup screen anymore
and avoid other users change that arbitrarily. Choose "OFF"
to unlock startup screen.
Page 35
25
Management
ECO Mode Choose "On" to dim the projector lamp which will lower power
High Altitude
Auto Shutdown The projector will automatically shutdown when there is no signal
LED Calibration The color will be automatically fine tuned while the system is
consumption, extend the lamp life and reduce noise. Choose "Off"
to return normal mode.
Choose "On" to turn on High Altitude mode. Operate the fans at
full speed continuously to allow for proper high altitude cooling of
the projector.
input after the allocated time. (in minutes)
turning off after continuous running over 30 min. (it will need 10
seconds to complete the process)
Audio
English
Volume
Mute
Power On/Off Volume
Alarm Volume
• Press to decrease the volume.
• Press to increase the volume.
• Choose "On" to mute the volume.
• Choose "Off" to restore the volume.
• Select this function to adjust the notification volume when
turning the projector on/off.
• Select this function to adjust the volume of any warning
notifications.
Page 36
English
26
3D
3D Choose "On" to enable DLP 3D function.
• On: Choose this item while using DLP 3D glasses, 3D 120 Hz
capable (NVIDIA/ATI...) graphic card and HQFS format file
or DVD with corresponding SW player.
• Off: Turn off 3D mode.
3D Sync Invert If you see a discrete or overlapping image while wearing DLP 3D
3D Warning Message Choose "On" to display the 3D warning message.
glasses, you may need to execute "Invert" to get best match of
left/right image sequence to get the correct image (for DLP 3D).
Note: It needs correct settings on graphic card 3D application program for
correct 3D display.
Note: The SW players, such as Stereoscopic Player and DDD TriDef Media
Player can support 3D format files. You can download these three players
on web page below,
- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx
- DDD TriDef Media Player (Trial):
http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html
Note: "3D Sync Invert" is only available when 3D is enabled.
Note: There has reminder screen if 3D still enable when power on projector.
Please adjust setting depended on your purpose.
Page 37
27
Language
Language
English
Choose the multilingual OSD menu. Use the or key
to select your preferred menu language.
• Press to confirm the selection.
Page 38
28
Appendices
English
Troubleshooting
If you experience a problem with your Acer projector, refer to the following
troubleshooting guide. If the problem persists, please contact your local reseller
or service center.
Image Problems and Solutions
# Problem Solution
1 No image appears
onscreen
2 Partial, scrolling
or incorrectly
displayed image
(For PC (Windows
95/98/2000/XP/
Vista/Win7))
• Connected as described in the "Getting Started"
section.
• Ensure none of the connector pins are bent or
broken.
• Make sure you have removed the lens cap and the
projector is switched on.
•
Press "RESYNC" on the remote control or control panel.
• For an incorrectly displayed image:
• Open "My Computer," open the "Control
Panel," and then double-click the "Display"
icon.
• Select the "Settings" tab.
• Verify that your display resolution setting is
lower than or equal to 1080P-EIA.
• Click the "Advanced Properties" button.
If the problem still appears, change the monitor display
you are using and follow the steps below:
• Verify that the resolution setting is lower than
or equal to 1080P-EIA.
• Click the "Change" button under the
"Monitor" tab.
• Click "Show all devices". Next, select "Standard
monitor types" under the SP box, and choose
the resolution mode you need under the
"Models" box.
• Verify that the resolution setting of the
monitor display is lower than or equal to
1080P-EIA.
Page 39
29
3 Partial, scrolling
or incorrectly
displayed image
(for notebooks)
4 The screen of the
notebook
computer is not
displaying your
presentation
5 Image is unstable
or flickering
6 Image has vertical
flickering bar
• Press "RESYNC" on the remote control or control
panel.
• For an incorrectly displayed image:
• Follow the steps for item 2 (above) to adjust
the resolution of your computer.
• Press the toggle output settings. Example:
[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4],
NEC [Fn]+[F3], Toshiba [Fn]+[F5 ]
• If you experience difficulty changing resolutions or
your monitor freezes, restart all equipment
including the projector.
• If you are using a Microsoft
notebook: Some notebook PCs may deactivate their
own screens when a second display device is in use.
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.
• If you are using an Apple
notebook: In System Preferences, open Display and
select Video Mirroring "On".
®
Windows® based
®
Mac® OS based
• Adjust the "Tracking" to correct it. Refer to the
"Image" section for more information.
• Change the display color depth settings on your
computer.
• Use "Frequency" to make an adjustment. Refer to
the "Image" section for more information.
• Check and reconfigure the display mode of your
graphics card to make it compatible with the
projector.
English
7 Image is out of
focus
8 Image is stretched
when displaying a
"widescreen"
DVD title
• Make sure the lens cap is removed.
• Adjusts the focus ring on the projector lens.
• Make sure the projection screen is within the
required distance of 3.9 - 39.0 feet (1.2 - 11.9 meters)
from the projector. Refer to the "How to Get a
Preferred Image Size by Adjusting Distance and
Zoom" section for more information.
When you play a DVD encoded in anamorphic or 16:9
aspect ratio you may need to adjust the following
settings:
• If you play a 4:3 format DVD title, please change the
format to 4:3 in the projector OSD.
• If the image is still stretched, you will also need to
adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.
Page 40
30
English
9 Image is too small
or too large
• Adjust the zoom ring on the top of the projector.
• Move the projector closer to or further from the
screen.
• Press "MENU" on the remote control or on the
control panel. Go to "Image --> Aspect Ratio" and
try different settings.
10 Image has slanted
sides
• If possible, reposition the projector so that it is
centered on the screen.
• Press the "Keystone / " on the OSD or the
remote control until the sides are vertical.
11 Image is reversed
• Select "Image --> Projection" on the OSD and adjust
the projection direction.
Problems with the Projector
# Condition Solution
1 The projector stops responding
to all controls
If possible, turn off the projector, then
unplug the power cord and wait at least 30
seconds before reconnecting power.
Page 41
31
OSD Messages
# Condition Message Reminder
1 Message Fan Fail - the system fan is not working.
Projector Overheated - the projector has exceeded its
recommended operating temperature and must be allowed to
cool down before it may be used.
English
Page 42
32
LED & Alarm Definition Listing
English
LED Messages
Message
Power Plug Flash ON to OFF
Standby -- -- ON --
Power button ON -- -- -- ON
Lamp retry -- -- -- 0.5 second
Cooling state -- -- 0.5 second
Power button OFF:
Cooling completed;
Standby Mode
Firmware Download ON ON ON --
Thermistor error
(T≥70ºC) (Laser light
source over
temperature), OSD
shows “Projector
Overheated
Fan lock error OSD
shows red “Fan Fail,
Will automatically
turn off soon”
Lamp error (Lamp,
ballast)
Phosphor Wheel error 0.5 second
Lamp_LED Temp_LED Power_LED Power_LED
Red Red Red Blue
100ms
-- -- ON --
-- ON -- ON
-- 0.5 second
ON -- -- ON
H(ON), 0.5
second L(OFF)
flashing
Flash ON to
OFF 100ms
H(On), 0.5
second L(Off)
flashing
-- -- ON
Flash ON to
OFF 100ms
H(ON), 0.5
second L(OFF)
flashing
-- ON
H(On), 0.5
second L(Off)
flashing
--
--
Page 43
33
Ceiling Mount Installation
If you wish to install the projector using a ceiling mount, please refer to the
steps below:
1 Drill four holes into a solid, structurally sound part of the ceiling, and
secure the mount base.
13
mm
20
mm
49.9
mm
mm
8.4
Note: Screws are not included. Please obtain the appropriate
screws for your type of ceiling.
2 Secure the ceiling rod using the appropriate type of four-cylinder screws.
Short Rod
130 mm
Ceiling Mount Base
- Attach to ceiling
English
50 mm length / 8 mm diameter -
Screw Type A
Long Rod
Extension Rod
Long Cylinder Cap
Allen Key
- For tightening/looseni
Tightening Screw
Medium Rod
Page 44
English
34
3 Use the appropriate number of screws for the projector size to attach the
projector to the ceiling mount bracket.
Screw Type B
Smaller Washer
Large Washer
Supports projector and allows -
for adjustments
Note: It is recommended that you keep a reasonable space
between the bracket and the projector to allow for proper heat
distribution. Use two washers for extra support, if deemed
necessary.
4 Attach the ceiling bracket to the ceiling rod.
Screw Type A
50 mm length -
08 mm diameter
Projector Bracket
Spacer
- For heat dissipation
Large cylinder cap
Allen Key
- For tightening/loosening
Tightening Screw
Page 45
35
5 Adjust the angle and positioning as necessary.
Tightening Screw
Allen Key
3
Allen Key
Tightening Screw
Note: The appropriate type of screw and washer for each model is
listed in the table below. 3 mm diameter screws are enclosed in
the screw pack.
Models Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
K520/H112/PH-X01 3 25 V V
English
SCREW SPEC. M3 x 25 mm
110.00 mm
82.30 mm70.45 mm
55.00 mm
Page 46
English
36
Specifications
The specifications listed below are subject to change without notice. For final
specs, please refer to Acer's published marketing specifications.
Projection system
Resolution XGA (1024 x 768)
Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and
Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/
Aspect ratio Auto, 4:3, 16:9
Displayable colors 1.07 billion colors
Projection lens F = 2.41 ~ 2.55, f = 21.79 mm ~ 23.99 mm, 1:1.1 Manual
Projection screen size (diagonal) 27" (70 cm) ~ 300" (762 cm)
Projection distance 3.9' (1.2 m) ~ 39.0' (11.9 m)
Throw ratio 50"@2 m (1.95 ~ 2.15:1)
Horizontal scan rate 30 k - 100 kHz
Vertical refresh scan rate 50 - 120 Hz
Keystone correction +/- 40 degrees
Weight 3.95 Kg (8.71 lbs)
Dimensions (W x D x H) 321 mm x 231 mm x 87 mm (12.64" x 9.09" x 3.43")
Power supply AC 100 – 240 V, 50-60 Hz
Power consumption Normal mode: 197 W +/- 10% @ 110 Vac (Bright mode
Operating temperature 5ºC to 35ºC / 41ºF to 95ºF
I/O connectors
®
DLP
VESA standards: SXGA, XGA, SVGA, VGA, WXGA
K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p,
576p), SDTV (480i, 576i)
Zoom and Manual Focus
@ full power)
ECO mode: 158 @ 110 Vac (Video mode @ eco power)
Standby < 0.5 W
• Power socket x1
• RS232 x1
• Composite input x1
• S-Video x1
• VGA input x1
• HDMI x1
• USB x1: for firmware upgrade
• Audio input x1
• Audio output x 1
Page 47
37
Standard package contents
* Design and specifications are subject to change without notice.
• AC power cord x1
• VGA cable x1
• Composite video cable x1
• Remote control x1
• Battery x 2 (for remote control)
• User's Guide (CD-ROM) x1 (for projector
function)
• Quick start guide x1
• Carrying case x1
English
Page 48
English
38
Compatibility modes
A. VGA Analog
1 VGA Analog - PC Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
VGA 640x480 60 31.5
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 119.51 61.0
SVGA 800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 119.85 77.20
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 85 68.7
1024x768 119.804 98.80
SXGA 1152x864 70 63.8
1152x864 75 67.5
1152x864 85 77.1
1280x1024 60 64.0
1280x1024 72 77.0
1280x1024 75 80.0
1280x1024 85 91.1
QuadVGA 1280x960 60 60.0
1280x960 75 75.2
UXGA 1600x1200 60 75.0
PowerBook G4 640x480 60 31.4
PowerBook G4
PowerBook G4
PowerBook G4 1024x768 60 48.4
PowerBook G4 1152x870 75 68.7
PowerBook G4 1280x960 75 75.0
i Mac DV (G3) 1024x768 75 60.0
640x480 66.6 (67) 34.9
800x600 60 37.9
Page 49
39
2 VGA Analog - Extended Wide timing
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
WXGA 1280x768 60 47.8
1280x768 75 60.3
1280x768 85 68.6
1280x720 60 44.8
1280x800 60 49.6
1440x900 60 59.9
WSXGA+ 1680x1050 60 65.3
1366x768 60 47.7
1920x1080-RB 60 66.60
1920x1080-EIA 60 66.60
1024x600 60 37.3
1920x1080
(Reduced
Blanking Timing)
1366x768 60 47.7
60 66.6
3 VGA Analog - Component Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480 59.94(29.97) 15.7
576i 720x576 50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
720p 1280x720 50 37.5
1080i 1920x1080 60 (30) 33.8
1080i 1920x1080 50 (25) 28.1
1080p 1920x1080 23.97/24 27.0
1080p 1920x1080 60 67.5
1080p 1920x1080 50 56.3
English
B. HDMI Digital
1 HDMI - PC Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
VGA 640x480 60 31.5
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 119.51 61.61
Page 50
English
40
SVGA 800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 119.85 77.20
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 119.804 98.80
SXGA 1152x864 75 67.5
1152x864 85 77.1
1280x1024 60 64.0
1280x1024 72 77.0
1280x1024 75 80.0
1280x1024 85 91.1
QuadVGA 1280x960 75 75.2
PowerBook G4 640x480 60 31.4
PowerBook G4
PowerBook G4
PowerBook G4
PowerBook G4
PowerBook G4
i Mac DV (G3)
640x480 66.6 (67) 34.9
800x600 60 37.9
1024x768 60 48.4
1152x870 75 68.7
1280x960 75 75.0
1024x768 75 60.0
2 HDMI - Extended Wide timing
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
WXGA 1280x768 60 47.8
1280x768 75 60.3
1280x768 85 68.6
1280x720 60 44.8
1280x800 60 49.6
1440x900 60 59.9
WSXGA+ 1680x1050 60 65.3
1366x768 60 47.7
1024x600 60 37.3
Page 51
41
3 HDMI - Video Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480(1440x480) 59.94 (29.97) 15.7
576i 720x576(1440x576) 50 (25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
720p 1280x720 50 37.5
1080i 1920x1080 60 (30) 33.8
1080i 1920x1080 50 (25) 28.1
1080p 1920x1080 23.97/24 27.0
Graphic source
monitor range
limits
Horizontal scan rate: 30k~100kHz
Vertical scan rate: 50~120Hz
Max. pixel rate 165MHz
English
Page 52
42
Regulations and safety notices
English
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this device.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Page 53
43
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
Declaration of Conformity for EU countries
Acer hereby declares that this projector series is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Compliant with Russian regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with
wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules).
English
English
Canada — Low-power license-exempt radio
communication devices (RSS-210)
a Common information
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
b Operation in 2.4 GHz band
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject
to licensing.
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the
country of use. For further information, please contact the local office in the country of use.
Please see http://ec.europa.eu/enterprise/rtte/implem.htm
for the latest country list.
Page 54
English
44
Laser regulation
Complies with 21 CFR 1040.10 and 1040.11 except
for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
IEC 60825-1:2007
Important !
Laser Precautions
• This projector is a Class 1 laser device that conforms with IEC 60825-1:2007.
• This projector has built-in laser module. Disassembly or modification is very
dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user’s guide
creates the risk of hazardous laser radiation exposure.
Page 55
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,
New Taipei City 221, Taiwan
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
Contact Person: Mr. RU Jan, e-mail:ru_jan@acer.com.tw
And,
Acer Italy s.r.l
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: +39-02-939-921, Fax: +39-02 9399-2913, www.acer.it
Hereby declare that:
Product: Projector
Trade Name: Acer
Model Number: CNX1114
Machine Type: K520/H112/PH-X01
Is compliant with the essential requirements and other relevant provisions of the following EC
directives, and that all the necessary steps have been taken and are in force to assure that
production units of the same product will continue comply with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following
harmonized standards:
-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN61000-3-2 Class A
-. EN61000-3-3
Low Voltage Directive 2006/95/EC as attested by conformity with the following
harmonized standard:
-. EN60950-1
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous
Substances in Electrical and Electronic Equipment
-. The maximum concentration values of the restricted substances by weight in homogenous
material are:
Lead 0.1% Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE’s) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%
!
Directive 2009/125/EC with regard to establishing a framework for the setting
of ecodesign requirements for energy-related product.
Page 56
The standards listed below are applied to the product if built with WLAN
module or wireless keyboard and mouse.
R&TTE Directive 1999/5/EC as attested by conformity with the following
harmonized standard:
z Article 3.1(a) Health and Safety
-. EN60950-1
-. EN62311
z Article 3.1(b) EMC
-. EN301 489-1
-. EN301 489-17
z Article 3.2 Spectrum Usages
-. EN300 328
-. EN301 893 (Applicable to 5GHz high performance RLAN).
Year to begin affixing CE marking 2012.
_______________________________ Mar. 30, 2012 -
RU Jan/Sr. Manager Date
Regulation Center, Acer Inc.
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,
New Taipei City 221, Taiwan
Page 57
Acer America Corporation
333 West San Carlos St., San Jose
CA 95110, U. S. A.
Tel : 254-298-4000
Fax : 254-298-4147
www.acer.com
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The following local Manufacturer / Importer is responsible for this declaration:
Product:
Model Number:
Machine Type:
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
DLP Projector
CNX1114
K520/H112/PH-X01
San Jose, CA 95110
U. S. A.
