Acer T420DTB, XS-W30HGM, F1383WHne, T410DTB, XSX30HGM User Guide

...

Download

Acer Projector

S1383WHne/T420DTB/XS-W30HGM/

F1383WHne/S1283Hne/T410DTB/XS-

X30HGM/F1283Hne/S1283e/T410B/

XS-X30M/DNX1322/F1283e/S1283/

T410/XS-X30 Series

User's Guide

Acer Projector User's Guide Original Issue: 03/2014

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: _________________________________

Serial number: __________________________________

Date of purchase: _______________________________

Place of purchase: ______________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC

power outlet.

• Unplug the power cord before removing the power supply unit from the

projector.

• If the system has multiple sources of power, disconnect power from the

system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

iii

Warnings!

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product

falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

• To avoid damage of internal components and to prevent battery leakage,

do not place the product on a vibrating surface.

• Never use it under sporting, exercising, or any vibrating environment

which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too

many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

• This product's AC adapter is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

• Use the product only with the supplied power supply cord set. If you need

to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

• the product was exposed to rain or water

• the product has been dropped or the case has been damaged

• the product exhibits a distinct change in performance, indicating a need

for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may

hurt your eyes.

• Turn on the projector first and then signal sources

• Do not place the product in following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.

• Locations near fire alarms.

• Locations with an ambient temperature above 40 ºC/104 ºF.

• Locations where the altitudes are higher than 10000 feet.

• Unplug immediately if there is something wrong with your projector. Do

not operate if smoke, strange noise or odor comes out of your projector. It

might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

• Do not keep using this product to break or drop it. In this case contact your

dealer for inspection.

• Do not face the projector lens to the sun. It can lead to fire.

• When switching the projector off, suggest to ensure the projector

completes its cooling cycle before disconnecting power.

• Do not frequently turn off the main power abruptly or unplug the

projector during operation. The best way is to wait for the fan to turn off before turning main power off.

• Do not touch air outlet grille and bottom plate which becomes hot.

• Clean the air filter frequently if have. The temperature inside may rise and

cause damage when the filter/ventilation slots clogged with dirt or dust.

• Do not look into the air outlet grille when projector is operating. It may

hurt your eyes.

• Always open the lens shutter or remove the lens cap when the projector is

on.

• Do not block the projector lens with any object when the projector is

under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

• The lamp becomes extremely hot during operation. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

• Do not operate lamps beyond the rated lamp life. It could cause it to break

on rare occasions.

• Never replace the lamp assembly or any electronic components unless the

projector is unplugged.

• The product will detect the life of the lamp itself. Please be sure to change

the lamp when is showing warning message.

• When changing the lamp, please allow unit to cool down, and follow all

changing instructions.

• Reset the "Lamp Hour Reset" function from the Onscreen display

"Management" menu after replacing the lamp module.

• Do not attempt to disassemble this projector. There are dangerous high

voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

• Do not stand the projector on end vertically. It may cause the projector to

fall over, causing injury or damage.

• This product is capable of displaying inverted images for ceiling mount

installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

vii

RG2

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

“Lamp(s) contain Mercury, Dispose Properly.”

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

Do not stare into the beam, RG2

"As with any bright source, do not stare into the direct beam, RG2 IEC 624715:2015"

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.

• Use a soft cloth moistened with mild detergent to clean the display

housing.

• Disconnect the power plug from AC outlet if the product is not being used

for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.

• Use abrasive cleaners, waxes or solvents to clean the unit.

• Use under the following conditions:

• In extremely hot, cold or humid environments.

• In areas susceptible to excessive dust and dirt.

• Near any appliance that generates a strong magnetic field.

• Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

• Do not look into the projector's lens when the lamp is on. The bright light may hurt

your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

• Please do not open or disassemble the product as this may cause electric shock.

• When changing the lamp, please allow unit to cool down, and follow all changing

instructions.

• This product will detect the life of the lamp itself. Please be sure to change the lamp

when it shows warning messages.

• Reset the "Lamp Hour Reset" function from the Onscreen display "Management"

menu after replacing the lamp module.

• When switching the projector off, please ensure the projector completes its cooling

cycle before disconnecting power.

• Turn on the projector first and then the signal sources.

• Do not use lens cap when projector is in operation.

• When the lamp reaches the end of its life, it will burn out and may make a loud

popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 3

Projector Outlook 3

Control Panel 5

Remote Control Layout 6

MHL (Mobile High-Definition Link) Control 8

Getting Started 9

Connecting the Projector 9

Turning the Projector On/Off 11

Turning on the Projector 11

Turning the projector off 12

Adjusting the Projected Image 13

Adjusting the Height of Projected Image 13

How to optimize image size and distance 14

User Controls 16

Installation menu 16

Onscreen Display (OSD) Menus 17

Color 18

Image 20

Setting 22

Management 27

Audio 28

3D 29

Language 29

Acer LAN webpage management 30

How to login in 30

Home 31

Control Panel 31

Networking Setting 32

Alert Setting 32

Logout 33

Appendices 34

Troubleshooting 34

LED & Alarm Definition Listing 38

Cleaning and replacing the dust filters 39

<<Type I>> 39

<<Type II>> 40

Replacing the Lamp 41

Ceiling Mount Installation 42

Specifications 45

Compatibility modes 48

Regulations and safety notices 53

English

Introduction

Product Features

This product is a single-chip DLP® projector. Outstanding features include:

• DLP

technology

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/T410B/XS-X30M/

DNX1322/F1283e/S1283/T410/XS-X30 series: True XGA 1024 x 768 resolution S1383WHne/T420DTB/XS-W30HGM/F1383WHne series: True WXGA 1280 x 800 resolution Full/4:3/16:9/L.Box aspect ratio supported

• Enables projecting 3D content via DLP Link Technology

• Acer ColorBoost technology delivers nature’s true colors for vivid, life-like

images

• High brightness and contrast ratio

• Versatile display modes (Bright, Presentation, Standard, Video, Game,

Education, Movie, Dark Cinema, Sports, User) enable optimum performance in any situation

• NTSC / PAL / SECAM compatible and HDTV (720p, 1080i, 1080p) supported

• Lower power consumption and economy (ECO) mode extends lamp life

• Acer EcoProjeciton Technology delivers Intelligent power management

approach and physical efficiency improvement

• Equipped with HDMI™ & MHL connection supporting HDCP

• Advanced digital keystone correction optimizes presentations

• Smart detection delivers quick, intelligent source detection

• Multi-language onscreen display (OSD) menus

• Manual focus projection lens zooms up to 1.0x

• 2x digital zoom and pan function

• Microsoft

Macintosh

Windows® 2000, XP, Vista®, Windows 7, Windows 8,

OS compliant

Note: Functions vary depending on model definition.

English

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

Projector Power cord VGA cable

2 x Batteries

(option)

Quick start guide Carrying case

SOURCE

MEDIA

MODE

SETUP

HIDE

RATIO

ZOOM

FREEZE

Security card User’s guide

(option)

Remote control SmartPen & PB dongle

(option)

Lens shield

(option)

Electrostatic filters

(option)

Dust filters

(option)

3D dust filter

(option)

Dust shield pack

(option)

English

Projector Overview

Projector Outlook

Front / upper side

# Description # Description

1 Power button 5 Remote control receiver 2 Control panel 6 Projection lens 3 Lamp cover 7 Tilt adjusting wheels 4 Focus ring 8 Lens cap

English

/ MHL

S-VIDEO

MIC

AUDIO IN

AUDIO OUT

VGA OUT

VGA IN 2

VGA IN 1

USB CTRL

RS232

VIDEO

2133

109 1187

5146

Right / Rear side

# Description # Description

1 Composite video input connector 8 3.5mm Microphone Input 2 S-Video input connector 9 LAN (RJ45 Port for 10/100M Ethernet) 3 Monitor loop-through output

connector (for VGA IN 2 only)

4 PC analog signal/HDTV/component

video input connector (VGA IN 1/VGA

IN 2) 5 Security bar 12 HDMI/MHL connector 6 Audio input connector (S-Video,

Composite) 7 Audio out connector 14 Kensington™ lock port

10 RS232 connector

11 Mini USB connector

13 Power socket

Note: Functions vary depending on model definition.

English

Control Panel

1 2 3

6 7

# Icon Function Description 1 POWER Power Indicator LED 2 LAMP Lamp Indicator LED 3 TEMP Temp Indicator LED 4 RESYNC Automatically synchronizes the projector

5 SOURCE Changes the active source. 6 POWER See the contents in "Turning the Projector

7 Mode

8MENU

9 Four directional select

10 Keystone Adjusts the image to compensate for

keys

to the input source.

On/Off" section.

Press "Mode" to select the display mode from Bright, Presentation, Standard, Video, Game, Education and User.

• Press "MENU" to launch the Onscreen

display (OSD) menu, back to the previous step for the OSD menu operation or exit the OSD menu.

• Confirm your selection of items.

Use to select items or make adjustments to your selection.

distortion caused by tilting the projector (± 40 degrees).

English

Remote Control Layout

MEDIA

SETUP

ZOOM

MODE

RATIO

SOURCE

HIDE

FREEZE

# Icon Function Description

1 Infrared

transmitter

2 POWER Refer to the "Turning the Projector On/Off" section.

3 3D Press "3D" to select 3D models.

4 SOURCE Changes the active source.

5 MODE Press "MODE" to select the display mode from Bright,

6 HIDE Momentarily turns off the video. Press "HIDE" to hide the

7 MEDIA_SETUP No function.

8 RATIO To choose the desired aspect ratio.

9 ZOOM Zooms the projector display in or out.

10 FREEZE To pause the screen image.

11 MENU

Sends signals to the projector.

Presentation, Standard, Video, Game, Education and User.

image, press again to display the image.

• Press "MENU" to launch the Onscreen display (OSD)

menu, back to the previous step for the OSD menu operation or exit the OSD menu.

• Confirm your selection of items.

12 KEYSTONE Adjusts the image to compensate for distortion caused by

tilting the projector (± 40 degrees).

English

# Icon Function Description

13 Four

14 Pre./Rewind No function.

15 KeyPad 0~9 Press "0~9" to input a password in the "Security" OSD.

16 PgUp/PgDn For computer mode only. Use this button to select the next or

17 COMPONENT No function.

18 VIDEO To change source to COMPOSITE VIDEO.

19 VGA Press "VGA" to change source to the VGA connector. This

20 S-VIDEO To change source to S-Video.

21 SD/USB A No function.

22 USB B For USB control and firmware upgrade.

23 HDMI/DVI To change source to HDMI/MHL. (no DVI function)

24 LAN/WiFi Press "LAN/WiFi" to display the image which is wire or

directional select keys

Enter/ Play/ Pause

Back/Stop No function.

Next/Fast forward

Use up, down, left, right buttons to select items or make adjustments to your selection.

No function.

previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.

connector supports analog RGB, YPbPr (480p/576p/720p/ 1080i), YCbCr (480i/576i) and RGBsync.

wirelessly transmitted from the PC to the projector via the "Acer LAN webpage management" utility.

Note: Functions vary depending on model definition.

English

HIDE

MEDIA

SETUP

MODE

SOURCE

RATIO

ZOOM

FREEZE

MHL Control Mode

Numeric

Navigation

Next Mode

Exit MHL Control

MHL (Mobile High-Definition Link) Control

# Icon Component Description

1MODE

2 SOURCE Press the "SOURCE" button to toggle between Navigation

3 MENU Press to launch the root memu.

4 Direction Keys Use up, down, left, right buttons to select items or make

5 Select To select the file. (only for Navigation mode)

6 Exit To exit the file. (only for Navigation mode)

7 PgUp/PgDn Use the button to select the next or previous

8 KeyPad 0~9 Number buttons. (only for Numeric mode)

• Press "MODE" button for one second to activate the

MHL Control Mode.

• To exit, press the "MODE" button again.

or Numeric mode.

(only for Navigation mode)

adjustments to your selection. (only for Navigation mode)

page. (only for Navigation mode)

English

Getting Started

D-Sub

RS232

HDTV adapter

RBG

D-Sub

USB

HDMI

USB

MHL

/ MHL

S-VIDEO

MIC

AUDIO IN

AUDIO OUT

VGA OUT

VGA IN 2

VGA IN 1

USB CTRL

RS232

VIDEO

S-Video output

Video output

DVD player, Set-top Box,

HDTV receiever

DVD player

Internet

Connecting the Projector

English

# Description # Description

1 Power cord 8 Audio cable jack/RCA

2 VGA cable 9 RS232 cable

3 Microphone cable 10 USB cable

4 VGA to component/HDTV adapter 11 HDMI cable

5 3 RCA component cable 12 MHL cable (MicroUSB to HDMI)

6 S-Video cable 13 RJ45 cable

7 Composite video cable

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector. Note: Functions vary depending on model definition. Note: USB cable needs powered extender if the length is over 5 m. Note: VGA OUT loops through for VGA IN 2 only. Note: Some smartphones require a converter (supplied by smartphone maker) to enable the MHL function.

English

Turning the Projector On/Off

Power button

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The

Power indicator LED will flash red.

2 Turn on the projector by pressing "Power" button on the control panel or

remote control, and the Power indicator LED will turn blue.

3 Turn on your source (computer, notebook, video player ,etc.). The

projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.

• If the screen displays "No Signal", please make sure the signal cables are securely connected.

• If you connect to multiple sources at the same time, use the "Source" button on either control panel or the remote control or direct source key on the remote control to switch between inputs.

English

Turning the projector off

1 To turn the projector off, press and hold the power button. This message

appears: "Please press the power button again to complete the shutdown process." Press the power button again.

2 The LED power indicator will turn RED and blink rapidly after the projector

is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)

3 As long as the power cord remains plugged in, you can press the power

button to turn the projector immediately back on anytime during the 2minute shutdown process. (only supported under "Instant Resume" mode)

4 Once the system has finished cooling, the LED power indicator will stop

blinking and turn solid red to indicate standby mode.

5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon." This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.

• "Fan failed. Lamp will automatically turn off soon." This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center. Note: Functions vary depending on model definition.

English

Adjusting the Projected Image

Tilt adjusting wheel

Adjusting the Height of Projected Image

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

English

80"

Height: 140 cm from base to top of image

1.0 m Desired Distance

How to optimize image size and distance

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.

• XGA series

If the projector is 1.0 m from the screen, good image quality is possible for image sizes around 80".

Note: Remind as below figure, the space of 140 cm height is required when located at 1.0 m distance.

Desired

Distance (m)

<A>

0.4 32 65 x 49 56 1 80 162 x 122 140

1.5 120 243 x 182 210 2 160 324 x 243 280

2.5 199 405 x 304 349

3.1 247 502 x 377 433

3.5 279 567 x 425 489 4 319 648 x 486 559

4.5 359 729 x 547 629 5 399 810 x 608 699

5.5 439 891 x 669 769 6 479 972 x 729 839

6.5 518 1053 x 790 909 7 558 1135 x 851 979

7.5 598 1216 x 912 1048 8 638 1297 x 972 1118

8.5 678 1378 x 1033 1188 9 718 1459 x 1094 1258

9.5 758 1540 x 1155 1328

10 798 1612 x 1216 1398

Zoom Ratio: 1.0x

Diagonal (inch)

Screen size

<B>

W (cm) x H (cm)

(Min zoom)

From base to top of image (cm)

Top

<C>

English

• WXGA series

89"

Height: 135 cm from base to top of image

1.0 m Desired Distance

If the projector is 1.0 m from the screen, good image quality is possible for image sizes around 89".

Note: Remind as below figure, the space of 135 cm height is required when located at 1.0 m distance.

<B>

Screen size

W (cm) x H (cm)

(Min zoom)

From base to top of image (cm)

Desired

Distance (m)

<A>

0.4 36 77 x 48 54 1 89 192 x 120 135

1.5 134 288 x 180 202 2 178 384 x 240 270

2.5 223 480 x 300 337 3 267 576 x 360 405

3.4 303 653 x 408 458 4 356 768 x 480 539

4.5 401 864 x 540 607 5 446 960 x 600 674

5.5 490 1056 x 660 742 6 535 1152 x 720 809

6.5 579 1248 x 780 876 7 624 1344 x 840 944

7.5 668 1440 x 900 1011 8 713 1536 x 960 1079

8.5 757 1631 x 1020 1146 9 802 1727 x 1080 1214

9.5 847 1823 x 1140 1281

10 891 1919 x 1200 1348

Zoom Ratio: 1.0x

Diagonal (inch)

Top

<C>

English

Installation

Projection

Manual Keystone

Language

Reset

RS232

English

Press

Select Adjust Exit

Control Channel

LAN IP/Mask

User Controls

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more .

1 Turn on the projector by pressing "Power" button on the control pad.

2 Press the "MENU" button on the control pad to launch the OSD for

projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and

alignment settings, such as screen size and distance, focus and more .

4 The Installation menu includes the following options:

•Projection Mode

•Manual Keystone settings

•Control Channel settings

•LAN IP/Mask settings

•Language settings

•Reset to factory default function

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the MENU button anytime to exit the menu and return to the Acer

welcome screen.

Note: Functions vary depending on model definition.

English

Main menu

Sub menu

Setting

Color

Display Mode

Video

Wall co lor

Brightness

Contrast

Saturation

Tint

Color Temperature

Dynamic Black

Gamma

Press

Off

Select Adjust

Main Menu

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control or control

panel.

• When the OSD is displayed, use the keys to select any item in the

main menu. After selecting the desired main menu item, press to enter submenu for feature setting.

• Use the keys to select the desired item and adjust the settings by

using the keys.

• Select the next item to be adjusted in the submenu and adjust as described

above.

• Press "MENU" on the remote control or control panel, the screen will

return to the main menu.

• To exit OSD, press "MENU" on the remote control or control panel again.

The OSD menu will close and the projector will automatically save the new settings.

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector. Note: Functions vary depending on model definition.

English

Color

Display Mode

Wall color

Brightness

Contrast

Saturation

Tint

Color Temperature

Dynamic Black

Gamma

There are many factory presets optimized for various types of images.

• Bright: For brightness optimization.

• Presentation: For meeting presentation.

• Standard: For common environment.

• Video: For playing video in a bright environment.

• Education: For education environment.

• User: Memorize user's settings.

Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.

Adjust the brightness of the image.

• Press to darken the image.

• Press to lighten the image.

"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

• Press to decrease the contrast.

• Press to increase the contrast.

Adjusts a video image from black and white to fully saturated color.

• Press to decrease the amount of color in the image.

• Press to increase the amount of color in the image.

Adjusts the color balance of red and green.

• Press to increase the amount of green in the image.

• Press to increase the amount of red in the image.

Mode Use this function to choose CT1, CT2 (Native), CT3, User mode.

R Gain Adjusts the red gain for color temperature optimization.

G Gain Adjusts the green gain for color temperature optimization.

B Gain Adjusts the blue gain for color temperature optimization.

Choose "On" to automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.

Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.

English

Note: "Saturation" and "Tint" functions are not supported under computer or HDMI mode. Note: Constant Brightness is available while both of "Dynamic Black" and "ECO Mode" are off. Note: Functions vary depending on model definition.

English


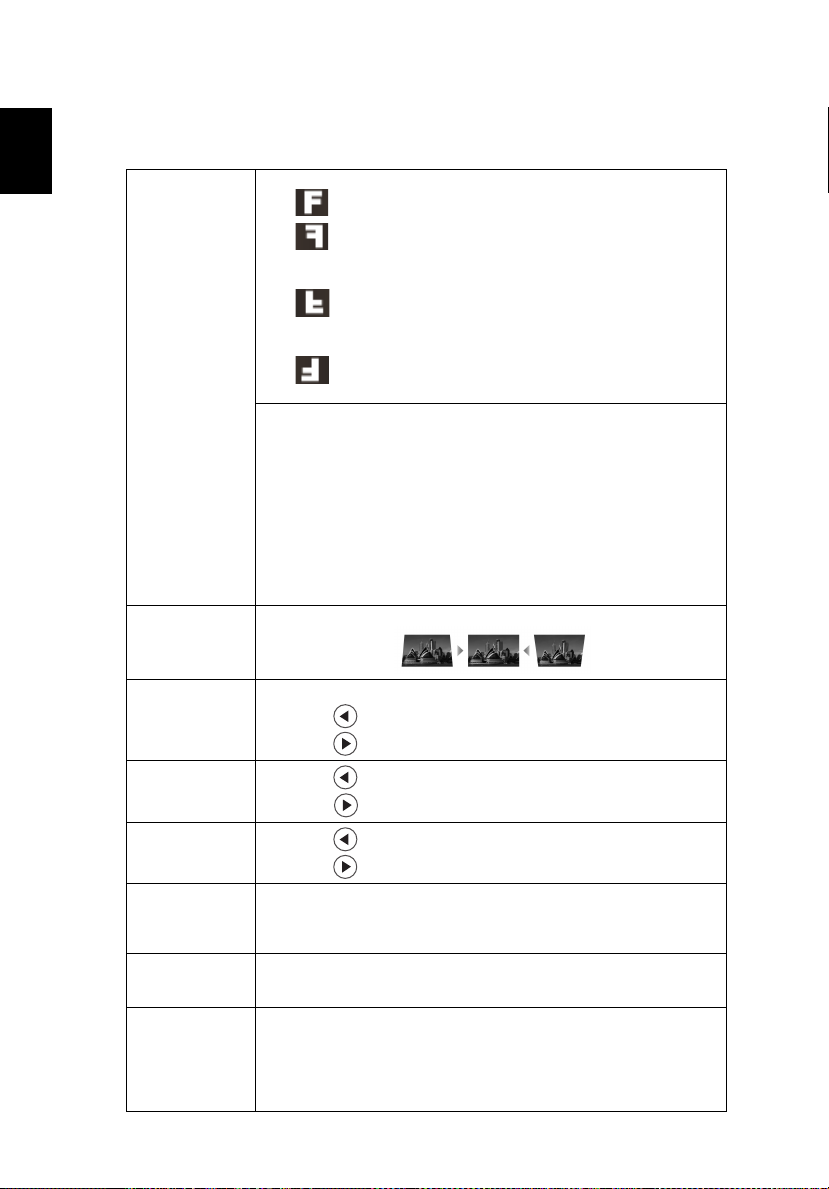

Projection

• Front-Desktop: The factory default setting.

• Rear-Desktop: When you select this function, the projector

reverses the image so you can project from behind a translucent screen.

• Rear-Ceiling: When you select this function, the projector

reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.

• Front-Ceiling: When you select this function, the projector

inverts the image for ceiling-mounted projection.

Aspect Ratio Use this function to choose your desired aspect ratio.

Manual Keystone Adjust image distortion caused by tilting projection. (±40 degrees)

• Auto: Keep the image with original width-higth ratio and maxi

mize the image to fit native horizontal or vertical pixels.

• Full: Resize image to fit full screen by width (1280 pixels) and

height (800 pixels).

• 4:3: The image will be scaled to fit the screen and displayed using

a 4:3 ratio.

• 16:9: The image will be scaled to fit the width of the screen and

the height adjusted to display the image using a 16:9 ratio.

• L.Box: Keep original signal aspect ratio and zoom in by 1.333

times.

Sharpeness Adjusts the sharpness of the image.

• Press to decrease the sharpness.

• Press to increase the sharpness.

H. Position

• Press to move the image left.

• Press to move the image right.

V. Position

• Press to move the image down.

• Press to move the image up.

Frequency "Frequency" changes the projector's refresh rate to match the

Tracking Synchronizes the signal timing of the projector with the graphics card.

HDMI Color Range Adjust the color range of the HDMI image data to correct color display

frequency of your computer’s graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.

If you experience an unstable or flickering image, use this function to correct it.

error.

• Auto: Automatically adjust by information from player.

•

Limited Range: Prosess the input image as limited color range data.

• Full Range: Prosess the input image as full color range data.

English

HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.

• Auto: Automatically adjust by information from player.

• Underscan: Always no overscan on HDMI image.

• Overscan: Always keep overscan on HDMI image.

Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode. Note: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode. Note: Functions vary depending on model definition.

English

Setting

SmartPen The Acer SmartPen can work in place of your regular computer

Startup Screen Use this function to select your desired startup screen. If you

Screen Capture Use this function to customize the startup screen. To capture the

mouse. Just hold the pen in your hand, and point it at the projected image to point, click, and drag. It gives you more flexibility to operate your computer without standing next to it.

Pen Function To use the Acer SmartPen, select "On" to activate this function.

Link Channel Set a channel to differentiate between projectors and communicate with the Acer SmartPen.

Dual Pen Choose “Enable” to stay on Dual Pen mode; choose “Disable” to return Single Pen mode.

Double Click Speed Adjust the double click speed of your pen to make it response faster or slower to meet your needs.

Pen Pairing To pair a pen, select "Pairing" and follow the on-screen instructions. To release a pen, select "Release" and follow the onscreen instructions.

Information Displays more information about smart pen such as battery capability and RF strength.

For more details, see the notes following this table.

Mac OS Optimization If the screen shows the offset phenomenon when using SmartPen function under Mac OS, it’s required to select "On" to optimize and correct it.

Note: Mac OS Optimization is for Mac OS only.

change the setting, the changes will take effect when you exit the OSD menu.

• Acer: The default startup screen of your Acer projector.

• User: Use memorize picture from "Screen Capture" function.

image that you want to use as the startup screen, follow the instructions below. Notice: Before proceeding with the following steps, make sure that the "Keystone" is set to the default value 0 and the aspect ratio is set to 4:3. For details, refer to the "Image" section.

• Change the "Startup Screen" from the default setting "Acer" to "User".

• Press "Screen Capture" to customize the startup screen.

• A dialog box appears to confirm the action. Choose "Yes" to use the current image as your customized startup screen. The capture range is the red rectangular area. Choose "No" to cancel the screen capture and exit the onscreen display (OSD).

• A message appears, stating that the screen capture is in progress.

• When the screen capture is finished, the message disappears and the original display is shown.

• The customized startup screen, as shown below, takes effect when there is a new input signal or when you restart the projector.

English

Source Lock When Source Lock is turned "Off", the projector will search for

Closed Caption

VGA OUT (Standby) Default is "Off". Choose "On" to enable VGA OUT connection.

Reset

Security Security

other signals if the current input signal is lost. When Source Lock is turned "On", it will "lock" the current source channel unless you press "Source" button on the remote control for the next channel.

Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4, (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC. <Note> Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is "16:9" or "Auto" .

• Press the button and choose "Yes" to return the

parameters on all menus to the factory default settings.

This projector provides a useful security function for the administrator to manage usage of the projector .

Press to change the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first

before changing the security settings.

• Select "On" to enable the security function. The user has to

enter a password to operate the projector. Please refer to the "User Password" section for details.

• If "Off" is selected, then the user can turn on the projector

without password.

Timeout(Min.) Once "Security" is activated to "On", the administrator can set

timeout function.

• Press or to select the timeout interval.

• The range is from 10 minute to 990 minutes.

• When the time is up, the projector will prompt the user to

enter the password again.

• The factory default setting of "Timeout(Min.)" is "Off".

• Once the security function is enabled, the projector will

request user to enter password when switch on the projector . Both "User Password" and "Administrator Password" can be accepted for this dialogue.

English

LAN/Control Channel

User Password

• Press to setup or change the "User Password".

• Press number keys to set your password on the remote control

and press "MENU" to confirm.

• Press to delete character.

• Enter the password when you see "Confirm Password"

displayed.

• The password should be between 4 and 8 characters long.

• If you select "Request password only when plugging the

power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged.

• If you select "Always request password while projector turns

on.", the user has to enter the password every time when the projector is turned on.

Administrator Password The "Administrator Password" can be used in both the "Enter

Administrator Password" and "Enter Password" dialog boxes.

• Press to change the "Administrator Password".

• The factory default of "Administrator Password" is "1234".

If you forgot your administrator password, do the following to retrieve the administrator password:

• An unique 6-digit "Universal Password" which is printed on

the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is.

• If losing this security card and number, please contact with an

Acer service center.

Lock to user startup screen Default Lock User Startup Screen is "Off". If lock user startup screen

is "On", users cannot change startup screen anymore and avoid other users change that arbitrarily. Choose "Off" to unlock startup screen.

Control Channel Default is "RS232". Choose "LAN" to enable LAN connection.

LAN IP/Mask Identify IP and Mask address.

LAN Reset Reset LAN function.

Note: Functions vary depending on model definition.

English

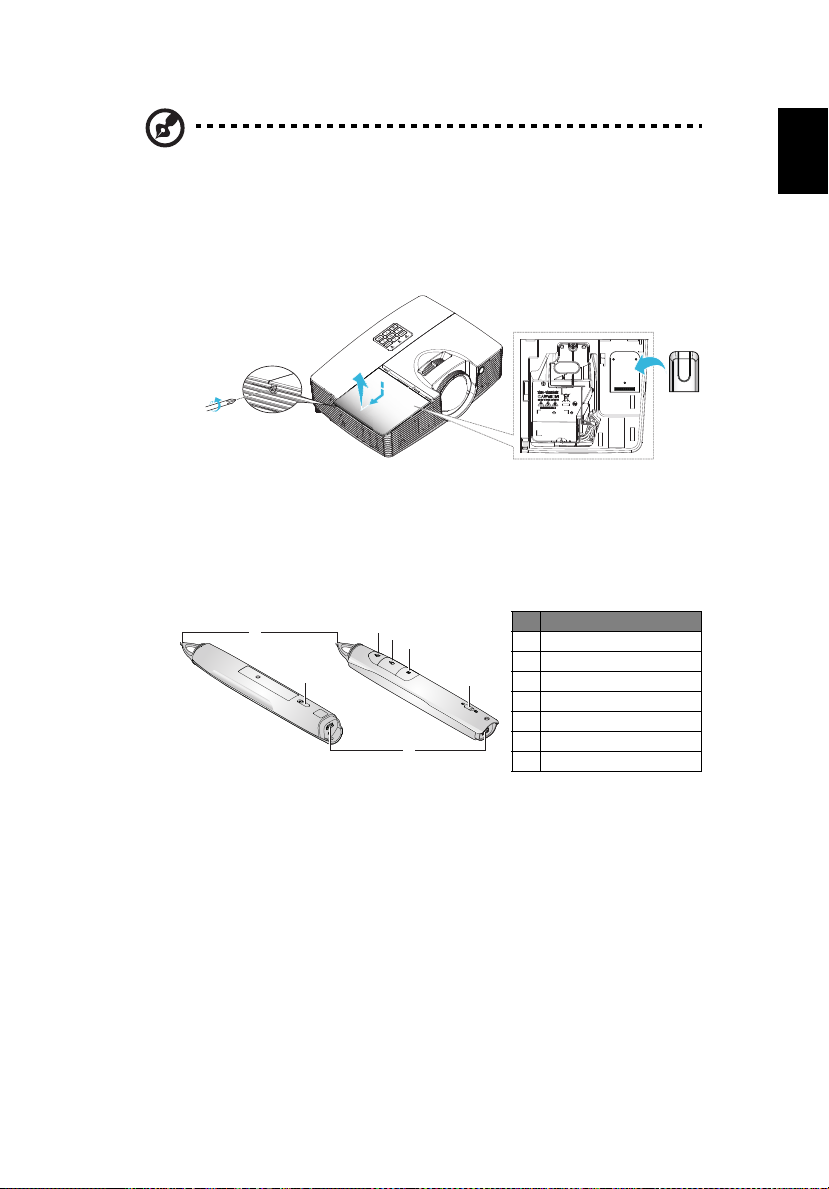

Upper side

Rear side

About Acer SmartPen Setting Note 1: Preparations

1. Turn off the projector by pressing the Power button.

2. Use a screwdriver to remove the screw from the cover. (Illustration #1) Push up and remove the cover. (Illustration #2) Plug the PB dongle into the PB dongle slot on the projector. (Illustration #3) Reverse the above steps. (Illustration #2#1)

3. Connect the projector to your computer with a USB cable and VGA cable.

4. Turn on the projector and make sure it is projecting the computer's display.

5. Enable the pen by selecting "On" in the Setting > SmartPen > Pen Function menu. The pen’s link light will start to blink.

6. When the green light stays on, the connection is successful.

7. Point the pen at the screen to point, click or drag.

Note 2: Overview of the Acer SmartPen

Note 3: Charging the battery

1. To charge the battery, open the flap on the back of the pen to expose the USB port.

2. Take the USB cable, and plug the smaller connector into the pen and the larger one into a computer. Make sure the computer is turned on.

3. The battery light stays on while the battery is charging. When charging is complete, the battery light turns off. You can then disconnect the USB cable, or leave it connected.

Note 4: Other notes about using the pen

1. Avoid standing too far from the screen. The closer you are to the screen, the better performance the pen has.

2. Hold the pen the way you hold a remote control or a pen.

3. A full battery charge takes 3-4 hours and will allow 30 hours non-stop use. The battery is only rechargeable, and is not user serviceable or user replaceable.

4. Avoid shadows! The pen cannot work if its tip is in a shadow or it is pointing at a shadow.

# Description 1Nib 2 Left mouse button 3 Right mouse button 4 Information key 5Link light 6Power switch 7 USB connector

English

you must have two smart pens and the NXBoard software installed.

For "Dual Pen" mode to work correctly,

5. For “Dual Pen” mode to work correctly you must have two smart pens and the NXBoard software installed after selecting "Enable" in Dual Pen menu.

English

Management

ECO Mode Choose "On" to dim the projector lamp which will lower power

Constant Brightness Choose “On” to keep the brightness constant. Choose “Off” to

High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at

Turn Off Mode

consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.

return normal mode.

full speed continuously to allow for proper high altitude cooling of the projector.

• Instant Off: Shuts down the projector without fan cooling.

• Instant Resume: Resumes the system when the Power button

is pressed again within 2 minutes.

Auto Shutdown The projector will automatically shutdown when there is no signal

Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).

Lamp Reminding Activate this function to display a reminder to change the lamp 30

Lamp Hour Reset

3D Dust Filter Replacement Reminder

input after the allocated time. (default is 15 minutes)

hours before its expected end-of-life.

Press the button and choose "Yes" to turn the lamp hour counter to 0 hours.

Default of Replacement Reminder is "Off". Select "On" to activate filter replacement reminder after installing 3D dust filter.

Place Choose one of three places (indoor, outdoor, and Loess area) based on actual environment. The default is "indoor".

Filter Hour Show the filter used hour information. When meeting max time based on selected place, it will pop up a warning message to ask for replacing filter.

Filter Reset

Press the button and choose "Yes" to return the parameter to the factory default after replacing new 3D dust filter.

Note: "Constant Brightness" is available while both of "Dynamic Black" and "ECO Mode" are off. Note: You have to perform “Lamp Hour Reset” after replacing with new lamp; otherwise, "Constant Brightness" cannot be activated. Note: Functions vary depending on model definition.

English

Audio

Volume

• Press to decrease the volume.

• Press to increase the volume.

Microphone/Audio In Adjust the volume from "MIC" or "Audio In" connector.

Mute

• Choose "On" to mute the volume.

• Choose "Off" to restore the volume.

Note: Functions vary depending on model definition.

English

Note: 3D display is now enabled.

1. Please make sure you have the correct 3D signals and glasses.

2. Remember to turn 3D off if you don’t want to see 3D images.

3. If the 3D display isn’t correct, please try to enable 3D Sync Invert.

4. Display mode options will be disabled while in 3D mode.

3D Choose "On" to enable DLP 3D function.

• On: Choose this item while using DLP 3D glasses, 120Hz 3D

capable graphics cards and HQFS format file or DVD with corresponding SW player.

• Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D

24P 3D Choose "96Hz" or "144Hz" to compatible with 3D glasses.

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D

3D Warning Message Choose "On" to display the 3D warning message.

Note: It needs correct settings on graphic card 3D application program for correct 3D display. Note: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Note: "3D L/R Invert" is only available when 3D is enabled. Note: There has reminder screen if 3D still enable when power on projector. Please adjust setting depended on your purpose.

format that suits the 3D content you are viewing and obtain the best result.

glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

Language

Choose the multilingual OSD menu. Use the or key to

select your preferred menu language.

• Press to confirm the selection.

English

Acer LAN webpage management

How to login in

Open browser and enter the Server IP address by 192.168.100.10 to find below homepage of acer LAN webpage management. A password is needed to login in before using.

Select a user. Administrator is with high authority that can process more operations such as network setting and alert setting. Default password of administrator is "admin". And User is with normal authority with default password by "user". Click Login button to enter into homepage with correct password.

English

Home

Home page shows connection status and you can find three main functions listed, Control Panel, Networking Setting and Alert Setting.

Note: Control Panel and Networking Setting are only for Administrator account.

Control Panel

Enduser can control and adjust projector setting value via this page.

English

Networking Setting

Enduser can set IP address, group name and password as wish. After change network configurations or password, projector will reboot automatically after press "Apply".

Note: Group Name and projector Name must be less then 32 characters.

Alert Setting

Enduser can send mail with error message right away if projector has problem.

English

Logout

After tap Logout, you will return to login page within 5 seconds.

Note: Functions vary depending on model definition.

English

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution

1 No image appears

onscreen

2 Partial, scrolling

or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))

• Connected as described in the "Getting Started"

section.

• Ensure none of the connector pins are bent or

broken.

• Check if the projector lamp has been securely

installed. Please refer to the "Replacing the Lamp" section.

• Make sure you have removed the lens cap and the

projector is switched on.

• For an incorrectly displayed image:

• Open "My Computer", open the "Control

Panel", and then double-click the "Display" icon.

• Select the "Settings" tab.

• Verify that your display resolution setting is

lower than or equal to WUXGA-RB (1920 x

1200).

• Click the "Advanced Properties" button.

If the problem still appears, change the monitor display you are using and follow the steps below:

• Verify that the resolution setting is lower than

or equal to WUXGA-RB (1920 x 1200).

• Click the "Change" button under the

"Monitor" tab.

• Click "Show all devices". Next, select "Standard

monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.

• Verify that the resolution setting of the

monitor display is lower than or equal to WUXGA-RB (1920 x 1200).

English

3 Partial, scrolling

or incorrectly displayed image (For notebooks)

4 The screen of the

notebook computer is not displaying your presentation

5 Image is unstable

or flickering

6 Image has vertical

flickering bar

7 Image is out of

focus

• For an incorrectly displayed image:

• Follow the steps for item 2 (above) to adjust

the resolution of your computer.

• Press the toggle output settings. Example:

[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]

• If you experience difficulty changing resolutions or

your monitor freezes, restart all equipment including the projector.

• If you are using a Microsoft

notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

• If you are using an Apple

notebook: In System Preferences, open Display and select Video Mirroring "On".

Windows® based

Mac® OS based

• Adjust the "Tracking" to correct it. Refer to the

"Image" section for more information.

• Change the display color depth settings on your

computer.

• Use "Frequency" to make an adjustment. Refer to

the "Image" section for more information.

• Check and reconfigure the display mode of your

graphics card to make it compatible with the projector.

• Make sure the lens cap is removed.

• Adjusts the focus ring on the projector lens.

• Make sure the projection screen is within the

required distance of 3.3 to 12.5 feet (1.0 to 3.8 meters) (XGA series) / 3.3 to 11.0 feet (1.0 to 3.4 meters) (WXGA series) from the projector. Refer to the "How to Get a Preferred Image Size by Adjusting Distance and Zoom" section for more information.

8 Image is stretched

when displaying a "widescreen" DVD title

When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:

• If you play a 4:3 format DVD title, please change the

format to 4:3 in the projector OSD.

• If the image is still stretched, you will also need to

adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.

English

9 Image is too small

or too large

10 Image has slanted

sides

11 Image is reversed

• Adjust the zoom lever on the top of the projector.

• Move the projector closer to or further from the

screen.

• Press "MENU" on the remote control. Go to "Image -

-> Aspect Ratio" and try different settings or press "RATIO" on the remote control to adjust directly.

• If possible, reposition the projector so that it is

centered on the screen.

• Press the "Keystone / " button on the remote

control until the sides are vertical.

• Press "MENU" on the remote control to open the

OSD menu. Go to "Image"->"Keystone" to make adjustments.

• Select "Image --> Projection" on the OSD and adjust

the projection direction.

English

OSD Messages

Fan Fail.

Lamp will automatically turn off soon.

Projector Overheated.

Lamp will automatically turn off soon.

Lamp is approaching the end of its useful life in full power operation.

Replacement suggested!

# Condition Message Reminder

1 Message

• Fan Fail - the system fan is not working.

• Projector Overheated - the projector has exceeded its

recommended operating temperature and must be allowed to cool down before it may be used. Please check the following message.

Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it. Please refer to "Cleaning and replacing the dust filters" for details.

• Replace the lamp - the lamp is about to reach its maximum

lifetime. Prepare to replace it soon.

Problems with the Projector

# Condition Solution

1 The projector stops responding

to all controls

2 Lamp burns out or makes a

popping sound

If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.

When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.

English

LED & Alarm Definition Listing

LED Messages

Message

Input power plug Flash ON to

Standby -- -- ON --

Power button ON -- -- -- ON

Lamp retry -- -- -- Quick

Power off (Cooling state) -- -- Quick

Power button OFF (cooling completed;

standby mode)

Error (thermal failure) -- ON -- ON

Error (fan lock) -- Quick

Error (lamp breakdown) ON -- -- ON

Error (color wheel fail) Quick

Lamp_LED Temp_LED Power LED

Red Red Red Blue

OFF 100ms

-- -- ON --

Flashing

Flash ON to

OFF 100ms

Flashing

-- -- ON

Flash ON to

OFF 100ms

Flashing

-- ON

Flashing

English

Cleaning and replacing the dust filters

<<Type I>>

Cleaning the dust filters

Clean the dust filters after every 1000 hours of use. If they are note cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Follow these steps: 1 Turn the projector off. Wait for the Power LED to stop flashing then

unplug the power cord. 2 Allow the projector at least 30 mins to cool down. 3 Pull out the dust filter. (Illustration #1) 4 To clean the dust filters, use a small vacuum cleaner designed for

computers and other office equipment. (Illustration #2) 5 If the dirt is difficult to remove or the filter is broken, please contact your

local dealer or service center to obtain a new filter.

English

Lens shield

<<Type II>>

Replacing the dust shield pack

Follow these steps:

Replacing the 3D dust filter 1 Turn the projector off. Wait for the Power LED to stop flashing then

unplug the power cord. 2 Allow the projector at least 30 mins to cool down. 3 Use a screwdriver to remove the screw from the 3D dust filter. (Illustration

#1) 4 Remove the 3D dust filter. (Illustration #2)

Replacing the Lens shield 1 Open the top cover from the lens shield. (Illustration #3)

2 Use a screwdriver to remove the screws from the lens shield. (Illustration

#4) 3 Remove the lens shield. (Illustration #5)

To install the 3D dust filter and lens shield, please reverse previous steps.

To reset 3D dust filter after installing.

Note: Considering the performance of 3D dust filter, it is not recommended to clean the electrostatic filters. Please contact your local dealer or serviced center to purchase and replace new electrostatic filters inside 3D dust filter.

English

Replacing the Lamp

Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 30 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

To Change the Lamp Turn off the projector by pressing the Power button. Allow the projector at least 30 minutes to cool down. Disconnect the power cord. 1 Use a screwdriver to remove the screw from the cover. (Illustration #1)

Push up and remove the cover. (Illustration #2) 2 Remove the screw that secure the lamp module. (Illustration #3)

Pull out the lamp plug. (Illustration #4)

Lift the handle so that it stands up. (Illustration #5) 3 Lift the handle so that it stands up. Pull out the lamp module by force.

(Illustration #6)

To replace the lamp module, use a new lamp and reverse the above steps.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

English

8.4

130 mm

49.9

Ceiling Mount Base

- Attach to ceiling

Screw Type A

50 mm length / 8 mm diameter -

Long Rod

Extension Rod

Long Cylinder Cap

Tightening Screw

Medium Rod

Allen Key

- For tightening/loosening

Short Rod

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structurally sound part of the ceiling, and

secure the mount base.

Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.

2 Secure the ceiling rod using the appropriate type of four-cylinder screws.

English

3 Use the appropriate number of screws for the projector size to attach the

Smaller Washer

Projector Bracket

Large Washer

Supports projector and

allows for adjustments

Screw Type B

Spacer

- For heat dissipation

Screw Type A

50 mm length/

8 mm diameter

Large cylinder cap

Allen Key

Tightening Screw

- For tightening/loosening

projector to the ceiling mount bracket.

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution. Use two washers for extra support, if deemed necessary.

4 Attach the ceiling bracket to the ceiling rod.

English

Tightening Screw

Allen Key

Tightening Screw

Allen Key

85.00 mm55.00 mm

82.30 mm 63.81 mm

SCREW SPEC. M4 x 25 mm

5 Adjust the angle and positioning as necessary.

Note: The appropriate type of screw and washer for each model is listed in the table below. 4 mm diameter screws are enclosed in

the screw pack.

Screw Type B Washer Type

Diameter (mm) Length (mm) Large Small

425VV

English

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system

Resolution

DLP

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/ XS-X30M/DNX1322/S1283/T410/XS-X30 series: True XGA 1024 x 768 resolution

• S1383WHne/T420DTB/XS-W30HGM/F1383WHne

series: True WXGA 1280 x 800 resolution

• Maximum: UXGA (1600 x 1200), WSXGA+

(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and

Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/

Aspect ratio Full, 4:3, 16:9, L.Box

Displayable colors 1.07 billion colors

Projection lens

VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +

K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/XS-X30M/DNX1322/F1283e/S1283/T410/XSX30 series: F = 2.7, f = 7.15 mm, 1:1.0 manual zoom and manual focus

• S1383WHne/T420DTB/XS-W30HGM series:

F = 2.8, f = 7.51mm, 1:1.0 manual zoom and manual focus

Projection screen size (diagonal)

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/XS-X30M/DNX1322/F1283e/S1283/T410/XSX30 series: 32" (81 cm) ~ 300" (762 cm)

• S1383WHne/T420DTB/XS-W30HGM series:

36" (91 cm) ~ 300" (762 cm)

Projection distance

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/XS-X30M/DNX1322/F1283e/S1283/T410/XSX30 series:

1.3' (0.4m) ~ 12.3' (3.8m)

• S1383WHne/T420DTB/XS-W30HGM/F1383WHne

series:

1.3' (0.4 m) ~ 11.0' (3.4 m)

Throw ratio

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/XS-X30M/DNX1322/S1283/T410/XS-X30 series: 160"@2 m (0.62 ~ 0.62:1)

• S1383WHne/T420DTB/XS-W30HGM series: 178"@2

m (0.52 ~ 0.52:1)

English

Horizontal scan rate

• S1283Hne/T410DTB/XS-X30HGM/F1283Hne/S1283e/

T410B/XS-X30M/DNX1322/F1283e/S1283/T410/ XS-X30 series: 15 - 100 kHz

• S1383WHne/T420DTB/XS-W30HGM/F1383WHne

series:15 - 102 kHz

Vertical refresh scan rate 24 - 120 Hz

Lamp type 210W user-replaceable lamp

Keystone correction

Audio Internal speaker with 10 W output

Weight Approximate 2.7 kg (5.95 lbs.)

Dimensions (W x D x H) 314 mm X 223.4 mm X 93.4 mm (12.4" x 8.8" x 3.7")

Digital Zoom 2X

Power supply AC input 100 - 240 V auto-switching power supply

Power consumption Normal mode: 260W ± 10% @ 110VAC

Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

Standard package contents

±40 degrees

ECO mode: 220W ± 10% @ 110VAC Standby mode < 0.5W

• AC power cord x1

• VGA cable x1

• Remote control x1

• Battery x2 (for remote control) (option)

• User's guide (CD-ROM) x1

• Quick start guide x1

• Security card x1

• Carrying case x1 (option)

I/O connectors

Power socket V V V

S1283e/T410B/XS-X30M/ S1283/T410/XS-X30

S1283Hne/T410DTB/ XS-X30HGM/ F1283Hne

S1383WHne/T420DTB/ XS-W30HGM/ F1383WHne

VGA IN 1 V V V

VGA IN 2 V V V

VGA output V V V

3.5 mm audio jack input 1

S-Video V V V

Composite video V V V

3.5 mm audio jack output

RJ45 LAN input X V V

RS232 V V V

HDMI /MHL X V V

VVV

English

I/O connectors

HDMI X X X

Mini USB x1 (for firmware upgrade)

Microphone Input V V V

S1283e/T410B/XS-X30M/ S1283/T410/XS-X30

VVV

S1283Hne/T410DTB/ XS-X30HGM/ F1283Hne

Note: Design and specifications are subject to change without notice.

S1383WHne/T420DTB/ XS-W30HGM/ F1383WHne

English

Compatibility modes

A. VGA Analog

1 VGA Analog - PC Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

VGA 640x480 60 31.5

640x480 72 37.9 640x480 75 37.5 640x480 85 43.3 640x480 120 61.9

SVGA 800x600 56 35.2

800x600 60 37.9 800x600 72 48.1 800x600 75 46.9 800x600 85 53.7 800x600 120 (RB) 76.3

XGA 1024x768 60 48.4

1024x768 70 56.5 1024x768 75 60.0 1024x768 85 68.7 1024x768 120 (RB) 97.6

SXGA 1152x864 70 63.8

1152x864 75 67.5

1152x864 85 77.1 1280x1024 60 64.0 1280x1024 72 77.0 1280x1024 75 80.0 1280x1024 85 91.1

QuadVGA 1280x960 60 60.0

1280x960 75 75.2

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75.0 PowerBook G4 640x480 60 31.4 PowerBook G4 640x480 66.6(67) 34.9 PowerBook G4 PowerBook G4 PowerBook G4 1152x870 75 68.7 PowerBook G4 1280x960 75 75.0

i Mac DV (G3) 1024x768 75 60.0

800x600 60 37.9

1024x768 60 48.4

English

2 VGA Analog - Extended Wide timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz] WXGA 1280x768 60 47.8

1280x768 75 60.3 1280x768 85 68.6 1280x720 60 45.0 1280x720 120 92.9 1280x800 60 49.7

*1280x800 120 101.6

1440x900 60 55.9

WSXGA+ 1680x1050 60 65.3

1920x1080

(1080P)

1366x768 60 47.7

WUXGA 1920x1200-RB 60 (RB) 74.0

60 67.5

3 VGA Analog -Component Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

480i 720x480(1440x480) 59.94 (29.97) 15.7

576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 50 31.3 720p 1280x720 60 45.0 720p 1280x720 50 37.5

1080i 1920x1080 60(30) 33.8

1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.97/24 27.0 1080p 1920x1080 25 28.1 1080p 1920x1080 29.97/30 33.8 1080p 1920x1080 60 67.5 1080p 1920x1080 50 56.3

B. HDMI Digital (*)

1 HDMI - PC Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

VGA 640x480 60 31.5

640x480 72 37.9 640x480 75 37.5 640x480 85 43.3

English

640x480 120 61.9

SVGA 800x600 56 35.2

800x600 60 37.9 800x600 72 48.1 800x600 75 46.9 800x600 85 53.7 800x600 120 (RB) 76.3

XGA 1024x768 60 48.4

1024x768 70 56.5 1024x768 75 60.0 1024x768 85 68.7 1024x768 120 (RB) 97.6

SXGA 1152x864 70 63.8

1152x864 75 67.5

1152x864 85 77.1 1280x1024 60 64.0 1280x1024 72 77.0 1280x1024 75 80.0 1280x1024 85 91.1

QuadVGA 1280x960 60 60.0

1280x960 75 75.2

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75.0 PowerBook G4 640x480 60 31.4 PowerBook G4 640x480 66.6(67) 34.9 PowerBook G4 PowerBook G4 PowerBook G4 1152x870 75 68.7 PowerBook G4 1280x960 75 75.0

i Mac DV (G3) 1024x768 75 60.0

800x600 60 37.9

1024x768 60 48.4

2 HDMI - Extended Wide timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

WXGA 1280x768 60 47.8

1280x768 75 60.3 1280x768 85 68.6 1280x720 60 45.0 1280x720 120 92.9 1280x800 60 49.7

*1280x800 120 101.6

1440x900 60 55.9

English

WSXGA+ 1680x1050 60 65.3

1920x1080

(1080P)

1366x768 60 47.7

WUXGA 1920x1200-RB 60 (RB) 74.0

60 67.5

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

480i 720x480(1440x480) 59.94 (29.97) 15.7

576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 50 31.3 720p 1280x720 60 45.0 720p 1280x720 50 37.5

1080i 1920x1080 60(30) 33.8

1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.97/24 27.0 1080p 1920x1080 25 28.1 1080p 1920x1080 29.97/30 33.8 1080p 1920x1080 60 67.5 1080p 1920x1080 50 56.3

4 HDMI - 1.4a 3D Timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

720p (Frame Packing) 1280 x 720 50 37.5 720p (Frame Packing) 1280 x 720 60 45.0

1080p (Frame Packing ) 1920 x1080 24 27.0

720p (Frame Packing) 1280 x 720 50 37.5

720p (Frame Packing) 1280 x 720 60 45.0 1080i (Top and Bottom) 1920 x1080 50 (25) 28.1 1080i (Top and Bottom) 1920 x1080 60 (30) 33.8

1080p (Top and Bottom) 1920 x1080 24 27.0 1080p (Top and Bottom) 1920 x1080 50 56.3 1080p (Top and Bottom) 1920 x1080 60 67.5

720p (Side by Side (Half)) 1280 x 720 60 45.0 1080i (Side by Side (Half)) 1920 x1080 50 (25) 28.1 1080i (Side by Side (Half)) 1920 x1080 60 (30) 33.8

1080p (Side by Side (Half)) 1920 x1080 50 56.3 1080p (Side by Side (Half)) 1920 x1080 60 67.5

English

Graphic source monitor

range limits

C. MHL Digital (*)

Modes Resolution

VGA 640x480 59.94/60 31.5 480i 720x480 (1440x480) 59.94/60 15.7 576i 720x576 (1440x576) 50(25) 15.6

480p 720x480 59.94/60 31.5

480p_2x 1440x480 59.94/60 31.5

576p 720x576 50 31.3

576p_2x 1440x576 50 31.3

720p 1280x720 59.94/60 45.0

720p 1280x720 50 37.5 1080i 1920x1080 60(30) 33.8 1080i 1920x1080 50(25) 28.1

1080p 1920x1080 23.97/24 27.0 1080p 1920x1080 25 28.1 1080p 1920x1080 29.97/30 33.8

Graphic source monitor

range limits

Horizontal scan rate:

Vertical scan rate:

Max. pixel rate:

V.Frequency

[Hz]

Horizontal scan rate: 15k-50 kHz

Vertical scan rate: 24-60 Hz Max. pixel rate:

Digital: 75 MHz

15k-102kHz

24-120 Hz

Analog:165MHz

Digital:165MHz

H.Frequency

[KHz]

Note: * Functions vary depending on model definition.

English

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

English

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

English

001

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-247)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm

for the latest country list.

We,

of Conformity

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

Via Lepetit, 40, 20020 Lainate (MI) Italy Tel: +39-02-939-921 ,Fax: +39-02 9399-2913 www.acer.it

Product: DLP Projector Trade Name: Acer Model Number: DWX1324/DNX1323/DNX1322/DNX1339

S1383WHne/T420DTB/XS-W30HGM/F1383WHne/ S1283Hne/T410DTB/XS-X30HGM/F1283Hne/ S1283e/T410B/XS-X30M/DNX1322/F1283e/ S1283/T410/XS-X30

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi

New TaipeiCity 221, Taiwan

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union

as below and following

harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2012+AC:2013, Class B EN 55024:2010+A1:2015

R&TTE Directive: 1999/5/EC (until Jun 12, 2017)

RED Directive: 2014/53/EU (From Jun 13, 2017)

EN 300 328 V1.9.1 EN 301 893 V1.7.1 EN 300 440-1 V1.6.1 EN 300 440-2 V1.4.1 EN 302 291-1 V1.1.1 EN 302 291-2 V1.1.1

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 EN 50332-1:2013 EN 50332-2:2013

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

Regulation (EU) No. 617/ 2013 Regulation (EC) No. 1275/2008; EN 50564:2011

EN 61000-3-2:2014, Class A EN 61000-3-3:2013

EN 301 511 V9.0.2 EN 301 908-1 V6.2.1 EN 301 908-2 V6.2.1 EN 301 908-13 V6.2.1 EN 301 489-1 V1.9.2 EN 301 489-3 V1.6.1

Regulation (EC) No. 278/2009; EN 50563:2011

EN 301 489-7 V1.3.1 EN 301 489-17 V2.2.1 EN 301 489-24 V1.5.1 EN 50360:2001 EN 50566:2013 EN 62479:2010 EN 62311:2008 EN 62209-1:2006 EN 62209-2:2010

Year to begin affixing CE marking 2017.

_______________________________

RU Jan / Sr. Manager Date Acer Incorporated (Taipei, Taiwan)

Jan. 1, 2017

Acer America Corporation

333 West San Carlos St.,

Suite 1500

San Jose, CA 95110

U. S. A.

Tel: 254-298-4000

Fax: 254-298-4147

www.acer.com

Federal Communications Commission

Declaration of Conformity

The following local Manufacturer / Importer is responsible for this declaration:

Product:

DLP Projector

Model Number: DWX1324/DNX1323/DNX1322/DNX1339

Machine Type: S1383WHne/T420DTB/XS-W30HGM/

F1383WHne/ S1283Hne/T410DTB/ XS-X30HGM/F1283Hne/S1283e/T410B/ XS-X30M/DNX1322/F1283e/S1283/T410/ XS-X30

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500 San Jose, CA 95110 U. S. A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

Acer T420DTB, XS-W30HGM, F1383WHne, T410DTB, XSX30HGM User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Acer Projector

Information for your safety and comfort

First things first

Usage Notes

Precautions

Contents

Introduction

Product Features

Package Overview

Projector Overview

Getting Started

Connecting the Projector

Turning the Projector On/Off

Adjusting the Projected Image

User Controls

Installation menu

Onscreen Display (OSD) Menus

Color


Setting

Management

Audio

Language

Acer LAN webpage management

Appendices

Troubleshooting

LED & Alarm Definition Listing

Cleaning and replacing the dust filters

Replacing the Lamp

Ceiling Mount Installation

Specifications

Compatibility modes

Regulations and safety notices
