Acer Extensa 355 User Guide

Extensa 355

User’s Manual

Copyright © 1997 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed “as is”. Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, Acer Incorporated reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of Acer Incorporated to notify any person of such revision or changes.

Acer is a registered trademark of Acer Incorporated. Extensa is a registered trademark of Acer Incorporated. Microsoft, MS-DOS, Windows and Windows 95 are registered trademarks of Microsoft Corporation. IBM and OS/2 are registered trademarks of IBM Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective companies.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully. Save these instructions for future reference.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

9. If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

iii

11. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed b. If liquid has been spilled into the product c. If the product has been exposed to rain or water d. If the product does not operate normally when the operating

instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to

normal condition. e. If the product has been dropped or the cabinet has been damaged f. If the product exhibits a distinct change in performance, indicating

a need for service

13. Replace battery with the same type as the product's battery we recommend. Use of another battery may present a risk of fire or explosion. Refer battery replacement to a qualified serviceman.

14. Warning! Battery may explode if not handled properly. Do not disassemble or dispose of in fire. Keep away from children and dispose of used battery promptly.

15. Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Canadian Department of Communications

Regulatory Statement

This digital apparatus does not exceed Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radio-électriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

FCC Class B Radio Frequency Interference Statement

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/television technician for help.

Notice 1:

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2:

Shielded interface cables, if any, must be used in order to comply with the emission limits.

About This Manual

Purpose

This manual discusses the features of the notebook and tells how to use and configure it. This manual, along with the online help, should familiarize you with all aspects of the notebook computer.

Manual Structure

This manual consists of eight chapters and one appendix: Chapter 1, Getting Started, tells you how to get started with the notebook. Chapter 2, System Tour, gives a guided and in-depth “tour” of the notebook

and its features. Chapter 3, Power, discusses issues on battery use and includes information

on the unique power management system. Chapter 4, Options, tells how to connect and install hardware options. Chapter 5, Software, contain a list of system software applications. Chapter 6, Setup, explains how to configure the system using the BIOS

Setup utility. Chapter 7, Traveling with the Notebook, includes informative and useful tips

on travel. Chapter 8, Troubleshooting, lists the steps you can take to resolve problems

in an easy Q&A format. Appendix A, Specifications, lists the specifications of the notebook.

vii

Conventions

The following conventions are used in this manual:

C:\setup,

[Enabled], etc.

message displayed

Represent text input by the user, default settings and recommended selections

Denotes actual messages that appear on screen

NOTE

Gives bits and pieces of additional information related to the current topic

WARNING

Alerts you if damage may result from doing or not doing specific actions

CAUTION

Gives precautionary measures to avoid possible hardware or software problems

IMPORTANT

Reminds you to take action relevant to the accomplishment of the procedure at hand

TIP

Tells how to complete a procedure with minimum steps through little shortcuts

viii

Table of Contents

1 Getting Started

1.1 Item Checklist.......................................................................................1-1

1.2 Taking Care of Your Computer..............................................................1-2

1.2.1 Notebook..................................................................................1-2

1.2.2 AC Adapter ...............................................................................1-2

1.2.3 Battery Pack.............................................................................1-3

1.2.4 Cleaning and Servicing.............................................................1-3

1.2.5 Diskettes...................................................................................1-4

1.3 Connecting the Notebook......................................................................1-5

2 System Tour

2.1 Features................................................................................................2-1

2.2 Display..................................................................................................2-3

2.3 Interior Features....................................................................................2-5

2.3.1 Control Buttons .........................................................................2-5

2.3.2 Status Indicator.........................................................................2-6

2.4 Keyboard ..............................................................................................2-7

2.4.1 Special Keys.............................................................................2-7

2.4.2 Hot Keys...................................................................................2-9

2.4.3 Keyboard Ergonomics.............................................................2-10

2.5 Touchpad............................................................................................2-11

2.6 Storage............................................................................................... 2-13

2.7 Ports...................................................................................................2-14

2.7.1 Rear Ports..............................................................................2-14

2.7.2 PC Card Slots......................................................................... 2-15

2.8 Audio .................................................................................................. 2-17

2.9 Securing your Notebook......................................................................2-18

2.9.1 Security Notch........................................................................2-18

2.9.2 Passwords.............................................................................. 2-18

3 Power

3.1 Battery Pack .........................................................................................3-1

3.1.1 Battery Pack Characteristics.....................................................3-1

3.1.2 Removing and Installing the Battery Pack.................................3-2

3.1.3 Charging the Battery .................................................................3-3

3.1.4 Checking the Battery Level.......................................................3-4

3.1.5 Optimizing Battery Life.............................................................3-5

3.1.6 Battery-low Warning.................................................................3-6

3.2 Power Management..............................................................................3-8

3.2.1 Power Management Modes ......................................................3-8

3.2.2 Advanced Power Management (APM)....................................3-12

4 Options

4.1 External Monitor....................................................................................4-1

4.2 External Keyboard and Keypad.............................................................4-2

4.3 External Pointing Device.......................................................................4-3

4.4 Printer..................................................................................................4-4

4.5 Audio Devices.......................................................................................4-5

4.6 PC Cards ..............................................................................................4-6

4.7 Miscellaneous Options ..........................................................................4-6

4.7.1 Additional Power Packs............................................................4-6

4.7.2 Cables......................................................................................4-6

4.7.3 Optional External CD-ROM Drive.............................................4-8

4.8 Key Component Upgrades ....................................................................4-9

4.8.1 Memory Upgrade......................................................................4-9

4.8.2 Hard Disk Upgrade .................................................................4-11

5 Software

5.1 System Software...................................................................................5-1

5.2 SafeOff.................................................................................................5-2

5.2.1 Uninstalling SafeOFF ...............................................................5-2

6 Setup

6.1 Entering the BIOS Utility .......................................................................6-2

6.1.1 Basic System Settings..............................................................6-3

6.1.2 Startup Configuration................................................................6-4

6.1.3 Onboard Devices Configuration................................................6-5

6.1.4 System Security .......................................................................6-6

6.1.5 Power Management Settings....................................................6-7

6.1.6 Load Default Settings ...............................................................6-9

7 Traveling with the Notebook

7.1 Traveling Preparations..........................................................................7-1

7.2 International Traveler’s Warranty ..........................................................7-3

7.3 Worldwide Support................................................................................7-6

8 Troubleshooting

8.1 Q&A......................................................................................................8-1

8.2 Error Messages.....................................................................................8-5

A Specifications

xii

Getting Started

This notebook supports high-end Pentium processor, packing power of a desktop PC into a slim and lightweight notebook. Combining performance, versatility, and a host of advanced power-management features, it helps you work with unmatched productivity and ease.

1.1 Item Checklist

Carefully unpack the carton and remove the contents. If any of the following items are missing or damaged, contact your dealer immediately.

• Notebook computer

• Accessory box

• AC adapter

• Battery pack

Chapter 1

• User’s manual

• Other user documentation

• Third-party software and/or documentation

• Just for Starters Poster

Check for optional items, if any.

Getting Started 1-1

1.2 Taking Care of Your Computer

Your computer will serve you well if you take care of it. This section tells you how to care for the notebook. Also, re-read the important safety instructions at the beginning of this manual.

1.2.1 Notebook

• Do not expose the notebook to direct sunlight. Do not place near

sources of heat, such as a radiator.

• Do not expose to temperatures below 0ºC (32ºF) or above 60ºC

(140ºF).

• Do not subject the notebook to magnetic fields.

• Do not expose the notebook to rain or moisture.

• Do not spill water on the notebook.

• Do not subject the computer to heavy shock and vibration.

• Do not expose the notebook to dust and dirt.

• Never place objects on top of the notebook to avoid damaging the

notebook.

• Never place the notebook on uneven surfaces.

1.2.2 AC Adapter

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from personal traffic.

• When unplugging the power cord, do not pull on the cord itself but pull

on the plug.

1-2 User’s Manual

• The total ampere ratings of the equipment plugged in should not

exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

1.2.3 Battery Pack

• Use only batteries of the same kind as replacements. Turn the power

off before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if at

all possible.

1.2.4 Cleaning and Servicing

When cleaning the notebook, follow these steps:

1. Power off the notebook and remove the battery pack.

2. Disconnect the AC adapter.

3. Use a soft cloth moistened with water. Do not use liquid or aerosol cleaners.

Contact your dealer or see your service technician if any of the following occurs:

• Notebook has been dropped or the body has been damaged.

• Liquid has been spilled into the product.

• The notebook does not operate normally.

See sections 7.2 and 7.3 for contact information.

Getting Started 1-3

1.2.5 Diskettes

Following are some tips on diskette management:

• Always make backup copies of diskettes that contain important data or

program files.

• Keep diskettes away from magnetic fields and sources of heat.

• Avoid removing a diskette from a drive when the floppy drive activity

light is on.

• Write-protect your diskettes to prevent accidental erasure. To do this,

slide the write-protect tab to the write-protect position.

• When you put a label on a 3.5-inch diskette, make sure that the label is

properly attached (flat on the surface) and within the labelling area (area with slight surface depression) on the diskette. An improperly attached label may cause a diskette to get stuck in the drive when you are inserting or removing it.

1-4 User’s Manual

1.3 Connecting the Notebook

After reading through the previous section, you are now ready to experience your new notebook. Connecting the notebook is as easy is 1-2-3.

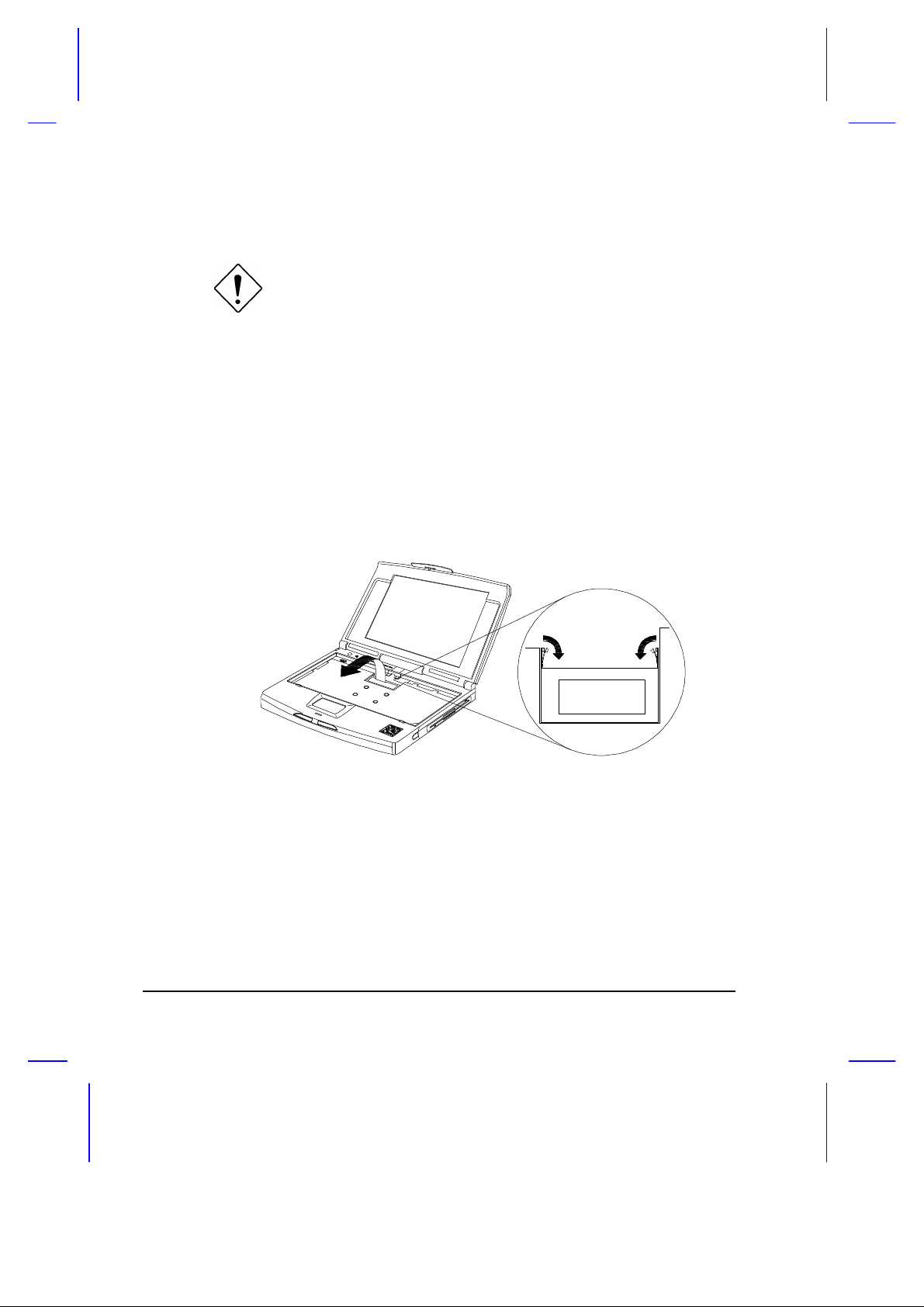

Inserting the Battery Pack

Insert the battery pack into the battery compartment and slide the battery compartment cover in place.

Connecting the AC Adapter

Connect one end of the AC adapter to the DC-in port on the notebook’s rear panel and the other end to a properly grounded power outlet.

Turning on the Power

Press the power switch to turn on the power.

The POST (Power On Self-Test) routine executes and Windows 95 begins loading.

To turn off power, press the power switch for more than four seconds. If you are using Windows 95, we recommend you use the Shutdown command to turn off the computer.

Getting Started 1-5

1.4 Creating Backup Disks

The system utility software is an integrated package of useful utilities for your notebook computer. You should create a backup whenever possible.

To create backup disks, follow these steps:

1. In Windows95, click on Start.

2. Select Programs, Accessories, System Tools.

3. Select Create System Disks. The Create System Disks tool allows you to create backup diskettes of

utilities and programs available in the window. Please prepare 3.5inch, 1.44MB diskettes for the backup diskettes you are going to create.

4. Select the utility/program you want to backup to diskettes.

5. Follow the screen instructions.

6. Repeat step 4 to backup other utilities and programs in the list.

1-6 User’s Manual

System Tour

This chapter gives an in-depth “tour” of the notebook’s many features.

2.1 Features

The notebook was designed with the user in mind. Here are just a few of the notebook’s many features:

Performance

• High-end Pentium microprocessor

• 64-bit main memory

• Large LCD display and PCI local bus video with graphics acceleration

• 3.5-inch floppy drive

Chapter 2

• High-capacity, Enhanced-IDE hard disk

• Nickel Metal-Hydride battery pack

• Power management system with standby and hibernation power saving

modes

System Tour 2-1

Multimedia

• 16-bit high quality audio

• Built-in speaker

• Line in, mic-in and line out ports

Human-centric Design and Ergonomics

• Lightweight and slim

• Full-sized keyboard

• Wide and curved palm rest

• Centrally-located touchpad pointing device

Expansion

• PC Card slots (formerly called PCMCIA), two type II or one type III

• Upgradeable memory and hard disk

2-2 User’s Manual

2.2 Display

The large DualScan STN color graphics display offers excellent viewing, display quality and desktop performance graphics. With built-in PCI bus VGA display system to support both the internal LCD display and the external optional VGA monitor with 1MB RAM video memory.

The notebook’s large display and multimedia capabilities are great for giving presentations. If you prefer, you can also connect an external monitor when giving presentations. This notebook supports simultaneous LCD and CRT display. Simultaneous display allows you to control the presentation from your notebook and at the same time face your audience. You can even connect an LCD projection panel for large-audience presentations.

The power management system incorporates an “automatic LCD dim” feature that automatically decides the best settings for your display and at the same time conserve power. See section 3.2 for more information on power management.

Opening and Closing the Display

To open the display, gently pull the display lid latch using your fingers and lift up the lid. Then tilt it to a comfortable viewing position.

The notebook employs a microswitch that turns off the display to conserve power when you close the lid, and turns it back on when you open the lid.

System Tour 2-3

Microswitch

To close the lid, fold it down gently until the display lid latch clicks into place.

To avoid damaging the display, do not slam it when closing. Do not place any object on top of the notebook when the display is closed.

2-4 User’s Manual

2.3 Interior Features

Standby/Hibernation button

No-reboot Setup button

Battery Charging

Power Indicator

Power Switch

Status indicator

2.3.1 Control Buttons

Icon Function Description

Power Switch Toggle system power on and off. No-reboot

Setup

Standby/ Hibernation

Gains access to BIOS setup utility’s advanced power management settings and system information reference screens. See section 6.1.5.

Enters hibernation mode if the hibernation function (Sleep Manager) is installed, valid and enabled; otherwise, the notebook enters standby mode.

System Tour 2-5

2.3.2 Status Indicator

Icon Function Description

Battery charging indicator

Power indicator This lights up when power is applied to the

Standby mode indicator

Hard disk drive activity indicator

Num Lock indicator This lights up when the Num Lock function is

Caps Lock indicator This lights up when the Caps Lock function is

Scroll Lock indicator This lights up when the Scroll Lock function is

To find out more about batteries, see Chapter 3.

It lights up when the battery is charging.

notebook, and flashes when the notebook is in a battery-low condition.

This flashes when the system is in standby mode (Standby/Hibernation mode).

This lights up when the system accesses the hard disk drive.

activated.

2-6 User’s Manual

2.4 Keyboard

The keyboard has full-sized keys that include a separate cursor keys, two Windows 95 keys and twelve function keys.

2.4.1 Special Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed are in

uppercase.

Fn-NumLk When Num Lock is on, the embedded keypad is in numeric mode.

The keys function as a calculator (complete with arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

Fn-ScrLk When Scroll Lock is on, the screen moves one line up or down when

you press ↑↑ or ↓↓ respectively. Scroll lock does not work with some applications.

Embedded Keypad

System Tour 2-7

The embedded keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, the cursor-control key symbols are not printed on the keys.

Desired Access Num Lock On Num Lock Off

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Type numbers in a normal manner.

Hold Shift while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Hold Fn and Shift while using the number keys.

Hold Fn while using cursor-control keys.

Type the letters in a normal manner.

If an external keyboard or keypad is connected to the notebook, the numlock function only works on the external keyboard or keypad.

Windows 95 Keys

The keyboard has two keys that perform Windows 95-specific functions.

Key Description

Windows logo key

Application key Opens the application’s context menu (same as right-click).

Start button. Combinations with this key performs special functions. Below are a few examples:

• Windows + Tab Activate next Taskbar button

• Windows + E Explore My Computer

• Windows + F Find Document

• Windows + M Minimize All

• Shift + Windows + M Undo Minimize All

• Windows + R Display Run dialog box

2-8 User’s Manual

2.4.2 Hot Keys

The notebook employs hot keys or key combinations to access most of the notebook’s controls like screen contrast and brightness, volume output and the BIOS setup utility.

Hot Key Function Description

Fn-Esc Hotkey Escape Exits the hotkey control. Fn-F1 Hotkey Help Displays the hotkey list and help. Fn-F2 Brightness Control

Contrast Control

Toggles between brightness control and contrast control.

Press the scale hotkeys (Fn-→→, Fn-←←) to increase and decrease the brightness or contrast level.

Notebooks with TFT displays do not show the contrast control icon.

Fn-F3 Display Toggle Switches display from LCD to CRT to both LCD

and CRT.

Fn-F4 Battery Gauge Displays the battery gauge.

System Tour 2-9

Hot Key Function Description

Fn-F5 Volume Control Press the scale hotkeys (Fn-→→, Fn-←←) to increase

Fn-→ Scale Increase Increases the setting of the current icon. Fn-← Scale Decrease Decreases the setting of the current icon.

Activating and Using Hot Keys

When activating hot keys, press and hold the first key Fn before pressing the other keys in the hot key combination.

Some hot keys pop-up an onscreen icon. For hot keys with pop-up icons, press the scale hot keys (Fn-→→ and Fn-←←) to increase and decrease the setting of the current icon.

Exiting Pop-up Icons and Screens

Press hot key escape (Fn-Esc) to exit a pop-up icon resulting from a hot key. Press Esc to exit a screen resulting from a hot key.

2.4.3 Keyboard Ergonomics

and decrease the output level.

Located below the keyboard, the wide and curved palm rest gives you a place to rest your hands while you type.

2-10 User’s Manual

2.5 Touchpad

The built-in touchpad is an PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palm rest provides ample comfort and support.

The touchpad works with most mouse drivers, but the bundled touchpad driver supports special functions that work uniquely with the touchpad.

Touchpad Basics

The following items teach you how to use the touchpad:

• Move your finger across the touchpad to move the cursor.

• Press the left and right buttons located on the edge of the touchpad to

do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad produces similar results.

System Tour 2-11

Function Left Button Right Button Tap

Execution Click twice

quickly Selection Click once Tap once Drag Click and

hold to drag

the cursor

Access Context Menu

Click once When Corner Taps is enabled, tap

Tap twice (at the same speed as double-clicking the mouse button)

Tap twice (at the same speed as double-clicking the mouse button) and hold finger to the touchpad on the second tap to drag the cursor

on the upper right corner of the touchpad.

Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean.

The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping too hard will not increase the touchpad’s responsiveness.

2-12 User’s Manual

2.6 Storage

High-capacity storage comes in the form of a 2.5-inch Enhanced-IDE hard disk. The notebook also has an internal 3.5-inch, 1.44MB floppy drive.

You can also connect an optional external CD-ROM drive. See section

4.7.3 for more information.

System Tour 2-13

2.7 Ports

Ports allow you to connect peripheral devices to your notebook computer as you would with a desktop PC. The ports are found on the rear panel; PC card slots are found on the left panel of the notebook.

See Chapter 4 on how to connect external devices to the notebook.

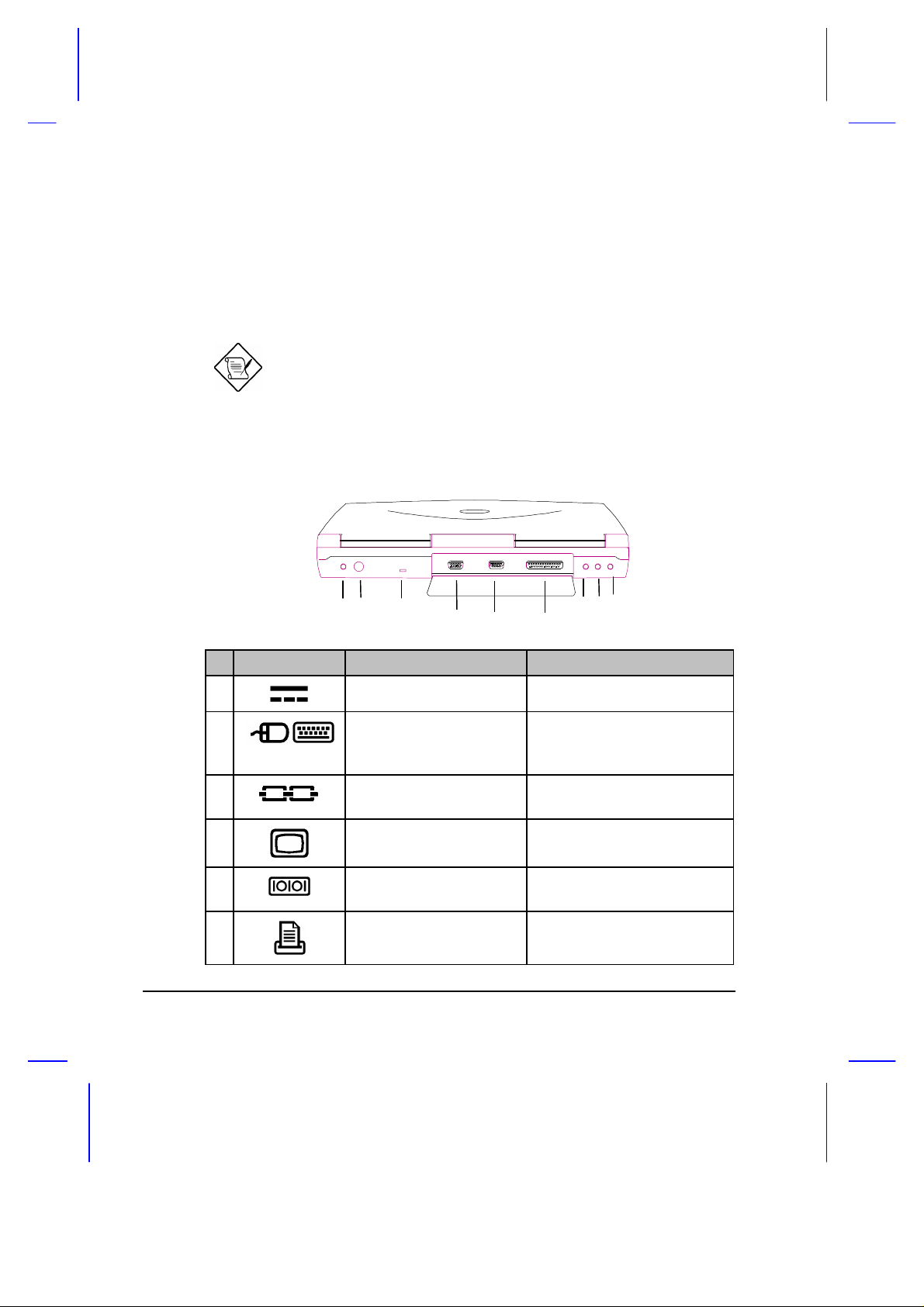

2.7.1 Rear Ports

# Icon Port Connects to...

1 DC-in Port AC adapter and power outlet

2 3

3 Security Notch Kensington-compatible key-

4 External CRT port Monitor

5 Serial Port

6 Parallel Port

PS/2 Port PS/2-compatible device

(e.g., PS/2 keyboard, keypad, mouse)

based computer security lock.

(up to 1024x768, 256-colors ) Serial device

(UART16650-compatible)

(EPP/ECP-compliant)

(e.g., serial mouse) Parallel device

(e.g., parallel printer)

2-14 User’s Manual

# Icon Port Connects to...

7 Line-in Port Line-in device (e.g., audio CD

8 Microphone-in Port External 3.5mm minijack

9 Line-out Port Line-out device

2.7.2 PC Card Slots

There are two type II or one type III PC Card slots found on the left panel of the notebook. These slots accept credit-card-sized cards that enhance the usability and expandability of the notebook.

PC cards are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. Popular type II cards include flash memory, SRAM, fax/data modem, LAN and SCSI cards. Common type III cards are 1.8-inch ATA drives and cellular modems. Cardbus improve on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

player, stereo walkman)

condenser microphone

(e.g., speakers, headphones)

Refer to your card’s user’s manual for details on how to install and use the card and its functions.

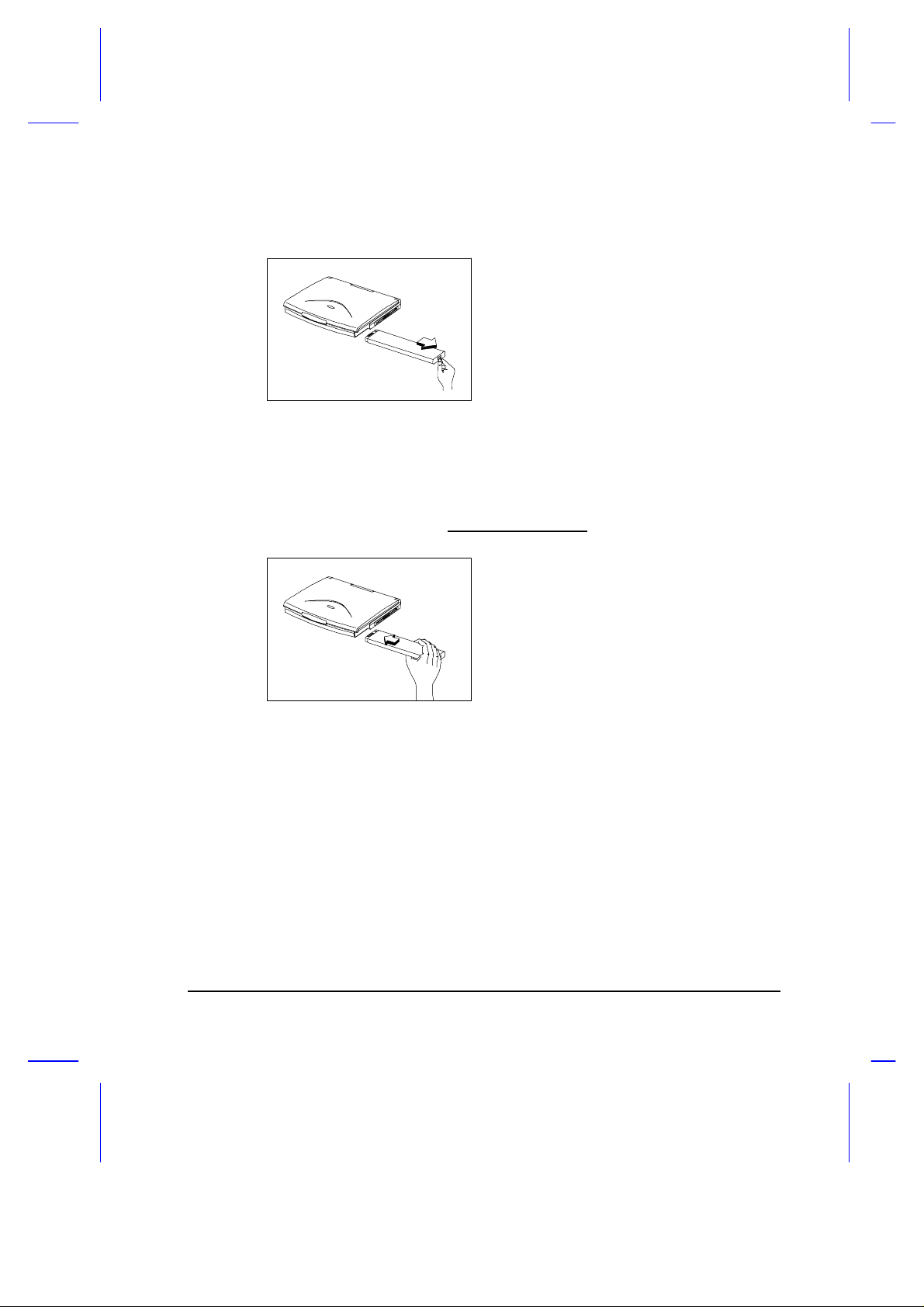

Inserting a Card

Insert the card into the desired slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

For type III, insert card into the lower slot.

System Tour 2-15

If the notebook detects a PC I/O card (e.g., modem card) installed in the PC card slots, the notebook can only enter standby mode, and not hibernation mode.

Ejecting a Card

Exit the application using the card, then follow these steps:

Press the slot eject button to eject the card.

2-16 User’s Manual

2.8 Audio

Standard notebook configuration includes 16-bit stereo audio which is compatible with Sound Blaster and Sound Blaster Pro. A single speaker found on the right side of the palm rest direct sound towards you which allows for excellent sound output.

Besides the built-in speaker, there are audio ports on the rear panel of the notebook. See section 4.5 for more information.

Built-in Speaker

System Tour 2-17

2.9 Securing your Notebook

Security features include hardware and software locks — a security notch and a two-level password scheme.

2.9.1 Security Notch

A security notch located on the rear panel of the notebook lets you connect a Kensington-compatible key-based computer security lock.

2.9.2 Passwords

Circle or wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. Insert the lock into the notch and turn the key to secure the lock.

A two-level password scheme protects your notebook from unauthorized access. When set, no one can access the notebook without entering the correct password. For information on how to set passwords, see section

6.1.4.

2-18 User’s Manual

Power

The notebook operates on AC or battery power. This chapter contains the information you need to know to operate the notebook on battery power. It also includes information about the power management system.

3.1 Battery Pack

The notebook uses a battery pack that gives you long use between charges.

3.1.1 Battery Pack Characteristics

The battery pack has the following characteristics:

• Employs Current Battery Technology Standards The notebook uses a

Nickel Metal-Hydride (NiMH) battery pack. This battery type does not have the memory effect problem of Nickel Cadmium (NiCd). NiMH batteries consistently provide the longest battery life, best-suited for road warriors.

Chapter 3

• Battery-low Warning When the battery charge level becomes low, the

notebook gives off warning beeps and the status indicator flashes at regular intervals. This tells the user that the battery power is critically low. You can correct this situation by recharging the battery pack.

Whenever possible, use the AC adapter. The battery will come in handy when you travel or during a power failure. It is advisable to have an extra fully-charged battery pack available for backup.

Power 3-1

Currently, there is no defined standard for measuring battery life. Several factors have made it almost impossible to compare the battery life of different notebooks based on specifications alone. These factors include different implementations of power saving/management systems, applications in use, the user’s “usage pattern”, hard disk capacity and access frequency, LCD size and brightness.

If the system is to be stored for more than two weeks, we suggest that you remove the battery pack. Battery power (from a fully charged battery pack) depletes in roughly ten hours with the notebook in standby mode. When power is off, battery power depletes in one month.

Do not expose battery packs to temperatures below 0ºC (32ºF) or above 60ºC (140ºF). This may adversely affect the battery pack.

3.1.2 Removing and Installing the Battery Pack

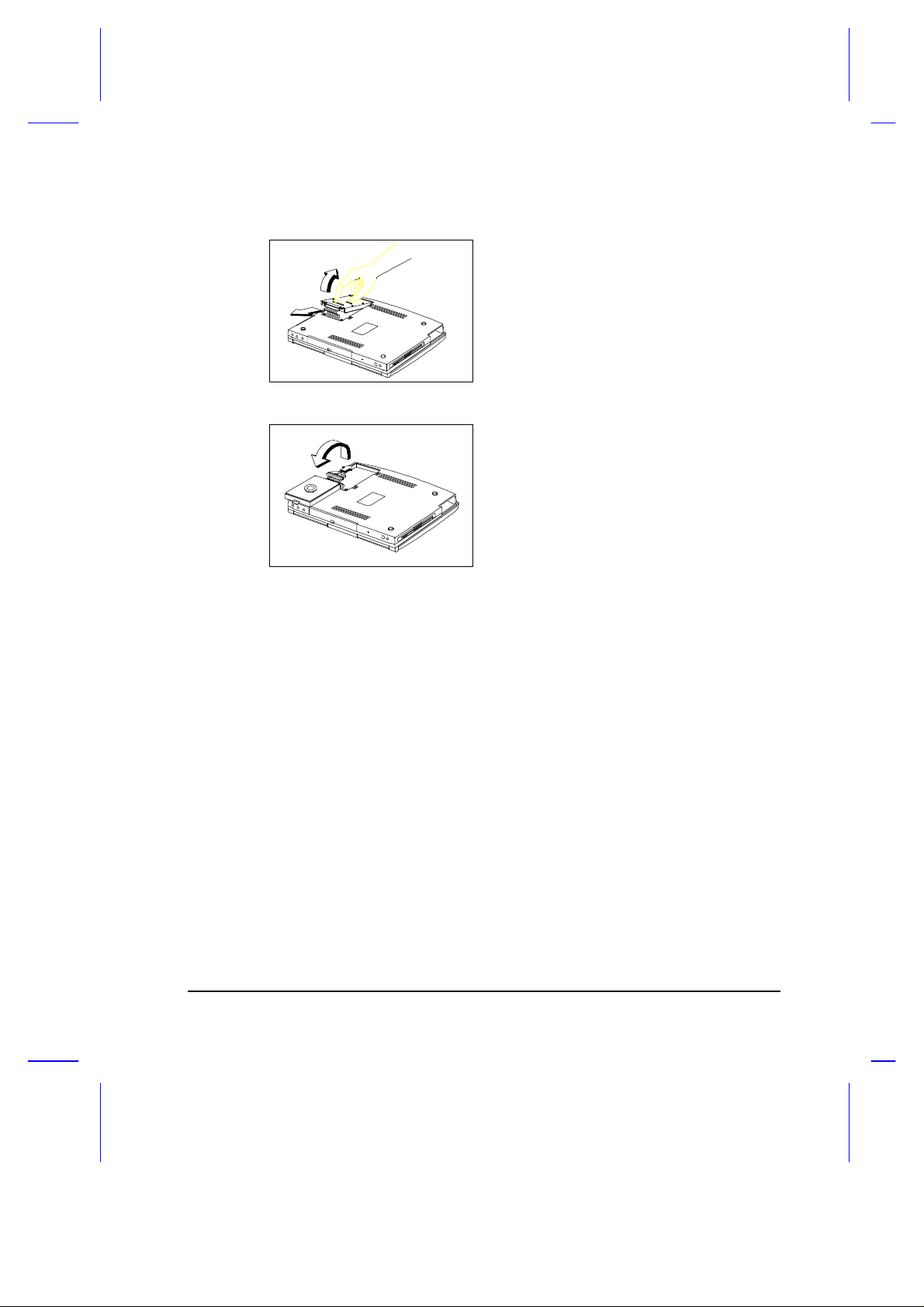

Removing the Battery Pack

Before removing the battery pack, make sure that you have an AC adapter connected to the notebook; otherwise turn off the notebook. The following figures illustrate how to remove the battery pack.

Nickel-Metal Hydride

Press the battery compartment cover release button and slide out the cover.

3-2 User’s Manual

Pull on the loop connected to the battery pack and remove the battery pack.

Installing the Battery Pack

The following figure shows how to install the battery pack.

Nickel-Metal Hydride

Insert the battery pack into the battery compartment. Then slide in the battery compartment cover.

3.1.3 Charging the Battery

To charge the battery, place the battery pack inside the battery compartment and plug the AC adapter into the notebook and an electrical outlet.

Charging Modes

The adapter has three charging modes:

Power 3-3

• Rapid mode

The notebook uses rapid charging when power is turned off and a powered AC adapter is connected to it. In rapid mode, a fully depleted battery gets fully charged in approximately two hours.

• Charge-in-use mode

When the notebook is in use with the AC adapter plugged in, the notebook also charges the battery pack if installed. This mode will take longer to fully charge a battery than rapid mode. In charge-in-use mode, a fully depleted battery gets fully charged in approximately six to eight hours.

• Trickle mode

When the battery is fully charged, the adapter changes to trickle mode to maintain the battery charge level. This prevents the battery from draining while the notebook is in use.

We suggest that you charge the battery pack before retiring for the day, letting it charge overnight before traveling. This ensures a fully charged battery for use the next day.

3.1.4 Checking the Battery Level

The notebook features battery-low warning signals that are both audible and visible. When the battery pack is low, the notebook emits warning beeps and the battery indicator flashes at regular intervals. Also, you can check the battery charge level using the onscreen battery gauge.

Using the Onscreen Battery Gauge

To access the onscreen battery gauge, press Fn-F4. The battery level icon displays onscreen.

The onscreen battery gauge indicates the present battery level.

3-4 User’s Manual

3.1.5 Optimizing Battery Life

This section helps you get the most out of battery operation. Optimizing battery life prolongs the charge/recharge cycle and improves recharge efficiency. Follow these suggestions to optimize and maximize battery power:

• Purchase an extra battery pack.

• Use the Sleep Manager utility to reserve hard disk space for the

hibernation function.

• Use the AC adapter whenever possible so that the battery is reserved

for on-the-go computing.

• Keep the battery pack in the notebook powered by the AC adapter.

The constant trickle charge maintains the battery level to eliminate the battery self-discharge effect. The charge-in-use function also charges the battery pack.

• Disable the parallel and serial ports if no devices are connected to

these ports. You can do this through Setup. See sections 6.1.

• Eject the PC card from the card slot when not in use, since the PC card

draws extra power.

• Store the battery pack in a cool, dry place. The recommended storage

temperature for battery packs ranges from 10 to 30 degrees C. The higher the storage temperature, the faster the battery pack selfdischarges.

• The batteries can be recharged about 500 times when used as

directed. Excess recharging decreases battery life.

• Take care of your battery pack and AC adapter. See sections 1.2.2

and 1.2.3 for details.

Power 3-5

3.1.6 Battery-low Warning

You never have to worry about battery power as long as you are using the AC adapter. However, when you operate the notebook on battery power, pay extra attention to the warning beeps and the indicator light on the display panel. The indicator flashes when the battery power is low.

The following signals indicate a battery-low condition:

• The buzzer generates four short beeps , if you enabled the Battery-low

Warning Beep parameter in Setup

• The status indicator flashes at regular intervals until battery power is

depleted

When you receive a battery-low warning, you have around three minutes to save your work. If you do not connect the AC adapter within this period, the notebook enters hibernation mode if the Sleep Upon Battery-low parameter in Setup is enabled and the following conditions exist:

• There is enough battery power left to save system information onto the

hard disk.

• The reserved disk space for saving these data is larger than the

combined system and video memory size.

Otherwise, the notebook enters standby mode.

Connect the AC adapter as soon as possible. Data is lost when notebook power is cut off during standby mode.

3-6 User’s Manual

Below are a list of recommended course of action when you encounter a battery-low condition.

Situation Recommended Action

AC adapter and power outlet available

An extra fully-charged battery pack available

AC adapter or power outlet not available

1. Connect the AC adapter to the system.

2. Save all necessary files.

3. Resume work.

Power off the notebook if you wish to recharge the battery rapidly.

1. Save all necessary files.

2. Exit the application.

3. Power off the notebook.

4. Replace the battery pack.

5. Power on the notebook and resume work. or

1. Save all necessary files.

2. Enter hibernation mode.

3. Install the extra battery pack.

4. Resume from hibernation mode.

1. Save all necessary files.

2. Exit the application.

3. Power off the notebook. or

1. Save all necessary files.

2. Enter hibernation mode.

Power 3-7

3.2 Power Management

This notebook has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. If no activity is detected for a specified period of time (called an inactivity time-out), the system switches to one of the power-saving modes to conserve energy. These power-saving modes are display standby mode, hard disk standby, and two sleep modes (standby and hibernation).

The BIOS Utility allows you to specify the inactivity time-out. The power management function may not work when the

cursor is emulated by software such as Chinese system (ET v3.1), Japanese system (DOS/V), Word for Windows, etc.

3.2.1 Power Management Modes

Display Standby Mode

Screen activity is determined by the keyboard, the built-in touchpad, and an external PS/2 pointing device. If these devices are idle for the period specified by the Display Standby Timer, the display shuts off until you press a key or move the touchpad or external mouse.

We strongly recommend you to enable the Display Standby Timer with a shorter time interval to prolong your battery life.

“Automatic Dim” Feature

The notebook has a unique “automatic dim” power saving feature. When the notebook is using AC power and you disconnect the AC adapter from the notebook, the system “decides” whether or not to automatically dim the LCD backlight to save power.

3-8 User’s Manual

If the LCD backlight is too bright, the system automatically adjusts it to a manageable level; otherwise, the level stays the same. If you want a brighter picture, you can then adjust the brightness and contrast level using hotkeys (Fn-F21).

If you reconnect AC power to the system, the system automatically adjusts the LCD backlight to its original level — the brightness and contrast level before disconnecting the AC adapter. If you adjusted the brightness and contrast level after disconnecting AC power, the level stays the same after you reconnect the AC adapter.

Hard Disk Standby Mode

The hard disk enters standby mode when there are no disk read/write operations within the period of time specified by the Hard Disk Standby Timer. In the standby state, the power supplied to the hard disk is reduced to a minimum. The hard disk returns to normal once the system accesses it.

Hibernation Mode

In hibernation mode (also known as zero-volt suspend-to-disk mode), power shuts off. The notebook saves all system information onto the hard disk before it enters hibernation mode. Once you turn on the power, the notebook restores this information and resumes where you left off upon leaving hibernation mode.

A necessary condition for the notebook to enter hibernation mode is that the reserved space (created by the Sleep Manager utility) for saving system information on the hard disk must be larger than the combined system and video memory size. Under such conditions, the sleep hot key acts as the hibernation hot key.

After pressing this key combination, press Fn-→→ and Fn-←← to increase and decrease the current setting. Press Fn-Esc to close the pop-up.

Power 3-9

In this situation, there are four ways to enter hibernation mode:

• Press the Standby/Hibernation button ( ) with System Sleep Mode

set to [Hibernate].

• Set a value for the System Sleep Timer in Setup with System Sleep

Mode set to [Hibernate]. If the waiting time specified by this time elapses without any system activity, the system goes into hibernation mode.

• Enable the Sleep Upon Battery-low parameter in Setup. If a battery-

low condition takes place, the notebook enters hibernation mode within 3 minutes.

• Invoked by the operating system power saving modes

If the notebook beeps but does not enter hibernation mode after pressing the sleep hot key, it means the operating system does not allow the notebook to enter the power saving mode.

When the notebook enters hibernation mode, the whole system does not consume any power. This is why hibernation mode is also called zero-volt suspend.

To exit hibernation mode, press the power switch ( ).

Do not change any system devices when the notebook is in hibernation mode.

If the notebook detects a PC I/O card installed in the PC card slots, the notebook can only enter standby mode, and not hibernation mode.

3-10 User’s Manual

Standby Mode

The notebook consumes very low power in standby mode. Data remain intact in the system memory until battery is drained.

There are four ways to enter standby mode:

• Press the Standby/Hibernation button ( ) with System Sleep State set

to [Standby].

• System Sleep Mode set to [Hibernate] but the reserved area

made by Sleep Manager is insufficient.

• Set a value for the System Sleep Timer in Setup with System Sleep

Mode set to [Standby]. If the waiting time specified by this timer elapses without any system activity, the notebook goes into standby mode.

• Invoked by the operating system power saving modes with System

Sleep Mode set to [Standby].

• Closing the display cover.

If the notebook beeps but does not enter standby mode after pressing the sleep button, it means the operating system does not allow the notebook to enter the power saving mode.

The following signals indicate that the notebook is in standby mode:

• The buzzer beeps (when you press the standby/suspend control button)

• The indicator light flashes

Unstored data is lost when you turn off the notebook power in standby mode or when the battery is drained.

Power 3-11

To leave standby mode and return to normal mode:

• Press any key

• Move the active pointing device (internal or external, PS/2 or serial)

• Resume Timer is set and matched

• Opening the display cover

• If an incoming PC card modem event occurs and the Modem Ring

Resume On Indicator is enabled, the notebook returns to normal mode.

3.2.2 Advanced Power Management (APM)

This notebook supports the APM standard designed to further reduce system power consumption. APM is a power-management approach defined jointly by Microsoft and Intel. An increasing number of software supports APM to take advantage of power saving features and allows greater system availability without degrading performance.

DOS

You can use the APM feature under the DOS environment by including the POWER.EXE command in the CONFIG.SYS file. See the MS-DOS manual for instructions on how to edit the CONFIG.SYS file. For more information about APM, type the following at the DOS prompt:

HELP POWER.EXE

Windows 3.x

To enable APM under the Windows environment, run Windows Setup and select MS-DOS System with APM as your computer type in the System Information menu. Refer to the Windows user’s guide for details.

3-12 User’s Manual

Windows 95

To enable APM under Windows 95, follow these steps:

1. Select the Start button, then Settings, then Control Panel.

2. Double-click on the System icon in the Control Panel window.

3. Select the Device Manager tab and double-click on System devices.

4. Double-click on Advanced Power Management support. If the device is not working properly, select the Settings tab and verify

if the check box for enabling power management support is selected.

Refer to the Windows 95 user’s guide for details.

1. If you enable the Power Management Mode parameter in Setup without installing the APM under DOS, Windows or Windows 95, the system time and date do not display the correct settings after the notebook returns to normal operation from standby or hibernation mode. To update the time and date, reboot the notebook. Enable APM to avoid this problem.

2. You can not change any power management parameter in the Setup screen after APM is enabled because it is controlled by APM.

Advanced Power Management greatly prolongs battery life. Use APM whenever possible.

Power 3-13

Options

Your notebook offers excellent expansion capabilities with its built-in ports and connectors. This chapter describes how to connect peripherals and hardware options that help you use your notebook computer with ease. When connecting peripherals, read the manual included with the peripheral for operating instructions.

This chapter also includes sections on how to upgrade key components. Key component upgradeability guards your notebook from becoming obsolete.

4.1 External Monitor

To show graphical effects on a larger display, open the port cover and connect an external monitor to the CRT port ( manual for additional instructions.

Chapter 4

). Read the monitor

Options 4-1

4.2 External Keyboard and Keypad

This notebook has a keyboard with full-sized keys and an embedded keypad. If you feel more comfortable using a desktop keyboard, you can install a PS/2-compatible external keyboard.

You can also use a 17-key numeric keypad for number-sensitive data entry applications. To connect the keypad, plug in the keypad connector to the PS/2 port (

) at the rear of the notebook.

To connect an external keyboard, plug it in the PS/2 port (

4-2 User’s Manual

4.3 External Pointing Device

This notebook accepts either a PS/2-compatible or serial mouse or similar pointing device.

The built-in touchpad works alternately with an external PS/2 mouse which is hot-pluggable. To use a PS/2-compatible mouse, simply plug it into the PS/2 port (

If you use a serial mouse, open the port cover and plug it into the serial port ( Windows 95 Control Panel.

). To enable the serial mouse, use the Add New Hardware tool in the

Options 4-3

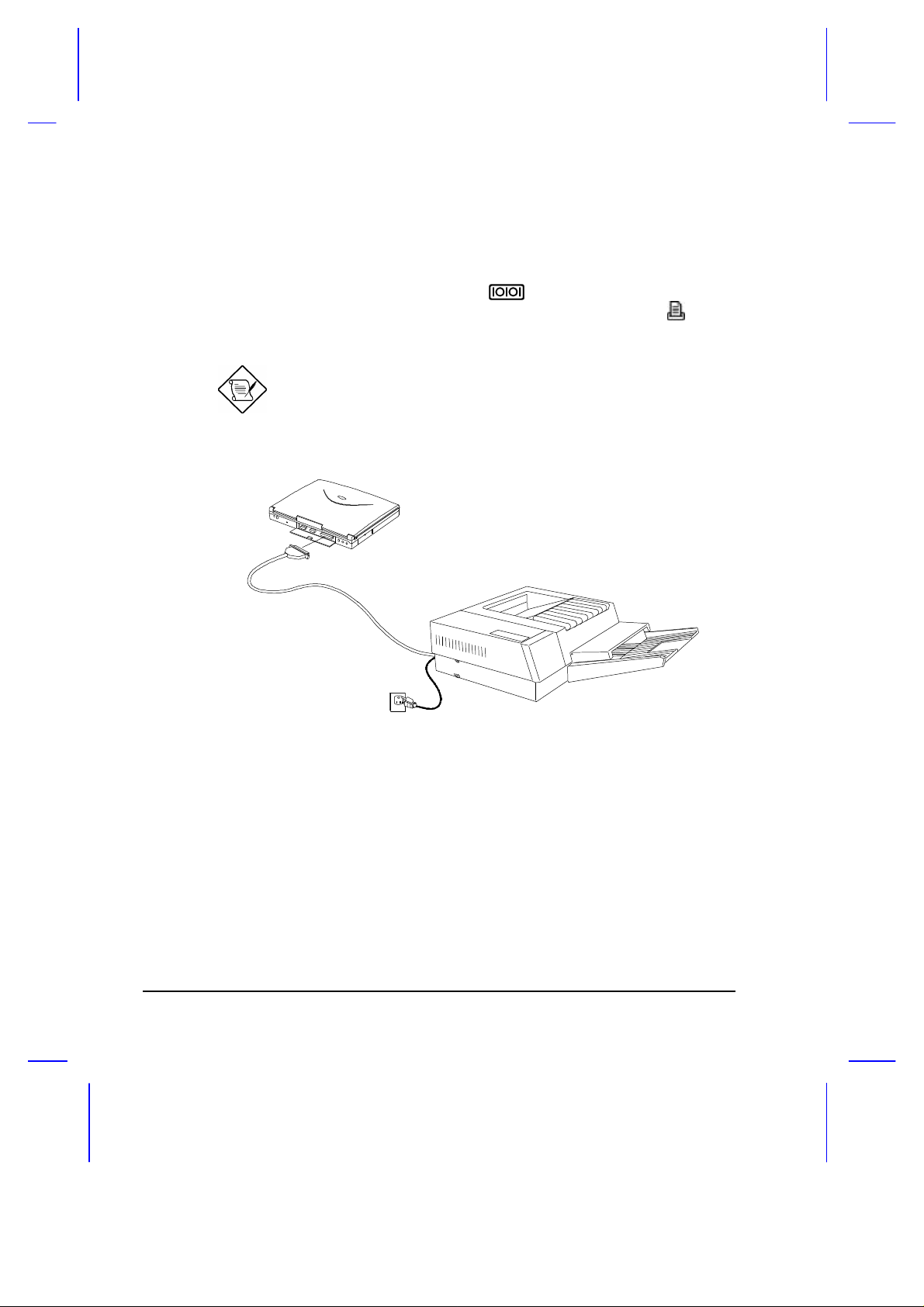

4.4 Printer

This notebook supports both serial and parallel printers. For a serial printer, plug the printer cable into a serial port ( the port cover and plug the printer cable into the parallel port ( ). See your printer manual for operating instructions.

). For a parallel printer, open

If the printer does not function, enter Setup and see to it that the parallel port is enabled. Refer to section 6.1.3 for assistance.

4-4 User’s Manual

4.5 Audio Devices

To connect audio devices, plug in an external microphone, a line-in device and amplified speakers or headphones to the microphone-in, line-in and line-out ports, respectively.

Options 4-5

4.6 PC Cards

The notebook has two PC card slots that accommodate two type II or one type III PC card(s). Please consult your dealer for PC card options available that you can purchase for your notebook.

4.7 Miscellaneous Options

You can order spare batteries, AC adapter, 144 Pin 8-/16-/32-MB 64-bit DIMM Modules, external numeric keypad and file transfer cables..

4.7.1 Additional Power Packs

Battery Pack

It is good practice to have a spare battery around, especially when you travel. The NiMH battery, coupled with power management features, supply you with more power on-the-go.

AC Adapter

The compact AC adapter charges your battery pack and supplies power to your notebook.

4.7.2 Cables

PS/2 Y-Bridge Cable

The PS/2 Y-bridge cable allows you to connect two PS/2 devices, mouse and keyboard, to your notebook simultaneously.

4-6 User’s Manual

Connect the single connector end of the Y-bridge cable to the notebook’s PS/2 port and the double connector ends to the two PS/2 devices.

Take note of the icons on the double connector before connecting the devices.

File Transfer Cable

You can use a file transfer cable to transfer data between the notebook and other computers. Connect the file transfer cable between the two computers and use your file transfer utility to perform the transfer.

Options 4-7

4.7.3 Optional External CD-ROM Drive

The external CD-ROM drive needs a PC Card to work. To use the optional external CD-ROM drive, simply connect the PC Card to the PC Card slot and the other end to the connector on the external CDROM drive. Please refer to your external CD-ROM manual for more information.

4-8 User’s Manual

4.8 Key Component Upgrades

The notebook delivers superior power and performance. However, some users and the applications they use may demand more. This notebook allows you to upgrade your key components when you need increased performance.

Contact your authorized dealer if you decide to perform a key component upgrade.

4.8.1 Memory Upgrade

The system has 8MB or 16MB Memory onboard and one memory slot that let you install up to 48MB of memory using 8/16/32 MB 64-bit DIMMs (Dual Inline Memory Modules). The following table lists all possible memory configurations.

Memory Configurations

Onboard Slot 1 Total Memory

8 MB 0 MB 8 MB 8 MB 8 MB 16 MB 8 MB 16 MB 24 MB

8 MB 32 MB 40 MB 16MB 0 MB 16 MB 16MB 8 MB 24 MB 16MB 16 MB 32 MB 16MB 32 MB 48 MB

Options 4-9

Installing Memory

When installing memory, we recommend you seek the help of a qualified service technician. Improper installation may damage the memory module or the notebook, or cause a malfunction.

The memory slots are accessible directly under the keyboard. To install additional memory, follow these steps:

1. Simply unlatch and lift the keyboard to expose the metal plate covering the memory slot.

2. Remove the metal plate. Squeeze the clips on both side of the metal plate as shown below. Gently pull up until the plate detach.

4-10 User’s Manual

3. Then (1) insert the DIMM into the slot and (2) press down to secure the DIMM.

4. Re-attached the metal plate on the memory slot.

After installing the memory modules, the system automatically detects and reconfigures the total memory size during the POST routines.

4.8.2 Hard Disk Upgrade

You can upgrade your hard disk with a higher capacity drive when you need more storage space. The notebook uses a 12.7mm, 2.5-inch Enhanced-IDE hard disk that is auto-detected or user-defined. The following table shows the available, supported hard disks.

Vendor Model Capacity

IBM DMCA21440 1.44 GB Hitachi DK225A-14 1.44 GB Hitachi DK225A-21 2.1 GB

Options 4-11

Use the blank spaces to record additional hard disks that will be available in the future.

Upgrading the Hard Disk

This notebook has a modular design that enables easy hard disk drive upgrades.

We recommend that you seek the help of a qualified service technician if you decide to perform an upgrade. Improper installation may cause a malfunction or serious damage. Contact your dealer for more information.

Follow these steps to remove and install the hard disk.

1. Turn off the computer, then turn the computer over on its base.

2. Unlock the hard disk drive compartment lock and remove the cover.

3. Remove the two screws that secure the hard disk drive unit to the housing.

4-12 User’s Manual

4. Lift up the hard disk drive and pull it out.

5. Flip the hard disk drive unit and very carefully disconnect the hard drive cable. The metal housing and the hard drive can be separated in order to install a new hard drive.

Reverse the process to install a hard disk drive. The notebook automatically detects the hard disk drive type during power-on self test.

Options 4-13

Software

The following section contain a list of pre-loaded software available with your notebook. Please refer to their on-line help documentation for more information. It is also wise to backup your utility software as early as possible. Please refer to section 1.4 for more information on creating backup disks.

5.1 System Software

The notebook comes preloaded with the following software:

• Windows 95

• System utilities for Windows95

• Sleep Manager

• Notebook Manager

Chapter 5

• SafeOff

• T-Dial

• Display drivers

• Audio drivers

• Applications

• PC-Cillin US Version

Software 5-1

5.2 SafeOff

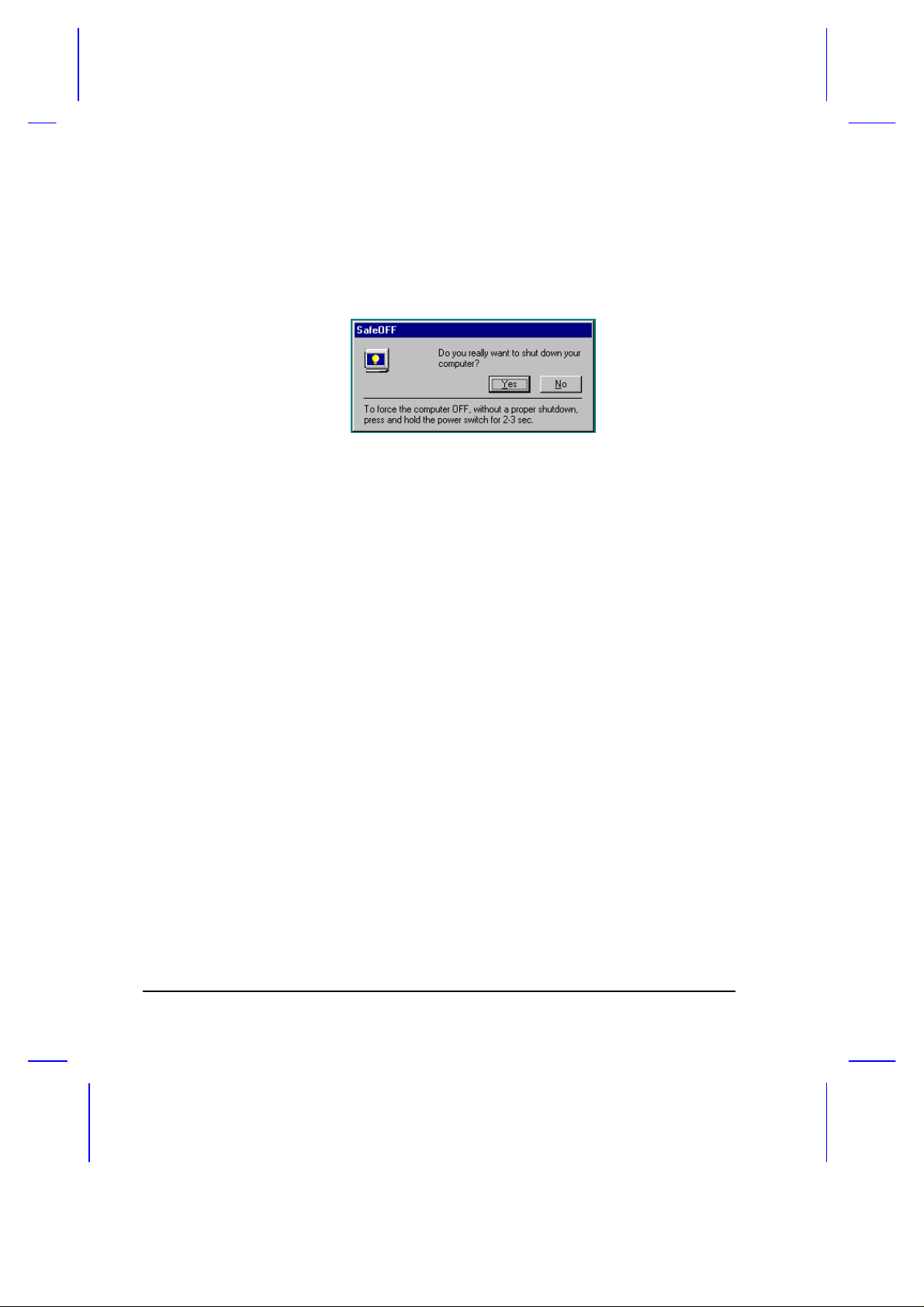

The SafeOFF provides protection from accidental power off. If you accidentally press the power switch, a dialog box pops up for confirmation.

• If you select No, the dialog closes and the system does not power off.

• If you select Yes, SafeOFF will request Windows 95 to shutdown the

computer. Opened files can be saved and closed safely.

• If none of the alternatives is chosen, SafeOFF waits for 30 seconds

and shuts down the computer.

5-2 User’s Manual

Setup

Chapter 6

The notebook has a BIOS (Basic Input/Output System) setup utility that allows you to configure the notebook and its hardware settings. The notebook is already correctly configured for you and you do not need to run the BIOS Utility. If you make any changes to the notebook or you receive an Equipment Configuration Error message after you turn on the notebook, you need to run the BIOS Utility. Run the BIOS Utility also if you want to do any of the following:

• Change the system date or time

• Set the power-saving modes and timers

• Set, change, or remove a system password

• Change the system boot drive or display device

• Add or remove serial and parallel devices

• Set the video display features

The system configuration values reside in the battery-powered CMOS RAM.

Setup 6-1

6.1 Entering the BIOS Utility

Press F2 during POST to enter the BIOS Utility. The BIOS Utility main screen displays.

Basic System Settings

Basic System Settings Startup Configuration

Onboard Devices Configuration

↑↓=Move Highlight Bar, ↵=Select, Esc=Exit

Read through the BIOS Utility Screen Notes before navigating the BIOS Utility screens.

BIOS Utility Notes

System Security

Power Management

Load Default Settings

• From the main menu, press ↑↑, ↓↓, ←← or →→ to move from one menu

item to another and press Enter to enter the selected menu.

• When accessing multi-page sections, press PgDn and PgUp to go

through the pages.

• Parameters displayed in low brightness (grayed-out) are not user-

configurable. The notebook detects and sets the values for these parameters.

• Press ↑↑ or ↓↓ to move from one parameter to another. Press ←← or →→

to change parameter settings. You have to change some settings when you add a component to the notebook.

6-2 User’s Manual

• Most of the parameters are self-explanatory. Press F1 for help on

individual parameters.

• When you press Esc to exit the BIOS Utility, the following prompt

appears:

Settings have been changed. Do you want to save CMOS settings?

[Yes] [No]

Select [Yes] to save the changes you made to the configuration values or [No] to abandon the changes and retain the current values.

6.1.1 Basic System Settings

Terms Description Settings

Date Displays date in Mmm DD YYYY format Mmm DD YYYY Time Displays time in HH:MM:SS format HH:MM:SS Floppy Disk Drive Internal Floppy Disk Drive configuration • NONE

• 1.44 MB 3.5-inch*

Hard Disk Drive If set to Auto, the BIOS automatically

determines your hard disk drive type. You can also manually key in your drive’s parameters by setting this parameter to

User.

• Auto *

• User

* Default setting

Setup 6-3

6.1.2 Startup Configuration

Terms Description Settings*

Boot Display If set to Auto and an external display is present,

the notebook uses the external display; otherwise, the LCD is the display device. If set to Both, the notebook uses the external display and LCD simultaneously.

Memory Test The notebook can test main memory for errors

when you turn it on. If Enabled allows the notebook to bypass the memory test and speed up the self-test procedure.

Silent Boot The notebook does not display POST messages

on your display.

System Boot Drive

This parameter determines which drive the notebook boots from when you turn it on.

• Auto*

• Both

• Enabled

• Disabled*

• Enabled

• Disabled*

• Drive A Then C*

• Drive A

• Drive C

• Drive C Then A

If notebook resolution is set at 640x480, the image on the notebook and external monitor will not be full-screen. For full-screen image, set-up notebook at 800x600 resolution.

An installed PC Card bootable card overrides the System Boot Drive setting. The notebook supports SRAM card boot.

* Default Setting

6-4 User’s Manual

6.1.3 Onboard Devices Configuration

Terms Description Settings

Serial Port Base Address

Parallel Port Base Address

Parallel Port Operation Mode

ECP DMA Channel

The serial port can accommodate a modem, serial mouse, serial printer, or other serial devices.

The parallel port can accommodate a parallel printer or other parallel devices.

ECP or Extended Capabilities Port supports a 16-byte FIFO (first in, first out) which can be accessed by host DMA cycles and PIO cycles. ECP boosts I/O bandwidth to meet the demands of highperformance peripherals.

Set the ECP DMA Channel parameter if you set the Parallel Port Operation Mode to [Enhanced Capabilities Port (ECP)].

Make sure the serial port base address does not conflict with the address used by a PC Card, if one is installed.

• 3F8h*

• 2F8h

• 3E8h

• 2E8h

• 378h*

• 278h

• 3BCh

• Standard

• Bi-directional

• ECP*

• 3*

• 1

* Default Setting

Setup 6-5

6.1.4 System Security

Terms Description Settings

Diskette Drive Control

Hard Disk Drive Control

Passwords

Two passwords are implemented in this notebook. The Setup Password prevents unauthorized access to the BIOS Utility, while the Power On Password prevents unauthorized access to the notebook during boot-up and resume from hibernation.

This parameter allows you to enable or disable the read/write functions of the floppy drive.

This parameter allows you to enable or disable the read/write functions of the hard disk drive.

• Normal*

• Write Protect All Sectors

• Write Protect Boot Sectors

• Disabled

• Normal*

• Write Protect All Sectors

• Write Protect Boot Sectors

• Disabled

Setting a Password

To set a password, select the desired password (Setup and Power-On) to set or edit, and press ←← or →→. The password prompt (a key) appears:

A message below the menu prompts you to enter a password. The password may consist of up to seven characters which do not appear on the screen when you type them. After typing your password, press Enter. Another prompt appears asking you to retype your password to verify your first entry.

* Default Setting

6-6 User’s Manual

After setting a password, the notebook sets this parameter to [Enabled]. The next time you boot the notebook, resume from hibernation mode or run the BIOS Utility, the password prompt appears. Key in the appropriate password (Power On or Setup). If the password you entered is incorrect, an “X” appears. You have three chances to type in the correct password. After three tries, the following message appears:

Incorrect password specified. System disabled.

The notebook freezes up and disables all devices. You must turn off the notebook and turn it on again to retry. If you forget your password, you must reset the configuration values stored in CMOS to defaults. Resetting CMOS requires opening up the notebook, so contact your dealer for assistance.

Removing a Password

To remove a password, select the desired password (Setup and Power On) to remove and press ←← or →→ to set it to [None].

6.1.5 Power Management Settings

Besides accessing this screen from POST (F2), you can also press the Setup Button during runtime (system operation) to access this section of

the BIOS Utility. Refer to section 2.3 for the location of the Setup Button.

Terms Description Settings

Power Management Mode

Display Standby Timer

With enabled, all the power management timers take effect unless specifically disabled by the user. Select [Disabled] to turn off all the timers.

The notebook shuts off the LCD backlight and turns off the CRT video as well, if there is no activity from the keyboard or external PS/2 mouse within the period specified by this timer. To turn the display back on, press a key or move the

• Enabled*

• Disabled

1 minute(s) (Valid range: 1 to 15 minutes)

* Default Setting

Setup 6-7

mouse.

Terms Description Settings

Hard Disk Standby Timer

System Sleep Timer

System Sleep State

System Resume Timer Mode

System Resume Date and Time

Modem Ring Resume On Indicator

Battery-low Warning Beep

Sleep Upon This parameter enables the notebook to enter

The hard disk drive enters standby mode if there are no disk read/write operations within the period specified by this timer. The hard disk returns to normal mode once the notebook accesses it.

This parameter enables you to set a timeout period for the notebook to enter either standby or hibernation mode. The System Sleep Mode parameter determines which sleep mode the notebook will enter into.

This parameter tells the notebook which sleep mode (Standby or Hibernation) to enter into when the System Sleep Timer times out.

When enabled, the notebook resumes from standby mode at the specified Resume Date and Resume Time parameter settings. When the notebook is in hibernation mode, it cannot resume when this parameter is enabled.

The Resume Date and Resume Time parameters let you set the date and time for the resume operation. The date and time fields take the same format as the System Date and Time parameters in the Basic System Settings screen.

When enabled, the notebook wakes up from standby mode and returns to normal mode when a PC Card modem detects a ringing tone. When the notebook is in hibernation mode, it cannot resume from a modem ring.

This parameter allows you to enable or disable the warning beep generated by the notebook when a battery-low condition occurs.

standby or hibernation mode when a battery-low

1 minute(s) (Valid range: 1 to 15 minutes)

3 minute(s) (Valid range: 1 to 15 minutes)

• Standby*

• Hibernation

• Enabled

• Disabled*

Mmm DD YYYY HH:MM:SS

• Enabled

• Disabled*

• Enabled

• Disabled*

• Enabled

* Default Setting

6-8 User’s Manual

Battery-low condition takes place.

You cannot disable the Power management Mode parameter in BIOS Utility if APM is installed under DOS, Windows or Windows 95. To disable APM, type Power Off under DOS, or disable the Power icon in the Windows Control Panel.

6.1.6 Load Default Settings

Selecting this option allows you to load all the default settings. The default settings are the values initially stored in CMOS RAM intended to provide high performance. If in the future, you change these settings, you can load the default settings again by selecting this option.

When you select this option, the following prompt appears:

Load Setup Default Settings?

[Yes] [No]

• Disabled*

Select [Yes] to load the default settings or [No] to abort the operation.

Setup 6-9

Traveling with the Notebook

This chapter tells you what to do when traveling with the notebook. This chapter also includes a list of Acer’s worldwide offices and contact information.

7.1 Traveling Preparations

Follow these steps to prepare the notebook for travel:

1. Make diskette copies of important files on the hard disk.

2. Turn off the notebook and all peripherals.

3. Make sure the display lid is properly closed. The display lid latch must be secure.

4. Disconnect the AC adapter and all peripherals.

Chapter 7

5. Place the notebook, AC adapter, external floppy drive, extra battery pack and user documentation in a carrying bag.

6. Hand-carry the notebook. Do not check it in as luggage!

Traveling with the Notebook 7-1

The notebook can pass through airport X-ray equipment, but metal detectors may damage the notebook (i.e., hard disk drive).

7. Check with your airline if you plan to use the notebook on the aircraft.

8. When traveling in another country, check that the local AC voltage and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the notebook.

9. Check also if the PC card modem and connector used with your notebook is compatible with the telecom system of the country you are traveling in.

7.2 International Traveler’s Warranty

Your notebook is backed by an international traveler’s warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand. Simply fill up and return the ITW application form to avail of this unique service.

A list of Acer-authorized service sites is available with the ITW form..

Have your ITW card number ready when you call. For updated sites and more information on ITW, see the ITW brochure.

7-2 User’s Manual

7.3 Worldwide Support

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide.

World Headquarters

Acer Incorporated
