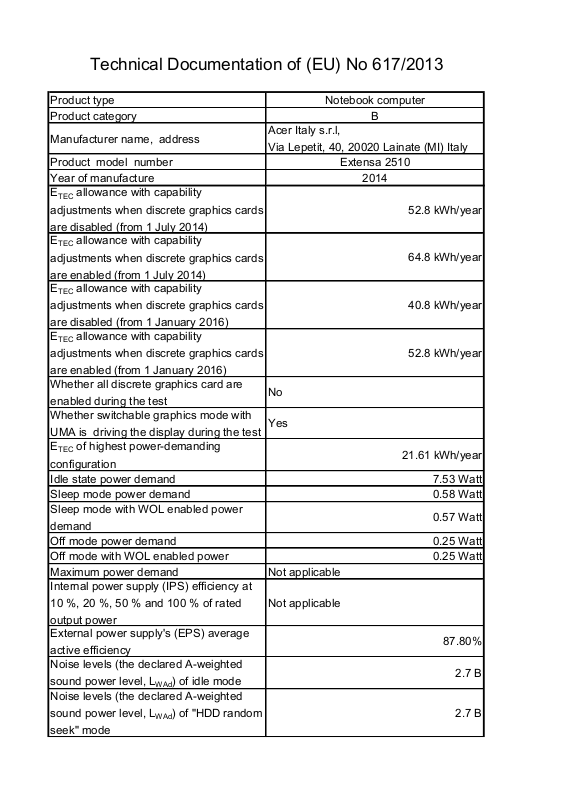

EXTENSA 2510
Product type Notebook computer
Product category B
Manufacturer name, address
Acer Italy s.r.l,
Via Lepetit, 40, 20020 Lainate (MI) Italy
Product model number Extensa 2510
Year of manufacture 2014
E
TEC
allowance with capability
adjustments when discrete graphics cards
are disabled (from 1 July 2014)
52.8 kWh/year
E
TEC
allowance with capability
adjustments when discrete graphics cards
are enabled (from 1 July 2014)
64.8 kWh/year
E
TEC
allowance with capability
adjustments when discrete graphics cards
are disabled (from 1 January 2016)
40.8 kWh/year
E
TEC
allowance with capability
adjustments when discrete graphics cards
are enabled (from 1 January 2016)
52.8 kWh/year
Whether all discrete graphics card are
enabled during the test
No
Whether switchable graphics mode with
UMA is driving the display during the test
Yes
E
TEC
of highest power-demanding
configuration
21.61 kWh/year
Idle state power demand 7.53 Watt
Sleep mode power demand 0.58 Watt
Sleep mode with WOL enabled power
demand
0.57 Watt
Off mode power demand 0.25 Watt
Off mode with WOL enabled power
0.25 Watt
Maximum power demand Not applicable
Internal power supply (IPS) efficiency at
10 %, 20 %, 50 % and 100 % of rated
output power
Not applicable
External power supply's (EPS) average
active efficiency
87.80%
Noise levels (the declared A-weighted
sound power level, L
WAd
) of idle mode
2.7 B
Noise levels (the declared A-weighted
sound power level, L
WAd
) of "HDD random
seek" mode
2.7 B
Technical Documentation of (EU) No 617/2013
Minimum number of loading cycles that
the batteries can withstand
400 cycles
Configuration of memory 2~ 16 GB
Configuration of internal storage 1 piece
Configuration of discrete television tuner 0 piece
Configuration of discrete audio card 0 piece
Configuration of discrete graphics cards 1 piece
Configuration of discrete graphics cards
category
G1
The battery in this product cannot be
easily replaced by users themselves
No
For products with an integrated display,
the total content of mercury is
0 mg
Measurement methodology for E
TEC
COMMISSION REGULATION (EU) No
617/2013 of 26 June 2013 implementing
Directive 2009/125/EC of the European
Parliament and of the Council with regard
to ecodesign requirements for computers
and computer servers:
ANNEX II Ecodesign requirements and
timetable:
1.3.1. E
TEC
formula.
Measurement methodology for idle mode
EN 62623:2013 — Desktop and notebook
computers — Measurement of energy
consumption:
5.2. Test setup;
5.3.4. Measuring long idle mode;
5.7. True RMS watt meter specification;
5.8. True RMS watt meter accuracy;
Annex E.2 (informative) ENERGY STAR®
V5 compliant testing methodology.
Measurement methodology for sleep
mode
EN 62623:2013 — Desktop and notebook
computers — Measurement of energy
consumption:
5.2. Test setup;
5.3.3. Measuring sleep mode;
5.4. Test conditions;
5.7. True RMS watt meter specification;
5.8. True RMS watt meter accuracy.
