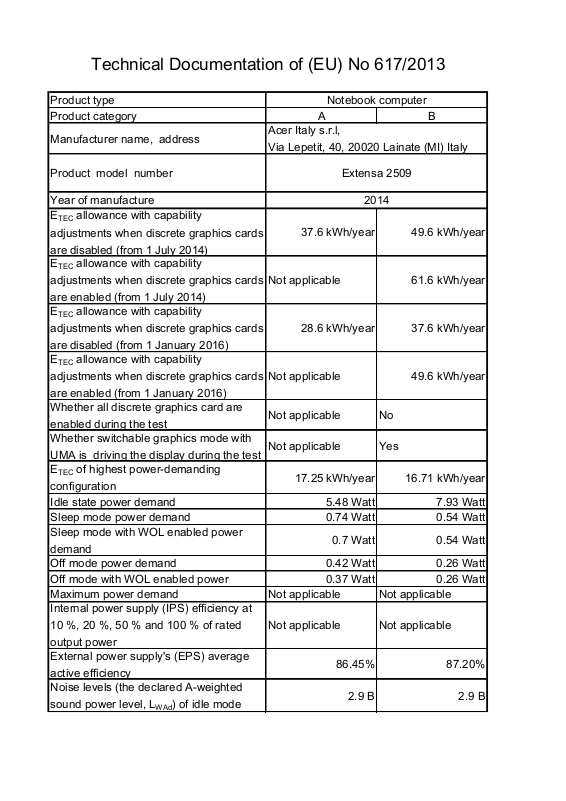

Technical Documentation of (EU) No 617/2013
Product type |
Notebook computer |
||
Product category |
A |
B |
|
Manufacturer name, address |
Acer Italy s.r.l, |
|
|
Via Lepetit, 40, 20020 Lainate (MI) Italy |
|||
|
|||
Product model number |
Extensa 2509 |
||
|
|
||
Year of manufacture |
2014 |
||
ETEC allowance with capability |
|
|
|
adjustments when discrete graphics cards |
37.6 kWh/year |
49.6 kWh/year |
|
are disabled (from 1 July 2014) |
|
|
|
ETEC allowance with capability |
|
|
|
adjustments when discrete graphics cards |
Not applicable |
61.6 kWh/year |
|
are enabled (from 1 July 2014) |
|
|
|
ETEC allowance with capability |
|
|
|
adjustments when discrete graphics cards |
28.6 kWh/year |
37.6 kWh/year |
|
are disabled (from 1 January 2016) |
|
|
|
ETEC allowance with capability |
|
|
|
adjustments when discrete graphics cards |
Not applicable |
49.6 kWh/year |
|
are enabled (from 1 January 2016) |
|
|
|
Whether all discrete graphics card are |
Not applicable |
No |
|
enabled during the test |
|||
|
|
||
Whether switchable graphics mode with |
Not applicable |
Yes |
|
UMA is driving the display during the test |
|||
ETEC of highest power-demanding |
17.25 kWh/year |
16.71 kWh/year |
|
configuration |
|||
|
|
||
Idle state power demand |
5.48 Watt |
7.93 Watt |
|
Sleep mode power demand |
0.74 Watt |
0.54 Watt |
|
Sleep mode with WOL enabled power |
0.7 Watt |
0.54 Watt |
|
demand |
|||
|
|
||
Off mode power demand |
0.42 Watt |
0.26 Watt |
|
Off mode with WOL enabled power |
0.37 Watt |
0.26 Watt |
|
Maximum power demand |
Not applicable |
Not applicable |
|
Internal power supply (IPS) efficiency at |
|
|
|
10 %, 20 %, 50 % and 100 % of rated |
Not applicable |
Not applicable |
|
output power |
|
|
|
External power supply's (EPS) average |
86.45% |
87.20% |
|
active efficiency |
|||
|
|
||
Noise levels (the declared A-weighted |
2.9 B |
2.9 B |
|
sound power level, LWAd) of idle mode |
|||
|
|
||
Noise levels (the declared A-weighted |
|
|
|
sound power level, LWAd) of "HDD random |
2.9 B |
2.9 B |
|
seek" mode |
|
|
|
Minimum number of loading cycles that |
400 cycles |
400 cycles |
|
the batteries can withstand |
|||
|
|
||
Configuration of memory |
2~ 8 GB |
2~ 8 GB |
|
Configuration of internal storage |
1 piece |
1 piece |
|
Configuration of discrete television tuner |
0 piece |
0 piece |
|
Configuration of discrete audio card |
0 piece |
0 piece |
|
Configuration of discrete graphics cards |
0 piece |
1 piece |
|
Configuration of discrete graphics cards |
Not applicable |
G1 |
|
category |
|||
|
|
||
The battery in this product cannot be |
No |
No |
|
easily replaced by users themselves |
|||
|
|
||
For products with an integrated display, |
0 mg |
0 mg |
|
the total content of mercury is |
|||
|
|
||
|
COMMISSION REGULATION (EU) No |
||
|
617/2013 of 26 June 2013 implementing |
||
|
Directive 2009/125/EC of the European |
||
|
Parliament and of the Council with regard |
||
Measurement methodology for ETEC |
to ecodesign requirements for computers |
||
|
and computer servers: |
||
|
ANNEX II Ecodesign requirements and |
||
|
timetable: |
|
|
|
1.3.1. ETEC formula. |
|
|
|
|
||
|
EN 62623:2013 — Desktop and notebook |
||
|
computers — Measurement of energy |
||
|
consumption: |
|
|
|
5.2. Test setup; |
|
|
Measurement methodology for idle mode |
5.3.4. Measuring long idle mode; |
||
|
5.7. True RMS watt meter specification; |
||
|
5.8. True RMS watt meter accuracy; |
||
|
Annex E.2 (informative) ENERGY STAR® |
||
|
V5 compliant testing methodology. |
||
|
|
|
|
