Acer EV-833H, X152H User Manual

Download

Page 1

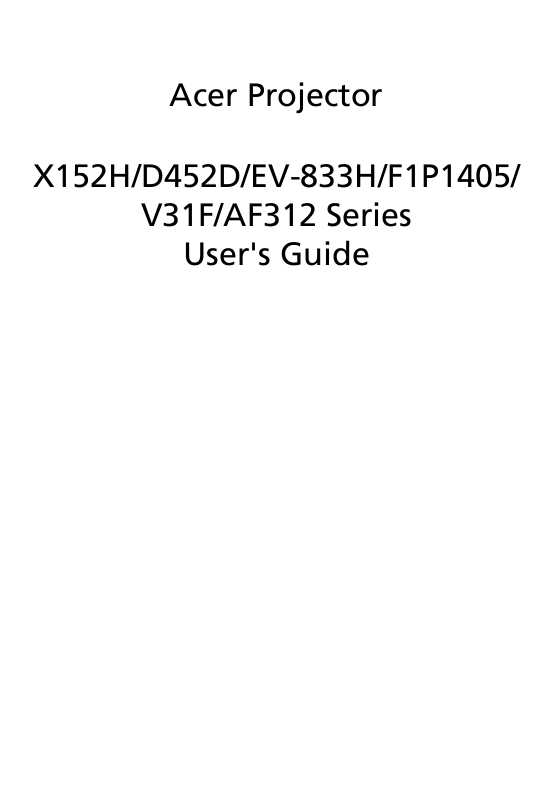

Acer Projector

X152H/D452D/EV-833H/F1P1405/

V31F/AF312 Series

User's Guide

Page 2

Acer Projector User's Guide Original Issue: 01/2015

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: _________________________________

Serial number: __________________________________

Date of purchase: _______________________________

Place of purchase: ______________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Page 3

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC

power outlet.

• Unplug the power cord before removing the power supply unit from the

projector.

• If the system has multiple sources of power, disconnect power from the

system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

iii

Warnings!

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product

falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

Page 4

• To avoid damage of internal components and to prevent battery leakage,

do not place the product on a vibrating surface.

• Never use it under sporting, exercising, or any vibrating environment

which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too

many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

• This product's AC adapter is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

• Use the product only with the supplied power supply cord set. If you need

to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Page 5

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

• the product was exposed to rain or water

• the product has been dropped or the case has been damaged

• the product exhibits a distinct change in performance, indicating a need

for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may

hurt your eyes.

• Turn on the projector first and then signal sources

• Do not place the product in following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.

• Locations near fire alarms.

• Locations with an ambient temperature above 40 ºC/104 ºF.

• Locations where the altitudes are higher than 10000 feet.

• Unplug immediately if there is something wrong with your projector. Do

not operate if smoke, strange noise or odor comes out of your projector. It

Page 6

might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

• Do not keep using this product to break or drop it. In this case contact your

dealer for inspection.

• Do not face the projector lens to the sun. It can lead to fire.

• When switching the projector off, suggest to ensure the projector

completes its cooling cycle before disconnecting power.

• Do not frequently turn off the main power abruptly or unplug the

projector during operation. The best way is to wait for the fan to turn off before turning main power off.

• Do not touch air outlet grille and bottom plate which becomes hot.

• Clean the air filter frequently if have. The temperature inside may rise and

cause damage when the filter/ventilation slots clogged with dirt or dust.

• Do not look into the air outlet grille when projector is operating. It may

hurt your eyes.

• Always open the lens shutter or remove the lens cap when the projector is

on.

• Do not block the projector lens with any object when the projector is

under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

• The lamp becomes extremely hot during operation. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

• Do not operate lamps beyond the rated lamp life. It could cause it to break

on rare occasions.

• Never replace the lamp assembly or any electronic components unless the

projector is unplugged.

• The product will detect the life of the lamp itself. Please be sure to change

the lamp when is showing warning message.

• When changing the lamp, please allow unit to cool down, and follow all

changing instructions.

• Reset the "Lamp Hour Reset" function from the Onscreen display

"Management" menu after replacing the lamp module.

• Do not attempt to disassemble this projector. There are dangerous high

voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

• Do not stand the projector on end vertically. It may cause the projector to

fall over, causing injury or damage.

• This product is capable of displaying inverted images for ceiling mount

installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

Page 7

vii

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

“Lamp(s) contain Mercury, Dispose Properly.”

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

Page 8

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.

• Use a soft cloth moistened with mild detergent to clean the display

housing.

• Disconnect the power plug from AC outlet if the product is not being used

for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.

• Use abrasive cleaners, waxes or solvents to clean the unit.

• Use under the following conditions:

• In extremely hot, cold or humid environments.

• In areas susceptible to excessive dust and dirt.

• Near any appliance that generates a strong magnetic field.

• Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

• Do not look into the projector's lens when the lamp is on. The bright light may hurt

your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

• Please do not open or disassemble the product as this may cause electric shock.

• When changing the lamp, please allow unit to cool down, and follow all changing

instructions.

• This product will detect the life of the lamp itself. Please be sure to change the lamp

when it shows warning messages.

• Reset the "Lamp Hour Reset" function from the Onscreen display "Management"

menu after replacing the lamp module.

• When switching the projector off, please ensure the projector completes its cooling

cycle before disconnecting power.

• Turn on the projector first and then the signal sources.

• Do not use lens cap when projector is in operation.

• When the lamp reaches the end of its life, it will burn out and may make a loud

popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Page 9

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 3

Projector Outlook 3

Control Panel 4

Remote Control Layout 5

MHL (Mobile High-Definition Link) Control 7

Getting Started 8

Connecting the Projector 8

Turning the Projector On/Off 9

Turning on the Projector 9

Turning the projector off 10

Adjusting the Projected Image 11

Adjusting the Height of Projected Image 11

How to optimize image size and distance 12

How to get a preferred image size by adjusting distance and zoom 13

User Controls 14

Installation menu 14

Onscreen Display (OSD) Menus 15

Color 16

Image 17

Setting 18

Management 20

Audio 21

3D 22

Language 22

Appendices 23

Page 10

Troubleshooting 23

LED & Alarm Definition Listing 26

Cleaning and replacing the dust filters 27

Replacing the Lamp 28

Ceiling Mount Installation 29

Specifications 32

Compatibility modes 34

Regulations and safety notices 37

Page 11

Introduction

Product Features

This product is a single-chip DLP® projector. Outstanding features include:

• DLP

• X152H/D452D/EV-833H/F1P1405/V31F/AF312 series: 1920 x 1080 1080p

• Enables projecting 3D content via DLP Link Technology

• Acer ColorBoost technology delivers nature’s true colors for vivid, life-like

• High brightness and contrast ratio

• Versatile display modes (Bright, Presentation, Standard, Video, Game,

• NTSC / PAL / SECAM compatible and HDTV (720p, 1080i, 1080p) supported

• Lower power consumption and economy (ECO) mode extends lamp life

• Acer EcoProjeciton Technology delivers Intelligent power management

• Equipped with HDMI™ & MHL connection supporting HDCP

• Advanced digital keystone correction optimizes presentations

• Smart detection delivers quick, intelligent source detection

• Multi-language onscreen display (OSD) menus

• Manual focus projection lens zooms up to 1.2x

• 2X(PC)/1.8X(Video) digital zoom and pan function

• Microsoft

technology

resolution Auto/4:3/16:9 aspect ratio supported

images

Education, Movie, Dark Cinema, Sports, User) enable optimum performance in any situation

approach and physical efficiency improvement

Windows® 2000, XP, Vista®, Windows 7, Windows 8,

Macintosh

OS compliant

English

Note: Functions vary depending on model definition.

Page 12

English

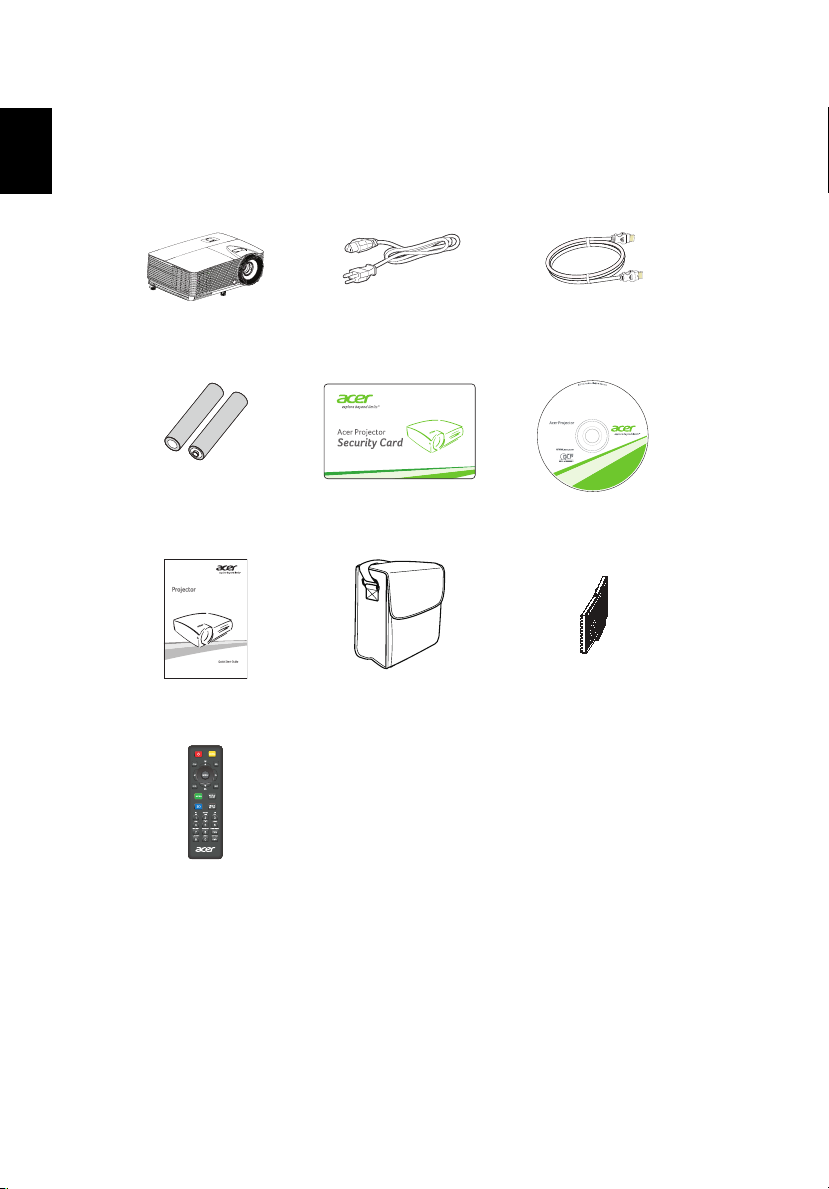

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

V i e w S o n i c

Projector Power cord HDMI cable

2 x Batteries

(option)

Quick start guide Carrying case

Security card User’s guide

(option)

Remote control

Dust filters

(option)

Page 13

Projector Overview

Projector Outlook

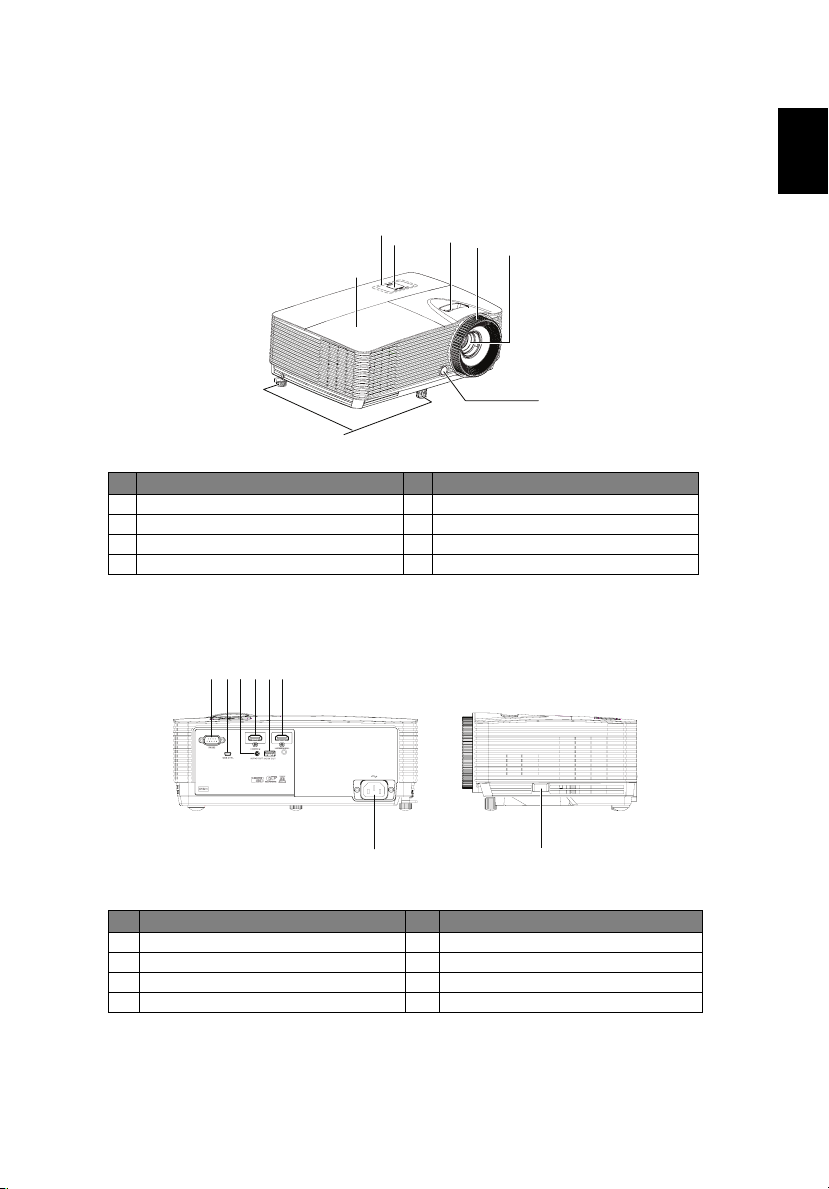

Front / upper side

# Description # Description

1 Control panel 5 Focus ring 2 Power/Source button 6 Projection lens 3 Lamp cover 7 Remote control receiver 4 Zoom lever 8 Tilt adjusting wheels

Rear / Left side

1 2

English

# Description # Description

1 RS232 connector 5 DC 5V output 2 Mini USB connector 6 HDMI-2/MHL connector 3 Audio out connector 7 Power socket 4 HDMI-1 connector 8 Security bar

Page 14

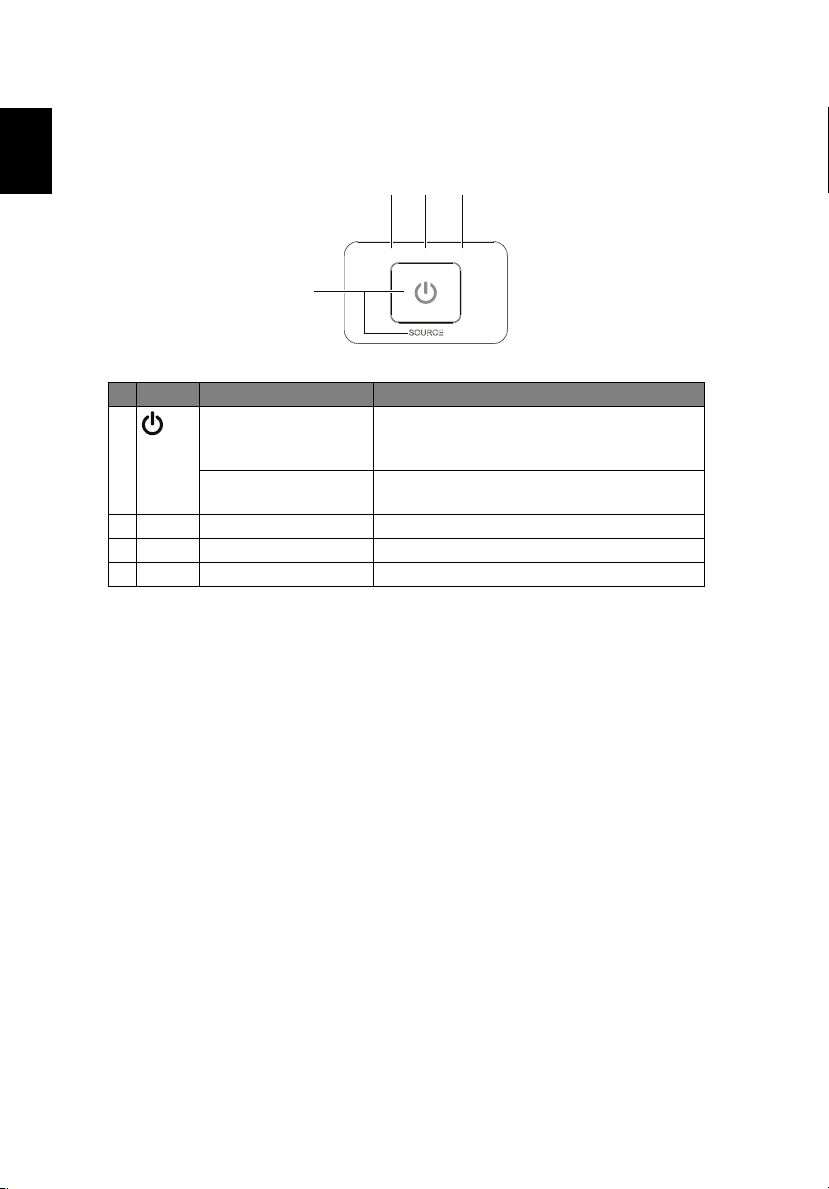

Control Panel

English

32:(5 /$03

7(03

# Icon Function Description

1 POWER Power Indicator LED

See the contents in "Turning the Projector On/Off" section.

Source Changes the active source, short press the

button. 2 TEMP Temp Indicator LED 3 POWER Power Indicator LED 4 LAMP Lamp Indicator LED

Page 15

Remote Control Layout

12 13

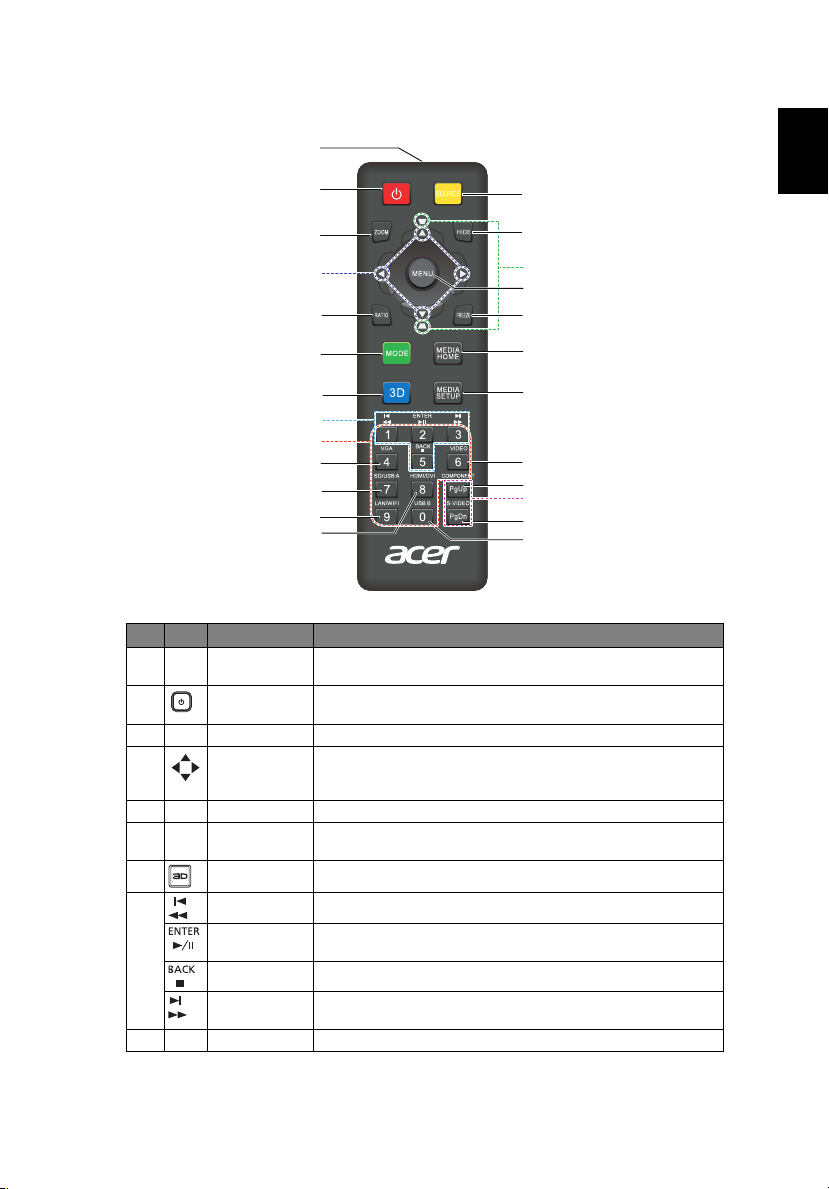

# Icon Function Description

1 Infrared

2 POWER Refer to the "Turning the Projector On/Off" section.

transmitter

Sends signals to the projector.

22 23

24 25

English

3 ZOOM Zooms the projector display in or out.

4 Four

5 RATIO To choose the desired aspect ratio.

6 MODE Press "MODE" to select the display mode from Bright,

7 3D Press "3D" to select 3D models.

8 Pre./Rewind No function.

9 KeyPad 0~9 Press "0~9" to input a password in the "Security" OSD.

directional select keys

Enter/ Play/ Pause

Back/Stop No function.

Next/Fast forward

Use up, down, left, right buttons to select items or make adjustments to your selection.

Presentation, Standard, Video, Game, Education and User.

No function.

Page 16

English

# Icon Function Description

10 VGA Press "VGA" to change source to the VGA connector. This

11 SD/USB A No function.

12 LAN/WiFi No function.

13 HDMI/DVI To change source to HDMI/MHL. (no DVI function)

14 SOURCE Changes the active source.

15 HIDE Momentarily turns off the video. Press "HIDE" to hide the

16 KEYSTONE Adjusts the image to compensate for distortion caused by

17 MENU

connector supports analog RGB, YPbPr (480p/576p/720p/ 1080i), YCbCr (480i/576i) and RGBsync.

image, press again to display the image.

tilting the projector (± 40 degrees).

• Press "MENU" to launch the Onscreen display (OSD)

menu, back to the previous step for the OSD menu operation or exit the OSD menu.

• Confirm your selection of items.

19 MEDIA_HOME No function.

20 MEDIA_SETUP No function.

21 VIDEO To change source to COMPOSITE VIDEO.

22 COMPONENT No function.

23 PgUp/PgDn For computer mode only. Use this button to select the next or

24 S-VIDEO To change source to S-Video.

25 USB B For USB control and firmware upgrade.

FREEZE

To pause the screen image.

previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.

Note: Functions vary depending on model definition.

Page 17

MHL (Mobile High-Definition Link) Control

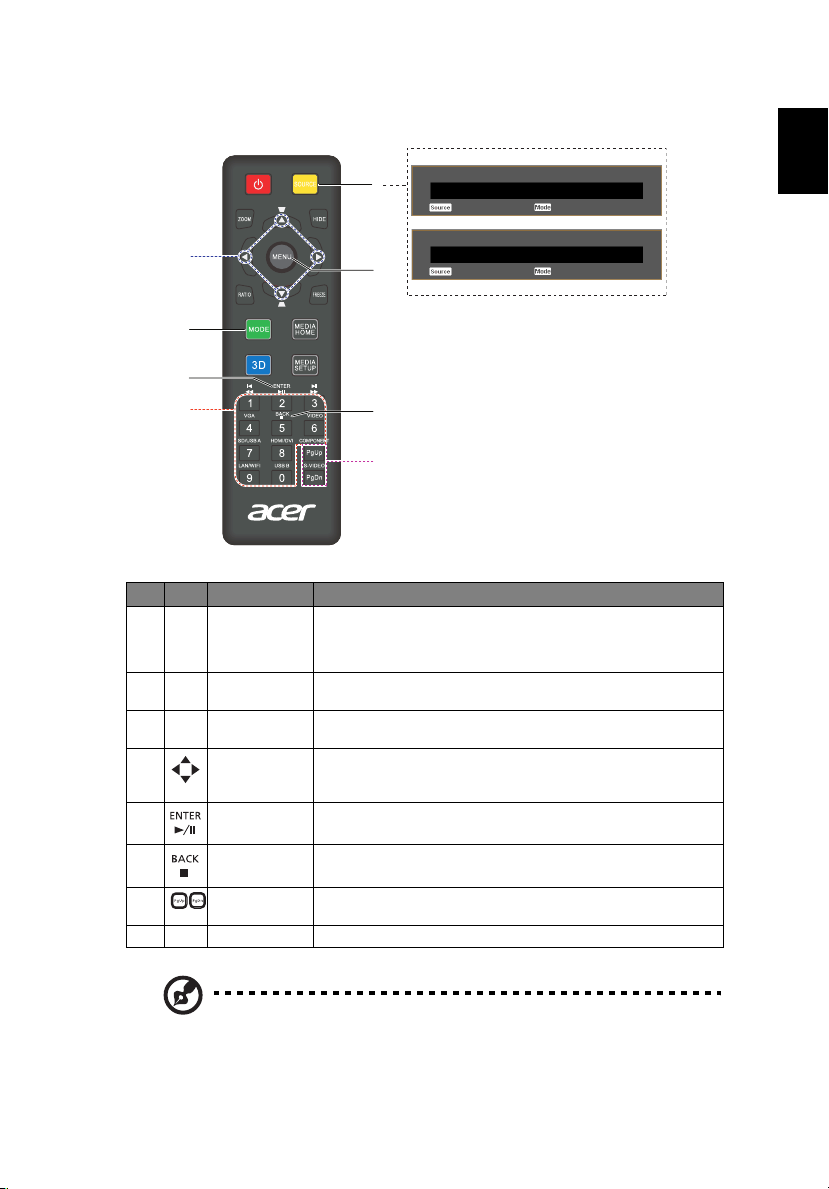

# Icon Function Description

1MODE

• Press "MODE" button for one second to activate the

MHL Control Mode.

• To exit, press the "MODE" button again.

2 SOURCE Press the "SOURCE" button to toggle between Navigation or

3 MENU Press to launch the root memu.

4 Direction Keys Use up, down, left, right buttons to select items or make

5 Select To select the file. (only for Navigation mode)

Numeric mode.

(only for Navigation mode)

adjustments to your selection. (only for Navigation mode)

MHL Control Mode

Next Mode

MHL Control Mode

Next Mode

Navigation

Numeric

Exit MHL Control

English

6 Exit To exit the file. (only for Navigation mode)

7 PgUp/PgDn Use the button to select the next or previous page. (only for

Navigation mode)

8 KeyPad 0~9 Number buttons. (only for Numeric mode)

Note: Functions vary depending on model definition.

Page 18

Getting Started

English

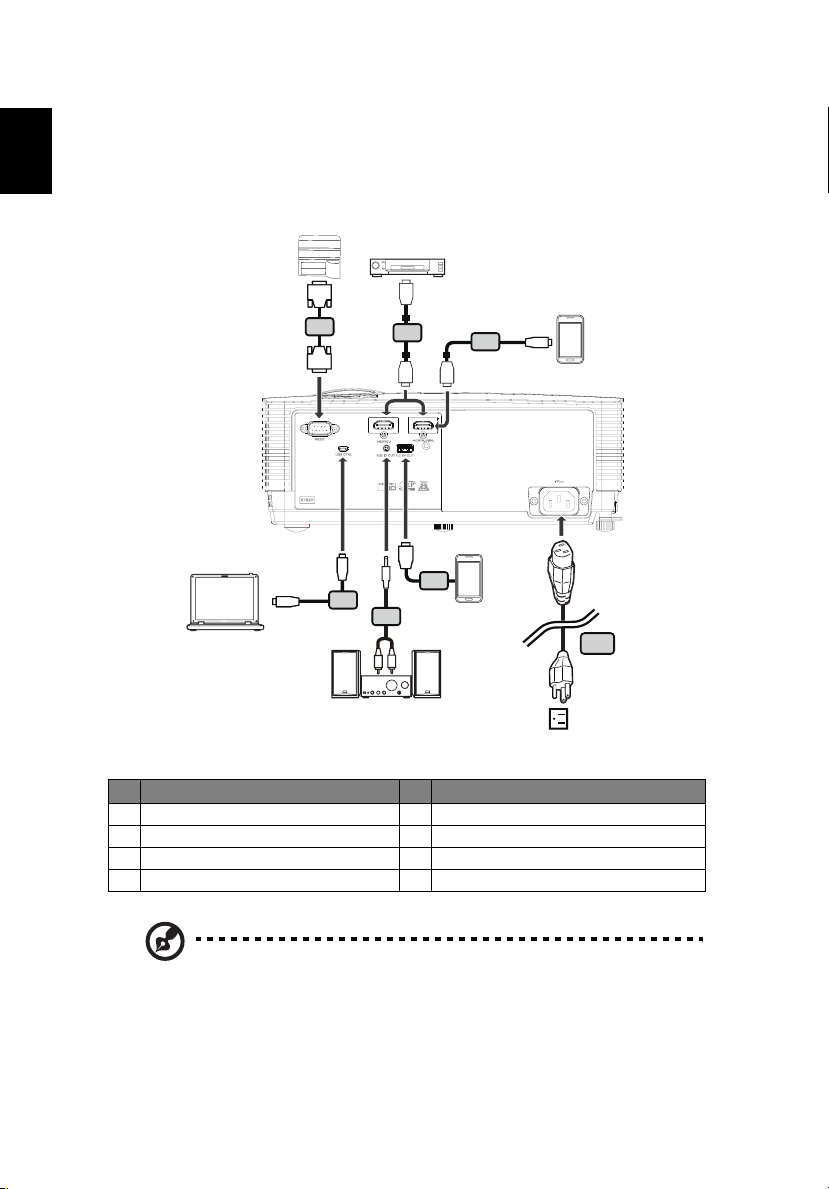

Connecting the Projector

DVD player

RS232

USB

HDMI

USB

HDMI

Smart Phone

MHL

USB

# Description # Description

1 Power cord 5 HDMI cable

2 Audio cable jack/RCA 6 MHL cable (MicroUSB to HDMI)

3 USB cable 7 USB cable for charging device

4 RS232 cable

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector. Note: Functions vary depending on model definition. Note: USB cable needs powered extender if the length is over 5 m.

Page 19

Turning the Projector On/Off

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The

Power indicator LED will flash red.

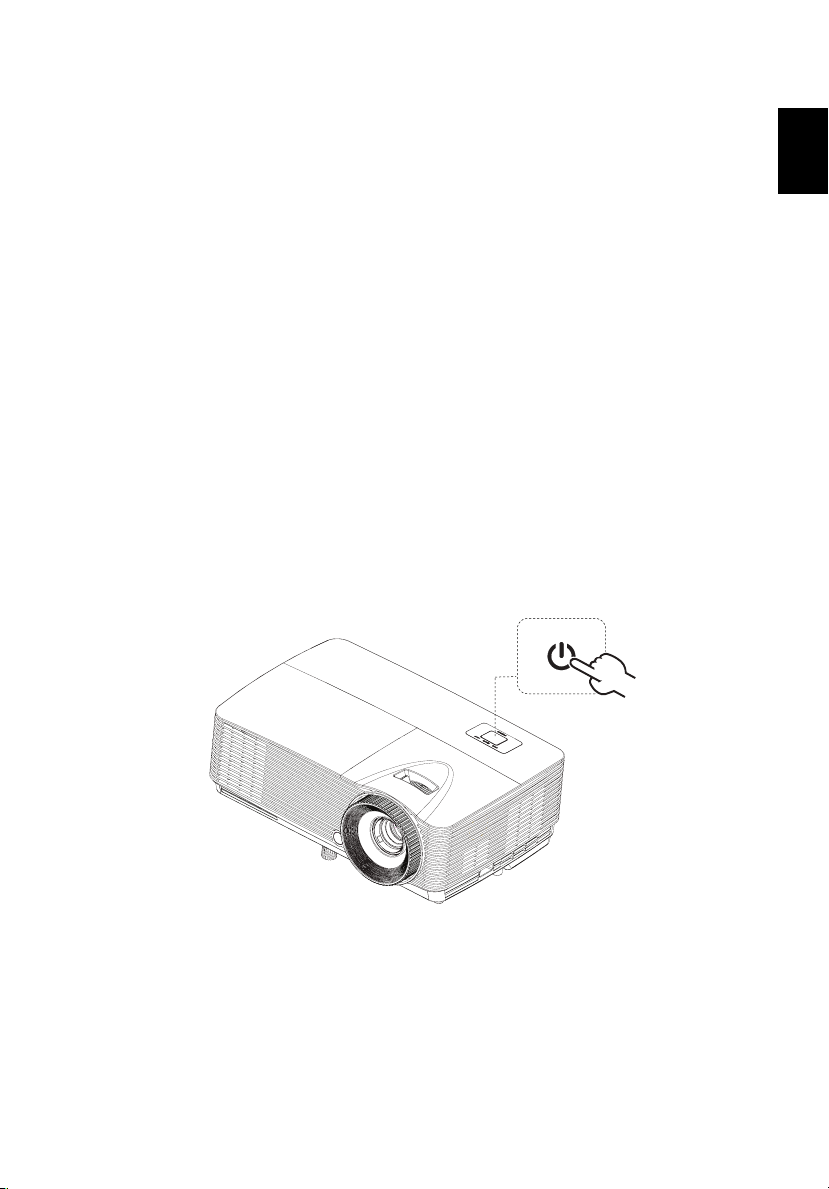

2 Turn on the projector by pressing "Power" button on the control panel or

remote control, and the Power indicator LED will turn blue.

3 Turn on your source (computer, notebook, video player ,etc.). The

projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.

• If the screen displays "No Signal", please make sure the signal cables are securely connected.

• If you connect to multiple sources at the same time, use the "Source" button on the remote control or direct source key on the remote control to switch between inputs.

Power button

English

Page 20

English

Turning the projector off

1 To turn the projector off, press and hold the power button. This message

appears: "Please press the power button again to complete the shutdown process." Press the power button again.

2 The LED power indicator will turn RED and blink rapidly after the projector

is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)

3 As long as the power cord remains plugged in, you can press the power

button to turn the projector immediately back on anytime during the 2minute shutdown process. (only supported under "Instant Resume" mode)

4 Once the system has finished cooling, the LED power indicator will stop

blinking and turn solid red to indicate standby mode.

5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon." This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.

• "Fan failed. Lamp will automatically turn off soon." This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center. Note: Functions vary depending on model definition.

Page 21

Adjusting the Projected Image

Adjusting the Height of Projected Image

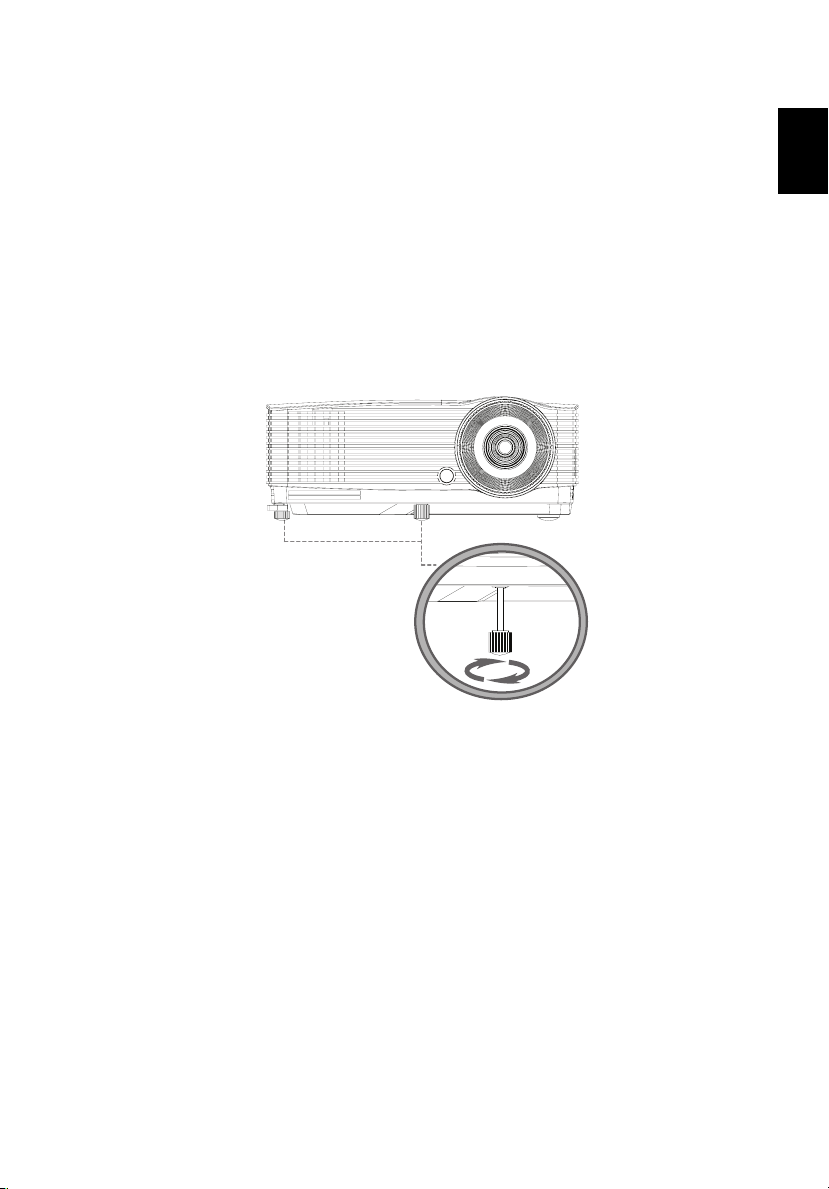

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

Tilt adjusting wheel

English

Page 22

52"

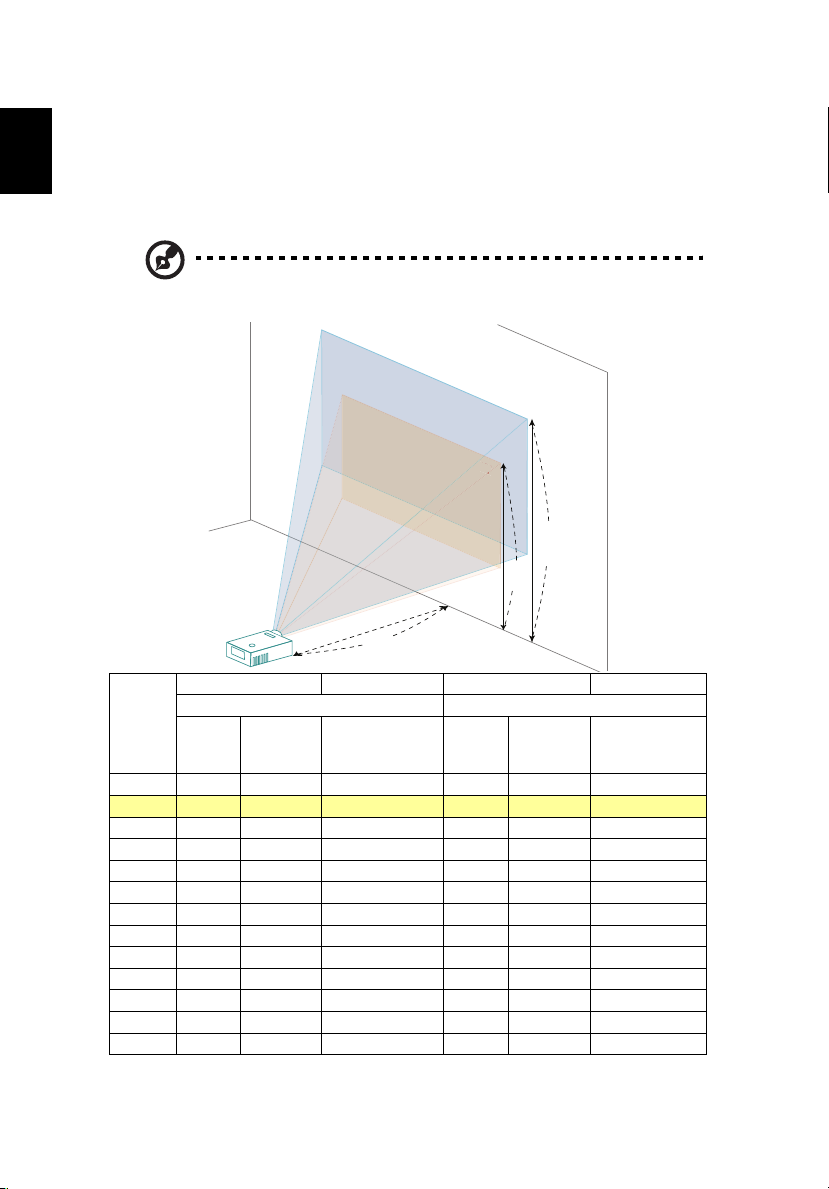

How to optimize image size and distance

English

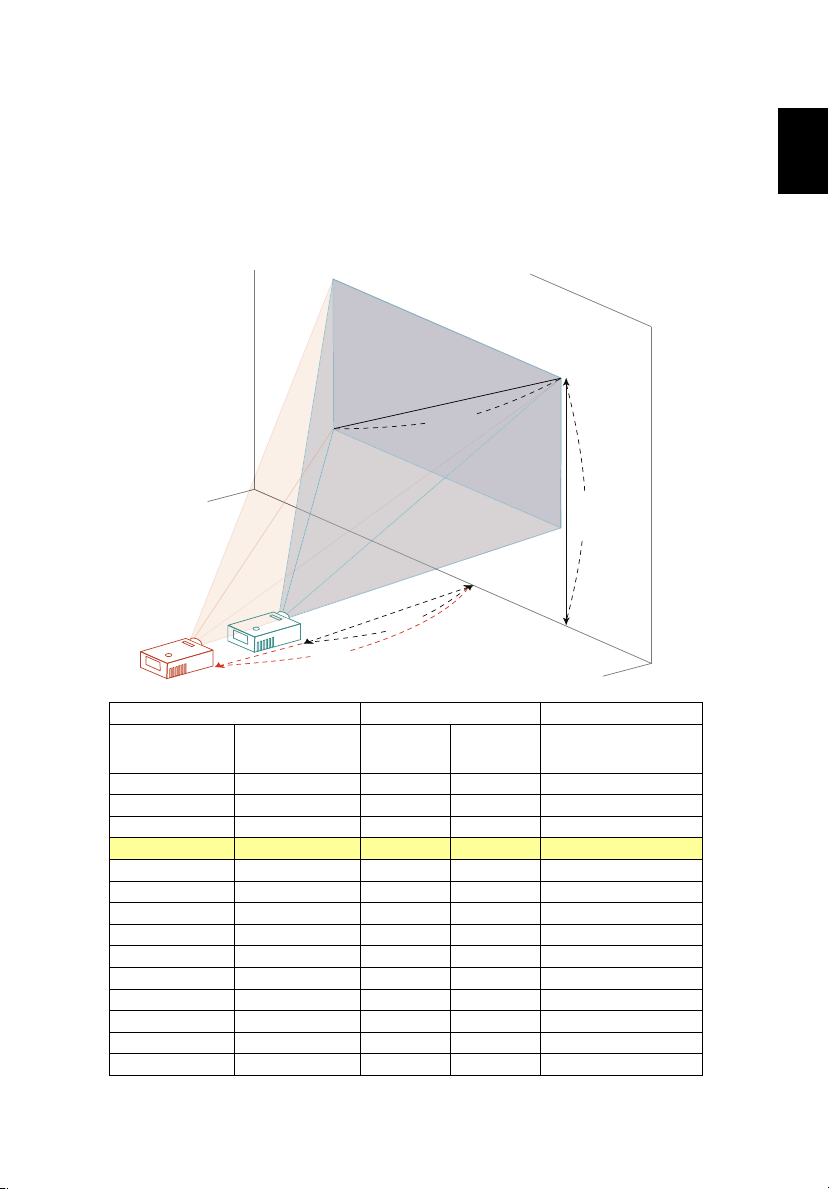

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen. If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 52" and 62".

Note: Remind as below figure, the space of 108 cm height is required when located at 2.0 m distance.

52"

62"

Height: 108 cm from base to

Height:

top of image

90 cm

2.0 m Desired Distance

Desired

Distance

(m)

<A>

1.5 39 83 x 52 68 46 100 x 63 81

2 52 111 x 69 90 62 133 x 83 108

2.5 64 139 x 87 113 77 167 x 104 135

3 77 167 x 104 135 93 200 x 125 163

3.5 90 194 x 122 158 108 233 x 146 190

4 103 222 x 139 181 124 267 x 167 217

4.5 116 250 x 156 203 139 300 x 188 244

5 129 278 x 174 226 155 333 x 208 271

6 155 333 x 208 271 186 400 x 250 325

7 181 389 x 243 316 217 467 x 292 379

8 206 444 x 278 361 248 533 x 333 433

9 232 500 x 313 406 279 600 x 375 488

10 258 556 x 347 451 310 667 x 417 542

Zoom Ratio: 1.2x

Screen size

Diagonal

(inch)

<B>

(Min zoom) (Max zoom)

W (cm) x H

(cm)

Top

From base to top

of image (cm)

<C>

Screen size

Diagonal

(inch)

<B>

W (cm) x H

(cm)

Top

From base to top

of image (cm)

<C>

Page 23

How to get a preferred image size by adjusting distance and zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring. To obtain an image size of 60" set the projector at a distance 2.0 m and 2.4 m from the screen.

60"

Desired image size

Height: 100 cm

from base to top of image

2.0 m

2.4 m

Desired Distance

English

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

<A>

30 66 x 37 1.0 1.2 50

40 89 x 50 1.3 1.6 67

50 111 x 62 1.7 2.0 83

60 133 x 75 2.0 2.4 100

70 155 x 87 2.3 2.8 117

80 177 x 100 2.7 3.2 133

90 199 x 112 3.0 3.6 150

100 221 x 125 3.3 4.0 167

120 266 x 149 4.0 4.8 200

150 332 x 187 5.0 6.0 250

180 398 x 224 6.0 7.2 300

200 443 x 249 6.6 8.0 334

250 553 x 311 8.3 10.0 417

300 664 x 374 10.0 501

Zoom Ratio: 1.2x

W (cm) x H (cm)

Max zoom

<B>

Min zoom

<C>

From base to top of


<D>

Page 24

User Controls

English

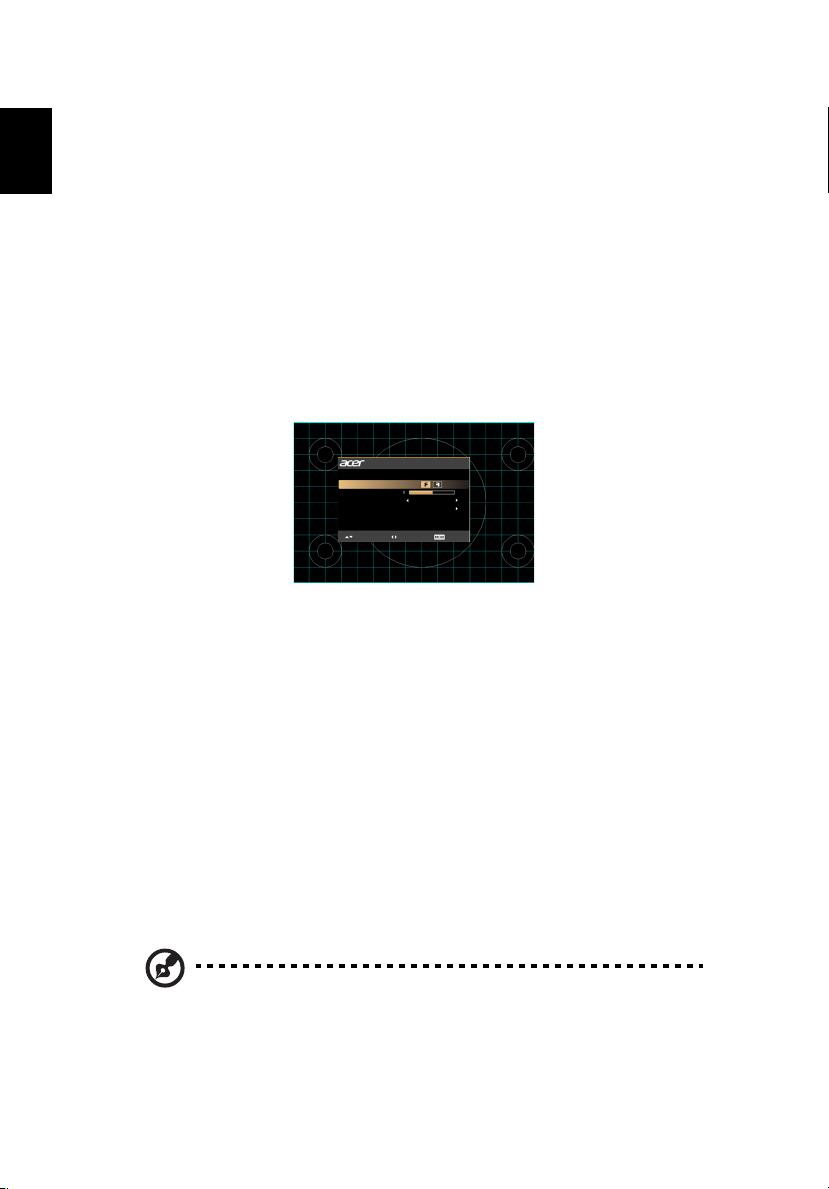

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more .

1 Turn on the projector by pressing "Power" button on the control pad.

2 Press the "MENU" button to launch the OSD for projector installation and

maintenance.

Installation

Projection

Keystone Language Reset

Select

3 The background pattern acts as a guide to adjusting the calibration and

alignment settings, such as screen size and distance, focus and more .

4 The Installation menu includes the following options:

•Projection

•Keystone settings

•Language settings

•Reset to factory default function

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the MENU button anytime to exit the menu and return to the Acer

welcome screen.

English Press

Adjust

Exit

Note: Functions vary depending on model definition.

Page 25

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control.

• When the OSD is displayed, use the keys to select any item in the

main menu. After selecting the desired main menu item, press to enter submenu for feature setting.

• Use the keys to select the desired item and adjust the settings by

using the keys.

• Select the next item to be adjusted in the submenu and adjust as described

above.

• Press "MENU" on the remote control, the screen will return to the main

menu.

• To exit OSD, press "MENU" on the remote control again. The OSD menu

will close and the projector will automatically save the new settings.

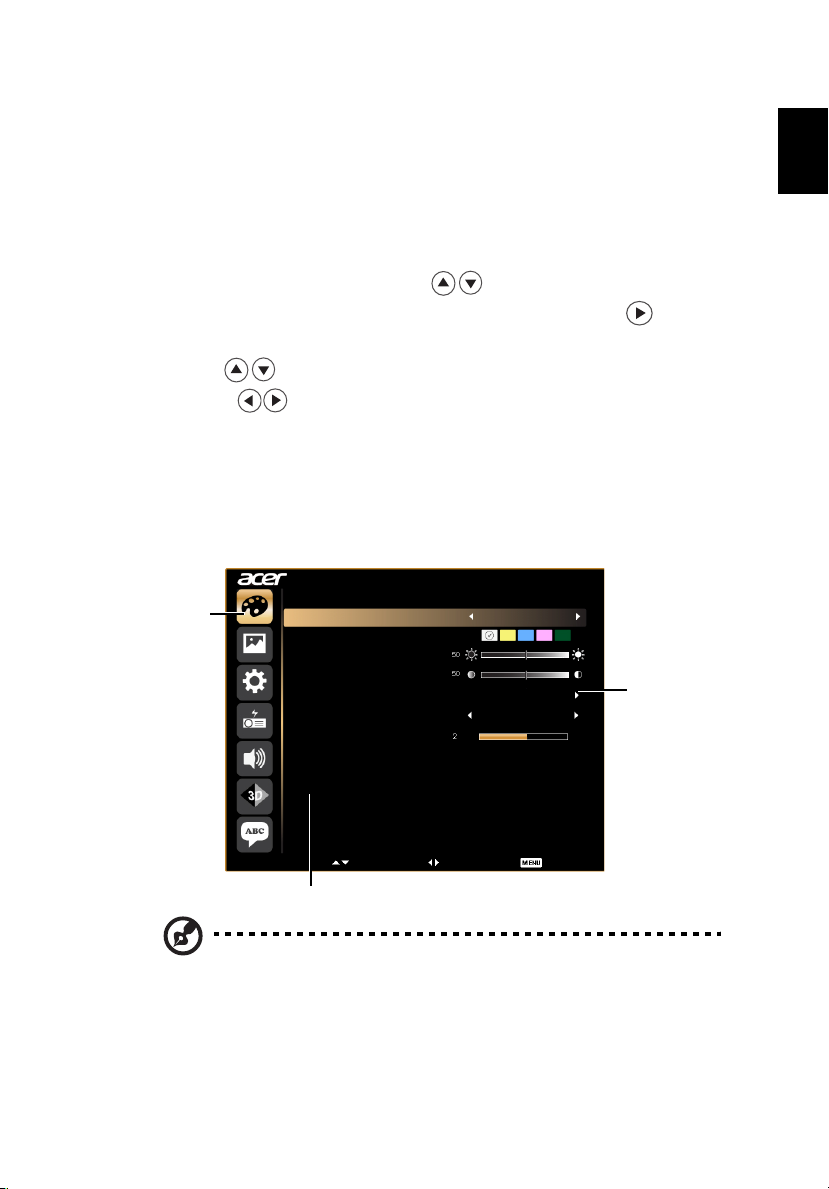

Main menu

Color

Display Mode

Wall color

Brightness

Contrast

Color Temperature

Dynamic Black

Gamma

Video

Press

Off

Setting

English

Select

Sub menu

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector. Note: Functions vary depending on model definition.

Adjust

Main Menu

Page 26

Color

English

Display Mode

Wall color

Brightness

Contrast

Color Temperature

Dynamic Black

Gamma

There are many factory presets optimized for various types of images.

• Bright: For brightness optimization.

• Presentation: For meeting presentation.

• Standard: For common environment.

• Video: For playing video in a bright environment.

• Game: For game content.

• Education: For education environment.

• User: Memorize user's settings.

Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.

Adjust the brightness of the image.

• Press to darken the image.

• Press to lighten the image.

"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

• Press to decrease the contrast.

• Press to increase the contrast.

Mode Use this function to choose CT1, CT2 (Native), CT3, User mode.

R Gain Adjusts the red gain for color temperature optimization.

G Gain Adjusts the green gain for color temperature optimization.

B Gain Adjusts the blue gain for color temperature optimization.

Choose "On" to automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.

Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.

Note: Functions vary depending on model definition.

Page 27


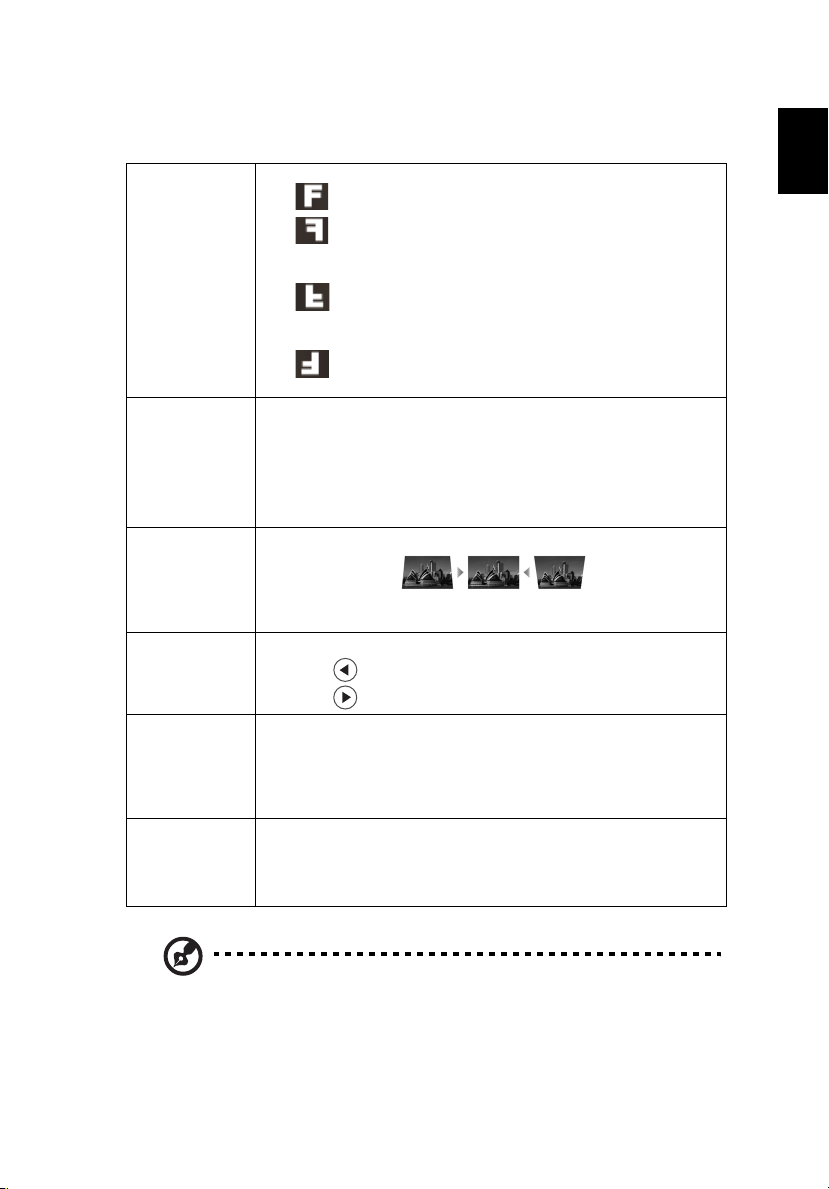

Projection

• Front-Desktop: The factory default setting.

• Rear-Desktop: When you select this function, the projector

reverses the image so you can project from behind a translucent screen.

• Rear-Ceiling: When you select this function, the projector

reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.

• Front-Ceiling: When you select this function, the projector

inverts the image for ceiling-mounted projection.

Aspect Ratio Use this function to choose your desired aspect ratio.

Manual Keystone Adjust image distortion caused by tilting projection. (±40 degrees)

Sharpeness Adjusts the sharpness of the image.

HDMI Color Range Adjust the color range of the HDMI image data to correct color display

HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.

• Auto: Keep the image with original width-higth ratio and maxi

mize the image to fit native horizontal or vertical pixels.

• 4:3: The image will be scaled to fit the screen and displayed using

a 4:3 ratio.

• 16:9: The image will be scaled to fit the width of the screen and

the height adjusted to display the image using a 16:9 ratio.

<Note> The Manual Keystone function is unavailable under Auto Keystone setting to "On".

• Press to decrease the sharpness.

• Press to increase the sharpness.

error.

• Auto: Automatically adjust by information from player.

•

Limited Range: Prosess the input image as limited color range data.

• Full Range: Prosess the input image as full color range data.

• Auto: Automatically adjust by information from player.

• Underscan: Always no overscan on HDMI image.

• Overscan: Always keep overscan on HDMI image.

English

Note: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode. Note: Functions vary depending on model definition.

Page 28

Setting

English

DC 5V OUT (Standby)

• Select "On" to enable 5V/1A power supply function.

• Select "Off" to turn off 5V/1A power supply function

Reset

Security Security

• Press the button and choose "Yes" to return the

This projector provides a useful security function for the administrator to manage usage of the projector .

Press to change the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first

before changing the security settings.

• Select "On" to enable the security function. The user has to

• If "Off" is selected, then the user can turn on the projector

Timeout(Min.) Once "Security" is activated to "On", the administrator can set

timeout function.

• Press or to select the timeout interval.

• The range is from 10 minute to 990 minutes.

• When the time is up, the projector will prompt the user to

• The factory default setting of "Timeout(Min.)" is "Off".

• Once the security function is enabled, the projector will

User Password

• Press to setup or change the "User Password".

• Press number keys to set your password on the remote control

• Press to delete character.

• Enter the password when you see "Confirm Password"

• The password should be between 4 and 8 characters long.

• If you select "Request password only when plugging the

• If you select "Always request password while projector turns

parameters on all menus to the factory default settings.

enter a password to operate the projector. Please refer to the "User Password" section for details.

without password.

enter the password again.

request user to enter password when switch on the projector . Both "User Password" and "Administrator Password" can be accepted for this dialogue.

and press "MENU" to confirm.

displayed.

power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged.

on.", the user has to enter the password every time when the projector is turned on.

Page 29

Administrator Password The "Administrator Password" can be used in both the "Enter

Administrator Password" and "Enter Password" dialog boxes.

• Press to change the "Administrator Password".

• The factory default of "Administrator Password" is "1234".

If you forgot your administrator password, do the following to retrieve the administrator password:

• An unique 6-digit "Universal Password" which is printed on

the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is.

• If losing this security card and number, please contact with an

Acer service center.

Lock to user startup screen Default Lock User Startup Screen is "Off". If lock user startup screen

is "On", users cannot change startup screen anymore and avoid other users change that arbitrarily. Choose "Off" to unlock startup screen.

Note: Functions vary depending on model definition.

English

Page 30

Management

English

ECO Mode Choose "On" to dim the projector lamp which will lower power

High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at

Turn Off Mode

consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.

full speed continuously to allow for proper high altitude cooling of the projector.

• Instant Off: Shuts down the projector without fan cooling.

• Instant Resume: Resumes the system when the Power button

is pressed again within 2 minutes.

Auto Shutdown The projector will automatically shutdown when there is no signal

AC Power On When this feature is enabled, the projector automatically turns on

Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).

Lamp Reminding Activate this function to display a reminder to change the lamp 30

Lamp Hour Reset

Note: Functions vary depending on model definition.

input after the allocated time. (default is 120 minutes)

when power is connected. This allows control of ceiling mounted projectors with a wall power switch.

hours before its expected end-of-life.

Press the button and choose "Yes" to turn the lamp hour counter to 0 hours.

Page 31

Audio

Volume

Mute

English

• Press to decrease the volume.

• Press to increase the volume.

• Choose "On" to mute the volume.

• Choose "Off" to restore the volume.

Note: Functions vary depending on model definition.

Page 32

English

3D Choose "On" to enable DLP 3D function.

• On: Choose this item while using DLP 3D glasses, 120Hz 3D

capable graphics cards and HQFS format file or DVD with corresponding SW player.

• Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D

24P 3D 144 Hz for flicker-less 3D

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D

3D Warning Message Choose "On" to display the 3D warning message.

Note: It needs correct settings on graphic card 3D application program for correct 3D display. Note: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Note: "3D L/R Invert" is only available when 3D is enabled. Note: There has reminder screen if 3D still enable when power on projector. Please adjust setting depended on your purpose.

format that suits the 3D content you are viewing and obtain the best result.

glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

Note: 3D display is now enabled.

1. Please make sure you have the correct 3D signals and glasses.

2. Remember to turn 3D off if you don’t want to see 3D images.

3. If the 3D display isn’t correct, please try to enable 3D Sync Invert.

4. Display mode options will be disabled while in 3D mode.

Language

Choose the multilingual OSD menu. Use the or key

to select your preferred menu language.

• Press to confirm the selection.

Page 33

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution

1 No image appears

onscreen

2 Partial, scrolling

or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))

• Connected as described in the "Getting Started"

section.

• Ensure none of the connector pins are bent or

broken.

• Check if the projector lamp has been securely

installed. Please refer to the "Replacing the Lamp" section.

• Make sure you have removed the lens cap and the

projector is switched on.

• For an incorrectly displayed image:

• Open "My Computer", open the "Control

Panel", and then double-click the "Display" icon.

• Select the "Settings" tab.

• Verify that your display resolution setting is

lower than or equal to WUXGA-RB (1920 x

1200).

• Click the "Advanced Properties" button.

If the problem still appears, change the monitor display you are using and follow the steps below:

• Verify that the resolution setting is lower than

or equal to WUXGA-RB (1920 x 1200).

• Click the "Change" button under the

"Monitor" tab.

• Click "Show all devices". Next, select "Standard

monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.

• Verify that the resolution setting of the

monitor display is lower than or equal to WUXGA-RB (1920 x 1200).

English

Page 34

English

3 Partial, scrolling

or incorrectly displayed image (For notebooks)

4 The screen of the

notebook computer is not displaying your presentation

5 Image is out of

focus

6 Image is stretched

when displaying a "widescreen" DVD title

• For an incorrectly displayed image:

• Follow the steps for item 2 (above) to adjust

the resolution of your computer.

• Press the toggle output settings. Example:

[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]

• If you experience difficulty changing resolutions or

your monitor freezes, restart all equipment including the projector.

• If you are using a Microsoft

notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

• If you are using an Apple

notebook: In System Preferences, open Display and select Video Mirroring "On".

Windows® based

Mac® OS based

• Make sure the lens cap is removed.

• Adjusts the focus ring on the projector lens.

• Make sure the projection screen is within the

required distance of 3.3 to 32.7 feet (1.0 to 9.96 meters) from the projector. Refer to the "How to Get a Preferred Image Size by Adjusting Distance and Zoom" section for more information.

When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:

• If you play a 4:3 format DVD title, please change the

format to 4:3 in the projector OSD.

• If the image is still stretched, you will also need to

adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.

7 Image is too small

or too large

8 Image has slanted

sides

9 Image is reversed

• Adjust the zoom lever on the top of the projector.

• Move the projector closer to or further from the

screen.

• Press "MENU" on the remote control. Go to "Image -

-> Aspect Ratio" and try different settings or press "RATIO" on the remote control to adjust directly.

• If possible, reposition the projector so that it is

centered on the screen.

• Press the "Keystone / " button on the remote

control until the sides are vertical.

• Select "Image --> Projection" on the OSD and adjust

the projection direction.

Page 35

OSD Messages

# Condition Message Reminder

1 Message Fan Fail - the system fan is not working.

Lamp will automatically turn off soon.

Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used.

Lamp will automatically turn off soon.

Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.

Lamp is approaching the end of its useful life in full power operation.

Fan Fail.

Projector Overheated.

Replacement suggested!

Problems with the Projector

# Condition Solution

1 The projector stops responding

to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.

English

2 Lamp burns out or makes a

popping sound

When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.

Page 36

LED & Alarm Definition Listing

English

LED Messages

Message

Standby -- -- ON --

Power button ON -- -- -- ON

Lamp retry -- -- -- Quick

Power off (Cooling state)

Power button OFF (cooling completed;

standby mode)

Firmware download ON ON ON --

Error (thermal failure) -- ON -- ON

Error (fan lock) -- Quick

Error (lamp breakdown) ON -- -- ON

Error (color wheel fail) Quick

Lamp_LED Temp_LED Power LED

Red Red Red Blue

-- -- Quick

-- -- ON --

Flashing

-- -- ON

Flashing

-- ON

Flashing

Page 37

Cleaning and replacing the dust filters

Cleaning the dust filters

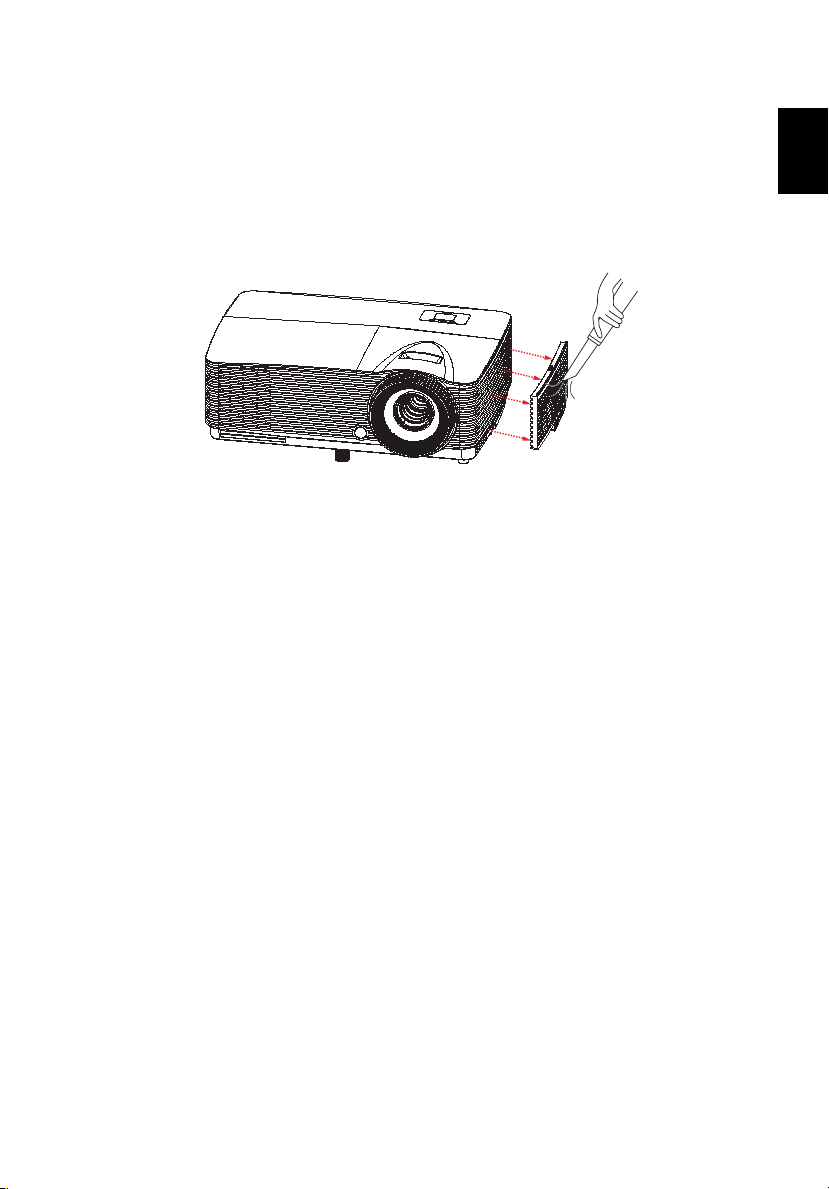

Clean the dust filters after every 1000 hours of use. If they are note cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Follow these steps: 1 Turn the projector off. Wait for the Power LED to stop flashing then

unplug the power cord. 2 Allow the projector at least 30 mins to cool down. 3 Pull out the dust filter. (Illustration #1) 4 To clean the dust filters, use a small vacuum cleaner designed for

computers and other office equipment. (Illustration #2) 5 If the dirt is difficult to remove or the filter is broken, please contact your

local dealer or service center to obtain a new filter.

English

Page 38

English

Replacing the Lamp

Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 30 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

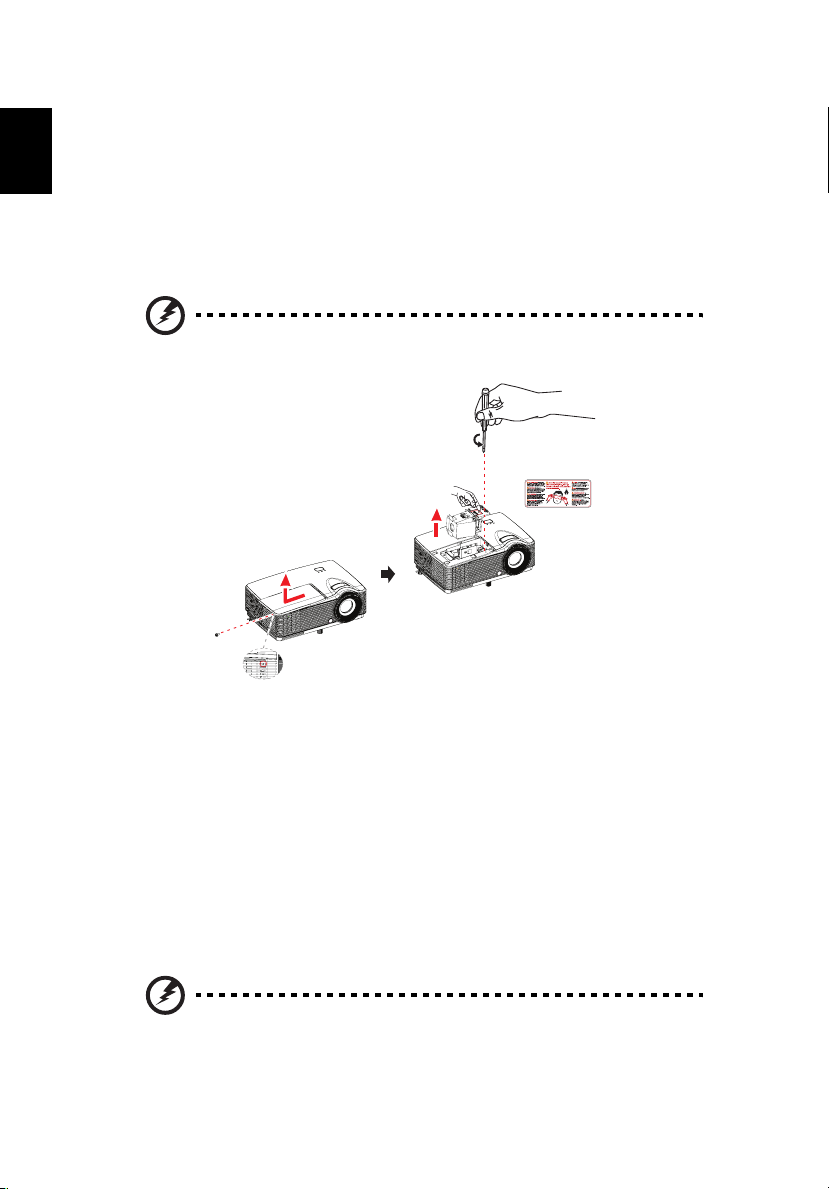

To Change the Lamp Turn off the projector by pressing the Power button. Allow the projector at least 30 minutes to cool down. Disconnect the power cord. 1 Use a screwdriver to remove the screw from the cover. (Illustration #1)

Push up and remove the cover. (Illustration #2)

2 Remove the screw that secure the lamp module. (Illustration #3)

Pull out the lamp plug. (Illustration #4)

3 Lift the handle so that it stands up. Pull out the lamp module by force.

(Illustration #5)

To replace the lamp module, use a new lamp and reverse the above steps.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Page 39

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

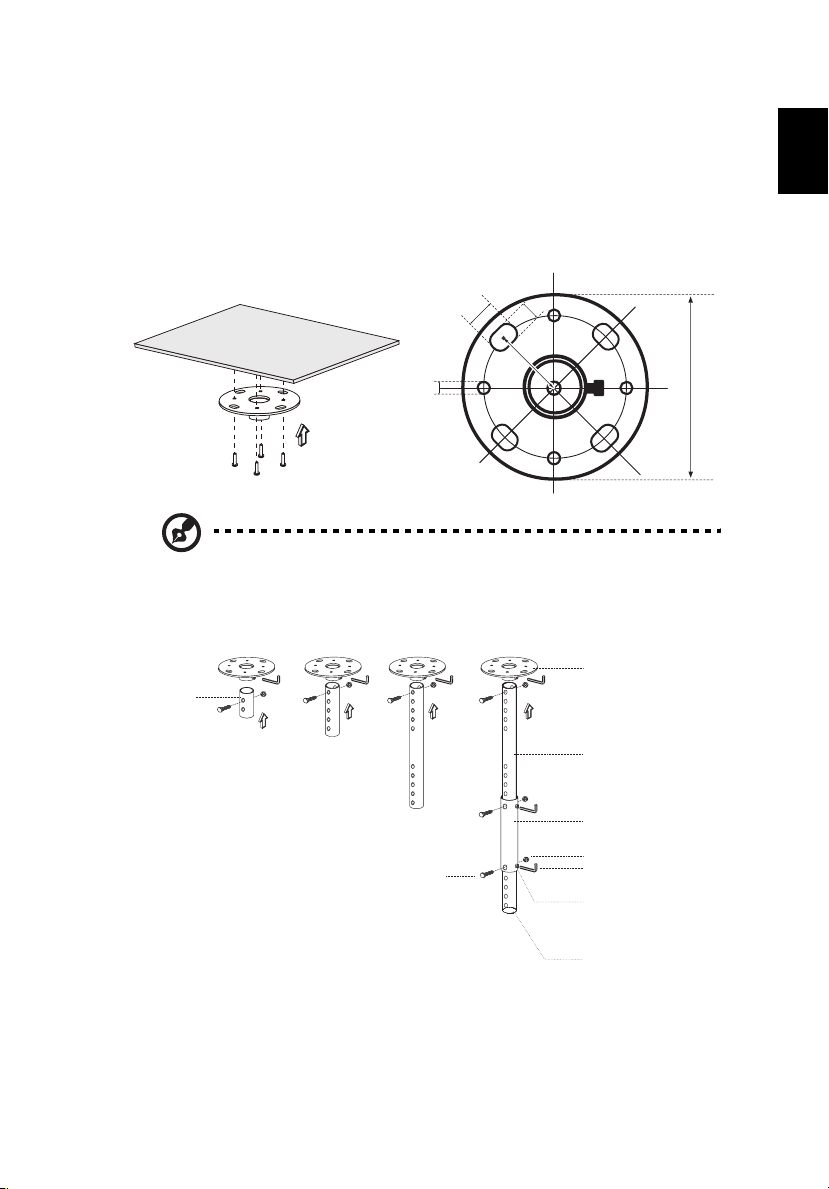

1 Drill four holes into a solid, structurally sound part of the ceiling, and

secure the mount base.

49.9

8.4

Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.

2 Secure the ceiling rod using the appropriate type of four-cylinder screws.

Ceiling Mount Base

Short Rod

- Attach to ceiling

English

130 mm

50 mm length / 8 mm diameter -

Screw Type A

Long Rod

Extension Rod

Long Cylinder Cap Allen Key

- For tightening/loosening

Tightening Screw

Medium Rod

Page 40

English

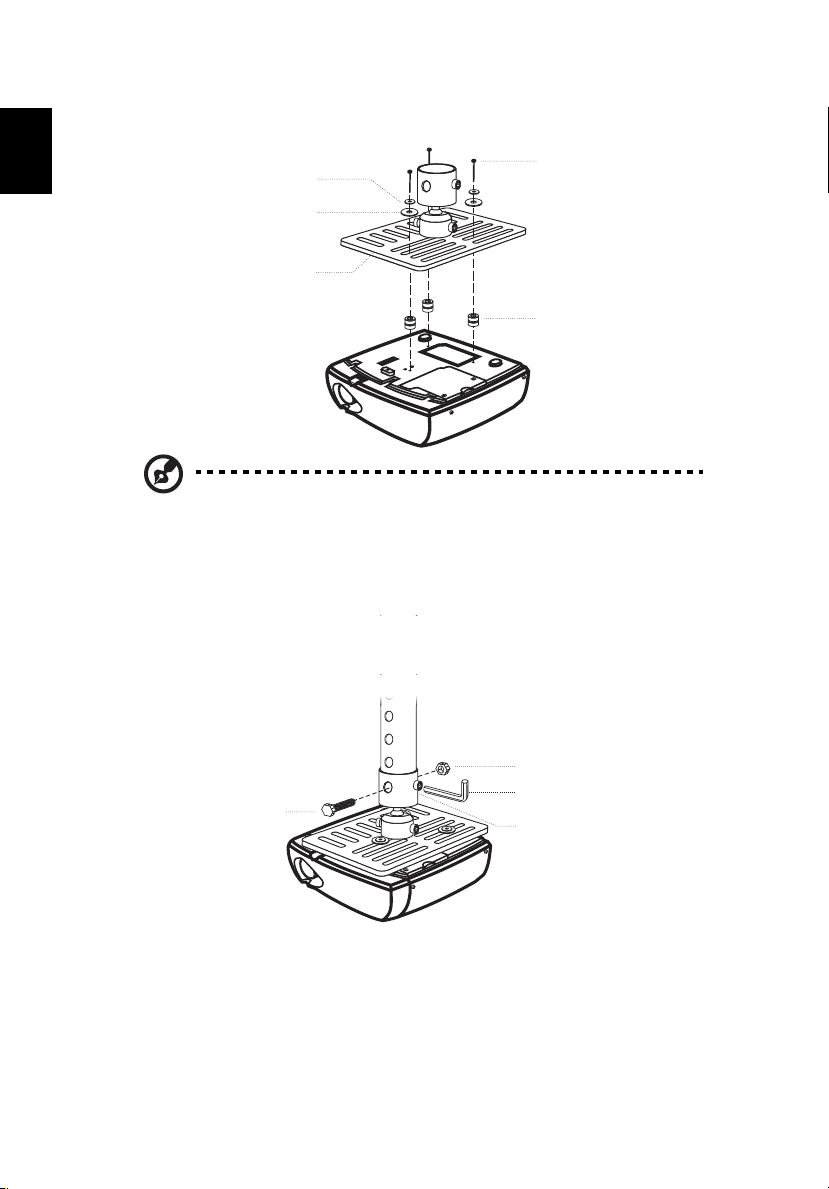

3 Use the appropriate number of screws for the projector size to attach the

projector to the ceiling mount bracket.

Smaller Washer

Large Washer

Projector Bracket

Supports projector and

allows for adjustments

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution. Use two washers for extra support, if deemed necessary.

4 Attach the ceiling bracket to the ceiling rod.

Screw Type B

Spacer

- For heat dissipation

Screw Type A

50 mm length/

8 mm diameter

Large cylinder cap

Allen Key

- For tightening/loosening

Tightening Screw

Page 41

5 Adjust the angle and positioning as necessary.

Tightening Screw

Allen Key

Tightening Screw

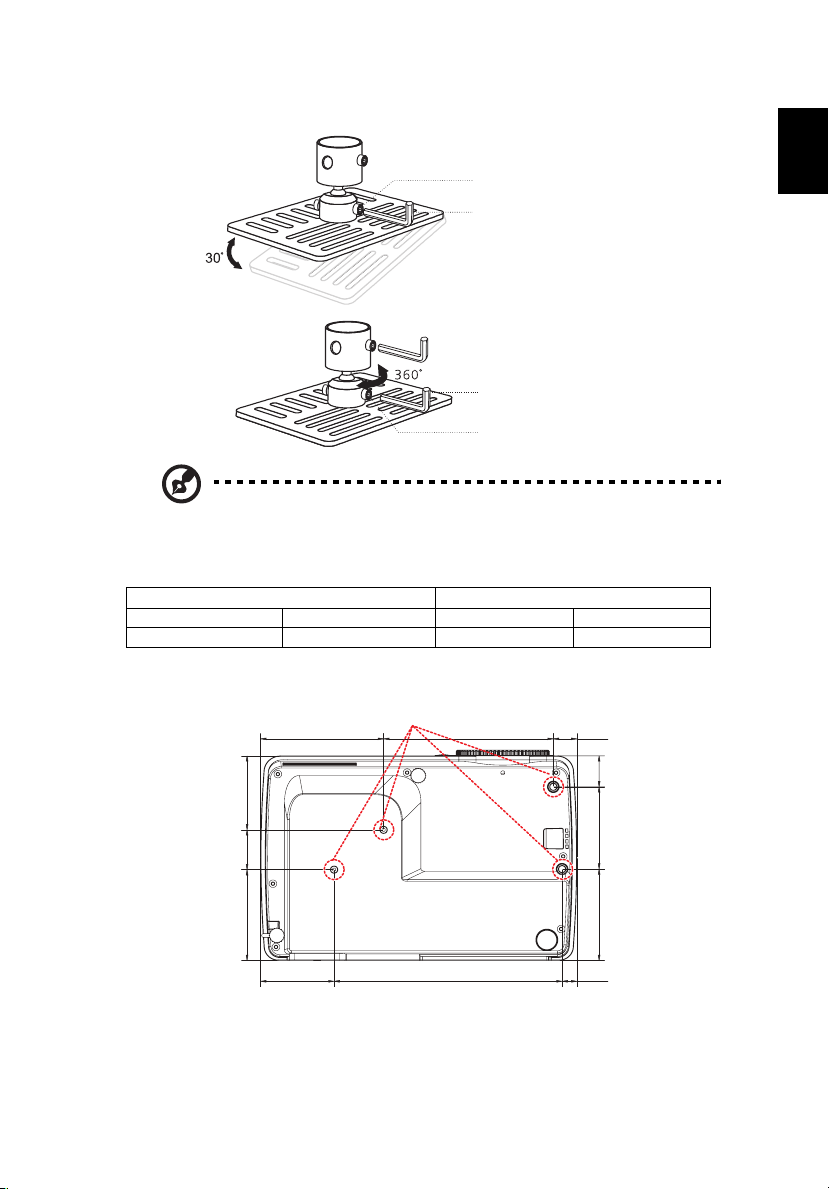

Note: The appropriate type of screw and washer for each model is listed in the table below. 4 mm diameter screws are enclosed in

the screw pack.

Screw Type B Washer Type

Diameter (mm) Length (mm) Large Small

425VV

English

SCREW SPEC. M4 x 25 mm

112 154.5

68.8

84.4

66.9

207.6

21.5

28.8

76.5

84.9

13.5

Page 42

English

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system

Resolution 1920x1080 1080p resolution

Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and

Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/

Aspect ratio 4:3, 16:9

Displayable colors 16.7 million colors

Projection lens F = 2.55 ~ 2.86, f = 22.35~26.73 mm, 1.2X manual

Projection screen size (diagonal) 30" (76 cm) ~ 300" (762 cm)

Projection distance 3.3' (1.0 m) ~ 32.7' (9.96 m)

Throw ratio 60"@2 m (1.50 ~ 1.80:1)

Horizontal scan rate 31k - 100 kHz

Vertical refresh scan rate 50 -120 Hz

Lamp type 210W user-replaceable lamp

Keystone correction

Weight 2.3 Kg (6.16 Ibs)

Dimensions (W x D x H) 289.3 mm X 234.5 mm X 92.3 mm (11.4" x 9.2" x 3.6")

Digital Zoom 2X(PC)/1.8X(Video)

Power supply AC input 100 - 240 V auto-switching power supply

Power consumption Normal mode: 250W ± 10% @ 110VAC

Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

Standard package contents

I/O connectors

DLP

VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +

K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)

zoom and manual focus

± 40 degrees

ECO mode: 215W ± 10% @ 110VAC Standby mode < 0.5W

• AC power cord x1

• HDMI cable x1

• Remote control x1

• Battery x2 (for remote control) (option)

• User's guide (CD-ROM) x1

• Quick start guide x1

• Security card x1

• Carrying case x1 (option)

• Power socket

• RS232

• 3.5 mm audio jack output x 1

• Mini USB x1 (for firmware upgrade)

• USB type A x1 (5V/1A power supply)

• HDMI x 1

• HDMI with MHL x 1

Page 43

Note: Design and specifications are subject to change without notice.

English

Page 44

Compatibility modes

English

HDMI Digital

1 HDMI - PC Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

VGA 640x480 60 31.5

640x480 72 37.9 640x480 75 37.5 640x480 85 43.3 640x480 120 61.9

SVGA 800x600 56 35.1

800x600 60 37.9 800x600 72 48.1 800x600 75 46.9 800x600 85 53.7 800x600 120 77.4

XGA 1024x768 60 48.4

1024x768 70 56.5 1024x768 75 60.0 1024x768 85 68.7 1024x768 120 99.0

SXGA 1152x864 70 63.8

1152x864 75 67.5

1152x864 85 77.1 1280x1024 60 64.0 1280x1024 72 77.0 1280x1024 75 80.0 1280x1024 85 91.1

QuadVGA 1280x960 60 60.0

1280x960 75 75.2

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75.0 PowerBook G4 640x480 60 31.4 PowerBook G4 640x480 66.6(67) 34.9 PowerBook G4 PowerBook G4 PowerBook G4 1152x870 75 68.7 PowerBook G4 1280x960 75 75.0

i Mac DV (G3) 1024x768 75 60.0

800x600 60 37.9

1024x768 60 48.4

Page 45

2 HDMI - Extended Wide timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz] WXGA 1280x768 60 47.8

1280x768 75 60.3 1280x768 85 68.6 1280x720 60 44.8 1280x720 120 92.9 1280x800 60 49.6

*1280x800-RB 119.909 101.6

1440x900 60 59.9

WSXGA+ 1680x1050 60 65.3

1920x1080

(1080P)

1366x768 60 47.7

WUXGA 1920x1200-RB 59.94 74.04

60 67.5

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

480i 720x480(1440x480) 59.94 (29.97) 15.7

576i 720x576(1440x576) 50(25) 15.6

480p 720x480 59.94 31.5 576p 720x576 50 31.6 720p 1280x720 60 45.0 720p 1280x720 50 37.5 1080i 1920x1080 60(30) 33.8

1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.97/24 27.0 1080p 1920x1080 60 67.5 1080p 1920x1080 50 56.3

English

4 HDMI - 1.4a 3D Timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

720p (Frame Packing) 1280x720 50 37.5 720p (Frame Packing) 1280x720 60 45.0

1080p (Frame Packing ) 1920x1080 24 27.0

720p (Frame Packing) 1280x720 50 37.5

720p (Frame Packing) 1280x720 60 45.0 1080i (Top and Bottom) 1920x1080 50 (25) 28.1 1080i (Top and Bottom) 1920x1080 60 (30) 33.8

1080p (Top and Bottom) 1920x1080 24 27.0 1080p (Top and Bottom) 1920x1080 50 56.3

Page 46

English

1080p (Top and Bottom) 1920x1080 60 67.5

720p (Side by Side (Half)) 1280x720 60 45.0 1080i (Side by Side (Half)) 1920x1080 50 (25) 28.1 1080i (Side by Side (Half)) 1920x1080 60 (30) 33.8

1080p (Side by Side (Half)) 1920x1080 50 56.3 1080p (Side by Side (Half)) 1920x1080 60 67.5

Graphic source monitor

range limits

Note: * Functions vary depending on model definition.

Horizontal scan rate:

Vertical scan rate:

Max. pixel rate:

15k-100kHz

24-120 Hz

165 MHz

Page 47

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

English

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Page 48

English

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

001

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-210)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm

for the latest country list.

Page 49

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi

New Taipei City 221, Taiwan

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan Contact Person: Mr. RU Jan, e-mail: [email protected]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy Tel: +39-02-939-921 ,Fax: +39-02 9399-2913 www.acer.it

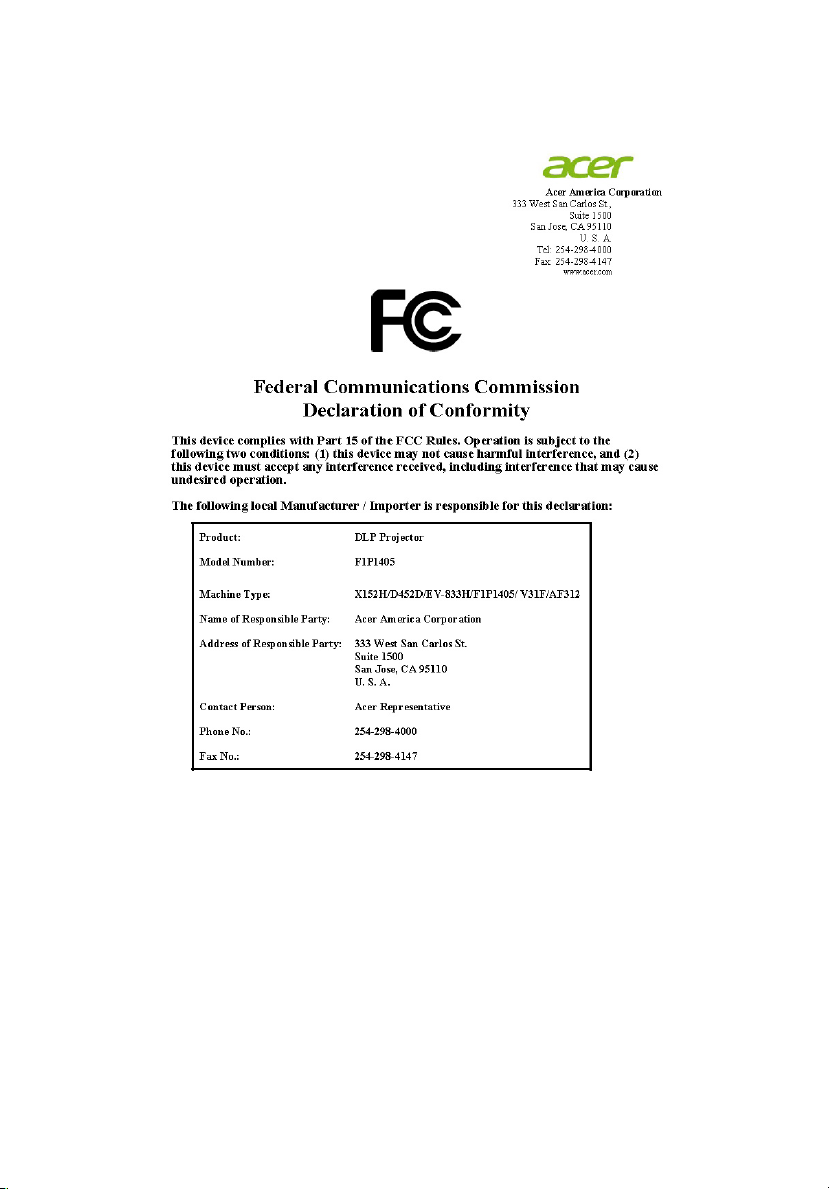

Declaration of Conformity

Declare under our own responsibility that the product:

Product: DLP Pro Trade Name: Acer Model Number: F1P1405

To which this declaration refers conforms to the relevant standard or other standardizing documents:

x EN55022:2010 Class B; EN 55024:2010 x EN61000-3-2:2006+A1:2009+A2:2009, Class A x EN61000-3-3:2008 x EN 60950-1:2006/A11:2009/A1:2010+A12:2011 x Regulation (EC) No. 1275/ 2008; EN 62301:2005 x EN50581:2012

We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

ector

Year to begin affixing CE marking 2015

_______________________________

RU Jan / Sr. Manager Date Regulation, Acer Inc.

January. 1, 2015

Page 50

Acer EV-833H, X152H User Manual

Acer Projector

Information for your safety and comfort

First things first

Usage Notes

Precautions

Contents

Introduction

Product Features

Package Overview

Projector Overview

Getting Started

Connecting the Projector

Turning the Projector On/Off

Adjusting the Projected Image

User Controls

Installation menu

Onscreen Display (OSD) Menus

Color


Setting

Management

Audio

Language

Appendices

Troubleshooting

LED & Alarm Definition Listing

Cleaning and replacing the dust filters

Replacing the Lamp

Ceiling Mount Installation

Specifications

Compatibility modes

Regulations and safety notices
