Acer AL1715

Service Guide

Service guide files and updates are available

on the CSD web; for more information,

please refer to http://csd.acer.com.tw

Copyright

Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or
warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any
warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in
this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer
(and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair,
and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

1

Conventions

The following conventions are used in this manual

SCREEN MESSAGES Denotes actual messages that appear on screen.

NOTE

WARNING

CAUTION

IMPORTANT

Gives bits and pieces of additional information

related to the current topic.

Alerts you to any damage that might result from

doing or not doing specific actions.

Gives precautionary measures to avoid possible

hardware or software problems.

Remind you to do specific actions relevant to the

accomplishment of procedures.

2

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.

3

WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission
limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to

this equipment. It is the responsibility of the user to correct such interference.

®

As an ENERGY STAR
guidelines for energy efficiency.

Partner our company has determined that this product meets the ENERGY STAR

®

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are

present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

4

PRECAUTIONS

z Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or

in a wet basement.

z Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and

cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or
sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the
manufacturer and follow the kit instructions.

z Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable

operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.
Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a
radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is
provided.

z The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

z The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will

fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not
defeat the safety purpose of the grounded plug.

zUnplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the

monitor from damage due to power surges.

z Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
z Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric

shock. Never spill liquids on the monitor.

z Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous

voltages and other hazards. Please refer all servicing to qualified service personnel

z To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100 - 240V AC, Min. 3.5A.

z The wall socket shall be installed near the equipment and shall be easily accessible.
z For use only with the attached power adapter (output 12V DC) which have UL, CSA listed license

5

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

NOTES

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch

and then turn it on again to make sure the flicker disappears.

• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.

• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a

missing pixel or a pixel lit all of the time.

• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the

image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing
the image or turning off the Power Switch for hours.

6

Table of Contents

Chapter 1 Monitor Features ----------------------------------------------------------------- 6

Monitor Features --------------------------------------------------------------------------- 8
Factory Preset Timing Table -----------------------------------------------------------10
Block Diagram ------------------------------------------------------------------------------11
Main board Diagram ----------------------------------------------------------------------12
Software Flowchart ----------------------------------------------------------------------- 13
Main board Layout ------------------------------------------------------------------------ 15

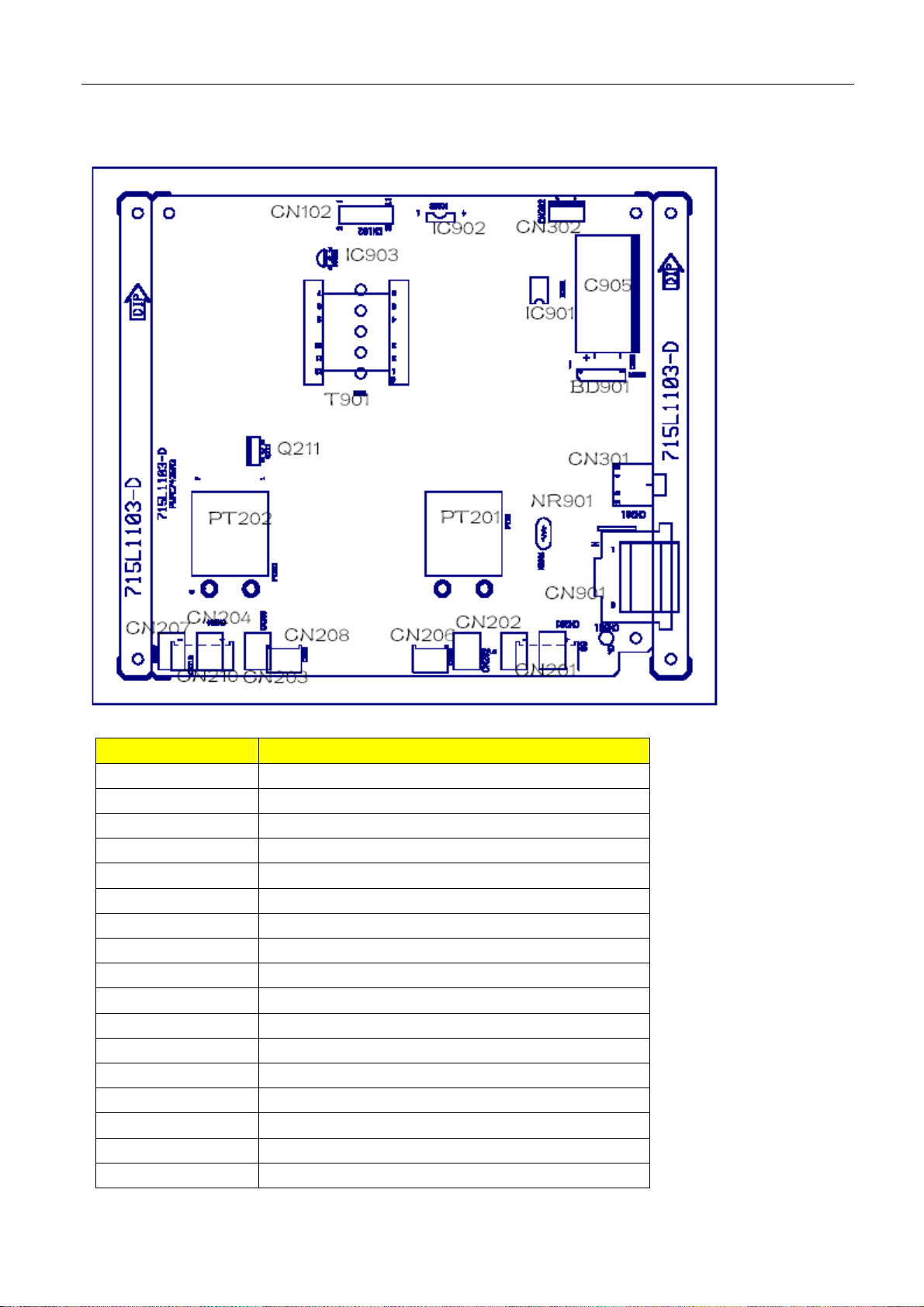

Inverter Board Layout ---------------------------------------------------------------------17
Front Bezel ---------------------------------------------------------------------------- ------18
Rear Bezel -----------------------------------------------------------------------------------19

Chapter 2 Operating Instructions ----------------------------------------------------------- 20

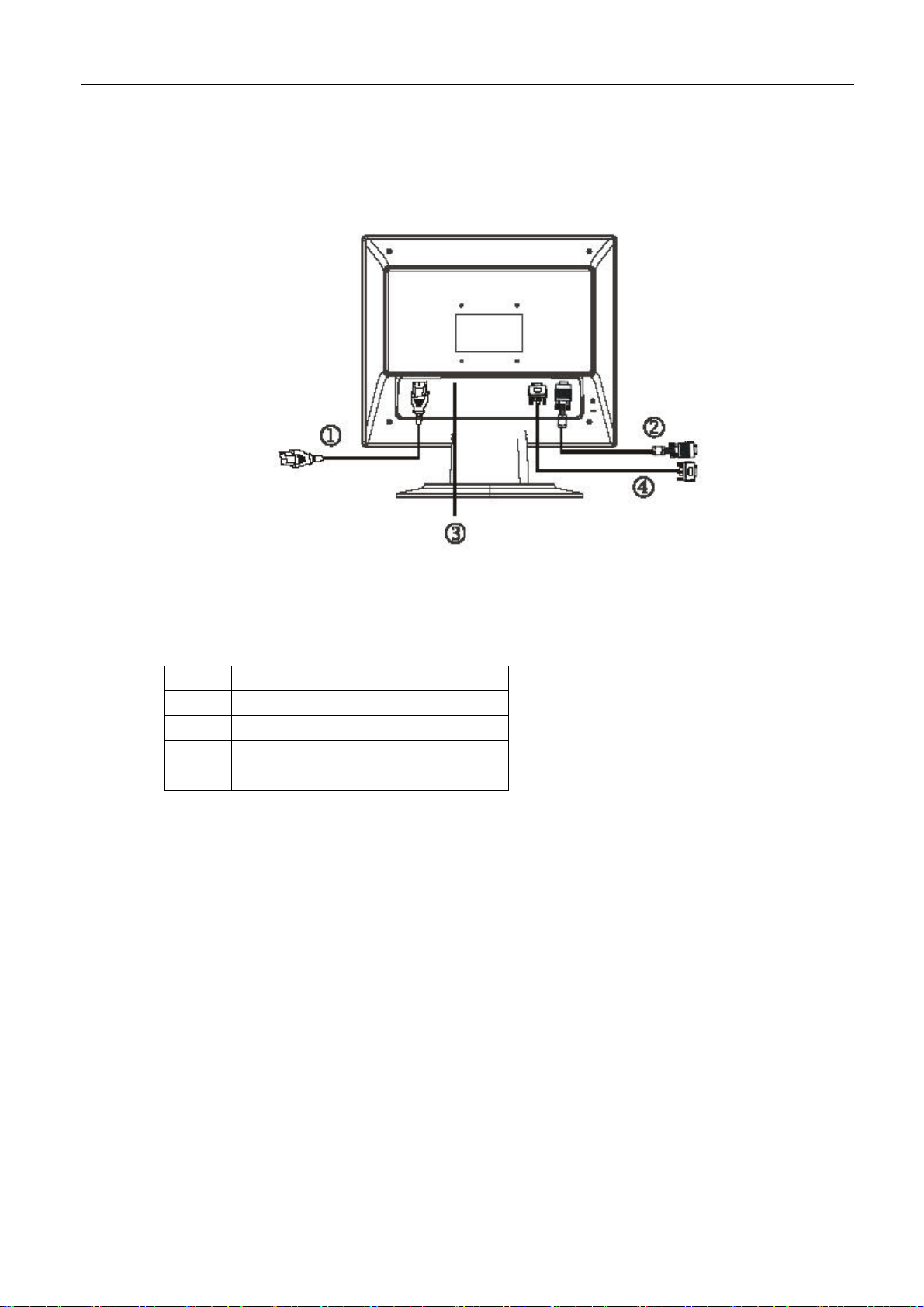

External Controls ----------------------------------------------------------------------------20

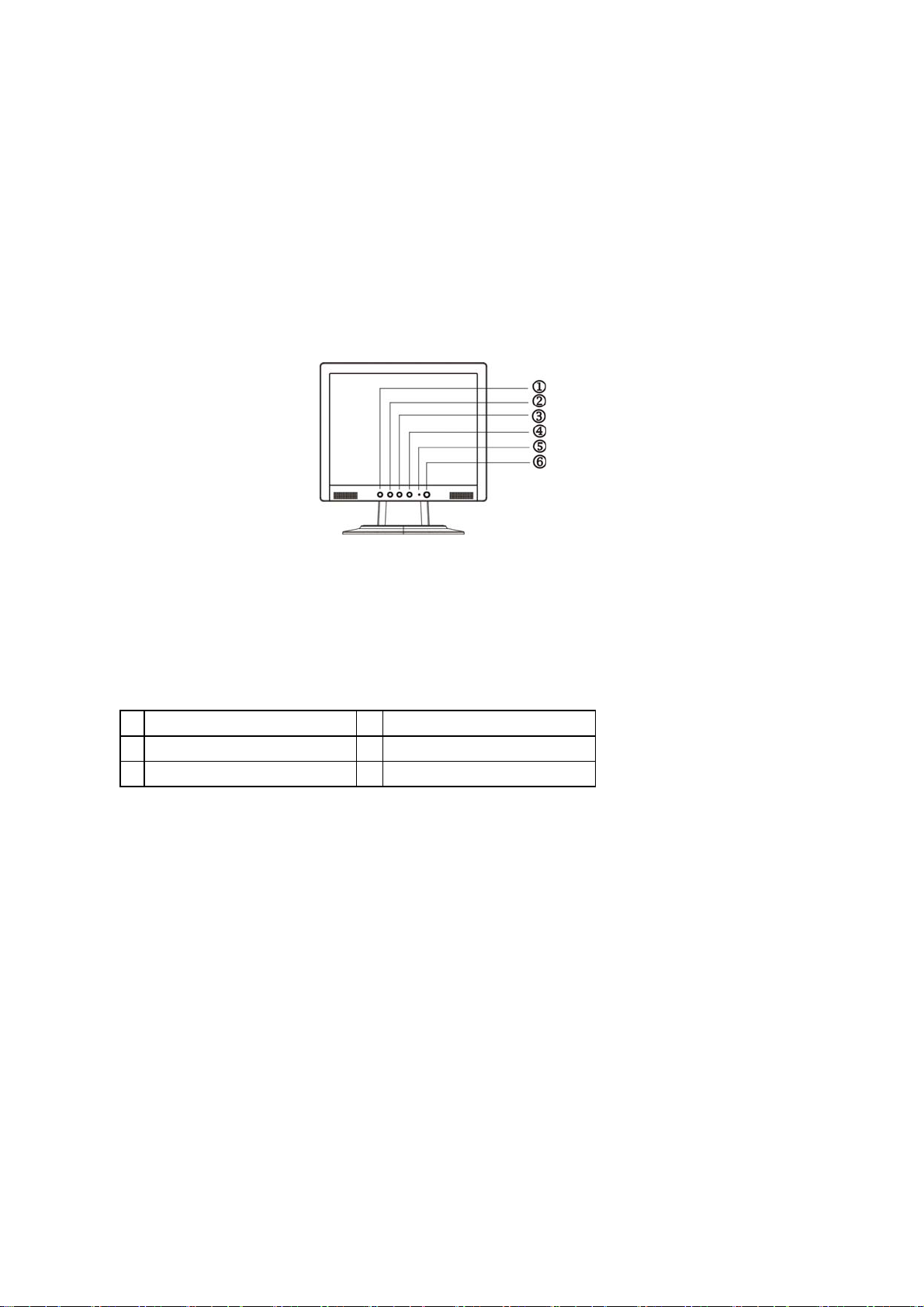

Front Panel Controls -----------------------------------------------------------------------20

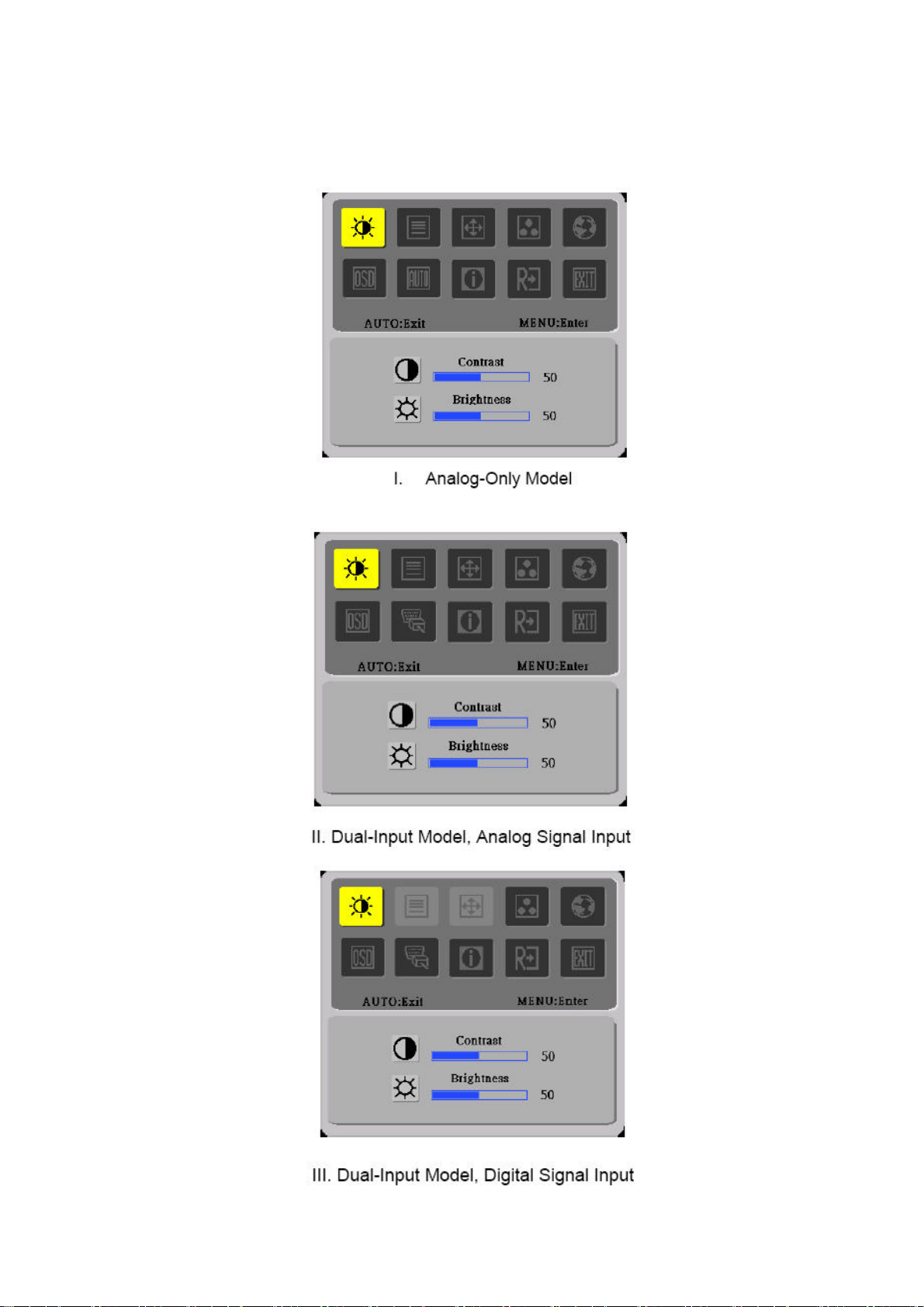

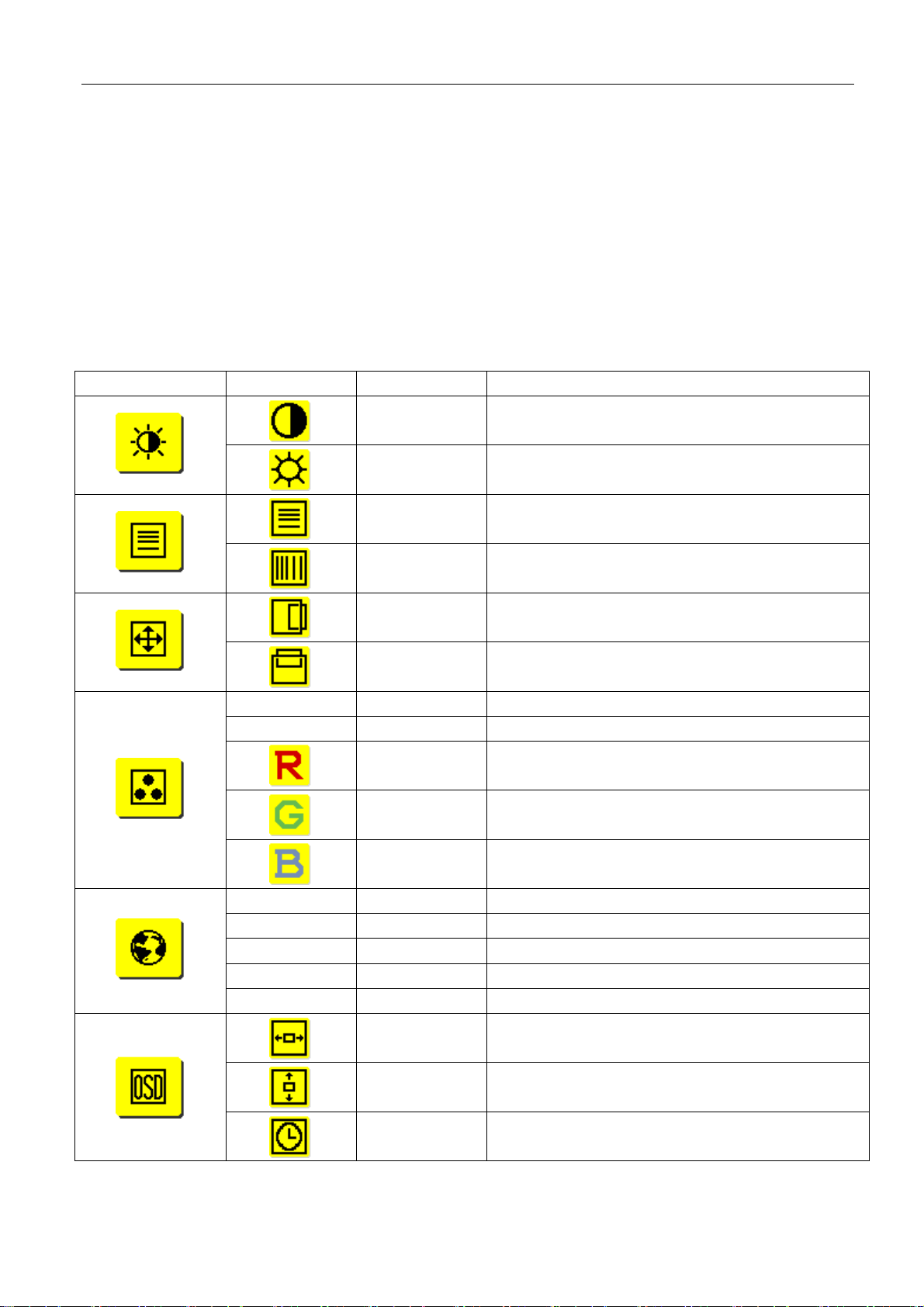

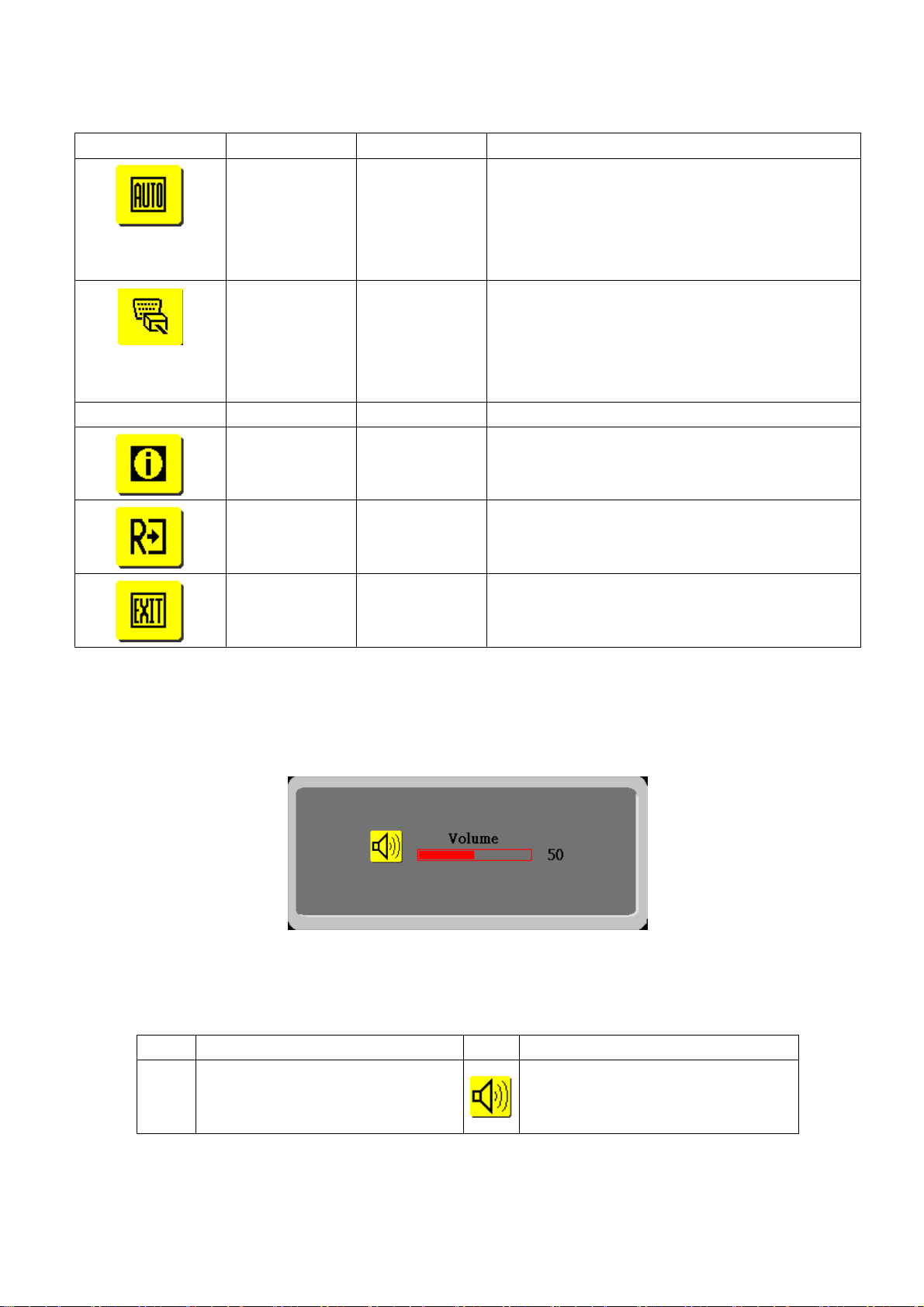

OSD Menu ------------------------------------------------------------------------------------22
Hot-Key Menu --------------------------------------------------------------------------------25

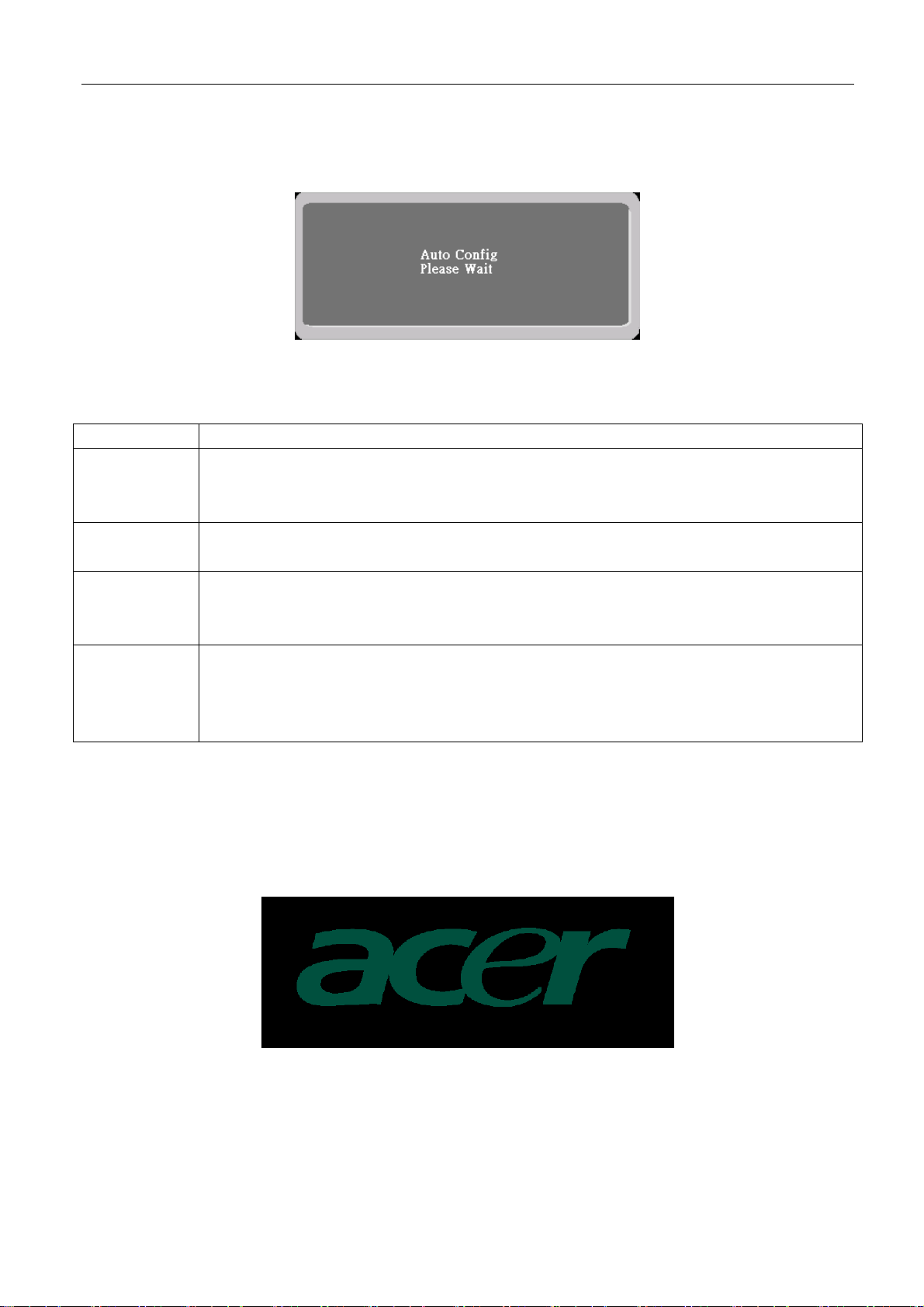

OSD Message --------------------------------------------------------------------------------26
LOGO -------------------------------------------------------------------------------------------27

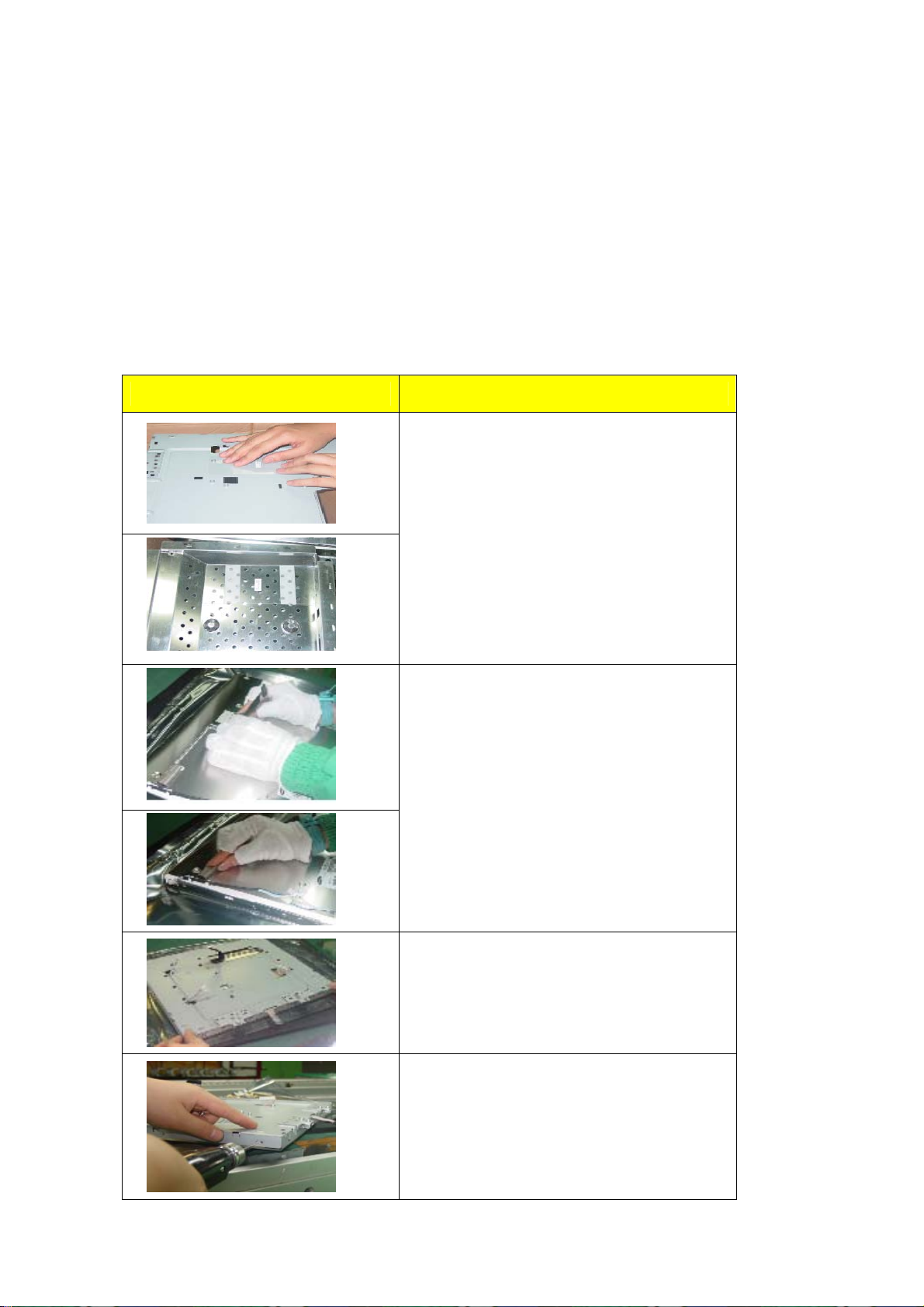

Chapter 3 Machine Disassembly --------------------------------------------------------------28

Chapter 4 Troubleshooting --------------------------------------------------------------------- 31

Chapter 5 Connector Information ------------------------------------------------------------ 34

Chapter 6 FRU (Field Replacement Unit) List -------------------------------------------- 35

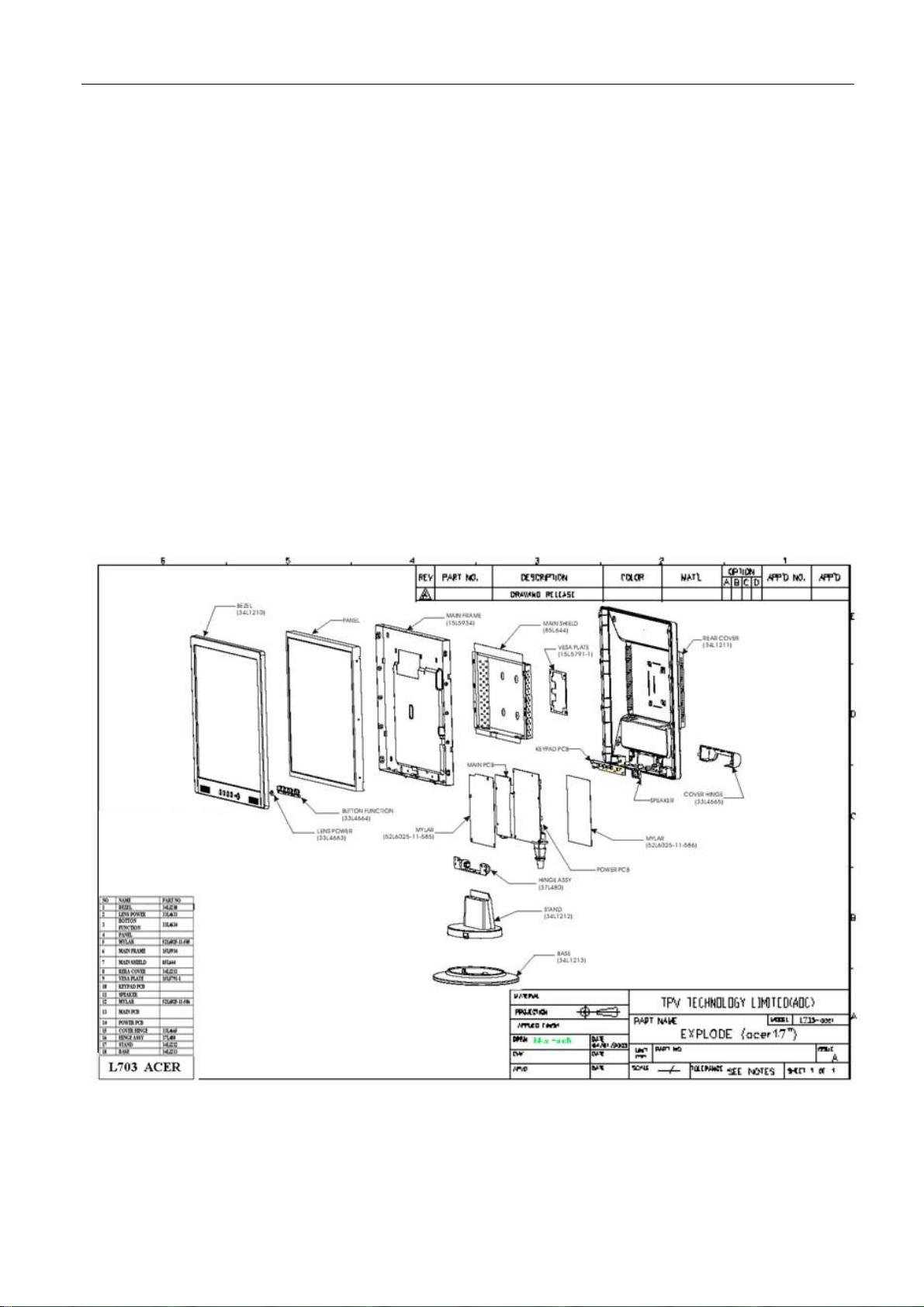

Exploded Diagram ---------------------------------------------------------------------------35

Chapter 7 Schematic Diagram ---------------------------------------------------------------- 40

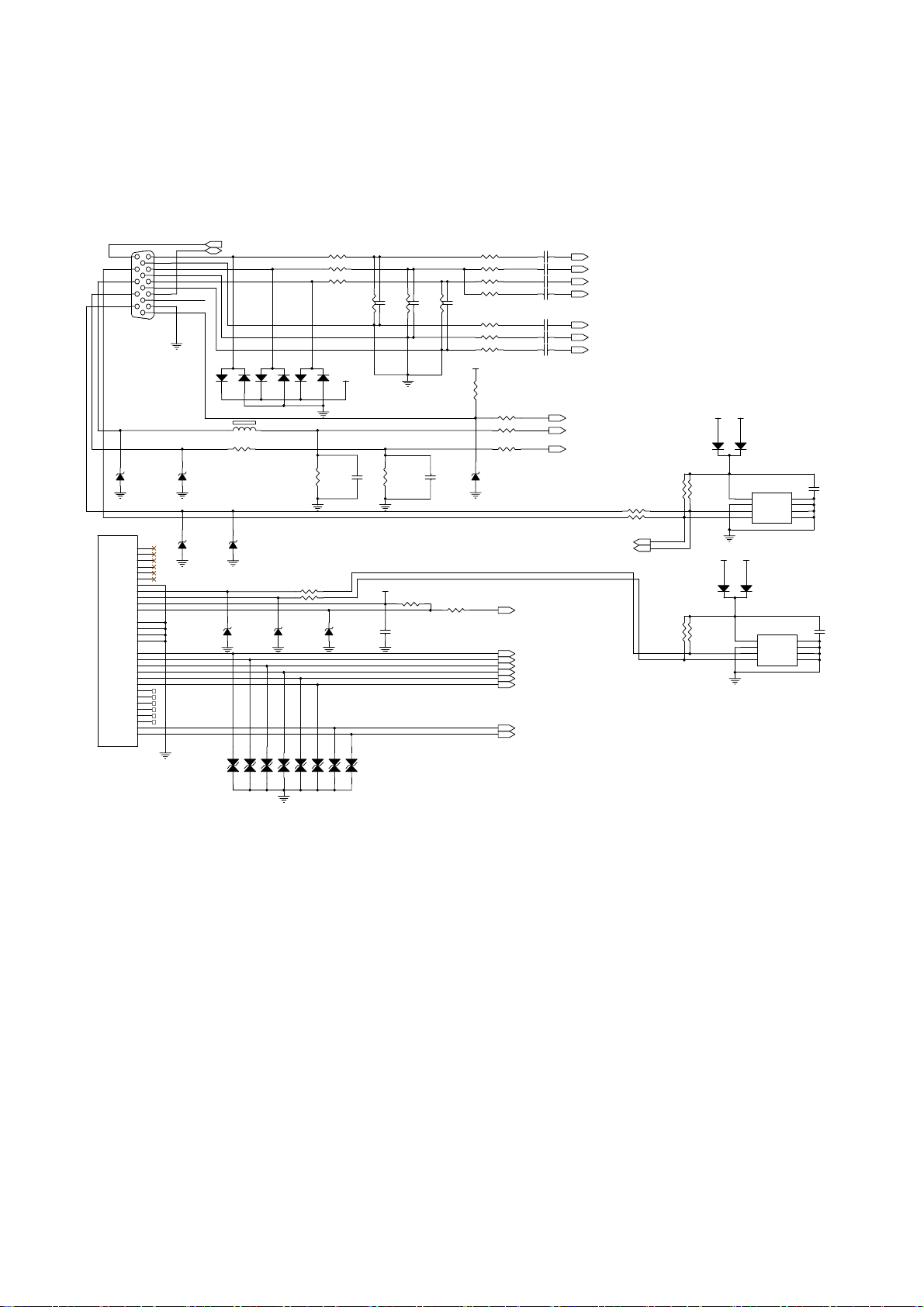

Analog Input --------------------------------------------------------------------------------- 40
Input -------------------------------------------------------------------------------------------- 41
Scaler TSU16AK ---------------------------------------------------------------------------- 42
Panel Interface ------------------------------------------------------------------------------- 43

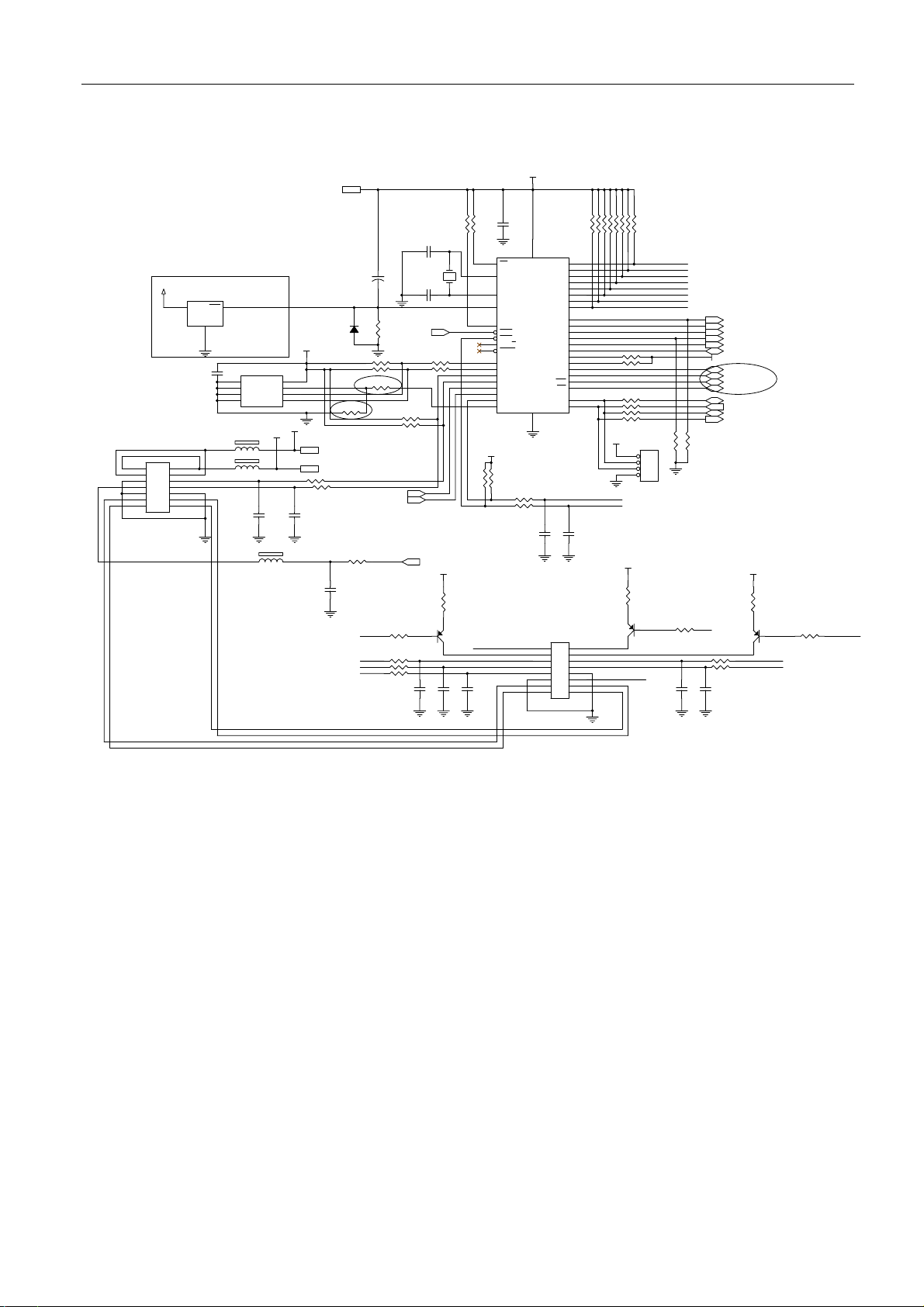

MCU -------------------------------------------------------------------------------------------- 44

Appendix Online Support Information ------------------------------------------------------ 45

7

Monitor Features

LCD Panel

Input

Chapter 1

SAMSUNG

Driving system TFT Color LCD

Size 43.2cm(17.0")

Pixel pitch 0.264mm(H) x 0.264mm(V)

2

Brightness

300cd/m

(Typical)

Contrast 500:1(Typical)

Viewable angle

150° (H) 135° (V)

Response time 12ms

R, G, B Analog Interface

Video

Digital (Dual-Input Model)

H-Frequency 30KHz – 80KHz

V-Frequency 55-75Hz

Display Colors 16.2M Colors

Dot Clock 135MHZ

Max. Resolution 1280 x 1024 @75Hz

Plug & Play

EPA ENERGY

STAR

®

ON Mode ≤45W

OFF Mode ≤3W

Input Connector

Input Video Signal

Maximum Screen Size

Power Source 100~264VAC,47~63HZ

Environmental Considerations

Dimensions 430(W)×445(H)×152(D) mm

VESA DDC1/2B

TM

D-Sub 15pin

DVI-D 24pin (Dual-Input Model)

Analog:0.7Vp-p(standard),75 OHM, Positive

Digital signal (Dual-Input Model)

Horizontal: 337.92mm

Vertical: 270.34mm

Operating Temp: 5° to 50°C
Storage Temp: -20° to 65°C

Operating Humidity: 10% to 85%

Weight (N. W.) 4.2kg Unit (net)

8

External Controls Switch

External Controls Functions

Power Consumption (Maximum)

Regulatory Compliance

• Auto Adjust Key

• </ Volume down (option)

• >/ Volume up (option)

• Power Button

• MENU/ Exit

• Contrast

• Brightness

• Focus

• Clock

• H.Position

• V.Position

• Language

• Input signal Selection

• Auto configuration (Analog model only)

• (Warm) Color

• (Cool) Color

• RGB Color temperature

• Reset

• OSD position /timeout

• Display information

• Exit

45 Watts

CUL, FCC, VCCI, CCC, MPRII, CE, TÜV/GS,

CE, TCO’99, ISO13406-2

9

Factory Preset Timing Table

10

Monitor Block Diagram

The LCD MONITOR contains a main board, an inverter/power board, keypad board and audio board which
house the flat panel control logic, brightness control logic and DDC.
The Inverter board will drive the backlight of panel.
The Power will provide the 12V DC-power to inverter board and main board.

Monitor Block Diagram

POWER (90V-264V)

AUDIO IN

PWPC

AUDIO

ANALOG IN

DVI IN

MCU

DC-DC

LCD Controller

-Scaler

-OSD

-LVDS IC

-ADC

SPEAKER

KEY BOARD

LAMP

LCD PANEL

SPEAKER

11

d

AT24C02

(DDC) U301

VGA Input

MAIN BOARD DIAGRAM

DDC SCL/SDA

VGA R/G/B

VGA Hs / Vs

RXD/TXD

U601

VCC3.3V

VAA2

VAA1

U401

TSU16AK

VAA4

VAA3 VCC2.5V

PA 0~9

PB 0~9

Panel

VLCD

Winbon

AT24C16

EPR SDA/SCL

KEY Control

12

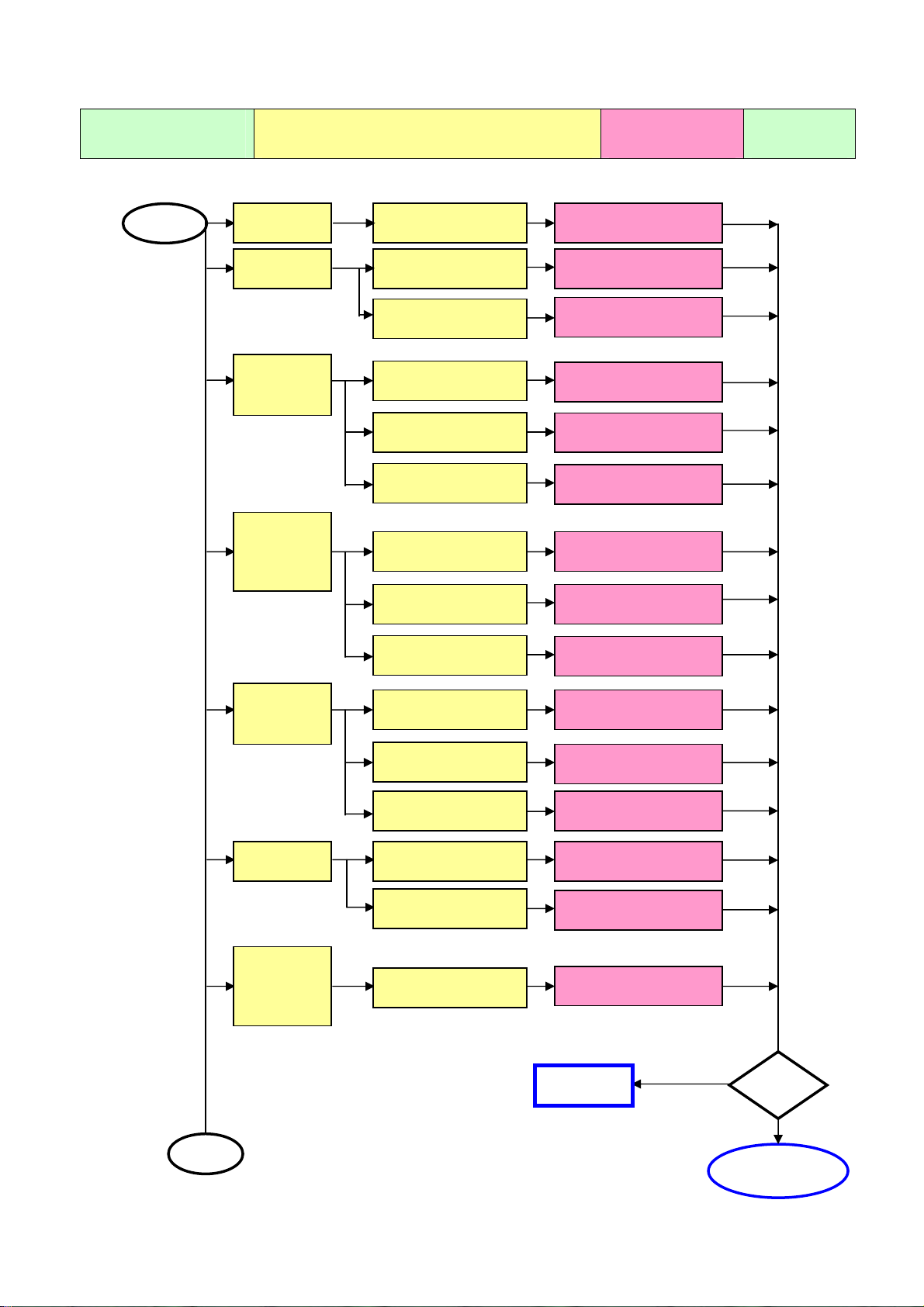

Software Flow Chart

N

N

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(9)

(11)

(12)

Y

(7)

Y

(10)

13

1. Initialize MCU settings, including I/O, Timer, ISR and Serial Port settings.

2. Read EEPROM content to recover monitor settings, including brightness, contrast, color
temperature and OSD position….etc.

3. Initialize system variable, including system flag, OSD timeout counter, burin mode status… etc.

4. Initialize OSD menu variable for user operation

5. Initialize device on the board, now only MST scaler chip will be initialized

6. Check if system is in power off status from first AC power up. If yes, then go to 7, else go to 8.

7. If yes, system will be forced to enter power off status

8. Mode detection

9. Check if input timing has been changed, if yes then go to 10, else go to 11

10. Setup MST scaler for display according input timing

11. OSD handler for OSD operation.

12. Debug handler, only debug only

14

Monitor Board Layout

Item Description

X401 CRYSTAL 14.318MHzHC-49U

X601 20MHz
U201 RT9164A18PG S0T-223
U202 AIC1084-33CM
U301 M24C02-WMN6T SMT
U401 TSU16AK pqfp-128
U601 W78E65P-40

CN201 HEADER 2*6P
CN301 D-SUB 15PIN
CN302 3 PIN
CN503 PIN HEADER 24P 2.0mm
CN601 PIN EADER
CN602 WAFER 16PIN 2.0mm DIP
RN601 CHIP AR 8P4R 10KOHM +-5
RN602 CHIP AR 8P4R 10KOHM +-5

15

Inverter Board Layout

Item Description

PT201 1.5MM RIVET
PT202 1.5MM RIVET

IC901 SG6841D BY SYSTEM
IC902 PC123 Y82

IC903 HTL431
CN102 HEADER 2*6P
CN201 WAFER
CN202 WAFER
CN203 CONN.2P R/A 87210-0236 DIP
CN204 WAFER
CN301 PHONE JACK(Only for SPK)
CN302 3 PIN
BD901 BRIDGE 2KBP06M
NR901 8 OHM NCTR

C905 100UF +-20% 400V
T901 X'FMR
Q211 2SC5706 DIP SANYO

16

Front Bezel

Item Description

1 Auto Adjust Key/ Exit
2 >/ Volume up (option)
3 </ Volume down (option)
4 MENU/ENTER

5 LED
6 POWER

17

Back Bezel

Item Description

1 AC POWER CORD
2 Signal Cable
3
4 DVI Cable (Only Dual-Input Mode)

Audio Cable（Only for speaker）

18

Chapter 2

Operating Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.

• Connect the video cable from the monitor to the video card.

• Press the power button to turn on the monitor position. The power indicator will light up.

External Control Button

EXTERNAL CONTROLS

1. Auto Adjust Key/Exit 4. MENU/ENTER

2. >/ Volume up (option) 5. LED

3. </ Volume down (option) 6. Power Key

FRONT PANEL CONTROLS

• Power Button:

Press this button to turn the monitor ON or OFF.

• MENU / ENTER:

Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit
OSD menu when in Volume Adjust OSD status.

• </ Volume down:

Activates the volume control when the OSD is OFF or navigate through adjustment icons when OSD is ON or
adjust a function when function is activated.

19

• >/ Volume up:

Activates the volume control when the OSD is OFF or navigate through adjustment icons when OSD is ON or
adjust a function when function is activated.

• Auto Adjust button / Exit:

1. When OSD menu is in active status, this button will act as EXIT-KEY
(Exit OSD menu).

2. When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function.

The Auto Adjustment function is used to set the H-Pos, V-Pos, Clock and Focus.

• Power Indicator:

Green —Power On mode.
Orange— Power Off mode.

NOTES

NOTES

• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to
direct sunlight, or excessive dust or mechanical vibration or shock.

• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship
your monitor.

• For maximum protection, repackage your monitor as it was originally packed at the factory.

• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a

cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or
abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor
before cleaning it.

20

OSD Menu

21

How to adjust a setting:

1. Press the MENU-button to activate the OSD window. See figure 4.

2. Press <or >to select the desired function. See figure 4.

3. Press the MENU-button to select the function that you want to adjust.

4. Press < or >to change the settings of the current function.

5. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-4.

The description for control function:

Main Menu Icon Sub Menu Icon Sub Menu Item Description

Contrast Contrast from Digital-register.

Brightness Backlight Adjustment

Focus Adjust Picture Phase to reduce Horizontal-Line noise

Clock Adjust picture Clock to reduce Vertical-Line noise.

H. Position Adjust the horizontal position of the picture.

V. Position Adjust the vertical position of the picture.

N/A Warm Recall Warm Color Temperature from EEPROM.
N/A Cool Recall Cool Color Temperature from EEPROM.

N/A English Set OSD display language to English.
N/A
N/A Deutsch Set OSD display language to German.
N/A
N/A

User / Red Red Gain from Digital-register.

User / Green Green Gain Digital-register.

User / Blue Blue Gain from Digital-register.

繁體中文

简体中文

日本語

Set OSD display language to Traditional Chinese.

Set OSD display language to Simplified Chinese.

Set OSD display language to Japanese.

H. Position Adjust the horizontal position of the OSD.

V. Position Adjust the vertical position of the OSD.

OSD Timeout Adjust the OSD timeout.

22

Main Menu Icon Sub Menu Icon Sub Menu Item Description

(Only Analog-Input

Model)

(Only Dual-Input

Mode)

N/A Auto Config

N/A Analog Select input signal from analog (D-Sub)

N/A Digital Select input signal from digital (DVI)

N/A Information

N/A Reset

N/A Exit Exit OSD

Auto Adjust the H/V Position, Focus and Clock of

picture.

Show the resolution, H/V frequency and input port of

current input timing.

Clear each old status of Auto-configuration and set

the color temperature to Cool.

Hot-Key Menu

The description for Hot-Key function:

Item Operation Icon Description

When the OSD is closed, press Left or

Volume

Right button will be Volume Hot-Key

Function

Volume of Audio adjustment. The Audio

will be Mute when volume=0.

23

OSD Message

The description for OSD Message:

Item Description

Auto Config
Please Wait

Input Not

Supported

Cable Not

Connected

No Signal

1.) When Analog signal input, if User Press Hot-Key “Auto”, will show this message, and the
monitor do the auto config function.

2.) When Digital signal input, without this OSD Message.

When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range,
will show this message. This message will be flying.

1.) Analog-Only Model: When the video cable is not connected, will show this message. This
message will be flying.

2.) Dual-Input Model: Dual-Input Model without this OSD Message.

1.) Analog-Only Model: When the video cable is connected, but there is no active signal input,
will show this message, then enter power saving.

2.) Dual-Input Model: When the video cable is not connected, or the video cable is connected
but there is no active signal input, will show this message, then enter power saving.

LOGO

When the monitor is power on, the LOGO will be showed in the center, and disappear slowly.

24

Chapter 3

Machine Disassembly

This chapter contains step-by-step procedures on how to assemble the monitor for maintenance and
troubleshooting.

NOTE: 1.The screws for the different components vary in size. During the disassembly process, group the

screws with the corresponding components to avoid mismatch when putting back the components.

2. Note: The monitor surface is susceptible to scratching! Therefore, lay the monitor on a soft surface

when mounting or removing the base.

3.Wear gloves

Picture Description

To stick the insulated film on the mainframe
and the shield

1

2

Make preparation before putting the main
board:

1.insert the wiring harness

2.stick the soft cushion

To put the bezel on panel

To fix the main frame and panel with the
screws

25

Picture Description

To put inverter board, and connect related
interfaces

To fix the board with screws

To fix the wires with adhesive tape

Connect Inverter board with Audio board

To fix Audio board with screws

To connect main board with Audio board

To connect all other interfaces

26

To fix the main board with screws

After having fix the board, cover the shield on
them

STRENGTH:

In the end, cover the back bezel and connect above part with the chassis

Warning: 1.In order to prevent the static disturbance, wear resisting static ring

2. No watch

27

Chapter 4

Trouble shooting

This chapter provides troubleshooting information for the AL1715:

Defect Mode Failure Analysis Repair Testing

Abnormal

Display

Missing Line

Bright Dot

Dark Dot

Light Leakage

Mura

Image Sticking

Dot Defect

Brightness Spot

Dot Defect

Particle

No display Check Power Board

Check Panel

Panel Change

Change Power Board

Noise

28

Check Main board

Check Panel

Check Keyboard

Check Line Connected
Power board and Mainborad

Check Main board

Check Panel

Change Main board

Change Panel

Change Keyboard

Change Wires

Change Main board

Change Panel

NG

Next

Test

Completed

Defect Mode Failure Analysis Repair Testing

A

Noise Check Single Cable Change Single Cable

Flicker Check Main board Change Main board

Check Panel

Change Panel

Abnormal
Gray

R\G\B
Display
Abnormal

Monitor
Shut Down

No signal Check Single Cable Change Single Cable

Power on
Display
Abnormal

Check Main board

Check Panel

Check LVD Cable

Check Single Cable Change Single Cable

Check Main board Change Main board

Check Panel

Check Power board Change Power board

Check Main board

Check Keyboard Change Keyboard

Check Main board

Check Main board

Change Main board

Change Panel

Change LVD Cable

Change Panel

Change Main board

Change Main board

Change Main board

Next

Test

A

29

Completed

Defect Mode Failure Analysis Repair Testing

LED
Display
Abnormal

LED Off

LED Dark

Change Keyboard or
Mainboard or wire

Change Keyboard or
Mainboard

LED Abnormal

Change Keyboard or
Mainboard or wire

Abnormal
Keyboard

Abnormal
OSD

LED Flicker

Check Wires

Check Main board

Check Keyboard

Check Main board

Check LVDS Wire

Change Keyboard or
Mainboard or wire

Change Wires

Change Main board

Change Keyboard

Change Main board

Change LVDS Wire

Next

Test

Completed

30

Chapter 5

Connector Information

The following figure shows the connector locations on the monitor board:

31

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Acer Altos
AL1721.Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise
Authorization). Please note that WHENORDERING FRU PARTS, you should check the most up-to-date
information available on your regional web or channel. For whatever reasons a part number change is made, it
will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide.
You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service
of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations
on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Exploded Diagram

32

Note: above picture show the description of the following

component

No. Picture Description

1

2

3

Front Bezel

Main Frame

Back cover

4

33

Panel

5

Shield

No. Picture Description

6

Hinge cover

7

Stand base

8

9

10

Foot sticker

Inverter board

Mylar

34

11

Function board

12

Speaker (option)

No. Picture Description

13

Main board

14

Audio Board (option)

15

16

17

18

Signal cable

Audio cable (option)

Power code

Inverter board cable

19

35

LVDS cable

20

Sponge

21

Mainframe screws

No. Picture Description

22

Rear panel screws

23

Ground rush

24

25

26

27

Hinge cover screws

Function board

screws

Main shield screws

D-sub screws

36

Chapter 7

Schematic Diagram

INPUT

CN302

RGB GND

HSYNC

VSYNC

SYNC GND

DDC SCL

DDC SDA

1/3shield
2/4shield
0/5shield

clk shield

DAT0+

DAT1+

DAT2+

DAT3+

DAT4+

DAT5+

JACK NC

11

12

13

14

15

HSI

VSI

D319
MLL5232B 5.6V

25

R

26

G

27

B

29
28
8
15
6
7
14

+5V

16

HPD

11
3
19
22

18
17

DAT0-

10
9

DAT1-

2
1

DAT2-

13
12

DAT3-

5
4

DAT4-

21
20

DAT5-

23

clk+

24

clk-

CN301

DB15

1
6
2
7
3
8
4
9
5
10

CLK_DDC2
DAT_DDC2

PC5V

VGA_CON

FB304 150 OHM

D320
MLL5232B 5.6V

D321
MLL5232B 5.6V

RXD 6
TXD 6

3

D301
BAV99

1

2

2

R312 100 1 /16W

D318
MLL5232B 5.6V

D314
LL5232B 5.6V 5% NC

D306

D308

D307

NC

NC

NC

3

D302
BAV99

1

2

R319 100 1 /16W NC
R320 100 1 /16W NC

D315
LL5232B 5.6V 5% NC

D310

D309

NC

NC

FB301 0 1/16W

FB302 0 1/16W

FB303 0 1/16W

R325

75 1/16W

3

D303
BAV99

VCC5V

1

R313

2.2K 1/16W

CLK_DDC

DAT_DDC

D316
LL5232B 5.6V 5% NC

D313

D312

D311

NC

NC

NC

C311

33pF

C301

NC

DVI5V

R326

75 1/16W

R314

10K 1/16W

R321

10K 1/16W NC

C314

0.1uF NC

C302

R327

NC

NC

75 1/16W

C312

220pF

R322 100 1 /16W NC

R301 100 1 /16W

R302 100 1 /16W

R303 100 1 /16W

R304 470 1 /16W

C303

R305 100 1 /16W

R306 100 1 /16W

R307 100 1 /16W

VCC5V

R308

10K 1/16W

R309 100 1/16 W

R310 150 1/16 W

R311 1K 1/16W

D317
MLL5232B 5.6V

ST_DET2 6

B+ 4
B- 4
G+ 4
G- 4
R+ 4
R- 4

CLK+ 4
CLK- 4

C304 0.047uF

C305 0.047uF

C306 0.047uF

C307 0.001uF

C308 0.047uF

C309 0.047uF

C310 0.047uF

ST_DET1 6

HSYNC 4

VSYNC 4

RIN 4

GIN 4

BIN 4

SOG 4

GNDR 4

GNDG 4

GNDB 4

DDC_DAT6
DDC_CLK6

10K 1/16W

R315 100 1 /16W
R316 100 1 /16W

10K 1/16W NC

R317

R323

VCC5V

2

R318
10K 1/16W

VCC5V

R324
10K 1/16W NC

3

2

PC5V

1

BAT54C-GS08

8
7
6

DVI5V

1

3

D304

U301

AT24C02N-10SC

8
7
6

A0

VCC

A1

WP

A2

SCL

GNDSDA

D305
BAT54C-GS08 NC

U302

A0

VCC

A1

WP

A2

SCL

GNDSDA

AT24C02N-10SC NC

1
2
3
45

1
2
3
45

C313

0.1uF

C315

0.1uF NC

37

SCALER TSU16AK

VAD

VPLL

55354535111218494

65

U401

AVDD

AVDD

RIN3

GNDR3

GIN3

GNDG3

SOG3

BIN3

GNDB3
HSYNC3
VSYNC3

R+3
R-3
G+3
G-3
B+3
B-3

CLK+3

CLK-3

VDVI

R403 390 1/16W

CSZ6

SCL6

SDA6

HWRESET6

AdjBACKLITE2

Volume6

C402 22pF

14.318MHz

C403 22pF

C404 0.1uF

63

RIN0

62

RIN0M

60

GIN0

59

GIN0M

61

SOGIN0

58

BIN0

57

BIN0M

37

HSYNC0

38

VSYNC0

29

DEL

C401

0.1uF

INT6

X401

DDC1_CLK/GPO8

28

DDC1_DAT/GPO7

40

R+

41

R-

43

G+

44

G-

46

B+

47

B-

49

CK+

50

CK-

52

REXT

66

REFP

67

REFM

69

CSZ

71

SCL

70

SDA

32

HWRESETZ

72

INT

73

PWM0

74

PWM1

33

XIN

34

XOUT

BYPASS
AVSS_LPLL

AVSS

AVSS

AVSS

56

64

68

VDVI

AVDD_MPLL

AVSS_MPLL

36254

VDPLL

53

AVDD_DVI

AVDD_DVI

TSU16AK

AVSS_PLL

39

VPO

VDDP

VDDP

VDDP

AVDD_PLL

AVSS_DVI

AVSS_DVI

GNDP

AVSS_DVI

4210208595

48

104

114

VDDP

VDDP

GNDP

GNDP

126188797117

VDDP

VDDP

VDDC

NC/LVBCKM

BUS TYPE/NC

GNDP

GNDP

GNDP

GNDP

115

1271986

105

VDD

VDDC

VDDC

VDDC

LVA3P

LVA3M
LVACKP
LVACKM

LVA2P

LVA2M

LVA1P

LVA1M

LVA0P

LVA0M

NC/LVB3P
NC/LVB3M

NC/LVBCKP

NC/LVB2P
NC/LVB2M
NC/LVB1P
NC/LVB1M
NC/LVB0P
NC/LVB0M

ADO/NC

AD1/NC
AD2/NC
AD3/NC

GNDC

GNDC

GNDC

96

VPO

FB401

VCC3.3

VCC3.32

PA0

102

PA1

103

PA2

106

PA3

107

PA4

108

PA5

109

PA6

110

PA7

111

PA8

112

PA9

113

PB0

118

PB1

119

PB2

120

PB3

121

PB4

122

PB5

123

PB6

124

PB7

125

PB8

128

PB9

1

VCC5V

R404

R405

R407

10K 1/16W

10K 1/16W

10K 1/16W

30
77
78
31

6

GNDC

116

Direct Bus

3-WIRE

R406

10K 1/16W

R401

4.7K

NC

PA[0..9]

PB[0..9]

600 OHM

C405

10uF/16V

AD0 6
AD1 6
AD2 6
AD3 6

R402

4.7K

NC

+

PA[0..9] 5

PB[0..9] 5

C406

0.1uF

VCC3.3

C408

C407

0.1uF

0.1uF

R401

NC

R402

4.7K 1/16W

C410

C411

C412

C409

0.1uF

0.1uF

0.1uF

0.1uF

C413

0.1uF

VCC2.52

VCC2.5

FB402

VDD

600 OHM

+

C414

10uF/16V

VAA1

FB403

VAA12

VAA22

VAA32

VAA42

VAA2

VAA3

VAA4

600 OHM

10uF/16V

FB404

600 OHM

10uF/16V

FB405

600 OHM

10uF/16V

FB406

600 OHM

10uF/16V

C419

C422

C424

C427

VAD

VPLL

VDVI

VDPLL

C416

C417

C418

C415

0.1uF

0.1uF

0.1uF

0.1uF

+

C421

C420

0.1uF

0.1uF

+

C423

0.1uF

+

C425

C426

0.1uF

0.1uF

+

C428

0.1uF

38

PANEL INTERFACE

PA[0..9]4

PB[0..9]4

PA[0..9]

PB[0..9]

PA0
PA1
PA2
PA3
PA4
PA5

PA6
PA7

PA8
PA9
PB0
PB1
PB2
PB3

PB4
PB5
PB6
PB7
PB8
PB9

LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M

LVA1P
LVA1M

LVA0P
LVA0M
LVB3P
LVB3M
LVBCKP
LVBCKM

LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M

CN503

LVB0M
LVB1M
LVB2M
LVBCKM
LVB3M
LVA0M
LVA1M
LVA2M
LVACKM
LVA3M

RXO0­RXO1­RXO2­RXOC­RXO3­RXE0­RXE1­RXE2­RXEC­RXE3-

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24

CON24A

VLCD

RXO0+
RXO1+
RXO2+
RXOC+
RXO3+
RXE0+
RXE1+
RXE2+
RXEC+
RXE3+

VLCD 2

LVB0P
LVB1P
LVB2P
LVBCKP
LVB3P
LVA0P
LVA1P
LVA2P
LVACKP
LVA3P

R502

0 1/16W

C509

+

22uF/16V

C510

0.1uF

C511

0.1uF

39

MCU

OUT-L+
OUT-L-

VCPU

CN601

1 2
3 4
5 6
7 8

9 10
11 12
13 14

CON14A

U603 MAX810STR (NC)

GND

1

Reset
Circuit

C605

.1u

OUT-R+
OUT-R-

RSTVCC

23

FB601 600 OHM

U602

1

A0

VCC

2

A1

WP

3

A2

SCL

4 5

GND SDA

24C16

VCC5V

FB602 600 OHM

C613

0.1uF/16V

FB603

600 OHM

VCPU2

VCPU

8
7
6

VCC12V

R627 10K 1/16W
R626 10K 1/16W

C612

0.1uF/16V

D601

1N4148

R638 0

VCC12V 2

VCC5V 2,3,4

R625 10K 1/16W

C611

1uF/16V

C603

10u/16V

R603

10K

R604 10K
R605 10K

R639 NC

ST_DET13
ST_DET23

LED_G

AUTO

R620 0

RIGHT

R622 0

POWER

R624 0

C602 22pF

11.0592MHZ

C604 22pF

R615 10K
R614 10K

R616

4.7K

Y601

INT4

R608 100
R609 100

Standby

Mute

Volume 4

VCPU

E

B

C

C606

NC

VCPU

R601

10K

R617

470

Q601

PMBS3906

C608

NC

C601

R602

.1u

10K

U601

35

EA/VP

21

XTAL1

20

XTAL2

10

RESET

12

P4.3

14

INT0/P3.2

15

INT1/P3.3

33

ALE/P

32

PSEN

2

P1.0

3

P1.1

4

P1.2

5

P1.3

6

P1.4

7

P1.5

8

P1.6

9

P1.7

8051-PLCC

VCPU

R631

R632

10K

10K

R630 0
R633 0

DVI-DSUB SELECT LED_BLUE
LED_GRN

C610

OUT-L+
OUT-L-

NC

T0/P3.4

T1/P3.5
P3.6/WR
P3.7/RD

P3.1/TXD

P3.0/RXD

VSS VCC

22 44

1 2
3 4
5 6
7 8
9 10

11 12
13 14
15 16

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

DVI-DSUB SELECT
Mute_key

C614

NC

CN602

CON16A

RP601

10Kx4

43
42
41
40
39
38
37
36

24
25
26
27
28
29
30
31
16
17
18
19

13
11

C615

NC

123

45

45

678

R606 10K
R607 10K

R610 NC
R611 NC
R634 100
R635 100

VCPU

LED_ORANGE

Mute_key
OUT-R+
OUT-R-

678

VCPU

123

R628

470

E

PMBS3906

C

RP602

10Kx4

CN603
1

2
3
4

Q603

B

POWER
ENTER
RIGHT
LEFT
AUTO
LED_B
LED_O
LED_G

R612

NC

R629 4.7K

R613

10K

C607

NC

HWRESET 4
onPANEL_5V/3.3V 2
onBACKLITE 2
CSZ 4
SCL 4
SDA 4

VCPU

AD0 4
AD1 4
AD2 4
AD3 4

DDC_DAT 3
DDC_CLK 3
TXD 3
RXD 3

LED_B

R621 0
R623 0

C609

NC

VCPU

ENTER
LEFT

R618

470

E

PMBS3906

C

Q602

B

R619 4.7K

LED_O

40

Appendix

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch

office. Acer Branch Offices and Regional Business Units may access our website. However some

sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop

Server models including:

Service guides

User's manuals

Training materials

Bios updates

Spare parts lists

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of

technical material.

Also contained on this website are:

Detailed information on Acer's International Traveler's Warranty (ITW)

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax

contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions

comments, please do not hesitate to communicate these to us.

41
