eMachines E510 Series

Service Guide

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on Aspire Nettling service guide.

Date Chapter Updates

Copyright © 2008 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation. Intel is a registered trademark of Intel Corporation. Pentium and Pentium II/III are trademarks of Intel Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

System Specifications

Features

Below is a brief summary of the computer’s many feature:

Operating System

• Genuine Windows® VistaTM Capable

• Genuine Windows® VistaTM Home Basic / Home Premium / Ultimate / Business Edition

• Genuine Windows® XP Home / Professional Edition (Service Pack 2)

• Genuine Windows® XP Media Center / Tablet Edition

• Genuine Windows® 2000 (Service Pack 4)

NOTE: Windows® VistaTM Capable PCs come with Windows® XP installed, and can be upgraded to

Windows® VistaTM. For more information on Windows® VistaTM and how to upgrade, go to: Microsoft.com/windowsvista.

Platform

Chapter 1

• Intel® Celeron® (Santarosa) processor technology, featuring:

• Intel® Celeron processor

• Mobile Intel® GL960 Express Chipset

• Intel® Wireless Atheros / Broadcom

System Memory

• Dual-Channel DDR2 SDRAM support

• Up to 1 GB of DDR2 553 MHz memory, upgradeable to 2 GB using two soDIMM modules*

Display and graphics

• 14.1" WXGA 1280 x 800

• Mobile Intel® GL960 Express Chipset

Storage subsystem

• 2.5" hard disk drive

• Optical drive options:

• DVD-Super Multi double-layer drive

• 5-in-1 card reader

Audio

• Built-in stereo speakers

• S/PDIF (Sony/Philips Digital Interface) support for digital speakers

Chapter 1 1

• Built-in microphone

Dimensions and Weight

• 366 (W) x 274 (D) x 33.6/42.6 (H) mm (14.4 x 10.78 x 1.32/1.67 inches)

• 2.8 kg (6.16 lbs.)

Communication

• Acer Video Conference, featuring:

• Integrated Acer Crystal Eye webcam

• Acer Video Conference Manager software

• Acer PureZone technology

• Optional Acer Xpress VoIP phone

• WLAN: Atheros / Broadcom

• LAN: Gigabit Ethernet; Wake-on-LAN ready

Privacy control

• BIOS user, supervisor, HDD passwords

• Kensington lock slot

Power subsystem

• ACPI 3.0

• 48.8 W 4400 mAh*

• 3-pin 65 W AC adapter*

• Energy Star 4.0

Special keys and controls

• 88-/89-/93-key keyboard

• Touch Pad pointing device

• WLAN button/Switch

I/O interface

• 3 USB 2.0 ports

• Headphone port

• Microphone-in jack

• Line-in

• Ethernet port

• DC-in jack for AC adapter

• Kensington Lock (7.5mm diameter)

•

Environment

• Temperature:

2 Chapter 1

• Operating: 5 °C to 35 °C

• Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

Chapter 1 3

System Block Diagram

4 Chapter 1

Board Layout

2 3 4234

1010

1414

1212

1313

1515

1616

1111

Top View

1 JP1 LCD Connector 9 JP36 Mainboard to LED Board

2 JP3 Speaker (Left) Connector 10 U12 3 JP34 Speaker (Right) Connector 11 JP9 PCI Express Card Socket 4 JP4 Internal MIC Connector 12 LED1 Power/Suspend LED 5 U5 South Bridge (ICH8M) 13 LED2 Battery Charge/Discharge LED 6 JP6 Internal Track-Pad Connector 14 JP13 Mainboard to Audio Board

7 JP5 Internal Keyboard Connector 15 JP11 Mainboard to USB Board

8 JP2 Mainboard to Button Board

Connector

16 JP12 Bluetooth Module Connector

Connector

Chapter 1 5

Bottom View

1010

1414

1212

1313

1515

1616

1111

1717

1818

1919

2020

2222

232323

242424

252525

212121

1 PJP1 DC-in Power Jack 14 JP24 TV-out Connector 2 PJP2 Battery Connector 15 JP26 IEEE1394 Connector 3 JP14 CRT Connector 16 JP27 SATA HDD Connector 4 JP15 DVI-D Connector 17 U23 North Bridge (965PM/965GM) 5 JP25 ODD Connector 18 U28 6 JP20 Mini Card (WLAN) Socket 19 U29 Volume Control 7 JP19 Mini Card (TV-Tuner) Socket 20 JP28 DDRII Memory Socket 8 JP17 MDC Connector 21 JP29 DDRII Memory Socket 9 JP22 CPU Socket 22 JP31 Headphone/SPDIF Jack 10 JP16 Internal Fan Connector 23 JP32 Mic-in Jack 11 JP19 VGA Board Connector 24 U33 Audio Codec Controller 12 JP18 RJ45 (LAN) Connector 25 JP33 Line-in Jack 13 JP23 USB (Dual) Connectors

6 Chapter 1

Your Acer Notebook Tour

After knowing your computer features, let us show you around your new Aspire computer.

Front View

# Icon Item Description

1 Built-in camera 0.3 megapixel web camera for video

communication.

2 Power button Turns the computer on and off.

3 Easy-launch buttons Buttons for launching frequently used

4 Wireless communication

button/indicator

Bluetooth communication button/ indicator

programs. Enables/disables the wireless function.

Indicates the status of wireless LAN communication.

Enables/disables the Bluetooth Indicates the status of Bluetooth communication.

function.

Chapter 1 7

6 Keyboard For entering data into your computer. 7 Touchpad Touch-sensitive pointing device which

8 Click buttons (left,

9 Microphone Internal microphone for sound recording.

10 Display screen Also called Liquid-Crystal Display (LCD),

11 Status indicators Light-Emitting Diodes (LEDs) that light up

12 Empowering button Launches the Empowering Technology

13 Speaker Left and right speakers deliver stereo audio

14 Palmrest Comfortable support area for your hands

Closed Front View

center, and right)

functions like a computer mouse. The left and right buttons function like the

left and right mouse buttons.

displays computer output.

to show the status of the computer’s functions and components.

toolbar.

output.

when you use the computer.

# Icon Item Description

1 Power indicator Indicates the computer’s power status.

2 Battery indicator Indicates the computer’s battery status.

3 Line-in jack Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

4 Microphone-in jack Accepts input from external microphones.

5 Headphones/speaker/

line-out jack with S/PDIF support

6 Infrared port Interfaces with infrared devices (e.g.

Connects to audio line-out devices (e.g., speakers, headphones).

infrared printer and IR-aware computer).

8 Chapter 1

Left View

# Icon Item Description

1 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

2 External display (VGA)

port

3 4 Ethernet (RJ-45) Connects to an Ethernet 10/100/1000-

5 2 USB 2.0 port Connect to USB 2.0 devices (e.g., USB

6 S-video/TV-out (NTSC/

7 4-pin IEEE 1394 port Connects to IEEE 1394 devices.

8 Volume control Increases and decreases the volume. 9 5-in-1 card reader Accepts Secure Digital (SD),

10 PCI Express Card slot Accepts an Express Card/54 module.

DVI

DVI-D port Supports digital video connections.

PAL) port

Connects to a display device (e.g., external monitor, LCD projector).

based network (for selected models).

mouse, USB camera).

Connects to a television or display device with S-video input.

MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xDPicture Card (xD).

Note: Express Cards are third generation of PC cards, hot-swapable and maller than previous PC Cards. Designed for both desktop and mobile use, Express Cards use either USB 2.0 or a single lane PCI Express technology that provides 500 Mbytes/sec total throughput. Formerly code named “NEWCARD,” Express Cards are 5mm thick like Type II PC Cards, but do not use the same 86x54mm footprint. Express Cards come in 75x54mm and 75x34mm sizes. Express Card/54 slot means this notebook accepts 75x54mm Express Cards.

Chapter 1 9

Right View

# Icon Item Description

1 2 USB 2.0 ports Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

2 AV-in port Accepts input signals from audio/video

3 Optical drive Internal optical drive; accepts CDs or DVDs

4 Optical disk access

5 Optical drive eject

6 Emergency eject hole Ejects the optical drive tray when the

7 Modem (RJ-11) port Connects to a phone line.

8 RF-in port Accepts input signals from analog/digital

Rear view

(AV) devices.

(slot-load or tray-load depending on model).

Lights up when the optical drive is active.

indicator

Ejects the optical disk from the drive.

button

computer is turned off.

TV-tuner devices (for selected models).

# Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ventilation slots Enable the computer to stay cool, even

after prolonged use.

10 Chapter 1

Base view

# Item Description

1 Battery bay Houses the computer’s battery pack. 2 Battery release latch Releases the battery for removal. 3 Battery lock Locks the battery in position. 4 Hard disk bay Houses the computer’s hard disk (secured with screws) 5 Ventilation slots and

cooling fan

Enable the computer to stay cool, even after prolonged use. Note: Do not cover or obstruct the opening of the fan.

Indicators

The computer has several easy-to-read status indicators.

The front panel indicators are visible even when the computer cover is closed up.

Chapter 1 11

Icon Function Description

Power Lights up when the computer is on.

Battery Lights up when the battery is being charged.

Wireless LAN Indicates the status of wireless LAN communication.

Bluetooth Indicates the status of Bluetooth communication.

HDD Indicates when the hard disc or optical drive is active.

Num lock Lights when Num Lock is activated.

Cap lock Lights when Cap Lock is activated

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows

green when in AC mode.

Easy-Launch Buttons

To the top of the keyboard there are four easy-launch buttons: Web browser, mail, arcade buttons and an Empowering Key “ .

Press “ “ to run the Acer Empowering Technology. The mail and Web browser buttons are pre-set to email and Internet programs, but can be reset by users. To set the Web browser and mail buttons, run the Launch Manager.

12 Chapter 1

Launch Button Default application

Acer Empowering Technology (user-programmable)

Web browser Internet browser (user-programmable) Mail Email application (user-programmable) Arcade Windows Media Center

Touchpad Basics

The following teaches you how to use the touchpad:

T Move your finger across the touchpad (2) to move the cursor. T Press the left (1) and right (4) buttons located beneath the touchpad to perform selection and

execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

T The center (3) button to mimics your cursor pressing on the right scroll bar of Windows

applications.

Function Left Button (1) Right Button (4) Main touchpad (2) Center button (3)

Execute Click twice quickly Tap twice (at the

Select Click once Tap once Drag Click and hold, then

use finger on the touchpad to drag the cursor.

Access context menu

Scroll Click and hold to

Click once

same speed as double-clicking the mouse button)

Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.

move up/down/left/ right.

NOTE: When using the touchpad, keep it - and your fingers - dry and clean. The touchpad is sensitive to finger

movements; hence, the lighter the touch, the better the response. Tapping too hard will not increase the touchpad’s responsiveness.

Chapter 1 13

Using the Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, one Windows key and twelve function keys.

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed

are in uppercase.

Num lock

Scroll lock

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keybo ard legend, cursor-control key symbols are not printed on the keys.

Desired Access Num Lock On Num Lock Off

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys Hold <Fn> while typing

Type numbers in a normal manner.

Hold <Shift> while using cursor-control keys.

letters on embedded keypad.

Hold <Fn> while using cursor-control keys.

Type the letters in a normal manner.

Windows Keys

The keyboard has one key that performs Windows-specific functions.

14 Chapter 1

Key Icon Description

Windows key Pressed alone, this key has the same effect as

clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of function:

+ <Tab> Activates next taskbar button.

+ <E> Opens the My Computer window

+ <F1> Opens Help and Support.

+ <F> Opens the Search: All Files dialog box.

+ <R> Opens the Run dialog box.

+ <M> Minimizes all windows.

<Shift>+ + <M> Undoes the minimize all windows action.

This key has the same effect as clicking the right

Application key

mouse button; it opens the application’s context menu.

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness, volume output, and the BIOS utility.

To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hot Key Icon Function Description

<Fn>+<F1> Hot key help Displays help on hot keys.

<Fn>+<F2> Acer eSettings Launches the Acer eSettings in Acer eManager.

<Fn>+<F3> Acer ePower

Management

<Fn>+<F4> Sleep Puts the computer in Sleep mode.

Launches the Acer ePower Management in Acer Empowering Technology. See “Acer Empowering Technology” on page 18.

Chapter 1 15

Hot Key Icon Function Description

<Fn>+<F5> Display toggle Switches display output between the display screen,

<Fn>+<F6> Screen blank Turns the display screen backlight off to save power.

<Fn>+<F7> Touchpad toggle Turns the internal touchpad on and off.

<Fn>+<F8> Speaker toggle Turns the speakers on and off.

<Fn>+<x> Brightness up Increases the screen brightness.

<Fn>+<z> Brightness down Decreases the screen brightness

<Fn>+<Home> Play/Pause Plays or pauses the media.

<Fn>+<Pg Up> Stop Stops the media playing.

external monitor (if connected) and both.

Press any key to return.

<Fn>+<Pg Dn> Previous Returns to previous media file.

<Fn>+<End> Next Jumps to next media file.

Special Key

You can locate the Euro symbol and US dollar sign at the upper-center and/or bottom-right of your keyboard. To type:

The Euro symbol

1. Open a text editor or word processor.

2. Either directly press the <> symbol at the bottom-right of the keyboard, or hold <Alt Gr> and then press the<5> symbol at the upper-center of the keyboard.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/

typography/faq/faq12.htm for more information.

16 Chapter 1

The US dollar sign

1. Open a text editor or word processor.

2. Either directly press the <> key at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the upper-center of the keyboard.

NOTE: This function varies by the operating system version.

Chapter 1 17

Hardware Specifications and Configurations

Processor

Item Specification

CPU type Intel® Celeron (Santarosa) processor Core logic Intel® GL960 Express chipset CPU package Intel socket 1466pin FCBGA CPU core voltage 0.944~1.3V

CPU Fan True Value Table

Test Condition: 35W@Ambient 35 degree

CPU Temperature Fan Speed SPL Spec

Core 0 Core 1 (rpm) (dBA)

45 60 2600 31 55 70 2900 34 65 80 3400 38 75 95 3600 40 85 100 3600 40

BIOS

Item Specification

BIOS vendor Insyde BIOS Version BIOS ROM type Macronix_MX25L8005/ EON_EN25F80 BIOS ROM size 1M bytes BIOS package SPI Flash part Supported protocols ACPI 1.0b/2.0/3.0, PCI 2.2, System/HDD Password Security

Control, INT13h Extensions, PnP BIOS 1.0a, SMBIOS 2.4, Simple Boot Flag 1.0, Boot Block, PCI Bus Power Management Interface Specification, USB1.1/2.0, IEEE 1394 1.0, USB/1394 CD-ROM Boot Up support, PC Card 95 (PCMCIA 3.0 Compliant Device), IrDA 1.0, Intel AC97 CNR Specification, WfM 2.0, PXE (Preboot Execution Environment), BIS 1.0 (Boot Integrity Service Application Program Interface), PC99a and Mobile PC2001 Compliant, Intel Enhanced SpeedStep Technology

BIOS password control Set by setup manual

Cache

Item Specification

Cache controller Built-in CPU Cache size 2MB 1st level cache control Always enabled 2st level cache control Always enabled Cache scheme control Fixed in write-back

System Memory

Item Specification

Memory controller Built-in

18 Chapter 1

Item Specification

Memory size 0MB (no on-board memory) DIMM socket number 2 sockets Supports memory size per socket 2 GB Supports maximum memory size 4G for 64bit OS (with two 2GB SODIMM) Supports DIMM type DDR 2 Synchronous DRAM Supports DIMM Speed 667/800 MHz Supports DIMM voltage 1.8V and 0.9V Supports DIMM package 200-pin soDIMM Memory module combinations You can install memory modules in any combinations as long as

they match the above specifications.

Memory Combinations

Slot 1 Slot 2 Total Memory

0MB 256MB 256MB 0MB 512MB 512MB 0MB 1024MB 1024MB 0MB 2048MB 2048MB 256MB 256MB 512MB 256MB 512MB 768MB 256MB 1024MB 1280MB 256MB 2048MB 2304MB 512MB 256MB 768MB 512MB 512MB 1024MB 512MB 1024MB 1536MB 512MB 2048MB 2560MB 1024MB 0MB 1024MB 1024MB 256MB 1280MB 1024MB 512MB 1536MB 1024MB 1024MB 2048MB 1024MB 2048MB 3072MB 2048MB 0MB 2048MB 2048MB 256MB 2304MB 2048MB 512MB 2560MB 2048MB 1024MB 3072MB 2048MB 2048MB 4096MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various

capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

Chapter 1 19

LAN Interface

Item Specification

Chipset Atheros / Broadcom Supports LAN protocol 10/100/1000 Ethernet Giga LAN Features PCI-E Giga LAN

Support Wake-On-Lan (AC mode S5) No ASF 2.0/iAMT 4.0

Wireless Module 802.11b/g

Item Specification

Chipset Intel Shirley Peak and Echo Peak (for Centrino platform)

Atheros WLAN XB63 and Broadcom WLAN BCM4312 (for

Non-Centrino)

Data throughput 11~54 Mbps, up to 270 Mbps for Draft-N Protocol 802.11b+g, Draft-N Interface PCI bus (mini PCI socket for wireless module)

Hard Disk Drive Interface

Item

Data heads 2 3 (for Hitachi and

Seagate) 4 (for

Toshiba) Drive Format Disks 1 1 1 1 Spindle speed

(RPM) Performance

Specifications Buffer size 2048KB 8192KB 8192KB 8192KB Interface ATA/ATAPI-6;

Max. media transfer rate (disk-buffer, Mbytes/s)

Data transfer rate (host~buffer, Mbytes/s)

DC Power Requirements

Voltage tolerance 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%

5400 RPM 5400 RPM 5400 RPM 4200 RPM

ATA/ATAPI-6;

ATA-6 372 350 350 350

100 MB/Sec. Ultra DMA mode5

ATA-6

100 MB/Sec.

Ultra DMA mode-

4 (for Hitachi) 3 (for Seagate)

ATA/ATA-6; ATA-6 ATA/ATA-6; ATA-

100 MB/Sec. Ultra DMA mode5

Combo Drive Module

Item Specification

Vendor & model name HLDS COMBO 12.7mm Tray 24X GCC-T10N SONY COMBO 12.7mm

Tray 24X CRX880A LF PIONEER Super-Multi Drive 12.7mm Tray DVRK17RS PANASONIC Super-Multi Drive 12.7mm Tray DL 8X UJ-850 PHILIPS Super-Multi Drive 12.7mm Tray DL 8X DS-8A1P HLDS SuperMulti Drive 12.7mm Tray LabelFlash 8X GSA-T20N SONY Super-Multi Drive 12.7mm Tray DL 8X AD-7530A TOSHIBA HD-DVD Drive 12.7mm Tray TS-L802A

20 Chapter 1

Item Specification

Performance Specification With CD Diskette With DVD Diskette Transfer rate (KB/sec) Sustained: Max 3.6Mbytes/

sec Buffer Memory 2MB Interface Enhanced IDE(ATAPI) compatible Applicable disc format Support disc formats 1. Reads data in each CD-ROM, CD-ROM XA, CD-

1, Video CD, CD-Extra and CD-Text 2. Reads data in Photo CD (single

and Multi-session) 3. Reads standard CD-DA 4. Reads and writes CD-R

discs 5. Reads and writes CD-RW discs 6. Reads and writes in each

DVD+R/RW (Ver. 1.1) 7. Reads data in each DVD-ROM and DVD-R (Ver.

2.0 for Authoring) 8. Reads and writes in each DVD-R (Ver. 2.0 for

general), DVD-RW and DVD+R/RW (Ver1.1) Loading mechanism Load: Manual

Release:

(a) Electrical Release (Release Button)

(b) Release by ATAPI command

Audio Interface

Item Specification

Audio Controller Realtek ALC268 Audio onboard or optional Built-in Mono or Stereo Stereo Resolution 18 bit stereo full duplex Compatibility HD audio Interface; Sampling rate 1Hz resolution VSR (Variable Sampling Rate) Internal microphone Yes Internal speaker / Quantity Yes/2(1.5W speakers) Supports PnP DMA channel DMA channel 0 DMA channel 1 Supports PnP IRQ IRQ10, IRQ11

Sustained: Max 10.8Mbytes/sec

USB Interface

Item Specification

Chipset ICH8M USB Compliancy Level 2.0 OHCI USB 1.1 and USB 2.0 Host controller Number of USB port 3 Location Two in stack one by single Serial port function control Enable/Disable by BIOS Setup

PCMCIA Port

Item Specification

PCMCIA controller TI PCI 7412

Chapter 1 21

Item Specification

Supports card type Type-II Number of slots One type-II Access location Left side Supports ZV (Zoomed Video) port No ZV support Supports 32 bit CardBus Yes

System Board Major Chips

Item Controller

Core logic Intel® 965PM/965GM+ICH8M LAN Broadcom 5787 USB 2.0 Built in ICH8M Super I/O controller NS 87383 Wireless LAN Foxconn Atheros XB63 minicard b/g Fox BRM 4311

Minicard BG PCMCIA TI PCI 7412 Audio Realtek ALC268

Keyboard

Item Specification

Keyboard controller KBC1122 Total number of keypads 88-/89-key Windows logo key Ye s Internal & external keyboard work

simultaneously

Plug USB keyboard to the USB port directly: Yes

Battery

Item Specification

Vendor & model name BATTERY PANASONIC LI-ION

6CELLS BATTERY SANYO LIION 6CELLS BATTERY SIMPLO LI-ION 6CELLS BATTERY SONY LI-ION 6CELLS BATTERY PANASONIC LI-ION 8CELLS BATTERY SANYO LI-ION 8CELLS BATTERY SIMPLO LIION 8CELLS BATTERY SONY

LI-ION 8CELLS Battery Type Li-ion Pack capacity 4400 mAh Number of battery cell 6 Package configuration 3 cells in series, 2 series in

parallel Normal voltage 11.1V (Panasonic 10.8V) Charge voltage 12.6V

22 Chapter 1

LCD 15.4”

Item

Vendor & model name LPL

LP154WX4TL B2 (G)

Screen Diagonal (mm) 15.4 inches 15.4 inches 15.4

Active Area (mm) 304.1x228.1 304.1x228.1 304.1x228

Display resolution (pixels) 1440x900

WXGA+

Pixel Pitch 0.297x0.297 0.099x0.297 0.297x0.2

Pixel Arrangement R.G.B. Vertical

Stripe

Display Mode Normally

White

Typical White Luminance (cd/m2) also called Brightness

Luminance Uniformity N/A N/A 70 70 Contrast Ratio 300 300 250 250 Response Time (Optical Rise Time/

Fall Time)msec Nominal Input Voltage VDD +3.3V Typ. +3.3V 3.3V 3.3V Typical Power Consumption (watt) 5.6/5.7 3.96 N/A N/A Weight 550 570 600 600 Physical Size(mm) 317.3x242.0x6

Electrical Interface 1 channel

Support Color 262K colors

Viewing Angle (degree) Horizontal: Right/Left Vertical: Upper/Lower

Temperature Range( C) Operating Storage (shipping) °

300 300 300 300

8 8 8 8

. 0

LVDS

(RGB 6-bit data driver)

40/40 10/30 45/45 15/35 40/40 20/

0 to +50 -20 to +60

Specificatio

CMO N154I2L05 GLARE

1440x900 WXGA+

R.G.B. Vertical Stripe

Normally White

317.3x242.0 x5. 9

1 channel LVDS

262,144 262,144 262,144

0 to +50 -25 to +60

AUO B154EW0 2 V7(G)

inches

.1 1440x900

WXGA+

97 R.G.B.

Vertical Stripe

Normally White

317.3x242 .0x6. 5

1 channel LVDS

40 0 to +50 -

20 to +60

SAMSUNG LTN154AT010 01(G)

15.4 inches

1440x900 WXGA+

R.G .B. Vertical Stripe

Normally White

317.3x242.0x

6. 5 1 channel

LVDS

40/40 20/40

0 to +50 -20 to +60

Chapter 1 23

LCD Inverter

Item Specification

Vendor & model name Darfon/V189-301GP Brightness conditions N/A Input voltage (V) 9~21 Input current (mA) 2.56 (max) Output voltage (V, rms) 780V (2000V for kick off) Output current (mA, rms) 6.5 (max) Output voltage frequency (k Hz) 65K Hz (max)

AC Adapter

Item Specification

Input rating 100~240Vac/ 65Hz Maximum input AC current 1.75A Inrush current 220A@115VAC

220A@230VAC Efficiency 82% min. @115VAC input full load

System Power Management

ACPI mode Power Management

Mech. Off (G3) All devices in the system are turned off completely. Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned

off completely. Working (G0/S0) Individual devices such as the CPU and hard disk may be

power managed in this state. Suspend to RAM (S3) CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode Save to Disk (S4) Also called Hibernation Mode. System saves all system

states and data onto the disc prior to power off the whole

system.

24 Chapter 1

System Power Management

ACPI mode Power Management

Working (G0/S0) Individual devices such as the CPU and hard disc may be power

Suspend to RAM (S3) CPU set power down

Save to Disk (S4) Also called Hibernation Mode. System saves all system states and

managed in this state.

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

data onto the disc prior to power off the whole system.

Chapter 1 37

38 Chapter 1

InsydeH2O Setup Utility

CPU Type :

Intel (R) Core(TM)2 Duo CPU T7300

CPU Speed :

System BIOS Version: V0.18.T04 VGA BIOS Version:

ATI

Serial Number:

xxxxxxxxxxxxxxxxxxxxxx Asset Tag Number: Product Name: Manufacturer Name: Acer UUID:

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

F1 Help Select Item F5/F6 Change Values F9 Setup Defaults

Esc

Exit Select Menu Enter Select Sub-Menu F10 Save and Exit

HDD Model Name :

Hitachi HTS541616J9SA00

ATAPI Model Name :

TOSHIBA DVDW/HD TS-L802A

HDD Serial Number :

xxxxxxxxxxxxxxxxxxxxxx

2.00 GHz

Information

Main Security Boot ExitAdvanced

ATAPI Serial Number:

xxxxxxxxxxxxxxxxxxxxxx

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/ Output System).

Y our computer is already properly configured and optimized, and you do not need to run this utility . However , if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.

Chapter 2

To activate the BIOS Utility, press on the bottom of screen).

Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

m during POST (when “Press <F2> to enter Setup” message is prompted

Chapter 2 39

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit. Follow these instructions:

T To choose a menu, use the cursor left/right keys (zx). T To choose a parameter, use the cursor up/down keys (wy). T To change the value of a parameter, press por q. T A plus sign (+) indicates the item has sub-items. Press e to expand this item. T Press ^ while you are in any of the menu options to go to the Exit menu. T In any menu, you can load default settings by pressing t. You can also press u to save any

changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a

particular menu are shown on the bottom of the screen. Help for parameters are found in the Item Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information is subject to different models.

40 Chapter 2

Information

InsydeH2O Setup Utility

CPU Type :

Intel (R) Core(TM)2 Duo CPU T7300

CPU Speed :

System BIOS Version: V0.18.T04 VGA BIOS Version:

ATI Serial Number:

xxxxxxxxxxxxxxxxxxxxxx Asset Tag Number: Product Name: Manufacturer Name: Acer UUID:

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

F1 Help Select Item F5/F6 Change Values F9 Setup Defaults

Esc

Exit Select Menu Enter Select Sub-Menu F10 Save and Exit

HDD Model Name :

Hitachi HTS541616J9SA00

ATAPI Model Name :

TOSHIBA DVDW/HD TS-L802A

HDD Serial Number :

xxxxxxxxxxxxxxxxxxxxxx

2.00 GHz

Information

Main Security Boot ExitAdvanced

ATAPI Serial Number:

xxxxxxxxxxxxxxxxxxxxxx

NOTE: The system information is subject to different models.

CPU Type / CPU Speed This field shows the CPU type and speed of the system. HDD Model Name This field shows the model name of HDD installed on primary IDE master. HDD Serial Number This field displays the serial number of HDD installed on primary IDE master. ATAPI Model Name This field shows the model name of devices installed on secondary IDE master. The hard

ATAPI Serial Number This field displays the serial number of devices installed on secondary IDE master. The

System BIOS Version Displays system BIOS version. VGA BIOS Version This field displays the VGA firmware version of the system. Serial Number This field displays the serial number of this unit. Asset Tag N umber This field displays the asset tag number of the system. Product Name This field shows product name of the system. Manufacturer Name This field displays the manufacturer of this system. UUID Number This will be visible only when an internal LAN device is presenting.

Chapter 2 41

Parameter Description

disk drive or optical drive model name is automatically detected by the system.

hard disk drive or optical drive model name is automatically detected by the system.

UUID=32bytes

Main

InsydeH2O Setup Utility

Information

Main

Item Specific Help

This is the help for the hour field. Valid range is from 0 to 23. INCREAE/REDUCE : F5/ F6.

F5/F6

F9 Setup Defaults

Esc Enter Select Sub-Menu F10 Save and Exit

System Time: [19:03:49]

System Date : [04/25/2007]

Video Memory : [256MB]

Quiet Boot : [Enabled] Network Boot : [Enabled] F12 Boot Menu : [Disabled]

System Memory : 640 KB

Shows system base memory size

Total Memory : 1023 MB

Shows extended memory size

D2D Recovery : [Enabled] Wake-up on LAN : [Disabled]

Security Boot ExitAdvanced

Help Exit

Select Item

Select Menu

Change Values

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.

NOTE: The screen above is for your reference only. Actual values may differ.

42 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description Format/Option

System Time Sets the system time. The hours are displayed

with 24-hour format.

System Date Sets the system date. Format MM/DD/YYYY (month/day/

System Memory This field reports the memory size of the system.

Memory size is fixed to 640MB

Total Memory This field reports the total memory size in the

system. Video Memory Shows the Video memory size. Quiet Boot Determines if Customer Logo will be displayed or

not; shows Summary Screen is disabled or

enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled. Network Boot Enables, disables the system boot from LAN

(remote server). F12 Boot Menu Enables, disables Boot Menu during POST. D2D Recovery Enables, disables D2D Recovery function. The

function allows the user to create a hidden

partition on hard disc drive to store operation

system and restore the system to factory

defaults. Wake-up on LAN Enables, disables remote wakeup (power on) via

LAN.

Format: HH:MM:SS (hour:minute:second) System Time

year) System Date

Enabled or Disabled

Option:

Enabled or Disabled

Option:

Disabled or Enabled

Option:

Enabled or Disabled

Option:

Disabled or Enabled

Option:

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is

because the user is not allowed to control the settings in these cases.

Chapter 2 43

Advanced

InsydeH2O Setup Utility

Information

Main

Item Specific Help

These items control various CPU parameters.

F5/F6

F9 Setup Defaults

Esc Enter Select Sub-Menu F10 Save and Exit

Auto wake on S5 [Disabled]

Crestline PM Support [Enabled] POPUP Support [Enabled] POPDOWN Support [Enabled]

ACPI S1: [Enabled] ACPI S3: [Enabled]

DeepC4 [Enabled] Hard C4E [Enabled]

Security Boot ExitAdvanced

Help Exit

Select Item

Select Menu

Change Values

IDE Configuration

Platform Power Management

Advanced CPU Control

The Advanced screen displays advanced settings in BIOS.

44 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description Option

Advanced CPU Control Platform Power Management IDE Configuration ACPI S1 Sets the ACPI S1 sleep state.

ACPI S3 Sets the ACPI S3 sleep state. Auto wake on S5 Enables the Auto wake on S5 by day of month

Crestline PM Support Enables, disables Calistoga Enhanced Power

POPUP Support POPDOWN Support DeepC4 Hard C4E

or fixed time of every day, or disables this feature.

Management mode.

Enabled or Disabled Enabled or Disabled Disabled, By Every Day, or

By Day of Month

Enabled or Disabled

Enabled or Disabled Enabled or Disabled Enabled or Disabled Enabled or Disabled

Security

InsydeH2O Setup Utility

Item Specific Help

Supervisor Password Is User Password Is Clear

Set Supervisor Password

Set User Password

Password on Boot :

[Enabled]

Install or Change the password.

F1 Help

Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit Select Menu Enter Select Sub -Menu F10 Save and Exit

[Enter] [Enter]

Set HDD Password

[Enter]

HDD Password Clear

Information Main Security Boot ExitAdvanced

Clear

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

Chapter 2 45

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description Option

Supervisor Password is Shows the setting of the Supervisor password User Password is Shows the setting of the user password. HDD Password Shows the setting of the hard disk password. Set Supervisor Password Press Enter to set the supervisor password.

When set, this password protects the BIOS Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.

Set User Password Press Enter to set the user password. When

user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.

Set HDD Password Press Enter to set the hard disk password.

When set, this password protects the BIOS Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.

Password on Boot Defines whether a password is required or not

while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Clear or Set Clear or Set Clear or Set

Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget

your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the supervisor, user, or hard disk password:

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set Supervisor Password box appears:

2. Type a password in the “Enter New Password” field. The password length can not exceed 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.

IMPORTANT: Be very careful when typing your password because the characters do not appear on the

screen.

3. Press e. After setting the password, the computer sets the Supervisor Password p arameter to “Set”.

4. If desired, you can opt to enable the Password on boot parameter.

5. When you are done, press u to save the changes and exit the BIOS Setup Utility.

46 Chapter 2

Removing a Password

Follow these steps:

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set Supervisor Password box appears:

2. Type the current password in the Enter Current Password field and press e.

3. Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4. When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set Supervisor Password box appears:

2. Type the current password in the Enter Current Password field and press e.

3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password

field.

4. Press e. After setting the password, the computer sets the Supervisor Password p arameter to “Set”.

5. If desired, you can enable the Password on boot parameter.

6. When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u.

Chapter 2 47

If the current password entered does not match the actual current password, the screen will show you the Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.

48 Chapter 2

Boot

InsydeH2O Setup Utility

Information

Main

Item Specific Help

Use < > or < > to select a device, then press <F5> to move it up the list, or <F6> to move it down the list. Press <Esc> to escape the menu.

F5/F6

F9 Setup Defaults

Esc Enter Select Sub-Menu F10 Save and Exit

Security Boot ExitAdvanced

Help Exit

Select Item

Select Menu

Change Values

Boot Priority Order:

1: IDE 0 : Hitachi HTS541616J9SA00

2: IDE 1 : TOSHIBA DVDW/HD TS-L802A 3: USB FDD : 4: Network Boot : MBA v9.4.5 Slot 0400 5: USB HDD : 6: USB KEY : 7: USB CDROM :

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the diskette drive in module bay, the onboard hard disk drive, and the CD-ROM in module bay.

Chapter 2 49

Exit

InsydeH2O Setup Utility

Information

Main

Item Specific Help

Exit System Setup and save your changes to CMOS.

F5/F6

F9 Setup Defaults

Esc Enter Select Sub-Menu F10 Save and Exit

Security Boot ExitAdvanced

Help Exit

Select Item

Select Menu

Change Values

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults

Discard Changes Save Changes

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

The table below describes the parameters in this screen.

Parameter Description

Exit Saving Changes Exit System Setup and save your changes to CMOS. Exit Discarding Changes Exit utility without saving setup data to CMOS. Load Setup Defaults Load default values for all SETUP item. Discard Changes Load previous values from CMOS for all SETUP items. Save Changes Save Setup Data to CMOS.

50 Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T New versions of system programs T New features or options T Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility. NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash. NOTE: Please use the AC adapter power supply when you run the Phlash utility. If the battery pack does not

contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not

completely loaded. Follow the steps below to run the Phlash.

1. Prepare a bootable diskette.

2. Copy the flash utilities to the bootable diskette.

3. Then boot the system from the bootable diskette. The flash utility has auto-execution function.

Chapter 2 51

52 Chapter 2

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T Wrist grounding strap and conductive mat for preventing electrostatic discharge T Small Philips screw driver T Philips screwdriver T Plastic flat head screw driver T Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the

screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the stripe cover, please be careful not to scrape the cover.

Chapter 3

Chapter 3 53

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug the AC adapter and all power and signal cables from the system.

3. Remove the battery pack.

54 Chapter 3

Disassembly Procedure Flowchart

Start

Thermal

Door

HDD Door

LCD Module

Middle Cover

HDD Bracket

Keyboard

Battery Pack

F*2

D*5 F*1

B*4

C*2 LCD hinges to logic D*2 LCD hinges to logic

C*2 on bottom side

C*8 upper case assembly to lower case assembly on bottom side

C*2 upper case assembly to lower case assembly on upper side

Lower Case

Assembly

Modem

Board

Switch Board

(for AS

models)

Upper Case

Assembly

Main Board

H*4

Speaker Set

ODD Module

Thermal

Module

Lower Case

F*2F*1

F*2

F*1

System Fan Memory

CPU

B*1 D*1

HDD

F*1

F*2

Media Board

(for AS

models)

Touchpad

Bracket

F*1

Touchpad

FFC

Mimi Cover

F*1

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Chapter 3 55

LCD Module

LCD Inverter

LCD Panel

Wireless

Antenna Set

LCD Bezel

G*1 for 15"

G*2 for 15.4"

B*4

B*2

G*2 for 15.4"

F*8 (4 on left; 4 on right)

LCD

Assembly

LCD Cable

LCD Bracket

Sets

LCD

Screw List

Item Description Part Number

A SCREW M2.5*3(NL) 86.TAVV5.001 B SCREW M2.5*6(NL) 86.TAVV5.002 C SCREW M2.5*10(NL) 86.TAVV5.003 D SCREW M2.5*15(NL) 86.TAVV5.004 E SCREW M2*2.2 86.TAVV5.005

F SCREW M2*3(NL) 86.TAVV5.006 G SCREW M2*4 86.TAVV5.007 H SCREW M3*4(NL) 86.TAVV5.008

I SCREW D-SUB 4#X40* 1/5-NI (NL) 86.TAVV5.009

56 Chapter 3

Removing the Battery Pack

1. Unlock the battery lock (move the battery lock to the unlock position as shown).

2. Slide the battery release latch then remove the battery.

Chapter 3 57

Removing the HDD Module/Memory/Wireless LAN Card/Modem Card/ TV Tuner Card/System Fan/Thermal Modules/VGA Board/CPU/ Keyboard and the LCD Module

Removing the HDD Module

1. Remove the two screws fastening the HDD cover.

2. Detach the HDD cover from the main unit.

3. Pull the tab to remove the HDD module in th e di re cti o n of the arrow.

Removing the Memory

1. Remove the four screws holding the thermal cover.

2. Detach the thermal cover from the main unit.

3. Pop out the memory from the DIMM socket then remove it (If the notebook has two memory, then repeat

this step).

Removing the Wireless LAN Card/Modem Card and TV Tuner Card

1. Disconnect the three antennae from the wireless LAN card.

2. Remove the two screws fastening the wireless LAN card.

3. Then take out the wireless LAN card from the main unit.

58 Chapter 3

4. Remove the screw fastening the modem card and detach the modem card from the main board.

5. Disconnect the RJ-11 cable and remove the modem card.

6. Disconnect the RF cable from the TV tuner card.

7. Remove the two screws fastening the TV tuner card.

8. Then take out the TV tuner card from the main unit.

NOTE: TV tuner card on selected models only.

Chapter 3 59

Removing the System Fan/Thermal Modules/VGA Board and CPU

1. Disconnect the fan cable from the main board.

2. Remove the three screws holding the system fan.

3. Remove the four spring screws holding the CPU thermal module.

4. Then detach the CPU thermal module as shown.

5. Remove the four spring screws holding the VGA thermal module.

6. Then detach the VGA thermal module as shown.

7. Remove the two screws fastening the VGA board then remove it.

8. Use a flat screwdriver to release the CPU lock (Turn counter clock-wire).

9. Remove the CPU from the CPU socket carefully.

NOTE: VGA thermal module and VGA board on selected models only.

60 Chapter 3

Removing the Keyboard and LCD Module

1. Turn the notebook over.

2. Remove the two screws securing the strip cover from the bottom of the notebook.

3. Detach the strip cover from the front side and remove it.

4. Gently pull up the keyboard to release it from the four snaps as shown.

5. Turn over the keyboard as the image shows. Then disconnect the keyboard cable from the main board.

6. Remove the keyboard from the main unit.

7. Disconnect the LCD cable and microphone cable from the main board.

8. Pull out the wireless LAN antennas free from the main unit as shown.

9. Remove the four screws securing the hinges.

Chapter 3 61

10. Detach the LCD module from the main unit.

62 Chapter 3

Disassembling the Main Unit

Separate the Main Unit Into the Upper and the Lower Case Assembly

1. Remove the screw fastening the ODD from the bottom of the notebook.

2. Push the ODD module outwards and gently pull it out as shown.

3. Press and release the PC dummy card from the PC slot as shown.

4. Then press the release the memory dummy card from the 5-in-1 card reader slot as shown.

5. Remove the ten screws fastening the upper case and the lower case assembly on the bottom.

6. Remove the eight screws fastening the upper case assembly and the lower case assembly on the front

side.

Chapter 3 63

7. Disconnect the touchpad FFC, left speaker cable, button board FFC, and LED board FFC from the main board.

8. Carefully detach the upper case assembly from the lower case assembly.

Disassembling the Lower Case Assembly

1. Disconnect the USB cable from the main board.

2. Remove the screw fastening the USB board and take out the board and its cable from the lower case.

3. Then detach the USB cable from the USB board.

4. Disconnect the Bluetooth cable from the main board.

5. Take out the Bluetooth modu le and its cable from the lower case as shown.

6. Then detach the Bluetooth cable from the Bluetooth module.

7. Disconnect the right speaker cable from the ma in bo ar d.

8. Remove the two screws fastening the right speaker, then lift it out from the lower case.

64 Chapter 3

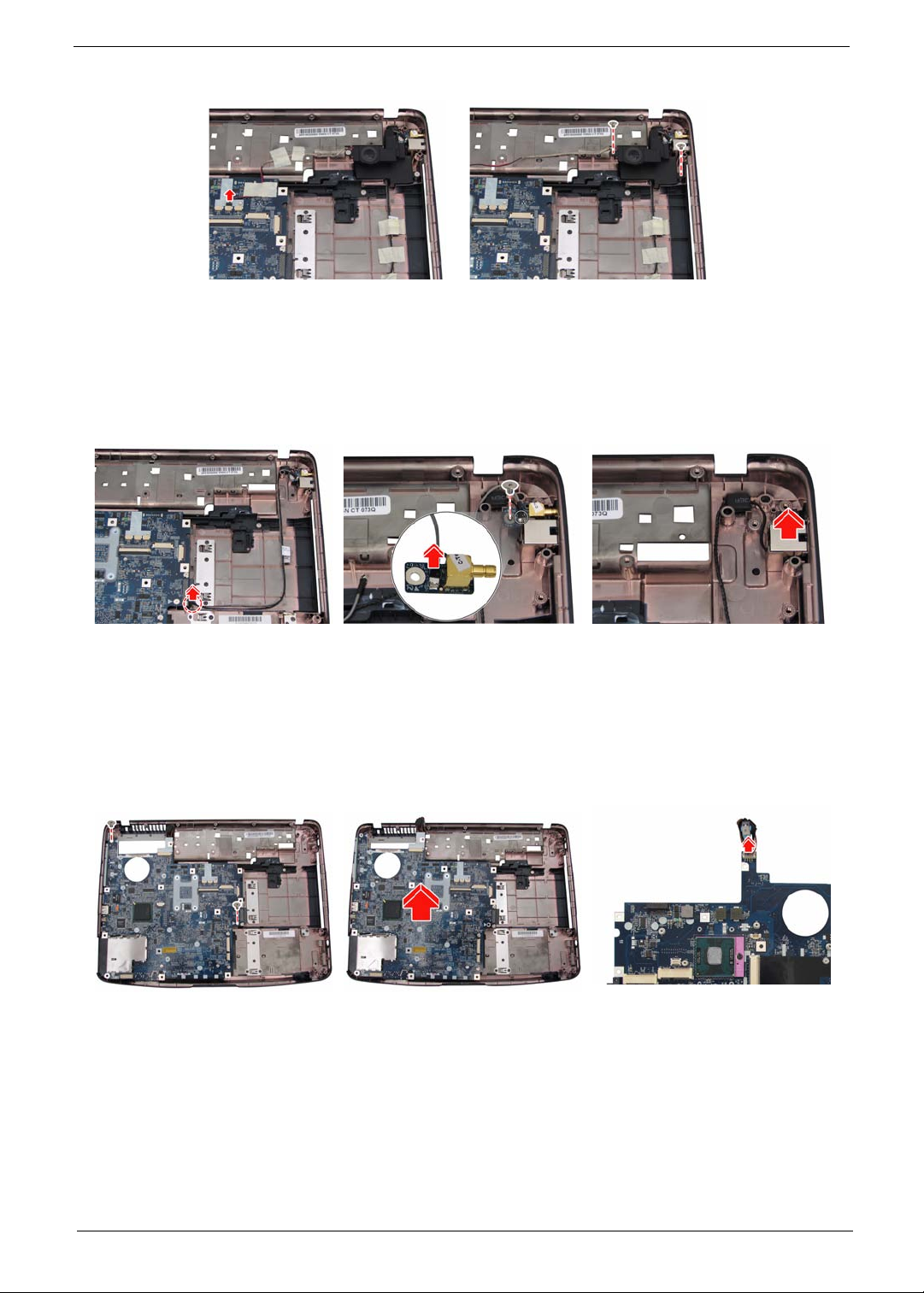

9. Pull the RF cable through the opening in the lower case as shown.

10. Remove the screw holding the RF board to the lower case.

11. Take out the RF board from the lower case, then detach the RF cable from the RF board as shown.

12. Remove the RJ-11 jack from the lower case.

NOTE: RF board on selected models only.

13. Remove the screw fastening the main board to the lower case.

14. Detach the main board from the lower case as shown.

15. Turn the main board over, then remove the DC-in connector from the board as shown.

Chapter 3 65

Disassembling the Upper Case Assembly

1. Turn the upper case over.

2. Remove the two screws fastening the button board.

3. Detach the button board with FFC from the upper case as shown.

4. Remove the two screws fastening the LED board.

5. Detach the LED board with FFC from the upper case as shown.

6. Remove the two screws fastening the left speaker.

7. Remove the left speaker from the upper case as shown.

66 Chapter 3

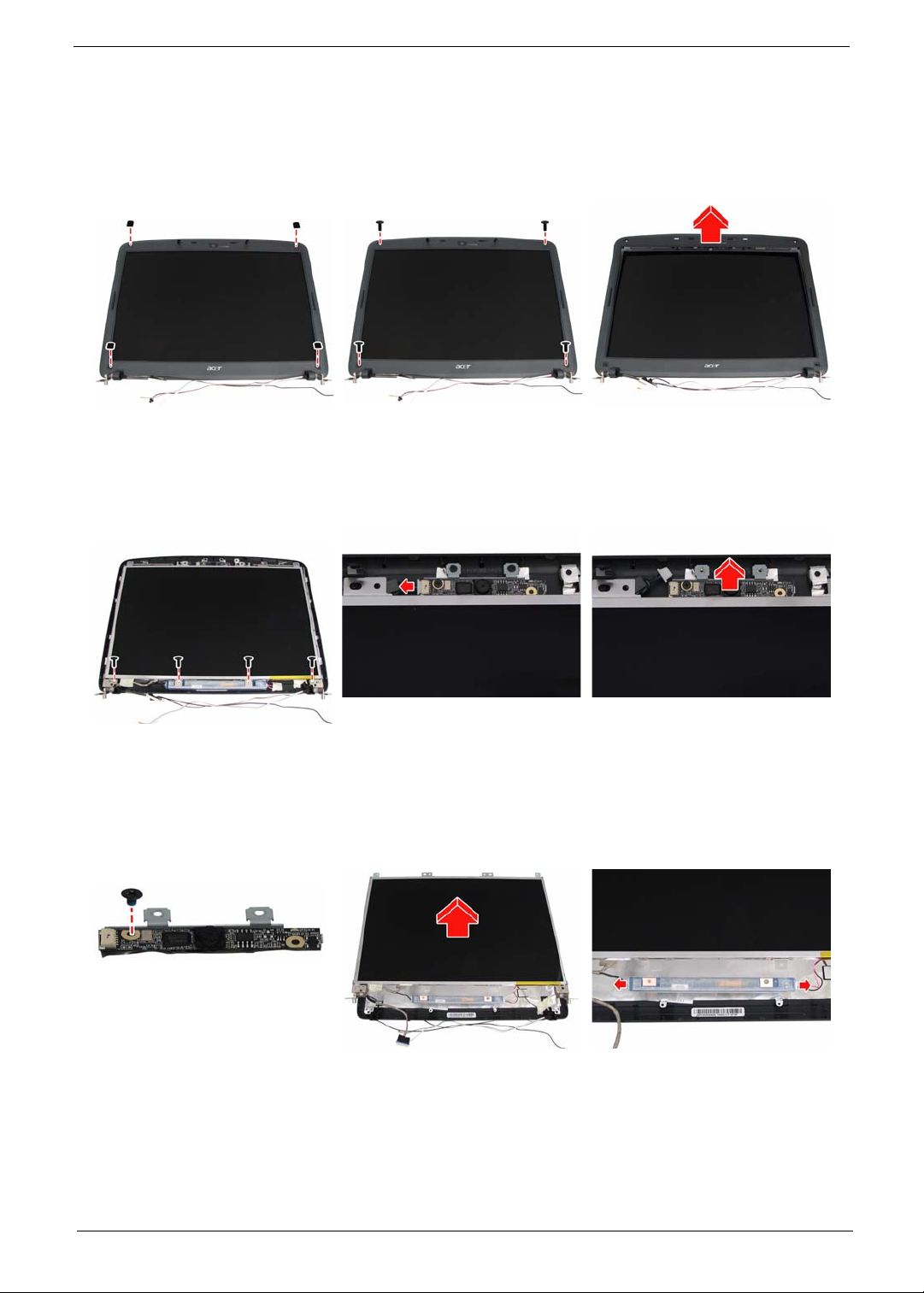

Disassembling the LCD Module

1. Remove the four screw rubbers as shown.

2. Then remove the four screws fastening the LCD bezel.

3. Detach the LCD bezel from the LCD module carefully.

4. Remove the four screws holding the LCD to the LCD panel.

5. Detach the CCD cable connector from the CCD board.

6. Take out the CCD module from the LCD panel.

7. Remove the screw fastening the CCD board to th e CC D bra cke t.

8. Lift out the LCD from the LCD panel as shown.

9. Detach the two inverter cable connectors from the inverter board.

10. Remove the four screws fastening the left LCD bracket and detach it.

11. Remove the four screws fastening the right LCD bracket and detach it.

12. Disconnect the LCD cable from the rear side of the LCD.

Chapter 3 67

68 Chapter 3

Disassembling the External Modules

Disassembling the HDD Module

1. Remove the four screws holding the HDD (hard disk drive) case; two on each side.

2. Carefully slide out the hard disk drive from the HDD case.

Disassembling the ODD Module

1. Remove the three screws holding the optical bracket.

2. Then remove the optical bracket from the optical disk drive.

Chapter 3 69

70 Chapter 3

Troubleshooting

Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or

modified options can give false errors and invalid system responses.

1. Obtain the failing symptoms in as much detail as possible.

2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating

the same operation.

3. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified) Go To

Power failure (The power indicator does not go on or stay on).

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

“Power System Check” on page 73

“Power-On Self-Test (POST) Error Message” on page 76

“Undetermined Problems” on page 88 “Error Message List” on page 77

“Power-On Self-Test (POST) Error Message” on page 76

Use the customer-reported symptoms and go to “Power-On Self-Test (POST) Error Message” on page 76

“Intermittent Problems” on page 87 “Undetermined Problems” on page 88

Chapter 4

Chapter 4 71

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver , or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause

damage to the drive or cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the diagnostics program.

2. See if FDD Test is passed as the program runs to FDD Test.

3. Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board. If the error still remains:

1. Reconnect the external diskette drive/DVD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the diagnostics program.

2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3. Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1. Reconnect the external diskette drive/CD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested. If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable

extending from the keyboard is correctly seated in the connector on the system board. If the keyboard cable connection is correct, run the Keyboard Test. If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a

non-defective FRU:

1. Reconnect the keyboard cables.

2. Replace the keyboard.

3. Replace the main board.

The following auxiliary input devices are supported by this computer:

T Numeric keypad T External keyboard

72 Chapter 4

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1. Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board).

2. Go to the diagnostic memory in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1. Remove the battery pack.

2. Connect the power adapter and check that power is supplied.

3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by

the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T “Check the Power Adapter” on page 74 T “Check the Battery Pack” on page 75

Chapter 4 73

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure:

Pin 1: +19 to +20.5V Pin 2: 0V, Ground

1. If the voltage is not correct, replace the power adapter.

2. If the voltage is within the range, do the following:

T Replace the System board. T If the problem is not corrected, see “Undetermined Problems” on page 88. T If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

3. If the power-on indicator does not light up, check the power cord of the power adapter for correct

continuity and installation.

4. If the operational charge does not work, see “Check the Battery Pack” on page 75.

74 Chapter 4

Check the Battery Pack

To check the battery pack, do the following: From Software:

1. Check out the Power Management in Control Panel

2. In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3. Repeat the steps 1 and 2, for both battery and adapter.

4. This helps you identify first the problem is on recharging or discharging.

From Hardware:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the

following figure

3. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature. Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1. Reconnect the touchpad ca bl e s .

2. Replace the touchpad.

3. Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 75

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU

replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer. If the symptom is not listed, see “Undetermined Problems” on page 88. The following lists the error messages that the BIOS displays on the screen and the error symptoms classified

by function. NOTE: Most of the error messages occur during POST. Some of them display information about a hardware

device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

76 Chapter 4

Index of Error Messages

Error Code List

Error Codes Error Messages

006 Equipment Configuration Error

Causes:

1. CPU BIOS Update Code Mismatch

2. IDE Primary Channel Master Drive Error (THe causes will be shown before “Equipment Configuration

Error”) 010 Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh) 070 Real Time Clock Error 071 CMOS Battery Bad 072 CMOS Checksum Error 110 System disabled.

Incorrect password is specified. <No error code> Battery critical LOW

In this situation BIOS will issue 4 short beeps then shut down

system, no message will show. <No error code> Thermal critical High

In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages FRU/Action in Sequence

Failure Fixed Disk Reconnect hard disk drive connector.

“Load Default Settings” in BIOS Setup Utility. Hard disk drive

System board Stuck Key see “Keyboard or Auxiliary Input Device Check” on page 72. Keyboard error see “Keyboard or Auxiliary Input Device Check” on page 72. Keyboard Controller Failed see “Keyboard or Auxiliary Input Device Check” on page 72. Keyboard locked - Unlock key switch Unlock external keyboard Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility. Shadow RAM Failed at offset: nnnn BIOS ROM

System board System RAM Failed at offset: nnnn DIMM

System board Extended RAM Failed at offset: nnnn DIMM

System board System battery is dead - Replace and run Setup Replace RTC battery and Run BIOS Setup Utility to reconfigure

system time, then reboot system. System CMOS checksum bad - Default

configuration used

System timer error RTC battery

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot

system.

Run BIOS Setup Utility to reconfigure system time, then reboot

system.

System board

Chapter 4 77

Error Message List

Error Messages FRU/Action in Sequence

Real time clock error RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot

system.

System board Previous boot incomplete - Default configuration

used

Memory size found by POST differed from CMOS

Diskette drive A error Check the drive is defined with the proper diskette type in BIOS

Incorrect Drive A type - run SETUP Check the drive is defined with the proper diskette type in BIOS

System cache error - Cache disabled System board CPU ID: System board DMA Test Failed DIMM

Software NMI Failed DIMM

Fail-Safe Timer NMI Failed DIMM

Device Address Conflict Run “Load Default Settings” in BIOS Setup Utility.

Allocation Error for device Run “Load Default Settings” in BIOS Setup Utility.

Failing Bits: nnnn DIMM

Fixed Disk n None Invalid System Configuration Data BIOS ROM

I/O device IRQ conflict Run “Load Default Settings” in BIOS Setup Utility.

Operating system not found Enter Setup and see if fixed disk and drive A: are properly identified.

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

DIMM

System board

Setup Utility

See “External Diskette Drive Check” on page 72.

Setup Utility

System board

RTC battery

System board

RTC battery

System board

BIOS ROM

System board

RTC battery

System board

Diskette drive

Hard disk drive

System board

78 Chapter 4

Error Message List

No beep Error Messages FRU/Action in Sequence

No beep, power-on indicator turns off and LCD is blank.

No beep, power-on indicator turns on and LCD is blank.

No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external CRT.

No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.

No beep during POST but system runs correctly. Speaker

Power source (battery pack and power adapter). See “Power

System Check” on page 73..

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

LED board.

System board.

Power source (battery pack and power adapter). See “Power

System Check” on page 73..

Reconnect the LCD connector

Hard disk drive

LCD inverter ID

LCD cable

LCD Inverter

LCD

System board

Reconnect the LCD connectors.

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Ensure every connector is connected tightly and correctly.

System board

Chapter 4 79

Phoenix BIOS Beep Codes

Code Beeps POST Routine Description

02h Verify Real Mode 03h Disable Non-Maskable Interrupt (NMI) 04h Get CPU type 06h Initialize system hardware 08h Initialize chipset with initial POST values 09h Set IN POST flag 0Ah Initialize CPU registers 0Bh Enable CPU cache 0Ch Initialize caches to initial POST values 0Eh Initialize I/O component 0Fh Initialize the local bus IDE 10h Initialize Power Management 11h Load alternate registers with initial POST

12h Restore CPU control word during warm boot 13h Initialize PCI Bus Mastering devices 14h Initialize keyboard controller 16h 1-2-2-3 BIOS ROM checksum 17h Initialize cache before memory autosize 18h 8254 timer initialization 1Ah 8237 DMA controller initialization 1Ch Reset Programmable Interrupt Controller 20h 1-3-1-1 Test DRAM refresh 22h 1-3-1-3 Test 8742 Keyboard Controller 24h Set ES segment register to 4 GB 26h Enable A20 line 28h Autosize DRAM 29h Initialize POST Memory Manager 2Ah Clear 215 KB base RAM 2Ch 1-3-4-1 RAM failure on address line xxxx 2Eh 1-3-4-3 RAM failure on data bits xxxx of low byte of

2Fh Enable cache before system BIOS shadow 30h 1-4-1-1 RAM failure on data bits xxxx of high byte of

32h Test C PU bus-clock frequency 33h Initialize Phoenix Dispatch Manager 36h Warm start shut down 38h Shadow system BIOS ROM 3Ah Autosize cache 3Ch Advanced configuration of chipset registers 3Dh Load alternate registers with CMOS values 42h Initialize interrupt vectors 45h POST device initialization

values

memory bus

80 Chapter 4

Code Beeps POST Routine Description

46h 2-1-2-3 Check ROM copyright notice 48h Check video configuration against CMOS 49h Initialize PCI bus and devices 4Ah Initialize all video adapters in system 4Bh QuietBoot start (optional) 4Ch Shadow video BIOS ROM 4Eh Display BIOS copyright notice 50h Display CPU type and speed 51h Initialize EISA board 52h Test keyboard 54h Set key click if enabled 58h 2-2-3-1 Test for unexpected interrupts 59h Initialize POST display service 5Ah Display prompt “Press F2 to enter SETUP” 5Bh Disable CPU cache 5Ch Test RAM between 512 and 640 KB 60h Test extended memory 62h Test extended memory address lines 64h Jump to User Patch1 66h Configure advanced cache registers 67h Initialize Multi Processor APIC 68h Enable external and CPU caches 69h Setup System Management Mode (SMM) area 6Ah Display external L2 cache size 6Bh Load custom defaults (optional) 6Ch Display shadow-area message 6Eh Display possible high address for UMB

70h Display error messages 72h Check for configuration errors 76h Check for keyboard errors 7Ch Set up hardware interrupt vectors 7Eh Initialize coprocessor if present 80h Disable onboard Super I/O ports and IRQs 81h Late POST device initialization 82h Detect and install external RS232 ports 83h Configure non-MCD IDE controllers 84h Detect and install external parallel ports 85h Initialize PC-compatible PnP ISA devices 86h Re-initialize onboard I/O ports 87h Configure Motherboard Configurable Devices

88h Initialize BIOS Area 89h Enable Non-Maskable Interrupts (NMIs) 8Ah Initialize Extended BIOS Data Area 8Bh Test and initialize PS/2 mouse

recovery

(optional)

Chapter 4 81

Code Beeps POST Routine Description

8Ch Initialize floppy controller 8Fh Determine number of ATA drives (optional) 90h Initialize hard-disk controllers 91h Initialize local-bus hard-disk controllers 92h Jump to UserPatch2 93h Build MPTABLE for multi-processor boards 95h Install CD ROM for boot 96h Clear huge ES segment register 97h Fixup Multi Processor table 98h 1-2 Search for option ROMs. One long, two short

99h Check for SMART drive (optional) 9Ah Shadow option ROMs 9Ch Set up Power Management 9Dh Initialize security engine (optional) 9Eh Enable hardware interrupts 9Fh Determine number of ATA and SCSI drives A0h Set time of day A2h Check key lock A4h Initialize Typematic rate A8h Erase F2 prompt AAh Scan for F2 key stroke ACh Enter SETUP AEh Clear Boot flag B0h Check for errors B2h POST done- prepare to boot operating system B4h 1 One short beep before boot B5h Terminate QuietBo ot (optional) B6h Check password (optional) B9h Prepare Boot BAh Initialize DMI parameters BBh Initialize PnP Option ROMs BCh Clear parity checkers BDh Display MultiBoot menu BEh Clear screen (optional) BFh Check virus and backup reminders C0h Try to boot with INT 19 C1h Initialize POST Error Manager (PEM) C2h Initialize error logging C3h Initialize error display function C4h Initialize system error handler C5h PnPnd dual CMOS (optional) C6h Initialize notebook docking (optional) C7h Initialize notebook docking late C8h Force check (optional) C9h Extended checksum (optional)

beeps on checksum failure.

82 Chapter 4

Code Beeps POST Routine Description

D2h Unknown interrupt

Code Beeps

E0h Initialize the chipset E1h Initialize the bridge E2h Initialize the CPU E3h Initialize the system timer E4h Initialize system I/O E5h Check force recovery boot E6h Checksum BIOS ROM E7h Go to BIOS E8h Set Huge Segment E9h Initialize Multi Processor EAh Initialize OEM special code EBh Initialize PIC and DMA ECh Initialize Memory type EDh Initialize Memory size EEh Shadow Boot Block EFh System memory test F0h Initialize interrupt vectors F1h Initialize Run Time Clock F2h Initialize video F3h Initialize System Management Mode F4h 1 Output one beep before boot F5h Boot to Mini DOS F6h Clear Huge Segment F7h Boot to Full DOS

Chapter 4 83

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error Action in Sequence

LCD backlight doesn't work LCD is too dark LCD brightness cannot be adjusted LCD contrast cannot be adjusted

Unreadable LCD screen Missing pels in characters Abnormal screen Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Enter BIOS Utility to execute “Load Setup Default Settings”, then

reboot system.

Reconnect the LCD connectors.

Keyboard (if contrast and brightness function key doesn't work).

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Reconnect the LCD connector

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

LCD inverter ID

LCD inverter

LCD cable

LCD

System board

Indicator-Related Symptoms

Symptom / Error Action in Sequence

Indicator incorrectly remains off or on, but system runs correctly

Reconnect the inverter board

Inverter board

System board

Power-Related Symptoms

Symptom / Error Action in Sequence

Power shuts down during operation Power source (battery pack and power adapter). See “Power

System Check” on page 73.

Battery pack

Power adapter

Hard drive & battery connection board

System board The system doesn’t power-on. Power source (battery pack and power adapter). See “Power

System Check” on page 73.

Battery pack

Power adapter

Hard drive & battery connection board

System board The system doesn’t power-off. Power source (battery pack and power adapter). See “Power

System Check” on page 73.

Hold and press the power switch for more than 4 seconds.

System board

84 Chapter 4

Power-Related Symptoms

Symptom / Error Action in Sequence

Battery can’t be charged See “Check the Battery Pack” on page 75.

Battery pack

System board

PCMCIA-Related Symptoms

Symptom / Error Action in Sequence

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

System board PCMCIA slot pin is damaged. PCMCIA slot assembly

Memory-Related Symptoms

Symptom / Error Action in Sequence

Memory count (size) appears different from actual size.

Enter BIOS Setup Utility to execute “Load Default Settings, then

reboot system.

DIMM

System board

Speaker-Related Symptoms

Symptom / Error Action in Sequence

In Windows, multimedia programs, no sound comes from the computer.

Internal speakers make noise or emit no sound. Speaker

Audio driver

Speaker

System board

Power Management-Related Symptoms

Symptom / Error Action in Sequence

The system will not enter hibernation See “Save to Disk (S4)” on page 45.

Keyboard (if control is from the keyboard)

Hard disk drive

System board The system doesn't enter hibernation mode and

four short beeps every minute.

The system doesn’t enter standby mode after closing the LCD

The system doesn't resume from hibernation mode.

The system doesn't resume from standby mode after opening the LCD.

Press Fn+

Touchpad

Keyboard

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 45.

LCD cover switch

System board

See “Save to Disk (S4)” on page 45.

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 45.

LCD cover switch

System board

oand see if the computer enters hibernation mode.

Chapter 4 85

Power Management-Related Symptoms

Symptom / Error Action in Sequence

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently. Reconnect hard disk/CD-ROM drives.

Remove battery pack and let it cool for 2 hours.

Refresh battery (continue use battery until power off, then charge

battery).

Battery pack

System board

Hard disk connection board

System board

Peripheral-Related Symptoms

Symptom / Error Action in Sequence

System configuration does not match the installed devices.

External display does not work correctly. Press Fn+F5, LCD/CRT/Both display switching

USB does not work correctly System board Print problems. Ensure the “Parallel Port” in the “Onboard Devices Configuration” of

Serial or parallel port device problems. Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup

Enter BIOS Setup Utility to execute “Load Default Settings”, then

reboot system.

Reconnect hard disk/CD-ROM/diskette drives.

System board

BIOS Setup Utility is set to Enabled.

Onboard Devices Configuration

Run printer self-test.

Printer driver

Printer cable

Printer

System Board

Utility is set to Enabled.

Device driver

Device cable

Device

System board

Keyboard/Touchpad-Related Symptoms

Symptom / Error Action in Sequence

Keyboard (one or more keys) does not work. Reconnect the keyboard cable.

Keyboard

System board Touchpad does not work. Reconnect touchpad cable.

Touchpad board

System board

Modem-Related Symptoms

Symptom / Error Action in Sequence

Internal modem does not work correctly. Modem phone port

modem combo board

System board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 88.

86 Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRU.

3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 87

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer. NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 73.):

1. Power-off the computer.

2. Visually check them for damage. If any problems are found, replace the FRU.

3. Remove or disconnect all of the following devices:

T Non-Acer devices T Printer, mouse, and other external devices T Battery pack T Hard disk drive T DIMM T CD-ROM/Diskette drive Module T PC Cards

4. Power-on the computer.

5. Determine if the problem has changed.

6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T System board T LCD assembly

88 Chapter 4

2 3 4234

1010

1414

1212

1313

1515

1616

1111

Jumper and Connector Locations

Top View

Chapter 5

1 JP1 LCD Connector 9 JP36 Mainboard to LED Board

7 JP5 Internal Keyboard Connector 15 JP11 Mainboard to USB Board

8 JP2 Mainboard to Button Board

Connector

16 JP12 Bluetooth Module Connector

Connector

Chapter 5 89

Bottom View

1010

1414

1212

1313

1515

1616

1111

1717

1818

1919

2020

2222

232323

242424

252525

212121

90 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire eME510. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to

dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 161

Aspire eME510 Exploded Diagram

Aspire eME510 FRU List

Category Description Part Number

Adapter

ADAPTER ADAPTER 65W 3PIN DELTA SADP-65KB DBFF AP.06501.009 ADAPTER ADAPTER 65W 3PIN DELTA SADP-65KB DFA AP.06501.013 ADAPTER ADAPTER 65W 3PIN LITEON PA-1650-02 LR AP.06503.012 ADAPTER ADAPTER 65W 3PIN LITEON PA-1650-02AC AP.06503.016 ADAPTER ADAPTER 65W 3PIN HIPRO AC-OK065B13 AP.0650A.010 Battery

BATTERY BATTERY LI-ION 6CELLS 4KMAH PANASONIC PA 3S2P 4.0AH 7

01K 0FA BATTER Y BATTERY LI-ION 6CELLS 4KMAH SANYO SA 3S2P 4AH 7 01K 0FA BT.00603.033 BATTERY BATTERY LI-ION 6CELLS 4KMAH SIMPLO SP PA 3S2P 4.0AH 7

01K 0FA BATTER Y BATTERY LI-ION 6CELLS 4KMAH SONY SY 3S2P 4.0AH 7 01K 0FA BT.00604.018 BATTERY BATTERY LI-ION 6CELLS 4.4KMAH SANYO SA 3S2P BT.00603.042 BATTERY BATTERY LI-ION 6CELLS 4.4KMAH SONY SA 3S2P BT.00604.025 BATTERY BATTERY LI-ION 6CELLS 4.4KMAH PANASONIC SA 3S2P BT.00605.021 Board BOARD MODEM BOARD FX.22500.022

BOARD BLUETOOTH BOARD 54.AR102.001

BOARD MINI WLAN/B FOXCONN 802.11BG T77H030.00 (BRCM4312) NI.23600.029

MINI WLAN/B FOXCONN 802.11 ATHEROS XB63 BG T60H976.00

FW:V06

BT.00605.015

BT.00607.010

NI.23600.007

BOARD BUTTON BOARD W/O LED 15.4” TBD

162 Chapter 6

Category Description Part Number

BOARD LED BOARD W/O BUTTON 15.4” TBD

BOARD USB BOARD FOR TV 55.ALB02.003

BOARD USB BOARD FOR W/O TV 55.AHE02.004 BOARD RF BOARD FOR DTV 55.AHE02.005

BOARD VGA BOARD-M71M 128MB VG.71M02.002

BOARD VGA BOARD-M71M 256MB W/HDCP VG.71M02.001 BOARD USB BOARD W/O CIR 15.4 55.ALB02.003 BOARD INVERTER BOARD 15.4 19.AHE02.001

Cable CABLE RJ11 CABLE 15.4 50.AHE02.001

CABLE FFC CABLE - T/P TO MB 27.TAVV5.008 CABLE BLUE TOOTH CABLE 15.4” 50.AHE02.003

CABLE USB CABLE 15.4” 50.AHE02.004

CABLE RF CABLE 15.4 50.AHE02.005

CABLE 7 PIN MINI-DIN S-VIDEO TO 4 CABLE 50.ABD02.001 CABLE

CABLE SMB JACK 50.ABD02.002 CABLE DVB-T ANT 50.ABD02.003

PAL TO NTSC CONNECTOR

20.ABD02.001

Chapter 6 163

Category Description Part Number

CABLE DC-IN CABLE (65W) UMA 50.AHE02.009

CABLE POWER CORD US 3 PIN 27.TAVV5.001 CABLE POWER CORD EU 3 PIN 27.TAVV5.002 CABLE POWER CORD AUS 3 PIN 27.TAVV5.003 CABLE POWER CORD UK 3 PIN 27.TAVV5.004 CABLE POWER CORD CHINA 3 PIN 27.TAVV5.005 CABLE POWER CORD SWISS 3 PIN 27.TAVV5.006 CABLE POWER CORD ITALIAN 3 PIN 27.TAVV5.007 CABLE POWER CORD JP 3 PIN 27.TAVV5.009 CABLE POWER CORD SOUTH AFRICA 3 PIN 27.TAVV5.010 CABLE POWER CORD KOERA 3 PIN 27.TAVV5.011 CABLE POWER CORD ISRAEL 3 PIN 27.TAVV5.012 CABLE POWER CORD INDIA 3 PIN 27.TAVV5.013 CABLE POWER CORD TWN 3 PIN 27.TAVV5.014 CABLE FFC CABLE - T/P TO MB 50.AHE02.002 CABLE LCD WIRESET 15.4 50.AHE02.006 CABLE ANTENNA R 15.4 50.AHE02.007 CABLE ANTENNA L-15.4 50.AHE02.008 CABLE LCD WIRESET 15.4 FOR W/O CCD FUNCTION 50.AH902.001 Assembly Parts CASE/COVER/

BRACKET ASSEMBL Y

MIDDLE COVER 15.4” 42.N0202.001

CASE/COVER/ BRACKET ASSEMBL Y

CASE/COVER/ BRACKET ASSEMBL

164 Chapter 6

UPPER CASE ASSY 15.4 W/TP TP BRACKET TP FFC - UMA 60.N0202.001

LOWER CASE ASSY UMA W/O TV-15.4 60.N0202.002

Category Description Part Number

CASE/COVER/ BRACKET ASSEMBL

THERMAL DOOR 15.4” UMA 42.AHE02.002

CASE/COVER/ BRACKET ASSEMBL Y

CPU

ODD BEZEL-COMBO 42.AHE02.006

ODD BEZEL-SUPER MULTI 42.AHE02.004

ODD BRACKET 15.4" 33.AHE02.001

HDD DOOR 15.4 42.AHE02.007

HDD BRACKET 15.4 33.AHE02.002

LCD COVER ASSY 15.4 IN. LOGO W/MIC W/ANTENNA 60.N0202.003

LCD BEZEL ASSY 15.4 FOR CCD 60.N0202.004

LCD BRACKET SET R&L 15.4 33.AHE02.003

CCD BRACKET-15.4 33.AHE02.004

LCD COVER ASSY 15.4 IN. LOGO W/MIC W/ANTENNA 60.N0202.003

LCD BEZEL ASSY 15.4 FOR W/O CCD FUNCTION 60.N0302.001

LCD BRACKET SET R&L 15.4 33.AHE02.003

CPU/PROCESSOR INTEL CPU MEROM SINGLE CORE CM540 1.86G

LF80537NE0361M SLA2F A1 UFCPGA 478P CPU/PROCESSOR INTEL CPU MEROM SINGLE CORE CM550 2G IC

LF80537NE0411M SLA2E A1

Chapter 6 165

KC.N0001.540

KC.N0001.550

Category Description Part Number

CPU/PROCESSOR INTEL CPU MEROM SINGLE CORE CM530SR 1.73G IC

LF80537NE0301M SLA2G A1 CPU/PROCESSOR INTEL CPU MEROM SINGLE CORE CM560 2.13G

LF80537NE0461M SLA2D A1 CPU/PROCESSOR INTEL CPU MEROM SINGLE CORE CM570 2.26G

LF80537NE0511M SLA2C A1 CPU/PROCESSOR INTEL CPU CELERON DUAL CORE CMT1400 1.73G

LF80537NE030512 SLAQL M0 Combo Drive

COMBO DRIVE DVD/CDRW 24X COMBO MODULE 6M.AHE02.001 COMBO DRIVE DVD/CDRW COMBP DRIVE HLDS GCC-T10N VISTA 0FA KO.0240D.005 COMBO DRIVE DVD/CDRW COMBP DRIVE SONY CRX880A VISTA 0FA KO.0240E.005 COMBO DRIVE DVD/CDRW COMBP DRIVE TSST TS-L462D AC02 0FA KO.02401.005 DVD RW DRIVE

KC.NSR01.530

KC.N0001.560

KC.N0001.570

KC.14001.CMT

DVD RW DRIVE DVD SUPER MULTI MODULE TRAY IN 6M.AHE02.002 DVD RW DRIVE DVD SUPER MULTI DRIVE PIONEER DVR-K17RS 0FA KU.00805.038 DVD RW DRIVE DVD SUPER MULTI DRIVE PIONEER DVR-KD08RS 0FA KU.00805.043 DVD RW DRIVE DVD SUPER MULTI DRIVE PANASONIC UJ-850UAA1-A VISTA KU.00807.055 DVD RW DRIVE DVD SUPER MULTI DRIVE PANASONIC UJ-870BAA-A 0FA KU.00807.058 DVD RW DRIVE DVD SUPER MULTI DRIVE PHILIPS DS-8A1P 0FA KU.00809.010 DVD RW DRIVE DVD SUPER MULTI DRIVE HLDS GSA-T20N 0FA KU.0080D.027 DVD RW DRIVE DVD SUPER MULTI DRIVE HLDS GSA-T40N 0FA TBD DVD RW DRIVE DVD SUPER MULTI DRIVE SONY AD-7530A 0FA KU.0080E.002 DVD RW DRIVE DVD SUPER MULTI DRIVE SONY AD-7560A 0FA KU.0080E.005 DVD RW DRIVE DVD SUPER MULTI DRIVE SONY AD-7530B 0FA KU.0080E.008 Hard Disk

HDD/HARD DISK DRIVE

HDD SATA 80G 5400RPM HGST HTS541680J9SA00 SURUGA-B LF

F/W: C70P

HDD SATA 80G 5400RPM HGST HTS542580K9SA00 0FA KH.08007.025

HDD SATA 80G 5400RPM SEAGATE ST980811AS SATA 8MB LF

3.ALD

HDD SATA 80G 5400RPM TOSHIBA MK8037GSX Gemini BS SATA

LF F/W:DL250J

HDD SATA 80G 5400RPM TOSHIBA MK8046GSX 0FA KH.08004.011

KH.08007.021

KH.08001.030

KH.08004.010

166 Chapter 6

Category Description Part Number

HDD/HARD DISK DRIVE

HDD SATA 80G 5400RPM WD WD800BEVS-22RST0 ML80 SATA LF

F/W:04.01G04

HDD SATA 120G 5400RPM HGST HTS541612J9SA00 SURUGA-B LF

F/W: C70P

HDD SATA 120G 5400RPM HGST HTS542512K9SA00 0FA KH.12007.014

HDD SATA 120G 5400RPM SEAGATE ST9120822AS SATA 8MB LF

3.ALD

HDD SATA 120G 5400RPM SEAGATE ST9120817AS 0FA KH.12001.032

HDD SATA 120G 5400RPM TOSHIBA MK1237GSX Gemini BS

SATA LF

F/W:DL150J

HDD SATA 120G 5400RPM TOSHIBA MK1246GSX 0FA KH.12004.007

HDD SATA 120G 5400RPM WD WD1200BEVS-22RST0 ML80 SAT A

F/W:04.01G04

HDD SATA 120G 5400RPM WD WD1200BEVS-22UST0 0FA KH.12008.019

HDD SATA 160G 5400RPM HGST HTS541616J9SA00 SURUGA-B LF

F/W: C70P

HDD SATA 160G 5400RPM HGST HTS542516K9SA00 0FA KH.16007.016

HDD SATA 160G 5400RPM SEAGATE ST9160821AS SATA 8MB LF

3.ALD

HDD SATA 160G 5400RPM SEAGATE ST9160827AS 0FA KH.16001.029

HDD SATA 160G 5400RPM TOSHIBA MK1637GSX Gemini BS

SATA LF

F/W: DL050J

HDD SATA 160G 5400RPM TOSHIBA MK1646GSX 0FA KH.16004.002

HDD SATA 160G 5400RPM WD WD1600BEVS-22RST0 ML80 SAT A

F/W:04.01G04

HDD SATA 160G 5400RPM WD WD1600BEVT-22ZCT0 0FA KH.16008.022

HDD SATA 250G 5400RPM WD WD2500BEVS-22UST0;

FW: 01.01A01; HW: T0

HDD SATA 250G 5400RPM HGST HDD 250G .37"H

HTS542525K9SA00 0FA

HDD SATA 250G 5400RPM TOSHIBA MK2546GSX 0FA KH.25004.001

HDD SATA 250G 5400RPM SEAGATE ST9250827AS 0FA KH.25001.011

HDD SATA 320G 5400RPM WD WD3200BEVT-22ZCT0 0FA KH.32008.013

HDD SATA 200G 4200RPM TOSHIBA MK2035GSS KH.20004.001

KH.08008.033

KH.12007.010

KH.12001.031

KH.12004.006

KH.12008.018

KH.16007.011

KH.16001.026

KH.16004.001

KH.16008.019

KH.25008.018

KH.25007.011

Chapter 6 167

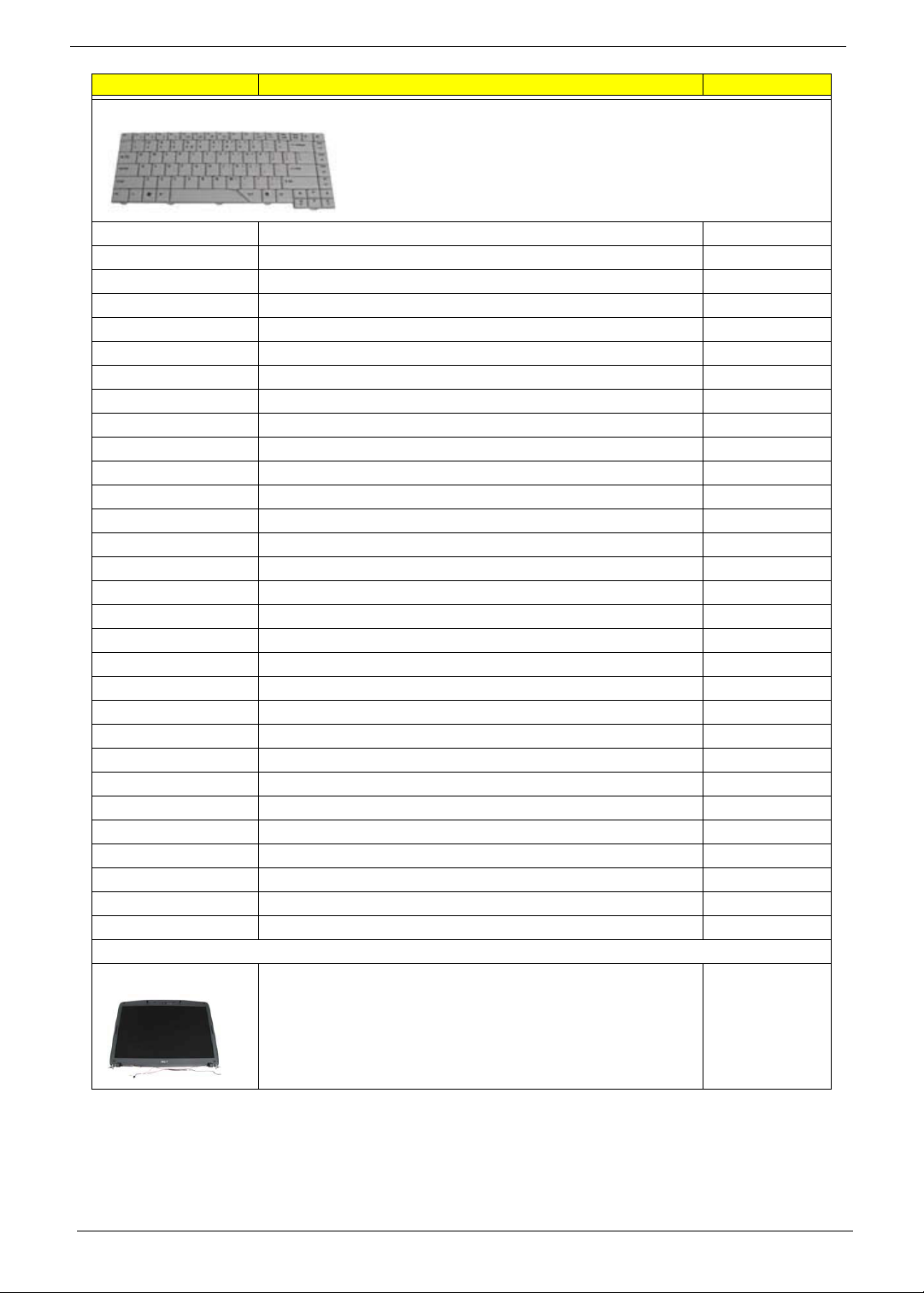

Category Description Part Number

Keyboard

KEYBOARD KEYBOARD INTE(UI) BLACK AS KB.INT00.442 KEYBOARD KEYBOARD ARE BLACK AS KB.INT00.474 KEYBOARD KEYBOARD BE BLACK AS KB.INT00.473 KEYBOARD KEYBOARD BZ BLACK AS KB.INT00.472 KEYBOARD KEYBOARD CF BLACK AS KB.INT00.471 KEYBOARD KEYBOARD CH BLACK AS KB.INT00.470 KEYBOARD KEYBOARD CZ BLACK AS KB.INT00.469 KEYBOARD KEYBOARD DM BLACK AS KB.INT00.468 KEYBOARD KEYBOARD NL BLACK AS KB.INT00.467 KEYBOARD KEYBOARD FR BLACK AS KB.INT00.465 KEYBOARD KEYBOARD GR BLACK AS KB.INT00.464 KEYBOARD KEYBOARD GK BLACK AS KB.INT00.463 KEYBOARD KEYBOARD HG BLACK AS KB.INT00.462 KEYBOARD KEYBOARD IT BLACK AS KB.INT00.459 KEYBOARD KEYBOARD KO BLACK AS KB.INT00.457 KEYBOARD KEYBOARD NW BLACK AS KB.INT00.455 KEYBOARD KEYBOARD PO BLACK AS KB.INT00.453 KEYBOARD KEYBOARD RU BLACK AS KB.INT00.452 KEYBOARD KEYBOARD SA/CR BLACK AS KB.INT00.451 KEYBOARD KEYBOARD SP BLACK AS KB.INT00.449 KEYBOARD KEYBOARD SD/FN BLACK AS KB.INT00.448 KEYBOARD KEYBOARD SW BLACK AS KB.INT00.447 KEYBOARD KEYBOARD TI BLACK AS KB.INT00.446 KEYBOARD KEYBOARD TR BLACK AS KB.INT00.445 KEYBOARD KEYBOARD UK BLACK AS KB.INT00.444 KEYBOARD KEYBOARD HB BLACK AS KB.INT00.443 KEYBOARD KEYBOARD JP BLACK AS KB.INT00.458 KEYBOARD KEYBOARD ND BLACK AS TBD KEYBOARD KEYBOARD AR/FR BLACK AS KB.INT00.475 KEYBOARD KEYBOARD CB BLACK AS KB.INT00.477 LCD Panel LCD ASSY LCD MODULE 15.4 IN. WXGA GLARE W/ANTENNA CCD 6M.AHE02.003

168 Chapter 6

Category Description Part Number

LCD LCD 15.4 WXGAG LPL LP154WX4-TLB2 (G) 8ms 220nits Nanking LK.15408.025

LCD 15.4 WXGAG LPL LP154WX4-TLB4 0FA LK.15408.029

LCD 15.4 WXGAG CMO N154I2-L05 Glare :220nits, 8ms 0.6mm/Asahi

LCD 15.4 WXGAG AUO B154EW02 V7(G) 8ms 220nits HW0A LK.15405.021

LCD 15.4 WXGAG AUO B154EW02 V7-HW1A 154 WX G 0FA LK.15405.023

LCD 15.4 WXGAG AUO B154EW08 V1 LK.15405.025

LCD 15.4 WXGAG AUO B154EW02 V7 2A 0FA LK.15405.028

LCD 15.4 WXGAG AUO B154EW08 V1 3A 0FA LK.15405.029

LCD 15.4 WXGAG SAMSUNG LTN154AT01-001(G) 220nits 8ms LK.15406.021

LCD 15.4 WXGAG SAMSUNG LTN154AT01-A01 15.4" WX G 0FA LK.15406.024 LCD LCD WIRESET 15.4 50.AHE02.006

LCD ASSY LCD MODULE 15.4 IN. WXGA GLARE W/ANTENNA 6M.AJS02.001

LCD LCD BEZEL ASSY 15.4 FOR CCD 60.AHE02.008

LK.1540D.017

LCD LCD BRACKET SET R&L 15.4 33.AHE02.003

LCD

LCD CCD BRACKET-15.4 33.AHE02.004 LCD CCD MYLAR-15.4 47.AHE02.001 LCD ASSY LCD MODULE 15.4 IN. WXGA GLARE W/ANTENNA TBD LCD LCD 15.4 WXGAG LPL LP154WX4-TLB2 (G) 8ms 220nits Nanking LK.15408.025 LCD LCD 15.4 WXGAG CMO N154I2-L05

LCD LCD 15.4 WXGAG AUO B154EW02

LCD LCD 15.4 WXGAG AUO B154EW02 V7-HW1A 154 WX G 0FA LK.15405.023 LCD LCD 15.4 WXGAG AUO B154EW08 V1 LK.15405.025 LCD LCD 15.4 WXGAG SAMSUNG LCD LTN154AT01-001(G) 220nits 8ms LK.15406.021 LCD INVERTER BOARD 15.4 19.AHE02.001 LCD LCD WIRESET 15.4 50.AHE02.006 LCD LCD COVER ASSY 15.4 IN. LOGO W/MIC W/ANTENNA 60.AHE02.007 LCD LCD BEZEL ASSY 15.4 FOR W/O CCD FUNCTION 60.AH902.003

CCD MODULE 0.3M

Glare: 220nits, 8ms 0.6mm/Asahi

V7(G) 8ms 220nits HW0A

57.AHE02.001

LK.1540D.017

LK.15405.021

Chapter 6 169

Category Description Part Number

Mainboard

MAINBOARD MAINBOARD 65W GL960 UMA W/O CPU & MEMORY TBD MAINBOARD

Memory

MEMORY MEMORY 512MB DDRII 667 NANYA NT512T64UH8B0FN-3C KN.51203.032 MEMORY MEMORY 512MB DDRII 667 SAMSUNG M470T6554EZ3-CE6 KN.5120B.023 MEMORY MEMORY 512MB DDRII 667 SAMSUNG M470T6464QZ3-CE6 KN.5120B.026 MEMORY MEMORY 512MB DDRII 667 HYNIX HYMP164S64CP6-Y5 KN.5120G.024 MEMORY MEMORY 1GB DDRII 667 NANYA NT1GT64U8HB0BN-3C KN.1GB03.014 MEMORY MEMORY 1GB DDRII 667 SAMSUNG M470T2953EZ3-CE6 KN.1GB0B.011 MEMORY MEMORY 1GB DDRII 667 SAMSUNG M470T2864DZ3-CE6 KN.1GB0B.014 MEMORY MEMORY 1GB DDRII 667 HYNIX HYMP512S64CP8-Y5 KN.1GB0G.006 MEMORY MEMORY 1GB DDRII 667 A-D ELOPE1A0834Z TBD MEMORY MEMORY 1GB DDRII 667 QIMODA HYS64T128021EDL-3S-B2 KN.1GB02.036 MEMORY MEMORY 2GB DDRII 667 HYNIX KN.2GB0G.004 MEMORY MEMORY 2GB DDRII 667 MICRON KN.2GB04.001 MEMORY MEMORY 2GB DDRII 667 SAMSUNG M470T5663QZ3-CE6 KN.2GB0B.003 Fan

MAINBOARB PM965 DISCRETE W/CARD READER_EXPRESS

CARD W/O CPU MEMORY

MB.AHH02.001

FAN FAN 23.AHE02.001 Heatsink HEATSINK CPU THERMAL MODULE 60.AHE02.009

HEATSINK VGA THERMAL (M71M)-DIS 60.AHE02.010

Speaker SPEAKER SPEAKER R 15.4 23.AHE02.002

170 Chapter 6

Category Description Part Number

SPEAKER SPEAKER L 15.4 23.AHE02.003

SPEAKER MIC SET 15.4 23.AHE02.004 Accessory ACCESSORY REMOTE CONTROLLER EU LZ.20400.004 ACCESSORY REMOTE CONTROLLER TS LZ.20400.005 ACCESSORY REMOTE CONTROLLER SC LZ.20400.006 ACCESSORY REMOTE CONTROLLER EN LZ.20400.007 Miscellaneous MISCELLANEOUS CCD MYLAR-15.4 47.AHE02.001 MISCELLANEOUS LCD SCREW PAD 15.4 47.AHE02.002 MISCELLANEOUS LCD SIDE RUBBER 15.4 47.AHE02.003 MISCELLANEOUS LCD FRONT RUBBER 15.4 47.AHE02.004 MISCELLANEOUS LCD SCREW PAD 15.4 47.AHE02.002 MISCELLANEOUS LCD SIDE RUBBER 15.4 47.AHE02.003 MISCELLANEOUS LCD FRONT RUBBER 15.4 47.AHE02.004 MISCELLANEOUS THERMAL DOOR FRONT RUBBER 15.4 47.AHE02.005 MISCELLANEOUS THERMAL DOOR RUBBER 15.4 47.AHE02.006 MISCELLANEOUS LOWER CASE RUBBER 15.4 47.AHE02.007 MISCELLANEOUS THERMAL PAD 47.AHE02.008 MISCELLANEOUS NAMEPALTE e-ME510 TBD Screw SCREW

SCREW SCREW SCREW SCREW,M2*2.2 86.AHE02.004

SCREW SCREW SCREW SCREW,M 2.5D 3.2L K 6D NI + 86.AHE02.007

SCREW SCREW,M M 2.0D 3L K 5D NI + 86.AHE02.008 SCREW SCREW,F 4# 5L K 4.5D ZK NL + CR3+ 86.AHE02.009 SCREW SCREW, M2.5X4 (NL) 86.AHE02.010 SCREW SCREW,M3*3 (NI) 86.AHE02.011 SCREW CPU THERMAL SCREW ASSY 86.AHJ02.006

SCREW,M2.5*3 (Ni-NL)

SCREW,M2.5*6 (NL)

SCREW,M2.5*12 (NL)

SCREW,M2*3 (NL)

SCREW,M2*5 (Ni-NL)

86.AHE02.001

86.AHE02.002

86.AHE02.003

86.AHE02.005

86.AHE02.006

Chapter 6 171

102 Chapter 6

Acer E510 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
