Acer X137WH, X134PWH, X1285PG, X1284PG, X1285G User Manual

...

Download

Acer Projector

X115/X117/X115AH/X117AH/X115H/X117H/X125H/

X127H/X135WH/X137WH/X1185G/X1185PG/X1285G/

X1285PG/H6517ABD/H6519ABD/

D602/D604/D602B/D604B/D602D/D604D/D612D/D614D/

D622D/D624D/X1184G/X1184PG/X1284G/X1284PG/

E145F/

EV-S62/EV-S64/EV-S62A/EV-S64A/EV-S62H/EV-S64H/

EV-X62H/EV-X64H/EV-W62H/EV-W64H/HE-801K/

V31S/V33S/V30S/V34S/V32S/V35S/V32X/V35X/V32W/

V35W/

AS304/AS307/AS313/AS317/AS314/AS318/AX314/AX314/

AX318/AW314/AW318/

D600+/D605/D600H+/D605H/D600D+/D605D/D610D+/

D615D/D620D+/D625D/

X114P/X114AH/X114PH/X124PH/X134PWH/

R602/R604/R602D/R604D/R602H/R604H/R612H/R614H/

R622H/R624H/

KS304/KS305/KS314A/KS315A/KS314/KS315/KX314/

KX315/KW314/KW315/

ES-12/ES-13/ES-12D/ES-13D/ES-12H/ES-13H/EX-12H/

EX-13H/EW-12H/EW-13H/

B102/B103/B102H/B103H/B102D/B103D/B112D/B113D/

B122D/B122D/B123D Series

User's Guide

Acer Projector User's Guide Original Issue: 03/2016

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: _________________________________

Serial number: __________________________________

Date of purchase: _______________________________

Place of purchase: ______________________________

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC

power outlet.

• Unplug the power cord before removing the power supply unit from the

projector.

• If the system has multiple sources of power, disconnect power from the

system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

iii

Warnings!

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product

falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

• To avoid damage of internal components and to prevent battery leakage,

do not place the product on a vibrating surface.

• Never use it under sporting, exercising, or any vibrating environment

which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too

many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

• This product's AC adapter is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

• Use the product only with the supplied power supply cord set. If you need

to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

• the product was exposed to rain or water

• the product has been dropped or the case has been damaged

• the product exhibits a distinct change in performance, indicating a need

for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may

hurt your eyes.

• Turn on the projector first and then signal sources

• Do not place the product in following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.

• Locations near fire alarms.

• Locations with an ambient temperature above 40 ºC/104 ºF.

• Locations where the altitudes are higher than 10000 feet.

• Unplug immediately if there is something wrong with your projector. Do

not operate if smoke, strange noise or odor comes out of your projector. It

might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

• Do not keep using this product to break or drop it. In this case contact your

dealer for inspection.

• Do not face the projector lens to the sun. It can lead to fire.

• When switching the projector off, suggest to ensure the projector

completes its cooling cycle before disconnecting power.

• Do not frequently turn off the main power abruptly or unplug the

projector during operation. The best way is to wait for the fan to turn off before turning main power off.

• Do not touch air outlet grille and bottom plate which becomes hot.

• Clean the air filter frequently if have. The temperature inside may rise and

cause damage when the filter/ventilation slots clogged with dirt or dust.

• Do not look into the air outlet grille when projector is operating. It may

hurt your eyes.

• Always open the lens shutter or remove the lens cap when the projector is

on.

• Do not block the projector lens with any object when the projector is

under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

• The lamp becomes extremely hot during operation. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

• Do not operate lamps beyond the rated lamp life. It could cause it to break

on rare occasions.

• Never replace the lamp assembly or any electronic components unless the

projector is unplugged.

• The product will detect the life of the lamp itself. Please be sure to change

the lamp when is showing warning message.

• When changing the lamp, please allow unit to cool down, and follow all

changing instructions.

• Reset the "Lamp Hour Reset" function from the Onscreen display

"Management" menu after replacing the lamp module.

• Do not attempt to disassemble this projector. There are dangerous high

voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

• Do not stand the projector on end vertically. It may cause the projector to

fall over, causing injury or damage.

• This product is capable of displaying inverted images for ceiling mount

installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

vii

“Lamp(s) contain Mercury, Dispose Properly.”

RG2

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

Do not stare into the beam, RG2

"As with any bright source, do not stare into the direct beam, RG2 IEC 624715:2015"

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.

• Use a soft cloth moistened with mild detergent to clean the display

housing.

• Disconnect the power plug from AC outlet if the product is not being used

for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.

• Use abrasive cleaners, waxes or solvents to clean the unit.

• Use under the following conditions:

• In extremely hot, cold or humid environments.

• In areas susceptible to excessive dust and dirt.

• Near any appliance that generates a strong magnetic field.

• Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

• Do not look into the projector's lens when the lamp is on. The bright light may hurt

your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

• Please do not open or disassemble the product as this may cause electric shock.

• When changing the lamp, please allow unit to cool down, and follow all changing

instructions.

• This product will detect the life of the lamp itself. Please be sure to change the lamp

when it shows warning messages.

• Reset the "Lamp Hour Reset" function from the Onscreen display "Management"

menu after replacing the lamp module.

• When switching the projector off, please ensure the projector completes its cooling

cycle before disconnecting power.

• Turn on the projector first and then the signal sources.

• Do not use lens cap when projector is in operation.

• When the lamp reaches the end of its life, it will burn out and may make a loud

popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 3

Projector Overview 4

Projector Outlook 4

Control Panel 6

Remote Control Layout 7

Getting Started 9

Connecting the Projector 9

Turning the Projector On/Off 11

Turning on the Projector 11

Turning the projector off 12

Adjusting the Projected Image 13

Adjusting the Height of Projected Image 13

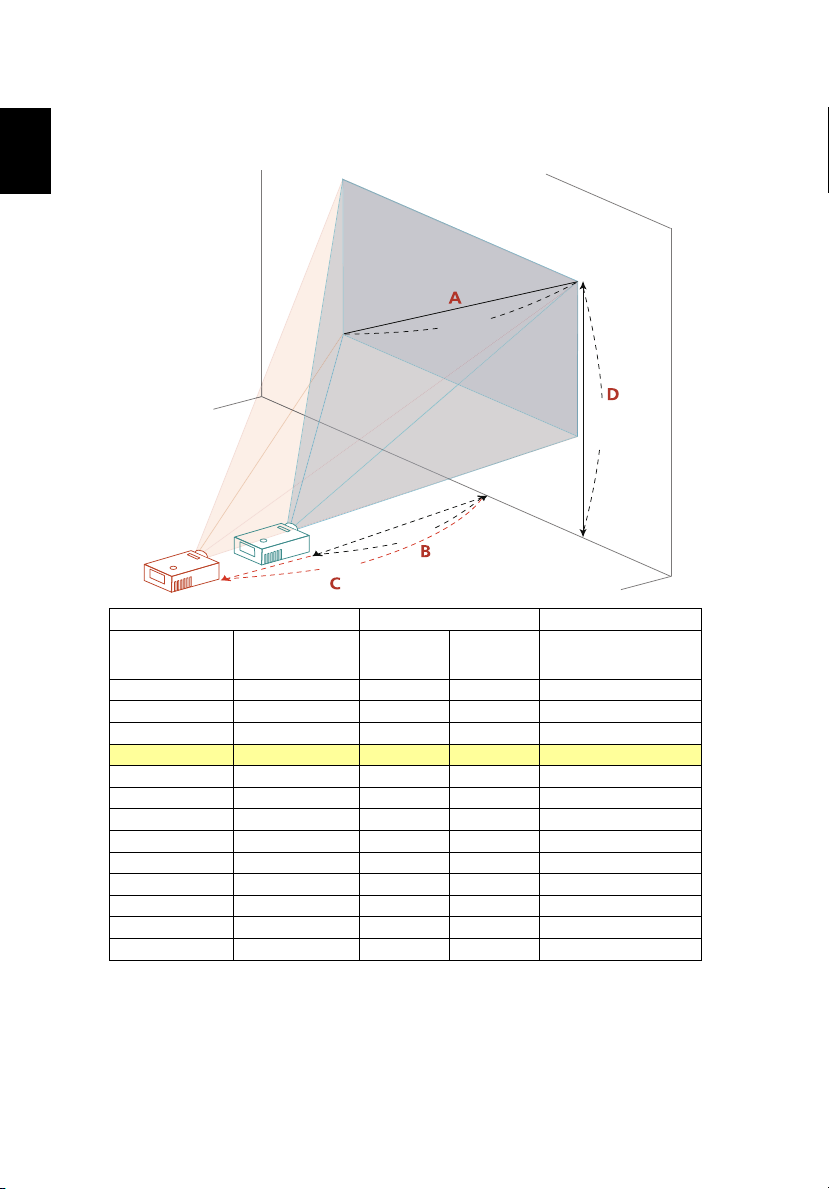

How to optimize image size and distance 14

How to get a preferred image size by adjusting distance and zoom 17

User Controls 20

Installation menu 20

Onscreen Display (OSD) Menus 21

Color 22

Image 24

Setting 26

Management 28

Audio 28

3D 29

Language 29

Appendices 30

Troubleshooting 30

LED & Alarm Definition Listing 34

Cleaning and replacing the dust filters 35

Replacing the Lamp 36

Ceiling Mount Installation 37

Specifications 40

Compatibility modes 45

Regulations and safety notices 50

English

Introduction

Product Features

This product is a single-chip DLP® projector. Outstanding features include:

• DLP

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/KS304/ES-12/B102/

• Enables projecting 3D content via DLP Link Technology: Blue-Ray 3D

• Acer ColorBoost technology delivers nature’s true colors for vivid, life-like

• High brightness and contrast ratio

• Versatile display modes (Bright, Presentation, Standard, Video, Game,

• NTSC / PAL / SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p)

• Lower power consumption and economy (ECO) mode extends lamp life

• Acer EcoProjeciton Technology delivers Intelligent power management

• Advanced digital keystone correction optimizes presentations

• Smart detection delivers quick, intelligent source detection

• Multi-language onscreen display (OSD) menus

• Manual focus projection lens zooms up to 1.1x

• 2x digital zoom

technology

X115AH/D602B/EV-S62A/V30S/AS313/D600H+/X114AH/R602D/KS314A/ ES-12D/B102H/X115H/D602D/EV-S62H/V32S/AS314/D600D+/X114PH/R602H/ KS314/ES-12H/B102D/X117/D604/EV-S64/V33S/AS307/D605/R604/KS305/ ES-13/B103/X117AH/D604B/EV-S64A/V34S/AS317/D605H/R604D/KS315A/ ES-13D/B103H/X117H/D604D/EV-S64H/V35S/AS318/D605D/R604H/KS315/ ES-13H/B103D/X1185G/X1184G/X1185PG/X1184PG series: Native 800 x 600 SVGA resolution X125H/D612D/EV-X62H/V32X/AX314/D610D+/X124PH/R612H/KX314/ EX-12H/B112D/X127H/D614D/EV-X64H/V35X/AX318/D615D/R614H/KX315/ EX-13H/B113D/X1285G/X1284G/X1285PG/X1284PG series: Native 1024 x 768 XGA resolution X135WH/D622D/EV-W62H/V32W/AW314/D620D+/X134PWH/R622H/KW314/ EW-12H/B122D/X137WH/D624D/EV-W64H/V35W/AW318/D625D/R624H/ KW315/EW-13H/B123D series: Native 1280 x 800 WXGA resolution H6517ABD/H6519ABD/E145F/HE-801K series: 1920x1080 1080p resolution Full/4:3/16:9/L.Box aspect ratio supported

supported and nVidia 3DTV Play Ready

images

Education, Movie, Dark Cinema, Sports, User) enable optimum performance in any situation

supported

approach and physical efficiency improvement

English

• Microsoft

10, Macintosh

Note: Functions vary depending on model definition.

Windows® 2000, XP, Vista®, Windows 7, Windows 8, Windows®

OS compliant

English

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

Projector Power cord VGA cable

Remote control 2 x Batteries

User’s guide

(option)

Dust filters

(option)

Quick start guide Carrying case

HDMI cable

(option)

Security card

(option)

English

Projector Overview

Projector Outlook

Front / upper side

3 4

# Description # Description

1 Air outlet 7 Air inlet 2 Lamp cover 8 Remote control receiver 3 Control panel 9 Projection lens 4 Power button 10 Lens cap 5 Zoom lever 11 Tilt adjusting wheels 6 Focus ring

English

Right / Rear side

21 3

4 5

3 5 6

# Description # Description

1 RS232 connector

PC analog signal/HDTV/component

video input connector 3 HDMI connector 4 Security bar 9 S-Video input connector 5 Audio input connector 10 Composite video input connector

6 Mini USB Ctrl connector (for firmware

upgrade and page up/page down function)

Power socket

Kensington

lock port

Note: Functions vary depending on model definition.

English

1 2 3

6 7

Control Panel

# Icon Function Description 1 POWER POWER Power Indicator LED 2 LAMP LAMP Lamp Indicator LED 3 TEMP TEMP Temp Indicator LED

4 RESYNC RESYNC

5 SOURCE SOURCE Changes the active source.

6POWER

7MODEMODE

8 MENU MENU

10 Keystone

Four directional select keys

Automatically synchronizes the projector to the input source.

See the contents in "Turning the Projector On/Off" section.

Press "MODE" to select the display mode from Bright, Presentation, Standard, Video, Game, Education and User.

• Press "MENU" to launch the Onscreen

display (OSD) menu, back to the previous step for the OSD menu operation or exit the OSD menu.

• Confirm your selection of items.

Use to select items or make adjustments to your selection.

Adjusts the image to compensate for distortion caused by tilting the projector.

Note: Functions vary depending on model definition.

English

Remote Control Layout

HIDE

RATIO

SOURCE

MODE

MEDIA

SETUP

ZOOM

FREEZE

Model No:E-26281

Model No:E-26261

MC.JK211.005

MODE

MEDIA

SETUP

RATIO

ZOOM

# Icon Function Description

2 POWER Refer to the "Turning the Projector On/Off" section.

Infrared transmitter

Sends signals to the projector.

3 3D Press "3D" to select 3D models.

SOURCE

4 SOURCE Changes the active source.

Press "MODE" to select the display mode from Bright,

5MODE

HIDE

6HIDE

7 MEDIA_SETUP No function.

8 RATIO To choose the desired aspect ratio.

9 ZOOM Zooms the projector display in or out.

11 MENU

FREEZE

Presentation, Standard, Video, Game, Education, Movie, Dark Cinema, Sports and User.

Momentarily turns off the video. Press "HIDE" to hide the image, press again to display the image.

To pause the screen image.

• Press "MENU" to launch the Onscreen display (OSD)

menu, back to the previous step for the OSD menu operation or exit the OSD menu.

• Confirm your selection of items.

12 KEYSTONE

Adjusts the image to compensate for distortion caused by tilting the projector.

English

# Icon Function Description

15 KeyPad 0~9 Press "0~9" to input a password in the "Security" OSD.

16 PgUp/PgDn

17 COMPONENT No function.

18 VIDEO To change source to COMPOSITE VIDEO.

19 VGA

20 S-VIDEO To change source to S-Video.

21 SD/USB A No function.

Four directional select keys

Pre./Rewind No function.

Enter/ Play/ Pause

Back/Stop No function.

Next/Fast forward

Use up, down, left, right buttons to select items or make adjustments to your selection.

No function.

For computer mode only. Use this button to select the next or previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.

Press "VGA" to change source to the VGA connector. This connector supports analog RGB, YPbPr (480p/576p/720p/ 1080i), YCbCr (480i/576i) and RGBsync.

22 USB B For USB control and firmware upgrade.

23 HDMI™/MHL To change source to HDMI.

24 LAN/WiFi No function.

Note: Functions vary depending on model definition.

English

Getting Started

USB

RS232

HDTV adapter

RBG

D-Sub

HDMI

Video output

DVD player, Set-top Box,

HDTV receiver

S-Video output

Connecting the Projector

# Description # Description

1 Power cord 6 3 RCA component cable

2 S-Video cable 7 VGA to component/HDTV adapter

3 Composite video cable 8 VGA cable

4 RS232 cable 9 Audio cable jack/jack

5 HDMI cable 10 USB cable

English

Note 1: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector. Note 2: Functions vary depending on model definition. Note 3:

USB cable needs powered extender if the length is over 5 m.

English

Turning the Projector On/Off

Power button

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The

Power indicator LED will flash red.

2 Turn on the projector by pressing "Power" button on the control panel or

remote control, and the Power indicator LED will turn blue.

3 Turn on your source (computer, notebook, video player, etc.). The

projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.

• If the screen displays "No Signal", please make sure the signal cables are securely connected.

• If you connect to multiple sources at the same time, use the "Source" button on either control panel or the remote control or direct source key on the remote control to switch between inputs.

English

Turning the projector off

1 To turn the projector off, press and hold the power button. This message

appears: "Please press the power button again to complete the shutdown process." Press the power button again.

2 The LED power indicator will turn RED and blink rapidly after the projector

is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)

3 As long as the power cord remains plugged in, you can press the power

button to turn the projector immediately back on anytime during the 2minute shutdown process. (only supported under "Instant Resume" mode)

4 Once the system has finished cooling, the LED power indicator will stop

blinking and turn solid red to indicate standby mode.

5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon." This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.

• "Fan failed. Lamp will automatically turn off soon." This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note 1: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center. Note 2: Functions vary depending on model definition. Attention! The projector will enter a two minute cool down period to ensure continued optimal lamp operation.

English

Adjusting the Projected Image

Tilt adjusting wheel

Adjusting the Height of Projected Image

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

English

46"

Height: 89 cm from base to top of image

Height: 80 cm

2.0 m Desired Distance

How to optimize image size and distance

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.

• SVGA/XGA series

If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 46" and 51".

Note: Remind as below figure, the space of 89 cm height is required when located at 2.0 m distance.

51"

46"

Desired

Distance

(m)

<A>

1.2 27.34 56 x 42 48 30 62 x 46 53

1.5 34 69 x 52 60 38 77 x 58 67 2 46 93 x 69 80 51 103 x 77 89 3 68 139 x 104 120 76 155 x 116 133 4 91 185 x 139 160 101 206 x 155 178 5 114 231 x 174 200 127 258 x 193 222 6 137 278 x 208 240 152 309 x 232 267 7 159 324 x 243 280 178 361 x 271 311 8 182 370 x 278 319 203 412 x 309 356 9 205 417 x 313 359 228 464 x 348 400

10 228 463 x 347 399 254 515 x 387 445 11 251 509 x 382 439 279 567 x 425 489

11.8 269 546 x 410 471 299.3 608 x 456 525

Zoom Ratio: 1.1x

Screen size

Diagonal

(inch)

(Min zoom) (Max zoom)

W (cm) x H

(cm)

Top

From base to top

of image (cm)

<C>

Screen size

Diagonal

(inch)

W (cm) x H

(cm)

From base to top

of image (cm)

Top

<C>

English

• WXGA series

60"

54"

Height: 91 cm from base to top of image

Height: 82 cm

2.0 m Desired Distance

If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 54" and 60".

Note: Remind as below figure, the space of 91 cm height is required when located at 2.0 m distance.

Desired

Distance

(m)

<A>

1.1 29.69 64 x 40 45 33 71 x 45 50

1.5 40 87 x 55 61 45 97 x 61 68

2 54 116 x 73 82 60 130 x 81 91

3 81 174 x 109 123 90 194 x 121 136

4 108 233 x 145 163 120 259 x 162 182

5 135 291 x 182 204 150 324 x 202 227

6 162 349 x 218 245 180 389 x 243 273

7 189 407 x 254 286 210 453 x 283 318

8 216 465 x 291 327 241 518 x 324 364

9 243 523 x 327 368 271 583 x 364 409

10 270 581 x 363 408 300.69 648 x 405 455

Zoom Ratio: 1.1x

Screen size Top Screen size Top

Diagonal

(inch)

W (cm) x H (cm)

(Min zoom) (Max zoom)

From base

to top of

image (cm)

<C>

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm) <C>

English

56"

61"

Height: 88 cm from base to top of image

Height: 81 cm

2 m Desired Distance

• 1080p series

If the projector is 2 m from the screen, good image quality is possible for image sizes between 56" and 61".

Note: Remind as below figure, the space of 88 cm height is required when located at 2 m distance.

Desired

Distance

(m)

<A>

1.5 41.8 93 x 52 60 46 101 x 57 66

2 56 123 x 69 81 61 135 x 76 88

2.5 70 154 x 87 101 76 169 x 95 110

3 84 185 x 104 121 92 203 x 114 132

3.5 98 216 x 122 141 107 236 x 133 154

4 112 247 x 139 161 122 270 x 152 176

4.5 125 278 x 156 181 137 304 x 171 198

5 139 309 x 174 201 153 338 x 190 220

6 167 370 x 208 242 183 405 x 228 265

7 195 432 x 243 282 214 473 x 266 309

8 223 494 x 278 322 244 541 x 304 353

9 251 556 x 313 363 275 608 x 342 397

10 279 617 x 347 403 305.2 676 x 380 441

Zoom Ratio: 1.1x

Screen size

Diagonal

(inch)

(Min zoom) (Max zoom)

W (cm) x H

(cm)

From base to

top of image

Top

(cm)

<C>

Screen size

Diagonal

(inch)

W (cm) x H

(cm)

From base to top

Top

of image (cm)

<C>

English

How to get a preferred image size by adjusting

Desired Distance

2.2 m

2.0 m

Height: 88 cm from base to top of image

50"

Desired image size

distance and zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

• SVGA/XGA series

To obtain an image size of 50" set the projector at a distance 2.0 m and 2.2 m from the screen.

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

<A>

30 61 x 46 1.2 1.3 53 40 81 x 61 1.6 1.8 70 50 102 x 76 2.0 2.2 88 60 122 x 91 2.37 2.6 105 70 142 x 107 2.8 3.1 123 80 163 x 122 3.2 3.5 140

90 183 x 137 3.5 4.0 158 100 203 x 152 3.9 4.4 175 150 305 x 229 5.9 6.6 263 180 366 x 274 7.1 7.9 315 200 406 x 305 7.9 8.8 351 250 508 x 381 9.9 11.0 438 300 610 x 457 11.8 526

Zoom Ratio: 1.1x

W (cm) x H (cm)

Max zoom

Min zoom

<C>

From base to top of


<D>

English

Desired Distance

2.2 m

2.0 m

Height: 91 cm

from base to top of image

60"

Desired image size

• WXGA series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

<A>

30 65 x 40 1.1 45

40 86 x 54 1.3 1.5 61

50 108 x 67 1.7 1.9 76

60 129 x 81 2.0 2.2 91

70 151 x 94 2.3 2.6 106

80 172 x 108 2.7 3.0 121

90 194 x 121 3.0 3.3 136

100 215 x 135 3.3 3.7 151

150 323 x 202 5.0 5.6 227

180 388 x 242 6.0 6.7 272

200 431 x 269 6.7 7.4 303

250 538 x 337 8.3 9.3 378

300 646 x 404 10.0 454

Zoom Ratio: 1.1x

W (cm) x H (cm)

Max zoom

Min zoom

<C>

From base to top of


<D>

English

• 1080p series

Desired Distance

2.2 m

1.97 m

Height: 87 cm from base to top of image

60"

Desired image size

To obtain an image size of 60" set the projector at a distance 1.97 m and 2.2 m from the screen.

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

<A>

42 93 x 52 1.5 61

50 111 x 62 1.6 1.8 72

60 133 x 75 1.97 2.2 87

70 155 x 87 2.3 2.5 101

80 177 x 100 2.6 2.9 116

90 199 x 112 2.9 3.2 130

100 221 x 125 3.3 3.6 144

120 266 x 149 3.9 4.3 173

150 332 x 187 4.9 5.4 217

180 398 x 224 5.9 6.5 260

200 443 x 249 6.6 7.2 289

250 553 x 311 8.2 9.0 361

305 675 x 380 10.0 441

Zoom Ratio: 1.1x

W (cm) x H (cm)

Max zoom

Min zoom

<C>

From base to top of


<D>

English

User Controls

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more.

1 Turn on the projector by pressing "Power" button on the control pad.

2 Press the "MENU" button on the remote control to launch the OSD for

projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and

alignment settings, such as screen size and distance, focus and more.

4 The Installation menu includes the following options:

•Projection Mode

•Projection Location

•Auto Keystone settings

•Manual Keystone settings

•Keystone settings

•Language settings

•Reset to factory default function

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the MENU button anytime to exit the menu and return to the Acer

welcome screen.

Note: Functions vary depending on model definition.

English

Main menu

Sub menu

Setting

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control or control

panel.

• When the OSD is displayed, use the keys to select any item in the

main menu. After selecting the desired main menu item, press to enter submenu for feature setting.

• Use the keys to select the desired item and adjust the settings by

using the keys.

• Select the next item to be adjusted in the submenu and adjust as described

above.

• Press "MENU" on the remote control or control panel, the screen will

return to the main menu.

• To exit OSD, press "MENU" on the remote control or control panel. The

OSD menu will close and the projector will automatically save the new settings.

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector. Note: Functions vary depending on model definition.

English

Color

Display Mode

Wall color

Brightness

Contrast

Saturation

Tint

There are many factory presets optimized for various types of images.

• Bright: For brightness optimization.

• Presentation: For meeting presentation.

• Standard: For common environment.

• Video: For playing video in a bright environment.

• Game: For game content.

• Education: For education environment.

• Movie: For brighter and general movie/video/photo playing.

• Dark Cinema: For dark movie content.

• Sports: For sport picture.

• User: Memorize user's settings.

Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.

Adjust the brightness of the image.

• Press to darken the image.

• Press to lighten the image.

"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

• Press to decrease the contrast.

• Press to increase the contrast.

Adjusts a video image from black and white to fully saturated color.

• Press to decrease the amount of color in the image.

• Press to increase the amount of color in the image.

Adjusts the color balance of red and green.

• Press to increase the amount of green in the image.

• Press to increase the amount of red in the image.

English

Color Temperature

Dynamic Black

Gamma

Advanced

Mode Use this function to choose CT1, CT2 (Native), CT3, User mode.

R Gain Adjusts the red gain for color temperature optimization.

G Gain Adjusts the green gain for color temperature optimization.

B Gain Adjusts the blue gain for color temperature optimization.

R Bias Adjusts the red bias for color temperature optimization.

G Bias Adjusts the green bias for color temperature optimization.

B Bias Adjusts the blue bias for color temperature optimization.

Choose "On" to automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.

Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.

Ind. Color Management Adjusts the red, green, blue, cyan, yellow and magenta colors.

Ind. Hue Adjusts the color balance of red and green.

Ind. Saturation Adjusts the selected color to be less or more saturated color.

Ind. Gain Adjusts the selected color's contrast.

Brilliant Color Produces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images.

White Peaking Increases the brightness of whites that are near 100%. (video sources only)

Film Mode Sets the image optimized to 24-frame True Film mode.

Noise Reduction Adjusts signal noise reduction."0" means the noise reduction is off, ">0" increase noise reduction.

Black Extension This ensures optimum black level for each analog source.

Note 1: "Saturation" and "Tint" functions are not supported under computer or HDMI mode. Note 2: Functions vary depending on model definition.

English


Projection

• Front-Desktop: The factory default setting.

• Rear-Desktop: When you select this function, the projector

reverses the image so you can project from behind a translucent screen.

• Rear-Ceiling: When you select this function, the projector

reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.

• Front-Ceiling: When you select this function, the projector

inverts the image for ceiling-mounted projection.

Projection Mode

• Front: The factory default setting.

• Rear: Reverses the image so you can project from behind a

translucent screen.

Projection Location

• Auto: Automatically adjusts projection location of image.

• Desktop

• Ceiling: Turns the image upside down for ceiling-mounted

projection.

Aspect Ratio Use this function to choose your desired aspect ratio.

Keystone Adjust image distortion caused by tilting projection.

Auto Keystone Automatically adjusts vertical image.

Manual Keystone Adjust image distortion caused by tilting projection.

• Auto: Keep the image with original width-height ratio and

maximize the image to fit native horizontal or vertical pixels.

• Full: Resize image to fit full screen by width (1280 pixels) and

height (800 pixels).

• 4:3: The image will be scaled to fit the screen and displayed using

a 4:3 ratio.

• 16:9: The image will be scaled to fit the width of the screen and

the height adjusted to display the image using a 16:9 ratio.

• L.Box: Keep original signal aspect ratio and zoom in by 1.333

times.

<Note> The Manual Keystone function is unavailable under Auto Keystone setting to "On".

Sharpness Adjusts the sharpness of the image.

• Press to decrease the sharpness.

• Press to increase the sharpness.

English

H. Position

• Press to move the image left.

• Press to move the image right.

V. Position

• Press to move the image down.

• Press to move the image up.

Frequency "Frequency" changes the projector's refresh rate to match the

Tracking Synchronizes the signal timing of the projector with the graphics card.

HDMI Color Range Adjust the color range of the HDMI image data to correct color display

frequency of your computer’s graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.

If you experience an unstable or flickering image, use this function to correct it.

error.

• Auto: Automatically adjust by information from player.

•

Limited Range: Process the input image as limited color range data.

• Full Range: Process the input image as full color range data.

HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.

• Auto: Automatically adjust by information from player.

• Underscan: Always no overscan on HDMI image.

• Overscan: Always keep overscan on HDMI image.

Note 1: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode. Note 2: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode. Note 3: Functions vary depending on model definition.

English

Setting

Source Lock When Source Lock is turned "Off", the projector will search for

Closed Caption

Reset

Security Security

other signals if the current input signal is lost. When Source Lock is turned "On", it will "lock" the current source channel unless you press "Source" button on the remote control for the next channel.

Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4, (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC. <Note> Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is "16:9" or "Auto" .

Press the button and choose "Yes" to return the parameters on all menus to the factory default settings.

This projector provides a useful security function for the administrator to manage usage of the projector.

Press to change the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first

before changing the security settings.

• Select "On" to enable the security function. The user has to

enter a password to operate the projector. Please refer to the "User Password" section for details.

• If "Off" is selected, then the user can turn on the projector

without password.

Timeout(Min.) Once "Security" is activated to "On", the administrator can set

timeout function.

• Press or to select the timeout interval.

• The range is from 10 minute to 990 minutes.

• When the time is up, the projector will prompt the user to

enter the password again.

• The factory default setting of "Timeout(Min.)" is "Off".

• Once the security function is enabled, the projector will

request user to enter password when switch on the projector . Both "User Password" and "Administrator Password" can be accepted for this dialogue.

English

User Password

• Press to setup or change the "User Password".

• Press number keys to set your password on the remote control

and press "MENU" to confirm.

• Press to delete character.

• Enter the password when you see "Confirm Password"

displayed.

• The password should be between 4 and 8 characters long.

• If you select "Request password only when plugging the

power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged.

• If you select "Always request password while projector turns

on.", the user has to enter the password every time when the projector is turned on.

Administrator Password The "Administrator Password" can be used in both the "Enter

Administrator Password" and "Enter Password" dialog boxes.

• Press to change the "Administrator Password".

• The factory default of "Administrator Password" is "1234".

If you forgot your administrator password, do the following to retrieve the administrator password:

• An unique 6-digit "Universal Password" which is printed on

the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is.

• If losing this security card and number, please contact with an

Acer service center.

Note: Functions vary depending on model definition.

English

Management

ECO Mode Choose "On" to dim the projector lamp which will lower power

High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at

Turn Off Mode

consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.

full speed continuously to allow for proper high altitude cooling of the projector.

• Instant Off: Shuts down the projector without fan cooling.

• Instant Resume: Resumes the system when the Power button

is pressed again within 2 minutes.

Auto Shutdown The projector will automatically shutdown when there is no signal

Menu Display Time (Seconds)

AC Power On Choose "On" to power on projector while AC power plug in.

Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).

Lamp Reminding Activate this function to display a reminder to change the lamp 30

Lamp Hour Reset

Note: Functions vary depending on model definition.

input after the allocated time. (default is 15 minutes)

Choose the OSD menu display time. (Default is 15 seconds). Select “Manual” to turn off main menu/one direct-key menu manually by user.

hours before its expected end-of-life.

Press the button and choose "Yes" to turn the lamp hour counter to 0 hours.

Audio

Volume

Mute

• Press to decrease the volume.

• Press to increase the volume.

• Choose "On" to mute the volume.

• Choose "Off" to restore the volume.

Note: Functions vary depending on model definition.

English

3D Choose "On" to enable DLP 3D function.

• On: Choose this item while using DLP 3D glasses, 120Hz 3D

capable graphics cards and HQFS format file or DVD with corresponding SW player.

• Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D

24P 3D Choose "96Hz" or "144Hz" to compatible with 3D glasses.

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D

3D Warning Message Choose "On" to display the 3D warning message.

Note 1: It needs correct settings on graphic card 3D application program for correct 3D display. Note 2: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Note 3: "3D L/R Invert" is only available when 3D is enabled. Note 4: There has reminder screen if 3D still enable when power on projector. Please adjust setting depended on your purpose.

format that suits the 3D content you are viewing and obtain the best result.

glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

Language

Choose the multilingual OSD menu. Use the or key to

select your preferred menu language.

• Press to confirm the selection.

English

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution

1 No image appears

onscreen

2 Partial, scrolling

or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))

• Connected as described in the "Getting Started"

section.

• Ensure none of the connector pins are bent or

broken.

• Check if the projector lamp has been securely

installed. Please refer to the "Replacing the Lamp" section.

• Make sure you have removed the lens cap and the

projector is switched on.

• Press "RESYNC" on the control panel.

• For an incorrectly displayed image:

• Open "My Computer", open the "Control

Panel", and then double-click the "Display" icon.

• Select the "Settings" tab.

• Verify that your display resolution setting is

lower than or equal to WUXGA-RB (1920 x

1200).

• Click the "Advanced Properties" button.

If the problem still appears, change the monitor display you are using and follow the steps below:

• Verify that the resolution setting is lower than

or equal to WUXGA-RB (1920 x 1200).

• Click the "Change" button under the

"Monitor" tab.

• Click "Show all devices". Next, select "Standard

monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.

• Verify that the resolution setting of the

monitor display is lower than or equal to WUXGA-RB (1920 x 1200).

English

3 Partial, scrolling

or incorrectly displayed image (For notebooks)

4 The screen of the

notebook computer is not displaying your presentation

5 Image is unstable

or flickering

6 Image has vertical

flickering bar

• Press "RESYNC" on the control panel.

• For an incorrectly displayed image:

• Follow the steps for item 2 (above) to adjust

the resolution of your computer.

• Press the toggle output settings. Example:

[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]

• If you experience difficulty changing resolutions or

your monitor freezes, restart all equipment including the projector.

• If you are using a Microsoft

notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

• If you are using an Apple

notebook: In System Preferences, open Display and select Video Mirroring "On".

Windows® based

Mac® OS based

• Adjust the "Tracking" to correct it. Refer to the

"Image" section for more information.

• Change the display color depth settings on your

computer.

• Use "Frequency" to make an adjustment. Refer to

the "Image" section for more information.

• Check and reconfigure the display mode of your

graphics card to make it compatible with the projector.

7 Image is out of

focus

• Make sure the lens cap is removed.

• Adjusts the focus ring on the projector lens.

• Make sure the projection screen is within the

required distance of 3.3 to 38.8 feet (1.0 to 11.8 meters) (SVGA/XGA series) / 3.3 to 32.7 feet (1.0 to

10.0 meters) (WXGA series) / 3.3 to 32.2 feet (1.0 to

9.8 meters) (1080p series) from the projector. Refer to the "How to get a preferred image size by adjusting distance and zoom" section for more information.

English

8 Image is stretched

when displaying a "widescreen" DVD title

9 Image is too small

or too large

10 Image has slanted

sides

11 Image is reversed

When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:

• If you play a 4:3 format DVD title, please change the

format to 4:3 in the projector OSD.

• If the image is still stretched, you will also need to

adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.

• If you play an Letterbox (LBX) format DVD title,

please change the format to Letterbox (LBX) in the projector OSD.

• Adjust the zoom lever on the top of the projector.

• Move the projector closer to or further from the

screen.

• Press "MENU" on the remote control. Go to "Image -

-> Aspect Ratio" and try different settings or press "RATIO" on the remote control to adjust directly.

• If possible, reposition the projector so that it is

centered on the screen.

• Press the "Keystone / " button on the remote

control until the sides are vertical.

• Press "MENU" on the remote control. Go to "Image -

-> Auto Keystone" and choose "Off" on the OSD, if "Keystone" button is not available on the remote control.

• Select "Image --> Projection" on the OSD and adjust

the projection direction.

English

OSD Messages

# Condition Message Reminder

1 Message

• Fan Fail - the system fan is not working.

• Projector Overheated - the projector has exceeded its

recommended operating temperature and must be allowed to cool down before it may be used. Please check the following message.

Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it. Please refer to "Cleaning and replacing the dust filters" for details.

• Replace the lamp - the lamp is about to reach its maximum

lifetime. Prepare to replace it soon.

Problems with the Projector

# Condition Solution

1 The projector stops responding

to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.

2 Lamp burns out or makes a

popping sound

When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section.

English

LED & Alarm Definition Listing

LED Messages

Message

Input power plug Flash ON to

Standby -- -- ON --

Power button ON -- -- -- ON

Lamp retry -- -- -- Quick

Power off (Cooling state) -- -- Quick

Power button OFF (cooling completed; standby mode)

Error (thermal failure) -- ON -- ON

Error (fan lock) -- Quick

Error (lamp breakdown) ON -- -- ON

Error (color wheel fail) Quick

Lamp_LED Temp_LED Power LED

Red Red Red Blue

OFF 100ms

-- -- ON --

Flashing

Flash ON to

OFF 100ms

Flashing

-- -- ON

Flash ON to

OFF 100ms

Flashing

-- ON

Flashing

English

Cleaning and replacing the dust filters

Cleaning the dust filters

Clean the dust filters after every 1000 hours of use. If they are note cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Follow these steps: 1 Turn the projector off. Wait for the Power LED to stop flashing then

unplug the power cord. 2 Allow the projector at least 30 mins to cool down. 3 Pull out the dust filter. (Illustration #1) 4 To clean the dust filters, use a small vacuum cleaner designed for

computers and other office equipment. (Illustration #2) 5 If the dirt is difficult to remove or the filter is broken, please contact your

local dealer or service center to obtain a new filter.

English

Replacing the Lamp

Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp.

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 30 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

To Change the Lamp Turn off the projector by pressing the Power button. Allow the projector at least 30 minutes to cool down. Disconnect the power cord. 1 Use a screwdriver to remove the screw from the cover. (Illustration #1)

Push up and remove the cover. (Illustration #2)

2 Remove the screw that secure the lamp module. (Illustration #3)

Lift the handle so that it stands up. (Illustration #4) Pull out the lamp plug. (Illustration #5)

3 Lift the handle so that it stands up. Pull out the lamp module by force.

(Illustration #6)

To replace the lamp module, use a new lamp and reverse the above steps.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

English

Ceiling Mount Installation

Type 1 Type 2 Type 3

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structural ceiling member, and secure the

ceiling mount base to the ceiling.

2 Choose the length combination based on actual environment. (CM-01S

doesn’t include Type 2 and Type 3.)

English

Type 1:

Type 2: Type 3:

Illustration 1

Illustration 2

3 Type 1:

For the standard size use three bracket screws to mount the projector to

the ceiling mount bracket.

Type 2 and Type 3:

Alternatively, for the larger size, use the sliding extensions for more

supports.

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.

4 Connect the main body connector to the projector bracket (illustration 1),

and then screw up four screws (illustration 2).

English

5 Adjust the angle and positioning as necessary.

360°

85.00 mm55.00 mm

82.30 mm 63.81 mm

SCREW SPEC. M4 x 25 mm

Screw Type B Washer Type

Diameter (mm) Length (mm) Large Small

425VV

English

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system

Resolution

DLP

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/

KS304/ES-12/B102/X115AH/D602B/EV-S62A/V30S/ AS313/D600H+/X114AH/R602D/KS314A/ES-12D/ B102H/X115H/D602D/EV-S62H/V32S/AS314/D600D+/ X114PH/R602H/KS314/ES-12H/B102D/X117/D604/ EV-S64/V33S/AS307/D605/R604/KS305/ES-13/B103/ X117AH/D604B/EV-S64A/V34S/AS317/D605H/R604D/ KS315A/ES-13D/B103H/X117H/D604D/EV-S64H/ V35S/AS318/D605D/R604H/KS315/ES-13H/B103D/ X1185G/X1184G/X1185PG/X1184PG series: 800x600 SVGA resolution

• X125H/D612D/EV-X62H/V32X/AX314/D610D+/

X124PH/R612H/KX314/EX-12H/B112D/X127H/ D614D/EV-X64H/V35X/AX318/D615D/R614H/KX315/ EX-13H/B113D/X1285G/X1284G/X1285PG/X1284PG series: 1024x768 XGA resolution

• X135WH/D622D/EV-W62H/V32W/AW314/D620D+/

X134PWH/R622H/KW314/EW-12H/B122D/X137WH/ D624D/EV-W64H/V35W/AW318/D625D/R624H/ KW315/EW-13H/B123D series: 1280x800 WXGA resolution

• H6517ABD/H6519ABD/E145F/HE-801K series:

1920x1080 1080p resolution

• Maximum: UXGA (1600 x 1200), WSXGA+

(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and

Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Displayable colors 1.07 billion colors

Optical zoom ratio 1.1X

VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +

K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)

English

Throw ratio

Projection lens

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/

KS304/ES-12/B102/X115AH/D602B/EV-S62A/V30S/ AS313/D600H+/X114AH/R602D/KS314A/ES-12D/ B102H/X115H/D602D/EV-S62H/V32S/AS314/D600D+/ X114PH/R602H/KS314/ES-12H/B102D/X117/D604/EVS64/V33S/AS307/D605/R604/KS305/ES-13/B103/ X117AH/D604B/EV-S64A/V34S/AS317/D605H/R604D/ KS315A/ES-13D/B103H/X117H/D604D/EV-S64H/ V35S/AS318/D605D/R604H/KS315/ES-13H/B103D/ X1185G/X1184G/X1185PG/X1184PG/X125H/D612D/ EV-X62H/V32X/AX314/D610D+/X124PH/R612H/ KX314/EX-12H/B112D/X127H/D614D/EV-X64H/ V35X/AX318/D615D/R614H/KX315/EX-13H/B113D/ X1285G/X1284G/X1285PG/X1284PG series: 1.94 ~

2.16 (51"@2m)

• X135WH/D622D/EV-W62H/V32W/AW314/D620D+/

X134PWH/R622H/KW314/EW-12H/B122D/X137WH/ D624D/EV-W64H/V35W/AW318/D625D/R624H/ KW315/EW-13H/B123D series: 1.54 ~ 1.72 (60"@2m)

• H6517ABD/H6519ABD/E145F/HE-801K series: 1.48 ~

1.62 (100"@3.3m)

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/

KS304/ES-12/B102/X115H/D602D/EV-S62H/V32S/ AS314/D600D+/X114PH/R602H/KS314/ES-12H/ B102D/X115AH/D602B/EV-S62A/V30S/AS313/ D600H+/X114AH/R602D/KS314A/ES-12D/B102H/ X125H/D612D/EV-X62H/V32X/AX314/D610D+/ X124PH/R612H/KX314/EX-12H/B112D/X135WH/ D622D/EV-W62H/V32W/AW314/D620D+/X134PWH/ R622H/KW314/EW-12H/B122D series: F = 2.41 ~ 2.53, f = 21.85mm ~ 24.01mm, Manual Zoom & Focus

• H6517ABD/H6519ABD/E145F/HE-801K series:

F = 2.50 ~ 2.67, f = 21.86mm ~ 24.00mm, Manual Zoom & Focus

English

Projection screen size (diagonal)

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/

• X135WH/D622D/EV-W62H/V32W/AW314/D620D+/

X134PWH/R622H/KW314/EW-12H/B122D/X137WH/ D624D/EV-W64H/V35W/AW318/D625D/R624H/ KW315/EW-13H/B123D series: 27" ~ 300" (69cm ~ 762cm)

• H6517ABD/H6519ABD/E145F/HE-801K series:

28" ~ 300" (71cm ~ 762cm)

Projection distance

• X115/D602/EV-S62/V31S/AS304/D600+/X114P/R602/

1.0m ~ 11.8m (3.3' ~ 38.8')

• X135WH/D622D/EV-W62H/V32W/AW314/D620D+/

X134PWH/R622H/KW314/EW-12H/B122D/X137WH/ D624D/EV-W64H/V35W/AW318/D625D/R624H/ KW315/EW-13H/B123D series:

1.0m ~ 10.0m (3.3' ~ 32.7')

• H6517ABD/H6519ABD/E145F/HE-801K series:

1.0m ~ 9.8m (3.3' ~ 32.2')

Horizontal scan rate 15 - 100 kHz

Vertical refresh scan rate 24 - 120 Hz

Lamp type 195 W user-replaceable lamp

Keystone correction ±40 degrees

Audio Internal speaker with 3 W x 1 output

Weight 2.5 Kgs (5.51lbs)

Dimensions (W x D x H) 314 mm X 223.4 mm X 93.4 mm (12.4" x 8.8" x 3.7")

Digital Zoom 2X

Power supply AC input 100 - 240 V auto-switching power supply

Power consumption Normal mode: 235W ± 10% @ 110VAC

Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

ECO mode: 195W ± 10% @ 110VAC Standby mode < 0.5W

English

Standard package contents

• AC power cord x1

• VGA cable x1

• Remote control x1

• Battery x2 (for remote control) (option)

• User's guide (CD-ROM) x1 (option)

• Quick start guide x1

• Security card x1 (option)

• Dust filters x1 (option)

• Carrying case x1 (option)

X115H/D602D/EV-S62H/ V32S/AS314/D600D+/ X114PH/R602H/KS314/ ES-12H/B102D/X117H/ D604D/EV-S64H/V35S/

X115/D602/ EV-S62/V31S/ AS304/ D600+/ X114P/R602/

I/O connectors

Power socket V V V V V

VGA IN V V V V V

KS304/ES-12/ B102/X117/ D604/EV-S64/ V33S/AS307/ D605/R604/ KS305/ES-13/ B103

AS318/D605D/R604H/ KS315/ES-13H/B103D/ X125H/D612D/EV-X62H/ V32X/AX314/D610D+/ X124PH/R612H/KX314/ EX-12H/B112D/X127H/ D614D/EV-X64H/V35X/ AX318/D615D/R614H/ KX315/EX-13H/B113D/ X135WH/D622D/ EV-W62H/V32W/AW314/ D620D+/X134PWH/ R622H/KW314/EW-12H/ B122D/X137WH/D624D/ EV-W64H/V35W/AW318/ D625D/R624H/KW315/ EW-13H/B123D/ H6519ABD

X115AH/ D602B/ EV-S62A/ V30S/ AS313/ D600H+/ X114AH/ R602D/ KS314A/ ES-12D/ B102H/ X117AH/ D604B/ EV-S64A/ V34S/ AS317/ D605H/ R604D/ KS315A/ ES-13D/ B103H

X1185G/ X1184G/ X1185PG/ X1184PG/ X1285G/ X1284G/ X1285PG/ X1284PG

H6517ABD/ E145F/ HE-801K

3.5 mm audio jack input

S-Video V X X X X

Composite video V X X X X

RS232 X

HDMI X V V X V

Mini USB x1 (for firmware upgrade)

XVXXV

(*)

VVVVV

XX X

English

Note 1: Design and specifications are subject to change without notice. Note 2: * Functions vary depending on model definition.

English

Compatibility modes

A. VGA Analog

1 VGA Analog - PC Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

VGA 640x480 60 31.5

640x480 72 37.9 640x480 75 37.5 640x480 85 43.3 640x480 120 61.9

SVGA 800x600 56 35.1

800x600 60 37.9 800x600 72 48.1 800x600 75 46.9 800x600 85 53.7 800x600 120 77.4

XGA 1024x768 60 48.4

1024x768 70 56.5 1024x768 75 60.0 1024x768 85 68.7 1024x768 120 99.0

SXGA 1152x864 70 63.8

1152x864 75 67.5

1152x864 85 77.1 1280x1024 60 64.0 1280x1024 72 77.0 1280x1024 75 80.0 1280x1024 85 91.1

QuadVGA 1280x960 60 60.0

1280x960 75 75.2

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75.0 PowerBook G4 640x480 60 31.4 PowerBook G4 640x480 66.6(67) 34.9 PowerBook G4 PowerBook G4 PowerBook G4 1152x870 75 68.7 PowerBook G4 1280x960 75 75.0

i Mac DV (G3) 1024x768 75 60.0

800x600 60 37.9

1024x768 60 48.4

English

2 VGA Analog - Extended Wide timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz] WXGA 1280x768 60 47.8

1280x768 75 60.3 1280x768 85 68.6 1280x720 60 44.8 1280x720 120 92.9 1280x800 60 49.6

*1280x800-RB 119.909 101.6

1440x900 60 59.9

WSXGA+ 1680x1050 60 65.3

1920x1080

(1080P)

1366x768 60 47.7

WUXGA 1920x1200-RB 59.94 74.04

60 67.5

3 VGA Analog -Component Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

480i 720x480(1440x480) 59.94 (29.97) 15.7

576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 50 31.3 720p 1280x720 60 45.0 720p 1280x720 50 37.5

1080i 1920x1080 60(30) 33.8

1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.97/24 27.0 1080p *1920x1080 25 28.1 1080p *1920x1080 29.97/30 33.8 1080p 1920x1080 60 67.5 1080p 1920x1080 50 56.3

B. HDMI Digital

1 HDMI - PC Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

VGA 640x480 60 31.5

640x480 72 37.9 640x480 75 37.5

English

640x480 85 43.3 640x480 120 61.9

SVGA 800x600 56 35.1

800x600 60 37.9 800x600 72 48.1 800x600 75 46.9 800x600 85 53.7 800x600 120 77.4

XGA 1024x768 60 48.4

1024x768 70 56.5 1024x768 75 60.0 1024x768 85 68.7 1024x768 120 99.0

SXGA 1152x864 70 63.8

1152x864 75 67.5

1152x864 85 77.1 1280x1024 60 64.0 1280x1024 72 77.0 1280x1024 75 80.0 1280x1024 85 91.1

QuadVGA 1280x960 60 60.0

1280x960 75 75.2

SXGA+ 1400x1050 60 65.3

UXGA 1600x1200 60 75.0 PowerBook G4 640x480 60 31.4 PowerBook G4 640x480 66.6(67) 34.9 PowerBook G4 PowerBook G4 PowerBook G4 1152x870 75 68.7 PowerBook G4 1280x960 75 75.0

i Mac DV (G3) 1024x768 75 60.0

800x600 60 37.9

1024x768 60 48.4

2 HDMI - Extended Wide timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz] WXGA 1280x768 60 47.8

1280x768 75 60.3 1280x768 85 68.6 1280x720 60 44.8 1280x720 120 92.9 1280x800 60 49.6

*1280x800-RB 119.909 101.6

English

1440x900 60 59.9

WSXGA+ 1680x1050 60 65.3

1920x1080

(1080P)

1366x768 60 47.7

WUXGA 1920x1200-RB 59.94 74.04

60 67.5

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

480i 720x480(1440x480) 59.94 (29.97) 15.7

576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 50 31.3 720p 1280x720 60 45.0 720p 1280x720 50 37.5

1080i 1920x1080 60(30) 33.8

1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.97/24 27.0 1080p 1920x1080 60 67.5 1080p *1920x1080 25 28.1 1080p *1920x1080 29.97/30 33.8 1080p 1920x1080 50 56.3 1080p * 1920x1200-RB 59.94 74.04

4 HDMI - 1.4a 3D Timing

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]

720p (Frame Packing) 1280 x 720 50 37.5 720p (Frame Packing) 1280 x 720 60 45.0

1080p (Frame Packing) 1920 x1080 24 27.0

720p (Frame Packing) 1280 x 720 50 37.5

720p (Frame Packing) 1280 x 720 60 45.0 1080i (Top and Bottom) 1920 x1080 50 (25) 28.1 1080i (Top and Bottom) 1920 x1080 60 (30) 33.8

1080p (Top and Bottom) 1920 x1080 24 27.0 1080p (Top and Bottom) 1920 x1080 50 56.3 1080p (Top and Bottom) 1920 x1080 60 67.5

720p (Side by Side (Half)) 1280 x 720 60 45.0 1080i (Side by Side (Half)) 1920 x1080 50 (25) 28.1 1080i (Side by Side (Half)) 1920 x1080 60 (30) 33.8

English

1080p (Side by Side (Half)) 1920 x1080 50 56.3 1080p (Side by Side (Half)) 1920 x1080 60 67.5

15k-100kHz

24-120 Hz

Analog:165MHz

Digital:165MHz

Graphic source monitor

range limits

Note: * Functions vary depending on model definition.

Horizontal scan rate:

Vertical scan rate:

Max. pixel rate:

English

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

English

001

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

English

Canada — Low-power license-exempt radio communication devices (RSS-247)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm

for the latest country list.

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi

New TaipeiCity 221, Taiwan

of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

Via Lepetit, 40, 20020 Lainate (MI) Italy Tel: +39-02-939-921 ,Fax: +39-02 9399-2913 www.acer.it

Product: DLP Projector Trade Name: Acer Model Number: DSV1527/DSV1523/DNX1522/DWX1521/D1P1532/DNX1605/DSV1606/DSV1607 Marketing name:

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2012+AC:2013, Class B EN 55024:2010+A1:2015

R&TTE Directive: 1999/5/EC (until Jun 12, 2017)

RED Directive: 2014/53/EU (From Jun 13, 2017)

EN 300 328 V1.9.1 EN 301 893 V1.7.1 EN 300 440-1 V1.6.1 EN 300 440-2 V1.4.1 EN 302 291-1 V1.1.1 EN 302 291-2 V1.1.1

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 EN 50332-1:2013 EN 50332-2:2013

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

Regulation (EU) No. 617/ 2013 Regulation (EC) No. 1275/2008; EN 50564:2011

X115/X117/X115AH/X117AH/X115H/X117H/X125H/X127H/X135WH/X137WH/ X1185G/X1185PG/X1285G/X1285PG/H6517ABD/H6519ABD/D602/D604/D602B/ D604B/D602D/D604D/D612D/D614D/D622D/D624D/X1184G/X1184PG/X1284G/ X1284PG/E145F/EV-S62/EV-S64/EV-S62A/EV-S64A/EV-S62H/EV-S64H/EV-X62H/ EV-X64H/EV-W62H/EV-W64H/HE-801K/V31S/V33S/V30S/V34S/V32S/V35S/V32X/ V35X/V32W/V35W/AS304/AS307/AS313/AS317/AS314/AS318/AX314/AX318/ AW314/AW318/D600+/D605/D600H+/D605H/D600D+/D605D/D610D+/D615D/ D620D+/D625D/X114P/X114AH/X114PH/X124PH/X134PWH/R602/R604/R602D/ R604D/R602H/R604H/R612H/R614H/R622H/R624H/KS304/KS305/KS314A/KS315A/ KS314/KS315/KX314/KX315/KW314/KW315/ES-12/ES-13/ES-12D/ES-13D/ES-12H/ ES-13H/EX-12H/EX-13H/EW-12H/EW-13H/B102/B103/B102H/B103H/B102D/B103D/ B112D/B113D/B122D/B123D

as below and following

EN 61000-3-2:2014, Class A EN 61000-3-3:2013

EN 301 511 V9.0.2 EN 301 908-1 V6.2.1 EN 301 908-2 V6.2.1 EN 301 908-13 V6.2.1 EN 301 489-1 V1.9.2 EN 301 489-3 V1.6.1

Regulation (EC) No. 278/2009; EN 50563:2011

EN 301 489-7 V1.3.1 EN 301 489-17 V2.2.1 EN 301 489-24 V1.5.1 EN 50360:2001 EN 50566:2013 EN 62479:2010 EN 62311:2008 EN 62209-1:2006 EN 62209-2:2010

Year to begin affixing CE marking 2017.

_______________________________

RU Jan / Sr. Manager Date Acer Incorporated (Taipei, Taiwan)

Mar. 31, 2017

Acer America Corporation

333 West San Carlos St.,

Suite 1500

San Jose, CA 95110

Tel: 254-298-4000 Fax: 254-298-4147

www.acer.com

Federal Communications Commission

Declaration of Conformity

The following local Manufacturer / Importer is responsible for this declaration:

Product: DLP Projector

Model Number:

Machine Type:

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

DSV1527/DSV1523/DNX1522/DWX1521/D1P1532/ DNX1605/DSV1606/DSV1607

X115/X117/X115AH/X117AH/X115H/X117H/X125H/ X127H/X135WH/X137WH/X1185G/X1185PG/ X1285G/X1285PG/H6517ABD/H6519ABD/D602/ D604/D602B/D604B/D602D/D604D/D612D/D614D/ D622D/D624D/X1184G/X1184PG/X1284G/X1284PG/ E145F/EV-S62/EV-S64/EV-S62A/EV-S64A/EV-S62H/ EV-S64H/EV-X62H/EV-X64H/EV-W62H/EV-W64H/ HE-801K/V31S/V33S/V30S/V34S/V32S/V35S/V32X/ V35X/V32W/V35W/AS304/AS307/AS313/AS317/ AS314/AS318/AX314/AX318/AW314/AW318/D600+/ D605/D600H+/D605H/D600D+/D605D/D610D+/ D615D/D620D+/D625D/X114P/X114AH/X114PH/ X124PH/X134PWH/R602/R604/R602D/R604D/ R602H/R604H/R612H/R614H/R622H/R624H/KS304/ KS305/KS314A/KS315A/KS314/KS315/KX314/ KX315/KW314/KW315/ES-12/ES-13/ES-12D/ES-13D/ ES-12H/ES-13H/EX-12H/EX-13H/EW-12H/EW-13H/ B102/B103/B102H/B103H/B102D/B103D/ B112D/B113D/B122D/B123D

Suite 1500 San Jose, CA 95110 U. S. A.

U. S. A.

Acer X137WH, X134PWH, X1285PG, X1284PG, X1285G User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Acer Projector

User's Guide

Information for your safety and comfort

First things first

Usage Notes

Precautions

Contents

Introduction

Product Features

Package Overview

Projector Overview

Getting Started

Connecting the Projector

Turning the Projector On/Off

Adjusting the Projected Image

User Controls

Installation menu

Onscreen Display (OSD) Menus

Color


Setting

Management

Audio

Language

Appendices

Troubleshooting

LED & Alarm Definition Listing

Cleaning and replacing the dust filters

Replacing the Lamp

Ceiling Mount Installation

Specifications

Compatibility modes

Regulations and safety notices
