Acer Projector
X1126H/D506D/EV-S57H/V26S/AS600/
DSV1610
X1226H/D516D/EV-X57H/V26X/AX600/
DNX1609
X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608
User's Guide
Copyright © 2017. Acer Incorporated.
All Rights Reserved.
Acer Projector User's Guide
Original Issue: 01/2017
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your projector. All correspondence concerning your unit should include the serial
number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,
without the prior written permission of Acer Incorporated.
Model number: _________________________________
Serial number: __________________________________
Date of purchase: _______________________________
Place of purchase: ______________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product
names or trademarks are used herein for identification purposes only and belong to their respective
companies.
"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC."
Information for your safety and comfort
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:
• Install the power supply unit before connecting the power cord to the AC
power outlet.
• Unplug the power cord before removing the power supply unit from the
projector.
• If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
iii
Warnings!
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
• This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
• To avoid damage of internal components and to prevent battery leakage,
do not place the product on a vibrating surface.
iv
• Never use it under sporting, exercising, or any vibrating environment
which will probably cause unexpected short current or damage rotor
devices, lamp.
Using electrical power
• This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
• Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the AC adapter plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power outlet that is
not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected
noise produced by other nearby electrical devices that may interfere with
the performance of this product.
• Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, VDE
approved or its equivalent, 4.5 meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need
for service
• the product does not operate normally after following the operating
instructions
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding
or changing components. Consult your reseller for purchase options.
v
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Additional safety information
• Do not look into the projector's lens when the lamp is on. The bright may
hurt your eyes.
• Turn on the projector first and then signal sources
• Do not place the product in following environments:
• Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector is necessary.
• Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.
• Locations where excessive humidity, dust, or cigarette smoke may contaminate
optical components, shortening the life span and darkening the image.
• Locations near fire alarms.
• Locations with an ambient temperature above 40 ºC/104 ºF.
• Locations where the altitudes are higher than 10000 feet.
• Unplug immediately if there is something wrong with your projector. Do
not operate if smoke, strange noise or odor comes out of your projector. It
might cause fire or electric shock. In this case, unplug immediately and
vi
contact your dealer.
• Do not keep using this product to break or drop it. In this case contact your
dealer for inspection.
• Do not face the projector lens to the sun. It can lead to fire.
• When switching the projector off, suggest to ensure the projector
completes its cooling cycle before disconnecting power.
• Do not frequently turn off the main power abruptly or unplug the
projector during operation. The best way is to wait for the fan to turn off
before turning main power off.
• Do not touch air outlet grille and bottom plate which becomes hot.
• Clean the air filter frequently if have. The temperature inside may rise and
cause damage when the filter/ventilation slots clogged with dirt or dust.
• Do not look into the air outlet grille when projector is operating. It may
hurt your eyes.
• Always open the lens shutter or remove the lens cap when the projector is
on.
• Do not block the projector lens with any object when the projector is
under operation as this could cause the object to become heated and
deformed or even cause a fire. To temporarily turn off the lamp, press HIDE
on the remote control.
• The lamp becomes extremely hot during operation. Allow the projector to
cool for approximately 45 minutes prior to removing the lamp assembly for
replacement.
• Do not operate lamps beyond the rated lamp life. It could cause it to break
on rare occasions.
• Never replace the lamp assembly or any electronic components unless the
projector is unplugged.
• The product will detect the life of the lamp itself. Please be sure to change
the lamp when is showing warning message.
• When changing the lamp, please allow unit to cool down, and follow all
changing instructions.
• Reset the "Lamp Hour Reset" function from the Onscreen display
"Management" menu after replacing the lamp module.
• Do not attempt to disassemble this projector. There are dangerous high
voltages inside which may hurt you. The only user serviceable part is the
lamp which has its own removable cover. Refer servicing only to suitable
qualified professional service personnel.
• Do not stand the projector on end vertically. It may cause the projector to
fall over, causing injury or damage.

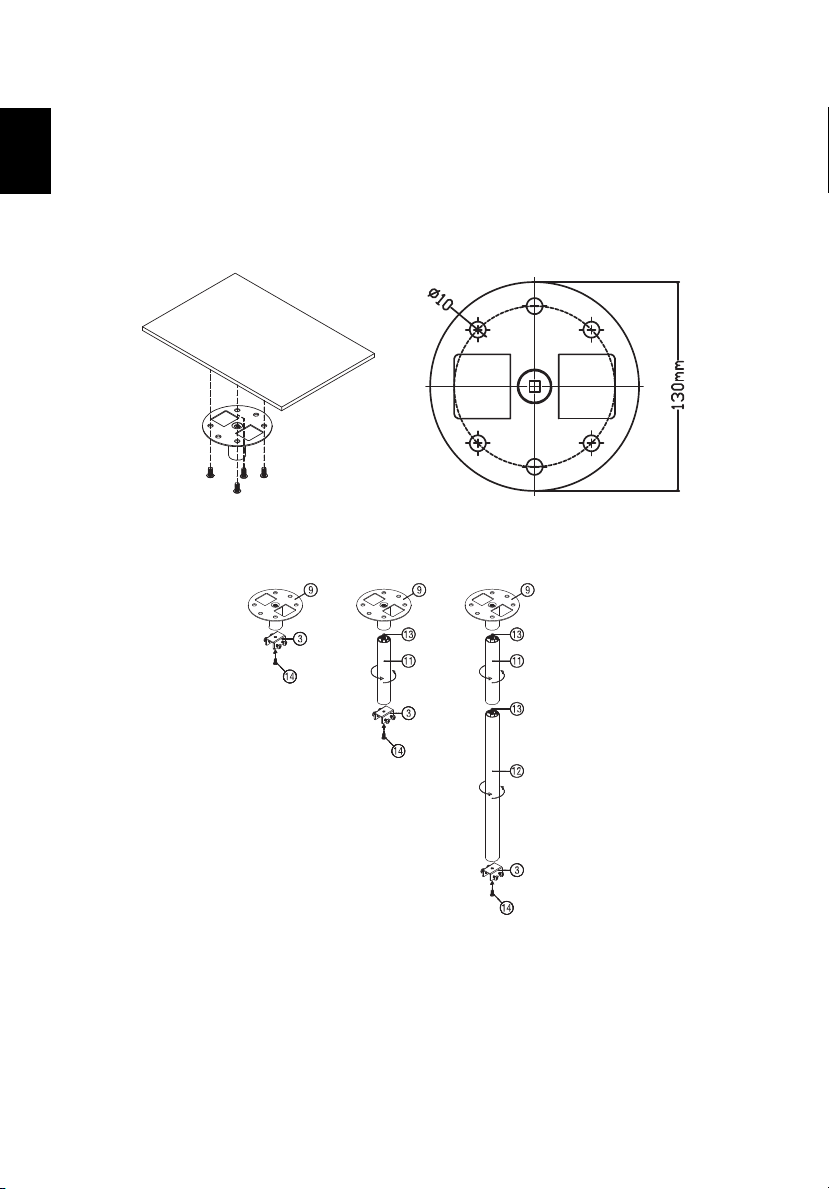

• This product is capable of displaying inverted images for ceiling mount
installation. Only use acer ceiling mount kit for mounting the projector
and ensure it is securely installed.
vii
“Lamp(s) contain Mercury,
Dispose Properly.”
RG2
Caution for Listening
To protect your hearing, follow these instructions.
Increase the volume gradually until you can hear clearly and comfortably.
•
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit
http://www.acer-group.com/public/Sustainability/sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
Lamp(s) inside this product contain mercury and must be recycled or disposed of
according to local, state or federal laws. For more information, contact the
Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal
information, check www.lamprecycle.org
Do not stare into the beam, RG2
"As with any bright source, do not stare into the direct beam, RG2 IEC 624715:2015"
viii
First things first
Usage Notes
Do:
• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display
housing.
• Disconnect the power plug from AC outlet if the product is not being used
for a long period of time.
Don't:
• Block the slots and openings on the unit provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:
• In extremely hot, cold or humid environments.
• In areas susceptible to excessive dust and dirt.
• Near any appliance that generates a strong magnetic field.
• Place In direct sunlight.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user's guide to maximize the life of your unit.
Warning:
• Do not look into the projector's lens when the lamp is on. The bright light may hurt
your eyes.
• To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
• Please do not open or disassemble the product as this may cause electric shock.
• When changing the lamp, please allow unit to cool down, and follow all changing
instructions.
• This product will detect the life of the lamp itself. Please be sure to change the lamp
when it shows warning messages.
• Reset the "Lamp Hour Reset" function from the Onscreen display "Management"
menu after replacing the lamp module.
• When switching the projector off, please ensure the projector completes its cooling
cycle before disconnecting power.
• Turn on the projector first and then the signal sources.
• Do not use lens cap when projector is in operation.
• When the lamp reaches the end of its life, it will burn out and may make a loud
popping sound. If this happens, the projector will not turn back on until the lamp
module has been replaced. To replace the lamp, follow the procedures listed under
"Replacing the Lamp".
Information for your safety and comfort iii
First things first viii
Usage Notes viii
Precautions viii
Introduction 1
Product Features 1
Package Overview 2
Projector Overview 3
Projector Outlook 3
Control Panel 5
Remote Control Layout 6
MHL (Mobile High-Definition Link) Control 8
Getting Started 10
Connecting the Projector 10
Turning the Projector On/Off 11
Turning on the Projector 11
Turning the projector off 12
Adjusting the Projected Image 13
Adjusting the Height of Projected Image 13
How to optimize image size and distance 14
How to get a preferred image size by adjusting
distance and zoom 16
User Controls 18
Installation menu 18
Onscreen Display (OSD) Menus 19
Color 20
Image 22
Setting 24
Management 27
Audio 28
3D 28
Language 29
Contents
Appendices 30
Troubleshooting 30
LED & Alarm Definition Listing 34
Cleaning and replacing the dust filters (Option) 35
Replacing the Lamp 36
Ceiling Mount Installation 38
Specifications 41
Compatibility modes 43
Regulations and safety notices 48
English
Introduction
Product Features
This product is a single-chip DLP® projector. Outstanding features include:
®
• DLP
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610 series: 800x600 SVGA
• Enables projecting 3D content via DLP Link Technology: Blue-Ray 3D
• Acer ColorBoost technology delivers nature’s true colors for vivid, life-like
• High brightness and contrast ratio
• Aer LumiSense technology can intelligently optimize the projection images
• Versatile display modes (Bright, Presentation, Standard, Video, Game,
• NTSC / PAL / SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p)
• Lower power consumption and economy (ECO) mode extend lamp life
• Acer EcoProjeciton Technology delivers Intelligent power management
• Equipped with HDMI
• Smart detection delivers quick, intelligent source detection
• Multi-language onscreen display (OSD) menus
• Manual focus projection lens zooms up to 1.1x
• 2x digital zoom
• Microsoft
• Support MHL V2.1 signal display
• Support LumiSense
• Built-in One 3 Watts speaker
technology
resolution
X1226H/D516D/EV-X57H/V26X/AX600/DNX1609 series: 1024x768 XGA
resolution
X1326WH/D526D/EV-W57H/V26W/AW600/DWX1608 series: 1280x800
WXGA resolution
Full/4:3/16:9/L.Box aspect ratio supported
supported
images
to the most comfortable visual lumens automatically based on display
content.
Education, User) enable optimum performance in any situation
supported
approach and physical efficiency improvement
™ & MHL connection supporting HDCP
®
Windows® 2000, XP, Vista®, Windows 7, Windows 8.1,
Windows 10, Macintosh
®
OS compliant
1
Note: Functions vary depending on model definition.
2
English
Package Overview
This projector comes with all the items shown below. Check to make sure your
unit is complete. Contact your dealer immediately if any thing is missing.
Projector Power cord VGA cable
Security card
(option)
Carrying case
(option)
AAA battery x2
(option)
User’s guide (option) Quick start guide
Dust filters
(option)
MHL HDMI
DC 5V IN
WirelessCAST
(option)
Remote control
WirelessHD-Kit
(option)
English
Projector Overview
6
32 4 7
5
10
11
8
9
1
Projector Outlook
Front / upper side
# Description # Description
1 Air outlet 7 Lamp cover
2 Focus ring 8 Lens cap
3 Zoom ring 9 Projection lens
4 Remote control receiver 10 Tilt adjusting wheels
5 Power button 11 Air inlet
6 Control panel
3
4
English
5 6 7 6 8 12 1331 1142 9
10
Right / Rear side
# Description # Description
1 Power socket
2 HDMI 1/MHL connector 9 S-Video input connector
3 Kensington™ lock port 10 Composite video input connector
4
HDMI 2 connector
5 5V DC output connector (device charge
& support mouse page up/down
function)
6 PC analog signal/HDTV/component
video input connector (VGA IN 1, VGA
IN 2)
7 RS232 connector
8 Monitor loop-through output
connector (for VGA IN 1 only)
11 Audio in 2 connector (for S-Video,
Composite)
12
Audio in 1 connector (for VGA IN 1,
VGA IN 2)
13
Audio out connector
Note: Functions vary depending on model definition.
English
Control Panel
21
10
8
6
4 7
9
5
3
# Icon Function Description
1 POWER POWER Power Indicator LED
2 LAMP LAMP Lamp Indicator LED
3 TEMP TEMP Temp Indicator LED
4POWER
5
6 BACK BACK Returns to the previous operation.
7 SOURCE SOURCE Changes the active source.
8 ENTER ENTER Confirm your selection of items.
9 Keystone
10 MENU MENU
Four directional select
keys
See the contents in "Turning the Projector
On/Off" section.
Use to select items or make
adjustments to your selection.
Adjusts the image to compensate for
distortion caused by tilting the projector.
Press "MENU" to launch the Onscreen
display (OSD) menu, back to the previous
step for the OSD menu operation or exit
the OSD menu.
5
Note: Functions vary depending on model definition.
6
English
Remote Control Layout
1
7
8
9
10
19
20
21
22
23
24
25
Model No:J-25021
MC.JMV11.006
2
3
4
5
6
11
12
13
14
15
16
17
18
# Icon Function Description
1
2 POWER Refer to the "Turning the Projector On/Off" section.
Infrared
transmitter
Sends signals to the projector.
26
27
Model No:J-25050
MC.JMV11.009
3 MUTE To turn on/off the volume.
4 RATIO To choose the desired aspect ratio.
5
6
Select/Enter Confirm your selection of items.
Play/Pause Press to begin/pause playback.
Four
directional
select keys
Use up, down, left, right buttons to select items or make
adjustments to your selection.
7 3D Press "3D" to select 3D models.
8 SOURCE Changes the active source.
9MODE
10 KEYSTONE
11
BACK Returns to the previous operation.
STOP Press to stop playback.
Press "MODE" to select the display mode from Bright,
Presentation, Standard, Video and User.
Adjusts the image to compensate for distortion caused
by tilting the projector.
Press "VGA" to change source to the VGA connector. This
12 VGA
connector supports analog RGB, YPbPr (480p/576p/720p/
1080i), YCbCr (480i/576i) and RGBsync.
English
# Icon Function Description
13 FREEZE To pause the screen image.
For computer mode only. Use this button to select the
14 PgUp
15 COMPONENT No function.
16 PgDn
17 MEDIA No function.
18 KeyPad 0~9 Press "0~9" to input a password in the "Security" OSD.
19 MENU
20 HDMI™/MHL To change source to HDMI/MHL.
previous page. This function is only available when USB
Ctrl connector (mini type B) is connected to a computer
via a USB cable.
For computer mode only. Use this button to select the
next page. This function is only available when USB Ctrl
connector (mini type B) is connected to a computer via a
USB cable.
• Press "MENU" to launch the Onscreen display (OSD)
menu, back to the previous step for the OSD menu
operation or exit the OSD menu.
• Confirm your selection of items.
7
21 HIDE
22 ZOOM IN Zooms the projector display in.
23 VIDEO To change source to COMPOSITE VIDEO.
24 ZOOM OUT Zooms the projector display out.
25 LAN/WiFi
26 Laser pointer Aim the remote at the viewing screen.
27 Laser button
Momentarily turns off the video. Press "HIDE" to hide
the image, press again to display the image.
Press “LAN/WiFi” to change source to “WiFi.” Only
available while Acer WirelessCAST (MWA3) is plgged in
projector and see “WiFi” in source list.
Aim the remote at the viewing screen, press and hold
this button to activate the laser pointer.
Note: Functions vary depending on model definition.
8
English
8
1
2
9
11
7
10
3
6
4
5
MHL (Mobile High-Definition Link) Control
# Icon Function Description
1 SOURCE
2MODE
3MUTE
4
5
6
7MENU
8
9
Volume UP Increases the volume. (only for Multi-Media mode)
Volume Down Decreases the volume. (only for Multi-Media mode)
Select/Enter Press to select/enter the file. (only for Navigation mode)
Play/Pause
Four
directional
select keys
Back/Exit
Stop Discontinues playback. (only for Multi-Media mode)
Press the "SOURCE" button to toggle between
Navigation, Numeric and Multi-Media mode.
• Press "MODE" button for one second to activate
the MHL Control Mode.
• To exit, press the "MODE" button again.
To turn on/off the volume. (only for Navigation or MultiMedia mode)
Toggles between playback and pause. (only for MultiMedia mode)
Press to launch the root memu.
(only for Navigation mode)
Use up, down, left, right buttons to select items or make
adjustments to your selection.
(only for Navigation mode)
• Press "BACK" to go back one menu step.
• To exit the file.
(only for Navigation mode)
English
# Icon Function Description
9
10 PgUp/PgDn
11 KeyPad 0~9 Number buttons. (only for Numeric mode)
Use the button to select the next or previous page. (only
for Navigation mode)
Note: Functions vary depending on model definition.
10
English
Audio output
DVD player
Power Bank
DVD player, Set-top Box,
HDTV receiever
Smart Phone
S-Video output
Video output
Getting Started
Connecting the Projector
R
RS232
12
BG
5
RBG
6
HDTV adapter
D-Sub
D-Sub
7
D-Sub
11
7
4
HDMI
HDMI
3
HDMI
HDMI
2
USB
MHL
1
RS232
D-Sub
4
3
HDMI
HDMI
RS232
8
R
W
9
Y
9
Y
10
W
R
# Description # Description
1 Power cord 7 VGA cable
2 MHL cable (MicroUSB to HDMI) 8 Audio cable Jack/Jack
3 HDMI cable 9 Audio cable Jack/RCA
4 USB cable for charging device 10 Composite video cable
5 3 RCA component cable 11 S-Video cable
6 VGA to component/HDTV adapter 12 RS232 cable
Note 1: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note 2: Functions vary depending on model definition.
Note 3:
USB cable needs powered extender if the length is over 5 m.
Note 4: Some smartphones require a converter (supplied by
smartphone maker) to enable the MHL function.
Note 5: USB DC 5V out connector support 5V/2.0A power output
for power bank charging only when MHL source is not detected.
Note 6: VGA OUT loops through for VGA IN 1 only.
English
Turning the Projector On/Off
Power button
Turning on the Projector
1 Ensure that the power cord and signal cable are securely connected. The
Power indicator LED will flash red.
2 Turn on the projector by pressing "Power" button on the control panel or
remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player ,etc.). The
projector will detect your source automatically.
• If the screen displays "Lock" and "Source" icons, it means the
projector is locked onto a specific source type and there is no such
type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables
are securely connected or press source direct key.
• If you connect to multiple sources at the same time, use the "Source"
button on either control panel or the remote control or direct source
key on the remote control to switch between inputs.
11
12
English
Turning the projector off
1 To turn the projector off, press and hold the power button. This message
appears: "Please press the power button again to complete the shutdown
process." Press the power button again.
2 The LED power indicator will turn RED and blink rapidly after the projector
is turned off, and the fan(s) will continue to operate for about 2 minutes to
ensure that the system cools properly. (only supported under "Instant
Resume" mode)
3 As long as the power cord remains plugged in, you can press the power
button to turn the projector immediately back on anytime during the 2minute shutdown process. (only supported under "Instant Resume" mode)
4 Once the system has finished cooling, the LED power indicator will stop
blinking and turn solid red to indicate standby mode.
5 It is now safe to unplug the power cord.
Warning indicators:
• "Projector Overheated. Lamp will automatically turn off soon."
This onscreen message indicates that the projector has overheated.
The lamp with automatically turn off, the projector will automatically
shut down, and the LED temp indicator will turn solid red. Contact
your local dealer or service center.
• "Fan failed. Lamp will automatically turn off soon."
This onscreen message indicates that the fan has failed. The lamp will
automatically turn off, the projector will automatically shut down,
and the LED temp indicator will blink. Contact your local dealer or
service center.
Note 1: Whenever the projector automatically shuts down and the
LED lamp indicator turns solid red, contact your local reseller or
service center.
Note 2: Functions vary depending on model definition.
Attention! The projector will enter a two minute cool down
period to ensure continued optimal lamp operation.
Attention! Please do not turn off projector within 1 minute after
power on.
English
Adjusting the Projected Image
Tilt adjusting wheel
Adjusting the Height of Projected Image
The projector is equipped with elevator feet for adjusting the height of image.
To raise/lower the image:
Use Tilt adjusting wheel to fine-tune the display angle.
13
14
English
46"
Height: 89 cm
from base to top
of image
Height:
80 cm
2.0 m
Desired Distance
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
How to optimize image size and distance
Consult the table below to find the optimal image sizes achievable when the
projector is positioned at a desired distance from the screen.
• SVGA/XGA series
If the projector is 2.0 m from the screen, good image quality is possible for
image sizes between 46" and 51".
Note: Remind as below figure, the space of 89 cm height is
required when located at 2 m distance.
51"
B
46"
C
A
Screen size
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
Diagonal
(inch)
<B>
Screen size
(Min zoom) (Max zoom)
W (cm) x H
(cm)
Desired
Distance
(m)
<A>
1.0 22.78 46 x 35 40 25 52 x 39 44
1.5 34 69 x 52 60 38 77 x 58 67
2.0 46 93 x 69 80 51 103 x 77 89
3.0 68 139 x 104 120 76 155 x 116 133
4.0 91 185 x 139 160 101 206 x 155 178
5.0 114 231 x 174 200 127 258 x 193 222
6.0 137 278 x 208 240 152 309 x 232 267
7.0 159 324 x 243 280 178 361 x 271 311
8.0 182 370 x 278 319 203 412 x 309 356
9.0 205 417 x 313 359 228 464 x 348 400
10.0 228 463 x 347 399 254 515 x 387 445
11.0 251 509 x 382 439 279 567 x 425 489
11.8 269 546 x 410 471 299.3 608 x 456 525
Zoom Ratio: 1.1x
Top
From base to
top of image
(cm)
<C>
Top
<C>
English
• WXGA series
54"
Height: 91 cm
from base to top
of image
Height:
81 cm
2 m
Desired Distance
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
If the projector is 2 m from the screen, good image quality is possible for image
sizes between 54" and 60".
Note: Remind as below figure, the space of 91 cm height is
required when located at 2 m distance.
60"
B
54"
C
A
15
Desired
Distance
(m)
<A>
1 26.99 58 x 36 41 30 65 x 41 45
1.5 40 87 x 55 61 45 97 x 61 68
2.0 54 116 x 73 81 60 130 x 81 91
2.5 67 145 x 91 102 75 162 x 101 114
3.0 81 174 x 109 122 90 195 x 122 136
3.5 94 203 x 127 142 106 227 x 142 159
4.0 108 233 x 145 163 121 260 x 162 182
4.5 121 262 x 164 183 136 292 x 183 205
5.0 135 291 x 182 203 151 325 x 203 227
6.0 162 349 x 218 244 181 390 x 244 273
7.0 189 407 x 254 285 211 455 x 284 318
8.0 216 465 x 291 326 241 519 x 325 364
9.0 243 523 x 327 366 271 584 x 365 409
10.0 270 581 x 363 407 301.47 649 x 406 455
Zoom Ratio: 1.1x
Screen size
Diagonal
(inch)
<B>
(Min zoom) (Max zoom)
W (cm) x H
(cm)
From base to
top of image
Top
(cm)
<C>
Screen size
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
Top
<C>
16
English
A
C
D
B
Desired Distance
2.6 m
2.4 m
Height: 105 cm
from base to top
of image
60"
Desired image
size
How to get a preferred image size by adjusting
distance and zoom
The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.
• SVGA/XGA series
To obtain an image size of 60" set the projector at a distance 2.4 m and 2.6 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
30 61 x 46 1.2 1.3 53
40 81 x 61 1.6 1.8 70
50 102 x 76 2.0 2.2 88
60 122 x 91 2.37 2.6 105
70 142 x 107 2.8 3.1 123
80 163 x 122 3.2 3.5 140
90 183 x 137 3.5 4.0 158
100 203 x 152 3.9 4.4 175
150 305 x 229 5.9 6.6 263
180 366 x 274 7.1 7.9 315
200 406 x 305 7.9 8.8 351
250 508 x 381 9.9 11.0 438
300 610 x 457 11.8 526
Zoom Ratio: 1.1x
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
English
• WXGA series
A
C
D
B
Desired Distance
2.2 m
2.0 m
Height: 90 cm
from base to top of
60"
Desired
image size
To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m
from the screen.
17
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
30 65 x 40 1.0 1.1 45
40 86 x 54 1.3 1.5 60
50 108 x 67 1.7 1.9 75
60 129 x 81 2.0 2.2 90
70 151 x 94 2.3 2.6 106
80 172 x 108 2.7 3.0 121
90 194 x 121 3.0 3.3 136
100 215 x 135 3.3 3.7 151
120 258 x 162 4.0 4.4 181
150 323 x 202 5.0 5.6 226
180 388 x 242 6.0 6.7 271
200 431 x 269 6.6 7.4 302
250 538 x 337 8.3 9.3 377
300 646 x 404 10.0 11.1 452
Zoom Ratio: 1.1x
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
18
English
User Controls
Installation menu
The installation menu provides an onscreen display (OSD) for projector
installation and maintenance. Use the OSD only when the message "No signal
input" is displayed on the screen.
The menu options include settings and adjustments for screen size and distance,
focus, keystone correction and more .
1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the remote control to launch the OSD for
projector installation and maintenance.
3 The background pattern acts as a guide to adjusting the calibration and
alignment settings, such as screen size and distance, focus and more .
4 The Installation menu includes the following options:
•Projection Mode
•Projection Location
•Auto Keystone settings
•Manual Keystone settings
•WirelessHD Dongle Pairing
•Language settings
•Reset to factory default function
Use the up and down arrow keys to select an option, the left and right
arrow keys to adjust selected option settings, and the "ENTER" to enter a
submenu for feature setting. The new settings will be saved automatically
upon exiting the menu.
5 Push the "MENU" or "BACK" button anytime to exit the menu and return
to the Acer welcome screen.
Note: Functions vary depending on model definition.
19
English
Main menu
Sub menu
Setting
Onscreen Display (OSD) Menus
The projector has multilingual OSD that allow you to make image adjustments
and change a variety of settings.
Using the OSD menus
• To open the OSD menu, press "MENU" on the remote control or control
panel.
• When the OSD is displayed, use the keys to select any item in the
main menu. After selecting the desired main menu item, press "ENTER" to
enter submenu for feature setting.
• Use the keys to select the desired item and adjust the settings by
using the keys.
• Select the next item to be adjusted in the submenu and adjust as described
above.
• Press "BACK" on the remote control or control panel, the screen will return
to the main menu.
• To exit OSD, press "BACK" on the remote control or control panel. The
OSD menu will close and the projector will automatically save the new
settings.
Note 1: Some of the following OSD settings may not be available. Please
refer to the actual OSD of your projector.
Note 2: Functions vary depending on model definition.
20
English
Color
LumiSense
BluelightShield
Display Mode
Wall color
Brightness
Contrast
Saturation
Acer LumiSense technology can intelligently optimize the
projection images to the most comfortable visual lumens
automatically based on display content. The feature greatly
enhances dark detail visibility and color saturation.
• Off: Default setting.
• Normal: Select "Normal" to meet the visual effect of dark
detail enhancement.
• Boost: Select "Boost" to meet the visual effect of brightness
boost.
• Dynamic Black:automatically optimize the display of dark
movie scenes enabling them to be shown in incredible detail.
<Note>: Once LumiSense is enabled, BluelightShield switches to
“Off”.
• Off: Default setting.
• Low / Medium / High: Select Low / Medium / High to reduce
different exposure levels of blue light dynamically.
<Note>: Once BluelightShield is enabled, LumiSense switches to
“Off”.
There are many factory presets optimized for various types of
images.
• Bright: For brightness optimization.
• Presentation: For meeting presentation.
• Standard: For common environment.
• Video: For playing video in a bright environment.
• Game: For game content.
• Education: For education environment.
• User: Memorize user's settings.
Use this function to choose a proper color according to the wall.
There are several choices, including white, light yellow, light blue,
pink, dark green. It will compensate the color deviation due to the
wall color to show the correct image tone.
Adjust the brightness of the image.
• Press to darken the image.
• Press to lighten the image.
"Contrast" controls the difference between the lightest and
darkest parts of the picture. Adjusting the contrast changes the
amount of black and white in the image.
• Press to decrease the contrast.
• Press to increase the contrast.
Adjusts a video image from black and white to fully saturated
color.
• Press to decrease the amount of color in the image.
• Press to increase the amount of color in the image.
21
English
Tint
Color
Temperature
Gamma
Adjusts the color balance of red and green.
• Press to increase the amount of green in the image.
• Press to increase the amount of red in the image.
Mode
Use this function to choose CT1, CT2, CT3, User mode.
R Gain
Adjusts the red gain for color temperature optimization.
G Gain
Adjusts the green gain for color temperature optimization.
B Gain
Adjusts the blue gain for color temperature optimization.
Effects the representation of dark scenery. With greater gamma
value, dark scenery looks brighter.
Note 1: "Saturation" and "Tint" functions are not supported under
computer or HDMI mode.
Note 2: Functions vary depending on model definition.
22
English
Projection Mode
• Front: The factory default setting.
• Rear: Reverses the image so you can project from behind a
translucent screen.
Projection Location
• Auto: Automatically adjusts projection location of image.
• Desktop
• Ceiling: Turns the image upside down for ceiling-mounted
projection.
Aspect Ratio Use this function to choose your desired aspect ratio.
Auto Keystone Automatically adjusts vertical image.
Manual Keystone Adjust image distortion caused by tilting projection.
• Auto: Keep the image with original width-higth ratio and maxi
mize the image to fit native horizontal or vertical pixels.
• Full: Resize image to fit full screen by width (1280 pixels) and
height (800 pixels).
• 4:3: The image will be scaled to fit the screen and displayed using
a 4:3 ratio.
• 16:9: The image will be scaled to fit the width of the screen and
the height adjusted to display the image using a 16:9 ratio.
• L.Box: Keep original signal aspect ratio and zoom in by 1.333
times.
<Note> The Manual Keystone function is unavailable under Auto
Keystone setting to "On".
Sharpness Adjusts the sharpness of the image.
• Press to decrease the sharpness.
• Press to increase the sharpness.
H. Position
(Horizontal
position)
V. Position
(Vertical position)
• Press to move the image left.
• Press to move the image right.
• Press to move the image down.
• Press to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the
Tracking Synchronizes the signal timing of the projector with the graphics card.
frequency of your computer’s graphics card. If you can see a vertical
flickering bar in the projected image, use this function to make the
necessary adjustments.
If you experience an unstable or flickering image, use this function to
correct it.
23
English
HDMI Color Range Adjust the color range of the HDMI image data to correct color display
error.
• Auto: Automatically adjust by information from player.
•
Limited Range: Prosess the input image as limited color range data.
• Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.
• Auto: Automatically adjust by information from player.
• Underscan: Always no overscan on HDMI image.
• Overscan: Always keep overscan on HDMI image.
Note 1: "H. Position", "V. Position", "Frequency" and "Tracking" functions
are not supported under HDMI or Video mode.
Note 2: "HDMI Color Range" and "HDMI Scan Info" functions are only
supported under HDMI mode.
Note 3: Functions vary depending on model definition.
24
English
Setting
Source Selection Manual by source menu, Auto by Smart Detection.
Closed Caption
VGA OUT (Standby) Default is "Off". Choose "On" to enable VGA OUT connection.
Selects a preferred closed captioning mode from CC1, CC2, CC3,
CC4, (CC1 displays captions in the primary language in your area).
Select "Off" to turn off the captioning feature. This function is only
available when a composite video or S-Video input signal is
selected and its system format is NTSC.
<Note> Set your screen aspect ratio to 4:3. This function is not
available when the aspect ratio is "16:9" or "Auto" .
25
English
Security Security
This projector provides a useful security function for the
administrator to manage usage of the projector .
Press "ENTER" to change the "Security" setting. If the security
function is enabled, your must enter the "Administrator Password"
first before changing the security settings.
• Select "On" to enable the security function. The user has to
enter a password to operate the projector. Please refer to the
"User Password" section for details.
• If "Off" is selected, then the user can turn on the projector
without password.
Timeout(Min.)
Once "Security" is activated to "On", the administrator can set
timeout function.
• Press or to select the timeout interval.
• The range is from 10 minute to 990 minutes.
• When the time is up, the projector will prompt the user to
enter the password again.
• The factory default setting of "Timeout(Min.)" is "Off".
• Once the security function is enabled, the projector will
request user to enter password when switch on the projector .
Both "User Password" and "Administrator Password" can be
accepted for this dialogue.
User Password
• Press "ENTER" to setup or change the "User Password".
• Press number keys to set your password on the remote control
and press "ENTER" to confirm.
• Press to delete character.
• Enter the password when you see "Confirm Password"
displayed.
• The password should be between 4 and 8 characters long.
• If you select "Request password only when plugging the
power cord in.", the projector will prompt the user to enter
the password every time the power cord is plugged.
• If you select "Always request password while projector turns
on.", the user has to enter the password every time when the
projector is turned on.
Administrator Password
The "Administrator Password" can be used in both the "Enter
Administrator Password" and "Enter Password" dialog boxes.
• Press "ENTER" to change the "Administrator Password".
• The factory default of "Administrator Password" is "1234".
If you forgot your administrator password, do the following to
retrieve the administrator password:
• An unique 6-digit "Universal Password" which is printed on
the Security Card (please check accessory in the box). This
unique password is the number which will be accepted by
projector anytime no matter what the Administrator
Password is.
• If losing this security card and number, please contact with an
Acer service center.
Reset Press the "ENTER" button and choose "Yes" to return the
parameters on all menus to the factory default settings.
26
English
Information Display the projector information for Model Name, Input Source,
Note: Functions vary depending on model definition.
Signal Type, Display Mode, Serial No., Software Version and QR
code on the screen.
Scan QR code linking to Acer projector portal via mobile.
English
Management
27
ECO Mode Choose "On" to dim the projector lamp which will lower power
High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at
Turn Off Mode
consumption, extend the lamp life and reduce noise. Choose "Off"
to return normal mode.
<Note> Gray out ECO mode item while either Lumisense or
BluelightShield item is "On".
full speed continuously to allow for proper high altitude cooling of
the projector.
• Standard: Properly shuts down the projector after fan
cooling.
• Instant Resume: Resumes the system when the Power button
is pressed again within 2 minutes.
Auto Shutdown The projector will automatically shutdown when there is no signal
Menu Display Time
(Seconds)
AC Power On Choose "On" to power on projector while AC power plug in.
Control Panel Lock Off
input after the allocated time. (default is 15 minutes)
Choose the OSD menu display time. (Default is 15 seconds). Select
“Manual” to turn off main menu/one direct-key menu manually by
user.
Default is set to “Off”.
Child Lock
• Enable “Child Lock” to disable the power key on projector
while in the standby mode to avoid power trigger from
children. (Take effect after power off).
• Disable “Child Lock” temporarily to turn on projector by
quick key, holding the power key on projector for 3 seconds.
No need to lock any key after power on.
Full Lock
• Enable “Full Lock” to lock all keys on projector. (Take effect
once done the setting; show warning message while user
presses keypad.)
• Disable “Full Lock” function, press “ENTER” key for 7 seconds.
And then, the OSD of “Control Panel Lock” is set to “Off” and
not required to go back to “Full Lock” again.
• Pop up a warning message: To disable “Full Lock” function,
press “ENTER” key for 7 second, while user presses any key on
keypad panel under "Full Lock" mode.
Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).
Lamp Reminding Activate this function to display a reminder to change the lamp 30
Lamp Hour Reset Press the "ENTER" button and choose "Yes" to turn the lamp hour
hours before its expected end-of-life.
counter to 0 hours.
Note: Functions vary depending on model definition.
28
English
Audio
Volume
• Press to decrease the volume.
• Press to increase the volume.
Mute
• Choose "On" to mute the volume.
• Choose "Off" to restore the volume.
Note: Functions vary depending on model definition.
3D
3D Choose "On" to enable DLP 3D function.
• On: Choose this item while using DLP 3D glasses, 120Hz 3D
capable graphics cards and HQFS format file or DVD with
corresponding SW player.
• Off: Turn off 3D mode.
3D Format If the 3D content is not displayed correctly, you can select a 3D
24P 3D Choose "96Hz" or "144Hz" to compatible with 3D glasses.
3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D
3D Warning Message Choose "On" to display the 3D warning message.
format that suits the 3D content you are viewing and obtain the
best result.
glasses, you may need to execute "Invert" to get best match of
left/right image sequence to get the correct image (for DLP 3D).
Note 1: It needs correct settings on graphic card 3D application program for
correct 3D display.
Note 2: The SW players, such as Stereoscopic Player and DDD TriDef Media
Player can support 3D format files. You can download these three players
on web page below,
- Stereoscopic Player (Trial):
http://www.3dtv.at/Downloads/Index_en.aspx
- DDD TriDef Media Player (Trial):
http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html
Note 3: "3D L/R Invert" is only available when 3D is enabled.
Note 4: There has reminder screen if 3D still enable when power on projector.
Please adjust setting depended on your purpose.
Note 5: WUXGA model 24P 3D cannot be scaling due to TI ASIC buffer
English
memory limitation, and once detect 24P 3D (96Hz or 144Hz) inputs, Aspect
Ratio / HDMI Scan Info will be gray out, also HIDE will be not supported.
Language
29
Language
Choose the multilingual OSD menu. Use the
key to select your preferred menu language.
• Press "ENTER" to confirm the selection.
30
English
Appendices
Troubleshooting
If you experience a problem with your Acer projector, refer to the following
troubleshooting guide. If the problem persists, please contact your local reseller
or service center.
Image Problems and Solutions
# Problem Solution
1 No image appears
onscreen
2 Partial, scrolling
or incorrectly
displayed image
(for PC (Windows
2000/XP/Vista/
Windows 7/
Windows 8))
• Connected as described in the "Getting Started"
section.
• Ensure none of the connector pins are bent or
broken.
• Check if the projector lamp has been securely
installed. Please refer to the "Replacing the Lamp"
section.
• Make sure you have removed the lens cap and the
projector is switched on.
• For an incorrectly displayed image:
• Open "My Computer", open the "Control
Panel", and then double-click the "Display"
icon.
• Select the "Settings" tab.
• Verify that your display resolution setting is
lower than or equal to WUXGA-RB (1920 x
1200).
• Click the "Advanced Properties" button.
If the problem still appears, change the monitor display
you are using and follow the steps below:
• Verify that the resolution setting is lower than
or equal to WUXGA-RB (1920 x 1200).
• Click the "Change" button under the
"Monitor" tab.
• Click "Show all devices". Next, select "Standard
monitor types" under the SP box, and choose
the resolution mode you need under the
"Models" box.
• Verify that the resolution setting of the
monitor display is lower than or equal to
WUXGA-RB (1920 x 1200).
31
English
3 Partial, scrolling
or incorrectly
displayed image
(For notebooks)
4 The screen of the
notebook
computer is not
displaying your
presentation
5 Image is unstable
or flickering
6 Image has vertical
flickering bar
7 Image is out of
focus
• For an incorrectly displayed image:
• Follow the steps for item 2 (above) to adjust
the resolution of your computer.
• Press the toggle output settings. Example:
[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4],
NEC [Fn]+[F3], Toshiba [Fn]+[F5]
• If you experience difficulty changing resolutions or
your monitor freezes, restart all equipment
including the projector.
• If you are using a Microsoft
notebook: Some notebook PCs may deactivate their
own screens when a second display device is in use.
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.
• If you are using an Apple
notebook: In System Preferences, open Display and
select Video Mirroring "On".
®
Windows® based
®
Mac® OS based
• Adjust the "Tracking" to correct it. Refer to the
"Image" section for more information.
• Change the display color depth settings on your
computer.
• Use "Frequency" to make an adjustment. Refer to
the "Image" section for more information.
• Check and reconfigure the display mode of your
graphics card to make it compatible with the
projector.
• Make sure the lens cap is removed.
• Adjusts the focus ring on the projector lens.
• Make sure the projection screen is within the
required distance of 3.3 to 38.7 feet (1.0 to 11.8
meters) (SVGA/XGA series) / 3.3 to 32.8 feet (1.0 to
10.0 meters) (WXGA series) from the projector. Refer
to the "How to get a preferred image size by
adjusting distance and zoom" section for more
information.
8 Image is stretched
when displaying a
"widescreen"
DVD title
When you play a DVD encoded in anamorphic or 16:9
aspect ratio you may need to adjust the following
settings:
• If you play a 4:3 format DVD title, please change the
format to 4:3 in the projector OSD.
• If the image is still stretched, you will also need to
adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.
• If you play an Letterbox (LBX) format DVD title,
please change the format to Letterbox (LBX) in the
projector OSD.
32
English
9 Image is too small
or too large
10 Image has slanted
sides
11 Image is reversed
• Adjust the zoom ring on the projector.
• Move the projector closer to or further from the
screen.
• Press "MENU" on the remote control. Go to "Image -
-> Aspect Ratio" and try different settings or press
"RATIO" on the remote control to adjust directly.
• If possible, reposition the projector so that it is
centered on the screen.
• Press the "Keystone / " button on the remote
control until the sides are vertical.
• Select "Image --> Projection Mode" on the OSD and
adjust the projection direction.
English
OSD Messages
# Condition Message Reminder
33
1 Message
• Fan Fail - the system fan is not working.
• Projector Overheated - the projector has exceeded its
recommended operating temperature and must be allowed
to cool down before it may be used. Please check the
following message.
Please also check the dust filters if they are installed. If the
dust filter is clogged with dust, please clean it. Please refer to
"Cleaning and replacing the dust filters (Option)" for details.
• Replace the lamp - the lamp is about to reach its maximum
lifetime. Prepare to replace it soon.
Problems with the Projector
# Condition Solution
1 The projector stops responding
to all controls
If possible, turn off the projector, then
unplug the power cord and wait at least 30
seconds before reconnecting power.
2 Lamp burns out or makes a
popping sound
When the lamp reaches the end of its useful
life, it will burn out and may make a loud
popping sound. If this happens, the projector
will not turn on until the lamp module has
been replaced. To replace the lamp, follow
the procedures in the "Replacing the Lamp"
section.
34
English
LED & Alarm Definition Listing
LED Messages
Message
Input power plug Flash ON to
Standby -- -- ON --
Power button ON -- -- -- ON
Lamp retry -- -- -- Quick
Power off (Cooling state) -- -- Quick
Power button OFF
(cooling completed;
standby mode)
Error (thermal failure) -- ON -- ON
Error (fan lock) -- Quick
Error (lamp breakdown) ON -- -- ON
Error (color wheel fail) Quick
Lamp_LED Temp_LED Power LED
Red Red Red Blue
OFF 100ms
-- -- ON --
Flashing
Flash ON to
OFF 100ms
Flashing
-- -- ON
Flash ON to
OFF 100ms
Flashing
-- ON
--
Flashing
--
English
Cleaning and replacing the dust filters (Option)
2
1
Cleaning the dust filters
Clean the dust filters after every 1000 hours of use. If they are not cleaned
periodically, they can become clogged with dust, preventing proper ventilation.
This can cause overheating and damage the projector.
Follow these steps:
1 Turn the projector off. Wait for the Power LED to stop flashing then
unplug the power cord.
2 Allow the projector at least 30 mins to cool down.
3 Pull out the dust filter. (Illustration #1)
4 To clean the dust filters, use a small vacuum cleaner designed for
computers and other office equipment. (Illustration #2)
5 If the dirt is difficult to remove or the filter is broken, please contact your
local dealer or service center to obtain a new filter.
35
36
English
4
6
5
Replacing the Lamp
Use a screwdriver to remove the screw(s) from the cover, and then pull out the
lamp.
The projector will detect the lamp life. You will be shown a warning message
"Lamp is approaching the end of its useful life in full power operation.
Replacement suggested!" When you see this message, change the lamp as soon
as possible. Make sure the projector has been cooling down for at least 30
minutes before changing the lamp.
Warning: The lamp compartment is hot! Allow it to cool down
before changing the lamp.
3
1
2
7
To Change the Lamp
Turn off the projector by pressing the Power button.
Allow the projector at least 30 minutes to cool down.
Disconnect the power cord.
1 Use a screwdriver to remove the screw from the cover. (Illustration #1)
Push to the direction of the arrow. (Illustration #2)
Push up the cover. (Illustration #3)
2 Remove the screw that secure the lamp module. (Illustration #4)
Pull out the lamp plug. (Illustration #5)
Lift the handle so that it stands up. (Illustration #6)
3 Lift the handle so that it stands up. Pull out the lamp module by force.
(Illustration #7)
To replace the lamp module, use a new lamp and reverse the above steps.
English
Warning: To reduce the risk of personal injury, do not drop the
lamp module or touch the lamp bulb. The bulb may shatter and
cause injury if it is dropped.
37
38
English
Type 1 Type 2 Type 3
Ceiling Mount Installation
If you wish to install the projector using a ceiling mount, please refer to the
steps below:
1 Drill four holes into a solid, structural ceiling member, and secure the
ceiling mount base to the ceiling.
2 Choose the length combination based on actual environment. (CM-01S
doesn’t include Type 2 and Type 3.)
English
3 Type 1:
Type 1:
Type 2: Type 3:
Illustration 1
Illustration 2
For the standard size use three bracket screws to mount the projector to
the ceiling mount bracket.
Type 2 and Type 3:
Alternatively, for the larger size, use the sliding extensions for more
supports.
Note: It is recommended that you keep a reasonable space
between the bracket and the projector to allow for proper heat
distribution.
39
4 Connect the main body connector to the projector bracket (illustration 1),
and then screw up four screws (illustration 2).
40
English
360°
55.00 mm
55.00 mm
82.30 mm
83.84 mm
SCREW SPEC. M4 x 25 mm
5 Adjust the angle and positioning as necessary.
Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
425VV
English
Specifications
The specifications listed below are subject to change without notice. For final
specs, please refer to Acer's published marketing specifications.
41
Projection system
Resolution
®
DLP
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610
series: 800x600 SVGA resolution
• X1226H/D516D/EV-X57H/V26X/AX600/DNX1609
series: 1024x768 XGA resolution
• X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608 series: 1280x800 WXGA resolution
Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and
Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/
Aspect ratio Auto, Full, 4:3, 16:9, L.Box
Displayable colors 1.07 billion colors
Optical zoom ratio 1.1X
Throw ratio
VESA standards: SXGA, XGA, VGA, SVGA, SXGA+,
WXGA, WXGA+, WSXGA +
K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p,
576p), SDTV (480i, 576i)
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/
X1226H/D516D/EV-X57H/V26X/AX600/DNX1609
series:
1.94 ~2.16 (51"@2m)
• X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608 series: 1.54 ~ 1.72 (60"@2m)
Projection lens
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/
X1226H/D516D/EV-X57H/V26X/AX600/DNX1609
series:
F = 2.41 ~ 2.53,
f = 21.85mm ~ 24.01mm,
Manual Zoom & Focus
• X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608 series:
F = 2.50 ~ 2.67,
f = 21.86mm ~ 24.00mm,
Manual Zoom & Focus
Projection screen size (diagonal)
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/
X1226H/D516D/EV-X57H/V26X/AX600/DNX1609
series:
23" ~ 300" (58cm ~762cm)
• X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608 series: 27" ~ 300" (69cm ~ 762cm)
Projection distance
• X1126H/D506D/EV-S57H/V26S/AS600/DSV1610/
X1226H/D516D/EV-X57H/V26X/AX600/DNX1609
series:
1.0m ~ 11.8m (3.3' ~ 38.7')
• X1326WH/D526D/EV-W57H/V26W/AW600/
DWX1608 series: 1.0m ~ 10.0m (3.3' ~ 32.8')
Horizontal scan rate 15 - 100 kHz
42
English
Vertical refresh scan rate 24 - 120 Hz
Lamp type 220 W user-replaceable lamp
Keystone correction ±40 degrees
Audio Internal speaker with 3 W x 1 output
Weight 2.65 Kg (5.8 lbs)
Dimensions (W x D x H) 315 mm X 214 mm X 98 mm (12.4" x 8.4" x 3.8")
Digital zoom 2X
Power supply AC input 100 - 240 V auto-switching power supply
Power consumption Normal mode: 260W ± 10% @ 110VAC
Operating temperature 0ºC to 40ºC / 32ºF to 104ºF
Standard package contents
ECO mode: 200W ± 10% @ 110VAC
Standby mode < 0.5W
• AC power cord x1
• VGA cable x1
• Remote control x1
• AAA battery x2 (for remote control) (option)
• User's guide (CD-ROM) x1 (option)
• Quick start guide x1
• Security card x1 (option)
• Dust filters x1 (option)
• Carrying case x1 (option)
I/O connectors X1126H/X1226H/X1326WH/D506D/D516D/D526D/EV-S57H/
V26S/V26X/V26W/AS600/AX600/AW600/DSV1610/DNX1609/
Power socket V
VGA IN 1 V
VGA IN 2 V
VGA output V
Composite video V
S-Video V
HDMI 2 V
HDMI 1/MHL V
RS232 V
3.5 mm audio jack input 1 V
3.5 mm audio jack input 2 V
3.5 mm audio jack output V
5V DC output V
EV-X57H/EV-W57H/
DWX1608
Note: Design and specifications are subject to change without
notice.
English
Compatibility modes
A. VGA Analog
1 VGA Analog - PC Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
VGA 640x480 60 31.5
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 120 61.9
SVGA 800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 120 77.4
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 85 68.7
1024x768 120 99.0
SXGA 1152x864 70 63.8
1152x864 75 67.5
1152x864 85 77.1
1280x1024 60 64.0
1280x1024 72 77.0
1280x1024 75 80.0
1280x1024 85 91.1
QuadVGA 1280x960 60 60.0
1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
PowerBook G4 640x480 60 31.4
PowerBook G4 640x480 66.6(67) 34.9
PowerBook G4
PowerBook G4
PowerBook G4 1152x870 75 68.7
PowerBook G4 1280x960 75 75.0
i Mac DV (G3) 1024x768 75 60.0
800x600 60 37.9
1024x768 60 48.4
43
44
English
2 VGA Analog - Extended Wide timing
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
WXGA 1280x768 60 47.8
1280x768 75 60.3
1280x768 85 68.6
1280x720 60 44.8
1280x720 120 92.9
1280x800 60 49.6
1280x800 119.909 101.6
1920x1200 60 74
1440x900 60 59.9
WSXGA+ 1680x1050 60 65.3
1920x1080
(1080P)
1366x768 60 47.7
WUXGA 1920x1200-RB 59.94 74.04
3 VGA Analog -Component Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480(1440x480) 59.94 (29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
720p 1280x720 50 37.5
1080i 1920x1080 60(30) 33.8
1080i 1920x1080 50(25) 28.1
1080p 1920x1080 23.97/24 27.0
1080p 1920x1080 60 67.5
1080p 1920x1080 50 56.3
60 67.5
B. HDMI Digital
1 HDMI - PC Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
VGA 640x480 60 31.5
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 120 61.9
SVGA 800x600 56 35.1
English
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 120 77.4
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 85 68.7
1024x768 120 99.0
SXGA 1152x864 70 63.8
1152x864 75 67.5
1152x864 85 77.1
1280x1024 60 64.0
1280x1024 72 77.0
1280x1024 75 80.0
1280x1024 85 91.1
QuadVGA 1280x960 60 60.0
1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
PowerBook G4 640x480 60 31.4
PowerBook G4 640x480 66.6(67) 34.9
PowerBook G4
PowerBook G4
PowerBook G4 1152x870 75 68.7
PowerBook G4 1280x960 75 75.0
i Mac DV (G3) 1024x768 75 60.0
800x600 60 37.9
1024x768 60 48.4
45
2 HDMI - Extended Wide timing
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
WXGA 1280x768 60 47.8
1280x768 75 60.3
1280x768 85 68.6
1280x720 60 44.8
1280x720 120 92.9
1280x800 60 49.6
1280x800-RB 119.909 101.6
1440x900 60 59.9
1920x1200 60 74
WSXGA+ 1680x1050 60 65.3
46
English
1920x1080
(1080P)
1366x768 60 47.7
WUXGA 1920x1200-RB 59.94 74.04
60 67.5
3 HDMI - Video Signal
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i 720x480(1440x480) 59.94 (29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
720p 1280x720 50 37.5
1080i 1920x1080 60(30) 33.8
1080i 1920x1080 50(25) 28.1
1080p 1920x1080 23.97/24 27.0
1080p 1920x1080 60 67.5
1080p 1920x1080 50 56.3
1080p 1920x1200-RB 59.94 74.04
4 HDMI - 1.4a 3D Timing
Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
720p (Frame Packing) 1280 x 720 50 37.5
720p (Frame Packing) 1280 x 720 60 45.0
1080p (Frame Packing ) 1920 x1080 24 27.0
720p (Frame Packing) 1280 x 720 50 37.5
720p (Frame Packing) 1280 x 720 60 45.0
1080i (Top and Bottom) 1920 x1080 50 (25) 28.1
1080i (Top and Bottom) 1920 x1080 60 (30) 33.8
1080p (Top and Bottom) 1920 x1080 24 27.0
1080p (Top and Bottom) 1920 x1080 50 56.3
1080p (Top and Bottom) 1920 x1080 60 67.5
720p (Side by Side (Half)) 1280 x 720 60 45.0
1080i (Side by Side (Half)) 1920 x1080 50 (25) 28.1
1080i (Side by Side (Half)) 1920 x1080 60 (30) 33.8
1080p (Side by Side (Half)) 1920 x1080 50 56.3
1080p (Side by Side (Half)) 1920 x1080 60 67.5
47
English
Graphic source monitor
range limits
C. MHL Digital
Modes Resolution
VGA 640x480 59.94/60 31.5
480i 720x480 (1440x480) 59.94/60 15.7
576i 720x576 (1440x576) 50(25) 15.6
480p 720x480 59.94/60 31.5
480p_2x 1440x480 59.94/60 31.5
576p 720x576 50 31.3
576p_2x 1440x576 50 31.3
720p 1280x720 59.94/60 45.0
720p 1280x720 50 37.5
1080i 1920x1080 60(30) 33.8
1080i 1920x1080 50(25) 28.1
1080p 1920x1080 23.97/24 27.0
1080p 1920x1080 25 28.1
1080p 1920x1080 29.97/30 33.8
Graphic source monitor
range limits
Horizontal scan rate:
Vertical scan rate:
Max. pixel rate:
V.Frequency
[Hz]
Horizontal scan rate: 15k-50 kHz
Vertical scan rate: 24-60 Hz
Max. pixel rate:
Digital: 75 MHz
15k-100kHz
24-120 Hz
Analog:165MHz
Digital:165MHz
H.Frequency
[KHz]
Note 1: Functions vary depending on model definition.
Note 2: MHL 1080p 3D 24p frame packing is not supported.
48
English
Regulations and safety notices
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this device.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
49
English
001
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
Declaration of Conformity for EU countries
Acer hereby declares that this projector series is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Compliant with Russian regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with
wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules).
English
Canada — Low-power license-exempt radio
communication devices (RSS-)
a Common information
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
b Operation in 2.4 GHz band
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject
to licensing.
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the
country of use. For further information, please contact the local office in the country of use.
Please see http://ec.europa.eu/enterprise/rtte/implem.htm
for the latest country list.
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: +39-02-939-921 ,Fax: +39-02 9399-2913
www.acer.it
Product: DLP Projector
Trade Name: Acer
Model Number: DSV1610/DNX1609/DWX1608
X1126H/X1226H/X1326WH/D506D/D516D/D526D/EV-S57H/EV-X57H/
EV-W57H/V26S/V26X/V26W/AS600/AX600/AW600
