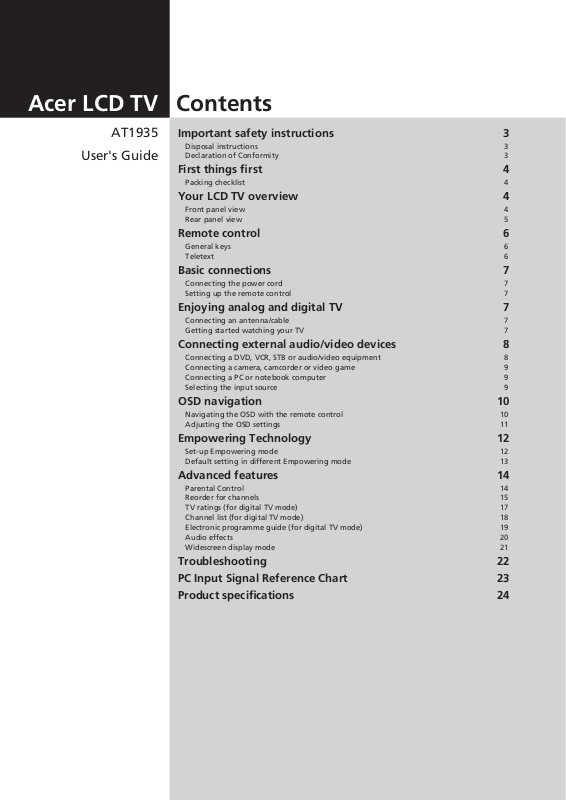

Contents

AT1935

User's Guide

Important safety instructions 3

Disposal instructions 3
Declaration of Conformity

First things first 4

Packing checklist 4

Your LCD TV overview 4

Front panel view 4
Rear panel view

Remote control 6

General keys 6
Teletext

Basic connections 7

Connecting the power cord 7
Setting up the remote control

Enjoying analog and digital TV 7

Connecting an antenna/cable 7
Getting started watching your TV

Connecting external audio/video devices 8

Connecting a DVD, VCR, STB or audio/video equipment 8
Connecting a camera, camcorder or video game
Connecting a PC or notebook computer
Selecting the input source

OSD navigation 10

Navigating the OSD with the remote control 10
Adjusting the OSD settings 1

Empowering Technology 12

Set-up Empowering mode 12
Default setting in different Empowering mode 1

Advanced features 14

Parental Control 14
Reorder for channels 1
TV ratings (for digital TV mode) 1
Channel list (for digital TV mode) 1
Electronic programme guide (for digital TV mode) 1
Audio effects 2
Widescreen display mode 2

Troubleshooting 22

3

5

6

7

7

9
9
9

1

3

5
7
8
9
0
1

PC Input Signal Reference Chart 23
Product specifications 24

Copyright © 2007. Acer Incorporated.
All Rights Reserved.

Acer LCD TV User's Guide
Original Issue: 10/2007

Changes may be made periodically to the information in this publication without obligation to notify any
person of such revisions or changes. Such changes will be incorporated in new editions of this manual or
supplementary documents and publications. This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of
merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space
provided below. The serial number and model number are indicated on the label affixed to your device.
All correspondence concerning your unit should include the serial number, model number, and purchase
information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or
by any means, electronically, mechanically, by photocopy, recording, or otherwise, without the prior written
permission of Acer Incorporated.

Model Number:

Serial Number:

Purchase Date:

Place of Purchase:

Acer and the Acer Logo are registered trademarks of Acer Inc. Other companies' product names or trademarks
are used herein for identification purposes only and belong to their respective companies.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

DVB is a registered trademark of the DVB Project.

Important safety instructions

Read these instructions carefully. Please put them somewhere safe for
future reference.

1

Follow all warnings and instructions marked on the product.

2 Unplug this product from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.

3

Do not use this product near water.

4 Do not place this product on an unstable cart, stand or table. The

product may fall, sustaining serious damage.

5

Slots and openings are provided for ventilation; to ensure reliable

operation of the product and to protect it from overheating,
these openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed
near or over a radiator or heat register or in a built-in installation
unless proper ventilation is provided.

6

This product should be operated from the type of power

indicated on the marking label. If you are not sure of the type of
power available, consult your dealer or local power company.

7

Do not allow anything to rest on the power cord. Do not locate

this product where the cord will be stepped on.

If an extension cord is used with this product, make sure that the

8

total ampere rating of the equipment plugged into the extension
cord does not exceed the extension cord ampere rating. Also,
make sure that the total rating of all products plugged into the
wall outlet does not exceed the fuse rating.

9

Never push objects of any kind into this product through cabinet

slots as they may touch dangerous voltage points or short-out
parts, which could result in a fire or electric shock. Never spill
liquid of any kind on the product.

10

Do not attempt to service this product yourself, as opening or

removing covers may expose you to dangerous voltage points or
other risks. Refer all servicing to qualified service personnel.

11

Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

When the power cord or plug is damaged or frayed.

a.

b. If liquid has been spilled into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally when the operating

instructions are followed. Adjust only those controls that are
covered by the operating instructions.Improper adjustment
of other controls could result in damage; extensive work by
a qualified technician might then be required to restore the
product to normal condition.

e.

If the product has been dropped or the case has been

damaged.

If the product exhibits a distinct change in performance,

f.

indicating a need for service.

Use only the proper type of power supply cord set (provided in

12

your accessories box) for this unit. Always disconnect the power
cord from the wall outlet before servicing or disassembling this
equipment.

13

Do not overload an electrical AC outlet, power strip, or

convenience receptical. The overall system load must not exceed
80% of the branch circuit rating. If power strips are used, the load
should not exceed 80% of the power strip input rating.

14

Some products are equipped with a three-wire electrical

grounding-type plug that has a third pin for grounding. This plug
only fits into a grounded electrical outlet. This is a safety feature.
Make sure the AC outlet is properly grounded. Do not defeat the
safety purpose of the grounding-type plug by trying to insert it

into a non-grounded outlet. If you cannot insert the plug into the
outlet, contact your electrician to replace the obsolete outlet.

15

Do not use this LCD TV in the workplace, and maintain ample

distance from it when watching. Watching a big-screen TV too
close can cause eyestrain.

The grounding pin is an important safety feature. It is possible
to receive an electric shock from a system that is not properly
grounded

The grounding pin is also providing good immunity ability against
unexpected noise that interferes performance of this product and is
produced by other nearby electrical devices.

Disposal instructions

Do not throw this electronic device into the rubbish bin / container
when discarding. To minimize pollution and ensure utmost protection
of the global environment, please recycle.

For more information regarding WEEE, please refer to
http://global.acer.com/about/environmental.htm

Declaration of Conformity

We,
ACER EUROPE AG

Centro Galleria 2 Via Cantonale 0 6928 Manno – SWITZERLAND
Tel: [phone] - Fax: [phone]

Contact Person:
Mr. Lutz Schoppe
Tel [phone] Fax [phone]
E-mail: [e-mail]

Mr. Easy Lai
Tel: [phone] Fax: [phone]
E-mail: [e-mail]

Hereby declare that:

Product: 19” LCD TV Monitor
Trade Name: Acer
Model Number: AT1935

Is compliant with the essential requirements and other relevant provi­sions of the following EC directives, and that all the necessary steps
have been taken and are in force to assure that production units of
the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity
with the following harmonized standards:

-. EN55022:1998 + A1:2000 + A2:2003, AS/NZS CISPR22:2002, Class B

-. EN55024:1998 + A1:2001 + A2:2003

-. EN55013:2001 + A1:2003

-. EN55020:2002 + A1:2003

-. EN61000-3-2:2000 +A2:2005, Class D

-. EN61000-3-3:1995 + A1:2001

Low Voltage Directive 2006/95/EC as attested by con­formity with the following harmonized standard:

-. EN60065:2002

RoHS Directive 2002/95/EC on the Restriction of the
Use of certain Hazardous Substances in Electrical and
Electronic Equipment

Easy Lai / Director Lutz Schoppe/DirectorAcer
Computer (Shanghai) Limited Acer Europe AG

English

3

First things first

MENU

CH

CH

-

VOL+

VOL

INPUT

English

We would like to thank you for making this Acer LCD TV your choice. With proper care, your new Acer LCD TV will provide you
with years of entertainment and satisfaction.

This User's Guide introduces you to the various features your LCD TV can offer, and provides clear and concise information about

the product, so please read it thoroughly and retain it for future reference.

Packing checklist

Your LCD TV package should contain the following accessories, in addition to the accessory box. Please ensure that they are all
present. If any of the items is missing, then please contact your retailer.

•

Remote control (x1) / AAA batteries (x2)

•

Power cord (x1)

•

User's Guide / Quick Guide

* The power cord supplied varies according to your region.

Your LCD TV overview

Front panel view

1 Power On/Off

2 Menu key

3 Channel up/down

4 Volume +/-

5 Input key

1

2

3

4

5

2

3

4

5

Menu key Turns the OSD menu ON and OFF

Channel up When the OSD is on, functions the same as the Up arrow

Channel down When the OSD is on, functions the same as the Down arrow

Volume up When the OSD is on, functions the same as the Right arrow

Volume down When the OSD is on, functions the same as the Left arrow

Input key When the OSD is on, press this button to confirm selection

4

Rear panel view

AC-IN

HDMI

VGA

SCART

TUNER

PC AUDIO-IN

Pr

Pb

Y

1 AC-in 2 HDMI

3 VGA-in 4 Earphone

5 PC Audio-in 6 AV-Audio L/R + CVBS + COMPONENT*

7 SCART 8 Tuner**

English

5

4321

* For AV: Composite and component inputs share the same audio ports.

** Tuner could support analog, digital and mixed signal.

76

8

5

English

T

T

X

/

M

I

X

M

P

X

W

I

D

E

EPG CH LIST SOUND

ENTER

T

T

X

/

M

I

X

M

P

X

W

I

D

E

EPG CH LIST SOUND

INDEX

SUBTITLE

SUBPAGE

REVEAL

SIZE HOLD

ENTER

Remote control

General keys

1

2

4

5

6

7

9

11

12

14

Teletext

3

8

10

13

15

16

1 POWER

Press to turn your TV on/off.

2 DISPLAY

Press once to display input/channel information
(dependent on input/source type).

3 MUTE

Press to toggle audio on and off.

4 Input buttons (TV/AV/SCART/PC)

Press to select correct input mode.

5-1 SLEEP

Press to set a time period after which the TV will switch
itself to standby (15, 30, 45, 60, 90 or 120 minutes).

5-2 EPG

Press to launch Electronic Programme Guide (EPG) mode
(Digital TV mode only). See page 19.

5-3 CH LIST

Press to launch the channel list. See page 18.

5-4 SOUND

Press to turn audio mode to Surround mode.

6 Number keys

7 RECALL

.

Press to return to the previous channel.

8 ENTER

Press to confirm channel number selection.

9 MENU

Press to open or close the Menu.

10 TTX/MIX (TELETEXT/MIX)

Press to switch from TV/AV to Teletext mode.
Press to overlay teletext page on the TV image.

11 Directional keys/OK

VOL (up/down), CH (up/down)

12 WIDE

Press to toggle scaling mode between Wide detect, 4:3,
16:9, Panorama and Letterbox 1, 2, 3 modes.

13 MPX

Press to select the sound input, displayed in the top right­hand corner (mono, stereo, bilingual).

14 VOL (+/-)

Press to increase or decrease the volume.

15 CH (up/down)

Press to sequentially select the TV channel.

16 e (Empowering Technology)

Press to activate Acer Empowering Technology. See page

12.

2

1 Colour buttons (R/G/Y/B)

Operates corresponding button on the teletext page.

2 INDEX

Press to go to the index page

6

7

3 SIZE

Press once to zoom teletext page to 2X.
Press again to resume.

4 SUBTITLE

Press to view subtitles on the screen.

314 5 6

5 SUBPAGE

Press to access the teletext’s subpages directly.

6 HOLD

Press to pause the current teletext page in multi-page
viewing mode.

7 REVEAL

Press to reveal hidden telext information.

Basic connections

Tuner

I

O

Connecting the power cord

1 Connect the AC cord into the AC input on the back of the

set.

2 Connect the plug to the wall outlet as shown.

Setting up the remote control

1 Open the cover on the back of the remote unit.

2 Insert two AAA batteries (supplied) to match the polarity

indicated inside the battery compartment.

Enjoying analog and digital TV

Connecting an antenna/cable

Connect the antenna cable to the appropriate antenna
terminal on the back of the TV set as shown below.

English

Getting started watching your TV

1

2

4

1

1

Power

a. Turn on the power switch beneath the screen.

b. Press the power button, number keys or channel up /

down button on the remote control.

2

Setup Wizard

The first time you switch on the TV, the Setup Wizard will
guide you to complete the language selection and channel
scanning.

Press the OK key to begin the setup process.

Step 3. Enter the correct time zone using the remote control.

Step 4. Enable or disable daylight saving time.

Step 5. Ensure that your co-axial cables are connected

correctly before proceeding.

Step 6. Scan for digital channels and analog channels.

Step 7. Setup is now complete. You are ready to begin

1

watching TV.

3

If you leave the setup process before it is complete,

you will be given a choice of options:

1. Resume setup

2. Resume setup wizard at next startup

3. Exit and do not remind me

Select an option and press OK to exit.

3

Changing channels

a. Press 0 - 9 on the remote control to select a channel. The

channel changes after 2 seconds. Press ENTER to select
the channel immediately.

b. Pressing the channel ( CH ) up / down button on the

remote control will also change the channel.

You can also adjust these settings using the front
control panel. Please see "Front panel view" on
page 4 for details.

Step 1. Select the setup language you prefer.

Step 2. Please select country.

4

Adjusting the volume

Adjust the volume level using the ( VOL ) up/down button on
the remote control.

Setup may vary due to local broadcast differences.

7

Connecting external audio/video devices

Y

R

W

or

DVD

VCR

STB

or

HDMI

D-Sub

D-Sub

Pr

Pb

Y

TUNER

R

W

R

BG

RBG

Y

Y

COMPOSITE

COMPONENT

SCART

AV

R

W

AV

AUDIO

AV

Recorder

Pr

Pb

Y

TUNER

SCART

B

G

English

Connecting a DVD, VCR, STB or audio/video equipment

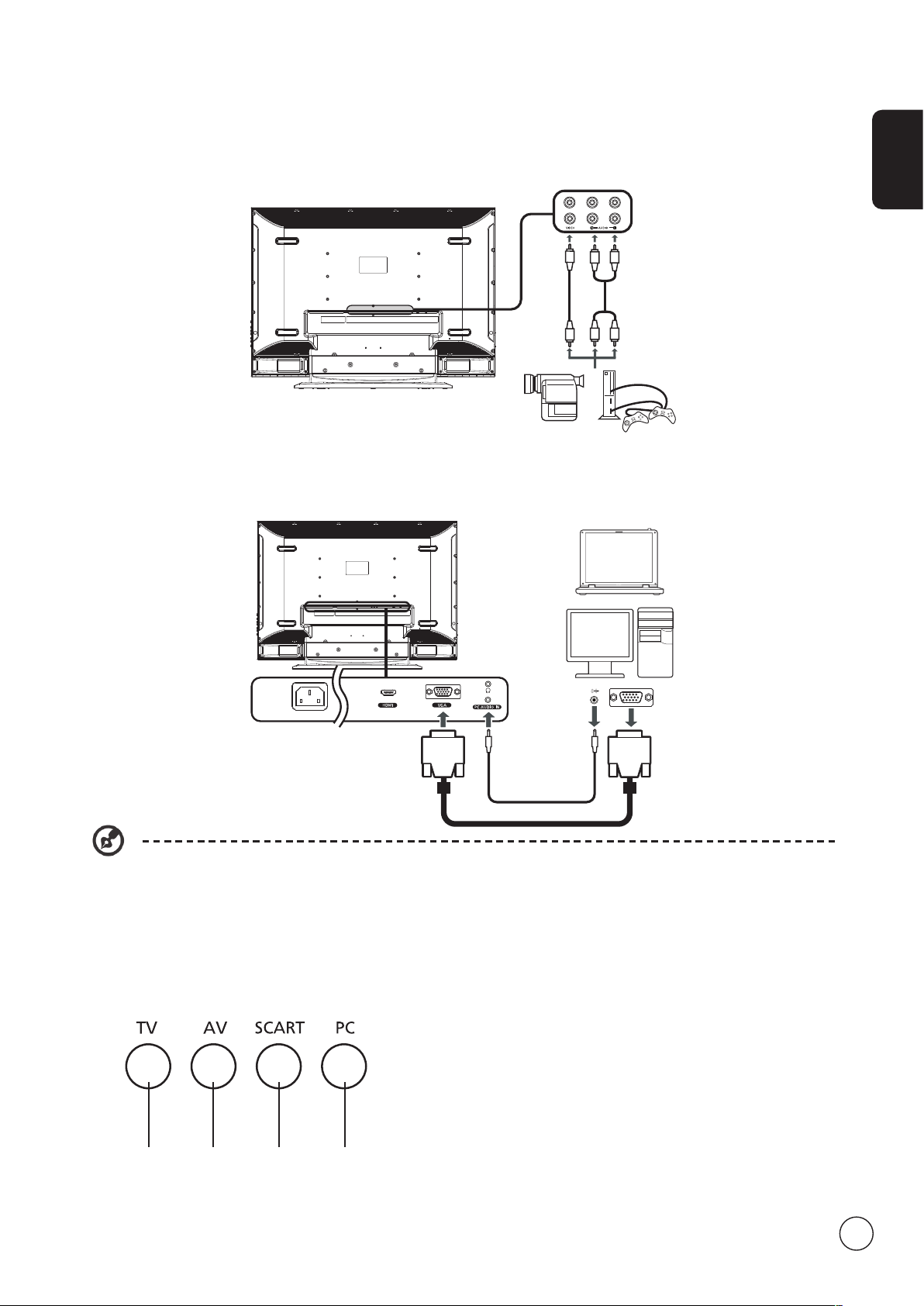

Connect your DVD player, VCR or audio/video equipment using the SCART port located at the rear of your LCD TV as shown
below.

Source-IN

Yellow

Red

White

Blue

Green

* Acer recommends the following priority for connection types:
HDMI -> COMPONENT -> SCART -> Composite.

** For AV, Composite and component inputs share the same audio ports.

TV-OUT

*SCART-out only works with analog broadcasts.

8
