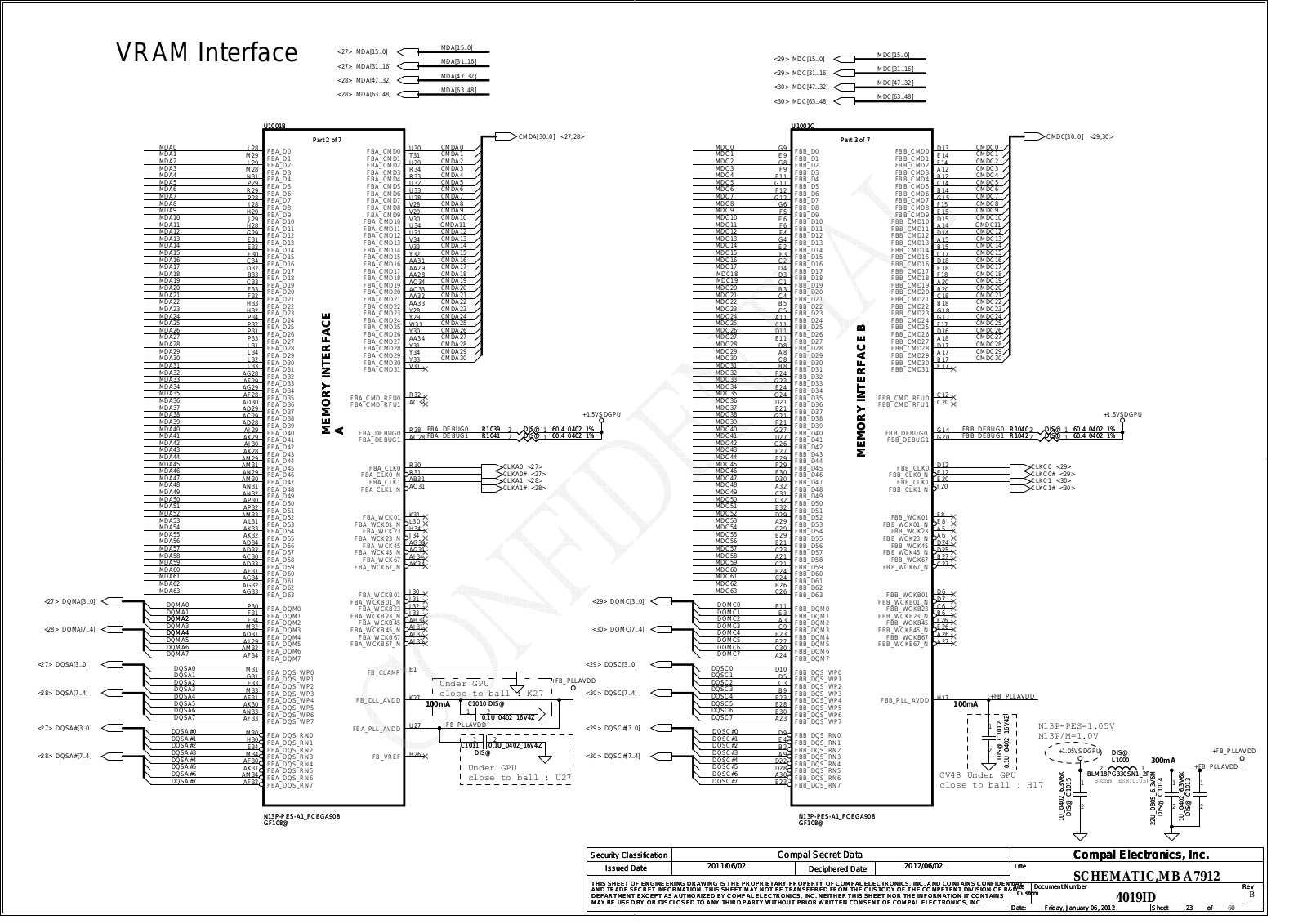

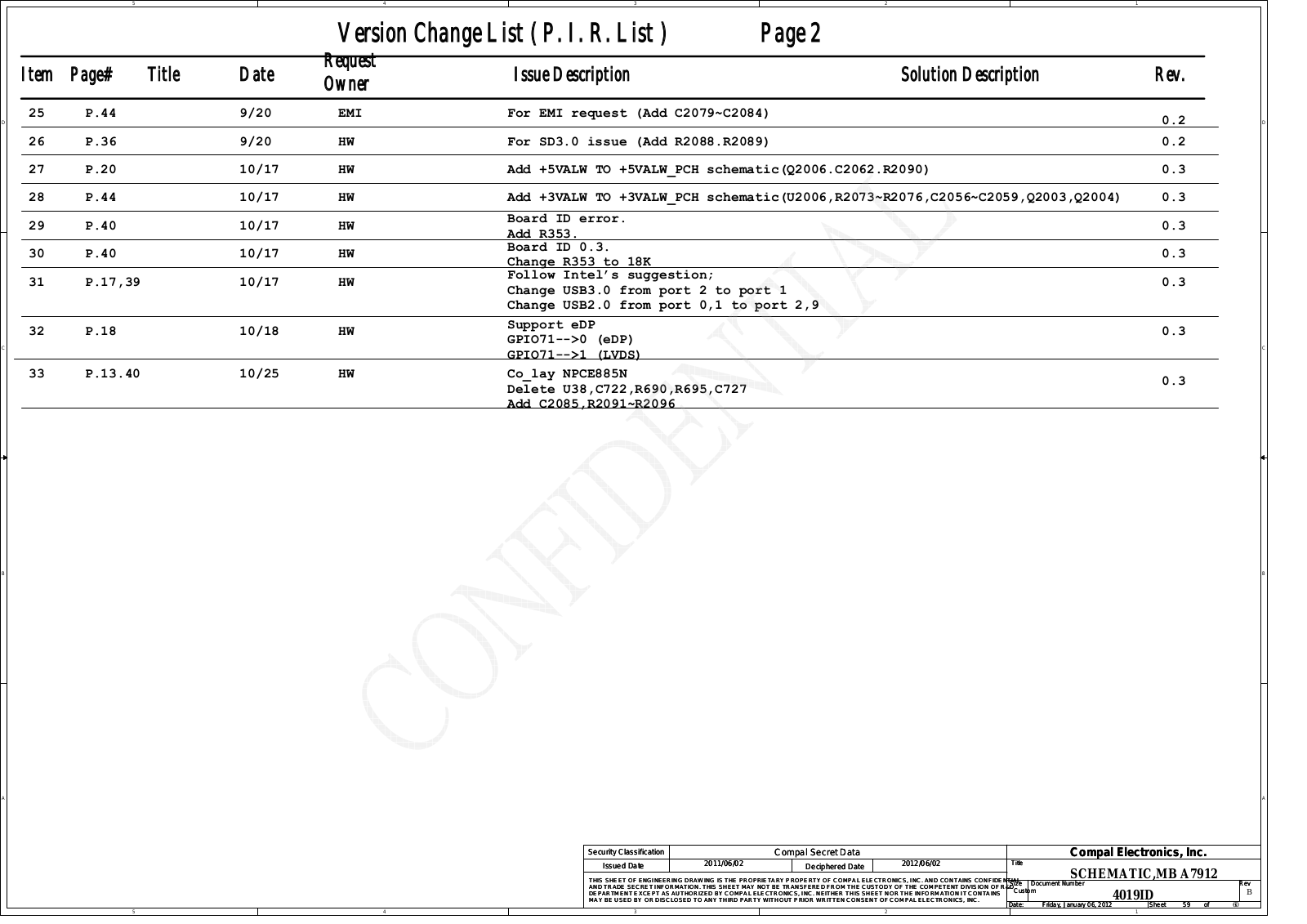

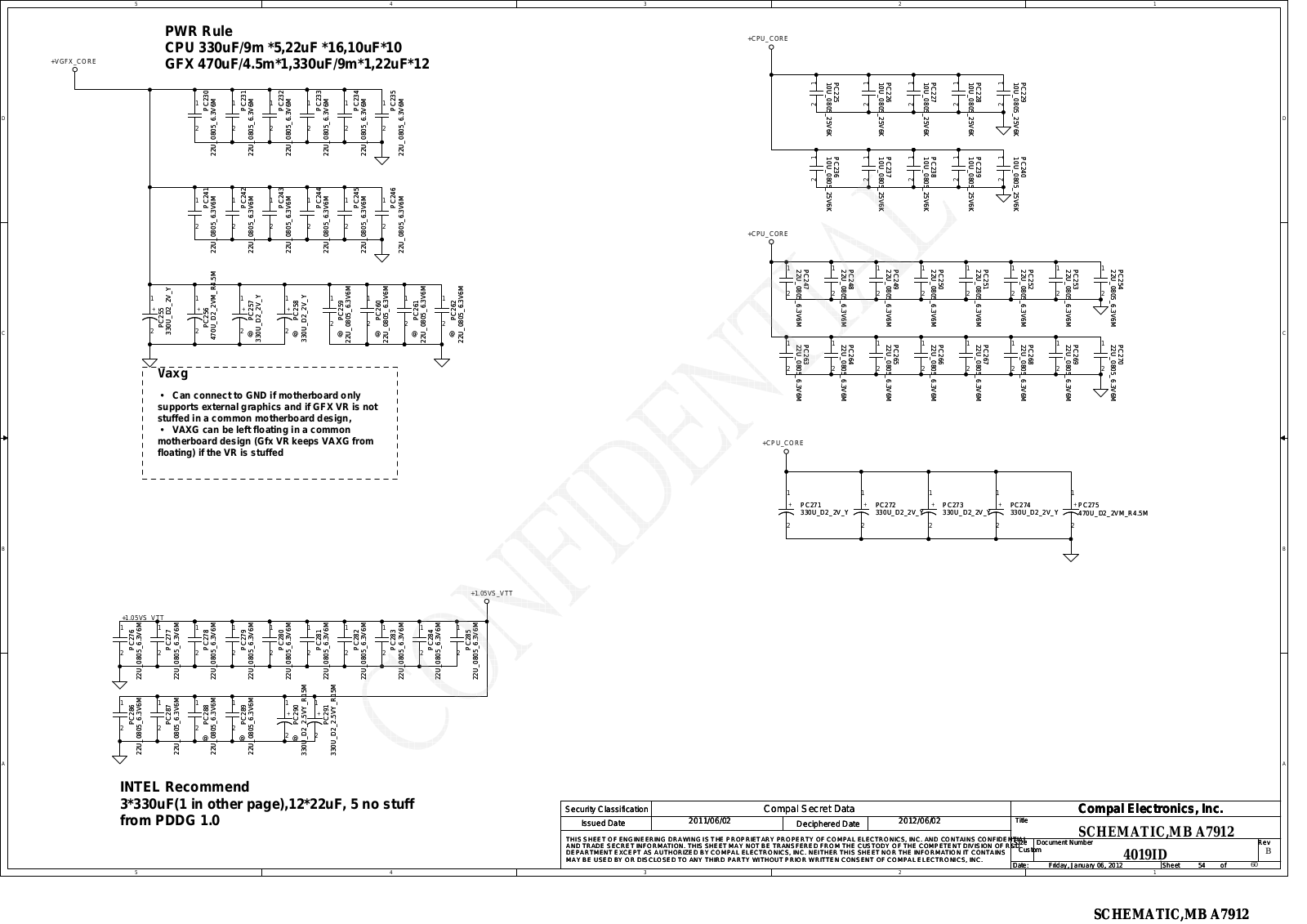

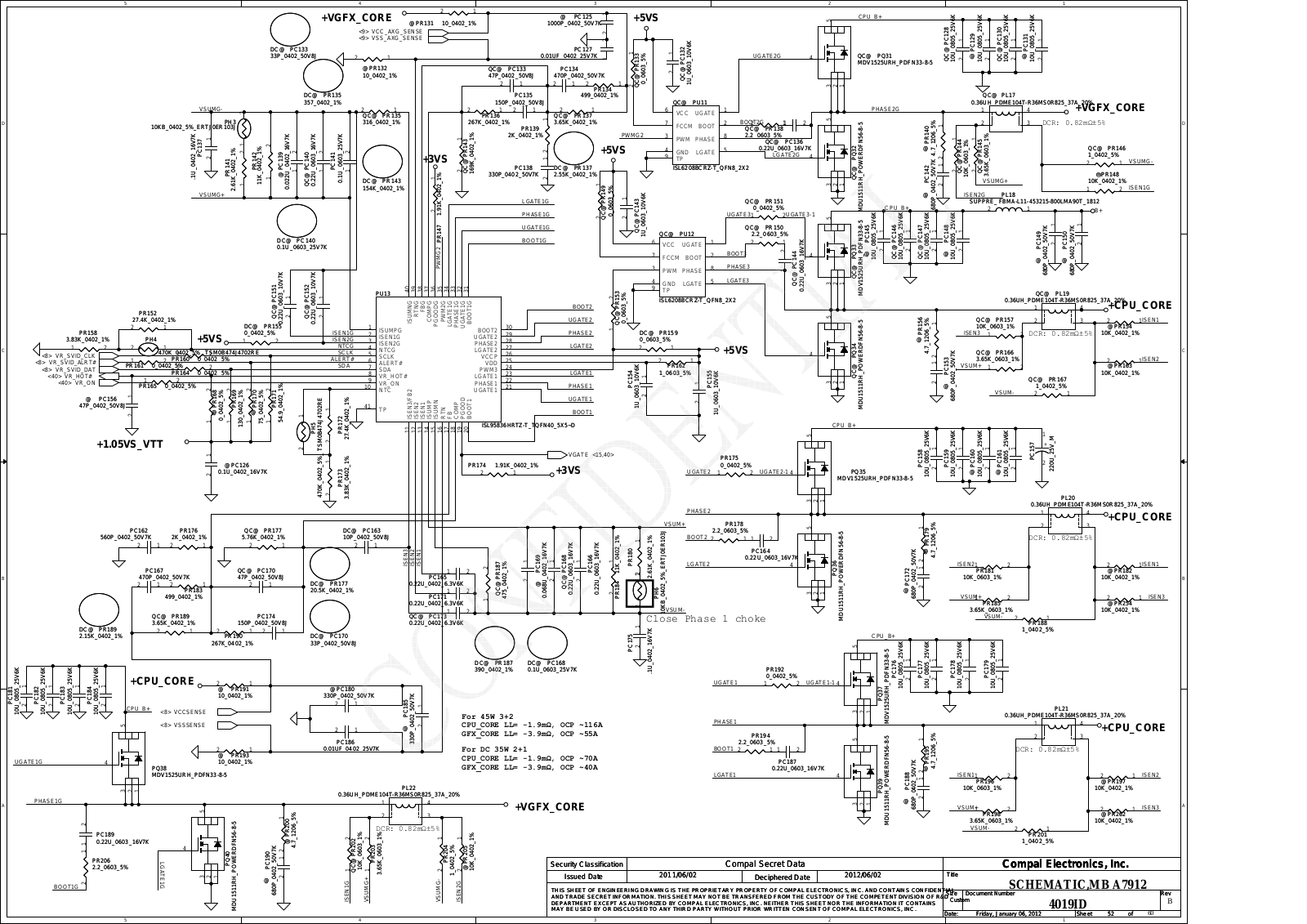

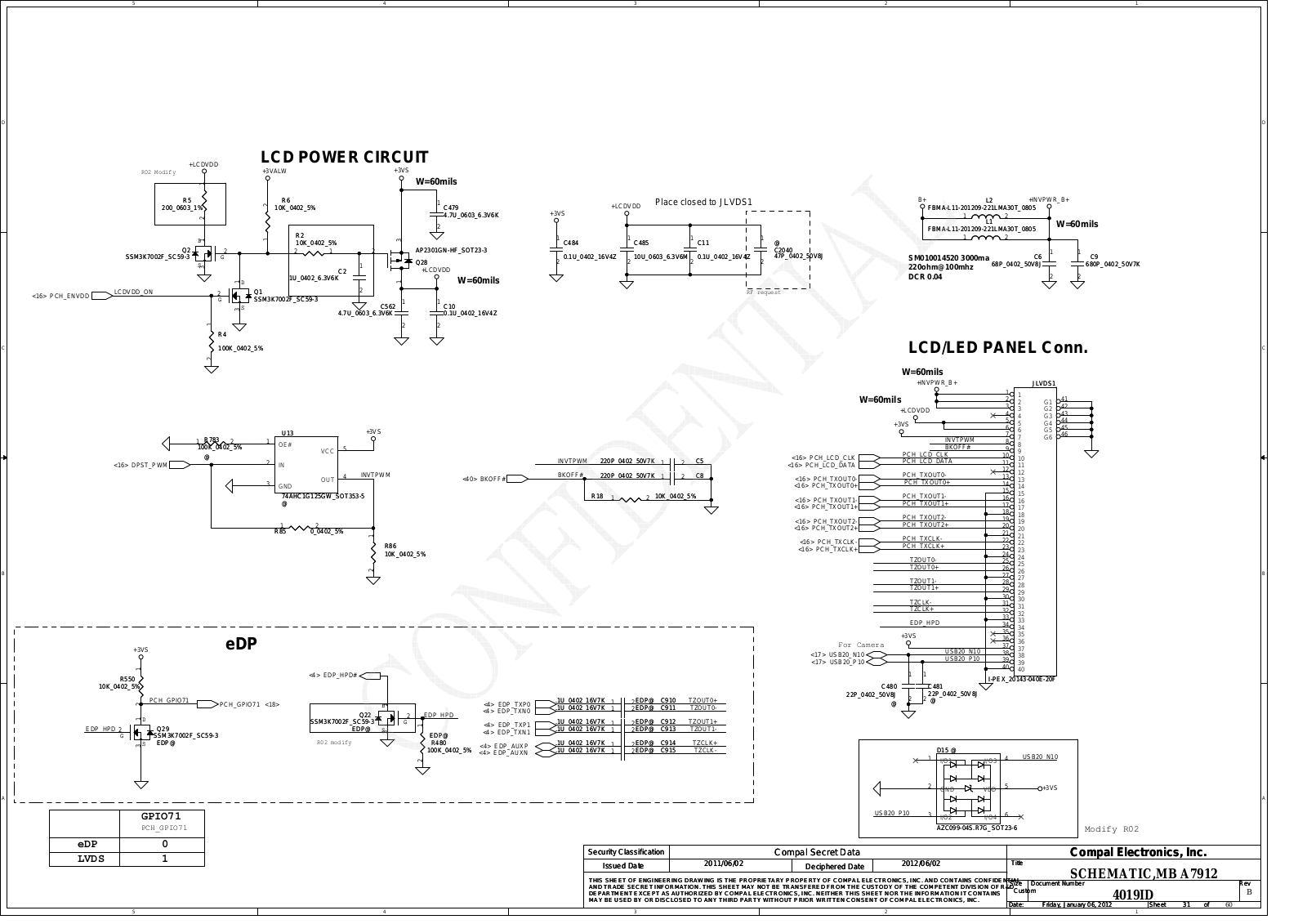

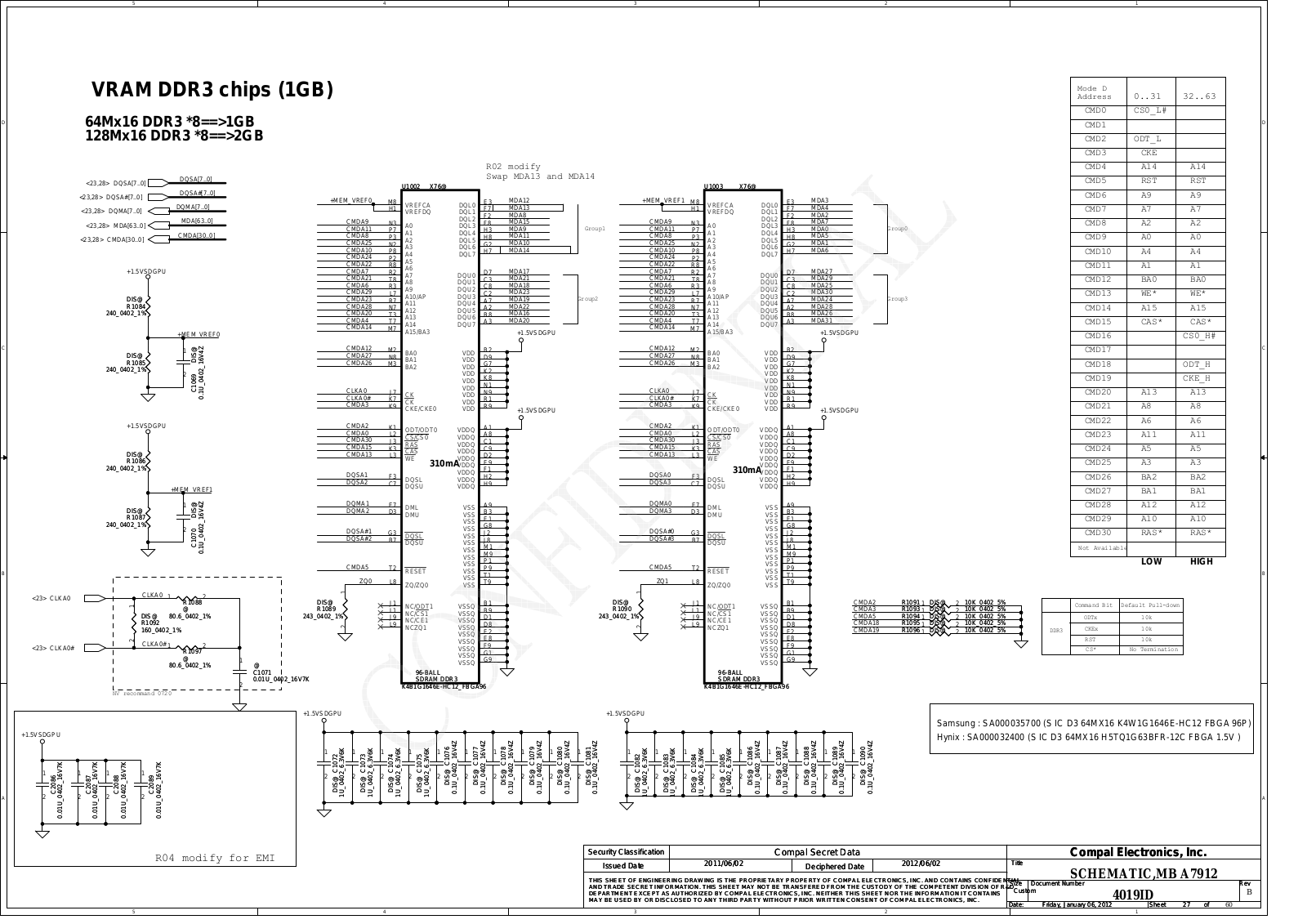

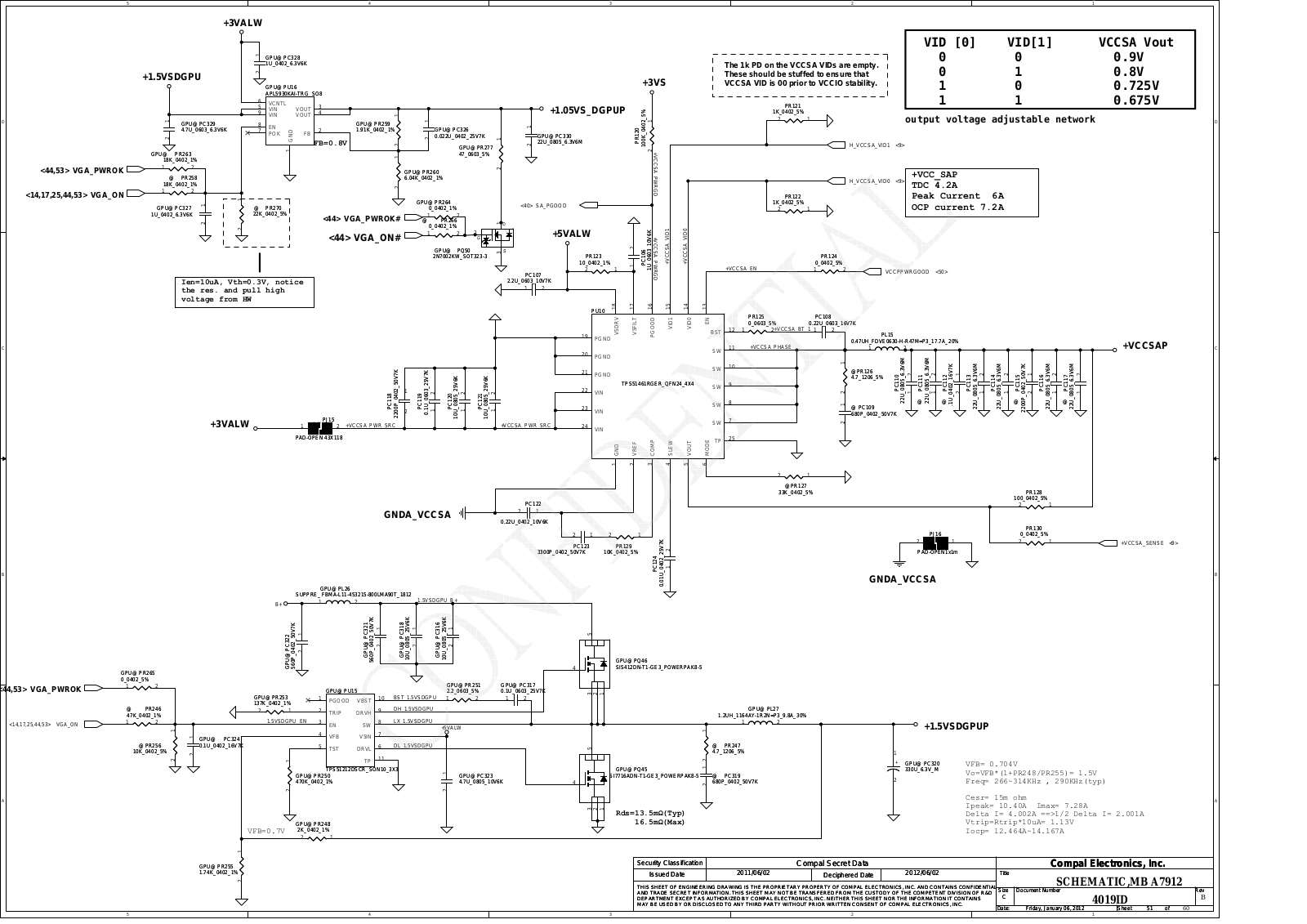

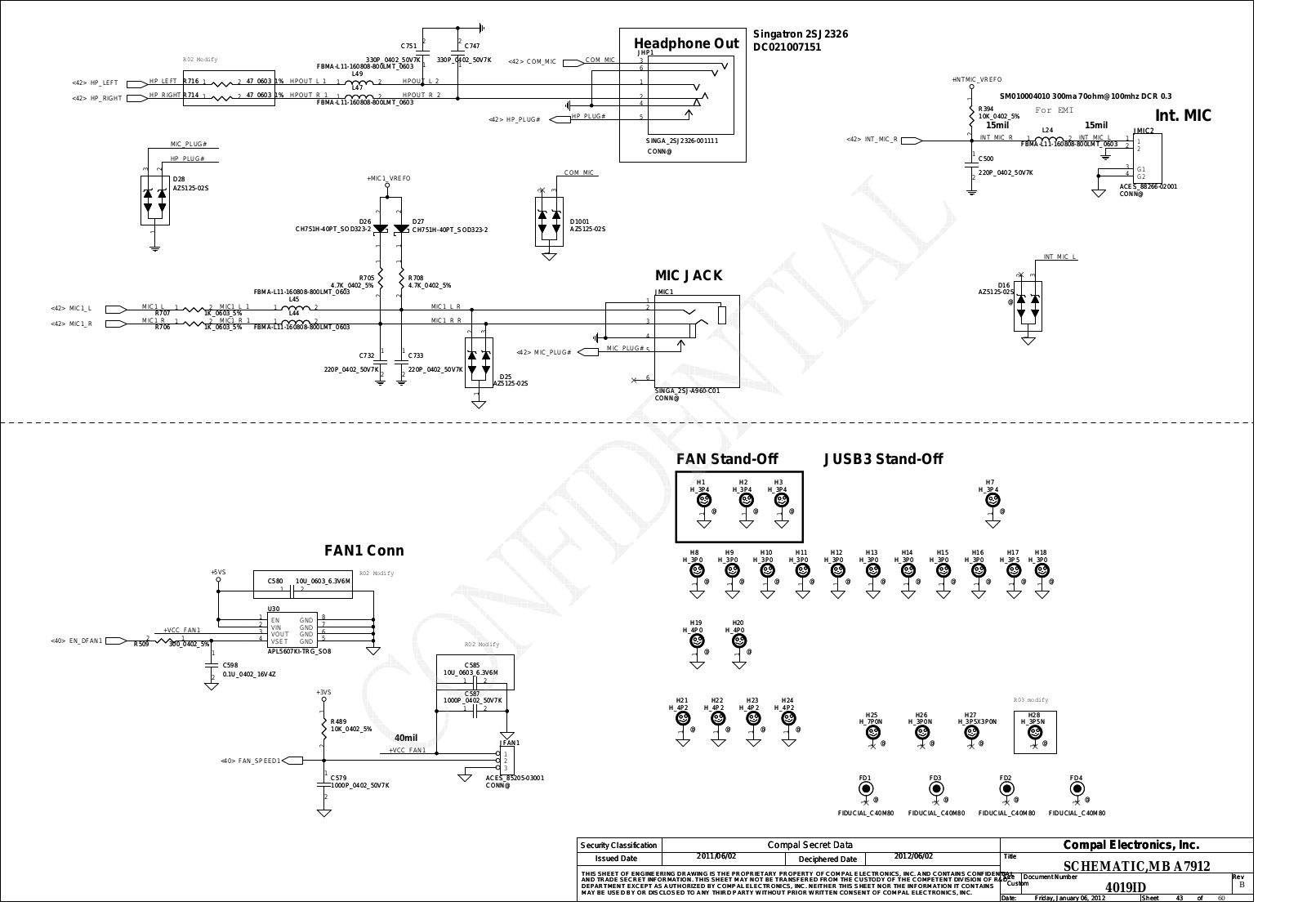

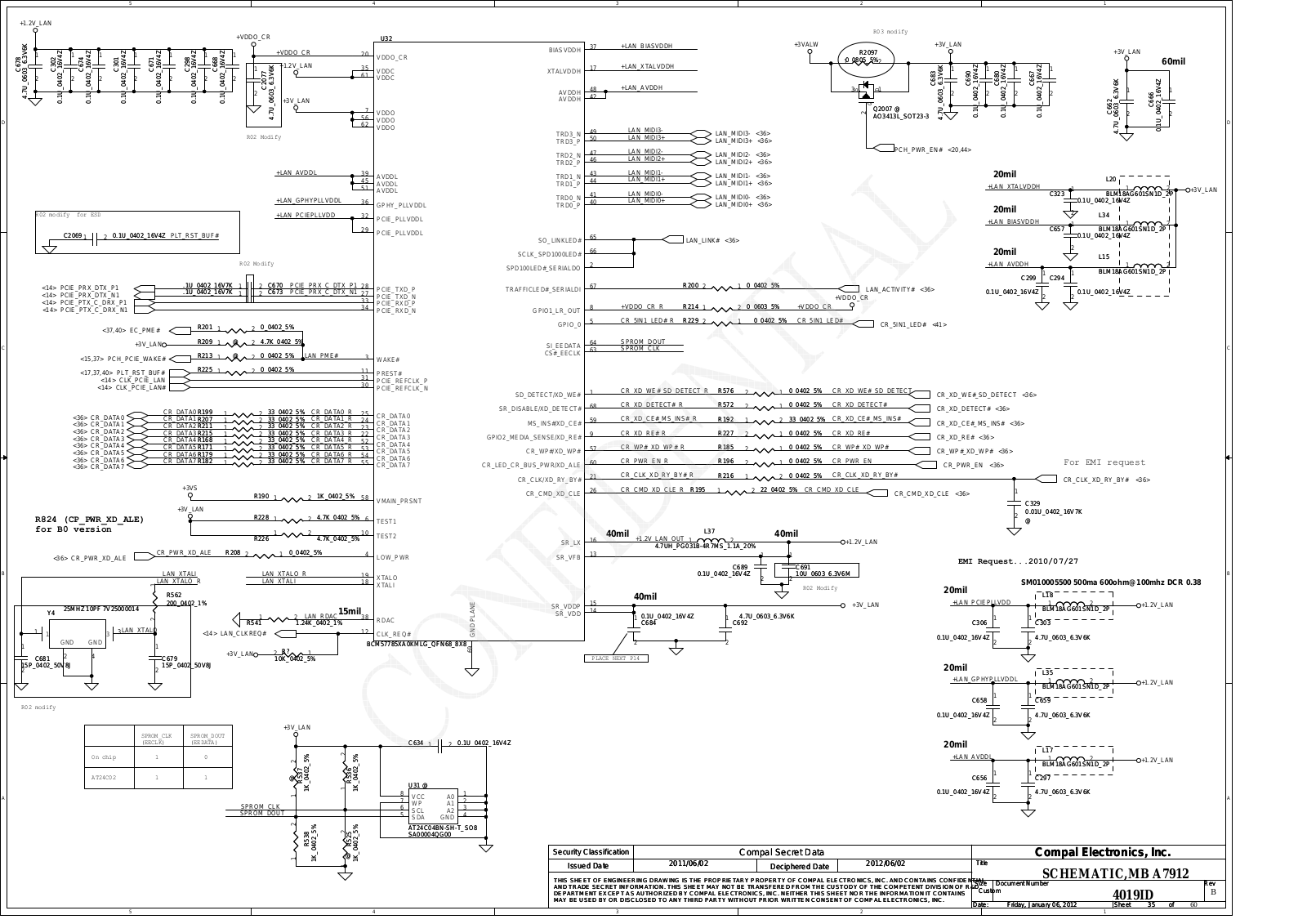

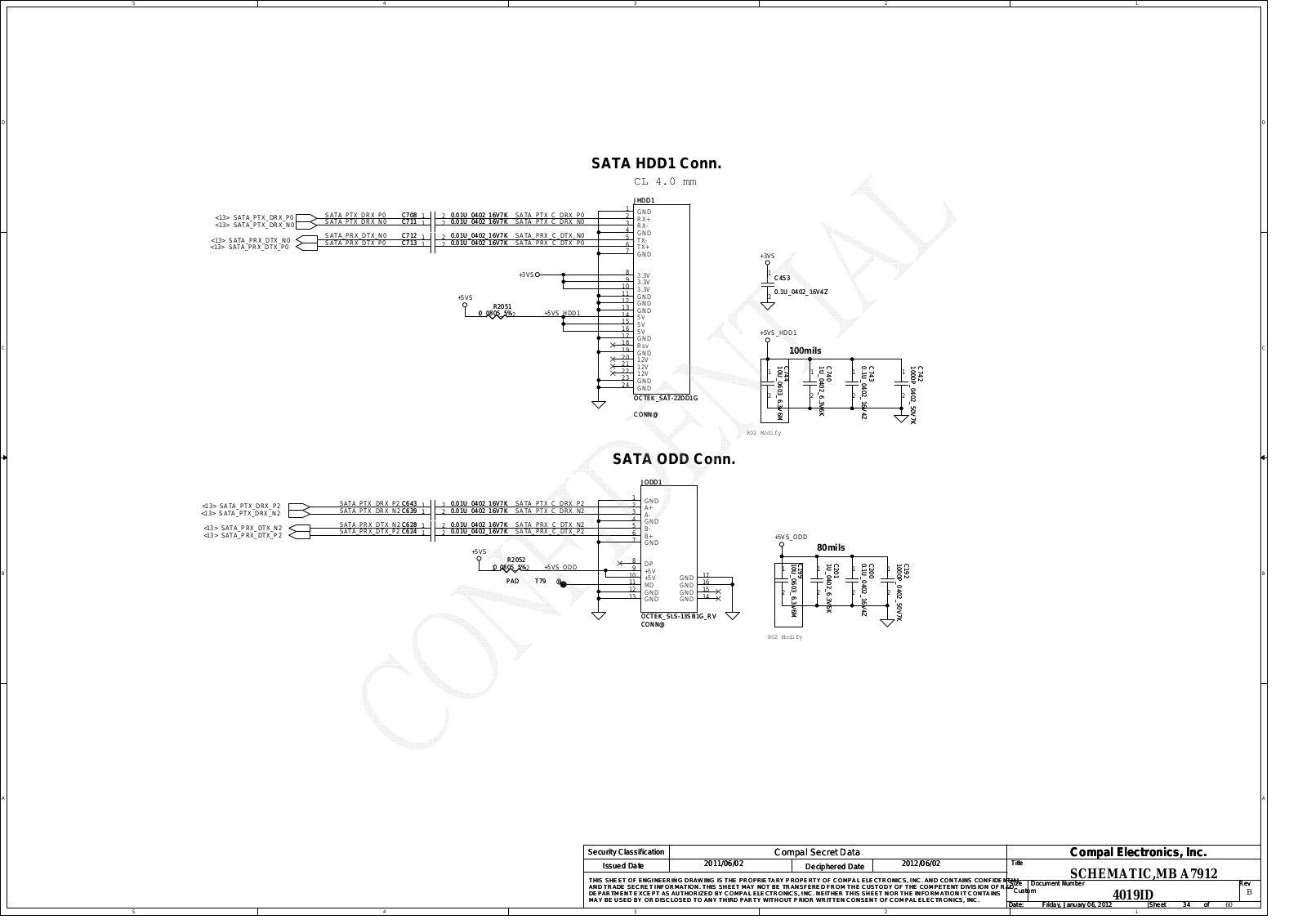

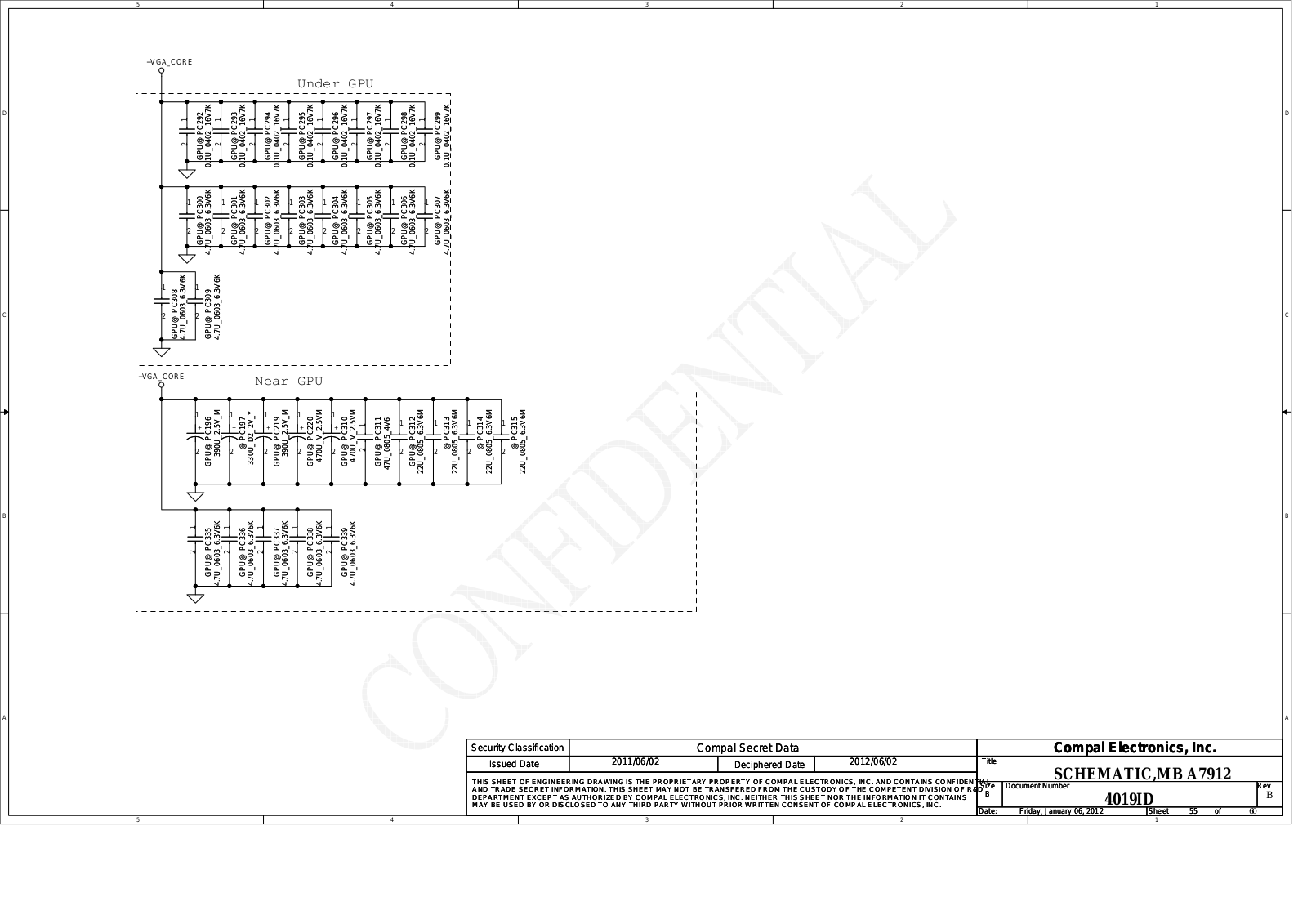

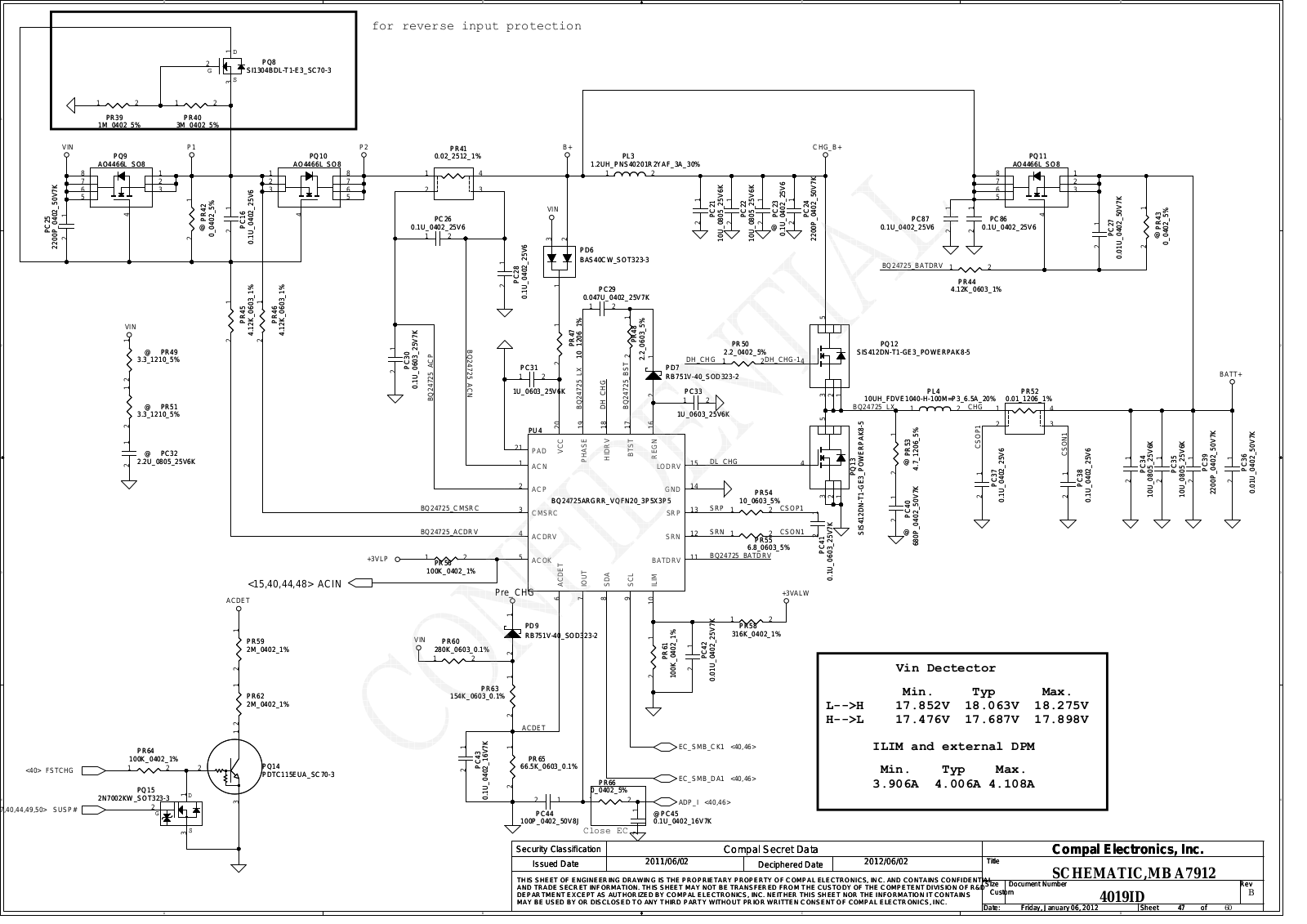

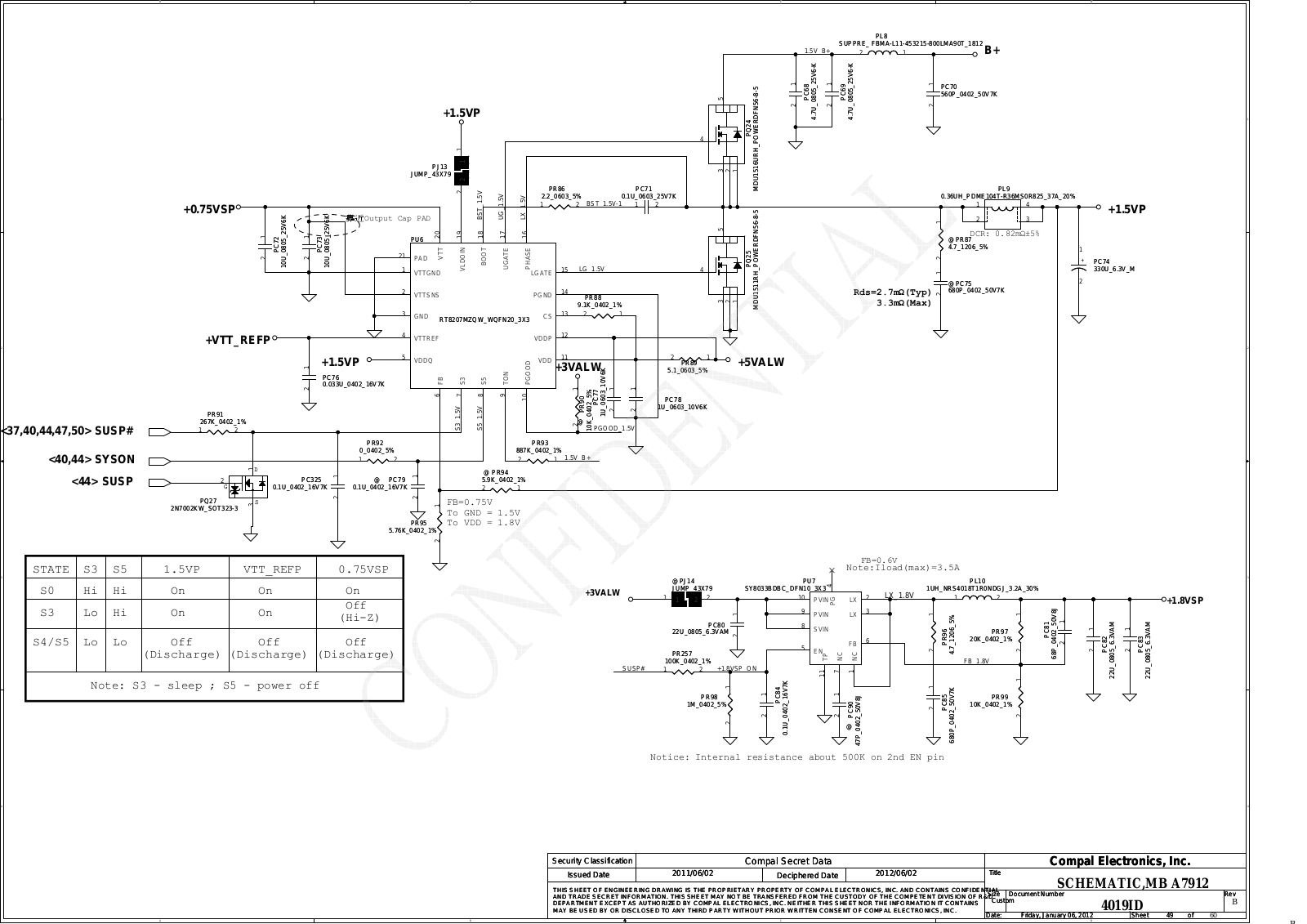

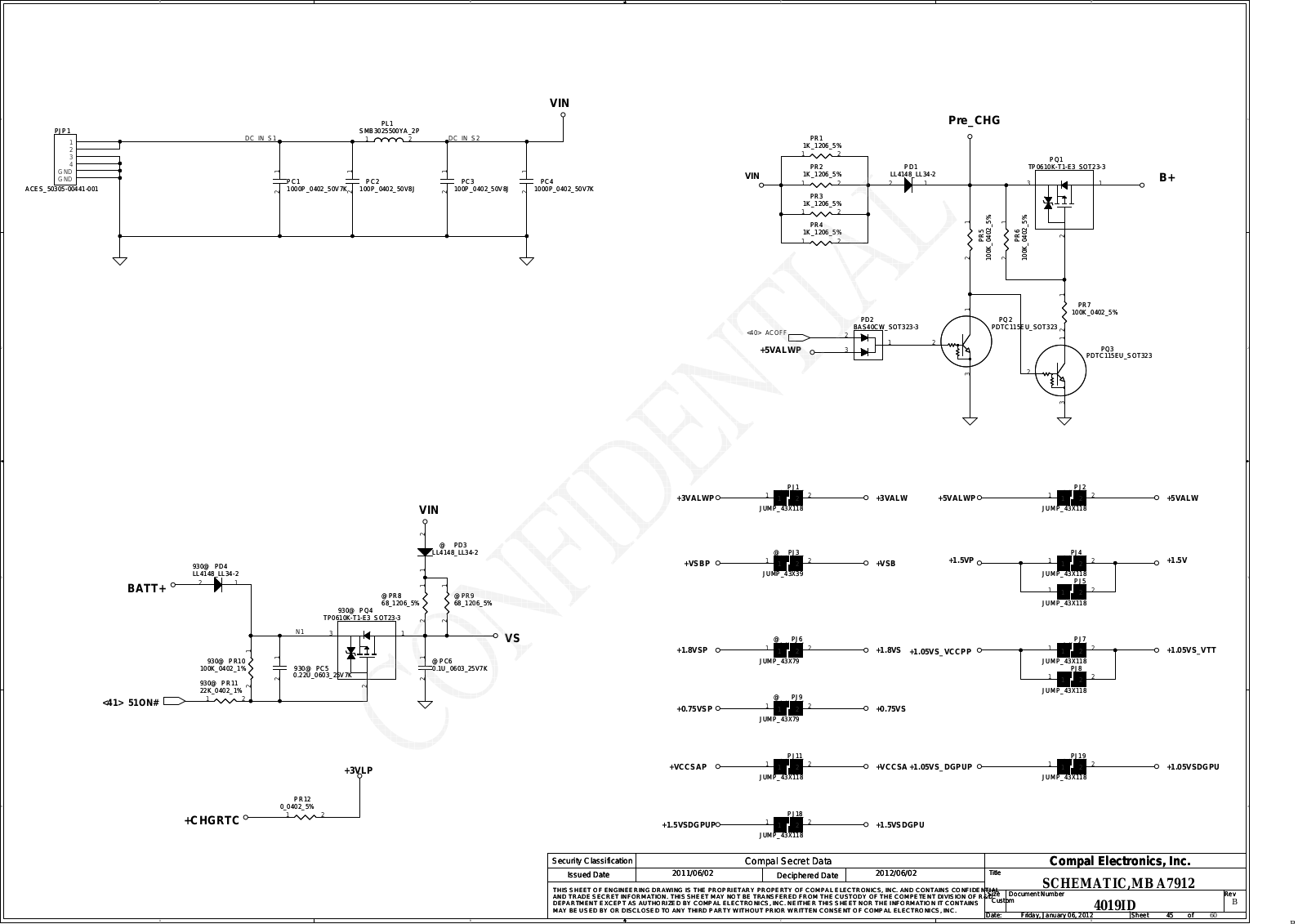

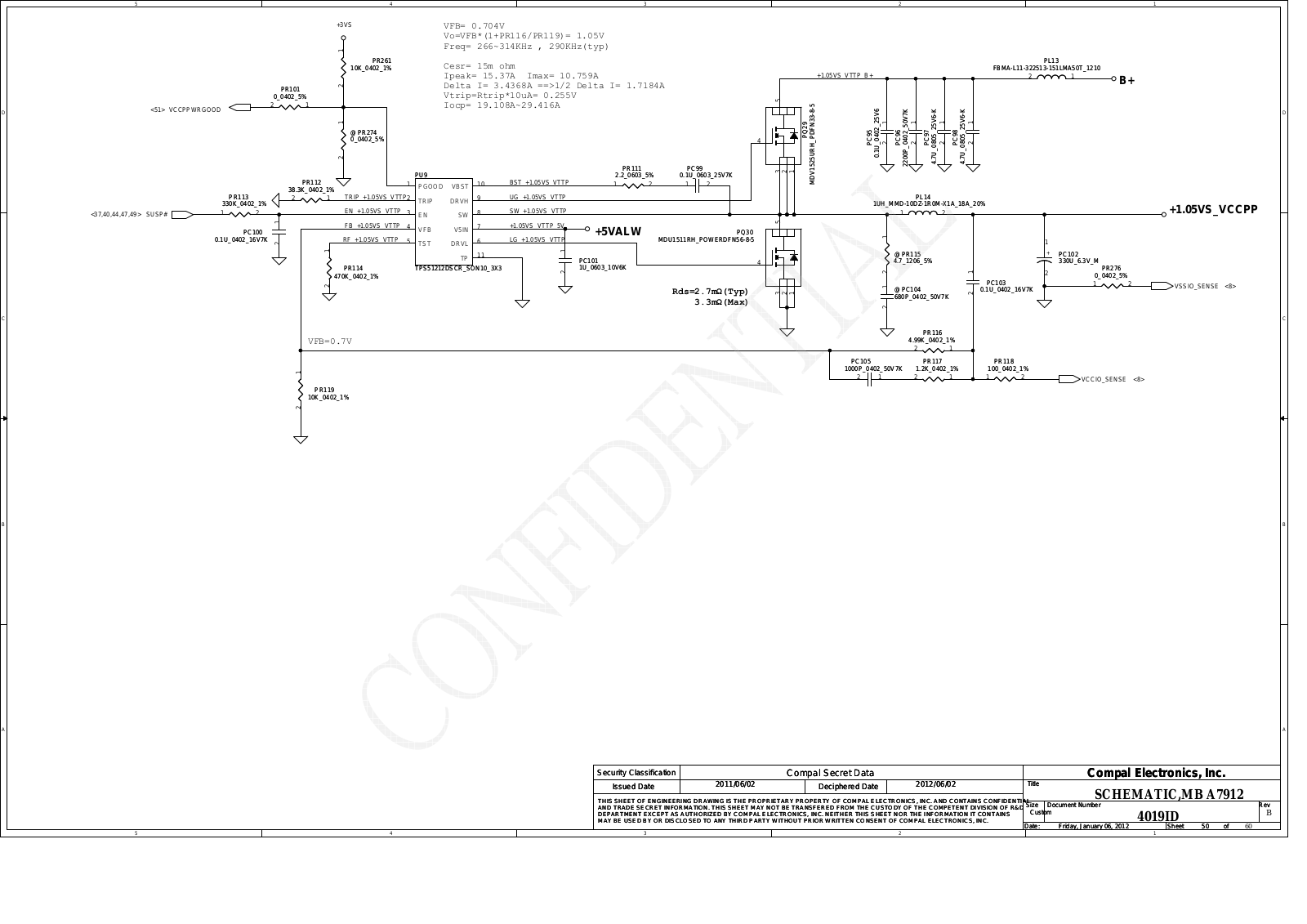

Acer LA-7912P Q5WV1, Aspire E1-531, Aspire E1-571, Aspire V3-531, Aspire V3-571 Schematic
...Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19

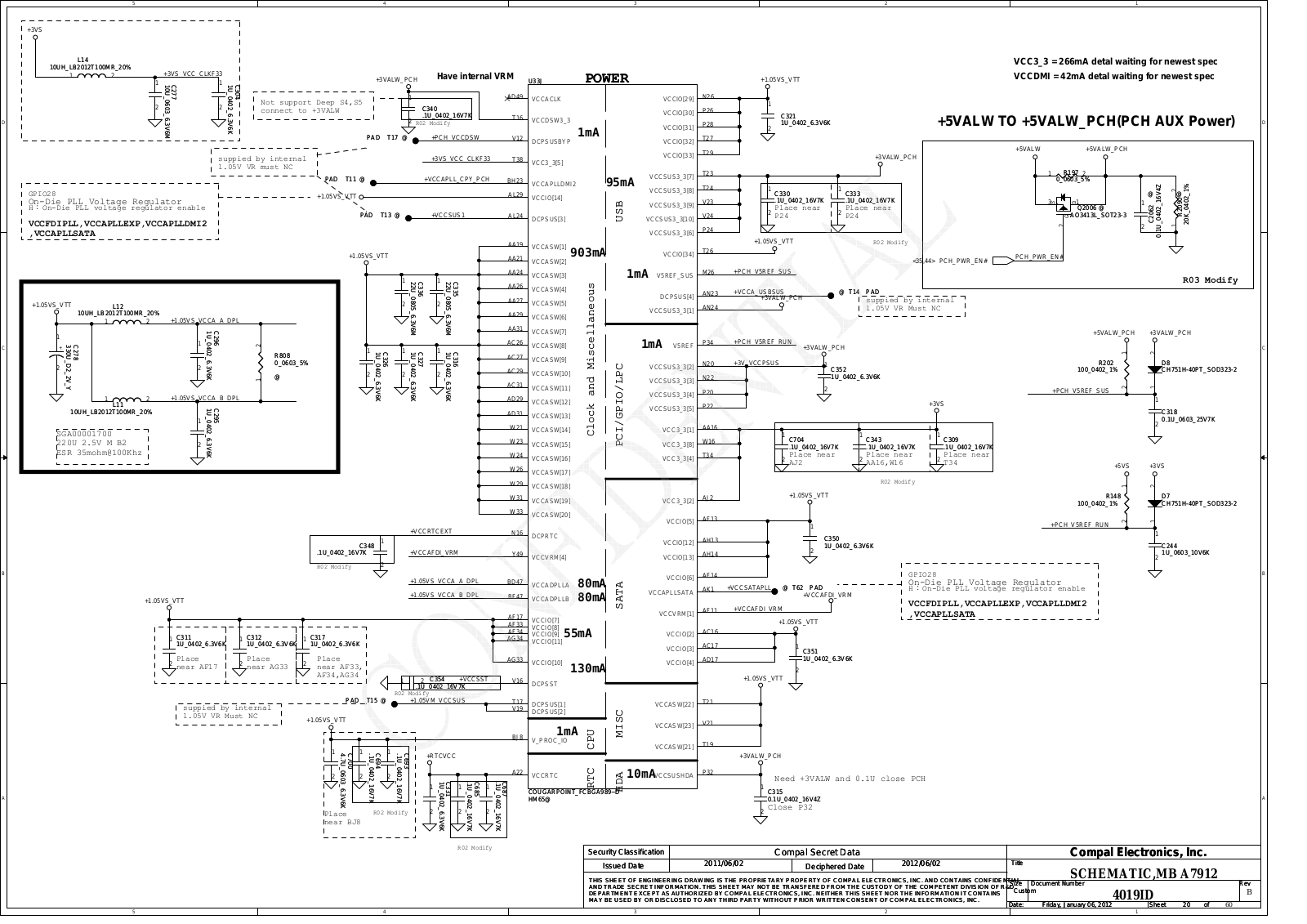

Page 20

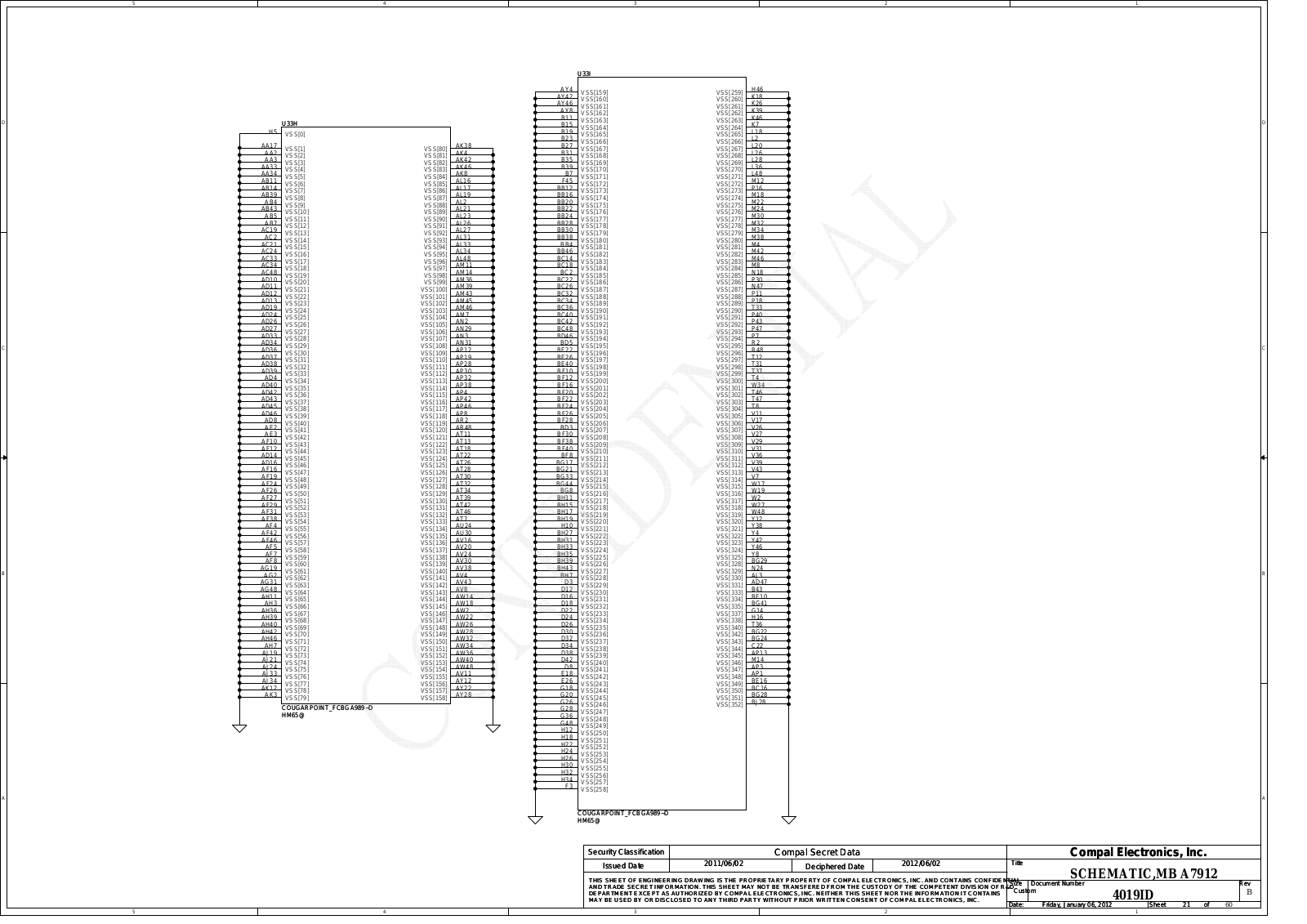

Page 21

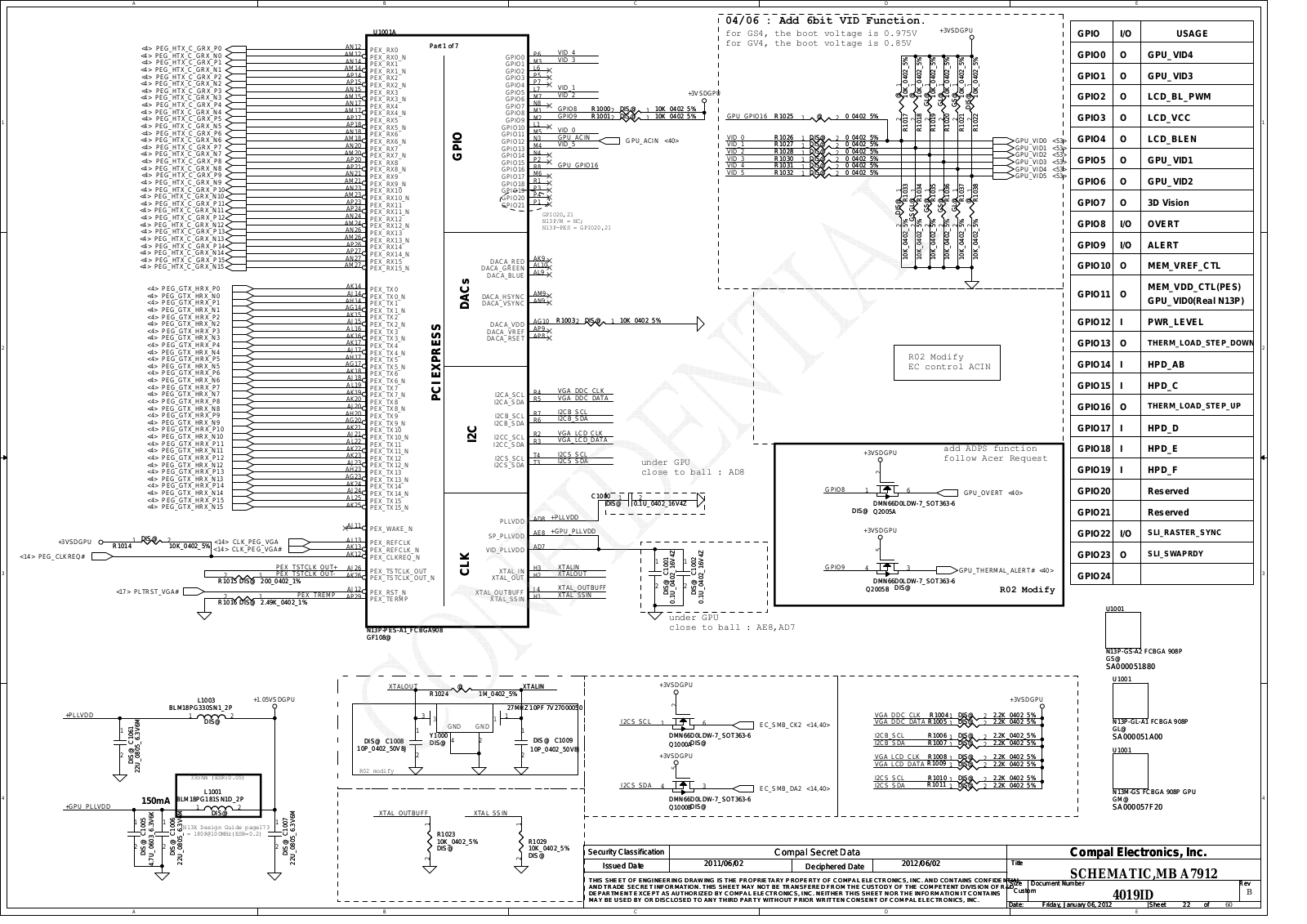

Page 22
Page 23

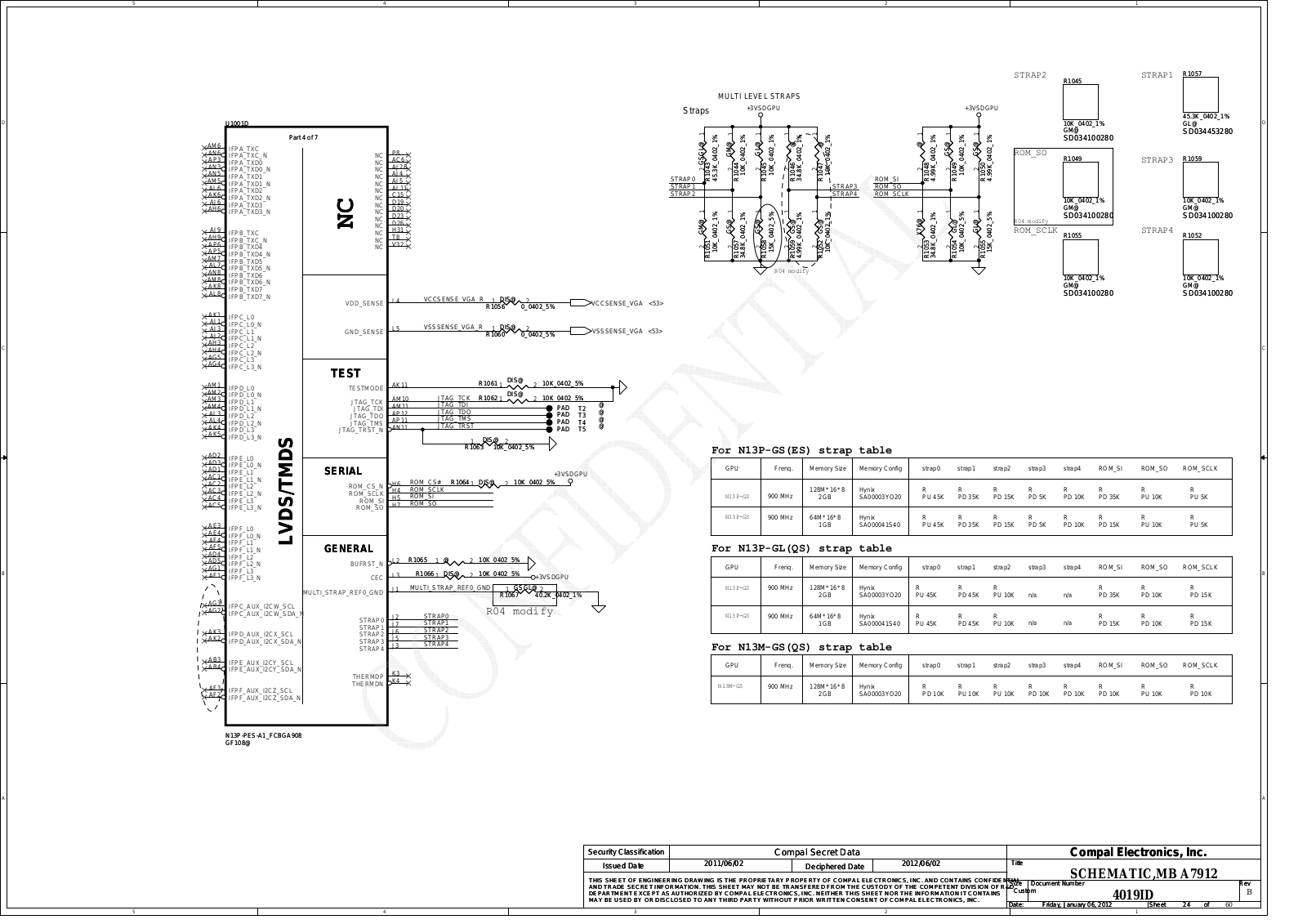

Page 24

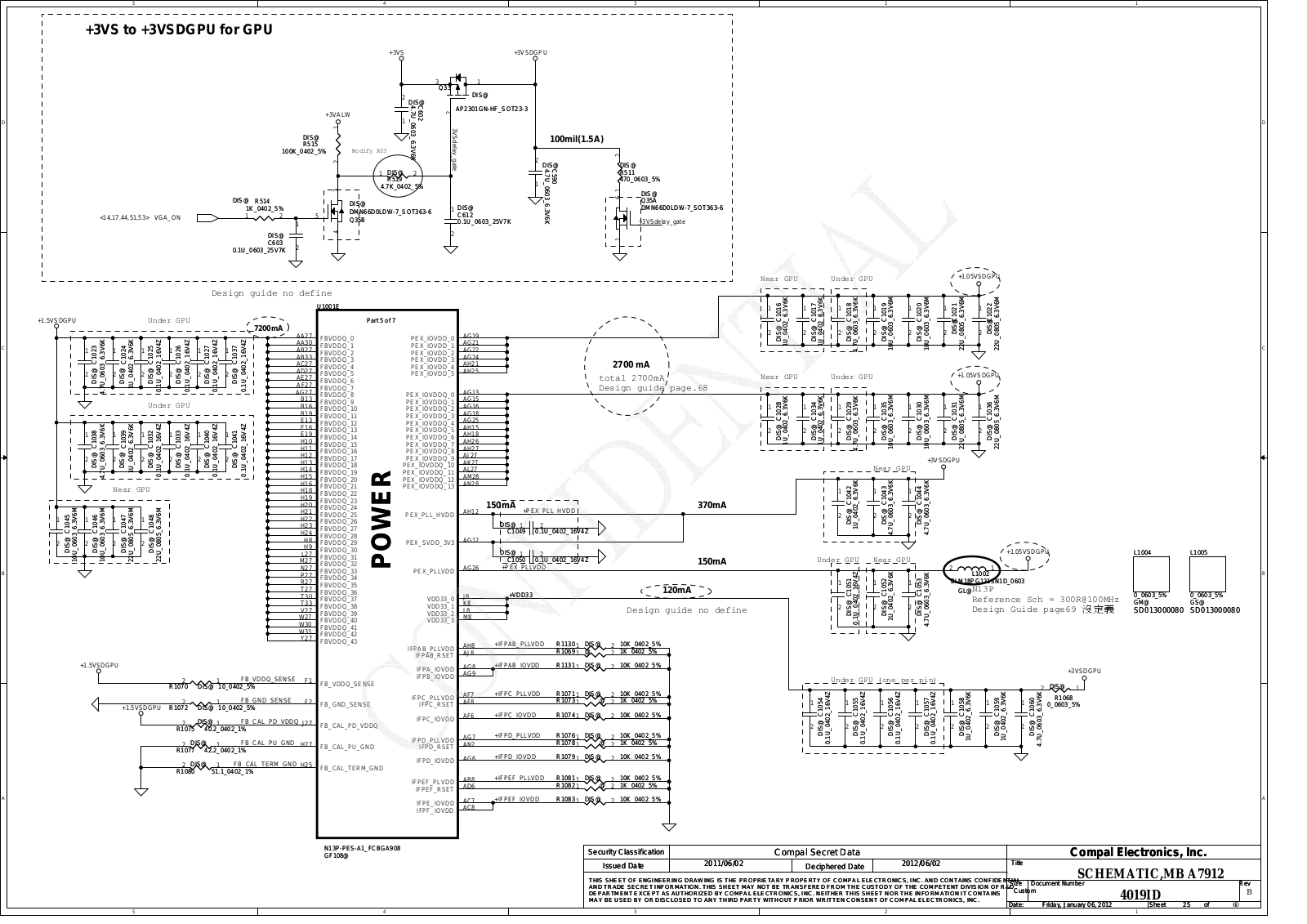

Page 25

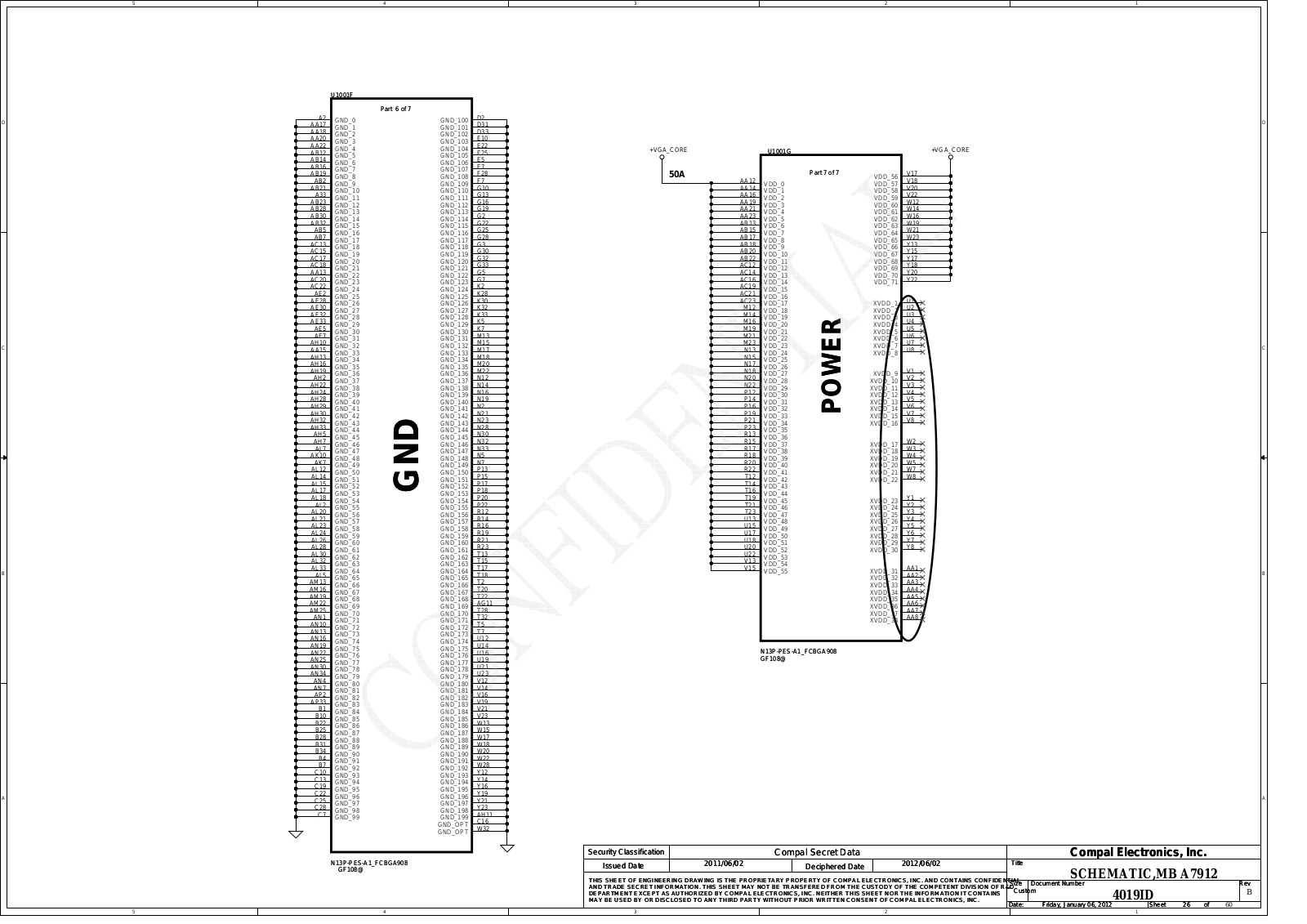

Page 26
Page 27

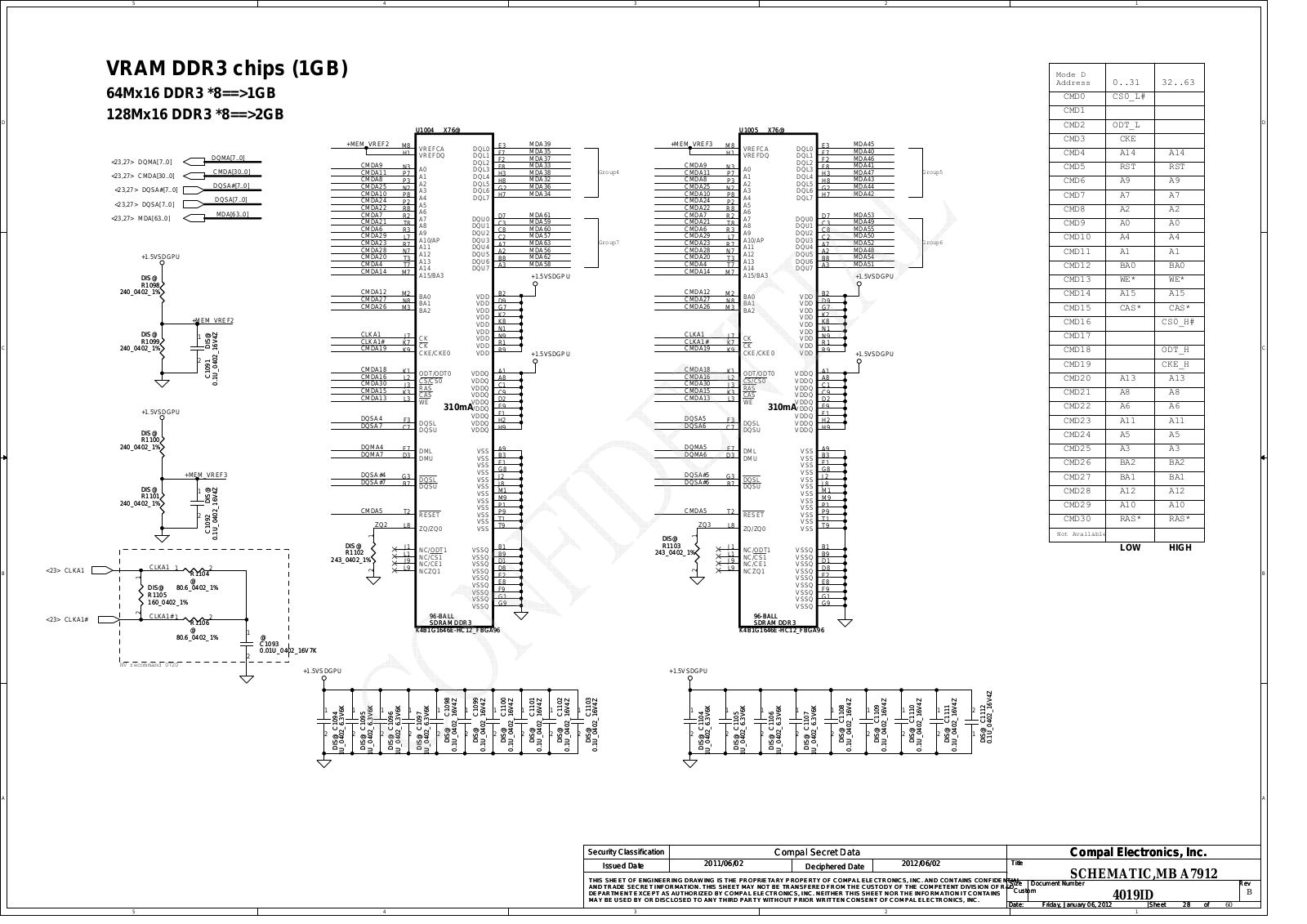

Page 28

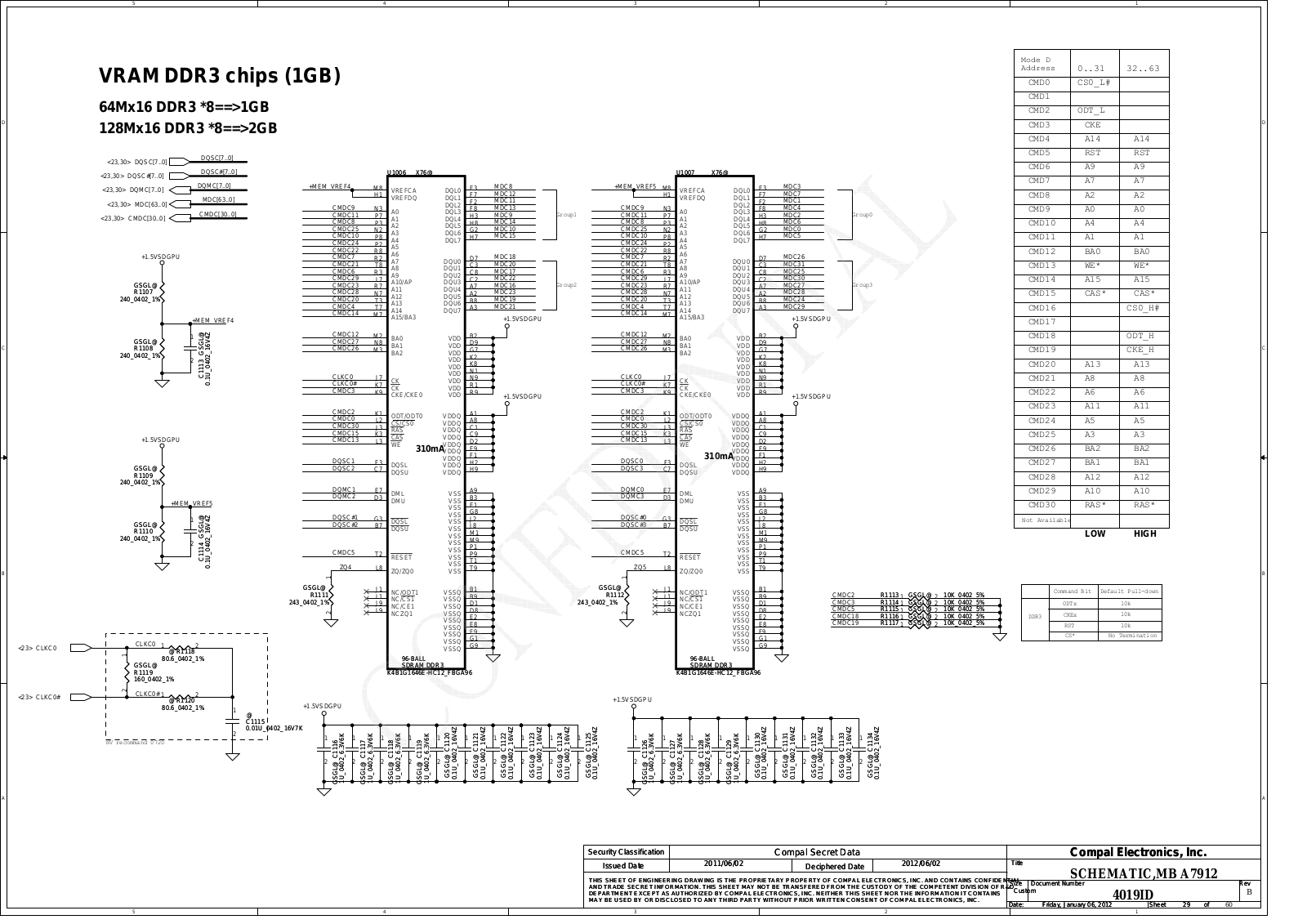

Page 29

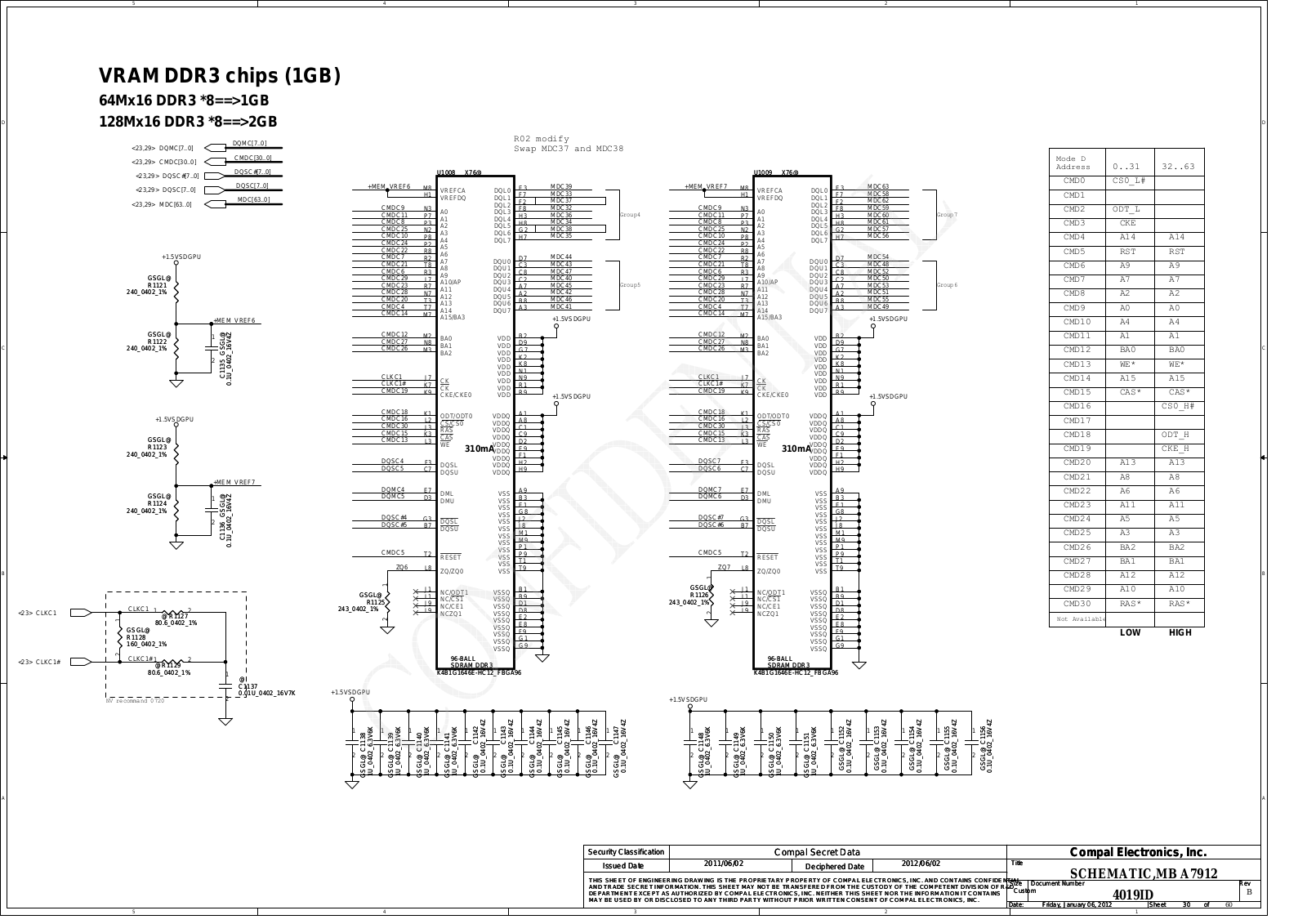

Page 30
Page 31

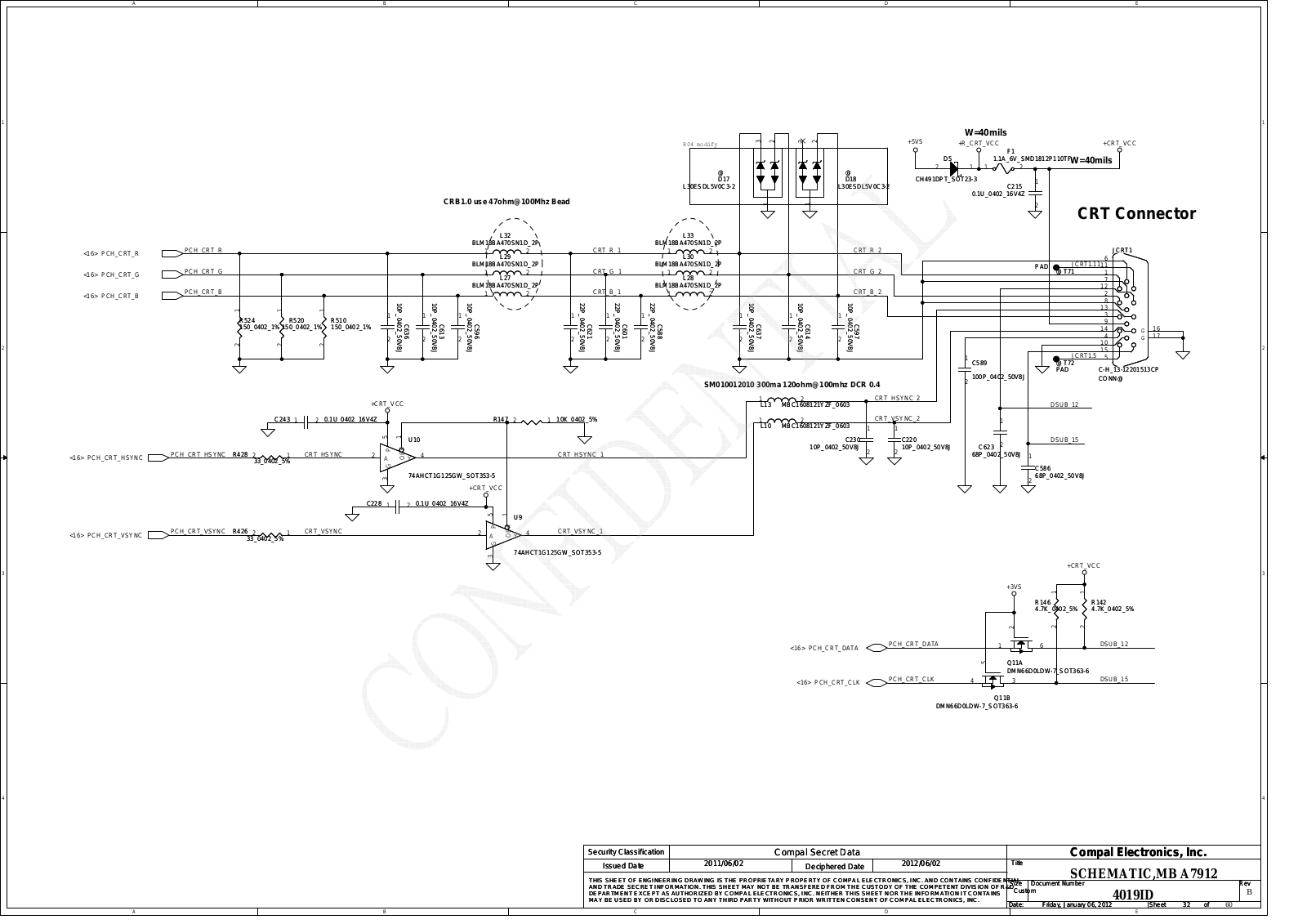

Page 32
Page 33
Page 34
Page 35

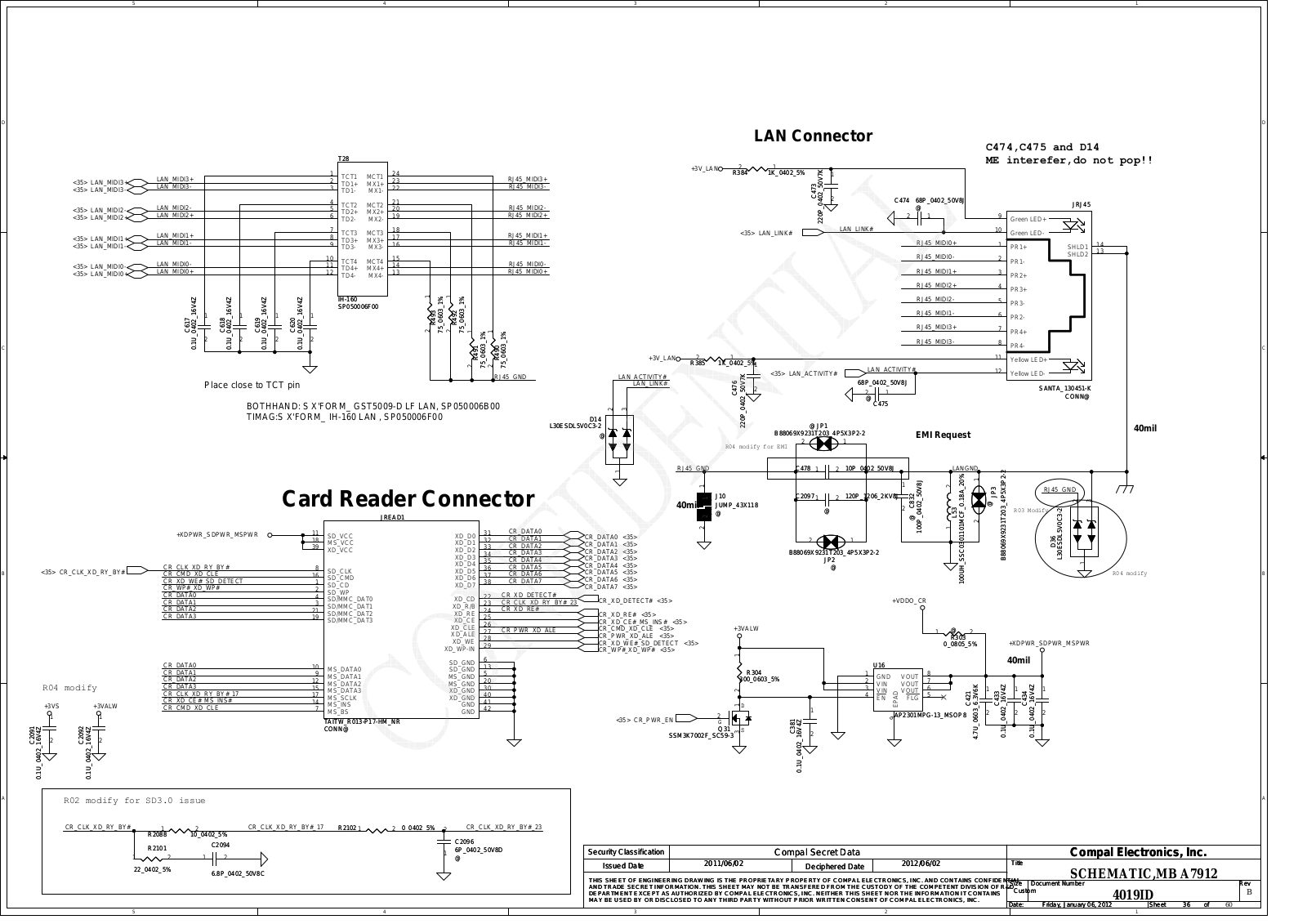

Page 36

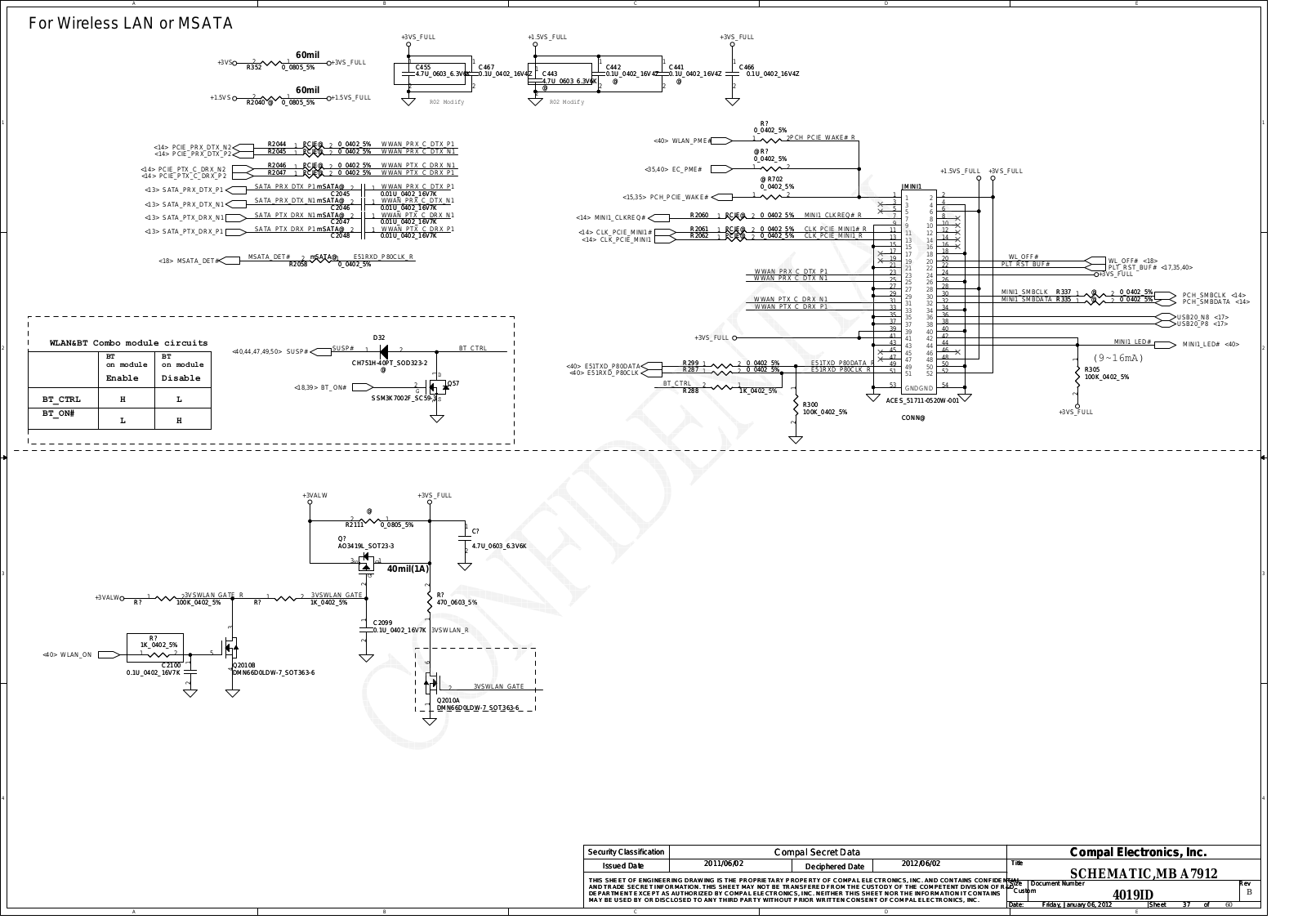

Page 37
Page 38

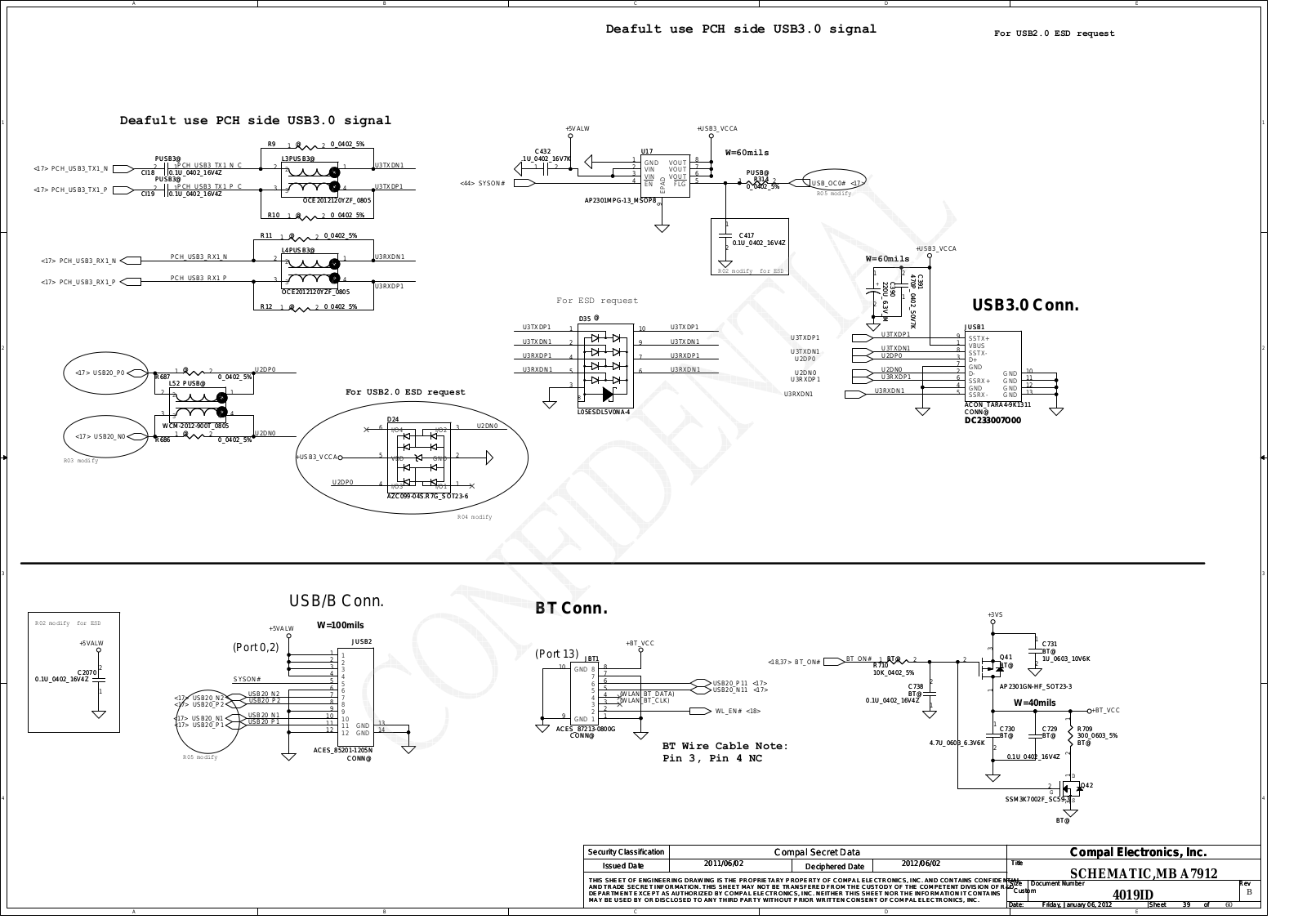

Page 39

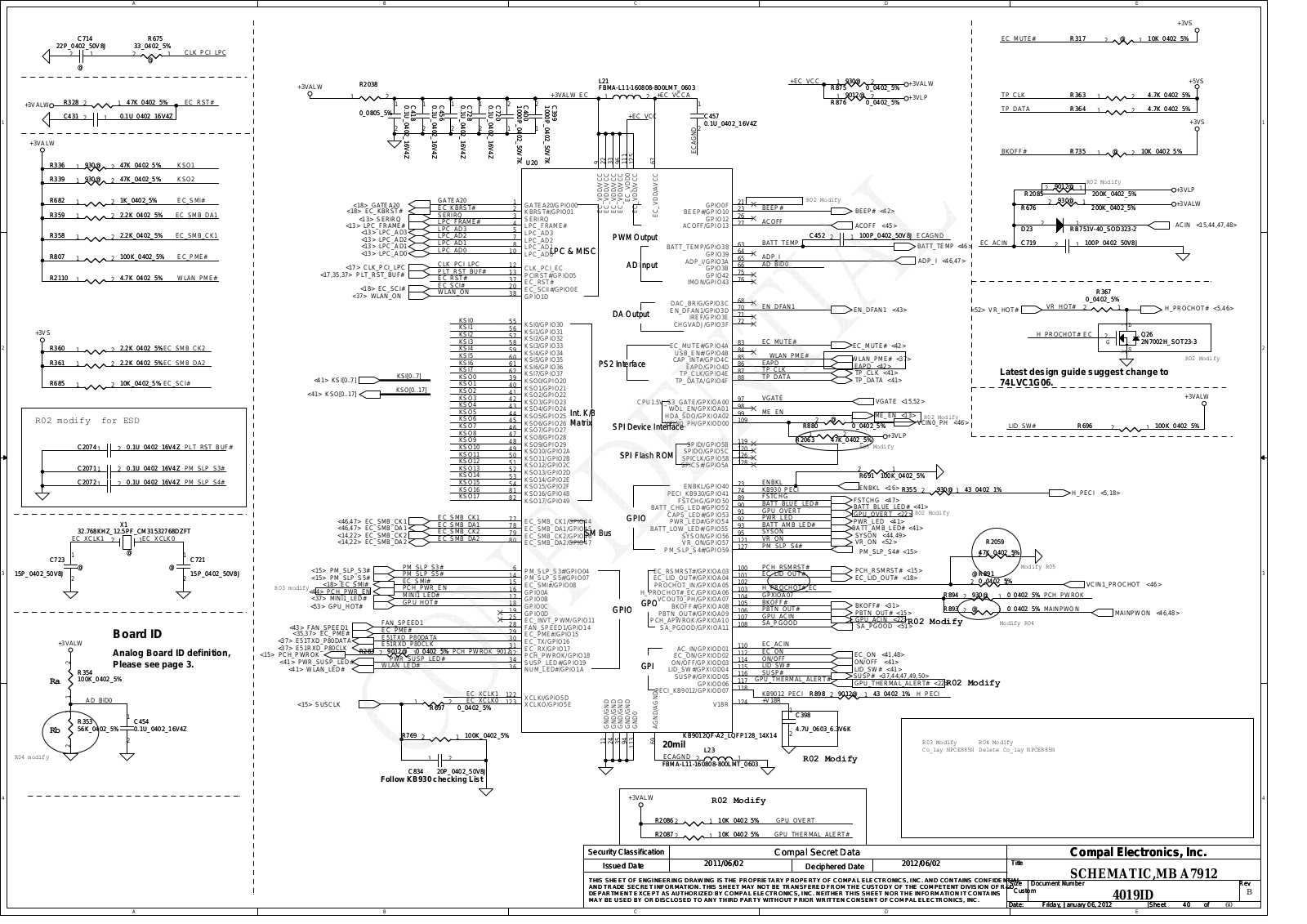

Page 40

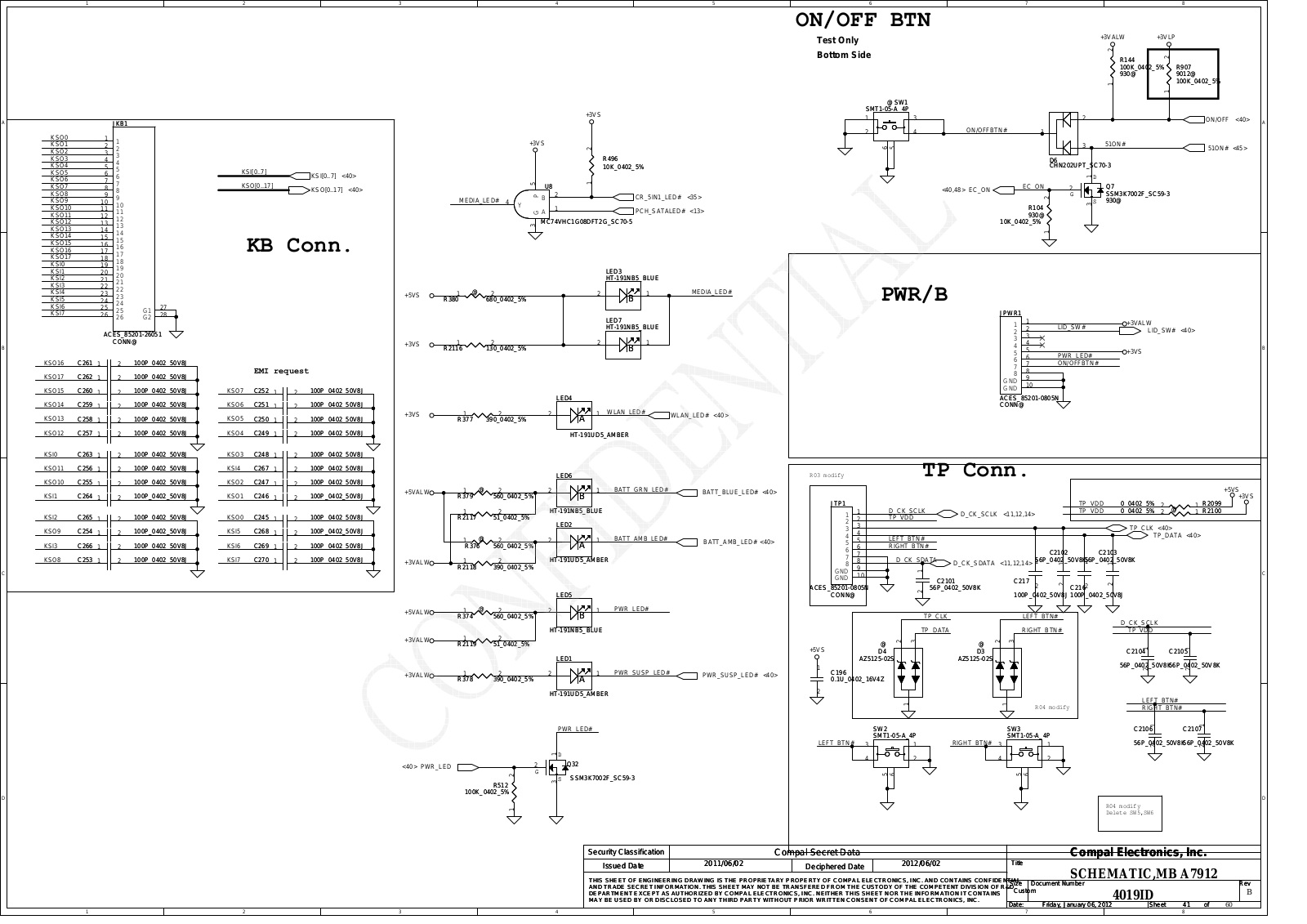

Page 41

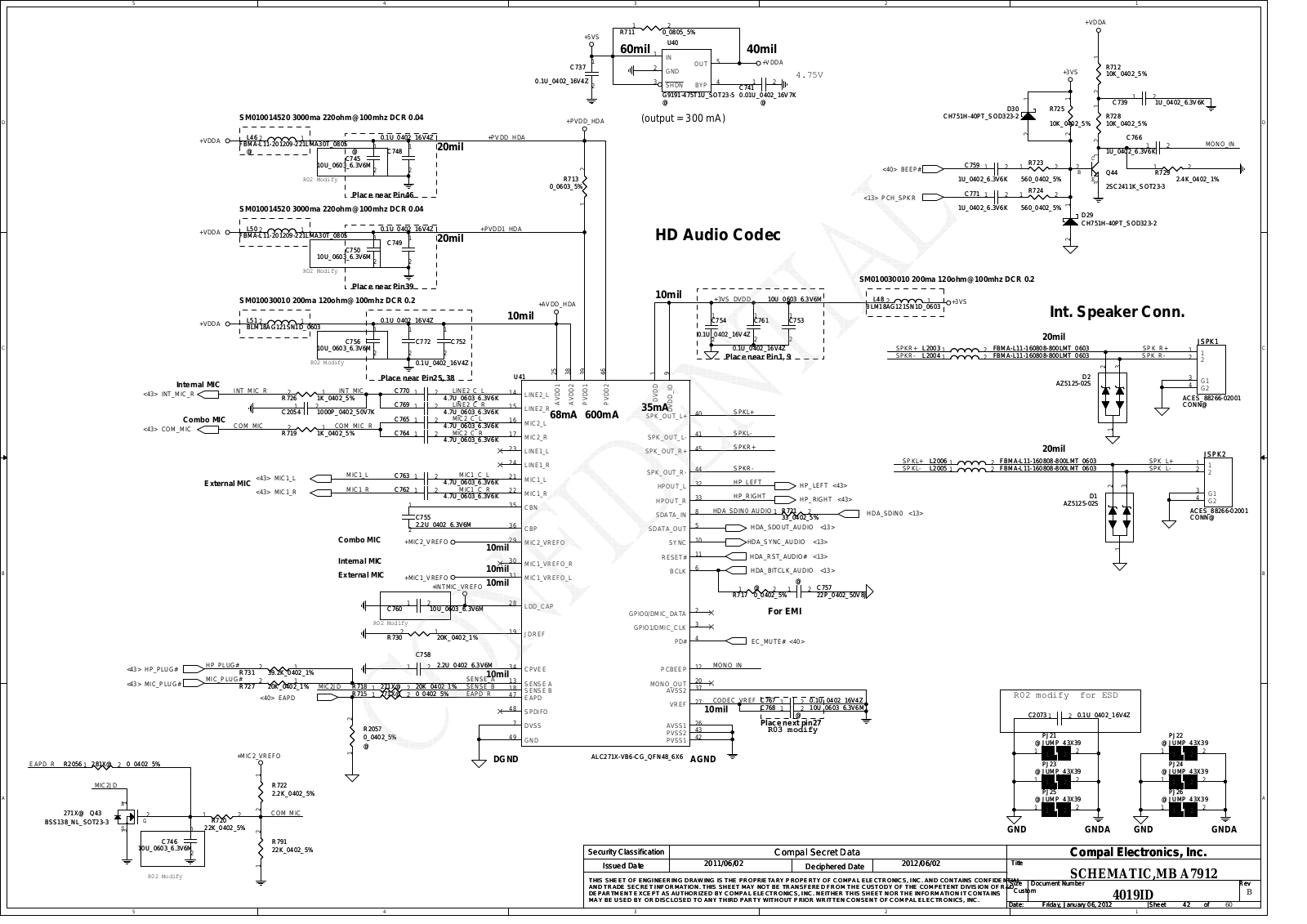

Page 42
Page 43

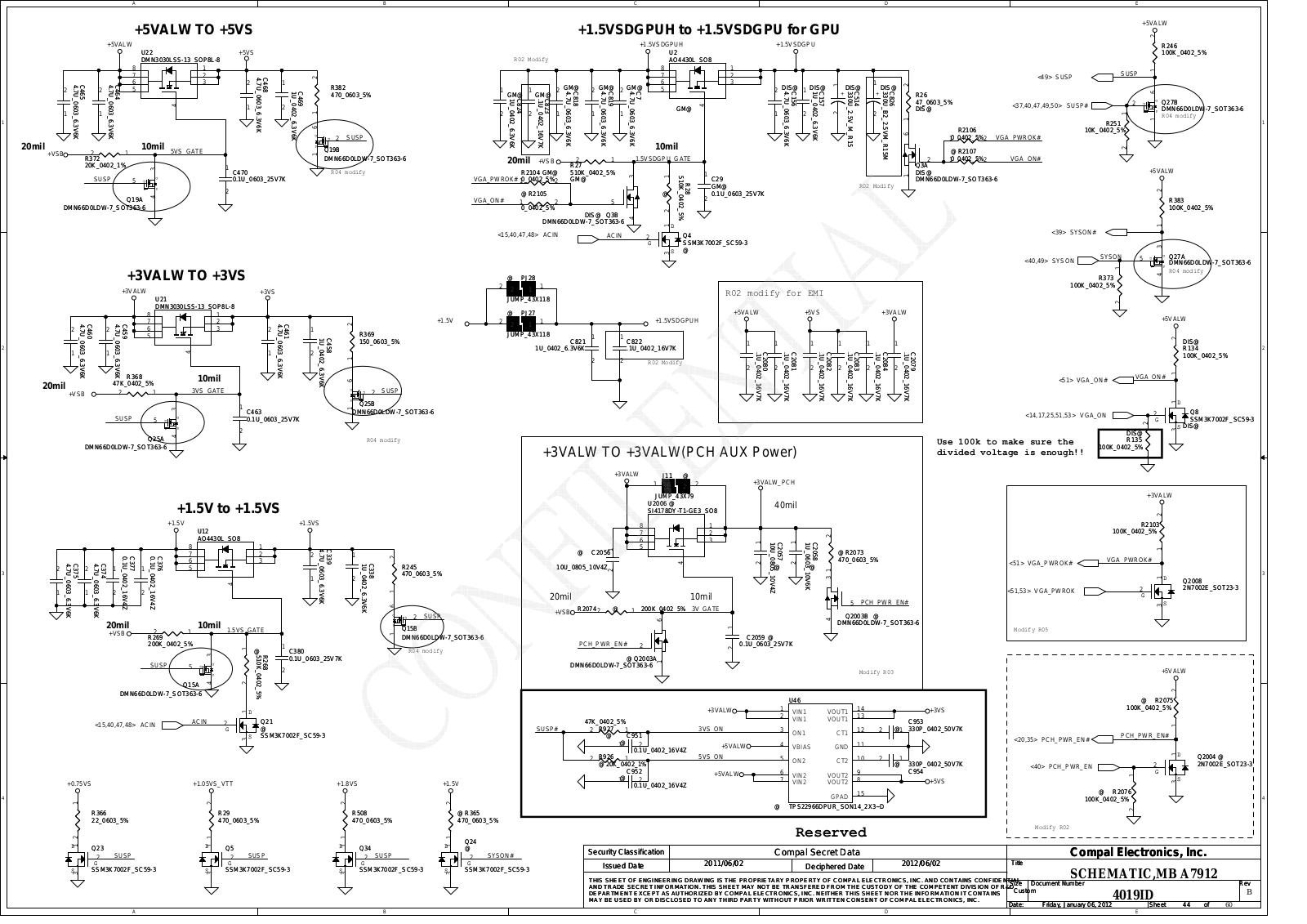

Page 44
Page 45

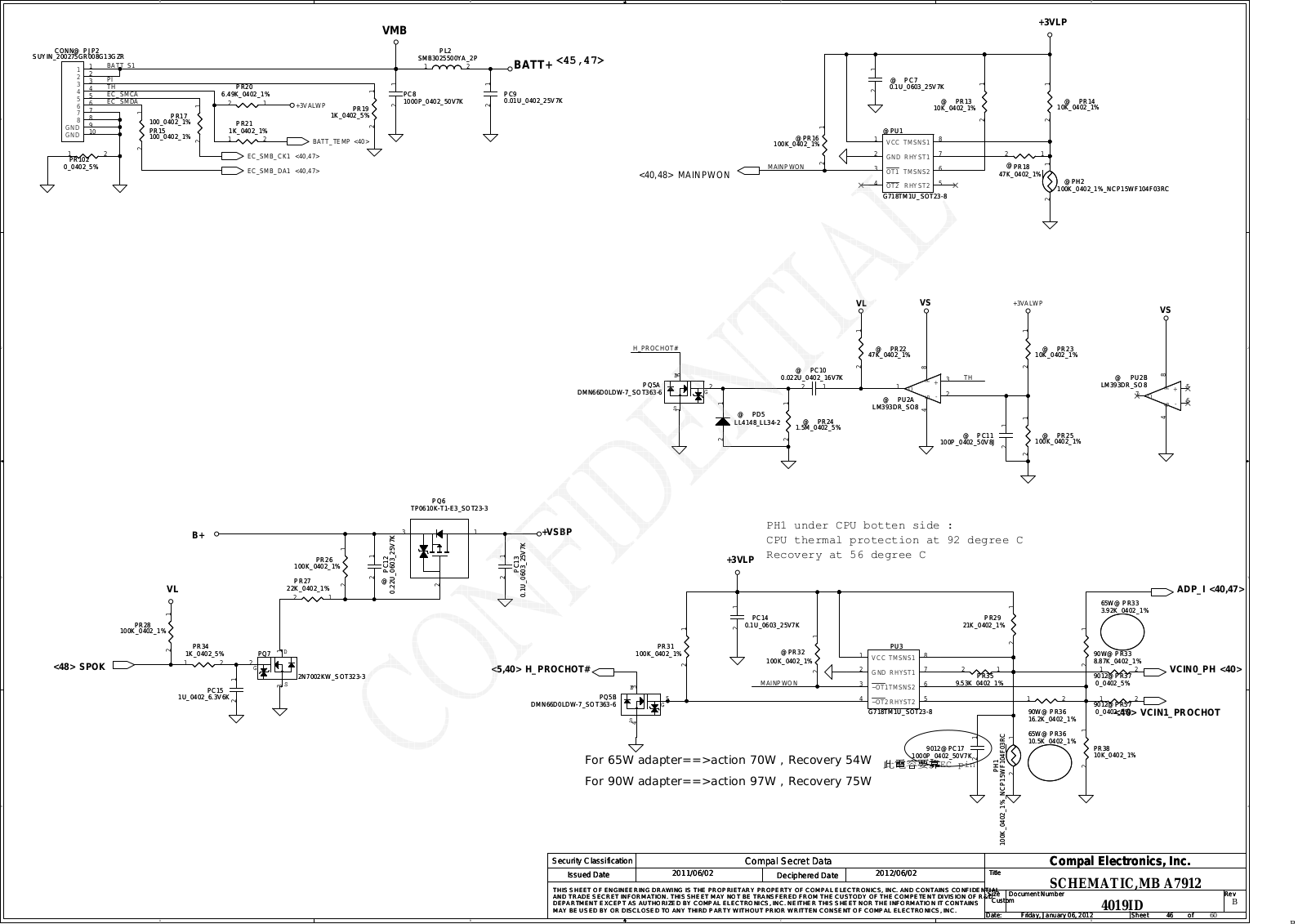

Page 46
Page 47

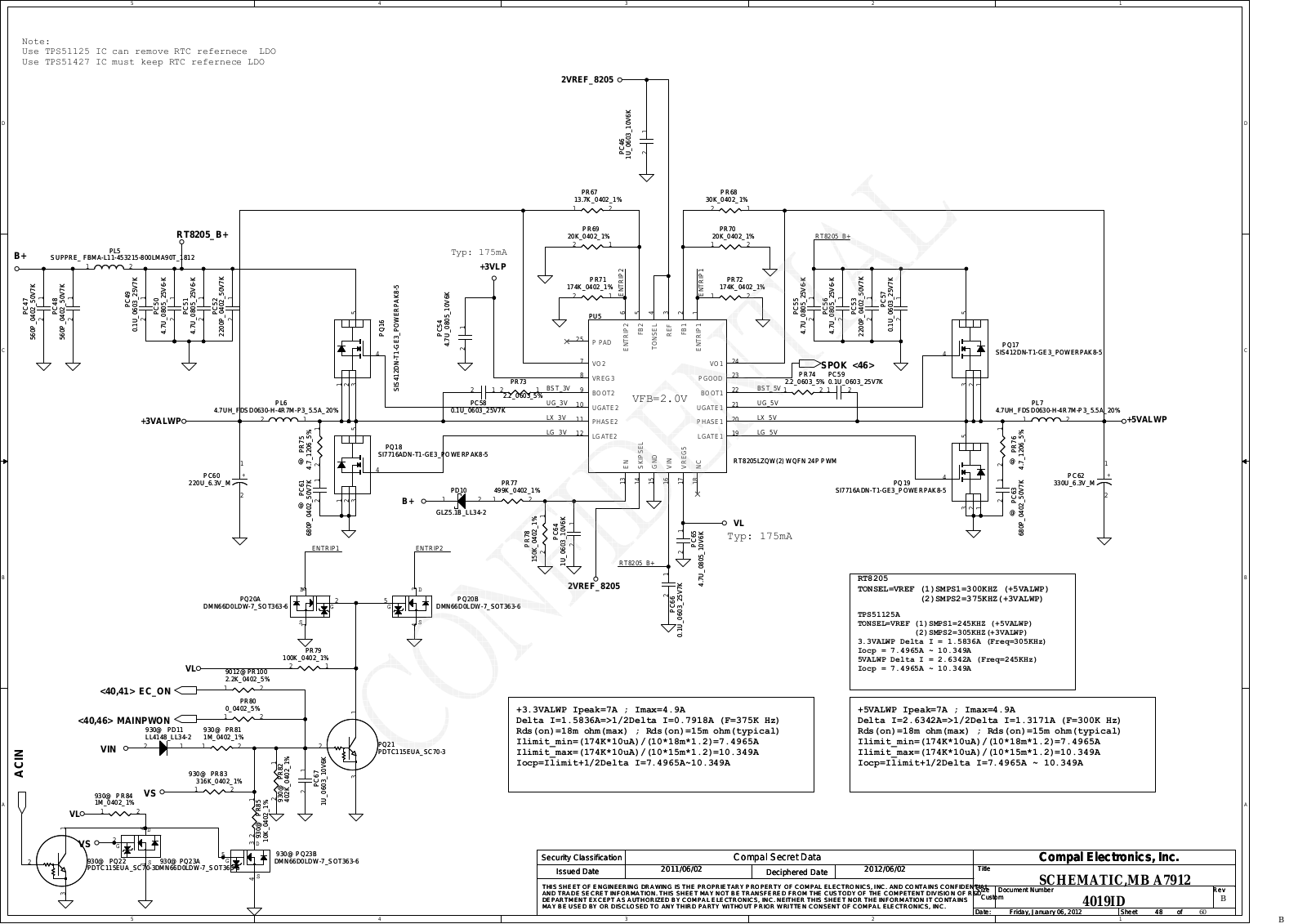

Page 48
Page 49
Page 50
Page 51
Page 52

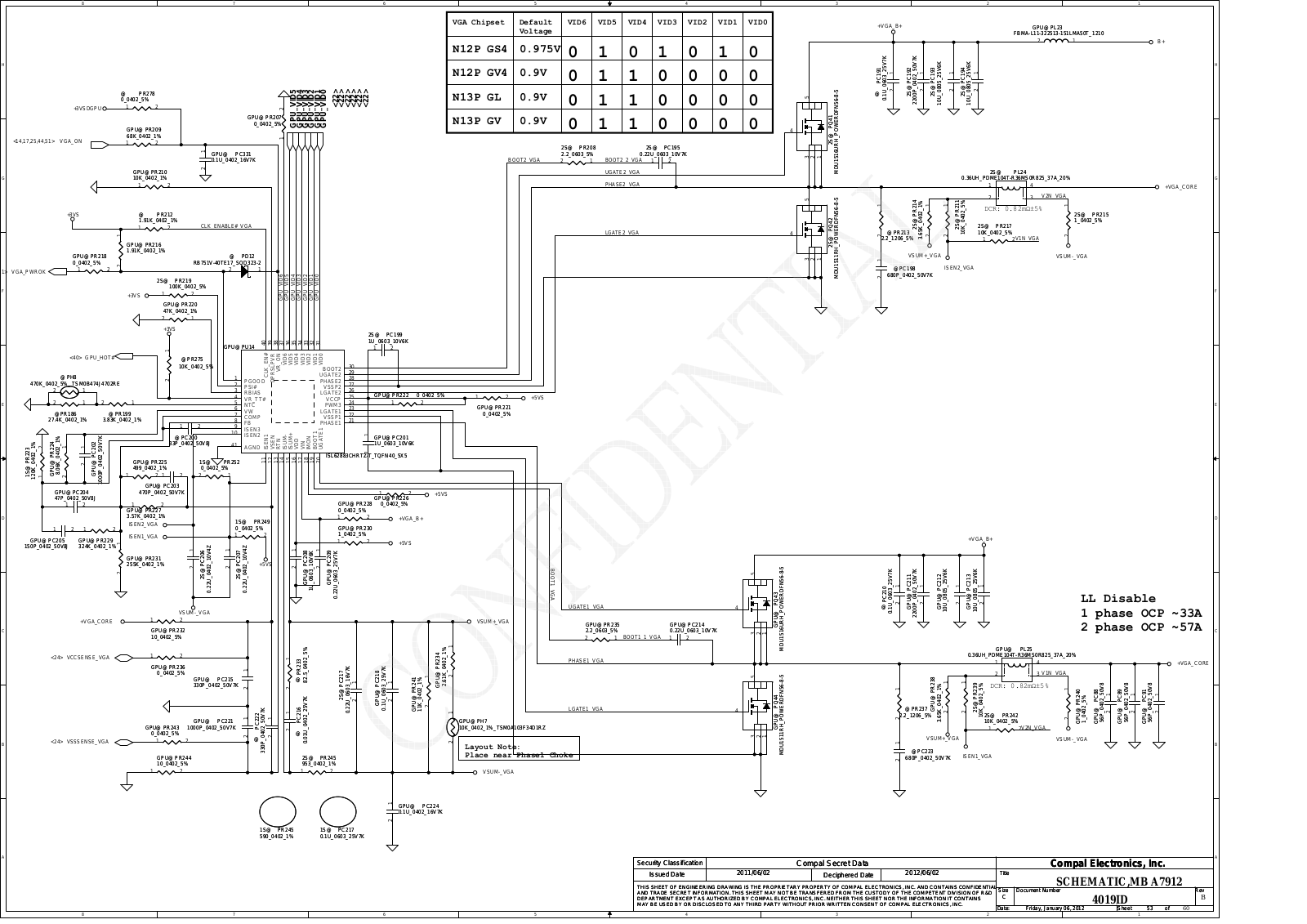

Page 53
Page 54
Page 55
Page 56
Page 57
Page 58

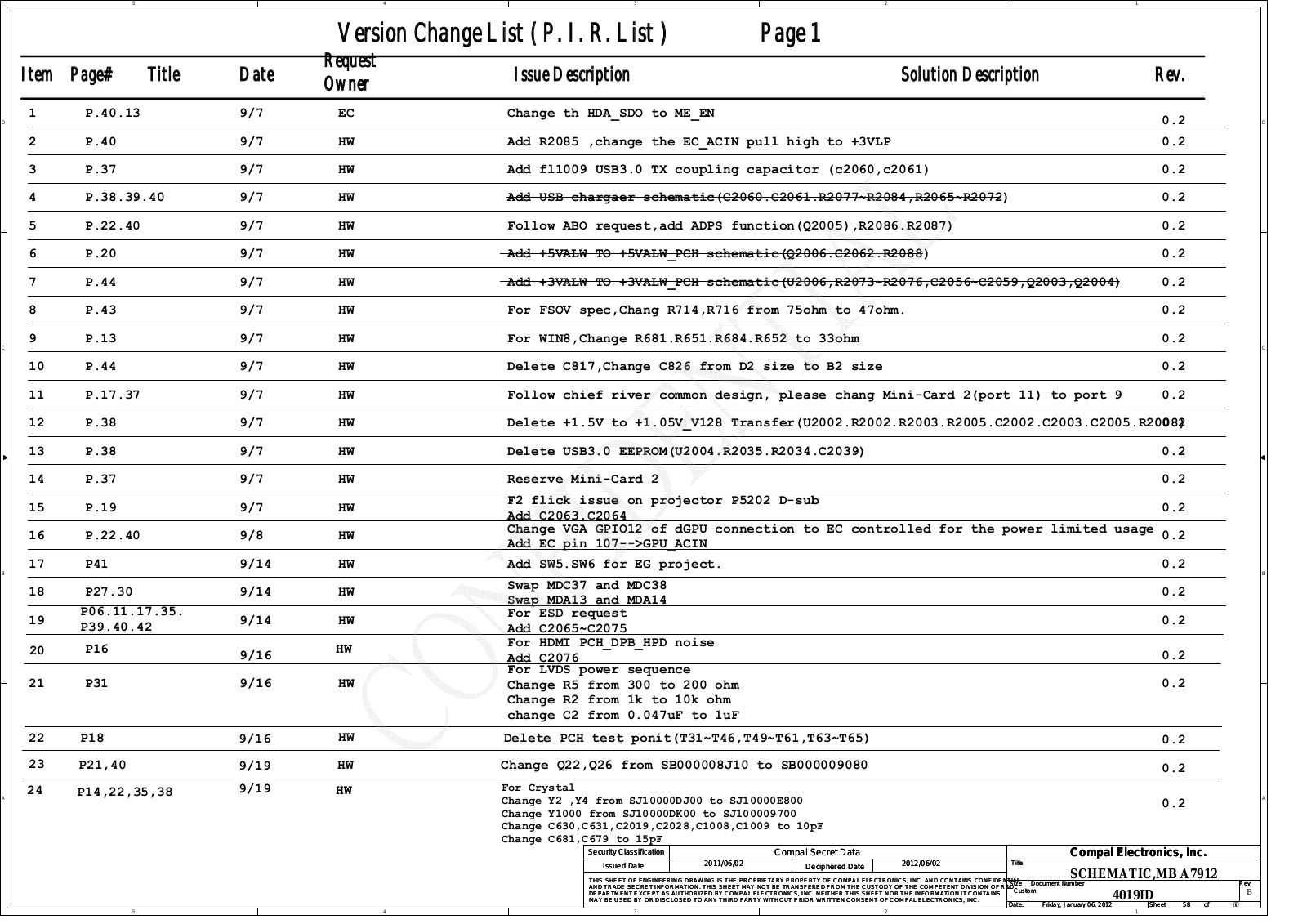

Page 59

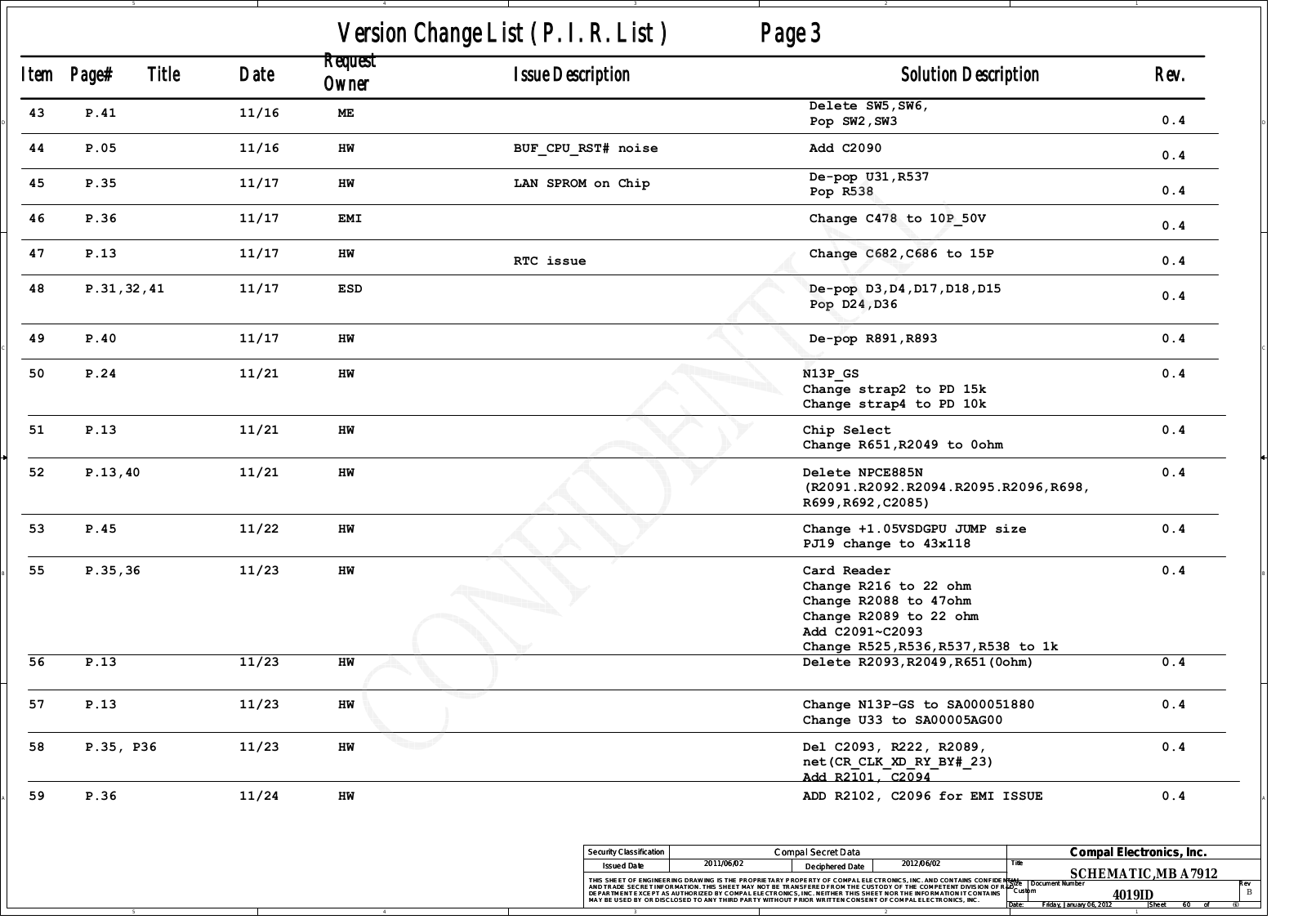

Page 60
Page 61
