Acer AL1731 User Manual

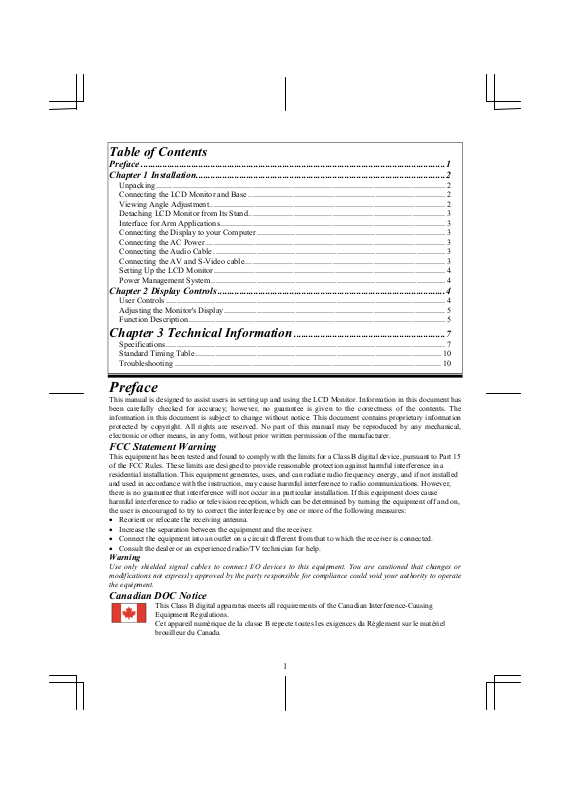

Table of Contents

Preface ...............................................................................................................................1

Chapter 1 Installation........................................................................................................2

Unpacking ............................................................................................................................................. 2

Connecting the LCD Monitor and Base ................................................................................................ 2

Viewing Angle Adjustment................................................................................................................... 2

Detaching LCD Monitor from Its Stand................................................................................................ 3

Interface for Arm Applications.............................................................................................................. 3

Connecting the Display to your Computer ............................................................................................ 3

Connecting the AC Power..................................................................................................................... 3

Connecting the Audio Cable ................................................................................................................. 3

Connecting the AV and S-Video cable.................................................................................................. 3

Setting Up the LCD Monitor................................................................................................................. 4

Power Management System .................................................................................................................. 4

Chapter 2 Display Controls ............................................................................................... 4

User Controls ........................................................................................................................................ 4

Adjusting the Monitor's Display............................................................................................................ 5

Function Description............................................................................................................................. 5

Chapter 3 Technical Information ...............................................................7

Specifications ........................................................................................................................................ 7

Standard Timing Table........................................................................................................................ 10

Troubleshooting .................................................................................................................................. 10

Preface

This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has
been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The
information in this document is subject to change without notice. This document contains proprietary information
protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior written permission of the manufacturer.

FCC Statement Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instruction, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning

Use only shielded signal cables to connect I/O devices to this equipment. You are cautioned that changes or
modifications not expressly approved by the party responsible for compliance could void your authority to operate
the equipment.

Canadian DOC Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B repecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.

1

Important Safety Instructions

Please read the following instructions carefully. This manual should be retained for future use.

1. To clean LCD Monitor screen;

-- Power off LCD Monitor and unplug the AC Cord.

-- Spray a non-solvent cleaning solution onto a rag.

-- Gently clean the screen with dampened rag.

2. Do not place the LCD Monitor near a window. Exposing the monitor to rain water, moisture or sunlight can
severely damage it.

3. Do not apply pressure to the LCD screen. Excess pressure may cause permanent damage to the display.

4. Do not remove the cover or attempt to service this unit by yourself. Servicing of any nature should be performed
by an authorized technician.

5. Store LCD Monitor in a room with a room temperature of -20° ~ 60°C (or -4° ~ 140°F). Storing the LCD
Monitor outside this range could result in permanent damage.

6. If any of the following occurs, immediately unplug your monitor and call an authorized technician.
* Monitor to PC signal cable is frayed or damaged.
* Liquid spilled into LCD Monitor or the monitor has been exposed to rain.
* LCD Monitor or the case is damaged.

7. A certified line is required to connect this device to a power outlet. For a nominal current up to 6A and a device
weight above 3 kg, a line not lighter than H05VV-F, 3G, 0.75 mm

8. For use only with power supply LINEARITY LAD6019AB5 90D and Li-shin, LSE0218B1260 90D.

2

must be used.

Chapter 1 Installation

Unpacking

Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a
stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for
sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the
Monitor does not become too hot.
After you unpack the LCD Monitor, make sure that the following items were included in the box:

* LCD Monitor * User's Manual
* 1.8M Monitor-to-PC VGA Cable * AC Adapter
* 1.8M Monitor-to-PC DVI-D Cable * 1.8M Power Cord
* 1.8M Stereo Jack Audio Cable * 1.8M S-Video Cable
* 1.8M RCA Jack Audio Video Cable

If you find that any of these items is missing or appears damaged, contact your dealer immediately.

Connecting the LCD Monitor and Base

When you open the box to take the base and put on the desk first. Then connect
the LCD Monitor and base and screw it locked please. (See fig.1-1 )

Figure 1-1

Viewing Angle Adjustment

The LCD Monitor is designed to allow users to have a comfortable
viewing angle. The viewing angle can be adjusted from -5°to
+20°.(See fig. 1-2).

Figure 1-2

Warning: Do not force the LCD Monitor over its maximum viewing angle settings as stated above.
Attempting this will result in damaging the Monitor and Monitor stand.

2
