Page 1

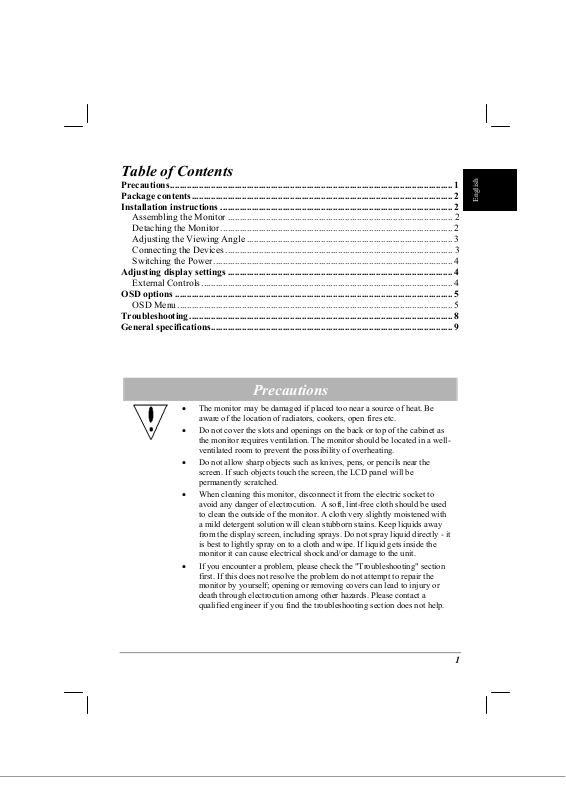

Table of Contents
Precautions...................................................................................................................... 1
Package contents............................................................................................................. 2
Installation instructions ................................................................................................. 2
Assembling the Monitor .............................................................................................. 2
Detaching the Monitor................................................................................................. 2
Adjusting the Viewing Angle ...................................................................................... 3
Connecting the Devices ............................................................................................... 3
Switching the Power .................................................................................................... 4
Adjusting display settings .............................................................................................. 4
External Controls ......................................................................................................... 4
OSD options .................................................................................................................... 5
OSD Menu................................................................................................................... 5
Troubleshooting.............................................................................................................. 8
General specifications..................................................................................................... 9
English
Precautions
• The monitor may be damaged if placed too near a source of heat. Be
aware of the location of radiators, cookers, open fires etc.
• Do not cover the slots and openings on the back or top of the cabinet as
the monitor requires ventilation. The monitor should be located in a wellventilated room to prevent the possibility of overheating.
• Do not allow sharp objects such as knives, pens, or pencils near the
screen. If such objects touch the screen, the LCD panel will be
permanently scratched.
• When cleaning this monitor, disconnect it from the electric socket to
avoid any danger of electrocution. A soft, lint-free cloth should be used
to clean the outside of the monitor. A cloth very slightly moistened with
a mild detergent solution will clean stubborn stains. Keep liquids away
from the display screen, including sprays. Do not spray liquid directly - it
is best to lightly spray on to a cloth and wipe. If liquid gets inside the
monitor it can cause electrical shock and/or damage to the unit.
• If you encounter a problem, please check the "Troubleshooting" section
first. If this does not resolve the problem do not attempt to repair the
monitor by yourself; opening or removing covers can lead to injury or
death through electrocution among other hazards. Please contact a
qualified engineer if you find the troubleshooting section does not help.
1
Page 2
English
LCD Monitor
(Speaker optional)
User Manual
Installation instructions
Assembling the Monitor
a
c
e
r
Package contents
Power Cord
a
c
Audio Cable
(Optional)
e
r
1. Position the monitor on top of the
stand.
2. Connect the stand into the neck of the
monitor along the track.
Detaching the Monitor
If you need to repackage the monitor, please separate the monitor and base, and restore
them to the carton.
To detach the monitor:
1. Unplug the AC power cord to make sure the power is off.
2. Pull the 4 hooks on bottom side of the base and hold.
3. Separate the monitor and base and put them into carton.
2
Page 3
Important
First, find a clean, flat surface to place the monitor after removing it from the stand.
Place a clean dry cloth under the monitor to protect it further.
Pull the monitor slightly up and away from the stand.
Adjusting the Viewing Angle
The viewing angle of the monitor ranges from -5°~20°.
Connecting the Devices
Caution: Make sure that the computer and the monitor are both disconnected
from the power supply.
English
2
VGA
3
Audio
1
AC
2
VGA
3
Audio
1
AC
c
Power Code Attach the monitor to the power cord which should then be
inserted into a properly grounded electric socket.
d
VGA Cable
(Attached)
Connect the signal cable to the VGA output socket of the
graphics card on the computer. Then tighten the
thumbscrews on the connector.
e
Audio cable
(Optional)
Connect the audio input socket of the LCD monitor and the
computer by means of the audio cable.
WARNING: The D-Sub 15 pin plug of the VGA cable is trapezoid in shape. Make
sure the shape of the plug matches the shape of the socket it is inserted
into, and that none of the pins are bent or otherwise damaged.
3
Page 4
English
Switching the Power
First, switch the power on to the monitor, then switch the power on to the computer.
When you see the LED on the power button go green, this indicates the computer is
ready for use. Allow about 10 seconds for the video signal to appear. If you do not see
the green light on the power button or a video signal, check the connections.
Adjusting display settings

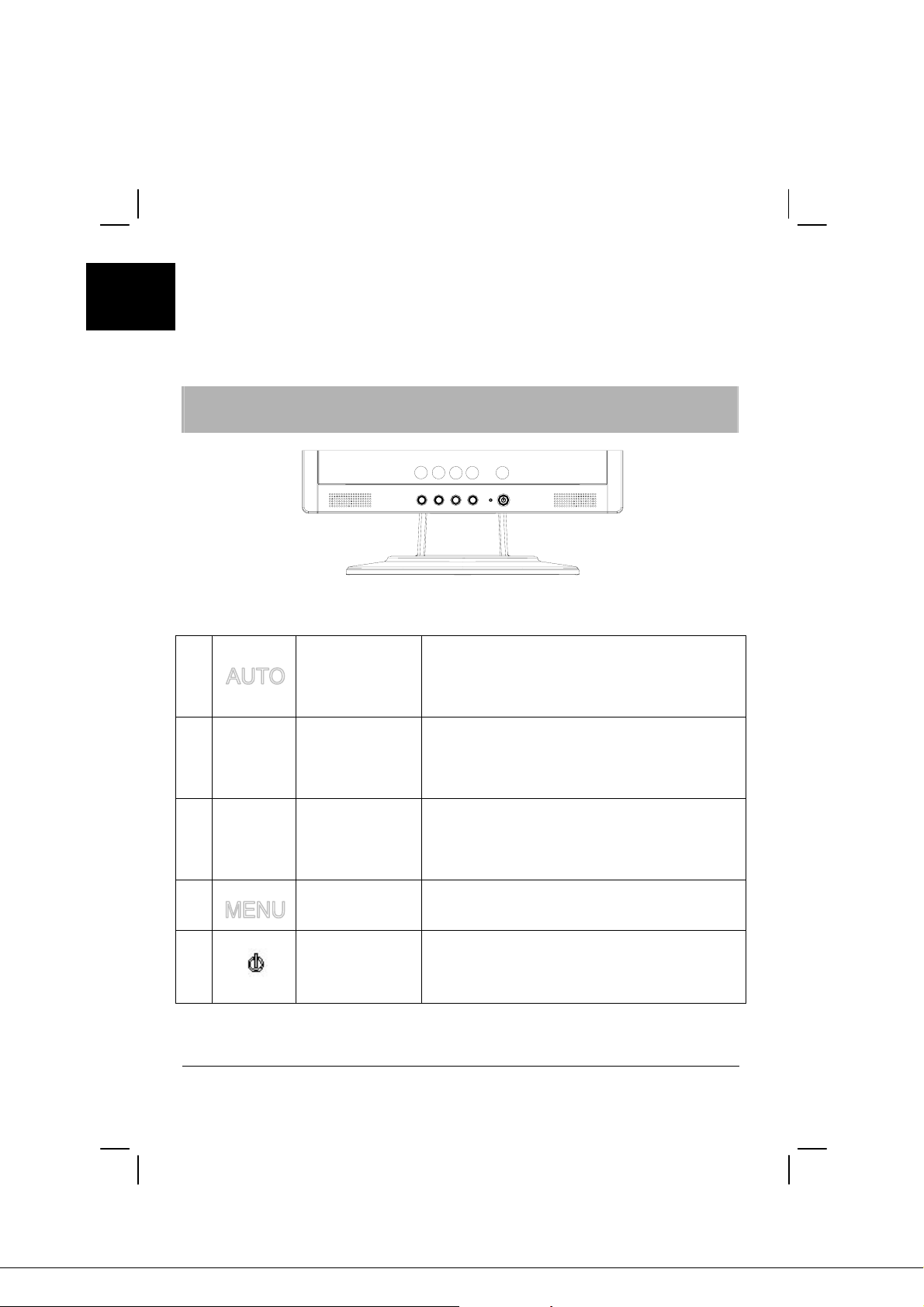

External Controls
1.
2
3
4
<
>
AUTO
MINUS
PLUS
OSD Function
21
3
AUTO
<
5
4
MENU>
If OSD is active, press to exit a selection in
OSD. If OSD is inactive, press and the monitor
will automatically optimize the position, focus
and clock of your display.
If OSD is active, press to select or adjust OSD
options. If OSD is inactive, press once, then
press the buttons marked < or > to adjust the
volume.
If OSD is active, press to select or adjust OSD
options. If OSD is inactive, press once, then
press the buttons marked < or > to adjust the
volume.
Press to view OSD.
Press again to enter a selection in OSD.
X
Y
5
POWER
Power on/off
Green: power on
Orange: in sleep mode
Notice: X & Y are only suitable for models with speakers.
4
Page 5
OSD options
Please refer to "External Controls" on Page 4.
To adjust the OSD settings:
1. Press the MENU button to open the OSD menu. Press again to enter a selection
of 10 functions on OSD.
2. Use the buttons marked < or >, to highlight a control, then adjust the control to
the desired level.
3. When you have finished making all selections, press the AUTO button to exit
the OSD.

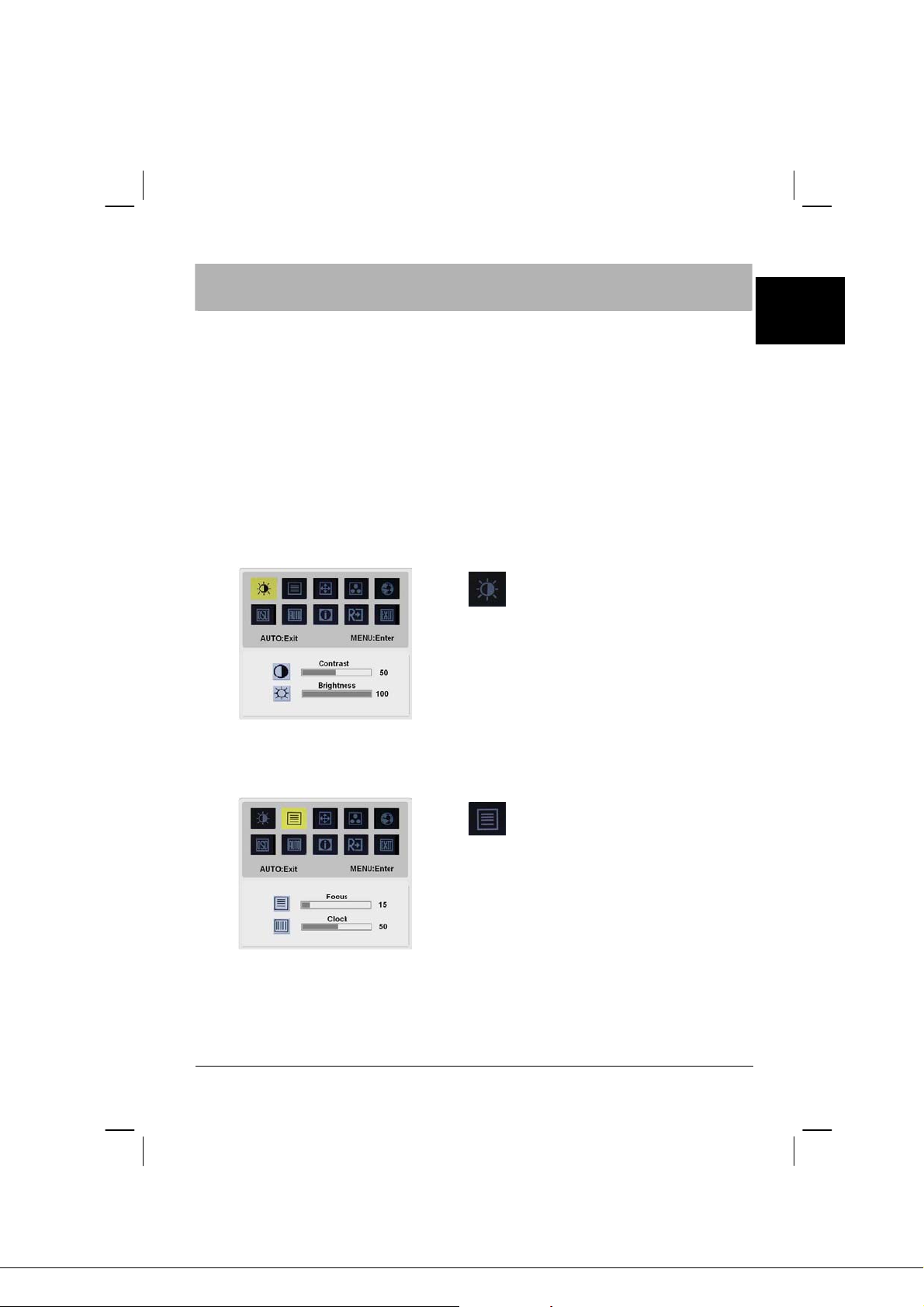

OSD Menu
Contrast:
This adjusts dark and light shades of color
relative to each other to achieve a
comfortable contrast.
Brightness:
This adjusts the brightness of the picture on
the screen.
English
Focus:
This removes any horizontal distortion and
makes the picture clear and sharp.
Clock:
If there are any vertical stripes seen on the
background of the screen this renders them
less noticeable by minimizing their size. It
also changes the size of the horizontal
screen.
5
Page 6
English

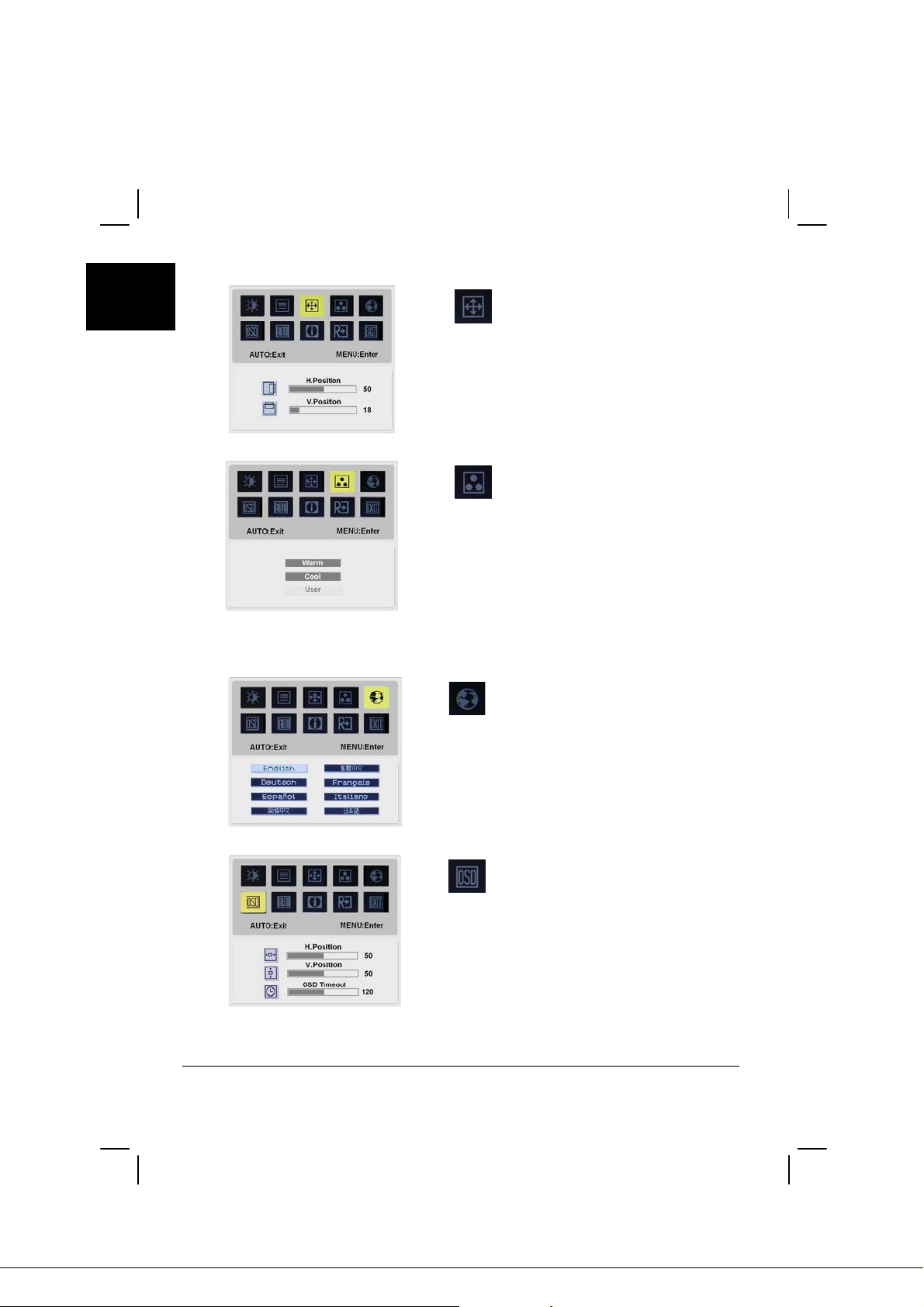

H-Position:
This adjusts the horizontal.
V-Position:
This adjusts the vertical.
COLOR:
There are three ways of adjusting color:
Warm (Reddish white)
Cool (Bluish white)
User defined:
You can adjust the colors red, green and blue
to the intensity you desire.
LANGUAGE:
Select the OSD menu language from
English, German, Spanish, Simplified
Chinese, Traditional Chinese, French, Italian,
6
and Japanese.
OSD SETTING:
This changes the position of the OSD window
on the screen and staying time.
Page 7

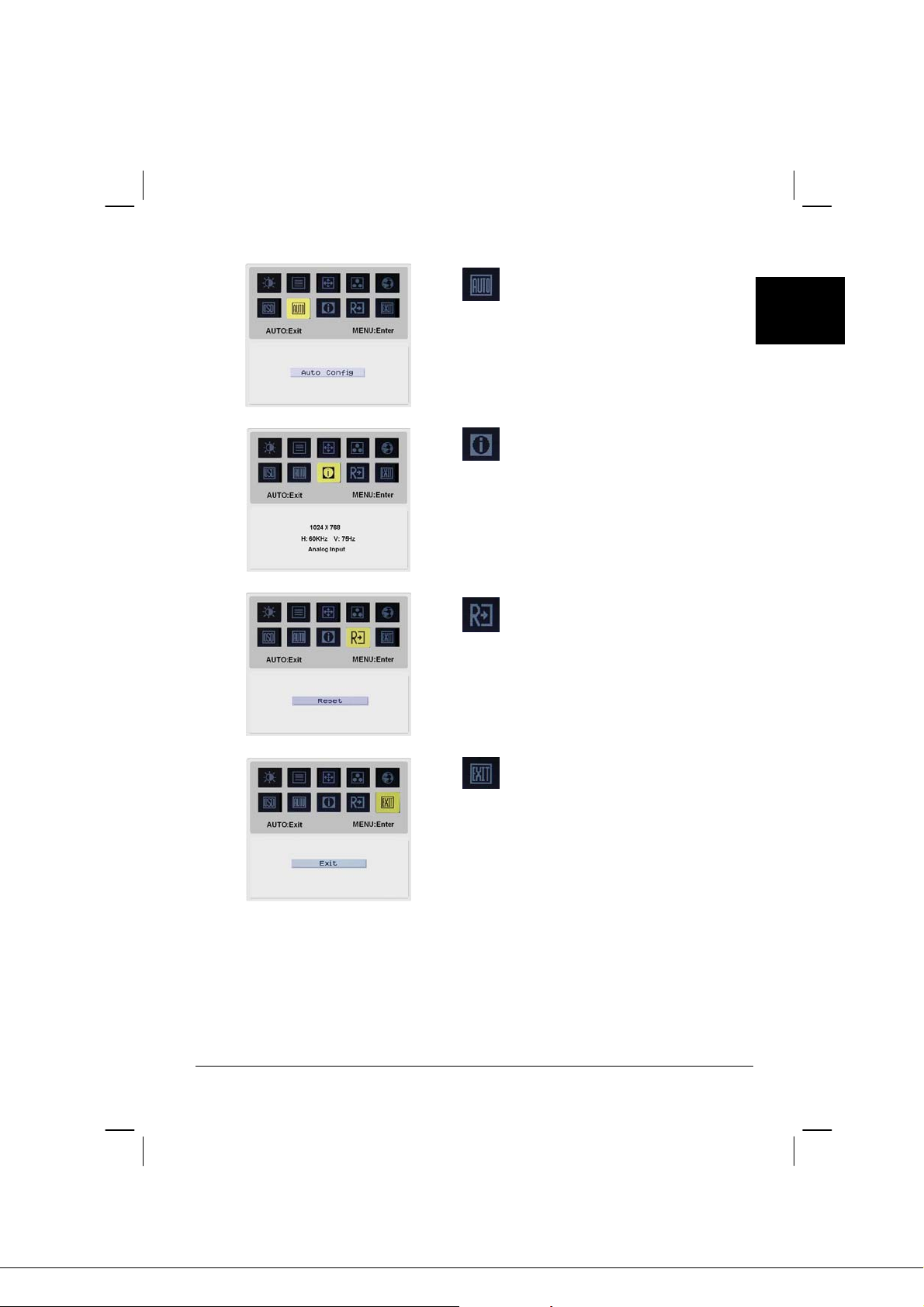

Auto Config:
English
System runs auto-configuration.
INFORMATION:
This shows brief information on the screen.
Reset:
Recall to default settings.
Exit:
Exit from OSD.
7
Page 8
English
Troubleshooting
Problems Possible Solutions
Power LED is not ON
No Picture
Picture shows inappropriate colors
Picture bounces or a wave pattern
is present in the picture
Image is not sized or centered
properly
Caution: Do not attempt to service the monitor yourself or open the computer
yourself. Please refer all servicing to qualified service personnel if
the problems cannot be solved in "Troubleshooting" section.
• Check to see if the power switch is in the
ON position.
• Ensure that the Power Cord is connected.
• Check to see if the power switch is in the
ON position.
• Ensure that the Power Cord is connected.
• Ensure the video cable is securely
connected to the back of the monitor and
the computer.
• Move the mouse or press any key on the
keyboard to bring the monitor out of "active
off" mode.
• See "Color Adjustment" to adjust RGB
color or to select color temperature.
• Move or switch off electrical devices that
may be causing interference.
• Inspect the monitor's video cable and ensure
that none of the pins are bent.
• Press select/auto key and the monitor will
automatically optimize the position of your
display.
• See "Position adjustment".
8
Page 9
General specifications
Item Specification
LCD Panel
Display 17-inch Flat panel active-matrix TFT LCD
Max resolution SXGA 1280×1024 pixels
Pixel Pitch 0.264 mm
Color 16.2M
Brightness 300 cd/m² (Typical)
Contrast Ratio 450:1 (Typical)
Response Time 4ms +16ms /20ms (Tr+Tf / typical)
View Angle of Horizontal 75° / 75°
View Angle of Vertical 65° / 60°
External Controls
Power Button ON/ OFF
Control Buttons Auto, <, >, MENU
OSD Function
Contrast /Brightness Contrast / Brightness
Focus/Clock Focus/Clock
Position Position
Color Color
Language Language
OSD setting OSD Setting
Auto config Auto config
Information Information
Reset Reset
Exit Exit
Video Interface
Video Analog 0.7V
Sync TTL (+/ -)
Audio (Optional) 1W x 2
Plug & Play DDC2B
Power
Power Source 100~240V AC, 50/60 Hz
Power consumption during normal
operation
Power consumption during active off
operation
Dimension and Weight
Dimension (W×H×D) 377 × 396 × 182 mm (with stand)
377 × 396 × 62 mm (without stand)
Weight (Net/ Gross) 4.3 Kg/ 5.4Kg
< 40W
< 1W
English
9
