PROCEDURE TO SETUP AGS-1224AHD SURFACE GRINDER

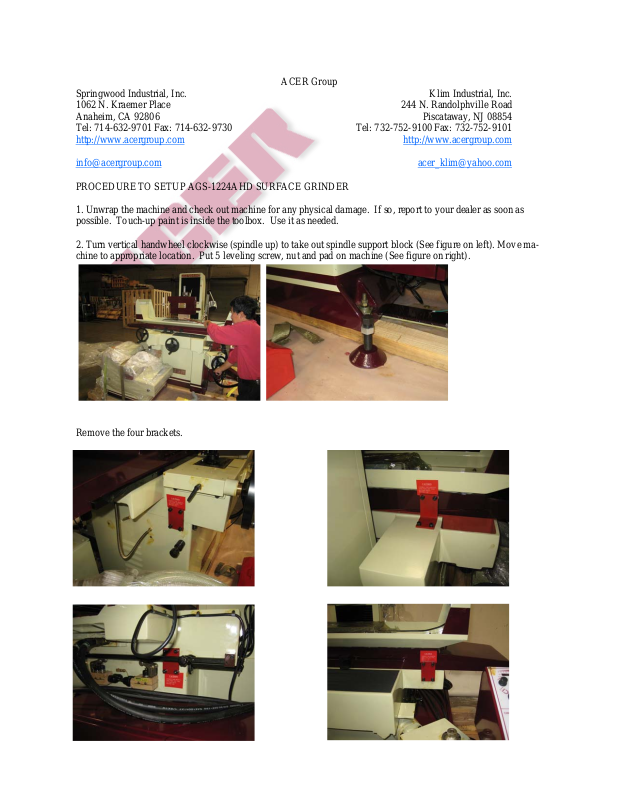

1.Unwrap the machine and check out machine for any physical damage. If so, report to your dealer as soon as possible. Touch-up paint is inside the toolbox. Use it as needed.

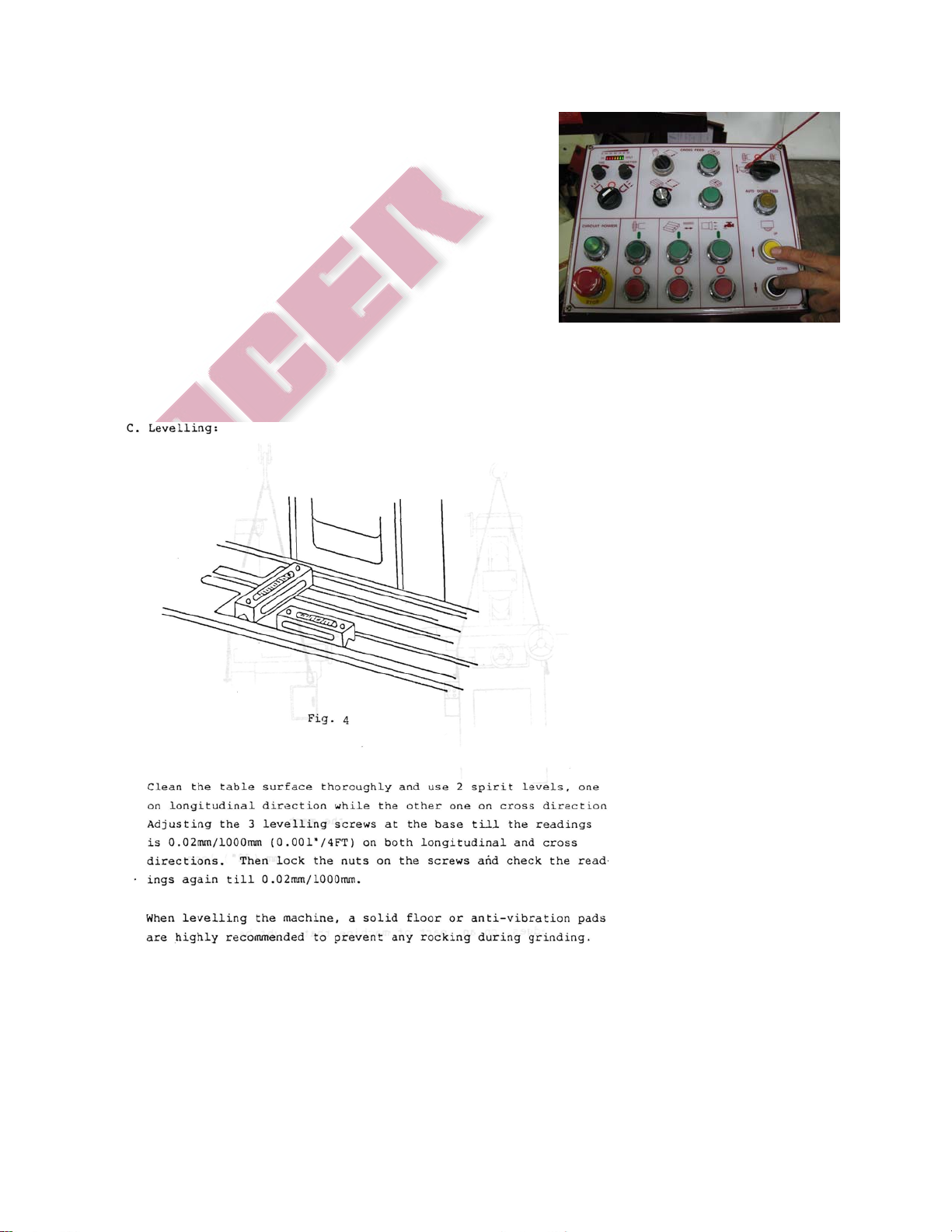

2.Turn vertical handwheel clockwise (spindle up) to take out spindle support block (See figure on left). Move machine to appropriate location. Put 5 leveling screw, nut and pad on machine (See figure on right).
Remove the four brackets.
3. Check input power that will be used for the machine. Power required for our machines are: 230V three phase (3Φ) or 460V three phase (3Φ). Power must be first specified upon ordering. Please connect the power to R.S.T.G Ground terminal as follows with minimum current of 12 amps (230V).
Solenoid
Power
Hydraulic Mo-

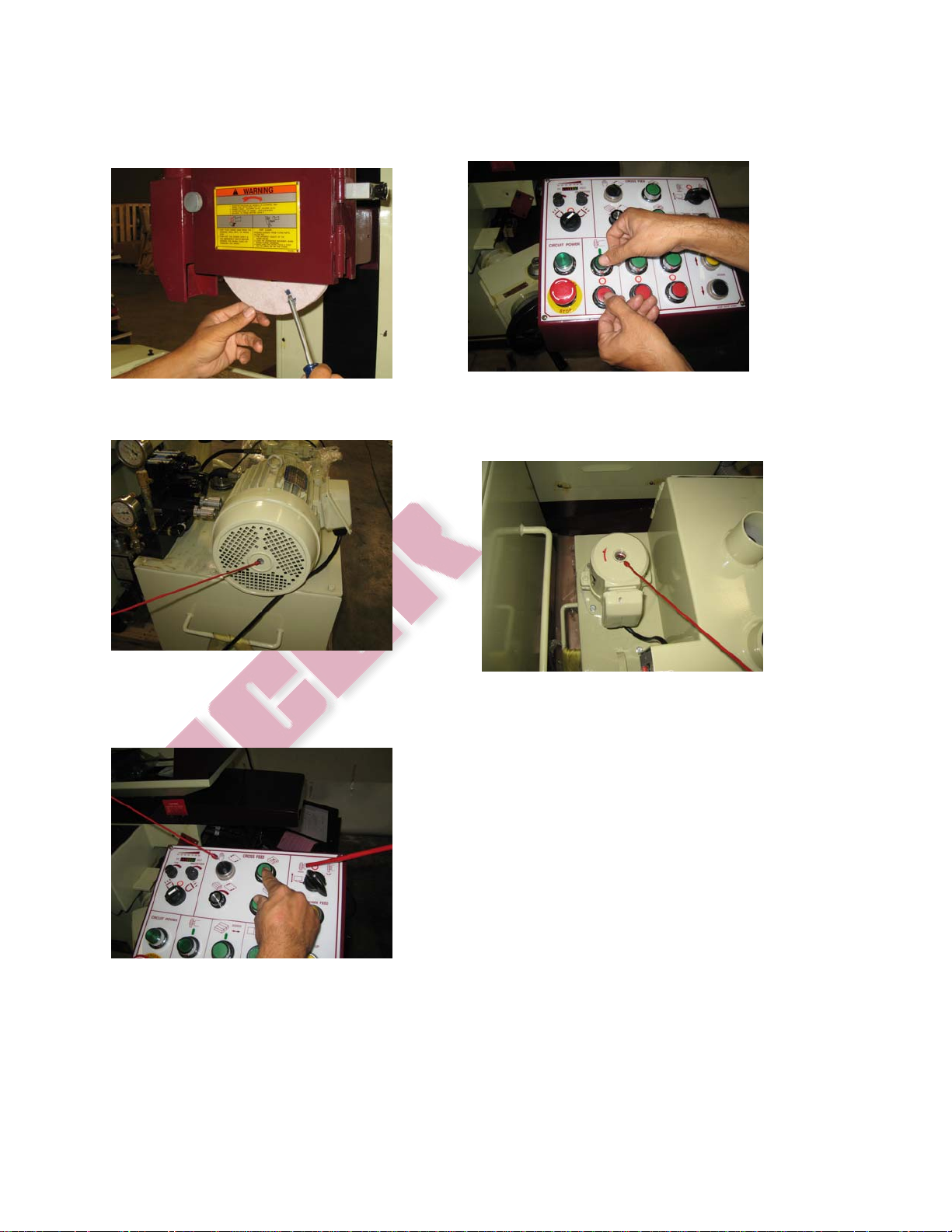

4. Hook up two electronic conduct connectors and wire, from hydraulic system, one from dust suction and coolant system.
Coolant
System
5.Connect two corresponding hydraulic hoses: A-A, B-B, P-P, T-T as labeled.
6.Fill up hydraulic oil Mobile DTE25 (minimum 30 gallons) and lubricating oil (See figure on left). Make sure filling gauge is at F. Fill up lube oil Vetra #2 way oil (see figure on right).
