Aceex NRXX User Manual

Brand: ACEEX Model No: NR22

User’s Manual

Wireless 11n AP/Router

(1T2R & 2T2R)

Index

Chapter 1 Introduction.......................... ... ..... ..... ... ..... ... ..... ...... .. ...... .. ...... ..... ... ..... ..... ... ..... ....................... 5

1.1 Overview............................................................................................................................. 5

1.2 Features............................................................................................................................... 5

1.3 System Requirements.......................................................................................................... 6

Chapter 2 Installation............................................ ..... ... ..... ...... .. ...... ..... ... ..... ... ..... ..... ... ............................ 7

2.1 Checklist .................................... .. ...................................... ................................................. 7

2.2 The Front LEDs .................................................................................................................. 8

2.3 The Rear Ports......................... ........... .......... ........ ........... ........... .......... ........ ........... ............ 9

2.4 The Bottom Port.................................................................................................................. 9

Chapter 3 Configuration........................ ..... ...... .. ...... ..... ... ..... ..... ... ..... ...... .. ...... .. ...... ..... ... ....................... 10

3.1 Determine your connection settings................ ..... ...... .. ...... .. ...... .. ...... .. ...... ..... ... ..... ... ..... ..10

3.2 Connecting the Wireless 11n Router to your network...................................................... 10

3.3 Configuring with Web Browser ........................................................................... ............. 10

3.3.1 Wireless 11n Router Setting............................................................................................11

3.3.2 Operation Mode Setting.................................. .. ............................................................. 12

3.4.1 WAN Setting........................................... .......... ........ ........... ........... ........ .......... ......... ....13

3.4.2 LAN Setting...................................................................................................................19

3.4.3 DHCP Clients Setting ....................................................................................................21

3.4.4 Advanced Routing Settin g........................................ ...... .. ...... ..... ... ..... ..... ... ..... ...... .. .....22

3.4.5 QoS Setting.................................................................................................................... 23

3.5.1 Wi reless-Basic Setting............................ .......... ........ ........... ........... ........ .......... ........ .....24

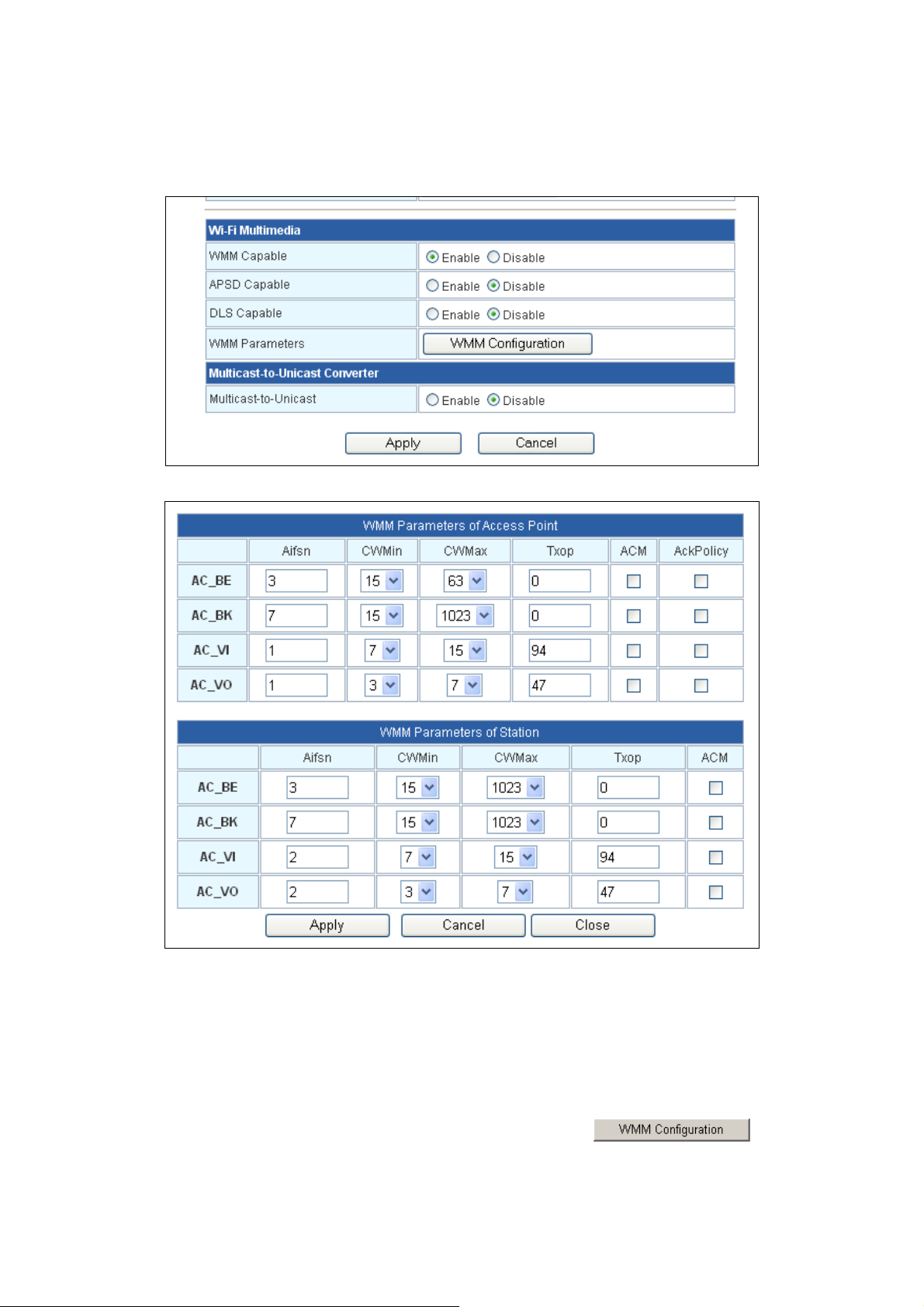

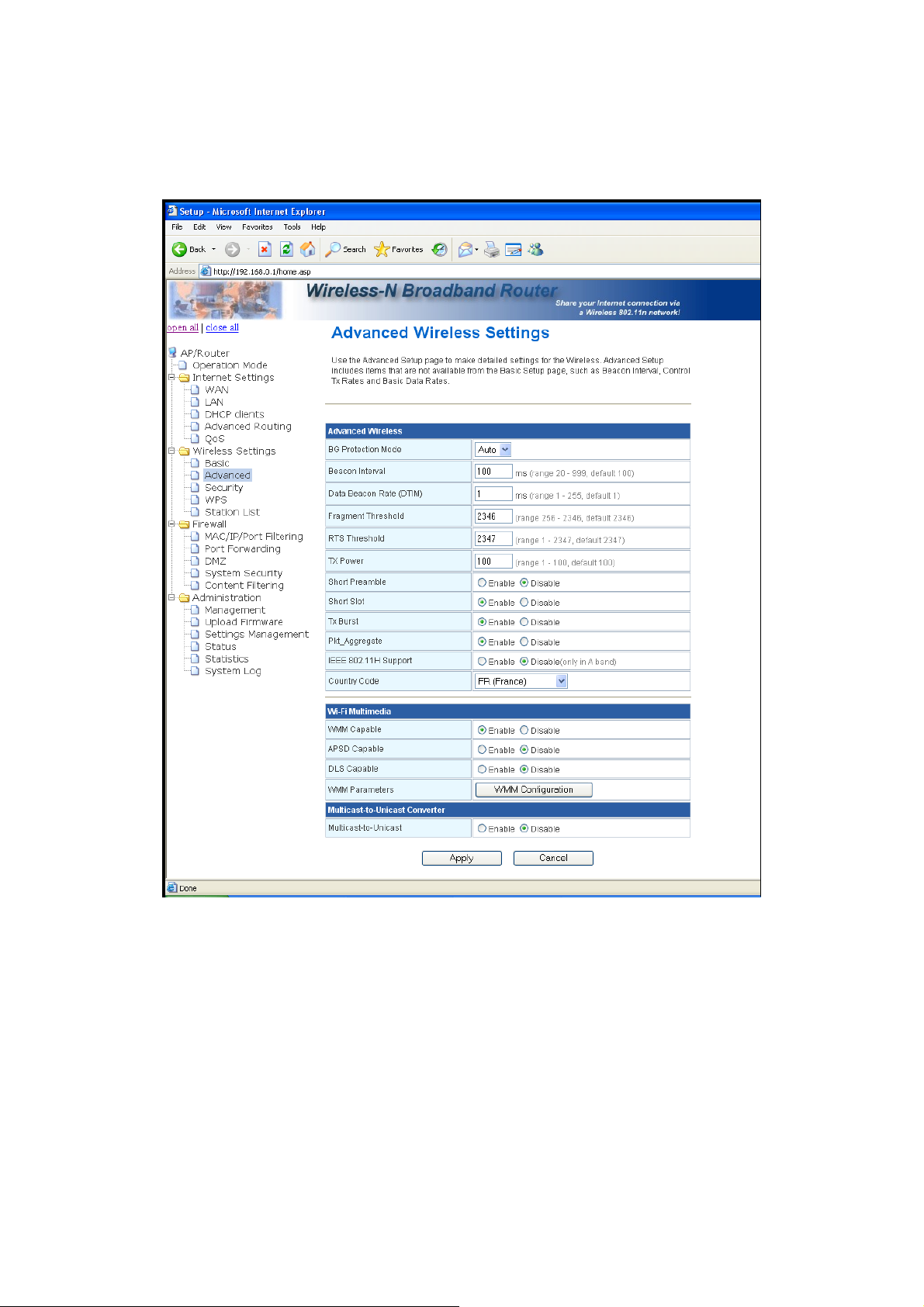

3.5.2 Advanced Setting .................................................... ................................ .......................26

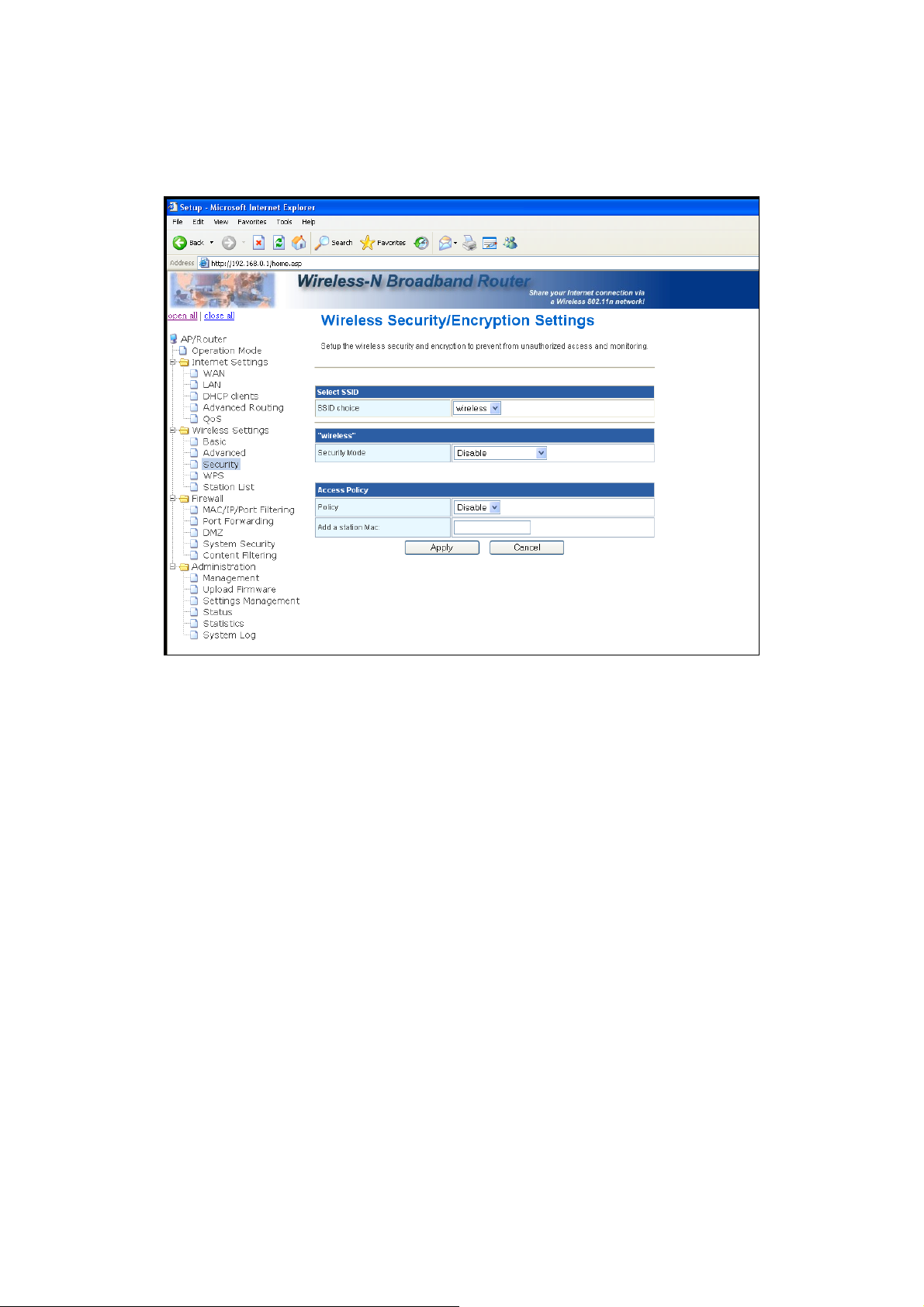

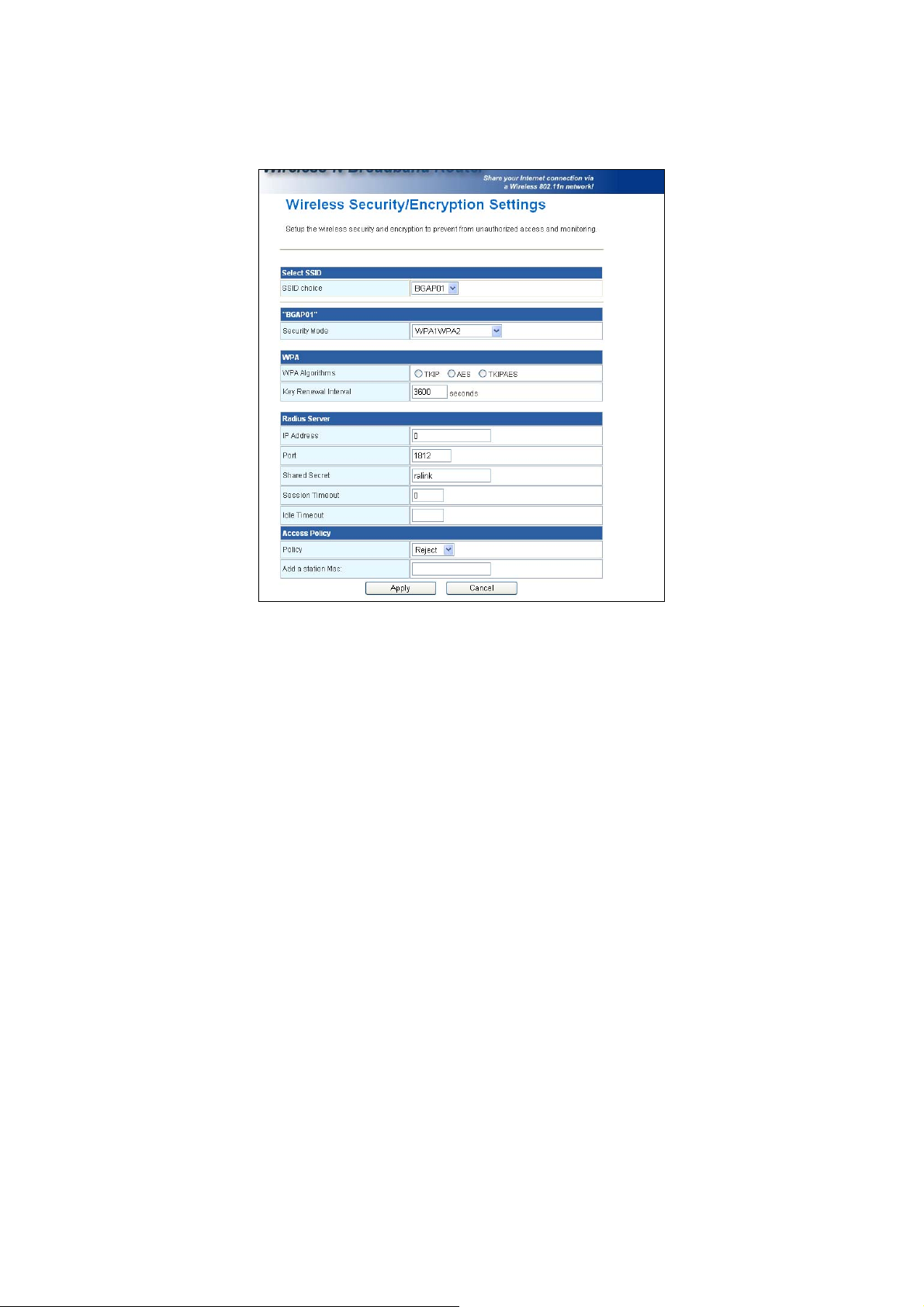

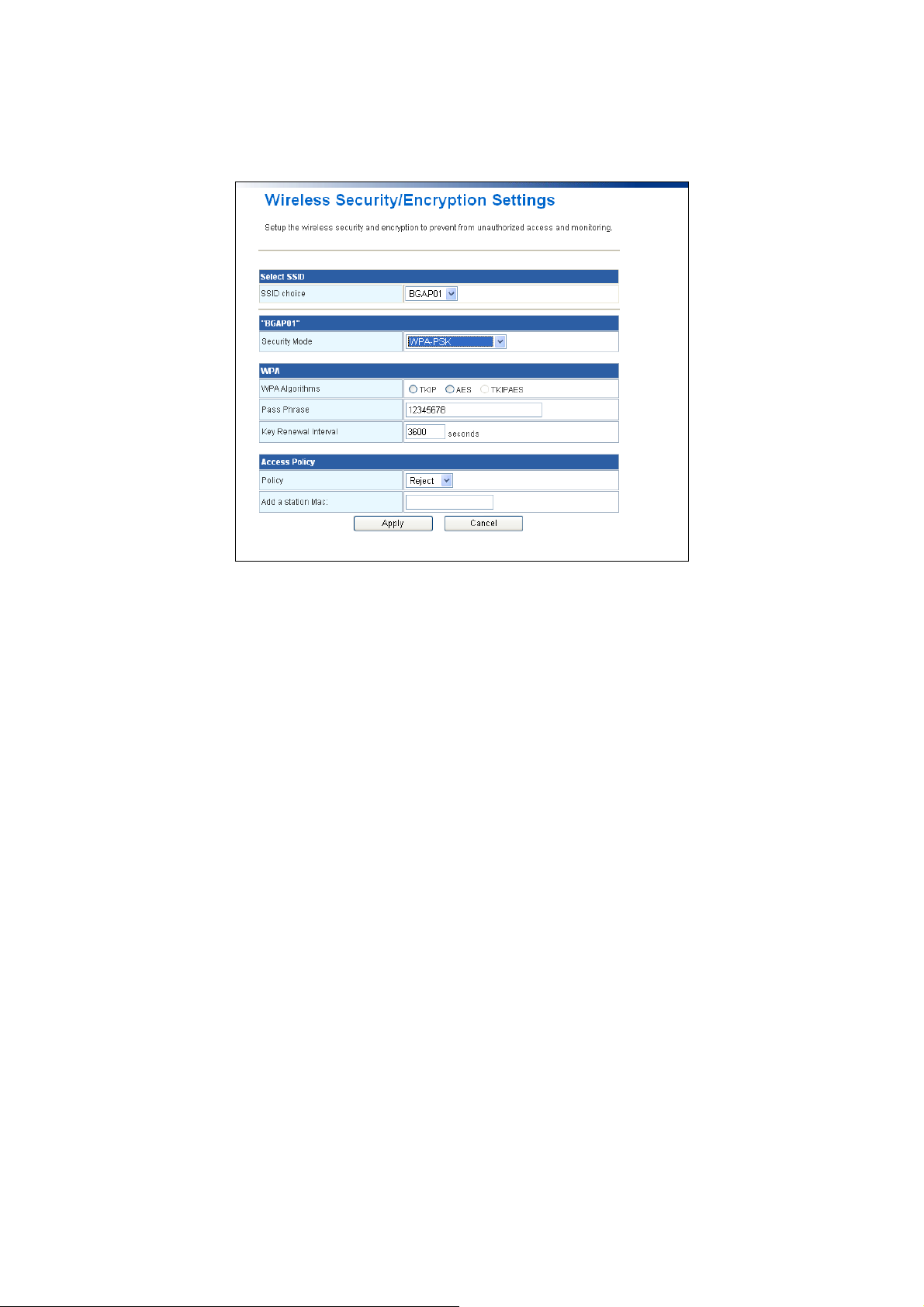

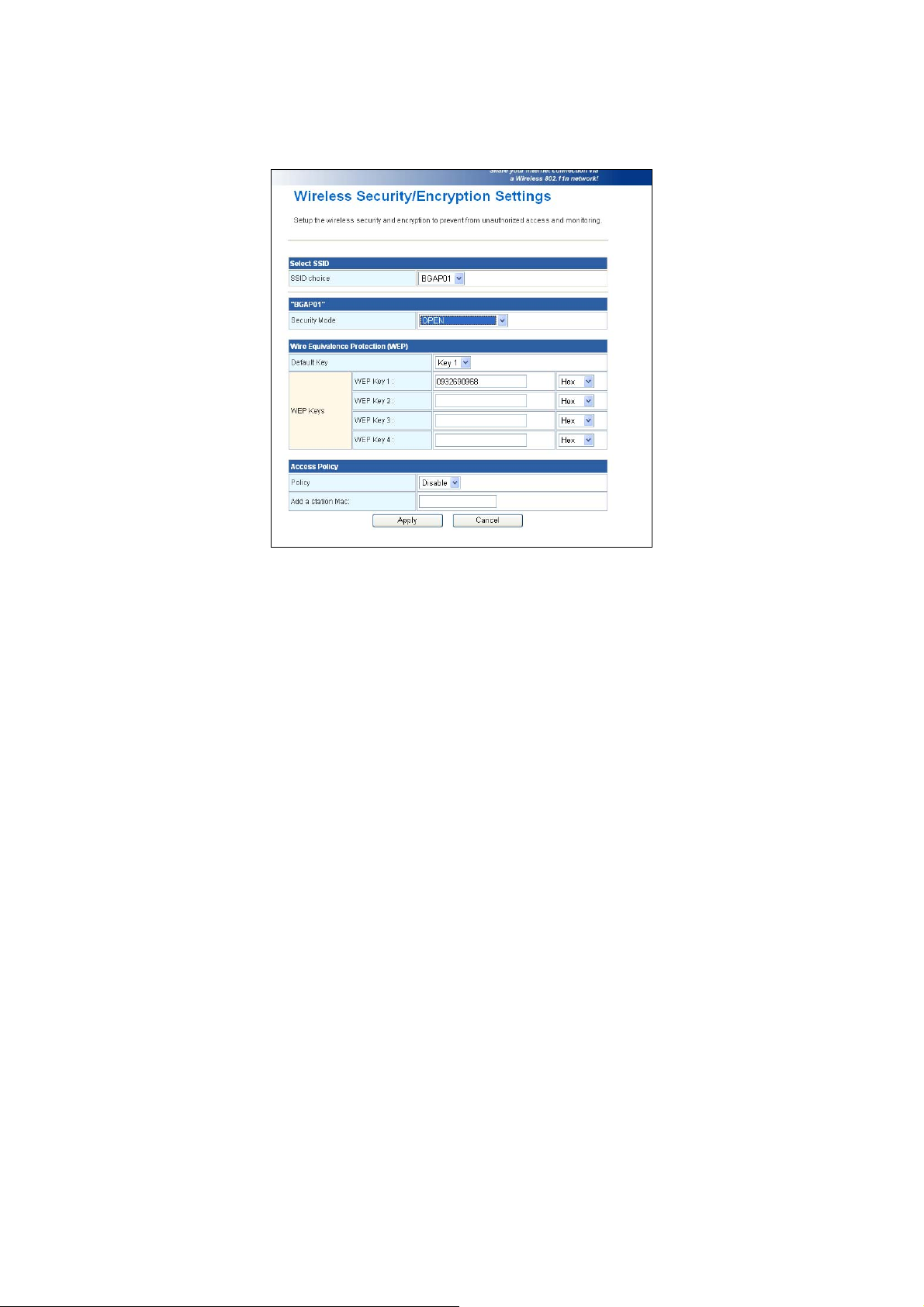

3.5.3 Security Setting.............................................................................................................. 30

3.5.4 WPS Setting................................. ........ ........... .......... ........ ........... ........... .......... ............. 35

3.5.5 Station List.....................................................................................................................36

3.6.1 MAC/IP/Port Filtering Setting.......................................................................................37

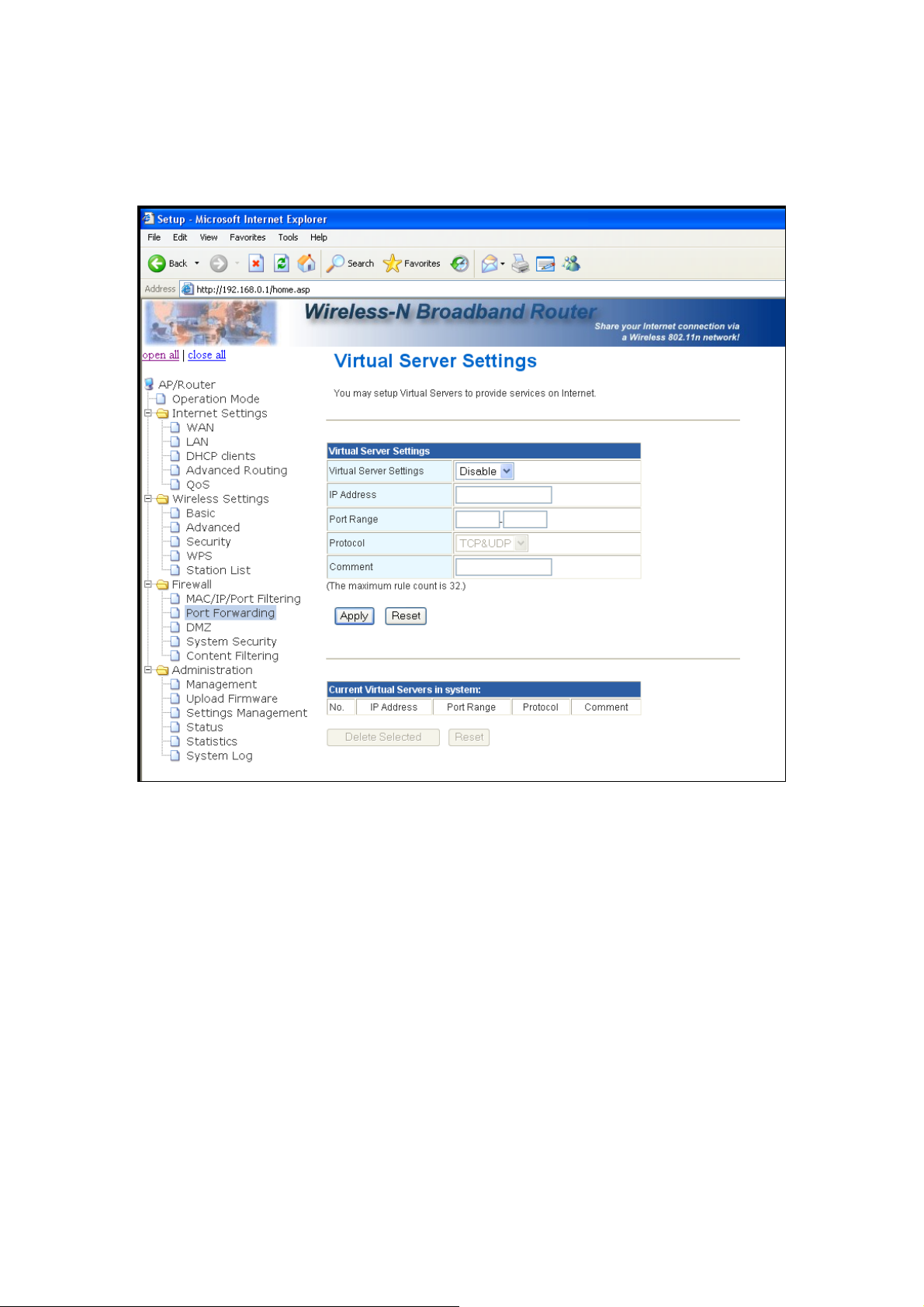

3.6.2 Port Forwarding Setting.................................................................................................39

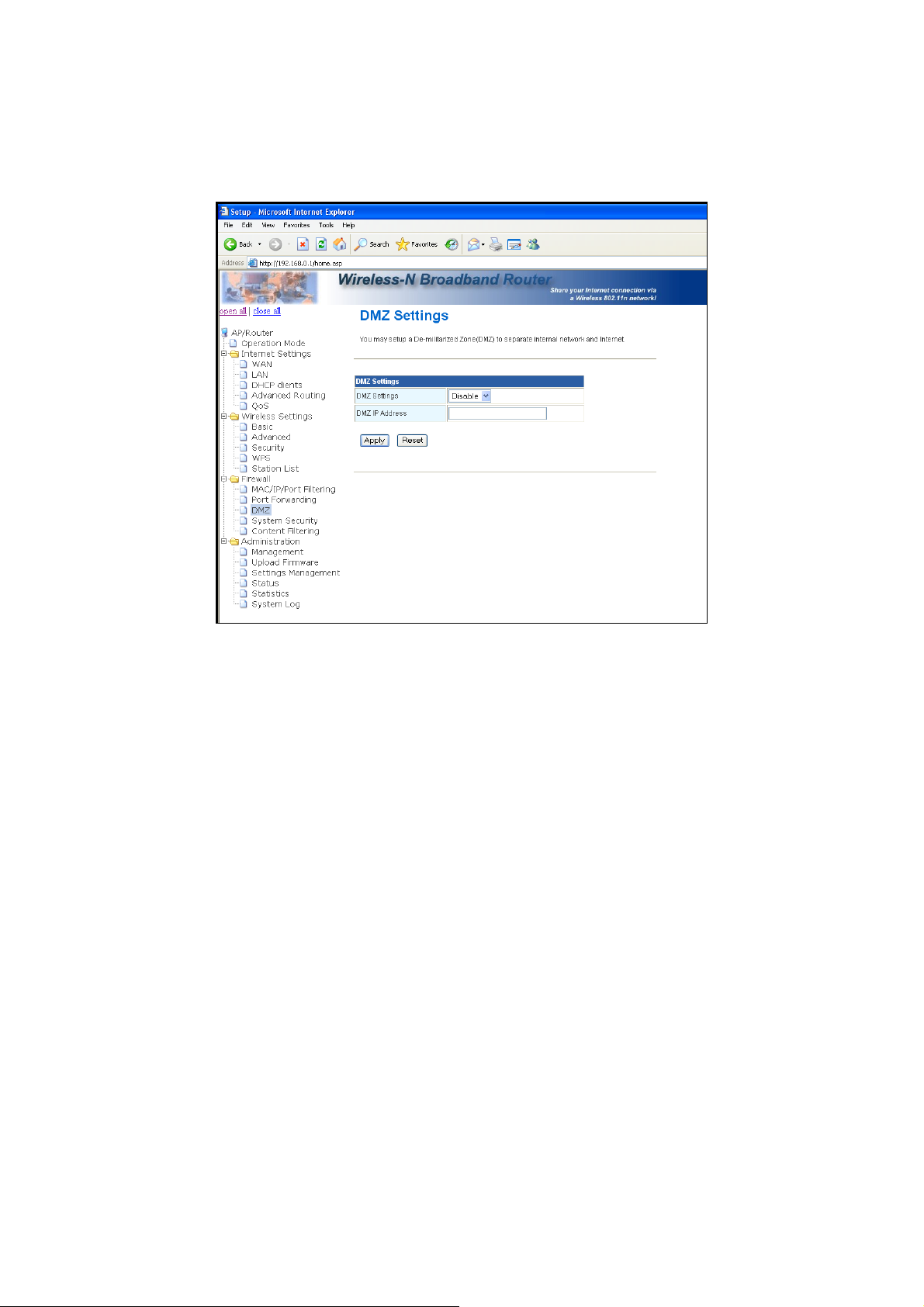

3.6.3 DMZ Setting .................................................................................................................. 40

3.6.4 System Security Settings................................................................................................ 41

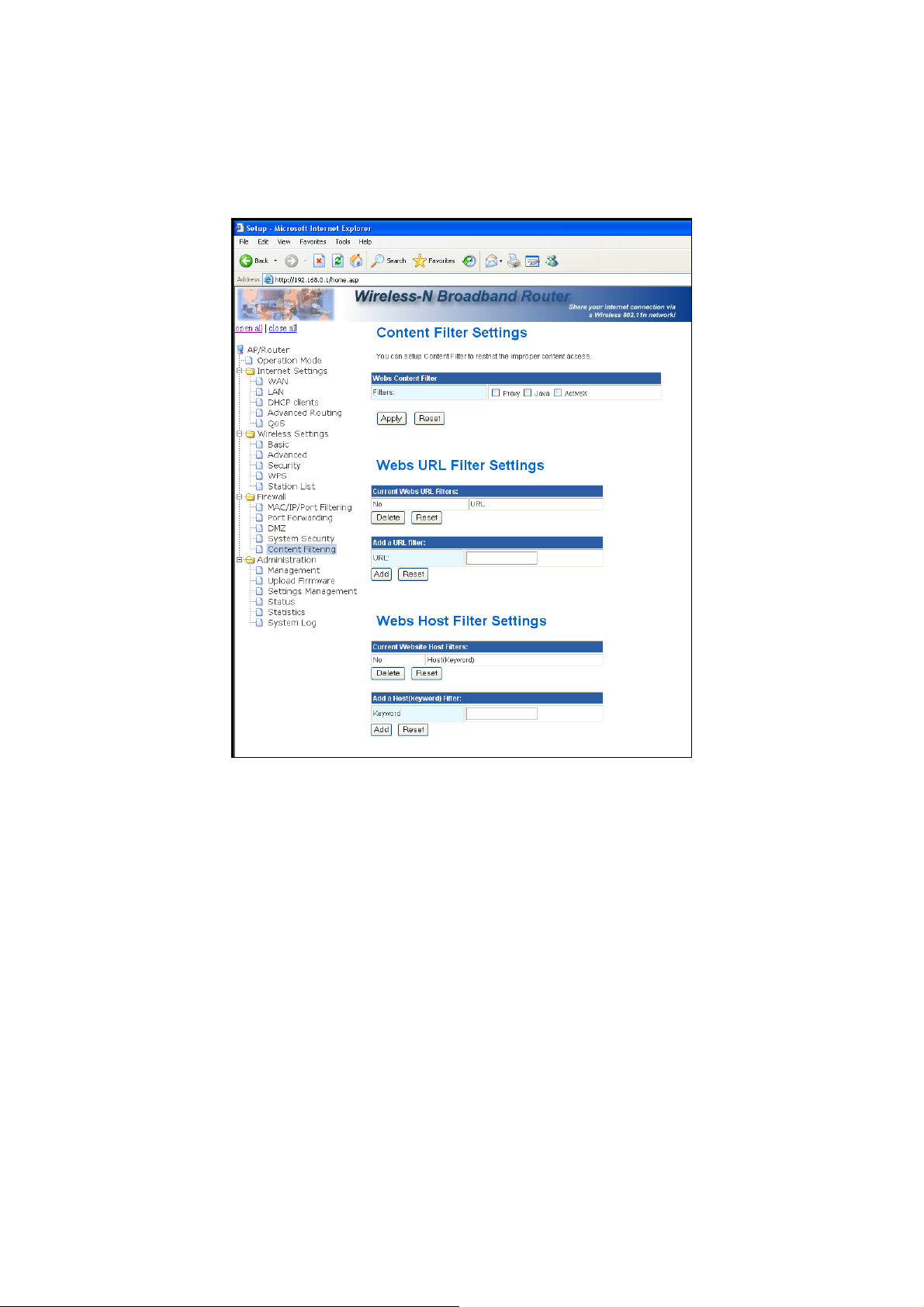

3.6.5 Content Filtering Settings.............................................................................................. 42

3.7.1 Management Settings..................................................................................................... 43

3.7.2 System Log .................................................................................................................... 44

3.7.3 Settings Management..................................................................................................... 45

3.7.4 System Status.................................................................................................................46

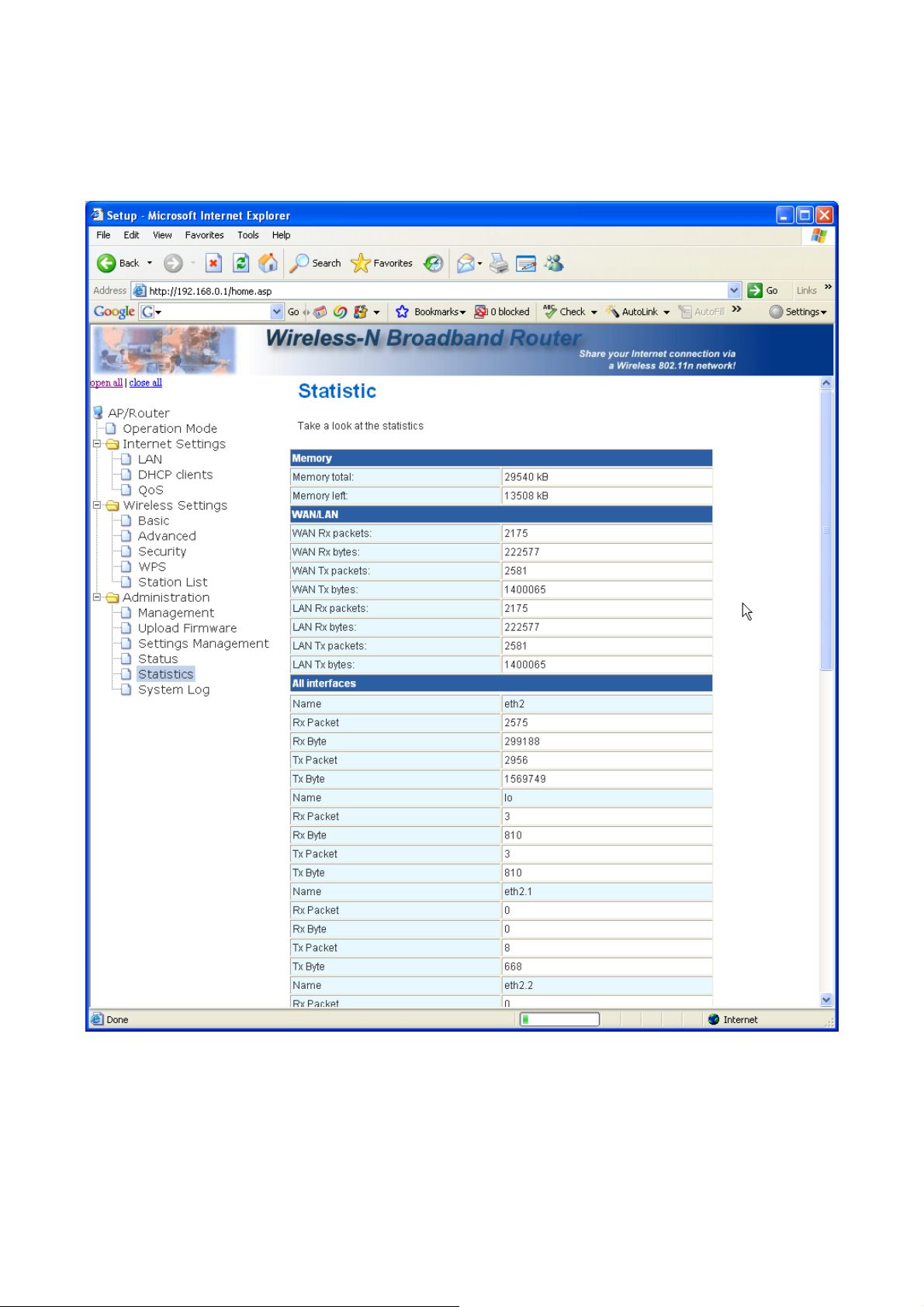

3.7.5 Statistic........................................................................................................................... 47

3.7.6 System Log .................................................................................................................... 48

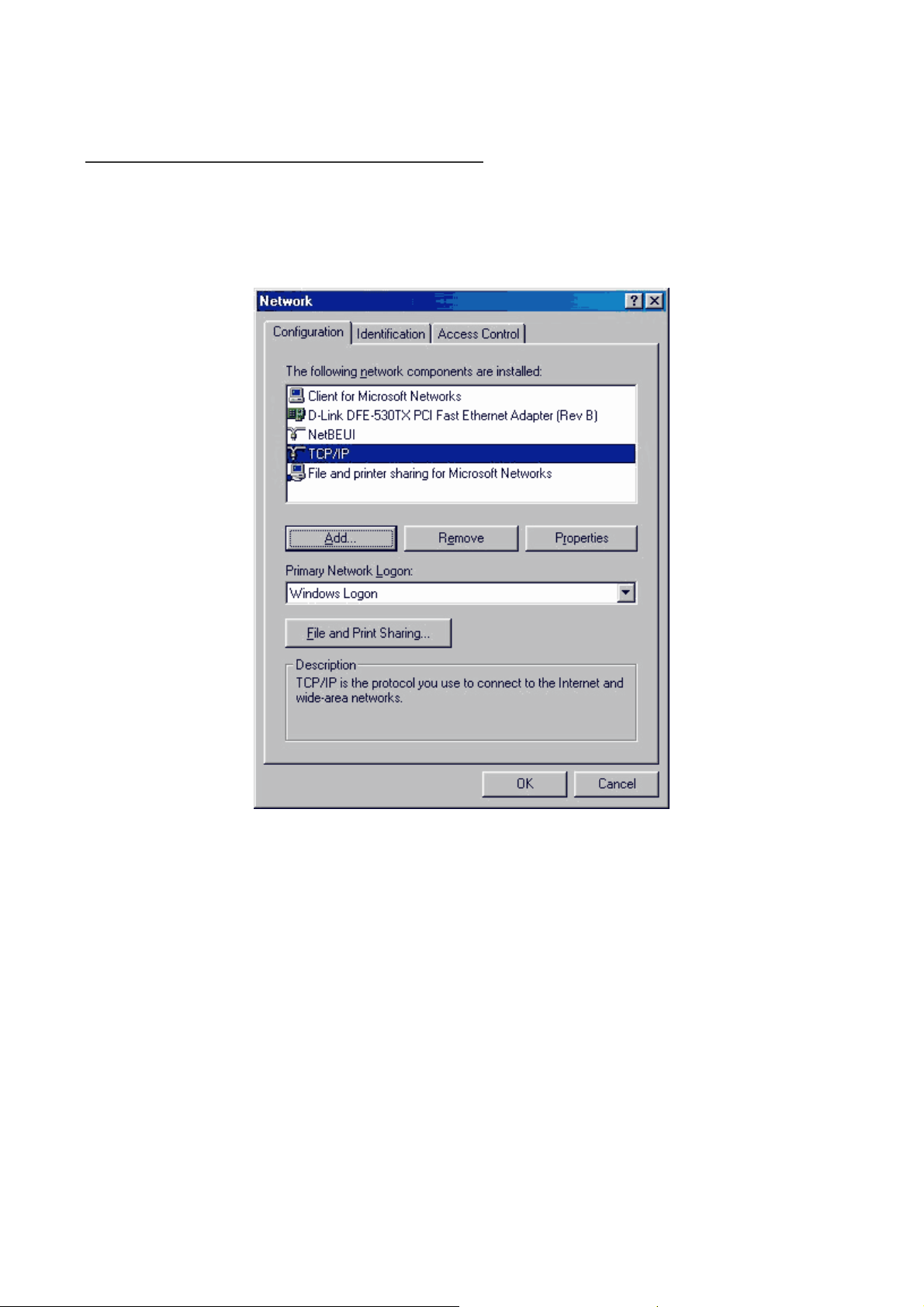

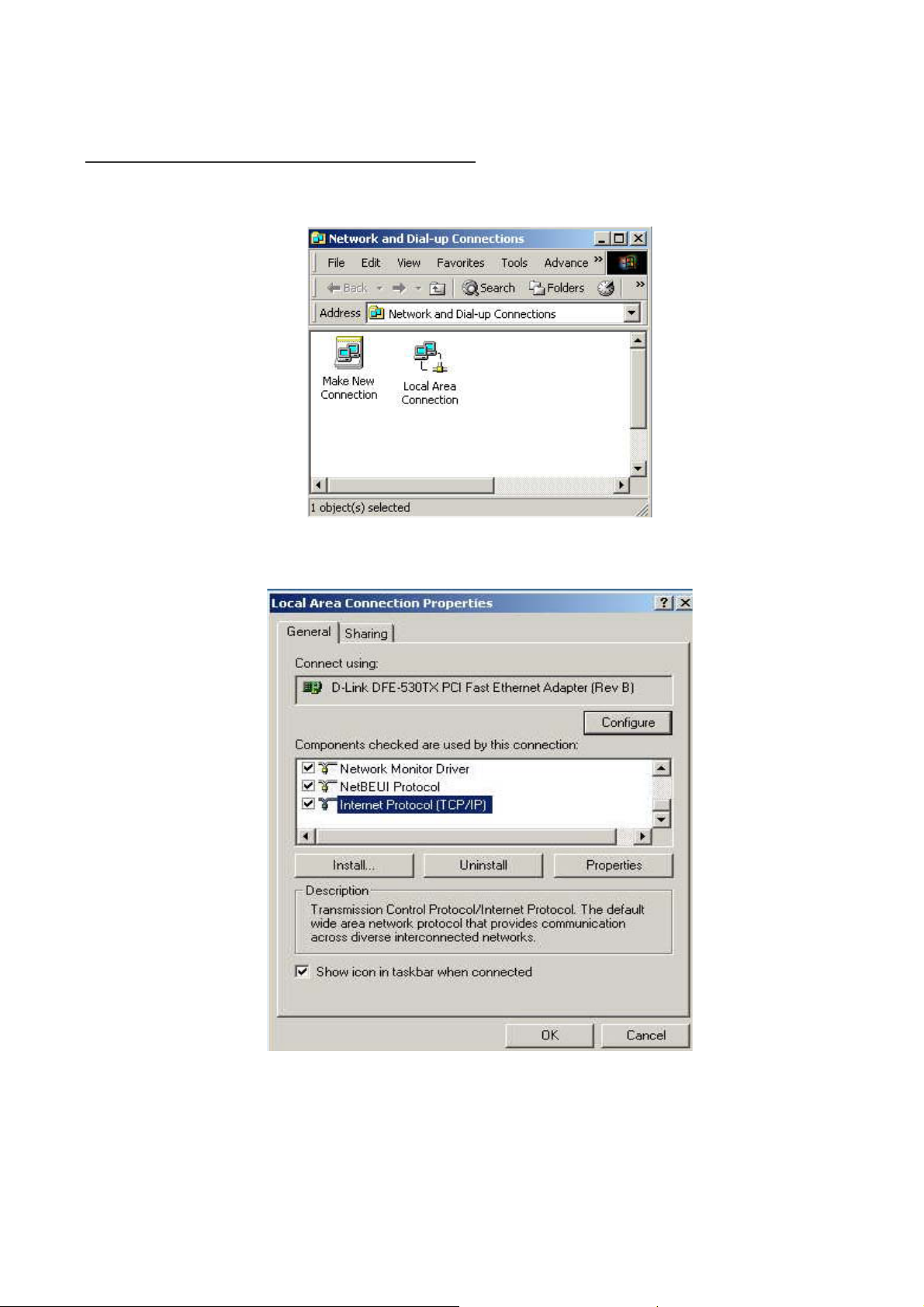

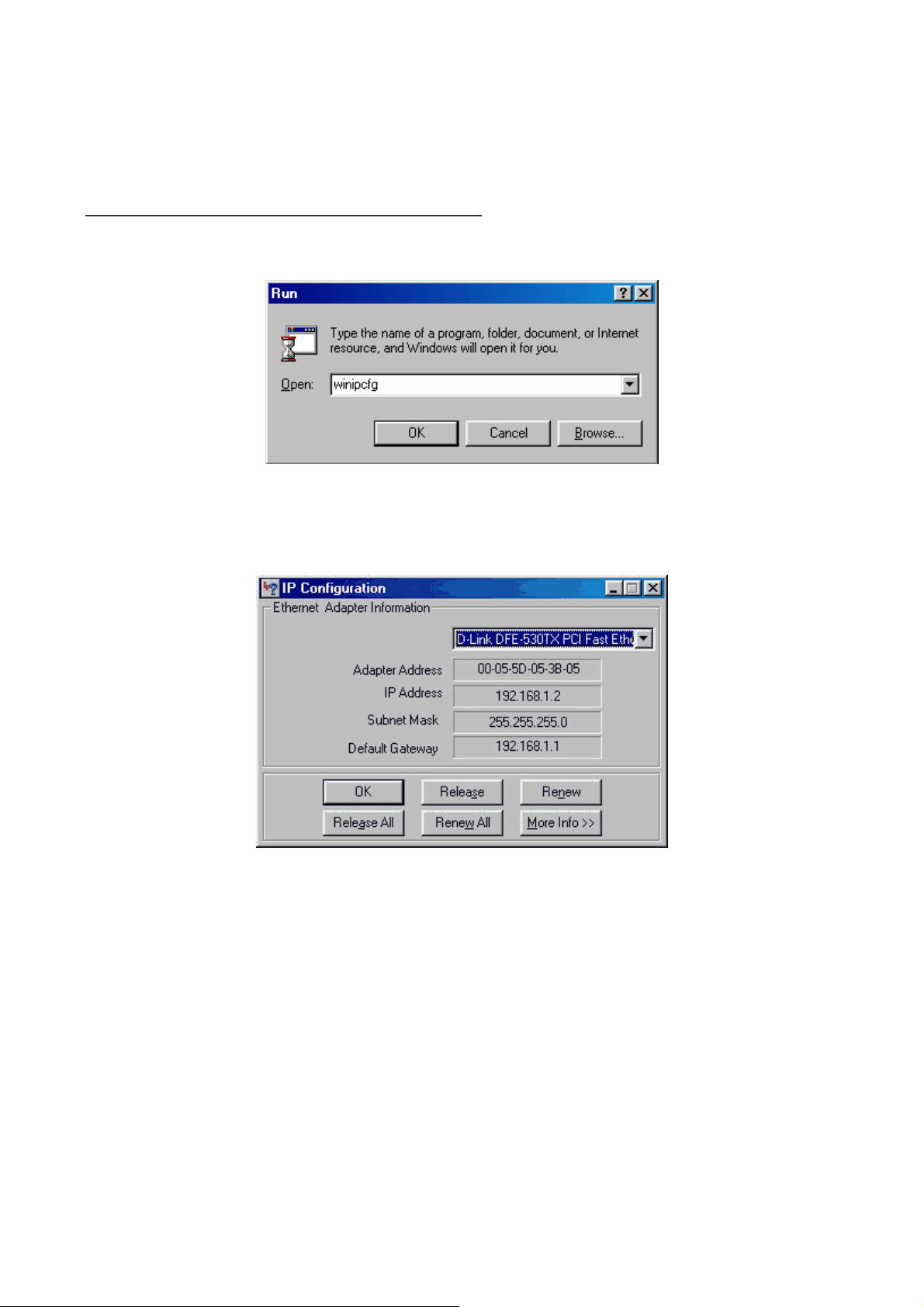

3.8.1 TCP/IP Settings for Windows Operating System.......................................................... 49

Certification: FCC, CE .......................................................................................................................... 56

Appendix A Glossary................................. ................................ ................................ .............................56

Appendix B Cabling / Connection................................... ....................................................................... 64

FCC and Other Compliance Statements

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

31. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However,

special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

Chapter 1 Introduction

Congratulations on your purchase of an Instant Wireless 11n Router for cable/xDSL application. The Wireless 11n Router is the perfect option to connect a small group of PCs to a high-speed Broadband Internet connection or to an Ethernet backbone. Configurable as a DHCP server, the Broadband Router acts as the only externally recognized Internet device on your local area network (LAN). The Router serves as an Internet firewall, protecting your network from being accessed by outside users. The data rates up to 300Mbps for wireless connection, user can easy to share HD video or data transfer.

1.1 Overview

Wireless 11n will replace the 11b/g as the new generation solution. Via MIMO technology, the wireless through put and coverage can be better than 11b/g.The new WPS technology, will be very easy to set the wireless security just push the button only, all the wireless encryption will auto finish.

1.2 Features

z Router Mode

‧PPP over Ethernet (RFC-2516) ‧DHCP Server and Client ‧NAPT (Network Address and Port Translation) ‧NAT (Network Address Translation

z Internet Access

‧TCP/IP, UDP, ICMP, ARP, RARP, PPPoE, NAT, DHCP (client/server), Static IP assignment

z Security Features

‧Password protected configuration access ‧User authentication (PAP/CHAP) for PPP connection

z Wireless Features

‧Support 802.11b/g, 802.11n draft 3.0 Wireless Access Point ‧Support 128-Bit and 64-Bit WEP encryption , 802.1x, WPA, WPA2, WPS ‧Support wireless operation mode as AP, WDS and AP Client

z Security

‧Support packet inspection and filtering ‧Intrusion detection and protection ‧Password protected system management

z Ethernet Interface

‧Compliant with IEEE 802.3 and 802.3u 10/100 Mbps

z HTTP Web-Based Management

‧Firmware upgrade by UI ‧WAN and LAN side connection statistics ‧Advanced QoS ‧Password protected access ‧Wireless LAN ‧System log

1.3 System Requirements

1) Personal computer (PC)

2) Pentium II 233 MHz processor minimum

3) 32 MB RAM minimum

4) 20 MB of free disk space minimum

5) Ethernet Network Interface Controller (NIC) RJ45 Port

6) Internet Browser

Chapter 2 Installation

This chapter offers information about installing your router. If you are not familiar with the hardware or software parameters presented here, please consult your service provider for the values needed.

2.1 Checklist

Check the shipping box carefully to ensure that the contents include the items you ordered. If any of the items are missing or damaged, contact your local distributor. The contents of your carton may vary depending on your service provider.

Contents description

1) Wireless 11n Router for home/office use

2) Wireless 11n Router Installation and Operation Guide (this publication)

3) Power supply with 9VAC / 1Ampere power adapter

4) Ethernet cable Ethernet category 5 twisted pair cable (6 ft)

5) CD for user manual

2.2 The Front LEDs

LED State Description

POWER

WAN

PWR

WLAN-Secure

WLAN-ACT

LAN

1-4

ON Press the button to power one the router.

"Showtime"-successful connection between ADSL modem and telephone

company's network. "Handshaking"-modem is trying to establish a connection to telco's network Modem

Flashing

is powered OFF ADSL Carrier Detect if LED is flash.

OFF No link.

ON The router power on and running well. ON When wireless security encryption enable.

Flashing Wireless LAN enable and link status.

ON Ethernet cable link and enable.

Flashing TX or RX activity

No Link These four LAN (Local Area Network) ports are where you will connect networked

OFF

devices, such as PCs, print servers remote hard drives, and anything else you want to put on your network.

2.3 The Rear Ports

Connector Description

POWER

LAN (1-4)

WAN

WPS

R/SMA Connector

2.4 The Bottom Port

Power connector with 9VAC / 1Ampere. Router is successfully connected to a device through the corresponding port (1, 2, 3 or 4). If the LED is flashing, the Router is actively sending or receiving data over that port. The WAN (Wide Area Network) Port is where you will connect your cable, DSL modem or Ethernet backbone. Push button for WPS link. Antenna Connector.

Connector Description

Reset Switch

The reset button, the router restore default settings when press until reboot.

Chapter 3 Configuration

3.1 Determine your connection settings

Before you configure the router; you need to know the connection information supplied by your service provider.

3.2 Connecting the Wireless 11n Router to your network

Via Ethernet Cable to LAN Port and connect to your PC/NB RJ-45 Port or via wireless link to access the 11n router.

3.3 Configuring with Web Browser

It is advisable to change the administrator password to safeguard the security of your network. To configure the router, open your browser, type 'http://192.168.0.1' into the address bar and click 'Go' to get to the login page. Save this address in your Favorites for future reference.

At the Password prompt, the User name is 'admin' and the password is ’admin’. You can change these later if you wish. Click 'OK' to login.

3.3.1 Wireless 11n Router Setting

In AP/Router root page, user can change the language. Click Status, Statistic or Management can directly jump to the related pages.

3.3.2 Operation Mode Setting

There are four operation modes can choose, Bridge, Gateway, Ethernet Converter or AP Client. Bridge : All Ethernet ports and wireless interfaces are bridged into a single bridge interface. The router will work as bridge only.. Gateway: The device work as wireless router. The NAT will can set as enable or disable, WAN port need to link to the Internet. User can enable/disable the NAT function.

Ethernet Converter: The wireless interface is treated as WAN port, and the Ethernet ports are LAN ports. AP Client: The wireless set as wireless client so it is treated as WAN port, all the Ethernet ports are LAN ports.

User can enable/disable the NAT function.

3.4.1 WAN Setting

There are 5 selections for WAN connection type, the detail information as follows.

STATIC(Fixed IP): If you need to assign static IP addresses to the devices in your network, please remember that the IP address for each computer or device must be in the same IP address range as all the devices in the network. Each device must also have the same subnet mask. For example: Assign the first computer an IP address of 192.168.1.2 and a subnet mask of 255.255.255.0, the second device an IP address of 192.168.1.3 and a subnet mask of 255.255.255.0, and so on. Note: Devices that are assigned the same IP address may not be visible on the network. Enter the IP address of the DNS server. The DNS server translates domain names into IP addresses.

DHCP(Auto config): It’s will auto get the IP address from the DHCP Server.. Assign the length of time for the IP lease, default setting is 86400 seconds. The Hostname is the name of the device.

PPPoE(ADSL):

Username and Password: Fill in the User Name and Password that provided by your ISP. Verify Password: Retype the password to confirm. Operation Mode: Set the router as Keep Alive or On demand.

L2TP: Layer 2 Tunneling Protocol (L2TP), a tunneling protocol used to support virtual private networks (VPNs).

Server IP Address: Fill in the L2TP Server IP address that provided by your Internet Service Provider (ISP). Username and Password: Fill in the User Name and Password that provided by your ISP. Address Mode: Select to use Static or Dynamic IP mode. IP Address, Subnet Mask and Default Gateway: Fill in the IP address, Subnet Mask and Default Gateway that

provided by your Internet Service Provider (ISP).

Operation Mode: Set the router as Keep Alive or On demand. MAC Clone: Select to use the following MAC as the MAC address while serving Internet:

Original MAC: the MAC of the device. Manual Settings: the MAC of your computer. Click on “Clone MAC Address from your Computer” to clone your computer MAC address in the blank. You can also change the MAC address if you need.

PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks (VPNs).

Server IP Address: Fill in the PPTP Server IP address that provided by your Internet Service Provider (ISP). Username and Password: Fill in the User Name and Password that provided by your ISP. Address Mode: Select to use Static or Dynamic IP mode. IP Address, Subnet Mask and Default Gateway: Fill in the IP address, Subnet Mask and Default Gateway that

provided by your Internet Service Provider (ISP).

Operation Mode: Set the router as Keep Alive or On demand. MAC Clone: Select to use the following MAC as the MAC address while serving Internet:

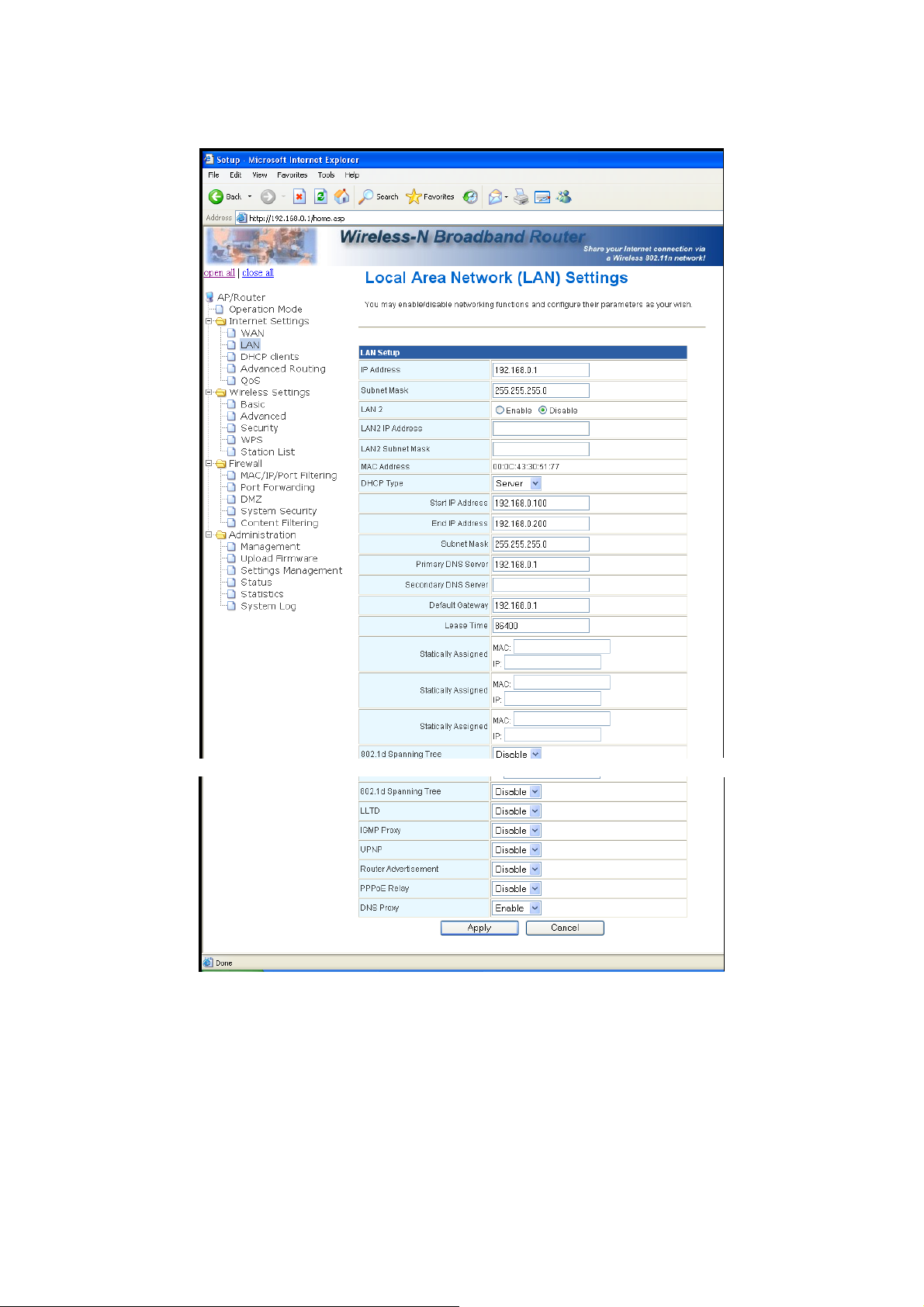

3.4.2 LAN Setting

To set up the configuration of LAN interface, private IP of your router LAN port and subnet mask for your LAN segment. Default IP is 192.168.0.1.

IP Address: The IP of your Router LAN port (default 192.168.0.1). Subnet Mask: Subnet Mask of you LAN (default 255.255.255.0). All devices on the network must have the same

subnet mask to communicate on the network.

LAN2: Enable / Disable LAN 2. LAN2 IP: The IP address of LAN2. LAN2 Subnet Mask: Subnet Mask of LAN2. DHCP Type: To give your LAN Client an IP, you have to enable DHCP server. If not, manual setting up your client

IP is necessary when you want to use the router as your client’s default gateway.

Start IP Address: Specify the DHCP Client start IP address. End IP Address: Specify the DHCP Client End IP address.

Note: The number of the “End IP” must be greater than “Start IP”, and cannot be the same as the router’s IP

address. DHCP Lease Time: Choose the length of the time for the device to recycle and give out the IP addresses to the devices in your network (default 86400).

Statically Assigned: Can statically assigned the client MAC and IP address. There are three IP can assign.

802.1d Spanning T ree: Enable/Disable. The Spanning Tree Protocol is an OSI layer-2 protocol that ensures a

loop-free topology for any bridged LAN. LLTD: Enable/Disable. Link Layer Topology Discovery (LLTD) is a proprietary Link Layer protocol for network topology discovery and quality of service diagnostics. It was developed by Microsoft as part of the Windows Rally set of technologies. The LLTD protocol operates over both wired (IEEE 802.3 Ethernet) as well as wireless (IEEE

802.11) networks. IGMP Proxy: Enable/Disable. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts. UPNP: Enable/Disable. (Universal Plug-and-Play). Network architecture based on TCP/IP and intended to allow terminals to be networked without the need for configuration. In the Barricade router, for example, the correct ports are automatically opened for applications like Net meeting, online games, etc. You can choose to enable or disable the UPnP Service.

Router Advertisement: Enable/Disable. The ICMP router discovery messages. PPPoE Relay: Enable/Disable PPPoe Relay. DNS Proxy: Enable/Disable DDNS Proxy.
