Aceex NPXX User Manual

User’s Manual

Wireless 11n Mini-Router

Index

FCC and Other Compliance Statements............................................................................ ....................... 3

Chapter 1 Introduction.......................... ... ..... ..... ... ..... ... ..... ...... .. ...... .. ...... ..... ... ..... ..... ... ..... ....................... 5

1.1 Overview............................................................................................................................. 5

1.2 Features............................................................................................................................... 5

1.3 System Requirements.......................................................................................................... 6

Chapter 2 Installation............................................ ..... ... ..... ...... .. ...... ..... ... ..... ... ..... ..... ... ............................ 7

2.1 Checklist .................................... .. ...................................... ................................................. 7

2.2 The Front LEDs & Buttons................................................................................................. 8

2.3 The Rear Ports......................... ........... .......... ........ ........... ........... .......... ........ ........... ............ 9

Chapter 3 Configuration........................ ..... ...... .. ...... ..... ... ..... ..... ... ..... ...... .. ...... .. ...... ..... ... ....................... 10

3.1 Determine your connection settings................ ..... ...... .. ...... .. ...... .. ...... .. ...... ..... ... ..... ... ..... ..10

3.2 Connecting the Wireless 11n Router to your network...................................................... 10

3.3 Configuring with Web Browser ................................................. .. .....................................10

3.3.0 Easy Setup Wizard..........................................................................................................11

3.3.1 Wireless 11n Router Setting........................................................................................... 15

3.3.2 Operation Mode Setting.................................. .. ............................................................. 16

3.4.1 WAN Setting........................ ........... ........ .......... ........... ........ ........... .......... ........ ......... ....17

3.4.2 LAN Setting................................................................................................................... 23

3.4.3 DHCP Clients Setting ....................................................................................................25

3.4.4 Advanced Routing Settin g........................................ ...... .. ...... ..... ... ..... ..... ... ..... ...... .. .....26

3.4.5 QoS Setting.................................................................................................................... 27

3.5.1 Wi reless-Basic Setting............................ .......... ........ ........... ........... ........ .......... ........ .....28

3.5.2 Advanced Setting .................................................... ................................ .......................30

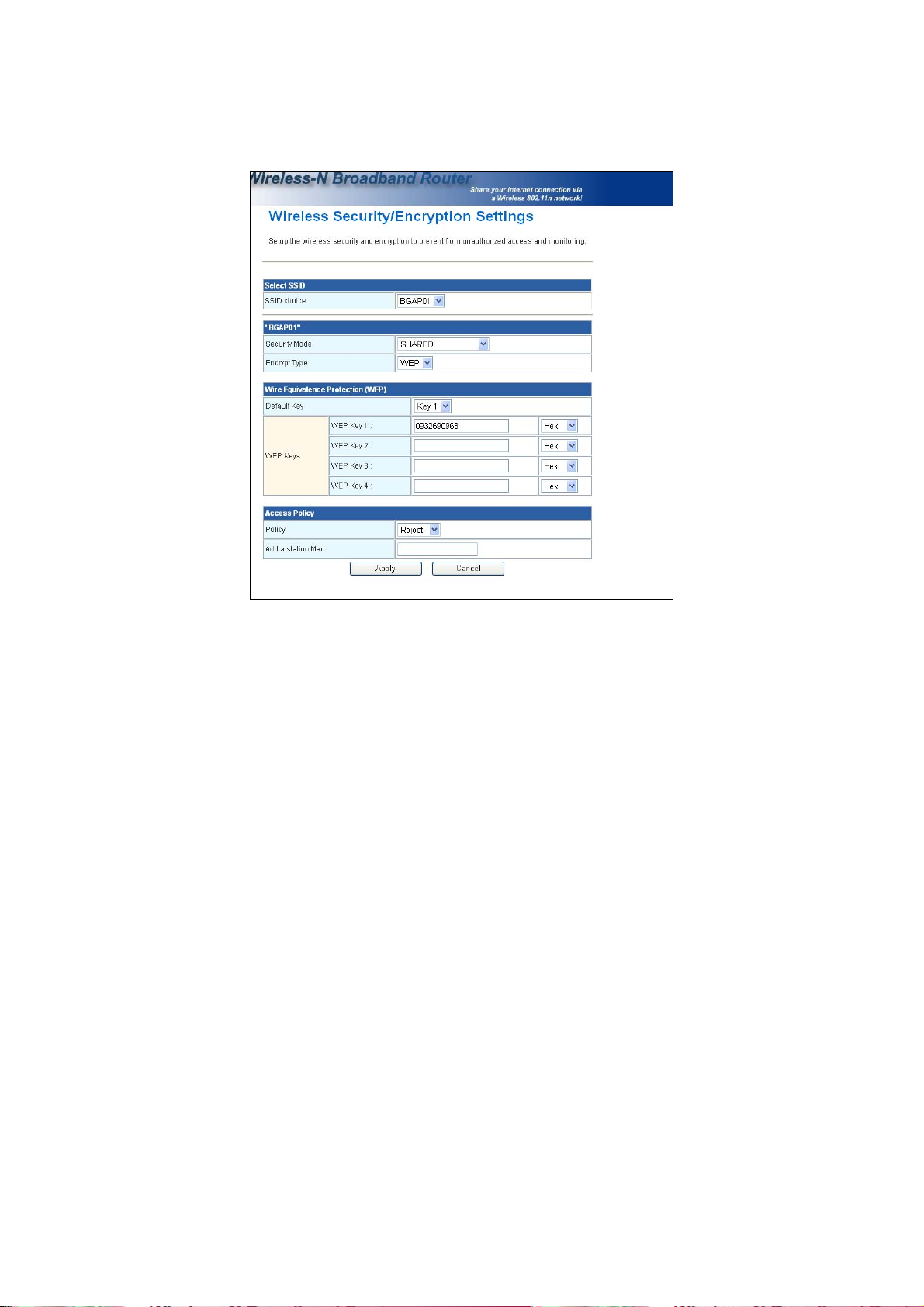

3.5.3 Security Setting.............................................................................................................. 34

3.5.4 WPS Setting................................. ........ ........... .......... ........ ........... ........... .......... ............. 39

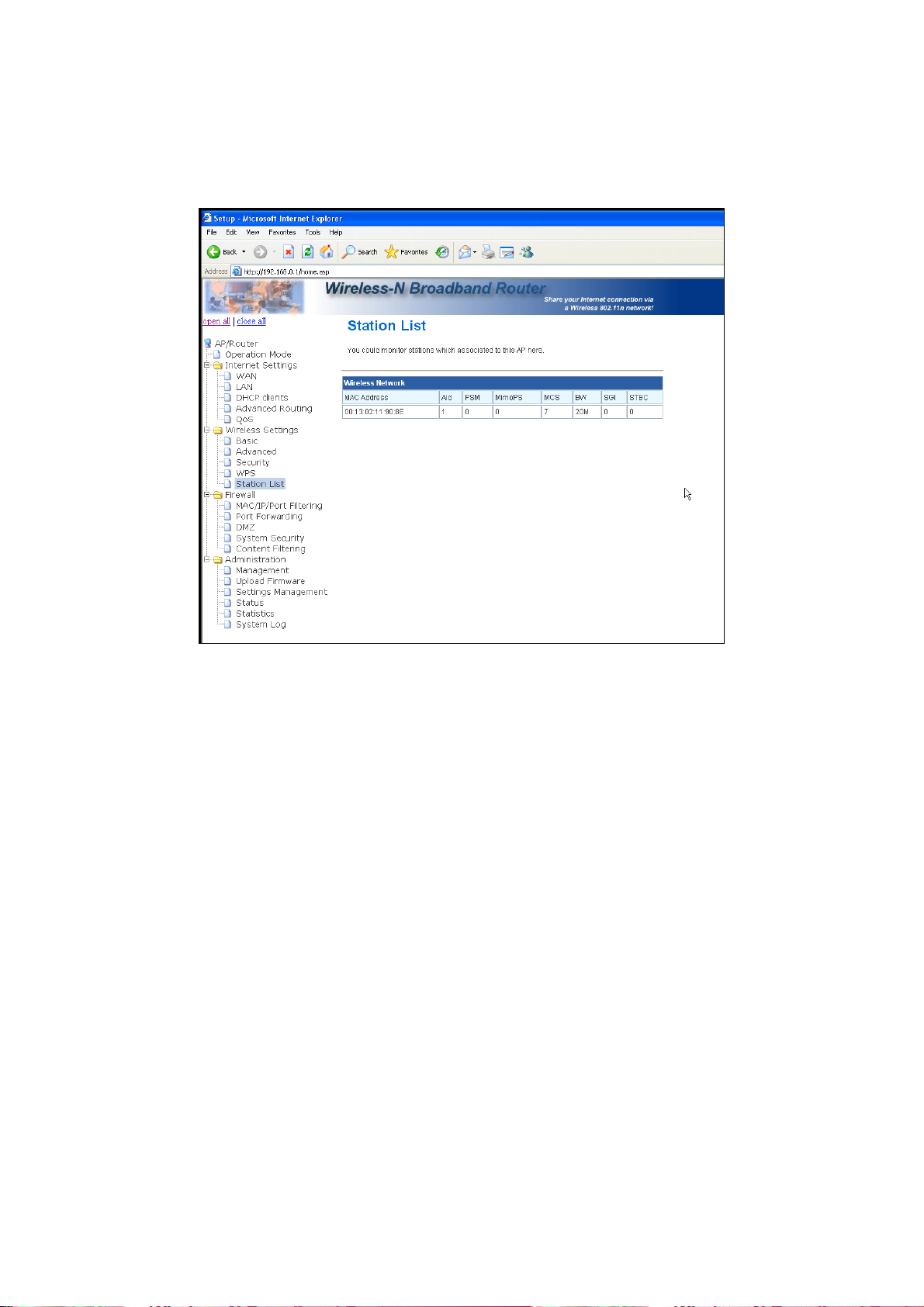

3.5.5 Station List.....................................................................................................................40

3.6.1 MAC/IP/Port Filtering Setting....................................................................................... 41

3.6.2 Port Forwarding Setting.................................................................................................43

3.6.3 DMZ Setting .................................................................................................................. 44

3.6.4 System Security Settings................................................................................................ 45

3.6.5 Content Filtering Settings.............................................................................................. 46

3.7.1 Management Settings..................................................................................................... 47

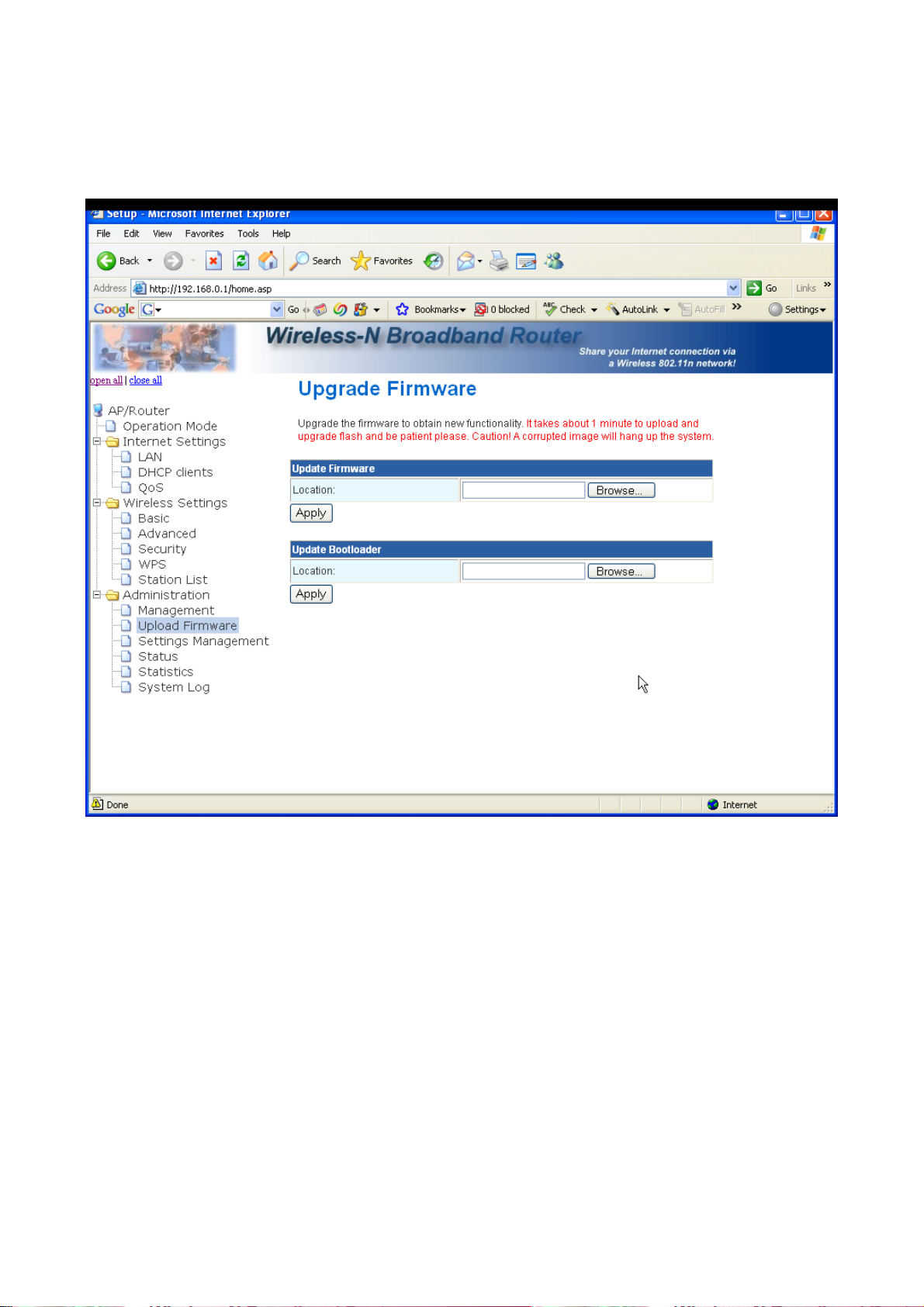

3.7.2 Upgrade Firmware.......................................... .. ............................................................. 48

3.7.3 Settings Management..................................................................................................... 49

3.7.4 System Status.................................................................................................................50

3.7.5 Statistic........................................................................................................................... 51

3.7.6 System Log .................................................................................................................... 52

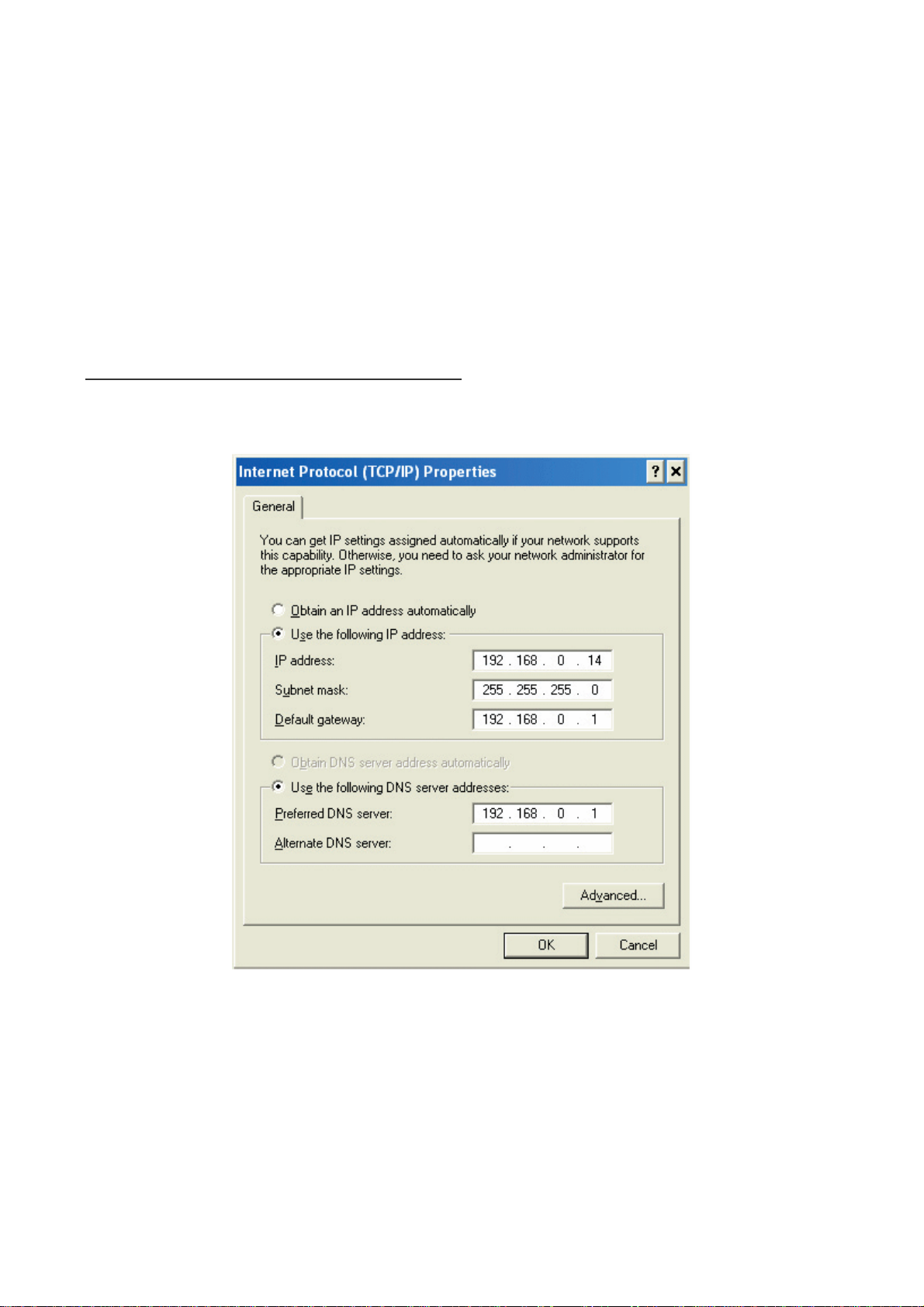

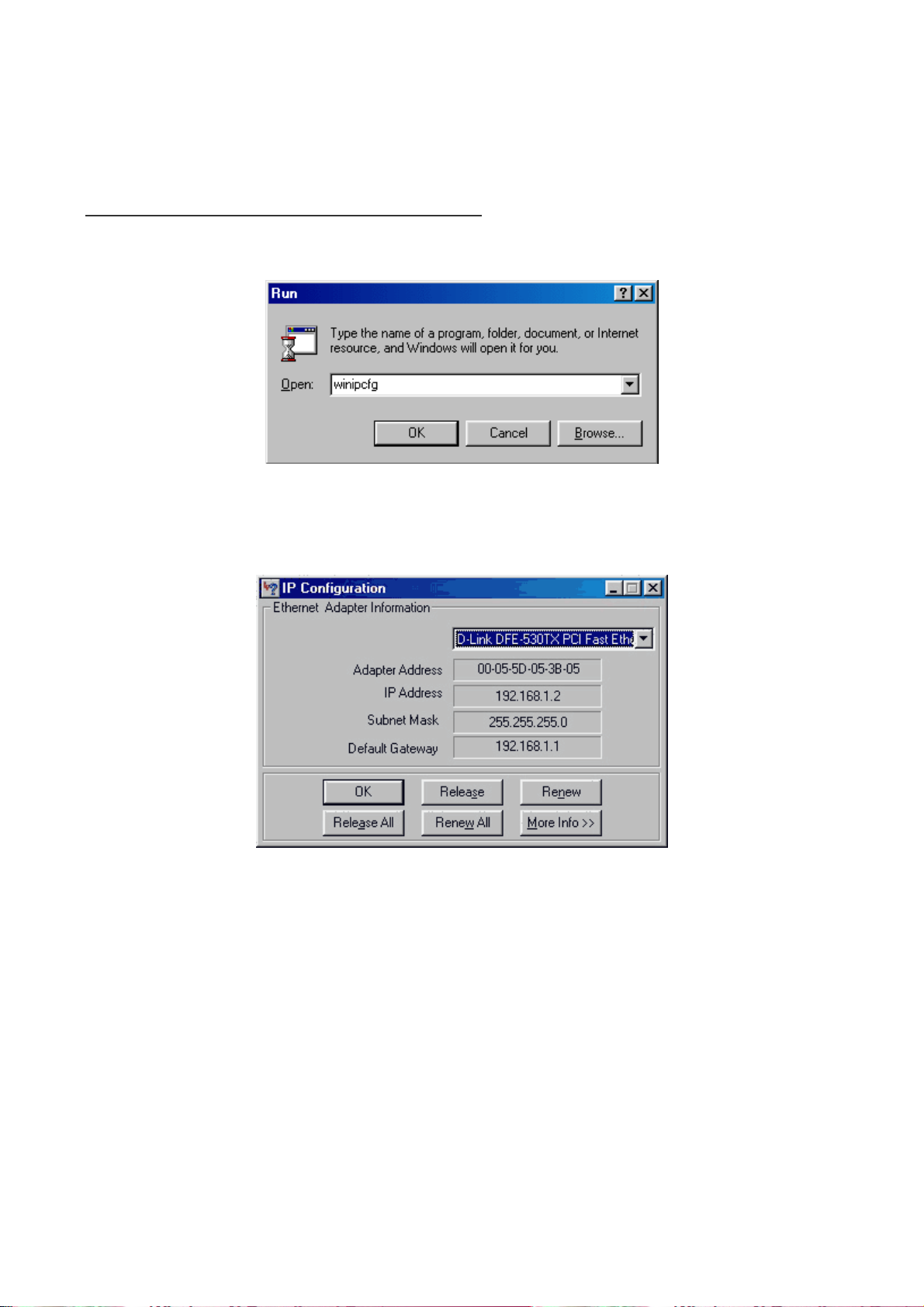

3.8.1 TCP/IP Settings for Windows Operating System.......................................................... 53

Certification: FCC, CE Appendix A Glossary.......................................................... .............................60

Appendix A Glossary................................. ................................ ................................ .............................61

Appendix B Cabling / Connection................................... ....................................................................... 68

FCC and Other Compliance Statements

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

31. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid

the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

The antenna(s) used for this transm itter must not be co-locat ed or o perating in co njunctio n with an y other ant enna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and offic e use in Austria, Belgium, Denmark , Finland , France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

Chapter 1 Introduction

The Wireless 11n Mini-Router is the perfect option to connect a small group of PCs to a high-speed Broadband Internet connection or to an Ethernet backbone. Configurable as a DHCP server, the Broadband Router acts as the only externally recogniz ed Int ernet de vice on your loc al area net w ork (LAN ). The R outer s erves as an In ternet firewall, protecting your network from being accessed by outside users. The data rates up to 300Mbps for wireless connection, user can easy to share HD video or data transfer. The pocket size design is very easy to carry while in travel.

1.1 Overview

Wireless 11n will replace the 11b/g as the new generation solution. Via MIMO technology, the wireless through put and coverage can be better than 11b/g.The new WPS technology, will be very easy to set the wireless security just push the button only, all the wireless encryption will auto finish.

1.2 Features

z Router Mode

‧PPP over Ethernet (RFC-2516) ‧DHCP Server and Client ‧NAPT (Network Address and Port Translation) ‧NAT (Network Address Translation

z Internet Access

‧TCP/IP, UDP, ICMP, ARP, RARP, PPPoE, NAT, DHCP (client/server), Static IP assignment

z Security Features

‧Password protected configuration access ‧User authentication (PAP/CHAP) for PPP connection

z Wireless Features

‧Support 802.11b/g, 802.11n draft 3.0 Wireless Access Point ‧Support 128-Bit and 64-Bit WEP encryption , 802.1x, WPA, WPA2, WPS ‧Support wireless operation mode as AP, WDS and AP Client ‧Mode button design easy to switch wireless operation mode

z Security

‧Support packet inspection and filtering ‧Intrusion detection and protection ‧Password protected system management

z Ethernet Interface

‧Compliant with IEEE 802.3 and 802.3u 10/100 Mbps

z HTTP Web-B ased Management

‧Firmware upgrade by UI ‧WAN and LAN side connection statistics ‧Password protected access ‧Wireless LAN ‧System log

1.3 System Requirements

1) Personal computer (PC)

2) Pentium II 233 MHz processor minimum

3) 32 MB RAM minimum

4) 20 MB of free disk space minimum

5) Ethernet Network Interface Controller (NIC) RJ45 Port

6) Internet Browser

Chapter 2 Installation

This chapter offers information about installing your router. If you are not familiar with the hardware or software parameters presented here, please consult your service provider for the values needed.

2.1 Checklist

Check the shipping box carefully to ensure that the contents include the items you ordered. If any of the items are missing or damaged, contact your local distributor. The contents of your carton may vary depending on your service provider.

Contents description

1) Wireless 11n Mini-Router for home/office use

2) Wireless 1 1 n Mini-Router Installation and Operation Guide (this publication)

3) Power supply with 5VAC / 1.5 Ampere switching power adapter

4) Ethernet cable Ethernet category 5 twisted pair cable (6 ft)

5) CD for user manual

2.2 The Front LEDs & Buttons

LED State Description

AP Router Station

ON While the wireless operation mode switch to AP mode. ON While the wireless operation mode switch to Wireless Router mode. ON While the wireless operation mode switch to Station mode. ON While the WPS link enable.

WPS

Flashing While start the WPS link, detect the other wireless device enable the WPS too.

Button Description

WPS

Mode

Press while enable WPS link. Press to switch the wireless operation mode.

2.3 The Rear Ports

Connector Description

POWER

LAN

WAN

Power connector with 5VAC / 1.5Ampere or via USB cable link to PC/NB USB port, while use USB cable, make sure to connect 2 USB ports to keep the power stable. Connect to PC/Laptop. The WAN (Wide Area Network) Port is where you will connect your cable, DSL modem or Ethernet backbone.

Chapter 3 Configuration

3.1 Determine your connection settings

Before you configure the router; you need to know the connection information supplied by your service provider.

3.2 Connecting the Wireless 11n Router to your network

Via Ethernet Cable to LAN Port and connect to your PC/NB RJ-45 Port or via wireless link to access the 11n router.

3.3 Configuring with Web Browser

It is advisable to change the administrator password to safeguard the security of your network. To configure the router, open your browser, type 'http://192.168.0.1' into the address b ar and click 'Go' to get to the login page. Save this address in your Favorites for future reference.

At the Password prompt, the User name is 'admin' and the password is ’admin’. You can change these later if you wish. Click 'OK' to login.

3.3.0 Easy Setup Wizard

Easy Setup Wizard is a easy way to set up the router step by step. The Wizard will teach user to set up the router just few steps. Click Setup Wizard selection in left manual or just click the “Start” button.

[ Step 1 ]

You should be inside the router web interface setup wizard. The first step is to setup your WAN interface. Depending on your Internet Service Provider’s provided modem, you’ll need to select the proper WAN type to connect to the Internet. Typically if you can connect to the Internet directly through your broadband modem, you would select “DHCP (auto config)”. If not, you’ll need to contact your Internet Service Provider for more details. Once you have selected the proper WAN type, click on “Next” to continue.

[ Step 2 ]

The second step is setting up your wireless network name. Simply type in a preferred name for your wireless network, for example: “Wireless” into the field “Network Name(SSID)”. Once you have completed that step, click on “Next” to continue.

[ Final Step ]

The next step is setting up your wireless network security. We recommend that you set it with the following settings for best security . Caution: If you use these settings, you’ll need a wireless adapter that supports WPA-PSK encryption.

1. Select “WPA-PSK” for “Security Mode”

2. Select “TKIP” for “WPA Algorithms”

3. Enter a preferred wireless password into the “Pass phrase” field Note: You will need to remember this password if you want to connect to this wireless network

Once you have completed filling out the necessary settings, click on “Finish”. When the status screen shows up, you can check the Internet link status then you may now close your web browser. For advance set up, you can

click and expand the left manual to set up the router.

3.3.1 Wireless 11n Router Setting

In AP/Router root page, user can change the language. Click Status, Statistic or Management can directly jump to the related pages.

3.3.2 Operation Mode Setting

There are four operation modes can choose, Bridge, Gateway, Ethernet Converter or AP Client. Bridge : All Ethernet ports and wireless interfaces are bridged into a single bridge interface. The router will work as bridge only.. Gateway: The device work as wireless router. The NAT will can set as enable or disable, WAN port need to link to the Internet. User can enable/disable the NA T function.

Ethernet Converter: The wireless interface is treated as WAN port, and the Ethernet ports are LAN ports. AP Client: The wireless set as wireless client so it is treated as WAN port, all the Ethernet ports are LAN ports.

User can enable/disable the NAT function.

3.4.1 WAN Setting

There are 5 selections for WAN connection type, the detail information as follows.

STATIC(Fixed IP): If you need to assign static IP addresses to the devices in your network, please remember that the IP address for each computer or device must be in the same IP address range as all the devices in the network. Each device must also have the same subnet mask. For example: Assign the first computer an IP address of 192.168.1.2 and a subnet mask of 255.255.255.0, the second device an IP address of 192.168.1.3 and a subnet mask of 255.255.255.0, and so on. Note: Devices that are assigned the same IP address may not be visible on the network. Enter the IP address of the DNS server. The DNS server translates domain names into IP addresses.

DHCP(Auto config): It’s will auto get the IP address from the DHCP Server.. Assign the length of time for the IP lease, default setting is 86400 seconds. The Hostname is the name of the device.

PPPoE(ADSL):

Username and Password: Fill in the User Name and Password that provided by your ISP. Verify Password: Retype the password to confirm. Operation Mode: Set the router as Keep Alive or On demand.
