Aceex ISDN-PCI/N Datasheet

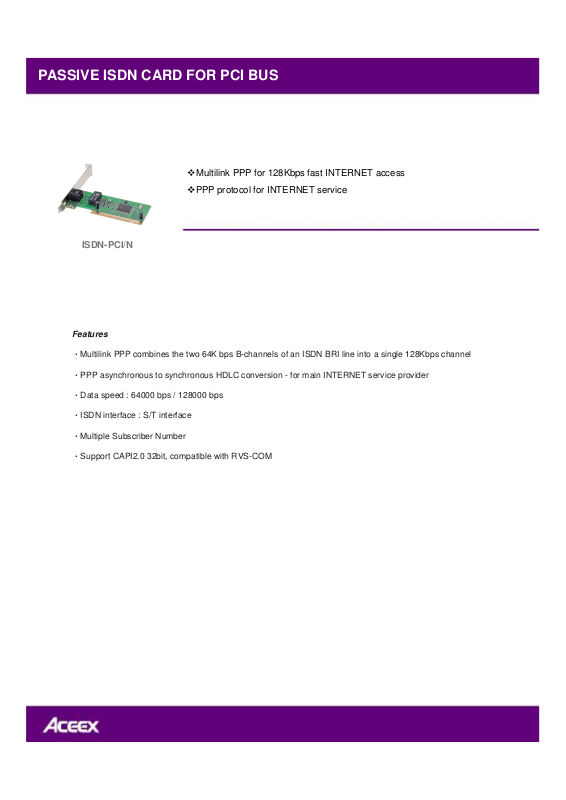

PASSIVE ISDN CARD FOR PCI BUS

Multilink PPP for 128Kbps fast INTERNET access

PPP protocol for INTERNET service

ISDN-PCI/N

Features

‧

Multilink PPP combines the two 64K bps B-channels of an ISDN BRI line into a single 128Kbps channel

‧

PPP asynchronous to synchronous HDLC conversion - for main INTERNET service provider

‧

Data speed : 64000 bps / 128000 bps

‧

ISDN interface : S/T interface

‧

Multiple Subscriber Number

‧

Support CAPI2.0 32bit, compatible with RVS-COM

PASSIVE ISDN CARD FOR PCI BUS

Specifications

ISDN interface

‧

S/T interface

‧

ITU-T I.430

ISDN standards

DSS1 (Euro-ISDN)

1. DSS1 (Euro ISDN/Net 3)

2. Japan NTT INS net64 (option)

B channel protocol

‧

Multilink PPP/128K bps

‧

PPP asynchronous-to-synchronous HDLC transparent

Computer interface

‧

For IBM PC/AT/486/Pentium and all IBM compatible

computers with PCI bus

Application:

Line requirements

‧

ISDN Basic Rate line (Order from your telephone

company)

Temperature

‧

32~122°F (0 ~50°C)

Humidity

‧

Max. 95% (Non-Condensing)

Regulatory Approvals

‧

FCC, CE
