Aceex ADSL2+ Wireless MIMO Router User Manual

User’s Manual

ADSL2+ Wireless

MIMO Router

Index

FCC Part 68....................................................................................................................................................... 3

FCC Part 15....................................................................................................................................................... 4

Chapter 1 Introduction ....................................................................................................................................... 4

1.1 Overview ..................................................................................................................................... 5

1.2 Features...................................................................................................................................... 5

1.3 System Requirements ................................................................................................................. 6

Chapter 2 Installation ......................................................................................................................................... 7

2.1 Checklist ..................................................................................................................................... 7

2.2 The Front LEDs ........................................................................................................................... 8

2.3 The Rear Ports ............................................................................................................................ 8

2.4 The Bottom Ports ........................................................................................................................ 9

2.5 Hardware installation ................................................................................................................. 10

Chapter 3 Configuration ................................................................................................................................... 12

3.1 Determine your connection settings ........................................................................................... 12

3.2 Connecting the ADSL Router to your network ............................................................................ 12

3.3 Configuring with Web Browser................................................................................................... 12

3.3.1 Hostname Setting ................................................................................................................... 15

3.3.2 System Time .......................................................................................................................... 16

3.3.3 Admin Setting ......................................................................................................................... 17

3.3.4 Firmware Update .................................................................................................................... 18

3.3.5 System Log ............................................................................................................................ 19

3.3.6 System Reset ......................................................................................................................... 20

3.4.1 ADSL Status ........................................................................................................................... 21

3.4.2 ADSL PHY Configuration ........................................................................................................ 22

3.4.3 VC Configuration .................................................................................................................... 23

3.5.1 WAN Configuration ................................................................................................................. 24

3.5.2 WAN Status ............................................................................................................................ 26

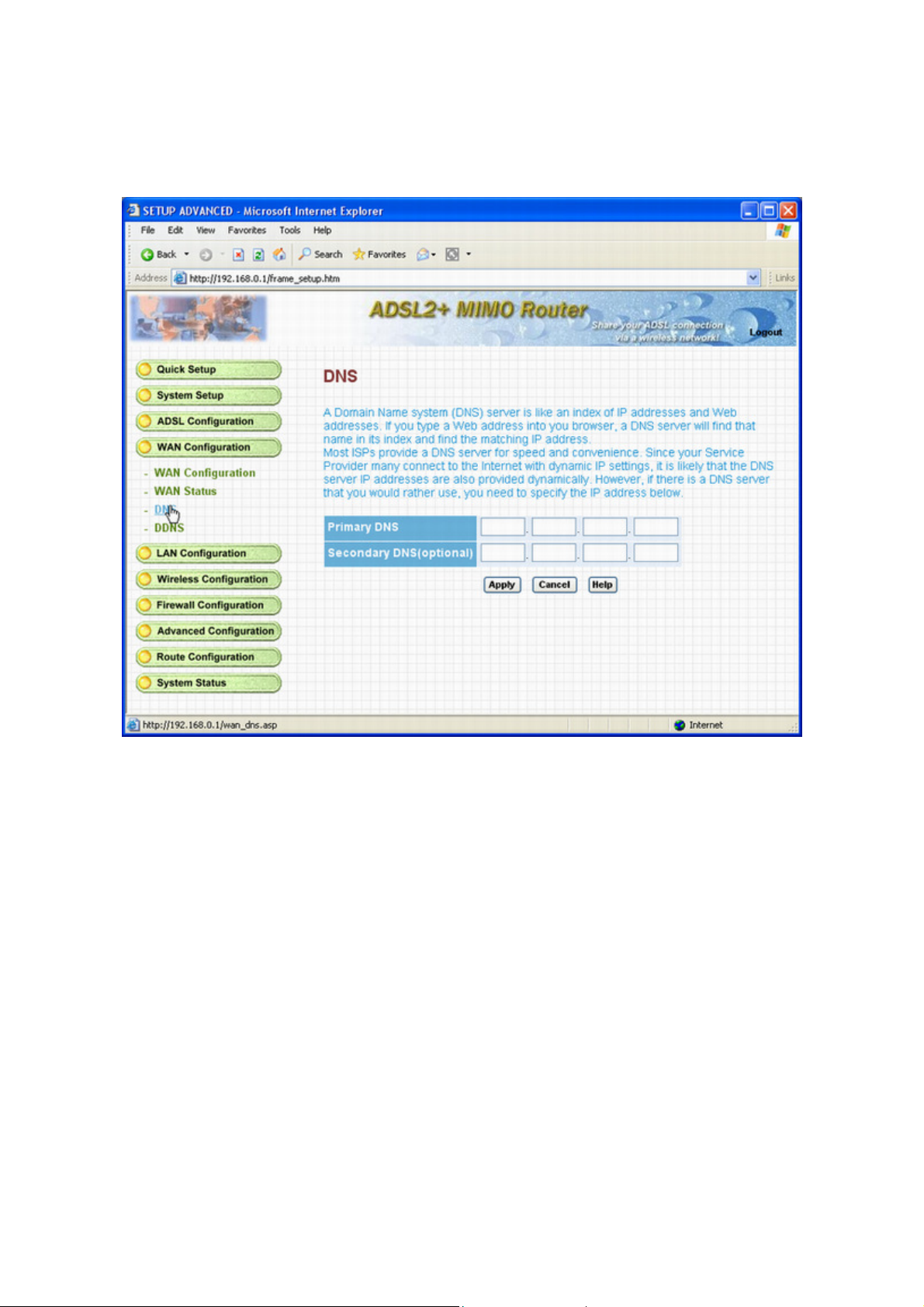

3.5.3 DNS ....................................................................................................................................... 27

3.5.4 DDNS..................................................................................................................................... 28

3.6.1 LAN Configuration .................................................................................................................. 29

3.6.2 DHCP Client List..................................................................................................................... 30

3.6.3 STB Bridge............................................................................................................................. 31

3.6.4 IGMP Setting .......................................................................................................................... 32

3.7.1 Wireless Setting ..................................................................................................................... 33

3.7.2 Wireless Security.................................................................................................................... 34

3.8.1 Firewall Setting....................................................................................................................... 35

3.8.2 DoS Options........................................................................................................................... 36

3.8.3 Packet Filtering....................................................................................................................... 37

3.8.4 MAC Control........................................................................................................................... 38

3.9.1 NAT Setting............................................................................................................................ 39

3.9.2 Virtual Server.......................................................................................................................... 40

3.9.3 Port Mapping .......................................................................................................................... 41

3.9.4 DMZ Setting ........................................................................................................................... 42

3.9.5 Application Server Settings ..................................................................................................... 43

3.10.1 Static Routing ....................................................................................................................... 44

3.10.2 Dynamic Routing .................................................................................................................. 45

3.10.3 Routing Table ....................................................................................................................... 46

3.11.1 System Status....................................................................................................................... 47

3.12.1 TCP/IP Settings for Windows Operating System ................................................................... 48

Appendix A Glossary........................................................................................................................................ 55

Appendix B Cabling / Connection..................................................................................................................... 62

FCC Part 68

This equipment complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains

the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must provide this

information to the telephone company upon request.

The REN is useful to determine the quantity of devices you may connect to the telephone line and still have those

entire devices ring when your number is called. In most, but not all areas, the sum of the REN of all devices

connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to

your line, as determined by the REN, you should contact your local telephone company to determine the

maximum REN for your calling area.

If the modem causes harm to the telephone network, the telephone company may discontinue your service

temporarily.

If possible, they will notify you in advance. But if advance notice isn't practical, you will be notified as soon as

possible.

You will be advised of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could

affect the proper operation of your equipment. If they do, you will be notified in advance to give you an opportunity

to maintain uninterrupted telephone service.

If you experience trouble with this modem, please contact your dealer for repair/warranty information. The

telephone company may ask you to disconnect this equipment from the network until the problem has been

corrected or you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is

subject to state tariffs.

FCC Part 15

The modem generates and uses radio frequency energy. If it is not installed and used properly in strict

accordance with the user's manual, it may cause interference with radio and television reception. The modem has

been tested and found to comply with the limits for Class B computing devices in accordance with the

specifications in Subpart B, Part 15 of the FCC regulations. These specifications are designed to provide

reasonable protection against such interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. FCC regulations require that shielded interface cables be

used with your modem.

If interference does occur, we suggest the following measures be taken to rectify the problem:

1) Move the receiving antenna.

2) Move the modem away from the radio or TV.

3) Plug the modem into a different electrical outlet.

4) Discuss the problem with a qualified radio / TV technician.

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance to the FCC Rules could

void the user's authority to operate this equipment.

Cable connections:

All equipment connected to this modem must use shielded cable as the interconnection means.

Notes:

Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may cause undesired

operation.

Chapter 1 Introduction

The ADSL2+ Router provides home connectivity to an ADSL service provider network over an

ADSL/Asynchronous Transfer Mode (ATM) physical layer. The router can run upstream maximum transmission

rates of 2Mbps and downstream maximum transmission rates of 24Mbps. The actual rate depends on the

copper category of your telephone wire, distance from the central office and the type of ADSL2+ service

subscribed. Four ports switch is provided for connection to an Ethernet LAN or Ethernet-equipped PC, and this

router is easy to install and to configure.

1.1 Overview

The Infineon Amazon Single-Chip ADSL2+ Router is optimized to address the growing demand for high-speed

Internet access, and it does so as a single, highly-integrated and cost-effective solution.

1.2 Features



ADSL2/2+ Compliance

‧Compliant with ADSL standards

Full-rate ANSI.413 Issue 2 , ITU G.dmt (G.992.1) , G.dmt bis (G.992.3) and G.adslplus(G.992.5)

standards Splitter less ITU G.lite (G.992.2) specification Annex A (ADSL over POTS) and Annex B (ADSL

over ISDN), compliant to ETSI TS 101 388

‧DMT modulation and demodulation

‧Full-rate adaptive modem

Maximum downstream rate of 24 Mbps

Maximum upstream rate of 2 Mbps

‧Tone detection for low power mode

‧Supports splitter less ADSL implementation

‧Interoperable with all major DSLAM equipment



ATM Protocols

‧WAN mode support: PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516)

‧LAN mode support: bridged/routed Ethernet over ATM (RFC 2684) and classical IP over ATM (RFC 1577)

‧Up to 15 VCs (virtual circuits)

‧ATM SAR (segmentation and reassembly)

‧ATM AALC (adaption layer type 5)



Bridge Mode

‧Ethernet to ADSL self learning Transparent Bridging (IEEE 802.1D)

‧Supports up to 128 MAC learning addresses



Router Mode

‧IP routing-RIPv2

‧Static routing

‧DNS Proxy

‧Dynamic DNS

‧DMZ

‧Port Forwarding

‧DHCP (dynamic host configuration protocol) server and client

‧NAT (network address translation)

‧ICMP (Internet control message protocol)



Wireless Features

‧Support 802.11b/g Wireless MIMO Access Point

‧Support 128-Bit and 64-Bit WEP encryption , 802.1x, WPA, WPA2



Security

‧Stateful packet inspection and filtering

‧Intrusion detection and protection

‧PAP (password authentication protocol)

‧CHAP (challenge authentication protocol)

‧Password protected system management



Ethernet Interface

‧Compliant with IEEE 802.3 and 802.3u 10/100 Mbps



HTTP Web-Based Management

‧Firmware upgrade by UI

‧Customizable Web pages

‧WAN and LAN side connection statistics

‧Configuration of static routes and routing table

‧Password protected access

‧Wireless LAN

‧System log

‧Configuration of VCs (virtual circuits)

1.3 System Requirements

1) Personal computer (PC)

2) Pentium II 233 MHz processor minimum

3) 32 MB RAM minimum

4) 20 MB of free disk space minimum

5) Ethernet Network Interface Controller (NIC) RJ45 Port

6) Internet Browser

Chapter 2 Installation

This chapter offers information about installing your router. If you are not familiar with the hardware or software

parameters presented here, please consult your service provider for the values needed.

2.1 Checklist

Check the shipping box carefully to ensure that the contents include the items you ordered. If any of the items are

missing or damaged, contact your local distributor. The contents of your carton may vary depending on your

service provider.

Contents description

1) ADSL2+ Router for home/office use

2) ADSL2+ Router Installation and Operation Guide (this publication)

3) Power supply with 9Vdc / 1.5 Ampere power adapter

4) ADSL cable RJ-11 telephone cable (6 ft)

5) Ethernet cable Ethernet category 5 twisted pair cable (6 ft)

2.2 The Front LEDs

modem is trying to establish a connection to telco's network Modem is

devices, such as PCs, print servers remote hard drives, and anything else you want to

LED State Description

POWER ON When the router power on.

"Showtime"-successful connection between ADSL modem and telephone company's

network.

ADSL

Flashing

OFF

"Handshaking"-

powered OFF ADSL Carrier Detect if LED is flash.

ACT Flashing Data transmit between router and telco.

WLAN ON When wireless AP is ready.

ON Link

Flashing TX or RX activity

LAN

1-4

No Link

These four LAN (Local Area Network) ports are where you will connect networked

OFF

put on your network.

2.3 The Rear Ports

Connector Description

POWER Power connector with 9VDC/ 1.5 Ampere.

Reset Switch The reset button, the router restore default settings when press until reboot.

Router is successfully connected to a device through the corresponding port (1, 2, 3 or 4).

LAN (1-4)

If the LED is flashing, the Router is actively sending or receiving data over that port.

The RJ-11 connector allows data communication between the modem and the ADSL

ADSL Connector

network through a twisted-pair phone wire.

2.4 The Bottom Ports

Connector Description

Reset Switch The reset button, the router restore default settings when press until reboot.

2.5 Hardware installation

This section describes how to connect and configure the ADSL2+ Router.

Step 1. Connect the ADSL Line

Connect the router directly to the wall jack using the included ADSL cable.

Step 2. Connect a Workstation to the Router's LAN port

There are two methods to connect the router and workstation. The one use the crossover Ethernet cable to

connect directly between them. The other use straight Ethernet cable to connect router with hub (or switch), and

then go to the workstation.

Step 3. Connect the Power Adapter to the Router

Connect the power adapter to the port labeled POWER on the rear panel of router.

Step 4. Connect All Cables to the Network

The procedure for connecting cables differs depending on whether or not your telephone equipment is connected

to a POTS splitter.

POTS Splitter Configuration (ADSL over POTS)

A POTS splitter separates data signals from voice signals on your telephone line. The POTS splitter works by

running a separate data line from the voice line, so that the ADSL router has a dedicated cable for data

transmission. Figure 2-5.1 and 2-5.2 shows how to connect all cables to the Router.

Figure 2-5.1 Router Connected through a POTS Splitter

Note: The POTS splitter may also be installed on the outside of the house adjacent to the telephone network

interface device (NID).

Figure 2-5.2 Router Connected through several micro-filters

ISDN Splitter Configuration (ADSL over ISDN)

A ISDN splitter separates ADSL signals from ISDN signals on your ISDN telephone line. The ISDN splitter works

by running a separate ADSL line from the ISDN line, so that the ADSL router has a dedicated cable for data

transmission.

Figure 2-5.3 shows how to connect all cables to the Router.

Figure 2-5.3 Router Connected through an ISDN Splitter

Note: The ISDN splitter may also be installed on the outside of the house adjacent to the telephone network

interface device (NID).

Chapter 3 Configuration

3.1 Determine your connection settings

Before you configure the router; you need to know the connection information supplied by your ADSL service

provider.

3.2 Connecting the ADSL Router to your network

Unlike a simple hub or switch, the setup of the ADSL Router consists of more than simply plugging everything

together.

Because the Router acts as a DHCP server, you will have to set some values within the Router, and also

configure your networked PCs to accept the IP Addresses the Router chooses to assign them. Generally there

are several different operating modes for your applications. And you can know which mode is necessary for your

system from ISP. These modes are router, bridge, PPPoE+NAT and NAT and PPPoA+NAT.

3.3 Configuring with Web Browser

It is advisable to change the administrator password to safeguard the security of your network.

To configure the router, open your browser, type 'http://192.168.0.1' into the address bar and click 'Go' to get to

the login page. Save this address in your Favorites for future reference.

At the Password prompt, type 'admin'. You can change these later if you wish. Click 'LOGIN'.

You can use "Quick Setup" to setup the router, and the router will connect to the Internet via ADSL line.

3.3.1 Hostname Setting

Enter the host name representing your host and the domain name you want to configuration, then you can doing

web configuration by typing the whole name you configuration instead by typing the IP address.

3.3.2 System Time

Connecting to a Simple Network Time Protocol (SNTP) server allows the router to synchronize the system clock

to the global Internet. The synchronized clock in the router is used to recorded the security log and control client

filtering.

3.3.3 Admin Setting

Set a password to restrict management access to the router. The default is admin.

3.3.4 Firmware Update

The new firmware for your router can improve functionality and performance.

Enter the path and name of the upgrade file then click the APPLY button below.

You will be prompted to confirm the upgrade.

3.3.5 System Log

Click “Download” to save or open system log file.

+ 44 hidden pages
