ACE CAD Enterprise BTX-100 User Manual

Digitally capture & store everything you write with ink on ordinary paper.

User Guide

Federal Communications Commission (FCC) Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency ener gy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

The user should not modify or change this device without written approval from ACE CAD Enterprise Co., Ltd. Modification could void authority to use this equipment.

Trademark Information

ACECAD and ACECAT are registered trademarks of ACE CAD Enterprise Co., Ltd. Microsoft and Windows are registered trademarks of Microsoft Corporation. SanDisk is a registered trademark of SanDisk Corporation. Pentium is a registered trademark of Intel Corporation. Internet is a trademark of Digital Equipment Corporation. Adobe and Acrobat are registered trademarks of Adobe Systems Inc. All other trademarks are the property of their respective owners.

©2006 ACE CAD Enterprise Co., Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or other wise), without the prior written permission of the publisher.

GETTING STARTED....................................................................................................1

EQUIPMENT CHECKLIST...............................................................................................1

THE PARTS OF THE DIGITAL PAD ..................................................................................2

INSTALLING THE BATTERIES INTO THE DIGITAL PAD ....................................................3

INSTALLING THE BATTERY INTO THE DIGITAL INKING PEN...........................................3

PUTTING A NOTEPAD OR PAPER ON THE DIGITAL PAD...................................................4

THE WRITING AREA AND THICKNESS...........................................................................4

STORAGE DEVICE IN THE DIGITAL PAD ........................................................................5

WRITING AND RECORDING YOUR HANDWRITTEN NOTES.........................6

TURNING ON THE DIGITAL PAD ....................................................................................6

CHANGING THE CURRENT DIGITAL PAGE.....................................................................7

THE PEN ICON..............................................................................................................7

WRITING YOUR NOTES ON A NEW PAGE ......................................................................7

WRITING YOUR NOTES ON A PAGE ALREADY WITH CONTENTS....................................8

ERASING A DIGITAL PAGE ON THE DIGITAL PAD ...........................................................8

TURNING OFF THE DIGITAL PAD...................................................................................9

SETTING THE DATE AND TIME......................................................................................9

LOW BATTERY INDICATION ON THE DIGITAL PAD.......................................................10

NOTES ON REPLACEMENT OF BATTERIES IN THE PAD.................................................10

NOTES ON USE OF THE SD MEMORY CARD ................................................................10

FULL MEMORY INDICATION .......................................................................................10

ORGANIZING YOUR NOTES IN WINDOWS.......................................................11

INSTALLING THE DIGIMEMO MANAGER SOFTWARE ...................................................11

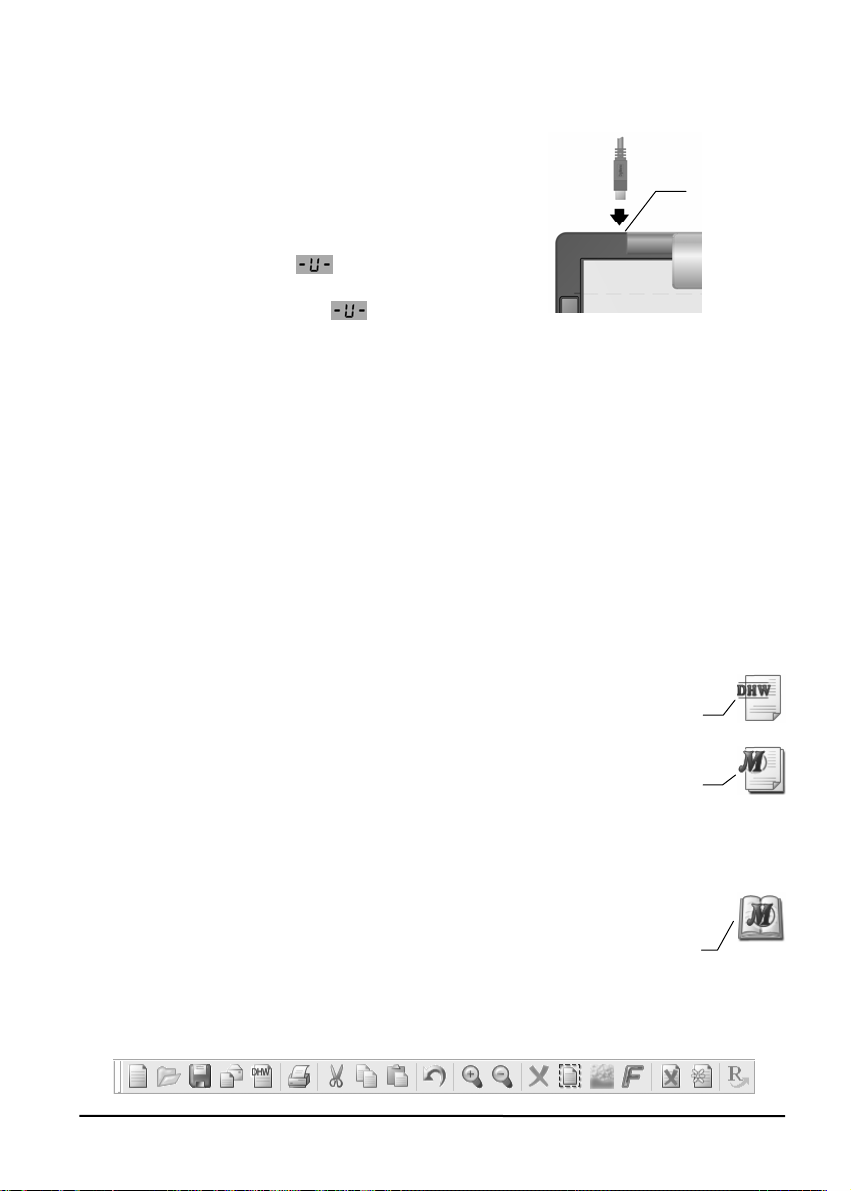

CONNECTING THE DIGITAL PAD TO YOUR COMPUTER................................................13

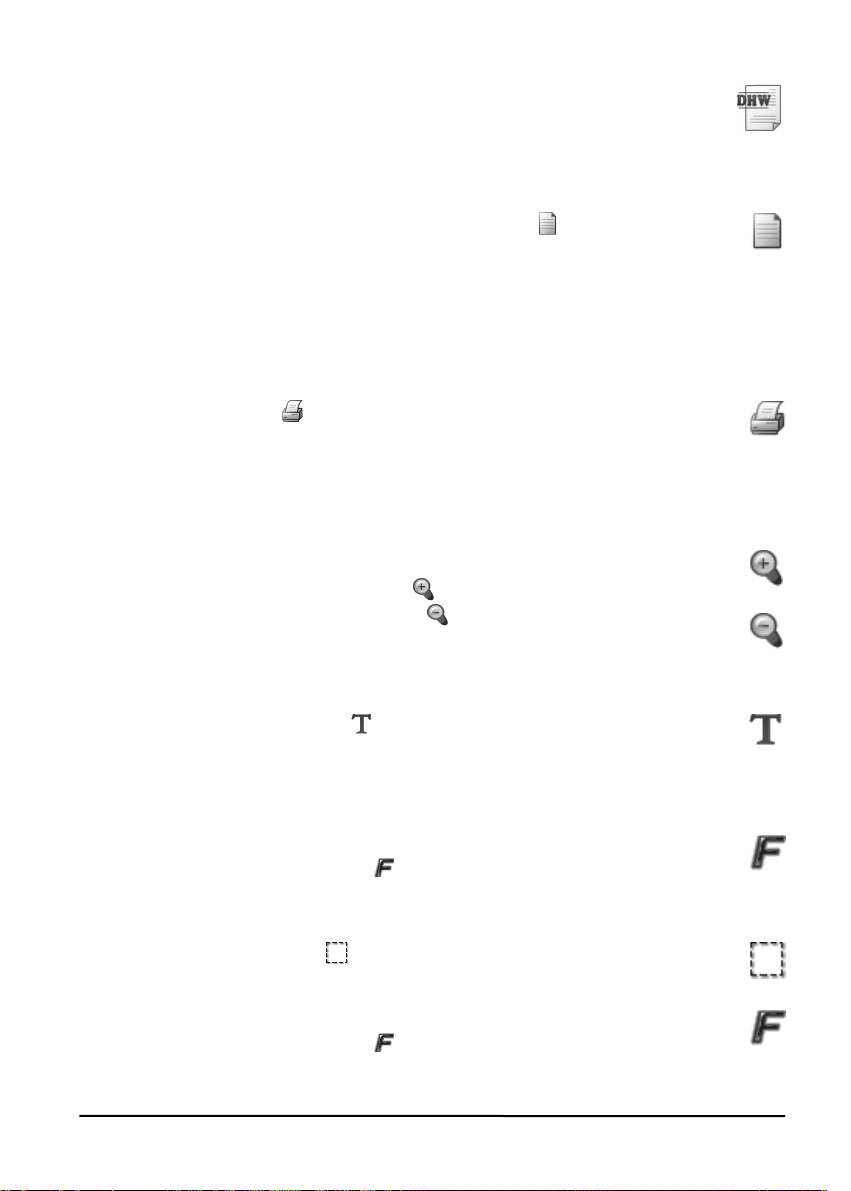

CREATING YOUR E-BOOK FILE ..................................................................................13

Toolbars................................................................................................................13

Importing Y o ur Digital Pages...............................................................................14

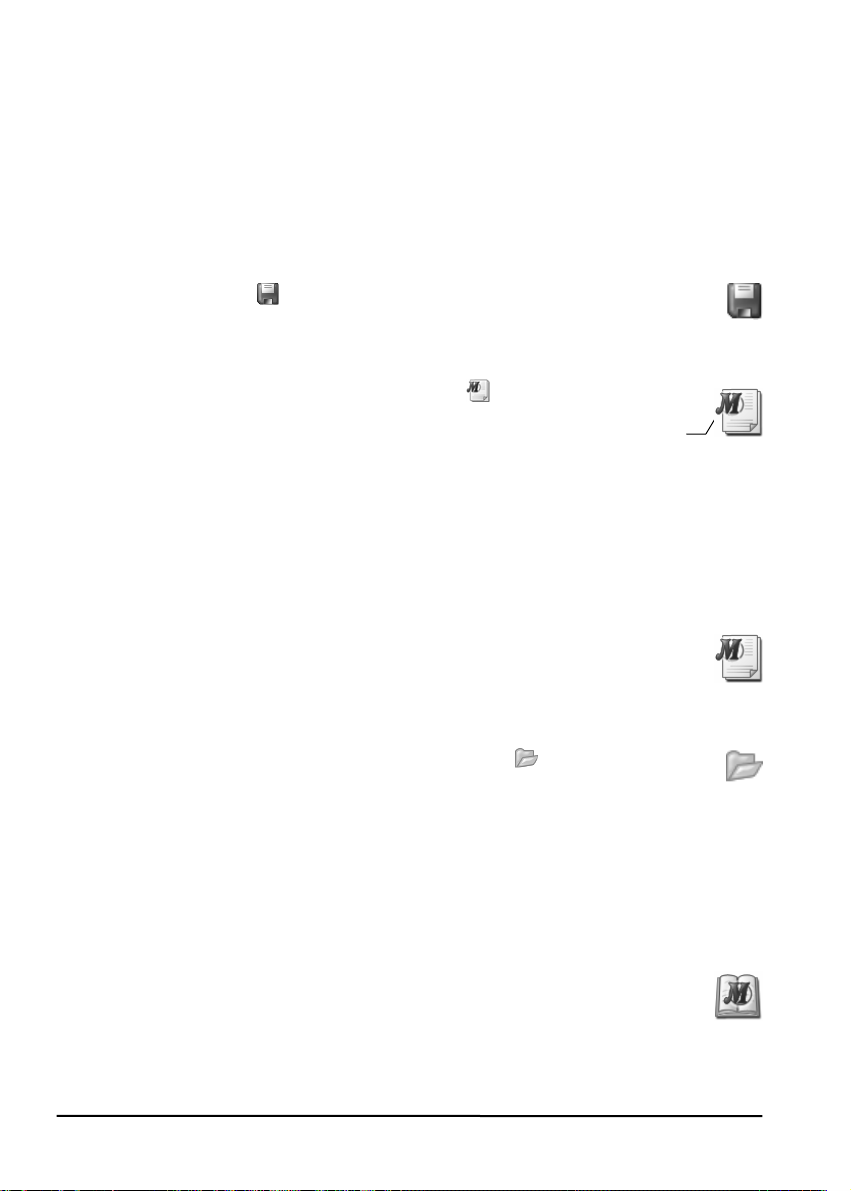

Saving an e-Book File..........................................................................................16

Saving a Copy of an e-Book File..........................................................................16

Opening an e-Book File........................................................................................16

Creating a New e-Book File.................................................................................16

Printing an e-Book file.........................................................................................17

EDITING YOUR E-BOOK FILE .....................................................................................17

Zooming in and Zooming out ...............................................................................17

Inserting a Text Box..............................................................................................17

Editing an Existing Text Box.................................................................................17

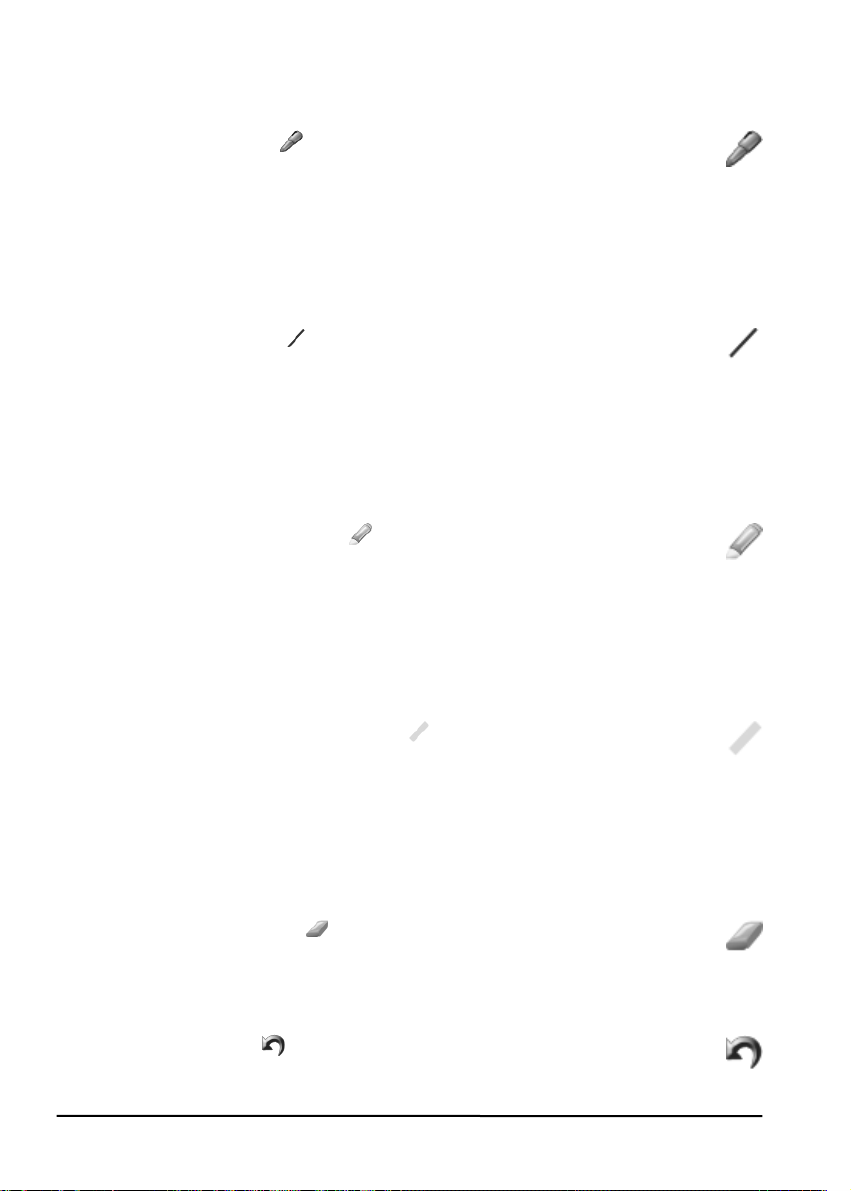

Drawing a Freeform Line and Writing.................................................................18

Drawing a Straight Line .......................................................................................18

Drawing a Highlighting and Freeform Li ne.........................................................18

Drawing a Highlighting and Straight Line...........................................................18

Erasing Objects....................................................................................................18

Undoing the Last Action.......................................................................................18

Selecting Objects..................................................................................................19

Resizing Objects...................................................................................................19

Moving Objects.................................................................................................... 19

Deleting Objects .................................................................................................. 19

Copying or Moving Objects.................................................................................20

Changing the Color and Width of Objects ........................................................... 20

Adding a New Page..............................................................................................21

Setting the Default New Page Size....................................................................... 21

Moving the Current Page.....................................................................................21

Removing the Current Page.................................................................................21

Showing the Background of Pages....................................................................... 22

Switching the Current Page by Keyboard Shortcuts............................................ 22

Saving the Current Page as an Im age File.......................................................... 22

Sample of an Edited e-Book File..........................................................................23

ON-LINE WRITING YOUR NOTES ...............................................................................23

Causes of the On-line Writing Function Disabled or Closed............................... 25

SENDING YOUR E-BOOK FILE IN E-MAIL................................................................... 25

CONVERTING YOUR HANDWRITTEN NOTES IN YOUR E-BOOK FILE ..........................27

USING ANOTHER OPTIONAL CARD READER.............................................................. 27

EASILY MANAGING DIGITAL PAGE FILES...................................................................27

Deleting the Digital Pages in the DigiMemo Manager.......................................28

TABLET DEVICE IN WINDOWS............................................................................ 30

APPENDIXES .............................................................................................................31

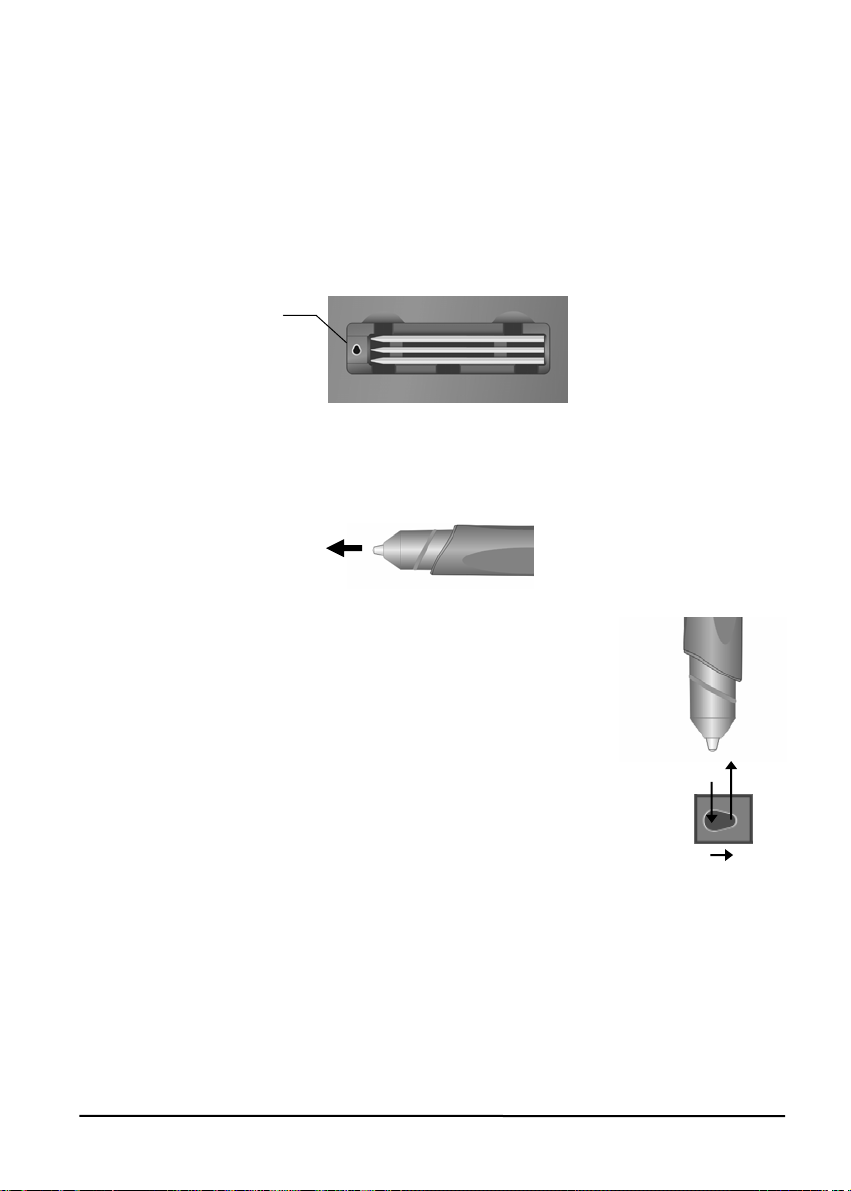

REPLACING THE CARTRIDGE OF THE DIGITAL PEN.....................................................31

Purchasing New Replacement Ink Cartridges .....................................................31

REPLACING THE BATTERY IN THE DIGITAL PEN .........................................................32

REMOVING THE DIGIMEMO MANAGER SOFTWARE IN WINDOWS..............................32

CARING FOR THE DIGIMEMO..................................................................................... 32

ERROR CODES ON THE DISPLAY OF THE DIGITAL PAD................................................33

The Malfunction of the Built-in 32 MB Storage Device — the Error Code E04.. 33 The File System Incompatibility of an Optional SD Memory Card — the Error

Code E02 ............................................................................................................. 34

The Damage or Incompatibility of an Optional SD Memory Card — the Error

Code E01 ............................................................................................................. 34

The Full Root Directory — the Error Code E06.................................................. 34

The Damage of the Digital Pad — the Error Code E03 or E05 ..........................35

TROUBLESHOOTING................................................................................................... 35

General Problems................................................................................................35

Problems in the DigiMemo Manager Software....................................................37

Problems When Connecting the Digital Pad to your Computer .......................... 38

SPECIFICATIONS.........................................................................................................39

Digital Pad Specifications of DigiMemo L2 Model............................................. 39

Digital Pad Specifications of DigiMemo A402 Model......................................... 39

iii

General Digital Pad Specifications......................................................................39

Digital Pen Specifications....................................................................................40

File Formats.........................................................................................................40

System Requirements............................................................................................40

Environment.........................................................................................................40

Getting Started

The DigiMemo is a stand-alone device with storage capability that digitally captures and stores everything you write or draw with ink on ordinary paper, without the use of computer and special paper. Then you can easily view, edit, organize and share your handwritten notes in Windows.

When connected to a PC, the DigiMemo offers an on-line writing function which can instantly synchronize your writing on the paper with the digital page in its software in Windows. It also is a USB tablet device in Windows.

Equipment Checklist

The following items are included in your DigiMemo package:

z Digital Inking Pen

(DigiPen P100)

z Portable Digital Pad

z Notepad (already held on the digital pad) z Two Replacement Ink Cartridges (already stored in the digital pad) z One Plastic Pen Tip (already stored in the digital pad) z USB Cable z Four Batteries (1.5 volt, size AAA) z One 1.55V Button Cell Battery z User Guide z DigiMemo Manager Software CD

The Parts of the Digital Pad

USB Connector

Display

Power Button

Four Function

Button

Battery Compartment

LED

Pen Holder

SD Card Insertion Slot

Notepad Clip

Notepad Holder

Battery Compartment Cover

Com

Two Replacement

Ink Cartridges and

One Plastic Pen Tip

Cartridge

artment

Cartridge Compartment Cover

Installing the Batteries into the Digital Pad

Open the battery compartment cover of the digital pad. Insert four batteries (1.5 volt, size AAA) into the battery compartment in accordance with the indication in the battery compartment. Close the battery compartment cover.

Note! Incorrect battery installation may

damage the digital pad. Note! Do not mix new and used batteries. Note! With continuous use of the digital pad, four AAA alkaline batteries will

last approximately 80 hours.

Installing the Battery into the Digital Inking Pen

Unscrew the barrel cover counterclockwise from the

(+) Can

barrel of the pen. Take out the button cell battery (SR626SW, 377 or IEC-SR66) that is included in the package of the DigiMemo. Insert the battery into the battery compartment with the negative (-) cap facing the battery compartment. Screw the barrel cover clockwise onto the barrel until tight.

Pen Clip Front Section Barrel

(-) Cap

Battery Compartment

Pen Cap Ink Cartridge

Barrel Cove

Rear Section

Note! Incorrect battery installation will result in the malfunction of the digital

inking pen. Note! The battery of the digital inking pen will last approximately 14 months. Note! The front or rear section of the pen can hold the pen cap. Note! You can attach some cord or accessory to the pen

n En

through the two holes on the pen end.

Note! You can clip the pen to the pad by using the pen clip to clip to the right

or left pen holder on the notepad clip.

Two Holes

Note! You can attach some cord or accessory such as the pen to the pad

through the two holes on the upper-right corner of the pad.

Putting a Notepad or Paper on the Digital Pad

You can use the notepad clip to hold a notepad in the notepad holder on the pad. You also can directly put a few sheets of paper on the writing area of the pad for your writing.

The Writing Area and Thickness

The writing area is the area on the digital pad where the digital pad can digitally capture and store everything you write with the digital inking pen as digital ink. The writing area is shown as the white area in the illustration. The carving lines on the pad are the margin indicators which indicate the upper boundary of the writing area.

Note! Your handwriting on paper

outside the writing area can not be digitally captured and stored by the digital pad.

The writing thickness is the maximum thickness above the writing area where the digital pad can digitally capture and store everything you write with the digital inking pen as digital ink. The writing thickness is 14 mm (0.55") about 140 sheets of paper.

Writing

Area

Storage Device in the Digital Pad

The digital pad is equipped with a built-in 32 MB handwritten notes. You also can load an optional card into the pad to expand the storage capacity of the pad.

To load an optional Secure Digital (SD) memory card, insert the memory card all the way into insertion slot until it clicks by holding the me terminal side facing upward.

Note! The optional memory card must be Secure Digital (SD) memory card

with the file system FAT. Note! To remove the Secure Digital (SD) memory card, push the memory

card to pop it out. Note! Some brands of memory cards may not be compatible with this digital

pad. Before purchasing a memory card, consult its manufacturer or

dealer. Along with the digital pad, we recommend you to use Secure

Digital (SD) memory cards (32 MB to 2 GB) of the brand SanDisk.

storage device to store your Secure Digital (SD) memory

mory card with the

SD Card Insertion Slot

Terminal Side

Clipped Edge

Writing and Recording Your Handwritten Notes

Using the digital inking pen on the digital pad produces both familiar ink notes on ordinary paper and digital pages in the storage device of the pad.

Note! The DigiMemo is a stand-alone device. You do not need to connect the

digital pad to your computer for this function.

Turning on the Digital Pad

Press and hold the Power button on the digital pad until the

icon appears on the display. Release the Power button to turn on the pad. The display will be on and show the Digital Page Number, Page icon, Storage Device icon, Time display and Battery icon.

Note! The digital pad can not be turned on when connected to a

PC.

z Storage Device Icon

Without loading an optional SD memory card, the Storage Device icon is displayed and the built-in 32 MB storage device is the current storage device. Your handwritten notes will be stored in the built-in 32 MB storage device.

With loading an optional SD memory card, the Storage Device icon displayed and the optional SD memory card is the current storage device. Your handwritten notes will be stored in the optional SD memory card.

z Digital Page Number

The Digital Page Number indicates the current digital page in the current storage device. Your handwriting will be captured and stored in the current digital page in the current storage device (the built-in 32 MB storage device or the optional SD memory card).

The digital pad can manage up to 999 digital pages for each storage device (the built-in 32 MB storage device or the optional SD memory card).

z Page Icon

The Blank Page icon indicates that the current digital page contains no digital ink.

The Page with Contents icon indicates that the current digital page contains digital ink.

z Battery Icon

The Battery icon indicates the battery strength in the digital pad.

Changing the Current Digital Page

You can use the following function buttons on the pad to change the current digital page in the current storage device.

z Page Backward Button

Press the Page Backward button By pressing and holding the Page Backward button Number moves fast and backward. Once release the button moving.

z Page Forward Button

Press the Page Forward button pressing and holding the Page Forward button Number moves fast and forward. Once release the button moving.

z Next Blank Page Button

Press the Next Blank Page button page.

to move to the previous digital page.

, the Digital Page

, it stops

to move to the next digital page. By

, the Digital Page

, it stops

to move to the next blank digital

The Pen Icon

When you are writing or drawing on paper by using the digital pen on the digital pad, the Pen icon appears on the display. The Pen icon indicates that the digital pad is capturing and storing your handwriting as digital ink.

Note! If you do not see the Pen icon while writing, try to alter the pressure you

apply on the pen tip.

Writing Your Notes on a New Page

By using the , or function button, select any blank digital page in which you want to store a new page of your handwritten notes on paper. We recommend you to put down the same page number on this new page of paper as the Digital Page Number. It helps you to synchronize your paper notes and digital pages.

Under the current Digital Page Number displayed, everything you write will be

immediately captured and stored in the current digital page file of the current storage device. The file name of this digital page is PGLT_XXX.DHW for the model DigiMemo L2, or PGA4_XXX.DHW for the model DigiMemo A402 (the XXX is the Digital Page Number such as 001).

While the Storage Device icon in the DMEMO-M folder in the built-in 32 MB storage device.

While the Storage Device icon in the DMEMO-S folder in the optional SD memory card.

Note! To avoid creating a superimposed digital page, make sure that you

select a blank digital page each time you change a page on paper.

Note! As you will see later, it is quite important to keep your written page

number and the Digital Page Number aligned. For example, you can know the contents in the digital page from the page number that you wrote on paper.

Note! If you frequently alternate the built-in 32 MB storage device and an

optional SD memory card, we recommend you to write the page number like “Page M24”, “P M24”, “Page SD24”, “P SD24” … etc. It is more convenient for you to know which storage device the digital page is stored in.

Note! The more you write on a digital page, the bigger size of the digital page

file will be.

is displayed, the digital page file is stored

Writing Your Notes on a Page Already with Contents

Anytime you can switch to the paper page already with the contents and continue to write your notes. Moreover, use the move the Digital Page Number to the one same as you wrote on the paper page. Now, start to write! Through this way, your new handwriting will be captured and stored in the right digital page.

or function button to

Erasing a Digital Page on the Digital Pad

Erasing a digital page is similar to tearing off a paper page. By using the or

function button to move the Digital Page Number to the one which you want

to erase. Then press the Erase button

message. Press the Erase button again to erase all contents

stored in the digital page. Here is a brief recommendation: you may want to tear off the paper page or

simply cross out the page number you wrote on the paper page.

on the pad. The display will show

Note! When message appears, the erase procedure will be

cancelled if you write or press any button functions. All contents remain intact in the digital page.

Note! Once a digital page is erased, its original contents can not be

recovered.

, or to execute other

Turning off the Digital Pad

Press the Power button to turn off the digital pad. The display will be blank. If you have not written or pressed any function button within the previous 30

minutes, the digital pad sounds a beep and automatically shuts down. The display will be blank.

Note! Since the pad has the automatic shutdown capability, please make sure

that the display is on if you want to write again after a long period of time.

As you turn on the digital pad, the display will show the last Digital Page

Number at the time it was turned off.

Setting the Date and Time

The dates created and modified for the digital page file are recorded according to the clock in the digital pad.

Turn off the digital pad. Press and hold the

2. button until the year digits flash on the display.

3. Repeatedly press or hold down the

4. Press the

Repeat Step 3 and 4 to set the month, day, hour, minute, second and year cyclically.

Note!

Press the be stored. Then the digital pad will be turned on and the current time appears on the display.

Note! If you turn off the digital pad during the setting, the date and time

button. Then the month digits flash.

Only 24-hour format is available.

button during the setting. The date and time adjustment will

adjustment will be not stored. The clock automatically returns to the previous setting.

button on the digital pad. Then press the Power

or button to set the year.

Low Battery Indication on the Digital Pad

When the batteries remain too low power and are in need of replacement, the Low Battery icon will appear on the display. Please replace the batteries in the pad.

When the batteries are exhausted, the pad sounds 3 beeps. Then the pad is turned off immediately.

Notes on Replacement of Batteries in the Pad

When you replace the batteries in the pad, if the batteries are not in the battery compartment over about one minute, the adjusted date and time will be erased. Please reset the date and time.

Notes on use of the SD Memory Card

z Before you remove the SD memory card from the pad, please turn off the

pad first. Or some data in the last digital page file may be lost.

z When a SD memory card with the write-protect switch set to LOCK is

inserted into insertion slot, the pad sounds 2 beeps and the Storage Device icon write on the pad, the pad will beep. You can not use the digital pad under this situation. Please remove the SD memory card with the write-protect switch set to LOCK.

flashes on the display. If you use the digital inking pen to

Full Memory Indication

The 90% icon will appear to indicate that 90% capacity of the current storage device (

The Full icon will be shown if the memory is full in the current storage device ( not store your new handwriting. Also, if you still keep writing, the pad sounds 2 beeps.

Note! Under such circumstances, you need to erase unwanted digital pages if

you want to continue to write.

Note! In the following chapter, you will find that it is very easy to import, copy,

move and delete the digital pages when connecting the pad to your PC through USB cable.

or ). If that is the case, the digital pad can

or ) is used.

Organizing Your Notes in Windows

With its DigiMemo Manager software, you can easily view, edit, organize and share your digital pages in Windows. You can save any digital pages you arbitrarily select as a book file (e-Book).

Installing the DigiMemo Manager software

1. Turn on your computer and start Windows.

2. Insert the DigiMemo Manager software CD into the CD-ROM drive. The software installer will automatically launch. If the CD auto-run feature is not enabled, double-click the Setup icon on the DigiMemo Manager software CD. Select the Install DigiMemo Manager option in the dialog box.

3. Click Next in the dialog box.

4. Click Next in the dialog box.

5. In the dialog box, click

6. The DigiMemo Manager software has been successfully installed. Click

Close in the dialog box. Please restart your Windows.

Next to start the installation.

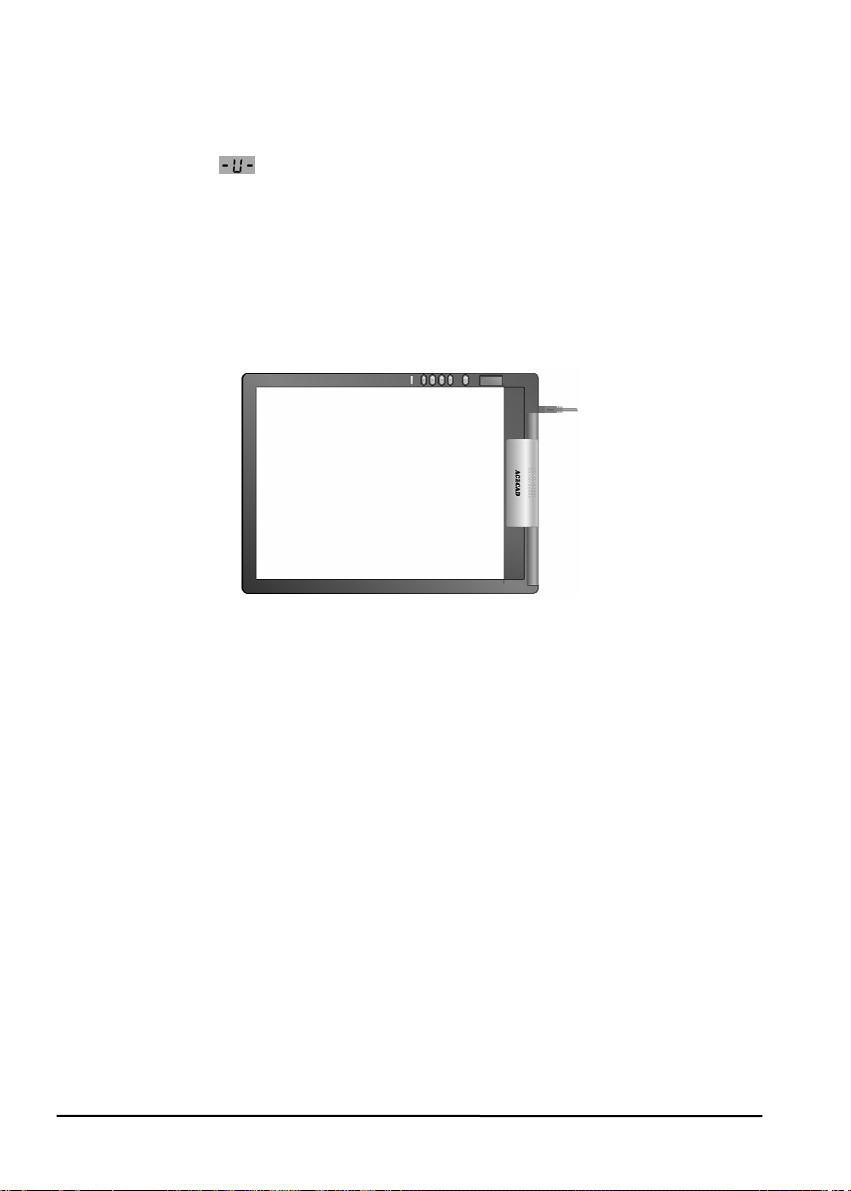

Connecting the Digital Pad to Your Computer

Turn on your computer. Take out the USB cable included in the package. Plug the wide connector of the cable into an available USB port on your computer. Connect the o the USB connector of the

ther end of the cable to

digital pad.

USB Connector

The Connection icon

will appear on the display of the pad. The LED on the pad will light. The Connection icon

indicates the connection between the digital pad and your computer. When connecting the pa

d to the com

puter, please notice the

following:

z Your Windows will automatically detect the built-in 32 MB storage device

and the optional SD memory card in the pad as removable storage devices.

z The pad is powered by the computer. z The digital pad can not be turned on. At this moment, your handwriting can

not be stored into the digital page file in the storage device of the pad.

z The pad is a USB tablet device in Windows. Please refer to the chapter —

Tablet Device in Windows.

z You can store any computer files such as Word files to the built-in 32 MB

storage device and the optional SD memory card.

z By using the DigiMemo Manager software, you

can easily import and organize your digital pages as a book file (e-Book). Moreover, if you double-

Digital Page

File Icon

click a digital page file, the DigiMemo Manager software will be opened and it will import the digital page to a new book file (e-Book).

e-Book File

Icon

C eating Your e-Book File

the Windows desktop, double-click the ACECAD

Di iMemo Manager icon to open the software.

Toolbars

The

following toolbars are on the software window:

z Standard Toolbar

ACECAD

DigiMemo

Manager

Icon

Tools Toolbar z

z Color Toolbar

z Width Toolbar

To move a toolbar to the new location, drag the move handle on a docked toolbar or the title bar on a floating toolbar.

Move Handle

Move

Handle

Docke oolbard T

Title Bar

Docked Toolbar

Floating Toolbar

Importing Your Digital Pages

1. Click the Digital Page button on the Standard toolbar. The Digital Page dialog box will appear.

2. Select the Import digital pages folder from which you want to import

option button. Click Browse to select a

your digital pages. Such folder could

possibly be the DMEMO-M, the DMEMO-S, the DMEMO-C or any folder

that contains digital pages.

3. ialog box will appear.

Click OK. The Import Digital Pages d

4. To select nonadja page, and then hold down the CTRL age.

To select adjace page in the sequence, and then hold gital page.

cent digital pages, click one digital

key and click each additional digital p

nt digital pages, click the first digital

down the SHIFT key and click the last di

To preview a digital page, select the digital page and click Preview. Click OK. The digital pages you select will be imported to this book

5. file.

Current Page

Indicator

Page

Thumbn

ails

Current Page

Number and Size

Note! You can click any page thumbnail to quickly switch the current

page. Note! You can import and insert any digital pages after the current page. Note! The current page number indicates the current page of this book file

(e-Book). Note! As importing, the original digital page remains intact.

Saving an e-Book File

Click the Save button on the Standard toolbar. Note! If you are saving the e-Book file for the first time, you will be asked to

give it a name.

Note! The icon of a book file (e-Book) is

extension of a book file (e-Book) is DND.

. The

e-Book File

Icon

Saving a Copy of an e-Book File

On the File menu, click Save As. In the dialog box, enter a new name for the eBook file. C

Opening

You can us

z In the f e-book file, double-click the e-Book file to open

the file Note! By this way, you can open various e-Book files in different

z In the software win ow, click the Open button on the Standard

toolbar. In the dialog box, select the folder and then the e-Book file. Click Open.

Note! s e-Book file is not saved in its software window, you

lick Save.

an e-Book File

e the following methods to open your e-Book file.

older of the

in a new software window.

software windows

If the previou

will be asked to save that e-Book file.

Creating a New e-Book File

You can use the following methods to crea

te a new e-Book file.

z On the Windows desktop, double-click the ACECAD DigiMemo

Manager icon to create a

page in a new software win Note! By this way, you can open various e-Book files in

windows.

new and blank e-Book file with a new

dow.

different software

z In the folder of a digital page file, double-click the digital page file.

The digital page will be imported t softwar

Note! n open various e-Book files in different software

e window.

By this way, you ca windows.

o a new e-Book file in a new

In the software window, click the New button toolbar. A new in the s

Note! d in its software window, you

oftware window.

If the previous e-Book file is not save will be asked to save that e-Book file.

and blank e-Book file with a new page will be created

on the Standard

Printing an e-Book file

Cl k the Print button on the Standard toolbar. Click Ok to print the

e-Book file.

Editing

Your e-Book File

Zooming in and Zooming out

You

can click the Zoom in button to get a close-up view of the

rent page or the Zoom out

cur button reduced siz

to see more of the page at a

Inserting a Text Box

Click the Text Box button on the Tools toolbar.

Click an box.

3. Type and edit Note! You can click a col

d drag in the current page where you want to insert the text

your text in the text box.

or button to change the color of the text or

click the Fon button

to change the font of text.

Editing an Existing Text Box

1. Click the Select button on the

2. Click anywhere inside the existing Note! You can click a color button to chan

click the Font button

to change the font of text.

Tools toolbar. text box. Then edit your text.

ge the color of the text or

Drawing a Freeform Line and Writing

1. Click the Pen button on the Tools toolbar. You can switch the color clicking a color butto

2. by n on the Color toolbar. You can change the width by clicking a width button on the Width toolbar.

Drag to draw a freeform line or write.

Drawing

1. Click the Line button

2. You can switch the color by clic toolbar. You can change the width by clicking a w Width toolbar.

Click and drag to draw a straight line.

Drawing F

1. Click the Highlighter button

2. You can switch the color by clicking a color button on the Color toolbar. You can change the width by clicking a width button on the Width toolbar.

3. Click and drag to draw a highlighting and freeform line.

a Straight Line

on the Tools toolbar.

king a color button on the Color

idth button on the

a Highlighting and reeform Line

on the Tools toolbar.

Drawing a Highlighting and Straight Line

1. Click the Highlighting Line button on the Tools toolbar.

2. You can switch the color by clicking a color button on the Color toolbar. You can change the width by clicking a width button on the Width toolbar.

3. Click and drag to draw a highlighting and straight line.

Erasing Objects

1. Click the Eraser button on the Tools toolbar.

2. To erase, drag the pointer over the digital ink strokes or lines.

Undoing the Last Action

Click the Undo button on the Standard toolbar to undo the very last action you took.

Selecting Objects

You can u methodse the following s to select object s:

z To select only one object, click the Select button and then one

digital ink stroke or line. A Selection box will appear around the selected object.

z okes, lines or text boxes, click To select one or several digital ink str

the Select button them. A Selection box will a

Click the Select All button to select all ob page. A Selection box will appear around the sel

Not

e! By clicking the Select button and then one text box, you ca

the text in the text box. However you can not select the text box by thi way.

. Then click and drag a box around the whole of

ppear around the selected objects.

jects in the current

ected objects.

n edit

e! To select one text box, click the Select

Not button

and drag a box around the text box. A Selection the selected text box. However you can not ed by this way.

sizing Objects

1. veral digital ink strokes, lines or text boxes.

Select one or se Rest the pointer on any corner of the Selection bo

2. x until the pointer becomes a double-headed arrow.

3. Drag the corner of the Selection box to change objects.

ving Objects

1. veral digital ink strokes, lines or text boxes.

Select one or se Move the pointer into the Selection box. The pointer

2. will then become a move pointer.

3. Drag the selected

leting Objects

1. Select one or several digital ink strokes, lines or text boxes.

2. Click the Delete button selected objects.

objects in the Selection box to a new location.

or press the DELETE key to delete the

. Then you must click

box will appear around

it the text in the text box

the size of the selected

Copying or Moving Objects

xt boxes. 1. Select one or several digital ink strokes, lines or te

2. Do one of the following:

z To move the selected objects, click the Cut button on the

Standard too

z To copy the selected objects, click the Copy button on the

Standard toolbar.

Do one of the following:

z If you want to copy or move the selected objects to another page

in this or another e-Book file, switch to the page. Click the P button

around the pasted objects. You can move the pasted objects to a new locatio

z If you want to copy or move the selected obje s to the same

page, click the Paste button Selection box will be around the pasted objects. You can move the pasted ob

z If you want to c

programs such switch to the file. Click the Paste command in the program

lbar.

on the Standard toolbar. The Selection box will be

on the Standard toolbar. The

jects to a new location.

opy or move the selected objects to another file for other

as Outlook e-mail message, Word file or Excel file,

aste

Changing the Color and Width of Objects

1. Select one or seve

2. Click a color button on the Color toolbar to switch the color objects. Click a width bu ton on the Width toolbar to change the wi the selected objects.

Note! By selecting a text box, you can not change the color of text in the

ral digital ink strokes or lines.

of the selected

t d

th of

text box. By editing a text box, you can click a color button to change the color of the selected text or click th button

Ad n

di g a New Page

e Font

to change the font of the selected text.

Click th n will app

Setting the Default New

The e file. d ort to the e-B

To set dialog box will appear. We recommend that you select the option button in acc a

e Add Page butto on the Standard toolbar. A new page

ear at the end of this book file.

Page Size

D fault New Page Size is for the new page which you add in the e

It oes not matter with the page size of the digital page which you imp

ook file.

it, click Page Setup on the File menu. The Default New Page Size

ord nce with your DigiMemo model.

Book

ving the Current Page

1. On the pear.

2. In the dialog u want to move the current page to.

3. Click OK. The current page will then be moved to previously.

Page menu, click Move to. The Move to dialog box will ap

box, type the page number (such as 5) which yo

the page you designated

Removing the Current Page

k the Remove Page b . A dialog box will appear. Click Yes.

Clic utton The cu

rrent page and all its contents will be removed.

Showing

1. On the

the Background of Pages

Edit menu, click Option. A dialog box will appear.

2. Choose or clear the follo e background on:

z Current page z Page thumbna

3. If necessary, sele

z Default backgr z Import image

Click the Brow as BMP, JPG, GIF or PNG file which you

4. Choose or clear the check box.

5. Click OK.

ct the following one option button:

as background

wing check boxes to show th

ils

ound (Lines)

se button to find the image file such

want to be the background.

Print background when printing

Switching the Current Page by Keyboard Shortcuts

First Page CTRL+HOME

t Page CTRL+END

Las Previous Page PAGE UP Next Page

PAGE DOWN

Saving the Current Page as an Image File

You can save the current page as an image file whos BMP, JPG, GIF or PNG.

e file types can be

1. Click the Save as Image button on the Standard toolbar.

2. In the dialog box, select a file type and enter a file name. Cl

ick Save.

Sample of an Edited e-Book File

On-line W

When the digital pad is connected to your computer through a US can use the ne Writing func using the dig synchronize your writing on the window. For example, your w pad instantly ap ars in the lo window.

Note! Before you write or draw by using the On-li

recommend that you already switch to the righ and switch the right current page in the software window.

riting Your Notes

On-li tion in the DigiMemo Manager software. By

ital pen on the pad, the On-line Writing function can instantly

paper with the current page in the software

riting on the paper in the lower-left corner of the

pe wer-left corner of the current page in the software

ne Writing function, we

t paper page on the pad

B port, you

23 23

To use the On-line Writing function, execute the following steps:

1. is er throug

Make sure that the digital pad connected to your comput h a USB port. The Connection icon

On the

2. Tools toolbar in the software window, click the On-line Writing button

Note! When you activate the On-line

device function in Windows of the pad will be use the digital pen on the pad to move the mouse pointer on the scree d, the On-line Writing in the software wind

Note! cally changed

Note! the other functions such as

3. You ca Color toolbar by using your m width button on the Width too

4. By using the ing on the paper instantly app ge in the software win r in the lower-left corner of the er of the current page in the

Note! Whe cally adjust the

Note! You ca and the current

Note! Even though the software win

Note! If you close or minimize the software window in which the On-line

Note! Your writing or drawing will not be stored in any digital page file in

5. To cl button

The zoom setting for the current page will be automati to 100%. You can not change the zoom setting.

By using your mouse, you still can use Eraser in the software window.

n switch the color by clicking a color button on the

curre w so that your writing o active software wind

page in the software window.

line Writing function still is ava

Writing function is activated, the On-line Writing function will be

closed.

the storage device of the pad.

ose the On-line Writing function, click the On-line Writing

on the Tools toolbar in the software window.

to activate the function.

n. When you move the digital pen on the pa

cursor moves only inside the current page

ow.

ouse. You can change the width by clicking a

lbar by using your mouse.

digital pen on the pad, your writing or draw ears on the corresponding position of the current pa

dow. For example, your writing on the pape

pad instantly appears in the lower-left corn

software window.

n you write or draw, the software automati

nt page position in the active software windo

r drawing can be instantly visible in the

ow.

n switch both the paper page on the pad

appears on the display of the pa

Writing function, the tablet

closed. You can not

dow is not active, the activated On-

ilable.

Not

e! When the On-line Writing function is closed, the tablet device

function in Windows of the pad will be activated. You digital pen on the horizontal pad to move the mouse p screen. Please refer to the chapter — Tablet Device in Window

uses of the On-line Writing Function Disabled or Closed

To use the On-line Writing function, please verify the followings, or the O Wr

iting function will be disabled or closed:

can use the

ointer on the

-line

z The pa

accorda

z The pa

Note! e is shown in the lower-right corner

Note! The page size of a digital page which you import is in accordance

Note! The page size of a new page which you add in the e-Book file is

z If the

window

z Make s

USB po nnection icon

z The Di

function uch as 692, A501 or A502 do not suppor

ge size of the current page in the software window must be in

nce with your DigiMemo model.

ge size in accordance with the DigiMemo Model is shown below.

DigiM

emo Model Page Size

DigiMemo L2 Letter DigiMemo A402 A4

The page size of the current pag of the software window.

with the DigiMemo model which c

according to the Default New Page Size setting. If it is necessary to change the setting, please refer to the section — Setting the Default New Page Size.

On-line Writing function already be activated in one software

, it will be disabled in other software windows.

ure that the digital pad is connected to your computer through a rt. The Co

giMemo L2 or A402 supports and can use the On-line Writing

. Some DigiMemo models s

t and can not use the On-line Writing function.

reated it.

appears on the display of the pad.

Sending

You can us

z In the

several your e-Book file to your Outlook email message.

Your e-Book File in E-mail

e one of the following methods to send your e-Book file in e-mail:

software window of DigiMemo Manager, you can copy or move pages or just part of a page in

Note!

You can not use this copy or move technique in an Outlook Express e-mail message.

z In an e-

Note!

mail message, insert your e-Book file as an attachment. To view and edit your e-Book file, the recipient must have the

DigiMemo Manager software. If he or she does not have this software, please download it on the ACECAD website.

http://www.acecad.com.tw/digimemo/download.html

z Open your e-Book file in the DigiMemo Manager software. Click the

E-mail button

on the Standard toolbar. In the dialog box, select the Attach your e-Book file option. Click OK. Your e-Book file will be attached to a new e-mail message.

Open your e-Book file in the DigiMemo Manager software. Click the E-mail button

the Attach images option. Click OK. Every page saved as a JPG image file and be attached to a ne

on the Standard toolbar. In the dialog box, select

of your e-Book file will be

w e-mail message.

Converting Your Handwritten Notes in Your e-Book

Fil

1. cognition

If you have installed the optional DigiMemo Handwriting Re software, cli

in the softwa

2. In the dialog

ck the Conversion button

re window of DigiMemo Manager.

box, select the following one option button:

on the Standard

toolbar

z Curren

In this option, check box .

z All Pages z Select

You can sele key with mouse clic

3. Click O area will be imported into the DigiMemo Handwriting Recognition software.

Using A

If you have n organize your digita mory card through this card reader.

Ea Files

sily Managing Digital Page

When connecting the digital pad to your computer, the removable s dev y card

ice, such as the built-in 32 MB storage device or the optional memor

t Page

you can choose the Selected area only

Pages

ct several pages by using CTRL or SHIFT

K. The selected pages or

nother Optional Card Reader

another optional card reader for SD memory card, you ca l page or other computer files in the optional SD me

rage

of t

he pad, is accessed to your computer. The following procedures can be

eas

ily executed in your Windows.

z Delete the digital page files in the built-in 32 MB storage device or the

optional memory card of the digital pad.

re is a brief recommendation: you may want to tear off the paper page or

ply cross out the page number you wrote on the paper page.

sim Note! Once a digital page file is deleted in a removable storage d

(the built-in 32 MB storage device or the optional memory ca can not be recovered.

Note! You can not delete files in memory card whe

switch

of the memory card is set to LOCK.

z You can copy built-in 32 MB storage

device or the sk drive. You also can rename the di

Note! Do not rena folder DMEMO-M of the

or move the digital page files in the

optional memory card to your hard di

gital page files in your hard disk drive.

me the digital page files in the built-in 32 MB -S of the optional memory card. Otherwise the digital pad ca renamed di

storage device or the folder DMEMO

gital pages.

n the write-protect

n not manage the

evice rd), it

Deleting the Digital Pages in the DigiMemo Ma

1. In the software ick the Digital Page button

box will appear.

2. Sel ect a

3. Clic

ect the Delete digital pages option button. Click Browse to sel

fold to delete your digital pages. Such folder could

er in which you want

s e DMEMO-M, the DMEMO-S, the DMEMO-C or any folder

po sibly be th that contains digita

k OK. The Delete Digital Pages dialog box will appear.

window of DigiMemo Manager, cl

on the Standard toolbar. The Digital Page dialog

l pages.

nager

4. To select nonadjacent digital pages, click one d down the CTRL key and click each additional digi

To select adjacent digital pages, click the first digital page in the sequence, and then hold down the SHIFT key and click the last digital page.

To preview a digital page, select the digital page and click Preview.

5. Click O

K. The digital pages you select will be deleted.

igital page, and then hold

tal page.

Tablet Device in Windows

en the digital pad is connected to your computer through a USB port, the

Con

nection icon

pad will light. The digital pad is a tablet device in Windows and for all Windows applications. You can u ntal writing area of the pad to move digital pen is the primar

the mouse pointer on the screen. The pen tip of the

y button of the mouse.

will appear on the display of the pad and the LED on the

se the digital pen on the horizo

The horizontal writing a ctly to the whole screen. For example, r of the horizontal writing area, the mouse poi ft corner of the screen.

if you move the pen to the lower-left corne

rea of the pad corresponds dire

nter will move to the lower-le

Horizontal

Note! If you put a notepad or paper on the pad for use with a drawing program

such as Painter, we recommend that you use the ink cartridge in the digital pen. If you move the digital pen directly on the plastic surface of the writing area, we recommend that you use the plastic pen tip in the digital pen. Please refer to the section in the Appendixes — Replacing the Cartridge of the Digital Pen.

Note! When you activate the On-line Writing function in the DigiMemo

Manager software, the tablet device function in Windows of the pad will be closed. You can not use the digital pen on the pad to move the mouse pointer on the screen. When you move the digital pen on the pad, the On-line Writing cursor moves only inside the current page in the software window.

Appendixes

Replacing the Cartridge of the Digital Pen

Open the cartridge compartment cover on the back of the digital pad. Two replacement ink cartridges and one plastic pen tip are stored in the cartridge compartment of the digital pad.

Clip Hole

To replace the cartri e old one out. Then in ge tip firmly against a hard surface until it snap

You can also use the clip hole in the cartridge compartment to replace the cartridge.

1. Hol

2. Ge

3. Gently pull out the cartridge from the pen.

4. Ins

Purch ement Ink Cartridges

The specification of ink cartridge used for the digi (Diameter) x 67 mm/2.64" (Length).

Note! The material of some ink cartridges may affect the perfo

Note! The following ink cartridges have been tested and approved for use with

d the digital pen upright and insert the cartridge tip

the wider side of the clip hole.

into

ntly push the pen horizontally towards the narrow

of the clip hole to as far as it can r

side each.

ert a new one. Then press the cartridge tip firmly

inst a hard surface until it snaps into place.

aga

asing New Replac

digital pen. Some ink cartridge with the different outside dimensions may damage the digital pen.

dge of the pen, you may use a small clip to gently pull th sert a new one and press the cartrid

s into place.

tal pen is 2.3 mm/0.09"

rmance of the

the digital pen:

Brand Model

ACECAD Ink Cartridge Series Cross 8518-1 Zebra BR-8A-4C Lamy M21 Sterling (Target) 01800T SPALDING RFR80A STAEDTLER 930-ASBK3V

Replacing the Battery in the Digital Pen

Even though the battery of the digital pen can last approximately 14 months, the battery in the pen may be exhausted if any of the following situations occurs. If so, please replace the battery.

z Severe missing digital ink strokes z Serious lengthened or shortened digital ink strokes z Significant twisted digital ink strokes z Decreasing of the writing thickness

Removing the DigiMemo Manager Software in Wi

ndows

Ope Control Panel window. Remove

n Add or Remove Programs icon in the

ACECAD DigiMemo Manager software.

the

Caring for the DigiMemo

To assure proper functioning of the digital pen and pad, plea following preca

z Remove the batteries from the digital pad if it is not expected to be used for

long periods. This will eliminate the possi the batteries and corroding the digital pad.

z Rem

exp riods. This will eliminate the possibility of

ected to be used for long pe

utions:

bility of battery liquid leaking from

ove the button-cell battery from the digital inking pen if it is not

se observe the

battery liquid leaking from the batteries and corroding the digital pen.

z Avo tes or other magnetic media on the pad surface . z Avoid plac r heavy items z Clean the ad with a soft cloth lightly dampened with water or a

id placing disket

ing hot o on the pad.

pen and p

neutral detergent.

z Never drop n or pad. The may malfunction if subjected to

the pe pen or pad

strong shocks or vibration.

z Avoid cutting or scratching the pad surface. z Never imm pad z Avoid ope ring the pad in extremely hot or cold

temperatur e relat high.

z Never take the pad or pen apart. z Do not use or store the product in the vicinity of equipm

erse the pen and in liquid. rating or sto pen and

es, or where th ive humidity is

ent that generates

strong electromagnetic radiation or magnetic fields.

Error Codes on the Display of the Digital Pad

h n 32 MB Storage Device — the

T e Malfunction of the Built-i Error Code E04

If any of the following situations occurs, storage device in the digital pad.

you need to reset the built-in 32 MB

z The malfunction of the built-in 32 MB storage device occurs. z The error code E04 appears on the display of the pad. It indicates that the

file system o

f the built-in 32 MB storage device is incompatible with the pad.

Note! Resetting the built-in 32 MB storage device permanently deletes all data

and files it contains.

To reset the built-in 32 MB storage device, execute the following steps: Note! If a SD memory card is loade

you remove the SD memory ca

1. While the digital pad is turned off, press and hold the Erase button

d in the digital pad, we recommend that

rd from the pad.

the pad.

2. Meanwhile, press and hold the Power button on the pad until the icon appears on the display.

3. holding down the Erase button

Release the Power button while continuing

4. Then release the Erase button .

When the reset is finished, the digital pad will be turned on. Note! The display will show the current digital page 001 with no dig

in the built-in 32 MB storage device if in the pad.

Not the built-in 32 MB storage device through the format

e! Do not format

function in Windows. Or it will cause the incompatibility problem with the pad.

no SD memory card is loaded

ital ink

The File System Incompatibility of a

n Optional SD Memory

Card — the Error Code E02

If the error code E02 appears on the display of the digital pad, it indicates that the patible with the digital

file system of the optional SD memory card is incom pad. If you want the digital pad to c optional SD

e! Formatting an optional memory card permanentl

Not y deletes all data and

To format an optional SD memory card, execute the following steps:

1. Load the memory card into the digital pad.

2. Turn on your com

3. Connect the digital pad to your computer.

4. Format the memory card with Note! The digital pad only supports an optional SD memory ca

memory card, please format this memory card before use.

files it contains. Before formatting, be sure to transfer to a computer any files you would like to keep.

puter and start Windows.

system FAT. The digital pad does not support an optional SD memory card with other file system.

apture and store your handwriting in this

the file system FAT in Windows.

rd with the file

The Damage or Incompatibility of an Optional SD Memory Card — the Error Code E01

If the error code E01 appears on the display of the digital pad, it indicates that the optional memory card may be damaged or the memory in the memory card is incom ith the pad.

patible with the digital pad. You can not use it w

The Full Root Directory — the Error Code E06

If the error code E06 appears on the display of the digital pad, it indica t too root directory in the built-in 32 MB storage

many files or folders in the device or the optional SD memory card. Move or delete some files or folders in

tes tha

the root directory.

The Damage of the Digital Pad — the Error Code E03 or E05

If the erro indicates th contact the

r code E03 or E05 appears on the display of the digital pad, it

at the digital pad may be damaged. It needs to be repaired. Please

ACECAD distributor.

Troubleshooting

General Problems

Problem: A superimposed digital pa

ge is created.

Solution: Make sure to select a blank digital page each time you change a

page on paper.

Problem: Minor lengthened or shortened digital ink strokes occur Solution: Write a little bit slowly or harder.

Problem: Significant missing, twisted, lengthened or shortened digital ink

strokes occur.

Solution: Please check the following situations for the digital pen:

z The battery is correctly installed in z The battery must be inserted in

the pen.

to the battery compartment with

the negative (-) cap facing the battery compartment.

z The cushion (copper color) of

the battery is still located inside the barrel cover. In cushion will remain at its original

fact, such

Barrel Cover

position unless it is improperly removed.

z The barrel cover is screwed tightly onto the barrel of the pen. z Once the battery inside the digital pen has been used for a long

time, it should be replaced with a new one.

z If you just replace an ink cartridge of the pen, plea

new cartridge tip firmly against a hard surfac

se press the

e until it snaps into

place.

Please verify that the thickness of paper is under the writing

thickness of the digital pad.

Solution: Do not

example: steel ruler).

Problem: When you are writing or drawing on paper by using the digital pen on

the digital pad, the Pen icon does not appear on the display.

Solution: Try to alter the pressure you apply on th

try to trace or write through any conductive material (for

e pen tip.

Problem: After replacing t ance

level of the digital pen is lo

Solution: Please purcha

Problem: The digital pad can not be turned on. Solution: Please verify that the digital pad is not connected to your computer.

Problem: After using for a period of time, you can not turn on the digital pad. Solution: The batteries in the pad may

batteries.

Problem: After replacing the batteries of the digital pad, the date and time in

the pad are incorrect.

Solution: When you replace the batteries in the pad, no battery i

compartment may be over one minute. The ad are erased. Please reset the date and time.

Problem: y card into the digital pad and

Solution: Make sure that you insert the memory card correctly

After you load an optional SD memor the vice icon n turn on the pad, the Storage De is not shown on

display. The display still shows the

the Storage Device icon

rtion slot of the pad.

inse

he ink cartridge with the new one, the perform

wered.

se and use an ink cartridge which we recommend.

be exhausted. Please replace the

n the battery

justed time and date

into the SD card

Problem: Solution:

The Storage Device icon When a SD memory card with the write-protect switch set to LOCK is

inse eps and the Storage

rted into insertion slot, the pad sounds 2 be Device icon me

mory card with the write-protect switch set to LOCK.

flashes on the display. Please remove the SD

flashes on the display.

Problem: Even though the stored digital pages have not reached 999, the

memory (either in the built-in 32 MB storage device or in an optional memory card) is full.

Solution: d has the ability to manage up to 999 digital

Although the digital pa pages (either for the built-in 32 MB storage device or for an optional memory card), such ability is unrelated to the maximum storage capacity.

The full memory means that the used space for th and the other computer files reaches the maximum capacity of the built-in 32 MB storage device or an optional memory card.

e digital page files

Problem: When pressing the Next Blank Page button

page does not move to the next blank digital page and the pad sounds 2 beeps.

Solution: In the DMEMO-M or DMEMO-S folde

(the built-in 32 MB storage device or the optional memory card) there are already 999 digital page files containing digital ink. Move or delete some digital page files in the folder.

r in the current storage device

, the current digital

Problems in the DigiMemo Manager Software

Problem: When you switch to a new current page in the software window, the

activated On-line Writing function is closed.

Solution: The page size of the new current page should be not in accordance

with your DigiMemo model. Please refer to the section — Causes of the On-line Writing Function Disabled or Closed.

Problem: In the software window of DigiMemo Manager, the selected objects in

an e-Book file can not be copied or moved to a file for some programs such as Notepad.

Solution: You can copy or move the selected objects to another file for other

programs such as Outlook e-mail message, Word file or Excel file. However, this function is

not suitable for all Windows programs.

Problem: Problems occur on the prin g results. Solution: We recommend you to use the Letter, A4 or A5 paper size.

tin

Problems When Connecting the Digital Pad to your Computer

Problem: When connecting the digital pad to your computer through a USB

port, your Windows can not recognize the built-in 32 MB storage device and an optional memory card in the pad as removable storage devices.

Solution:

Please verify the followings:

z The USB port is available. z Make sure that a power adapter provides enough po

wer to the

USB hub while connecting the digital pad via an USB hub.

z We recommend you connect the digital pad directly to an USB

port on the computer.

Occasionally,

if your Windows can not recognize them, please

restart your Windows.

Problem:

Before disconnecting the digital pad from your computer, what should be noticed?

Solution: The following stated notice is applied for all removable storage

devices. Close any associated windows for the built-in 32 MB storage device or an optional CF memory card before attempting to disconnect the digital pad from your computer.

Specifications

Digital Pad Specifications of DigiMemo L2 Model

Size

Thickness 0.47" (12 mm)

Weight

Writing Area 8.5" x 11" (216 mm x 279 mm) Writing Thickness 0.55" (14 mm); approx. 140 sheets of paper

Notepad Holder

Digital Pag ze Si e Letter size (8.5" x 11" / 216 mm x 279 mm)

9.88" (width) x 13.22" (length) 251 mm (width) x 336 mm (length)

Approx. 1.4 lbs (635 g Approx. 1.5 lbs (680 g

Holder for Letter size notepad;

8.5" x 11.9" (216

) without batteries ) with batteries

mm x 302 mm)

Digital Pad Specifications of DigiMemo A402 Model

Size

Thickness 12 mm (0.47")

Weight

Writing Area 210 mm x279 mm (8.27" x 11") Writing Thickness 14 mm (0.55"); approx. 140 sheets of paper

Notepad Holder

Digital Page Size A4 size (210 mm x 297mm / 8.27" x 11.7")

245 mm (width) x 336 mm (length)

9.63" (width) x 13.22" (length)

Approx. 615 g (1.35 lbs) without batteries Approx. 660 g (1.45 lbs) with batteries

Holder for A4 size notepad; 210 mm x 300 mm (8.27" x 11.81")

General Digital Pad Specifications

Storage Medium Built-in 32 MB storage device Optional Storage

Medium Power Source Four (4) batteries (1.5volt, size AAA)

Battery Life Approx. 80 hours

Secure Digital (SD) memory card (FAT file system)

Power Voltage: 3V Power Current: Approx. 25 mA Power Consumption: Approx. 75 mW

Power Source Supplied from USB port when connecting the digital

Interface to PC USB port

pad to PC.

Digital Pen Specifications

Size 134 mm (length) x 11.3 mm (diameter)

5.28" (length) x Weight 13.8 g (0.03 lbs) with battery Power Source One (1) 1.55V button cell battery

(SR626SW, 377 or IEC-SR66) Battery Life Approx. 14 months Ink Cartridge gth) 2.3 mm (diameter) x 67 mm (len

0.09" (diameter) x 2.64" (length)

0.45" (diameter)

File Formats

Digital Page ACECAD digital page file format (DHW) e-Book File ACECAD e-Book file format (DND)

System Requirements

ystem Operating S Windows 2000 or XP CPU 500 MHz Pentium III or better RAM 128 MB or more recommended Equipment Available USB port

Hard Disk Space 32 MB

CD-ROM drive

Environment

°F) Operating Temperature 0 °C to 40 °C (32 °F to 104 Operating Humidity n) Less than 85% (no condensatio Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)

N specifica hout notice.ote! These tions are subject to change wit

www.acecad.com.tw

Part Number: 91100-40590 English Version v1.0 Printed in China 2006.09

ACE CAD Enterprise BTX-100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
