Acec AB656W, AB656B, AB656X, AB656N, AB656 User Manual

ENGLISH

Important Safety Information

These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

During use

 This appliance has been designed for cooking edible

foodstuff only and MUST NOT be used for any other purposes.

 Ensure that all control knobs are in the OFF position

when not in use.

 Should you connect any electrical tool to a plug near

this cooking appliance, ensure that electric cables are not in contact with it and keep them far enough from the heated parts of this appliance.

 If the appliance is out of order, disconnect it from the

electric supply.

 Do not leave untensils containing foodstuffs, e. g. fat

or oil in or on the appliance. This could cause damage in case the appliance is inadvertently switched on.

 Always place the dripping pan in position to collect fat

when using the grill or when cooking meat. Pour a little water into the dripping pan to avoid smoke and

unpleasant smells.  Always use oven gloves to remove pans from the oven.  For hygiene and safety reasons, this appliance should

be kept clean at all times. A build-up of fats or other

foodstuff could result in a fire.  Disconnect the appliance from the electrical supply,

before carrying out any cleaning or manteinance work.  Some parts of the appliance are covered by a shock-

proof plastic film. Remove this film before using the

oven.  This appliance is meant to operate with a single-

phased connection to 230V electrical supply. An

eventual 400V poliphasic connection without earth

wire will destroy the oven and the hob, if fitted.

 The manufacturer disclaims any responsability

should all the safety measures not be carried out.

Child Safety

 This appliance has been designed to be operated by

adults and children under supervision. Young children

MUST NOT be allowed to tamper with the controls or play

near or with the oven.  Accessible parts of this appliance may become hot

when it is in use. Children should be KEPT AWAY until it

has cooled.

Installation

 It is mandatory that all operations required for the

installation are carried out by a qualified or competent person, in accordance with existing rules and

regulations.  It is dangerous to alter the specification in any way.  Once you removed all packaging from the appliance,

ensure that it is not damaged and the electric cable is

in perfect conditions. Otherwise, contact your dealer

before proceeding with the installation.

Service

 Under no circumstances should you attempt to repair

the appliance yourself. Repairs carried out by

unexperienced persons may cause injury or serious

malfunctioning. Refer to your local Service Centre.

Always insist on genuine spare parts.

Environmental Information

 After installation, please dispose of the packaging

with due regard to safety and the environment.  When disposing of an old appliance, make it

unusable, by cutting off the cable.

It is most important that this instruction

book should be retained with the

appliance for future reference. Should

the appliance be sold or transferred,

always ensure that the book is left with

the appliance in order that the new owner

can get to know the functions of the

appliance and the relevant warnings.

Contents

For the User

Warnings and important advice 40

Control panel 42

Using the oven 42

When the oven is first installed 43

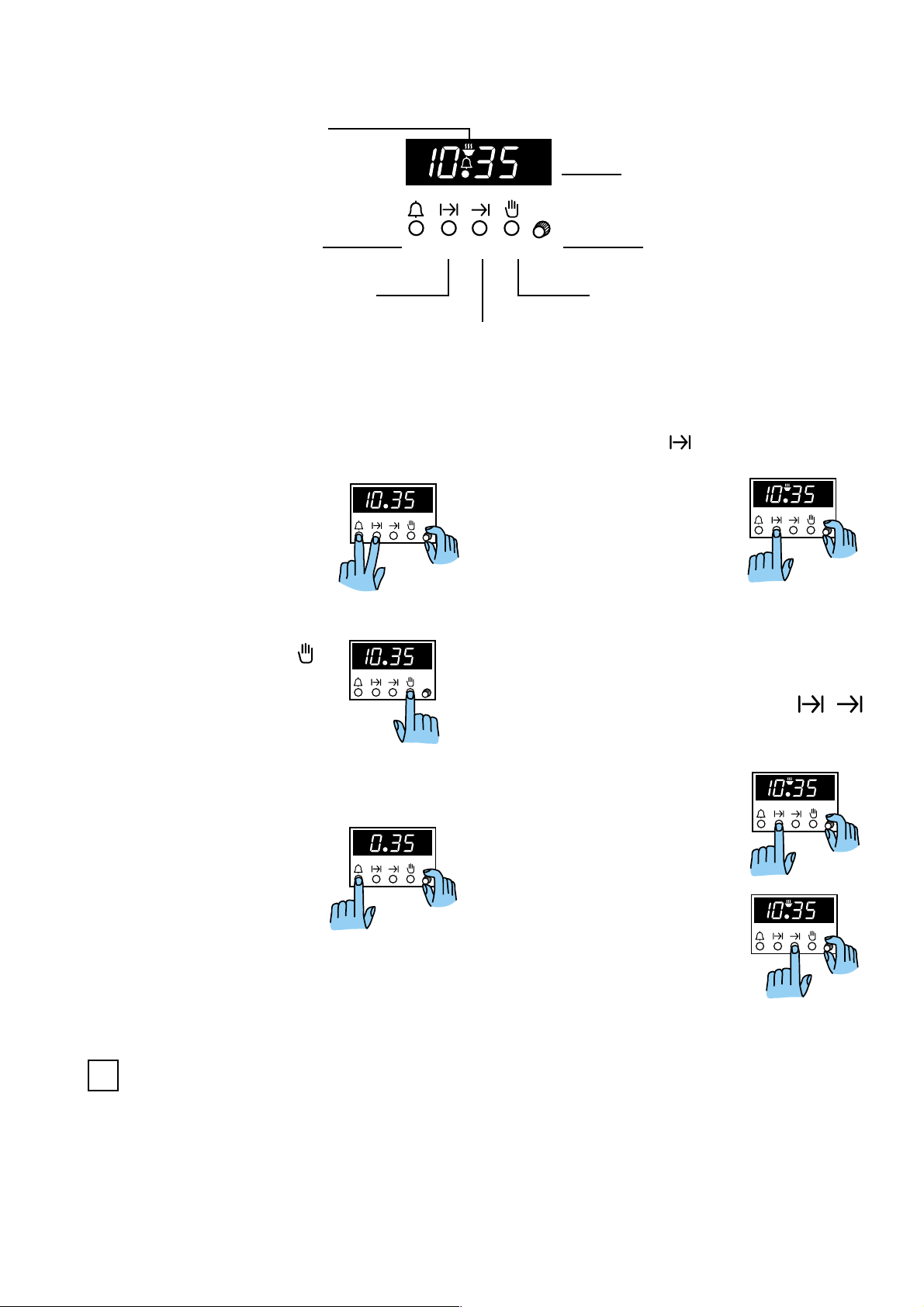

Electronic timer 44

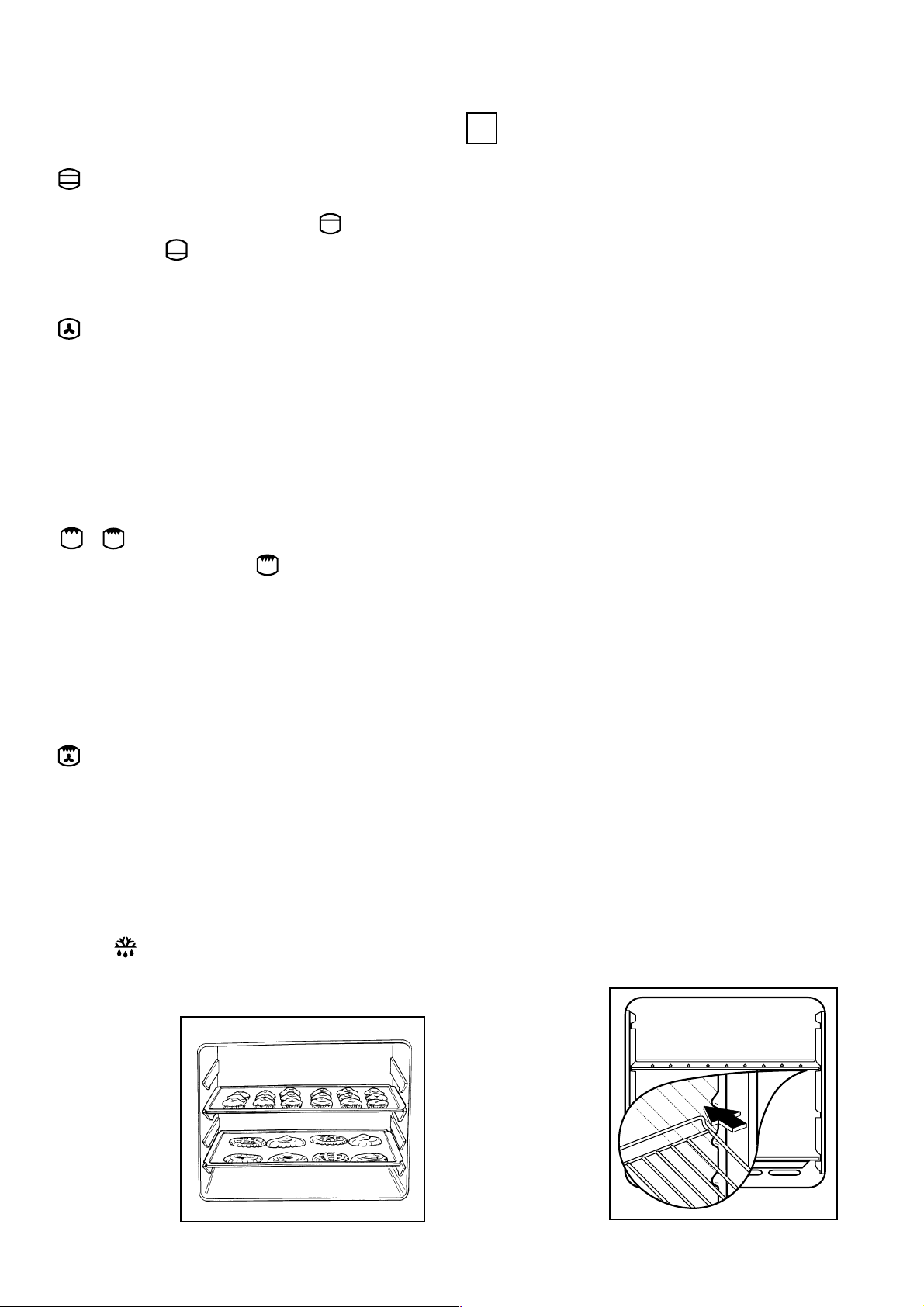

Cooking with the multifunction oven 45

Cooking tables 46

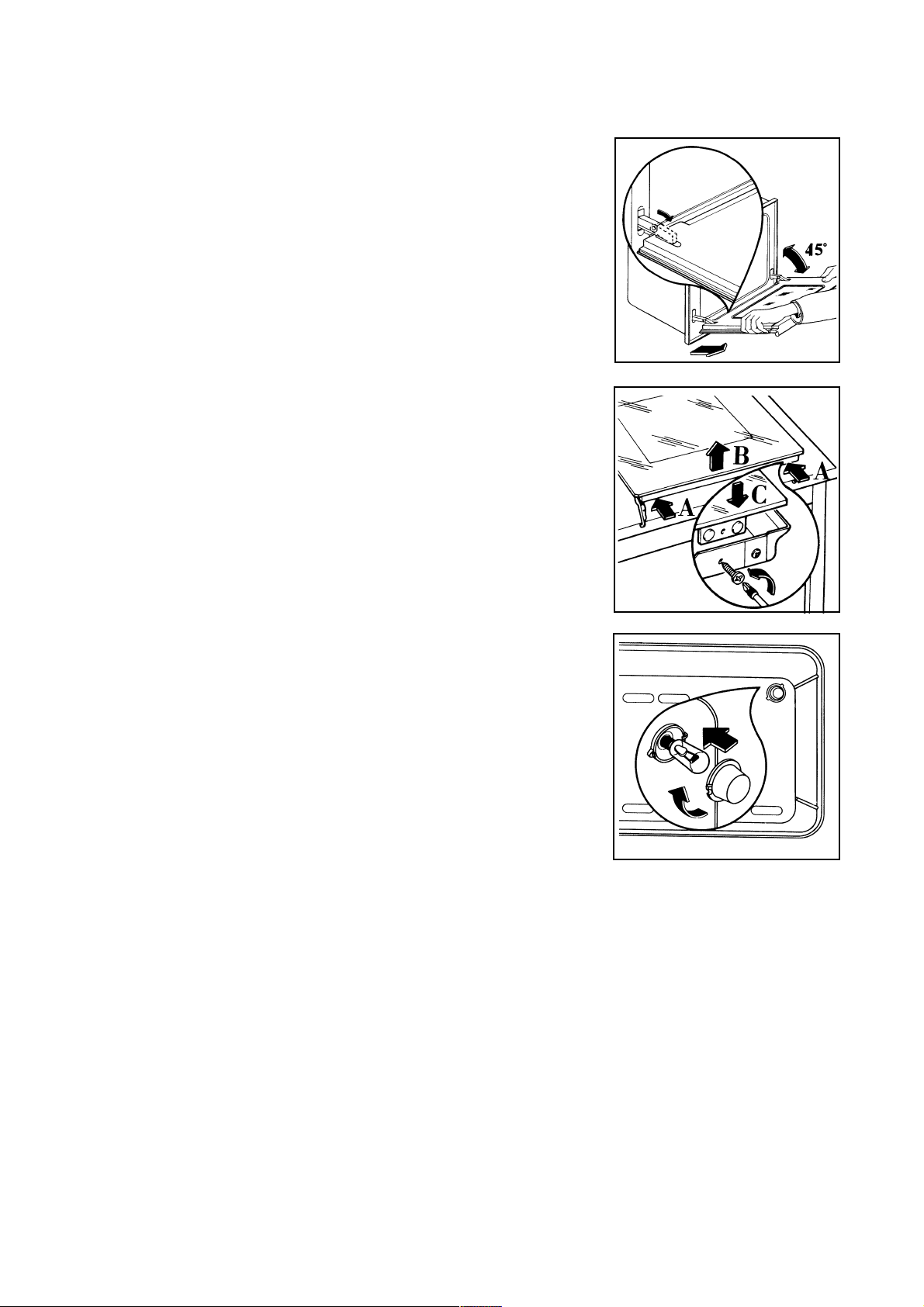

Cleaning and Maintenance 47

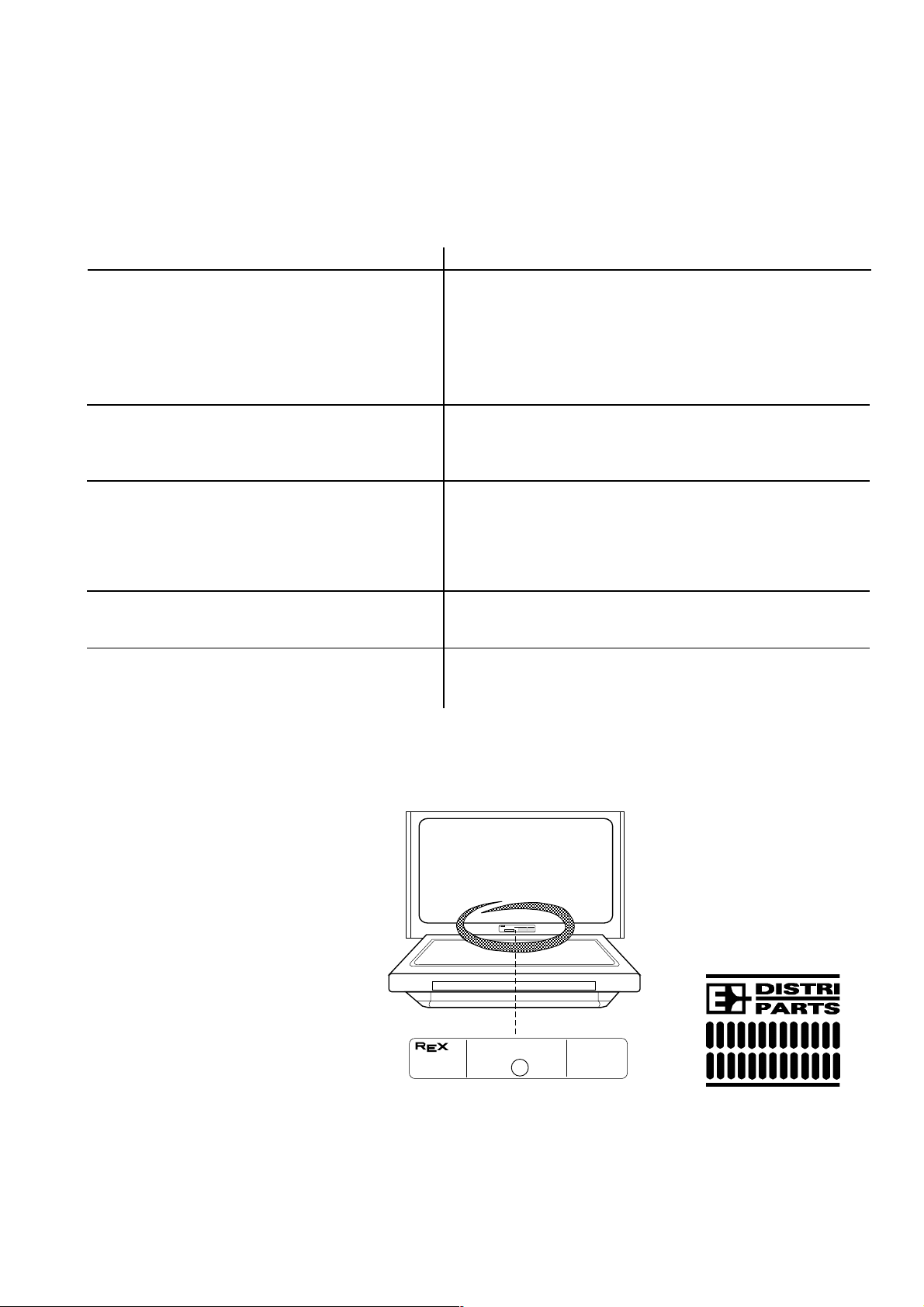

If something goes wrong 48

Assistance and spare parts 48

Guarantee conditions 51

This appliance complies with the following E.E.C. Directives:

- 73/23 - 90/683 (Low Voltage Directive);

- 89/336

Directive);

- 93/68 (General Directives) and subsequent modifications.

(Electromagnetical Compatibility

For the Installer

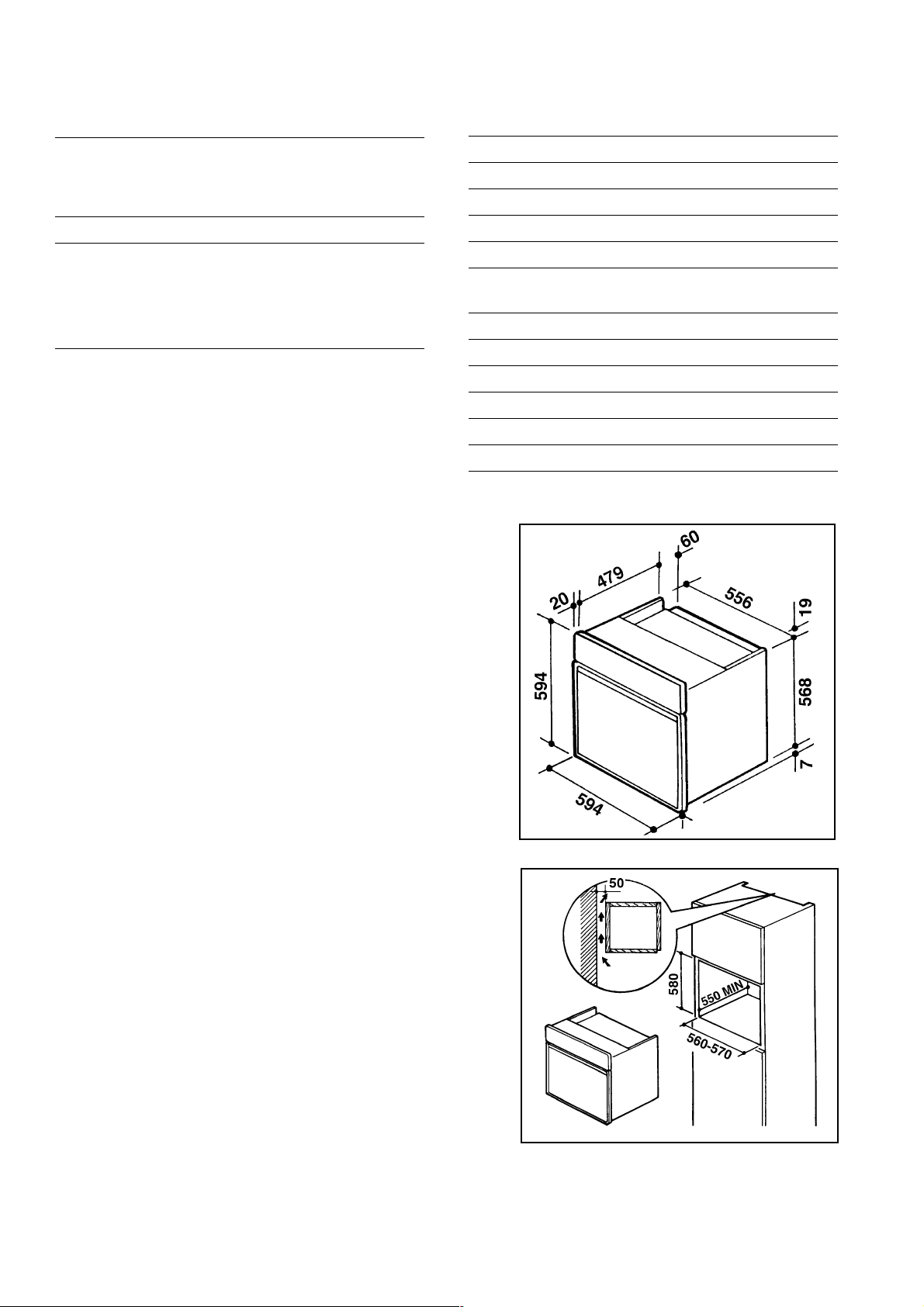

Technical data 49

Installation 49

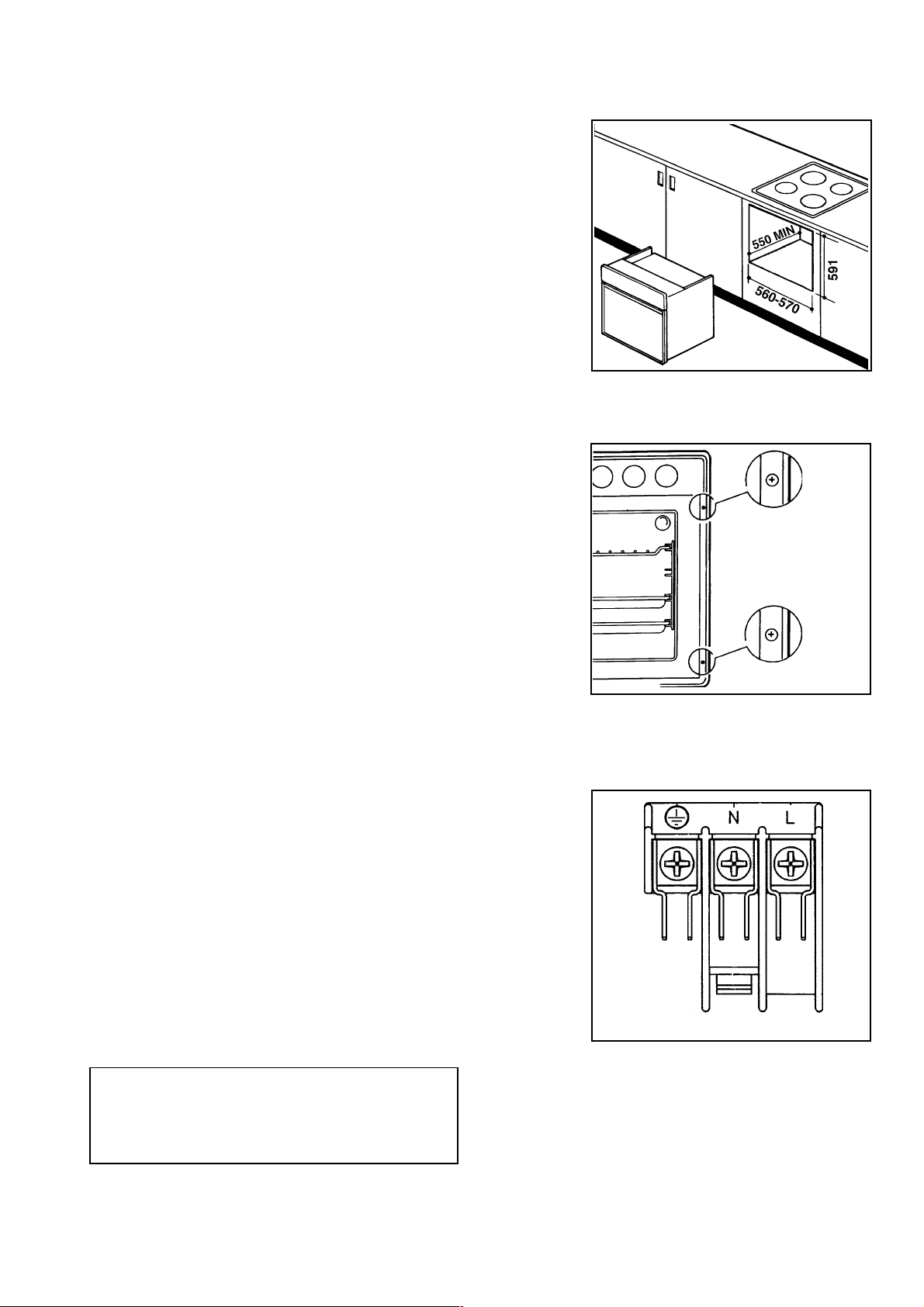

Electrical connection 50

MANUFACTURER:

ELECTROLUX ZANUSSI S.p.A. Viale Bologna, 298 47100 FORLÌ (Italie)

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an

operation

Hints and Tips

Environmental information

OVEN DOOR PROTECTION DEVICE

(MOD. AB 656 X) All our appliances comply with the European Safety

Standards. Nevertheless, in order to ensure the highest safety level, and avoid little children to be exposed to the heat when the appliance is operated, it is possible to fit a special protection device to the oven door. This device can be purchased in our Service Force Centres, specifying the relevant code ( 35791) and the Product No. shown on the rating plate. Fitting instructions are provided with the kit package.

100

150

200

MAX

Control Panel

- +

Oven Control Light

Electronic Timer

Thermostat Control Light Oven Function Control Knob

Using the Oven

Oven function control knob (Fig. 1)

Oven Light - The oven light will be on without any cooking function

Conventional cooking - The heat comes from both the top and bottom element, ensuring even heating

inside the oven.

MAX

200

Thermostat Control Knob

100

150

Top heating element - The heat comes from the top of the oven only.

Bottom heating element - The heat comes from the bottom of the oven only.

Inner grill element only - can be used for grilling small quantities.

Double Grill - The full grill element will be on.

Thermal Grilling - This function offers an alternative method of cooking food items, normally associated

with conventional grilling. The grill element and the oven fan operate together, circulating hot air around the food.

Fan cooking - This allows you to roast or roast and bake simoultaneously using any shelf, without

flavour transference. Defrost Setting - This setting is intended to assist

in thawing of frozen food.

Thermostat control knob (Fig. 2)

Turn the thermostat control knob clockwise to select temperatures between 50°C and 250°C (MAX).

Fig. 1

Fig. 2

FO 2455

FO 2179

Oven control light

This light will come on when the oven function control knob is set on a function.

Thermostat control light

Once the oven temperature has been selected, the Themostat Control Light will come on and remain on until the oven has reached the correct setting; after that, it will go on and off with the thermostat, showing how the

temperature is being maintained.

The Safety Thermostat

This oven is provided with a safety thermostat. In case of malfunctioning of the main thermostat, and consequent over-heating, the safety device will stop the power supply to the appliance. If this happens, call your local Service Centre. Under no circumstances should you attempt to repair the appliance yourself.

The Cooling Fan

This oven is provided with a cooling fan, meant to keep the front panel, the knobs and the oven door handle cool. This fan may run on after the oven or grill is switched off, until a normal temperature is reached.

All cookings must be carried out with the oven door closed

When the oven is first installed

Once the oven has been installed:

a) set the thermostat knob to MAX;

b) switch the oven function control knob to conventional cooking ( );

c) allow the oven to run empty for approximately 45 minutes;

d) open a window for ventilation.

During this time, an unpleasant odour may be emitted. This is absolutely normal, and is caused by residues of manufacturing. Once this operation is carried out, let the oven cool down, then clean the oven cavity with a soft cloth soaked in warm soapy water.

Before cooking for the first time, carefully wash the

shelf and the dripping pan.

To open the oven door, always catch the handle in its central part (Fig. 3).

Fig.3

FO 2161
