Ace Backstage WB12X12X4 Specifications
5

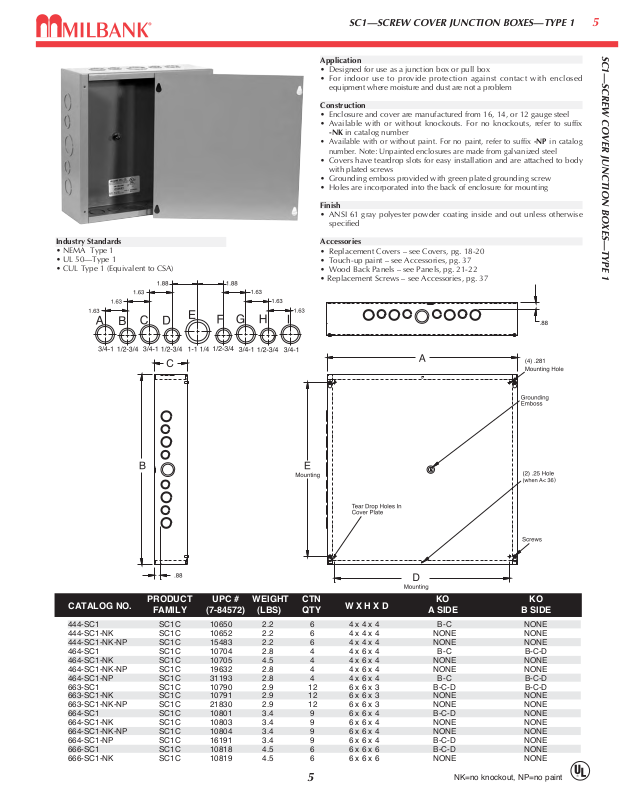

SC1—SCREW COVER JUNCTION BOXES—TYPE 1
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
5
Industry Standards
• NEMA Type 1
• UL 50—Type 1
• CUL Type 1 (Equivalent to CSA)
444-SC1 SC1C 10650 2.2 6 4 x 4 x 4 B-C NONE
444-SC1-NK SC1C 10652 2.2 6 4 x 4 x 4 NONE NONE
444-SC1-NK-NP SC1C 15483 2.2 6 4 x 4 x 4 NONE NONE
464-SC1 SC1C 10704 2.8 4 4 x 6 x 4 B-C B-C-D
464-SC1-NK SC1C 10705 4.5 4 4 x 6 x 4 NONE NONE
464-SC1-NK-NP SC1C 19632 2.8 4 4 x 6 x 4 NONE NONE
464-SC1-NP SC1C 31193 2.8 4 4 x 6 x 4 B-C B-C-D
663-SC1 SC1C 10790 2.9 12 6 x 6 x 3 B-C-D B-C-D
663-SC1-NK SC1C 10791 2.9 12 6 x 6 x 3 NONE NONE
663-SC1-NK-NP SC1C 21830 2.9 12 6 x 6 x 3 NONE NONE
664-SC1 SC1C 10801 3.4 9 6 x 6 x 4 B-C-D NONE
664-SC1-NK SC1C 10803 3.4 9 6 x 6 x 4 NONE NONE
664-SC1-NK-NP SC1C 10804 3.4 9 6 x 6 x 4 NONE NONE
664-SC1-NP SC1C 16191 3.4 9 6 x 6 x 4 B-C-D NONE
666-SC1 SC1C 10818 4.5 6 6 x 6 x 6 B-C-D NONE
666-SC1-NK SC1C 10819 4.5 6 6 x 6 x 6 NONE NONE
PRODUCT UPC # WEIGHT CTN KO KO
CATALOG NO.
FAMILY (7-84572) (LBS) QTY
W X H X D
A SIDE B SIDE
Application
• Designed for use as a junction box or pull box
• For indoor use to provide protection against contact with enclosed
equipment where moisture and dust are not a problem
Construction
• Enclosure and cover are manufactured from 16, 14, or 12 gauge steel
• Available with or without knockouts. For no knockouts, refer to suffix
-NK in catalog number
• Available with or without paint. For no paint, refer to suffix -NP in catalog
number. Note: Unpainted enclosures are made from galvanized steel
• Covers have teardrop slots for easy installation and are attached to body
with plated screws
• Grounding emboss provided with green plated grounding screw
• Holes are incorporated into the back of enclosure for mounting
Finish
• ANSI 61 gray polyester powder coating inside and out unless otherwise
specified
Accessories
• Replacement Covers – see Covers, pg. 18-20
• Touch-up paint – see Accessories, pg. 37
• Wood Back Panels – see Panels, pg. 21-22
• Replacement Screws – see Accessories, pg. 37
NK=no knockout, NP=no paint
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
6
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
6
NK=no knockout, NP=no paint
666-SC1-NK-NP SC1C 15355 4.5 6 6 x 6 x 6 NONE NONE
666-SC1-NP SC1C 30985 4.5 6 6 x 6 x 6 B-C-D NONE
684-SC1 SC1C 10859 4 9 6 x 8 x 4 B-C-D F-G-H-I
684-SC1-NK SC1C 10860 4 9 6 x 8 x 4 NONE NONE
684-SC1-NK-NP SC1C 20886 4 9 6 x 8 x 4 NONE NONE
684-SC1-NP SC1C 18007 4 9 6 x 8 x 4 B-C-D F-G-H-I
686-SC1 SC1C 10863 5.2 6 6 x 8 x 6 B-C-D F-G-H-I
686-SC1-NK SC1C 10864 5.2 6 6 x 8 x 6 NONE NONE
686-SC1-NK-NP SC1C 21059 5.2 6 6 x 8 x 6 NONE NONE
686-SC1-NP SC1C 30159 5.2 6 6 x 8 x 6 B-C-D F-G-H-I
6124-SC1 SC1C 10764 5.5 6 6 x 12 x 4 B-C-D C-D-E-F-G
6124-SC1-NK SC1C 15543 5.5 6 6 x 12 x 4 NONE NONE
6126-SC1 SC1C 10765 7 2 6 x 12 x 6 B-C-D C-D-E-F-G
6126-SC1-NK SC1C 17754 7 2 6 x 12 x 6 NONE NONE
884-SC1 SC1C 10938 5 6 8 x 8 x 4 F-G-H-I NONE
884-SC1-NK SC1C 10940 5 6 8 x 8 x 4 NONE NONE
884-SC1-NK-NP SC1C 15357 5 6 8 x 8 x 4 NONE NONE
886-SC1 SC1C 10955 6.5 4 8 x 8 x 6 F-G-H-I NONE
886-SC1-NK SC1C 10956 6.5 4 8 x 8 x 6 NONE NONE
886-SC1-NK-NP SC1C 15358 6.5 4 8 x 8 x 6 NONE NONE
886-SC1-NP SC1C 19650 6.5 4 8 x 8 x 6 F-G-H-I NONE
888-SC1 SC1C 10971 7.5 2 8 x 8 x 8 F-G-H-I NONE
888-SC1-NK SC1C 10972 7.5 2 8 x 8 x 8 NONE NONE
888-SC1-NK-NP SC1C 15509 7.5 2 8 x 8 x 8 NONE NONE
888-SC1-NP SC1C 32326 7.5 2 8 x 8 x 8 F-G-H-I NONE
8104-SC1 SC1C 10879 7 5 8 x 10 x 4 F-G-H-I F-G-H-I
8104-SC1-NK SC1C 10880 7 5 8 x 10 x 4 NONE NONE
8104-SC1-NK-NP SC1C 21057 7 5 8 x 10 x 4 NONE NONE
8104-SC1-NP SC1C 30485 7 5 8 x 10 x 4 F-G-H-I F-G-H-I
8106-SC1 SC1C 10885 7.5 4 8 x 10 x 6 F-G-H-I F-G-H-I
8106-SC1-NK SC1C 10886 7.5 4 8 x 10 x 6 NONE NONE
8106-SC1-NK-NP SC1C 24737 7.5 4 8 x 10 x 6 NONE NONE
8106-SC1-NP SC1C 31005 7.5 4 8 x 10 x 6 F-G-H-I F-G-H-I
8124-SC1 SC1C 10892 6.7 3 8 x 12 x 4 F-G-H-I C-D-E-F-G
8124-SC1-NK SC1C 10893 6.7 3 8 x 12 x 4 NONE NONE
8124-SC1-NK-NP SC1C 23645 6.7 3 8 x 12 x 4 NONE NONE
8126-SC1 SC1C 10898 8.5 2 8 x 12 x 6 F-G-H-I C-D-E-F-G
8126-SC1-NK SC1C 10899 8.5 2 8 x 12 x 6 NONE NONE
8126-SC1-NK-NP SC1C 21060 8.5 2 8 x 12 x 6 NONE NONE
10104-SC1 SC1C 10017 7 3 10 x 10 x 4 F-G-H-I NONE
10104-SC1-NK SC1C 10018 7 3 10 x 10 x 4 NONE NONE
10104-SC1-NK-NP SC1C 15344 7 3 10 x 10 x 4 NONE NONE
10104-SC1-NP SC1C 16190 7 3 10 x 10 x 4 F-G-H-I NONE
10106-SC1 SC1C 10030 8.5 2 10 x 10 x 6 C-D-E-F-G NONE
10106-SC1-NK SC1C 10031 8.5 2 10 x 10 x 6 NONE NONE
10106-SC1-NK-NP SC1C 15456 8.5 2 10 x 10 x 6 NONE NONE
10106-SC1-NP SC1C 20888 8.5 2 10 x 10 x 6 C-D-E-F-G NONE
10124-SC1 SC1C 10065 8 3 10 x 12 x 4 C-D-E-F-G C-D-E-F-G
10124-SC1-NK SC1C 10066 8 3 10 x 12 x 4 NONE NONE
10124-SC1-NK-NP SC1C 15345 8 3 10 x 12 x 4 NONE NONE
10124-SC1-NP SC1C 31006 8 3 10 x 12 x 4 C-D-E-F-G C-D-E-F-G
10126-SC1 SC1C 10071 9.5 2 10 x 12 x 6 C-D-E-F-G C-D-E-F-G
10126-SC1-NK SC1C 10072 9.5 2 10 x 12 x 6 NONE NONE
10126-SC1-NP SC1C 32327 9.5 2 10 x 12 x 6 C-D-E-F-G C-D-E-F-G
12124-SC1 SC1C 10113 9.2 4 12 x 12 x 4 C-D-E-F-G NONE
12124-SC1-NK SC1C 10115 9.2 4 12 x 12 x 4 NONE NONE
12124-SC1-NK-NP SC1C 10116 9.2 4 12 x 12 x 4 NONE NONE
12124-SC1-NP SC1C 17591 9.2 4 12 x 12 x 4 C-D-E-F-G NONE
12126-SC1 SC1C 10133 11 3 12 x 12 x 6 C-D-E-F-G NONE
12126-SC1-NK SC1C 10135 11 3 12 x 12 x 6 NONE NONE
12126-SC1-NK-NP SC1C 10136 11 3 12 x 12 x 6 NONE NONE
12126-SC1-NP SC1C 16189 11 3 12 x 12 x 6 C-D-E-F-G NONE
12128-SC1 SC1C 10153 13 2 12 x 12 x 8 C-D-E-F-G NONE
12128-SC1-NK SC1C 10154 13 2 12 x 12 x 8 NONE NONE
12128-SC1-NK-NP SC1C 15469 13 2 12 x 12 x 8 NONE NONE
12128-SC1-NP SC1C 20537 13 2 12 x 12 x 8 C-D-E-F-G NONE
121212-SC1-NK SC1C 24378 15.4 1 12 x 12 x 12 NONE NONE
12164-SC1 SC1C 10177 11.3 3 12 x 16 x 4 C-D-E-F-G B-C-D-E-F-G-H
12164-SC1-NK SC1C 10178 11.3 3 12 x 16 x 4 NONE NONE
12164-SC1-NK-NP SC1C 15346 11.3 3 12 x 16 x 4 NONE NONE
12164-SC1-NP SC1C 32328 11.3 3 12 x 16 x 4 C-D-E-F-G B-C-D-E-F-G-H
12166-SC1 SC1C 10183 13.5 2 12 x 16 x 6 C-D-E-F-G B-C-D-E-F-G-H
12166-SC1-NK SC1C 10184 13.5 2 12 x 16 x 6 NONE NONE
12166-SC1-NK-NP SC1C 15347 13.5 2 12 x 16 x 6 NONE NONE
12166-SC1-NP SC1C 30984 13.5 2 12 x 16 x 6 C-D-E-F-G B-C-D-E-F-G-H
12184-SC1 SC1C 10202 12.7 3 12 x 18 x 4 C-D-E-F-G A-B-C-D-E-F-G-H-I
PRODUCT UPC # WEIGHT CTN KO KO
CATALOG NO.
FAMILY (7-84572) (LBS) QTY
W X H X D
A SIDE B SIDE
7
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
7
12184-SC1-NK SC1C 10203 12.7 3 12 x 18 x 4 NONE NONE
12184-SC1-NK-NP SC1C 21058 12.7 3 12 x 18 x 4 NONE NONE
12186-SC1 SC1C 10209 14.5 2 12 x 18 x 6 C-D-E-F-G A-B-C-D-E-F-G-H-I
12186-SC1-NK SC1C 10210 14.5 2 12 x 18 x 6 NONE NONE
12186-SC1-NK-NP SC1C 16421 14.5 2 12 x 18 x 6 NONE NONE
12188-SC1 SC1C 10216 17 1 12 x 18 x 8 C-D-E-F-G A-B-C-D-E-F-G-H-I
12188-SC1-NK SC1C 10217 17 1 12 x 18 x 8 NONE NONE
12188-SC1-NK-NP SC1C 31727 17 1 12 x 18 x 8 NONE NONE
121810-SC1 SC1C 10198 19 1 12 x 18 x 10 C-D-E-F-G A-B-C-D-E-F-G-H-I
12244-SC1 SC1C 10229 15.8 3 12 x 24 x 4 C-D-E-F-G A-B-C-D-E-F-G-H-I
12244-SC1-NK SC1C 15584 15.8 3 12 x 24 x 4 NONE NONE
12246-SC1 SC1C 10232 18.8 2 12 x 24 x 6 C-D-E-F-G A-B-C-D-E-F-G-H-I
12246-SC1-NK SC1C 10233 18.8 2 12 x 24 x 6 NONE NONE
12246-SC1-NK-NP SC1C 23762 18.8 2 12 x 24 x 6 NONE NONE
15186-SC1 SC1C 10265 17.5 2 15 x 18 x 6 B-C-D-E-F-G-H A-B-C-D-E-F-G-H-I
15186-SC1-NK SC1C 10266 17.5 2 15 x 18 x 6 NONE NONE
15186-SC1-NK-NP SC1C 28142 17.5 2 15 x 18 x 6 NONE NONE
16164-SC1 SC1C 10283 14 3 16 x 16 x 4 B-C-D-E-F-G-H NONE
16164-SC1-NK SC1C 10284 14 3 16 x 16 x 4 NONE NONE
16164-SC1-NK-NP SC1C 25802 14 3 16 x 16 x 4 NONE NONE
16166-SC1 SC1C 10285 16.5 2 16 x 16 x 6 B-C-D-E-F-G-H NONE
16166-SC1-NK SC1C 10286 16.5 2 16 x 16 x 6 NONE NONE
16166-SC1-NK-NP SC1C 15348 16.5 2 16 x 16 x 6 NONE NONE
16166-SC1-NP SC1C 30484 16.5 2 16 x 16 x 6 B-C-D-E-F-G-H NONE
18184-SC1 SC1C 10300 17 3 18 x 18 x 4 A-B-C-D-E-F-G-H-I NONE
18184-SC1-NK SC1C 10301 17 3 18 x 18 x 4 NONE NONE
18184-SC1-NK-NP SC1C 10302 17 3 18 x 18 x 4 NONE NONE
18184-SC1-NP SC1C 20538 17 3 18 x 18 x 4 A-B-C-D-E-F-G-H-I NONE
18186-SC1 SC1C 10309 20.5 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I NONE
18186-SC1-NK SC1C 10310 20.5 2 18 x 18 x 6 NONE NONE
18186-SC1-NK-NP SC1C 10311 20.5 2 18 x 18 x 6 NONE NONE
18186-SC1-NP SC1C 15955 20.5 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I NONE
18188-SC1 SC1C 10319 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I NONE
18188-SC1-NK SC1C 10320 24 1 18 x 18 x 8 NONE NONE
18188-SC1-NK-NP SC1C 15349 24 1 18 x 18 x 8 NONE NONE
18188-SC1-NP SC1C 20536 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I NONE
181810-SC1 SC1C 10294 25 1 18 x 18 x 10 A-B-C-D-E-F-G-H-I NONE
181810-SC1-NK SC1C 10295 25 1 18 x 18 x 10 NONE NONE
181810-SC1-NK-NP SC1C 21064 25 1 18 x 18 x 10 NONE NONE
181812-SC1 SC1C 10298 28 1 18 x 18 x 12 A-B-C-D-E-F-G-H-I NONE
181812-SC1-NK SC1C 10299 28 1 18 x 18 x 12 NONE NONE
181812-SC1-NK-NP SC1C 24736 28 1 18 x 18 x 12 NONE NONE
18244-SC1 SC1C 10333 23.5 2 18 x 24 x 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
18244-SC1-NK SC1C 10334 23.5 2 18 x 24 x 4 NONE NONE
18244-SC1-NK-NP SC1C 32330 23.5 2 18 x 24 x 4 NONE NONE
18246-SC1 SC1C 10338 27 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
18246-SC1-NK SC1C 10339 27 1 18 x 24 x 6 NONE NONE
18246-SC1-NK-NP SC1C 15350 27 1 18 x 24 x 6 NONE NONE
18246-SC1-NP SC1C 32331 27 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
18248-SC1 SC1C 10346 30 1 18 x 24 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
18248-SC1-NK SC1C 10347 30 1 18 x 24 x 8 NONE NONE
18248-SC1-NK-NP SC1C 21063 30 1 18 x 24 x 8 NONE NONE
182410-SC1 SC1C 10330 34 1 18 x 24 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
182410-SC1-NK SC1C 24593 34 1 18 x 24 x 10 NONE NONE
182410-SC1-NK-NP SC1C 32332 34 1 18 x 24 x 10 NONE NONE
182412-SC1 SC1C 10332 36 1 18 x 24 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
182412-SC1-NK SC1C 20294 36 1 18 x 24 x 12 NONE NONE
182412-SC1-NK-NP SC1C 24797 36 1 18 x 24 x 12 NONE NONE
24244-SC1 SC1C 10417 30.5 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I NONE
24244-SC1-NK SC1C 10418 30.5 2 24 x 24 x 4 NONE NONE
24244-SC1-NK-NP SC1C 15473 30.5 2 24 x 24 x 4 NONE NONE
24244-SC1-NP SC1C 32333 30.5 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I NONE
24246-SC1 SC1C 10423 33.5 1 24 x 24 x 6 A-B-C-D-E-F-G-H-I NONE
24246-SC1-NK SC1C 10424 33.5 1 24 x 24 x 6 NONE NONE
24246-SC1-NK-NP SC1C 15352 33.5 1 24 x 24 x 6 NONE NONE
24246-SC1-NP SC1C 20539 33.5 1 24 x 24 x 6 A-B-C-D-E-F-G-H-I NONE
24248-SC1 SC1C 10434 38 1 24 x 24 x 8 A-B-C-D-E-F-G-H-I NONE
24248-SC1-NK SC1C 10435 38 1 24 x 24 x 8 NONE NONE
24248-SC1-NK-NP SC1C 10436 38 1 24 x 24 x 8 NONE NONE
242410-SC1 SC1C 10408 41 1 24 x 24 x 10 A-B-C-D-E-F-G-H-I NONE
242410-SC1-NK SC1C 10409 41 1 24 x 24 x 10 NONE NONE
242410-SC1-NK-NP SC1C 20887 41 1 24 x 24 x 10 NONE NONE
242412-SC1 SC1C 10413 44 1 24 x 24 x 12 A-B-C-D-E-F-G-H-I NONE
242412-SC1-NK SC1C 10414 44 1 24 x 24 x 12 NONE NONE
242412-SC1-NK-NP SC1C 20648 44 1 24 x 24 x 12 NONE NONE
24308-SC1 SC1C 10460 45 1 24 x 30 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
NK=no knockout, NP=no paint
PRODUCT UPC # WEIGHT CTN KO KO
CATALOG NO.
FAMILY (7-84572) (LBS) QTY
W X H X D
A SIDE B SIDE
SC1—SCREW COVER JUNCTION BOXES—TYPE 1
8
SC1—SCREW COVER JUNCTION BOXES & COVERS—TYPE 1
NK=no knockout, NP=no paint
24308-SC1-NK SC1C 10461 45 1 24 x 30 x 8 NONE NONE
24308-SC1-NK-NP SC1C 32334 45 1 24 x 30 x 8 NONE NONE
243010-SC1 SC1C 10447 50 1 24 x 30 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
243010-SC1-NK SC1C 10448 50 1 24 x 30 x 10 NONE NONE
243010-SC1-NK-NP SC1C 21065 50 1 24 x 30 x 10 NONE NONE
243012-SC1 SC1C 10450 54 1 24 x 30 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
243012-SC1-NK-NP SC1C 21067 54 1 24 x 30 x 12 NONE NONE
24366-SC1 SC1C 10479 54 1 24 x 36 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
24366-SC1-NK SC1C 10480 54 1 24 x 36 x 6 NONE NONE
24366-SC1-NK-NP SC1C 32335 54 1 24 x 36 x 6 NONE NONE
24366-SC1-NP SC1C 32336 54 1 24 x 36 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
24368-SC1 SC1C 10485 59 1 24 x 36 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
24368-SC1-NK SC1C 10486 59 1 24 x 36 x 8 NONE NONE
24368-SC1-NK-NP SC1C 10487 59 1 24 x 36 x 8 NONE NONE
243610-SC1 SC1C 10470 77 1 24 x 36 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
243610-SC1-NK SC1C 24105 77 1 24 x 36 x 10 NONE NONE
243612-SC1 SC1C 10471 83 1 24 x 36 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
243612-SC1-NK SC1C 19903 83 1 24 x 36 x 12 NONE NONE
243612-SC1-NK-NP SC1C 10472 83 1 24 x 36 x 12 NONE NONE
30306-SC1-NK SC1C 10521 66 1 30 x 30 x 6 NONE NONE
30306-SC1-NK-NP SC1C 15475 66 1 30 x 30 x 6 NONE NONE
30308-SC1-NK SC1C 10528 76 1 30 x 30 x 8 NONE NONE
30308-SC1-NK-NP SC1C 24913 76 1 30 x 30 x 8 NONE NONE
303010-SC1-NK SC1C 10508 81 1 30 x 30 x 10 NONE NONE
303010-SC1-NK-NP SC1C 21066 81 1 30 x 30 x 10 NONE NONE
303012-SC1-NK SC1C 10511 95 1 30 x 30 x 12 NONE NONE
303012-SC1-NK-NP SC1C 21068 95 1 30 x 30 x 12 NONE NONE
30366-SC1-NK SC1C 10543 87 1 30 x 36 x 6 NONE NONE
30366-SC1-NK-NP SC1C 32337 87 1 30 x 36 x 6 NONE NONE
30368-SC1-NK SC1C 23846 95 1 30 x 36 x 8 NONE NONE
30368-SC1-NK-NP SC1C 16466 95 1 30 x 36 x 8 NONE NONE
303610-SC1-NK-NP SC1C 32338 103 1 30 x 36 x 10 NONE NONE
303612-SC1-NK SC1C 17923 111 1 30 x 36 x 12 NONE NONE
303612-SC1-NK-NP SC1C 32339 111 1 30 x 36 x 12 NONE NONE
36364-SC1-NK SC1C 10591 105 1 36 x 36 x 4 NONE NONE
36366-SC1-NK SC1C 10596 115 1 36 x 36 x 6 NONE NONE
36366-SC1-NK-NP SC1C 15477 115 1 36 x 36 x 6 NONE NONE
36368-SC1 SC1C 24886 124 1 36 x 36 x 8 NONE NONE
36368-SC1-NK SC1C 10601 124 1 36 x 36 x 8 NONE NONE
36368-SC1-NK-NP SC1C 15353 124 1 36 x 36 x 8 NONE NONE
363610-SC1-NK SC1C 10584 134 1 36 x 36 x 10 NONE NONE
363610-SC1-NK-NP SC1C 24032 134 1 36 x 36 x 10 NONE NONE
363612-SC1-NK SC1C 10586 144 1 36 x 36 x 12 NONE NONE
363612-SC1-NK-NP SC1C 17418 144 1 36 x 36 x 12 NONE NONE
363618-SC1-NK SC1C 10590 173 1 36 x 36 x 18 NONE NONE
36486-SC1-NK SC1C 10612 150 1 36 x 48 x 6 NONE NONE
48486-SC1-NK SC1C 10731 192 1 48 x 48 x 6 NONE NONE
484812-SC1-NK SC1C 10724 220 1 48 x 48 x 12 NONE NONE
COVERS
44XSC1 CNAC 10694 0.3 1 4 x 4
46XSC1 CNAC 10719 0.4 1 4 x 6
66XSC1 CNAC 10857 0.8 1 6 x 6
68XSC1 CNAC 10867 1 1 6 x 8
612XSC1 CNAC 10767 1.5 1 6 x 12
88XSC1 CNAC 10999 1 1 8 x 8
810XSC1 CNAC 10890 1.2 1 8 x 10
812XSC1 CNAC 10908 1.4 1 8 x 12
1010XSC1 CNAC 10062 2 1 10 x 10
1012XSC1 CNAC 10081 2.2 1 10 x 12
1212XSC1 CNAC 10175 2.5 1 12 x 12
1216XSC1 CNAC 10197 2.9 1 12 x 16
1218XSC1 CNAC 10225 3.2 1 12 x 18
1224XSC1 CNAC 10244 4.3 1 12 x 24
1518XSC1 CNAC 10274 4 1 15 x 18
1616XSC1 CNAC 10288 3.8 1 16 x 16
1818XSC1 CNAC 10328 4.8 1 18 x 18
1824XSC1 CNAC 10354 6.4 1 18 x 24
1830XSC1 CNAC 10366 8 1 18 x 30
2424XSC1 CNAC 10446 10.9 1 24 x 24
2430XSC1 CNAC 10468 12.3 1 24 x 30
2436XSC1 CNAC 10492 16.4 1 24 x 36
3030XSC1 CNAC 10535 12.3 1 30 x 30
3036XSC1 CNAC 10553 19 1 30 x 36
3636XSC1 CNAC 10606 23 1 36 x 36
3648XSC1 CNAC 10621 26 1 36 x 48
4848XSC1 CNAC 10740 42 1 48 x 48
PRODUCT UPC # WEIGHT CTN KO KO
CATALOG NO.
FAMILY (7-84572) (LBS) QTY
W X H X D
A SIDE B SIDE
8
Loading...
