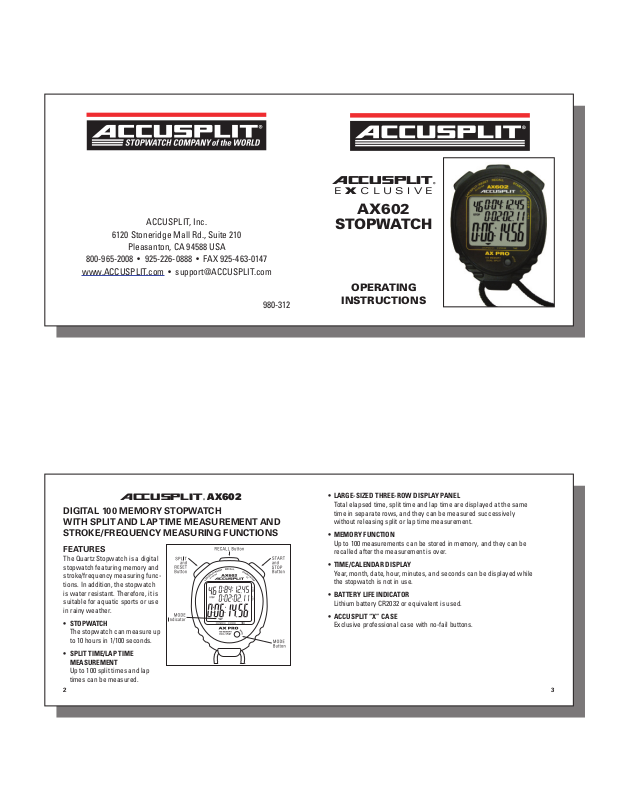

Accusplit AX602 User Manual
ACCUSPLIT, Inc.
6120 Stoneridge Mall Rd., Suite 210
Pleasanton, CA 94588 USA
800-965-2008 • 925-226-0888 • FAX 925-463-0147
www.ACCUSPLIT.com • support@ACCUSPLIT.com
980-312
ACCUSPLIT®
E X CLUSIVE
AX602
STOPWATCH
OPERATING
INSTRUCTIONS
ACCUSPLIT® AX602
DIGITAL 100 MEMORY STOPWATCH
WITH SPLIT AND LAP TIME MEASUREMENT AND
STROKE/FREQUENCY MEASURING FUNCTIONS
FEATURES
The Quartz Stopwatch is a digital
stopwatch featuring memory and
stroke/frequency measuring functions. In addition, the stopwatch
is water resistant. Therefore, it is
suitable for aquatic sports or use
in rainy weather.
• STOPWATCH
The stopwatch can measure up
to 10 hours in 1/100 seconds.
• SPLIT TIME/LAP TIME
MEASUREMENT
Up to 100 split times and lap
times can be measured.
2
• LARGE-SIZED THREE-ROW DISPLAY PANEL
Total elapsed time, split time and lap time are displayed at the same
time in separate rows, and they can be measured successively
without releasing split or lap time measurement.
• MEMORY FUNCTION
Up to 100 measurements can be stored in memory, and they can be
recalled after the measurement is over.
• TIME/CALENDAR DISPLAY
Year, month, date, hour, minutes, and seconds can be displayed while
the stopwatch is not in use.
• BATTERY LIFE INDICATOR
Lithium battery CR2032 or equivalent is used.
• ACCUSPLIT “X” CASE
Exclusive professional case with no-fail buttons.
3
There are four buttons as
indicated in the illustration.
TIME/CALENDAR
display
STOPWATCH
display
4
C
B
STROKE/FREQUENCY MEASURING MODE
A
D
STROKE/FREQUENCY
MEASURING display
TIME/CALENDAR SETTING
ACCUSPLIT products use a common setting procedure known as S1-S2-S3-S4.
S1 (2 sec) - Enter set function OR
S1 (4 sec) - Enter set function &
clear the current settings
S2 – Select fi eld to be set
B
(selected fi eld will fl ash)
S3 – Set fi eld to desired settings
S4 – Exit setting function
Hour
TIME/CALENDAR display mark
1. Press “D” to show the time/calendar display. The time/calendar display
mark will appear.
2. S1 – Press and hold “B” for 2 seconds until seconds display begins fl ashing.
C
A
Year
Month and date
Seconds
Minutes
D
5
3. S2 – Press “B” repeatedly to select the digits (fl ashing) to be adjusted.
With each press of “B,” the digits to be adjusted change over in the
following order.
seconds minutes hour year month date
Note: The watch exits set mode automatically after setting date.
STOPWATCH
Press “D” in the TIME/CALENDAR display to show the STOPWATCH display.
The STOPWATCH display mark will appear.
The STOPWATCH can measure up to 10 hours in hours, minutes, seconds and
1/100 seconds.
• Before using the stopwatch be sure to reset the digits to “0:00:00.00”.
4. S3 – Press “A” to set the fl ashing digits or reset the seconds to “00”.
• The digits move quickly if “A” is kept pressed.
• When the seconds digits count any number from ”30” to “59” and “A” is
pressed, one minute is added and the second digits are reset to “00”.
5. S4 – After all the adjustments are completed, press “A” repeatedly until watch
exits set mode and returns to the TIME/CALENDAR display.
Notes:
1. Hour digits are displayed in the 24-hour indication.
2. Year digits can be set from 1988 to 2027. The calendar adjusts automatically for
odd and even months including February of leap years.
6 7
When the stopwatch is stopped, press ”B” to reset.
When the stopwatch is counting, press “A” to stop the measurement
and then press “B”.
C
B
A
Split time
Split/lap number
Lap time
Total time (accumulated
elapsed time)
STOPWATCH display mark
D
