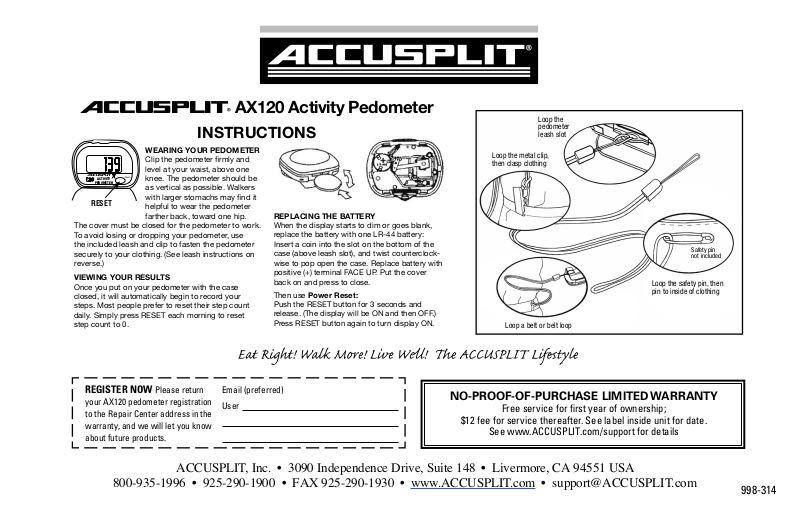

Accusplit AX120, 998-314 User Manual

ACCUSPLIT® AX120 Activity Pedometer

INSTRUCTIONS

WEARING YOUR PEDOMETER

Clip the pedometer firmly and

ACCUSPLIT

ACTIVITY

120

PEDOMETER

RESET

The cover must be closed for the pedometer to work.
To avoid losing or dropping your pedometer, use
the included leash and clip to fasten the pedometer
securely to your clothing. (See leash instructions on
reverse.)

VIEWING YOUR RESULTS

Once you put on your pedometer with the case
closed, it will automatically begin to record your
steps. Most people prefer to reset their step count
daily. Simply press RESET each morning to reset
step count to 0.

level at your waist, above one
knee. The pedometer should be
as vertical as possible. Walkers
with larger stomachs may find it
helpful to wear the pedometer
farther back, toward one hip.

REPLACING THE BATTERY

When the display starts to dim or goes blank,
replace the battery with one LR-44 battery:
Insert a coin into the slot on the bottom of the
case (above leash slot), and twist counterclock­wise to pop open the case. Replace battery with
positive (+) terminal FACE UP. Put the cover
back on and press to close.

Then use Power Reset:
Push the RESET button for 3 seconds and
release. (The display will be ON and then OFF.)
Press RESET button again to turn display ON.

Loop the
pedometer
leash slot

Loop the metal clip,
then clasp clothing

Loop a belt or belt loop

Safety pin
not included

Loop the safety pin, then
pin to inside of clothing

REGISTER NOW Please return

your AX120 pedometer registration
to the Repair Center address in the
warranty, and we will let you know
about future products.

Email (preferred)

User

NO-PROOF-OF-PURCHASE LIMITED WARRANTY

Free service for first year of ownership;

$12 fee for service thereafter. See label inside unit for date.

See www.ACCUSPLIT.com/support for details

ACCUSPLIT, Inc. • 3090 Independence Drive, Suite 148 • Livermore, CA 94551 USA

800-935-1996 • 925-290-1900 • FAX [phone] • www.ACCUSPLIT.com • [e-mail]

998-314
