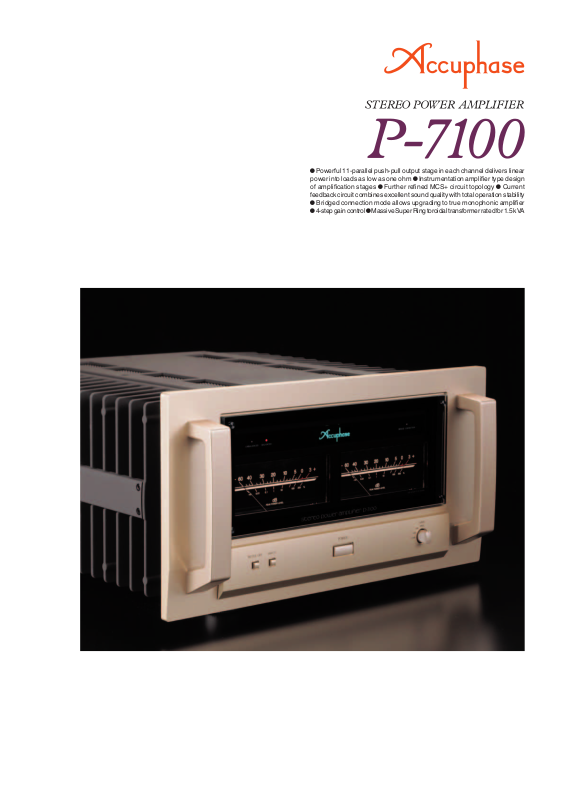

Accuphase P-7100 Brochure

Page 1
m Powerful 11-parallel push-pull output stage in each channel delivers linear
power into loads as low as one ohm m Instrumentation amplifi er type design of amplifi cation stages m Further refi ned MCS+ circuit topology m Current feedback circuit combines excellent sound quality with total operation stability
m Bridged connection mode allows upgrading to true monophonic amplifi er m 4-step gain control m Massive Super Ring toroidal transformer rated for 1.5 kVA
Page 2
Impressive power amplifi er capable of delivering 1000 watts × 2 into 1 ohm –
e
Amplification stages feature fully balanced signal paths as found in high­quality instrumentation amplifi ers. Further refi ned MCS+ topology and cur­rent feedback design result in even better S/N ratio, distortion, and other performance parameters. Massive, high-efficiency 1.5 kVA toroidal trans­former and 11-parallel push-pull arrangement of high-power transistors de­liver enormous amounts of linear power into ultra-low loads down to one ohm.
The P-7100 is a successor to the highly regarded P-7000, inheriting its general design policy and major features while realizing further improvements in vari­ous aspects. A major new highlight is the overall “in­strumentation amplifi er” confi guration, which allows fully balanced signal transmission in all stages of the amplifi er. In addition, the power amplifi er section employs MCS+, an improved version of the innova­tive Multiple Circuit Summing principle developed by Accuphase. In conjunction with the famous current feedback topology, this provides further improved performance characteristics. Only strictly selected high-quality parts and materials are used throughout, and the output of the amplifi er is designed to achieve very low impedance and constant drive voltage.
In the output stage, 11 pairs of high-power transistors with a rated collector dissipation of 150 watts are ar­ranged in a parallel push-pull confi guration for each channel. The devices are mounted to large heat sinks on both sides of the main chassis for effi cient dissipa­tion of thermal energy generated during operation. As a result, the amplifi er is capable of delivering power in a linear progression down to an ultra-low load impedance of one ohm. Even speakers with very low impedances as well as speakers whose imped­ance fl uctuates drastically can be driven with ease. By using the P-7100 in bridged mode, it is possible to create a monophonic amplifi er with even higher power. This performance is sustained by a mas­sive Super Ring toroidal transformer housed in an aluminum enclosure with excellent heat dissipation characteristics. The transformer is rated for 1.5 kVA, and is coupled with two large fi ltering capacitors rated for 56,000 µF each. This allows the amplifi er to meet even the most demanding and rapidly fl uctuating power requirements with ease.
The input stage features another Accuphase in­novation called MCS+ (Multiple Circuit Summing) which helps to minimize noise. The material used for printed circuit boards has a decisive infl uence not only on electrical characteristics but also on the sonic end result. The P-7100 employs Tefl on boards with extremely low dielectric constant and low loss. The copper foil side of PCBs and all input and output ter­minals as well as all major signal carrying points are gold plated. Balanced inputs help to shut out external noise. The combination of outstanding circuit design with top-quality materials and parts produces music of unsurpassed purity that immediately captures and enchants the listener. Hearing is believing.
n 11-parallel push-pull power unit delivers guaranteed linear
power output of 1000 watts into 1 ohm (music signals only), 500 watts into 2 ohms, 250 watts into 4 ohms and 125 watts into 8 ohms
The output stage uses high-power transistors with a rated collector dissipation of 150 watts and collector current of 15 amperes. These devices boast excellent frequency response, current amplifi cation linearity, and switching characteristics.
n Printed circuit boards made from Tefl on with low
dielectric constant and low loss
* Tefl on is a registered trademark of DuPont USA.
n Robust power supply with Super Ring toroidal
transformer and high fi ltering capacity
The P-7100 features a massive toroidal power transformer with a maximum rating of 1.5 kVA, and two large electrolytic capacitors rated for 56,000 µF each, specially selected for optimum sound quality.
Toroidal transformer
n Bridged connection allows upgrading to a true monophonic ampli-
fi er with 2000 watts into 2 ohms (music signals only), 1000 watts into 4 ohms, and 500 watts into 8 ohms
Bridged connection results in a monophonic amplifi er with four times the power output than during stereo operation. This gives effortless dynamic power.
n Balanced inputs prevent externally induced noise n
4-step gain selector minimizes residual noise (MAX, –3 dB, –6 dB, –12 dB)
n PCB copper foil and all major signal
path components are gold-plated
n Mode selector makes it easy to switch
between dual mono, stereo, or bridged operation
n Large direct-reading analog power
Gold-plated parts
meters with meter on/off button
n Input selector button (balanced/unbalanced) on front panel n Oversize speaker terminals accept also Y lugs
Large speaker terminals
Highly reliable parts selected for
sound quality
High-power transistors
Filtering capacitors
Unbalanced/balanced input connectors
Gain selector
Meter and input selector buttons
Assembly with meter and protection circuitry
+ INPUT
GAIN CONTROL
– INPUT
CIRCUIT
NFB
NETWORK
NFB
NETWORK
MCS+
Multiple Circuit)
(
Summing
Bias stabilizer
circuit
Bias stabilizer
circuit
Bias stabilizer
circuit
Bias stabilizer
circuit
REGULATOR
NFB
NETWORK
Bias stabilizer
circuit
REGULATOR
Figure 1 Circuit diagram of amplifi er section (one channel)
OUTPUT
Output current (A)
Output voltage (V)
Figure 2 Load impedance vs. output pow
(output voltage/output current)
* 1-ohm operation possible with
music signals only
Page 3
Instrumentation Amplifi er Principle and Further Refi ned MCS+ Topology
Instrumentation amp confi guration allows fully balanced signal paths
The amplifiation sections of the P-7100 feature the newly adopted “instrumentation amplifier” principle whereby all signal paths from the inputs to the power amp stage are fully balanced. This results in excellent CMRR (Common Mode
Signal input stage
+ INPUT
GAIN CONTROL
CIRCUIT
– INPUT
Instrumentation amplier conguration
Rejection Ratio) and minimal distortion. Another significant advantage is that external noise and other external influences are virtually shut out. The result is a drastic improvement in power amplifier operation stability and reliability.
n Power amplifi er assembly with 11 parallel push-pull transistor
pairs per channel mounted directly to large aluminum diecast heat sinks, instrumentation amplifi er and MCS+ circuitry, and current feedback amplifi er
NFB
NETWORK
NFB
NETWORK
Power amplier stage
OUTPUT
Further refi ned MCS+ topology for even lower noise
Accuphase’s original MCS (Multiple Circuit Sum­ming) principle uses a number of identical circuits connected in parallel to achieve superior perfor­mance characteristics. MCS+ is a further refined
version of this approach. Improvements in the bias circuitry of the input-stage buffer amplifier result in greater stability. This in turn makes it possible to extend the parallel operation approach to the class-A drive stage of the current/voltage convert­er, thereby further lowering the noise floor.
Current feedback circuit topology assures excellent phase characteristics in high range
In the P-7100, the signal current rather than the more conventionally used voltage is used for feed­back. Since the impedance at the current feedback point is very low, there is almost no phase shift. Phase compensation can therefore be kept at a minimum. A slight amount of NFB results in maxi­mum improvement of circuit parameters.
Current
(–) input buffer
(+) input buffer
Principle of current feedback amplifi er
adder
I/V
converter
Trans-impedance
amplifi er
Current NFB
network
Amplifi er
Output
r
Page 4
Connection example for bi-amping setup Connection example for bridged setup
Left loudspeaker
In a bi-amped setup, the speaker units for the LOW frequency range and HIGH frequency range are driven by separate amplifi ers, for enhanced sound quality.
A speaker with a built-in crossover network
and separate inputs for LOW and HIGH range is required.
Two P-7100 units are required.
Right loudspeaker Left loudspeaker Right loudspeaker
In bridged mode, the P-7100 becomes a monophonic amplifier with even higher power output.
For stereo operation, two P-7100 units are
required.
P-7100 for
left channel
Mode selector of P-7100 (DUAL MONO position)
Preamplifi er
m Use the LEFT (BALANCED or
UNBALANCED) input connectors for both P-7100 units.
P-7100 for right channel
n Front Panel
n Rear Panel
Input type indicators Power meters (dB and % scale) Bridged mode indicator Meter operation/illumination switch Input selector button BALANCED UNBALANCED Power switch Gain selector MAX –3 dB –6 dB –12 dB Speaker terminals
Remarks
This product is available in versions for 120/230 V AC. Make sure that the voltage shown on the
rear panel matches the AC line voltage in your area.
The shape of the AC inlet and plug of the supplied power cord as well as the circuit breaker
current rating depend on the voltage rating and destination country.
Unbalanced inputs Balanced inputs
Ground Inverted (–) Non-inverted (+)
Mode selector DUAL MONO NORMAL BRIDGE Circuit breaker AC power supply connector
P-7100 for
left channel
Mode selector of P-7100 (BRIDGE position)
Preamplifi er
m Use the LEFT (BALANCED or
UNBALANCED) input connectors for both P-7100 units.
P-7100 for right channel
Parallel drive of output devices
Semiconductor devices for high frequency applications usually employ a multi-chip design where a number of small transistors or FETs are connected in parallel. This approach allows reducing inherent impedance and residual noise as compared to single device operation. In other words, linearity is improved. In physical terms, increasing the surface area of the chip prevents spot overheating by providing better heat dissipation, resulting in more stable operation. Parallel connection in the output stage of the P-7100 uses a similar principle for distributing the current, which lets the amplifi er easily deal with sudden demands for high current, such as caused by pulsive source signals. However, a parallel circuit as implemented by Accuphase is much more than a simple physical connection. Accuphase’s extensive know-how gained through many years of intensive research and experimentation is in evidence here. Careful control of temperature characteristics, current matching of individual devices, and many other advanced measures are implemented. The overall result is minimized distortion at low currents and improved S/N ratio, which manifests itself as dramatically improved clarity and transparency at low listening levels. Ample current reserves make it possible to drive even extremely low loads with effortless authority. No-holds-barred performance and superb sound are the hallmarks of Accuphase amplifi ers
.
P-7100 Guaranteed Specifi cations
[Guaranteed specifi cations are measured according to EIA standard RS-490.]
m Continuous Average Output Power (20 - 20,000 Hz)
Stereo operation 1,000 watts per channel into 1 ohm () (both channels driven) 500 watts per channel into 2 ohms 250 watts per channel into 4 ohms 125 watts per channel into 8 ohms
Monophonic operation 2,000 watts into 2 ohms ()
(bridged connection) 1,000 watts into 4 ohms 500 watts into 8 ohms Note: Load ratings marked () apply only to operation with music signals.
m Total Harmonic Distortion
0.03% with 4 to 16 ohm load
Monophonic operation (bridged connection) 0.03% with 4 to 16 ohm load
m
Intermodulation Distortion
m Frequency Response At rated output: 20 - 20,000 Hz +0, –0.2 dB
At 1 watt output: 0.5 - 160,000 Hz +0, –3.0 dB
m Gain 28.0 dB (with GAIN selector at MAX) m Gain selection MAX, –3 dB, –6 dB, –12 dB m Output Load impedance Stereo operation: 2 to 16 ohms
Monophonic operation: 4 to 16 ohms
m Damping Factor 300 m Input Sensitivity Stereo operation 1.26 V for rated output
(with 8-ohm load) 0.11 V for 1 watt output
Monophonic operation 2.52 V for rated output
0.11 V for 1 watt output
m Input Impedance Balanced: 40 kilohms
Unbalanced: 20 kilohms
m Signal-to-Noise Ratio
(A-weighted, input shorted, At rated output) 127 dB (GAIN selector in -12 dB position)
m Output Level Meters Logarithmic scale, with defeat switch
–60 dB to +3 dB (indication in %)
m Power Requirements AC 120 V / 230 V, 50 / 60 Hz
(Voltage as indicated on rear panel)
m Power Consumption 135 watts idle
945 watts in accordance with IEC-60065
m Maximum dimensions 465 mm (18-5/16”) width
258 mm (10-3/16”) height 545 mm (21-7/16”) depth
m Mass 49.0 kg (108.0 lbs.) net
58.0 kg (127.9 lbs.) in shipping carton
Stereo operation (both channels driven) 0.05% with 2 ohm load
0.01%
With music signals only, 1-ohm loads are permissible for stereo operation and 2-ohm loads for monophonic operation.
122 dB (GAIN selector in MAX position)
n Supplied accessory m AC power cord
m Specifi cations and design are subject to change without notice for improvements.
http://www.accuphase.com
F0605Y PRINTED IN JAPAN 851-0157-00 (AD1)
