AccuMac AM1660 Specifications

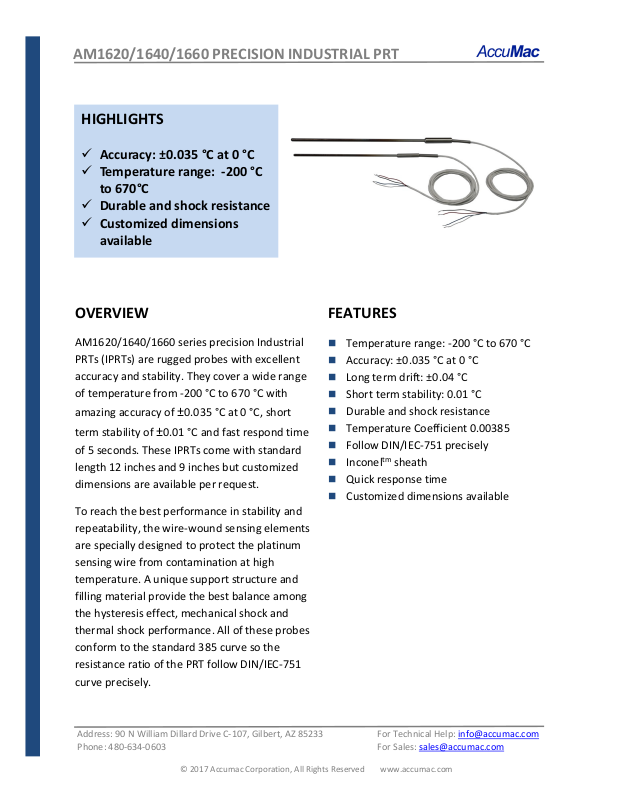

AM1620/1640/1660 PRECISION INDUSTRIAL PRT

OVERVIEW

HIGHLIGHTS

FEATURES

 Accuracy: ±0.035 °C at 0 °C
 Temperature range: -200 °C

to 670°C

 Durable and shock resistance
 Customized dimensions

AM1620/1640/1660 series precision Industrial
PRTs (IPRTs) are rugged probes with excellent
accuracy and stability. They cover a wide range
of temperature from -200 °C to 670 °C with

amazing accuracy of ±0.035 °C at 0 °C, short

term stability of ±0.01 °C and fast respond time

of 5 seconds. These IPRTs come with standard
length 12 inches and 9 inches but customized
dimensions are available per request.

To reach the best performance in stability and
repeatability, the wire-wound sensing elements
are specially designed to protect the platinum
sensing wire from contamination at high
temperature. A unique support structure and
filling material provide the best balance among
the hysteresis effect, mechanical shock and
thermal shock performance. All of these probes
conform to the standard 385 curve so the
resistance ratio of the PRT follow DIN/IEC-751
curve precisely.

available



















Temperature range: -200 °C to 670 °C
Accuracy: ±0.035 °C at 0 °C
Long term drift: ±0.04 °C
Short term stability: 0.01 °C
Durable and shock resistance
Temperature Coefficient 0.00385
Follow DIN/IEC-751 precisely
Inconeltm sheath
Quick response time
Customized dimensions available

Address: 90 N William Dillard Drive C-107, Gilbert, AZ 85233 For Technical Help: [e-mail]
Phone: [phone] For Sales: [e-mail]

© 2017 Accumac Corporation, All Rights Reserved www.accumac.com

AM1620/1640/1660 PRECISION INDUSTRIAL PRT

tm

tm

SPECIFICATIONS

Temperature Range 1660: -200 °C to 670 °C

1640: -200 °C to 420 °C
1620: -60 °C to 300 °C

Resistance at 0 °C Nominal 100 Ω
Temperature Coefficient 0.00385 Ω/ Ω/°C
Accuracy ±0.04 °C at -200 °C

±0.035 °C at 0 °C
±0.05 °C at 200 °C
±0.09 °C at 420 °C
±0.15 °C at 660 °C

Drift ±0.04 °C at 0 °C after 100 hours at 420 °C
Short Term Stability ±0.01 °C
Thermal Shock ±0.007 °C after 10 times thermal cycles from minimum to

maximum temperatures

Hysteresis <=0.01 °C
Self-heating 50 mW/°C
Response Time 5 seconds for 63% response to step change in water moving

at 3 feet per second

Measurement Current 0.5 mA or 1 mA
Sensor Length 32 mm
Sensor Location 5 mm from tip
Insulation Resistance >1000 MΩ at room temperature
Sheath Material 1660/1640: Inconel

1620: 316 Stainless Steel

Dimension 1660-12/1640-12/1620-12: 0.25” X 12” (6.35 mm X 305 mm)

1640-9/1620-9: 0.187” X 9” (4.75 mm X 229 mm)

External Leads Teflon
Handle Dimension 15 mm (OD) X 65 mm (L)
Handle Temperature Range* -50 °C to 180 °C
Optional Calibration NIST traceable calibration and data available per request:

1660-12: Ordering # 5007
1640-12: Ordering # 5014
1620-12: Ordering # 5015

*Handle temperature outside this range will cause damage to the probe.

– insulated copper wire, 4 leads, 2.5 meters

OPTIONAL ACCESSORIES

Model Description

9001 Wooden Carrying Case
