98648-015-55

Operating Instructions

ACCULAB ATILON

Electronic Analytical and Precision Balances

3 Warnings and Safety Precautions

4 Getting Started

5 Installation

11 Operation 11 Display and Operating Elements 12 Basic Weighing Function 14 Calibration/Adjustment

17 Configuration (Operating Menu) 17 Functions of the Keys during Configuration 18 Menu Navigation; Example: Setting the Language 19 Parameter Settings: Menu 20 Parameter Settings: Overview 24 Input: ID Number, Date and Time

26 Application Programs 27 Counting 29 Weighing in Percent 31 Calculation 33 Animal Weighing/Averaging 35 Net-total Formulation 37 Totalizing 39 Density Determination 41 Mass Unit Conversion

44 ISO/GLP-compliant Printout/Record

46 Data Interface

47 Troubleshooting Guide

48 Care and Maintenance

49 Recycling

50 Overview 51 Specifications 55 Accessories 56 C-Marking 57 Declaration of Conformity 58 Confirmation of an EC Type-Approval Certificate

Safety

§ To prevent damage to the equipment, please read these operating instructions carefully before using the balance.

!Do not use this equipment in hazardous areas.

!The balance may be opened only by trained service

technicians.

!Disconnect the balance from power before connecting or

disconnecting peripheral devices.

!If you operate the balance under ambient conditions

subject to higher safety standards, you must comply with the applicable installation regulations.

!Exposure to excessive electromagnetic interference can

cause the readout value to change. Once the disturbance has ceased, the instrument can be used again in accordance with its intended purpose. Make sure that no liquid enters the equipment housing; use only a slightly moistened cloth to clean the balance.

Installation

!Make sure the voltage rating printed on the power supply

is identical to your local line voltage.

– Proceed with extreme caution when using pre-wired

RS-232 connecting cables, as the pin assignments may not be compatible with Acculab equipment. Before connecting the cable, check all pin assignments against the cabling diagrams and disconnect any lines that are assigned differently.

!If there is visible damage to the equipment or power cord,

disconnect the equipment from power and lock it in a secure place to ensure that it cannot be used for the time being.

– Connect only Acculab accessories, as these are optimally

designed for use with your Atilon balance. The operator shall be solely responsible for installation and testing of any modifications to Acculab equipment, including connection of cables or equipment not supplied by Acculab. On request, Acculab will be happy to provide information on operating specifications (in accordance with the Standards for defined immunity to interference).

$ Do not open the balance housing. If the seal is broken, this

will void all claims under the manufacturer’s warranty.

$ If you have any problems with your balance, contact your

local customer service center.

Symbols

The following symbols are used in these instructions:

§ indicates required steps

$ indicates steps required only under certain conditions

> describes what happens after you have performed a

particular step

– indicates an item in a list

!indicates a hazard

Warnings and Safety Precautions

Storage and Shipping Conditions

– Do not expose the balance to extreme temperatures,

moisture, shocks, blows or vibration.

Unpacking the Equipment

§ After unpacking the equipment, please check it immediately for any external damage.

$ If you detect any damage, proceed as directed in the

chapter entitled “Care and Maintenance,” under “Safety Inspection.”

$ Save the box and all parts of the packaging for any future

transport. Disconnect all cables before packing the balance for shipping.

Equipment Supplied

– Balance – Weighing pan – Pan support (only for models with a round weighing pan) – AC adapter

Additional equipment supplied with models ATL-224, -124:

– Sliding-door draft shield – Drip/breeze ring – Draft shield base plate

Additional equipment supplied with models ATL-623, -423, -153:

– Round glass draft shield with cover

Getting Started

Installation

Choose a location that is not subject to the following

negative influences: – Heat (heater or direct sunlight) – Drafts from open windows and doors – Excessive vibration during weighing – Excessive moisture

Conditioning the Balance

Moisture in the air can condense on cold surfaces

whenever the equipment is moved to a substantially

warmer place. To avoid the effects of condensation, allow

the balance to sit for 2 hours, at room temperature, before

plugging into AC power.

Seal on Balances Verified for Use in Legal

Metrology in the EU*:

For instruments of accuracy class K, EU legislation

requires that a control seal be affixed to verified balances.

The control seal consists of a sticker. If the seal is broken,

the verification becomes null and void and the balance

must be re-verified.

* Including the Signatories of the Agreement on the

European Economic Area

Installation

Setting Up the Balance

Instruments with sliding-door draft shield:

§ Place components inside the chamber in the following order: – Draft shield base plate – Drip/breeze ring – Pan support – Weighing pan

Instruments with a round glass draft ring:

§ Position the components listed below in the order given: – Place the lower lid on the balance with the raised edge facing upwards – Pan support – Weighing pan – Glass draft ring – Place the upper lid on the draft shield ring with the raised edge facing downwards

Instruments with a round weighing pan

§ Position the components listed below in the order given: – Pan support – Weighing pan

Instruments with a rectangular weighing pan:

§ Place the weighing pan on the balance

Connecting the Balance to AC Power/Safety Precautions

Use only original Acculab AC adapters. For use within – Europe: part no. 6971412 – U.S./Canada: part no. 6971413

§ 1) Connect the angle plug to the balance

§ 2) Connect the AC adapter to the wall outlet (mains)

AC Adapter with Country-specific Power Cord

Some models come with separate country-specific power cords for the

AC adapter.

§ 1) Connect the angle plug to the balance

§ 2) Select the power cord for your area and connect it to the AC adapter

§ 3) Plug the power cord into the wall outlet (mains)

Use an original Acclulab AC adapter with a wide input voltage range $ (100 to 240 V~), order no. 6971966, and replaceable power cord:

6900900 (Europe) 6900905 (AUS)

6900901 (US/CDN) 6900902 (ZA)

6971945 (UK) 6971977 (Argentina)

6971973 (India) 6971978 (China)

6971980 (Denmark) 6971975 (Israel)

6971776 (Italy)

Safety Precautions

Plug-in AC Adapter 6971412/6971413:

The AC adapter rated to Class 2 can be plugged into any wall outlet without

additional safety precautions.

Benchtop AC Adapter 6971966:

The AC adapter rated to Class 1 can be plugged into any wall outlet without

additional safety precautions.

The ground terminal is connected to the

balance housing, which can be additionally grounded for operation.

The data interface is also electrically connected to the balance housing (ground).

NOTE: This equipment has been tested and found to comply with the limits pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications.

For information on the specific limits and class of this equipment, please refer to the Declaration of Conformity. Depending on the particular class, you are either required or requested to correct the interference.

If you have a Class A digital device, you need to comply with the FCC statement as follows: “Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.”

If you have a Class B digital device, please read and follow the FCC information given below: “However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician

for help.”

Before you operate this equipment, check which FCC class (Class A or Class B) it has according to the Declaration of Conformity included. Be sure to observe the information of this Declaration.

Connecting Electronic Peripheral Devices

§ Make sure to unplug the balance from AC power before you connect or disconnect

a peripheral device (printer or computer) to or from the interface port.

Warmup Time

To ensure accurate results, the balance must warm up before operation

as follows: – Models ATL-153 and ATL-822: 2 hours – All other models: 30 minutes

Only after this time will the instrument have reached the required operating

temperature.

Using Verified Balances in Legal Metrology in the EU*:

$ Make sure to allow the equipment to warm up for at least 24 hours after initial

connection to AC power or after a relatively long power outage.

Operation Outside the Temperature Range

!Operating the balance beyond the temperature range of +10…+30°C

(50°…86°F). Differences from the specifications listed in the chapter on

“Specifications” are possible.

* Including the Signatories of the Agreement on the European Economic Area

Below-Balance Weighing

A port for a below-balance weighing hanger is located on the bottom of the balance.

$ Below-balance weighing is not permitted in legal metrology.

§ Open cover plate on the bottom of the balance.

Important: set the balance on its side to access the cover plate. DO NOT turn the balance upside-down.

§ Using the built-in hook 1: Attach the sample (e.g., using a suspension wire)

to the hanger.

$ Install a shield for protection against drafts if necessary.

Leveling the Balance

Purpose: – To compensate for unevenness at the place of installation

Always level the balance again any time after it has been moved to a different

location. Only the 2 front feet are adjusted to level the balance.

§ Retract the two rear feet (only on models with a rectangular weighing pan).

§ Turn the 2 front feet as shown in the diagram until the air bubble is centered

within the circle of the level indicator.

> In most cases this will require several adjustment steps.

§ On models with a rectangular weighing pan: Lower the 2 rear feet until they

touch the surface on which the balance rests.

Anti-theft Locking Device

§ To secure the balance at the place of installation, fasten a chain or a lock to the

lug located on the rear panel of the balance.

$ Anti-theft locking device (chain and lock): order number LC-1

Overview of Display Elements

Operation

Pos. Designation

1 Weight unit 2 Menu level indicator 3 Symbol: “GLP printing mode active” 4 Symbol: “Printing mode active” 5 Symbol: “Application program active” 6 Calculated-value indicator (i.e., not a weight value) 7 Symbol: Gross or net value 8 Symbols for active application

(W, Z, L, V, R, A, C)

9 Symbol: Calibration/adjustment function

10 Symbols for zero range

Pos. Designation 11 Busy symbol: command is being processed (for example,

“Wait for stability icon); after you turn on the power, A will be displayed until you press a key

12 Weight value displayed in selected weight unit

Symbols: << Save settings and exit the operating menu < One menu level higher V Scroll through menu items > Next item on current menu level ↵ Select a parameter setting

Overview of Operating Elements

Pos. Designation 1 On/off

2 Level indicator 3 Start calibration/adjustment routine 4 Data output:

Press this key to send readout values to the built-in data interface.

5 Taring

Pos. Designation 6 Start an application program

7 Open the operating menu | Select an application program 8 Clear

This key is generally used to cancel functions:

– Quit application program

– Cancel calibration/adjustment routine |

Exit the operating menu

7 6

3 4 5

1 2

9 8 7

4 5

ATILON

ON/OFF

MENUECLEAR

ENTER

ZERO

TARE

CAL

Features

– Taring the balance – Printing weights

Preparation

§ Switch on the balance: Press (ON/OFF)

§ Tare the balance, if necessary: Press (TARE)

$ If necessary, change the configuration settings:

See the chapter entitled “Configuration”

$ If desired, load the factory settings:

See the chapter entitled “Configuration”

Additional Functions

$ Switching off the balance:

Press (ON/OFF)

$ Balance in standby mode:

the current time is displayed

Using Verified Balances as Legal Measuring Instruments in the EU*:

The type-approval certificate for verification applies only to non-automatic weighing instruments. For automatic operation with or without auxiliary measuring devices, you must comply with the regulations applicable to the place of installation.

§ Before using the balance as a legal measuring instrument, calibrate and adjust it at the place of use using the built-in motorized calibration weight; for details, see “Calibration/Adjustment” in this chapter.

The temperature range (°C) indicated on the verification label must not be exceeded during operation.

* Including the Signatories of the Agreement on the

Eruopean Economic Area

Basic Weighing Function

Example

Simple Weighing

Step Key (or instruction) Display/Printout

Balance in standby mode 10:32:30

1. Switch on the balance (ON/OFF) 0.0 g Self-test is performed, followed by automatic initial tare function.

2. Place container on weighing pan + 11.5 g (in this example: 11,5 g).

3. Tare the balance (TARE) 0.0 g

4. Place sample in container + 132.0 g (in this example: 132 g).

5. Print weight (PRINT) N + 132.0 g

Purpose

Calibration is the determination of any difference between the measured value displayed and the true weight (mass) of a sample. Adjustment is the correction of this difference, or its reduction to an allowable level within maximum permissible error limits.

Using Verified Balancess as Legal Measuring Instruments in the EU*: Before using your balance as a legal measuring instrument, internal calibration must be performed at the place of installation.

Features

Calibration/adjustment can be performed only when: – there is no load on the balance – the balance is tared – the internal signal is stable – for external calibration, the value displayed for the

calibration weight on the balance does not differ from the

nominal weight value by more than 2%

If these conditions are not met, an error message is

displayed “Err 02”.

You can use any of the following weight units in

calibration/adjustment:

CAL.Einh. - gramm, Kilogr. or Pound

(not for verified models)

To block calibration/adjustment: – Select Cal.-Adj.-blocked in the menu – Close the menu access switch on the back of the balance

External Calibration in Verified Balances

When the balance is used in legal metrology, external

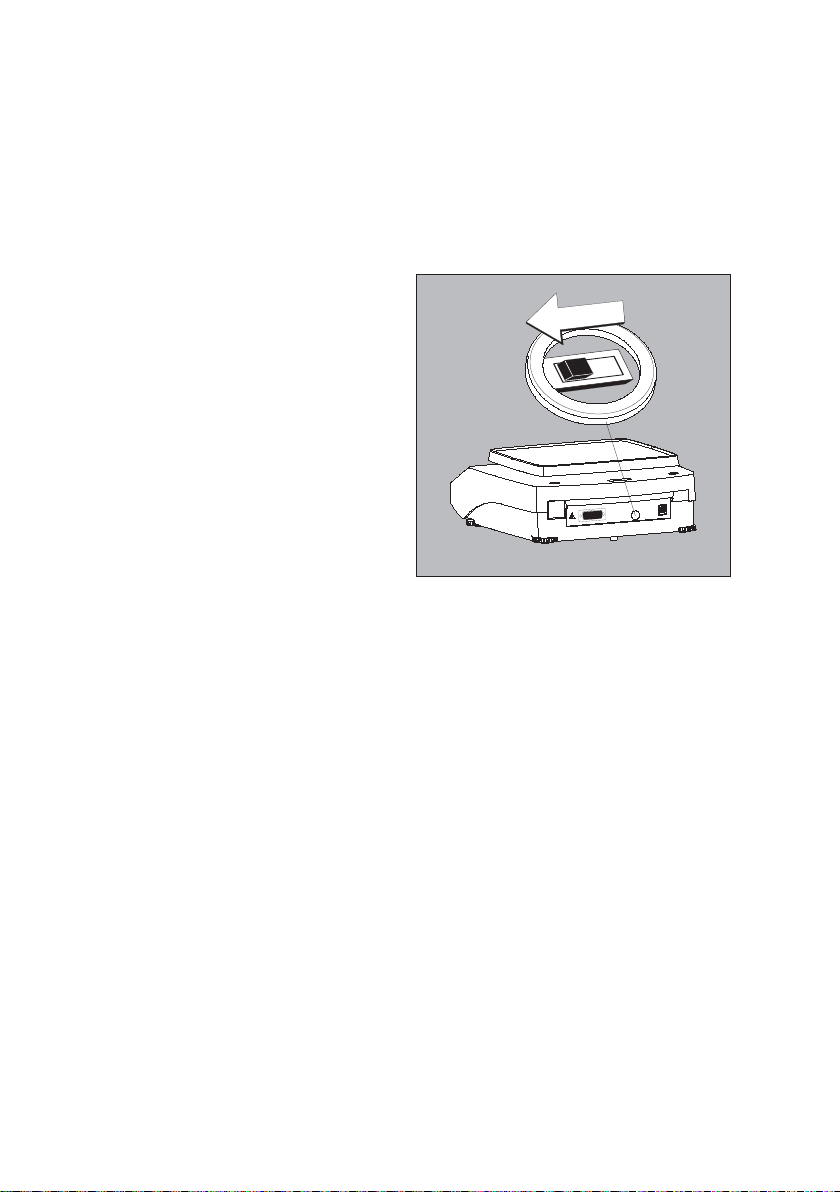

calibration is blocked as follows: – The setting of the menu access switch is locked

(see “To block calibration/adjustment”) – The cap over the menu access switch is sealed

For details on generating an ISO/GLP-compliant printout of

calibration/adjustment results, see page 43.

Following calibration/adjustment, the application program

is cleared.

Internal Calibration/Adjustment

In the operating menu, select Cal.-Adj.-Cal.Int.

before beginning.

The built-in motorized calibration weight is applied and

removed automatically for internal calibration.

§ Select calibration/adjustment: Press (CAL) > The built-in weight is applied automatically > The balance is adjusted > The built-in calibration weight is removed.

* Including the Signatories of the Agreement on the

European Economic Area

Calibration and Adjustment

Internal Calibration/Adjustment (Only on ATL…-I und ATL…-V models)

Set the following parameters: SETUP - Waage - CAL.Just. - Cal.Int. (menu code 1.1. 9. 4)

The built-in motorized calibration weight is applied and removed automatically for internal calibration.

Step Key (or instruction) Display

1. Unload and tare the balance (TARE) 0.0 g

2. Start calibration (CAL) CAL.Int. g

The built-in weight is CAL.RUN. applied automaticallyg

3. Calibration/adjustment executed CAL.end g

4. The built-in weight is removed 0.0 g

External Calibration

Parameters (changes in factory settings): SETUP - Waage - CAL.Just. - Cal.Ext. (menu code 1.1. 9. 1) The required calibration weight is configured at the factory (see “Specifications”)

Step Key (or instruction) Display

1. Unload and tare the balance (TARE) 0.0 g

2. Start calibration. (CAL) Cal.Ext. g

Once you store the zero point - 5000.0 g the required calibration weight is prompted (flashing display)

3. Apply the prompted calibration 5000.0 g weight (in this example: 5000 g) Weight too light: a minus sign “–” is shown Weight too heavy: a plus sign “+” is shown

The display stops flashing as soon as the weight value is within the defined limit.

4. Calibration/adjustment executed; Cal.end g then the calibration weight is displayed + 5000.0 g

5. Remove the calibration weight 0.0 g

You can configure the balance; i.e., adapt it to individual requirements.

Functions of the Keys during Configuration

Symbol Key Function V (MENU)* Scroll through menu items

Press and hold > (ENTER) One menu level lower ↵ (ENTER) Confirm menu item

(CLEAR) Save settings and exit menu from any position

Press and hold << (CLEAR) Save settings and exit menu < (CLEAR) One menu level higher

Indicates menu level

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Configuration (Operating Menu)

Menu Navigation

Example: Setting the Language

Step Key (or instruction) Display

1. Open the menu: (MENU)* (hold) Applic.

In weighing mode: first menu item is shown

2. Scroll upward within the Repeatedly: (MENU)* Input menu level; after the last ... menu code, the first languag. code is displayed again

3. Select menu level Repeatedly: (ENTER) english o

(scrolls to the right)

4. Change setting: (MENU)* Espanol Scroll until the desired setting is shown

5. Confirm the menu code; (ENTER) Espanol o “o” indicates the active setting

6. Return to the next higher menu (CLEAR) Lengua level (from the second level)

$ Set other menu items as desired (MENU)*, (ENTER)

7. Save settings Repeatedly: (CLEAR) and exit menu

$ Exit menu without saving changes (ON/OFF)

> Restart your application 0.0 g

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Parameter Settings: Menu

Level 1 Level 2 Level 3 Menu code

Setup Bal.Scal. Ambient Ambient conditions 1. 1. 1.

Balance parameters app.fil. Application filter 1. 1. 2.

Stab.Rng. Stability range 1. 1. 3. Taring Taring

) 1. 1. 5

AutoZer. Auto zero 1. 1. 6 Wt.Unit Basic weight unit 1. 1. 7. Display Display accuracy

) 1. 1. 8.

Cal./adj. Function of the (CAL) key 1. 1. 9. Cal.Unit. Weight unit for calibratio

) 1. 1.11.

Interf. Interface Baud Baud rate 1. 5. 1.

parity Parity 1. 5. 2. Stopbit Number of stop bits 1. 5. 3. handshk. Handshake mode 1. 5. 4. databit Number of data bits 1. 5. 5.

Dat.Rec. Output: SBI (ASCII) or printout 1. 5. 6. Prnt.Out Print (manual/automatic) 1. 6. 1. Settings for print function StopAut. Stop automatic printing 1. 6. 2.

Tar./prt. Tare balance after ind. print 1. 6. 4.

Prt.Init. Printout of appl. parameters 1. 6. 5.

format Line format for printout 1. 6. 6.

GLP ISO/GLP-compliant printout 1. 6. 7.

time 12h/24h 1. 6. 8.

date-Format 1. 6. 9. extras Menu 1. 8. 1. Additional functions Signal Acoustic signal (beep) 1. 8. 2.

Keys Keypad 1. 8. 3.

ext. Keys. Funktion external Keypad 1. 8. 4.

On Mode Power-on mode 1. 8. 5.

Backlit Display backlighting 1. 8. 6. reset menu Factory settings 1. 9. 1.

Applic. Weigh 2. 1.

Application programs Unit Toggle wt. unit Disp.Dig. Display accuracy

) 2. 2. 2.

Count Counting. Resolut. Resolution 2. 3. 1.

Ref.Updt. Autom. ref. sample updating 2. 3. 2. Percent Weighing in percent Dec.Plcs Decimal places 2. 4. 1. Net-Tot Net-total formulation Comp.Prt. Printout of components 2. 5. 1. Total Totalizing Comp.Prt. Printout of components 2. 6. 1. AnimalW. Animal weighing Activty. Animal activity 2. 7. 1

start 2. 7. 2. Calc. Calculation Method (operator) 2. 8. 1.

Dec.Plcs Decimal places 2. 8. 2. Density Density determination Dec.Plcs Decimal places 2. 9. 1.

Input Input ID no., Date, time Input: ID no., date, time 3. 1./2./3. Info Information Version , Ser. No. , Model Display software ver., serial no., model 4. 1./2./3. Languag. English (factory setting) 5. 1.

Deutsch German 5. 2. Franc. French 5. 3. Ital. Italian 5. 4. Espanol Spanish 5. 5.

. PyCCKV1V1 Russian 5. 6.

polski Polish 5. 7. Codes Menu shows codes (not texts) 5. 8.

) Setting cannot be changed on verified balances

Parameter Settings: Overview

ο = Factory setting √ = User-defined setting

Level 1 Level 2 Level 3 Level 4 Menu code

Setup Bal.Scal. Ambient V.Stable Very stable 1. 1. 1. 1

Balance Ambient ο Stable 1. 1. 1. 2 parameters conditions Unstabl 1. 1. 1. 3

(Filter adaptation) V.Unstbl. Very unstable 1. 1. 1. 4 App.filt. ο Final.Rd. Final readout mode 1. 1. 2. 1

Application filter Filling Filling mode 1. 1. 2. 2 Stab.Rng. 1/4-Dig. (digit) 1. 1. 3. 1

Stability range 1/2-Dig. 1. 1. 3. 2

1-Digit 1. 1. 3. 3

ο 2-Digit 1. 1. 3. 4

4-Digit 1. 1. 3. 5 8- Digit

) 1. 1. 3. 6

Taring

) W/o Stb W/o stability 1. 1. 5. 1

Taring o W/ StAb After stability 1. 1. 5. 2

AutoZer. Off 1. 1. 6. 1

Auto zero ο On 1. 1. 6. 2

Wt.Unit For list of units, see 1. 1. 7. 1

Basic weight “Toggling between Weight unit Units” 1. 1. 7. 23

Disp.Dig.

) ο All 1. 1. 8. 1 Display Minus 1 1. 1. 8. 2 accuracy

Cal./adj. ο Cal. ext. External cal./adj.

) 1. 1. 9. 1 Function of the Cal. int. Internal cal./adj.2) 1. 1. 9. 2 (CAL) key Blocked (CAL) key blocked 1. 1. 3. 3

Cal.Unit. Unit

) ο Grams 1. 1.11. 1 for calibration Kilogr. Kilograms 1. 1.11. 2 weight Pounds1) 1. 1.11. 3

) Setting cannot be changed on verified balances

) Only on ATL-…-I, ATL-…-V models

Level 1 Level 2 Level 3 Level 4 Menu code

Setup Interf. Baudrate 600 1. 5. 1. 3

Interface ο 1200 1. 5. 1. 4

2400 1. 5. 1. 5 4800 1. 5. 1. 6 9600 1. 5. 1. 7 19200 1. 5. 1. 8

Parity ο Odd 1. 5. 2. 3

Parity Even 1. 5. 2. 4

None 1. 5. 2. 5

StopBit ο 1 Stop 1. 5. 3. 1 No. of stop bits 2 Stop 1. 5. 3. 2

Handshk. Softw.are 1. 5. 4. 1

Handshake ο Hardw.are 1. 5. 4. 2 mode None 1. 5. 4. 3

DataBit ο 7 Bits 1. 5. 5. 1 No. of data bits 8 Bits 1. 5. 5. 2

Dat.Rec. SBI (ASCII)

) 1. 5. 6. 1

Communication mode ο Printer (GLP-printout) 1. 5. 6. 2

Prnt.Out Print Man. W/o W/o stability 1. 6. 1. 1 Printing fct. (manual/ ο Man.With W/ stability 1. 6. 1. 2

automatic) Aut. W/o Autom. w/o stability 1. 6. 1. 3

Aut.With. Autom. w/ stability 1. 6. 1. 4

StopAut. Stop ο Off Not possible 1. 6. 2. 1 automatic printing On Use print key (PRINT) 1. 6. 2. 2

aut.Cycl. ο EachVAl (1 display update) 1. 6. 3. 1

Time-dependent automautomatic printing

Tar./prt. Tare ο off 1. 6. 4. 1 the balance after On 1. 6. 4. 2 individual printout

) Note concerning verified balances as legal measuring instruments in the EU*:

In the setting “SBI”, the non-verified display digit is not automatically identified. Please take the corresponding measures or adjust the settings on the peripheral device.

* Including the signatories of the Agreement on the European Economic Area.

Level 1 Level 2 Level 3 Level 4

Menu code

Setup Prnt.Out Prt.Init. Off 1. 6. 5. 1

Printing Printing appli- ο All All parameters 1. 6. 5. 2

cation parameters

MainPar. Main parameters 1. 6. 5. 2

Format Line 16 Char.

16 characters (w/o ID)

1. 6. 6. 1

format for printout

ο 22 Char. 22 characters (w/ ID) 1. 6. 6. 2

2 Char. 2 characters (w/ ID) 1. 6. 6. 3

(Date/Time and weight value)

GLP Printout ο Off 1. 6. 7. 1 as ISO/GLP- Cal.-adj. Only for calib./adj. 1. 6. 7. 2 compliant Always All printouts 1. 6. 7. 3

time 24 h 24-hour format 1. 6. 8. 1

12 h

12-hour format “AM/PM”

1. 6. 8. 2

date dd.mmm.yy Day/month/year 1. 6. 9. 1

mmm.dd.yy Month/day/year 1. 6. 9. 2

Extras Menu* ο CanEdit Can change settings 1. 8. 1. 1

Additional Rd. Only Read only 1. 8. 1. 2 functions

Signal Off 1. 8. 2. 1 Acoustic signal ο On 1. 8. 2. 2

Keys ο Free 1. 8. 3. 1 Keypad Locked 1. 8. 3. 2

ext.Key ο print key 1. 8. 4. 1 Function of the z/tare key (TARE) 1. 8. 4. 2 external switch cal key (CAL) 1. 8. 4. 3

select key (MENU)* 1. 8. 4. 4 CF key (CLEAR) 1. 8. 4. 5 enter key 1. 8. 4. 9

On Mode ο Off/On Off/on/standby 1. 8. 5. 1

Power-on Standby On/standby 1. 8. 5. 2 mode Auto On Auto on 1. 8. 5. 3

Backlit Off 1. 8. 6. 1 Display

ο On 1. 8. 6. 2

backlighting

Reset Menu* Yes Restore defaults 1. 9. 1. 1 Reset menu Factory settings ο No Do not restore defaults 1. 9. 1. 2

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Level 1 Level 2 Level 3 Level 4

Menu code

Applic. Weigh 2. 1. Applic. Unit Disp.Dig.

) ο All 2. 2. 2. 1

programs Toggle units Display Minus 1 2. 2. 2. 2

accuracy

Counting Resolut. ο Disp.Acc. Display accuracy 2. 3. 1. 1

Resolution 10-fold 10 times > disp. 2. 3. 1. 2 Ref.Updt. ο Off 2. 3. 2. 1

Autom. reference Auto 2. 3. 2. 2 updating

Percent Dec.Plcs None No dec. places 2. 4. 1. 1 Weighing Decimal places ο 1 Dec.Pl. 1 decimal place 2. 4. 1. 2 in percent 2 Dec.Pl. 2 decimal places 2. 4. 1. 3

3 Dec.Pl. 3 decimal places 2. 4. 1. 4

Net-Tot Comp.Prt. Off 2. 5. 1. 1

Net-total Component ο On 2. 5. 1. 2

printout

Total Comp.Prt. Off 2. 6. 1. 1 Totalizing Component ο On 2. 6. 1. 2

printout

AnimalW. Activty. Calm (fluct.: 2% of test obj.) 2. 7. 1. 1 Animal Animal activity ο Active

(fluct.: 5% of test obj.)

2. 7. 1. 2

weighing V.Active

(fluct.: 20% of test obj.)

2. 7. 1. 3

Start Manual 2. 7. 2. 1

ο Auto. Automatic 2. 7. 2. 2

Calc. Method ο Mul. Multiplier 2. 8. 1. 1 Calculation (operator) Div. Divisor 2. 8. 1. 2

Dec.Plcs None No dec. places 2. 8. 2. 1

Decimal ο 1 Dec.Pl.1 decimal place 2. 8. 2. 2 places 2 Dec.Pl.2 decimal places 2. 8. 2. 3

3 Dec. Pl. 3 decimal places 2. 8. 2. 4

Density Dec.Plcs None No dec. places 2. 9. 1. 1

Density Decimal places ο 1 Dec.Pl.1 decimal place 2. 9. 1. 2 determination

) Setting cannot be changed on verified balances

Input: ID number, Date and Time

Level 1 Level 2 Level 3 Menu

Code

Input ID No. ID input for ISO/GLP compliant data record; 3. 1. Input 7 characters max.

Permitted characters: 0 to 9; A to Z; dash/hyphen; space

DATE Menu item for setting the date 3. 2. TIME Menu item for setting the time 3. 3.

Depending on the setting you select for the menu item “SETUP-PRNT.OUT-DATE,” the date will be displayed in the following format:

Format Display: Date DD.MMM.YY

MMM.DD.YY

Depending on the setting you select for the menu item “SETUP-PRNT.OUT-TIME,” the time will be displayed in the following format:

Time Display: Time 24-hour format

12-hour format

Example: ID No., Date and Time

Step Key (or instruction) Display

1. Open the menu:In weighing mode; (MENU)* hold APPLIC. first menu item is displayed

2. Select “Input” (MENU)* Input

3. Select input for ID no. twice (ENTER) ID NO.

4. Set or change the ID no. – (MENU)* 3------

hold down key to automatically (MENU)* hold change the digit(s):

5. Scroll within the 7-digit (ENTER) or 3-aBC12

(CLEAR)

6. Save input when you (ENTER) ID NO.

have reached the last digit of the ID no.

7. “Select “Date” (MENU)*, (ENTER) FEB. 08.

8. Change setting – (MENU)* FEB. 10.

hold down key to automatically change the digit(s) (MENU)* hold

9. Toggle between (ENTER) or FEB. 10.

Day/Month/Year positions (CLEAR)

10. Save setting when you reach the “YEAR” position (ENTER) datE

11. Select “Time” (MENU)*, (ENTER) 10.46.23

12. Change setting – (MENU)* 11.46.23 change the digit(s): (MENU)* hold

13. Toggle between (ENTER) or 11.46.32 Hour/Minute/Second positions (CLEAR)

14. Set seconds to zero (MENU)* 11.47.00

15. Save setting when you have reached the “second” position (ENTER) Time

16. Save all settings repeatedly and exit the menu (CLEAR)

> Restart your application 0.0 g

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Device Information

Level 1 Level 2 Level 3 Example Menu code

InFormation version Show software version rel.36.03 4. 1.

Ser. No. Show serial number 10801234 4. 2.

To toggle focus between upper and lower display sections, press (MENU)*

model Show model designation Atl-8201 4. 3.

(to change focus from upper to middle to lower display section and back, press (MENU)*

Display of Menu Items: Text or Codes

Languag. English (factory setting) 5. 1.

Deutsch German 5. 2. Franc. French 5. 3. ital.Italian 5. 4. Espanol Spanish 5. 5. pyccKV1V1 Russian 5. 6. polski Polish 5. 7. codes Menu shows codes (not texts) 5. 8.

Application Programs

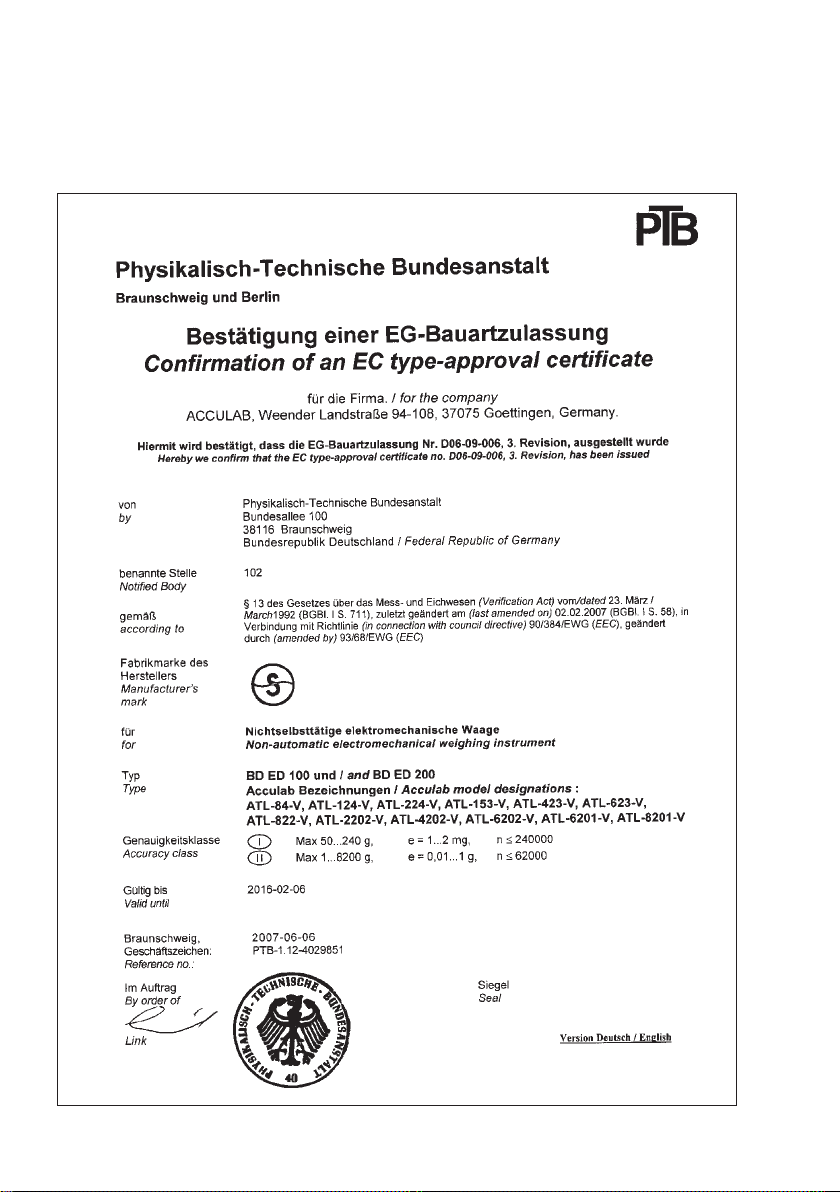

Using Verified Balances as Legal Measuring Instruments in the EU*: All application programs can be selected on balances used as legal measuring instruments.

Calculated values are alternately indicated with the following symbols: – Percent = % – Piece count (Counting) = pcs – Computed value = o,

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: Z

Purpose

With the Counting program you can determine the number of parts that each have approximately equal weight. To do this, a known number of parts (the reference sample quantity) is weighed first, and the individual piece weight (reference weight) is calculated from this result. Thus the number of parts subsequently placed on the balance can be determined from their weight.

Preparation

§ Select the Counting application in the menu: see “Configuration.”

§ Set the following parameters:

Applic. Application program

Count.

Resolut. Resolution

o Disp.Acc. Display accuracy

10-fold 10-fold higher

Ref.Updt. Autom. ref. sample updating

o Off Display accuracy

Autom. Automatic

o = Factory setting

Changing the Reference Sample Quantity

Activate function: Press the (MENU)* key Select the desired reference sample quantity (1 to 100): In increments of 1: Press the (MENU)* key briefly In increments of 10: Press and hold the (MENU)* key. The quantity is stored in battery-backed memory.

Reference Sample Updating

Automatic reference sample updating optimizes the counting accuracy. You can activate or deactivate this function in the menu.

Automatic reference sample updating is performed when the requirements, including the specified stability criterion, have been met.

The abbreviation opt, for “optimizing”, is displayed briefly with the new reference sample quantity.

Printout: Counting

nRef + 10 : Reference sample quantity wRef + 21.14 g : Reference weight Qnt + 500 pcs : Calculated quantity

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Counting

Example :Counting parts of equal weight

Parameter: Applic. - Count. (menu code 2. 3.)

Step Key (or instruction) Display/Data output

1. Place empty container + 22.6 g on the balance

2. Tare the balance (TARE)

0.0 g

3. Add reference sample quantity to container (in this example: 20 pcs)

4. Changing the reference sample quantity: (MENU)*

ref 10

pcs

5. Select reference sample quantity: Repeatedly: (MENU)* In increments of 1 (1, 2, 3, etc. to 100) Press briefly In increments of 10 (10, 20, etc. to 100) (MENU)* press and hold

ref 20

pcs

6. Confirm selected reference sample quantity (ENTER) + 20

pcs

and start application. The current reference nRef 20 pcs weight remains stored until a new reference wRef 1.07 g weight remains stored until a new reference is set or the power supply is interrupted

7. Add desired number of pieces. +

500

pcs

8. If desired, print quantity (PRINT) Qnt + 500 pcs

9. Toggle display between 1.07 g

mean piece weight, weight, Repeatedly: + 535.0 g

quantity (MENU)* + 500

pcs

10. Unload the balance – 21

pcs

11. Repeat as needed, starting from step 7

12. Delete reference value (CLEAR)

0.0 g

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: %

Purpose

This application program allows you to obtain weight readouts in percent which are in proportion to a reference weight.

Preparation

§ Select the Weighing in percent application in the menu: see “Configuration.”

§ Set the following parameters:

Applic. Application program

Percent Weighing in percent

Dec.Plcs. Decimal places

None No decimal places

o 1 Dec. Pl. 1 decimal place

2 Dec. Pl. 2 decimal places 3 Dec. Pl. 3 decimal places

o = Factory setting

Changing the Reference Percentage

Activate function: Press the (MENU)* key Select the desired reference (1 to 100): In increments of 1: Press the (MENU)* key briefly In increments of 10: Press and hold the (MENU)* key.

The percentage is stored in battery-backed memory.

Printout: Weighing in percent

pRef 100 : Reference percentage Wxx% 111.6 g : Reference weight net xx% for

selected reference percentage

Prc + 94.9 % : Calculated reference percentage

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Weighing in Percent

Example: Determining residual weight in percent

Parameter settings: Applic. Percent (menu code 2. 4.) Reference percentage: Ref 100%

Step Key (or instruction) Display/Data output

1. Tare the balance

(TARE)

0.0 g

2. Place sample equal to 100% on the balance (in this example: 111.6 g)

3. Information: Enter reference percentage

(MENU)*

ref 100 %

(Changing the reference: see the previous page)

4. Initialize the balance

(MENU)*

+ 100.0 %

The current reference weight

pRef 100 %

remains stored until a new Wxx% + 111.6 g reference is set or the power supply is interrupted

5. Remove sample (e.g., for drying)

6. Place unknown weight on balance + 94.9 %

(in this example: 105.9 g)

7. If desired, print percentage

(PRINT)

Prc + 94.9 %

8. Toggle display between Repeatedly: + 105.9 g

weight and percentage

(MENU)*

+ 94.9 %

9. Clear display of residual weight

(CLEAR)

+ 105.9 g

and reference percentage

10. If desired, print net residual weight

(PRINT)

N + 0 5 . 9 g

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: C

Purpose

With this application program you can calculate weight value using a multiplier or divisor. This can be used, for example, to determine the weight per unit area, or “gsm” weight (grams per square meter), of paper.

Preparation

§ Select the Calculation application in the menu: see “Configuration.”

§ Set the following parameters:

Applic. Application program

Calc. Calculation

Method (Operator)

o Mul. Multiplier

div. Divisor

Dec.Plcs. Decimal places

None No Decimal places

o 1Dec. Pl. 1 Decimal places

2Dec. Pl. 2 Decimal places 3Dec. Pl.. 3 Decimal places

o = Factory setting

Setting the Factor or Divisor

Activate function: Press the

(MENU)*

key Select a number of up to 7 digits and, if needed, one decimal point (0.000001 to 9999999): In increments of 1: Press the

(MENU)*

key briefly To increase the value without pressing repeatedly: Press and hold the

(MENU)*

key.

The selected operator is stored in battery-backed memory.

Printout: Calculation

Mul + 1.2634 : Multiplier Div + 0.6237 : Divisor Res + 79.7 o : Result

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Calculation

Example:

Calculating the weight per unit area of paper: An A4 sheet of paper is used in this example, with surface dimensions of 0.210 m +

0.297 m = 0.06237 m

. To determine the weight per unit area, the total weight is divided by the surface.

Parameter settings: Applic. Calc.-Method-Div. (menu code 2. 8. 1. 2)

Step Key (or instruction) Display/Data output

1. Tare the balance

(TARE)

0.00 g

2. Activate divisor input

(MENU)*

______0.

3. Set the divisor (in this example: 0.06237):

(ENTER)

Position the decimal point, 5+

(MENU)*

, __.00000

(ENTER)

Enter numerals Repeatedly __.06000

(MENU)*

or press and hold:

(ENTER)

, etc. __.06237

4. Store the divisor and initialize the balance The current divisor remains stored in

(ENTER)

+ 0.0

battery-backed memory until the setting

Div 0.6237

is changed

5. Weight per unit area: + 79.7

Place an A4 sheet of paper on the balance

6. If desired, print result

(PRINT)

Res + 79.7 o

7. Toggle display between Repeatedly:

+ 4.97 g *

weight and calculated value

(MENU)* + 79.7 o

8. Unload the balance + 0.0

9. Repeat as needed, starting from Step 5

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: V

Purpose

Use this program to determine the weights of unstable samples (e.g., live animals) or to determine weights under unstable ambient conditions. With this program, the balance calculates the weight as the average of a defined number of individual weighing operations (also referred to as “subweighing operations”).

Preparation

§ Select the Animal weighing application in the menu: see “Configuration.”

§ Set the following parameters:

Applic.

Application program

AnimalW. Animal weighing

activty.

Animal activity

Calm

Stable readout

o Active

Unstable

V.Active

Very unstable readout

Start

manual

o Autom. Automatic

o = Factory setting

Changing the Number of Subweighing Operations

Activate function: Press the

(MENU)*

key Select the desired number of measurement (1 to 100): In increments of 1: Press the

(MENU)*

key briefly In increments of 10: Press and hold the

(MENU)*

key.

The selected number of measurements is stored in battery-backed memory

Printout: Animal weighing

mDef 20 : Number of subweighing

operations

x-Net + 410.1 g : Calculated average

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Animal Weighing/Averaging

Example: Determining animal weight with automatic start and 20 subweighing operations (measurements)

Parameter settings: Applic. AnimalW. (menu code 2. 7.)

Step Key (or instruction) Display/Data output

1. Place animal weighing bowl on the balance 22.6 g

2. Tare the balance

(TARE)

0.0 g

3. Change the number of subweighing operations:

(MENU)*

ref 30

4. Set number of measurements: Repeatedly: In increments of 1 (1, 2, 3, etc. to 100)

(MENU)*

Press briefly

In increments of 10 (10, 20, etc. to 100) or

(MENU)*

and hold ref 20

5. Confirm number of measurements and start

(ENTER)

+ 0.0 g

automatic animal weighing. The number of measurements remains stored in battery-backed memory until the setting is changed

6. Place first animal in bowl. 888 The balance delays the start of measure 20 ments until the difference between 2 19

measurements meets the criterion ....

If you selected the manual start mode, press (ENTER)

7. Read off the result + 410.1 g

The result is displayed with the “*” symbol (= calculated value)

mDef 20

and remains displayed until the sample x-Net + 410.1 g (animal) is removed from the load plate (bowl)

8. Unload the balance + 0.0 g

9. Weigh next animal (if desired)

Next weighing series begins automatically

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: R

Purpose

With this application program you can weigh in individual components either by their individual weight or by the total weight. You can print out both the total weight and the individual weights of the components.

Preparation

§ Select the Net-total application in the menu: see “Configuration.”

§ Set the following parameters:

Applic.

Application program

Net-TotL. Net-total formulation

Comp.Prt. Printout of components

Off

o On

o = Factory setting

Features

– Weigh up to 99 components from “0” to a defined total

component weight.

– Store component weights

(printout shows

“

Comp xx

” with

– display zeroed automatically after value is stored, and – automatic printout

– Clear component memory following cancellation of the

weighing sequence (by pressing) and printout of the total weight.

– Toggling between component weight and total weight by

pressing and holding

(MENU)*

.(< 2 sec).

– Printout of the total of the individual component weights

(T-Comp)

Printout: Net-total formulation

Comp 2+ 278.1 g : Second component

T-Comp+2117.5 g : Sum of components

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Net-total Formulation

Example: Counting parts into a container

Parameter settings: Applic.-Net-Tot (menu code 2. 5.)

Step Key (or instruction) Display/Data output

1. Place empty container on the balance.

65.0 g

2. Tare the balance

(TARE)

0.0 g

3. Add first component + 120.5 g

4. Store component data

(ENTER)

+ 0.0 g

NET

Comp 1+ 120.5 g

5. Add next component + 70.5 g *

NET

6. Store component data

(ENTER)

+ 0.0 g

NET

Comp 2+ 70.5 g

7. Weigh in further components Repeat steps

as desired 5 and 6

8. Fill to desired final value view

(MENU)*

+ 191.0 g

the current total weight value

9. Print total weight and clear

(CLEAR)

+ 2117.5 g

the component memory

T-Comp+ 2117.5 g

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

Display symbol: R

Purpose

With this application program you can add values from successive, mutually independent weight values to a total that exceeds the capacity of the balance.

Preparation

§ Select the Totalizing application in the menu: see

“

Configuration”.

§ Set the following parameters:

Applic.Application program

Total Totalizing

Comp.Prt Printout of components

Off

o On

o = Factory setting

Features

– Totalizing memory for up to 99 values

– Store component weights (printout shows

“Comp xx” with automatic printout

– Toggle display between the current individual weight value

and the value in totalizing memory by pressing (MENU)*.

– Printout of the total of the individual component weights

(S-Comp)

– To close the application program and print the total weight:

press (CLEAR)

Printout: Totalizing

Comp 2+ 278.1 g : Second

component

S-Comp+2117.5 g : Totalizing memory

* On some models, the keypad overlay shows the German

word “MENUE“ for MENU.

Totalizing

Example: Totalizing weight values

Parameter settings: Applic. Total Comp.Prt On (Code 2. 6. 1. 2)

Step Key (or instruction) Display/Data output

1. Tare the balance

(TARE)

0.0 g

2. Place sample balance + 380.0 g (in this example: 380 g)

3. Store value in memory

(ENTER)

+ 380.0 g

Comp 1+ 380.0 g

4. Remove sample + 0.0 g

5. Place the next sample on the balance (in this example, 575 g) + 575.0 g

6. Store value in memory

(ENTER)

+ 955.0 g

+ 575.0 g

Comp 2+ 575.0 g

7. View the value in totalizing memory

(ENTER)

+ 955.0 g

8. Weigh in further components as desired Repeat steps 5 and 6

9. Print total weight and

(CLEAR)

0.0 g

clear the totalizing memory

S-Comp+ 2117.5 g

Display symbol: W

Purpose

This application program lets you determine the density of solid substances using the buoyancy method. You can have results displayed with one decimal place, or no decimal places: see “Configuration” . Note: the sample holder and suspension wire used in the example below are not included with the balance.

Preparation

§ Select the Density Determination application in the menu: see “Configuration.”

§ Set the following parameters:

Applic. Application program

density Density determination

dec.plcs Decimal places

none No decimal places

o 1dec.pl 1 decimal place

o = Factory setting

Printout for Density Determination

Wa + 20.0 g : Weight in air Wfl + 15.0 g : Weight in liquid Rho 4.0 o : Result: density

of the sample

Density Determination

Example: Determining the density of a solid sample.

Parameter settings: Applic.-Density-Dec.Plcs-1 Dec. Pl (menu code 2. 9. 1. 2)

Step Key (or instruction) Display/Data output

1. Attach sample holder to suspension wire

2. Tare the balance

(TARE)

0.0 g

3. Start application program

(ENTER)

4. Confirm “Air” display

(ENTER)

air

5. Determine the weight of the sample in air: Place sample on the balance + 20.0 g

6. Store value for weight in air

(ENTER)

7. Remove sample from the balance water

8. Determine weight in liquid: place sample in holder

9. Confirm “water” display

(ENTER)

0.0 g *

10. Immerse sample in liquid + 15.0 g *

11. Store value for weight in

(ENTER)

liquid, view result, and print + 4.0

Wa + 20.0 g Wfl + 15.0 g Rho 4.0 o

12. Delete result

(CLEAR)

13. Repeat as desired, starting from Step 3.

Purpose

With this application program you can change the weight value displayed from the basic weight unit to any of 4 application weight units (see table on next page).

Preparation

§ Select the Unit application for toggling weight units: see chapter on “Configuration” (Parameter Settings)

§ Set the following parameters:

Applic.ation program

Toggle wt, unit

dec.plcs. Display accuracy

o All All decimal places

minus1 Reduced by 1 place

o = Factory setting

Features

– Set the basic unit and display accuracy in the Setup menu:

see “Configuration.”

– Set the application weight units and display accuracies in

the Application menu. – These settings are stored in battery-backed memory. – The basic unit is active when the balance is powered up.

Mass Unit Conversion

Printout for Wt. Unit Toggling

+ 100.0 g : Weight with 16-character data output format

N + 0.22046 lb : Weight with 22-character data output format

13-Jan-2005 08:35 : Data output format for two-line printout: N + 3.5275 ozt : Date/time and weight

Example: Change display from the basic unit (in this example, grams [g]) to pounds [lb] and then to Troy ounces [ozt].

Set the following parameters: Applic. Unit (Code 2. 2.)

Step Key (or instruction) Display

Preparation:

1 Begin selection of an application weight unit

(MENU)*

None

2. Select an application unit; Repeatedly: in this example, pounds

(MENU)*

pound

(see table on next page)

3. Confirm the weight unit (pounds)

(ENTER)

pound

4. Select the next application

(ENTER)

KEINE

weight unit; in this example: Troy ounces Repeatedly: (see table on next page)

(MENU)*

troy.oz.

5. Confirm weight unit (Troy ounces)

(ENTER)

troy.oz.

6. Select other application units if desired (max. 4 total) (otherwise, confirm

None

by pressing )

7. Save selection

(CLEAR)

0.00 g

Conversion:

8. Place sample on balance + 100.00 g

9. Toggle unit for weight value Repeatedly: + 0.22046 lb

(ENTER)

+ 3.5275 ozt

* On some models, the keypad overlay shows the German word “MENUE“ for MENU.

The following weight units are available in your Atilon balance (in legal metrology, only units permitted by national law are available):

Menu item Unit Conversion factor Display symbol

UserDef. 1) Grams 1,00000000000 o

Grams

(factory setting) Grams 1.00000000000 g

Kilogr.

Kilograms 0.00100000000 kg

Carats

Carats 5.00000000000 o

Pounds

Pounds 0.00220462260 lb

Ounces

Ounces 0.03527396200 oz

Troy Oz.

Troy ounces 0.03215074700 ozt

HKTael

Hong Kong taels 0.02671725000 tl

Sng.Tael.

Singapore taels 0.02645544638 tl

10)

Twn.Tael

Taiwanese taels 0.02666666000 tl

11)

Grains

Grains 15.4323583500 GN

12)

Peny.Wt.

Pennyweights 0.64301493100 dwt

13)

Milligr.

Milligrams 1000.00000000 mg

14)

Pt.P.Lb.

Parts per pound 1.12876677120 o

15)

Chn.Tael

Chinese taels 0.02645547175 tl

16)

Mommes

mommes 0.26670000000 m

17)

Austr.Ct.

Austrian carats 5.00000000000 Kt

18)

Tola

Tola 0.08573333810 o

19)

Baht

Baht 0.06578947436 b

20)

Mesghal

Mesghal 0.21700000000 o

21)

Tons

Tons 0.00000100000 t

22)

Lb / Oz2) Pounds : ounces 0.03527396200 lb oz

23)

Newton

Newton 0.00980665000 N

)= User-defined weight unit; can be loaded in the balance over an optional RS-232 or USB interface using a computer program.

) = The format for display of pounds/ounces cannot be changed: xx:yy.yy x=lb, y=oz

!Some weight units may be blocked from use in legal metrology, depending on national verification laws.

Features

You can have device information, ID texts and date and time printed before (GLP header) and after (GLP footer) the values of a weighing series. These parameters include:

GLP header:

– Date – Time at beginning of measurement – Balance manufacturer – Balance model – Balance serial number – Software version number – Identification number of the current sampling operation

GLP footer:

– Date – Time at end of measurement – Field for operator signature

!Operating the Balance with Printer:

(e.g. YDP03-OCE):

§ Select the following settings on the balance and on the printer:

– Software handshake:

Setup interf. handshk. sftware

(menu code 1. 5. 4. 1)

Configuration

§ Setting menu codes for the printout (see

“Configuration”

– ISO/GLP-compliant printout or record only for

calibration/adjustment:

Setup Prnt.Out GLP Cal.-Adj.

(menu code 1. 6. 7. 2) or ISO/GLP-compliant printout or record always on:

Setup Prnt.Out GLP Always on

(menu code 1. 6. 7. 3)

– Line format for printout: include data ID codes

(22 characters; factory setting):

Setup Prnt.Out Format 22 Char.

(menu code 1. 6. 6. 2)

– Formats for time:

setup prnt.0ut time 24 h

(menu code 1. 6. 8. 1) or

setup prnt.oUt time 12 h

(menu code 1. 6. 8. 2)

– Formats for date:

setup prnt.0ut date dd.mmm.yy

(menu code 1. 6. 9. 1) or

setup prnt.oUt date mmm.dd.yy

(menu code 1. 6. 9. 2)

!No ISO/GLP-compliant record

is output if any of the following settings are configured:

Setup Prnt.Out Print Aut. W/o

Aut.With

(menu code 1. 6. 1. 3, 1. 6. 1. 4, ) or

Format 16 Char.

(menu code 1. 6. 6. 1)

Function Keys

Transfer header and first measured value: press

(PRINT)

> The header is included with the first printout/data record.

To output header and reference data automatically when an application program is active: press

Exit the application:

1) To send the GLP footer: press

(CLEAR)

2) Quit application program: press

(CLEAR) again

ISO/GLP-compliant Printout/Record

The ISO/GLP-compliant printout can contain the following lines:

--------------------

Dotted line

17-Aug-2006 10:15

Date/time (beginning of measurement)

ACCULAB

Balance manufacturer

Mod. ATL-8201

Model

Ser. no. 10105355

Balance serial number

Ver. no. 00-36-01

Software version

ID 2690 923

--------------------

Dotted line

LID

Measurement series no.

nRef 10 pcs

Counting: reference sample quantity

wRef 21.14 g

Counting: reference weight

Qnt + 567 pcs

Counting result

--------------------

Dotted line

17-Aug-2006 10:20

Date/time (end of measurement)

Name:

Field for operator signature

Blank line

--------------------

Dotted line

ISO/GLP-compliant printout for external calibration/adjustment:

--------------------

Dotted line

17-Aug-2006 10:30

Date/time (beginning of measurement)

ACCULAB

Balance manufacturer

Mod. ATL-8201

Model

Ser. no. 10105352

Balance serial number

Ver. no. 00-36-01

Software version

ID 2690 923

--------------------

Dotted line

Cal. Ext. Test

Calibration/adjustment mode

Set + 5000.0 g

Calibration weight

Diff. + 0.2 g

Difference determined in calibration

Cal. Ext. Complete

Confirmation of completed calibration procedure

Diff. 0.0 g

Difference from target following adjustment

--------------------

Dotted line

17-Aug-2006 10:32

Date/time (end of measurement)

Name:

Field for operator signature

Blank line

--------------------

Dotted line

Purpose

Your balance comes equipped with an interface port for connection to a computer or other peripheral device. You can use a computer to change, start and/or monitor the functions of the balance and the application programs.

Preparation

You can set these parameters for other devices in the Setup menu (see the chapter entitled

“

Configuring the Balance”).

You will also find a detailed description of the available data interface commands in the file “Data Interface Descriptions for ATL Models

”

, which you can download from the Acculab website at www.acculab.com by selecting “

Download Instruction Manuals”from the “Service”menu.

The many and versatile properties of these balances can be fully utilized for printing out records of the results when you connect your balance to a Acculab data printer. The recording capability for printouts makes it easy for you to work in compliance with ISO/GLP.

Data Interface

Female Interface Connector:

25-contact female connector, RS-232: Pin 1: Signal ground Pin 2: Data output (TxD) Pin 3: Data input (RxD) Pin 4: Internal ground (GND) Pin 5: Clear to send (CTS) Pin 6: Not connected Pin 7: Internal ground (GND) Pin 8: Internal ground (GND) Pin 9: Not connected Pin 10: Not connected Pin 11: + 12 V

(power supply for Sartorius printer) Pin 12: Reset _ Out *) For remote switch Pin 13: + 5 V Pin 14: Internal ground (GND) Pin 15: Universal remote switch Pin 16: Not connected Pin 17: Not connected Pin 18: Not connected Pin 19: Not connected Pin 20: Data terminal ready (DTR) Pin 21: Not connected Pin 22: Not connected Pin 23: Not connected Pin 24: Not connected Pin 25: +5 V *) = Hardware restart

Error codes are shown on the main display for approx. 2 seconds. The program then returns automatically to the previous mode.

Display Cause Solution

No segments appear No AC power is available Check the AC power supply on the display

The power supply is not Plug in the power supply plugged in

high

The load exceeds the balance capacity Unload the balance

low

Err 54

Something is touching Move the object that is the weighing pan touching the weighing pan

err 54

, typical Weighing system defect Contact Acculab dealer

App.err.

Cannot store data: Increase load Load on weighing pan too light or no sample on pan while application is active

dis.err.

Data output not compatible Change the configuration in with output format the operating menu

prt.err.

Interface port for printer Reset the menu factory settings, output is blocked or

Contact Acculab dealer

err 02

Calibration parameter Calibrate only when zero not met; e.g.: is displayed – balance not tared – Press [Tare] to tare the balance – load on weighing pan – Unload the balance

err 10

The [Tare] key is blocked when Press [Clear] to clear the tare there is data in the second tare memory and release the tare key memory (net-total); only 1 tare function can be used at a time

err 11

Tare memory not allowed Press [Tare]

The weight readout Unstable ambient conditions Set up the balance in another area changes constantly (excessive vibration or draft)

at the place of installation A foreign object is caught between Remove the foreign object weighing pan and balance housing

The weight readout The balance was not Calibrate/adjust the balance is obviously wrong calibrated/adjusted

Balance not tared Tare or zero the balance before weighing before weighing

Troubleshooting Guide

Care and Maintenance

Repairs

§ Repair work must be performed by trained service technicians. Any attempt by untrained persons to perform repairs may result in considerable hazards for the user. If the instrument requires repairs, please contact your Acculab dealer.

Cleaning

§ Unplug the AC adapter from the wall outlet (mains supply). If you have an interface cable connected to the balance port, unplug it from the port.

!Make sure that no liquid enters the balance/scale housing.

!Do not aggressive cleaning agents (solvents or similar agents).

§ After cleaning, wipe down the balance with a soft, dry cloth.

On analytical balances remove and clean the weighing pan as follows:

§ Reach beneath the drip/breeze and lift it carefully, together with the pan support, to avoid damaging the weighing system.

!Make sure that no liquid enters the balance housing.

Cleaning Stainless Steel Surfaces

Clean all stainless steel parts regularly. Remove the stainless steel weighing pan and thoroughly clean it separately. Use a damp cloth or sponge to clean stainless steel parts on the balance. You can use any household cleaning agent that is suitable for use on stainless steel. Clean stainless steel surfaces only by wiping them down. Then rinse the equipment thoroughly, making sure to remove all residues. Afterwards, allow the equipment to dry. If desired, you can apply oil to the cleaned surfaces as additional protection.

Safety Inspection

If there is any indication that safe operation of the balance is no longer warranted:

§ Turn off the power and disconnect the equipment from AC power immediately.

> Lock the equipment in a secure place to ensure that it can-

not be used for the time being.

Notify your Acculab dealer. Repair work must be performed by trained service technicians.

We recommend having the power supply inspected by a certified electrician at regular intervals, according to the following checklist:

– Insulating resistance: > 7 megaohms measured with a

constant voltage of at least 500 volts at a 500 K-ohm load

– Leakage current: < 0.05 mA measured with a properly

calibrated multimeter

Information and Instructions on Disposal and Repairs Packaging that is no longer required must be disposed of at the local waste disposal facility. The packaging is made of environmentally friendly materials that can be used as secondary raw materials.

The equipment, including accessories and batteries, does not belong in your regular household waste. The EU legislation requires its Member States to collect electrical and electronic equipment and dis-

posed of it separately from other unsorted municipal waste with the aim of recycling it.

For disposal in Germany and in the other Member States of the European Economic Area (EEA), please contact our service technicians on location or your Acculab dealer.

In countries that are not members of the European Economic Area (EEA) or where no Acculab dealers are located, please contact your local authorities or a commercial disposal operator.

Prior to disposal and/or scrapping of the equipment, any batteries should be removed and disposed of in local collection boxes.

Equipment contaminated with hazardous materials (ABC contamination) will not be taken back; neither for repair or disposal.

Recycling

Specifications

Built-in motorized All ATL...-I and ATL...-V models calibration weight

AC power source/power AC adapter 230 V or 115 25 V, requirements, voltage, frequency +15% to – 20%, 48 – 60 Hz

Power consumption VA maximum 16; typical 8 (STNG6) Approx. hours of operation with the

YRB05Z rechargeable battery pack (backlighting on) h 35

Overview

Specifications for Individual Models

Model ATL-224, ATL-224-I ATL-124, ATL-124-I ATL-84, ATL-84-I

Weighing capacity g 220 120 80 Readability

g 0.0001 0.0001 0.0001

Tare range (subtractive)

g 220 120 80

Repeatability <±g

0.0001 0.0001 0.0001

(std. deviation) Linearity <± g 0.0002 0.0002 0.0002 Response time (average)

s 2.5

Sensitivity drift within

+10 to +30°C <±/K 2 · 10

–6

Adaptation

By selection of 1 of 4 optimized filter levels; display

to ambient conditions update: 0.1 – 0.4 (depends on filter level selected) External calibration weight g 200 (E2) 100 (E2) 50 (E2) Operating temperature range +10 … +30 °C (273 ... 303 K, 50° ... 86 °F) Net weight, approx.: kg 4.4 | 4.7 Weighing pan size mm 90 d Weighing chamber height mm 230 Dimensions (W +D + H)

mm 230 + 303 + 330

Model ATL-623, ATL-423, ATL-153,

ATL-623-I ATL-423-I ATL-153-I

Weighing capacity g 620 420 150 Readability

g 0.001 0.001 0.001 Tare range (subtractive) g 620 420 150 Repeatability <± g 0.001 0.001 0.001

(std. deviation) Linearity <± g 0.002 0.002 0.003 Response time (average)

s 1 1 1.3 Sensitivity drift within

+10 to +30°C <±/K 2 · 10

–6

2 · 10

–6

5 · 10

–6

Adaptation

By selection of 1 of 4 optimized filter levels; display

to ambient conditions update: 0.05 – 0.4 (depends on filter level selected) External calibration weight

(of at least accuracy class...)

g 500 (E2) 200 (F1) 100 (F1) Operating temperature range +10 … +30 °C (273 ... 303 K, 50° ... 86 °F) Net weight, approx: kg 3.2 | 3.6 3.2 | 3.6 2.6 | 3.0 Weighing pan size mm 115 d Dimensions (W +D + H)

mm 230 + 303 + 136

Specifications for Individual Models

Model ATL-6202, ATL-4202, ATL-2202, ATL-822,

ATL-6202-I ATL-4202-I ATL-2202-I ATL-822-I

Weighing capacity g 6200 4200 2200 820 Readability

g 0.01 0.01 0.01 0.01 Tare range (subtractive) g 6200 4200 2200 820 Repeatability <± g 0.01 0.01 0.01 0.01

(std. deviation) Linearity

<± g 0.02 0.02 0.02 0.03 Response time (average)

s 1.1 1.1 1.1 1.0 Sensitivity drift within

+10 to +30°C < ±/K 2 · 10

–6

2 · 10

–6

2 · 10

–6

5 · 10

–6

Adaptation

By selection of 1 of 4 optimized filter levels; display

to ambient conditions update: 0.1–0.4 (depends on filter level selected) (of at least accuracy class...) g 5000 (E2) 2000 (E2) 2000 (F1) 500 (F2) Operating temperature range +10 … +30 °C (273 ... 303 K, 50° ... 86 °F) Net weight, approx.: kg 3.1 | 3.5 3.1 | 3.5 3.1 | 3.5 2.0 | 2.6 Weighing pan size mm 180+180 180+180 180+180 115 d Dimensions (W +D + H)

mm 230+303+91 230+303+87

Model ATL-8201, ATL-6201,

ATL-8201-I ATL-6201-I

Weighing capacity g 8200 6200 Readability g 0.1 0.1 Tare range (subtractive) g 8200 6200 Repeatability (std. deviation) <± g 0.1 0.1 Linearity <± g 0.3 | 0.1 0.3 | 0.1 Response time (average)

s1 1 Sensitivity drift within

+10 to +30°C < ±/K 10 · 10

–6

Adaptation By selection of 1 of 4 optimized filter levels; display to ambient conditions update: 0.05 – 0.4 (depends on filter level selected)

External calibration weight (of at least accuracy class...) g 5000 (F2)

Operating temperature range +10 … +30 °C (273 ... 303 K, 50° ... 86 °F) Net weight, approx.: kg 2.7 | 3.5 Weighing pan size mm 180+180 Dimensions (W +D + H)

230+303+91

Verified Models with EC-type Approval: Specifications

Model ATL-224-V ATL-124-V ATL-84-V

Type BD ED 100 BD ED 100 BD ED 100 Accuracy class 1) kkk Weighing capacity, Max 1) g 220 120 80 Scale interval d 1) g 0.0001 0.0001 0.0001 Tare range (subtractive) < 100% of the maximum capacity Verification scale interval e 1) g 0.001 0.001 0.001 Minimum capacity, Min 1) g 0.01 0.01 0.01 Response time (average) s 2.5 Range of use according 1) g 0.01 – 220 0.01 – 120 0.01 – 80 Allowable ambient

operating temperature °C +17 to +27 (+63 °F to +80°F) Net weight, approx. kg 4.8 Weighing pan size mm 90 d Weighing chamber height mm 230 Dimensions (W + D + H) mm 230 +303 + 330

Model ATL-623-V ATL-423-V ATL-153-V

Type BD ED 200 BD ED 200 BD ED 200 Accuracy class 1) KKK Weighing capacity, Max 1) g 620 420 150 Scale interval d 1) g 0.001 0.001 0.001 Tare range (subtractive) < 100% of the maximum capacity Verification scale interval e 1) g 0.01 0.01 0.01 Minimum capacity, Min 1) g 0.02 0.02 0.02 Response time (average) s 1 1 1 Range of use according to CD 1) g 0.02 – 620 0.02 – 420 0.02 – 150 Allowable ambient

operating temperature °C +10 to +30 (+50 °F to +86°F) Net weight, approx. kg 3.6 Weighing pan size mm 115 d Dimensions (W + D + H) mm 230 +303 + 136

) CD = Council Directive 90/384/EEC for non-automatic weighing instruments; applicable to the European Economic Area

Verified Models with EC-type Approval: Specifications

Model ATL-6202-V ATL-4202-V ATL-2202-V

Type BD ED 200 BD ED 200 BD ED 200 Accuracy class 1) KKK Weighing capacity, Max 1) g 6200 4200 2200 Scale interval d 1) g 0.01 0.01 0.01 Tare range (subtractive) < 100% of the maximum capacity Verification scale interval e 1) g 0.1 0.1 0.1 Minimum capacity, Min 1) g 0.5 0.5 0.5 Response time (average) s 1.1 1.1 1.1 Range of use according to CD 1) g 0.5 – 6200 0.5 – 4200 0.5 – 2200 Allowable ambient

operating temperature °C +10 to +30 (+50 °F to +86°F) Net weight, approx. kg 3.5 Weighing pan size mm 180 + 180 Dimensions (W + D + H) mm 230 +303 + 91

Model ATL-822-V ATL-8201-V ATL-6201-V

Type BD ED 200 BD ED 200 BD ED 200 Accuracy class 1) KKK Weighing capacity, Max 1) g 820 8200 6200 Scale interval d 1) g 0.01 0.1 0.1 Tare range (subtractive) < 100% of the maximum capacity Verification scale interval e 1) g 0.1 1 1 Minimum capacity, Min 1) g 0.5 5 5 Response time (average) s 1.1 1 1 Range of use according to CD 1) g 0.5 – 820 5 – 8200 5 – 6200 Allowable ambient

operating temperature °C +10 to +30 (+50 °F to +86°F) Net weight, approx. kg 3.5 Weighing pan size mm 180 + 180 Dimensions (W + D + H) mm 230 +303 + 91

) CD = Council Directive 90/384/EEC for non-automatic weighing instruments; applicable to the European Economic Area

Product Order No. Data printer YDP03-0CE

with date, time, statistics evaluation, transaction counter functions and LCD

Remote display

), reflective YRD02Z

(for connection to data interface port)

External rechargeable battery pack YRB05Z With battery-level indicator (LED); can be recharged using the AC adapter (charge time for completely discharged battery pack: 15 hours); see "Specifications" for hours of operation. To recharge the battery pack: Unplug the AC adapter from the balance and plug it into the battery pack

SartoConnect

) data transfer software for direct transmission of weight values to another program (e.g., MS Excel)

– with RS-232C connecting cable, length: 1 m (~20 in)

YSC01L

– with RS-232C connecting cable, length: 5 m (~16 ft)

YSC01L5

– with RS-232C connecting cable, length: 15 m (~50 ft)

YSC01L15

Product Order No. Density determination kit

)

– for ED224S, ED124S YDK01LP

Industrial AC adapter, model ING2,

protection rating: IP65 in accordance

with EN 60529 – for 230 V 69 71899 – for 120 V 69 71500

Data cable

– for connecting a computer with

a USB port YCC01-USBM2 – for computer connection, 25-pin 7357312 – for computer connection, 9-pin 7357314

Adapter cable 6965619

from D-Sub 25-pin male

connector to D-Sub 9-contact

female connector; length: 0.25 m

Anti-theft locking device LC-1

) Not for verified models

Accessories

External calibration weights:

For model Accuracy class Weight in grams Order no. ATL-224 E2 200 YCW5228-00

ATL-124 E2 100 YCW5128-00 ATL-623 E2 500 YCW5528-00 ATL-4202 E2 2000 YCW6228-00 ATL-6202 E2 5000 YCW6528-00 ATL-153 F1 100 YCW5138-00 ATL-423 F1 200 YCW5238-00 ATL-2202 F1 2000 YCW6238-00 ATL-822 F2 500 YCW5548-00 ATL-8201, ATL-6201 F2 5000 YCW6548-00 or ± 25 mg 5000 YSS653-00

The balance complies with the following EC Directives and European Standards:

Council Directive 89/336/EEC “Electromagnetic compatibility (EMC)”

Applicable European Standards: Limitation of emissions: In accordance with product standard EN 61326-1 Class B (residential area)

Defined immunity to interference: in accordance with product standard EN 61326-1 (minimum test requirements, non-continuous operation)

Important Note: The operator shall be responsible for any modifications to Acculab equipment and must check and, if necessary, correct these modifications.

On request, Sartorius will provide information on the minimum operating specifications (in accordance with the Standards listed above for defined immunity to interference).

73/23/EEC “Electrical equipment designed for use within certain voltage limits”

Applicable European Standards:

EN 60950 Safety of information technology equipment including electrical business equipment

EN 61010 Safety requirements for electrical equipment for measurement, control and laboratory use Part 1: General requirements

If you use electrical equipment in installations and under ambient conditions requiring higher safety standards, you must comply with the provisions as specified in the applicable regulations for installation in your country.

C Marking

Copyright by Acculab. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Acculab. The status of the information, specifications and illustrations in this manual is indicated by the date given below. Acculab reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

Status: June 2007, Acculab

W1A000 · KT Publication No.: WAT6002-e07062

Address label/Dealer’s stamp

Acculab ATL-84, ATL-124, ATL-84-I, ATL-623, ATL-423 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

98648-015-55

ACCULAB ATILON

Contents

Warnings and Safety Precautions

Getting Started

Installation

Operation

Basic Weighing Function

Calibration and Adjustment

Functions of the Keys during Configuration

Configuration (Operating Menu)

Menu Navigation

Parameter Settings: Menu

Parameter Settings: Overview

Input: ID number, Date and Time

Application Programs

Counting

Weighing in Percent

Calculation

Animal Weighing/Averaging

Net-total Formulation

Totalizing

Density Determination

Mass Unit Conversion

ISO/GLP-compliant Printout/Record

Data Interface

Troubleshooting Guide

Care and Maintenance

Recycling

Specifications

Overview

Accessories
