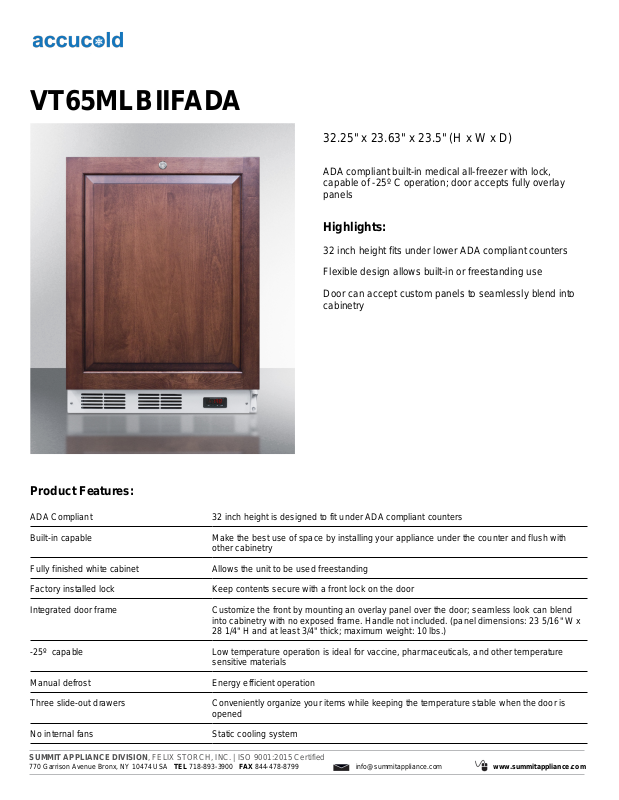

Accucold VT65MLBIIFADA Specification Sheet

VT65MLBIIFADA

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in medical all-freezer with lock,
capable of -25º C operation; door accepts fully overlay
panels

Highlights:

32 inch height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use
Door can accept custom panels to seamlessly blend into

cabinetry

Product Features:

ADA Compliant 32 inch height is designed to fit under ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keep contents secure with a front lock on the door
Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into cabinetry with no exposed frame. Handle not included. (panel dimensions: 23 5/16" W x

28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature

sensitive materials
Manual defrost Energy efficient operation
Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is

opened
No internal fans Static cooling system

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

VT65MLBIIFADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Crisper Finish Opaque
Crisper Cover Glass
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

ULC
