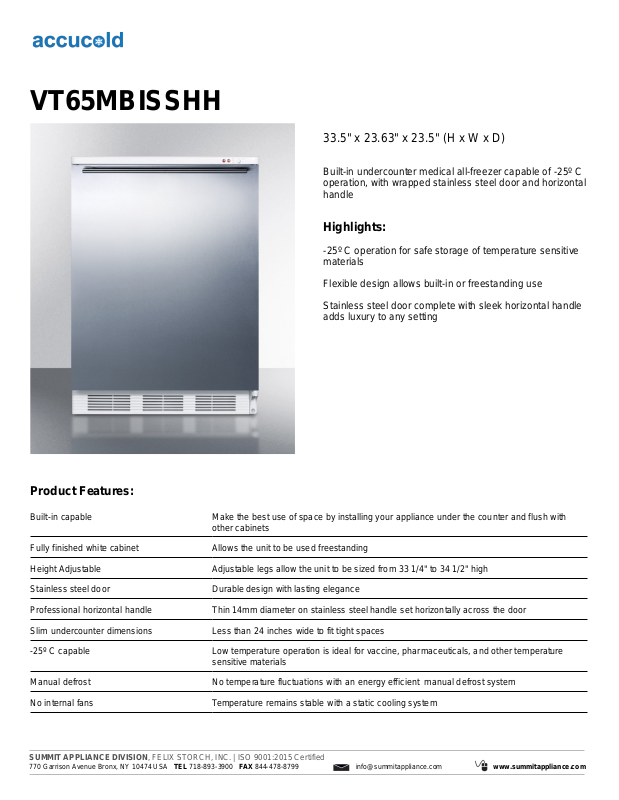

Accucold VT65MBISSHH Specification Sheet

VT65MBISSHH

33.5" x 23.63" x 23.5" (H x W x D)

Built-in undercounter medical all-freezer capable of -25º C
operation, with wrapped stainless steel door and horizontal
handle

Highlights:

-25º C operation for safe storage of temperature sensitive
materials

Flexible design allows built-in or freestanding use
Stainless steel door complete with sleek horizontal handle

adds luxury to any setting

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Height Adjustable Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
Stainless steel door Durable design with lasting elegance
Professional horizontal handle Thin 14mm diameter on stainless steel handle set horizontally across the door
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature

sensitive materials
Manual defrost No temperature fluctuations with an energy efficient manual defrost system
No internal fans Temperature remains stable with a static cooling system

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

VT65MBISSHH Specifications:

Overview

Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

ULC
