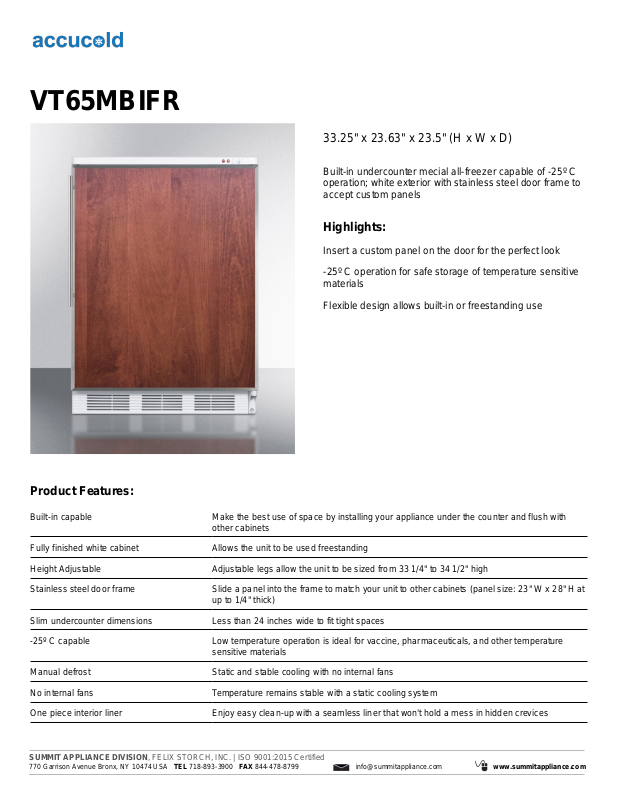

Accucold VT65MBIFR Specification Sheet

VT65MBIFR

33.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter mecial all-freezer capable of -25º C
operation; white exterior with stainless steel door frame to
accept custom panels

Highlights:

Insert a custom panel on the door for the perfect look

-25º C operation for safe storage of temperature sensitive
materials

Flexible design allows built-in or freestanding use

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Height Adjustable Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
Stainless steel door frame Slide a panel into the frame to match your unit to other cabinets (panel size: 23" W x 28" H at

up to 1/4" thick)
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature

sensitive materials
Manual defrost Static and stable cooling with no internal fans
No internal fans Temperature remains stable with a static cooling system
One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

VT65MBIFR Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 107.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

ULC

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com
