ACCUCOLD VT65ADA, VLT650ADA User Manual
CP171MED – AccuCold
Two-door refrigerator-freezer with two compressors
Réfrigérateur-congélateur avec deux portes et deux compresseurs
FCL44 / SCF401SS MED Series – AccuCold
Chest freezers / Congélateurs horizontaux
SCFF55 / SCFF51OSWH MED Series – AccuCold
Built-in frost-free freezers / Congélateurs sans givre encastrés
SCFF/ SCFR Series – AccuCold
Frost-free chest freezers and refrigerators
Congélateurs et réfrigérateurs horizontaux sans givre
SCUF18/20 / SCUR18/20 Series – Summit Commercial
Full-size frost-free all-freezers and all-refrigerators
Congélateurs et réfrigérateurs grand format sans givre
VT/ VLT Series – AccuCold
Low temperature freezers / Congélateurs à basse température
MEDICAL, LABORATORY AND SCIENTIFIC REFRIGERATORS AND FREEZERS
RÉFRIGÉRATEURS ET CONGÉLATEURS POUR USAGES MEDICAUX,
SCIENTIFIQUES ET EN LABORATOIRE
If you need service or call with a question, please have this
information ready.
Si vous avez besoin de service ou si vous appelez avec une
question, s'il vous plaît disposer de ces informations prêtes.
Model / Modéle: Serial no.:_________________
Options added /
Options qui ont été ajoutées: ______________________________
Date of purchase / Date d'achat: __________________________
Dealer / Revendeur : ____________________________________
For parts: visit our website / Pour les pièces: visitez notre site Web:
www.summitappliance.com/support

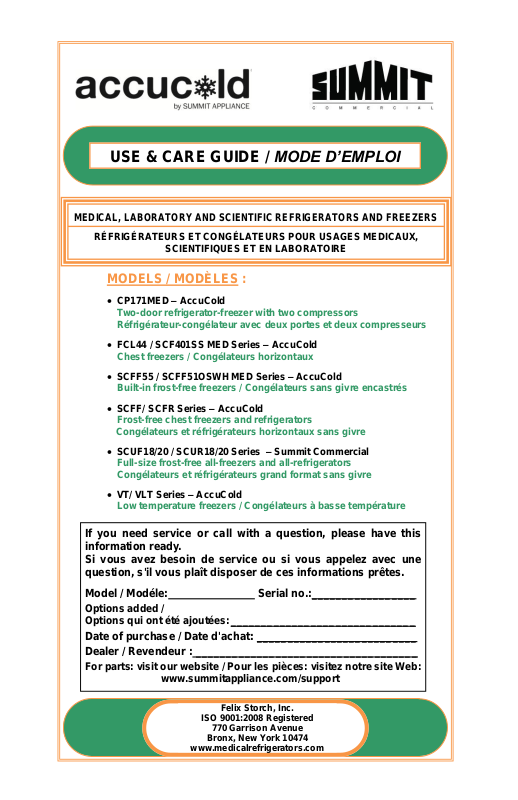

USE & CARE GUIDE / MODE D’EMPLOI
Felix Storch, Inc.
ISO 9001:2008 Registered
770 Garrison Avenue
Bronx, New York 10474
www.medicalrefrigerators.com
MODELS / MODÈLES :
APPLIANCE SAFETY
Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
You can be seriously injured or even killed if you don’t follow instructions.
Safety messages will tell you what the potential hazard is, how to reduce
the chance of injury, and what can happen if the instructions are not
followed.
Plug into a grounded 3-prong outlet.
Do not remove ground prong, nor use a 3/2 adapter.
Do not use an extension cord.
Use care not to plug into outlets controlled by wall switches.
Disconnect power before servicing.
After servicing, replace all parts and panels before operating.
Use nonflammable cleaners.
Keep flammable materials and vapors, such as gasoline, away from
appliances.
Use two or more people to move and install appliance.
Drawer refrigerators are provided with anti-tip brackets. Always install
prior to use.
Proper Disposal of Your Old Appliance e
Old appliances can represent a suffocation hazard to children.
Remove doors from your old appliance.
Leave shelves in place.
If an old appliance contains refrigerants, it must be recycled by a licensed
service or disposal company.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury
when using your appliance, follow these basic precautions:
Felix Storch, Inc.
Page 2
INSTALLATION INSTRUCTIONS
Excessive Weight Hazard !
Use two or more people to move and install your appliance.
Failure to do so can result in back or other injury.
CAUTION: YOU MUST ALLOW APPLIANCE TO SIT UPRIGHT FOR 24 HOURS
BEFORE TURNING ON, TO ALLOW THE COMPRESSOR LUBRICANT TO
DRAIN. FAILURE TO DO SO MAY ADVERSELY AFFECT PERFORMANCE
AND THE LIFETIME OF THE UNIT.
1. Remove packaging materials.
2. Remove tape and glue residue from surfaces before turning on the
appliance. Rub a small amount of liquid dish soap over the adhesive
with your fingers. Rinse with warm water and dry.
3. Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your appliance.
4. When Moving Your Appliance:
Your appliance is heavy. When moving the appliance for cleaning or
service, be sure to protect the floor. Always pull the appliance straight
out when moving it. Do not wiggle or “walk” the appliance when trying
to move it, because floor damage can occur.
5. Clean Before Using:
After you remove all of the packaging materials, clean the inside of
your appliance before using it. See cleaning instructions in Appliance
Care.
6. Some upright models have leveling legs. Level as necessary for best
operation.
7. If your appliance has casters, after moving into place, lock the brakes
on those casters supplied with brakes. Always unlock before moving
the appliance for cleaning.
Key Eject Lock (some models)
To lock or unlock the appliance, you must hold the key in the lock while
turning. The lock is spring loaded, so the key cannot be left in the lock.
If the key is lost, contact your dealer or SUMMIT APPLIANCE for a
replacement. Always give the model and serial number of your appliance
when requesting a replacement key. Keys for most models can be
ordered online at www.summitappliance.com/support
Page 3
Felix Storch, Inc.
LOCATION REQUIREMENTS
Keep flammable materials and vapors, such as gasoline,
away from appliances. Failure to do so can result in fire,
explosion or death.
IMPORTANT: Do not install the appliance near an oven, radiator, or
other heat source, nor in a location where the temperature will fall below
40°F (5°C). Do not place in direct sunlight.
Check the strength of the floor before installing your appliance. It should
hold the weight of a fully loaded appliance. Allow at least 1” (2.5 cm) of
airspace at the top and on both sides of the appliance and 1” (2.5 cm)
between the back of the appliance and the wall. If the appliance is going
to be placed against a wall, leave extra space on the hinge side so the
door can open wider than its width.
Note: This appliance may be installed side by side with another
appliance or appliances. Allow for a 3” (7.5 cm) clearance at the top
and sides and a ¼” (0.64 cm) clearance between the appliances. IF
YOUR MODEL HAS THE LETTERS “BI” IN THE SUFFIX, IT IS
DESIGNED FOR BUILT-IN USE, AND DOES NOT REQUIRE
CLEARANCE EXCEPT IN THE BACK.
Electrical Shock Hazard !
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in fire, electrical
shock or death.
Recommended grounding method
A 115 Volt (AC only) 60 Hz grounded electrical supply with a 15- or 20amp fuse or circuit breaker is required. It is recommended that a separate
circuit serving only your appliance be provided. Use outlets that cannot
be turned off by a switch or pull chain. Do not use an extension cord.
Felix Storch, Inc.
Page 4
1. Locate the two front leveling legs that may be taped among the packing
materials. In many models these legs are already mounted into the
underside of the appliance.
2. Screw these legs into the front holes on the bottom of the appliance. The
back of the appliance rests on two fixed supports. (Built-in models also
have rear level legs that can provide more precise leveling).
3. Adjust the front legs just enough to lift the cabinet up off the floor.
Note: If your model is equipped with front rollers, the front legs should be
lowered enough to lift the rollers off of the floor to ensure the appliance
does not roll forward when the door is opened.
4. Place a leveling tool on top of the appliance, first side to side, then front to
back. Turn leg counterclockwise to raise a corner. Turn leg clockwise to
lower a corner.
5. Repeat Step 4 until appliance is level.
6. After appliance is fully loaded, recheck with level as in Step 4.
7. If your appliance is equipped with casters, the two front casters have
brakes to prevent rolling. Keep brakes locked, and unlock for moving only.
Level your appliance (some upright models)
APPLIANCE USE
In order to ensure proper temperature, you need to permit proper airflow in
the appliance. Do not block off any air vents. If the vents are blocked, airflow
will be prevented, and temperature and moisture problems may occur. Always
position contents to allow some airflow between shelves or baskets.
Allow the appliance to cool at least 6 to 8 hours before adding contents. Allow
24 hours for temperature to stabilize.
Note: When the appliance is first started, the compressor will run constantly
until the appliance is cooled. It may take 6 to 8 hours (or longer),
depending on room temperature and the number of times the appliance
door is opened. After the appliance is cooled, the compressor will turn on
and off as needed to keep the appliance at the proper temperature.
For optimum temperature performance, it is recommended that this unit
be at least 30% full during use. If you are only using this unit to store
small loads, we recommend adding some water bottles or freezer packs
to ensure temperature stability.
The outside of your appliance may feel warm. This is normal. The appliance’s
design and main function is to remove heat from packages and air space
inside the appliance. The heat is transferred to the room air, making the
outside of the appliance feel warm. (In some models the condenser that gets
warm is just inside the side walls, making these walls warm to the touch.)
ENERGY-SAVING TIPS
The more airflow provided around an appliance, the less energy it will use.
If your appliance requires manual defrosting, keep ice build-up to less than 1/2".
Keep doors open a minimum of time, and shut securely.
Felix Storch, Inc.
Page 5
REVERSING THE DOOR SWING (some models)
If you find the direction of opening the door on your appliance inconvenient, you
can change it. Holes on the opposite side have already been prepared in the
factory.
For two-door units:
Take off the upper hinge cover from the top door and
remove the screws that hold the top hinge.
Lift the hinge straight up to free the hinge pin from the
socket in the top of the door.
Lift the top door to free its bottom socket from the hinge
pin on the central hinge bracket.
Remove the screws to the central hinge to free its pin
from the top of the lower door.
Lift the door up and away from the bottom hinge
pin.
Remove the screws to the bottom hinge.
Remove the decorative caps from the opposite
side and install the bottom hinge. Plug the holes
from the original side with the decorative caps.
Replace door onto the pin on the bottom hinge,
then install the central hinge into lower door.
Insert screws into the central hinge and plug the
holes on the reverse side.
Replace the upper door onto the central hinge pin.
Insert screws into the top hinge and tighten.
For one-door units:
Take off the upper hinge cover from the door and
remove the screws that hold the top hinge.
Lift the hinge straight up to free the hinge pin from
the socket in the top of the door.
Lift the door up and away to free its bottom
socket from the hinge pin.
Remove the screws to the bottom hinge.
Remove the decorative caps from the opposite side and plug the holes from the
original side with the decorative caps.
Move the bottom hinge to the opposite side and
tighten the screws. Install any lock washers or nuts
if they were used in the original installation.
Replace door onto the hinge pin on the bottom
hinge. Place top hinge pin into door. Insert screws
into the top hinge and tighten.
Felix Storch, Inc.
Page 6
APPLIANCE CARE
Cleaning a frost-free appliance
(including models beginning with SCFF, SCFR, SCUF, SCUR)
Use nonflammable cleaners.
Frost-free means that you do not have to defrost your appliance. Frost is
removed by air moving and collecting any moisture and depositing it on the
cooling coil. The cooling coil periodically warms up enough to melt the frost,
and the water then flows down to the drain pan (located behind the base grill)
where it is evaporated.
Complete cleaning should be done at least once a year.
1. Unplug appliance or disconnect power.
2. Remove all contents.
3. Wash the inside walls with a solution of mild detergent in warm water or
2 tbs (26 g) baking soda to 1 qt (0.95 L) warm water.
Do not use abrasive or harsh cleaners such as window sprays,
scouring cleansers, flammable fluids, cleaning waxes, concentrated
detergents, bleaches or cleansers containing petroleum products on
plastic parts, interior and door liners or gaskets. Do not use paper
towels, scouring pads, or other harsh cleaning tools. These can
scratch or damage surfaces.
4. Rinse well and wipe dry with a clean soft cloth.
5. Use the appropriate cleaning method for the exterior finish.
Painted metal: Wash exteriors with a clean sponge or soft cloth and a
mild detergent in warm water. Do not use abrasive or harsh cleaners,
or cleaners designed for stainless steel. Dry thoroughly with a soft
cloth. For additional protection against damage to painted metal
exteriors, apply appliance wax (or auto paste wax) with a clean, soft
cloth. Do not wax plastic parts.
6. Plug in appliance or reconnect power.
7. Replace all containers.
Cleaning a cycle defrost or manual defrost appliance
Cycle defrost models utilize a system where ice builds up on the rear wall and
melts when the compressor is off. Manual defrost models continually build ice
on inner walls.
NEVER USE A METAL OBJECT TO REMOVE ICE FROM THE REAR WALL.
IF NEEDED, USE A PLASTIC ICE-SCRAPER OR A HAIR DRYER.
Clean surfaces using the same instructions as for frost-free models.
For CSS Models (completely stainless steel), only use cleaners
especially made for stainless steel.
Felix Storch, Inc.
Page 7
Base Grill (some models only)
To Remove and Replace the Base Grill:
1. Open the appliance door and remove the base grill by pulling down
and out from the top.
2. Replace the base grill by putting the clips in the openings in the
appliance panel. Push in until the base grill snaps into place.
Changing the Light Bulb (some models only)
NOTE: Not all appliance bulbs will fit your appliance. Be sure to replace
the bulb with one of the same size, shape, base size and wattage.
You can purchase bulbs from www.summitappliance.com/support
1. Unplug appliance or disconnect power.
2. Remove the light shield. Most models do not require tools.
3. Replace the light bulb with an appliance bulb of the same wattage.
4. Replace the light shield.
5. Plug in appliance or reconnect power.
Loss of Power
After the power is restored, unplug the appliance for 30 minutes to allow
the refrigeration system to equalize. During this time, keep the door
closed as much as possible.
Remember: A full appliance stays cold longer than a partially filled one.
Moving Care
1. Remove all containers.
2. Unplug the appliance.
3. Clean it thoroughly.
4. Tape the appliance shut and tape the electrical cord to the cabinet.
When you get to the new location, refer to the Installation Instructions and
Temperature Selection sections for information on installation and setting
the controls.
APPLIANCE CARE (cont’d)
Felix Storch, Inc.
Page 8
YOUR APPLIANCE MAY HAVE A MECHANICAL (DIAL) OR
DIGITAL THERMOSTAT. DIAL INSTRUCTIONS ARE BELOW.
DIGITAL INSTRUCTIONS ARE ON PAGE 10.
HOW TO ADJUST THE THERMOSTAT
Your appliance may be controlled with a thermostat knob located
inside the unit, towards the right-hand corner. Turn the knob
clockwise from the STOP (0) position toward the higher numbers
for colder temperatures.
Temperature Controls
Higher settings on the knob (higher numbers) mean lower
temperatures (colder) in all compartments of the appliance. The
temperature inside a refrigerator may even drop below 32°F. Use
higher thermostat settings only when required or recommended.
When the ambient temperature is normal, we recommend a medium
setting.
Changes of the ambient temperature affect temperature in the interior
of the appliance, so keep this in mind when choosing the setting of the
thermostat knob.
In STOP (0) position, the appliance does not operate (the cooling
system is switched off), yet the power supply is not interrupted (the
light is on when you open the refrigerator door).
The temperatures in the refrigerator and in the freezer compartment
also depend on how often you open the door.
In all small refrigerators and freezers without interior fans, temperatures are coldest near the bottom, and occasionally near the rear.
Place contents accordingly.
For optimum temperature performance, it is recommended that this
unit be at least 30% full during use. If you are only using this unit to
store small loads, we recommend adding some water bottles or
freezer packs to ensure temperature stability.
TEMPERATURE SELECTION
Felix Storch, Inc.
Page 9

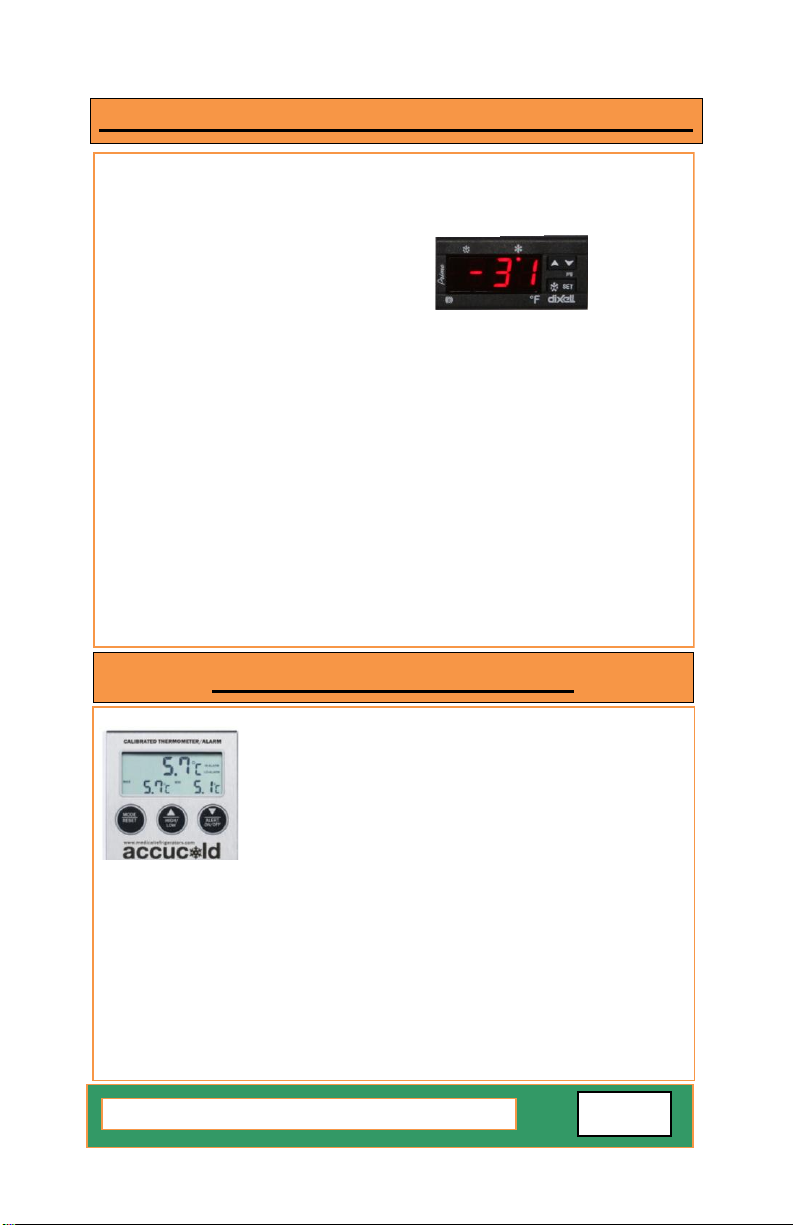

If you find that it is necessary to change the temperature setting for your
digital-thermostat controlled appliance, please refer to the following
instructions. The front panel of the thermostat is illustrated here:
To see the SET POINT:
Push and immediately release the SET key. The display will show the SET
POINT value. Wait 5 seconds and the probe value will display again.
To change the SET POINT:
Push and hold the SET key for more than 3 seconds to change the set point
value. The value of the set point will be displayed, and the “snowflake” LED
will start blinking.
To change the SET value:
Push the UP or DOWN arrow to the desired setting. The new setting will be
memorized after 15 seconds, provided no other keys are pushed.
Note: The minimum and maximum range of your thermostat is preset
and locked by us, so it cannot easily be accidentally moved between
freezer and refrigerator temperatures. To reset this range lock, either
call us or find information on our website under Troubleshooting.
melting
snowflake
UP & DOWN arrows
SET key
snowflake
DIGITAL THERMOSTAT INSTRUCTIONS

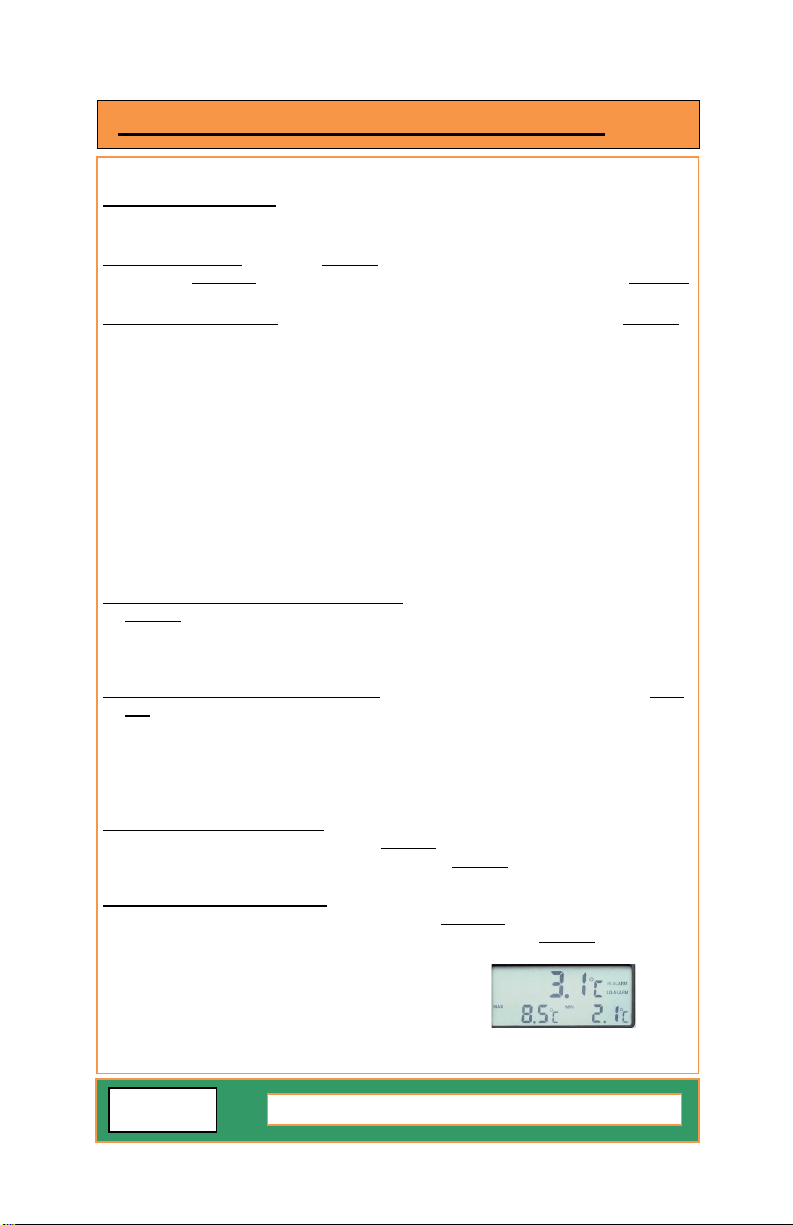

TRACEABLE THERMOMETER / ALARM
Felix Storch, Inc.
Page 10
monitored, such as inside a refrigerator or freezer, once the unit has been
programmed. The thermometer/alarm itself can be attached to the door of
the unit with the magnet on the back, or it can be placed on a convenient
table or shelf.
Power to the Thermometer/Alarm is supplied with a lithium iron disulfide
battery with a 10-year shelf life. When it is inserted correctly, the unit will
beep and all segments of the LCD display will be temporarily activated.
(Note that alarm temperatures will have to be reset after replacing the
battery.)
The temperature display can be switched between Celsius (°C) and
Fahrenheit (°F) by sliding the °C/°F button located on the back of the unit.
Every unit is equipped with a Traceable Thermometer/
Alarm that simultaneously displays minimum, maximum
and current interior temperatures and provides a visual
and audible signal when the temperature inside the unit
falls outside the set temperature range.
The temperature sensor, or probe, is enclosed in a
glycol-filled bottle that you insert into the location to be
Loading...
