ACCUCOLD STC12 User Manual
Write Serial Number here:
________________________
Felix Storch, Inc.
An ISO 9001:2015 registered company
Summit Appliance Division
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

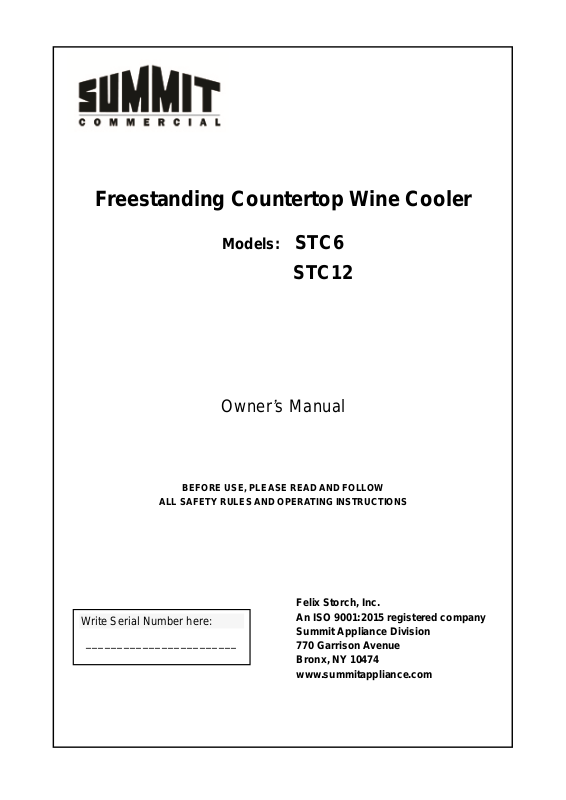

Freestanding Countertop Wine Cooler
Models: STC6
STC12
Owner’s Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
2
TABLE OF CONTENTS
Important Safeguards ........................................................ 3 – 5
Installation Instructions .......................................................... 6
Before using your appliance ............................................. 6
Installation of your appliance ........................................... 6
Storage ........................................................................... 6
Installation of drainage pipes .......................................... 6
Operating Your Appliance ................................................. 7 – 9
Recommended temperatures for chilling wine ................ 7
Control panel ............................................................. 7 – 8
Demo mode .................................................................... 8
Defrosting ................................................................. 8 - 9
Temperature alarm function ............................................ 9
Care and Maintenance ........................................................... 10
Cleaning your appliance ............................................... 10
Power failure ................................................................... 10
Transporting your appliance .......................................... 10
Energy-saving tip .......................................................... 10
Problems with Your Appliance (Troubleshooting) .............. 11
Limited Warranty ................................................................... 12
3
IMPORTANT SAFEGUARDS
Read all instructions before using the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear
of appliance.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
It is recommended that a separate circuit, serving only your appliance, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
4
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
Use two or more people to move/install the refrigerator. Failure to do so can result in back or
other injury.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical connections in accordance with state and
local codes. A standard electrical supply (115V AC 60 Hz), properly grounded in accordance
with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The fuse (or circuit breaker) size should be 10 amps or higher.
It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
Although the unit has been tested at the factory, due to transit and storage, you should clean
the appliance before use.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than residential purposes.
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which
is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it
increase the greenhouse effect. Care must be taken during transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may
damage the eyes.
In the event of any damage:
- Avoid open flames and anything that creates a spark,
- Disconnect from the electrical power line,
- Air the room in which the appliance is located for several minutes, and
- Contact the Service Department for advice.
